Page 1
HPH-860
AGILE PROCESSOR
1
Page 2

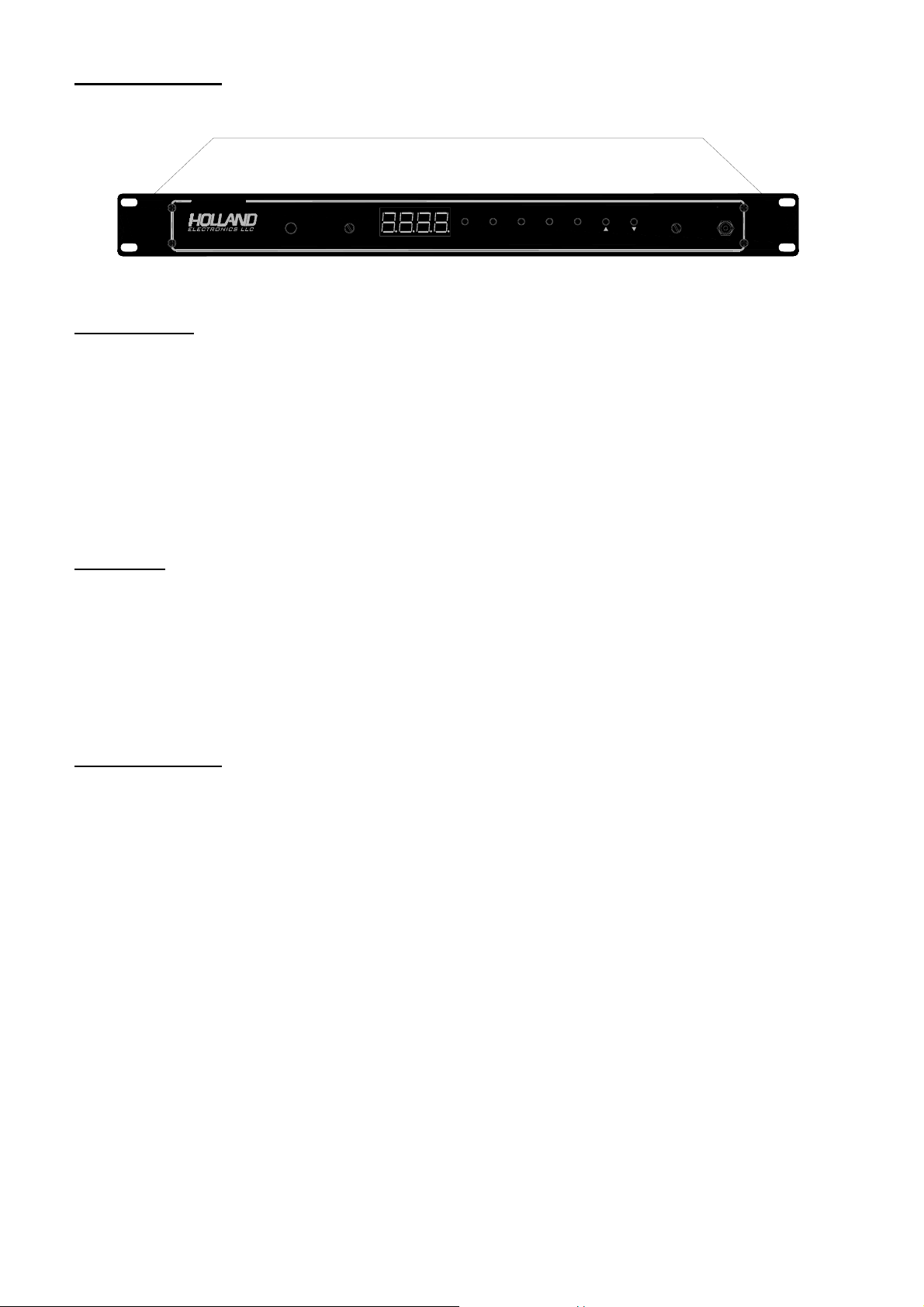

Specifications
AGILE PROCESSOR
MODEL HPH-860
POWER
AURAL
CARRIER
CHANNEL
CH.TYPESTOREIN/OUT F+ F-
Description
The HPH-860 is a frequency agile, microprocessor
controlled, heterodyne signal processor which uses
the latest low noise, PLL, SAW filter and AGC
techniques to provide superior quality and
performance at an attractive low price. The HPH-860
has been specifically designed to produce the highest
quality pictures at extremely low inputs while
circuit. High input capability and SAW filtering p rovide
the unit with the ability to process a single cable
channel even in the presence of adjacent channels.
High frequency and extremely high accuracy Phase
Locked Loop oscillators allow the unit to meet the
frequency offset and stability requirements of FCC
Docket 21006.
maintaining stable output levels with its sync tip AGC
Features
• Microprocessor controlled
• High output : 60 dBmV, 57 dBmV minimum
• SAW filtered
• Spurious out puts down >-60 dB
• Adjacent channel rejection of -60 dB
• Superior low noise circuitry
• Sync tip AGC for precise signal requlation
• BTSC stereo compatible
• 45.75 MHz IF loop-thru
• Output capability to 860 MHz
• Five year limited warranty
Specifications
Input Frequency Range: 54 to 806 MHz
Input Channels: CATV channels 2 to 125
Off-air channels 2 to 69
Output Frequency Range: 54 to 860 MHz
Output Channels:
Output Level:
CATV channels 2 to 94, 95-99, 100-135
57 dBmV min.
Input Range: 0-30dBmV typ.
Output Level Adjust Range:
48 to 60 dBmV
Aural Carrier Adjust Range: 12 dB min.
Noise Figure: 8 dB VHF, 10 dB UHF Spurious Outputs:
In-band >-57 dB min, -60dB typ.
Fv–1.5 MHz >-50 dB
Out of Band > -57dB min, -60dB typ.
Video Flatness:
IF Output:
Controls:
Weight:
Size: 19˝ L × 1
Power Requirements:
.
30dB
TEST
OUTPUT
CHANNEL
SELECT
LEVEL
35 ± 2 dBmV @45.75 ±. .005 MHz
Aural Carrier and Output Level
POINT
90 - 260 VAC, 60 Hz
± 1.7 dB
7.9 lbs.
3
/4˝ H × 10˝ D
2
Page 3
Front & Rear Panels
AGILE PROCESSOR
1
MODEL HPH-860
POWER
2
AURAL
CARRIER
11 12 13 14 1 5 16 17 18
1. Power On LED:
Indicates power is on when lit.
2. Aural Adjust :
Use to set level of audio carrier (volume).
3. Channel Display :
Displays input and output channels, channel
mode, and fine tune frequency increments.
4. IN/OUT :
Toggles between the input and output
channels.
5. Store :
Press this button to store current programming
information in the non-volatile memory.
6. Channel Type :
Use to select standard, HRC, IRC or off-air
channels.
7. F+ / F :
Use these buttons to fine tune the frequency.
When either button is pressed, the frequency is
increased (F+) or decreased (F-) by 12.5 KHz
from the current frequency.
8. CH▲▼:
Use these buttons to select desired channel.
3
CHANNEL
4
6
5
7
IN/OUT CH.TYPESTORE F+ F-
9. Output Adjust :
Use to set level of RF output.
10. -30 dB Test Point :
Used to monitor input level.
11. RF Out :
Connect this port to distribution system.
12. IF In :
Input from I.F. scrambler or I.F. output.
13. IF Out :
To I.F. input or scrambling device.
14. Video In (Stand-by input) : (Option)
Connect to baseband video source for standby operation.
15. Audio In (Stand-by input) : (Option)
Connect to baseband audio source for standby operation.
16. RF In:
Connect RF source (antenna or cable) to this
port.
17. Convenience outlet :
Provides 90 ~ 260 Vac, 60Hz, 600W max.
supply.
18. Power Cord:
Standard three wire, U.S.A. type.
8
CHANNEL
SELECT
OUTPUT
LEVEL
10
9
30dB
TEST
POINT
3
Page 4

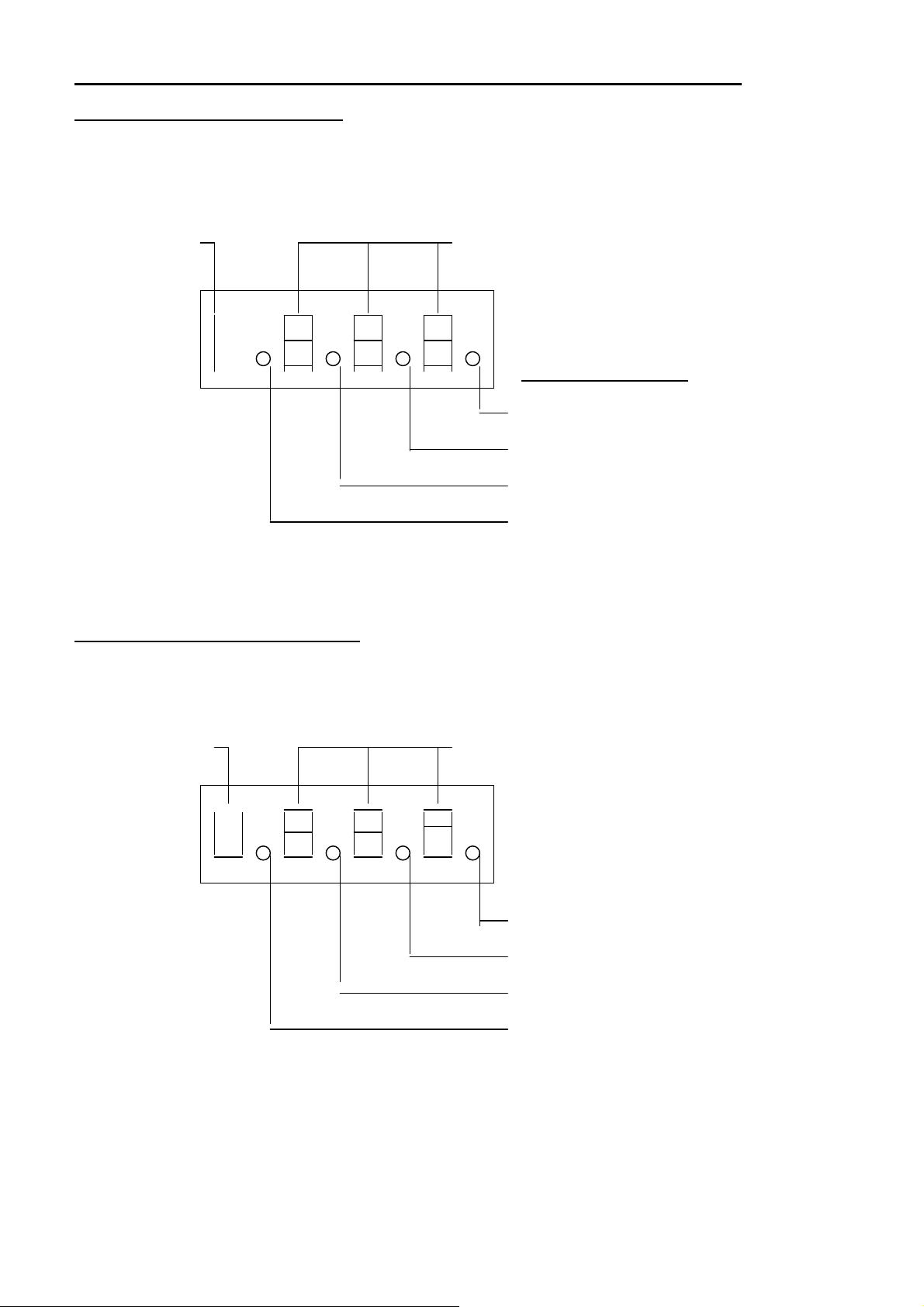

CHANNEL SELECTION AND TUNING………………………………….
INPUT CHANNEL MODE SELECTION
Press the IN/OUT button to select input channel.
Press until a “l”appears in the left hand side of the display.
Press the CHANNEL SELECT button to select the desired input channel.
INPUT SELECTED CHANNEL NUMBER
INPUT
STD CATV
HRC CATV
IRC CATV
VHF/UHF
Press the CHANNEL TYPE button until the desired input channel band is selected. Press the STORE button to
save the selected input channel to memory.
OUTPUT CHANNEL MODE SELECTION
Press the IN/OUT button to select the desired output channel. Press until a “U” is displayed on the far left side of
the display.
Press the CHANNEL SELECT BUTTON to select the desired output channel.
OUTPUT SELECTED CHANNEL NUMBER
OUTPUT
CHANNEL BAND TYPE
STD CATV
HRC CATV
IRC CATV
VHF/UHF
Press the CHANNEL TYPE button until the desired output channel band is selected as indicated with the
illuminated decimal points on the display**. Press the STORE button to save the selected output channel in
memory.
** Press the F+ or F- buttons to program the unit for a 12.5 KHz offset on STD CATV channels 14-16, 25-
41, 43-53 and the 25 KHz offset for STD CATV channels 42, 98 and 99 as specified by the FCC for these
aeronautical channels.
F+ and F- are in 12.5 KHz increments.
CHANNEL BAND TYPE
4
Page 5
Installation Procedure
1. Connect the I.F. jumper from the I.F. output to the
I.F. input on the HPH-860 rear panel.
2. Insert power plug into a surge protected 90 - 260
VAC outlet. Observe the lit POWER LED light
indicating power is on.
3. Connect a spectrum analyzer or field strength
meter to the processor RF OUT port.
4. Connect RF signal source to RF IN port. Signal
level should be ~5 – 25 dBmV.
5. Set the HPH-860 desired input channel Mode and
Number. (see page 4)
6. Set the HPH-860 desired output channel Mode
and Number. (see page 4)
7. Turn the OUTPUT LEVEL adjustment on the front
panel of the processor to get the desired output
level.
8. Turn the AURAL CARRIER adjustment to set the
audio carrier 12 - 17 dB below the video carrier.
9. Remove the analyzer or field strength meter from
the processor RF OUT port.
10. Connect the processor RF OUT port to a
television/monitor. (Make sure to use the proper
size attenuator between the processor and the
television/monitor in order to avoid overdriving the
television/monitor.)
11. Verify that the television/monitor picture is of good
quality for viewing.
12. Remove the television/monitor and attenuator
from the processor RF OUT port.
13. Connect the processor RF OUT port to the RF
input of the head-end system.
5
Page 6
IMPORTANT!!
WARNING: Holland Electronics does NOT represent this product to be WATERPROOFED. To reduce risk of
electrical shock, fire hazard, or damage to the unit, do not expose to rain or moisture.
CAUTION: To prevent electric shock, do not use this plug with an extension cord, receptacle or other outlet
unless the blades can be fully inserted to prevent blade exposure.
NOTE TO INSTALLER: This reminder calls the system installer’s attention to Article 820-22 of the NEC that
provides guidelines for proper grounding and, in particular, specifies that the cabl e gr ound shall be connected to
the grounding system of the building, as close to the point of cable entry as practical.
WARNING:
TO PREVENT FIRE OR ELECTRICAL SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE
HOLLAND ELECTRONICS LLC
LIMITED WARRANTY
Holland ELECTRONICS LLC, warrants that the product enclosed with this Limited Warranty statement will
conform to the manufacturer’s specifications and be free of defects in the workmanship and material for a period
of five years (5) from the date of original purchase.
WARRANTY PROCEDURE:
If the product appears to be defective contact Holland Electronics LLC at (805) 339-9060. We will anal yze the
problem and offer solutions to prevent removing the unit from service. If the unit is to be returned for evaluation,
you will be issued a Return Material Authorization (RMA) number.
Holland Electronics LLC will, at its option, repair or replace the defective unit, under warranty, without charge for
parts or labor. This repair will be subject to charges if signs of tampering or misuse are detected. Incoming
shipping costs will be the customer’s responsibility. Returns will not be accepted without an RMA number.
The warranty and remedy provided above are exc lusive and in lieu of all other express warranties and unless
stated herein, any statements or representations made by any other person or firm are void. The duration of any
implied warranties of merchantability or fitness for a particular purpose on this product shall be limited to the
duration of the express warranty set fourth above. Except as provided in this written warranty, Holland Electronics
LLC shall not be liable for any loss, inconvenience, or damage, including direct, special, incidental, or
consequential damages, resulting from the use or inability to use this product, whether resulting from breach of
warranty or any other legal theory.
Some states do not allow limitations on how long an implied warranty la sts and some states do not allow the
exclusion or limitation of incidental or consequential damages, so the above limitation and exclusion may not
apply to you.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
To arrange for Warranty Service: Call Holland Electronics LLC (805) 339-9060
6
