HDTV-ST2
User Manual
37 pgs2.92 Mb0

Holland Electronics HDTV-ST2 User Manual

OPERATION MANUAL
Frequency Agile Digital Demodulator
[Off-Air Digital Receiver]
MODEL HDTV-ST2
Safety Instructions
WARNING!
RISK OF ELECTRICAL
SHOCK
DO NOT OPEN
WARNING:
TO REDUCE THE RISK OF ELECTRICAL
SHOCK
DO NOT REMOVE THE COVER
NO USER-SERVICEABLE PARTS ARE INSIDE
REFER SERVICING TO QUALIFIED
PERSONNEL The lightning symbol in the triangle is used to alert you to the presence of dangerous voltage inside the receiver that may be sufficient to constitute a risk of electric shock to anyone opening the case. It is also used to indicate improper installation or handling of the receiver that could damage the electrical system in the receiver or in other equipment attached to the receiver.
The exclamation point in the triangle is used to alert you to important operating and maintenance instructions. Failure to follow these instructions could result in injury to you or damage to the receiver.
Be careful with electricity:
z Power outlet: To prevent electric shock, be sure the electrical plug used on the receiver’s power
cord matches the electrical outlet used to supply power to the receiver. Only connect the power cord to a 120VAC, 60Hz power source.
z Power cord: Be sure the power cord is routed so that it will not be stepped on or pinched by heavy
items.
z Power overloading: Avoid overloading electrical outlets or extension cords which otherwise could
result in electric shock or fire.
z Lightning: For protection from lightning or when the receiver is left unattended for a long period,
disconnect it from the power source.
z Protect other equipment: Unplug the receiver before connecting any other equipment, especially
the TV antenna. Connect all equipment to the receiver before plugging in any power cords to the power source.
z Power line: Be sure your TV antenna is not located near overhead power lines, or where it might fall
into any power lines. Also be careful to avoid touching any such power lines when installing the TV antenna.
z Antenna Grounding: Be sure that the antenna is grounded to provide protection from lightning and
build-up of static electricity.
1
Also follow these precautions:
z Ventilation: Do not block the ventilation slots on the receiver or place any heavy object on top of it.
Blocking the air flow could damage the receiver. Arrange components so that air can flow freely around the receiver. Ensure that there is adequate ventilation if the receiver is placed in a stand. Put the receiver in a properly ventilated area, away from direct sunlight or any source of heat.
z Overheating: Avoid stacking the receiver on top of a hot component such as a power amplifier. z Risk of Fire: Do not place the receiver on top of any easily combustible material, such as carpet or
fabric.
z Proper Connections: Be sure all cables and equipment are connected to the receiver as described
in this manual.
z Object Entry: To avoid electric shock, never stick anything in the slots on the case or remove the
cover.
z Water Exposure: To reduce the risk of fire or electric shock, do not expose the receiver to rain or
moisture.
z Keep the tuner out of the reach of children or it may fall, causing injury or damage to the
tuner.
z Always disconnect the power cord from the power outlet when you are not using the tuner.
This reduces your risk of electric shocks or fire.
z Always turn off the tuner, disconnect it from the power outlet, and unplug all other cables
from before moving the tuner. This reduces your risk of electric shocks or fire.
 EMI (Electro Magnetic Interference) tested
2
Table Of Contents
SAFETY INSTRUCTIONS ......................................................................................................... .................................1
TABLE OF CONTENTS ........................................... ...................................................... .............................................3
INTRODUCTION................................................................................................................................. ..........................5
RECEIVER FUNCTIONS .................................................................................................................................................. 5
S
UMMARY OF FEATURES .............................................................................................................................................. 5
SETTING UP THE RECEPTION SYSTEM....................................................................................................... .......7
PACKAGE CONTENTS .................................................................................................................................................... 7
F
RONT PANEL BUTTONS AND LEDS .............................................................................................................................8
REAR PANEL JACKS ...................................................................................................................................................... 9
HDTV-ST2 INSTALLATION................... ...................................................... .............................................................10
CONNECTING AN ANTENNA ........................................................................................................................................10
TV
CONNECTION – ANALOG TV ................................................................................................................................ 11
TV
CONNECTION – HDTV TV OR MONITOR (Y/PB/PR)............................................................................................ 12

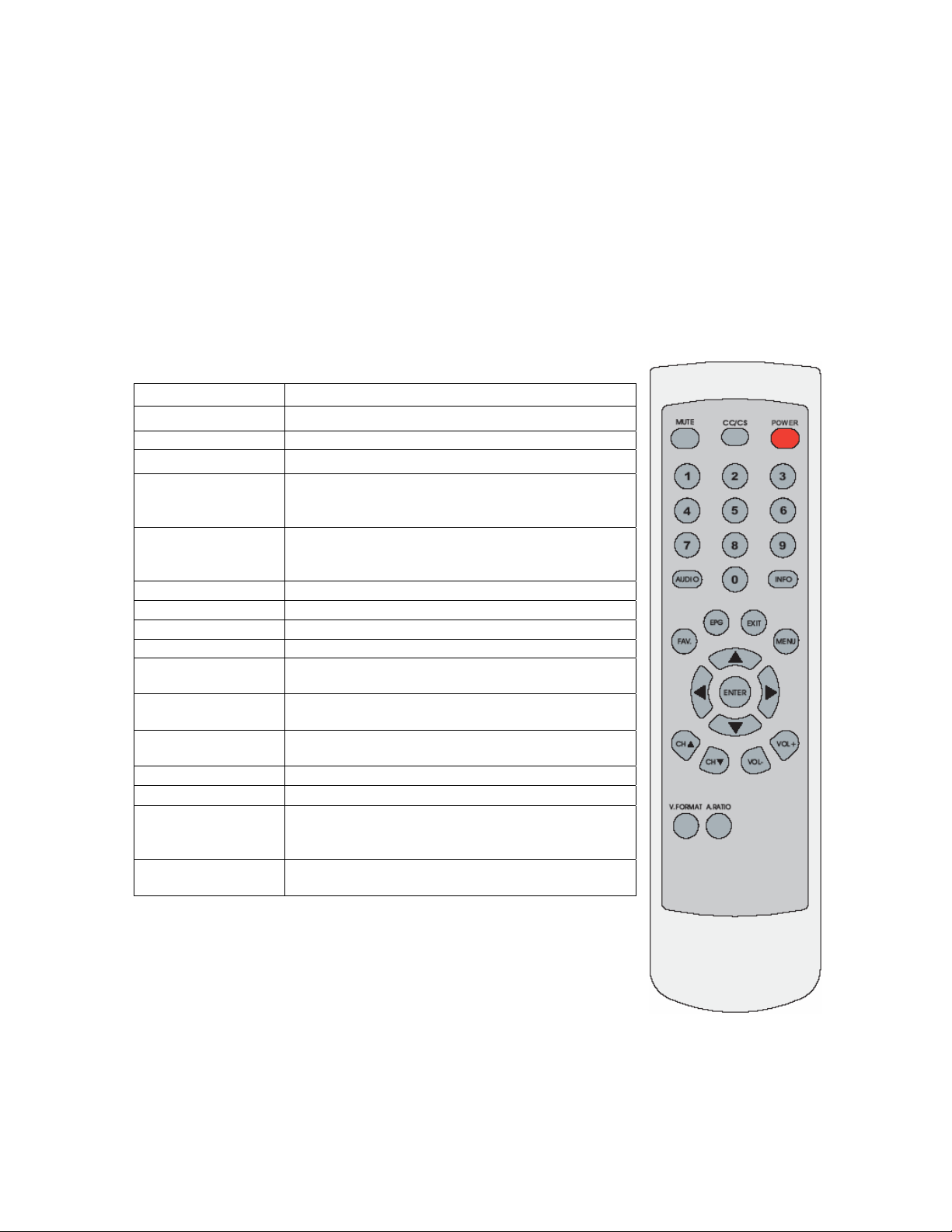

USING THE REMOTE CONTROL..........................................................................................................................13
BAT T ER Y INSTALLATION .............................................................................................................................................13
MENU
MAP ...............................................................................................................................................................14

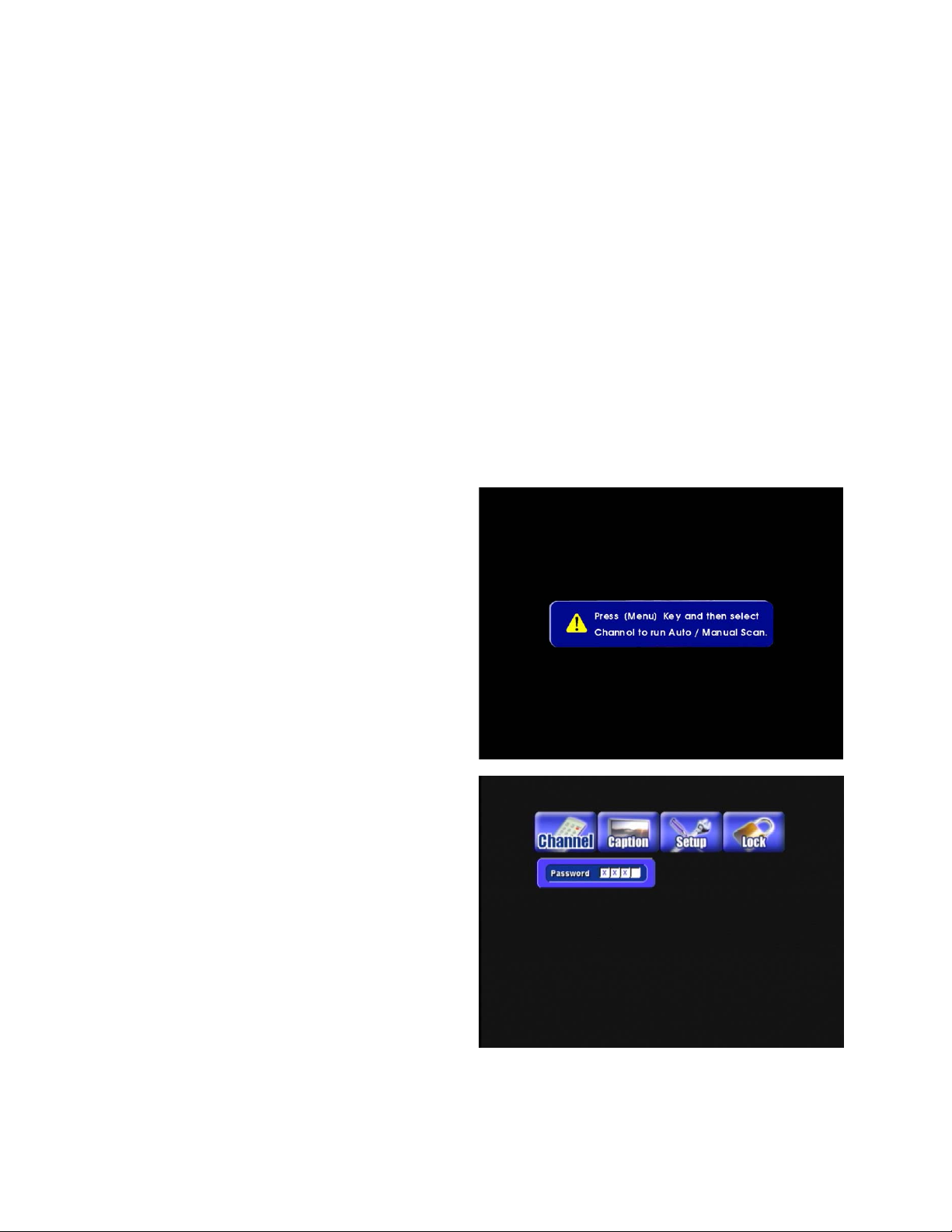

SETTING UP THE HDTV-ST2 RECEIVER.................................................................................. ..........................16

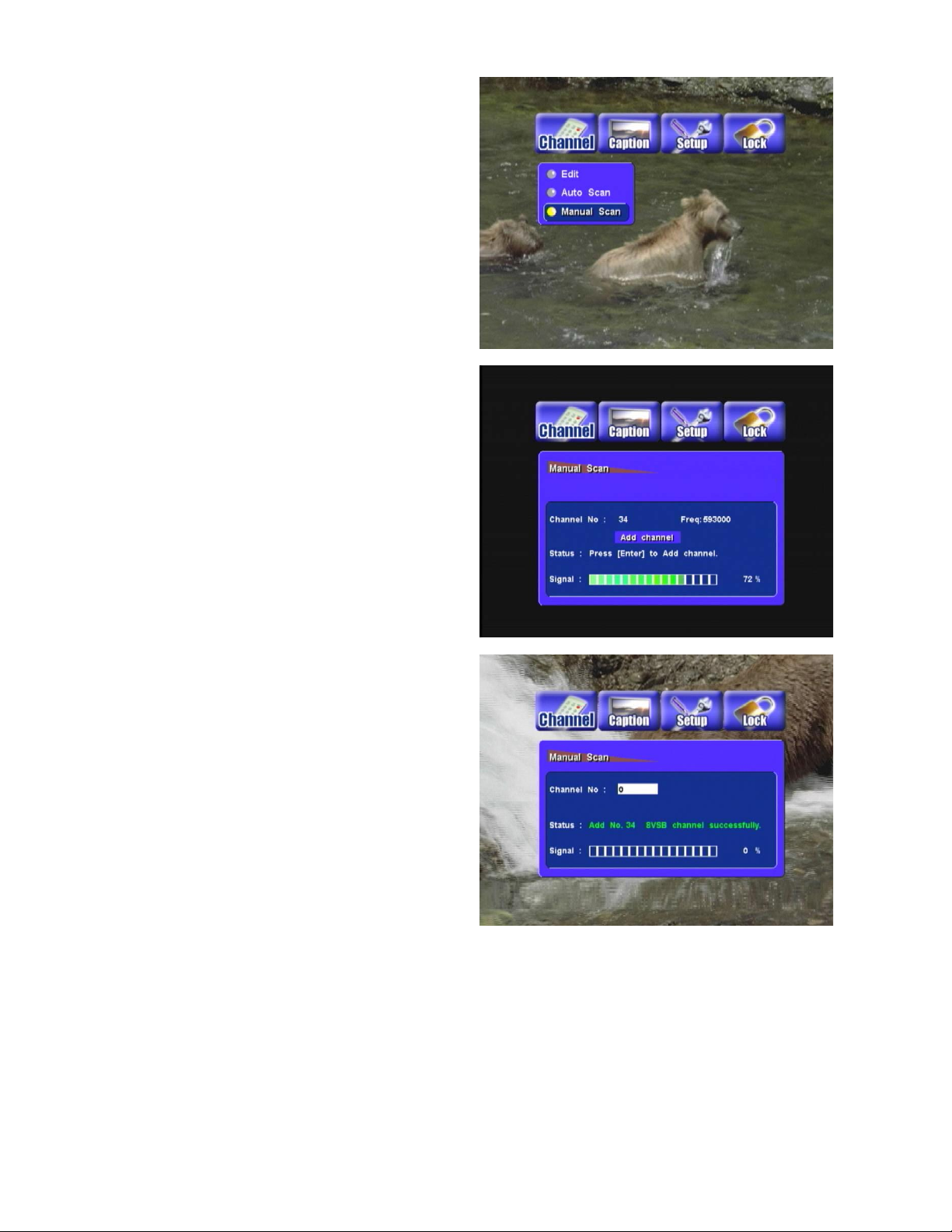

CHANNEL .................................................................................................................................................................... 16

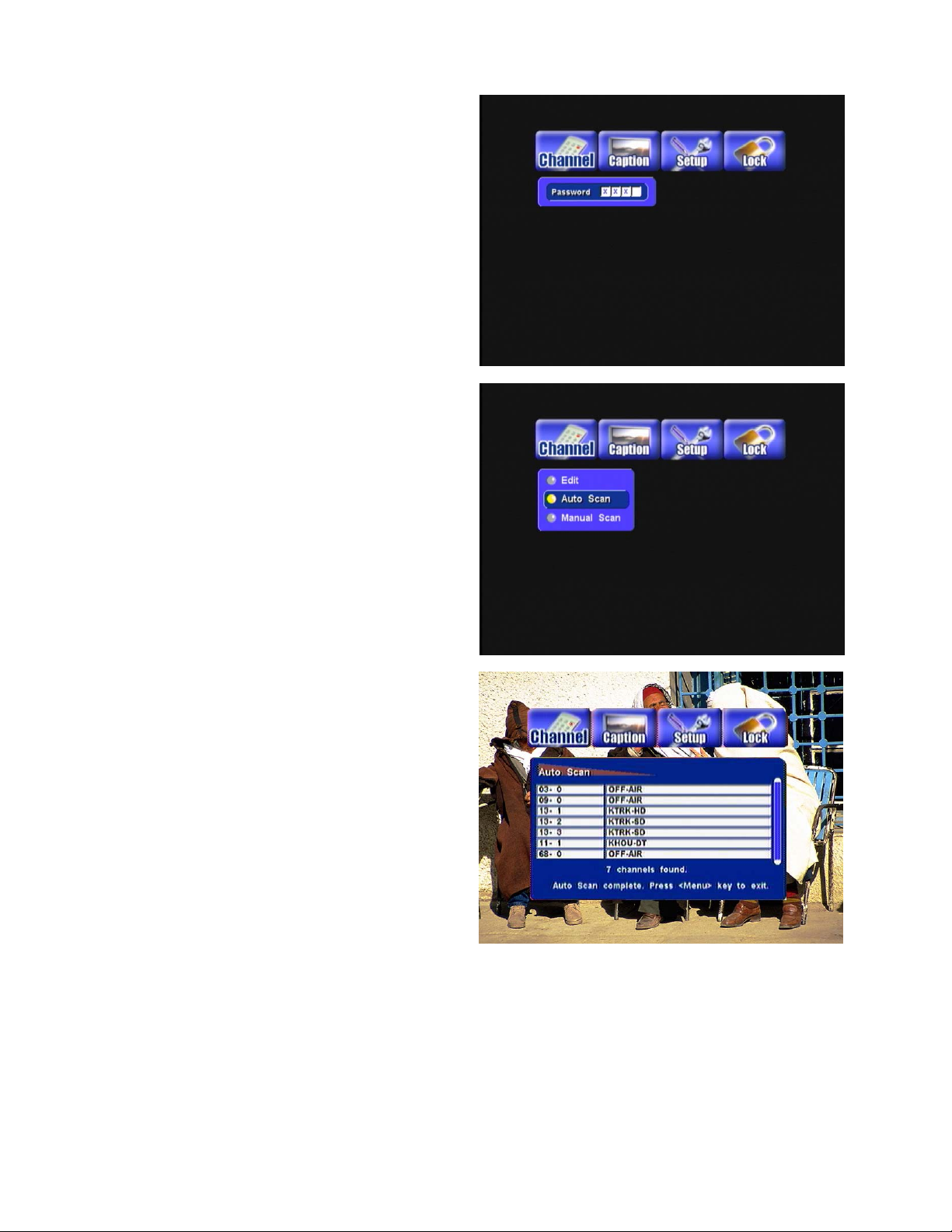

Auto Scan .................... ................................................................................ ...........................................................17
Memorize Channel Manually .................... .. ..... .. .. ... .. ..... .. .. ... ..... .. .. ... .... ... .. .. ... .... ... .. .. ..... .. ... .. ... ............................18

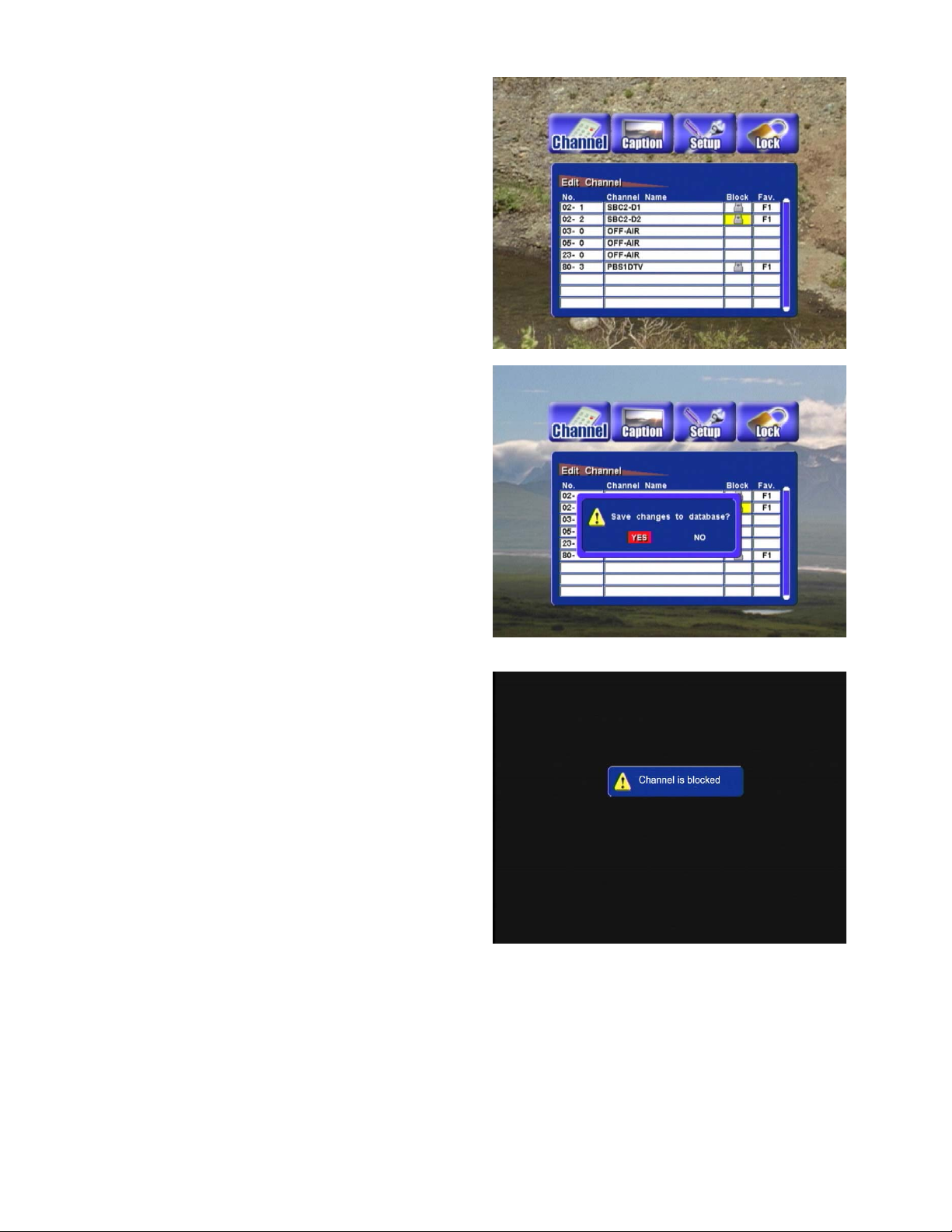

Edit Channel ......................... .... ... .. .. ... .... ... .. .. ..... ... .. .. ..... .. ... .. ..... .. .. ... .... ... .. .. ..... .. ... .. ..... . .......................................19

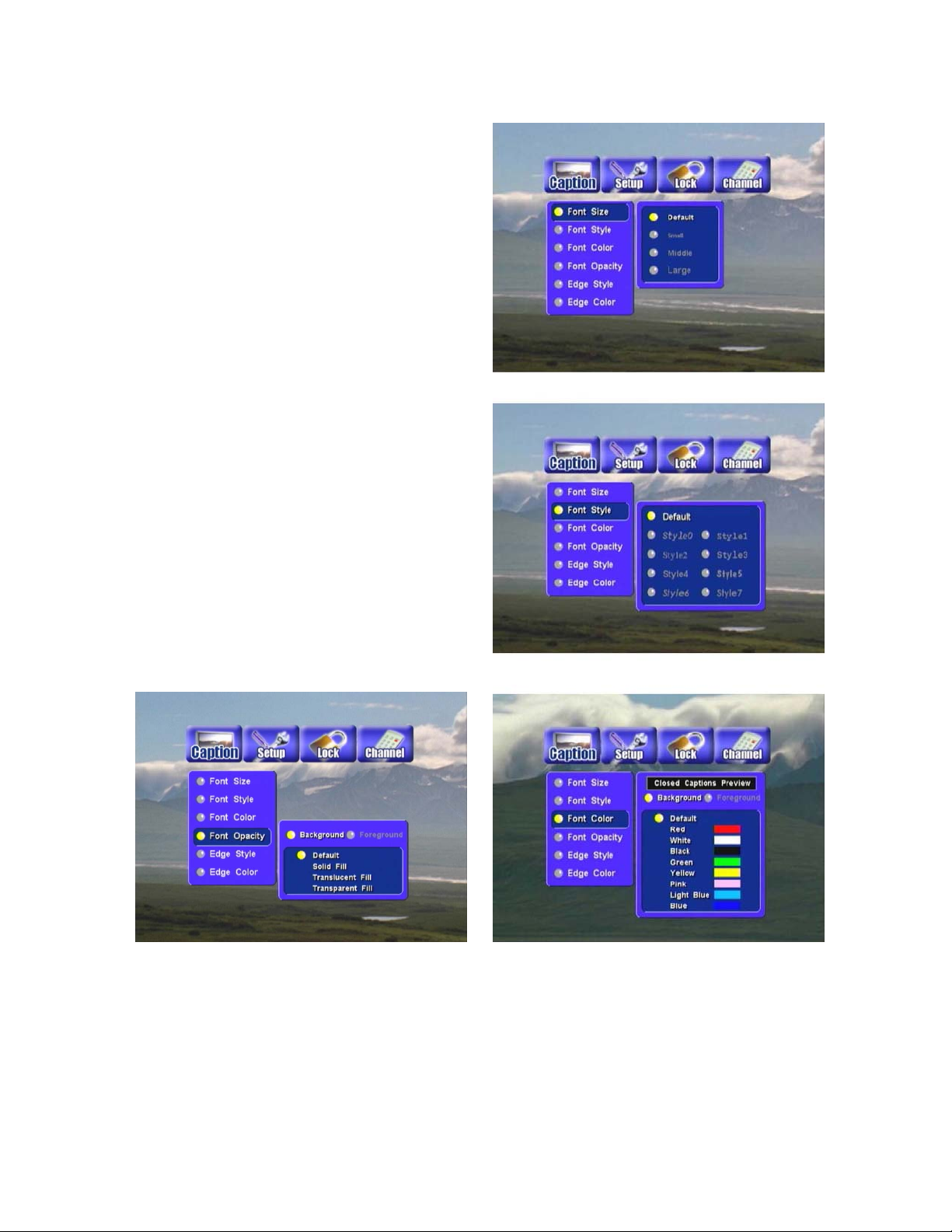

CAPTION (CLOSED-CAPTION OPTIONS) .....................................................................................................................20
SETUP..........................................................................................................................................................................22

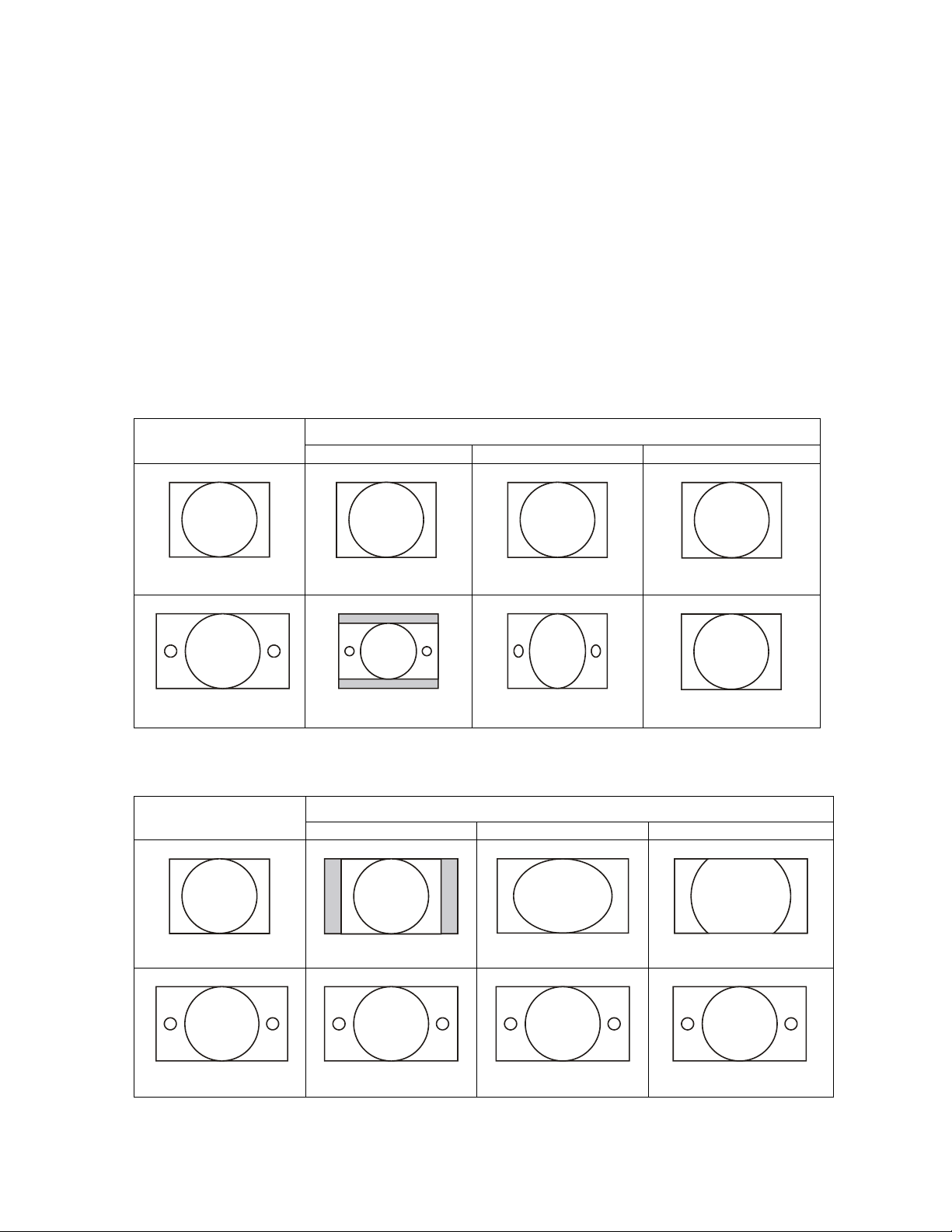

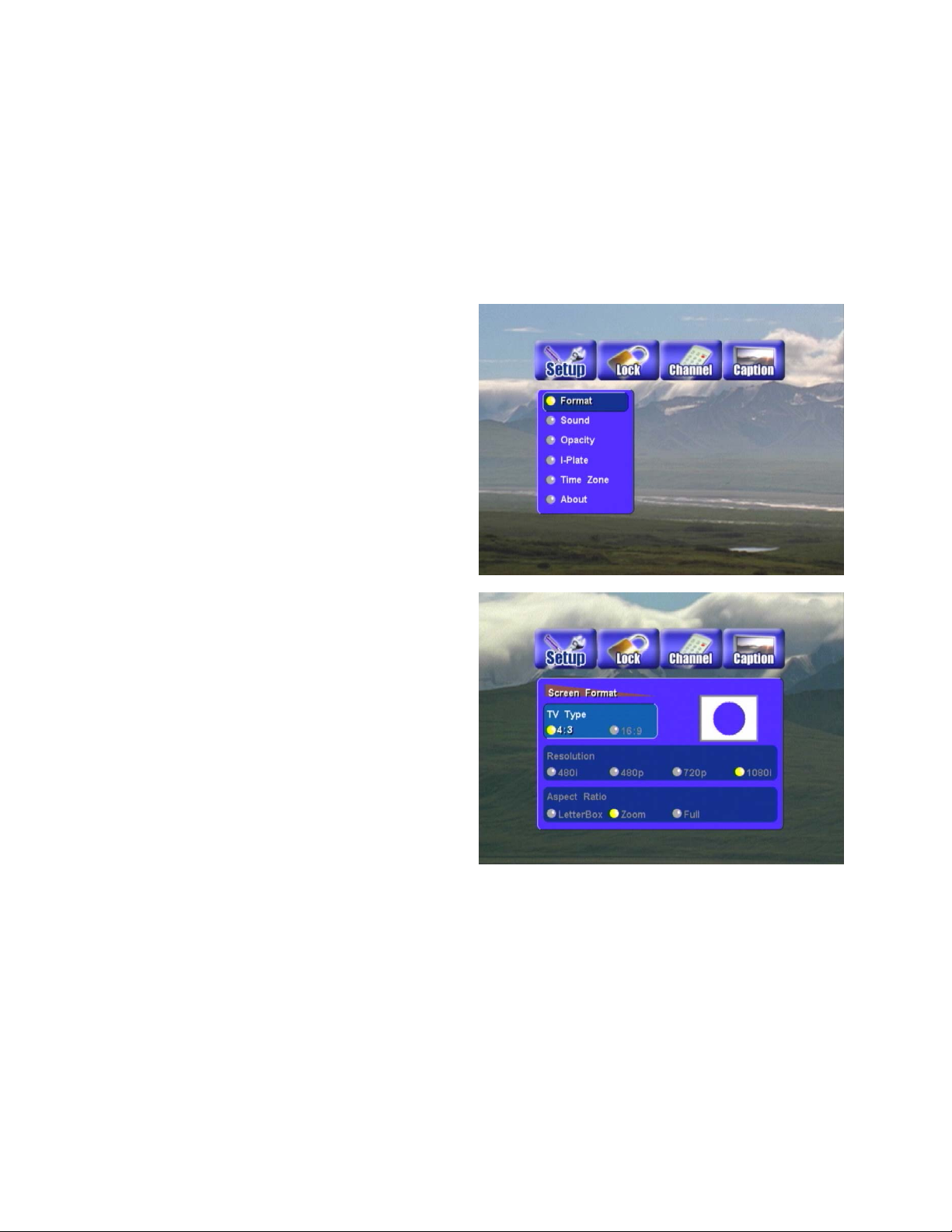

Format (Screen Format Setup)............................................ ....................................................... ........................ ...22
Aspect Ratio.................. ... .. ..... .. ... .. ..... .. .. ... .... ... .. .. ..... .. ... .... ... .. ... .... ... .. .. ..... .. ... .. ..... .. .. ...........................................23
Sound (Digital Audio Ou tput Setting)................................................................................................ ...................24
Opacity (Changing Transparency of On-Screen- D ispl ay)................................................................. ...................24
I-Plate (Changing Display time of the information-Plate)...................................................................................24
Time Zone..................................... .. .. ... .... ... .. .. ..... ... .. .. ..... .. ... .... ... .. .. ..... .. ... .. ..... .. .. ... ..... .. ........................................25
About (Receiver Information)......................................................................................................................... ....... 25
3
OCK........................................................................................................................................................................... 26
L
Rating (Lock Programs Using the USTV(FCC) or MPAA)............... ... .. .. ... .... ... .. ... .. .. ..... .. ... .. .. ... .. ..... .. .. ... .. .....26
Important information About “Parental Rating”............................................... ... .. .. ... .... ... .. ... .. .. ..... .. .. . ..............27

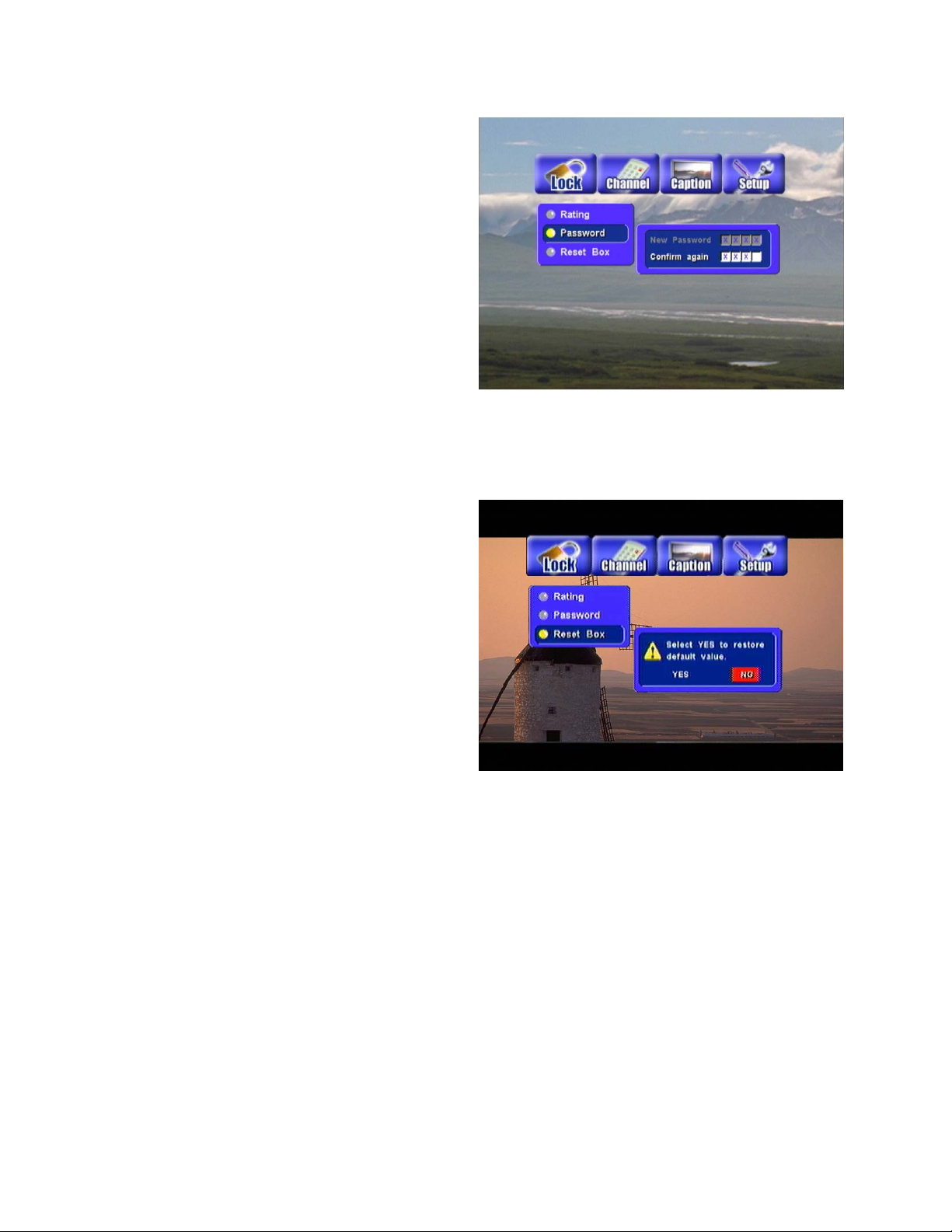

Change Password............................................................................................................................. .....................28
Reset Box................................................. ... .. .. ..... .. ... .. ..... .. .. ..... ... .. .. ..... .. ... .. ..... .. .. ... .... ...........................................28

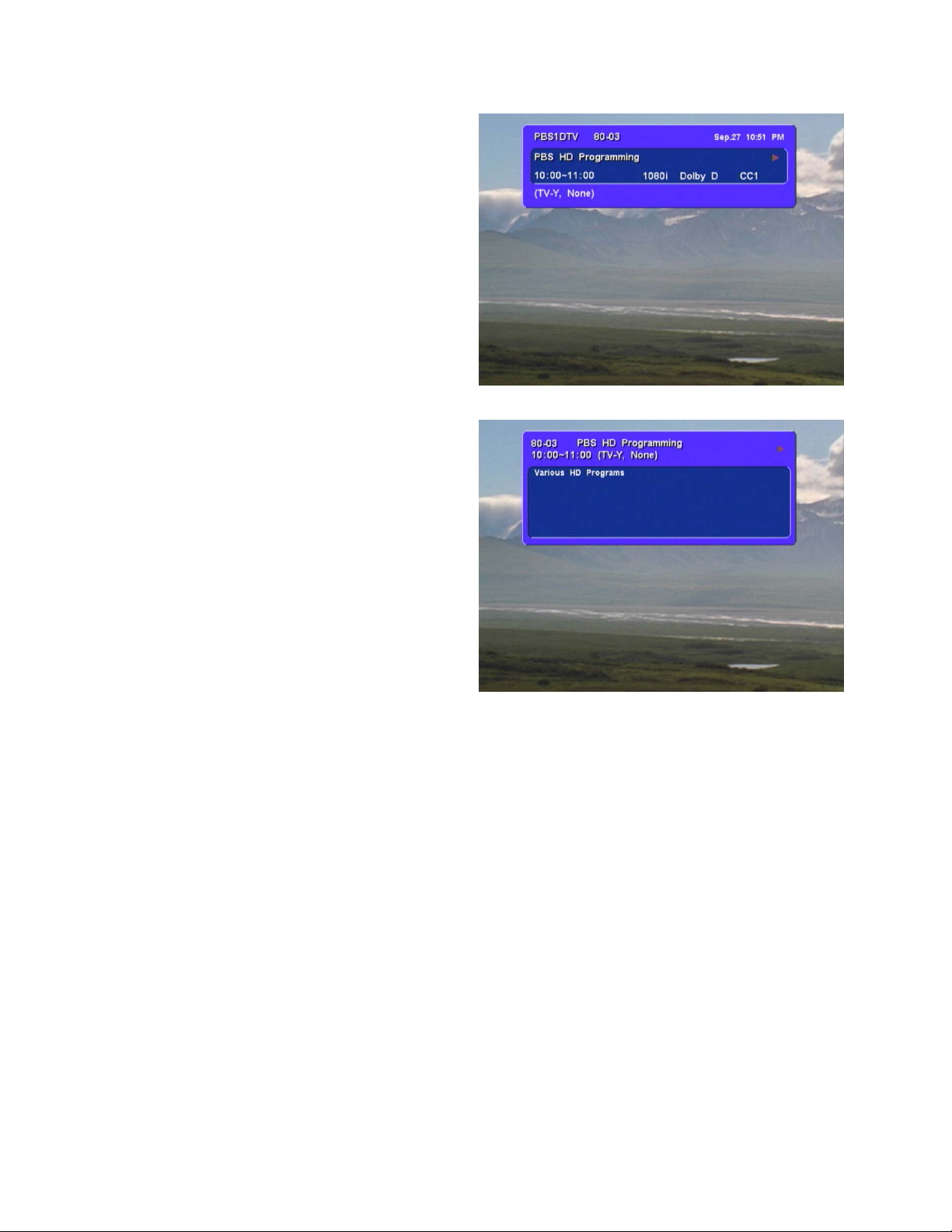

INFO (INFORMATION-PLATE).....................................................................................................................................29
A

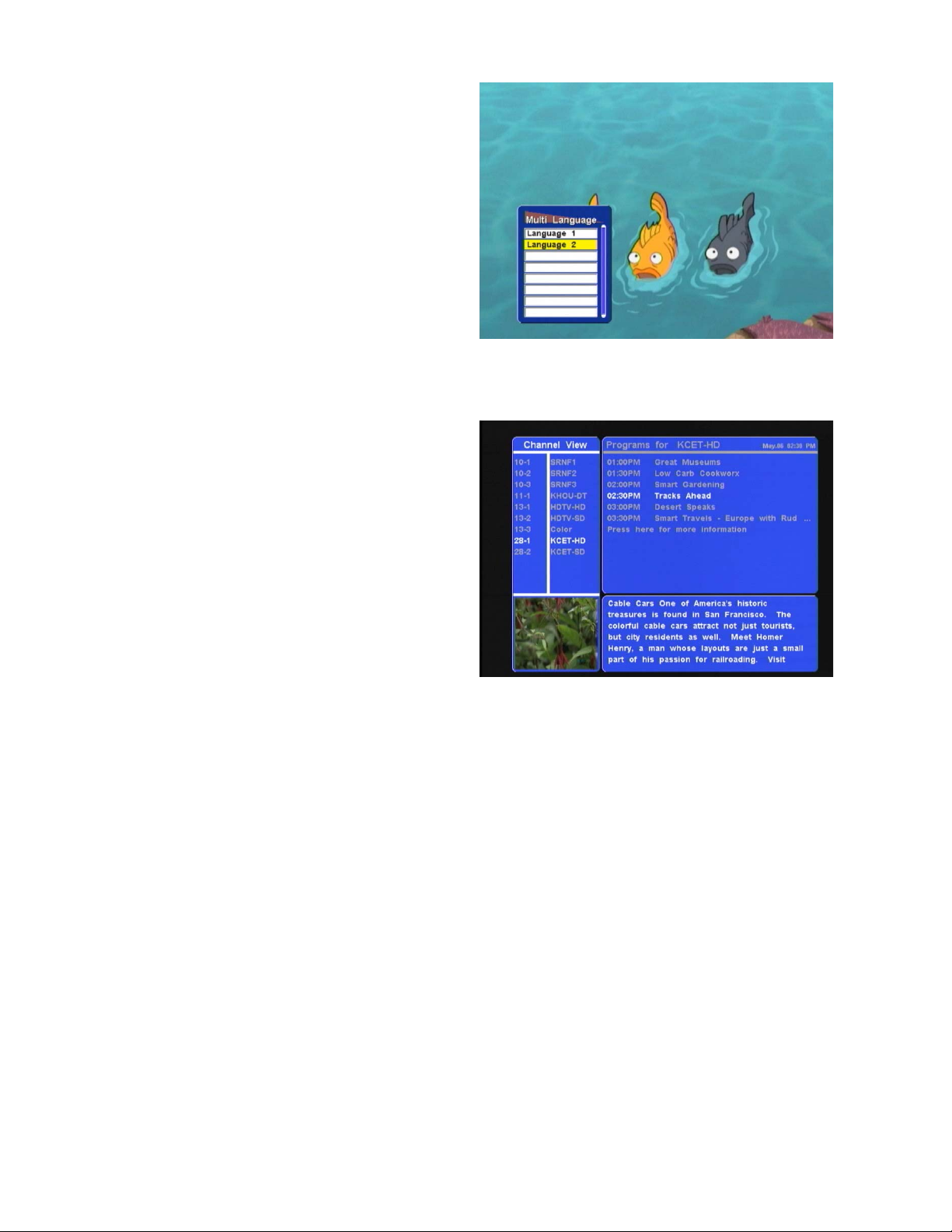

UDIO(SELECT A MULTI-LANGUAGE WHEN RECEIVING DTV PROGRAM)................................................................30
EPG (ELECTRIC PROGRAM GUIDE)............................................................................................................................30
CLOSED CAPTION..................................................................................................................................................31
FAVORIT E CHANNEL LIST ................................................................................................................................... 31
PRESS NUMERIC KEY TO SELECT DIGITAL CHANNEL ................................................................................................31
APPENDIX 1 DTV CHANNEL TABLE INFORMATION.................................................................................32
APPENDIX 2 TROUBLESHOOTING ............................................................................ ....................................33
APPENDIX 3 GLOSSARY.................................................................................................................. .................35

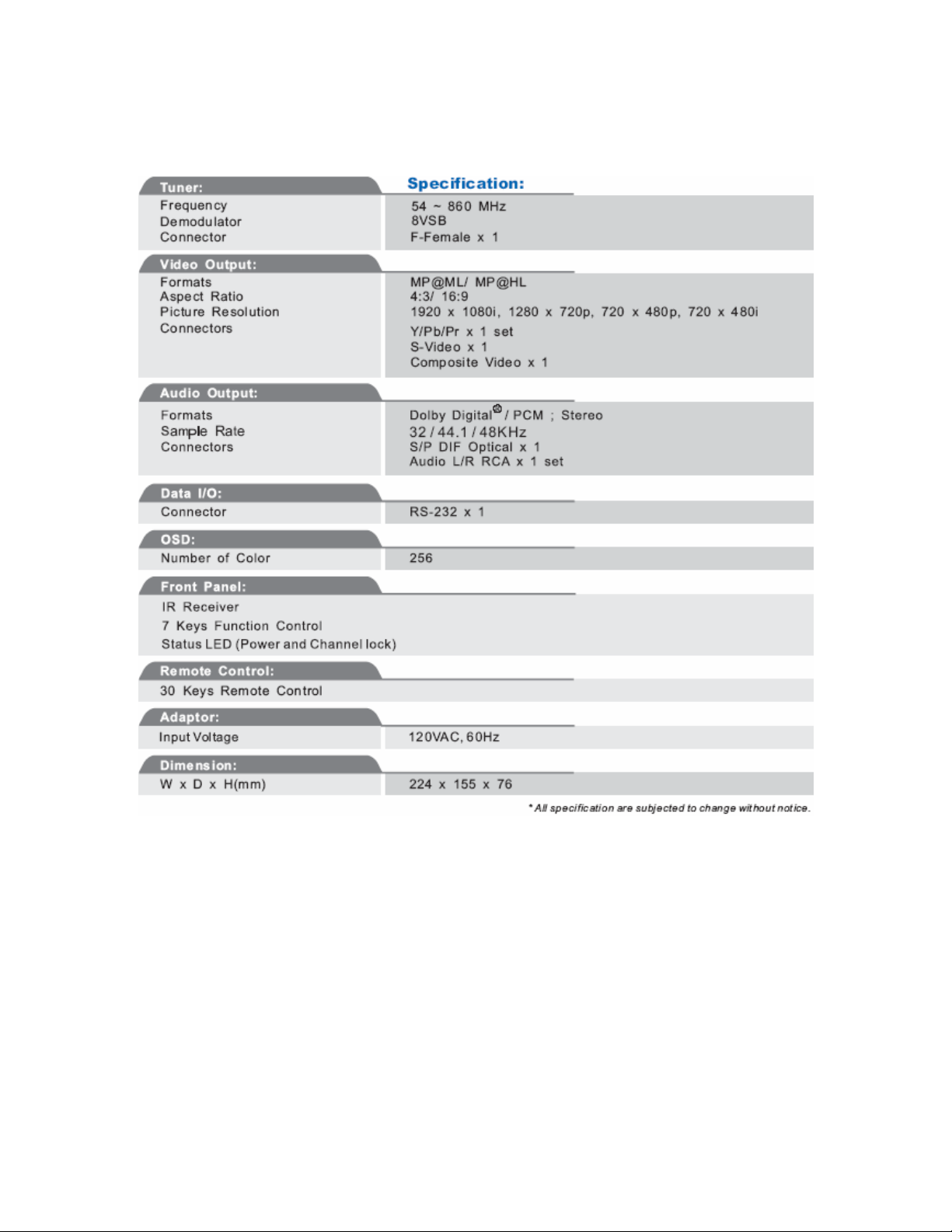

APENDIX 4 TECHNICAL SPECIFICATIONS ...............................................................................................36
4
Introduction
A Brief Look at Broadcast and Digital Television
Broadcast television is a traditional way of watching TV programs simply by installing an antenna. This is called analog TV.
In recent years, many countries have begun to mandate a transition from analog to digital television. Digital TV provides noise-free, High Definition picture quality, Dolby AC-3 sound effects, and a handy EPG (electronic program guide). And the 16:9 video format gives a wider view than the traditional 4:3 format. Many TV broadcasters are now delivering digital TV programs, so switching to a digital HDTV receiver now makes good sense.
Digital TV programs are broadcast on VHF and UHF bands. Traditional analog TV uses one frequency channel to carry a single station's program. With digital TV, one frequency channel can carry up to four station programs. For example, analog channel CBS 2 may have become 2-1, 2-2, etc. when broadcast in digital TV. Channel 2 is the major channel and channel -1, -2, etc. are sub-channels.
Digital TV signals are transmitted in either free-to-air (FTA) or pay-per-view (PPV) mode. FTA programs are received free with an MPEG 2-ATSC compliant digital receiver, such as the HDTV-ST2. PPV programs can be received only by paying an access fee to the broadcaster and by using a digital receiver incorporating a compatible conditional access system. In addition, the HDTV-ST2 lets you watch HDTV, EDTV, and SDTV digital TV programs.
*HDTV stands for High Definition Television; the common video formats are “1920 x 1080 interlaced” and
“1280 x 720 progressive”.
*EDTV stands for Enhanced Definition Television; the common video format is “720 x 480 progressive”.
*SDTV stands for Standard Definition Television; the common video format is “720 x 480 interlaced”.
Receiver Functions
The HDTV-ST2 Digital HDTV Receiver can receive channels from VHF and UHF band TV signals. All the major free-to-air station numbers currently available in your area are listed in the on-screen menu. To watch the channel, simply select the channel number.
The receiver is fully ATSC / MPEG-2 (digital video broadcast) compliant, delivering High Definition crystal-clear video and Dolby AC-3 sound. It supports a radio signal range from 50-860 MHz, so all the channels within the VHF and UHF bands can be easily programmed. It can receive major and sub-channels containing both video and audio programs.
The receiver can receive hundreds of channels simply by selecting alternate TV channel frequencies in your area. To find out the specific digital TV services available to you, please contact your local service provider or log onto the website “http://www.antennaweb.org”. With the wide range of features and HDTV programs open up to you by the HDTV-ST2 receiver, you'll be ready for a new era in home theater entertainment.
Summary Of Features
The receiver supports digital functions that are fully ATSC / MPEG-2 compliant and can store up to 2,500 digital channels. It can also receive free-to-air digital TV programs transmitted from all the available VHF and UHF Band signals in your area. Follow the on-screen display (OSD) to guide you through the steps necessary to configure your receiver. Then begin enjoying all the video and audio channels with crisp picture quality and the crystal clear sound.
5
The key features of the HDTV-ST2 Receiver are described below.
Front Panel The front panel of the receiver includes important LED indicators, channel/volume
control buttons, and menu access buttons for digital TV programs. You can operate the receiver directly using these buttons on the front panel.
Remote Control The remote control provides access to the full range of system features. In addition
to providing access to TV programs with channel and volume controls, it can be used to operate all the system menus. You must use the remote control to configure the channel settings, select the channels you want to include in the program list and access many other configuration options.
System Menus All the receiver’s features can be accessed through the system menus by simply
pointing and clicking. You can navigate through all the options in the menu and press "Select" button on the remote control or "Enter" button on the front panel. The menu includes items such as Channel Configuration, Channel List, Electronic Program Guide, Audio Options, and Parental Lock.
Audio Options The receiver includes standard audio options such as stereo or mono sound to
match the broadcast signal or your home entertainment stereo system. Other audio options, such as selecting languages, or different commentators for sports events, may be supported by your service provider or TV broadcaster.
Parental Locks Access to certain channels with content that might not be suitable for younger
viewers can be controlled by password. Program ratings are shown on the I-Plate, which can be activated by pressing “Info” key on the remote control. By pressing “Info” twice, you can access the extended program information for the current channel.
6
Setting Up the Reception System
If your service provider or system installer has already set up the TV antenna and connected it to the receiver, then you may want to skip this section. However, if you are setting up the system by yourself, please read this section and follow all the precautions listed under “Important Safety Instructions" on page 1.
Note: Installation procedures for a TV antenna and related equipments are not covered in this manual.
Package Contents
Unpack the receiver and verify that all of the following items are included. Remember to keep the packaging in case you need to return the receiver for repair or upgrade. Examine all the items to ensure that nothing has been damaged during shipment. If any of the items is damaged, please contact your service provider or local distributor before continuing with installation.
z HDTV-ST2 HDTV Receiver z Remote Control (with 2 AAA batteries) z Component Video cable (Y/Pb/Pr) z Audio/Video cable with RCA jacks z S-Video Cable z Adapter z This user’s manual
Description of Equipment
The HDTV-ST2 digital receiver is designed to receive free-to-air TV access programs from VHF and UHF band TV channels. The receiver can be operated via the remote control or directly from the front panel as indicated in the following pages. The receiver also provides a wide variety of connection options for your TV and other home entertainment equipments: Component Video Y/Pb/Pr, Composite Video (RCA), S-Video, Audio L/R (RCA), Fiber Optical S/P DIF.
7
Front Panel Buttons and LEDs
Power
Press to turn the Receiver ON or OFF.
NOTE: If a loss of AC power occurs while the receiver is turned on then the receiver will automatically turn
on and resume service on the same channel after power is restored.
Right arrow button
Move the cursor or field to the right. Select one channel higher by pressing this button.
Left arrow button
Move the cursor or field to the left.
Select one channel lower by pressing this button.
Up arrow button
Move the cursor or field upward. Increase volume by pressing this button.
Down arrow button
Move the cursor or field downward. Decrease volume by pressing this button.
Menu
Displays the main menu on the screen, and exits the menu
Select
It can select highlighted options or values in sub-menus.
LED Display
Two LED displays. One is for showing power on/off, the other one is for showing signal process status.
8
Rear Panel Jacks
RF In
Connect a UHF/VHF antenna for Digital-ATSC TV signal input.
Optical S/P DIF Out
Connect a fiber cable and a Dolby Digital channel audio.
S-Video Out
Connect the TV monitors S-Video input.
Composite Video Out
Connect the TV monitors Video input RCA jack.
Audio L/R Out
Connect the TV monitors Audio L / R input connector RCA jacks.
Y/Pb/Pr Out
Connect the HD or Wide-screen TV Monitors Y/Pb/Pr video inputs. Also move the Output to the Y/Pb/Pr setting.
Adapter
Connect the adapter to a power input source that is 12VAC, 60Hz.
RS-232
Contact with the PC for software upgrade.
®
compatible A/V Receiver (decoder/amplifier) for Dolby Digital 5.1
9
HDTV-ST2 Installation
There are many ways to connect the HDTV-ST2 Receiver to your home entertainment system. For the
best video/audio quality, use the higher quality Y/Pb/Pr or S-Video connections if they are available.
Always disconnect the receiver from the power source before connecting the cable to the UHF/VHF
antenna.
Before Connecting to other devices
When the receiver is connected to an antenna that has a signal amplifier and power supply, be
sure that the amplifier doesn't have any leakage problems before connecting the coaxial cable to the receiver.
Connecting an Antenna
10
Connect an antenna cable to the RF Input port using a coaxial RF cable.
TV Connection – Analog TV
1. Connect the Antenna or Cable to the Receiver RF Input port using a coaxial RF cable.
2. Connect the “VIDEO OUTPUT” and “AUDIO OUTPUT” to the “A/V IN” jack on your TV using RCA-type cables. You can also use a S-VIDEO cable to connect the Receiver “S-VIDEO OUT” port to your TV “S-VIDEO IN" port.
3. Connect the “Optical S/P DIF” port to your “Dolby Digital
using a fiber cable if you have a “Home Theater” audio system.
®
compatible A/V Receiver”
11
Loading...
