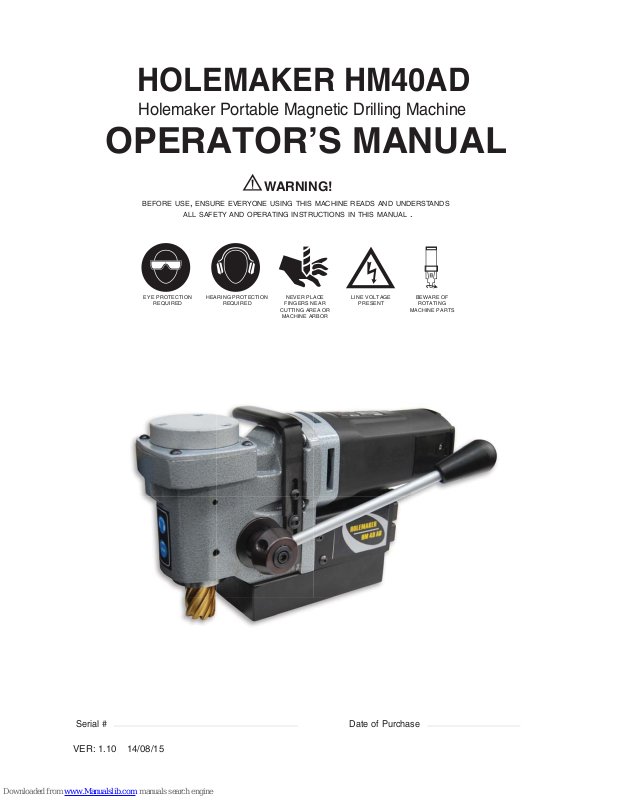

Page 1
Holemaker Portable Magnetic Drilling Machine
OPERATOR’S MANUAL
WARNING!
BEFORE USE, ENSURE EVERYONE USING THIS MACHINE READS AND UNDERSTANDS
ALL SAFETY AND OPERATING INSTRUCTIONS IN THIS MANUAL .
esahcruP fo etaD # laireS
HOLEMAKER HM40AD
BEWARE OF
ROTATING
MACHINE PARTS
LINE VOLTAGE
PRESENT
NEVER PLACE
FINGERS NEAR
CUTTING AREA OR
MACHINE ARBOR
HEARING PROTECTION
REQUIRED
EYE PROTECTION
REQUIRED
VER: 1.10 14/08/15
OPERATOR’S MANUAL
Page 2
Holemaker Portable Magnetic Drilling Machine
Congratulations on your purchase of a Holemaker portable magnetic drilling machine. Holemaker drilling machines
are designed to deliver fast, efficient hole drilling performance in portable applications.
TABLE OF CONTENTS
Important Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Grounding Instructions and Extension Cords . . . . . . . . . . . . . . . . . . . . . . . . .5
Special Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Contents of Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Basic Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

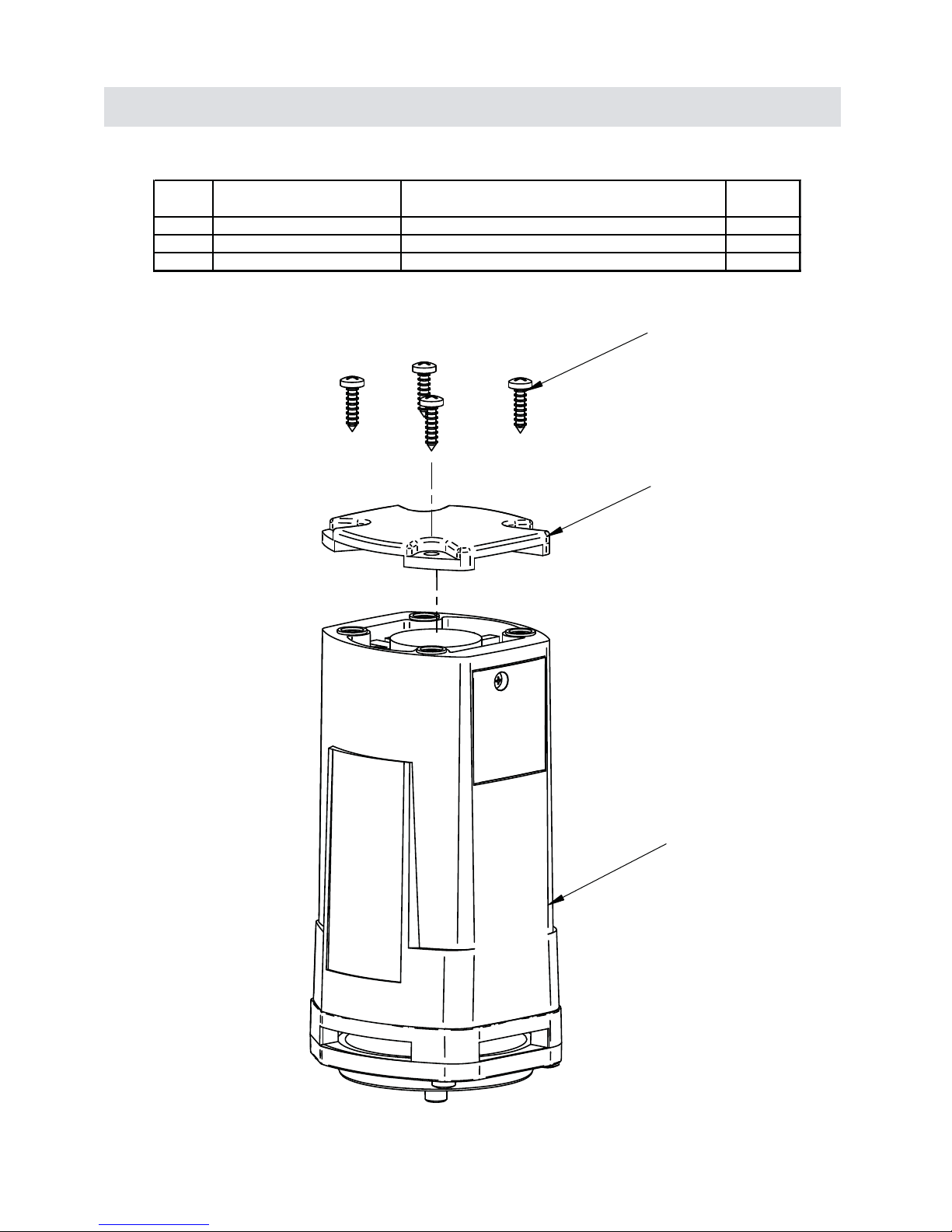

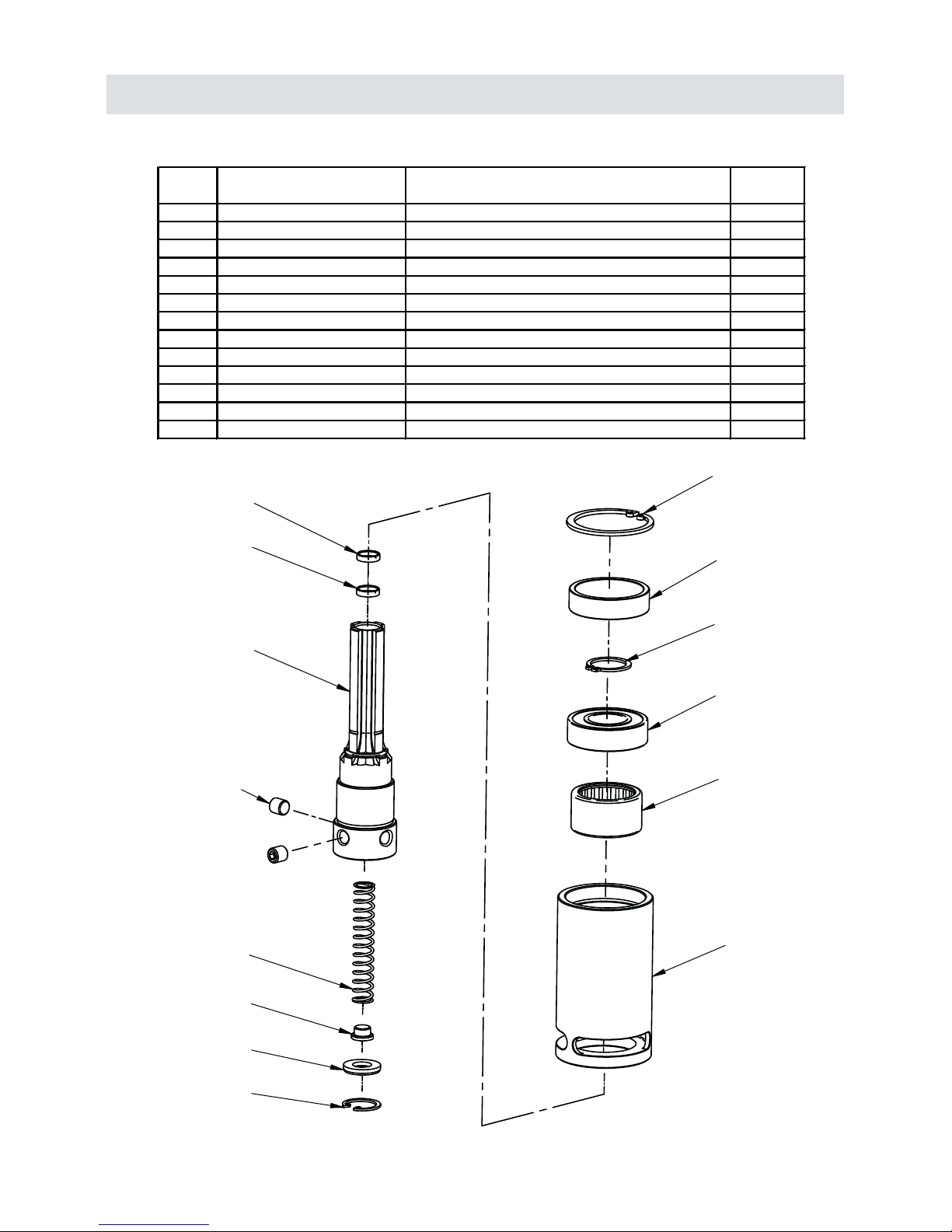

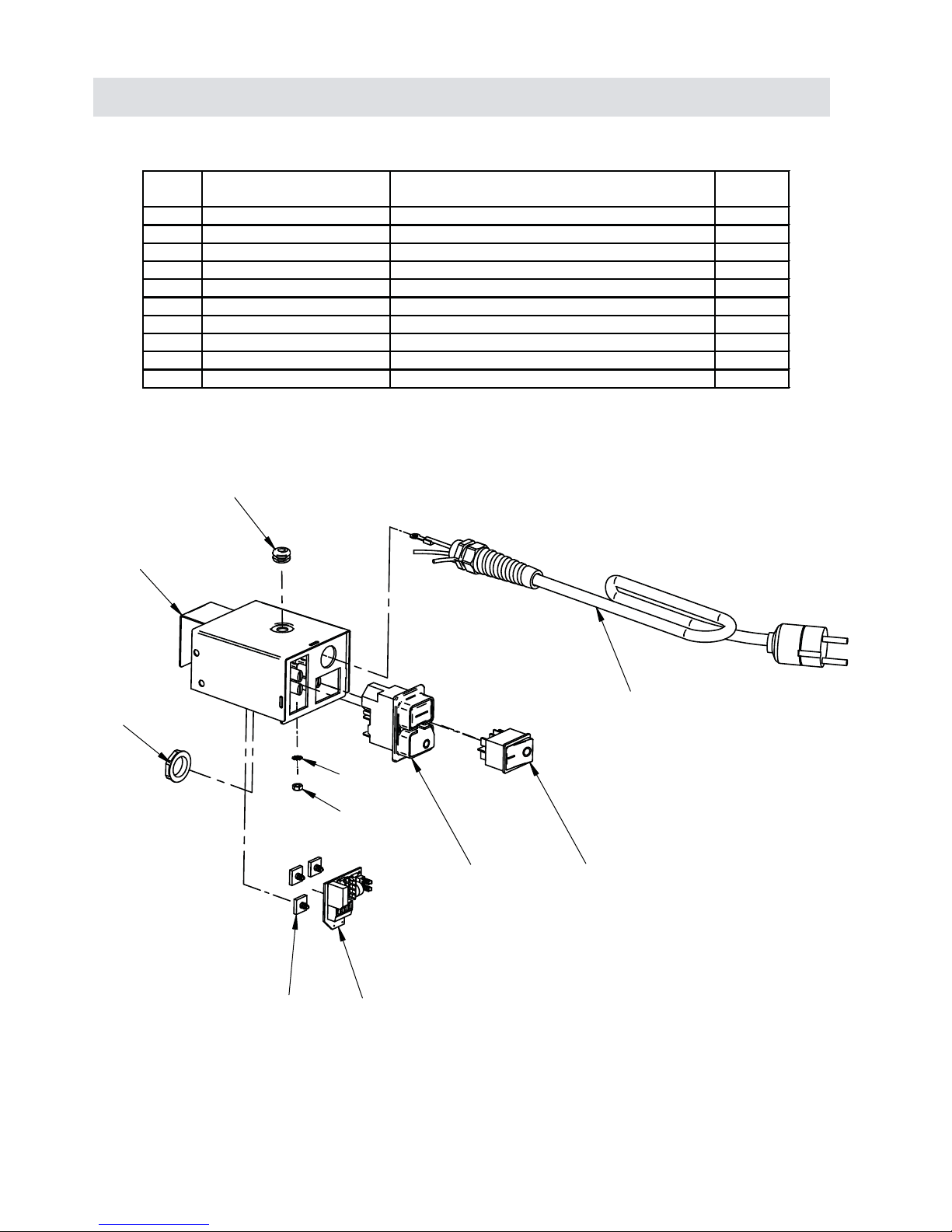

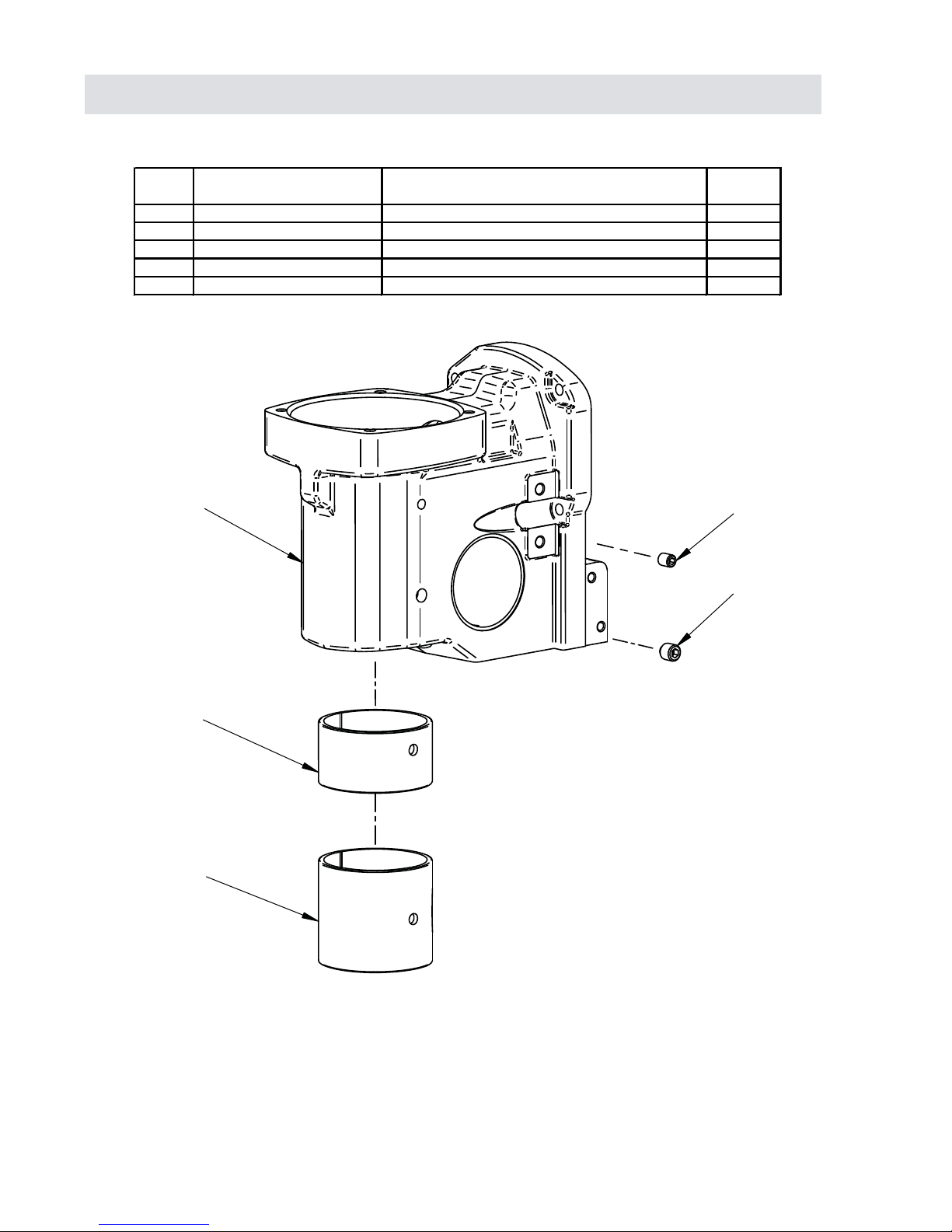

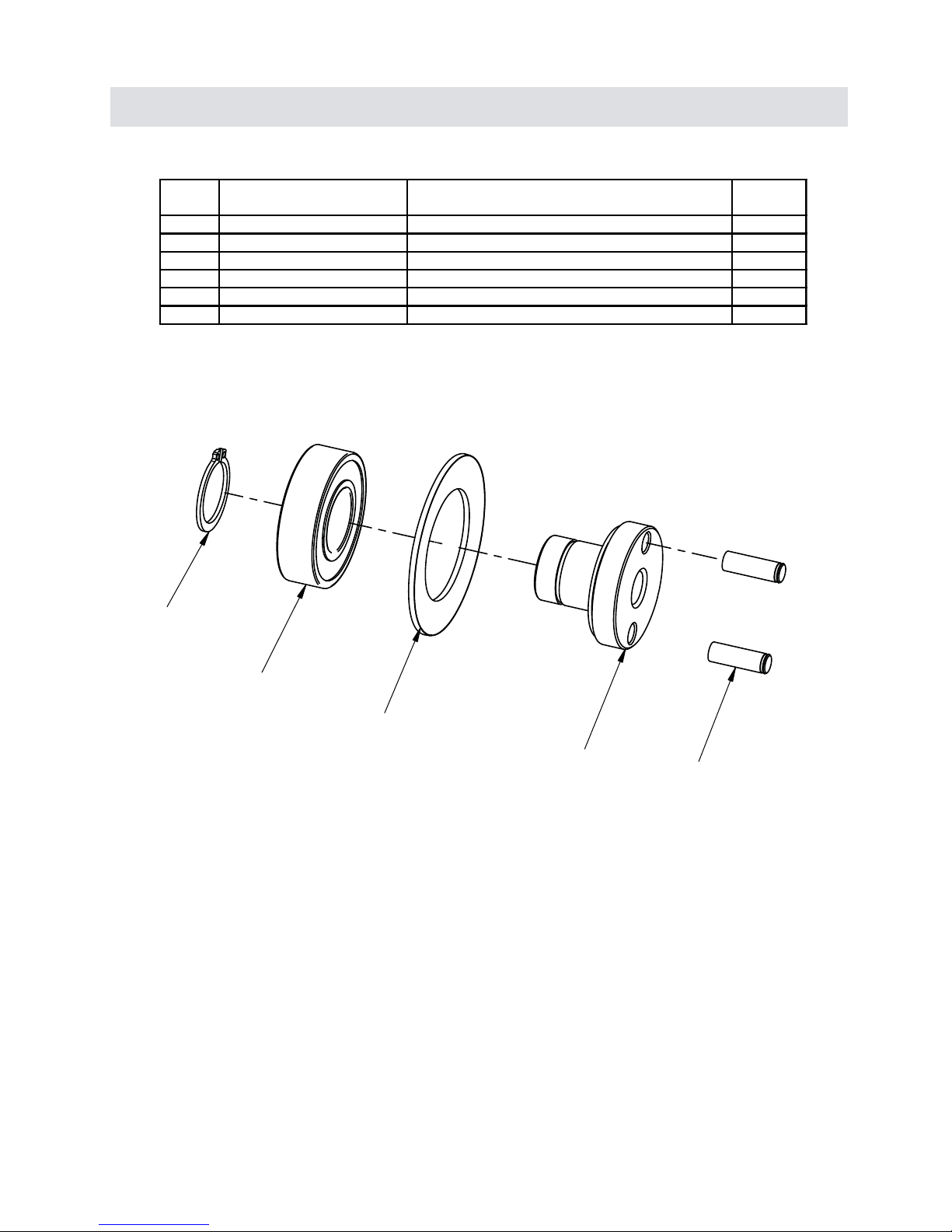

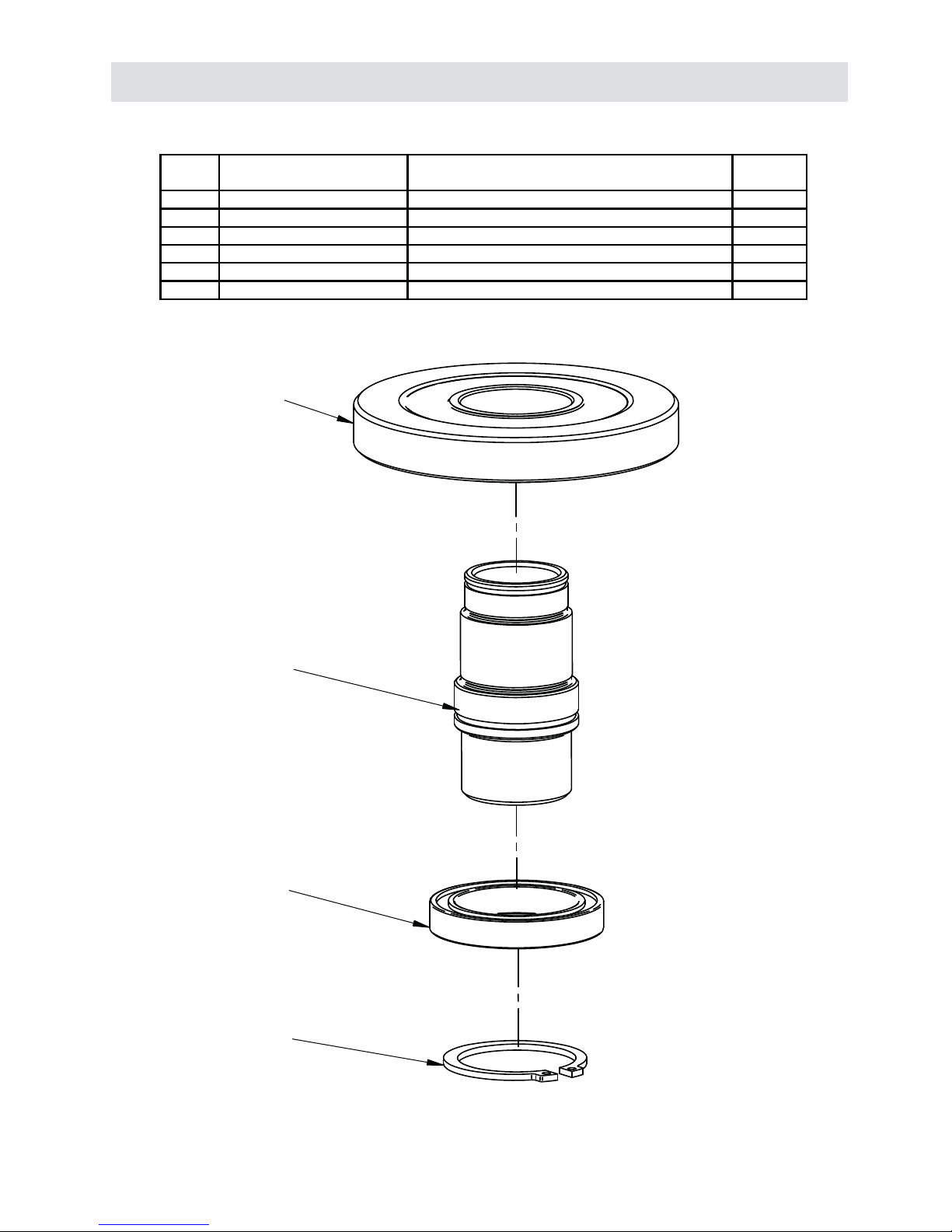

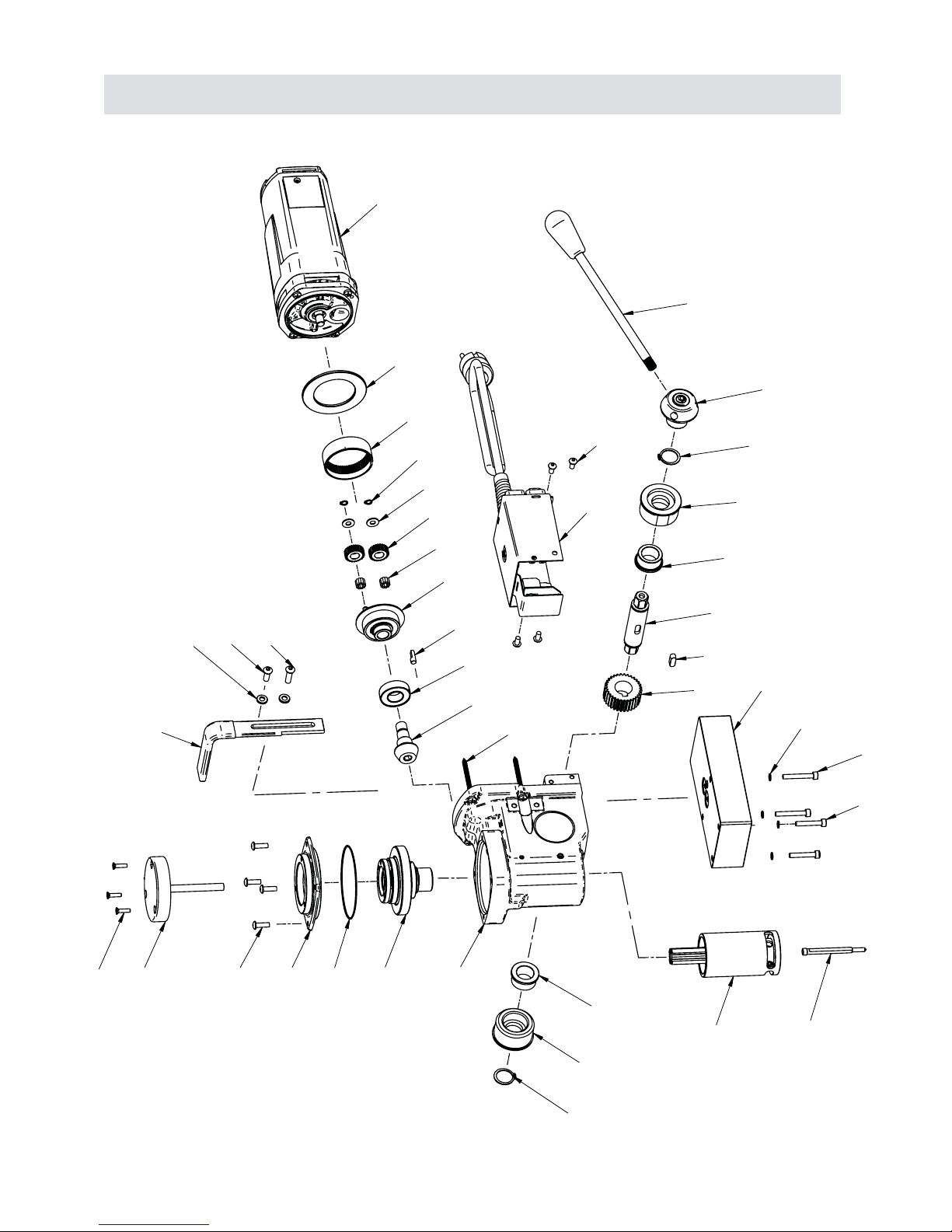

Machine Breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9-19
LIMITED WARRANTY
Industrial Tool & Machinery Sales (hereinafter refered to as ITMS) will, within twelve (12) months from the original
date of purchase, repair or replace any goods found to be defective in materials or workmanship.
This warranty is void if the item has been damaged by accident, neglect, improper service or other causes not
arising out of defects in materials or workmanship. This warranty does not apply to machines and/or components
which have been altered, changed, or modified in any way, or subjected to use beyond recommended capacities and
specifications. Electrical components are subject to respective manufacturers’ warranties. All goods returned defective
shall be returned prepaid freight to ITMS or agreed repair agent, which shall be the buyer’s sole and exclusive
remedy for defective goods. ITMS accepts no additional liability pursuant to this guarantee for the costs of travelling
or transportation of the product or parts to and from ITMS or the service agent or dealer, such costs are not included
in this warranty.
Our goods come with guarantees which cannot be excluded under the Australian Consumer Law. You are entitled
to replacement or refund for a major failure and to compensation for other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the
failure does not amount to a major failure.
THE MANUFACTURER RESERVES THE RIGHT TO MAKE
IMPROVEMENTS AND MODIFICATIONS TO DESIGN WITHOUT PRIOR NOTICE.
2
Height 181mm
Width 189mm
Length (inc. Handle) 327mm
Weight 11.1kg
Power 1080W
240V / 5.1A
400RPM
Arbor Bore 19mm
DIMENSIONS & SPECIFICATIONS
Magnetic Base Dimensions 80mm x 160mm
Magnetic Dead Lift 9500nm on 25mm Plate
Cutter Diameter (Maximum)
40mm (1¾")
Depth Of Cut (Maximum) 25mm (1")
Page 3
IMPORTANT SAFETY INSTRUCTIONS
WARNING!
WHEN USING ELECTRIC TOOLS, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED
TO REDUCE RISK OF FIRE, ELECTRIC SHOCK AND PERSONAL INJURY.
READ AND SAVE ALL INSTRUCTIONS FOR FUTURE REFERENCE.
1. Keep Work Area Clean
• Cluttered areas and benches invite injuries.
2. Consider Work Area Environment
• Do not expose power tools to rain.
• Do not use power tools in damp or wet locations.
• Keep work area well lit.
• Do not use tool in presence of flammable liquids or gases.
3. Guard Against Electric Shock
• Prevent body contact with grounded surfaces. For example: pipes, radiators, ranges and refrigerator enclosures.
4. Keep Children Away
• Do not let visitors contact tool or extension cord.
• All visitors should be kept away from work area.
5. Store Idle Tools
• When not in use, tools should be stored in a dry, high and locked-up place, out of reach of children.
6. Do Not Force Tool
• It will do the job better and safer at the rate for which it was intended.
7. Use Right Tool
• Do not force a small tool or attachment to do the job of a heavy-duty tool.
• Do not use tool for unintended purpose. For example: Do not use a circular saw for cutting tree limbs or logs.
8. Dress Properly
• Do not wear loose clothing or jewelry. They can be caught in moving parts.
• Rubber gloves and non-skid footwear are recommended when working outdoors.
• Wear protective hair covering to contain long hair.
9. Use Safety Glasses
• Also use face or dust mask if cutting operation is dusty.
10. Do Not Abuse Electrical Cord
• Never carry tool by cord or yank it to disconnect from receptacle.
• Keep cord from heat, oil and sharp edges.
11. Secure Work
• Use clamps or a vise to hold work. It’s safer than using your hand and it frees both hands to operate tool.
12. Do Not Overreach
• Keep proper footing and balance at all times.
3
Page 4
IMPORTANT SAFETY INSTRUCTIONS
13. Maintain Tools With Care
• Keep tools sharp and clean for better and safer performance.
• Follow instructions for lubricating and changing accessories.
• Inspect tool cords periodically and if damaged, have repaired by authorized service facility.
• Inspect extension cords periodically and replace if damaged.
• Keep handles dry, clean, and free from oil and grease.
14. Disconnect Tools
• Unplug when not in use, before servicing, and when changing accessories, such as blades, bits and cutters.
15. Remove Adjusting Keys And Wrenches
• Form habit of checking to see that keys and adjusting wrenches are removed from tool before turning it on.
16. Avoid Unintentional Starting
• Do not carry a plugged-in tool. Always disconnect from power source before moving.
• Be sure switches are off before connecting to a power source.
17. Outdoor Use Extension Cords
• When tool is used outdoors, use only extension cords intended for use outdoors and so marked.
18. Stay Alert
• Watch what you are doing. Use common sense. Do not operate tool when you are tired.
• Do not use when taking medications that may cause drowsiness.
19. Check Damaged Parts
• Before further use of the tool, a guard or other part that is damaged should be repaired and performance
verified prior to operation.
• Check alignment of moving parts, binding of parts, breakage of parts, mounting, and any other conditions
that may affect its operation. A guard or other part that is damaged should be properly repaired or replaced
by an authorized service center.
• Do not use this tool if switches do not turn it on and off. Have defective switches replaced by authorized
service center.
4
Page 5
GROUNDING INSTRUCTIONS
WARNING!
Improperly connecting the grounding wire can result in the risk of electrical shock.
Check with a qualified electrician if you are in doubt as to whether the outlet
is properly grounded. Do not modify the plug provided with tool. Never remove
the grounding prong from the plug. If the cord or plug is damaged, have it
repaired before using. If the plug will not fit the outlet, have a proper outlet
installed by a qualified electrician. The Holemaker must be plugged into an
appropriate outlet, properly installed and grounded in accordance with all codes
and ordinances. The plug and outlet should look like those in Figure A. If in
doubt of proper grounding, call a qualified electrician.
WARNING!
DO NOT USE HOLEMAKER DRILLING MACHINES ON SURFACES OR MATERIALS BEING
WELDED. DOING SO CAN RESULT IN PERSONAL INJURY AND /OR DAMAGE TO THE
SLUGGER DRILLING MACHINE.
EXTENSION CORDS
Use only 3-wire extension cords that have 3-prong grounding-type plugs and 3-pole receptacles that accept the
tool’s plug. Replace or repair damaged cords. Make sure your extension cord is in good condition. When using
an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord
will cause a drop in line voltage resulting in loss of power and overheating. See table for the correct size to use
depending on cord length and nameplate amperage rating. If in doubt, use the next heavier gauge. The smaller the
gauge number, the heavier the cord.
12-16
VOLTS
120V
240V
AMPERAGE
0-6
6-10
10-12
14
RECOMMENDED WIRE GAUGE
12
MINIMUM GAUGE FOR EXTENSION CORDS
TOTAL LENGTH OF CORD IN FEET
0-25 26-50 51-100 101-150
0-50 51-100 101-200 201-300
18 16 16 14
18 16 14 12
16 16 14 12
NOT RECOMMENDED
DRIP LOOP: To help prevent cutting fluids from traveling
along power cord and contacting power source, tie a drip
loop in power cord as shown in Figure C.
Fig. C
5
Page 6
SPECIAL INSTRUCTIONS
1. Read and follow operator’s manual thoroughly. If you cannot locate your operator’s manual, contact ITMS
for an additional FREE copy.
2. DO NOT touch rotating cutter or parts.
3. Always stop machine completely and unplug from power source before changing cutters, cleaning clips,
refilling lubrication or performing adjustments.
4. Never wear loose clothing or gloves when working near cutting area or machine arbor.
5. Always wear eye protection. Any tool can shatter.
6. Always use safety chain or strap provided with machine.
7. Always use proper tooling. Keep cutters securely fastened.
8. DO NOT use dull or broken cutters.
9. Beware of ejected slugs at end of cut. They become HOT during the cut.
10. Keep all safety features functioning and working properly.
11. Keep bottom of magnet burr free and clear of chips and debris.
12. To reduce the risk of electrical shock, DO NOT remove or alter electrical panels or use machine in damp
areas.
13. Use only authorized service centers for repairs.
OPERATING INSTRUCTIONS
(
BEFORE YOU BEGIN
)
Remove all contents from packaging and inspect to ensure no damage was incurred during shipping.
Your Holemaker package should include the following:
6
Description QTY
SPOKE HANDLE
HM40AD DRILL
1
METAL BOX
1
HEX. WRENCH 4mm
1
HEX. WRENCH 5mm
1
COOLANT BOTTLE
1
1
WHAT YOU SHOULD KNOW BEFORE YOU DRILL
1. Type of material to be drilled, Brinnell or Rockwell hardness, material thickness and position should all be
determined to ensure proper selection of cutting tools.
2. Remove any excessive mill scale or rust from surface to be drilled.
3. When drilling thin materials, it is recommended that you place a steel plate under the work piece and Holemaker
magnet area to increase magnetic holding force.
4. Material that has been flame cut may become heat treated and therefore difficult to drill. Avoid drilling near such
areas whenever possible.
5. Special cutter lubricant are available for using the Holemaker and annular cutters in the horizontal
position. Consult you distributor for more information.
Caution: Do not drill on material where welding is also simultaneously being performed. Drilling machine will
be damaged.
Caution: Powering drilling machine from generator without proper surge protection device between
generator and drilling machine may cause damage to Printed Circuit Board in machine.
Page 7
1.
2.
3.
4.
5.
6.
7.
Fit your cutter into the drill arbor and tighten both grubs screws using the hex wrench provided onto the 2 flat
sections of the cutter.
Fill coolant reservoir with a water-soluble coolant.
Position the Holemaker on the work piece with the pilot pin over the centre of the hole to be cut.
Lower cutter/drill to surface of material. coolant flow starts when pilot pin is depressed.
Lifting pilot pin off work surface will stop coolant flow.
Move the rocker switch ( magnet switch ) located on the panel to the ON position. The switch will illuminate
to indicate DC power is going to the magnet.
Depress motor ON switch to start drill.
To start a cut, apply pressure until the cutter has establised an external grove. Then apply steady pressure
through the remainder of the cut (Note: Do not peck drill when using annular cutters). The tools are designed
to evacuate chips when drilling.
AFTER THE CUT
1. After the cut has finished, the slug should be expelled on the down stroke. If the slug is not expelled after the
cut, disconnect the machine from the power source and remove the cutter from the arbor body, then expel the
slug. (Caution: The pilot should not be used to do this).
After the cut is finished, return the cutter back through the hole to the original position, depress motor OFF
button and wait until motor fully stops. Move magnet switch to the OFF position to release the magnetic
base from the material.
2.
READY TO MAKE THE CUT
7
Page 8
BASIC TROUBLESHOOTING
1. Magnetic base not holding securely
• Surface of material being drilled must be free of chips, debris, rust and mill scale.
• Does size of cutter exceed machine’s rated capacity?
• Check magnet face for unevenness, nicks and burrs.
• Is welding equipment connected to material being drilled?
2. Drill motor running, arbor and spindle not turning
• Possible sheared drive train component.
3. Motor slows when drilling
• Is an extension cord being used? If so, see page 5 for recommended wire gages and cord lengths.
• Excessive downfeed pressure during drilling cycle will cause motor to slow and overheat.
• Does cutting tool need to be resharpened?
4. Coolant system not working
• Dirt or debris in coolant tank hose or fittings
• Consistency of coolant mixture too thick.
• Is correct pilot pin being used?
5. Slugs not ejecting from cutter
• Lack of coolant causing slugs to expand in cutter bore.
• Is correct pilot pin being used?
• Possible broken internal arbor parts.
6. Breaking cutters
• How is coolant being applied? Coolant must be supplied to interior of cutter.
• Excessive feed pressure being applied when cutter initially contacts work surface.
• Confirm material hardness.
• Drilling stacked materials with incorrect cutter.
• Dull cutters; dull or chipped cutting edges require excessive feed pressure, resulting in breakage.
• Excessive arbor runout – see regular maintenance on page 8.
7. Oversized or rough holes
• Insufficient coolant.
• Excessive feed pressure.
• Dull cutter.
8
Page 9
MACHINE BREAKDOWN
9
ITEM PART NUMBER DESCRIPTION QTY
1 SPAD40-01 MAIN BODY ASSEMBLY 1
2 SPAD40-02 ELECTROMAGNETIC BASE ASSEMBLY 1
3 SPAD40-03 QUILL ASSEMBLY 1
4 SPAD40-04 BEVEL GEAR T=39 ASSEMBLY 1
5 SPAD40-05 GEAR BOX COVER ASSEMBLY 1
6 SPAD40-06 BEARING NUT HOLDER 1
7 SPAD40-07 FEED SHAFT HOLDER 2
8 SPAD40-08 SELF-LUBRICATING SLEEVE 32/26-20-15 2
9 SPAD40-09 GEAR Z=32 1
10 SPAD40-10 KEY 6x6x16 1
11 SPAD40-11 FEED SHAFT 1
12 SPAD40-12 EXTERNAL RETAINING RING- 20Z 2
13 SPAD40-13 HEAD ASSEMBLY 1
14 SPAD40-14 HANDLE ASSEMBLY 1
15 SPAD40-15 SEAL RING 80x1,3 1
16 SPAD40-16 SCREW M5x16 4
17 SPAD40-17 SCR, M4 x 16 FHSCS 3
18 SPAD40-18 SHAFT ASSEMBLY 1
19 SPAD40-19 GEARSHFT T=11 1
20 SPAD40-20 GEAR T=62 1
21 SPAD40-21 BEARING BALL 6003 1
22 SPAD40-22 GEAR T=27 2
23 SPAD40-23 NEEDLE, 2,5x7,8 20
24 SPAD40-24 WASHER, 14x6,1x1 2
25 SPAD40-25 EXTERNAL RETAINING RING 6Z 2
26 SPAD40-26 STOP WASHER 1
27 SPAD40-27 MOTOR ASSEMBLY /230V 1
28 SPAD40-28 SELF-TAPPING SCREW 5x60 4
29 SPAD40-29 SPRING WASHER 5.1 4
30 SPAD40-30 HEX. SOCKET BOLT M5x30 2
31 SPAD40-31 M5x.8x35 SHCS 2
32 SPAD40-32 ELECTRONIC CONTROLLER ASSEMBLY 1
33 SPAD40-33 SCREW M5x10 4
34 SPAD40-34 HOLDER 1
35 SPAD40-35 SCREW M6x16 1
36 SPAD40-36 SCREW M6x20 1
47 SPAD40-37 COOLING BOTTLE 1
37 SPAD40-38 STOP PIN 1
38 SPAD40-39 ROUND WASHER 6,4 2
41 SPAD40-40 METAL BOX 1
42 SPAD40-41 PILOT PIN L=70 1
43 SPAD40-42 HEX. WRENCH 4 1
Page 10
MACHINE BREAKDOWN
10
01
02
03
04
05
06
07
07
08
08
09
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
42
Page 11
MAIN BODY ASSEMBLY
11
ITEM PART NUMBER DESCRIPTION QTY
1.1 SPAD40-01-01 MAIN BODY 1
1.2 SPAD40-01-02 BUSHING PERMAGLIDE I 1
1.3 SPAD40-01-03 BUSHING PERMAGLIDE II 1
1.4 SPAD40-01-04 SOCKET SET SCREW M6 x 8 1
1.5 SPAD40-01-05 PRESSURE SCREW 1
01
02
03
04
05
Page 12
QUILL ASSEMBLY
12
ITEM PART NUMBER DESCRIPTION QTY
3.1 SPAD40-03-01 QUILL CARRIER 1
3.2 SPAD40-03-02 SPINDLE 1
3.3 SPAD40-03-03 DISTANCE SLEEVE 1
3.4 SPAD40-03-04 SPRING 1
3.5 SPAD40-03-05 SEAL 1
3.6 SPAD40-03-06 PLUNGER 1
3.7 SPAD40-03-07 NEEDLE BEARING RHNA303720 1
3.8 SPAD40-03-08 BEARING BALL 6004 2RS 1
3.9 SPAD40-03-09 INTERNAL RETAINING RING 19W 1
3.10 SPAD40-03-10 EXTERNAL RETAINING RING- 20Z 1
3.11 SPAD40-03-11 INTERNAL RETAINING RING - 42W 1
3.12 SPAD40-03-12 HEX SET SCREW M8x10 2
3.13 SPAD40-03-13 SEAL RING TRK000080 2
01
02
03
04
05
06
07
08
09
10
11
12
13
13
Page 13

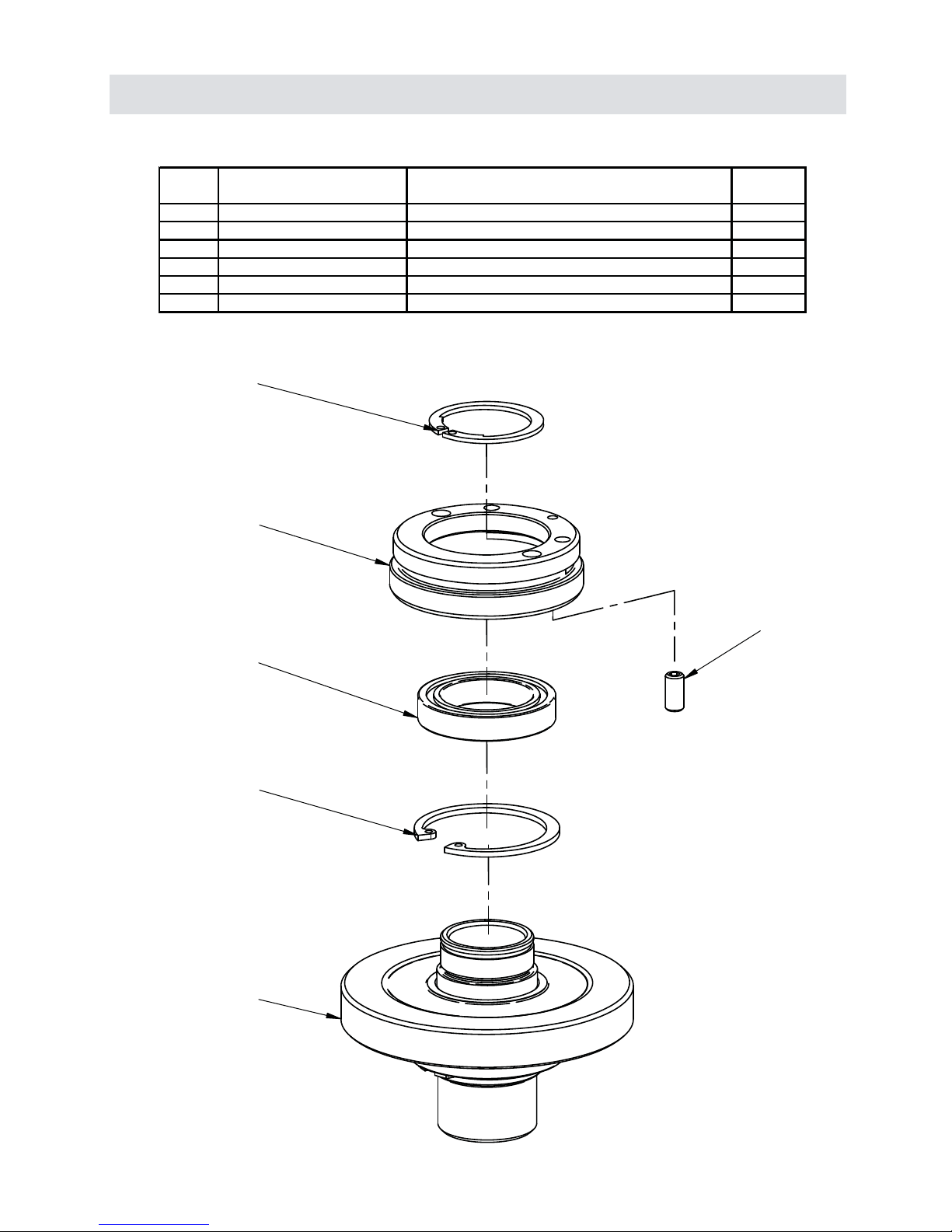

BEVEL GEAR ASSEMBLY
13
ITEM PART NUMBER DESCRIPTION QTY
4.1 SPAD40-04-01 BEVEL GEAR T=39 ASSY / INCL. SLEEVE 1
4.2 SPAD40-04-02 BEARING NUT 1
4.3 SPAD40-04-03 BEARING BALL 61805 2RS 1
4.4 SPAD40-04-04 EXTERNAL RETAINING RING 25Z TYPE A 1
4.5 SPAD40-04-05 INTERNAL RETAINING RING 37W 1
4.6 SPAD40-04-06 HEX SET SCREW M5x10 1
01
02
05
04
06
03
Page 14
BEVEL GEAR SLEEVE ASSEMBLY
14
ITEM PART NUMBER DESCRIPTION QTY
4.1 SPAD40-04-01 BEVEL GEAR T=39 ASSY / INCL. SLEEVE 1
4.2 SPAD40-04-02 BEARING NUT 1
4.3 SPAD40-04-03 BEARING BALL 61805 2RS 1
4.4 SPAD40-04-04 EXTERNAL RETAINING RING 25Z TYPE A 1
4.5 SPAD40-04-05 INTERNAL RETAINING RING 37W 1
4.6 SPAD40-04-06 HEX SET SCREW M5x10 1
01
02
03
04
Page 15

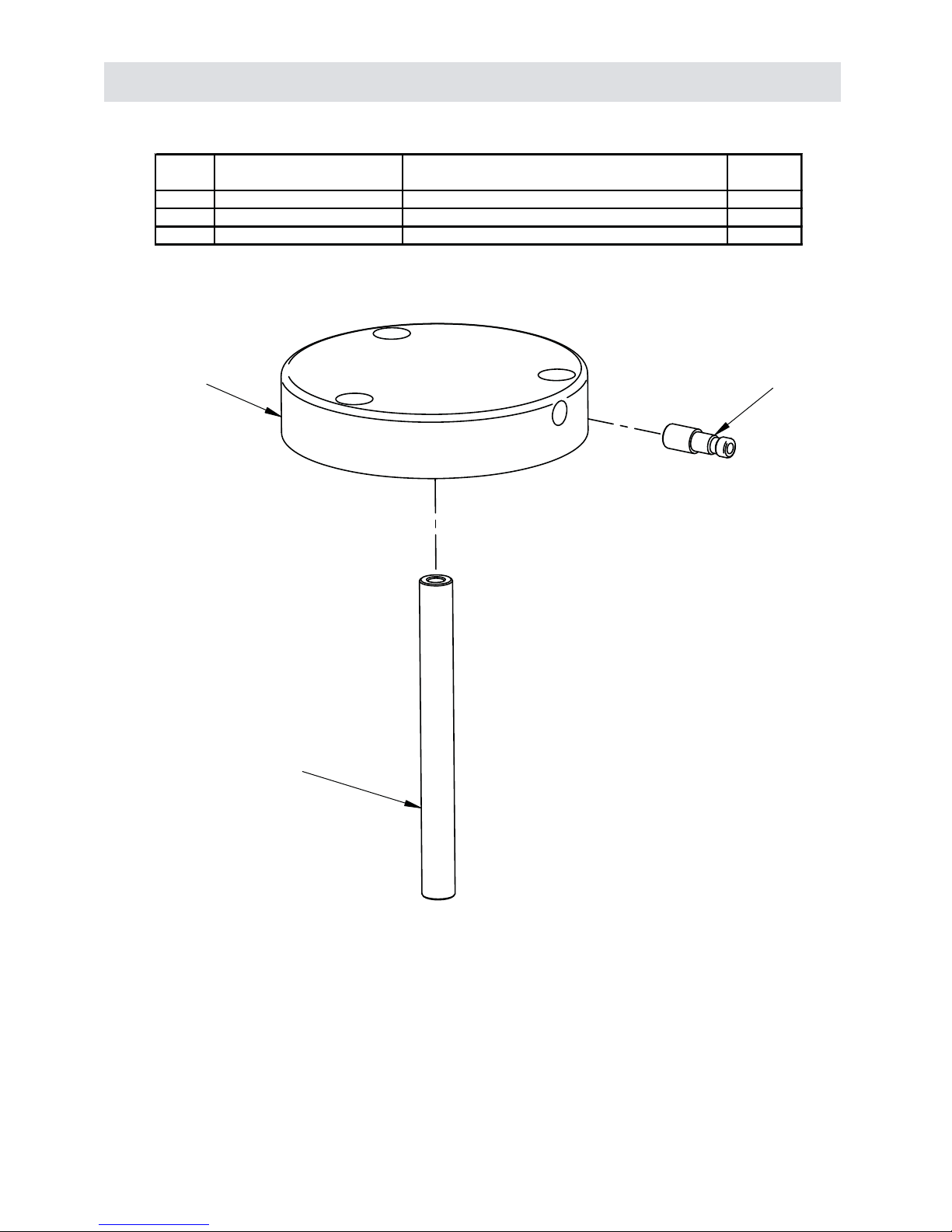

GEARBOX COVER ASSEMBLY
15
ITEM PART NUMBER DESCRIPTION QTY
5.1 SPAD40-05-01 GEAR BOX COVER 1
5.2 SPAD40-05-02 JUMPER 1
5.3 SPAD40-05-03 TIP 1
01
02
03
Page 16
SHAFT ASSEMBLY
16
ITEM PART NUMBER DESCRIPTION QTY
4.1 SPAD40-04-01 BEVEL GEAR T=39 ASSY / INCL. SLEEVE 1
4.2 SPAD40-04-02 BEARING NUT 1
4.3 SPAD40-04-03 BEARING BALL 61805 2RS 1
4.4 SPAD40-04-04 EXTERNAL RETAINING RING 25Z TYPE A 1
4.5 SPAD40-04-05 INTERNAL RETAINING RING 37W 1
4.6 SPAD40-04-06 HEX SET SCREW M5x10 1
01
02
03
04
05
Page 17
MOTOR ASSEMBLY
17
ITEM PART NUMBER DESCRIPTION QTY
27.1 SPAD40-27-01 MOTOR /230V 1
27.2 SPAD40-27-02 MOTOR COVER 1
27.3 SPAD40-27-03 SELF-TAPPING SCREW 5x20 4
01
02
03
Page 18
ELECTRONIC CONTROLLER ASSEMBLY
18
ITEM PART NUMBER DESCRIPTION QTY
32.1 SPAD40-32-01 ELECTRONIC CONTROLLER FRAME 1
32.2 SPAD40-32-02 START-STOP SWITCH 1
32.3 SPAD40-32-03 SWITCH, MAGNET HOLEMAKER 1
32.4 SPAD40-32-04 POWER CORD /230V 1
32.5 SPAD40-32-05 STRAIN RELIEF NUT 1
32.6 SPAD40-32-06 SNAP BUSHING LA6 1
32.7 SPAD40-32-07 ELECTRONIC CONTROLLER SW-30 / 230V 1
32.8 SPAD40-32-08 LOCKING PILLAR 3
32.9 SPAD40-32-09 SPRING WASHER-4.3 1
32.10 SPAD40-32-10 HEX NUT M4 1
01
02
03
04
06
07
08
05
09
10
Page 19

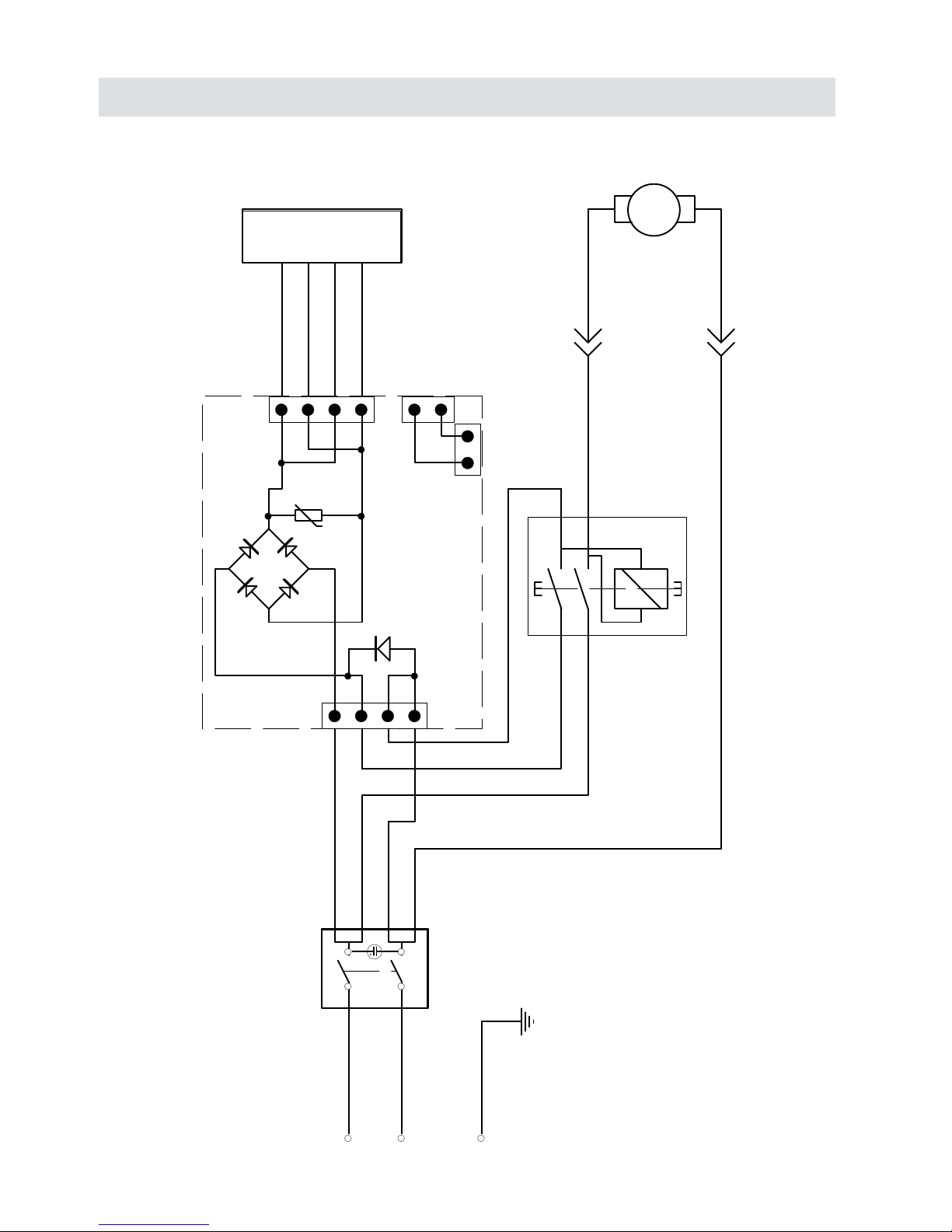

WIRING DIAGRAM
19
OUTIN
BLUE
MOTOR
BLACK
BLACK
BLUE
B1
V1
S2
S1
S3
D1
S4
SW30
WHITE
BROWN
BLACK
BLUE
BLUE
BLUE
BLUE BROWN
BROWN
MAIN SWITCH
GREEN
BLUE
BLACK
L
N
PE
2
3
5
6
1
4
ELECTROMAGNETIC BASE
23
1314
24
4
1
2
3
1
1
1
MAGNET
Loading...
