Holden Commodore VE 2008 2011 User Manual

Download
Page 1
© 2010 General Motors Corporation. All rights reserved.
Page
1

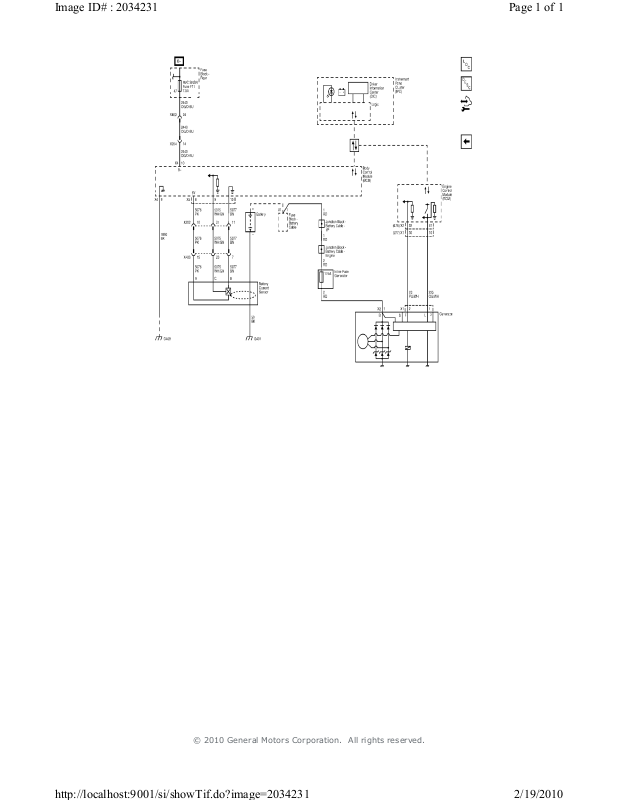

of 1Image ID# : 2034231
http://localhost:9001/si/showTif.do?image=2034231
Page 2
2009 Pontiac G8
Page
1
of 2Document ID: 2063286
http://localhost:9001/si/showDoc.do?docSyskey=2063286&from=sm
|
G8 Service Manual
|
|
Engine
| Document ID: 2063286
Intake Manifold/Upper Engine
Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L
|
Component Locator
(1) Positive Crankcase Ventilation (PCV) Tube - Dirty Air
(2) Evaporative Emission (EVAP) Canister Purge Tube
(3) EVAP Canister Purge Solenoid Valve
(4) EVAP Canister Purge Tube
(5) EVAP Purge Valve Bracket
(6) Bolt
(7) Fuel Rail Ground Strap
(8) Bolt
(9) Fuel Rail with Injectors
(10) Manifold Absolute Pressure (MAP) Sensor Bolt
(11) Manifold Absolute Pressure (MAP) Sensor
© 2010 General Motors Corporation. All rights reserved.
Page 3
(12) Seal
Page
2
of 2Document ID: 2063286
http://localhost:9001/si/showDoc.do?docSyskey=2063286&from=sm
(13) Bolt
(14) Throttle Body
(15) Throttle Body Gasket
(16) Intake Manifold
(17) Bolt
(18) Fuel Injection Fuel Rail Stop Bracket
(19) Seal
(20) Intake Manifold Gasket
(21) Engine Coolant Air Bleed Plug
(22) Oil Pressure Sensor
(23) Washer
(24) Bolt
(25) Filter
(26) O-Ring
(27) Valve Lifter Oil Manifold (VLOM)
(28) VLOM Gasket
(29) Engine Block
(30) Seal
(31) Engine Coolant Air Bleed Pipe
(32) Bolt
Page 4
2009 Pontiac G8
Page
1
of 2Document ID: 2063289
http://localhost:9001/si/showDoc.do?docSyskey=2063289&from=sm
|
G8 Service Manual
|
Engine
| Document ID: 2063289
Cylinder Head/Upper Engine
|
Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L
|
Component Locator
(1) Positive Crankcase Ventilation (PCV) Hose - Fresh Air
(2) Oil Fill Cap
(3) O-Ring
(4) Oil Fill Tube
(5) O-Ring
(6) Valve Rocker Arm Cover
(6) Valve Rocker Arm Cover
(7) Valve Rocker Arm Cover Gasket
(7) Valve Rocker Arm Cover Gasket
(8) Ignition Coil Wire Harness Assembly
(9) Bolt
© 2010 General Motors Corporation. All rights reserved.
Page 5
(10) Spark Plug Wire
Page
2
of 2Document ID: 2063289
http://localhost:9001/si/showDoc.do?docSyskey=2063289&from=sm
(11) Ignition Coil
(12) Bolt
(13) Ignition Coil Bracket
(14) Plug
(15) Bolt
(16) Bolt Grommet
(17) Valve Stem Key
(18) Valve Spring Cap
(19) Valve Spring
(20) Valve Stem Oil Seal
(21) Core Hole Plug
(22) Spark Plug
(23) Cylinder Head Bolt - M11
(24) Cylinder Head Bolt - M8
(25) Cylinder Head
(26) Cylinder Head Gasket
(27) Core Hole Plug
(28) Cylinder Head Locating Pin
(29) Cylinder Head Plug
(30) Coolant Temperature Sensor (CTS)
(31) Exhaust Valve
(32) Intake Valve
(33) Exhaust Manifold Gasket
(34) Exhaust Manifold
(35) Exhaust Manifold Heat Shield
(36) Bolt
(37) Stud
(38) Bolt
(39) Engine Block
(40) Valve Lifter - Active Fuel Management
(41) Valve Lifter - Non-Active Fuel Management
(42) Valve Lifter Guide
(43) Bolt
(44) Pushrod
(45) Valve Rocker Arm Pivot Support
(46) Valve Rocker Arm
(47) Bolt
Page 6
2009 Pontiac G8
Page
1
of 2Document ID: 2063290
http://localhost:9001/si/showDoc.do?docSyskey=2063290&from=sm
|
G8 Service Manual
Front of Engine
|
|
Engine
Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L
| Document ID: 2063290
|
Component Locator
(1) Bolt
(2) Water Inlet Housing
(3) O-Ring
(4) Thermostat
(5) Bolt
(6) Water Pump
(7) Water Pump Gasket
(8) Oil Level Indicator
(9) O-Ring
(10) Bolt
(11) Oil Level Indicator Tube
© 2010 General Motors Corporation. All rights reserved.
Page 7
(12) O-Ring
Page
2
of 2Document ID: 2063290
http://localhost:9001/si/showDoc.do?docSyskey=2063290&from=sm
(13) Engine Block
(14) Camshaft Bearings
(15) Camshaft
(16) Camshaft Sprocket Locating Pin
(17) Crankshaft Sprocket
(18) Camshaft Retainer
(19) Bolt
(20) Camshaft Sprocket
(21) Bolt
(22) Timing Chain
(23) Timing Chain Tensioner
(24) Bolt
(25) Engine Front Cover Gasket
(26) Engine Front Cover
(27) Bolt
(28) Crankshaft Front Oil Seal
(29) Crankshaft Balancer
(30) Crankshaft Balancer Bolt
(31) Bolt
(32) Camshaft Position (CMP) Sensor
(33) O-Ring
(34) CMP Sensor Wire Harness
(35) Bolt
(36) Oil Pump Housing
(37) Bolt
(38) Bolt
(39) Oil Pump Housing Cover
(40) Oil Pump Drive Gear
(41) Oil Pump Driven Gear
(42) Oil Pump Pressure Relief Valve
(43) Spring
(44) Oil Pump Housing Plug
(45) O-Ring
(46) Bolt
(47) Nut
(48) Oil Pump Screen
Page 8
2009 Pontiac G8
Page
1
of 1Document ID: 2063967
http://localhost:9001/si/showDoc.do?docSyskey=2063967&from=sm
|
G8 Service Manual
Rear of Engine
|
|
Engine
Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L
| Document ID: 2063967
|
Component Locator
(1) Engine Block
(2) Crankshaft Rear Oil Seal Housing Gasket
(3) Crankshaft Rear Oil Seal Housing
(4) Crankshaft Rear Oil Seal Housing Bolt
(5) Crankshaft Rear Oil Seal
(6) Flex Plate - Automatic Transmission
(7) Flywheel Bolt
© 2010 General Motors Corporation. All rights reserved.
Page 9
2009 Pontiac G8
Page
1
of 2Document ID: 2063291
http://localhost:9001/si/showDoc.do?docSyskey=2063291&from=sm
|
G8 Service Manual
|
Lower Engine Assembly
|
Engine
Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L
| Document ID: 2063291
|
Component Locator
(1) Engine Block
(2) Piston Pin Retainer
(3) Piston Pin
(4) Piston Ring Set
(5) Piston
(6) Connecting Rod
(7) Connecting Rod Bearings
(8) Connecting Rod Cap
(9) Connecting Rod Bolt
(10) Transmission Pilot Bearing - Manual Transmission
(11) Plug
© 2010 General Motors Corporation. All rights reserved.
Page 10
(12) Crankshaft Main Bearing
Page
2
of 2Document ID: 2063291
http://localhost:9001/si/showDoc.do?docSyskey=2063291&from=sm
(12) Crankshaft Main Bearing
(13) Crankshaft Thrust Bearing
(13) Crankshaft Thrust Bearing
(14) Crankshaft Balancer Key
(15) Crankshaft
(16) Crankshaft Bearing Cap
(17) Crankshaft Bearing Cap Bolt - M8
(18) Crankshaft Oil Deflector
(19) Crankshaft Oil Deflector Stud - M10
(20) Crankshaft Oil Deflector Bolt - M10
(21) Nut
(22) Oil Pan Gasket
(23) Bolt
(24) Oil Pan Baffle
(25) Active Fuel Management Oil Pressure Relief Valve
(26) Washer
(27) Oil Pan Cover Gasket
(28) Oil Pan Cover
(29) Bolt
(30) Oil Pan Closeout Cover - Left
(31) Bolt
(32) Oil Pan Bolt - M6
(33) Oil Pan Drain Plug
(34) Oil Filter
(35) Oil Filter Fitting
(36) O-Ring
(37) Oil Pan Bolt - M8
(38) Oil Pan
(39) Engine Closeout Cover - Right
(40) Bolt
(41) Oil Pump Screen
(42) O-Ring
(43) Nut
(44) Bolt
Page 11
2009 Pontiac G8
Page
1
of 2Document ID: 2063970
http://localhost:9001/si/showDoc.do?docSyskey=2063970&from=sm
|
G8 Service Manual
|
Engine
| Document ID: 2063970
Engine Block Plugs/Sensors
|
Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L
|
Component Locator
(1) Engine Block
(1) Engine Block
(2) Washer
(3) Oil Gallery Plug - Side
(4) Bolt
(4) Bolt
(5) Knock Sensor
(5) Knock Sensor
(6) Engine Coolant Heater
(7) Washer
(8) Oil Gallery Plug - Side
© 2010 General Motors Corporation. All rights reserved.
Page 12
(9) Washer
Page
2
of 2Document ID: 2063970
http://localhost:9001/si/showDoc.do?docSyskey=2063970&from=sm
(10) Oil Gallery Plug - Front
(11) Transmission Housing Locating Pin
(12) O-Ring
(13) Oil Gallery Plug - Rear
(14) Engine Block Coolant Drain Hole Plug
(15) Washer
(16) CKP Sensor Bolt
(17) Crankshaft Position (CKP) Sensor
(18) O-Ring
Page 13
2009 Pontiac G8
Page
1
of 1Document ID: 2063977
http://localhost:9001/si/showDoc.do?docSyskey=2063977&from=sm
|
G8 Service Manual
Oil Pump Assembly
|
|
Engine
Engine Mechanical - 4.8L, 5.3L, 6.0L, 6.2L, or 7.0L
| Document ID: 2063977
|

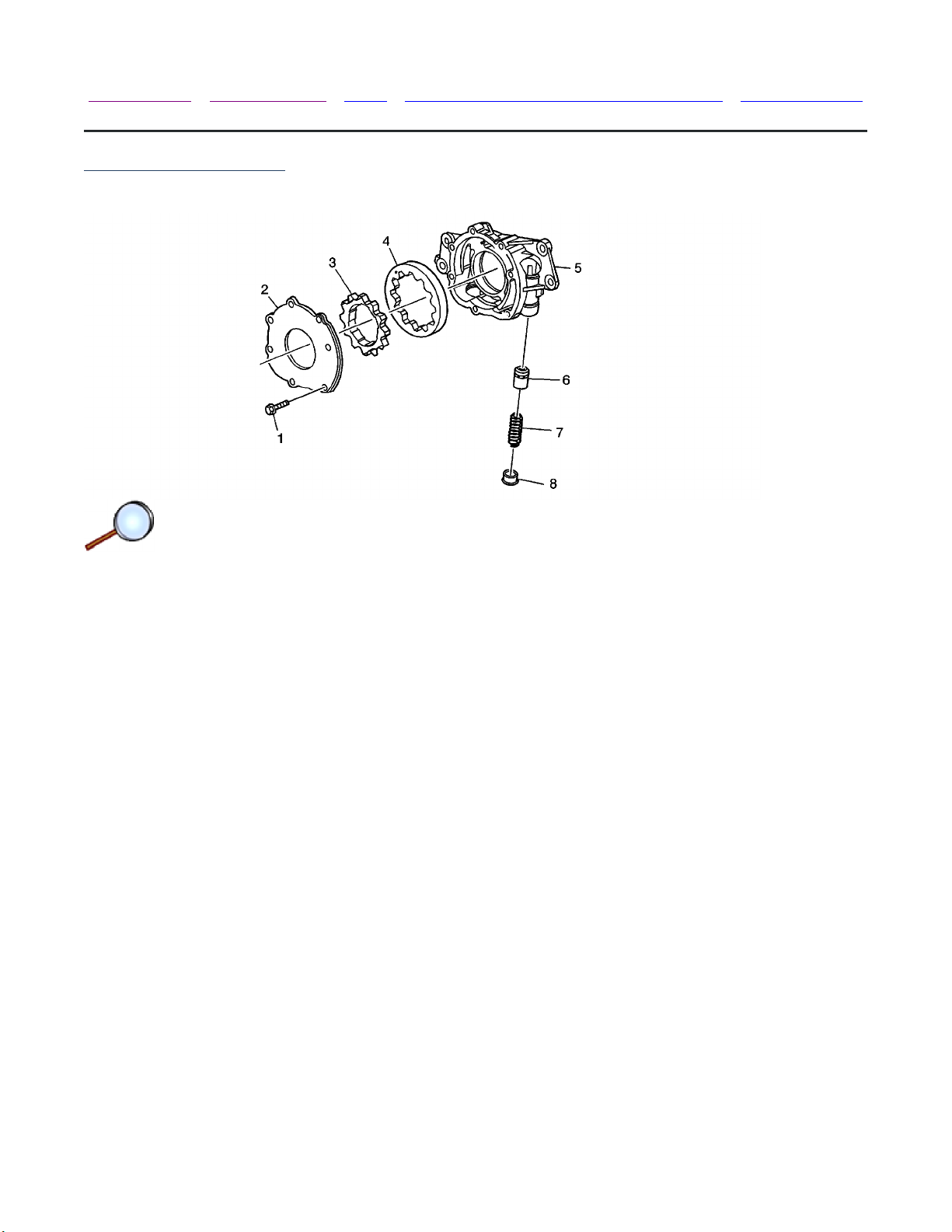

Component Locator
(1) Bolt
(2) Oil Pump Housing Cover
(3) Oil Pump Drive Gear
(4) Oil Pump Driven Gear
(5) Oil Pump
(6) Oil Pump Pressure Relief Valve
(7) Oil Pump Pressure Relief Valve Spring
(8) Oil Pump Housing Plug
© 2010 General Motors Corporation. All rights reserved.

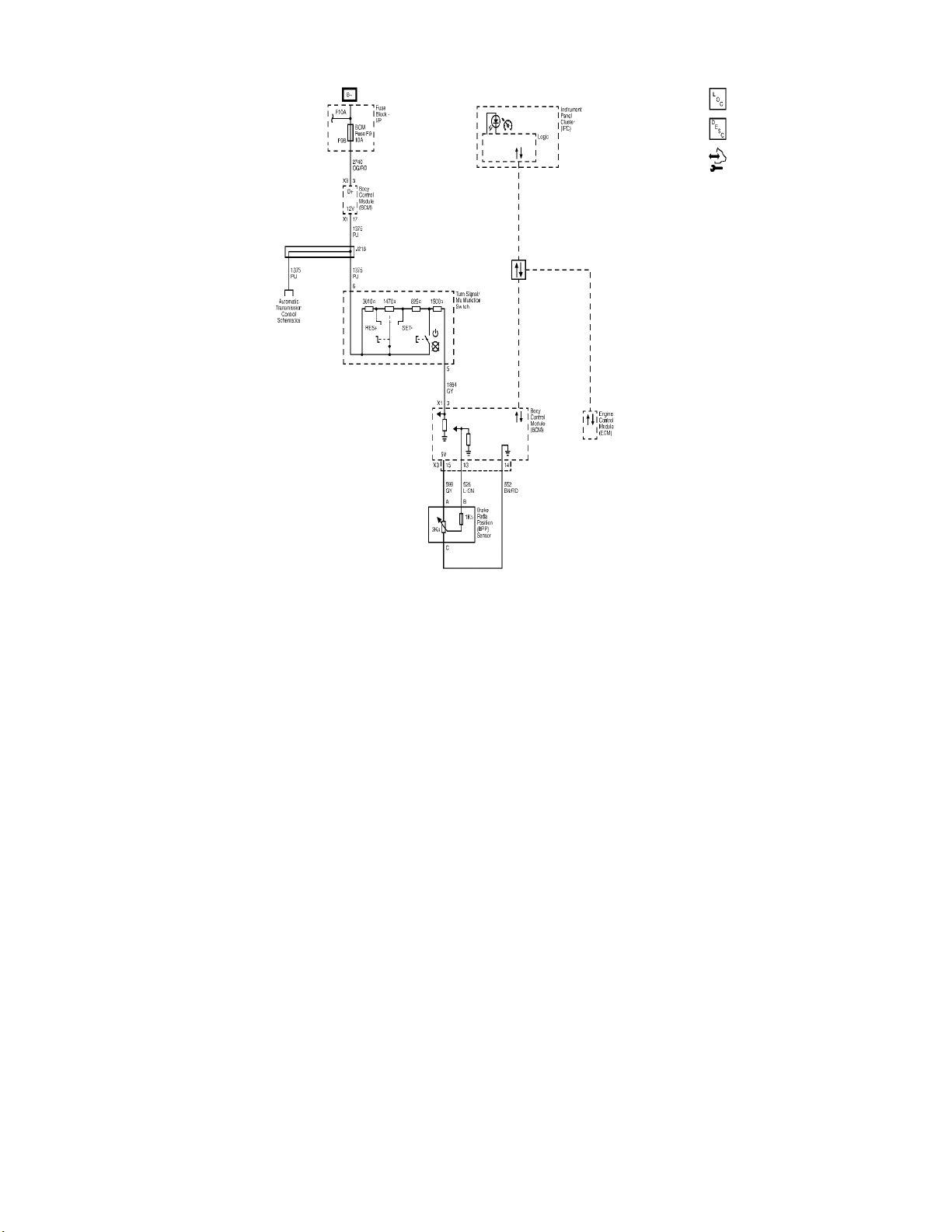

Page 14
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034126
http://localhost:9001/si/showTif.do?image=2034126

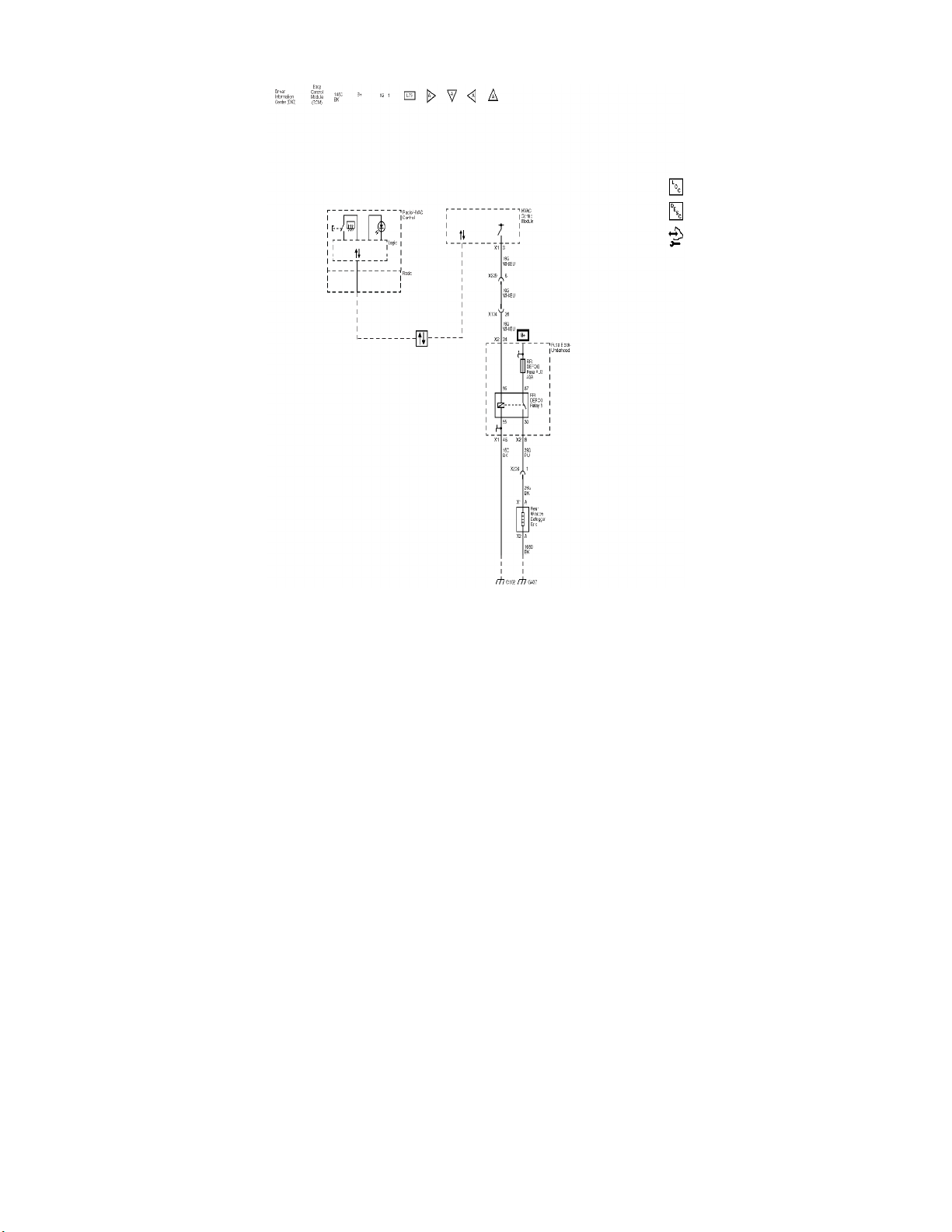

Page 15
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034129
http://localhost:9001/si/showTif.do?image=2034129

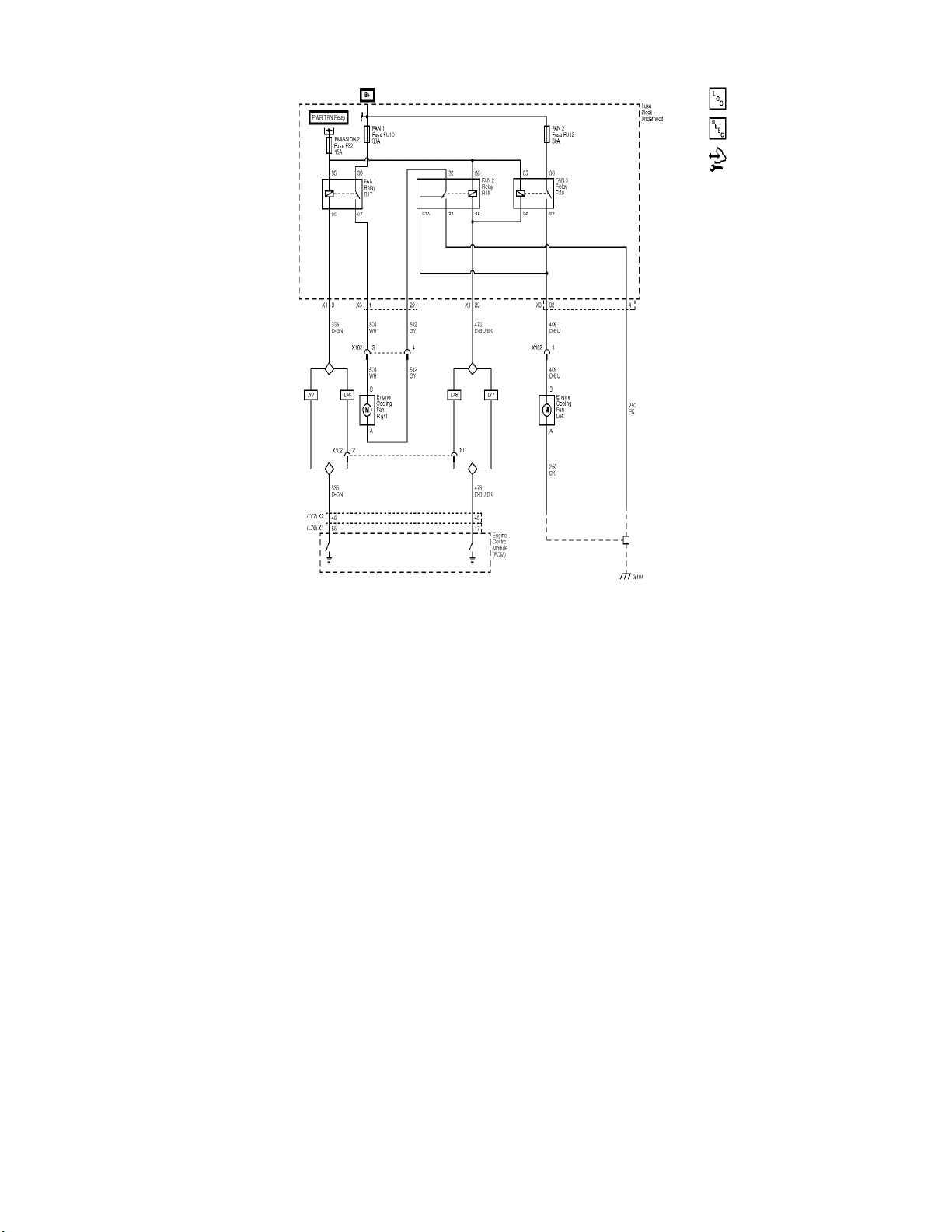

Page 16
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034169
http://localhost:9001/si/showTif.do?image=2034169

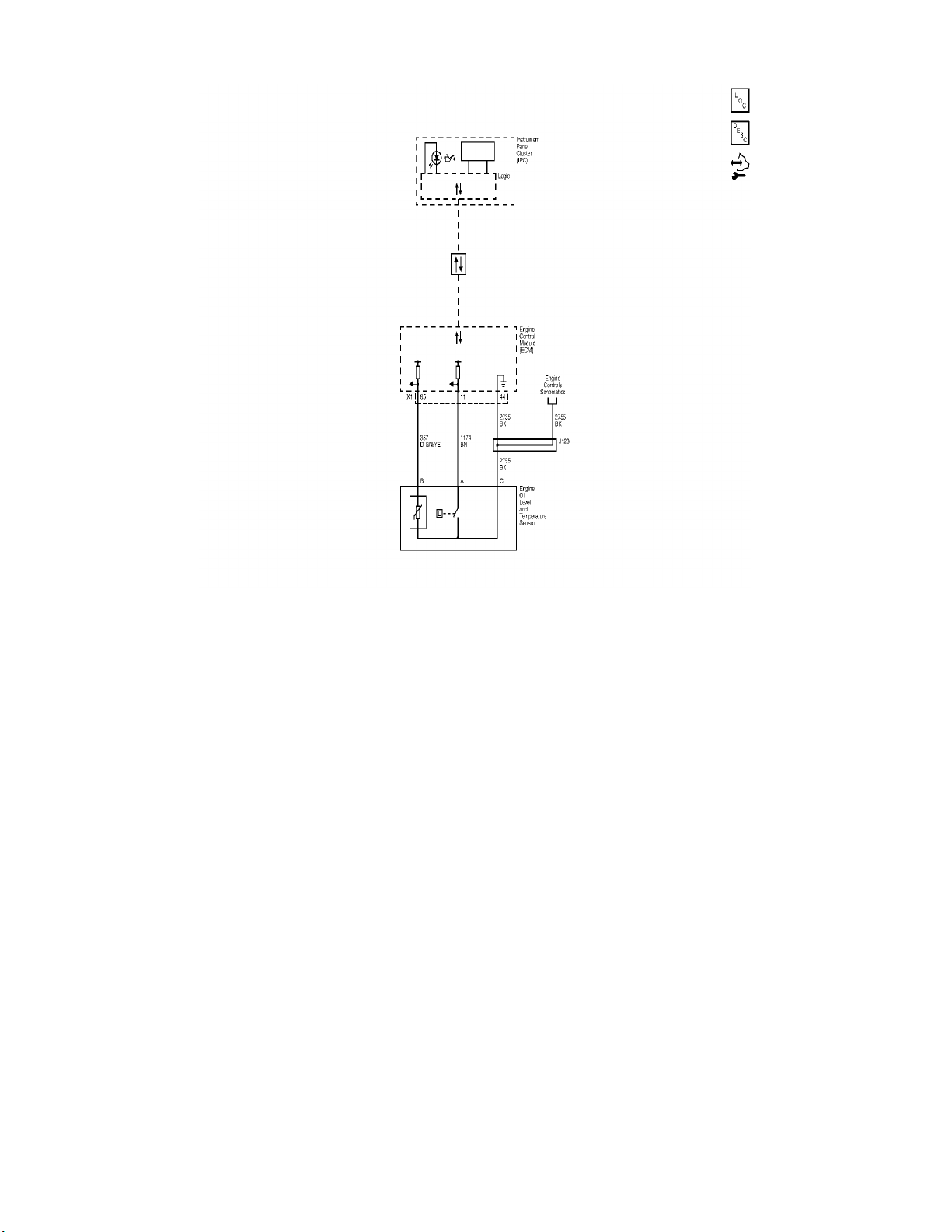

Page 17
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2074286
http://localhost:9001/si/showTif.do?image=2074286

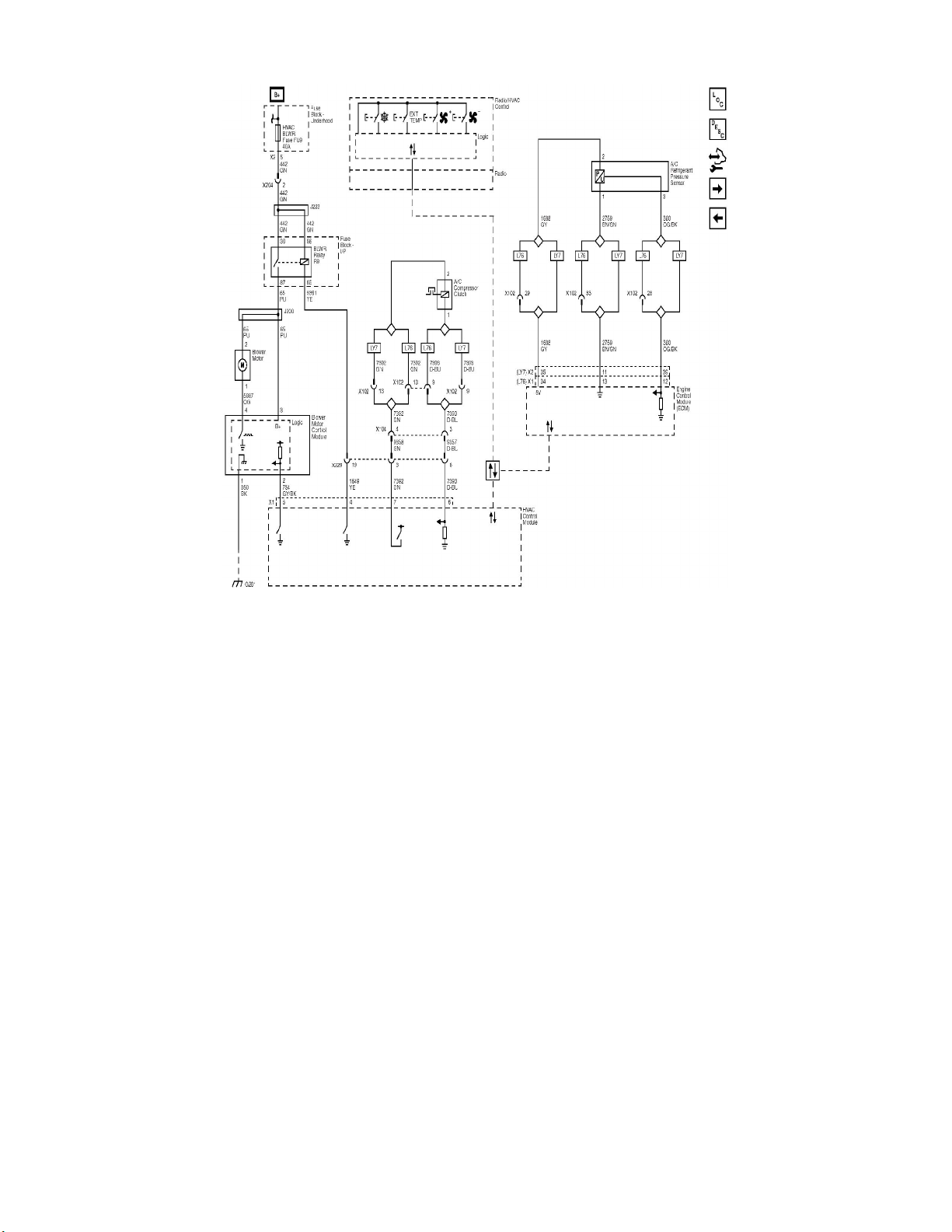

Page 18
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2075655
http://localhost:9001/si/showTif.do?image=2075655
Page 19
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034190
http://localhost:9001/si/showTif.do?image=2034190
Page 20
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034191
http://localhost:9001/si/showTif.do?image=2034191
Page 21

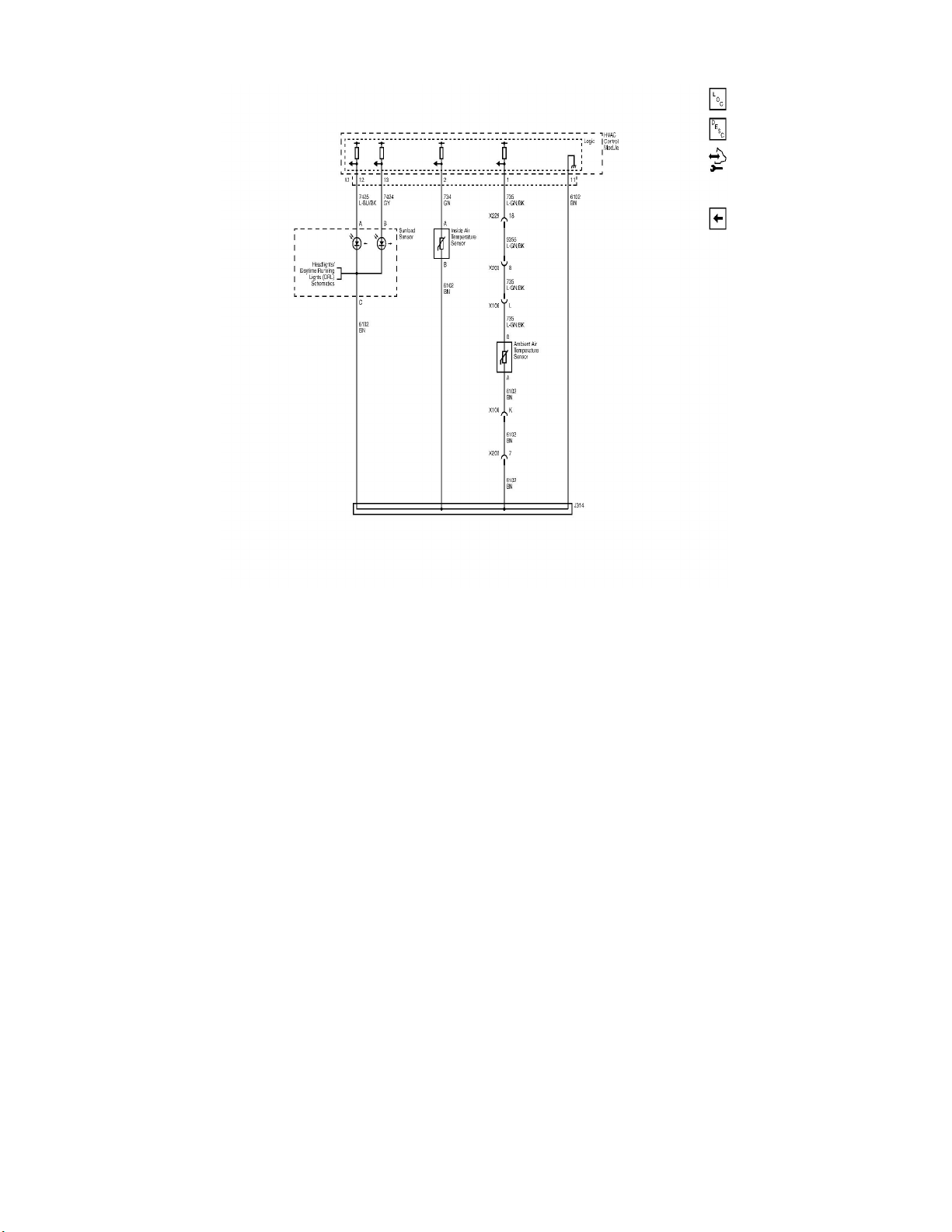

© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2075661
http://localhost:9001/si/showTif.do?image=2075661

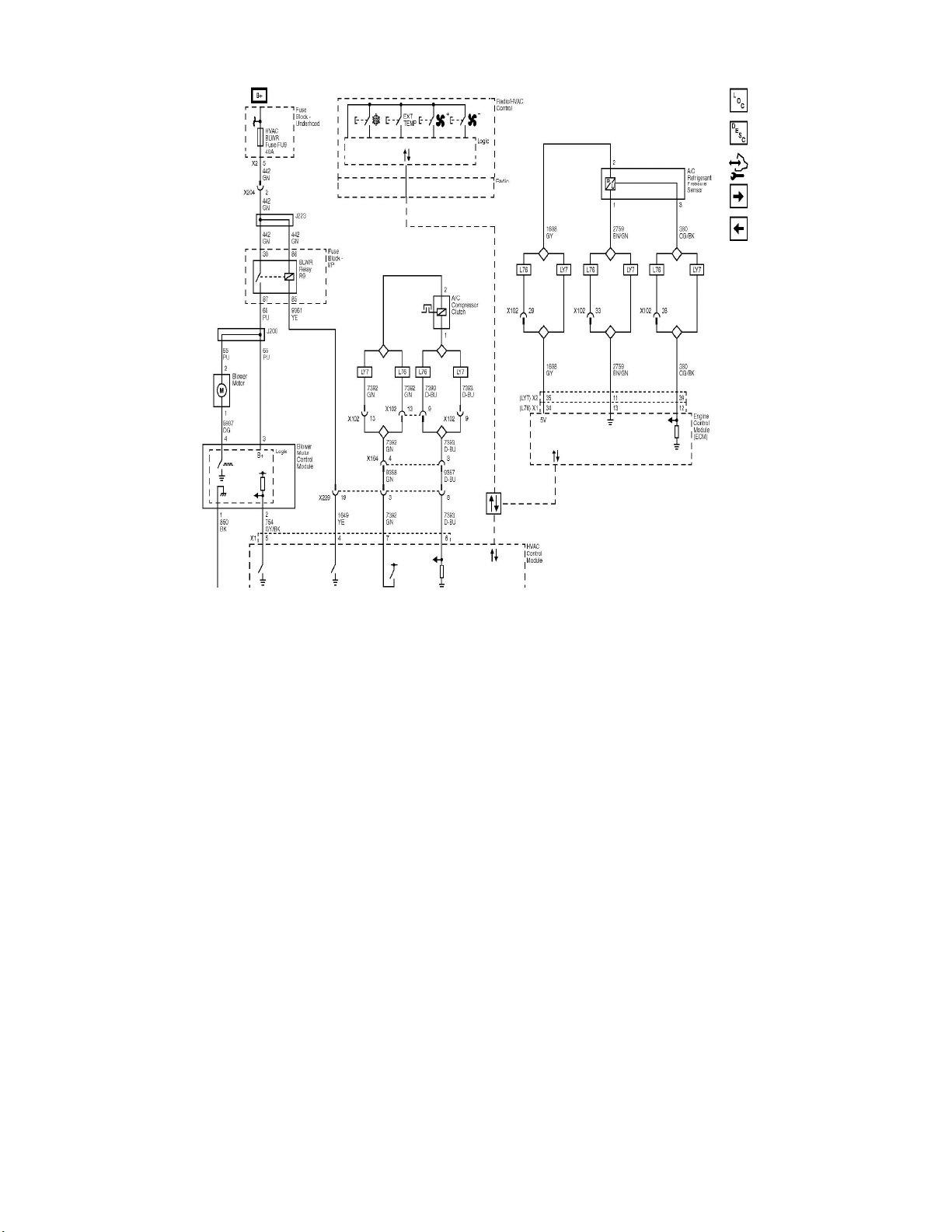

Page 22
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2075664
http://localhost:9001/si/showTif.do?image=2075664

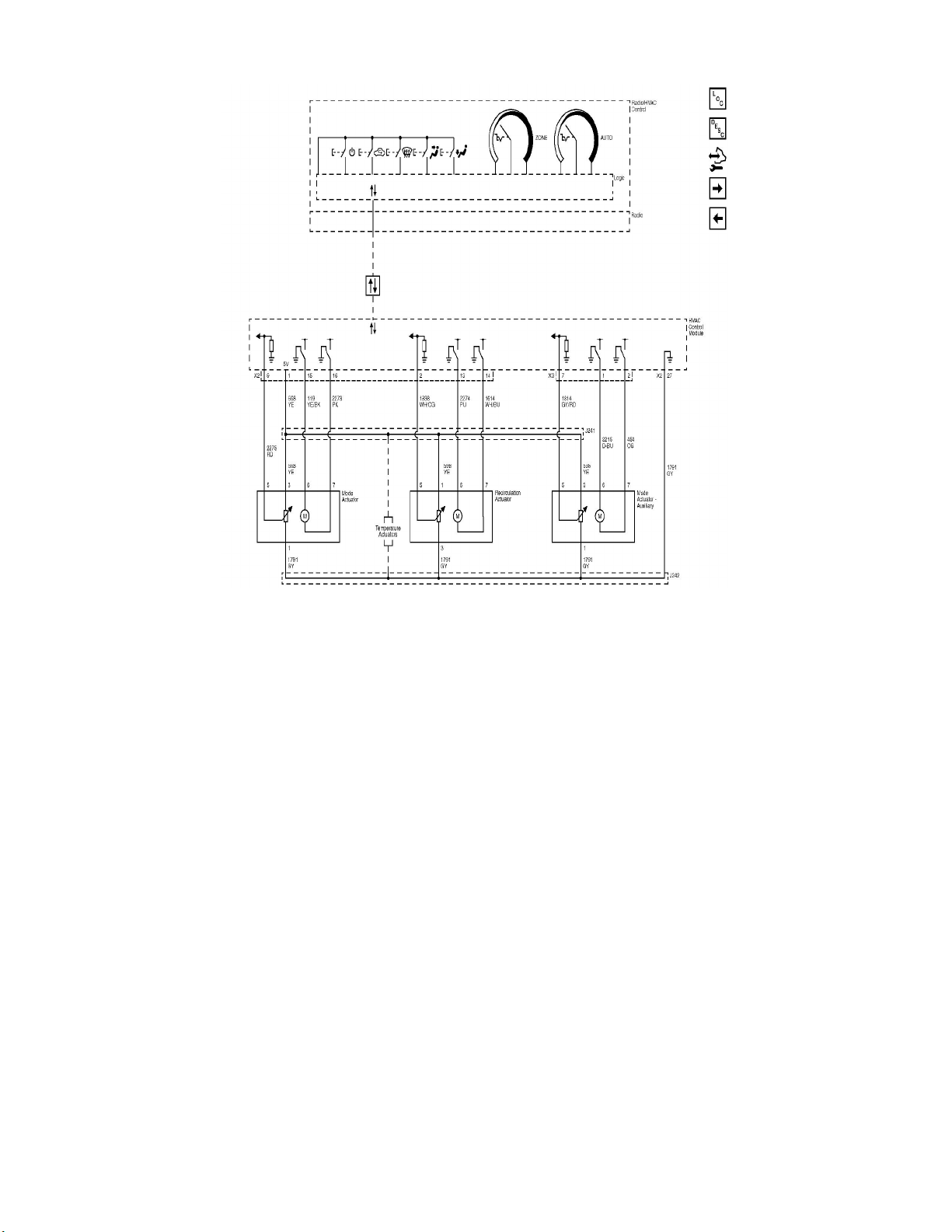

Page 23
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034192
http://localhost:9001/si/showTif.do?image=2034192
Page 24

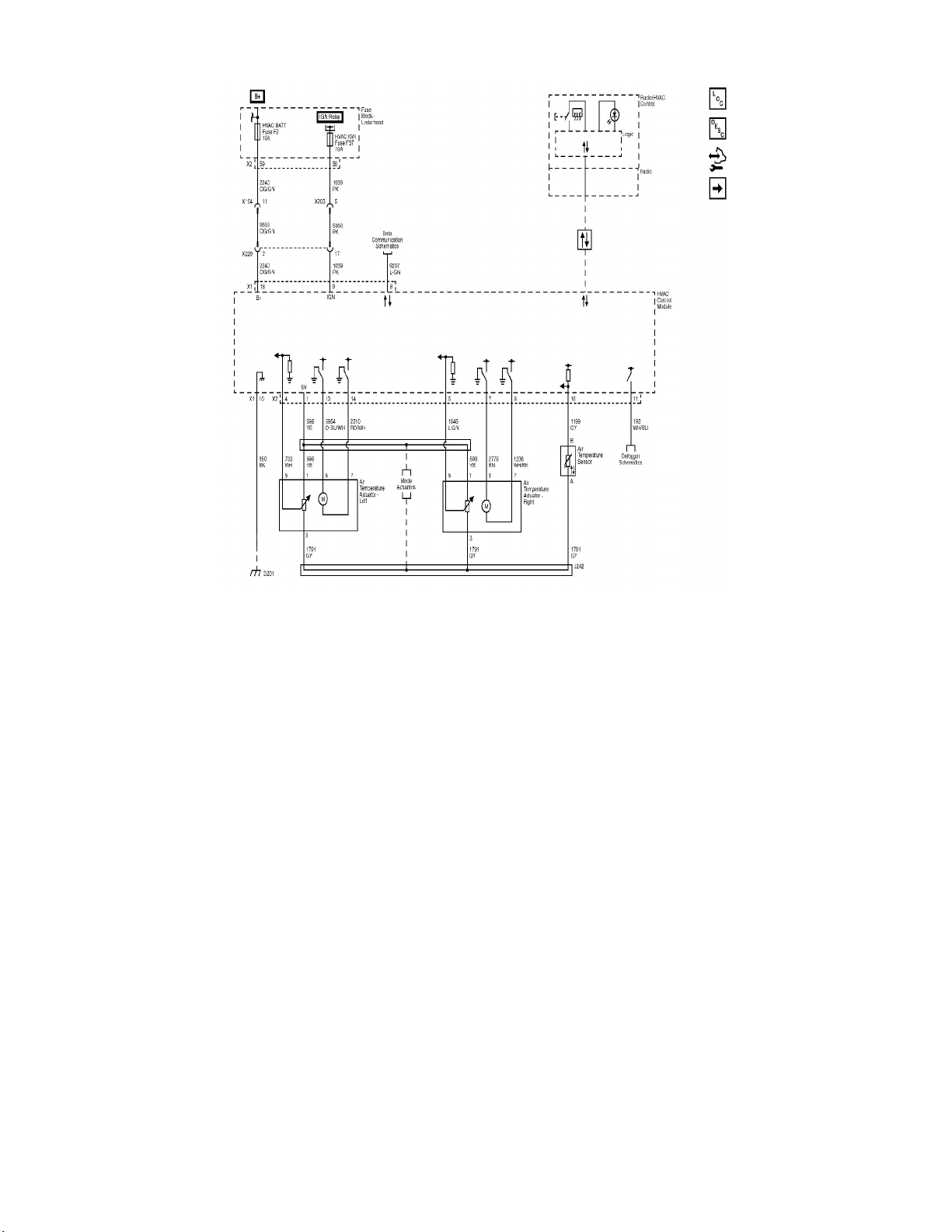

© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034194
http://localhost:9001/si/showTif.do?image=2034194

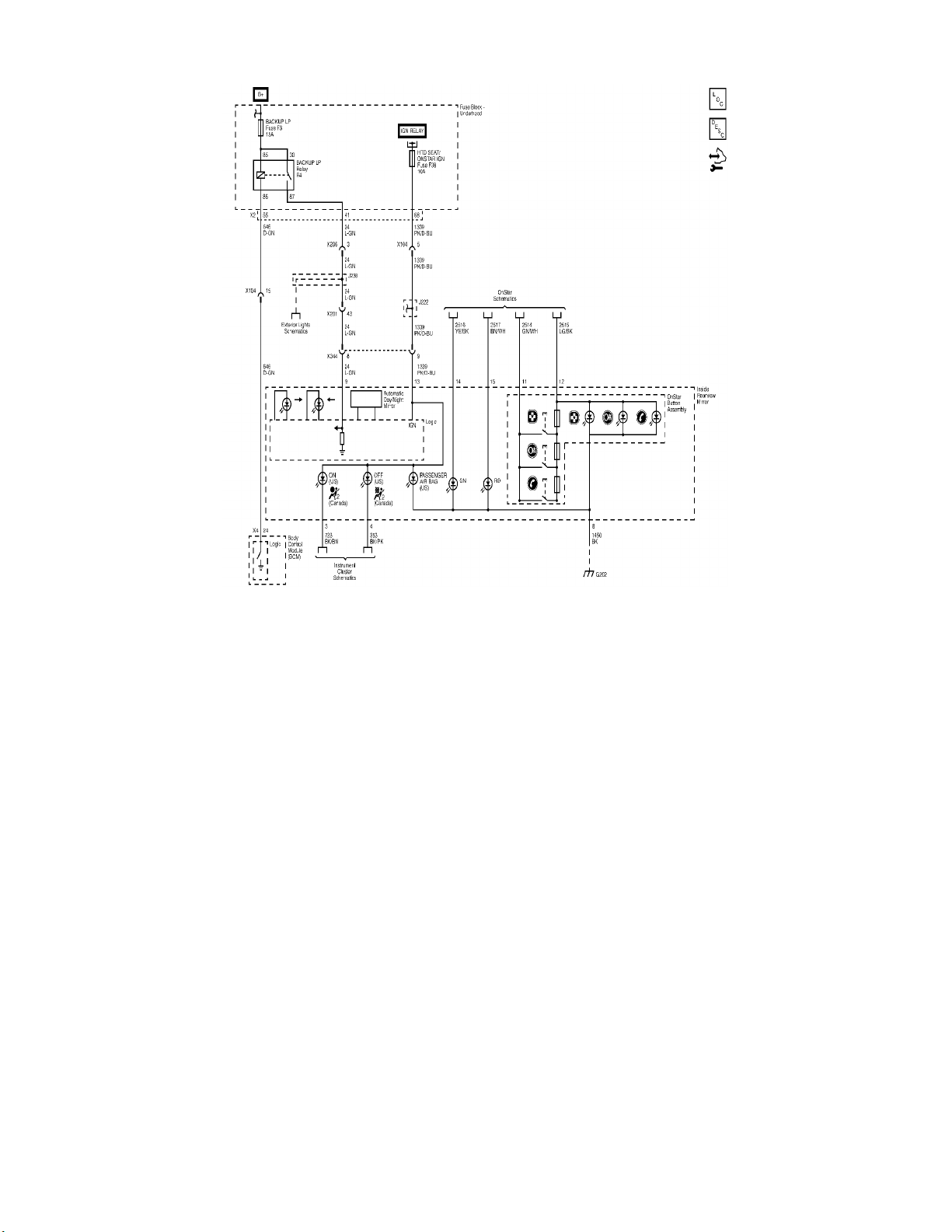

Page 25
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2073657
http://localhost:9001/si/showTif.do?image=2073657
Page 26

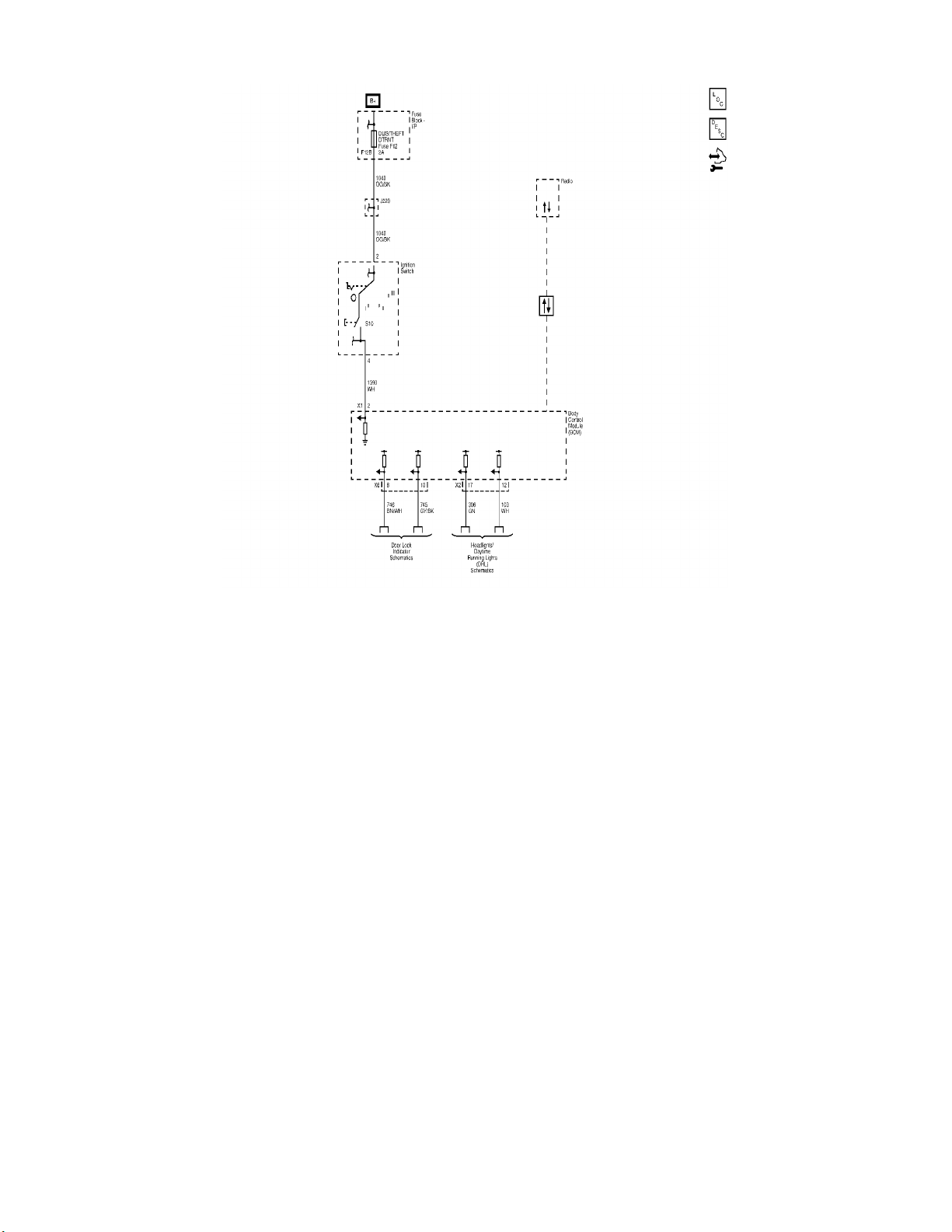

© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2075429
http://localhost:9001/si/showTif.do?image=2075429

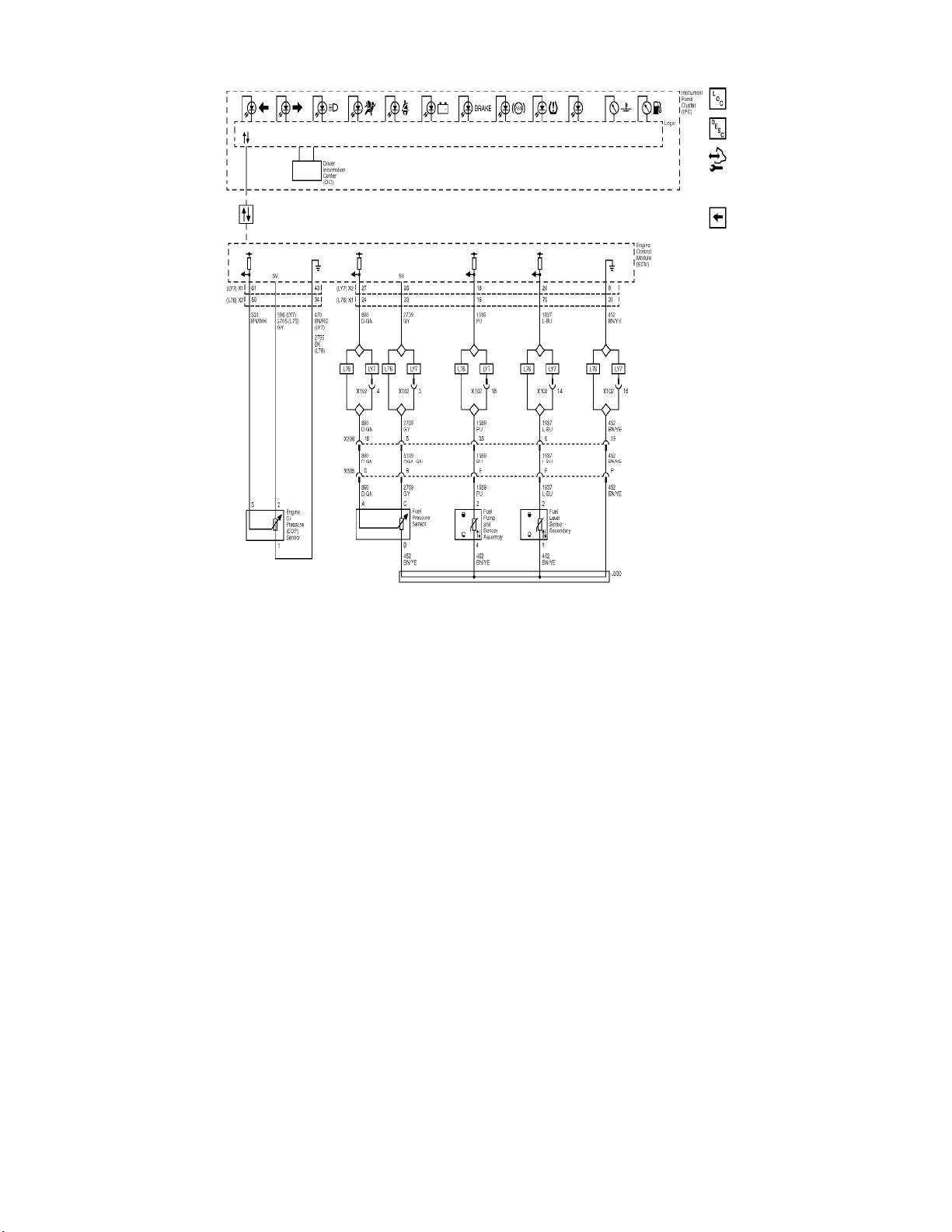

Page 27
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2074796
http://localhost:9001/si/showTif.do?image=2074796
Page 28

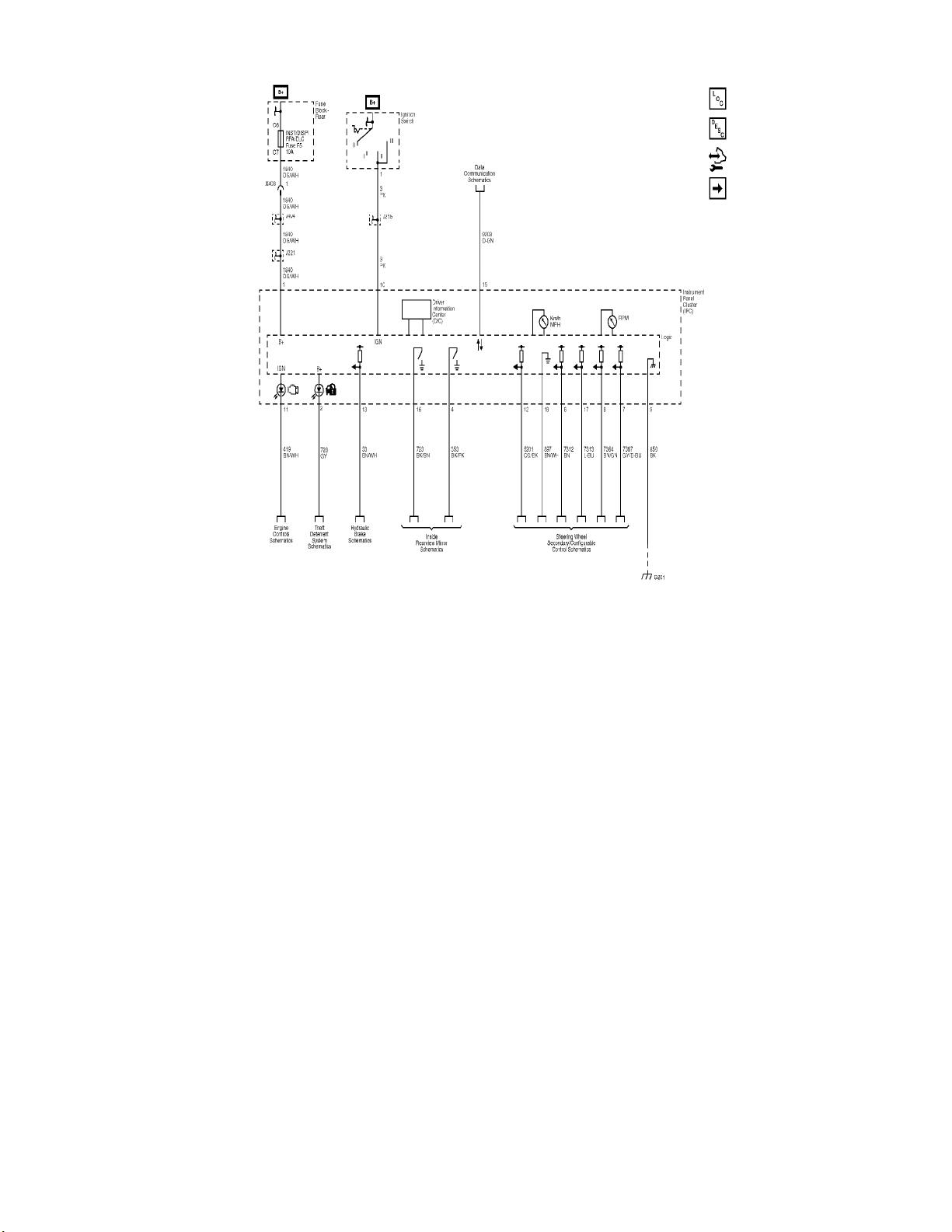

© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034195
http://localhost:9001/si/showTif.do?image=2034195
Page 29

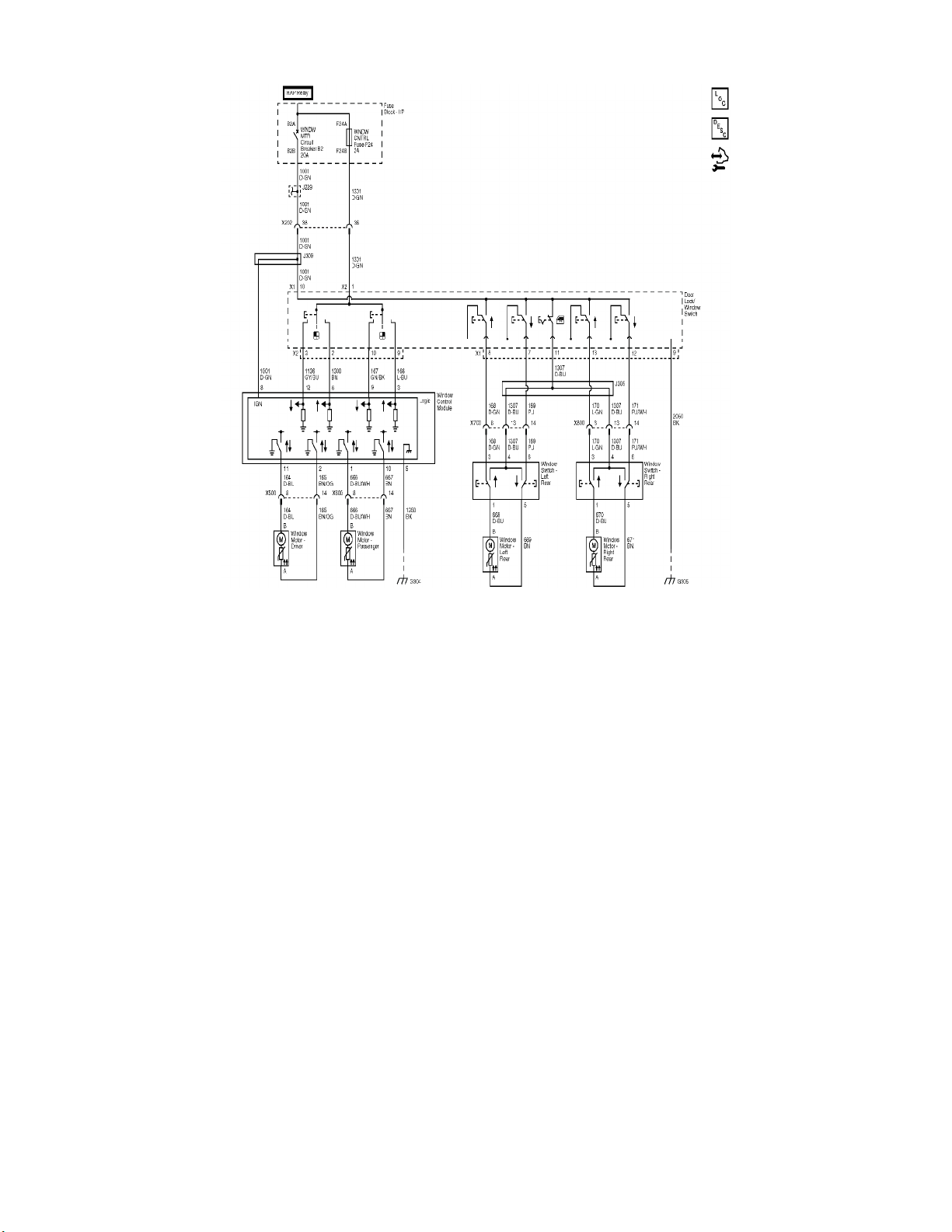

© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034220
http://localhost:9001/si/showTif.do?image=2034220
Page 30

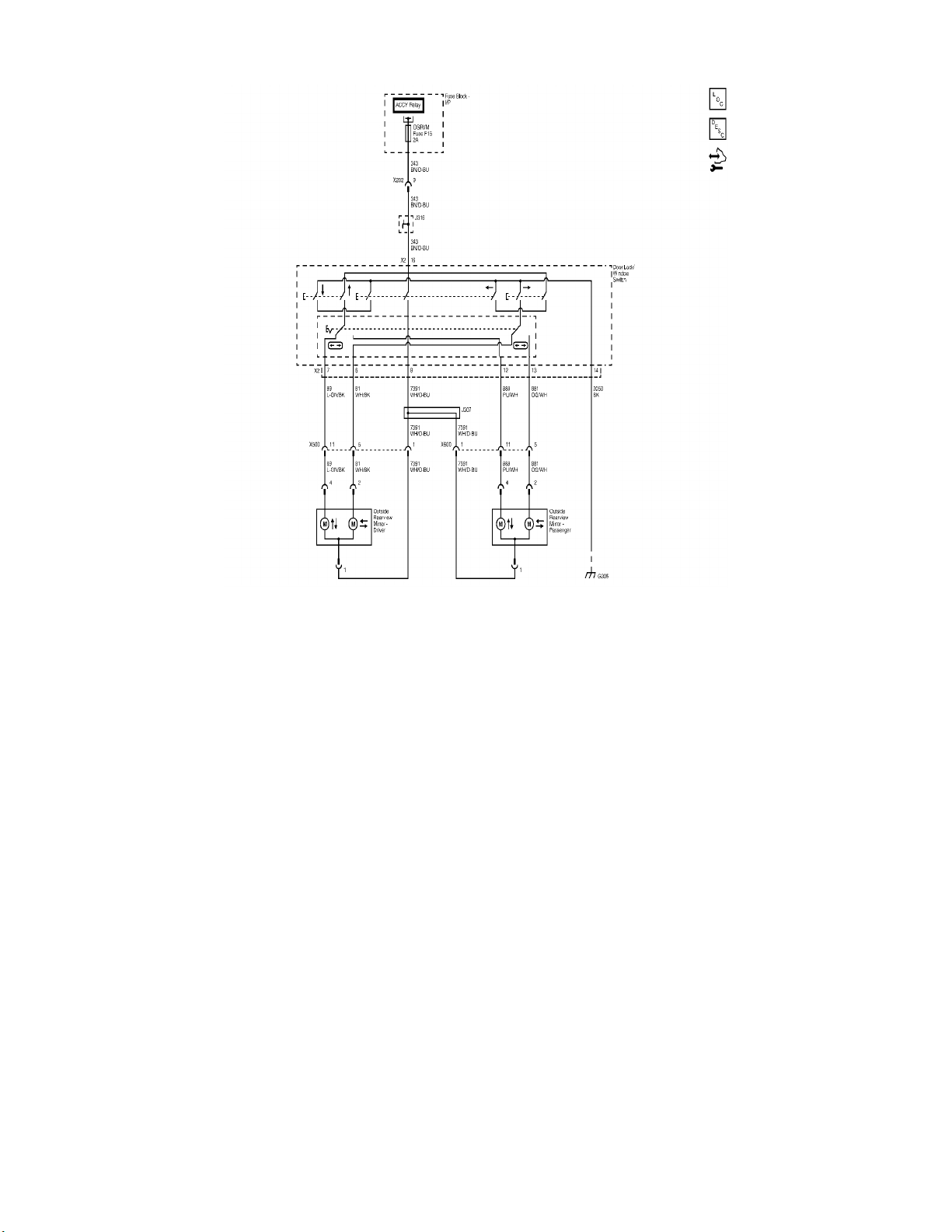

© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2073736
http://localhost:9001/si/showTif.do?image=2073736

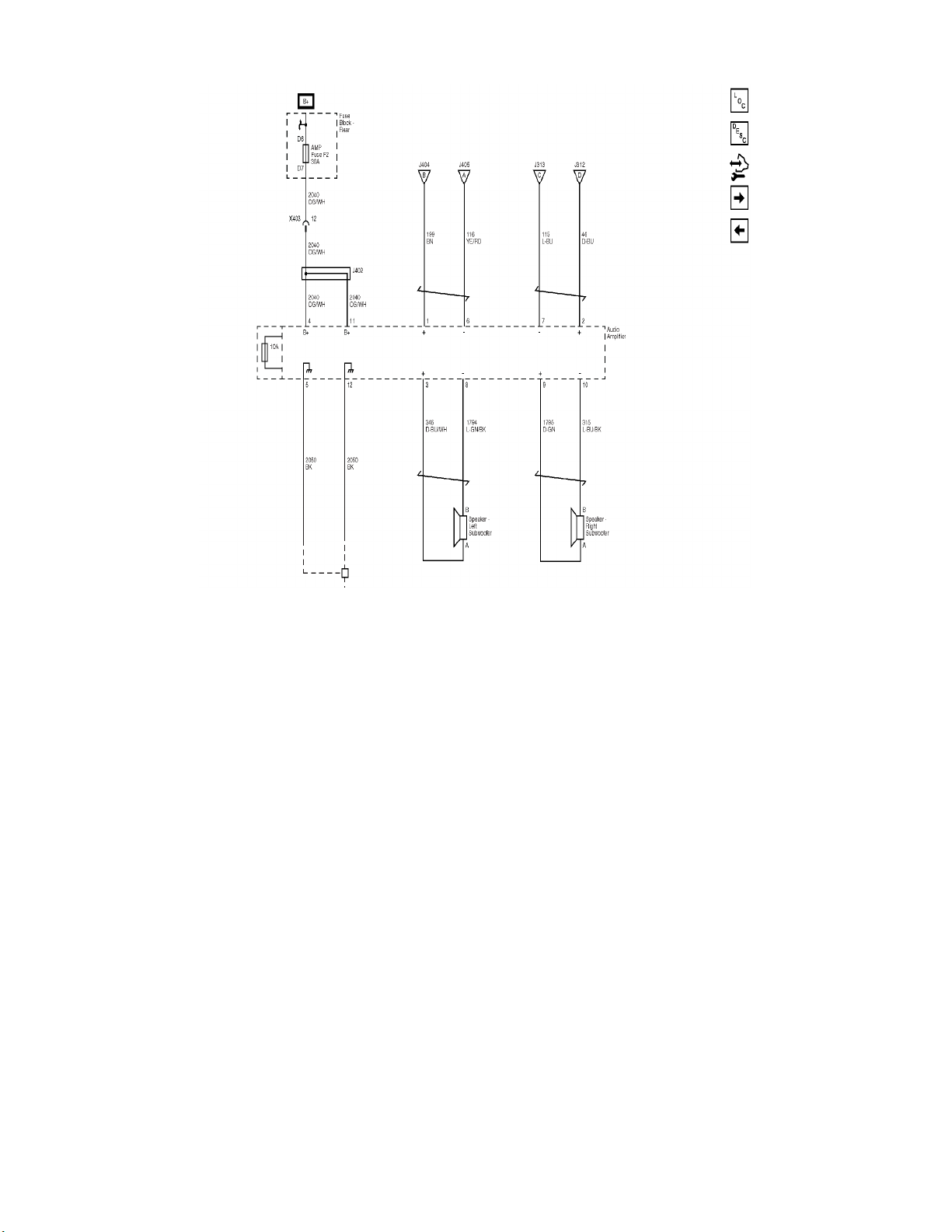

Page 31
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034223
http://localhost:9001/si/showTif.do?image=2034223
Page 32

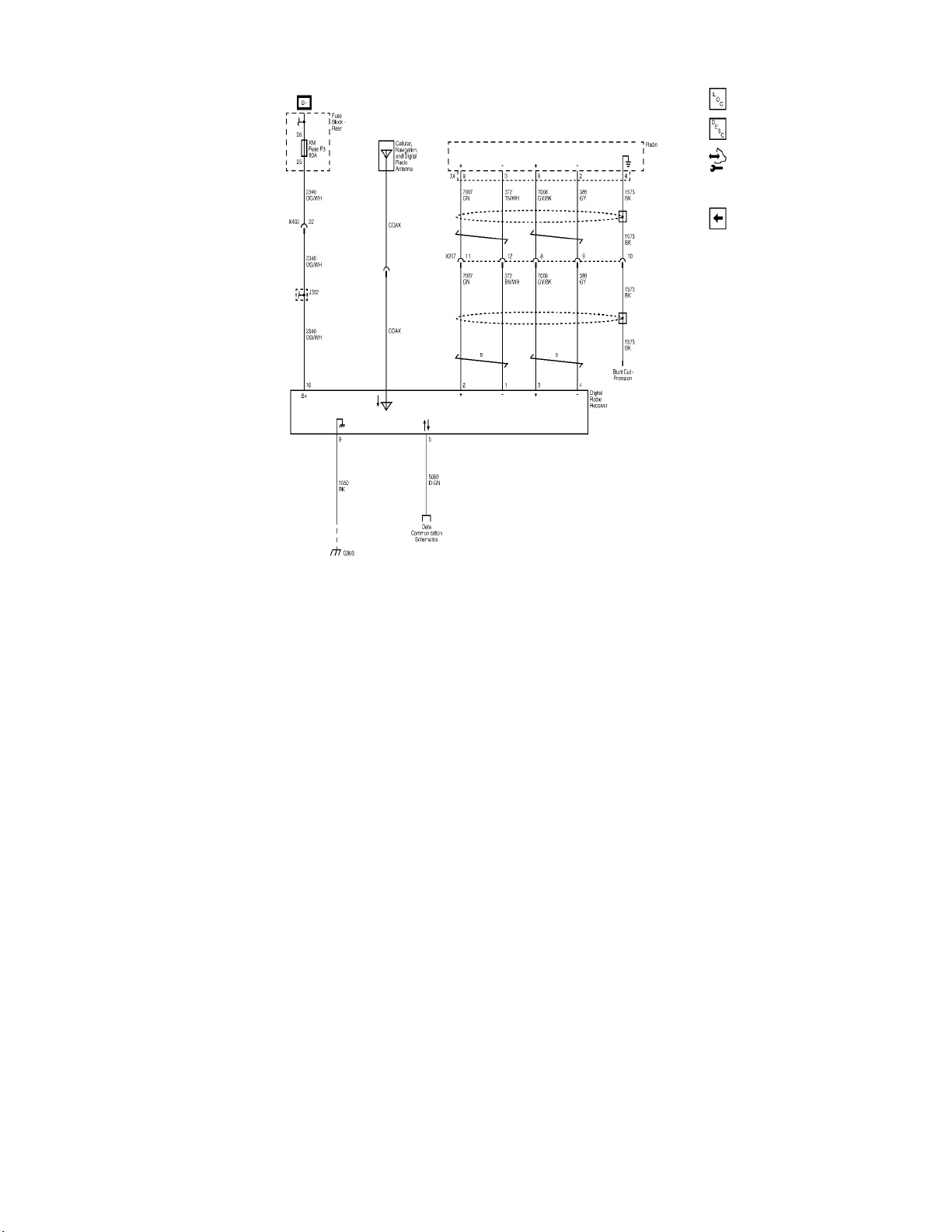

© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2108166
http://localhost:9001/si/showTif.do?image=2108166

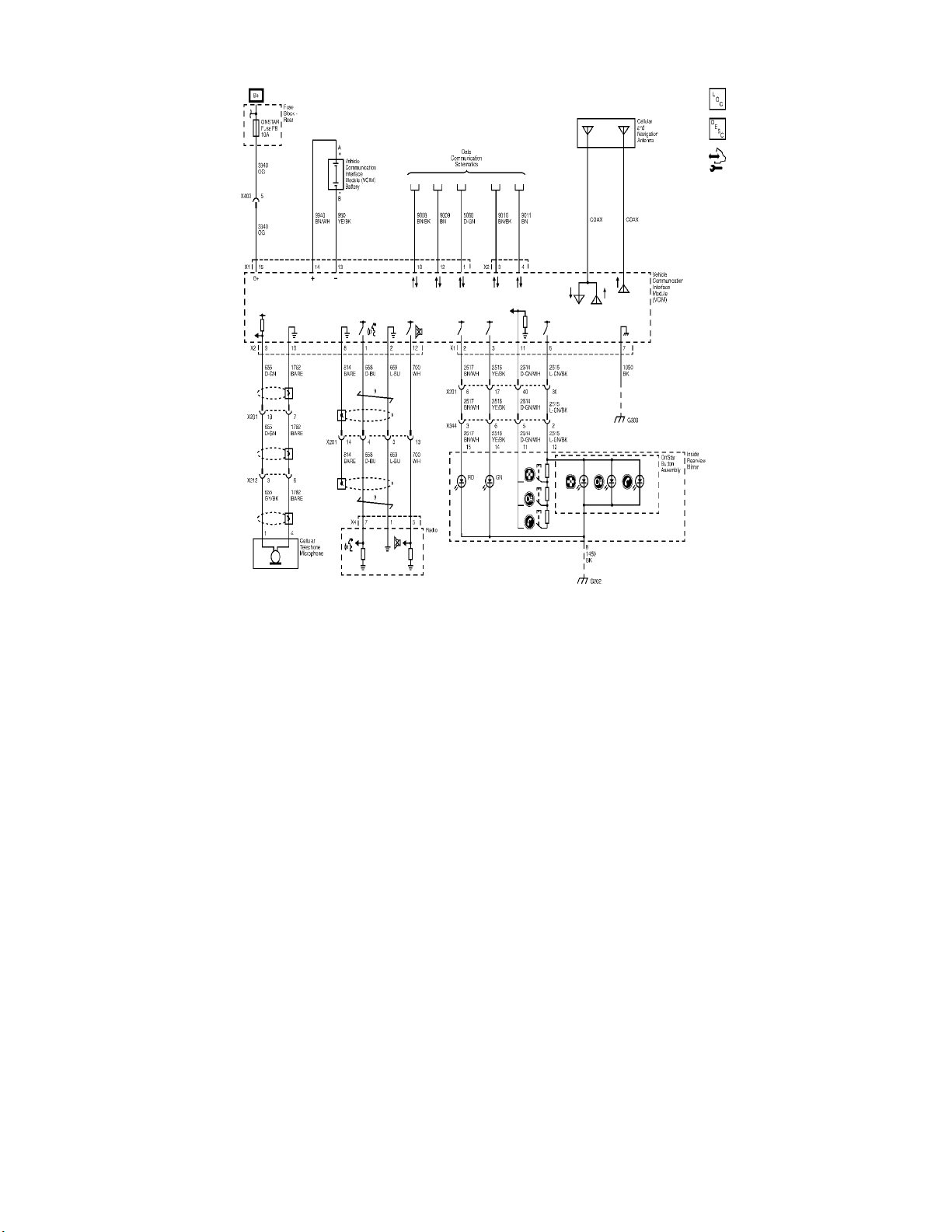

Page 33
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034199
http://localhost:9001/si/showTif.do?image=2034199

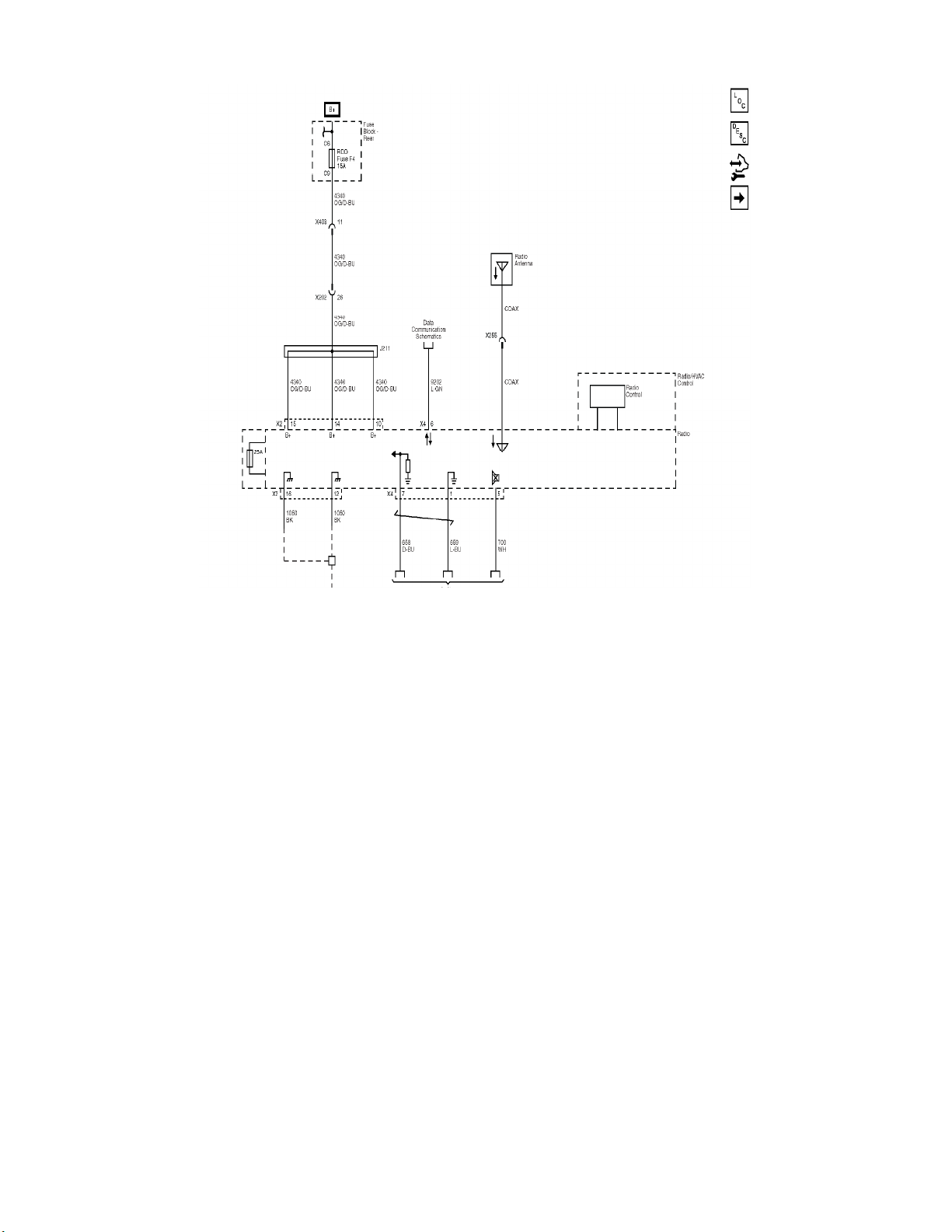

Page 34
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034221
http://localhost:9001/si/showTif.do?image=2034221
Page 35

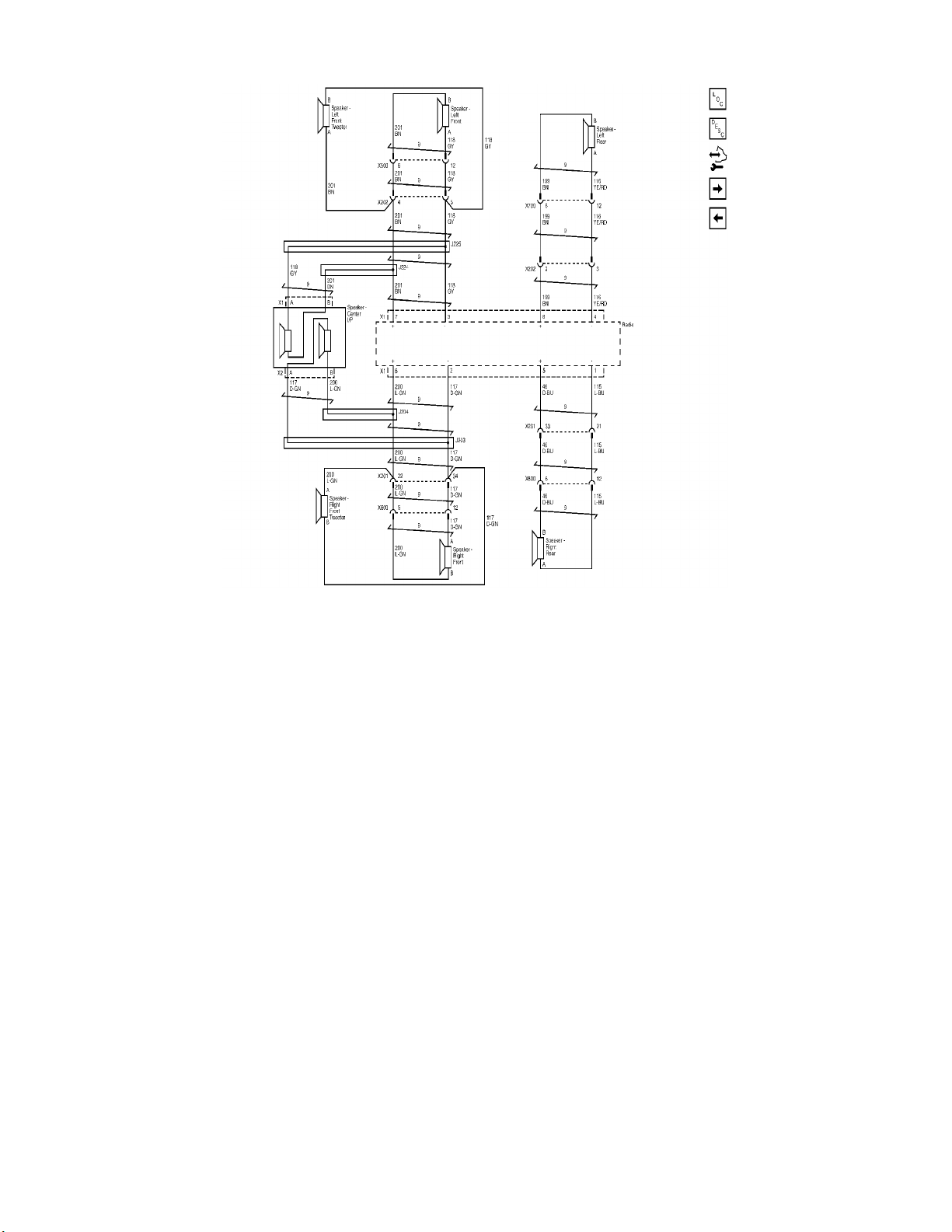

© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034222
http://localhost:9001/si/showTif.do?image=2034222

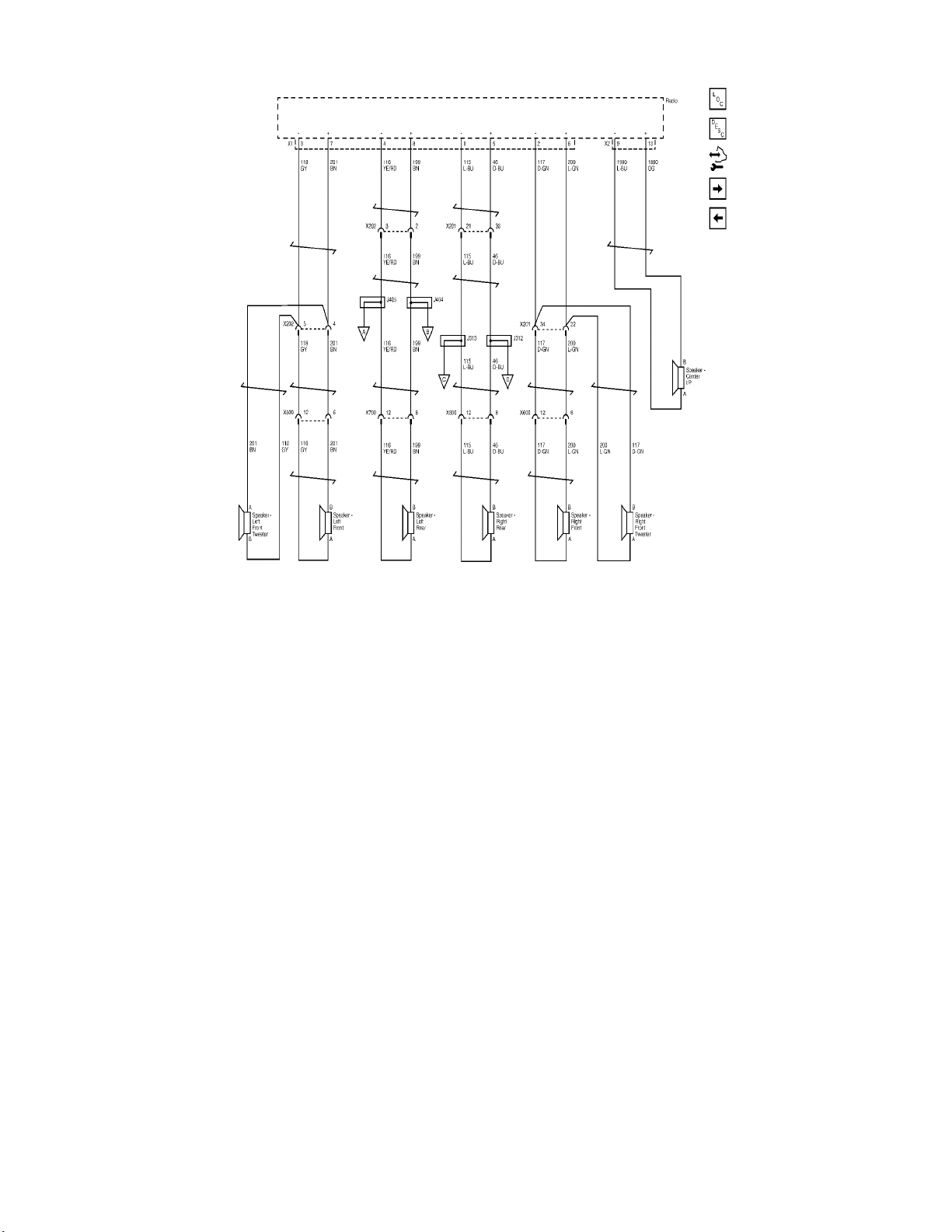

Page 36
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034224
http://localhost:9001/si/showTif.do?image=2034224

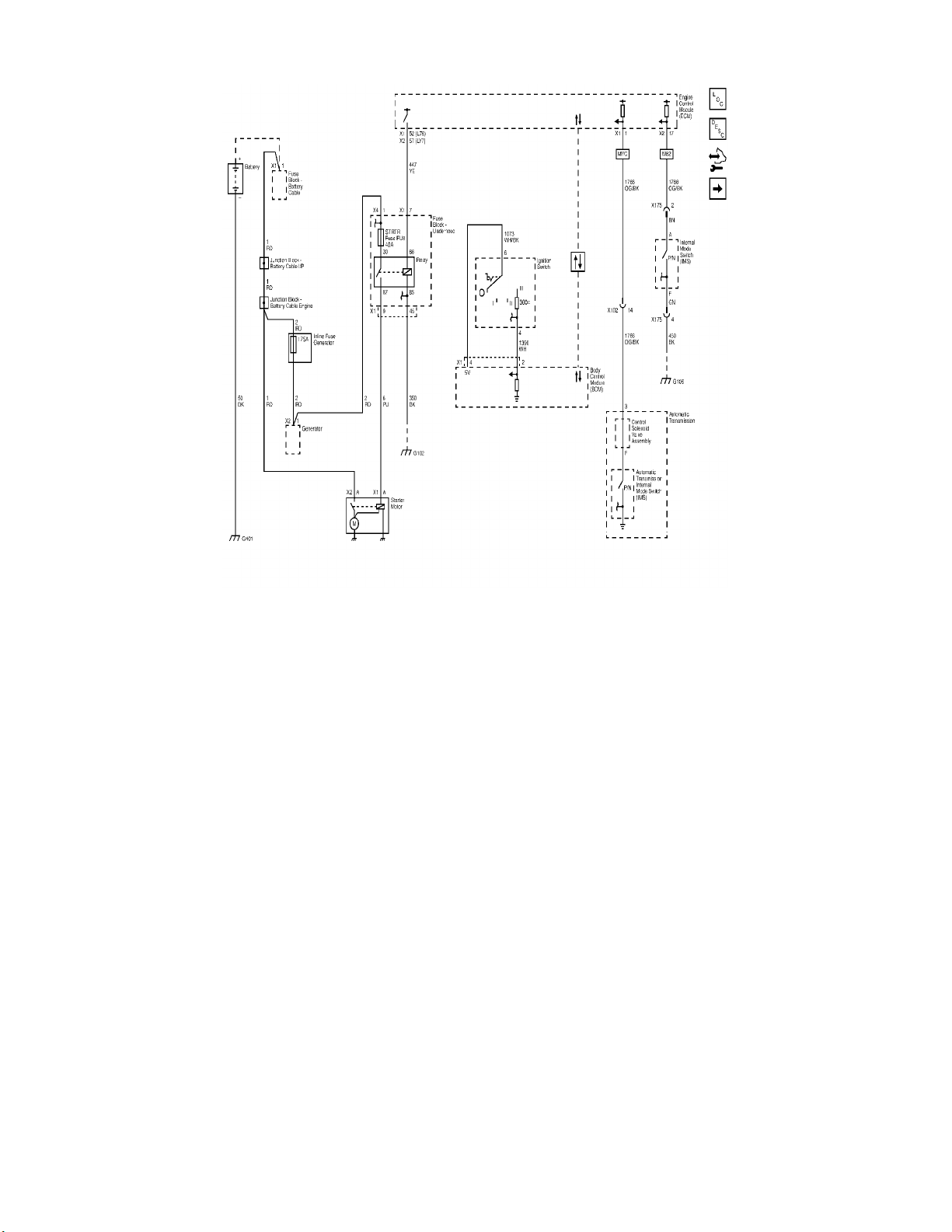

Page 37
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034232
http://localhost:9001/si/showTif.do?image=2034232

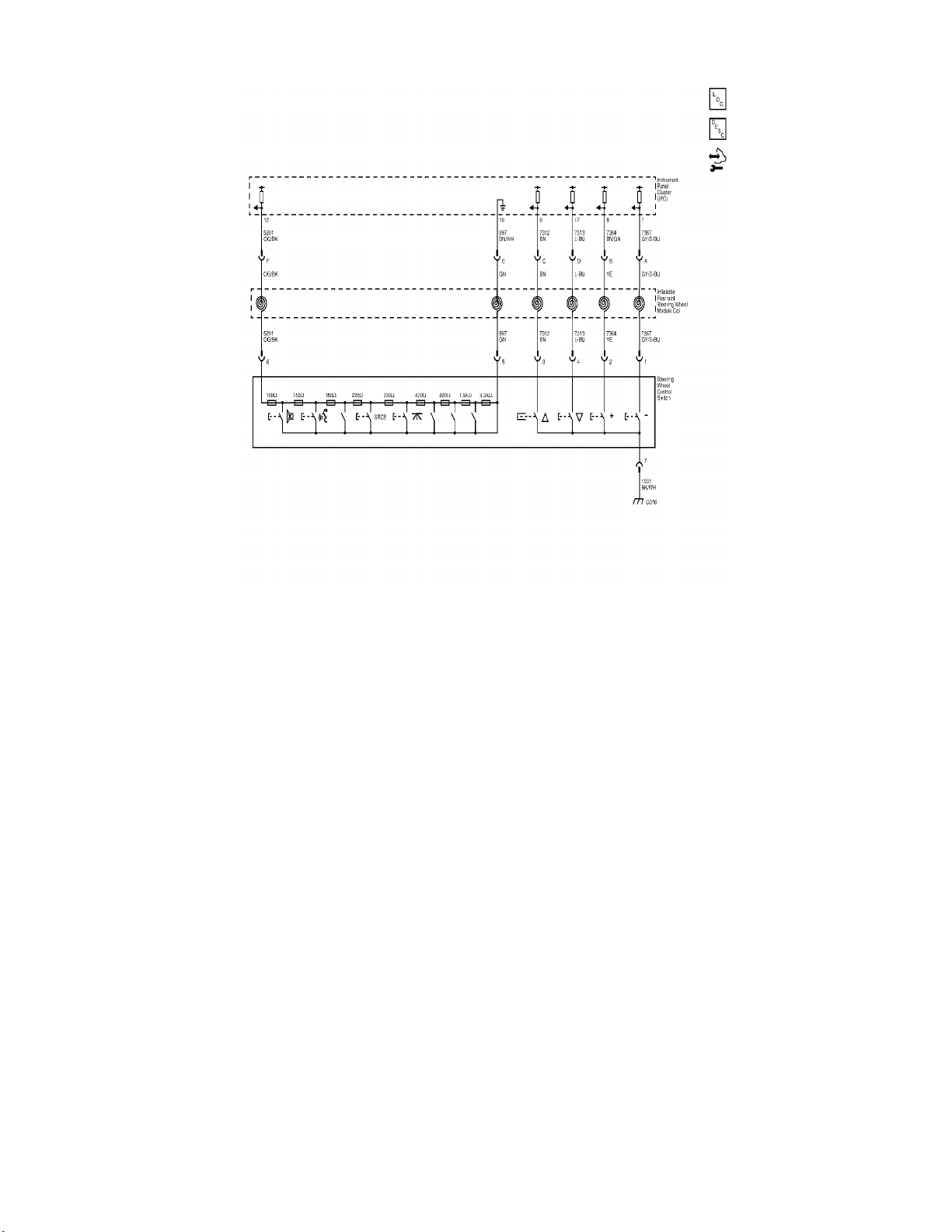

Page 38
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034233
http://localhost:9001/si/showTif.do?image=2034233

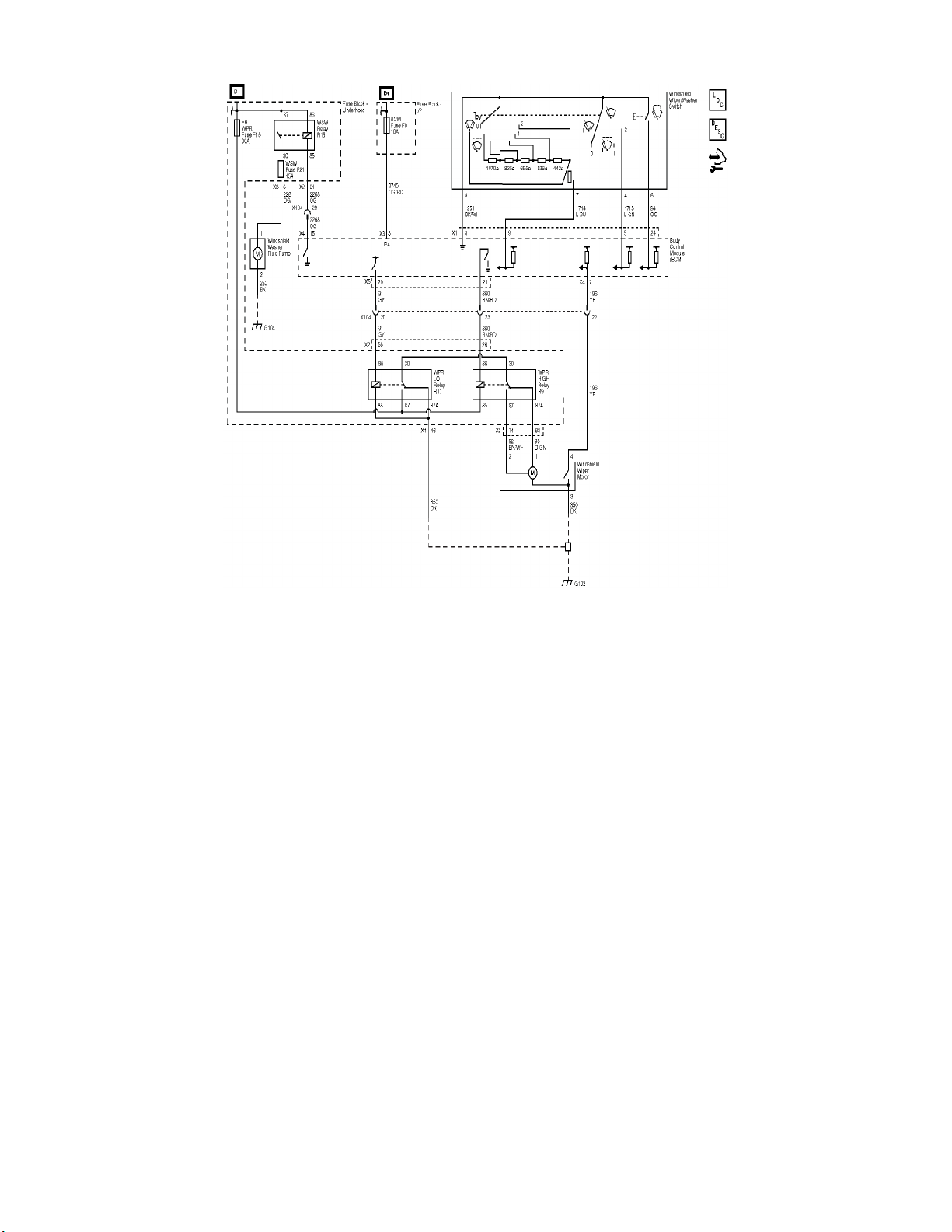

Page 39
© 2010 General Motors Corporation. All rights reserved.
Page
1
of 1Image ID# : 2034236
http://localhost:9001/si/showTif.do?image=2034236
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
