holden Trax (2020) Owner's Manual

MY20 TJ Trax

Owner’s Manual

GM Holden Ltd, ABN 84 006 893 232, Holden New Zealand Ltd., Company Number 1602 (hereinafter Holden)

Change of name, address or ownership

If you drive a pre-owned Holden, have moved house or changed any of your details, we’d like to hear from you! Holden uses your details to keep your vehicle’s factory provided Roadside Assistance and Warranty details up to date. It also helps us let you know if there is an existing rework action required on your vehicle. To update your details, please

take a few minutes to ll in and mail the form at the back of the Service & Warranty Booklet or visit Holden’s website at:

www.holden.com.au/forms/change-of-owner-details GM Holden Ltd (Holden) is collecting the new owner’s personal information in order to process the request for

transfer for the specied vehicle. We may disclose your personal information to our related companies and third

parties who provide us with (or help us provide) products and services, including to overseas locations such as the

USA, and other countries in Europe, Oceania and Asia. Holden’s privacy policy (available at: www.holden.com.au/privacypolicy) states how you can seek to access or correct

any personal information Holden holds about you, how to complain about a privacy breach by Holden and how Holden will deal with a privacy complaint. You can contact Holden on 1800 033 349 or alternatively, you may prefer to email Holden at: holdencustomercare@gm.com

Note: Please refer to the inside front cover of the Service & Warranty Booklet for the Vehicle Identication Certicate.

© 2019 GM Holden Ltd. © 2019 Holden New Zealand Ltd. Printed in Australia Part No. 92511101 prohibited without written approval from June 2019 GM Holden Ltd., ABN 84 006 893 232 (Australia) or (MY20 TJ Trax. Print 1) Holden New Zealand Ltd., Company Number 1602 (New Zealand)

Reproduction in whole or part is

Contents 1

Introduction ..................................... 2

Keys, doors and windows

Seats, restraints............................ 23

Storage Instruments and controls Lighting Infotainment system

Climate control............................ 121

Driving and operating Vehicle care Service and maintenance

Technical data............................. 204

Customer information Index

......................................... 42

......................................... 75

................................ 158

........................................... 213

............... 5

.............. 46

..................... 81

................. 126

........... 202

................. 209

2 Introduction

Introduction

We thank you for choosing Holden and want to assure you

of our continuing interest in your driving pleasure and satisfaction.

This owner’s manual applies to the current Trax vehicle. Therefore, due to different models and options, you may

nd reference in this manual to some equipment

not tted to your own vehicle.

Please note that all information, illustrations and

specications in this manual are based on the latest

production information available at the time of printing.

Holden reserves the right to make changes at any time

without notice and without incurring any obligation.

Introduction 3

Introduction

Your vehicle is a designed

combination of advanced technology,

safety, environmental friendliness and economy.

This Owner’s Manual provides you with all the necessary information

to enable you to drive your vehicle safely and efciently.

Make sure your passengers are

aware of the possible risk of accident

and injury which may result from improper use of the vehicle.

Using this manual

• This manual describes all options and features available for this

model. Certain descriptions, including those for display and menu functions, may not apply to your vehicle due to model variant.

• The In brief section will give you

an initial overview.

• The table of contents at the beginning of this manual and

within each chapter shows where the information is located.

• The index will enable you to search for specic information.

• Directional data, e.g. left or right,

or front or back, always relate to

the direction of travel.

• For a complete list of the registered trademarks contained in this manual:

Trademarks and licence agreements 0 209

Symbols

Page references indicated with 0. This indicates ‘see page’.

Danger, warnings and cautions

Danger

Text marked Danger provides information on risk of fatal injury. Disregarding this information may endanger life.

Warning

Text marked Warning provides information on risk of accident or injury. Disregarding this information may lead to injury.

Caution

Text marked Caution provides

information on possible damage

to the vehicle. Disregarding this information may lead to vehicle damage.

4 Introduction

Instrument panel overview

1. Side air vents 0 124

2. Central air vents 0 124

3. Infotainment system 0 81

4. Wiper and washer lever 0 48

5. Cruise control 0 143

6. Instrument cluster 0 53

7. Horn, driver’s airbag 0 47, 35

8. Steering wheel remote controls

0 85

9. Turn signals 0 77

10. Exterior lamp switch 0 75

11. Bonnet release lever 0 161

12. Ignition switch/lock 0 127

13. Steering wheel adjustment 0 47

14. Engine Start/Stop button 0 127

15. Hazard warning asher 0 77

16. Power outlet 0 51

17. Passenger seat belt light 0 57

18. Shift lever 0 133

19. Parking brake 0 139

20. USB, AUX port 0 95, 102

21. Climate control system 0 121

22. TSC/ESC/DCS switches 0 140

23. Glove box 0 42

Keys, doors and windows 5

Keys, doors and windows

Keys and locks .......................5

Keys .............................................5

Foldaway/removable key blade

Radio remote control Electronic key system Memorised settings Central locking system Electronic key system

operation Automatic door locks

....................................12

...................7

..................9

....................10

...............10

..................13

Doors .....................................14

Manual door locks .....................14

Child security rear door locks Tailgate Vehicle security Auto door unlock

Immobiliser

.......................................15

..........................16

........................16

.................................17

....6

.....14

Exterior mirrors ....................17

Convex mirror .............................17

Power mirrors

.............................17

Interior mirrors......................18

Rear view mirror .........................18

Windows ................................19

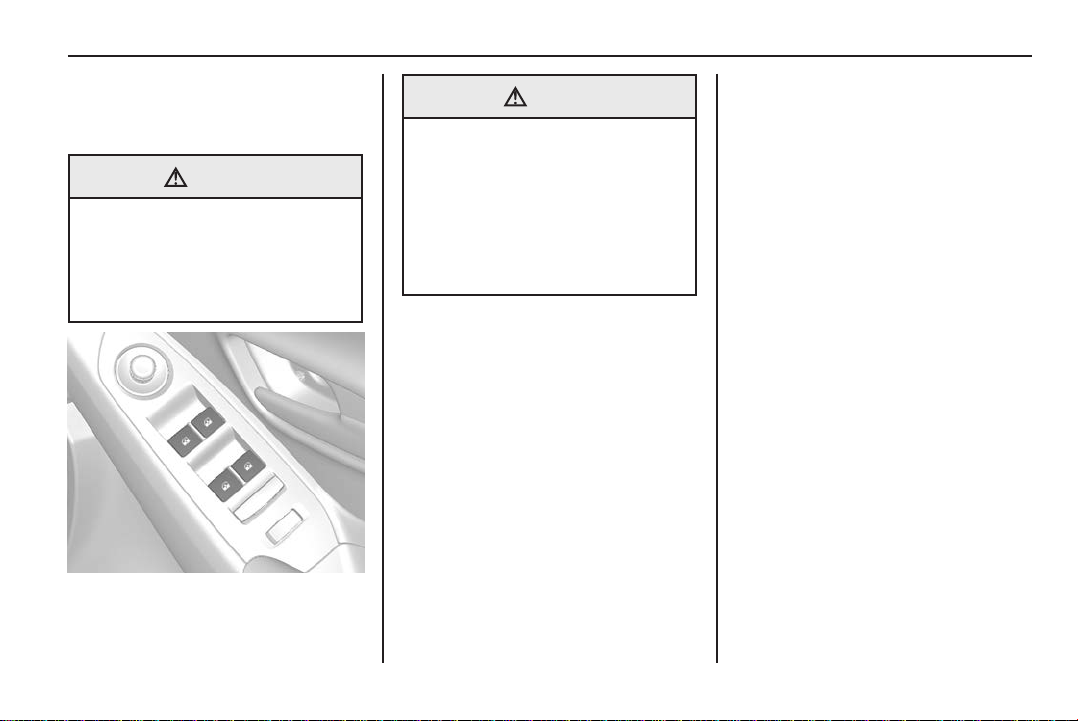

Power windows ..........................19

Heated rear window Sun visors

..................................21

...................20

Roof .......................................21

Sunroof .......................................21

Keys and locks

Keys

Caution

Do not attach heavy or bulky

items to the ignition key.

With ignition switch

6 Keys, doors and windows

With electronic key system

The key operates all doors and the ignition.

• Press c to unlock the doors and tailgate.

The hazard lamps ash twice.

• Press e to lock the doors and tailgate.

The hazard lamps ash once.

Central locking system 0 10 Tailgate 0 15

Foldaway/removable key blade

With ignition switch

1. Press button to extend the key blade.

2. To retract the key blade, press the button and fold the blade into

the key.

With electronic key system

1. Press button to remove the key blade.

2. Reinsert the key blade into the

key.

Keys, doors and windows 7

About the keys

• The remote control has a range of up to 30 metres.

• The range depends on

the charge of the key battery, on ambient conditions, the key’s location and the area between

the key and the vehicle.

• Take care that no button

is pressed unintentionally, especially when the vehicle is out of sight.

• Protect from moisture and high temperatures.

The key buttons may not work if:

• More than 30 metres from the vehicle.

• Battery voltage is too low.

Battery replacement 0 7

• The key buttons are operated

repeatedly while not in range of the vehicle.

• The central locking system is

operated at frequent intervals.

• The power supply is interrupted for a short time.

• The vehicle is parked near strong radio activity.

Replacement keys

If a key is lost, a replacement can be

ordered through a Holden Dealer.

Radio remote control

Battery replacement

As soon as the range of the remote

control reduces, replace the battery:

Note

• Batteries do not belong in

household waste. Dispose of at an appropriate recycling collection point.

• Avoid dropping the transmitter.

• Do not place heavy objects on

the transmitter.

• Keep the transmitter away from water and direct sunlight.

If the transmitter gets wet, wipe it

with a soft cloth.

Caution

Avoid touching the at surfaces of the battery, the circuit board

and other components inside the

remote control with bare ngers. Handling will shorten battery life.

8 Keys, doors and windows

With ignition switch

Use CR2032 battery or equivalent.

1. Separate the two halves of the

transmitter by inserting a at tool

into the recess.

2. Remove the battery with a small tool by pushing it toward the top

of the transmitter.

Avoid touching the circuit board

or other components.

3. Install the new battery.

Place the positive side (+) up and

push it down until it is correctly seated in place.

4. Close the cover.

5. Check the key operation.

Remote control synchronisation

After replacing the battery, unlock

the door with the key in the driver’s door lock and turn the ignition switch to the ON position.

The remote control is synchronised when the ignition is switched on.

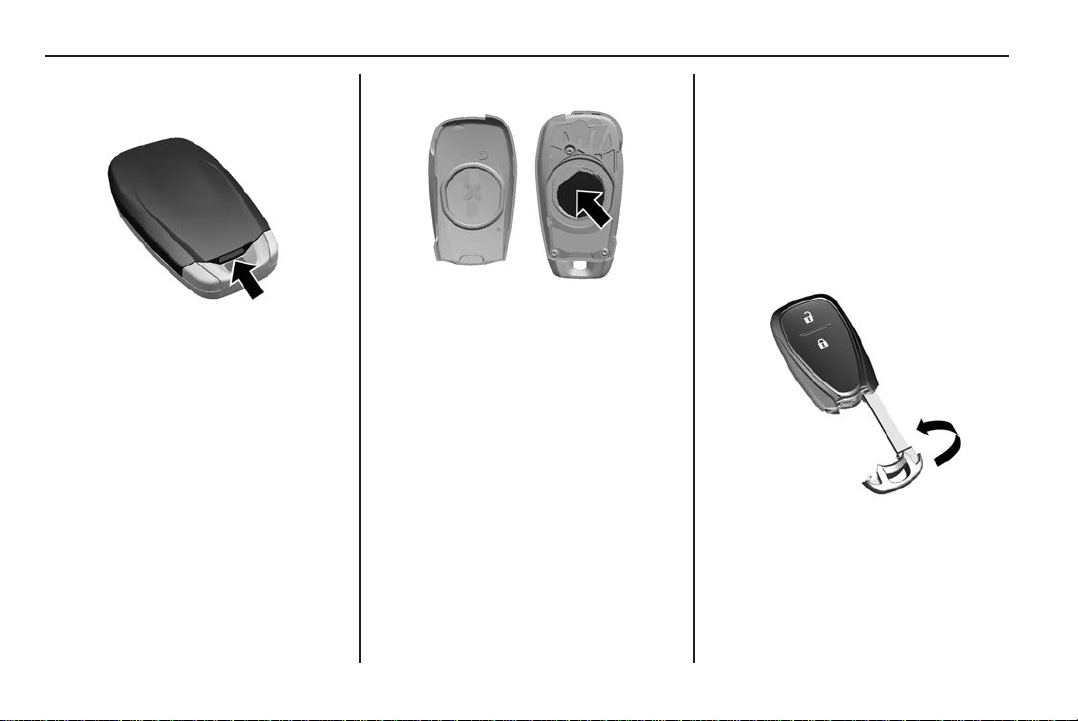

With electronic key system

Use a CR2032 battery or equivalent.

1. Press button on the side of the

transmitter to remove the key

blade.

Keys, doors and windows 9

2. Reinsert the key blade

approximately 5 mm and rotate

the key blade to remove the back

cover, as shown.

Note: Take care that no parts fall out.

3. Carefully lift the battery up using a at tool.

4. Remove the battery.

5. Insert the new battery, positive side toward the back cover.

6. Replace the back cover. Ensure

it clips in place securely.

7. Check key operation.

Electronic key synchronisation

The electronic key synchronises itself automatically during every starting procedure.

Electronic key system

Enables a keyless operation of the

following functions:

• Central Locking System 0 10

• Tailgate 0 15

• Starting the Engine 0 127 The electronic key simply needs to

be on the driver’s person.

Additionally the electronic key includes the functionality of the remote control 0

Handle with care, protect from moisture and high temperatures and avoid unnecessary operation.

Note: Do not put the electronic key in the load compartment or in front of the infotainment display.

Replacing battery in electronic key

Replace the battery as soon as

the system no longer operates properly or the range is reduced.

The need for battery replacement is indicated by a message in the Driver

Information Centre.

Vehicle messages 0 Battery replacement 0 7

Electronic key synchronisation

The electronic key synchronises itself automatically during every starting procedure.

10 Keys, doors and windows

Fault

If the central locking cannot be operated or the engine cannot be started, the cause may be one of the

following:

• Fault in electronic key.

• Electronic key out of reception range.

• Battery voltage too low.

• Overload of the central locking

system by operating at frequent

intervals, the power supply is interrupted for a short time.

• Interference from higher-power radio waves from other sources.

To rectify the cause of the fault, change the position of the electronic key.

Central locking system 0

To start the vehicle with a low

transmitter battery.

Starting the engine 0

129

Memorised settings

Whenever the key is removed from the ignition switch, or for vehicles with electronic key system, after the

Engine Start/Stop button is pressed off, the following settings may be automatically memorised by the key:

• lighting

• infotainment system

• central locking system

• comfort settings

This can be set for each key used.

Central locking system

Doors may be locked and unlocked by pushing buttons on:

• The driver’s or front passenger’s door.

• The key from inside or outside the vehicle.

Note

The driver’s door must be closed for

the driver’s door to lock.

Vehicle personalisation 0

Central locking button

Driver’s door

Keys, doors and windows 11

Front passenger’s door

Locks and unlocks all doors, the

tailgate and fuel ller door.

• Press e to lock.

• Press c to unlock. If the driver’s door is open, the

driver’s door and fuel ller door cannot be locked.

Settings can be changed in the

Vehicle settings menu in the infotainment system.

Vehicle personalisation 0

Unlocking

• Press c. All doors unlock.

The hazard lamps ash twice.

To unlock the driver’s door only or to change the unlock feedback, see Vehicle settings menu in the infotainment system.

Vehicle personalisation 0

Locking

• Press button e. All doors lock.

The hazard lamps ash once.

To change the lock feedback,

see Vehicle settings menu in the infotainment system.

Vehicle personalisation 0

12 Keys, doors and windows Electronic key system

operation

The electronic key must be outside

the vehicle, within a range of approx. one metre of the relevant door side.

Unlocking

Press the button on the respective

door handle and pull the handle. The

doors, tailgate and fuel ller door are

unlocked.

The unlocking mode can be

set in the Settings menu in the infotainment system.

Vehicle personalisation 0

Locking

Press the button on the respective

door handle. The doors, tailgate and

fuel ller door are locked.

The system only locks if:

• It has been more than 5 seconds

since unlocking, or

• The unlock button has been

pressed twice within 5 seconds, or

• Any door has been opened and

then all doors are closed.

If the driver’s door is not closed properly or the electronic key remains in the vehicle, locking will

not be permitted and a warning tone

sounds three times.

If there have been two or more

electronic keys in the vehicle and the ignition was on once, the doors will

be locked even if just one electronic

key is taken out of the vehicle.

Unlocking and opening the tailgate

The tailgate and the doors can be unlocked by pushing the touchpad

on the tailgate when electronic key is in range.

Tailgate 0

Keys, doors and windows 13

Delayed locking

The doors may be locked and the anti-theft alarm system armed, 5 seconds after the last door is

closed, by pressing e on the central

locking button.

• ON: The doors will not lock until 5 seconds after the last door is closed.

• OFF: The doors will lock immediately when e is pressed.

The settings can be changed.

Vehicle personalisation 0

Automatic door locks

Automatic locking after driving off

This security feature can be congured to automatically lock all doors, the tailgate and the fuel ller

door after driving off and exceeding a certain speed.

When at a standstill after driving,

the vehicle will be unlocked

automatically as soon as the key is removed from the ignition switch, or with electronic key system, when the ignition is turned off.

Vehicle personalisation 0

Automatic relock after unlocking

This feature can be congured to

automatically lock all doors, the

tailgate and the fuel ller door after

unlocking with the remote control or electronic key, provided no door has

been opened.

Vehicle personalisation 0

Passive locking

On vehicles with electronic key system, this feature locks all doors,

the tailgate and the fuel ller door

automatically after several seconds

if an electronic key has been

recognised previously inside the

vehicle, all doors have then been

closed and the key does not remain within the vehicle.

If the electronic key remains in the vehicle or the ignition is still on,

passive locking will not be permitted.

If there have been two or more

electronic keys in the vehicle and the ignition was on once, the feature locks the vehicle if just one electronic key is taken out of the vehicle.

To temporarily disable passive

locking: With a door open, press and hold c switch on the door for several seconds until you hear a chime sound.

14 Keys, doors and windows

Passive door locking will then remain disabled until e switch is pressed on the door or the ignition is turned on.

Activation or deactivation of automatic door lock features can

be set in the Settings menu in the

infotainment system,

The settings can be saved for the key being used.

Vehicle personalisation 0

Doors

Manual door locks

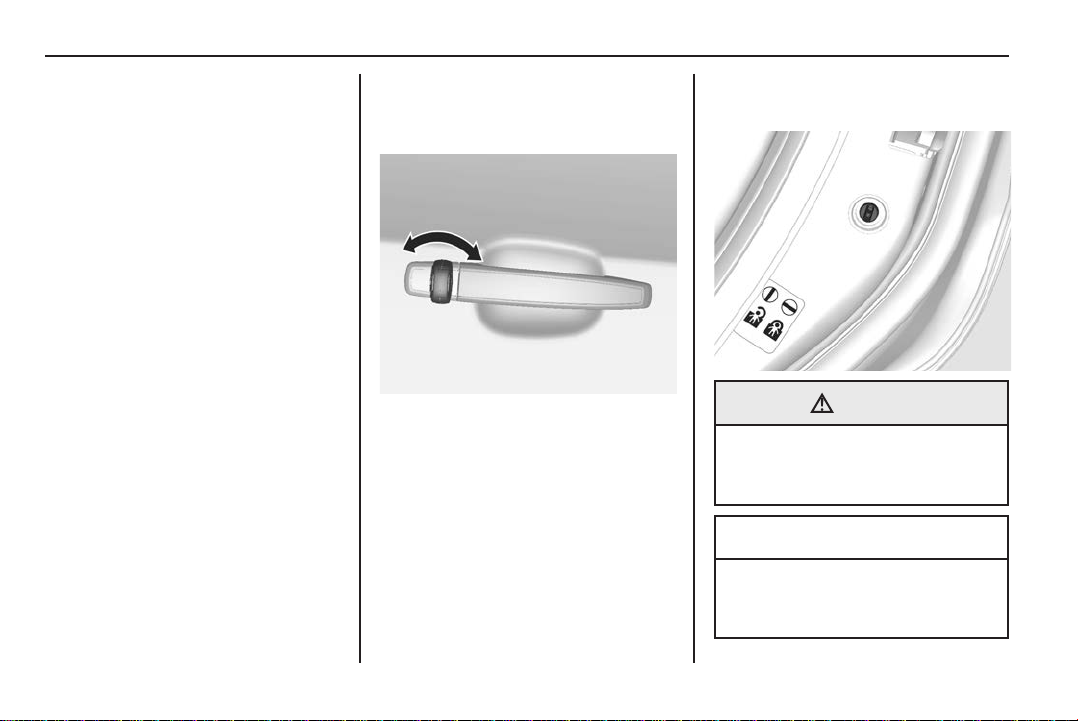

1. Insert the key in the driver’s door.

2. Turn the key towards the rear of the vehicle to lock the doors.

3. Turn the key towards the front of the vehicle to unlock the driver’s door.

Note Tap the key slot or heat the key if the door does not open in cold weather.

Child security rear door locks

Warning

Use the child security door locks whenever children are occupying the rear seats.

Caution

Do not pull the inside door handle while the child security door is locked. Damage may occur.

Keys, doors and windows 15

The child security rear door locks

prevent the rear doors from being

opened from the inside. Rotate the switch using a key or

suitable screwdriver.

To activate:

• Rotate the switch to the horizontal position.

To open a door when the child security rear door lock is activated:

• Open the door from the outside.

Tailgate

Warning

Do not drive with the tailgate open or ajar, e.g. when

transporting bulky objects.

Dangerous exhaust fumes may enter the vehicle.

To avoid injury and/or damage to the vehicle, check each time,

before the tailgate is closed, the contact area is unobstructed.

Caution

Before opening the tailgate,

check the area above and behind

for obstructions, to avoid damage to the tailgate.

Note Adding heavy accessories to the

tailgate may affect its ability to

remain open.

Unlocking:

1. Press c.

2. Push the touchpad on the tailgate.

Locking:

1. Push down so it latches securely.

2. Press e.

Note When the engine is running the

tailgate can only be opened with the

shift lever in Park (P).

16 Keys, doors and windows

Vehicle security

Anti-theft alarm system

The system is activated:

• Thirty seconds after locking the vehicle.

• Immediately, by pressing e a second time.

The system is deactivated by:

• Pressing c on the key.

Status LED

The status LED is located on top of the instrument panel.

During the rst 30 seconds of

system activation:

• LED illuminates (test, arming delay).

• LED ashes quickly (doors or bonnet are not completely closed

or there is a system fault.

When the system is armed:

• LED ashes slowly.

If a fault occurs, contact a Holden Dealer.

Alarm

The alarm can be silenced by pressing any button of the radio

remote control or by switching on

the ignition.

Auto door unlock

In the event of an accident, the doors will automatically unlock if the ignition is on.

Note The doors may not unlock if damage occurs to the door lock system or

battery.

Keys, doors and windows 17

Immobiliser

The immobiliser prevents unauthorised engine starting.

• If an invalid key is inserted into the ignition switch/lock, an indicator on the instrument

cluster will ash.

The vehicle will not start.

• The engine is automatically

immobilised after the key is turned to LOCK and has been

removed from the ignition switch, or for vehicles with an electronic

key, the Engine Start/Stop button

is pressed off.

• Only valid ignition keys can be

used to start the engine.

Have the vehicle checked by a

Holden Dealer.

Exterior mirrors

Convex mirror

The convex exterior mirrors provide

a wider view of the road and trafc.

Note

Objects appear smaller than their

actual size.

Power mirrors

L: Left side mirror selected R: Right side mirror selected O: No mirrors selected

To adjust an exterior rear view mirror:

1. Rotate the switch to L or R.

2. Swivel the switch to adjust the mirror.

18 Keys, doors and windows

Folding mirrors

When the vehicle is parked, the

mirrors may be folded at against

the side of the vehicle.

Warning

Always extend mirrors outwards

for driving to increase visibility.

Do not drive while either exterior mirror is folded against the vehicle.

Heated mirrors

• Press Ü. The heated rear window also

operates.

Heated rear window 0

Interior mirrors

Rear view mirror

To reduce headlamp glare from following vehicles, pull the lever towards the rear of the vehicle.

Note The rear view clarity is reduced when the mirror is set to the anti-glare position.

Return the lever back to its original

position as soon as the glare has disappeared.

Keys, doors and windows 19

Windows

Power windows

Warning

Before operating the power windows, check they are free of

obstructions and that passengers

and pets are not in the proximity of the moving window.

The power windows can be operated

when the ignition is turned on.

Danger

Do not leave keys or children unattended in the vehicle.

Children may operate the

switches and become trapped in

the windows. Serious injury or death may occur

from misuse of power windows.

Operation

Operate the switch for the respective

window by pushing or pulling to

close.

Driver’s door

The driver’s door window has an auto up/down function.

• Pushing or pulling the switch gently to the rst detent: The window moves up or down as long as the switch is operated.

• Pushing or pulling rmly to the

second detent then releasing: The window moves up or down automatically with the safety function enabled. To stop movement, operate the switch once more in the same direction.

Except driver’s door

The front passenger and rear door windows have an auto down function.

• Pushing the switch gently to the rst detent or pulling: The window moves up or down as long as the switch is operated.

• Pushing rmly to the second

detent then releasing: The window moves down automatically. To stop movement, operate the switch once more in the same direction.

20 Keys, doors and windows

Anti-pinch function

If the driver’s door window encounters any resistance during closing, it will stop immediately and partially open again.

Child safety switch

Press z to activate/deactivate the rear door power window switches.

Heated rear window

• Press Ü. The heated rear window:

• Operates when the engine is running.

• Switches off automatically after a few minutes or by pressing Ü again.

Caution

Do not use sharp objects or abrasive window cleaners on the

rear window. Do not scratch or damage the

wires.

Keys, doors and windows 21

Sun visors

• The sun visors can be folded

down or folded outwards over the side window, to prevent glare.

• Close the mirror cover before driving.

Warning

Do not place the sun visor in such a position that it reduces

visibility of the roadway, trafc or other objects.

• If the vehicle has illuminated lamps, they turn on and off when the cover is opened and closed.

Roof

Sunroof

The vehicle may have a sunroof.

Warning

Always observe the following

precautions:

Do not place ngers or objects

near the sunroof when operating.

Do not place heavy objects on or

around the sunroof.

Remove debris from the outside

of the sunroof. When leaving the vehicle

unattended, close the sunroof fully.

As at all other times, all occupants

must wear their seat belts whether

the sunroof is open or closed.

Failure to observe these

precautions may result in personal injury or damage to your vehicle.

Fitting an aftermarket sunroof may void the New Vehicle Voluntary Warranty on your vehicle and could result in injury to the vehicle occupants in the event of an accident.

The sunroof:

• Will operate when the ignition is turned on.

• Can be raised or can slide back

into the roof.

The sunroof switch is located

between the sun visors.

22 Keys, doors and windows

Open or close

• To open to a specic position,

press e (1) lightly and hold.

• Release the switch when the

required position has been

reached.

To close the sunroof:

• Press g (2) lightly and hold.

Tilt or close

To tilt the sunroof:

• Press f (3). To close the sunroof:

• Press g (4).

Auto open or close

To open the sunroof automatically:

• Press e (1) rmly and release.

• To stop movement, press any of the switches again.

To close the sunroof automatically:

• Press g (2) rmly and release.

• To stop movement, press any of the switches again.

Safety function

If the sunroof encounters resistance during automatic closing, it stops immediately and opens again.

Caution

Obstruction detection only

operates when the sunroof is closing. Before opening the sunroof, ensure there are no

obstructions, e.g. a roof rack.

Sunblind

The sunblind can be operated

manually.

• Close or open the sunblind by

sliding.

• When the sunroof opens, the

sunblind opens automatically.

Seats, restraints 23

Seats, restraints

Head restraints ....................23

Height adjustment ......................24

Rear head restraints

Front seats ............................25

Seat position ..............................25

Seat adjustment Armrest Heated front seats

.......................................27

Rear seats .............................28

Seat belts...............................30

Belt force limiters ........................31

Belt tensioners

Three point belt

Seat belt use during

pregnancy

Seat belt care

Replacing seat belts

after a crash

..................................33

...............................33

...................24

.........................25

......................27

...........................31

..........................32

.............................33

Airbag system ......................34

Front airbag system ...................35

Side airbag system

Curtain airbag system

.....................35

................36

Child restraints .....................38

Selecting the right system ..........39

Where to put the restraint Top-tether child restraint

systems

......................................40

...........39

Head restraints

Warning

This safety feature is not intended to rest the head upon. It is solely for the reduction of whiplash neck movement in an accident involving your vehicle.

The centre of the head restraint

should be at eye level, never at

neck level.

24 Seats, restraints Height adjustment

Front head restraints

• Pull the head restraint up.

• Press the locking button (1) and

push the head restraint down.

Rear head restraints

• Pull the head restraint up.

• Press the locking button (1) and

push the head restraint down.

To remove:

1. Pull the head restraint up.

2. Press the locking buttons (1) and

(2) at the same time.

3. Remove the head restraint.

The headrests are in a stowed, non-use position, when at their lowest position.

Seats, restraints 25

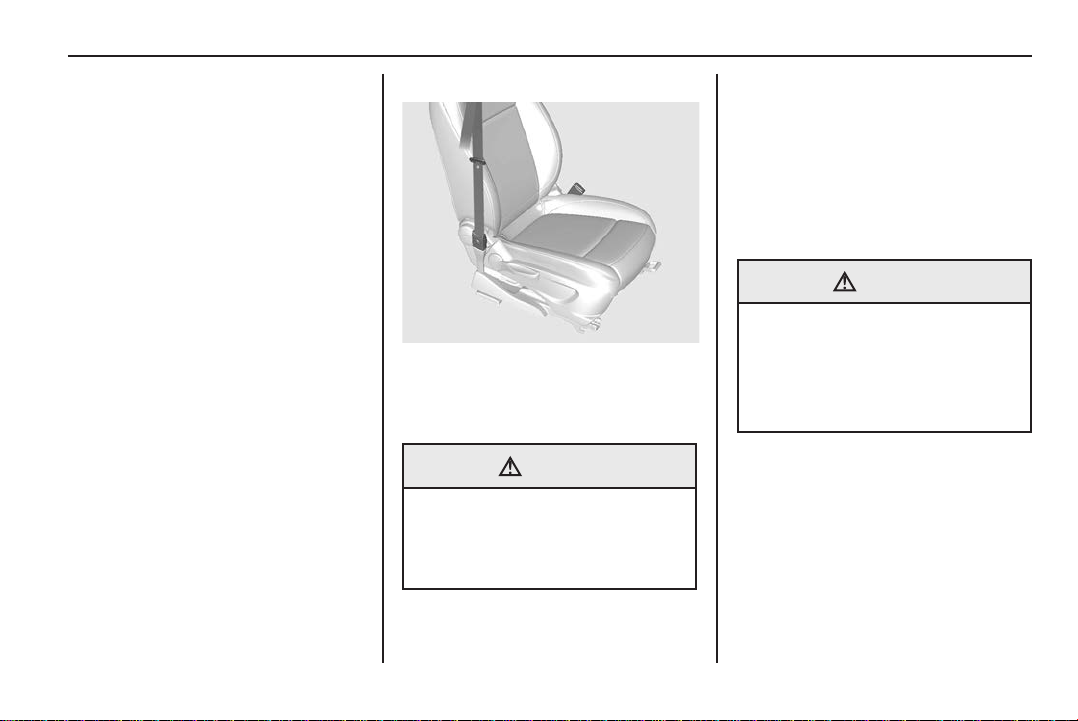

Front seats

Seat position

Warning

To avoid reducing the

effectiveness of seat belts, seatbacks should only be upright

or at most semi-reclined when the vehicle is moving.

• Sit centrally in the seat.

• Use the backrest and cushion for

support.

• Adjust the seat so that your legs are slightly angled when against the pedals.

• Adjust the backrest angle to

easily reach the steering wheel with arms slightly bent.

Steering wheel adjustment 0 47

• Maintain contact between shoulders and the backrest when

turning the steering wheel.

• Adjust the head restraint.

Head restraints 0

• Slide the passenger’s seat as far

back as possible.

Seat adjustment

Danger

Do not sit nearer than 25 cm from the steering wheel, to allow safe

airbag deployment.

Warning

Do not adjust the driver’s seat when the vehicle is moving as the seat could move suddenly causing the driver to lose control.

26 Seats, restraints

Danger

When folding the front

passenger’s seatback forward

to carry long items, ensure the items are secured a safe

distance away from an inating airbag. In a crash, an inating airbag can force an object toward

a person resulting in severe injury or death.

Secure or remove unsecured

items before driving.

1. Move the seat forwards or

backwards by lifting the handle at

the front and sliding the seat.

2. Release the handle to engage the latch.

Try to move the seat back and

forth to be sure it is locked in

place.

1. Recline the seatback by lifting

the lever.

2. Adjust the angle and release the lever.

3. Allow the seat to engage.

Note Do not lean on the seat when adjusting.

Seats, restraints 27

• To lower the seat cushion, push the lever down several times.

• To raise the seat cushion, pull the lever up several times.

Armrest

The vehicle may have an armrest on

the driver’s seat. It can be raised or

lowered.

Heated front seats

Danger

If you cannot feel temperature change or pain to the skin, the

seat heater may cause burns. To reduce the risk of burns, people

with such a condition should use care when using the seat heater, especially for long periods of time. Do not place anything on the seat that insulates against

heat, such as a blanket, cushion,

cover, or similar item. This may cause the seat heater to overheat. An overheated seat

heater may cause a burn or may

damage the seat.

Do not t any seat cover (except

genuine Holden accessory covers) to heated seats.

28 Seats, restraints

The vehicle may have heated front seats.

To warm the seat:

1. Start the engine.

2. Press ß or ß.

The light in the button illuminates.

To turn the heater off:

1. Press ß or ß again. Note

Prolonged use of the heated seats for people with sensitive skin is not recommended.

Rear seats

Folding down rear seatbacks

Danger

Ensure the rear seatbacks are

latched securely in place.

Do not press the release button on the top of the seatback while

the vehicle is moving. This could cause damage or injuries to the occupants.

Do not allow passengers to sit on

the folded seatbacks while the

vehicle is in motion. Unrestrained luggage or passengers on a

folded seatback could be thrown

within or ejected from the vehicle in a sudden stop or accident.

Caution

Do not trap the seat belt when

returning the seatback to the

upright position. Folding a rear seat with the seat

belts still fastened may cause

damage to the seat or the seat

belts.

Always unbuckle the seat belts

and return them to their stowed

position before folding a rear seat.

To fold the rear seatbacks down:

1. Unbuckle the seat belts.

2. Push the head restraints down

by pressing the catch.

3. Slide the front seat forwards.

4. Adjust the front seatback to an

upright position.

Caution

Folding the rear seat backrest before folding the cushion, may

cause damage to the rear seat.

Always fold the cushion before folding the rear seat backrest.

Seats, restraints 29

5. Pull the straps under the seat cushion to allow the seat cushion to fall forward.

Note Do not place anything on

the oor. It may prevent the seat

from folding or cause damage to the seat cushion.

6. Pull the release lever on top

of the rear seatback and fold it

forwards and down.

7. Fold the seatback forward and down.

8. Place the seat belts into the belt

guides.

To return the seatback to the upright

position:

1. Pull the seat belt away from the belt guide.

2. Lift the seatback upwards and push rmly back into place.

Note

Ensure the seat belt is clear of

the latch.

3. Return the rear seat cushion to its original position. Push the front part of the cushion down

rmly until it latches.

30 Seats, restraints

Note

• Ensure the seat belt buckles are

not trapped.

• The centre rear seat belt may

lock when returning the seat cushion. If this occurs, pull the strap to release the seat cushion,

withdraw the belt slightly and

return the seat cushion.

Warning

When passengers are in the rear

seats ensure the rear seatbacks are all the way back and locked in position, before starting the

vehicle. Do not pull the release levers

on top of the seatback while the

vehicle is moving. Damage to the vehicle or injuries to occupants may occur.

Seat belts

Warning

Seat belts are designed to bear upon the bony structure of the body, and should be worn low

across the front of the pelvis or the pelvis, chest and shoulders,

as applicable; wearing the lap section of the belt across the abdominal area must be avoided.

Seat belts should be adjusted as rmly as possible, consistent with

comfort, to provide the protection

for which they have been designed. A slack belt will greatly

reduce the protection afforded to the wearer.

Care should be taken to avoid contamination of the webbing

with polishes, oils and chemicals,

and particularly battery acid.

Belts should not be worn with

straps twisted.

Each belt assembly must only be used by one occupant. It is dangerous to put a belt around a child being carried on the

occupant’s lap.

No modications or additions should be made by the user which will either prevent the seat belt

adjusting devices from operating to remove slack, or prevent the

seat belt assembly from being

adjusted to remove slack.

The belts lock during heavy

acceleration or deceleration for the safety of the occupants.

Seats, restraints 31

Belt force limiters

In the front seats, stress on the body is reduced by the gradual release of the belt during a collision.

Belt tensioners

In the event of a front, side or rear collision of a certain severity, the driver’s and/or passengers safety

belts are tightened.

Warning

Incorrect handling (e.g. removal

or tting of belts or belt buckles) can trigger the belt tensioners

with risk of injury.

• When the belt tensioners have

been deployed, v illuminates on

the instrument cluster.

Seat belt reminders 0 57

• Triggered belt tensioners must be replaced.

• Belt tensioners are only triggered once.

Warning

Do not attach or install objects

that may interfere with the

operation of the belt tensioners.

Do not make any modications to belt tensioner components.

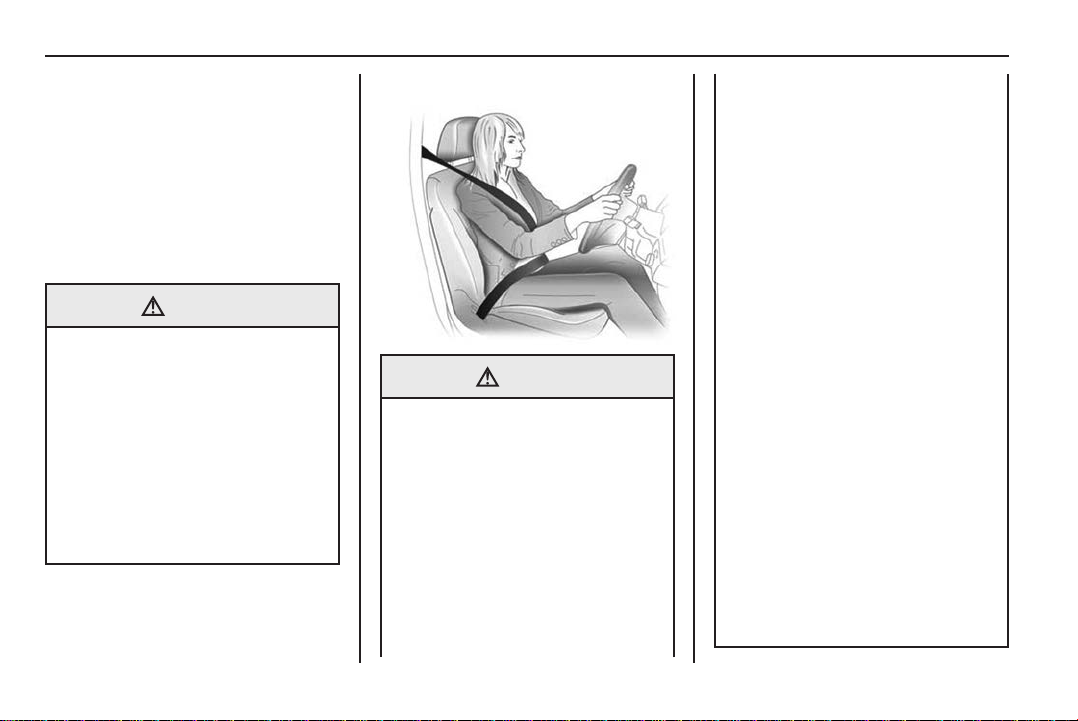

32 Seats, restraints Three point belt

Fitting

The belt should not be twisted. It should lie at and t rmly across

your hips.

1. Withdraw the belt from the reel.

2. Pull the metal tongue across

your body into the buckle, until it

clicks into place.

3. Tension the lap belt regularly while driving by tugging the shoulder belt.

Do not place objects such as handbags or mobile phones between the belt and your body.

Warning

The belt must not rest against hard or fragile objects in the

pockets of your clothing.

Height adjustment

1. Press and hold the button.

2. Move up and down as required.

3. Release the button.

4. Ensure the anchor clicks into position.

Warning

Do not adjust the height of the

belt while driving.

The belt must lie across the

shoulder. It must not lie across the throat or upper arm.

Seats, restraints 33

Removing

1. Press the red button on the buckle.

2. Allow the belt to retract.

3. Check it fully retracts without twisting or turning.

Note

The three point belt for the rear central seat can only be

withdrawn from the retractor if

the backrest is in the upright

position.

Seat belt use during pregnancy

Warning

The lap belt must be positioned

as low as possible across the pelvis to prevent pressure on the

abdomen.

Seat belts work for everyone,

including pregnant women. Like all

occupants, they are more likely to be

seriously injured if they do not wear

a seat belt.

A pregnant woman should wear a

three point belt with the lap portion of the belt worn as low as possible below the rounding of their stomach,

throughout the pregnancy.

Seat belt care

Warning

Care should be taken to avoid contamination of the webbing

with polishes, oils and chemicals,

and particularly battery acid. Cleaning may safely be carried

out using mild soap and water.

The belt should be replaced if webbing becomes frayed,

contaminated or damaged.

Replacing seat belts after a crash

Warning

It is essential to replace the

entire assembly after it has been

worn in a severe impact even if

damage to the assembly is not obvious.

34 Seats, restraints

Airbag system

When triggered, airbags inate

within milliseconds. They also

deate so quickly that it is often unnoticeable during the collision.

Danger

Do not make any modications to the airbag system.

The driver should sit back as far as possible while still maintaining

control of the vehicle. Sitting too

close to the airbag, can cause

death or serious injury when it

inates.

Always wear a seat belt.

Warning

WARNING – EXTREME HAZARD! Do not use a rearward facing

child restraint on a seat protected

by an airbag in front of it!

The child could be seriously

injured if the airbag inates, as the child’s head would be very close to the inating airbag.

Remember that it is safest for children to be seated in the rear

seats.

Child restraints 0 38

Warning

Airbags are part of the

supplemental restraint system

(SRS) as they assist, but do not replace seat belts. Airbags do not

deploy in every accident. Various factors dictate whether they deploy including speed, angle of

collision and object hit. Airbags are not designed to inate if the

vehicle is hit from the rear or is

involved in a rollover. Seat belts must be worn by all passengers

whenever the vehicle is moving.

Airbags inate with great force. If you are too close to an inating

airbag it may cause injury.

Seat belts help keep you in position for airbag ination in the

event of a collision.

Airbag and belt tensioners light 0 57

Seats, restraints 35

Front airbag system

The front airbag system consists of one airbag in the steering wheel

and one in the instrument panel on the passenger’s side. These are

identied by the word AIRBAG.

Warning

The horn pad must not be covered with adhesive or any other material.

The driver should adjust the seat

as far rearward as possible while

still maintaining control of the vehicle.

Warning

Do not place any objects on or

over the instrument panel or

between an airbag and yourself.

Do not hang anything from the sun visor or mirror.

Passengers must not rest their feet on the instrument panel.

Front airbags will inate in certain

severe frontal or near frontal

impacts. Front airbags are not designed to inate if the vehicle

is struck from the side, rear or in

rollovers. Always wear a seat belt.

Side airbag system

Side airbags are stored in the sides

of the front seats.

They can be identied by the word

AIRBAG.

36 Seats, restraints

The side airbags deploy in most, but

not all severe side impacts.

The risk of injury to the upper body

and pelvis in the event of a side

impact is considerably reduced.

Warning

Do not t any seat covers (except

genuine Holden accessory covers) as they may impair the

deployment of the side airbags.

Do not position your body or any object (including pillows) between

front seats and doors. Do not lean on, or sleep against,

the door. Always sit centrally in the seat.

Always wear a seat belt.

Curtain airbag system

Curtain airbags are stored in the roof

on each side of the vehicle.

They can be identied by the word

AIRBAG on the roof pillars.

Seats, restraints 37

The curtain airbags deploy in most, but not all severe side impacts.

The risk of injury to the head in the event of a side impact is

considerably reduced.

Warning

Do not position your body or any object (including pillows) in the area in which the airbag inates.

There must be no objects in the area in which the airbag inates.

Refer to the illustration.

Use the hooks above the doors

only to hang up light articles of clothing.

Do not place any objects in the

pockets of the hanging items. Do not hold onto the assist grips

(above the doors) while seated in

the vehicle. Do not lean on, or sleep against

the front or rear doors. Always sit centrally in the seat.

Always wear a seat belt.

Replacing airbag system parts after a crash

Note

After an accident where airbags

have deployed, the systems, associated parts and hardware

must be checked and replaced as required.

Seats, associated parts and

hardware must also be checked and replaced as required.

The airbag system should also be

inspected after an accident if:

• The instrument panel area or steering wheel is scratched, cracked or damaged.

• The front seats and upholstery are damaged.

• The headliner or trim panels are damaged.

It is recommended that this work be carried out by a Holden Dealer or

approved repairer.

38 Seats, restraints

Child restraints

Warning

WARNING – EXTREME HAZARD!

Do not use a rearward facing child restraint on a seat protected

by an airbag in front of it!

The child could be seriously

injured if the airbag inates, as

the child’s head would be very close to the inating airbag.

Remember that it is safest for children to be seated in the rear

seats. Never carry a child while travelling in the vehicle.

Warning

This manual provides you with general information concerning child restraints only.

The driver is required by law to

ensure that passengers and pets

are suitably restrained. In most

States and Territories of Australia

and New Zealand, specic laws may exist which require children to be seated in approved child

restraints. Holden strongly recommends

that you refer to your specic

State or Territory regulations to determine which child restraint is

suitable for your child.

Warning

Always ensure the seat belt ts rmly around the child restraint.

If a child cannot see out of the

window, do not raise him/her by

means of an ordinary cushion. It will not stay in place in a collision and the child can slip out of the

straps and become entangled.

Seats, restraints 39

Selecting the right system

Infants

Rearward facing infant capsules are designed so that in the event

of a collision, impact forces will be evenly spread over the baby’s back, with minimal jarring to the vulnerable

head and neck area.

Young children

Forward facing child seats are for

use when the child is able to sit and

easily hold their head upright.

Booster seats

Booster seats are for when children outgrow a typical forward facing child

seat, but are still too small for three point seat belts.

Older children

A child should use a normal three

point seat belt only when:

• They can sit against the back of

the rear seat with knees bent comfortably at the edge of

the seat.

• The lap belt rests low and snug

across the hips, not across the stomach.

• The sash belt is centred on the shoulder and chest.

• They are able to stay seated like this for the entire trip.

Where to put the restraint

Warning

Child restraint anchorages are designed to withstand only those

loads imposed by correctly tted

child restraints. Under no circumstances are they to

be used for adult seat belts,

harnesses, or for attaching other items or equipment to the vehicle.

Only child restraints that have clips to attach to the vehicle’s

anchorage ttings are to be used.

Other types of child restraints may not attach securely to this type of anchor.

Use only Standards Australia and New Zealand approved child restraints and harnesses. Only purchase a child restraint which carries the appropriate Standards Australia sticker of approval.

40 Seats, restraints

Where legally allowable, you may install a forward-facing child

restraint in the front seat, but

always move the passenger’s

seat as far back as it will go.

The forward facing child restraint

must still be attached to the

passenger side child restraint

anchorage point, located behind

the rear seat.

Remember, it is safest for

children to be seated in the

rear seat.

Note

If unsure about installing a child

restraint, contact an approved

restraint tting station or a Holden

Dealer.

ISOFIX child restraint systems

Fasten vehicle-approved ISOFIX child restraint systems to the ISOFIX

mounting brackets.

Note

Ensure the seat belt buckles are

placed out of the way of the child seat.

ISOFIX mounting brackets are indicated by a label on the seatback,

as shown. In addition to the ISOFIX mounting, fasten the top-tether straps to the top-tether anchorage points.

Top-tether child restraint systems

A. Front of vehicle

The child restraint tether anchors are located at the rear of the load compartment, in line with the three rear seating positions.

Note Use the child restraint anchors for their designed purpose only.

Child restraint installation

The vehicle has been designed to

accommodate child restraints on the rear seat.

When using a child restraint, read the installation instructions supplied with the child restraint and follow the

directions for tment carefully.

The child restraint system should

be secured in conjunction with the vehicle’s seat belt.

Secure the child in the restraint in accordance with the manufacturer’s instructions.

If unsure about installing a child restraint anchor tting, contact an approved restraint tting station or a

Holden Dealer.

Seats, restraints 41

42 Storage

Storage

Storage compartments ........42

Instrument panel storage ...........42

Glove box

Cup holders Sunglasses storage Under seat storage

Loading information .............44

Roof rack system .................45

...................................42

................................43

....................43

.....................44

Storage compartments

Instrument panel storage

A storage compartment is located on the driver’s side of the instrument panel.

• To open, lift the handle upwards.

Glove box

The glove box is located in the

instrument panel, in front of the passenger’s seat.

• To open, pull the handle towards

you. To close, push the lid rmly back into place.

Warning

To reduce the risk of injury,

always keep the glove box door

closed when driving.

Storage 43

Cup holders

Cup holders are located in the front console and rear armrest.

Warning

To avoid scalding, never place hot drinks in the cup holders.

Do not place uncovered

containers of liquid in the cup

holder while the vehicle is in motion.

Sunglasses storage

The vehicle has a sunglasses holder located in the roof on the driver’s side.

• To open, fold downwards. Note

Do not use for storing heavy objects.

44 Storage Under seat storage

The vehicle may have under seat

storage beneath the passenger’s

seat.

• To open, pull up on the front of the tray and pull towards the front of the vehicle.

• To close, push the tray towards the rear of the vehicle.

Loading information

Danger

Do not stack objects higher than

the front seats. Do not allow passengers to sit

on the folded seatbacks while

the vehicle is in motion. Serious injuries or death can result.

Rear seats 0 28

• Place all heavy objects in the

load compartment as far forward

as possible.

• Secure objects to prevent from

sliding.

Movement of heavy objects

in the load compartment may change the handling of the vehicle.

• Ensure the backrests are

securely engaged.

• Place heavier objects at the bottom.

• Do not place any objects on the

load compartment cover or the instrument panel.

• Do not place unsecured objects

in the interior.

• Do not drive with an open tailgate.

• Driving with a roof load increases the sensitivity of the vehicle to cross-winds and has a detrimental effect on vehicle handling due to the vehicle’s higher centre of gravity.

Distribute the load evenly and

secure it properly with retaining straps. Adjust the tyre pressure and vehicle speed according to the load conditions. Check and

retighten the straps frequently.

Roof rack system

• Distribute the load evenly and

secure tightly with straps.

• When carrying loads on the roof rack (elevated load), avoid

hard braking, abrupt swerving or

sharp steering.

Roof rack elevated loads alter

the handling of a vehicle.

Warning

The total elevated load, including

the weight of the cross bars, must not exceed 75 kg. Distribute

the load evenly.

Note

The weight of the cross bars and the load must be included when

calculating the total vehicle load.

Storage 45

46 Instruments and controls

Instruments and controls

Controls .................................47

Steering wheel adjustment ...........47

Steering wheel remote controls

...........................................47

Horn Windscreen wiper/washer Rear window wiper/washer

.........................................51

Clock Power outlets

.............................51

Warning lights, gauges and

indicators ..................................53

Overview ....................................53

Speedometer Odometer Tachometer Fuel gauge Service display Transmission display Turn signal

..............................54

.................................54

................................55

.................................55

...........................56

..................56

..................................56

..47

..........48

........50

Seat belt reminders

Airbag and belt tensioners light

Charging system light Malfunction indicator light Brake system warning light Antilock Brake System

(ABS) warning light Descent Control System

(DCS) light Power steering warning light Operate pedal light Park assist warning light

Electronic Stability Control

(ESC) light

Electronic Stability Control

(ESC) off light Traction Control System

(TCS) off light Bonnet ajar light Engine temperature warning

light Engine oil pressure light Low fuel warning light

..................................58

..................................59

.............................................60

....................57

.................57

...........57

.......58

....................58

......58

.....................59

............59

.............................59

.........................59

.............60

.................60

..57

Immobiliser light

Reduced engine power light

High beam light

Front fog lamp light Tail lamp light Cruise control light Door ajar light

.........................60

.......61

..........................61

....................61

.............................61

.....................61

.............................61

Information displays ............62

Driver Information Centre

(DIC) ...........................................62

Warning chimes Trip computer

..........................69

.............................70

Vehicle personalisation........71

Settings ......................................72

Instruments and controls 47

Controls

Steering wheel adjustment

Warning

Do not attempt to adjust the steering wheel while driving.

1. To unlock, move the lever down.

2. Adjust the steering wheel.

3. To lock, move the lever up.

4. Ensure the steering wheel is

locked in position before driving.

Steering wheel remote controls

The infotainment system and the

cruise control may be operated by

the controls on the steering wheel.

Steering wheel remote control

Cruise control 0 143

Horn

Press j.

48 Instruments and controls Windscreen wiper/washer

Windscreen wiper

To operate the windscreen wipers, turn the ignition on and move the windscreen wiper/washer lever downwards.

Caution

Do not operate the wipers on dry glass or when covered with snow or ice, as this will damage the

rubber and scratch the glass.

1x: Misting function OFF: Off INT: Intermittent operation LO: Continuous wipe, slow speed HI: Continuous wipe, fast speed

Misting function

To operate the windscreen wipers once during light rain or mist:

• Lightly lift the windscreen wiper/ washer lever up and release.

• The lever returns to its usual position when released.

• The wipers cycle once.

Adjustable wiper interval

During intermittent operation, adjust

the frequency of the wiper intervals:

• For frequent intervals, rotate the

wheel downwards.

• For longer intervals, rotate the wheel upwards.

Instruments and controls 49

Automatic wiper with rain sensor

The vehicle may have rain sensing windscreen wipers.

A sensor near the top centre of the windscreen detects the amount of water on the windscreen and

controls the frequency of the

windscreen wipers. Keep this area

clear of debris for best system

performance.

Caution

Switch off the rain sensor by

setting the lever to the OFF position before entering a car wash.

Replace the wiper blades as

soon as they do not completely remove water from the

windscreen. If the blades are

not replaced, the wipers may continue to wipe even though most of the screen is dry.

To prevent damage to the

wiper blades, make sure the

windscreen is fully defrosted

before switching on the rain

sensor.

INT: The wipers cycle when water is

detected on the windscreen.

The wiper speed and

frequency are adjusted

automatically.

To manually adjust the sensitivity of the rain sensing:

• Rotate the wheel downwards for low sensitivity.

• Rotate the wheel upwards for high sensitivity.

Windscreen washer

Pull the lever rearwards to wash the windscreen.

Washer uid is sprayed onto the windscreen and the wipers cycle once.

50 Instruments and controls

Caution

Do not operate the windscreen washer for more than a few

seconds or when the washer uid

reservoir is empty.

Warning

Do not spray washer uid on the

windscreen in freezing weather.

Rear window wiper/ washer

Wiper

To operate the rear window wiper, push the switch at the end of the lever.

: Intermittent wipes, push in at

INT

the top of the button.

: To turn the wipers off, place

OFF

the switch in the OFF position.

: Continuous wipes, push in at

the bottom of the button.

Caution

Do not operate the wipers on dry glass or when covered with snow or ice, as this will damage the

rubber and scratch the glass.

Do not operate the windscreen washer for more than a few seconds, or when the washer

uid reservoir is empty.

Instruments and controls 51

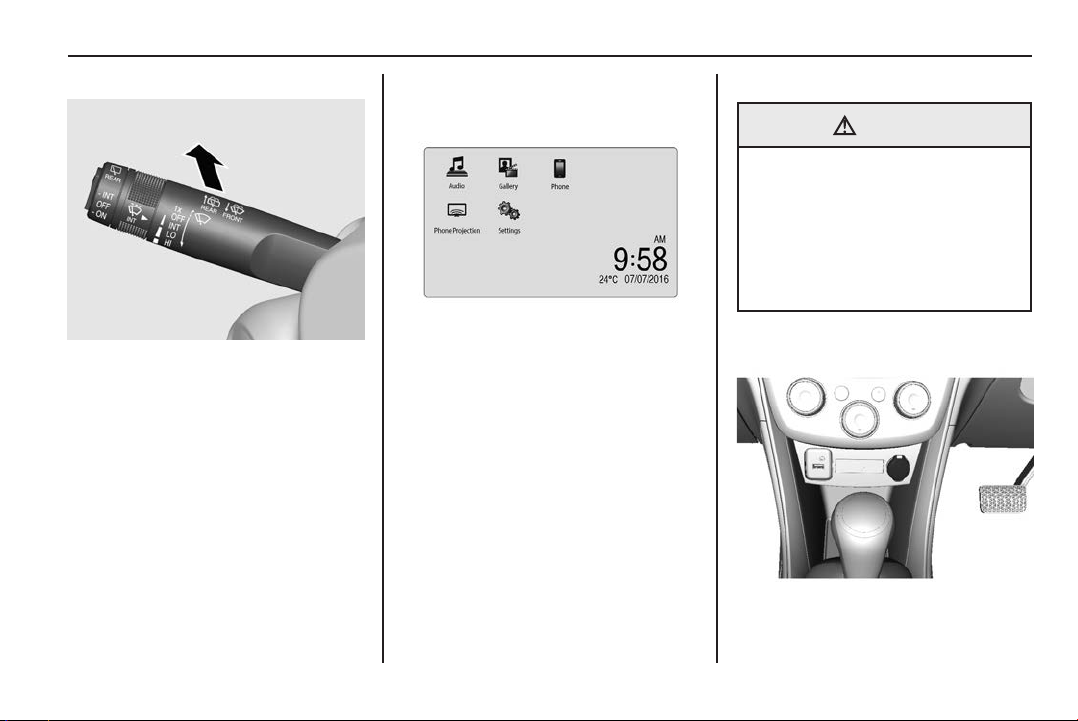

Washer

Push the lever forwards.

Washer uid is sprayed onto the rear

window and the wiper swipes for a few strokes.

Clock

Time and date are shown on the infotainment display.

Adjust the settings for the time and date in the Settings menu.

Settings 0

116

Power outlets

Warning

It is dangerous for the driver to attach or remove accessories from the power sockets while driving. It may distract the driver’s attention, putting the occupants of the vehicle and other road users at risk.

12V power outlet

A 12V power outlet is located in the centre console.

52 Instruments and controls

The 12V power outlet operates when the ignition is in Accessory or ON positions. When the ignition is turned off, the 12V power outlet is deactivated when any door is opened or after 10 minutes.

• The 12V power outlet does not operate if the battery voltage is low.

• Do not exceed the maximum power consumption of 120 watts.

• Do not connect electrical

charging devices or batteries.

230V power outlet

A 230V power outlet is located at the rear of the centre console.

The 230V power outlet operates when the ignition is turned on and is deactivated when the ignition is turned off.

• The 230V power outlet does not operate if the battery voltage is low.

• Do not exceed the maximum power consumption of 150 watts.

• Do not connect electrical

charging devices or batteries.

Warning

Sparks may occur when connecting or disconnecting devices.

Do not connect devices in the

vicinity of ammable or explosive substances.

Disconnect any connected

devices before starting the

engine, to prevent damage. The 230V inverter will not

operate most appliances designed to produce heat, such as hair dryers, irons, toasters, heaters and coffee machines as these items drain high amounts of current in excess of 150 watts.

Instruments and controls 53

Warning lights, gauges and indicators

Overview

G Turn signal 0 77

B Service vehicle soon light

(Illuminates in the DIC) 0 68

> Seat belt reminders 0 57

9 Airbag and belt tensioners light

0 57

" Charging system light 0 57 * Malfunction indicator lamp

0 57

$ Brake warning light 0 58 ! Antilock Brake System (ABS)

warning light 0 58

m Power steering warning light

0 58

r Park assist warning light 0 59

d Electronic Stability Control (ESC)

light 0 59

g Electronic Stability Control (ESC)

Off light 0 59

i Traction Control System (TCS)

Off light 0 59

# Operate pedal light 0 59

54 Instruments and controls

i Bonnet ajar light 0 59

C Engine temperature warning light

0 60

: Engine oil pressure light 0 60 . Low fuel warning light 0 60

A Immobiliser light 0 60

w Reduced engine power light

$ High beam light 0 61 # Front fog lamp light 0 61

; Tail lamp light 0 61

m Cruise control light 0 61

U Door ajar light 0 61

Speedometer

Shows vehicle speed in kilometres per hour (km/h).

Odometer

Type 1

Type 2

Instruments and controls 55

Shows distance travelled in kilometres.

• The tripmeter measures the distance travelled since the tripmeter was reset.

• Press the reset button briey to change between odometer and

tripmeter.

Tachometer

Shows engine speed in thousands of revolutions per minute (RPM).

Drive at a low engine speed/range

for each gear, as much as possible.

Warning

Do not allow the needle to remain in the warning/red zone.

Fuel gauge

Shows the level of fuel in the tank. Movement of the fuel within the

fuel tank may cause the fuel gauge

indicator to move when braking,

accelerating or turning.

Danger

Before refuelling, stop the vehicle and switch the engine off.

56 Instruments and controls Service display

Control indicators

The vehicle may have the following indicators.

Indicators illuminate for a short time when the ignition is turned on to show the light is working.

Red: danger, important reminder Yellow: warning, information, fault Green, blue, white: conrmation of

activation Note

Depending on vehicle variant, the instrument cluster appearance may differ.

Transmission display

Indicates the selected gear or transmission mode.

Turn signal

• Push the lever in the same direction the steering wheel is turned.

• O ashes.

O also ashes when the hazard

warning is activated.

• The turn signal will self cancel from larger turns.

• If O ashes quickly a bulb may need replacing.

Bulb replacement 0

• If the turn signals do not operate check the fuses.

Fuses 0

Turn and lane change signals 0 77

175

170

Instruments and controls 57

Seat belt reminders

Illuminates in the instrument cluster:

X: Driver’s seat belt reminder

Illuminates in the centre panel:

: Front passenger’s seat belt

reminder (if occupied) When the ignition is turned to the ON

position or the engine is running, X or and then illuminates until the seat

belt is fastened.

If the vehicle reaches a specic distance or speed and the seat belt

is unfastened, X or

ashes for a certain time

will ash and

the chime will sound for a certain time, then X or C will illuminate until the seat belt is fastened.

Seat belts 0 30

Airbag and belt tensioners light

The v warning light illuminates for a short time when the ignition is turned on to show the light is working.

If the v warning light does not illuminate, does not extinguish after a few seconds or illuminates while

driving, there is a problem with the airbag or belt tensioner system.

Warning

Have any fault in the airbag or belt tensioner system repaired immediately by a Holden Dealer.

Airbag system 0 34 Belt tensioners 0 31

Charging system light

The p warning light illuminates for a short time when the ignition is turned on to show the light is working.

If the p warning light illuminates while the engine is running, there is

a problem with the charging system:

1. Stop and switch off the engine.

2. Contact a Holden Dealer.

Malfunction indicator light

The Z warning light illuminates for a short time when the ignition is turned on to show the light is working.

If the Z warning light illuminates

while driving, there is a problem with

the emission monitoring system. Contact a Holden Dealer.

58 Instruments and controls Brake system warning

light

The R warning light illuminates for a short time when the ignition is turned on to show the light is working.

The R warning light illuminates when

the park brake is applied.

Park brake 0

Do not drive while the brake

system warning light is on.

If the R warning light does not extinguish or illuminates while driving

and the park brake is released, there is a problem with the brakes:

• Stop the vehicle as soon as it is safe to do so.

• Check the brake uid level.

Brake uid 0 168

• Do not proceed until satised that braking is possible or the cause of the problem has been rectied.

139

Warning

• If necessary contact a Holden Dealer.

Antilock Brake System (ABS) warning light

The u warning light illuminates for a short time when the ignition is turned on to show the light is working.

If the u warning light illuminates,

there is a problem in the ABS.

Note

The vehicle’s brake system remains operational but without ABS

assistance.

Antilock Brake System (ABS) 0

Contact a Holden Dealer.

139

Descent Control System (DCS) light

The indicator light illuminates white when the system is on and green when DCS is activated.

Descent Control System (DCS)

142

Power steering warning light

The vehicle has electric power steering.

The m warning light illuminates for a short time when the ignition is turned on to show the light is working.

If the m warning light does not extinguish after a few seconds, or if it illuminates while driving, there is a fault in the power steering.

Contact a Holden Dealer.

Instruments and controls 59

Operate pedal light

# illuminates yellow.

Operate the brake pedal to start the

engine.

Park assist warning light

r illuminates for a short time when the ignition is turned on to show the light is working.

If the light does not extinguish or if r illuminates when reverse gear is selected:

• The sensors may be dirty.

• The sensors may be covered by

ice or snow.

• There may be ultrasonic wave

interference.

If the light does not extinguish, contact a Holden Dealer.

Park Assist (PA) 0

145

Electronic Stability Control (ESC) light

The indicator light illuminates for a short time when the ignition is turned on to show the light is working.

If the light ashes while driving, the

ESC is actively helping the vehicle

with road grip and stability.

If the light illuminates or does not extinguish while driving, contact a Holden Dealer immediately.

Electronic Stability Control (ESC) off light

The indicator light illuminates for a short time when the ignition is turned on to show the light is working.

illuminates when the ESC is

deactivated.

Electronic Stability Control (ESC)

141

Traction Control System (TCS) off light

The = indicator light illuminates for a short time when the ignition is turned on to show the light is working.

illuminates when the TC is

deactivated.

Bonnet ajar light

The i indicator light illuminates for a short time when the ignition is turned on to show the light is working.

i illuminates when the bonnet is

not completely closed.

60 Instruments and controls Engine temperature

warning light

The warning light illuminates for a short time when the ignition is turned on to show the light is working.

If the light illuminates while driving, the engine coolant temperature is excessively hot:

• Stop the vehicle as soon as it is safe to do so.

• Let the engine idle for a few minutes.

• If the light remains on, contact a Holden Dealer.

Warning

Do not continue driving with the temperature gauge needle in the red area. The engine is too hot.

Continued operation of an overheated engine will result in severe engine damage.

Engine oil pressure light

The I warning light illuminates for a short time when the ignition is turned on to show the light is working.

If the I warning light illuminates while the engine is running, the engine oil pressure or level is low:

• Stop the vehicle as soon as it is safe to do so.

• Turn the ignition off.

• Check the engine oil level.

Engine oil 0 164

• If necessary, contact a Holden Dealer.

Caution

Engine damage may result if you keep driving. Do not run the engine. If the oil level is normal,

have the system checked by the

nearest Holden Dealer.

Low fuel warning light

The Y indicator light illuminates and a chime sounds when the fuel level is low.

Caution

To avoid damage to the catalytic

converter, ll the fuel tank above

the low fuel level.

Catalytic converter 0 133

Immobiliser light

The o indicator light illuminates when there is a fault in the

immobiliser system.

The engine cannot be started.

Contact a Holden Dealer.

Instruments and controls 61

Reduced engine power light

If w illuminates while driving, the engine’s power is reduced.

1. Stop the vehicle as soon as it is safe to do so.

2. Switch the ignition off then restart after 10 seconds.

The vehicle may be driven at a

reduced speed.

3. Contact a Holden Dealer immediately.

High beam light

The $ indicator light illuminates

when the headlamp high beam is on.

Headlamp high/low beam 0

Front fog lamp light

The vehicle may have front fog lamps.

> illuminates when the front fog lamps are on.

Front fog lamps 0

Tail lamp light

The 8 indicator light illuminates when the tail lamps are on.

Exterior lamp control 0

Cruise control light

The m indicator light illuminates white when the system is on and green when cruise control is activated.

Cruise control 0

143

Door ajar light

The N warning light illuminates when any of the doors or the tailgate are not completely closed.

62 Instruments and controls

Information displays

Driver Information Centre (DIC)

The Driver Information Centre (DIC) is located in the instrument cluster.

The DIC may display functions such as the trip computer, information, warning messages and settings, etc.

Vehicle Information menu

To select the vehicle information menu, press MENU.

The following options may be available for selection:

Type 1 display:

• Remaining Oil Life. Type 2 display:

• Remaining Oil Life. Rotate the adjuster wheel to

select.

Remaining oil life

Type 1

Type 2

Instruments and controls 63

Displays an estimate of the oil’s remaining useful life. This may only

be displayed while the vehicle is

stationary. If, for example, : 98% is displayed,

it means 98% of the current oil life remains.

When the remaining oil life is low, the vehicle message : %

CHANGE will be displayed.

The engine oil should be changed as soon as possible.

After an engine oil change, the

engine oil life system will be reset by

a Holden Dealer.

How to reset the engine oil life system

Reset the system whenever the engine oil is changed so the system can calculate the next engine oil change.

1. Turn the ignition On with the engine not running.

2. Press the MENU button on the

turn signal lever, to select the Remaining oil life display in the Driver Information Centre (DIC).

3. Press the SET/CLR button for

several seconds to reset the oil life to 100%.

4. Turn the ignition Off. Take care not to reset the display

accidentally at any time other than after the oil is changed.

If the vehicle message comes back

on when the vehicle is started, the engine oil life system has not reset. Repeat the procedure.

Vehicle messages

Messages are displayed on the Driver Information Centre (DIC) in

the instrument cluster or audible as

a warning chime. Not all messages are displayed on

all vehicles. Messages displayed on the DIC

indicate the status of the vehicle or

some action that may be needed to

correct a condition. The messages that do not

require immediate action can be acknowledged and cleared by

pressing SET/CLR.

The messages that require immediate action cannot be cleared

until that action is performed. All

messages should be taken seriously

and clearing the messages does not

correct the problem.

64 Instruments and controls

Type 1

On the Type 1 display, most vehicle

messages appear as code numbers.

Some of these codes may appear along with the service vehicle soon

light and the owner’s manual symbol

in the DIC display.

No. Vehicle message

2 No remote detected, press

brake to restart

4 A/C off due to high engine temp 5 Steering column is locked 7 Turn steering wheel, turn key

off, then on

9 Turn steering wheel, start

vehicle again

10 Brakes overheated

15 Check high mounted brake

lamp

16 Check brake lamps

17 Headlamp levelling malfunction

18 Left low beam failure

20 Right low beam failure

21 Check left position lamp 22 Check right position lamp 23 Reversing light failure 24 License plate light failure 25 Left front turn indicator failure 26 Left rear turn indicator failure 27 Right front turn indicator failure 28 Right rear turn indicator failure

35 Replace battery In remote key

52 Change timing belt

53 Tighten fuel cap 59 Open, then close driver’s

window 65 Theft attempted 66 Service theft alarm 67 Service steering column lock 68 Service power steering, drive

with care 79 Engine oil low – add oil 81 Service transmission 84 Engine power is reduced 88 Use Transmitter pocket to start

89 Service vehicle soon 91 No remote detected 92 No remote detected, press

brake to restart

93 Press button again to turn

engine off

94 Shift to park

95 Service airbag

174 Low battery

258 Park assist Off

Engine oil message

• : % Change

This message will be displayed when the engine oil requires

changing.

Remaining oil life 0

Instruments and controls 65

Type 2

Multiple messages may display one after the other.

The following are some of the

vehicle messages that may be

displayed.

Battery voltage and charging messages

• Battery Saver Active Displays when the vehicle has

detected the battery voltage is dropping below a certain point.

The battery saver system starts

reducing features of the vehicle that

may be noticed. At the point that features are disabled, this message

displays. Turn off unnecessary accessories to

allow the battery to recharge.

• Low Battery

Displays when the battery voltage

is low.

• Service Battery Charging System Displays when there is a fault in the

battery charging system.

Take the vehicle to a Holden Dealer for service.

Brake system messages

• Brake Fluid Low

Displays when the brake uid level

is low.

Brake uid 0

• Release Parking Brake Displays as a reminder the parking

brake is on. Release it before you

attempt to drive.

• Service Parking Brake

Displays when there is a problem with the parking brake.

Take the vehicle to a Holden Dealer for service.

168

Cruise control messages

• Cruise Set To XXX Displays when the cruise control is

set and shows the set speed.

Cruise control 0

Door ajar messages

• Driver Door Open Displays when the driver’s door is

open. Close the door completely.

• Hood Open

Displays when the bonnet is open.

Close the bonnet completely.

• Left Rear Door Open Displays when the left-hand rear

door is open. Close the door completely.

• Passenger Door Open Displays when the front passenger’s

door is open. Close the door completely.

143

66 Instruments and controls

• Right Rear Door Open Displays when the right-hand rear

door is open. Close the door completely.

• Trunk Open Displays when the tailgate is open. Close the tailgate completely.

Engine cooling system messages

• A/C Off Due To High Engine Temp

Displays when the engine coolant

becomes hotter than the normal

operating temperature. To avoid added strain on a hot

engine, the air conditioning compressor automatically turns off. When the coolant temperature returns to normal, the air conditioning

compressor turns back on.

You can continue to drive the vehicle. If this message continues to appear,

have the system repaired by a Holden Dealer as soon as possible

to avoid damage to the engine.

• Engine Overheated – Idle Engine Displays when the engine coolant

temperature is too hot. Stop and allow the vehicle to idle until it cools down.

• Engine Overheated – Stop Engine

Displays and a continuous chime sounds if the engine cooling system reaches unsafe temperatures for operation.

Stop and turn off the vehicle as soon as it is safe to do so to avoid severe damage.

This message clears when the engine has cooled to a safe operating temperature.

Engine oil messages

• Change Engine Oil Soon Displays when the engine oil needs

to be changed.

Remaining oil life 0

• Engine Oil Hot, Idle Engine Displays when the engine oil

temperature is too hot. Stop and allow the vehicle to idle until it cools down.

• Oil Pressure Low – Stop Engine Displays if low oil pressure levels

occur. Stop the vehicle as soon as safely

possible and do not operate it until

the cause of the low oil pressure

has been corrected. Check the oil as soon as possible and have the vehicle serviced by a Holden Dealer.

Instruments and controls 67

Engine power messages

• Engine Power is Reduced Displays when the vehicle’s engine

power is reduced. Reduced engine power can affect

the vehicle’s ability to accelerate.

If this message is on, but there is no

reduction in performance, proceed to your destination. The performance

may be reduced the next time the

vehicle is driven.

The vehicle may be driven at a

reduced speed while this message

is on, but maximum acceleration and speed may be reduced.

Anytime this message stays on, or displays repeatedly, the vehicle

should be taken to a Holden Dealer for service as soon as possible.

Fuel system messages

• Fuel Level Low Displays when the vehicle is low on

fuel.

Refuel as soon as possible.

• Tighten Gas Cap Displays when the fuel cap is not on

tight. Tighten the fuel cap.

Key and lock messages

• No Remote Detected Displays when the transmitter

battery is weak on vehicles with

electronic key system.

• Replace Battery In Remote Key

Displays when the battery in the radio remote control needs to be

replaced.

• Use Transmitter Pocket To Start Vehicles with electronic key system.

Displays when starting the vehicle if an electronic key is not detected.

The key battery may also be weak.

Lamp messages

• Check XXXX Turn Signal Lamp When one of the turn signals is out,

this message displays to show which

bulb needs to be replaced.

• Turn Signal On

Displays if the turn signal has been

left on. Turn off the turn signal.

Object detection system messages

• Park Assist Off Displays when the park assist

system has been turned off or

when there is a temporary condition

causing the system to be disabled.

Park Assist (PA) 0

• Service Parking Assist

Displays if there is a problem with

the park assist system. Do not use this system to help you park.

Park Assist (PA) 0

145

68 Instruments and controls

• Rear Cross Trafc Alert Off

Displays when the rear cross trafc alert system has been turned off or

when there is a temporary condition

causing the system to be disabled.

Rear Cross Trafc Alert (RCTA) 0

• Side Blind Zone Alert Off

Displays when the side blind zone alert system has been turned off or

when there is a temporary condition

causing the system to be disabled.

Side Blind Zone Alert (SBZA) 0

Ride control system messages

• Service Traction Control

Displays when there is a problem

with the Traction Control System (TCS).

When this message is displayed, the system will not limit wheel spin. Adjust your driving accordingly.

See a Holden Dealer for service.

148

149

• Service ESC

Displays if there is a problem with the Electronic Stability Control (ESC)

system. If this message appears, try to reset

the system. Stop; turn off the engine for at least 15 seconds; then start

the engine again. If this message is still displayed,

there is a problem. See a Holden

Dealer for service.

The vehicle is safe to drive; however, you do not have the benet of Electronic Stability Control (ESC),

so reduce your speed and drive accordingly.

Security messages

• Theft Attempted

Displays if the vehicle detects a tamper condition.

Service vehicle messages

• Service AC System

Displays if there is a problem with

the air conditioning system. Take the vehicle to a Holden Dealer for service.

• Service Power Steering Displays and a chime may sound

when there may be a problem with

the power steering system. If this message displays and a

reduction in steering performance or loss of power steering assistance is noticed, see a Holden Dealer.

• Service Vehicle Soon

Displays if there is a problem with

the vehicle. Take the vehicle to a Holden Dealer for service.

Instruments and controls 69

Transmission messages

• Service Transmission

Displays if there is a problem with

the transmission. Take the vehicle to a Holden dealer

for service.

• Shift To Park Displays when the transmission

needs to be shifted to P (Park).

This may display when attempting to remove the key from the ignition switch, or for vehicles with electronic key system, when removing the key from the vehicle, if the vehicle is not in P (Park).

• Transmission Hot – Idle Engine Displays and a chime sounds if the

transmission uid becomes too hot.

Driving with the transmission uid

temperature high can cause damage to the vehicle.

Stop the vehicle and let it idle to allow the transmission to cool.

This message clears when the uid

temperature reaches a safe level.

Vehicle reminder messages

• Ice Possible Drive With Care

Displays when ice conditions are

possible.

Window messages

• Open, Then Close Driver/ Passenger Window

Displays when the window needs to

be reprogrammed.

If the vehicle battery has been

discharged or disconnected, you may need to program the driver’s door window for the auto-up feature to work.

Power windows 0

Warning chimes

Warning chimes may be heard when

starting the engine or while driving, for example:

• If a seat belt is not fastened.

• If a certain speed is exceeded

while the park brake is applied.

• If a warning code appears on the instrument cluster.

Warning chimes may be heard when

the vehicle is parked and/or a door is opened:

• When the key is in the ignition switch/lock or the ignition is on.

• When the exterior lamps are on.

70 Instruments and controls Trip computer

Type 1

Type 2

The vehicle has a trip computer displayed on the Driver Information Centre (DIC) in the instrument cluster.

Depending on vehicle model, the trip computer shows:

Type 1

• Trip Odometer

• Fuel Range

• Average Vehicle Speed

• Instantaneous Fuel Consumption

• Average Fuel Consumption Type 2

• Digital Speedometer

• Trip 1

• Trip 2

• Fuel Range

• Instantaneous Fuel Consumption

• Average Fuel Consumption

• Average Vehicle Speed

To select the trip computer screens, press MENU.

Rotate the adjuster wheel select the menu items.

Digital speedometer (Type 2)

The digital speedometer displays the current vehicle speed.

Trip odometer (Type 1) / Trip 1 and Trip 2 (Type 2)

This display shows the current distance travelled since the last reset for the trip odometer.

Instruments and controls 71

The trip odometer can be reset to zero by pressing SET/CLR for

several seconds while the trip odometer is displayed.

Fuel range

This display shows the approximate

distance the vehicle can be driven

without refuelling.

The fuel range estimate is based

on an average of the vehicle’s fuel economy over recent driving history and the amount of fuel remaining in the fuel tank.

Average vehicle speed

This display shows the average speed of the vehicle.

This average is calculated based on

the various vehicle speeds recorded since the last reset of this value.

The average speed can be reset by pressing SET/CLR for several

seconds while average vehicle speed is displayed.

Instantaneous fuel consumption

The instantaneous fuel economy display shows the current fuel economy.

This number reects only the

approximate current fuel economy of

the vehicle and changes frequently

as driving conditions change.

Average fuel consumption

This display shows the approximate average fuel economy.

This number is calculated based on

the fuel use recorded since the last time this menu item was reset.

This number reects only the

approximate average fuel economy of the vehicle and will change as driving conditions change.

The average fuel economy can

be reset by pressing SET/CLR for

several seconds while average fuel economy is displayed.

Vehicle personalisation

Settings can be personalised using

the infotainment system controls. Note

Depending on the vehicle variant, some of the following functions may

not be available.

72 Instruments and controls Settings

Settings can be made with the

ignition on and the vehicle not moving.

The following are all possible Vehicle

personalisation features and may differ to your vehicle.

F (Home) : Press to access the

Home screen.

Touch to scroll through the

Q R

menus or setup items.

Touch to exit, or return to the

previous screen or menu.

Some items can be set to On or Off,

while others have several choices. The On setting is displayed as:

The Off setting is displayed as:

Note

The following describes the functions that may be available in the Vehicle

menu. For the other items in the

Settings menu; Settings 0 116

Vehicle

To access the menu on the infotainment system:

1. Touch F.

2. Touch Settings.

3. Touch Vehicle.

4. Select the desired item.

Collision / Detection Systems

Select and the following may display:

• Park Assist

• Rear Cross Trafc Alert

• Side Blind Zone Alert Park Assist:

This allows this park assist to be

turned on or off.

• Select On, Off or On with Towbar

Rear Cross Trafc Alert:

This allows this rear cross trafc alert system to be turned on or off.

• Select On, Off Side Blind Zone Alert:

This allows this side blind zone alert system to be turned on or off.

• Select On, Off

Comfort and Convenience

Select and the following may display:

• Chime Volume

• Personalisation by Driver

• Auto Wipe in Reverse Gear

Instruments and controls 73

Chime Volume: Allows selection of the chime volume

level.

• Select 24 to 38

Personalisation by Driver

Allows personalisation functions to

be turned on or off.

• Select On or Off Auto Wipe in Reverse Gear:

Allows this feature to be turned on

or off. When on, and the front wipers are on, the rear window wiper will turn on automatically when the vehicle is shifted into R (Reverse).

• Select On or Off

Lighting

Select and the following may display:

• Vehicle Locator Lights

• Exit Lighting

Vehicle Locator Lights: This allows selection of the entry

lighting function. When on, the exterior lights illuminate for a short period when c is pressed.

• Select On or Off Exit Lighting: This allows selection of how long the

exterior lamps stay on when leaving the vehicle and it is dark outside.

• Select Off, 30, 60 or 120 Seconds

Power Door Locks

Select and the following may display:

• Auto Door Lock

Auto Door Lock: This allows selection for the doors

to automatically lock when the transmission lever is shifted out of park and unlock when placed in park.

• Select On or Off

Remote Lock, Unlock, Start

Select and the following may display:

• Remote Unlock Light Feedback

• Remote Lock Feedback

• Remote Door Unlock

• Relock Remote Unlocked Doors

• Passive Door Unlock

• Passive Door Lock

• Remote Left in Vehicle Alert

Remote Unlock Light Feedback:

When on, the exterior lamps will

ash when unlocking the vehicle

with the remote control.

• Select Flash Lights or Off

Remote Lock Feedback:

This allows selection of what type of feedback is given when pressing e on the remote control.

• Select Lights Only, Lights & Horn, Horn Only, or Off

74 Instruments and controls

Remote Door Unlock: This allows selection of which doors

will unlock when pressing c on the remote control.

When set to Driver Door, the driver’s

door will unlock the rst time c or

the front door exterior handle button

(vehicles with electronic key system) is pressed. All doors will unlock

when the button is pressed a second

time. When set to All Doors, all of the

doors will unlock at the rst press of

c or the front door exterior handle

button (vehicles with electronic key

system).

• Select All Doors or Driver Door Relock Remote Unlocked Doors Activates or deactivates the

automatic relock function after unlocking without opening a door.

• Select On or Off

Passive Door Unlock: This allows the selection of what

doors will unlock when using the

button on the driver’s door to unlock

the vehicle.

• Select All Doors or Driver Door Passive Door Lock: Activates or deactivates the passive

locking function. This feature locks the vehicle automatically after several seconds if all doors have

been closed and an electronic key has been removed from the vehicle.

Select On, On with Horn Chirp or Off. Remote Left in Vehicle Alert: This feature sounds an alert when

the remote control is left in the vehicle.

• Select On or Off

Lighting 75

Lighting

Exterior lighting ....................75

Exterior lamp control ..................75

Automatic lamp control

Headlamp high/low beam

Headlamp level adjustment Daytime Running

Lamps (DRL)

Hazard warning ashers

Turn and lane change signals Front fog lamps Reversing lamps Misted lamp covers

..............................77

Interior lighting .....................78

Instrument panel illumination .....78

Interior lamps

.............................79

Lighting features ..................80

Vehicle locator lights ..................80

Exit lighting Battery power protection

.................................80

...............75

..........76

........76

............77

....77

..........................78

........................78

....................78

............80

Exterior lighting

Exterior lamp control

(OFF): Rotate to turn all lamps

and lights off. AUTO: Exterior lamps and

instrument panel lights turn on or off automatically, depending on the

ambient light.

8 (Park lamps): Turns on the park

lamps, number plate lamps and

instrument panel lights. 9 (Headlamps): Turns on the

headlamps and all park lamps.

Automatic lamp control

When the lamp control is in the AUTO position, the exterior lamps and instrument panel lights automatically switch on according to

ambient light.

• To turn automatic lighting off, rotate to .

76 Lighting Headlamp high/low beam

To activate high beam:

1. Turn the headlamps on.

2. Push the lever forwards. The high beam indicator lamp

$ illuminates on the instrument cluster.

To return to low beam:

1. Push the lever again or pull the lever rearward.

Warning

Always switch the headlamps

to low beam when vehicles are

approaching or when following another vehicle.

To ash the high beam lamps:

1. Pull the lever towards the rear of the vehicle and release.

The lamps stay on for as long as

the lever is held.

Headlamp level adjustment

Adjust the headlamp level according to vehicle load, to ensure illumination of the road ahead.

Press 9 to withdraw the switch, rotate to the recommended position

and then press it back in place:

0: Front seats occupied

: All seats occupied

1 2: All seats occupied and load

compartment laden

: Driver’s seat occupied and load

compartment laden

Lighting 77

Daytime Running Lamps (DRL)

DRL increase the visibility of the

vehicle during daylight. The DRL LEDs can operate in two different intensities:

• Normal intensity for park lamps.

• High intensity for DRL function. The DRL operate in high intensity

when the ignition is on or the engine is running and the lamp control switch is in AUTO position.

If the lamp control switch is turned to 8 or 9, the DRL operate in normal intensity.

If the lamp control switch is turned off the DRL do not operate.

Hazard warning ashers

Press ¨ to turn the hazard warning

asher on or off, when the ignition is

in any position.

All turn signals ash continuously.

Use the hazard warning asher if the vehicle becomes a trafc hazard,

day or night. Note

Using hazard warning ashers while

the vehicle is moving, is illegal in some States and Countries.

Turn and lane change signals

1. Push the lever in the direction the steering wheel is turned.

A green arrow on the instrument

cluster ashes when the lamps

are in operation.

For three ashes, e.g. when

changing lanes:

1. Push the lever until the point of resistance, then release.

78 Lighting Front fog lamps

The vehicle may have front fog lamps.

To turn the front fog lamps on:

• Press >. > illuminates on the instrument

cluster.

To turn the front fog lamps off:

• Press > again.

Reversing lamps

The reversing lamps illuminate when the ignition is on and reverse gear is engaged.

Misted lamp covers

Caution

Condensation may temporarily appear on the inside of exterior lamp lenses after rain or washing the vehicle. Condensation occurs when there is a temperature

difference between the inside and

outside of the lamp allowing a

ne mist on the inside surface of

the lamp lens. This condensation will disappear when the vehicle is in a dry environment or the lamp is on. If water does collect in the lamp contact a Holden Dealer.

Interior lighting

Instrument panel illumination

To adjust the instrument panel lighting, press D to withdraw the switch, rotate to the desired level

and then press it back in place.

Lighting 79

Interior lamps

Courtesy lamps

Front

Press the rocker switch: ( (Off): Remains off when doors are

opened or closed. H: Automatically switches on when

a door is opened and turns off after doors are closed.

' (On): Remains on when doors are opened or closed.

Rear

Press the rocker switch: ( (Off): Remains off when doors are

opened or closed.

: Automatically switches on when a door is opened and turns off after doors are closed.

I (On): Remains on when doors are opened or closed.

Note

To prevent the battery from

discharging, turn the lamp off when the engine is not running.

Warning

Do not leave the courtesy lamp on while driving in the dark.

Sun visor lamps

The vehicle may have lamps at either side of the mirror.

The lamps turn on and off automatically when the cover is opened and closed.

80 Lighting

Lighting features

Vehicle locator lights

To facilitate retrieving the vehicle when it is dark, lights such as the headlamps and tail lamps illuminate for a short period when c is pressed.

Set the headlamps to Auto mode.

This setting can be changed in the

Vehicle settings.

Vehicle personalisation 0

Exit lighting

Set the headlamps, side lamps and tail lamps to illuminate the way, after leaving the vehicle.

Activation, deactivation and duration

of lighting can be changed in the

vehicle settings menu.

Vehicle personalisation 0

Set the headlamps to Auto mode.

1. Switch the ignition off.

2. Remove the ignition key or open the driver’s door.

If activated, the lighting remains on for the set duration.

Battery power protection

To prevent the battery from

discharging, lamps are switched off automatically 10 minutes after the ignition is turned off.

Infotainment system 81

Infotainment system

Introduction ...........................81

Safety information ......................81

General information Theft-deterrent feature Overview Operation

....................................84

...................................86

Audio .....................................90

AM-FM radio ..............................90

DAB radio Antennas USB port Auxiliary devices Bluetooth music

...................................93

....................................95

.....................................95

Gallery .................................106

Gallery (pictures) ......................106

Gallery (movies)

....................82

...............83

.....................102

........................103

.......................108

Phone ..................................109

Bluetooth .................................109

Hands-free phone

...................112

Smartphone applications ... 115

Android Auto, Apple CarPlay .... 115

Settings ............................... 116

General operation of the

settings menu ...........................116

Introduction

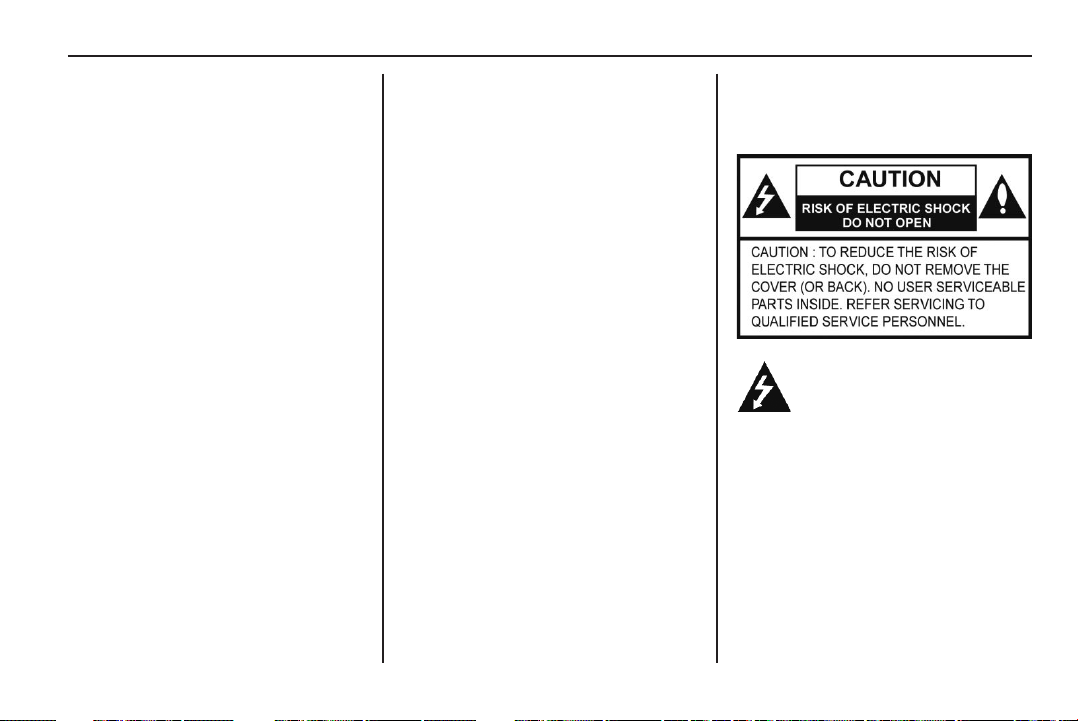

Safety information

The lightning ash with the arrowhead symbol within an equilateral triangle is intended to alert the user about the presence

of uninsulated dangerous voltage within the system’s enclosure that

may be of sufcient magnitude to

constitute a risk of electric shock to persons.

82 Infotainment system

The exclamation point within an

equilateral triangle is intended

to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the system.

• Always operate the vehicle in

a safe manner. Do not become distracted by the vehicle while driving and always be fully aware

of all driving conditions. Do not change settings or any functions.

Pull over in a safe and legal

manner before attempting such

operations. To promote safety,

certain functions are disabled unless the parking brake is on.

• To reduce the risk of electric shock, do not remove the cover

or back of this system. There are no user-serviceable parts inside. Refer servicing to qualied

service personnel.

• To reduce the risk of re or electric shock, do not expose this system to water, rain, or moisture and do not place another electric device on LCD touch display.

• When driving, keep the volume of the unit low enough to allow you to hear sounds from outside the vehicle, such as emergency services, etc.

• Do not drop it and avoid heavy impacts at anytime.

Warning

The infotainment system must

be used so the vehicle can be

driven safely at all times. Stop the vehicle in a safe location and operate the infotainment system while the vehicle is stationary.

For your safety, some features are disabled while the vehicle is

in motion.

General information

The infotainment system provides infotainment in your car, using the

latest technology. See a Holden dealer to have the

system or software updated and upgraded.

The radio can be easily used by

registering up to 25 FM or AM stations with the Preset function.

A DAB radio tuner may also be

included.

Infotainment system 83

The infotainment system can play USB storage device or iPod/iPhone devices.

Using the phone projection function,

you can operate specic applications

on your smartphone via the infotainment system.

The Bluetooth phone connection function allows for the use of wireless hands-free phone calls, as well as a phone music player.

Connect a portable music player to

the auxiliary sound input to enjoy the rich sound of the infotainment system.

• The 'Overview' section provides a simple overview of the infotainment system’s functions and summary of all regulatory devices.

• The 'Operation' section explains

the basic controls for the

infotainment system.

• Design and specications are

subject to change without notice.

• Some of the radio features may

be limited when ignition is off.

'Made for iPod' and 'Made for iPhone' refers to an electronic

accessory has been designed to connect specically to iPod or iPhone respectively, and has been certied by the developer to meet

Apple performance standards. Apple

is not responsible for the operation

of this device or its compliance with safety and regulatory standards. Please note the use of this accessory with iPod, iPhone may affect wireless performance.

Theft-deterrent feature

The infotainment system has an electronic security system to prevent theft.

Therefore, the infotainment system will only function in the vehicle in

which it was rst installed, and cannot be used in another vehicle.

84 Infotainment system Overview

Control panel

1. Display: Display for Play / Reception / Menu state and information.

2. Home: Press { to enter the home menu.

3. Seek: Press g/ l to seek the station or media contents.

4. Power: Press and hold P to turn the power on/off.

Press P to turn the mute function

on/off.

5. Volume knob:

Rotate the volume knob to adjust

the volume.

6. Phone: Press 5 to access the Phone screen.

(If there is no connected phone,

the display will show the Device Management Menu to allow you to connect a previously

paired phone or establish a new Bluetooth enabled phone

connection.)

Infotainment system 85

Steering wheel remote control

1. Call:

• When there is no connected

Bluetooth device on the infotainment system:

Executes the Bluetooth

device connection.

• When there is a connected

Bluetooth device on the infotainment system:

Press % to answer the call

or enter the redial selection mode.

If the connected phone

supports Speech Recognition, press and hold

to activate the phone’s SR

(speech recognition) mode.

2. Mute / hang up: Press 5 in any music play mode

to turn the mute function on and off.

Press 5 to reject incoming calls

or to nish your current call or

phone’s SR mode.

3. SRC Press SRC to change the

source, e.g. AM, FM, DAB, USB, etc.

SEEK (Q / R)

• Press: – FM/AM/DAB mode:

receives the previous or next preset station.

– USB mode: plays the

previous or next le.

– iPod/iPhone mode: plays

the previous or next song.

– Bluetooth music mode:

plays the previous or next music.

• Press and hold: – FM/AM mode:

sequentially searches

the stations saved in PRESET.

– Bluetooth, USB, iPod/

iPhone mode: quickly

scans forward or

backward while the button is pressed. Once

released, returns to normal playback.

4. Volume Press + to increase the volume. Press – to decrease the volume.

86 Infotainment system Operation

System on / off

• Press P on the control panel to turn the power on. The last audio

or movie will be executed.

• Press and hold P on the control panel to turn the power off. The

time and temperature will be

shown on the screen.

Note

The time and temperature are displayed when the ignition is on.

Turning on / off automatically

When the ignition switch is in the ACC or ON position, the infotainment system is turned on automatically.

When the ignition switch is in the OFF position and the driver’s door is opened, the infotainment system is turned off automatically.

Note

If P is pressed and held when the ignition is off, the infotainment system is turned on for approximately 10 minutes.

Volume control

Rotate the volume knob on the

control panel to adjust the volume. The current sound volume is indicated.

• Using the steering wheel remote control, press + x - to adjust the volume.

• Turning on the infotainment system will set the volume level to its previous selection (when it is less than the maximum starting volume).

• If the volume level is louder than maximum starting volume level when the infotainment system is turned on, the infotainment system is adjusted automatically to maximum starting volume level.

Mute

Press P on the control panel to turn the mute function on and off.

Infotainment system 87

Using Home menu

1. Press { on the control panel. The Home menu may vary

depending on the vehicle option.

2. Touch the desired menu icon.

• Touch Audio to select AM/ FM/ DAB/USB/ Bluetooth music play or auxiliary sound (AUX) input.

• Touch Gallery to view pictures or movies. Refer to 'Before using Picture system' or 'Before using Movie

system' for a list of supported le

formats, 0 106

• Touch Phone to activate phone features (if connected).

• Touch Projection to activate Android AutoTM or Apple CarPlayTM. If a smartphone is already connected to the USB

port, Projection will be replaced

with Android Auto or Apple CarPlay icons.

• Touch Settings to enter the system settings menu.

Managing home menu icons

1. Touch and hold any of the Home menu icons to enter edit mode.

2. Continue holding the icon and drag it to the desired position.

3. Release your nger to drop the icon in the desired position.

4. To move an application to another page, drag the icon to the edge of the screen toward the desired page.

5. Continue dragging and dropping application icons as desired.

6. Press { to exit edit mode.

Note

• The edit mode exits after 30 seconds of inactivity.

• The maximum number of pages in edit mode is three.

88 Infotainment system

Selecting functions

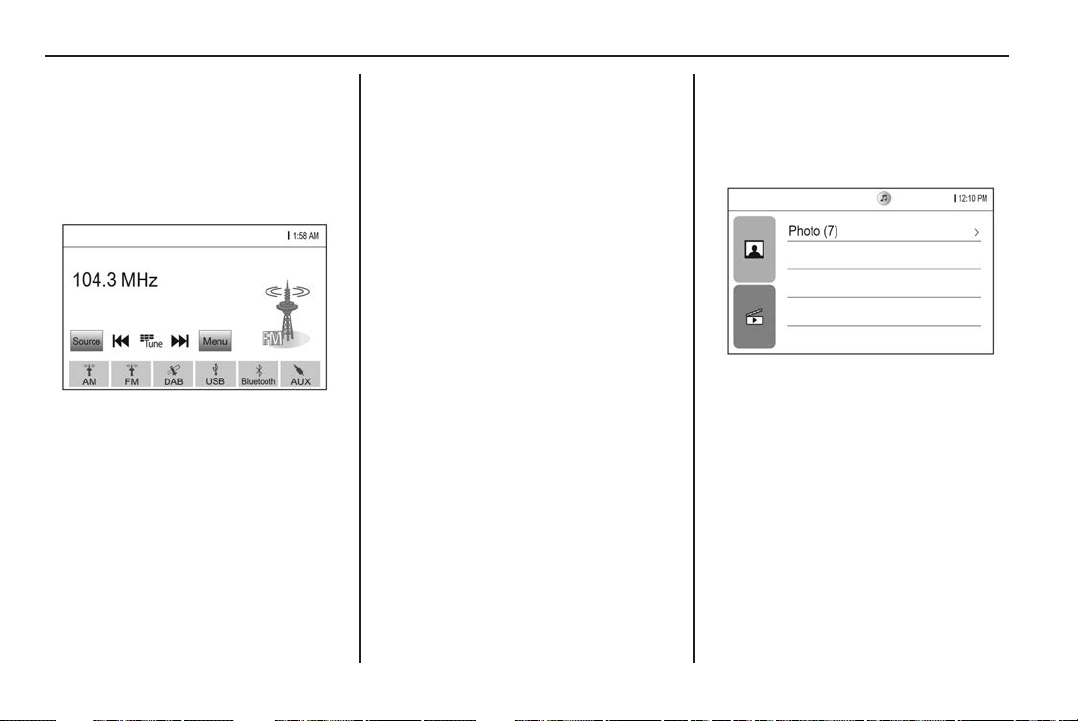

Audio

1. Press { on the control panel.

2. Touch Audio on the home menu.

3. Touch Source on the screen.

• Touch AM to select AM radio.

• Touch FM to select FM radio.

• Touch DAB to select digital radio.

• Touch USB to select USB music. If an iPod is connected to a USB

port, USB changes to iPod.

• Touch Bluetooth to select Bluetooth music.

• Touch AUX to select auxiliary sound (AUX) input.

Note

• Press { to return to the Home menu.

• If the playback source (iPod/ USB/ AUX/ Bluetooth) is not connected to the infotainment system, this function is not

available.

• Audio source availability may vary depending on the region and vehicle model.

• An additional USB device can

be supported by attaching an external USB hub from the single

USB port.

• Using a USB hub with 2 iPhone/iPod devices is not recommended.

Audio 0

Gallery

1. Press { on the control panel.

2. Touch Gallery on the home menu.

Touch \ to view picture les on the USB storage device.

Touch s to view movie les on the USB storage device.

Note

• Press { to return to the Home menu

• If the playback source (USB (picture / movie)) is not connected to the infotainment system, this

function is not available.

Gallery 0

106

Infotainment system 89

Phone

To operate Bluetooth hands-free function, connect a Bluetooth phone to the infotainment system.

1. Press { on the control panel.

2. Touch Phone on the home menu. Alternately, press 5 on the control panel or steering wheel

control switch (if available).

Note

• Press { to return to the Home menu.

• If the phone is not connected to the infotainment system, this

function is not available.

Phone 0

109

Projection

The phone projection applications Android Auto and Apple CarPlay display selected apps from your smartphone on the infotainment screen and allow their operation directly via the infotainment controls.

Smartphone applications 0

115

Settings

1. Press { on the control panel.

2. Touch Settings on the home menu.

Note

• The On setting is displayed as:

• The Off setting is displayed as:

• Press { to return to the Home menu.

Settings 0

116

90 Infotainment system

Audio

AM-FM radio

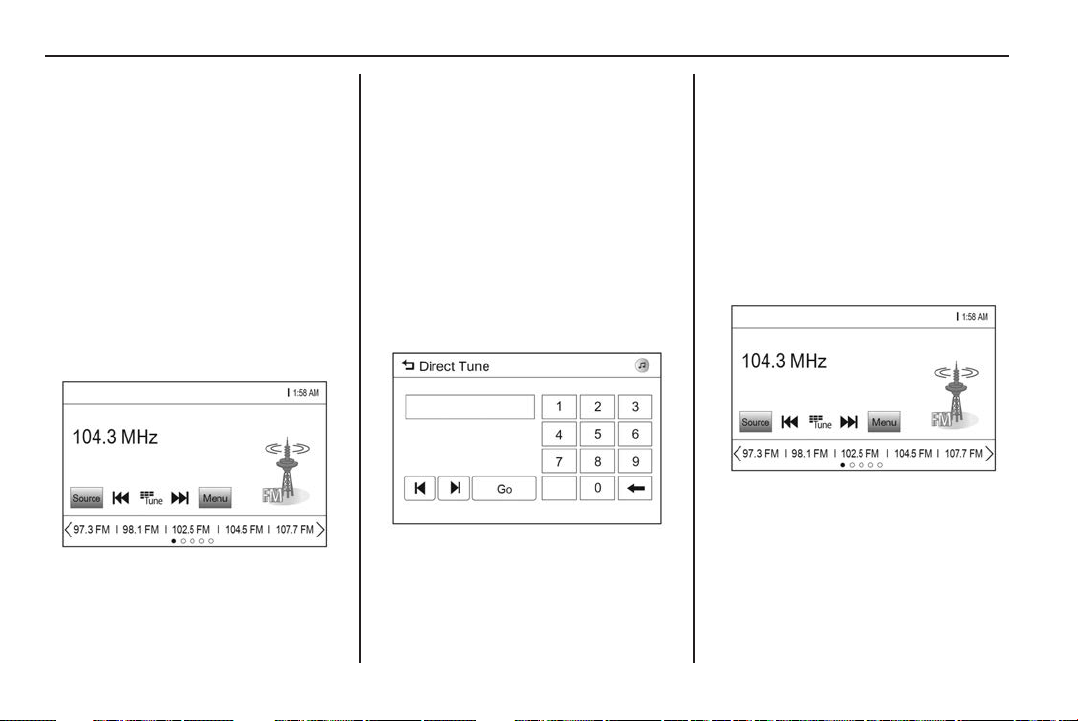

Listening to FM/AM radio

1. Press { on the control panel.

2. Touch Audio on the home menu.

3. Touch Source on the screen.

4. Touch FM or AM on the screen.

The FM or AM radio band of the

most recent listened station is displayed.

Note

• Press { to return to the Home menu.

Searching for broadcasting automatically

Press g / l on the control panel

to automatically search for available

stations with good reception.

Searching for broadcasting directly

1. Touch t on the screen.

2. Touch the desired frequency.

3. Touch Go.

Note

Touching '.' between digits is not

necessary. The radio will add it automatically at the correct location.

Searching for broadcasting by using the preset

Saving preset

1. Select the band (FM or AM) to store a station into.

2. Select the desired station.

3. Touch S / T to select the desired page of saved favourites.

4. Touch and hold down any Preset to save the current radio station

to that button of the selected

favourites page.

• Up to 5 favourites pages can

be saved, and each page can store up to ve radio stations.

Infotainment system 91

Listening to preset directly

1. Repeatedly touch S / T to select the desired page of saved favourites.

2. Touch the desired Preset to directly listen to the radio station

saved to that button.

Using the FM/AM radio menu

General operation of the menu

1. Select the desired band (FM or AM).

2. Touch Menu on the FM/AM radio screen.

3. Touch the desired menu to select the relevant item or to display the item’s detailed menu.

4. Touch 3 to return to the previous menu.

Station list

1. From the FM/AM menu, touch Station List to display the FM/ AM station list. The station list information is displayed.

2. Scroll through the list using Q / R.

Tune to the desired station by

selecting it.

Tone settings

From Tone Settings menu, sound

features can be set.

1. Touch Tone Settings to enter the sound setup mode. The tone settings menu is displayed.

• Touch -/+ to select the

desired sound style manually.

• Bass: Adjust the bass level

from -12 to +12.

• Mid (Midrange): Adjust the mid-

range level from -12 to +12.

• Treble: Adjust the treble level

from -12 to +12.

92 Infotainment system

• Fade: Adjust the front/rear

speaker balance by dragging

the round cursor up or down the vehicle interior image.

• Balance: Adjust the left/right

speaker balance by dragging

the round cursor left or right the vehicle interior image.

• EQ (Equaliser): Select or turn off the sound style. (Talk, Rock, Jazz, Pop, Country, Classical, Custom)

2. Touch 3.

Auto volume

When Auto Volume is turned on,

the volume will automatically be

adjusted according to the vehicle speed to offset the noise from the engine and tyres.

1. Touch Auto Volume.

2. Select the desired option. (Off/ Low/ Medium-Low/ Medium/ Medium-High/ High)

RDS (Radio Data System)

Setting the RDS function in the FM radio.

1. From the FM/AM menu, nd RDS.

2. Select on or off.

Note

RDS may not be available in all

areas

Update station list

1. From the FM/AM menu, touch Update Station List to display the update FM/AM station list.

The FM/AM broadcasting list

update will proceed.

2. During the FM/AM broadcasting list update, touch Cancel to stop it from saving changes.

Infotainment system 93

DAB radio

The vehicle may have a DAB radio.

Listening to DAB radio

1. Press { on the control panel.

2. Touch Audio on the home menu.

3. Touch Source on the screen.

4. Touch DAB on the screen.

The DAB radio band of the

most recent listened station is displayed.

Note

• Press { to return to the Home menu.

Searching for broadcasting automatically

Press g / l on the control panel

to automatically search for available

stations with good reception.

Searching for broadcasting by using the preset

Saving preset

1. Select the desired station.

2. Touch S / T to select the desired page of saved favourites.

3. Touch and hold down any Preset to save the current radio station

to that button of the selected

favourites page.

• Up to 5 favourites pages can

be saved, and each page can store up to ve radio stations.

• To change a Preset, simply tune to the new desired radio station and hold the Preset.

Listening to preset directly

1. Repeatedly touch S / T to select the desired page of saved favourites.

2. Touch the desired Preset to directly listen to the radio station

saved to that button.

Using the DAB radio menu

General operation of the menu

1. Touch Menu on the DAB radio screen.

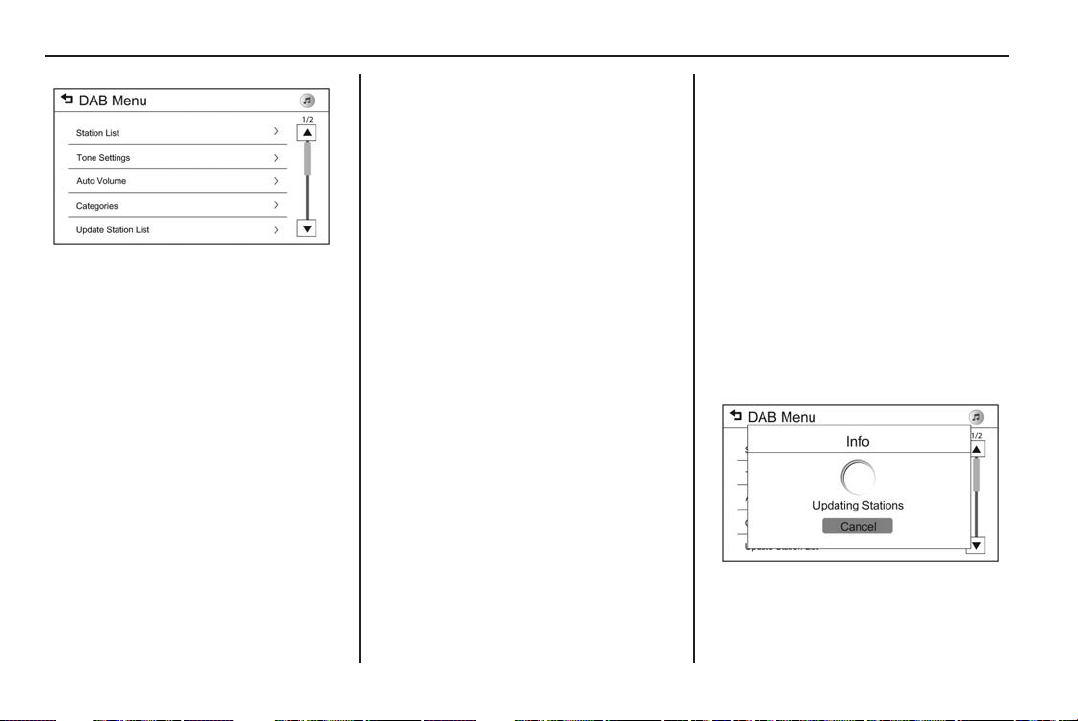

94 Infotainment system

2. Touch the desired menu to select the relevant item or to display the item’s detailed menu.

3. Touch 3 to return to the previous menu.

Station list

1. From the DAB menu, touch Station List to display the DAB station list. The station list information is displayed.

2. Scroll through the list using Q / R.

Tune to the desired station by

selecting it.

Tone settings

From Tone Settings menu, sound

features can be set.

1. From the DAB menu, touch Tone Settings to enter the sound

setup mode. The tone settings menu is displayed. Tone settings 0 91.

Auto volume

When Auto Volume is turned on,

the volume will automatically be

adjusted according to the vehicle speed to offset the noise from the engine and tyres.

Auto volume 0

holden Trax (2020) Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
