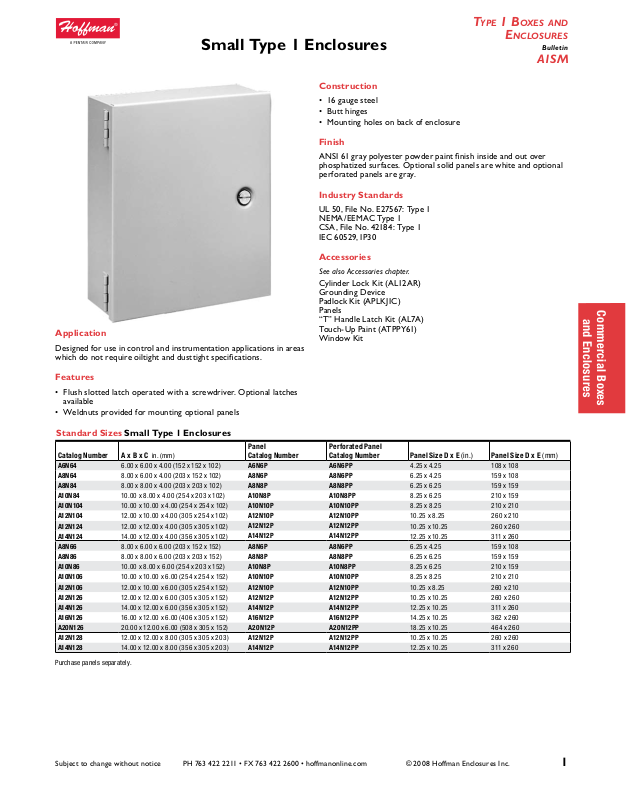

Hoffman Small Type 1 Enclosures Catalog Page
Small Type 1 Enclosures
Application
Designed for use in control and instrumentation applications in areas
which do not require oiltight and dusttight specications.
Ty p e 1 Bo x e s a n d
e
n c l o s u r e s
Bulletin
A1SM
Construction
16 gauge steel•
Butt hinges•
Mounting holes on back of enclosure•
Finish
ANSI 61 gray polyester powder paint nish inside and out over
phosphatized surfaces. Optional solid panels are white and optional
perforated panels are gray.
Industry Standards
UL 50, File No. E27567: Type 1
NEMA /EEMAC Type 1
CSA, File No. 42184: Type 1
IEC 60529, IP30
Accessories
See also Accessories chapter.
Cylinder Lock Kit (AL12AR)
Grounding Device
Padlock Kit (APLKJIC)
Panels
“T” Handle Latch Kit (AL7A)
Touch-Up Paint (ATPPY61)
Window Kit
Commercial Boxes
and Enclosures
Features
Flush slotted latch operated with a screwdriver. Optional latches •
available
Weldnuts provided for mounting optional panels•
Standard Sizes Small Type 1 Enclosures
Catalog Number A x B x C in. (mm)
A6N64 6.00 x 6.0 0 x 4.00 (152 x 152 x 102)
A8N64 8.00 x 6.00 x 4.00 (20 3 x 152 x 102)
A8N84 8.00 x 8.00 x 4.00 (203 x 203 x 102)
A10N84 10.00 x 8.00 x 4.00 (25 4 x 203 x 102)
A10N10 4 10.00 x 10.00 x 4.0 0 (254 x 254 x 102)
A12N10 4 12.00 x 10.00 x 4.00 (305 x 254 x 102)
A12N12 4 12.00 x 12.00 x 4.00 (305 x 305 x 102)
A14N12 4 14.00 x 12.00 x 4.00 (35 6 x 305 x 102)
A8N66 8.00 x 6.00 x 6.00 (203 x 152 x 152)
A8N86 8.00 x 8.00 x 6.00 (203 x 203 x 152)
A10N86 10.00 x 8.00 x 6.00 (25 4 x 203 x 152)
A10N10 6 10.00 x 10.00 x 6.00 (254 x 2 54 x 152)
A12N10 6 12.00 x 10.00 x 6.00 (305 x 254 x 152)
A12N12 6 12.00 x 12.00 x 6.00 (305 x 305 x 152)
A14N12 6 14.00 x 12.00 x 6.00 (35 6 x 305 x 152)
A16N126 16.00 x 12.00 x 6.00 (406 x 3 05 x 152)
A2 0N126 20.00 x 12.00 x 6.00 ( 508 x 305 x 152)
A12N12 8 12.00 x 12.00 x 8.00 (305 x 305 x 203)
A14N12 8 14.00 x 12.00 x 8 .00 (356 x 305 x 203 )
Purchase panels separately.
Panel
Catalog Number
A6N6P A6N6PP
A8N6P A8N6PP
A8N8P A8N8PP
A10N8P A10N8PP
A10N10 P A10N10 PP
A12N10 P A12N10 PP
A12N12P A12N12PP
A14N12 P A14N12P P
A8N6P A8N6PP
A8N8P A8N8PP
A10N8P A10N8PP
A10N10 P A10N10 PP
A12N10 P A12N10 PP
A12N12P A12N12PP
A14N12 P A14N12P P
A16N12P A16N12PP
A2 0N12P A20N12PP
A12N12P A12N12PP
A14N12 P A14N12P P
Perforated Panel
Catalog Number Panel Size D x E (in.) Panel Size D x E (mm)
4.25 x 4.2 5 108 x 108
6.25 x 4.25 159 x 108
6.25 x 6.25 159 x 159
8.25 x 6.25 210 x 159
8.25 x 8.25 210 x 210
10.25 x 8.25 260 x 210
10.25 x 10.25 260 x 260
12.25 x 10.25 311 x 26 0
6.25 x 4.25 159 x 108
6.25 x 6.25 159 x 159
8.25 x 6.25 210 x 159
8.25 x 8.25 210 x 210
10.25 x 8.25 260 x 210
10.25 x 10.25 260 x 260
12.25 x 10.25 311 x 26 0
14.25 x 10.25 362 x 260
18.25 x 10.25 464 x 260
10.25 x 10.25 260 x 260
12.25 x 10.25 311 x 26 0
Subject to change without notice PH 763 422 2211 • FX 763 422 2600 • hoffmanonline.com © 2008 Hoffman Enclosures Inc.
1
Small Type 1 Enclosures
Ty p e 1 Bo x e s a n d
e
n c l o s u r e s
Bulletin
A1SM
2
Subject to change without notice PH 763 422 2211 • FX 763 422 2600 • hoffmanonline.com © 2008 Hoffman Enclosures Inc.
Spec- 00260 Rev. B 9/0 8
