Page 1

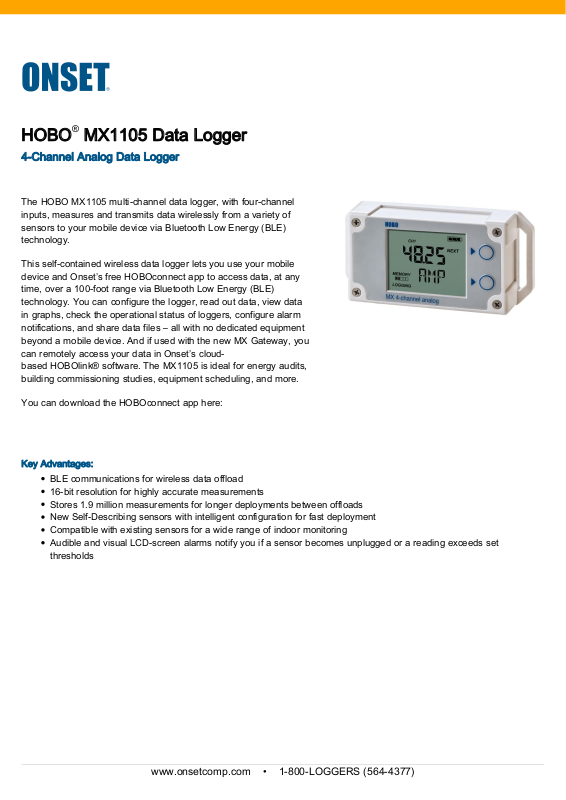

HOBO® MX1105 Data Logger
4-Channel Analog Data Logger
The HOBO MX1105 multi-channel data logger, with four-channel
inputs, measures and transmits data wirelessly from a variety of
sensors to your mobile device via Bluetooth Low Energy (BLE)
technology.
This self-contained wireless data logger lets you use your mobile
device and Onset’s free HOBOconnect app to access data, at any
time, over a 100-foot range via Bluetooth Low Energy (BLE)
technology. You can configure the logger, read out data, view data
in graphs, check the operational status of loggers, configure alarm
notifications, and share data files – all with no dedicated equipment
beyond a mobile device. And if used with the new MX Gateway, you
can remotely access your data in Onset’s cloudbased HOBOlink® software. The MX1105 is ideal for energy audits,
building commissioning studies, equipment scheduling, and more.
You can download the HOBOconnect app here:
Key Advantages:
BLE communications for wireless data offload
16-bit resolution for highly accurate measurements
Stores 1.9 million measurements for longer deployments between offloads
New Self-Describing sensors with intelligent configuration for fast deployment
Compatible with existing sensors for a wide range of indoor monitoring
Audible and visual LCD-screen alarms notify you if a sensor becomes unplugged or a reading exceeds set
thresholds
www.onsetcomp.com • 1-800-LOGGERS (564-4377)
Page 2
HOBO MX1105 Data Logger Specifications
Logger with
Cable Type
Measurement
Range
Accuracy ±0.001 mA ±0.2%
Resolution 0.3 µA 40 µV 80 µV 160 µV 384 µV
Logger
Operating Range -20° to 70°C (-4° to 158°F)
Radio Power 1 mW (0 dBm)
Transmission
Range
Wireless Data
Standard
Logging Rate 1 second to 18 hours
Logging Modes Fixed interval (normal, statistics) or burst
Memory Modes Wrap when full or stop when full
Start Modes Immediate, push button, date & time, or next interval
Stop Modes When memory full, push button, date & time, or after a set logging period
Restart Mode Push button
Time Accuracy ±1 minute per month at 25°C (77°F)
Battery Type Two AAA 1.5 V alkaline batteries, user replaceable
Battery Life 1 year, typical with logging interval of 1 minute and Bluetooth Always On enabled; 2 years, typical with
Memory 4 MB (1.9 million measurements, maximum)
Full Memory
Download Time
LCD LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures
Size 11.28 x 5.41 x 2.92 cm (4.44 x 2.13 x 1.15 in.)
Weight 123 g (4.34 oz)
Environmental
Rating
SD-MA-420 or
CABLE-4-20mA
0 to 20.1 mA 0 to 2.5 V 0 to 5.0 V 0 to 10 V 0 to 24 V
of reading
Approximately 30.5 m (100 ft) line-of-sight
Bluetooth Low Energy (Bluetooth Smart)
logging interval of 1 minute and Bluetooth Always On disabled; and temperatures between 0° and 50°C
(32° and 122°F). Faster logging intervals and statistics sampling intervals, burst logging, remaining
connected with the app, excessive downloads, and paging may impact battery life.
Approximately 4 to 15 minutes depending on the mobile device; may take longer the further the device is
from the logger
outside this range
IP54
The CE Marking identifies this product as complying with all relevant directives in the European Union
(EU).
SD-VOLT-2.5 or
CABLE-2.5-STEREO
±0.1 mV ±0.1% of
reading
SD-VOLT-05 or
CABLEADAP5
±0.2 mV ±0.3%
of reading
SD-VOLT-10 or
CABLE-ADAP10
±0.4 mV ±0.3% of
reading
SD-VOLT-24 or
CABLE-ADAP24
±1.0 mV ±0.3% of
reading
*Per RH sensor manufacturer data sheet
