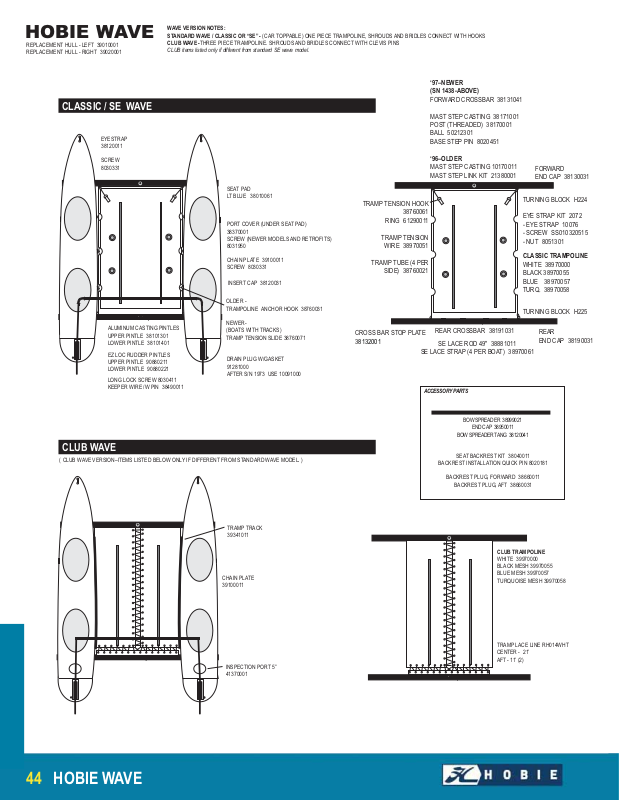

Hobie Wave User Manual
HOBIE WAVE
REPLACEMENT HULL - LEFT 39010001
REPLACEMENT HULL - RIGHT 39020001
CLASSIC / SE WAVE
EYESTRAP
38120011
SCREW
8030331
ALUMINUM CASTING PINTLES
UPPER PINTLE 38101301
LOWER PINTLE 38101401
EZ LOC RUDDER PINTLES
UPPER PINTLE 90880211
LOWER PINTLE 90880221
LONG LOCK SCREW 8030411
KEEPER WIRE /W PIN 38490011
WAVE VERSION NOTES:
STANDARD WAVE / CLASSIC OR “SE” - (CAR TOPPABLE) ONE PIECE TRAMPOLINE, SHROUDS AND BRIDLES CONNECT WITH HOOKS
CLUB WAVE -THREE PIECE TRAMPOLINE. SHROUDS AND BRIDLES CONNECT WITH CLEVIS PINS
CLUB items listed only if different from standard SE wave model.
‘97–NEWER
(SN 1438-ABOVE)
FORWARD CROSSBAR 38131041
MAST STEP CASTING 38171001
POST (THREADED) 38170001
BALL 50212301
BASE STEP PIN 8020451
‘96–OLDER
MAST STEP CASTING 10170011
MAST STEP LINK KIT 21380001
SEAT PAD
LT BLUE 38010061
TRAMP TENSION HOOK
38760061
PORT COVER (UNDER SEAT PAD)
38370001
SCREW (NEWER MODELS AND RETROFITS)
8031950
CHAIN PLATE 39100011
SCREW 8030331
INSERT CAP 38120031
OLDER -
TRAMPOLINE ANCHOR HOOK 38760031
NEWER(BOATS WITH TRACKS)
TRAMP TENSION SLIDE 38760071
DRAIN PLUG W/GASKET
91281000
AFTER S/N 1973 USE 10091000
CROSS BAR STOP PLATE
38132001
RING 61290011
TRAMP TENSION
WIRE 38970051
TRAMP TUBE (4 PER
SIDE) 38760021
REAR CROSSBAR 38191031
SE LACE ROD 49" 38881011
SE LACE STRAP (4 PER BOAT) 38970061
ACCESSORY PARTS
FORWARD
END CAP 38130031
TURNING BLOCK H224
EYE STRAP KIT 2072
- EYE STRAP 10076
- SCREW SS010320515
- NUT 8051301
CLASSIC TRAMPOLINE
WHITE 38970000
BLACK 38970055
BLUE 38970057
TURQ. 38970058
TURNING BLOCK H225
REAR
END CAP 38190031
CLUB WAVE
( CLUB WAVE VERSION–ITEMS LISTED BELOW ONLY IF DIFFERENT FROM STANDARD WAVE MODEL. )
TRAMP TRACK
39341011
CHAIN PLATE
39100011
INSPECTION PORT 5”
41370001
BOW SPREADER 38999021
END CAP 38950011
BOW SPREADER TANG 38120041
SEAT BACKREST KIT 38040011
BACKREST INSTALLATION QUICK PIN 8020181
BACKREST PLUG, FORWARD 38660011
BACKREST PLUG, AFT 38660031
CLUB TRAMPOLINE
WHITE 39970000
BLACK MESH 39970055
BLUE MESH 39970057
TURQUOISE MESH 39970058
TRAMP LACE LINE RH014WHT
CENTER - 21’
AFT - 11’ (2)
44 HOBIE WAVE
TILLER CROSS BARS
39521001 CLUB BOLT
39522001 TENDON
39524001 '07 EZ LOC
EZ LOC R
UDDER ASSEMBLY
39312000
Upper Bolt 8040391
Tiller Arm
39382011
Rudder Linkage
50313201
Tube Rivet
50313301
EZ LOC Housing 50313001
Detent Plunger 20492021
Retainer Clip 90880231
Bungee (3/16” x 10”) RS316BLK
Lower Bolt 8040321
Washer 8080671
Nut 8050331
MAST
SERIAL NUMBER 0 THROUGH 1437
OLD ASSEMBLY NLA (SEE NEW STYLE
BELOW) CONVERSION REQUIRES
MAST STEP RETROFIT.
MAST BASE (HOBIE14 STYLE)
10640011
SERIAL NUMBER 1438 AND NEWER
MAST ASSEMBLY (NEW STYLE)
38581041
LOWER MAST 38583141
NEW MAST BASE (CUP) 38641001
MAST STEP PARTS
(*Conversion parts required to
retrofit new mast to old style boat):
*NEW STEP BALL 50212301
*NEW STEP POST 38170001
*NEW MAST STEP CASTING 38171001
*RIVET (4) 8011231
*STEP PIN -8020451
(Flat top / threaded for post)
Nut 8050331
Up-Lock
pin kit
50314001
EZ LOC
RUDDER
BLADE
20491000
WAVE CLUB WIRES
SHROUD Club 39790001
FORESTAY 39810001
BRIDLE Club 39822011
WAVE SE WIRES
SHROUD SE w/Hooks 38790001
FORESTAY 39810001
BRIDLE SE w/hooks 38822011
UDDER ASSEMBLY
R
Pre-“EZ LOC” Rudder System
* = SUB ASSEMBLY PART / INCLUDED WITH CASTING
TILLER ARM 38321111
*BOLT
8040301
*CAM
10480000
*PIN
50312301
*CAM PLATE
203520000
LOWER CASTING
BLACK 50322001
RUDDER PIN BUSHING
UPPER 8062001
LOWER 38360001
*RAKE ADJUSTMENT SCREW
8032001
*PLUNGER
50312201
*SPRING
10430000
*TENSION SCREW
60450000
FLOAT KIT 30115
BRACKET (1)
39640020
SCREW 8032011
MAST HEAD
HALYARD
38651001
COMPTIP
38582100
LUFF TRACK
38584001
TANG
10690000
SHACKLE
10700000
10602111
*WASHER
8080181
UPPER CASTING
BLACK
LEFT 50321001
RIGHT 50341001
RUDDER
BLADE
20493000
WHITE
MAIN
SAIL 3899XXXX
1954 KIT - CLUB TILLER CONNECTOR / UPGRADE FOR EARLY BOATS
INCLUDES TILLER CROSS BAR AND ALL TILLER CONNECTOR FITTINGS
BOLT
8040331
NUT
8050311
TILLER ARM
SWIVEL
END CAP
40650001
BATTEN #5 36”
BATTEN #4 50”
BATTEN #3 66 7/8”
BATTEN #2 77 7/8”
BATTEN #1 82 3/8”
(FOR INDIVIDUAL BATTENS SEE UNIVERSAL BATTENS ON PAGE 18)
Wave Rivet Guide ( ) Quantity needed to fasten part
Mast
Head 8010131 (2)
Halyard Hook 8010181 (2)
8011291 (2)
Tang 8010181 (6)
8011291 (6)
Halyard Cleat 8010121 (2)
Base 8010131 (3)
Rear Crossbar
Pad Eye 8010181 )2)
Front Crossbar
Mast Step 8011231 (4)
TILLER CONNECTOR KITS AND PARTS
1957 KIT - '07 TILLER CONNECTOR
1956 KIT - CLUB TILLER CONNECTOR
(REPLACES TENDON STYLE WITH CLUB BOLT STYLE)
WITH ORIGINAL CURVED TENDON CONNECTORS:
'07 TILLER CONNECTOR (1957)
END CAP - WITH PIN 37561203
END CAP - THROUGH HOLE 37561200
SCREW 8031151
SHOCK CORD (10") RS316BLK
CLUB TILLER CONNECTOR (1954 / 1956)
TILLER CONNECTOR SCREW 40530021
INSERT BEARING 40680001
TILLER ARM INSERT 40660001
BOLT 8040171
WASHER 8080691
TENDON TILLER CONNECTOR
ENDCAP 37561001
FIBER TENDON 37561011
FIBER-TENDON SCREW 8030071
QUICK PIN 8020461
LANYAD 37660091
38016001 HOBIE WAVE BATTEN SET
Rudder Assembly
Upper Casting 8010131 (2)
(Underside) 8011231 (1)
Tiller End Cap 8010131 (2)
Sail
Headboard 8010020 (16)
Tack/Clew plate 8010020 (6)
Pocket Protector 8010020 (4)
(Requires setting machine-not available as
hand tool)
CLIP 40590001
RIVET 8010261
FORESTAY ADJUSTER
20830010
DOWNHAUL / HALYARD CLEAT 10730000
SCREW 8030111
NUT 8051301
RIGHTING LINE RL012BLU - 15’
SHROUD ADJUSTER
(CLUB) 20830010
“S” HOOK 38900031
SHACKLE 11220000
UPPER
BLOCK
38900061
RM516BLU X 35’
LOWER
BLOCK 38900071
HOBIE WAVE 45
