HOBIE PADDLE AND MIRAGE COMMON PARTS
See model-guide pages for model-specific parts
53180011 3/8” HOG RING
21180000 1/2” HOG RING
71120001 LASHING HOOK
8031130 SCREW
71110001 PADEYE
8031130 SCREW
10091000 DRAIN PLUG
RS316BLK 3/16” SHOCKCORD
RS014BLK 1/4” SHOCKCORD
SCREW-IN FITTINGS
71116001
PADEYE
71117001
CLEAT
71115001
SHOCKCORD END
71115101
TOOL
SCREW IN FITTINGS
81370001 - STEERING CRANK
81375001 SPRING
8080691 NYLON WASHER
2101 -SHOCKCORD
FASTENER, 1/4”
81015 - STEERING HANDLE
W/ SET-SCREW
TWIST-N-STOW RUDDER
81394001 RUDDER PIN
81395001 RUDDER ASSY. W/ SM. BLADE
81396001 RUDDER ASSY. W/ LG. BLADE
81395201 SMALL RUDDER BLADE
81397001 LARGE RUDDER BLADE
EARLY MIRAGE RUDDER
8030171 SCREW
8080541 WASHER
81350001 RUDDER
81360001 S.S.
RUDDER PIN
81390001 RUDDER BLADE
MOUNT
71230001 ROD HOLDER COVER
8031130 SCREW
81023001 SPECTRA
CONTROL LINE
8063001 SWEDGE
71701001 HATCH 6” TWIST-N-SEAL RETRO KIT
71702 HATCH 8” TWIST-N-SEAL
71702001 HATCH 8” TWIST-N-SEAL RETRO KIT
71331 GASKET
8031130 SCREW
81035 UP / DOWN HANDLE
W/ SET-SCREW
81392001 TWIST-N-STOW CONTROL ARM UP/DOWN
81380001 OLDER - CONTROL ARM UP/DOWN
81375001 SPRING
8080691 NYLON WASHER
V1100 HATCH 5” SCREW-IN
8031130 SCREW
71701 HATCH 6” TWIST-N-SEAL
71321 GASKET
8031130 SCREW
HATCHES
26 COMMON PARTS GUIDE
80012 PEDAL RETAINER BUNGEE W/HOOK
72103001 SHOCKCORD END
8031130 SCREW
SEATS
74076001 PADDLE
74030 DRIP RINGS FOR HOBIE PADDLE
72401001 SEATBACK / PADDLE MODELS
81410 CAM LOCK KNOB
BOLTS VARY BY MODEL
81265001 SEATBACK PLUG
8031130 SCREW
8080541 WASHER
41220001 EYELET POST
8031130 SCREW
81266001 SEATBACK / MIRAGE MODELS
71220001 METAL PAD EYE
8030071 SCREW
8031570 SCREW /
PADDLE KEEPER BUNGEE
78560001 MESH STOWAGE POCKET
8031501 SCREW
76055001 MIDSHIP HANDLE
8032011 SCREW
72010 -SCUPPER PLUG
ODYSSEY
84560001 MAST TUBE COVER
8031151 SCREW
10730000 CLEAT
8030111 SCREW
71190 WEBBING LIFT HANDLE
8032011 SCREW
8080571 WASHER
72012001 - SCUPPER
PLUG QUEST & KONA
78510 BUNGEE HOOK
8031130 SCREW
76050001 BOW/ STERN HANDLE
78520 EYELET HOLD DOWN
8032121 SCREW
72009 - SCUPPER PLUG
PURSUIT/ MAUI/ LANAI
81535001 MIRAGE CASSETTE PLUG
COMMON PARTS GUIDE 27
Hobie MirageDrive
80010001 MIRAGEDRIVE
80013001 MIRAGEDRIVE ST TURBO
81222001 PEDAL/CRANK ASSY. (R)
81221001 PEDAL/CRANK ASSY. (L)
81226001 PEDAL STRAP REPLACEMENT (R)
81227001 PEDAL STRAP REPLACEMENT (L)
81212 IDLER CABLE - 14 1/4”
8050111 NUT
81121001 IDLER PULLEY
53170020 SET SCREW
81110001 PULLY SHAFT
81236 PEDAL ADJ ASSY
INCLUDES:
81242001 PLASTIC HANDLE
81230001 PIN
8031201 SCREW
81242001 SPRING
ALLEN WRENCH
81171001 DRUM
81190001 STANDARD FIN
81193001 ST FIN
81192001 ST TURBO FIN
81160001 MAST
81198001 MAST / ST TURBO
PARTS FOR OLDER DRIVES:
81130001 SPROCKET (STAINLESS)
81340001 SPROCKET BUSHING (SS SPKT)
81420001 SPROCKET GUARD (DSQ)
8060111 COTTER KEY (MAST / SS SPKT)
81040 OUTHAUL BLOCK (SS SPKT)
8020061 CLEVIS PIN
10860001 LOCK RING
81211 IDLER CABLE 14 3/4” (SOLID PULLY)
81150001 DRUM BUSHING (ALUM DRUM)
81105 CRANK ARM RIGHT, THREADED
81100 CRANK ARM LEFT, THREADED
8050111 NUT
81201 CHAIN ASSY.
81090001 DRUM SHAFT
81181001 SPINE
81080001 SPROCKET SHAFT
53170020 SET SCREW
81050001 OUTHAUL BLOCK
PEDAL ADJUSTMENT DECAL
HANDY zIPPERED POUCH. AVAILABLE FOR THE STANDARD
FIN DRIVE OR A DRIVE WITH THE ST TURBO FINS. STANDARD
KIT SHOWN.
81172001
80010201 STANDARD / 80013201 TURBO
8020041 CLEVIS PIN
10860001 LOCK RING
MIRAGEDRIVE SPARE
PARTS KITS
S PA RE PA R T S K I TS
IN CLU DE A FI N, MAS T,
SPROCKET, SET SCREW,
ALLEN WRENCH, CHAIN,
CLEVIS PIN AND RING AND
A COTTER KEY. ALL IN A
81055001 SPROCKET GUARD FWD
8031450 SCREW
81128001 SPROCKET
53170020 SET SCREW
28 MIRAGEDRIVE
Adventure /
Adventure Island
79510001 '07 MAST ISLAND (2 PC)
79510011 '08 MAST ISLAND (2 PC)
79511001 '07 MAST BASE / PIN
79510101 MAST BASE COLLAR KIT
79509001 SAIL GRAY/WHT
79516001 SAIL PAPAYA/TURQ/WHT
79515001 SAIL RED/GRAY/WHT
91051011 BATTEN 9' 2"
91041011 BATTEN 7' 8.5"
91011001 BATTEN CAP
22080011 BATTEN LUFF CAP SET
79531001 XBAR FWD ASSY
8030781 SOC CAP SCREW
79514001 '07 MAST RECEIVER
79514101 '08 MAST RECEIVER
8030261 SCREW
8080211 WASHER
79517001 V-FRAME STRUT
79528001 SCREW SOCKET SET
79519001 V-FRAME TURNBUCKLE
79533001 MAST BEARING ASSY
8050801 SCREW
8031231 NUT
90610111 BEARINGS (EA / REQ 24)
79532001 MAST RETAINER SPRING
H233 CHEEK BLOCK
8030150 SCREW
8080500 WASHER
8050211 NYLOCK NUT
71320001 GASKET
79513001 BACKUP RING
79518001 V-FRAME BASE
71116001 EYE
79520001 AKA FWD (L/R)
79535001 AKA CONNECTOR PIN
RS316BLK 3/16" SHOCK CORD (9")
53180011 HOG RING
71190001 LIFT HANDLE
8032011 SCREW
8080571 WASHER
79545001 AKA "HOBIE" DOME LOGO
79538101 PADDLE RETAINER KIT
79538001 PADDLE RETAINER CLIP
79521001 AKA LEFT REAR
38670011 "S" HOOK
H427 CLEAT W/H424 FAIRLEAD
79531101 CLEAT WEDGE WITH FAIRLEAD
79531111 CLEAT WEDGE
79502001 DAGGER BOARD /
SMOKE
79501001 FOAM PLUG /
DAGGER WELL
79525001 BALL / BRACE
8030212 SCREW
79522001 AKA RIGHT REAR
79537001 BRACE RETAINER CLIP
79530001 XBAR REAR ASSY
8030781 SOC CAP SCREW
71115001 END FITTING
RS014BLK SHOCK CORD (1')
41220001 EYELET POST
8031130 SCREW
79520201 AKA COLLAR
8010181 RIVET
79520301 AKA END CAP
99303001 AMA PAPAYA
99304001 AMA HIBISCUS
99305001 AMA DUNE
H082 BULLET BLOCK
RM014BLK MAINSHEET (32')
H083 BULLET BLOCK W/BECKET
79526001 AKA CARRY BAG
79510201 MAST / SAIL BAG
79523101 AKA BRACE ASSY
79524001 CAP / AKA BRACE LOCK
79523001 SOCKET / AKA BRACE LOCK
81242001 SPRING / AKA BRACE LOCK
8030781 SOC CAP SCREW
81396001 TWIST-N-STOW RUDDER ASSY / LG BLADE
81397001 LARGE SAILING RUDDER BLADE
81394001 RUDDR PIN
91393001 THUMB SCREW - RUDDER HOLD DOWN
ADVENTURE ISLAND 29
10091000 DRAIN PLUG
8032081 SHEAR BOLT
8052081 NUT
79536001 BRACE CONNECTOR
8020381 CLEVIS PIN
20860000 SPLIT RING
6" HATCH
Mirage Outback
OLDER STEERING LINE
REPLACEMENT KITS.
80019 SPORT
80018 OUTBACK
8" HATCH
Mirage Sport
8" HATCH
81362 RUDDER PIN, OLDER SPORT
20860000 LOCK RING
81361 RUDDER PIN, CLASSIC
20860000 LOCK RING
STEERING LINE
REPLACEMENT KIT
80016 CLASSIC
81362 RUDDER PIN, OLDER OUTBACK
20860000 LOCK RING
Mirage Outfitter
80021001 OUTFITTER
STEERING LINE
REPLACEMENT KIT
8" HATCH
Mirage Classic
MIRAGE CLASSIC & PURSUIT
71201 -CARGO COVER
71300001 - LOC SEAL, 6.5FT
8" HATCH
5" HATCH
UNDER SEAT
OLDER MODELS
8" HATCH
5" HATCH
6" HATCH
OLDER MODELS
8" HATCH
6" HATCH
Mirage Oasis / Tandem
OLDER STEERING LINE
REPLACEMENT KIT
80017 TANDEM
81362 RUDDER PIN, OLDER TANDEM
20860000 LOCK RING
Mirage Adventure
80020001 ADVENTURE
STEERING LINE
REPLACEMENT KIT
Mirage Revolution
8" HATCH
8" HATCH
8" HATCH
8" HATCH
8" HATCH
8" HATCH
6" HATCH

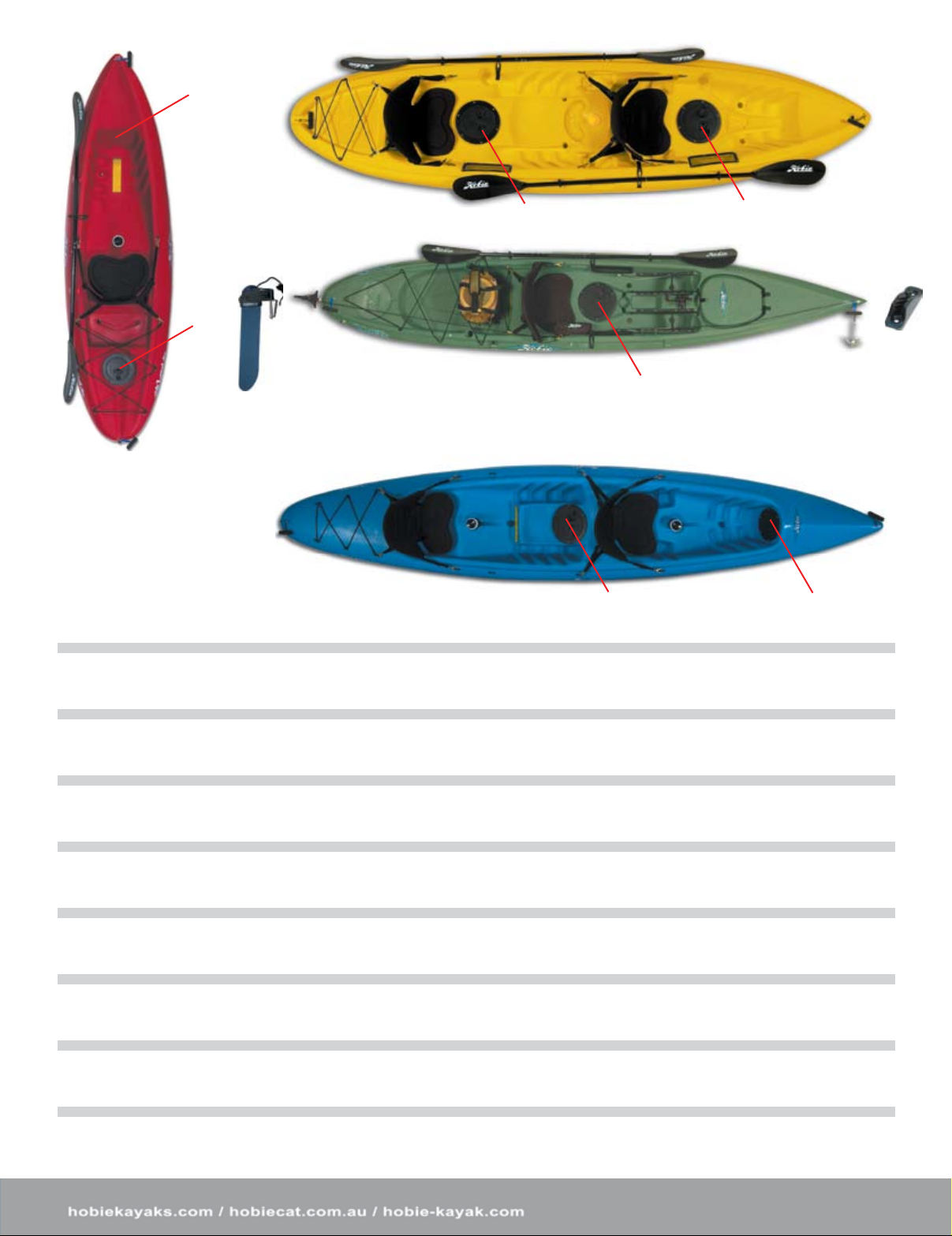

30 MODEL SPECIFIC PARTS
6" HATCH
Kona
6" HATCH
Lanai / Maui
PARTS LIST
Part Description
278 Windtronic2 with Belt Pouch
330 WIND METER HAND HELD-MPH
335 AIR FLOW TELS, BLACK
370 SHOCK CORD BALL TIES
376 SILICON RTV 100% 3 OZ.
615 BOOK, PENGUIN BOAT FLIPPERS
1550 KNIFE, STD. STAINLESS RIGGING
1551 KNIFE, DLX STAINLESS
1555 KNIFE, YACHTSMAN POCKET
1592 SUUNTO PIONEER COMPASS
1593 COMPASS, SUUNTO ORCA
1602 MAGICA RUST REMOVER GEL 1.25 O
1603 MAGICA RUST REMOVER GEL 8 OZ B
1619 TRAMP CLEANER,SEASPRAY
1695 KALEX URETHANE
2082 SCALE - DOWN HAUL / FISH
2101 SHOCK CORD HOOK 1/4"
2102 SHOCK CORD FASTENER (SCH) 5/16
3043 LICENSE FRAME - CHROME "HOBIE"
3062 SHACKLE, FAST
3091 PADDLE, TELESCOPING 20"-3'9"
5106 SILICONE SPRAY PUMP 8oz
5411 FAT BAG-5"
5421 HATCH BAG KIT KAYAK
7003 MIRA ZYME 8 oz ODOR ELIMINATOR
7004 UV TECH 8 OZ.
7904 VELCRO ONE WRAP 1" BLACK
71171 B/U RING W/LIP FOR PTL-6
71172 B/U RING 8.0" FOR PTL-8
71175 HATCH BAG 6.0 DIA.-RED
71201 CARGO COVER ASSY-PUR/MIR
71311 GASKET KAYAK 5"
71321 GASKET KAYAK HATCH 6"
71331 GASKET KAYAK HATCH 8"
71701 HATCH 6" TWIST-N-SEAL (UAI)
71702 HATCH 8" TWIST-N-SEAL (UAI)
72000 WATER BOTTLE - KOOZIE
72009 SCUPPER PLUG- PSUIT/MAUI/LANAI
72010 KEY FLOAT/SCUPPER PLUG-ODYSSEY
72030 DECK CONSOLE KAYAK-BLK
72035 QUICK STRAP SOFT RACK-24.0"
72040 QUICK STRAP RACK W/TIE DN
72041 MULTI STRAP SYSTEM
72042 TIE DOWN STRAPS - 12 FOOT
72045 RACK PADS -24.0"
72046 RACK PADS -36.0"
72050 KAYAK COVER / 9-12'
72051 KAYAK COVER / 12-15'
72052 KAYAK COVER / 14-16'
Quest
"FEATHER CRAFT" RUDDER
37380001 CLAM CLEAT
QUEST RUDDER SYSTEMS
78500 "FEATHER CRAFT" RUDDER KIT
78501 TWIST-N-STOW RUDDER KIT
Odyssey
8" HATCH
78550 RUDDER MOUNT
8032011 RUDDER SCREWS
8" HATCH
8" HATCH
72053 KAYAK COVER / 14-16' 8"
72065 MIRAGE ST-TURBO FIN KIT
72080 MINI KAYAK CART
72089 REDUCTION NOZZLE 3/8"
72090 WELDING GUN ASSY W/NOZZLE
72096 UNGAR HOT KNIFE HANDLE ONLY
72097 UNGAR HOT KNIFE - TIP ONLY
72500 STRAPS THIGH CNTRL PADDED ASSY
72700 BIMINI / CHARCOAL - MANTIS JR
72701 BIMINI / BLUE - MANTIS JR PRO
72702 BIMINI / GREEN - MANTIS JR PRO
72710 MOUNT - BIMINI MANTIS JR PRO
72720 KAYAK DODGER - CAMO
72721 KAYAK DODGER - SILVER
72722 KAYAK DODGER - YELLOW
74030 PADDLE DRIP RING
74050 PADDLE LEASH - WEB/ELASTIC
74051 PADDLE LEASH - COIL
76010 HANDLE KAYAK (PVC)
78500 QUEST RUDDER KIT / FEATHERCRAF
78501 QUEST RUDDER KIT/TWIST N STOW
78550 RUDDER MOUNT-QUEST
80012 PEDAL RETAINER BUNJEE ASSEMBLY
80015 STEERING KIT MIRAGE COMPLETE
80016 LINE KIT MIRAGE CLASSIC REPLAC
80017 LINE KIT MIRAGE TDM REPLACEMEN
80018 LINE KIT MIRAGE OUT REPLACEMEN
80019 LINE KIT MIRAGE SPT REPLACEMEN
80024 BAG, MIRAGEDRIVE CARRY
80041 KAYAK CART - "HEAVY DUTY"
80043 PLUG IN CART WHEEL UPGRADE KIT
80140 KAYAK CART PLUG-IN WHEEL
80143 KAYAK CART WHEEL HEAVY DUTY
81015 STEERING HANDLE ASSY MIRAGE
81024 LINE 5/32" NYLON BRAID-BLACK
81035 RUDDER UP/DOWN HANDLE ASSY W/S
81100 CRANK LEFT MIRAGE (THREADED)
81105 CRANK RIGHT MIRAGE (THREADED)
81128 SPROCKET (INJ/MLD)
81201 MIRAGEDRIVE CHAIN ASSY
81211 IDLER CABLE ASSY (14 3/4") MI
81212 IDLER CABLE ASSY (14 1/4") MI
81236 PEDAL ADJUST HANDLE ASSY
81255 LINE STEERING MIRAGE (2)
81259 SEAT STRAP w/HOOK
81265 PLUG-IN SEAT CONNECTOR (INJ/ML
81355 LINE RDR CONTROL UP MIRAGE
81361 RUDDER MOUNT PIN MIR 4-1/2"
81362 RUDDER MOUNT PIN TDM/OUT/SPT
81365 RUDDER KEEPER PIN ASSY MIRAGE
8" HATCH
61070000 CLEAT
8031130 SCREW
78540001 TRACK / FOOT BRACE
78535001 FOOT BRACE / LEFT
78536001 FOOT BRACE / RIGHT
6" HATCH
SPECIFIC PARTS / PARTS LIST 31
