HOBIE H14 / H16
REPLACEMENT HULL H16 WHITE - LEFT 25010001
REPLACEMENT HULL H16 WHITE - RIGHT 25020001
H16 ANCHOR PIN
20100000
H16 ANCHOR BAR 50101701
VENT TUBE 10140000
FOAM PLUG 10060000
BOW TANG 20120000
(ORIGINAL H14 TANG NLA)
SCREW
8030301
NUT 8050311
(NOT ON H14)
H14 BLACK FRONT CROSSBAR W/MAST STEP 10131910
H16 BLACK FRONT CROSSBAR W/MAST STEP / INTEGRATED TRACK 25131910
See Original Jib Car Options on page 24
JIB SHEET CAR
W/SWIVEL
CLEAT
JIB SHEET CAR
W/BLOCK
21230000
END STOP 20260000
JIB SHEET BLOCK TRACK 20250000
SCREW 8031501
H14 / H16 FRONT CROSSBAR
3 MAST PIVOT
1075
H14 BLACK MAST STEP UNDRILLED 10170011
BEARINGS
11110005
H16 BLACK MAST STEP 20200011
INTEGRATED TRACK STYLE
25232201 CAR PORT
25232211 CAR STARBOARD
SLIDE ONLY 25243003
PLATE ONLY 25244001
JIB CAR STOP 25231051
SCREW 8031501
UPPER GUDGEON 50101301
SCREW 8030001
CAST GUDGEON (H16)
50102011
LOWER GUDGEON 50101401
SCREW 8030001
DRAIN HOUSING 10092000
SCREW 8031731
DRAIN GASKET 10092025
DRAIN PLUG
H14 / H16 TRAMPOLINE, SIDEBAR
H14 COMPLETE TRAMPOLINE
(Does not include lace lines)
WHITE 10970000
BLACK MESH 10970055
TURQ MESH 10970058
CENTER LACING LINE RH014WHT X 20'
REAR (AFT) LACING LINE RH014WHT X
15' (x2)
LACING STRIP 1378XXXX
COTTER PIN
8060111
RUDDER PIN
NYLON 10881000
ALUMINUM 20880001
STAINLESS STEEL 20880011
FIBERGLASS 5051
H16 COMPLETE TRAMPOLINE
(Does not include lace line)
WHITE 20970000
BLACK MESH 20970055
BLUE MESH 20970057
TURQ MESH 20970058
GREY MESH 20970059
FAIRLEAD REPLACEMENT KIT
11952021
NUT 8050511
LEFT (PORT) FRONT CORNER CASTING BLACK 10150011
(‘95-*) LEFT (PORT) FRONT CORNER CASTING BLACK 10152011
* Not all ‘95 boats had newer style
castings / pylons.
SWIVEL CAM CLEAT ASSEMBLY
50007 SEE PAGE 24
DOLPHIN STRIKER
POST 20140001
PYLON BOLT
H14 8040371
H16 (OLD) 8040731
H16 (NEWER)
8040361
PYLON NUT
H14 8050321
H16 (OLD) 8050631
H16 (NEWER) 8050521
RIGHT (STBD) FRONT CORNER CASTING BLACK 10160011
(‘95-*) RIGHT (STBD) FRONT CORNER CASTING BLACK 10162011
(‘95-03) FRONT CORNER CASTING
JIB TRAVELER SHEAVE
SHEAVE 60620000
SWIVEL CLEAT BASE PAD
1162 SEE PAGE 24
H16 DOLPHIN STRIKER ROD 20170001
H14 DOLPHIN STRIKER ROD 11170030
RIVET 8011251
NUT 08050511
H14 / H16 REAR CROSSBAR
CROSSBAR EXRTRUSION w/ INTEGRATED TRACK, REAR (AFT)
WITHOUT CORNER CASTINGS, BLACK - INCLUDES CAR ACCESS PLATE
H16 25191911
H14 10191910
TRAVELER TRACK (DEEP ONLY)
BLACK 50252021
FAIRLEAD REPLACEMENT KIT
H16 BLACK SIDEBAR 20270011
H14 CHAINPLATE 10300000
H14 RIGHT SIDEBAR BLACK 10280011 / H14 LEFT SIDEBAR BLACK 10270011
CLEVIS PIN 8020041
TRAVELER CAR ASSY. 105
NEW STYLE (‘94 Newer) 111
BLACK LEFT REAR CORNER CASTING 10210011
11952021
ADJUSTER RING
10860001
* Not all ‘94 boats had newer style castings / pylons.
PYLON BOLT
H14 8040371
H16 (OLD) 8040731
H16 (NEWER) 8040361
PADEYE 11470000
‘94 AND NEWER CAR ACCESS PLATE 11810011
SWIVEL CAM 50007
SEE PAGE 24
PAD FOR CAM CLEAT
1162 SEE PAGE 24
SCREW 8030111
DECK PLATE 11870000
SPACER 11860000
SHEAVE 11880000
HINGE 11840100
NUT 8050201
HINGE WIRE 11850000
LOWER ROLLER UNIT 106
NEW STYLE (‘94 Newer Brass) LOWER 112
PYLON NUT
H14 8050321
H16 (OLD) 8050631
H16 (NEWER) 8050521
BLACK RIGHT REAR CORNER CASTING 10200011
NEWER CROSSBAR
INTEGRATED TRACK
STYLE
48 HOBIE 14 / 16
ADJUSTABLE UPPER RUDDER CASTING
BLACK LEFT (PORT) 10352011
BLACK RIGHT (STBD) 10362011
BOLT 8040341
NUT 8050311
*BOLT 8040301
*WASHER 8080181
*CAM STOP PLATE
20352000
* = SUB ASSEMBLY PART / INCLUDED WITH CASTING
ADJUSTABLE LOWER RUDDER CASTING
BLACK 10412011
H14 / H16 RUDDER
TILLER TUBE
H14 STRAIGHT BLACK 10382010
H16 STRAIGHT BLACK 20382011
END CAP 10400010
*CAM 10480000
*PIN 10470000
H14 / H16 TILLER CROSSBAR
H14 TILLER CROSSBAR BLACK 10520011
H16 TILLER CROSSBAR ORIGINAL BLACK 20520011
‘H16 95 - NEWER 20521001
ADJUSTER RING
20860000
HINGE YOKE ASSEMBLY 3205
CLEVIS PIN
8020411
RUDDER ADJUSTER KIT
60400011
SCREW 8030701
NUT 8050111
PLASTIC RUDDER
BLADE 20493000
EPO2 BLADE
WHITE 20490010
CARBON 20490020
H14 Rivet Guide
( ) = Quantity needed to fasten part
Mast
Head 8010131 (2)
Halyard Hook 8010181 (2)
8011291 (2)
Tang 8010181 (6)
8011291 (6)
Halyard Cleat 8010121 (2)
Base 8010131 (3)
Sidebar
Chain Plate 8010181 (3)
Rear Crossbar
Corner Casting 8011231 (6)
Traveler Track 8010201 (18)
or 8010161 (18)
Pad Eye 8010181 )2)
Swivel Jam Cleat 8010201 (1)
8031501 (2)
8031231 (1)
8050801 (1)
8080101 (1)
Boom
Front End Cap 8010131 (3)
Tang 8010181 (4)
Barrel Cleat 8010181 (2)
Block Hanger 8010181 (4)
Rear End Cap 8010131 (3)
Front Crossbar
Mast Step 8011231 (4)
Corner Casting 8011231 (6)
Rudder Assembly
Upper Casting 8010131 (2)
(Underside) 8011231 (1)
Tiller End Cap 8010131 (2)
Sail
Headboard 8010020 (16)
Tack/Clew plate 8010020 (6)
Pocket Protector 8010020 (4)
(Requires setting machine-not available as
hand tool)
RUDDER LOCKING KIT
10311900
H16 Rivet Guide
( ) = Quantity needed to fasten part
Mast
Head 8010131 (4)
Halyard Hook 8010181 (2)
8011291 (2)
Tang 8010181 (12)
8011291 (12)
Halyard Cleat 8010121 (2)
Base 8010131 (3)
Downhaul Cheek Block 8010181 (4)
Front Crossbar
Corner Casting 8011231 (6)
Mast Step 8011231 (4)
Jib Track 8010201 (6)
Swivel Jam Cleat 8010201 (1)
or 8010131 (1)
8031501 (2)
8031231 (1)
8050801 (1)
8080101 (1)
Rudder Assembly
Upper Casting 8010131 (2)
(underside) 8011231 (1)
Tiller End Cap 8010131 (2)
Boom
Front End Cap 8010131 (3)
Tang 8010181 (4)
Barrel Cleat 8010181 (2)
Block Hanger 8010181 (4)
Rear End Cap 8010131 (2)
Rear Crossbar
Corner Casting 8011231 (6)
Traveler Track 8010201 (20)
Pad Eye 8010181 (2)
Swivel Jam Cleat 8010201 (1)
8031501 (2)
8031231 (1)
8050801 (1)
8080101 (1)
Sail
Main Headboard 8010020 (16)
Tack/Clew Plate 8010020 (6)
Main Pocket Prtc 8010020 (4)
Jib Clew Plate 8010020 (16)
Jib Pocket Prtc 8010020 (3)
*PLUNGER 10440000
*SPRING 10430000
*DELRIN SCREW 60450000
*ADJUSTER SCREW 8032001
ORIGINAL TILLER CONNECTOR KIT
FIBERGLASS EXTENSION WITH HINGE 20550001 (84”)
HINGE 10532010
SCREW 8030111
NUT 8050201
H14 / H16 MAST
H14 COMPLETE MAST ASSEMBLY BLACK 10581100
H14 COMPTIP ASSEMBLY 10582100
HALYARD SHACKLE 10670000
SINGLE BALL SHANK 8063261
STOP SLEEVE 8063271
LUFF TRACK
H14 38584001
H16 20616001
DANGER LABEL / WATCH FOR
WIRES 13440010
SAILFEEDER KIT 80100501
SCREW 8031541
MAST CAUTION LABEL 13440000
DOWNHAUL / HALYARD CLEAT 10730000
SCREW 8030111
NUT 8051301
CHEEK BLOCK 20710000
RIVET PATTERNS MAY VARY
11520005
EXTENSION TIP 10560000
H16 COMPLETE MAST ASSEMBLY BLACK 20610000
H16 COMPTIP ASSEMBLY 20611100
H14 COMPTIP MAST HEAD 10602111
H16 COMPTIP MASTHEAD 20614001
HALYARD HOOK
10680000
MAST TANG
H14 10690000
H16 20690000
CAP PLUG
8090900
RAISING AND LOWERING YOUR MAST, CONTACT
MAST BASE
H14 BLACK 10640011
H16 BLACK 20640011
OLD SINGLE SHEAVE HEAD
NO LONGER AVAILABLE
(COMPTIP)
MAIN HALYARD ASSEMBLY
H14 10657001
H16 20617001
(NON COMPTIP / ALL ALUMINUM MAST)
MAIN HALYARD ASSEMBLY
H14 10651001
H16 20651011
NON COMPTIP HALYARD LINES
H14 Halyard Line 3/16" x 22' RH316WHT
H16 Halyard Line 3/16" x 27' RH316WHT
DANGER:
ALWAYS USE EXTREME CAUTION WHILE
WITH A POWER LINE COULD BE FATAL.
MAST STEP LINK KIT 21380001
HOBIE 14 / 16 49
H14 / H16 FORESTAY ASSEMBLIES
H14 / H16 SHROUDS
H16 JIB HALYARD AND
LOWER FORESTYAY
JIB HALYARD
WIRE ASSEMBLY 20661001
(20240001 BLOCK NOT
INCLUDED)
DOWNHAUL BLOCK 11070000
JIB HALYARD LINE
RH316WHT X 20'
PIN AND RING SET 30303
SEE PAGE 28
H14 FORESTAY BLACK 10812101
H16 UPPER FORESTAY (PIG TAIL) 20810011
CLEVIS PIN 8020371
COTTER PIN 8060111
JIB BLOCK ASSY 20240001
SHEAVE 61260000
CLEVIS PIN 8020371
COTTER PIN 8050111
LOWER FORESTAY
BARE 20810021
WHITE 20811011
BLACK 20812011
1/8" NICOPRESS SLEEVE 8063501
THIMBLE 20800000
HALYARD SHACKLE 10670000
CLEVIS PIN 8020381
RING DING 20860000
10 HOLE STAY
ADJUSTER 20830020
H14 BRIDLE BLACK 10822101
H16 BRIDLE WHITE 20820011
H16 BRIDLE BLACK 20822011
SHACKLE 10700000
HALYARD SHACKLE
10670000
SHACKLES (FOR H14 WITH
BOW PLATES) 10870000
H16 “AUSSIE” FORESTAY
AND JIB HALYARD
80660000 Assembly
Forestay Wire “Aussie”
20810031
Block w/Becket Hi-Load
H099
“D” SHACKLE
11220000
JIB HALYARD LINE
8004951 X 70'
Forestay Upper
“Aussie” W/ fiddle
20810041
H14 SHACKLE 10700000
H16 SHACKLE 20700001
H14 SHROUD BLACK 10792100
H16 SHROUD WHITE 20790011
H16 SHROUD BLACK 20792011
1/8" NICOPRESS SLEEVE 8063501
THIMBLE 20800000
CLEVIS PIN 8020381
RING DING 20860000
7 HOLE STAY ADJUSTER 20830010
CLEVIS PIN 8020371
RING DING 20860000
TWIST TOGGLE 20210000
CLEVIS PIN 8020381
RING DING 20860000
H16 TRAPEZE
SHROUD SHACKLE 10700000
THIMBLE 20800000
3/32" NICOPRESS SLEEVE 8063761
TRAPEZE LINE
RH014WHT X 36”
ROPE LOCK 61530000
TRAPEZE WIRES
BLACK 1471B
WHITE 1471W
SEE PAGE 10
TRAPEZE HANDLE 2011
SEE PAGE 10
STOP SLEEVE 8063271
HOG RING 1/4" 21180000
TRAPEZE SHOCKCORD 20730001
DOG BONE 2001
SEE PAGE 10
DOG BONE 2001
SEE PAGE 10
TRAPEZE WIRE
BLACK 1475B
SEE PAGE 10
BRIDLE
WHITE 10820011
BLACK 10822010
ADJUSTER LINE
RH014WHT X 2' 6"'
ROPE LOCK
61530000
JIB BLOCK
H186
H14 TURBO RIGGING KIT
TURBO RIGGING KIT 80200000
SHACKLE 20700001
UPPER FORESTAY
WITH SWIVEL
10810010
SHACKLE 10870000
CLEVIS PIN 8020381
ADJUSTER RING 20860000
JIB FURLING ASSEMBLY 61900000
CLEVIS PIN 8020021
ADJUSTER RING
10860001
BLOCK 20680000
SHACKLE 10870000
JIB BLOCK SUPPORT WIRE 80201300
TRAPEZE SHOCK CORD 20730001
CLEVIS PIN
8020021
COTTER
PIN 8060001
TRAPEZE
HANDLE
2011 SEE
PAGE 10
50 HOBIE 14 / 16

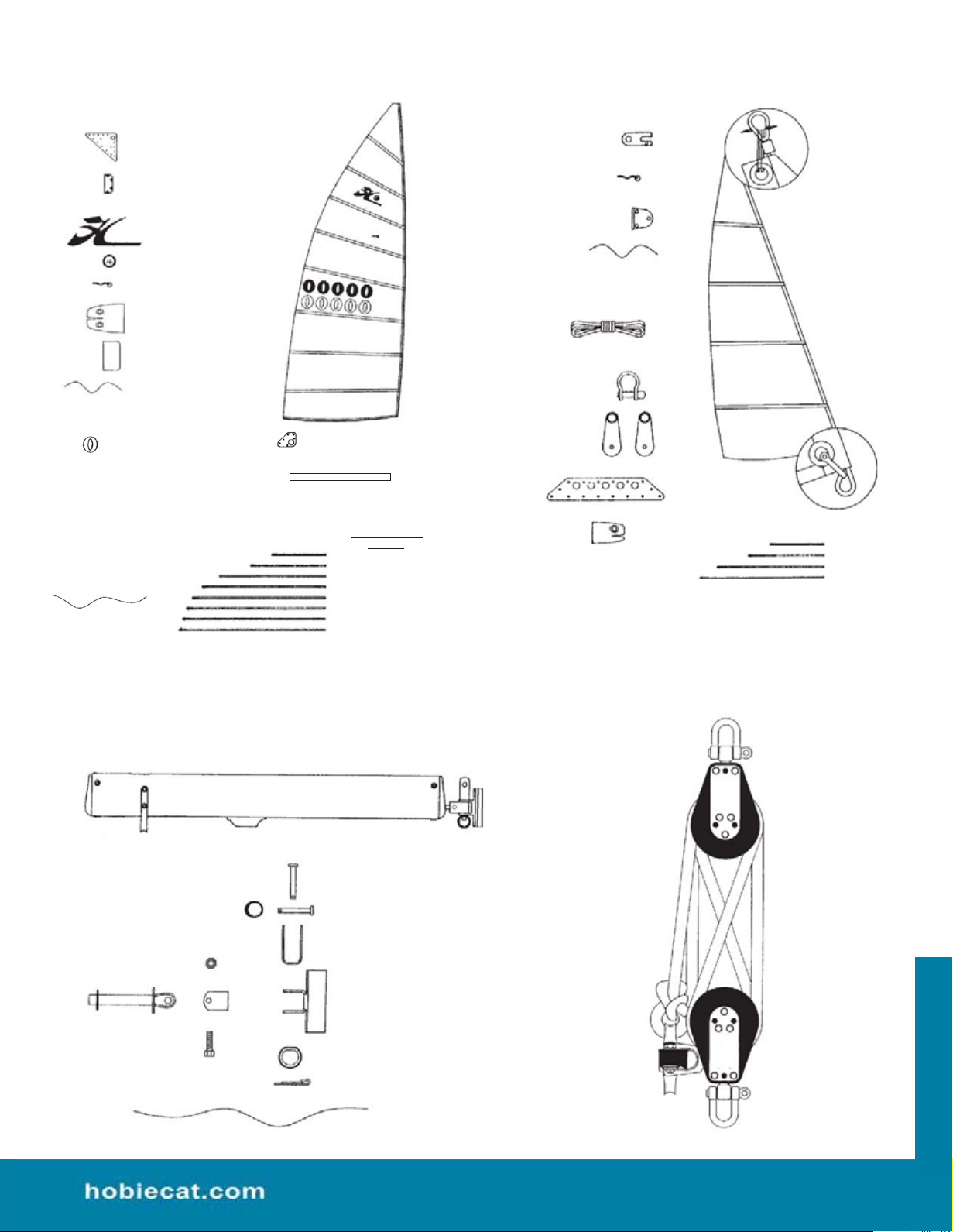

H14 / H16 MAIN SAIL & BATTENS
H14 MAIN SAIL 1099XXXX
H16 MAIN SAIL 20991XXX
SEE SEQUENTIAL PARTS LIST
OR SAIL COLOR SELECTION SHEET
HEADBOARD W/RIVETS
68330011
BATTEN POCKET END PROTECTOR KIT 80550005
"HOBIE" PROTECTOR KIT 12480001
JIB HANK W/SCREW
22090001
SAIL WIND INDICATOR
335 SEE PAGE 20
H14 / H16 JIB SAIL & BATTENS
H14 JIB 10992XXX SEE SEQUENTIAL PARTS LIST
H16 JIB 20992XXX SEE SEQUENTIAL PARTS LIST
CLOSED END THIMBLE
20840000
NICOPRESS SLEEVE
8063501
PAIR OF WHITE HOBIE LOGOS 12430001
PAIR OF BLACK HOBIE LOGOS 12430011
H14 CLASS INSIGNIA 12440000
H16 CLASS INSIGNIA 22330000
SAIL WIND INDICATOR 335 SEE PAGE 20
LEECH BATTEN TIP 11323000
SEE PAGES 19
LUFF BATTEN TIP 11322011
SEE PAGE 19
BATTEN TIE LINE
RH112WHT X 18"
BLACK WHITE
#0 12700030 12700000
#1 12710030 12710000
#2 12720030 12720000
#3 12730030 12730000
#4 12740030 12740000
#5 12750030 12750000
#6 & #9 12760030 12760000
#7 12770030 12770000
#8 12780030 12780000
OUTHAUL LINE RH316WHT X 7'4"
SAIL NUMBERS
CLEW/TACK PLATE SET
12240000
SAIL BAG/COVER 21310000
MAINSAIL BATTEN
LENGTHS
H16 BATTEN
#8 41”
#7 59 1/8”
#6 72 1/8”
#5 82 3/8”
#4 90 3/4”
#3 97 3/8”
#2 103 7/8”
21000001 HOBIE 16 BATTEN SET
(FOR INDIVIDUAL BATTENS SEE UNIVERSAL BATTENS ON PAGE 18)
#1 107 7/8”
H14 BATTEN
#6 42 11/16”
#5 60 7/16”
#4 74 1/16”
#3 84 13/16”
#2 93 5/16”
#1 97 7/16”
BATTEN POCKET END
PROTECTOR 22080905
BATTEN TIE LINE
RH112WHT X 18"
JIB SHEET LINE
RM516XXX X 32'
BELL SHACKLE 10870000
JIB CLEW BLOCK 20680000
ADJUSTABLE JIB CLEW PLATE 22240000
JIB LEACH CAP 21333000
JIB SAILS
20992XXX
SEE SEQUENTIAL PARTS LIST
SHACKLE
11220000
1/8" HEADSTAY THIMBLE
20800000
JIB BATTEN SET 20400001
FOR INDIVIDUAL BATTENS SEE
UNIVERSAL BATTENS ON PAGE 18
BATTEN #4 30”
BATTEN #3 43 3/4”
BATTEN #2 57 7/8”
BATTEN #1 67”
H14 BOOM ASSEMBLY BLACK 10720011
H16 BOOM ASSEMBLY BLACK 20720011
REAR END CAP (UNDRILLED BLACK) 10741031
BLOCK HANGER
10760000
""E" CLIP 8062521
FOR BOOM PIN
THAT IS GROOVED.
(OLD STYLE)
"BOOM PIN W/HOLE
(W/ROLL PIN) 10772010
ROLL PIN 50502201
FOR BOOM PIN
THAT HAS A HOLE.
(CURRENT STYLE)
BLACK PLASTIC BARREL CLEAT 10262000
STAINLESS V-JAM CLEAT 10261000
ADJUSTER RING
10860001
NUT 8050111
BOLT
8040021
H14 / H16 BOOM
VERTEX
50772031
FRONT END CAP BLACK 10740011
CLEVIS PIN 8020421
NEWER - BOLT 8040001
CLEVIS PIN 8020061
SHACKLE 10772020
SLIDE 10772001
DOWNHAUL RING 10772070
COTTER PIN 8060101
NEWER - NUT 8050101
DOWNHAUL LINE RH316WHT X 5'
GOOSENECK ASSEMBLY
10770001
H14 4:1 MAINSHEET LINE
RM038XXX X 36'
H16 6:1 MAINSHEET LINE
RM038XXX X 44'
CAMMATIC JAWS
H150
ADJUSTMENT SCREW
HARKEN JAW ANGLE
HFS100
FAIRLEAD
11470000
H14 / H16 BLOCK SETS
SHACKLE H138
H14 4:1 BOOM FIDDLE BLOCK H053
H14 5:1 DOUBLE w/BECKET H004
H16 6:1 UPPER BLOCK H153
H16 6:1 UPPER BLOCK H2640**
H14 4:1 FIDDLE BLOCK H060 / H058
H14 5:1 H194
H16 6:1 LOWER BLOCK H194**
SHACKLE
H138
** 2008 H16 STOCK SETUP
HOBIE 14 / 16 51
Loading...
