HobbyKing x200 Instruction

X200 Instruction

X200 specific for your needs!

New Charger X200 Re­leased

iM·OS

USB Port

32 bit processor All in one

A whole new OS system
for X200 profession­al charger with high
efficiency

Output 5V 2.1V USB
port specially design for
iPhone and smart
phone charging.

High precision
dual-core 32-bit
ARM processor for
smoother operation

Entirely new design
adapter board more
beautiful, simpler and
safer.

Touch Screen charger

4.3-inch screen

4

8

0

X

2

7

2

p

x

4

.3

-in

ch

The newly developed dedicated

charger operating system

USB output 5V 2A

Special custom for iPad

32 BIT processors

New definition all in one

balance port

es ag gu an e lpl ti ul M

customization

A whole new product

definition method

Multiple languages
customization

A whole new
product definition
method

Touch Screen
Operation

4.3 inch touch screen
make the operation more
convenient

4.3 inch display
screen

4.3 inch TFT display
screen, WQV­GA(480*270),65 thou­sand resolution

OS System

Type

Load

Current

Save

Cells

Uset

Mode

Start

X200 support more
than 6 type batteries
LiPo / Lilon / LiFe /
NiMh / NiCd / Pb

Loading Common
Use Battery
Setting

Input / Output
Current
Charging 0.1-10A
Discharging 0.1-3A

Save Common Use
Battery
Setting

LiXX 1-6S
NiXX 1-16S
Pb 1-10S

Advanced application
Settings

Fast Charging
Balance charging
Charging
Discharging
Circulating charge/
discharge

Charging/Discharging

Type

Load

Cells

Uset

Mode

Start

Current

Save

OS System

LiPo

LiIon

LiFe

NiMH

NiCd

Pb

Lipo Battery,Single Nominal Voltage: 3.7V,Charge cut-off voltage 4.2V,Dis-

charge cut-off voltage 3.0V

LiIon Battery,Single Nominal Voltage: 3.6V,Charge cut-off voltage 4.1V,-

Discharge cut-off voltage 2.5V

LiFe Battery,Single Nominal Voltage: 3.3V,Charge cut-off voltage 3.6is-

charge cut-off voltage 20.V

NiMH Battery,Single Nominal Voltage: 1.2V,Charge cut-off voltage 1.5V,-

Discharge cut-off voltage 1.0V

NiCd Battery,Single Nominal Voltage: 1.2V,Charge cut-off voltage 1.5V,-

Discharge cut-off voltage 0.85V

Pb Battery,Single Nominal Voltage: 2.0V,Charge cut-off voltage 2.5V,Dis-

charge cut-off voltage1.72V

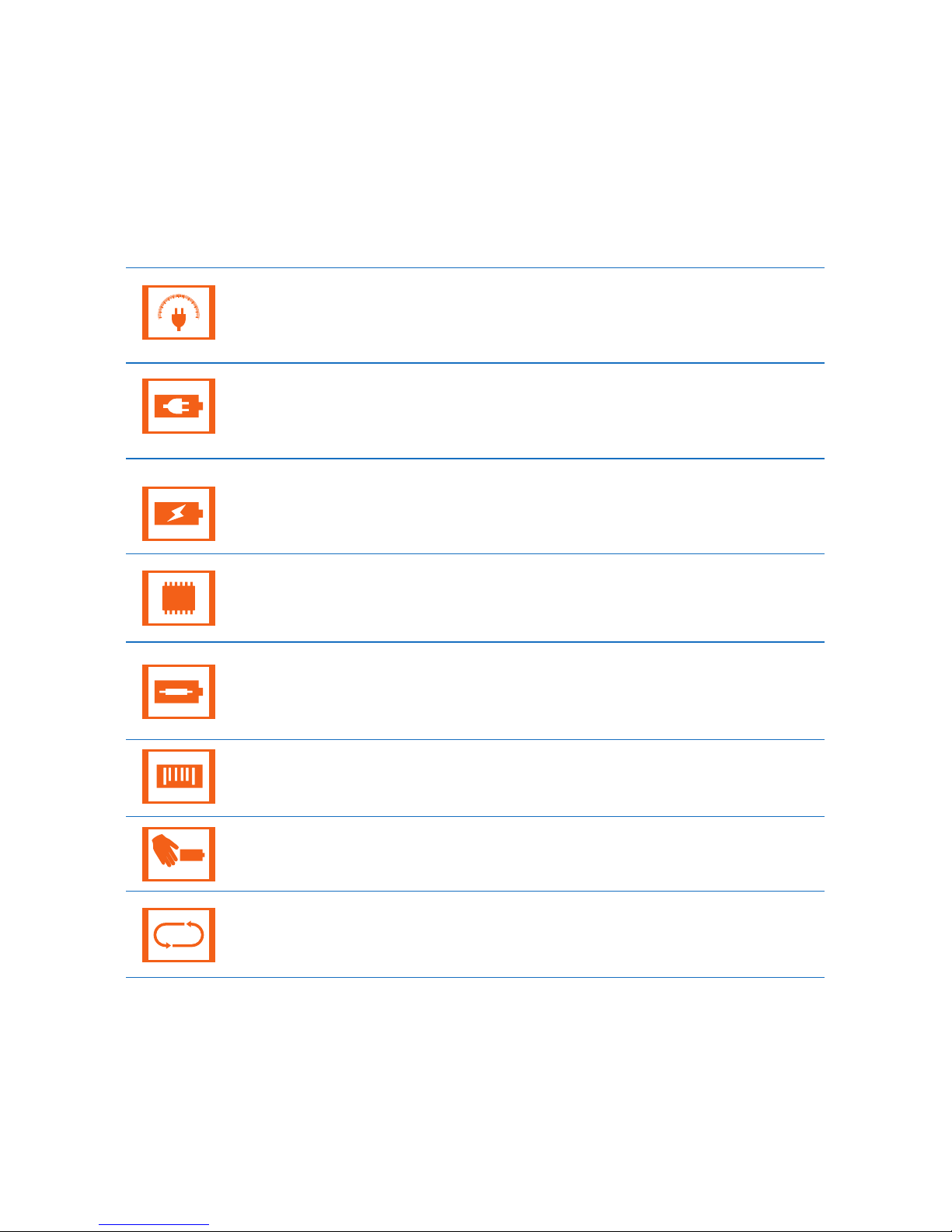

Balance

Charge

Fast Charge

Storage

Discharge

Checker

Manual Charge

Cycle

Lipo balance charge use CC-CV charging way. The charger will balance the battery voltage
when charging, this only for LiPo battery. Please connecting the balance port when charging
and discharging. Support 2-6 cells.

Use CC-CV charging way. On the basis of Users setting current the charger will charge the
battery to the cut-off voltage. Warning: The voltage can not balance even connecting the
balance port when using LiPo battery.

Fast Charge. Almost same as the Charge Mode. The only difference is the current only 1/5
and the other setting only 1/10 of the setting current when finished charging.Warning: The
voltage can not balance even connecting the balance port when using LiPo battery.

Charging and discharging the battery voltage to a certain numerical for easy storage. This
function only for LiPo battery which need connecting the balance port. Support 2-6S.

Use CC-CV charging way. On the basis of Users setting current the charger will discharge the
battery to the cut-off voltage. Warning: Please connecting to the Balance port when use LiPo
battery.

Measuring Mode. The charger only collect battery primary port and balance port voltage,but can
not charge and discharge.

This function only for NiMH battery which same as The Charge mode.

This function only for NiMH battery. On the basis of Users setting current for MiNH battery cycle
charging and discharging.The Cycle times is 1-6.

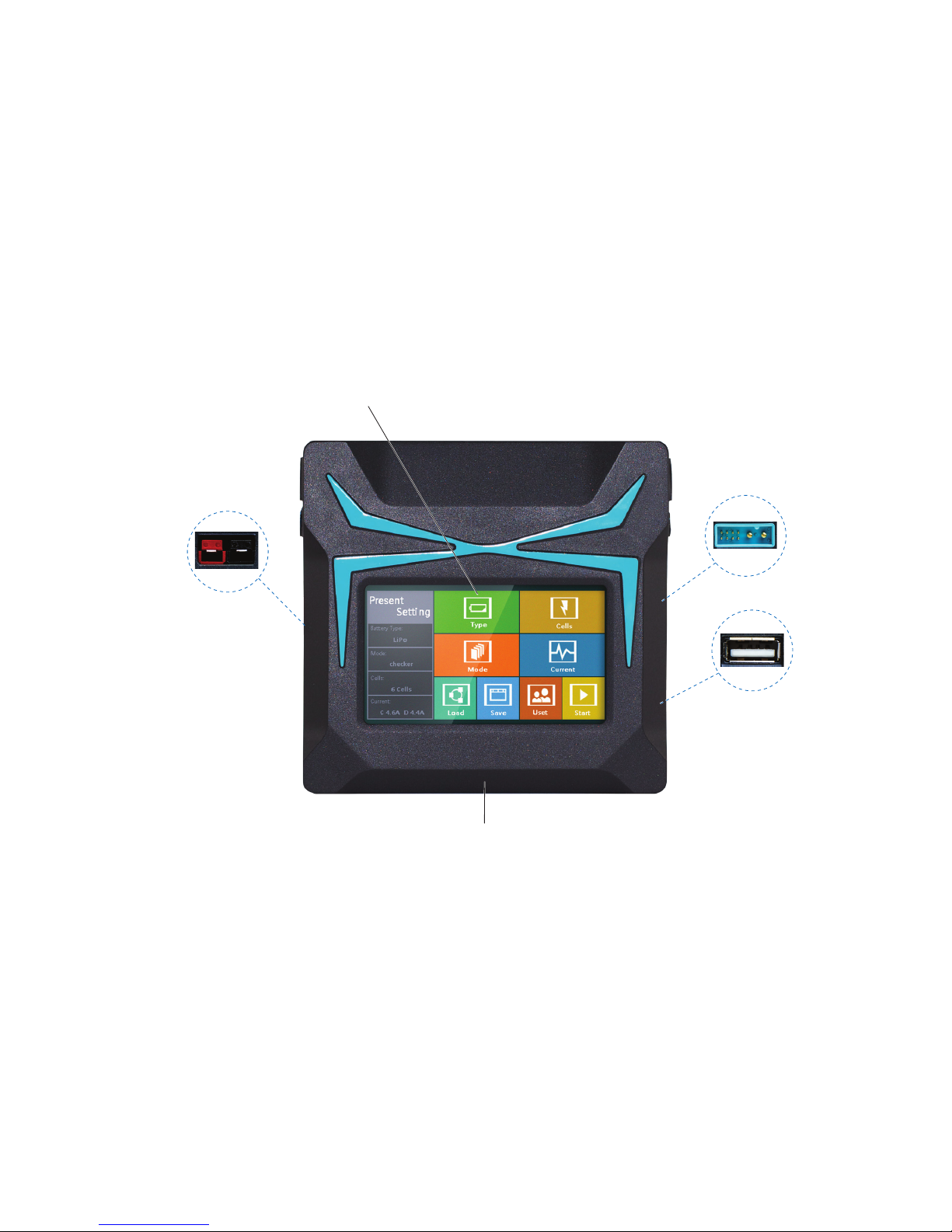

X200 Fundamental Function

Touch Screen

DC IN

USB

IBP

No:201230484397.8

No:201230484396.3

Dean

JST-XH

Balance port

Glow socket

JST/BEC

IBP

JR/FUXT60

EC3

Tamiye

All in one。

IBP

No:201230484397.8

No:201230484398.2

The socket name match with the plug,please make sure the right port before using

All in one.

Avoiding the switch wires making the balance cable and high current cable into one. It ran perfectly on the
very first try.

High heat proof material inserting port. With perfect better insulation,flame retardant and stability.

Due to the engineer testing the measurement data again and again make the IBP easier to use. IBP plug
connecting with the socket tightly and easily. Grooved design to prevent the misplug reduces time and
effort.The anti-slip design increase friction force and make it more beautiful.

IBP collection charge,balance,Signal transfer and temperature sense functions.

1

Preparing Connecting Using

Chapter 1 Preparing、Connecting、Using

1

X200 is a professional RC model battery charger,please view the manual before using. If

you are a fresh man please read this entire operating manual completely before using.

【Warning: 】The warning of charger operation and disclaimer, Please read and abide by

the following terms before operation.

1. This is a sophisticated hobby product. The person who operates the charger should

be professionals who master, professional knowledge about chargers.

2. Make sure the battery variety you using meets charger requirement. Any kinds of

damaged, aged and surface, damaged batteries are prohibited. Besides, choose the

suitable charging program or the charger and the battery will get damaged.

3. Considering of uneven physical property and various batteries never leave the work-

ing charger unsupervised, keep it away from inflammable materials and make sure

the fire-fighting equipment matched.

4. If the battery has suspicious reactions during charging or discharging, such as overheat-

ing, exhausting, leaking or inflating, immediately disconnect the battery and store it in a

safe location, away from people and inflammable materials.

5. HobbyKing will not be responsible for any personal injuries and fire disaster

caused by incorrect operation.

I have read this agreement carefully and give up all legal.

2

Chapter 1 Preparing、Connecting、Using

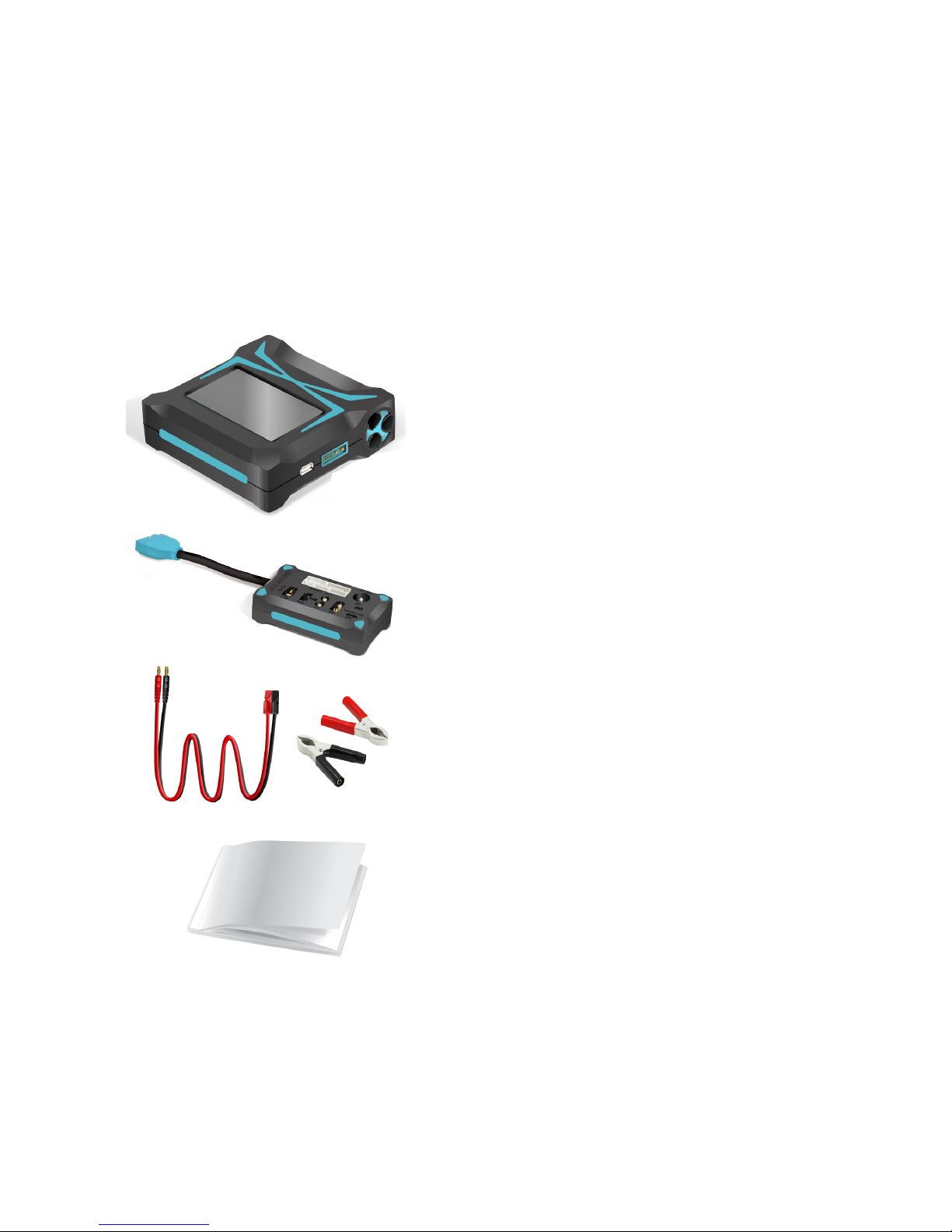

X200 included with 1pcs adapter board,1pcs connect cable and 1 pcs manual.

X200

All in one

Connect cable

Manual

Extras Including

3

Please follow the below steps connecting:

1: Please connecting the cable to the adapter port and the X200 DC IN port, and

then plug the adapter power cord into the socket.

Connecting X200

Chapter 1 Preparing、Connecting、Using

4

2: Connecting the adapter board into the X200 IBP port.

【NOTE】 USB support 5V 2.1A charging voltage,and also use for iPad / iPod / iP-

hone / HTC and other intelligent electronic equipment. Both the USB and All in one get

charged simultaneously.

Chapter 1 Preparing、Connecting、Using

5

3: Please make sure the port connect with battery（Other ports are same as it）.

Chapter 1 Preparing、Connecting、Using

7

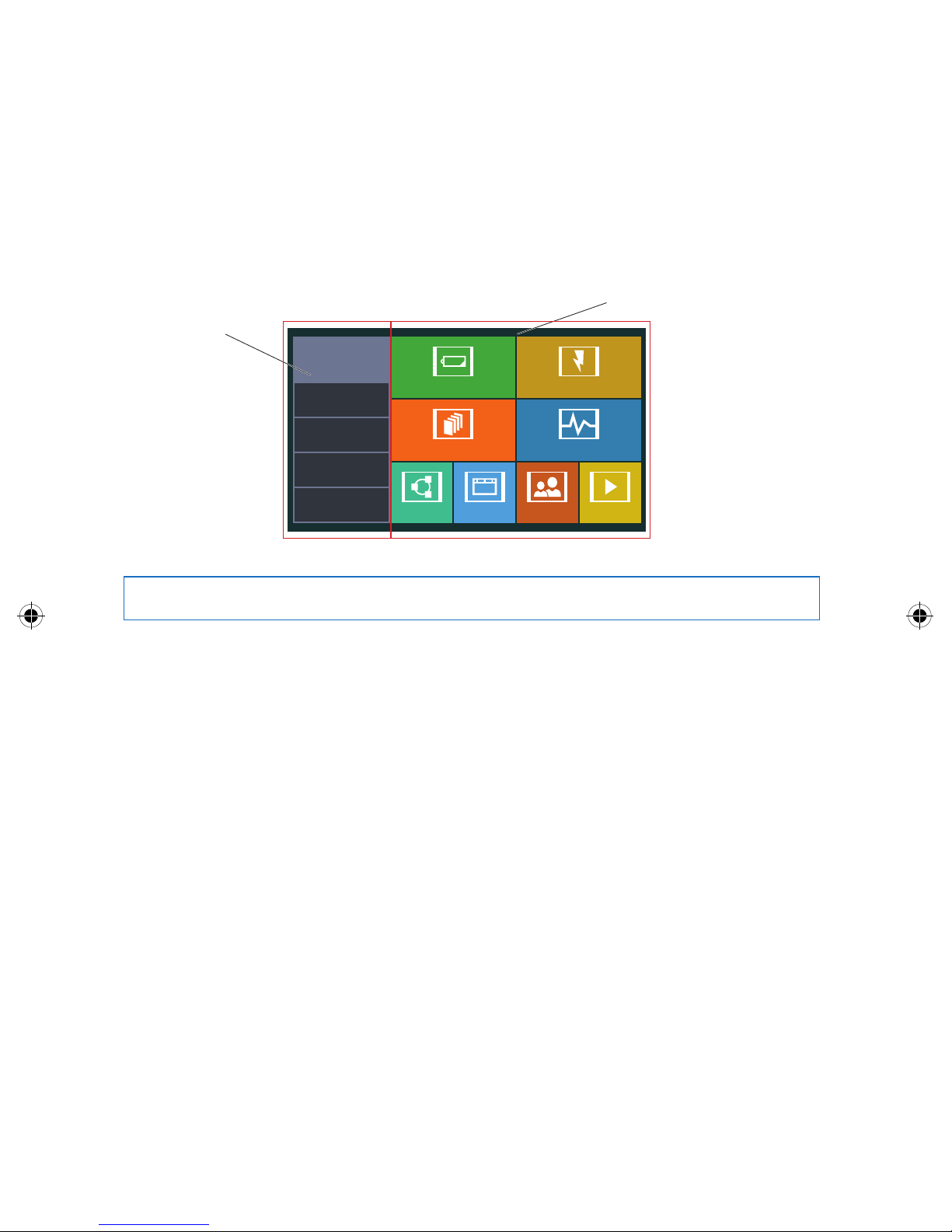

Image 4

Information Bar

Action Bar

Present

Setting

Typ e Cells

Mode

Load Save Uset Shart

Current

Battery Type:

LiPo

Mode:

Balance

Cells:

2Cells 7.4V

Current:

C 2.0A D 1.0A

6: Enter into main interface after accepting( Image 4 ). Start to charge and discharge

according to the different battery.

【NOTE】 Information bar can not get touched.

Chapter 1 Preparing、Connecting、Using

8

Sample 1:Choose a set of LiPo battery charging,please follow the below steps:

Image 5

Present

Setting

Typ e Cells

Mode

Load Save Uset Shart

Current

Battery Type:

LiPo

Mode:

Balance

Cells:

2Cells 7.4V

Current:

C 2.0A D 1.0A

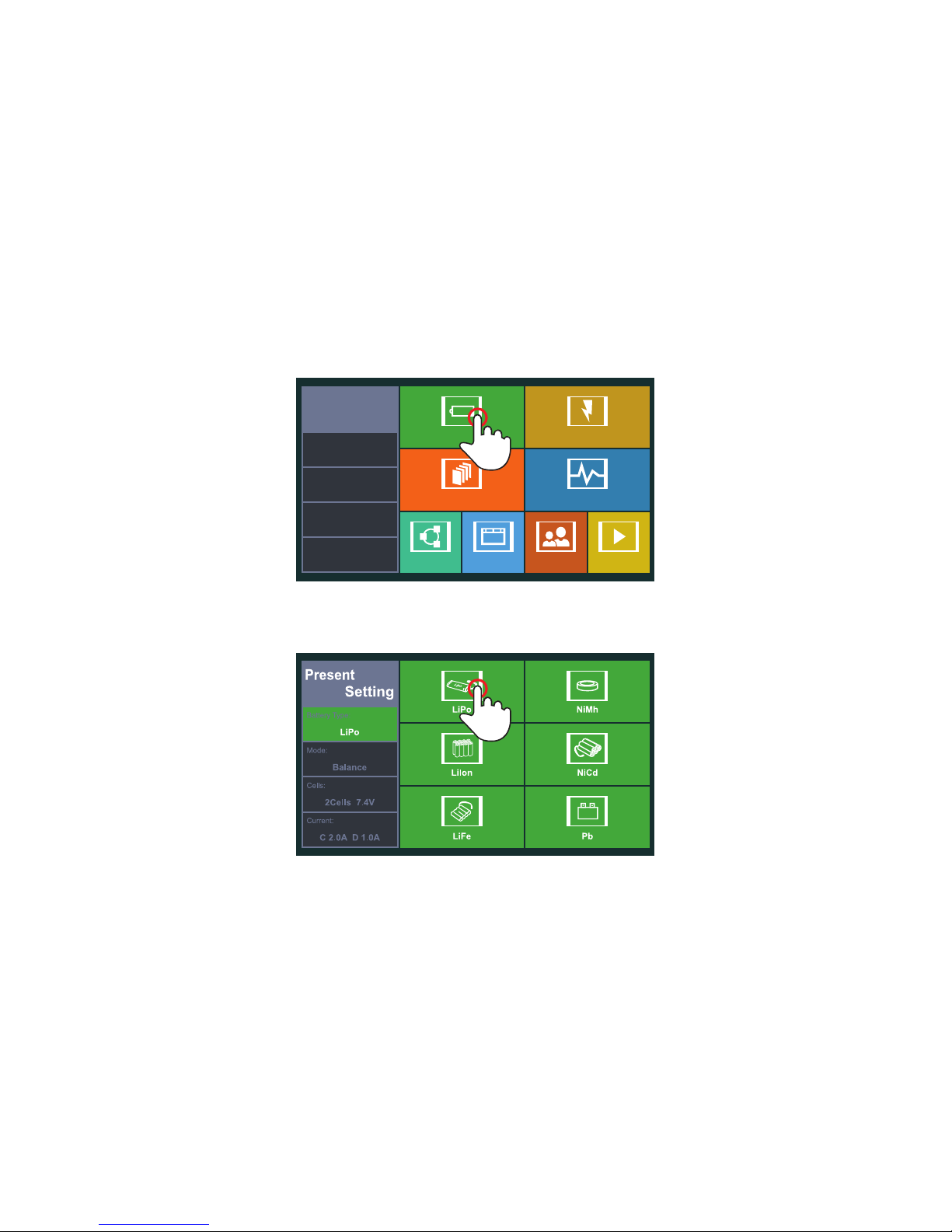

Step 1: Touch Type( Image 5 ) Enter into the “Type interface”, and then Touch :LiPo (

Image 6 ) will Enter into main interface go on the next step.

Image 6

Chapter 1 Preparing、Connecting、Using

9

Image 7

Present

Setting

Typ e Cells

Mode

Load Save Uset Shart

Current

Battery Type:

LiPo

Mode:

Balance

Cells:

2Cells 7.4V

Current:

C 2.0A D 1.0A

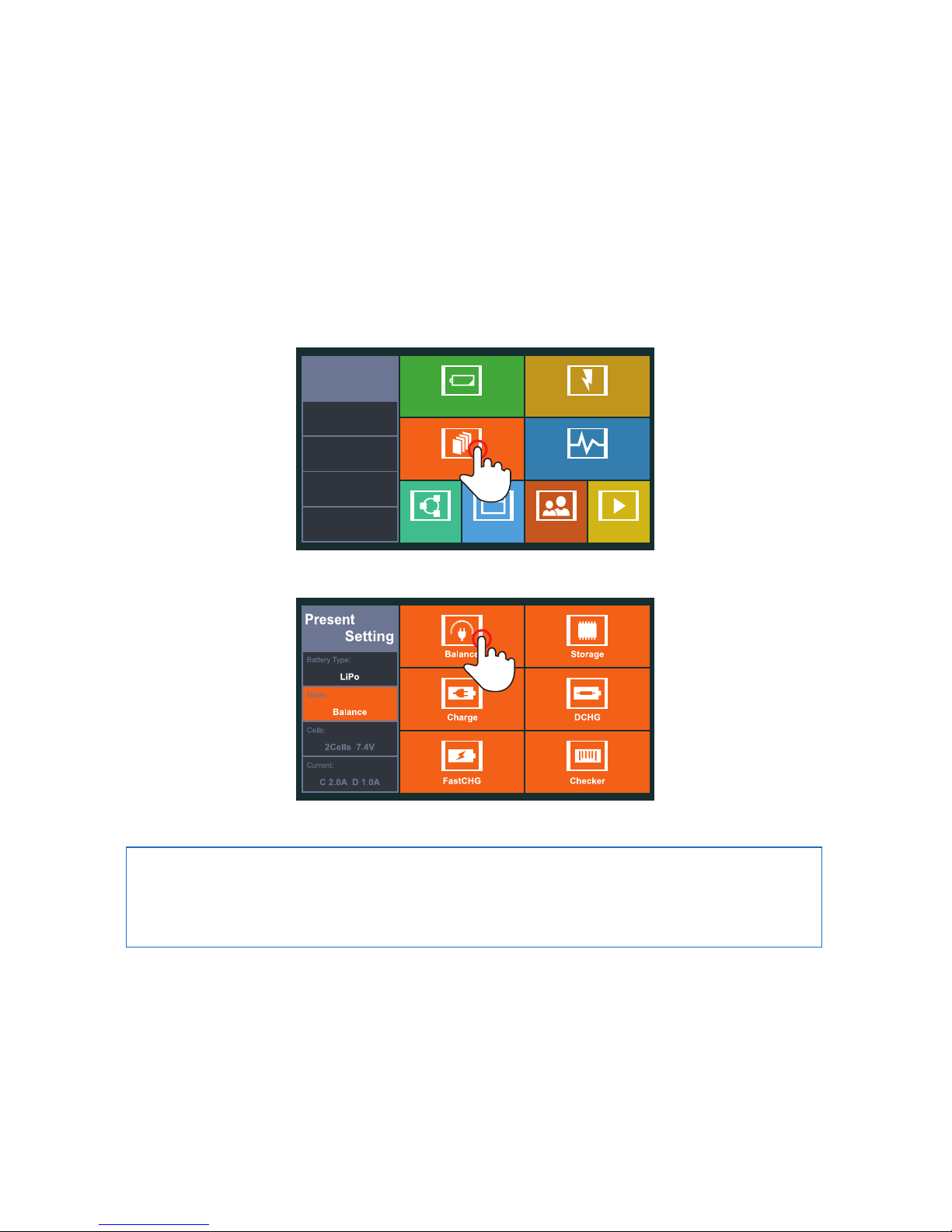

Step 2: Touch ‘Mode’ icon( Image 7 ) to enter into Mode interface. Please choose

battery charge mode ( Image 8 ) and go back to main interface to continue setting.

Image 8

【Note】 There are six charge/discharge modes in Mode interface( Image 8 ), see

iM.OS System function for further details. please set charge/discharge mode according

to your requirement. Picture no.7 is showing Balance charge mode.

Chapter 1 Preparing、Connecting、Using

10

Image 9

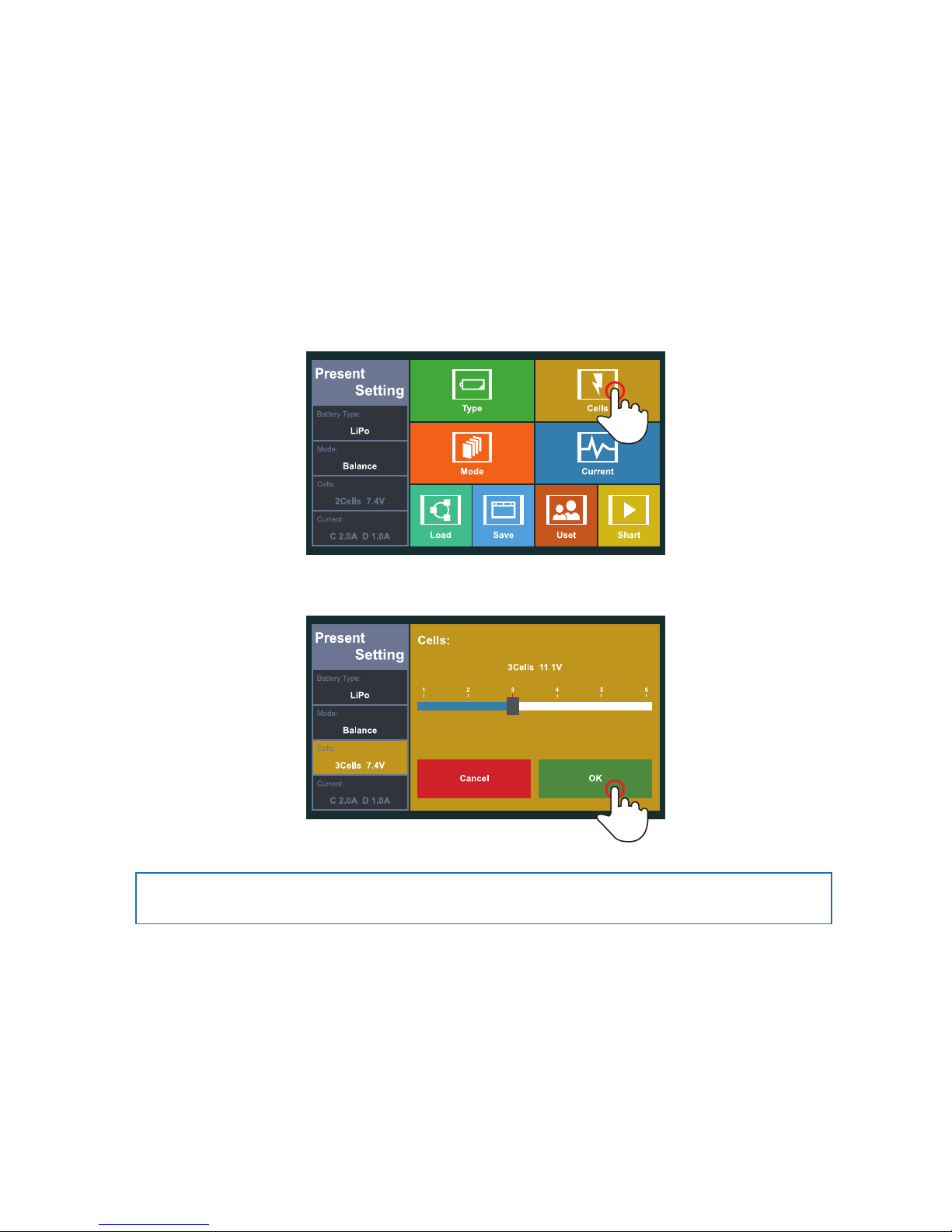

Step 3: Touch Cells icon ( Image 9 ) to enter into Cells interface. Please set battery packs

by sliding ( Image 10 ). Touch OK to go back to main interface and continue setting.

Image 10

【Note】Please set according to suitable battery packs.

Chapter 1 Preparing、Connecting、Using

11

Image 11

Step 4: Touch Current icon ( Image 11 ) to enter into Current interface. Please set charge

current by sliding ( Image 12 ). Touch OK to go back to main interface and continue setting.

Image 12

【NOTE】 Set charge current in charge mode and discharge current in discharge

mode.

Chapter 1 Preparing、Connecting、Using

12

【NOTE】You could use this function after you have set Type/Mode/Cells and Current

correctly.

Image 13

Step 5: If you often use the same battery, please touch Save icon ( Image 13 ) to enter

into Save interface. Touch Unused icon to save the data and it will be easy for you to

charge next time. ( Image 14 )

Image 14

Chapter 1 Preparing、Connecting、Using

13

Image 15

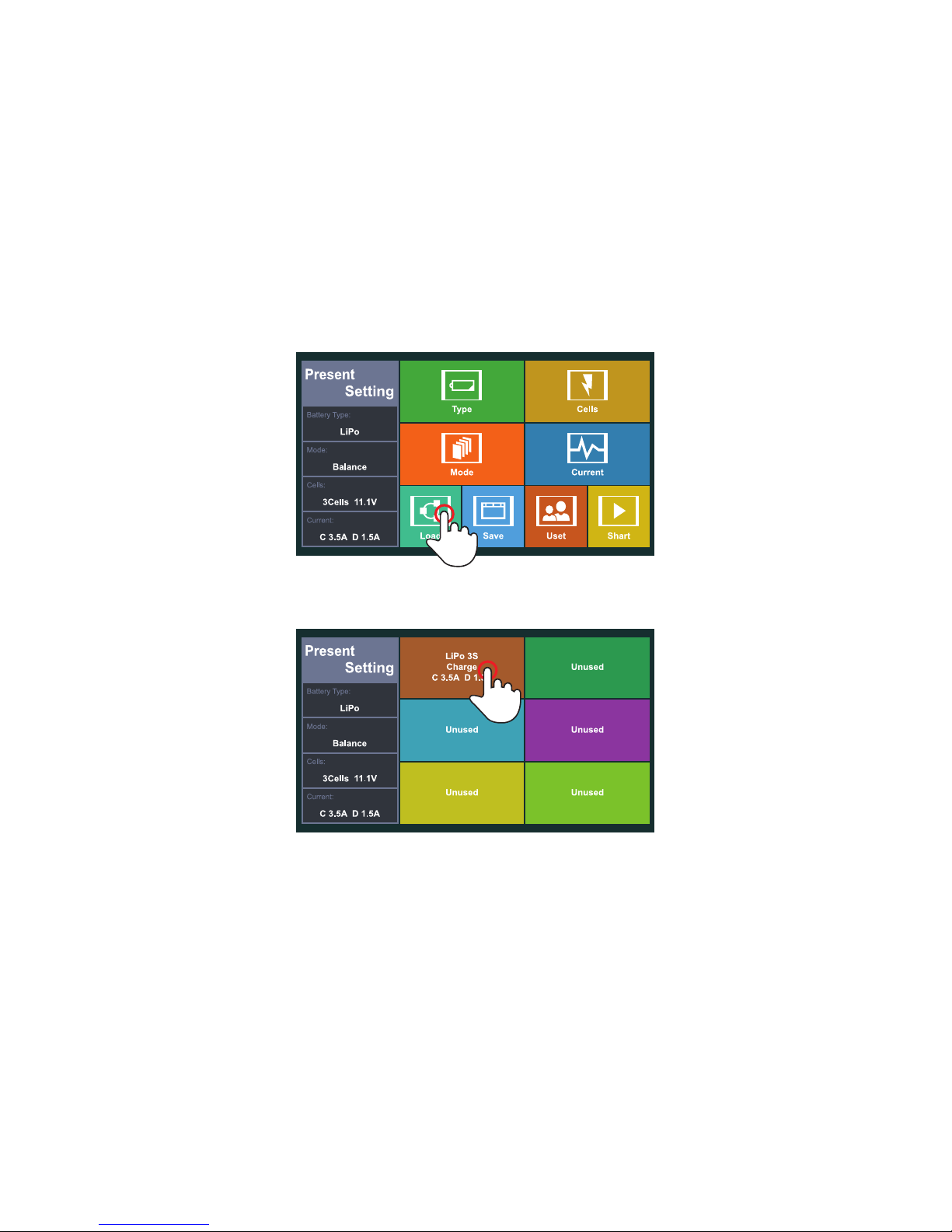

Step 6: You could load your previous data according to X200’s load function. Touch Load

icon ( Image 15 ) to enter into Load interface. Choose the data you want to load ( Image 16 ).

Image 16

Chapter 1 Preparing、Connecting、Using

14

Image 17

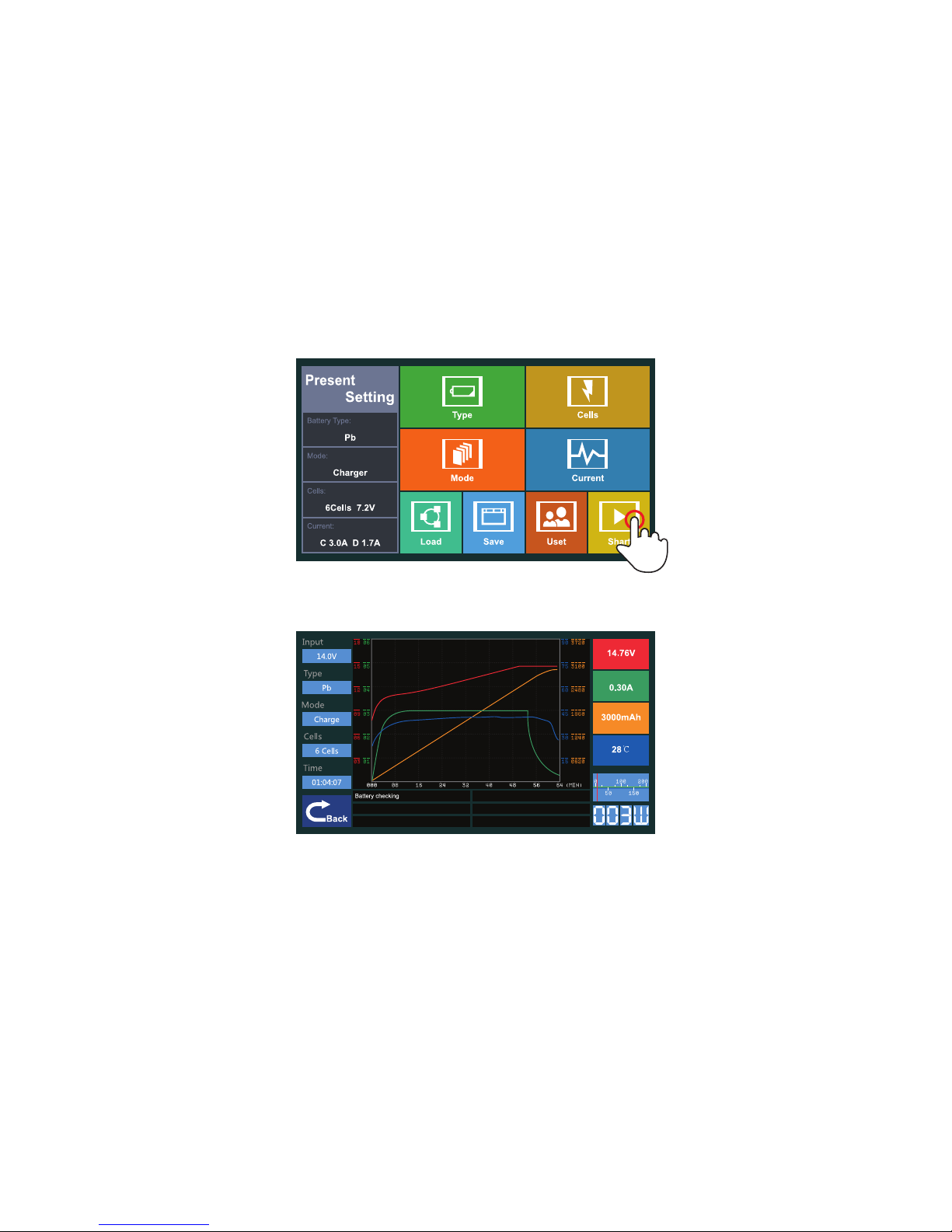

Step 7: Touch Start icon ( Image 17 ) to enter into Start interface. The system will check

battery status automatically. If everything is OK, the charger will begin to charge.( Image

18 )

Image 18

Chapter 1 Preparing、Connecting、Using

Image 19

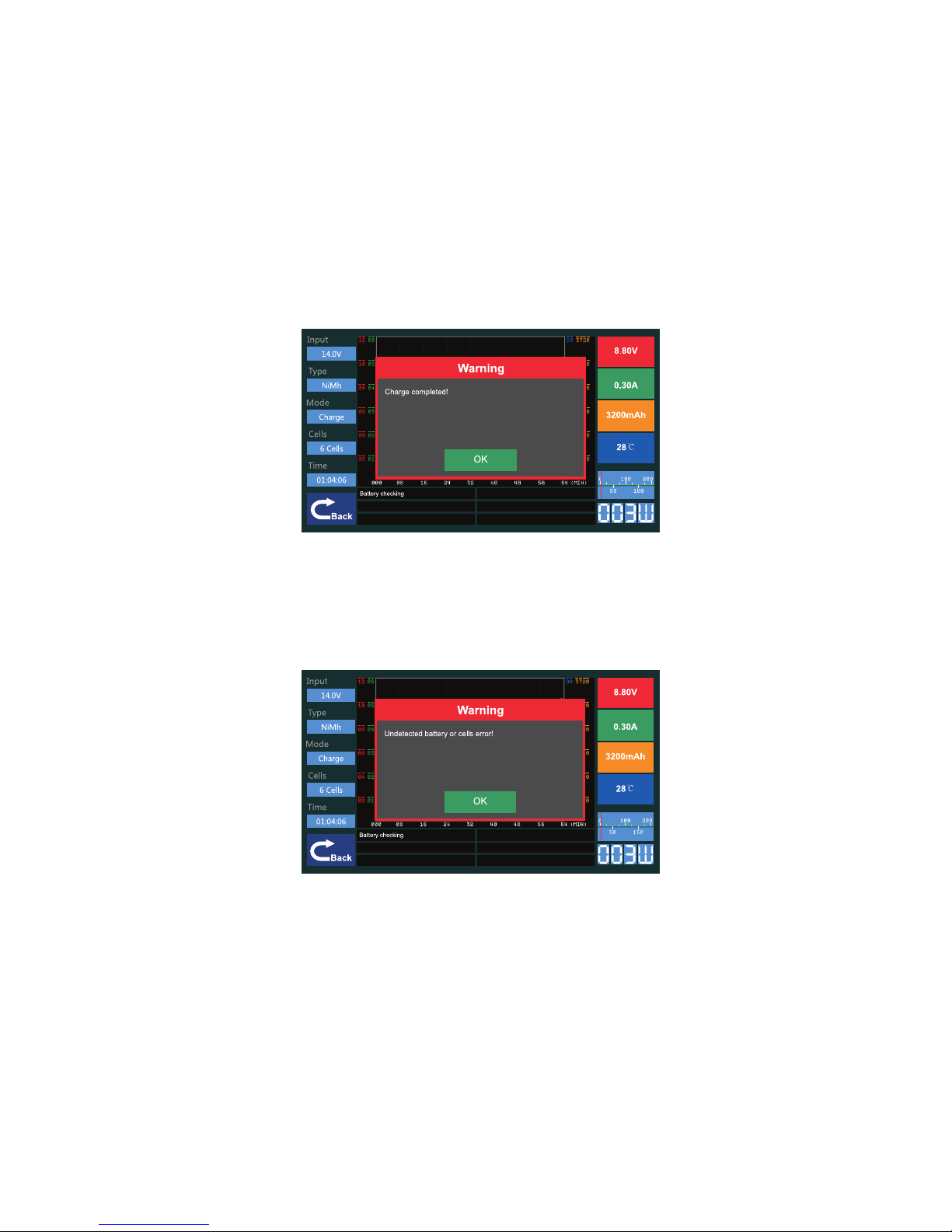

【NOTE】The charger will pop-up window when the battery is fully charged. Touch OK to

finish charging process ( Image 19 ).

15

Image 20

【NOTE】 The charger will send out an alert and pop-up window if the battery packs’

setting is incorrect (Image 20).

Input

14.0V

Type

LiPo

Mode

Balance

Cells

3 Cells

Time

01:04:06

Average:

Dalta V:

18 06

15 05

12 04

09 03

06 02

03 01

000 08 16 24 32 40 48 56 64 (min)

90 3720

75 3100

60 2480

45 1860

30 1240

15 0620

4.204.20 0.004.20 0.00 0.00

12.60V

0.30A

3000mAh

28℃

3.00

5.00

0 100

50 150

200

Warning

Charge completed!

OK

Chapter 1 Preparing、Connecting、Using

16

Example 2: If you want to charge a pack of NiMh battery, please execute the oper­ation as follows:

Image 21

Present

Setting

Typ e Cells

Mode

Load Save Uset Shart

Current

Battery Type:

LiPo

Mode:

Balance

Cells:

2Cells 7.4V

Current:

C 2.0A D 1.0A

Step 1: touch Type icon ( Image 21 ) to enter into Type interface. Touch NiMh icon to go

back to main interface and continue setting ( Image 22 ).

Image 22

Chapter 1 Preparing、Connecting、Using

17

Image 23

Step 2: Touch Mode icon ( Image 23 ) to enter into Mode interface. Touch Charge icon

( Image 24 ) to go back to main interface and continue setting.

Image 24

【NOTE】 There are four charge/discharge modes in Mode interface( Image 24 ), see

iM.OS System function for further details. please set charge/discharge mode accord-

ing to your requirement. Picture no.23 is showing charge mode.

Chapter 1 Preparing、Connecting、Using

18

Image 25

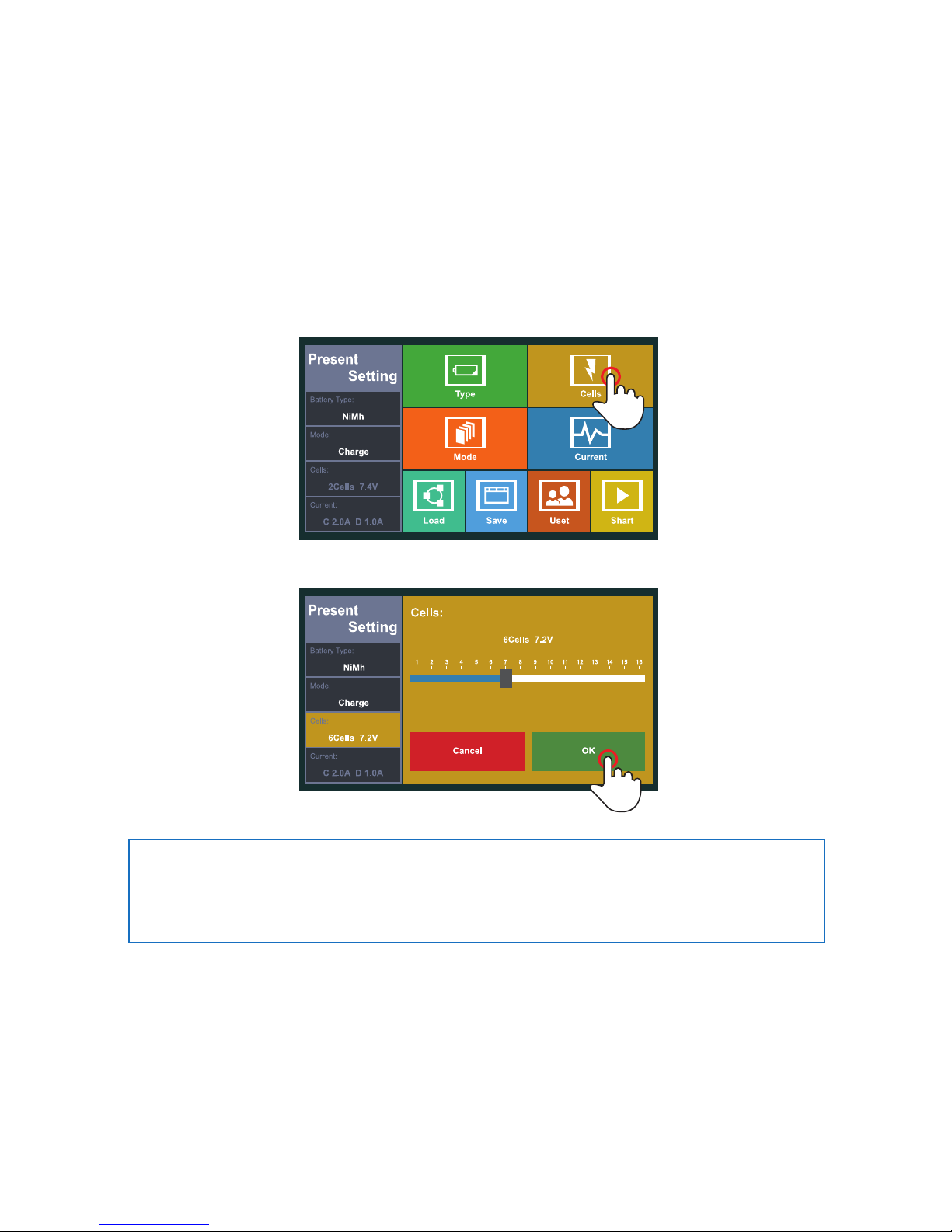

Step 3: touch Cells icon to enter into Cells interface. Please set NiMh battery packs by

sliding ( Image 25). Touch OK to go back to main interface and continue setting ( Image 26).

Image 26

【NOTE】The battery cannot be charged if each pack of the battery voltage is less than

0.7V, please use the less battery packs to activate charging process. If you need lower

voltage during discharging process, please use the less battery packs to discharge.

Chapter 1 Preparing、Connecting、Using

19

Image 27

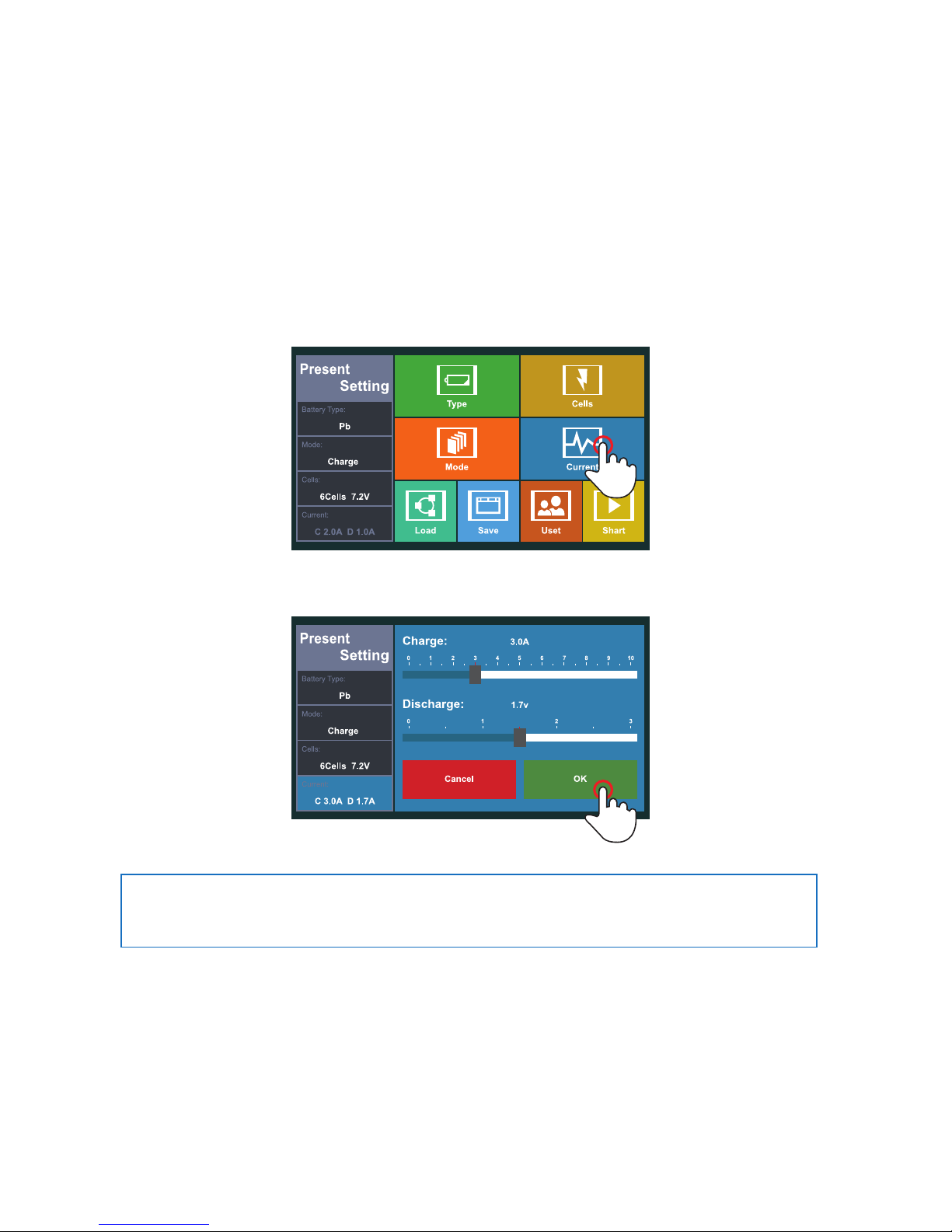

Step 4: touch Current icon ( Image 27 ) to enter into Current interface. Please set charge

current by sliding ( Image 28 ). Touch OK to go back to main interface and continue setting.

Image 28

【NOTE】Please set charge current in charge mode and discharge current in dis-

charge mode. As for Save and Load functions, please see Step5 and 6 in Example1

for further details.

Chapter 1 Preparing、Connecting、Using

20

Image 29

Step 5: touch Start icon ( Image 29 ) to enter into Start interface. The charger will check

battery status automatically. If everything is OK, the charger will begin to charge ( Image 30 ).

Image 30

Chapter 1 Preparing、Connecting、Using

21

Image 30

【NOTE】The charger will pop-up window when the battery is fully charged. Touch OK to

finish charging process ( Image 30 ).

Image 31

【NOTE】The charger will send out an alert and pop-up window if the battery packs’

setting is not correct. ( Image 31 ) All Lipo battery packs setting are the same operation.

Chapter 1 Preparing、Connecting、Using

22

Example 3: If you want to charge a pack of Pb battery, please execute the opera­tion as follows,

Image 32

Present

Setting

Typ e Cells

Mode

Load Save Uset Shart

Current

Battery Type:

LiPo

Mode:

Balance

Cells:

2Cells 7.4V

Current:

C 2.0A D 1.0A

Step 1: touch Type icon ( Image 32 ) to enter into Type interface. Touch Pb icon ( Image

33) to go back to main interface and continue setting.

Image 33

Chapter 1 Preparing、Connecting、Using

23

Image 34

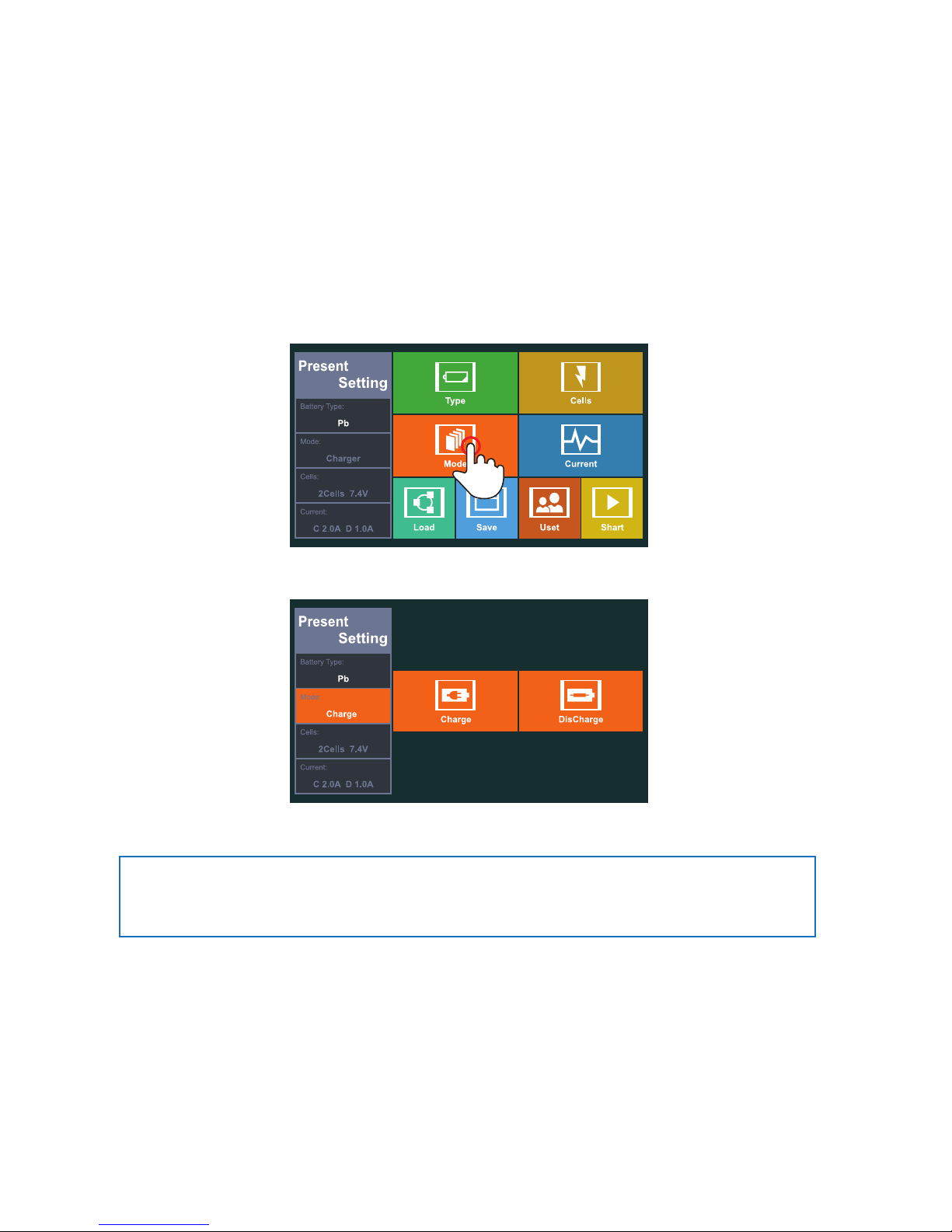

Step 2: Touch Mode icon ( Image 34 ) to enter into Mode interface. Touch Charge icon ( Image

35 ) to go back to main interface and continue setting.

Image 35

【NOTE】 There are some options in Mode interface ( Image 35 ). Please set accord-

ing to your requirement. Picture no.31 is showing charge process.

Chapter 1 Preparing、Connecting、Using

24

Image 36

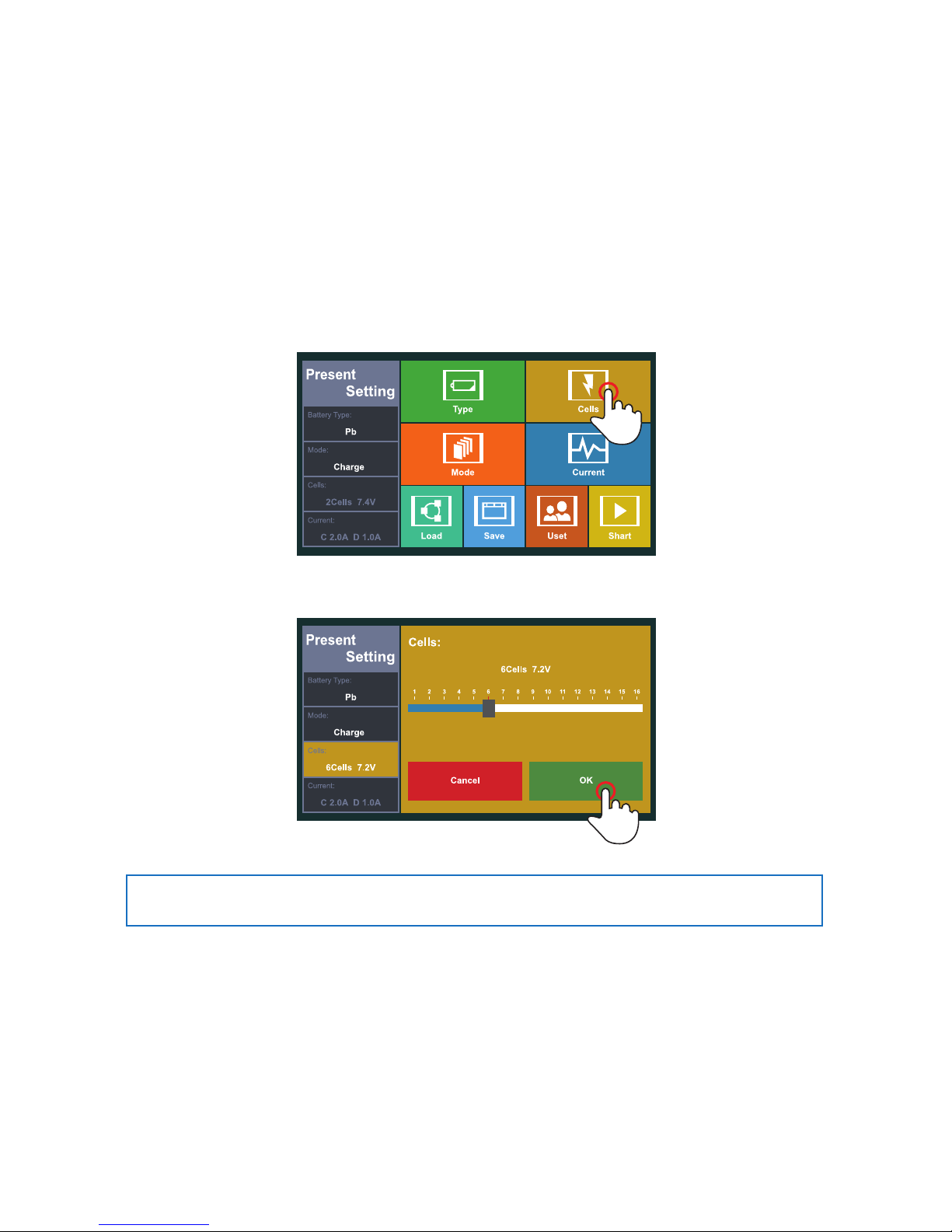

Step 3: touch Cells icon ( Image 36 ) to enter into Cells interface. Please set Pb battery

packs by sliding ( Image 37 ). Touch OK to go back to main interface and continue setting.

Image 37

【NOTE】Please set according to suitable battery packs.

Chapter 1 Preparing、Connecting、Using

25

Image 38

Step 4: touch Current icon ( Image 38 ) to enter into Current interface. Please set charge

current by sliding ( Image 39 ). Touch OK to go back to main interface and continue setting.

Image 39

【NOTE】Set charge current in charge mode and discharge current in discharge mode.

As for Save and Load functions, please see Step 5 and 6 in Example1 for further details.

Chapter 1 Preparing、Connecting、Using

26

Image 40

Step 5: touch Start icon ( Image 40 ) to enter into Start interface. The charger will check

battery status automatically. If everything is OK, the charger will begin to charge. ( Image 41 )

Image 41

Chapter 1 Preparing、Connecting、Using

27

Image 42

【NOTE】The charger will pop-up window when the battery is fully charged. Touch OK to

finish charging process ( Image 42 ).

Image 43

【NOTE】The charger will send out an alert and pop-up window if the battery packs’

setting is incorrect. ( Image 43 ) All Lipo battery packs setting are the same operation.

Chapter 1 Preparing、Connecting、Using

2

X200 Experiments

29

OS SYSTEM ADVANCED APPLICATION

OS SYSTEM is bran-new software of charger which was Independently research and

develop by HobbyKing. It is the first operation system in the world especially to support

touch screen charger,and it’s going to be Industry standard for touch screen charger

series.

Here we will full display the Advanced application Settings for you.Please touch Uset ( Image

44 ) to enter into advanced application setting interface.( Image 45 )

Image 44

Present

Setting

Typ e Cells

Mode

Load Save Uset Shart

Current

Battery Type:

LiPo

Mode:

Balance

Cells:

2Cells 7.4V

Current:

C 2.0A D 1.0A

Image 45

Cut off

Low

Input

Cut off
tempe­raturey

Cut off

Capacity

Cut off

Time

Lixx

Check

Time

Nixx
Delta
Peak

Wasle

Time

Cycle

Times

Backlight

Level

Buzzer Language

Back

Cut off Low:

11.0V

Cut off temperaturey:

Battery 60℃

5.0 Ah

120 Minute

Cut off capacity:

Cut off Time:

10 Minute

More

Lixx Check Time:

Chapter 2 Enjoy function of X200

Touch “Cut off Low Input”( Image 45 ), the information bar on left will skip into setting

menu( Image 46 ), touch “OK” after setting done, it will turn back to interface ( Image 47 ),

then you can go on with setting of other features.

Please find detailed list of features on next page.

30

Image 46

Image 47

Cut off

Low

Input

Cut off
tempe­raturey

Cut off

Capacity

Cut off

Time

Lixx

Check

Time

Nixx
Delta
Peak

Wasle

Time

Cycle

Times

Backlight

Level

Buzzer Language

Back

Cut off Low:

11.0V

Cut off temperaturey:

Battery 60℃

5.0 Ah

120 Minute

Cut off capacity:

Cut off Time:

10 Minute

More

Lixx Check Time:

Cut off

Low

Input

Cut off
tempe­raturey

Cut off

Capacity

Cut off

Time

Lixx

Check

Time

Nixx
Delta
Peak

Wasle

Time

Cycle
Times

Backlight

Level

Buzzer Language

Back

OK

10.7 V

Chapter 2 Enjoy function of X200

31

Cut off Low Input

Cut off Temperature

Cut off Capacity

Cut off Time

LixxCheckTime

NixxDeltaPeak

Waste Time

Rang of setting:10-11V. Lowest cut off input voltage, charger will stop charging/

discharging when input voltage is lower than setting value.

Rang of setting: 40-80°C. Cut off Temperature, charger will stop charging/

discharging when temp of batteries is lower than setting value.

Rang of setting: 0.1Ah-10Ah. Safety capacity. Charger will Stop charging/dis-

charging when capacity of batteries is higher than setting value.

Rang of setting: 10-200mins. Safety time, charger will stop charging/discharg-

ing, when charging/discharging time is less that setting value.

Rang of setting: 5-60mins. Time for checking cells count of LiPo battery pack.

Rang of setting: 5-200mV. NiHm/NiCd Delta peak.

Spacing interval between 2 Cycles. Rang of setting: 1-60mins.

Cut off

Low

Input

Cut off
tempe-

raturey

Cut off

Capacity

Cut off

Time

Lixx

Check

Time

Nixx

Delta

Peak

Wasle

Time

Chapter 2 Enjoy function of X200

32

Backlight Level

Buzzer

Language

Back

Cycle Time

Rang of setting: 1-10, Brightness level.

Rang of setting: All sounds open, only touch tone closed, All sounds closed.

Language option. Now provisionally only support English interface.

【IMPORTANT NOTICE】 X200 charger have 3 parameters to control rotate speed of fan.

1. when temperature of working charger reach 40℃, fan speed will be one level up as temp

rise by each 2℃

2. when charging power reach 100W, fan speed will be one level up as charging power rise

by each 5W.

3. Fan speed will be one level up as discharging power rise by each 2W.

NOTE: Fan Speed of X200 charger will begin to change in any of above situation.

Turn back to main interface

Rang of setting: 1-6 times.

Cycle
Times

Backlight

Level

Buzzer

Language

Back

Chapter 2 Enjoy function of X200

3

IMPORTANT REMIND

35

Please follow the instruction to operate your X200 charger, to insure safety of you and

charger, and use it easily. Please keep manual within easy reach, to be easy reference for

you and other user.

Proper Operation Pls put X200 charger on flat operating platform. DO NOT insert any

object into air-vent.

Water and Humid Place Please keep charger far away from any place wet or moist,

such as bathroom, hand Sink. Keep charger in desiccative place to avoid damage caused

by rainy weather.

Charger PLEASE make sure you are holding plug, not pull cord when disconnect power

supply. To avoid mechanical damage.

【NOTE】 Procedures, which if not properly followed, can result in potential nullification

of any vendor warranties or liabilities.

【Warning】Procedures, which if not properly followed, create the probability of prop-

erty damage, collateral damage, and serious injury OR create a high probability of

superficial injury. HobbyKing will not be held directly responsible for those damage if

they were caused by improper using of user.

SAFETY PRECAUTIONS AND WARNINGS

Chapter 3 Important Remind

NEVER use X200 charger under following operating environment: the environment full of

floating dust, smoke from burning or cooking in air. the place have ultrasonic humidifier (for

unfiltered tap water) working on. In rare cases, these smoke or particles in air may float

into X200 charger from air-vent. This may lead inner surface of screen appear mist.

36

X200 charger not include any spare part for user to make the maintenance , never

dismantle the product by yourselves. Please contact with HobbyKing authorized distrib-

utor for maintenance.

Please note if you dismantle the product by yourselves, this may cause damage of original

device. Such kind of damage is not responsible part of our guarantee.

Do not Maintain Yourself

Chapter 3 Important Remind

All specications and gures are subject to change without notice. Printed in China © 2012
