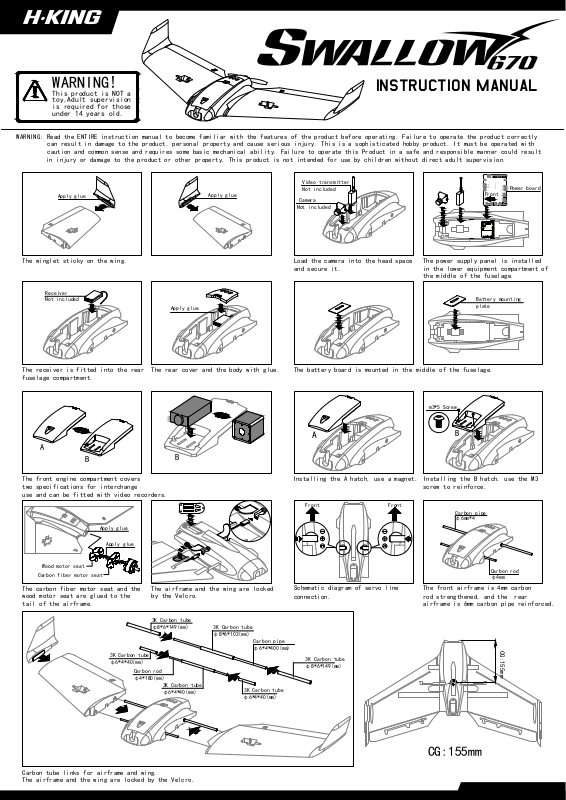

WARNING!
This product is NOT a
Instruction Manual
toy,Adult supervision
is required for those
under 14 years old.
WARNING: Read the ENTIRE instruction manual to become familiar with the features of the product before operating. Failure to operate the product correctly
can result in damage to the product, personal property and cause serious injury. This is a sophisticated hobby product. It must be operated with
caution and common sense and requires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner could result
in injury or damage to the product or other property. This product is not intended for use by children without direct adult supervision.
JP2
JP1
4
123
GND
RUD-OUT
AUX
ELE-OUT
AIL-OUT
RUD-IN
ELE-IN
REPTILE-TECH
Power board
AIL-IN
+
POWIN+
GND
GND
GND
9VOUT
5VOUT
123
4
GND
AUX
RUD-IN
ELE-IN
REPTILE-TECH
AIL-IN
POWIN+
GND
GND
GND
9VOUT
Apply glue
Apply glue
Video transmitter
Not included
Camera
Not included
GND
Front
JP2
JP1
GND
RUD-OUT
ELE-OUT
AIL-OUT
-
+
5VOUT
The winglet sticky on the wing.
Receiver
Not included
The receiver is fitted into the rear
fuselage compartment.
A
B
Apply glue
The rear cover and the body with glue.
B
Load the camera into the head space
The power supply panel is installed
and secure it. in the lower equipment compartment of
the middle of the fuselage.
Battery mounting
plate
The battery board is mounted in the middle of the fuselage.
m3*5 Screw
A
B
The front engine compartment covers
two specifications for interchange
use and can be fitted with video recorders.
Apply glue
Apply glue
Wood motor seat
Carbon fiber motor seat
The carbon fiber motor seat and the
wood motor seat are glued to the
The airframe and the wing are locked
by the Velcro.
tail of the airframe.
3K Carbon tube
φ8*6*149(mm)
3K Carbon tube
φ6*4*40(mm)
Carbon rod
φ4*180(mm)
3K Carbon tube
φ6*4*40(mm)
3K Carbon tube
φ8*6*102(mm)
3K Carbon tube
φ6*4*40(mm)
Carbon pipe
φ6*4*400(mm)
Installing the A hatch, use a magnet.
Front Front
Schematic diagram of servo line
connection.
3K Carbon tube
φ8*6*149(mm)
Installing the B hatch, use the M3
screw to reinforce.
Carbon pipe
φ6mm*4
Carbon rod
φ4mm
The front airframe is 4mm carbon
rod strengthened, and the rear
airframe is 6mm carbon pipe reinforced.
CG:155mm
Carbon tube links for airframe and wing.
The airframe and the wing are locked by the Velcro.
CG:155mm
