Page 1

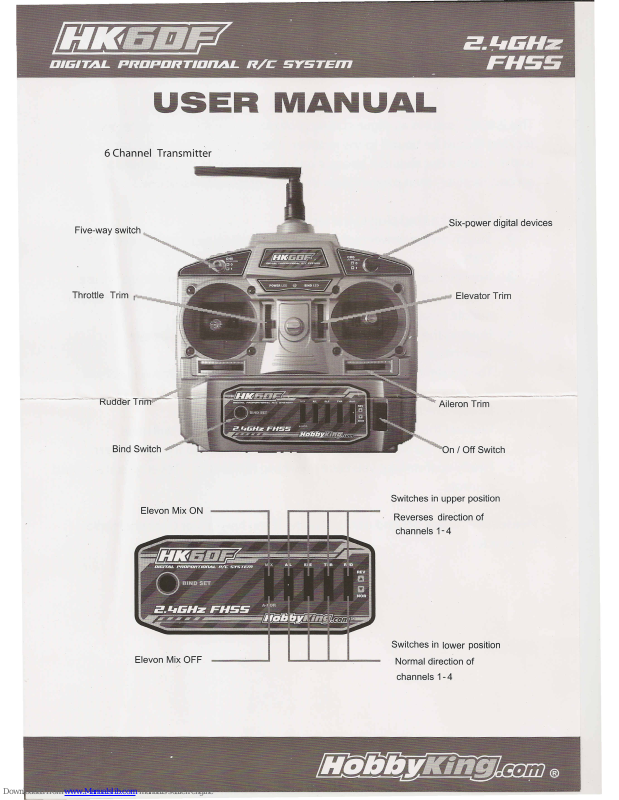

USER MANUAL
Switches in upper position
Reverses direction of
channels 1- 4
Switches in lower position
Normal direction of
channels 1-4
Page 2
This2.4GHZfeatures a unique coding protocol, to usethis Transmitter with a
receiver it must be bound to the receiver. The factory will bind the transmitter
to the receiver but should it become unbound or should you purchase a
second receiver then pleasefollow the procedure outlined below.
1. Connect a bind plug to the receiver.
2. Switch on the power to the receiver,the green receiver LEDwill now
flash.
3. Now pick up the Transmitter, before you switch it on pleaseensure
that the throttle is in the lowest position and that allthe trims are in the
middle position.
4.
Holding the bind switch in the up position now switch on the
transmitter.
5. The transmitter green LEDwill start fla~hing and the receiver LEDwill
havegone off. '::-
6. Releasethe bind switch on the transmitter.
7. Removethe bind plug on the receiver,the Green LEDwill now
illuminate on the receiver and will now be bound to the transmitter.
8. Finally confirm that you have now havefull contro lover all surfacesand
controls
Pleasenote it will depend on your model if you have a4 or 6 channel radio
transmitter.
