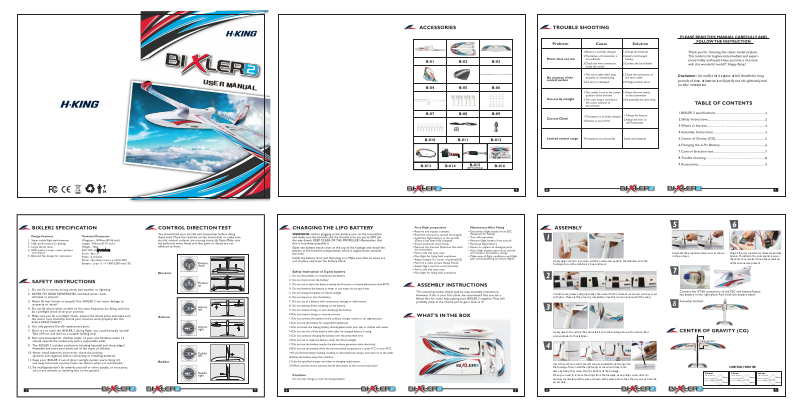

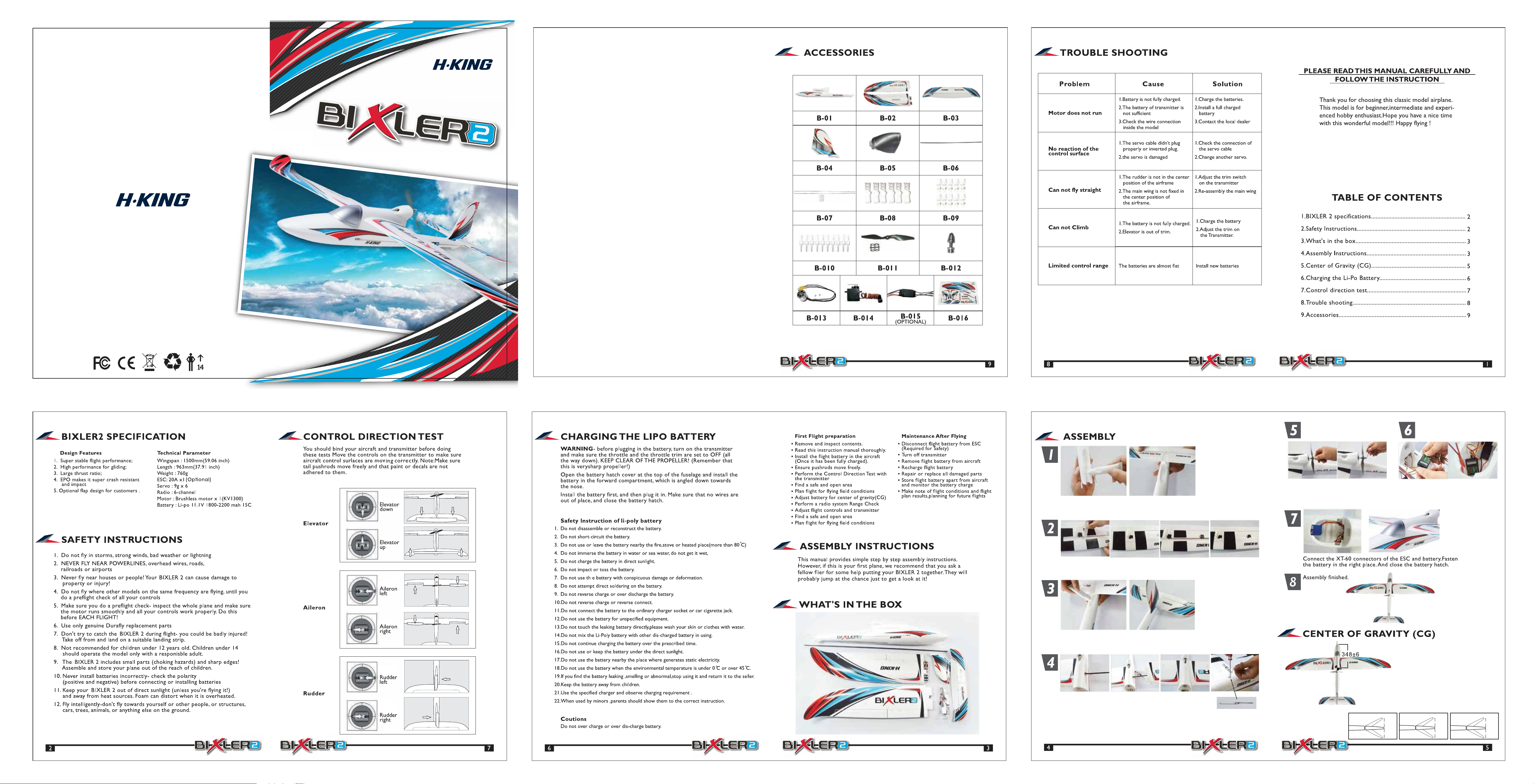

USER MANUAL
Aileron:
Disclaimer : Do not fly this Airplane at full throttle for long
periods of time, otherwise it will just fly out of sight easily and
lost the orientation.
Apply glue as shown in picture, wait for a while and position the stabiliser onto the
fuselage. Ensure the stabiliser is true and level.
In both cases, please add glue to the channel and fix the channel cover and servo bay cover
with glue. Please let the glue dry completely since this is a structural part of the wing.
Apply glue to the vertical fin and install it onto the fuselage. Ensure the vertical fin is
perpendicular to the stabiliser.
Assemble the propeller and spinner as shown
in the pictures.
(mm)
Plug all the servo lead wires (Elevator, Rudder,
Aileron, Throttle) to the correspond receiver
channels. Your receiver should have marked
all the channel assignment.
Insert the carbon rod into the left wing and install the left wing onto
the fuselage. Then install the right wing as shown and lock it into
place by fixing the screws thru the bottom of the fuselage.
When you need to remove the wings from the fuselage, use a philips screw driver to
unscrew it and also pull the wire as shown at the same time to take the screws out from the
access hole.
Elevator:
13mm up/down
CONTROL THROWS
14mm up/down
13mm
13mm
14mm
14mm
Rudder:
15mm right/left
15mm
15mm
