FK-10
OPERATING MANUAL
Page 2
1
WARNING
WARNING: Read the ENTIRE instruction manual to become fam i l iar with the features of the prod u c t
!
operating. Failure to operate the product correctly can result in damage to the product, personal before
property and cause serious injury.
Th is is a sophist icat ed hobby prod uct and NOT a toy. It mus t be operated w ith caution a nd common sen se
and enquires some basic mechanical ability. Failure to operate this Product in a safe and responsible manner
could result in injury or damage to the product or other proper t y. T his p roduct is not i ntended for use by
children wi thout dir ect adult supervision.
This man ual con tains i nstructio ns for safety, operat ion and m ainte nance. It is ess entia l to read a nd foll ow
all the ins t ruction s an d wa rnings in manua l , p rior to assembl y, s etup or use, in order to ope r ate correct l y
an d avoid d amage o r s erious injury.
Safety Precautions and Warnings
As the us er of t his produc t, y ou are solely
you rself and othe rs or result in dama g e t o t he product or th e pr operty of othe rs. This mod el is controll ed
by a radi o s i gnal subje c t t o i nterfer e nce from many so u rces outsi de your contro l . T his interfe rence can
cau se momentar y l oss of control so it is advisab le t o a lways keep a saf e d i stance in all direct ions
you r m odel, as this mar g in will help avo i d c ollisio n s o r i njury.
Age Recommendation: Not for children under 14 years. This is not a toy.
• Never opera te your model with low transmitter batteries .
•Always operate your model in an open a rea away from cars, traffic or people.
• Avoid operating y our model in the street where injury or da mage can occur.
• Never operate the model in the stree t or in populated areas for any reason.
• Ca r e f u lly f o l l o w th e directio n s and w a r nings f o r thi s and a n y optiona l support e quipmen t (charge r s ,
rechargeable battery packs, etc.) you use.
• Keep all chemicals, small parts an d anything electrical out of the reach of child ren.
• Moisture causes damage to electr onics. Avoid water ex posure to all equipme nt not specific ally designed
and protect ed for this purpose.
• Never lick or place any portion of you r model in your mouth as it could cause seri ous injury or even deat h.
res ponsible fo r o perating in a man n er that does not end anger
arou nd
1. Pls check the wing first before you assembling, Maybe be
a little distortion, don't worry, as long as the hot - air tube
slightly heated, the wing can become straight.
2. When installed if tail off with a
circular hinge point glue together.
Page 3

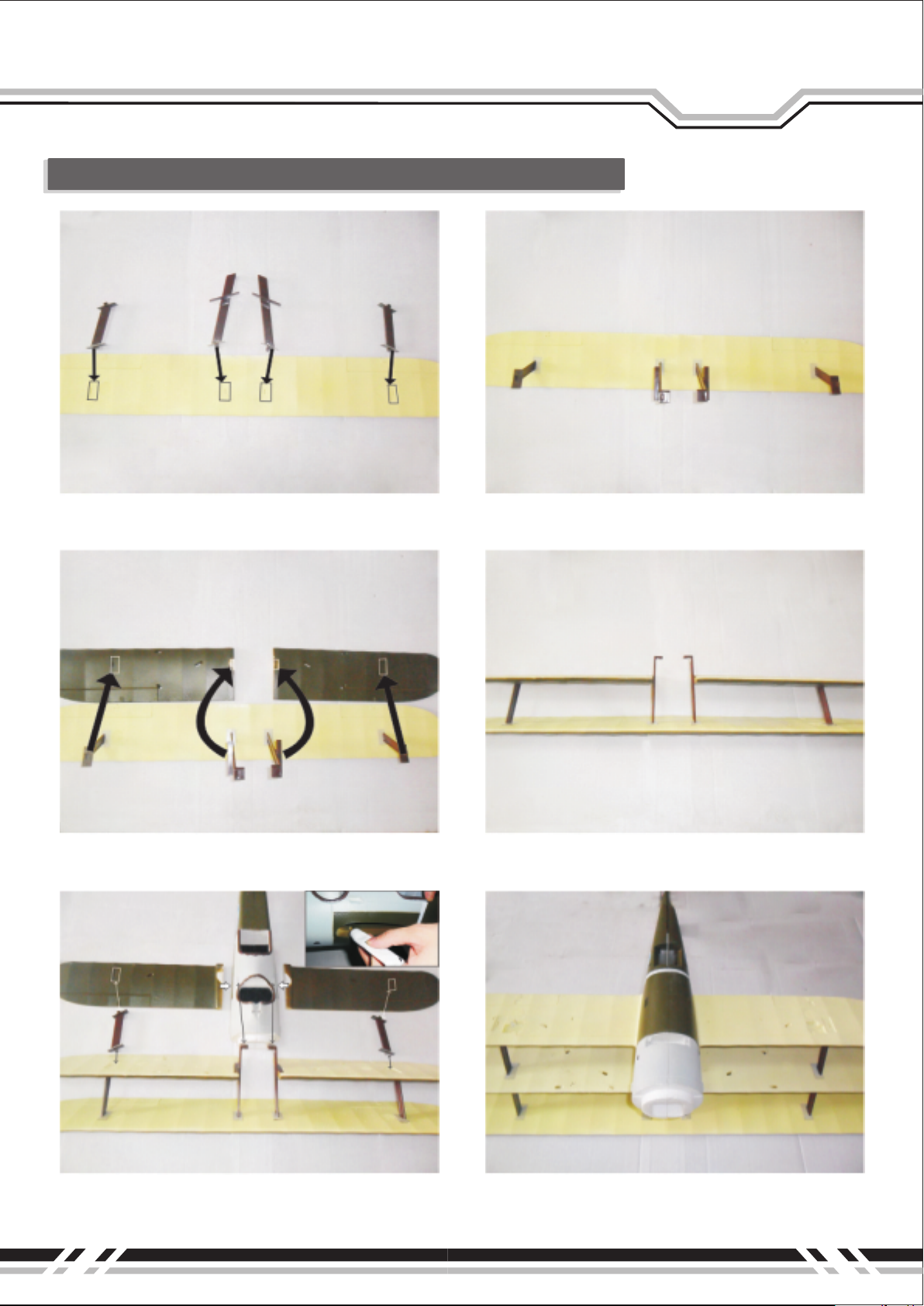

Installing the main wing
2
1. Coated Mucilage at the top wing and
support frame junction.
3. Coated Mucilage at the second wing and
support frame other side junction.
2. Stick the support frame on the wing.
4. As shown in figure.
5. coated Mucilage at the third wing and
another support frame junction.
6. Stick the support frame on the third wing
junction.
Page 4

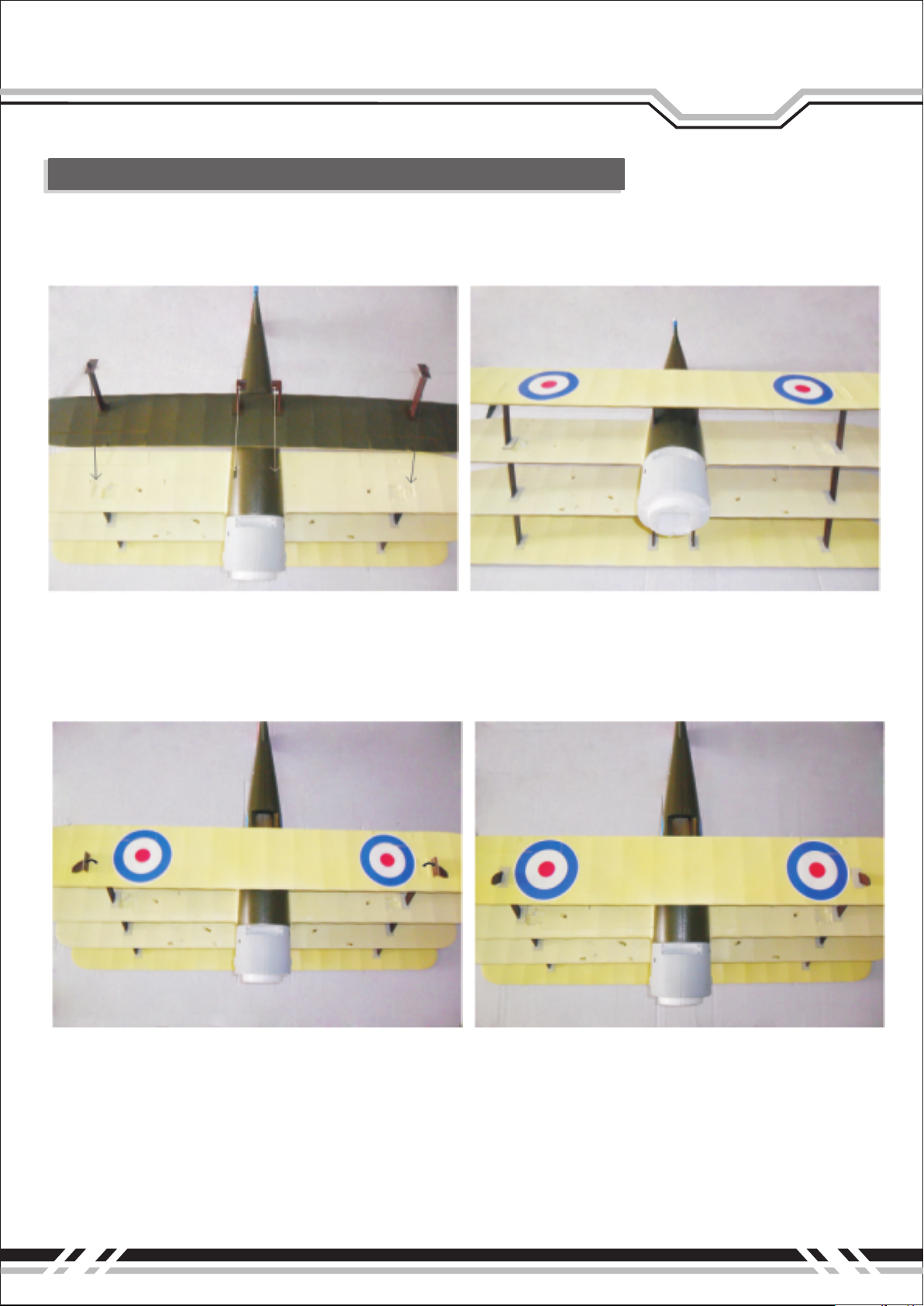

Installing the main wing
3
7. Then stick the bottom wing in the same way.
8. Stick the bottom ornamental parts.
9. As shown in figure.
Page 5
Installing the landing gear
4
1. Installation landing gear.
2. Fixed landing gear.
Page 6

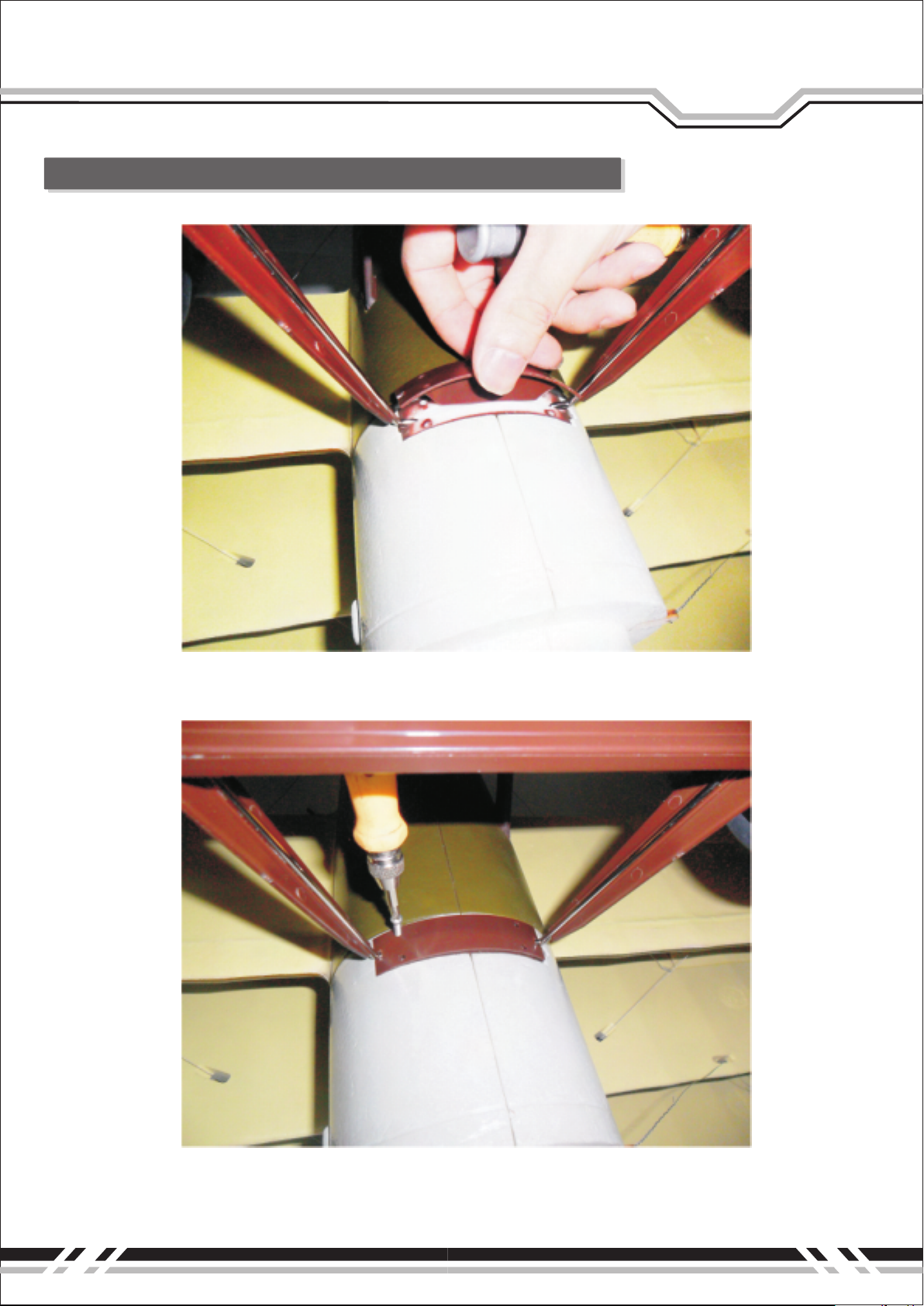

Installing the surbase
5
1. Install the first line.
2. Install the second and third line.
Page 7

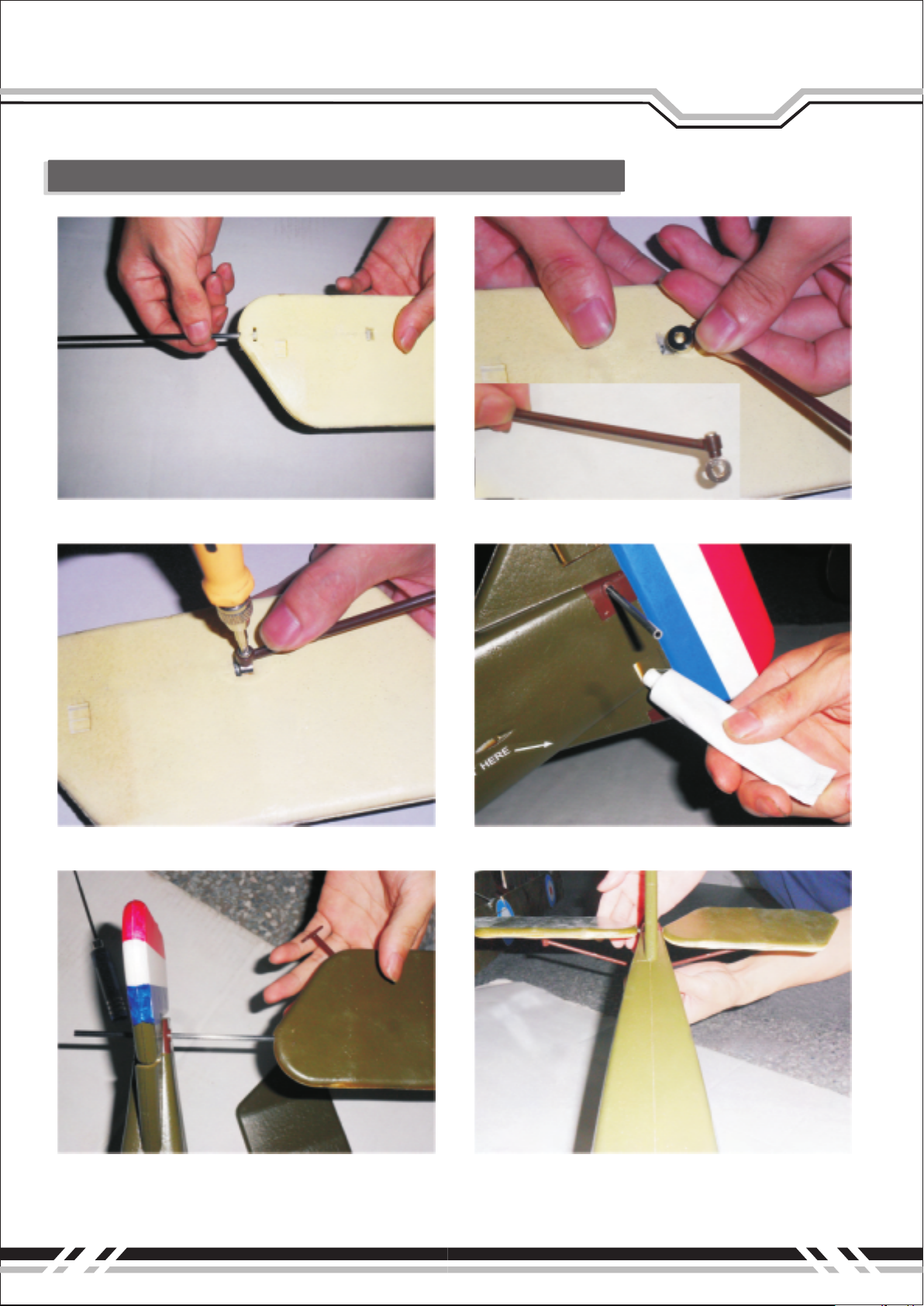

Installing the Elevator
6
1. Installation glass fiber tube.
3. Fixed support bar.
2.Installation support bar.
4. Daub bubble gum.
5. Install the elevator.
Page 8
Installing the propeller
7
1. Battery position.
3. Install the propell er.
2. Inst allatio n gaskets.
4. Fixed propeller.
Page 9
Main specification
Specification
8
Wingspan
Length
Weight
CG Position
Battery
ESC
Motor
Wing Area
Wing Load
RC System
: 950mm /37.4 in
: 760mm /29.9 in
: 1 100g /38.8 oz
: 80-85mm
: 1 1.1V 3300mAh Li-Po Battery
: 30A
: 3536-1000kv
: 46.3dm
: 23.7g/dm
: 4 Channel, 4 Servos
And 1 Brushless ESC
2
Center Of Gravity(C.G.)
2
Note: Neutral position for
elevator is 10deg down.
80-85mm
The weight of the plane is balanced
by means of a counterweight, to
make the CG among 80 to 85.
Page 10
Spare Parts List
9
Fuselage
Glue
Propeller
Main Wing Set Elevator
wing Strut Set
Machine guns
landing gear.
Sticker
9g Servo
Battery Selection and Installation.
1. We recommend the 3300mA Li-Po battery.1.1V
2. If using another battery, the battery must be at least a 1.1V 3300mA battery.
3. You r b att er y sh oul d b e ap pr oxi mat ely th e sa me cap aci ty ,di men sio n a nd w ig ht a s t he
1.1V 3300mA Li-Po battery to fit in the fuselage without changing the center of gravity
Brushless ESC
Brushless Motor
Page 11
10
Flying Tips
Take off and landing tips
1. Take off using full power, as soon as you have taken off retract the landing gear.
2. Use the flaps to give a steeper landing approach, increase throttle slightly to offset the
increased drag.
3. Ensure that you set a timer and land with plenty of battery power in reserve.
4. It's difficult to landing the plane perfect from the speedy flying state when the flaps
keep in the contour.
5. Never exceed 3 minutes to fly with the maximum power others.
6. Never exceed the limited flying weight.
First Flight Preparation
1. Remove and inspect contents.
2. Charge fl ight battery
3. Read this instruction manual thoroughly
4. Fully assemble model
5. Install the flight battery in the aircraft ( once it has been fully charged )
6. Bind aircraft to your transmitter
7. Make sure linkages move freely
8. Make sure the rubber ring has been properly slide on the clevis.
9. Perform the Control Direction Test with the transmitter.
10. Adjust light controls and transmitter.
11. Perform a radio system Range Check.
12. Find a safe and open area.
.
.
.
.
.
.
Please read the following instructions and fully understand it.
1. Do not fly in strong wind or bad weather.
2. Never fly the model in crowded areas, where there are lots of people, automoblies on the
road or power lines overhead . Also do not to fly around the airport. Please make yourself
enough room for the flying and operating, as the plane can travel at high speed. Remember
you are responsible for the safety of others.
3. Children under the age of 12 should have an adult guide. Never recommend for the children
under the age of 14.
4. Never leave the charger in wet conditions.
5. Th e is mad e fro m PA and poly the n e whic h ar e t inde r. When it m eets the hea t ,
tr ansf igu r ati on c an e asil y ha ppe n , s o you mus t kee p it awa y fr om h eat.
6. Do not attempt to catch the while flying, please do not touch the propeller.FK-10
7. Never leave this system unattended around children with battery in the unit, as injury may
be caused due to children's turning on the transmitter or the plane.
8. During the preparation for the flight, please remember to turn on the transmitter before
connecting the battery pack.
9. Close the throttle on the transmitter before connecting battery otherwise the motor may operate.
FK-1 0
