Hobart Food Machines FT1000 Parts List

Download

Page 1

CATALOG OF

REPLACEMENT

PARTS

FT1000 SERIES DISHWASHERS

ML-130250

A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 43292 Rev. B (May 2015)

Page 2

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

F-43292 Rev. B (May 2015) - 2 - © HOBART 2015

Page 3

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

Table of Contents

7 PANELS (LOAD)

9 TRACKS (LOAD) 11 DRAIN (LOAD TO ASR) 13 DRAIN (LOAD TO PREWASH) 15 DRAIN ASSEMBLY (AUTOMATIC) (LOAD) 17 DOOR ASSEMBLY (ASR) 19 PANELS AND TRACKS (ASR) 21 CURTAINS, FLOWBACK, MAKEUP PANS, & STRAINERS (ASR) 23 RINSE ARM AND MANIFOLD ASSEMBLY (ASR) 25 PUMP AND MOTOR ASSEMBLY (ASR) 27 TANK DRAIN ASSEMBLY (ASR) 29 FLOAT ASSEMBLY (ASR) 31 DOOR ASSEMBLY (PREWASH & WASH/POWER RINSE) 33 PANELS AND TRACKS (PREWASH & WASH/POWER RINSE) 35 FLOWBACK, MAKEUP PANS, & SCREENS (PREWASH & WASH/POWER

RINSE) 37 CURTAINS (PREWASH & WASH/POWER RINSE) 39 AIR GAP ASSEMBLY (PREWASH & WASH/POWER RINSE) 41 WASH ARMS AND MANIFOLD (PREWASH) 43 WASH ARMS AND MANIFOLD (WASH/POWER RINSE) 45 WASH PUMP ASSEMBLY (PREWASH & WASH/POWER RINSE) 47 TANK DRAIN ASSEMBLY (PREWASH & WASH/POWER RINSE) 49 FLOAT ASSEMBLY (PREWASH & WASH/POWER RINSE) 51 ELECTRIC TANK HEAT (WASH/POWER RINSE) 53 STEAM TANK HEAT (WASH/POWER RINSE) 55 DOOR ASSEMBLY (DUAL RINSE) 57 PANELS AND TRACKS (DUAL RINSE) 59 WATER RECOVERY AND CONTAINMENT (DUAL RINSE) 61 RINSE ARMS AND MANIFOLDS (DUAL RINSE) 63 TANK DRAIN ASSEMBLY (DUAL RINSE) 65 PUMP ASSEMBLY (DUAL RINSE) 67 THERMISTOR BOX (STEAM ONLY) (DUAL RINSE) 69 ELECTRIC TANK HEAT (DUAL RINSE) 71 STEAM TANK HEAT (DUAL RINSE) 73 ENERGY RECOVERY (DUAL RINSE) 75 CONTROL BOX ASSEMBLY 77 CABLES (LOAD, ASR, & PREWASH) 79 CABLES (CONTROL BOX) 81 CABLES (DUAL RINSE, POWER RINSE, & WASH) 83 CABLES (UNLOAD) 85 MAIN BASE PLATE ASSEMBLY (ELECTRIC HEAT) 87 MAIN BASE PLATE ASSEMBLY (STEAM HEAT)

- 3 - F-43292 Rev. B (May 2015)

Page 4

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

89 MAIN BASE PLATE (RELAYS) 91 CIRCUIT BREAKER BASE PLATE ASSEMBLY (UNDER 600 V.) 93 CIRCUIT BREAKER BASE PLATE ASSEMBLY (600 V.) 95 BASE PLATE ASSEMBLY (WITHOUT CIRCUIT BREAKER) 97 TERMINAL BLOCKS BASE PLATE ASSEMBLY 99 TRANSFORMER BASE PLATE ASSEMBLY

101 STEAM BOOSTER 103 ELECTRIC BOOSTER 105 PUMPED FINAL RINSE MOTOR ASSEMBLY 107 AUTO CLEAN HOSES 109 FILL PLUMBING (WITH AUTOCLEAN) (R-L) 111 FILL PLUMBING (NO AUTOCLEAN) (R-L) 113 FILL PLUMBING (BASE UNIT) (R-L) 115 FILL PLUMBING (WITH AUTOCLEAN) (L-R) 117 FILL PLUMBING (NO AUTOCLEAN) (L-R) 119 FILL PLUMBING (BASE UNIT) (L-R) 121 CHEMICAL PUMP (DELIME) 123 PANELS AND TRACKS (UNLOAD - NON SPLIT) 125 PANELS AND TRACKS (UNLOAD - SPLIT) 127 DRAINS (UNLOAD) 129 DRAIN ASSEMBLY (AUTOMATIC) (UNLOAD) 131 DISH LIMIT 133 CONVEYOR TAKE-UP 135 CONVEYOR (STANDARD) 137 CONVEYOR (TYPE A) 139 CONVEYOR (INSULATED TRAYS) (POSITION 1) 141 CONVEYOR (INSULATED TRAYS) (POSITION 2) 143 CONVEYOR (TIVOLI) 145 BLOWER DRYER 147 ELECTRIC HEATER (BLOWER DRYER) 149 STEAM HEATER (BLOWER DRYER) 151 PANELS AND FAN (ADVANSYS) 153 ADVANSYS ASSEMBLY 155 CONDENSER COIL (ADVANSYS)

F-43292 Rev. B (May 2015) - 4 -

Page 5

NOTES

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

- 5 - F-43292 Rev. B (May 2015)

Page 6

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

PANELS (LOAD)

F-43292 Rev. B (May 2015) - 6 -

Page 7

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

PANELS (LOAD)

ILLUS. PL-60473

10 Washer.......................................................................................................................................4

11 00-918603-00002 Sensor (Receiver) (30 In. Load).................................................................................................1

12 00-918603-00004 Sensor (Receiver) (42 In. & 54 In. Load)....................................................................................1

13 00-918603-00001 Sensor (Emitter) (30 In. Load)....................................................................................................1

14 00-918603-00003 Sensor (Emitter) (42 In. & 54 In. Load)......................................................................................1

15 00-947999-00005 Pan - Deflector (9.85 In.)............................................................................................................1

16 00-947998-00002 Plate - Deflector..........................................................................................................................1

17 00-949051 Support - Corner (Chamber) (Front L-R, Rear R-L)...................................................................1

18 00-949694 Bracket - Panel (Lower)..............................................................................................................2

19 00-948118-00003 Rod - Support.............................................................................................................................2

20 00-947916-00003 Strainer Assy..............................................................................................................................1

21 SC-021-40 Mach. Screw 1/4-20 x 3/4 Slotted Rd. Hd..................................................................................6

22 00-949686 Panel - Trim (Lower)...................................................................................................................1

23 00-948505 Support - Platform......................................................................................................................1

24 00-948439-00002 Panel - Start/Stop (Load, L-R)....................................................................................................1

25 00-948439-00001 Panel - Start/Stop (Load, R-L)....................................................................................................1

26 00-948507 Platform Assy. (Load).................................................................................................................1

27 00-948504-00001 Panel - Side Cover (30 In.).........................................................................................................2

28 00-948504-00002 Panel - Side Cover (42 In.).........................................................................................................1

29 00-948504-00003 Panel - Side Cover (54 In.).........................................................................................................1

30 00-949714-00001 Panel - Trim (Lower) (Front) (30 In.) (L-R).................................................................................1

31 00-949714-00003 Panel - Trim (Lower) (Front) (42 In.) (L-R).................................................................................1

32 00-949714-00005 Panel - Trim (Lower) (Front) (54 In.) (L-R).................................................................................1

33 00-949714-00007 Panel - Trim (Lower) (Front) (30 In.) (R-L).................................................................................1

34 00-949714-00009 Panel - Trim (Lower) (Front) (42 In.) (R-L).................................................................................1

35 00-949714-00011 Panel - Trim (Lower) (Front) (54 In.) (R-L).................................................................................1

36 00-949714-00008 Panel - Trim (Lower) (Rear) (30 In.) (L-R)..................................................................................1

37 00-949714-00010 Panel - Trim (Lower) (Rear) (42 In.) (L-R)..................................................................................1

38 00-949714-00012 Panel - Trim (Lower) (Rear) (54 In.) (L-R)..................................................................................1

39 00-949714-00002 Panel - Trim (Lower) (Rear) (30 In.) (R-L)..................................................................................1

40 00-949714-00004 Panel - Trim (Lower) (Rear) (42 In.) (R-L)..................................................................................1

41 00-949714-00006 Panel - Trim (Lower) (Rear) (54 In.) (R-L)..................................................................................1

42 00-949051-00002 Support - Corner (Chamber) (Front R-L, Rear L-R)...................................................................1

PART NO. NAME OF PART AMT.

1 00-948006-00015 Panel - Trim (Standard Height) (FT1000)...................................................................................2

2 00-948006-00016 Panel - Trim (6 In. Higher Than Standard) (FT1000).................................................................2

3 00-749994 Switch Assy. - Push-button (Extended) (Red)............................................................................1

4 00-913102-00216 Kit - Push-button & Base (Green)...............................................................................................1

5 00-948092 Retainer - Panel.........................................................................................................................6

6 00-948214-00003 Plate - End (Load Chamber) (Logo)...........................................................................................1

7 00-948002-00008 Support - Chamber (Standard Height).......................................................................................1

8 00-948002-00021 Support - Chamber (6 In. Higher Than Standard)......................................................................1

9 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................4

- 7 - F-43292 Rev. B (May 2015)

Page 8

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

TRACKS (LOAD)

F-43292 Rev. B (May 2015) - 8 -

Page 9

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

TRACKS (LOAD)

ILLUS. PL-60371

10 00-948503 Bracket - Track Transition..........................................................................................................2

11 00-948019-00011 Rod - Cross................................................................................................................................3

12 00-948388-00002 Bracket - Pivot (Platform) (Front L-R, Rear R-L)........................................................................1

13 00-948213-00007 Track Assy. (30 In.) (Front R-L, Rear L-R).................................................................................1

14 00-948213-00005 Track Assy. (42 In.) (Front R-L, Rear L-R).................................................................................1

15 00-948213-00006 Track Assy. (54 In.) (Front R-L, Rear L-R).................................................................................1

16 00-948213-00003 Track Assy. (30 In.) (Front L-R, Rear R-L).................................................................................1

17 00-948213-00001 Track Assy. (42 In.) (Front L-R, Rear R-L).................................................................................1

18 00-948213-00002 Track Assy. (54 In.) (Front L-R, Rear R-L).................................................................................1

19 WS-017-06 Washer (SST)...........................................................................................................................12

20 WS-003-47 Washer (SST)..........................................................................................................................AR

21 NS-031-21 Stop Nut 1/4-20 Hex (SST).....................................................................................................AR

22 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................6

23 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (SST).....................................................................................6

24 00-948388 Bracket - Pivot (Platform) (Front R-L, Rear L-R)........................................................................1

25 NS-031-29 Stop Nut 5/16-18 Hex (SST)......................................................................................................4

26 00-949862 Rod - Tension.............................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-948374 Foot Assy...................................................................................................................................2

2 00-892617 Bracket - Finger Mounting..........................................................................................................1

3 00-949606 Finger Weldment (Standard Conveyor)......................................................................................1

4 00-950087 Finger Weldment (Type A Conveyor).........................................................................................1

5 00-950089-002-4 Finger Weldment (Cross Rod Conveyor)...................................................................................1

6 00-950095 Finger Weldment (SST Conveyor).............................................................................................1

7 SC-041-13 Cap Screw 5/16-18 x 1 Hex Hd. (SST)......................................................................................4

8 00-774519-00001 Guide - Roller.............................................................................................................................2

9 00-948209 Bracket - Roller Guide (Lower)...................................................................................................2

- 9 - F-43292 Rev. B (May 2015)

Page 10

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DRAIN

(LOAD TO ASR)

F-43292 Rev. B (May 2015) - 10 -

Page 11

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DRAIN

(LOAD TO ASR)

ILLUS. PL-60474

10 00-067500-00021 O-Ring........................................................................................................................................1

11 00-538412 Clamp - Hose.............................................................................................................................6

12 00-949668 Hose - Adapter 1-1/2 to 1-3/4.....................................................................................................1

13 00-948146 Drain Body..................................................................................................................................1

14 00-949132-00003 Hose - Drain (Straight)...............................................................................................................1

15 00-067500-00019 O-Ring........................................................................................................................................1

16 00-970906-00003 Tee - Drain.................................................................................................................................1

17 00-476098 Clamp - Discharge Tube............................................................................................................1

18 00-475927-00002 Plug - Drain Valve......................................................................................................................1

19 00-948761-00007 Pipe - Drain (3.410 In.)...............................................................................................................1

20 00-948761-00005 Pipe - Drain (14.625 In.).............................................................................................................1

21 00-948761-00009 Pipe - Drain (26.281 In.).............................................................................................................1

22 00-947915-00007 Weldment - Sump Load..............................................................................................................1

PART NO. NAME OF PART AMT.

1 00-948186-00001 Discharge Weldment (Used on machines with ASR).................................................................1

2 00-949258 Cover - Discharge (Used on machines without ASR)................................................................1

3 00-949255 Gasket - Discharge.....................................................................................................................1

4 NS-015-01 Nut 1/4-20 Hex (SST).................................................................................................................2

5 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST).....................................................................................1

6 00-947920 Plate - Strainer...........................................................................................................................1

7 00-749370 Gasket - Seal 0.093 x 3.00.........................................................................................................1

8 FP-091-71 Tee 1-1/2 x 1-1/2 x 1-1/2 (Barbed).............................................................................................1

9 00-949936 Valve - Check (Sump) (Incls. Item 11).......................................................................................1

- 11 - F-43292 Rev. B (May 2015)

Page 12

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DRAIN

(LOAD TO PREWASH)

F-43292 Rev. B (May 2015) - 12 -

Page 13

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DRAIN

(LOAD TO PREWASH)

ILLUS. PL-60567

10 00-949978-00003 Elbow - Drain (29-1/8 In.) (54 In. Load)......................................................................................1

11 00-949936 Valve - Check.............................................................................................................................1

12 FP-091-71 Tee 1-1/2 x 1-1/2 x 1-1/2 (Barbed).............................................................................................1

13 00-949938-00001 Hose - Elbow (R-L).....................................................................................................................1

14 00-949938-00002 Hose - Elbow (L-R).....................................................................................................................1

15 00-949944 Elbow - Drain..............................................................................................................................1

16 00-067500-00019 O-Ring........................................................................................................................................1

17 00-970906-00003 Tee - Drain.................................................................................................................................1

18 00-476098 Clamp - Discharge Tube............................................................................................................1

19 00-067500-00021 O-Ring........................................................................................................................................1

20 00-475927-00002 Plug - Drain Valve......................................................................................................................1

21 00-948761-00007 Pipe - Drain (3.410 In.) (L-R)......................................................................................................1

22 00-948761-00019 Pipe - Drain (36.450 In.) (R-L)....................................................................................................1

23 00-950384 Bracket - Support.......................................................................................................................1

24 00-950239 Bracket - Drain Support..............................................................................................................1

PART NO. NAME OF PART AMT.

1 00-948146 Drain Body..................................................................................................................................1

2 00-947920 Plate - Strainer...........................................................................................................................1

3 00-749370 Gasket - Seal 0.093 x 3.00.........................................................................................................1

4 00-949132 Hose - Drain (Straight) (30 In. Load)..........................................................................................1

5 00-949132-00002 Hose - Drain (Straight) (42 In. & 54 In. Load).............................................................................1

6 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST).....................................................................................1

7 00-538412 Clamp - Hose..........................................................................................................................AR

8 00-949978-00001 Elbow - Drain (5-1/8 In.) (30 In. Load)........................................................................................1

9 00-949978-00002 Elbow - Drain (17-1/8 In.) (42 In. Load)......................................................................................1

- 13 - F-43292 Rev. B (May 2015)

Page 14

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DRAIN ASSEMBLY

(AUTOMATIC) (LOAD)

F-43292 Rev. B (May 2015) - 14 -

Page 15

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DRAIN ASSEMBLY

(AUTOMATIC) (LOAD)

ILLUS. PL-60433

10 FP-091-79 Tee - Pipe 1-1/2 x 1-1/2 x 1-1/2 (Brass).....................................................................................1

11 00-949070 Valve Assy..................................................................................................................................1

12 00-949948 Pipe 1-1/2 x 3.............................................................................................................................1

13 00-949866 Bracket - Drain (Automatic)........................................................................................................1

14 WS-005-32 Washer (SST).............................................................................................................................8

15 NS-031-21 Stop Nut 1/4-20 Hex (SST)........................................................................................................8

16 00-949161 Bracket - Drain Switch................................................................................................................1

17 00-473109-005-1 Switch - Interlock........................................................................................................................1

18 NS-031-50 Stop Nut 6-32 Hex (SST)...........................................................................................................4

19 00-949706 Handle - Drain (Automatic).........................................................................................................1

20 00-949423 Knob...........................................................................................................................................1

21 00-111941 Magnet.......................................................................................................................................1

22 00-893111 Magnet - Mount..........................................................................................................................1

23 SC-066-03 Mach. Screw 6-32 x 1/2 Phil. Truss Hd......................................................................................4

24 00-949921 Bracket - Support.......................................................................................................................1

25 00-949937 Bracket - Drain (R-L)..................................................................................................................1

26 00-949937-00002 Bracket - Drain (L-R)..................................................................................................................1

27 SC-041-08 Cap Screw 1/4-20 x 2 Hex Hd. (SST)........................................................................................2

28 00-950109 Support - Master Drain...............................................................................................................1

PART NO. NAME OF PART AMT.

1 00-538412 Clamp - Hose.............................................................................................................................4

2 00-067500-00019 O-Ring........................................................................................................................................2

3 00-970906 Tee - Drain.................................................................................................................................1

4 00-949133 Hose - Drain (Elbow)..................................................................................................................1

5 00-948635 Valve - Drain (Automatic)...........................................................................................................1

6 00-949916 Hose - Elbow..............................................................................................................................1

7 FP-091-66 Fitting - Hose Barb.....................................................................................................................1

8 FP-015-32 Elbow - Pipe 1-1/2 x 90 Deg. (Brass).........................................................................................1

9 FP-046-63 Pipe 1-1/2 x 1-3/4 TBE (Brass)..................................................................................................2

- 15 - F-43292 Rev. B (May 2015)

Page 16

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DOOR ASSEMBLY (ASR)

F-43292 Rev. B (May 2015) - 16 -

Page 17

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DOOR ASSEMBLY (ASR)

ILLUS. PL-60404

10 00-948200 Handle - Door.............................................................................................................................1

11 SC-125-15 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................2

12 00-473109-005-1 Switch - Interlock (50 In.)............................................................................................................1

13 00-948521 Bracket - Interlock Switch...........................................................................................................1

14 00-067500-00004 O-Ring........................................................................................................................................1

15 00-950402-00001 Seal - Door (RH Side) (Standard Height)...................................................................................1

16 00-950402-00003 Seal - Door (RH Side) (6 In. Higher Than Standard)..................................................................1

17 00-950401-00002 Seal - Door (Top)........................................................................................................................1

18 00-948533 Hinge Plate Assy........................................................................................................................1

19 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................2

20 NS-015-01 Nut 1/4-20 Hex (SST).................................................................................................................2

21 Screw.........................................................................................................................................2

22 Screw.........................................................................................................................................2

23 Lockwasher................................................................................................................................2

24 Washer.......................................................................................................................................2

25 Nut..............................................................................................................................................2

26 00-950299 Bracket - Weldnut.......................................................................................................................1

27 00-950402-00002 Seal - Door (LH Side) (Standard Height)....................................................................................1

28 00-950402-00004 Seal - Door (LH Side) (6 In. Higher Than Standard)..................................................................1

PART NO. NAME OF PART AMT.

1 00-949074-00003 Door Assy. (Standard Height) (Incls. 3 & 5 thru 11)...................................................................1

2 00-949074-00004 Door Assy. (6 In. Higher Than Standard) (Incls. 4 thru 11)........................................................1

3 00-949076-00003 Door Weldment (Standard Height).............................................................................................1

4 00-949076-00004 Door Weldment (6 In. Higher Than Standard)............................................................................1

5 00-814895 Retainer - Magnet.......................................................................................................................1

6 00-290160 Magnet.......................................................................................................................................1

7 00-949089-00002 Seal - Door (Bottom)..................................................................................................................1

8 SC-125-94 Mach. Screw 1/4-20 x 1 Phil. Truss Hd. (SST)...........................................................................4

9 00-949140-00003 Gasket - Door.............................................................................................................................1

- 17 - F-43292 Rev. B (May 2015)

Page 18

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

PANELS AND TRACKS (ASR)

F-43292 Rev. B (May 2015) - 18 -

Page 19

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

PANELS AND TRACKS (ASR)

ILLUS. PL-60401

10 00-949879 Tool - Wrench (Auto Clean Nozzles)..........................................................................................1

PART NO. NAME OF PART AMT.

1 00-948510-00001 Panel - Trim (Front)....................................................................................................................1

2 00-948309-00005 Track Assy. (ASR Section).........................................................................................................2

3 00-948598-00002 Saddle........................................................................................................................................2

4 00-948374 Foot Assy...................................................................................................................................2

5 00-948468-00002 Panel - Back (Standard Height)..................................................................................................1

6 00-948468-00005 Panel - Back (6 In. Higher Than Standard)................................................................................1

7 00-948467-00004 Panel - Top.................................................................................................................................1

8 00-948471 Bracket - Panel...........................................................................................................................2

9 00-948222-00002 Plate - Joint Backer (Used on standard conveyor only).............................................................1

- 19 - F-43292 Rev. B (May 2015)

Page 20

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

CURTAINS, FLOWBACK, MAKEUP PANS, & STRAINERS (ASR)

F-43292 Rev. B (May 2015) - 20 -

Page 21

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

CURTAINS, FLOWBACK, MAKEUP PANS, & STRAINERS (ASR)

ILLUS. PL-60402

10 00-948752 Bracket - Curtain........................................................................................................................1

11 00-948729 Curtain (Standard Height)..........................................................................................................1

12 00-948729-00002 Curtain (6 In. Higher Than Standard).........................................................................................1

13 00-948178-00001 Strainer.......................................................................................................................................1

14 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................8

15 SC-041-09 Cap Screw 5/16-18 x 1/2 Hex Hd. (SST)...................................................................................8

16 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST)..................................................................................AR

17 NS-031-21 Stop Nut 1/4-20 Hex (SST).....................................................................................................AR

18 SC-131-96 Screw......................................................................................................................................AR

19 NS-025-04 Crown Nut 1/4-20 (SST)..........................................................................................................AR

20 00-950008-00001 Hose - Overflow (L-R)................................................................................................................1

21 00-950008-00002 Hose - Overflow (R-L)................................................................................................................1

22 00-534651 Clamp - Hose #32......................................................................................................................1

23 00-538412 Clamp - Hose.............................................................................................................................1

24 00-949385-00001 Pipe - Weldment (Flowback) (L-R).............................................................................................1

25 00-949385-00002 Pipe - Weldment (Flowback) (R-L).............................................................................................1

26 00-120267-00003 Rod - Curtain..............................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-119254 Retainer - Cap & Stud................................................................................................................2

2 00-067500-00031 O-Ring........................................................................................................................................2

3 00-119244 Cap & Stud Assy........................................................................................................................2

4 00-947999-00002 Pan - Deflector...........................................................................................................................1

5 00-947998-00003 Plate - Deflector..........................................................................................................................1

6 00-476130 Coupling - Pass-Thru (Flow Back Pipe) (2.031 Dia. thru Hole)..................................................2

7 00-949357-00001 Plate - Flowback Mounting.........................................................................................................1

8 00-949977-00001 Pipe - Overflow (Scalloped)........................................................................................................1

9 00-948185 Baffle..........................................................................................................................................1

- 21 - F-43292 Rev. B (May 2015)

Page 22

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

RINSE ARM AND MANIFOLD ASSEMBLY (ASR)

F-43292 Rev. B (May 2015) - 22 -

Page 23

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

RINSE ARM AND MANIFOLD ASSEMBLY (ASR)

ILLUS. PL-60399

10 00-948159-00001 Retainer - Rinse Arm..................................................................................................................1

11 00-948082-00001 Tube - Manifold (Upper) (Standard Height)................................................................................1

12 00-948082-00002 Tube - Manifold (Upper) (6 In. Higher Than Standard)..............................................................1

13 00-948083-00001 Tube - Manifold (Lower).............................................................................................................1

14 00-948586-00001 Fitting - Barbed...........................................................................................................................2

15 FP-030-16 Lock Nut 1/2 Pipe (Brass)..........................................................................................................2

16 00-949432-00002 O-Ring........................................................................................................................................2

17 00-067500-00078 O-Ring........................................................................................................................................2

18 00-067500-00031 O-Ring........................................................................................................................................2

19 SC-131-96 Screw.........................................................................................................................................8

20 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................8

21 NS-025-04 Crown Nut 1/4-20 (SST).............................................................................................................8

22 FP-091-72 Fitting..........................................................................................................................................2

23 01-297394-00001 Nozzle (Cleaning Tank)..............................................................................................................2

24 01-533129 Coupling - Angled.......................................................................................................................2

25 00-949935 Seal............................................................................................................................................2

26 FP-030-16 Lock Nut 1/2 Pipe (Brass)..........................................................................................................2

27 00-949959-00001 Hose (25 In.) (WYE to Rinse).....................................................................................................1

28 00-949959-00002 Hose (20 In.) (WYE to Rinse).....................................................................................................1

29 00-521687 Clamp - Hose.............................................................................................................................2

PART NO. NAME OF PART AMT.

1 00-948162-00001 Bracket - Hub Rinse...................................................................................................................1

2 00-948623-00002 Hub - Rinse................................................................................................................................2

3 00-948160-00002 Bracket - Lower Arm Support (L-R, ASR Section).....................................................................1

4 00-948160-00003 Bracket - Lower Arm Support (R-L, ASR Section).....................................................................1

5 00-948081-00002 Tube - Wash...............................................................................................................................2

6 00-948161-00002 Guide - Rinse Arm......................................................................................................................1

7 00-948152-00002 Bracket - Hub Rinse (Upper)......................................................................................................1

8 00-948158-00002 Bracket - Rinse Arm (Upper) (L-R).............................................................................................1

9 00-948158-00001 Bracket - Rinse Arm (Upper) (R-L).............................................................................................1

- 23 - F-43292 Rev. B (May 2015)

Page 24

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

PUMP AND MOTOR ASSEMBLY (ASR)

F-43292 Rev. B (May 2015) - 24 -

Page 25

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

PUMP AND MOTOR ASSEMBLY (ASR)

ILLUS. PL-60400

10 01-297086-00501 Drain Body (ASR).......................................................................................................................1

11 00-534651 Clamp - Hose #32......................................................................................................................4

12 00-948034 Hose - Pump..............................................................................................................................1

13 00-948033-00001 Hose - Outlet (L-R).....................................................................................................................1

14 00-948033-00002 Hose - Outlet (R-L).....................................................................................................................1

15 00-947900-00001 Pump Assy. (208-240/380-480 V., 60 Hz., 3 Ph.) (L-R) (Incls. Item 21)....................................1

16 00-947900-00002 Pump Assy. (208-240/380-480 V., 50 Hz., 3 Ph.) (L-R) (Incls. Item 21)....................................1

17 00-947900-00003 Pump Assy. (600 V., 60 Hz., 3 Ph.) (L-R) (Incls. Item 21)..........................................................1

18 00-947900-00004 Pump Assy. (208-240/380-480 V., 60 Hz., 3 Ph.) (R-L) (Incls. Item 21)....................................1

19 00-947900-00005 Pump Assy. (208-240/380-480 V., 50 Hz., 3 Ph.) (R-L) (Incls. Item 21)....................................1

20 00-947900-00006 Pump Assy. (600 V., 60 Hz., 3 Ph.) (R-L) (Incls. Item 21)..........................................................1

21 00-948110 Impeller Assy..............................................................................................................................1

22 00-948078-00001 Plate - Pump Motor Mount.........................................................................................................1

23 00-948077-00001 Plate - Stabilizer.........................................................................................................................4

24 WS-019-20 Washer (SST).............................................................................................................................8

25 NS-031-15 Stop Nut 10-24 Hex (SST).........................................................................................................8

26 00-949522 Hose - Intake..............................................................................................................................1

27 00-950112 Soil Sump Weldment..................................................................................................................1

28 00-949959-00001 Hose (25 In.)...............................................................................................................................1

29 00-949959-00002 Hose (20 In.)...............................................................................................................................1

30 00-521687 Clamp - Hose.............................................................................................................................2

31 00-950111 Soil Sump Weldment..................................................................................................................1

PART NO. NAME OF PART AMT.

1 FP-091-73 Fitting - WYE 3/4 (Black)............................................................................................................1

2 00-521687 Clamp - Hose.............................................................................................................................4

3 00-949849 Hose - Outlet..............................................................................................................................1

4 00-947899-00001 Pump Motor Assy. (208-480 V., 60 Hz., 3 Ph.)..........................................................................1

5 00-947899-00002 Pump Motor Assy. (200-415 V., 50 Hz., 3 Ph.).......................................................................AR

6 00-947899-00003 Pump Motor Assy. (600 V., 60 Hz., 3 Ph.).................................................................................1

7 00-949472 Bracket - Sump...........................................................................................................................2

8 00-886639 Kit - Flange.................................................................................................................................1

9 00-948360 Gasket - Manifold.......................................................................................................................1

- 25 - F-43292 Rev. B (May 2015)

Page 26

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

TANK DRAIN ASSEMBLY (ASR)

F-43292 Rev. B (May 2015) - 26 -

Page 27

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

TANK DRAIN ASSEMBLY (ASR)

ILLUS. PL-60403

10 00-948758 Bracket - Drain Valve.................................................................................................................1

11 00-949162 Handle - Drain............................................................................................................................1

12 00-949423 Knob...........................................................................................................................................1

13 00-949158 Support - Drain Handle...............................................................................................................1

14 NS-031-50 Stop Nut 6-32 Hex (SST)...........................................................................................................4

15 00-949161 Bracket - Drain Switch................................................................................................................1

16 NS-031-21 Stop Nut 1/4-20 Hex (SST).....................................................................................................AR

17 WS-005-32 Washer (SST)..........................................................................................................................AR

18 00-473109-005-1 Switch - Interlock (50 In.)............................................................................................................1

19 SC-066-03 Mach. Screw 6-32 x 1/2 Phil. Truss Hd......................................................................................4

20 00-893111 Magnet - Mount..........................................................................................................................1

21 00-111941 Magnet.......................................................................................................................................1

22 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................1

23 00-067500-00019 O-Ring........................................................................................................................................2

24 00-948761-00007 Pipe - Drain (3.410 In.)...............................................................................................................1

25 00-948761-00006 Pipe - Drain (48.302 In.) (R-L)....................................................................................................1

26 00-948761-00008 Pipe - Drain (10.500 In.) (L-R)....................................................................................................1

27 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST).....................................................................................2

PART NO. NAME OF PART AMT.

1 00-949141 Tube - Drain...............................................................................................................................1

2 00-949667 Hose - Adapter 1-1/8 to 1-1/2.....................................................................................................1

3 00-970906 Tee - Drain.................................................................................................................................1

4 00-538412 Clamp - Hose.............................................................................................................................6

5 00-949132-00003 Hose - Drain (Straight)...............................................................................................................1

6 FP-091-66 Fitting - Hose Barb.....................................................................................................................2

7 00-949070 Valve Assy..................................................................................................................................1

8 00-949429 U-Bolt.........................................................................................................................................1

9 00-949133 Hose - Drain (Elbow)..................................................................................................................1

- 27 - F-43292 Rev. B (May 2015)

Page 28

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

FLOAT ASSEMBLY (ASR)

F-43292 Rev. B (May 2015) - 28 -

Page 29

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

FLOAT ASSEMBLY (ASR)

ILLUS. PL-60398

10 00-122674 Float Assy...................................................................................................................................1

11 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................2

12 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST).....................................................................................2

PART NO. NAME OF PART AMT.

1 00-949574 Box Assy....................................................................................................................................1

2 00-949575 Lid Assy......................................................................................................................................1

3 NS-018-28 Jam Nut 1/2-20 Hex (SST).........................................................................................................1

4 WL-014-31 Lockwasher 1/2 External Shakeproof (SST)..............................................................................1

5 WS-010-40 Washer - Thrust..........................................................................................................................1

6 00-067500-00072 O-Ring........................................................................................................................................1

7 00-936547-00001 Probe & Switch Assy. (2-Wire) (Short) (Incls. Items 8, 9, & 10).................................................1

8 RR-010-13 Retaining Ring............................................................................................................................1

9 00-112467 Retainer - Float...........................................................................................................................1

- 29 - F-43292 Rev. B (May 2015)

Page 30

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DOOR ASSEMBLY

(PREWASH & WASH/POWER RINSE)

F-43292 Rev. B (May 2015) - 30 -

Page 31

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

DOOR ASSEMBLY

(PREWASH & WASH/POWER RINSE)

ILLUS. PL-60388

10 00-948200 Handle - Door.............................................................................................................................1

11 SC-125-15 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................2

12 00-949075-00001 Door Assy. (Standard Height) (LH) (Incls. Items 14 & 16 thru 22).............................................1

13 00-949075-00002 Door Assy. (6 In. Higher Than Standard) (LH) (Incls. Items 15 thru 22)....................................1

14 00-949077-00001 Door Weldment (Standard Height).............................................................................................1

15 00-949077-00002 Door Weldment (6 In. Higher Than Standard)............................................................................1

16 00-814895 Retainer - Magnet.......................................................................................................................1

17 00-290160 Magnet.......................................................................................................................................1

18 00-949090 Seal - Door (Bottom) (LH)..........................................................................................................1

19 SC-125-94 Mach. Screw 1/4-20 x 1 Phil. Truss Hd. (SST)...........................................................................4

20 00-949140-00002 Gasket - Door (LH).....................................................................................................................1

21 00-948200 Handle - Door.............................................................................................................................1

22 SC-125-15 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................2

23 00-950402-00001 Seal - Door (RH Side) (Standard Height)...................................................................................1

24 00-950402-00003 Seal - Door (RH Side) (6 In. Higher Than Standard)..................................................................1

25 00-067500-00004 O-Ring........................................................................................................................................2

26 00-950401-00001 Seal - Door (Top)........................................................................................................................1

27 00-948533 Hinge Plate Assy........................................................................................................................2

28 00-948521 Bracket - Interlock Switch...........................................................................................................2

29 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................2

30 NS-015-01 Nut 1/4-20 Hex (SST).................................................................................................................2

31 00-473109-005-1 Switch - Interlock........................................................................................................................2

32 Screw.........................................................................................................................................2

33 Screw.........................................................................................................................................2

34 Lockwasher................................................................................................................................2

35 Washer.......................................................................................................................................2

36 Nut..............................................................................................................................................2

37 00-950299 Bracket - Weldnut.......................................................................................................................2

38 00-950402-00002 Seal - Door (LH Side) (Standard Height)....................................................................................1

39 00-950402-00004 Seal - Door (LH Side) (6 In. Higher Than Standard)..................................................................1

PART NO. NAME OF PART AMT.

1 00-949074-00001 Door Assy. (Standard Height) (RH) (Incls. Items 3 & 5 thru 11).................................................1

2 00-949074-00002 Door Assy. (6 In. Higher Than Standard) (RH) (Incls. Items 4 thru 11)......................................1

3 00-949076-00001 Door Weldment (Standard Height).............................................................................................1

4 00-949076-00002 Door Weldment (6 In. Higher Than Standard)............................................................................1

5 00-814895 Retainer - Magnet.......................................................................................................................1

6 00-290160 Magnet.......................................................................................................................................1

7 00-949089-00001 Seal - Door (Bottom) (RH)..........................................................................................................1

8 SC-125-94 Mach. Screw 1/4-20 x 1 Phil. Truss Hd. (SST)...........................................................................4

9 00-949140-00001 Gasket - Door (RH)....................................................................................................................1

- 31 - F-43292 Rev. B (May 2015)

Page 32

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

PANELS AND TRACKS

(PREWASH & WASH/POWER RINSE)

F-43292 Rev. B (May 2015) - 32 -

Page 33

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

PANELS AND TRACKS

(PREWASH & WASH/POWER RINSE)

ILLUS. PL-60386

10 00-948222-00002 Plate - Joint Backer (Used on standard conveyor only).............................................................1

PART NO. NAME OF PART AMT.

1 00-948510-00002 Panel - Trim (Front)....................................................................................................................1

2 00-948309-00001 Track Assy..................................................................................................................................2

3 00-948446-00002 Support - Frame (Incls. Item 4)..................................................................................................1

4 00-948374 Foot Assy...................................................................................................................................2

5 00-948468-00001 Panel - Back (Standard Height)..................................................................................................1

6 00-948468-00004 Panel - Back (6 In. Higher Than Standard)................................................................................1

7 00-948467-00001 Panel - Top.................................................................................................................................1

8 00-948471 Bracket - Panel...........................................................................................................................2

9 00-948598-00002 Saddle........................................................................................................................................1

- 33 - F-43292 Rev. B (May 2015)

Page 34

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

FLOWBACK, MAKEUP PANS, & SCREENS

(PREWASH & WASH/POWER RINSE)

F-43292 Rev. B (May 2015) - 34 -

Page 35

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

FLOWBACK, MAKEUP PANS, & SCREENS

(PREWASH & WASH/POWER RINSE)

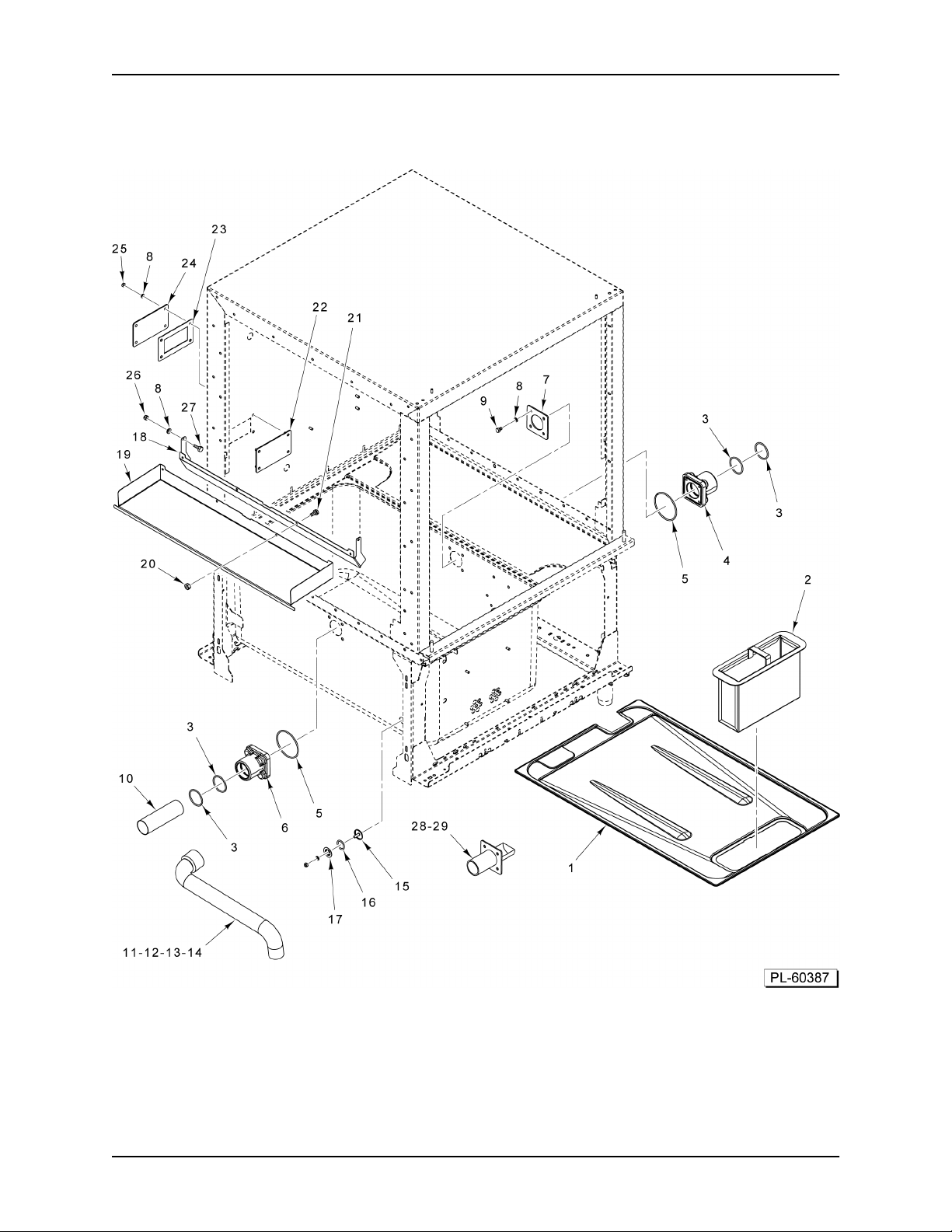

ILLUS. PL-60387

10 00-949471-00001 Pipe (With ASR).........................................................................................................................1

11 00-949938-00001 Hose - Elbow (Without ASR) (Prewash Only) (R-L)...................................................................1

12 00-949938-00002 Hose - Elbow (Without ASR) (Prewash Only) (L-R)...................................................................1

13 00-534651 Clamp - Hose #32......................................................................................................................1

14 00-538412 Clamp - Hose.............................................................................................................................1

15 00-119244-00002 Cap..........................................................................................................................................AR

16 00-067500-00031 O-Ring.....................................................................................................................................AR

17 00-119254 Retainer - Cap & Stud.............................................................................................................AR

18 00-947998-00002 Plate - Deflector..........................................................................................................................1

19 00-947999-00002 Pan - Deflector...........................................................................................................................1

20 NS-031-21 Stop Nut 1/4-20 Hex (SST)........................................................................................................4

21 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST)..................................................................................AR

22 00-949352-00002 Plate - Air Gap............................................................................................................................1

23 00-949717 Gasket - Air Gap.........................................................................................................................1

24 00-949352 Plate - Air Gap............................................................................................................................1

25 NS-015-01 Nut 1/4-20 Hex (SST).................................................................................................................4

26 NS-025-04 Crown Nut 1/4-20 (SST)..........................................................................................................AR

27 SC-131-96 Screw......................................................................................................................................AR

28 00-949977-00002 Pipe - Overflow (Prewash Only) (R-L)........................................................................................1

29 00-949977-00001 Pipe - Overflow (Prewash Only) (L-R)........................................................................................1

PART NO. NAME OF PART AMT.

1 00-949088 Screen........................................................................................................................................1

2 00-948683-00002 Basket - Strainer (Deep).............................................................................................................1

3 00-067500-00134 O-Ring........................................................................................................................................4

4 00-476130 Coupling - Pass-Thru (Flow Back Pipe) (2.031 Dia. thru Hole)..................................................1

5 00-067500-00132 O-Ring........................................................................................................................................2

6 00-476130 Coupling - Pass-Thru (Flow Back Pipe) (2.031 Dia. thru Hole)..................................................1

*7 00-949357-00001 Plate - Flowback Mounting.........................................................................................................2

8 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................8

9 SC-041-09 Cap Screw 5/16-18 x 1/2 Hex Hd. (SST)...................................................................................8

* (On units without ASR, use item 28 or 29 on side of tank closest to the LOAD

section.)

- 35 - F-43292 Rev. B (May 2015)

Page 36

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

CURTAINS

(PREWASH & WASH/POWER RINSE)

F-43292 Rev. B (May 2015) - 36 -

Page 37

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

CURTAINS

(PREWASH & WASH/POWER RINSE)

ILLUS. PL-60566

PART NO. NAME OF PART AMT.

1 00-948729 Curtain (Standard Height).......................................................................................................AR

2 00-948729-00002 Curtain (6 In. Higher Than Standard)......................................................................................AR

3 00-948752 Bracket - Curtain.....................................................................................................................AR

4 00-950032-00001 Bracket - Curtain (Prison)........................................................................................................AR

5 00-120267-00004 Rod - Curtain (35-1/4 In.)........................................................................................................AR

6 00-948731 Curtain (Short).........................................................................................................................AR

7 00-948752-00002 Bracket - Curtain.....................................................................................................................AR

8 00-950032-00003 Bracket - Curtain (Prison)........................................................................................................AR

9 00-120267-00003 Rod - Curtain...........................................................................................................................AR

- 37 - F-43292 Rev. B (May 2015)

Page 38

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

AIR GAP ASSEMBLY

(PREWASH & WASH/POWER RINSE)

F-43292 Rev. B (May 2015) - 38 -

Page 39

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

AIR GAP ASSEMBLY

(PREWASH & WASH/POWER RINSE)

ILLUS. PL-60436

10 FP-015-16 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1

11 00-893444-00001 Hose - Water (Braided) (66 In.) (SST)........................................................................................1

12 00-893444-00003 Hose - Water (Braided) (96 In.) (SST)........................................................................................1

13 00-893444-00005 Hose - Water (Braided) (120 In.) (SST)......................................................................................1

14 00-950383 Bracket.......................................................................................................................................1

PART NO. NAME OF PART AMT.

1 00-949353 Plate - Stiffener (Air Gap)...........................................................................................................1

2 00-949717 Gasket - Air Gap.........................................................................................................................1

3 00-949100 Air Gap Weldment......................................................................................................................1

4 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................4

5 NS-015-01 Nut 1/4-20 Hex (SST).................................................................................................................4

6 FP-053-05 Pipe Lock Nut 1/2 NPSL (SST)..................................................................................................1

7 FP-090-12 Pipe 1/2 x 2 TBE (Brass)............................................................................................................1

8 FP-015-16 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1

9 FP-040-53 Pipe 1/2 x 2-3/4 TBE (Brass)......................................................................................................1

- 39 - F-43292 Rev. B (May 2015)

Page 40

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

WASH ARMS AND MANIFOLD (PREWASH)

F-43292 Rev. B (May 2015) - 40 -

Page 41

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

WASH ARMS AND MANIFOLD (PREWASH)

ILLUS. PL-60435

10 00-948275-00001 Manifold - Wash (Standard Height)............................................................................................1

11 00-948275-00002 Manifold - Wash (6 In. Higher Than Standard)...........................................................................1

12 00-947951-00004 Bracket - Wash Arm (Lower) (RH).............................................................................................1

13 00-947951-00003 Bracket - Wash Arm (Lower) (LH)..............................................................................................1

14 00-949102-00001 Wash Arm Assy. (2-Tube) (Lower) (L-R)....................................................................................1

15 00-949102-00002 Wash Arm Assy. (2-Tube) (Lower) (R-L)....................................................................................1

16 00-949432-00003 O-Ring........................................................................................................................................2

17 00-947952-00003 Tube - Wash...............................................................................................................................1

18 01-245055-001 Elbow - Manifold.........................................................................................................................1

19 NS-015-01 Nut 1/4-20 Hex (SST)..............................................................................................................AR

20 WL-006-17 Lockwasher 1/4 Helical (SST).................................................................................................AR

21 WS-005-32 Washer (SST)..........................................................................................................................AR

22 00-949631 Plate - Baffle...............................................................................................................................2

23 00-947957 Bracket - Manifold......................................................................................................................2

24 01-297394-00001 Nozzle (Cleaning Tank)..............................................................................................................3

25 01-533129 Coupling - Angled.......................................................................................................................3

26 00-949935 Seal............................................................................................................................................3

27 FP-030-16 Lock Nut 1/2 Pipe (Brass)..........................................................................................................3

28 00-950071 Diverter - Auto Clean (Wash Arm)...........................................................................................AR

PART NO. NAME OF PART AMT.

1 00-947950-00003 Bracket - Wash Arm (Upper) (RH, L-R)......................................................................................1

2 00-947948-00003 Bracket - Wash Arm (Upper) (RH, R-L)......................................................................................1

3 00-949101-00004 Wash Arm Assy. (4-Tube) (Upper) (L-R)....................................................................................1

4 00-949101-00008 Wash Arm Assy. (4-Tube) (Upper) (R-L)....................................................................................1

5 SC-131-96 Screw......................................................................................................................................AR

6 NS-025-06 Crown Nut 1/4-20 (SST)..........................................................................................................AR

7 00-947948-00004 Bracket - Wash Arm (Upper) (LH, L-R)......................................................................................1

8 00-947950-00004 Bracket - Wash Arm (Upper) (LH, R-L)......................................................................................1

9 00-949184-00002 Bracket - Baffle (4-Tube)............................................................................................................1

- 41 - F-43292 Rev. B (May 2015)

Page 42

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

WASH ARMS AND MANIFOLD

(WASH/POWER RINSE)

F-43292 Rev. B (May 2015) - 42 -

Page 43

FT1000 SERIES DISHWASHERS REPLACEMENT PARTS

WASH ARMS AND MANIFOLD

(WASH/POWER RINSE)

ILLUS. PL-60389

10 00-948275-00001 Manifold - Wash (Standard Height)............................................................................................1

11 00-948275-00002 Manifold - Wash (6 In. Higher Than Standard)...........................................................................1

12 00-947951-00004 Bracket - Wash Arm (Lower) (RH).............................................................................................1

13 00-947951-00003 Bracket - Wash Arm (Lower) (LH)..............................................................................................1

14 00-949101-00019 Wash Arm Assy. (4-Tube) (Lower) (L-R)....................................................................................1

15 00-949101-00020 Wash Arm Assy. (4-Tube) (Lower) (R-L)....................................................................................1
