Page 1
CATALOG OF
REPLACEMENT
PARTS
MODEL D300 SERIES MIXERS
(INCLUDES MOTOR PARTS)
ML-134258 D300T (Timed)
ML-134261 D300C (Timed)
PRIOR MLS COVERED IN THIS MANUAL
ML-134211 D300T (Timed)
ML-134213 D300C (Timed)
ML-104421 D300T (Timed)
ML-134114 D300C (Timed)
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43067 Rev. B (August 2005)
Page 2
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
F-43067 Rev. B (August 2005)
- 2 -
© HOBART
Page 3
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
TABLE OF CONTENTS
5 MAGNETIC CONTROL UNIT
7 TIMER CONTROL AND SWITCH UNIT
9 BASE AND PEDESTAL
(ML-104421 & ML-134114)
11 BASE AND PEDESTAL
(ML-134211, ML-134213, ML-134258, & ML-134261)
13 BOWL LIFT UNIT
15 TRANSMISSION CASE
17 MOTOR PARTS
(ML-104421 & ML-134114)
19 MOTOR PARTS
(ML-134211, ML-134213, ML-134258, & ML-134261)
21 SHIFTER UNIT
23 TRANSMISSION
25 PLANETARY AND ATTACHMENT HUB
27 BOWL GUARD UNIT
(PREVIOUS CONSTRUCTION)
29 BOWL GUARD UNIT
(CURRENT CONSTRUCTION)
30 BOWL HEIGHT SENSING UNIT
31 BOWL
32 AGITATORS
- 3 -
F-43067 Rev. B (August 2005)
Page 4
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
13 THRU 17
18
12
11
7 THRU 10
19
20
5-6
4
2
1
3
21
22
F-43067 Rev. B (August 2005)
27
26
MAGNETIC CONTROL UNIT
- 4 -
23
24
25
PL-56617
Page 5
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
MAGNETIC CONTROL UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-56617
3
1 SD-015-20 Self-Tapping Screw 10-32 x
2 00-101935 Transformer (Above 250 V.) ..................................................................................................... 1
3 SD-015-20 Self-Tapping Screw 10-32 x
4 SD-015-20 Self-Tapping Screw 10-32 x 3/8 Phil. Pan Hd., Type TT (Above 250 V.) (3 Ph.) .......................1
5 FE-009-25 Fuse (0.5 Amp.) (Above 250 V.) (3 Ph.) ................................................................................... 1
6 00-022376-00001 Fuse Holder ................................................................................................................................1
7 00-124017 Fuse Block Assy. (Above 250 V.) (3 Ph.) .................................................................................1
8 00-085432 Insulator – Fuse Block (Above 250 V.) (3 Ph.) .........................................................................1
9 SC-009-49 Mach. Screw 6-32 x 3/8 Slotted Rd. Hd. ..................................................................................... 1
10 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 1
11 00-088196-005-1 Relay – Thermal Overload (3 Ph.) (Tri-Block) ...........................................................................1
12 00-271911 Panel – Control ........................................................................................................................... 1
13 00-087713-037-2 Contactor (115 V. Coil) (2 Pole) ................................................................................................. 1
14 00-087713-037-1 Contactor (220 V. Coil) (2 Pole) ................................................................................................. 1
15 00-087713-101-1 Contactor (200/300 V., 60 Hz.; 220 V., 50 Hz.) (3 Ph.) (3 Pole) ............................................... 1
16 00-087713-101-2 Contactor (460 V., 60 Hz.; 380/415 V., 50 Hz.) (3 Ph.) (3 Pole) ............................................... 1
17 SD-019-23 Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B ............................................................... 2
18 00-294815 Insulator ......................................................................................................................................1
19 00-078752-00004 Clip – Wiring ................................................................................................................................ 1
20 SD-019-23 Self-Tapping Screw 10-16 x 3/8 Phil. Pan Hd., Type B ............................................................... 1
21 00-088196-006-1 Relay – Thermal Overload (1 Ph.).............................................................................................. 1
22 SD-015-39 Self-Tapping Screw 8-32 x 1/4 Phil. Pan Hd., Type TT ............................................................... 2
23 00-271612-00002 Electronic Start Switch (1 Ph.) ................................................................................................... 1
24 00-066621-00001 Bracket (1 Ph.) ...........................................................................................................................1
25 00-070487-00001 Capacitor (1 Ph.) ........................................................................................................................1
26 SD-029-06 Self-Tapping Screw 10-24 x 1/2 Phil. Flat Hd., Type F (SST) ..................................................... 2
27 00-070486-00002 Cap (1 Ph.) ................................................................................................................................. 1
00-112235 Data Plate – Machine ................................................................................................................ AR
– Heater Element – Overload (See Chart Below) ...................................................................... AR
/8 Phil. Pan Hd., Type TT (Above 250 V.) (3 Ph.) .......................1
3
/8 Phil. Pan Hd., Type TT (Above 250 V.) (3 Ph.) .......................1
Heater Motor Machine Machine Freq. Hz. Ph. Hp. Motor Amp. Overload
Part No. Part No. Voltage Code Voltage RPM Rating Relay
112235-42 875386-1 A 115 60 1 3/4 1725 11.6 E-56
112235-35 875386-3 B 200 60 1 3/4 1725 6.3 E-48
112235-35 875386-1 C 230 60 1 3/4 1725 5.8 E-48
112235-26 875386-2 F 200 60 3 3/4 1725 2.5 E-36
112235-23 875386-4 G 230 60 3 3/4 1725 2.0 E-32
112235-16 875386-4 H 460 60 3 3/4 1725 1.0 E-23
112235-35 875386-1 M 220 50 1 3/4 1425 6.4 E-48
112235-23 875386-4 AB 200 50 3 3/4 1425 2.0 E-32
- 5 -
F-43067 Rev. B (August 2005)
Page 6
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
6
5
3-4
1-2
7
21
8-9-10
36
37
34-35
11 THRU 20
24-25-26
27-28
29
30
33
31-32
22
23
PL-56619
F-43067 Rev. B (August 2005)
TIMER CONTROL AND SWITCH UNIT
- 6 -
Page 7
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
TIMER CONTROL AND SWITCH UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-56619
1 00-087711-183-1 Switch – Push Button (N.O.) (Start) .......................................................................................... 1
2 00-102467-00001 Cap – Push Button (Start) (Black) .............................................................................................. 1
3 SC-013-12 Mach. Screw 6-32 x 1/4 Slotted Flat Hd. (ML-104421, ML-134211, & ML-134258) ..................4
4 SC-128-67 Mach. Screw 6-32 x 1/4 Tx. Flat Hd. (SST) (ML-134114, ML-134213, & ML-134261) ..............4
5 00-087711-183-2 Switch – Push Button (N.C.) (Stop) ........................................................................................... 1
6 00-291725 Plate – Switch & Timer ...............................................................................................................1
7 00-102467-00002 Cap – Push Button (Stop) (Red) ................................................................................................1
8 SD-024-01 Self-Tapping Screw 10-24 x 3/8 Slotted Pan Hd., Type TT
9 SD-037-58 Self-Tapping Screw 10-24 x 3/8 Hex Button Hd., Type F (SST)
10 WL-008-13 Lockwasher #10 Internal ........................................................................................................... 4
11 00-291748 Knob – Timer .............................................................................................................................. 1
12 00-294650-004-1 Timer Assy. (115 V., 60 Hz.) (ML-134211, ML-134213, ML-134258, & ML-134261) ............... 1
13 00-294650-004-2 Timer Assy. (200 V., 60 Hz.) (ML-134211, ML-134213, ML-134258, & ML-134261) ............... 1
14 00-294650-004-4 Timer Assy. (200 V., 50 Hz.) (ML-134211, ML-134213, & ML-134258).................................... 1
15 00-294650-004-5 Timer Assy. (115 V., 60 Hz.) (Machine W/Pilot Circuit)
16 00-294650-004-6 Timer Assy. (230 V., 60 Hz.) (ML-104421, ML-134114, & ML-134211) ....................................1
17 00-294650-004-7 Timer Assy. (115 V., 50 Hz.) (Machine W/Pilot Circuit)
18 00-294650-004-8 Timer Assy. (220 V., 50 Hz.) (ML-104421, ML134114, ML-134211, & ML-134213) .................1
19 SC-013-07 Mach. Screw 5-40 x 1/4 Slotted Flat Hd. .................................................................................... 2
20 00-291751 Insulation ....................................................................................................................................1
21 00-437311 Cover & Hasp Assy. (Incls. Items 22 & 23) (ML-134114, ML-134213, ML-134261)................. 1
22 NS-032-01 Lock Nut 10-24 Hex (ML-134114, ML-134213, & ML-134261) ................................................. 2
23 SC-121-94 Mach. Screw 10-24 x 3/8 Hex Button Head (SST) (ML-134114, ML-134213, & ML-134261)... 2
24 00-439338 Switch Plate & Keypad Assy. (ML-104421 & ML-134211) ....................................................... 1
25 00-439400-00001 Board Assy. (120 V.) (ML-104421 & ML-134211) ..................................................................... 1
26 00-439400-00002 Board Assy. (240 V.) (ML-104421 & ML-134211) ..................................................................... 1
27 00-437775 Knob – Potentiometer (ML-104421 & ML-134211) .................................................................... 1
28 00-437742 Seal – Shaft (ML-104421 & ML-134211) ................................................................................... 1
29 SC-053-38 Mach. Screw 6-32 x 1/4 Slotted Truss Hd. (SST) (ML-104421 & ML-134211) ......................... 4
30 00-087711-183-2 Switch – Push Button (N.C.) (Stop) (ML-104421 & ML-134211) ..............................................1
31 SD-024-01 Self-Tapping Screw 10-24 x 3/8 Slotted Pan Hd., Type TT (ML-104421 & ML-134211) ............4
32 WL-008-13 Lockwasher #10 Internal (ML-104421 & ML-134211) .............................................................. 4
33 00-102467-00002 Cap – Push Button (Stop) (Red) (ML-104421 & ML-134211).................................................... 1
34 00-087711-183-1 Switch – Push Button (N.O.) (Start) (ML-104421 & ML-134211) ............................................. 1
35 00-102467-00001 Cap – Push Button (Start) (Black) (ML-104421 & ML-134211) ................................................. 1
36 NS-046-17 Stop Nut 4-40 Hex (ML-104421 & ML-134211) ......................................................................... 2
37 00-438499-00002 Buzzer (ML-104421 & ML-134211) ........................................................................................... 1
00-117542-00021 Cord & Plug (115 V.) ................................................................................................................. AR
00-438074-00001 Snubber Assy............................................................................................................................. 1
(ML-104421, ML-134211, & ML-134258)................................................................................... 4
(ML-134114, ML-134213, & ML-134261)................................................................................... 4
(ML-104421, ML-134114, & ML-134211) ................................................................................... 1
(ML-104421, ML-134211, & ML134114) ....................................................................................1
- 7 -
F-43067 Rev. B (August 2005)
Page 8
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
32
31
1-2
35
34
3
4
5
6-7
8
9
24
25
29-30
26
33
10
28
11-12
27
13
14-15-16
17-18-19
20
23
PL-57865
F-43067 Rev. B (August 2005)
21
22
BASE AND PEDESTAL
(ML-104421 & ML-134114)
- 8 -
Page 9
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
BASE AND PEDESTAL
(ML-104421 & ML-134114)
ILLUS. PART NO. NAME OF PART AM T.
PL-57865
1 00-070145 Air Baffle Assy. .......................................................................................................................... 1
2 SC-013-55 Mach. Screw 10-24 x 1 Slotted Flat Hd. ................................................................................... 1
3 00-070450 Knob – Lift .................................................................................................................................. 1
4 00-121676-00003 Screw – Special ......................................................................................................................... 4
5 WS-019-26 Washer .......................................................................................................................................1
6 00-070144-00001 Lift Access Cover Assy. ............................................................................................................ 1
7 00-123109 Screw 6-32 x 3/8 Serrated Hd. ................................................................................................... 4
8 NS-017-15 Jam Nut 3/8-16 Hex ......................................................................................................................1
9 SC-047-46 Set Screw 3/8-16 x 11/4 Soc. Hdls., Half-Dog Pt. ........................................................................ 1
10 00-078752-00011 P-Clamp 3/16 ................................................................................................................................. 2
11 SC-122-25 Mach. Screw 8-32 x 1 Phil. Pan Hd. (SST) (ML-104421) ......................................................... 2
12 SC-123-33 Mach. Screw 8-32 x 1 Hex Button Hd. (SST) (ML-134114) ..................................................... 2
13 00-123969-00001 Cover & Gasket Assy. (Capacitor & Starter Access) ...............................................................1
14 00-123109 Screw 6-32 x 3/8 Serrated Hd. (ML-104421) .............................................................................4
15 SC-121-90 Mach. Screw 6-32 x 3/8 Hex Button Hd. (SST) (ML-134114) .................................................... 4
16 WL-013-05 Lockwasher #6 Internal (SST) .................................................................................................. 4
17 00-123961-00004 Pedestal ...................................................................................................................................... 1
18 SD-024-01 Self-Tapping Screw 10-24 x 3/8 Slotted Pan Hd., Type TT ........................................................ 1
19 WL-010-06 Lockwasher #10 External Shakeproof (Bronze) ...................................................................... 1
20 00-110146-00002 Base Assy. ................................................................................................................................. 1
21 WS-018-19 Washer ....................................................................................................................................... 4
22 SC-097-53 Cap Screw 3/8-16 x 21/4 Hex Hd. ................................................................................................ 4
23 00-087668-00002 Caster ......................................................................................................................................... 4
24 00-875748 Bowl Truck Assy. (Incls. Items 23 & 25) ................................................................................... 1
25 00-018682-00001 Bumper .......................................................................................................................................4
26 SC-040-14 Cap Screw 5/16-18 x 3/4 Hex Soc. Hd. ......................................................................................... 8
27 WL-003-48 Lockwasher 5/16 High Collar ....................................................................................................... 8
28 00-011800-00116 Dowel ......................................................................................................................................... 2
29 00-070641-00011 Thumb Screw 8-32 Special (ML-104421) ................................................................................. 2
30 SC-121-92 Mach. Screw 8-32 x 3/8 Hex Button Hd. (SST) (ML-134114) .................................................... 2
31 00-437723 Apron.......................................................................................................................................... 1
32 00-068717 Slideway ....................................................................................................................................2
33 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2
34 WL-007-07 Lockwasher #8 External............................................................................................................ 2
35 WS-019-16 Washer ....................................................................................................................................... 2
00-477597 Feet Kit (Set of 4) (SST) ............................................................................................................ 1
00-315139 Deck Plate Kit ..............................................................................................................................1
- 9 -
F-43067 Rev. B (August 2005)
Page 10
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
29
30
1
31
2
34-35
33
32
5
4
3
6-7
10
17-18-19
21
8
9
11-12
13
14-15-16
20
28
PL-57866
F-43067 Rev. B (August 2005)
27
25-26
22-23-24
BASE AND PEDESTAL
(ML-134211, ML-134213, ML-134258, & ML-134261)
- 10 -
Page 11
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
BASE AND PEDESTAL
(ML-134211, ML-134213, ML-134258, & ML-134261)
ILLUS. PART NO. NAME OF PART AM T.
PL-57866
1 00-437723 Apron .......................................................................................................................................... 1
2 00-068717 Slideway .................................................................................................................................... 2
3 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2
4 WL-007-07 Lockwasher #8 External ............................................................................................................ 2
5 WS-019-16 Washer .......................................................................................................................................2
6 00-070144-00001 Lift Access Cover Assy. ............................................................................................................ 1
7 00-123109 Screw 6-32 x 3/8 Serrated Hd. ................................................................................................... 4
8 NS-017-15 Jam Nut 3/8-16 Hex ......................................................................................................................1
9 SC-047-46 Set Screw 3/8-16 x 11/4 Soc. Hdls., Half-Dog Pt. ........................................................................1
10 00-078752-00011 P-Clamp 3/16 ................................................................................................................................. 2
11 SC-122-25 Mach. Screw 8-32 x 1 Phil. Pan Hd. (SST) (ML-134211 & ML-134258) ................................... 2
12 SC-128-78 Mach. Screw 8-32 x 1 Tx. Button Hd. (SST) (ML-134213 & ML-134261) ...............................2
13 00-123969-00001 Cover & Gasket Assy. (Capacitor & Starter Access) ...............................................................1
14 00-123109 Screw 6-32 x 3/8 Serrated Hd. (ML-134211 & ML-134258) ......................................................4
15 SC-128-68 Mach. Screw 6-32 x 3/8 Tx. Button Hd. (SST) (ML-134213 & ML-134261) ..............................4
16 WL-013-05 Lockwasher #6 Internal (SST) .................................................................................................. 4
17 00-123961-00004 Pedestal ...................................................................................................................................... 1
18 SD-024-01 Self-Tapping Screw 10-24 x 3/8 Slotted Pan Hd., Type TT ........................................................ 1
19 WL-010-06 Lockwasher #10 External Shakeproof (Bronze) ...................................................................... 1
20 00-108159 Screen – Air ............................................................................................................................... 1
21 00-875590-00003 Base Assy. .................................................................................................................................1
22 WS-018-19 Washer ....................................................................................................................................... 4
23 SC-118-10 Cap Screw 3/8-16 x 1 Hex Hd. ................................................................................................... 4
24 00-512987 Adhesive .................................................................................................................................. AR
25 SC-118-09 Cap Screw 3/8-16 x 11/4 Hex Hd. ................................................................................................ 4
26 00-512987 Adhesive .................................................................................................................................. AR
27 WS-018-19 Washer ....................................................................................................................................... 4
28 00-087668-00002 Caster ......................................................................................................................................... 4
29 00-875748 Bowl Truck Assy. (Incls. Items 28 & 30) ................................................................................... 1
30 00-018682-00001 Bumper .......................................................................................................................................4
31 SC-040-14 Cap Screw 5/16-18 x 3/4 Hex Soc. Hd. ......................................................................................... 8
32 WL-003-48 Lockwasher 5/16 High Collar ....................................................................................................... 8
33 00-011800-00116 Dowel ......................................................................................................................................... 2
34 00-070641-00011 Thumb Screw 8-32 Special (ML-134211 & ML-134258) ........................................................... 2
35 SC-128-73 Mach. Screw 8-32 x 1/4 Tx. Button Hd. (SST) (ML-134213 & ML-134261) ..............................2
00-477597 Feet Kit (Set of 4) (SST) ............................................................................................................ 1
00-315139 Deck Plate Kit ..............................................................................................................................1
- 11 -
F-43067 Rev. B (August 2005)
Page 12
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
12
7
4
6
5
3
10
9
8
11
30
18
19
20
21
27
13
14
24
25
26
28
22
15
16
17
23
1
2
F-43067 Rev. B (August 2005)
32
33-34-35
36

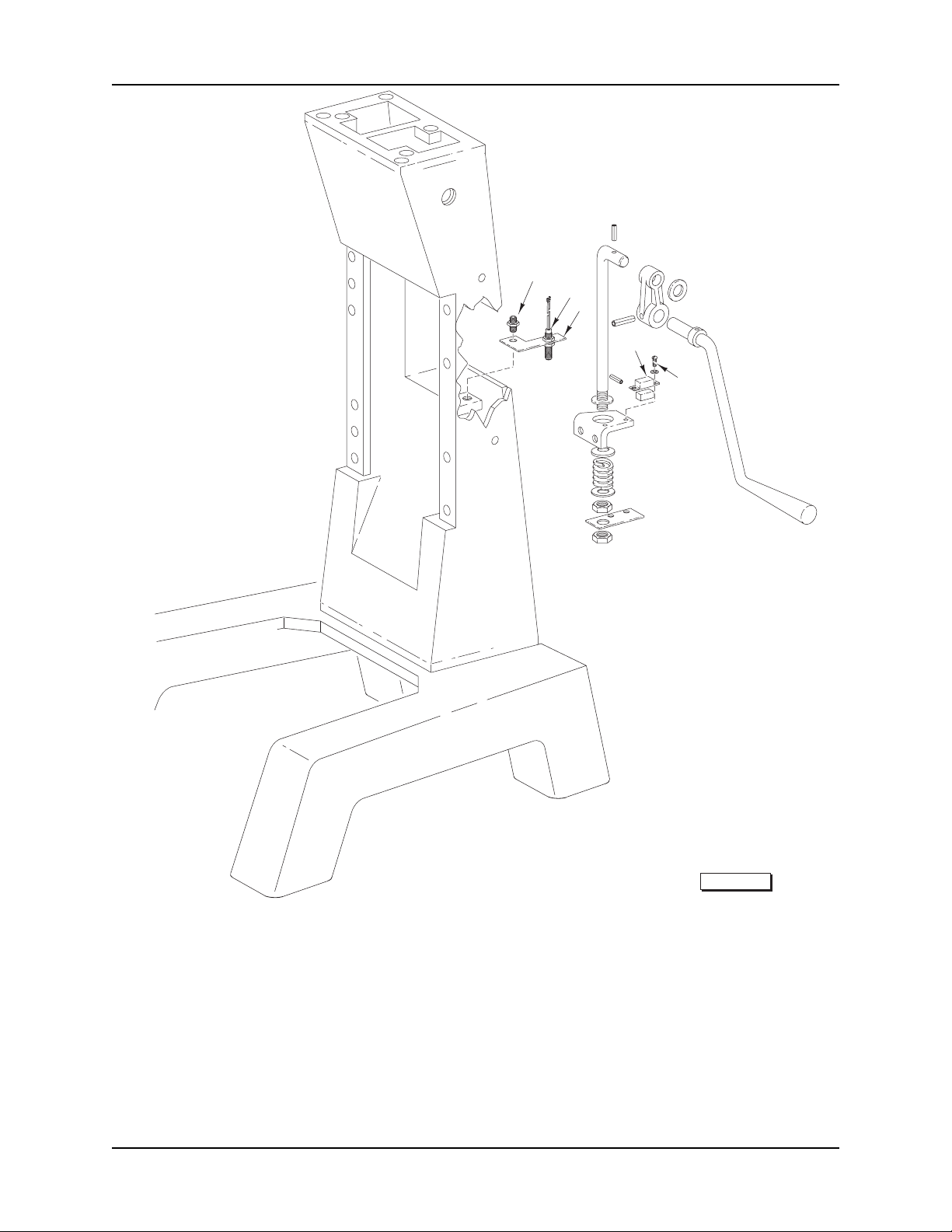

BOWL LIFT UNIT
- 12 -
29
31
PL-56102
Page 13
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
BOWL LIFT UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-56102
1 NS-036-19 Stop Nut 5/16-18 Hex Hd. (SST) ................................................................................................... 2
2 SC-037-75 Cap Screw 5/16-18 x 3/4 Hex Hd. ................................................................................................. 2
3 WS-004-18 Washer .......................................................................................................................................2
4 00-070411 Pin – Bowl Locating ................................................................................................................... 2
5 00-070057 Clamp – Bowl .............................................................................................................................2
6 00-070087 Washer – Spring ........................................................................................................................2
7 SC-062-28 Cap Screw 5/16-18 x 31/2 Hex Hd. ............................................................................................... 2
8 00-070044 Retainer – Bowl .......................................................................................................................... 1
9 WL-006-16 Lockwasher 1/4 Light (SST) ....................................................................................................... 2
10 SC-036-09 Cap Screw 1/4-20 x 11/4 Hex Hd. ................................................................................................ 2
11 00-023884 Spring – Counterbalance............................................................................................................ 2
12 00-070056 Bracket – Upper Spring Lift ........................................................................................................ 1
13 RP-002-25 Roll Pin 1/8 Dia. x 7/8 Lg. ................................................................................................................1
14 00-068718 Rod – Bowl Lift ........................................................................................................................... 1
15 00-069995 Arm – Bowl Lift .......................................................................................................................... 1
16 WS-008-47 Washer ....................................................................................................................................... 1
17 00-293564 Lift Handle Assy. ........................................................................................................................1
18 RP-002-26 Roll Pin 1/4 Dia. x 11/8 Lg. ..............................................................................................................1
19 RP-002-10 Roll Pin 3/16 Dia. x 1 Lg. ................................................................................................................ 1
20 WS-008-47 Washer ....................................................................................................................................... 1
21 00-438474 Bracket – Bowl Lift ....................................................................................................................1
22 WL-009-14 Lockwasher 5/16 External Shakeproof .......................................................................................2
23 SC-061-03 Cap Screw 5/16-18 x 3/4 Soc. Flat Hd. .........................................................................................2
24 00-070131 Washer – Cup ............................................................................................................................ 1
25 00-070104 Spring – Bowl Lift ....................................................................................................................... 1
26 WS-008-47 Washer ....................................................................................................................................... 1
27 SC-061-03 Cap Screw 5/16-18 x 3/4 Soc. Flat Hd. .........................................................................................8
28 NS-017-31 Jam Nut 1/2-20 Hex ......................................................................................................................1
29 00-070058 Bracket – Lower Spring Lift ....................................................................................................... 1
30 WL-009-14 Lockwasher 5/16 External Shakeproof .......................................................................................8
31 NS-017-31 Jam Nut 1/2-20 Hex ......................................................................................................................1
32 00-069996 Gib .............................................................................................................................................. 2
33 00-070092-00001 Shim – Bowl Support (0.001 Thk.) ........................................................................................... AR
34 00-070092-00002 Shim – Bowl Support (0.002 Thk.) ........................................................................................... AR
35 00-070092-00003 Shim – Bowl Support (0.003 Thk.) ........................................................................................... AR
36 00-069987-00002 Support – Bowl ..........................................................................................................................1
- 13 -
F-43067 Rev. B (August 2005)
Page 14
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
10-11
12
1 THRU 4
29
27-28
9
8
7
6
5
13
14
15
16
17
18-19-20
24
25
26
F-43067 Rev. B (August 2005)
23
22
TRANSMISSION CASE
- 14 -
21
PL-56616
Page 15
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
TRANSMISSION CASE
ILLUS. PART NO. NAME OF PART AM T.
PL-56616
1 00-290505-00001 Case – Transmission (ML-104421 & ML-134114) ..................................................................... 1
2 00-874100-00002 Case – Transmission (ML-134211 & ML-134213) ..................................................................... 1
3 – Motor (ML-104421 & ML-134114) (See page 17) .....................................................................1
4 – Motor (ML-134211, ML-134213, ML-134258, & ML-134261) (See Page 19) ........................... 1
5 NS-017-16 Jam Nut 3/8-16 Hex ......................................................................................................................1
6 SC-118-09 Cap Screw 3/8-16 x 11/4 Hex Hd. ................................................................................................ 1
7 WL-003-43 Lockwasher 5/16 Light ................................................................................................................. 4
8 SC-124-14 Cap Screw 5/16-18 x 7/8 Hex Hd. ................................................................................................. 4
9 00-070017 Retainer – Bearing ..................................................................................................................... 1
10 SC-015-36 Mach. Screw 10-24 x 5/8 Oval Hd. (ML-104421, ML-134211, & ML-134258)........................... 1
11 SC-128-75 Mach. Screw 10-24 x 5/8 Tx. Flat Hd. (SST) (ML-134114, ML-134213, & ML-134261) ............ 1
12 00-070005-00001 Transmission Case Cover Assy. ...............................................................................................1
13 SC-011-74 Mach. Screw 1/4-20 x 5/8 Slotted Fil. Hd. ..................................................................................... 4
14 WL-003-37 Lockwasher 1/4 ........................................................................................................................... 4
15 00-064871 Plug – Friction ............................................................................................................................. 2
16 00-068721 Bearing Carrier – Transmission Case ....................................................................................... 1
17 00-011800-00116 Dowel ......................................................................................................................................... 2
18 00-070872 Deflector – Roller Clutch Oil ....................................................................................................... 1
19 SC-009-82 Mach. Screw 8-32 x 5/16 Slotted Rd. Hd. .................................................................................... 1
20 WL-007-06 Lockwasher #8 External Shakeproof .......................................................................................2
21 00-270777 Dowel ......................................................................................................................................... 2
22 SC-006-27 Cap Screw 3/8-16 x 13/4 Hex Hd. ................................................................................................ 4
23 WL-006-27 Lockwasher 3/8 Light (SST) .......................................................................................................4
24 00-479497-00003 Cap – Trim (ML-134211, ML-134213, ML-134258, & ML-134261) ............................................ 1
25 WL-019-79 Lockwasher #12 Helical ............................................................................................................ 4
26 SC-128-45 Mach. Screw 12-24 x 2 Slotted Pan Hd. ................................................................................... 4
27 SC-113-52 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST) (ML-104421) ................................................... 1
28 SC-121-97 Mach. Screw 10-24 x 3/4 Hex Button Hd. (SST) (ML-134114) .................................................. 1
29 00-437918-00006 Cap – Trim (ML-104421 & ML-134114) ...................................................................................... 1
00-079621 Shim (Between Transmission Case & Pedestal) .................................................................... AR
- 15 -
F-43067 Rev. B (August 2005)
Page 16
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
13 THRU 23
11-12
10
25
24
26
9
8
7
6
5
4
3
2
1
PL-56148
F-43067 Rev. B (August 2005)
MOTOR PARTS
(ML-104421 & ML-134114)
- 16 -
Page 17
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
MOTOR PARTS
(ML-104421 & ML-134114)
ILLUS. PART NO. NAME OF PART AM T.
PL-56148
1 00-070441 Retainer – Lead Wire ................................................................................................................. 1
2 WL-007-07 Lockwasher #8 External Shakeproof .......................................................................................1
3 SC-009-56 Mach. Screw 8-32 x
4 SC-011-64 Mach. Screw 12-24 x 1 Slotted Fil. Hd. ..................................................................................... 4
5 BB-021-25 Ball Bearing – NTN 6301-ZZ-C2-5C .......................................................................................... 1
6 00-011430 Nut – Special ............................................................................................................................... 2
7 WS-007-09 Washer ....................................................................................................................................... 1
8 SC-009-61 Mach. Screw 8-32 x 1/2 Slotted Rd. Hd. ..................................................................................... 4
9 00-070012 Cap – Bearing .............................................................................................................................1
10 00-068722-00002 Bracket – Bearing ...................................................................................................................... 1
11 SC-011-32 Mach. Screw 10-24 x 3 Slotted Fil. Hd. (Use With 1 Ph. Motors) .............................................4
12 SC-011-28 Mach. Screw 10-24 x 21/2 Slotted Fil. Hd. (Use With 3 Ph. Motors) .......................................... 4
13 00-065477-163-1 Stator Assy. (115 V., 60 Hz., 1 Ph.) ...........................................................................................1
14 00-065477-163-2 Stator Assy. (200/208 V., 60 Hz., 1 Ph.) .................................................................................... 1
15 00-065477-163-3 Stator Assy. (230 V., 60 Hz., 1 Ph.) ........................................................................................... 1
16 00-065477-163-4 Stator Assy. (115 V., 50 Hz., 1 Ph.) ...........................................................................................1
17 00-065477-163-5 Stator Assy. (220 V., 50 Hz., 1 Ph.) ........................................................................................... 1
18 00-065478-029-1 Stator Assy. (200/208 V., 60 Hz., 3 Ph.) .................................................................................... 1
19 00-065478-029-2 Stator Assy. (230 V., 60 Hz., 3 Ph.) ........................................................................................... 1
20 00-065478-029-3 Stator Assy. (460 V., 60 Hz., 3 Ph.) ........................................................................................... 1
21 00-065478-029-4 Stator Assy. (220 V., 50 Hz., 3 Ph.) ........................................................................................... 1
22 00-065478-029-5 Stator Assy. (380 V., 50 Hz., 3 Ph.) ........................................................................................... 1
23 00-065478-029-7 Stator Assy. (415 V., 50 Hz., 3 Ph.) ........................................................................................... 1
24 00-015747-00219 Rotor Assy. (50/60 Hz., 3 Ph.) ................................................................................................... 1
25 00-022275-00275 Rotor Assy. (50/60 Hz., 1 Ph.) ................................................................................................... 1
26 BB-018-17 Ball Bearing – Fafnir #H203PP ...................................................................................................1
3
/8 Slotted Rd. Hd. ..................................................................................... 1
- 17 -
F-43067 Rev. B (August 2005)
Page 18
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
2
1
3 THRU 7
8
9
10
11
12-13
PL-56618
F-43067 Rev. B (August 2005)
MOTOR PARTS
(ML-134211, ML-134213, ML-134258, & ML-134261)
- 18 -
Page 19
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
MOTOR PARTS
(ML-134211, ML-134213, ML-134258, & ML-134261)
ILLUS. PART NO. NAME OF PART AM T.
PL-56618
1 00-437288 Fan and Clip ................................................................................................................................1
2 SC-110-83 Mach. Screw 10-32 x 75/8 Hex Hd. ............................................................................................ 4
3 00-875386-00001 Motor (120-240 V., 60 Hz., 1 Ph.) ..............................................................................................1
4 00-875386-00001 Motor (220 V., 50 Hz., 1 Ph.) ..................................................................................................... 1
5 00-875386-00002 Motor (200-208 V., 60 Hz., 3 Ph.) ..............................................................................................1
6 00-875386-00003 Motor (200-208 V., 60 Hz., 1 Ph.) ..............................................................................................1
7 00-875386-00004 Motor (240-460 V., 60 Hz., 3 Ph.) ..............................................................................................1
8 00-873057 Grease Deflector ....................................................................................................................... 1
9 00-077840 Washer – Belleville .....................................................................................................................6
10 00-875517 Spacer ........................................................................................................................................ 1
11 NS-032-23 Lock Nut Special 7/16-20 Flexloc .................................................................................................. 1
12 00-291221 Gear – Worm (60 Hz.) ................................................................................................................ 1
13 00-070407 Gear – Worm (50 Hz.) ................................................................................................................ 1
00-012747 Key – Worm Gear ...................................................................................................................... 1
- 19 -
F-43067 Rev. B (August 2005)
Page 20
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
17
16
15
21
18
20
5
4
2-3
1
19
14
13
10
8
7
6
9
12
11
PL-56101
F-43067 Rev. B (August 2005)
SHIFTER UNIT
- 20 -
Page 21
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
SHIFTER UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-56101
1 SC-047-17 Set Screw 1/4-20 x 3/4 Hdls., Cup Pt. ..........................................................................................1
2 00-291272 Shifter Handle Assy. (Incls. Items 1 & 21) (ML-104421, ML-134211, & ML-134258) ...............1
3 00-439306 Shifter Handle Assy. (Pinned) (Incls. Items 1 & 21)
4 00-110961 Grommet – Shifter Handle .......................................................................................................... 1
5 00-875238 Shaft – Shifter ............................................................................................................................ 1
6 00-290115-00001 Plate – Index ............................................................................................................................... 1
7 00-067500-00044 O-Ring .........................................................................................................................................1
8 00-023946 Gasket – Index Plate .................................................................................................................. 1
9 PS-003-08 Spiral Pin 1/8 Dia. x 3/4 Lg. .............................................................................................................1
10 00-873504 Cam – Gear Shifter ....................................................................................................................1
11 NS-013-22 Nut 3/8-16 Hex ............................................................................................................................. 1
12 WL-004-06 Lockwasher 3/8 Helical ...............................................................................................................1
13 00-070043 Rod – Shifter Guide ....................................................................................................................1
14 00-013160 Yoke – Shifter............................................................................................................................. 1
15 00-012733 Plunger – Shifter Yoke ...............................................................................................................2
16 00-012734 Spring – Shifter Yoke .................................................................................................................2
17 00-012732 Retainer – Shifter Yoke Spring................................................................................................... 2
18 BA-002-09 Ball 1/4 Dia. ...................................................................................................................................2
19 00-111170 Spring – Detent ........................................................................................................................... 2
20 SC-014-57 Mach. Screw 10-24 x 1/2 Slotted Flat Hd. .................................................................................. 4
21 00-070085 Knob – Shifter Handle Ball ......................................................................................................... 1
00-875240 Shifter Sub-Assy. (Incls. Items 5 thru 10, 18, & 19) ................................................................. 1
(ML-134114, ML-134213, & ML-134261)................................................................................... 1
- 21 -
F-43067 Rev. B (August 2005)
Page 22
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
28
29
30-31-32
9
10
11
6
5
2
1
3
4
PL-56099
12
7
8
13
14-15
16
17
18
51
27
26
25
24
23
22
21
20
19
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
F-43067 Rev. B (August 2005)
TRANSMISSION
- 22 -
Page 23
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
TRANSMISSION
ILLUS. PART NO. NAME OF PART AM T.
PL-56099
1 00-013174-00001 Deflector – Grease (ML-104421 & ML-134114) ........................................................................1
2 WS-010-36 Washer (ML-104421 & ML-134114) .......................................................................................... 1
3 00-077840 Washer – Belleville (ML-104421 & ML-134114) ........................................................................ 6
4 00-478601 Key (ML-104421 & ML-134114) ................................................................................................. 1
5 00-291221 Worm (5T) (60 Hz.) (ML-104421 & ML-134114) .......................................................................1
6 00-070407 Worm (5T) (50 Hz.) (ML-104421 & ML-134114) .......................................................................1
7 WS-007-09 Washer (ML-104421 & ML-134114) .......................................................................................... 1
8 NS-032-23 Lock Nut 7/16-20 Flexloc (ML-104421 & ML-134114) .................................................................. 1
9 00-070026 Pusher – Bearing ....................................................................................................................... 1
10 BB-017-04 Ball Bearing – ND #7501 ............................................................................................................1
11 00-270526 Spacer ........................................................................................................................................ 1
12 00-124765-00003 Spacer – Gear ............................................................................................................................1
13 00-012430-00049 Key ............................................................................................................................................. 1
14 00-070034 Gear – Worm (29T) (60 Hz.) ...................................................................................................... 1
15 00-070251 Gear – Worm (24T) (50 Hz.) ...................................................................................................... 1
16 00-291130 Shaft – Worm Gear ....................................................................................................................1
17 BB-017-04 Ball Bearing – ND #7501 ............................................................................................................1
18 00-070166 Spring – Worm Shaft ..................................................................................................................1
19 BN-002-02 Needle Bearing ...........................................................................................................................1
20 00-070028 Gear (23T) .................................................................................................................................. 1
21 00-070030 Gear (33T) .................................................................................................................................. 1
22 00-875419-00060 Key ............................................................................................................................................. 1
23 00-089829 Spacer ........................................................................................................................................ 1
24 00-089831 Gear (32T) .................................................................................................................................. 1
25 00-875419-00053 Key ............................................................................................................................................. 1
26 00-875435 Shaft – Transmission ................................................................................................................. 1
27 BB-017-09 Ball Bearing – MRC 2035-01-ST-E-92-C .................................................................................... 1
28 NS-032-32 Stop Nut 3/4-16 (LH Thread) Flexloc ........................................................................................... 1
29 BB-009-41 Ball Bearing – ND #45505 ..........................................................................................................1
30 WS-012-46 Washer (0.003 Thk.) ................................................................................................................ AR
31 WS-012-47 Washer (0.010 Thk.) ................................................................................................................ AR
32 WS-030-79 Washer (0.005 Thk.) ................................................................................................................ AR
33 00-070015 Spacer – Upper Planetary Shaft ................................................................................................1
34 00-070033 Sleeve – Drive ............................................................................................................................ 1
35 00-012430-00161 Key ............................................................................................................................................. 1
36 00-070039 Roller – Clutch ...........................................................................................................................10
37 00-070055 Spring – Roller ........................................................................................................................... 10
38 00-070032 Gear – Roller Clutch (46T) .........................................................................................................1
39 00-070020-00002 Gear – Bevel (46T) (Order 75393-2 Also) ................................................................................1
40 00-070042 Bushing – Upper Clutch Gear .................................................................................................... 1
41 00-070040 Gear – Upper Clutch (29T) ........................................................................................................1
42 00-012430-00055 Key 3/16 x 3/16 x 1 ..........................................................................................................................2
43 00-070035-00001 Sleeve – Clutch .......................................................................................................................... 1
44 00-070031 Bushing – Lower Clutch Gear ................................................................................................... 1
45 00-124743 Gear – Lower Clutch (38T) .......................................................................................................1
46 00-070046 Spacer – Lower Planetary Shaft ...............................................................................................1
47 BB-008-33 Ball Bearing – Fafnir #205WD ....................................................................................................1
48 00-070024 Planetary Shaft ........................................................................................................................... 1
49 00-070016 Spacer – Planetary .....................................................................................................................1
50 00-110334 Seal – Planetary .........................................................................................................................1
51 PL-003-14 Expansion Plug (Located In Transmission Housing) ................................................................. 1
00-875436 Transmission Shaft & Gear Unit (Incls. Items 20 thru 26) ......................................................... 1
- 23 -
F-43067 Rev. B (August 2005)
Page 24
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
32
31
30
33
34
35
1
2
4
3
29
28
16
5 THRU 15
17
21
22
23
24
18-19
20
PL-56103
F-43067 Rev. B (August 2005)
25
26
27
PLANETARY AND ATTACHMENT HUB
- 24 -
Page 25
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
PLANETARY AND ATTACHMENT HUB
ILLUS. PART NO. NAME OF PART AM T.
PL-56103
1 00-114824-00001 Plug – Attachment Hub ...............................................................................................................1
2 00-070090 Seal – Attachment Hub ...............................................................................................................1
3 00-070511-00003 Attachment Hub & Bearings Assy. (Incls. Item 4) .....................................................................1
4 BN-002-12 Needle Bearing ........................................................................................................................... 2
5 00-070045-00001 Washer – Thrust (0.125 Thk.) ................................................................................................. AR
6 00-070045-00002 Washer – Thrust (0.119 Thk.) .................................................................................................. AR
7 00-070045-00003 Washer – Thrust (0.121 Thk.) ................................................................................................. AR
8 00-070045-00004 Washer – Thrust (0.123 Thk.) ................................................................................................. AR
9 00-070045-00005 Washer – Thrust (0.127 Thk.) ................................................................................................. AR
10 00-070045-00006 Washer – Thrust (0.129 Thk.) ................................................................................................. AR
11 00-070045-00009 Washer – Thrust (0.131 Thk.) ................................................................................................. AR
12 00-070045-00010 Washer – Thrust (0.133 Thk.) ................................................................................................. AR
13 00-070045-00011 Washer – Thrust (0.136 Thk.) ................................................................................................. AR
14 00-070045-00012 Washer – Thrust (0.139 Thk.) ................................................................................................. AR
15 00-070045-00013 Washer – Thrust (0.116 Thk.).................................................................................................. AR
16 00-075393-00002 Attach Drive Gear (35T) & Expansion Plug Assy. (Order 70020-2 Also) ................................. 1
17 00-012430-00158 Key 1/4 Sq. x 11/2 Lg. ................................................................................................................... 1
18 SC-040-16 Cap Screw 5/16-18 x 1 Soc. Fil. Hd. ............................................................................................ 6
19 WL-003-48 Lockwasher 5/16 High Collar ....................................................................................................... 6
20 00-438472 Gear – Internal (59T) .................................................................................................................. 1
21 00-070047-00001 Washer – Planetary ................................................................................................................... 1
22 WL-006-27 Lockwasher 3/8 Light (SST) ....................................................................................................... 1
23 SC-062-58 Cap Screw 3/8-24 x 11/4 Hex Hd. ................................................................................................ 1
24 BB-017-36 Ball Bearing – SKF #6205Z ........................................................................................................ 1
25 00-110335 Seal – Agitator Shaft ..................................................................................................................1
26 00-070019 Pin – Agitator .............................................................................................................................. 1
27 00-070339 Agitator Shaft Assy. (Incls. Item 26) ..........................................................................................1
28 00-069990-00001 Planetary .................................................................................................................................... 1
29 BB-020-06 Ball Bearing – Fafnir 204KDFA51580 ........................................................................................ 1
30 00-070014 Pinion – Agitator Shaft (18T)...................................................................................................... 1
31 00-012430-00142 Key 1/4 Sq. x 1 Lg. ......................................................................................................................1
32 RR-004-06 Retaining Ring .............................................................................................................................1
33 SC-040-15 Cap Screw 5/16-18 x 11/4 Soc. Fil. Hd. .........................................................................................3
34 WL-003-43 Lockwasher 5/16 Light .................................................................................................................3
35 00-108197-00001 Thumb Screw ............................................................................................................................. 1
00-113703 Tie – Cable.................................................................................................................................. 2
- 25 -
F-43067 Rev. B (August 2005)
Page 26
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
2-3
4-5
1
33
6
34-35
9
8
7
36
37-38
39
42
41
40
43 THRU 46
12
11
10
19
20-21
13
14
15
16
17-18
30
29
28
27
26
24
25
32
31
BOWL GUARD UNIT
(PREVIOUS CONSTRUCTION)
22-23
PL-56613
F-43067 Rev. B (August 2005)
- 26 -
Page 27
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
BOWL GUARD UNIT
(PREVIOUS CONSTRUCTION)
ILLUS. PART NO. NAME OF PART AM T.
PL-56613
1 00-478602 Screw – Shouldered Slotted Hd. ............................................................................................... 1
2 NS-031-50 Stop Nut Special 6-32 (SST) (ML-104421 & ML-134211) ..........................................................1
3 NS-011-07 Mach. Nut 6-32 Hex (SST) (ML-134114 & ML-134213) ............................................................1
4 00-070641-00011 Thumb Screw 8-32 Special (ML-104421 & ML-134211) ...........................................................3
5 SC-121-91 Mach. Screw 8-32 x
6 00-479007 Latch – Cage Detent (Incls. Items 7, 8, & 9) ..............................................................................1
7 00-437446-00001 Spring – Cage Detent .................................................................................................................1
8 00-437724 Plunger – Detent ......................................................................................................................... 1
9 00-437725 Bushing – Detent ........................................................................................................................1
10 00-437815 Spring – Reed Switch ................................................................................................................ 1
11 SC-018-50 Mach. Screw 6-32 x 1/4 Slotted Pan Hd. .................................................................................... 1
12 NS-048-11 Lock Nut Special 8-32 (SST) ...................................................................................................... 1
13 SC-068-14 Mach. Screw 8-32 x 3/8 Hex Hd. ................................................................................................ 2
14 00-437728-00004 Housing – Reed (Painted) ..........................................................................................................1
15 SC-122-48 Mach. Screw 8-32 x 13/4 Slotted Rd. Hd. (SST) ........................................................................ 1
16 00-087711-304-1 Housing – Reed Switch ............................................................................................................. 1
17 00-874965-00001 Splash Guard & Latch Assy. (Painted) (ML-104421 & ML-134211) ......................................... 1
18 00-874965-00002 Splash Guard & Latch Assy. (ML-134114 & ML-134213) .........................................................1
19 00-437713 Shoe – Fixed .............................................................................................................................. 1
20 SC-122-45 Mach. Screw Special 1/4-20 x 3/8 Slotted Truss Hd. (SST) (ML-104421 & ML-134211) ............2
21 SC-122-52 Mach. Screw Special 1/4-20 x 3/8 Hex Button Hd. (SST) (ML-134114 & ML-134213) ...............2
22 00-874970-00001 Wire Cage Assy. (ML-104421 & ML-134211) ............................................................................1
23 00-874970-00002 Wire Cage Assy. (ML-134114 & ML-134213) ............................................................................1
24 SC-122-46 Mach. Screw Special 1/4-20 x 3/4 Slotted Truss Hd. (SST) (ML-104421 & ML-134211) ............2
25 SC-122-68 Mach. Screw 1/4-20 x 3/4 Hex Button Hd. (SST) (ML-134114 & ML-134213) ............................ 2
26 00-437817 Stop – Cage ................................................................................................................................1
27 00-437436 Pin – Plunger ............................................................................................................................... 1
28 00-437447 Housing – Plunger ...................................................................................................................... 1
29 00-437446-00002 Spring – Cage On/Off ................................................................................................................. 1
30 00-437432 Plunger ....................................................................................................................................... 1
31 00-437718-00002 Saddle – Shoe ............................................................................................................................ 1
32 00-437715 Shoe – Saddle ............................................................................................................................ 1
33 00-437720 Key – Shoe ................................................................................................................................. 1
34 SC-123-07 Mach. Screw Special 8-20 x 1/2 Slotted Truss Hd. (SST) (ML-104421 & ML-134211) ............. 1
35 SC-121-92 Mach. Screw Special 8-32 x 3/8 Hex Button Hd. (SST) (ML-134114 & ML-134213) ................. 1
36 00-437714 Shoe – Adjustable ......................................................................................................................1
37 SC-122-45 Mach. Screw Special 1/4-20 x 3/8 Slotted Truss Hd. (SST) (ML-104421 & ML-134211) ............2
38 SC-122-52 Mach. Screw Special 1/4-20 x 3/8 Hex Button Hd. (SST) (ML-134114 & ML-134213) ...............2
39 00-437816 Block – Rear Guide ....................................................................................................................1
40 SC-122-44 Mach. Screw Special 8-32 x 3/8 Slotted Truss Hd. (SST) (ML-104421 & ML-134211) ............. 1
41 SC-121-92 Mach. Screw Special 8-32 x 3/8 Hex Button Hd. (SST) (ML-134114 &ML-134213).................. 1
42 00-512987 Adhesive (ML-134114 & ML-134213) .....................................................................................AR
43 00-437719 Retainer – Magnet ...................................................................................................................... 1
44 00-111941 Magnet ........................................................................................................................................1
45 SC-122-44 Mach. Screw Special 8-32 x 3/8 Slotted Truss Hd. (SST) (ML-104421 & ML-134211) .............1
46 SC-121-92 Mach. Screw Special 8-32 x 3/8 Hex Button Hd. (SST) (ML-134114 & ML-134213) ................. 1
00-438607 Ingredient Chute .........................................................................................................................1
00-874958-00001 Reed Assy. (Incls. Items 10, 11, & 16) ....................................................................................... 1
* 00-874964 Bowl Guard Kit ........................................................................................................................... 1
1
/4 Hex Button Hd. (SST) (ML-134114 & ML-134213) ............................. 3
*Use With Mach. Not Equipped With Bowl Guard.
- 27 -
F-43067 Rev. B (August 2005)
Page 28
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
1-2
3
17
16
TRANSMISSION
HOUSING
4
5
6
14
15
11
7
13
8-9
10
12
PL-57867
F-43067 Rev. B (August 2005)
BOWL GUARD UNIT
(CURRENT CONSTRUCTION)
- 28 -
Page 29
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
BOWL GUARD UNIT
(CURRENT CONSTRUCTION)
ILLUS. PART NO. NAME OF PART AM T.
PL-57867
1 00-070641-00011 Thumb Screw 8-32 Special (ML-134258) .................................................................................3
2 SC-128-73 Mach. Screw 8-32 x 1/4 Tx. Button Hd. (SST) (ML-134261) ..................................................... 3
3 00-874967 Guard – Splash ........................................................................................................................... 1
4 00-874971 Extension – Bowl Guard Switch ...............................................................................................1
5 SC-075-14 Set Screw 6-32 x 1/8 Hex Hdls., Cup Pt. .................................................................................... 1
6 00-874958-00001 Reed – Switch & Plug ................................................................................................................ 1
7 00-874968 Shoe – Fixed (Incls. Magnet) ..................................................................................................... 1
8 00-874969-00001 Wire Cage (ML-134258) ............................................................................................................. 1
9 00-874969-00002 Wire Cage (ML-134261) ............................................................................................................. 1
10 SC-122-45 Mach. Screw 1/4-20 x 3/8 Slotted Truss Hd. ................................................................................ 2
11 SC-122-45 Mach. Screw 1/4-20 x 3/8 Slotted Truss Hd. ................................................................................ 1
12 00-874980 Stop – Cage ................................................................................................................................1
13 SC-122-45 Mach. Screw 1/4-20 x 3/8 Slotted Truss Hd. ................................................................................ 2
14 00-874983 Shoe – Front ............................................................................................................................... 1
15 00-437720 Key – Shoe ................................................................................................................................. 1
16 00-437714 Shoe – Adjustable ......................................................................................................................1
17 SC-123-07 Mach. Screw 1/4-20 x 3/8 Slotted Truss Hd. ................................................................................ 1
- 29 -
F-43067 Rev. B (August 2005)
Page 30
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
1-2
3
4
5-6
7-8
PL-56105
BOWL HEIGHT SENSING UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-56105
1 SC-047-46 Set Screw 3/8-16 x 11/4 Soc. Hdls., Half-Dog Pt. ........................................................................ 1
2 NS-017-15 Jam Nut 3/8-16 Hex ...................................................................................................................... 1
3 00-087711-306-1 Switch – Bowl Height Sensing .................................................................................................. 1
4 00-438387 Bracket – Bowl Height Sensor .................................................................................................. 1
5 00-120332 Retainer – Magnet ...................................................................................................................... 1
6 00-111941 Magnet ........................................................................................................................................1
7 SC-021-01 Mach. Screw 4-40 x 1/4 Slotted Rd. Hd. (SST) .......................................................................... 2
8 WL-003-01 Lockwasher #4 Light ................................................................................................................. 2
F-43067 Rev. B (August 2005)
00-065890-00029 Connector – Insulated ................................................................................................................1
- 30 -
Page 31
1-2
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
3-4
PL-56106
BOWL
ILLUS. PART NO. NAME OF PART AM T.
PL-56106
1 00-437410 Bowl – 30 Qt. (SST) (Packaged) ...............................................................................................1
2 00-295647 Bowl – 20 Qt. (SST) (Packaged) ...............................................................................................1
3 00-438080 Splash Cover Assy. – 30 Qt. (Packaged) .................................................................................. 1
4 00-438079 Splash Cover Assy. – 20 Qt. (Packaged) .................................................................................. 1
00-438607 Scraper – Bowl (Packaged) ...................................................................................................... 1
- 31 -
F-43067 Rev. B (August 2005)
Page 32
MODEL D300 SERIES MIXERS REPLACEMENT PARTS
1 3
4-5 6 7
2
PL-56612
AGITATORS
ILLUS. PART NO. PART NO. NAME OF PART AMT.
PL-56612 30 Qt. 20 Qt.
1 00-295120 00-275465 “E” Dough Arm (Alum.) (Packaged) ...........................................................................1
2 00-295037 --- “P” Pastry Knife (Packaged) ...................................................................................... 1
3 00-295163 --- “I” Wire Whip (SST) (Packaged) ................................................................................1
4 00-275450 00-275461 “B” Flat Beater (Alum.) (Packaged) ...........................................................................1
5 00-275451 00-275462 “B” Flat Beater (SST) (Packaged) .............................................................................1
6 00-275899 00-295029 “D” Wire Whip (SST) (Packaged) ..............................................................................1
7 00-295161 --- “C” Wing Whip (Packaged) ........................................................................................ 1
FORM 43067 Rev. B AUGUST 2005 PRINTED IN U.S.A.
00-478596 --- “ED” Dough Arm – Spiral (Not Shown) (Packaged) .................................................. 1
Loading...
