Hobart Food Machines CB-NSW Parts List

CATALOG OF
REPLACEMENT
PARTS

AUTOMATIC

STRETCH WRAPPER

ML-44047 NSW
ML-44079 CSW
ML-44088 NSW-SS
ML-44055 CB-NSW

INCLUDES ALL UPDATES MADE ON (705)

A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

Table of Contents

Page Description

3 Platform
5 Control Box (Left Side)
7 Control Box (Right Side)
9 Junction Box (LH)

11 Junction Box (RH)
13 Control Panel
14 Motor and Caster
16 Panels
19 Bands and Brackets
21 Main Drive Shaft
22 Intake (Left Side)
24 Intake (Top and Right Side)
26 Intake (Lower Portion)
29 Elevator Platform
31 Elevator Support
33 Elevator Lever
34 Side Clamp
36 Upper Pusher
38 Underfolder
40 Chain and Sprockets
42 Belt Sealer
44 Film Selector
46 Knife and Pull Down Assembly (Without Curtain)
49 Knife and Pull Down Assembly (With Curtain)
50 Film Length
53 Film Length (With Plastic Links)

54-1 Gripper (Upper Section)
55-1 Gripper (Lower Section)

57 Gripper Lever
59 Film Changer Solenoid Assembly
60 Film Supply
63 Chamber
64 Discharge Conveyor Assembly
67 Intermediate Conveyor
69 Inclined Conveyor
71 Link Assembly
72 Film Access Door
73 Supply Holder (Optional)
74 Side Shelf Kit (Optional)
75 Front Shelf Kit (Optional)
76 Miscellaneous Listing

F-19207 Rev. A (October 2001)

- 2 -

-2 (705)-

© HOBART

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

9-10

8

11-12-13

14

1

2

3

4-5

6

7

PL-55867

PLATFORM

ILLUS. PART NO. NAME OF PART AM T.
PL-55867

1 00-130439 Roller – Spring ............................................................................................................................ 6

2 00-175926 Frame – Platform ........................................................................................................................ 2

3 00-175928 Bracket – Platform Stop.............................................................................................................. 1

4 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 4

5 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 4

6 00-254206 Foot .............................................................................................................................................2

7 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 4

8 SC-022-32 Mach. Screw 1/4-20 x 1/2 Flat Hd. ................................................................................................ 2

9 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

10 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

11 00-175927 Tube – Roller .............................................................................................................................. 1

12 00-175924 Bushing ...................................................................................................................................... 2

13 00-175925 Shaft – Platform .......................................................................................................................... 1

14 00-175923 Pivot – Platform Support............................................................................................................. 2

00-183915 Platform Assy. (Incls. 1 thru 7 & 9 thru 14) ............................................................................... 1

00-183704 Platter – Scale (LSWS) .............................................................................................................. 1

- 3 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

37

36

35
34
33

32

31

30

29

28

27

26

25

24

15 THRU 19

20 THRU 23

38

39

40 THRU 43

13

14

12

52

44

9-10-11

45

46

51

8

50

5-6-7

49

48

1-2-3

4

47

PL-55878

F-19207 Rev. A (October 2001)

CONTROL BOX

(LEFT SIDE)

- 4 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

CONTROL BOX (LEFT SIDE)

ILLUS. PART NO. NAME OF PART AM T.
PL-55878

1 SC-112-42 Mach. Screw 6-32 x 1/2 Phil. Pan Hd. .........................................................................................2

2 WL-008-01 Lockwasher #6 Internal Shakeproof ......................................................................................... 2

3 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 2

4 00-259986 Block – Terminal.......................................................................................................................... 1

5 SC-111-76 Mach. Screw 4-40 x 5/16 Phil. Pan Hd. ........................................................................................2

6 WL-008-45 Lockwasher #4 Internal Shakeproof ......................................................................................... 2

7 NS-009-02 Mach. Nut 4-40 Hex ................................................................................................................... 2

8 FE-024-17 Fuse (0.5 Amp.) .......................................................................................................................... 2

9 SC-109-48 Mach. Screw 6-32 x

10 WL-008-01 Lockwasher #6 Internal Shakeproof .........................................................................................4

11 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 4

12 00-259984 Block – Fuse ............................................................................................................................... 1

13 00-332048-00005 Fuse – Subminiature (5 Amp.) ................................................................................................... 5

14 00-332222 Varistor Assy.............................................................................................................................. 6

15 00-259957 Module – Board Assy. ................................................................................................................ 1

16 WS-028-06 Washer ....................................................................................................................................... 4

17 SC-018-28 Mach. Screw 6-32 x

18 WL-008-01 Lockwasher #6 Internal Shakeproof .........................................................................................4

19 00-258300-00003 Spacer 1/4 x 1/2 ............................................................................................................................. 4

20 00-183832 Bracket – Mounting Module Board .............................................................................................1

21 00-258300-00002 Spacer 1/4 x 11/6 ........................................................................................................................... 2

22 SC-018-28 Mach. Screw 6-32 x 1/4 Phil. Pan Hd. .........................................................................................2

23 WL-008-01 Lockwasher #6 Internal Shakeproof .........................................................................................2

24 00-259993-00001 Left Cable Assy. .........................................................................................................................1

25 00-049388 Solenoid Assy. (110-115/50-60 Hz.).......................................................................................... 1

26 00-175475 Control Clutch Cable Assy. ........................................................................................................ 1

27 PB-004-01 Plug Button ................................................................................................................................. 1

28 00-175480 Film Supply Switch Cable Assy. ................................................................................................ 1

29 00-440857-00001 Harness – In Line Fuse ..............................................................................................................1

30 00-175469 Intake Cable Assy. ......................................................................................................................1

31 00-183848 Jam Detect Cable Assy. ............................................................................................................. 1

32 00-259925 Display Cable Assy. ................................................................................................................... 1

33 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. .........................................................................................2

34 WL-008-07 Lockwasher #8 Internal Shakeproof .........................................................................................2

35 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2

36 00-183850 Stop/Start Cable Assy. (To Start/Stop & Keyboard) ................................................................... 1

37 00-259996 Rotary Pot Cable Assy. ..............................................................................................................1

38 00-175973 Control Box & Shield .................................................................................................................. 1

39 00-259998 Switch Sensing Cable Assy. ..................................................................................................... 1

40 00-258300-00003 Spacer 1/4 x 1/2 ............................................................................................................................. 4

41 SC-018-28 Mach. Screw 6-32 x 1/4 Phil. Pan Hd. .........................................................................................4

42 WL-008-01 Lockwasher #6 Internal Shakeproof .........................................................................................4

43 WS-028-06 Washer ....................................................................................................................................... 4

44 00-175473 Control Board Assy. ...................................................................................................................1

45 00-259879 Module – AC Output ................................................................................................................... 2

46 00-259868 Module – DC Output ................................................................................................................... 3

47 00-332048-00002 Fuse – Subminiature (2 Amp.) ................................................................................................... 2

48 00-259879 Module – AC Output ................................................................................................................... 4

49 00-334705 Resistor (5 Ohms) ...................................................................................................................... 1

50 00-257130 Battery (3 V.).............................................................................................................................. 1

51 00-259003-00054 PROM U1 ....................................................................................................................................1

52 00-259001 RAM U10 .................................................................................................................................... 1

1

/2 Phil. Flat Hd. ......................................................................................... 4

1

/4 Phil. Pan Hd. .........................................................................................4

- 5 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

1

52

2

4 THRU 7

3

Previous Construction

11

12 THRU 15

8-9-10

16-17-18

55

54

53

19 THRU 22

23 THRU 26

PL-55879

48 THRU 51

47

46

45

38
39

40 THRU 44

27

28

29

30

31

32

33

34-35-36

37

F-19207 Rev. A (October 2001)

CONTROL BOX (RIGHT SIDE)

- 6 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

CONTROL BOX (RIGHT SIDE)

ILLUS. PART NO. NAME OF PART AM T.
PL-55879

1 00-259923 Control/MSIO Board Cable Assy. ............................................................................................... 1

2 00-259927-00001 Harness – Relay ........................................................................................................................ 1

3 00-259928-00001 Harness – CPU/SSR Power .......................................................................................................1

4 00-184015 Relay ........................................................................................................................................... 1

5 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 1

6 WL-008-07 Lockwasher #8 Internal Shakeproof ......................................................................................... 1

7 SC-018-31 Mach. Screw 8-32 x

8 WL-008-01 Lockwasher #6 Internal Shakeproof ......................................................................................... 2

9 00-259987 Relay ........................................................................................................................................... 1

10 SC-009-79 Mach. Screw 6-32 x 5/16 Rd. Hd. ................................................................................................2

11 00-331536 Varsitor Assy.............................................................................................................................. 1

12 00-333632 Transformer ............................................................................................................................... 1

13 SC-018-33 Mach. Screw 8-32 x

14 WL-008-07 Lockwasher #8 Internal Shakeproof ......................................................................................... 2

15 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2

16 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. .........................................................................................2

17 WL-008-07 Lockwasher #8 Internal Shakeproof ......................................................................................... 2

18 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2

19 WL-008-07 Lockwasher #8 Internal Shakeproof ......................................................................................... 2

20 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2

21 SC-018-33 Mach. Screw 8-32 x 5/16 Phil. Pan Hd. ........................................................................................ 2

22 00-330963 Filter ............................................................................................................................................ 1

23 00-044542 Holder – Fuse .............................................................................................................................1

24 SC-109-48 Mach. Screw 6-32 x 1/2 Phil. Flat Hd. ......................................................................................... 4

25 WL-008-01 Lockwasher #6 Internal Shakeproof ......................................................................................... 4

26 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 4

27 FE-022-28 Fuse (0.5 Amp.) (250 V.) ........................................................................................................... 2

28 FE-014-19 Fuse (1.5 Amp.) (125 V.) ........................................................................................................... 1

29 FE-017-03 Fuse (2 Amp.) (125 V.) .............................................................................................................. 1

30 FE-014-19 Fuse (1.5 Amp.) (125 V.) ........................................................................................................... 1

31 FE-022-28 Fuse (0.5 Amp.) (250 V.) ........................................................................................................... 1

32 00-330917 Fuse (10 Amp.)........................................................................................................................... 1

33 00-183839 Box Assy. Duplex Receptacle ................................................................................................... 1

34 00-130576-00001 Breaker – Circuit ........................................................................................................................ 1

35 SC-018-28 Mach. Screw 6-32 x 1/4 Phil. Pan Hd. .........................................................................................2

36 WL-008-01 Lockwasher #6 Internal Shakeproof ......................................................................................... 2

37 00-175495-00001 Main Power Cable Assy. ............................................................................................................ 1

38 00-175470-00001 Motor Cable Assy. ...................................................................................................................... 1

39 00-259994-00001 Right Cable Assy. ....................................................................................................................... 1

40 00-259954 Power Supply Board Assy. ....................................................................................................... 1

41 00-258300-00003 Spacer 1/4 x 1/2 ............................................................................................................................. 4

42 SC-018-28 Mach. Screw 6-32 x 1/4 Phil. Pan Hd. .........................................................................................4

43 WL-008-01 Lockwasher #6 Internal Shakeproof ......................................................................................... 4

44 WS-028-06 Washer ....................................................................................................................................... 4

45 00-259946-00001 Harness – Power Supply (P1) ...................................................................................................1

46 FE-024-17 Fuse (0.5 Amp.) .......................................................................................................................... 1

47 00-259929-00001 Harness – Power Supply (P2) ...................................................................................................1

48 00-183918 Block – Fuse ............................................................................................................................... 1

49 SC-109-48 Mach. Screw 6-32 x 1/2 Phil. Flat Hd. ......................................................................................... 1

50 WL-008-01 Lockwasher #6 Internal Shakeproof ......................................................................................... 1

51 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 1

52 FE-009-27 Fuse (2.0 Amp.) (250 V.) ........................................................................................................... 1

53 00-257884 Holder – Fuse .............................................................................................................................1

54 FE-022-28 Fuse (0.5 Amp.) (250 V.) ........................................................................................................... 1

55 00-330917 Fuse (10 Amp.)........................................................................................................................... 1

00-175977 Cover – Control Box ...................................................................................................................1

SC-009-61 Mach. Screw 10-32 x 13/4 Rd. Hd. (For Cover) .........................................................................2

3

/8 Phil. Pan Hd. .........................................................................................1

5

/16 Phil. Pan Hd. ........................................................................................ 2

- 7 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

GRIPPER

44

43

42

41

WIDE
FILM

KNIFE

JUNCTION BOX L.H.

40

TOO
TALL
SW..

NARROW
FILM

1

CLOCK PLATE

ROTARY POT

4
3
2

5 - 6

LEFT CLAMP

7

8-9-10

11

12 THRU 15

16

REAR
COVER
SWITCH

LT.
CANOPY
COVER
SWITCH

36 THRU 39

LT. SIDE
COVER
SWITCH

30 THRU 35

LEFT FRONT J-BOX

25-26

27-28-29

JUNCTION BOX (LH)

18

RT. SIDE
COVER
SWITCH

ELEV.
SW.

17

RT.
CANOPY
COVER
SWITCH

19 THRU 24

FRONT COVER SWITCH

CONTROL BOX ASSY.

PL-55870

F-19207 Rev. A (October 2001)

- 8 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

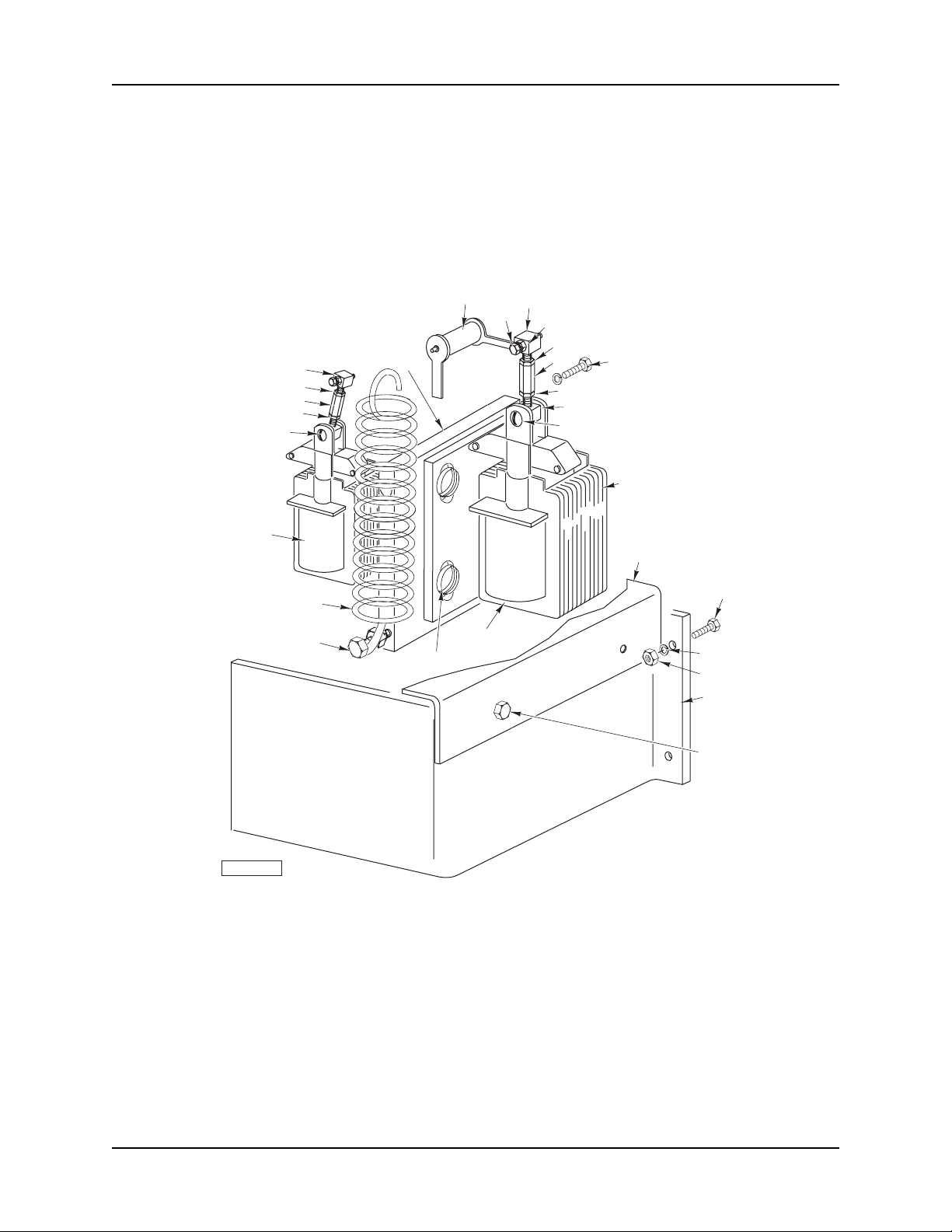

JUNCTION BOX (LH)

ILLUS. PART NO. NAME OF PART AM T.
PL-55870

1 00-175979 Bracket – J-Box Mounting .......................................................................................................... 1

2 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 4

3 WL-013-14 Lockwasher 1/4 Internal Shakeproof .......................................................................................... 4

4 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 4

5 FE-004-16 Cover – Electrical ....................................................................................................................... 1

6 FE-013-11 Box – Conduit .............................................................................................................................1

7 00-047419 Solenoid DC ................................................................................................................................1

8 FE-006-29 Wire Nut (14-22 Ga.) .................................................................................................................. 5

9 FE-006-17 Connector – Wire Nut (16-22 Ga.) ............................................................................................. 1

10 FE-006-18 Wire Nut (14-22 Ga.) ..................................................................................................................1

11 00-259993-00001 Left Cable Assy. .........................................................................................................................1

12 00-332045 Clamp – Cable .............................................................................................................................1

13 SC-018-23 Mach. Screw 8-32 x 5/8 Phil. Pan Hd. .........................................................................................1

14 NS-031-49 Stop Nut 10-32 Hex (SST) ......................................................................................................... 1

15 WS-019-06 Washer ....................................................................................................................................... 1

16 00-334716 Front Interlock Cable Assy. ........................................................................................................ 1

17 00-334719 Interlock Cable Assy. ..................................................................................................................1

18 00-332114 Ground Wire (Field Box) ............................................................................................................1

19 00-175998 Sensor – Switch ........................................................................................................................1

20 00-253363 Clamp .......................................................................................................................................... 1

21 SC-018-37 Mach. Screw 8-32 x 3/4 Phil. Pan Hd. .........................................................................................1

22 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 1

23 WS-023-22 Washer ....................................................................................................................................... 1

24 WL-008-07 Lockwasher #8 Internal Shakeproof ......................................................................................... 1

25 FE-004-16 Cover – Electrical .......................................................................................................................1

26 FE-013-11 Box – Conduit ............................................................................................................................. 1

27 FE-006-17 Connector – Wire Nut (16-22 Ga.)............................................................................................. 9

28 FE-006-29 Wire Nut (14-22 Ga.) ..................................................................................................................1

29 FE-018-16 Wire Nut ......................................................................................................................................2

30 00-253363 Clamp .......................................................................................................................................... 1

31 SC-018-37 Mach. Screw 8-32 x 3/4 Phil. Pan Hd. .........................................................................................1

32 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 1

33 WS-023-22 Washer ....................................................................................................................................... 1

34 WL-008-07 Lockwasher #8 Internal Shakeproof ......................................................................................... 1

35 00-175998 Sensor – Switch ........................................................................................................................1

36 00-175980 Bracket – J-Box Mounting ..........................................................................................................1

37 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 3

38 WL-013-14 Lockwasher 1/4 Internal Shakeproof .......................................................................................... 3

39 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 3

40 00-259998 Switch Sensing Cable Assy. ..................................................................................................... 1

41 00-049389 Gripper Cable Assy. ................................................................................................................... 1

42 00-175514 Wire (40 In. Lg.) ........................................................................................................................ AR

43 00-175513 AC Solenoids Cable Assy. ......................................................................................................... 1

44 00-049390 Gripper Solenoid Assy. .............................................................................................................. 1

00-183934-00003 Tube – Plastic Shrinkable 3/32 x 4 ft. (Cut to Length) ................................................................ AR

00-183934-00006 Tube – Plastic Shrinkable 1/4 x 4 ft. (Cut to Length) ................................................................. AR

- 9 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

BELT SEALER

44 THRU 47

R.H. CLAMP

48

43

SHORT
FILM

3

1-2

JUNCTION BOX R.H.

13

42

LONG
FILM

8

4 THRU 7

9-10-11

12

14 THRU 17

18

19

20

21 THRU 24

25-26-27

28

CONTROL BOX ASSY.

F-19207 Rev. A (October 2001)

41

40

RIGHT FRONT J-BOX

JUNCTION BOX (RH)

- 10 -

33

34 THRU 38

39

29 THRU 32

PL-55869

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

JUNCTION BOX (RH)

ILLUS. PART NO. NAME OF PART AM T.
PL-55869

1 FE-004-16 Cover – Electrical ....................................................................................................................... 1

2 FE-013-11 Box – Conduit .............................................................................................................................1

3 00-175979 Bracket – J-Box Mounting .......................................................................................................... 1

4 SC-118-19 Cap Screw

5 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 4

6 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 4

7 WL-013-14 Lockwasher

8 00-175514 Wire (40 In. Lg.) ........................................................................................................................ AR

9 FE-006-29 Wire Nut (14-22 Ga.) .................................................................................................................. 6

10 FE-006-17 Connector – Wire Nut (16-22 Ga.)............................................................................................. 1

11 FE-006-18 Wire Nut (14-22 Ga.) .................................................................................................................. 1

12 00-043685 Heater Cable Assy. (To Heater Controller) ................................................................................1

13 FE-017-03 Fuse (2 Amp.) (125 V.) .............................................................................................................. 1

14 SC-109-48 Mach. Screw 6-32 x

15 WL-008-02 Lockwasher #6 Internal Shakeproof ......................................................................................... 1

16 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 1

17 WS-028-01 Washer ....................................................................................................................................... 1

18 00-022376-00001 Holder – Fuse .............................................................................................................................1

19 00-183840 Duplex Receptable Wire Assy. .................................................................................................. 1

20 FE-010-04 Receptacle – Electrical............................................................................................................... 1

21 00-175980 Bracket – J-Box Mounting ..........................................................................................................1

22 WL-013-14 Lockwasher 1/4 Internal Shakeproof .......................................................................................... 2

23 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 2

24 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

25 SC-109-48 Mach. Screw 6-32 x 1/2 Phil. Flat Hd. ......................................................................................... 2

26 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 2

27 WL-008-02 Lockwasher #6 Internal Shakeproof ......................................................................................... 2

28 00-334708 Wire – Ground ............................................................................................................................1

29 FE-003-17 Box – Conduit .............................................................................................................................1

30 00-183839 Duplex Receptacle Box Assy. ................................................................................................... 1

31 FE-022-68 Cover – Electrical .......................................................................................................................1

32 00-334801 Label – AC Outlet .......................................................................................................................1

33 SD-024-38 Self-Tapping Screw 10-24 x 3/8 Phil. Pan Hd., Type TT ............................................................. 1

34 00-175980 Bracket – J-Box Mounting ..........................................................................................................1

35 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 2

36 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

37 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

38 WL-013-14 Lockwasher 1/4 Internal Shakeproof .......................................................................................... 2

39 FE-004-06 Cover – Electrical .......................................................................................................................1

40 00-332114 Ground Wire (Field Box) ............................................................................................................1

41 SC-018-14 Mach. Screw 10-32 x 3/8 Pan Hd. .............................................................................................. 1

42 00-183841 Duplex Receptable Cable Assy.................................................................................................. 1

43 00-259994-00001 Right Cable Assy. ....................................................................................................................... 1

44 00-332045 Clamp – Cable .............................................................................................................................1

45 SC-018-23 Mach. Screw 8-32 x 5/8 Phil. Pan Hd. .........................................................................................1

46 WS-019-06 Washer ....................................................................................................................................... 1

47 NS-031-49 Stop Nut 10-32 Hex (SST) ......................................................................................................... 1

48 00-175507 Sealer Belt Cable Assy............................................................................................................... 1

1

/4-20 x 3/4 Hex Hd. .................................................................................................. 4

1

/4 Internal Shakeproof .......................................................................................... 4

1

/2 Phil. Flat Hd. ......................................................................................... 1

- 11 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

1

49
50

47-48

46

51

45

53
52

44

54

56-57-58

55

41

60

59

42-43

21-22-23

25-26-27

24

8-9

28-29-30

4

5-6

7

33 THRU 37

32

31

38-39

POW

2

3

10-11-12

40

ER

PL-55868

F-19207 Rev. A (October 2001)

20

CONTROL PANEL

- 12 -

STOP

13 THRU 18

19

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

CONTROL PANEL

ILLUS. PART NO. NAME OF PART AM T.
PL-55868

1 00-175584 Cover – Control Panel ................................................................................................................ 2

2 00-175919 Side – Scale Support ................................................................................................................. 2

3 SC-022-73 Mach. Screw 8-32 x 3/4 Flat Hd. ................................................................................................. 4

4 00-183507 Plate – Height ..............................................................................................................................1

5 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd. .........................................................................................4

6 WL-003-03 Lockwasher #4 Medium............................................................................................................. 1

7 00-043488 Bar – Front Tie............................................................................................................................ 1

8 SC-062-07 Cap Screw 5/16-18 x 1/2 Hex Hd. ................................................................................................. 2

9 WL-003-47 Lockwasher

10 00-183444 Ground Wire Assy. ..................................................................................................................... 1

11 NS-009-02 Mach. Nut 4-40 Hex ................................................................................................................... 1

12 WL-008-45 Lockwasher #4 Internal Shakeproof ......................................................................................... 1

13 00-334271 Push/Pull – Operator .................................................................................................................. 1

14 FE-021-13 Bushing (Nylon) 1/2 I.D. ............................................................................................................... 1

15 00-183850 Stop/Start Cable Assy. ................................................................................................................1

16 00-030697 Clip – Cable 1/2 ............................................................................................................................. 2

17 SC-008-09 Mach. Screw 10-24 x

18 WS-019-06 Washer ....................................................................................................................................... 2

19 00-175574 Overlay – Stop Switch ............................................................................................................... 1

20 00-175573 Cover – Control Panel ................................................................................................................ 1

21 00-183398 Spacer – Control Panel............................................................................................................... 2

22 SC-018-14 Mach. Screw 10-32 x 3/8 Pan Hd. .............................................................................................. 2

23 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

24 00-253123 Spacer – Display Board ............................................................................................................. 4

25 00-183397 Bracket – Control Panel .............................................................................................................. 2

26 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. .........................................................................................2

27 WL-003-12 Lockwasher #8 Medium............................................................................................................. 2

28 00-183442 Stop/Start Wire Assy. ................................................................................................................. 1

29 00-334777 Block – Contact (KA3) ............................................................................................................... 1

30 00-334778 Block – Contact (KA5) ............................................................................................................... 1

31 RR-011-78 Retaining Ring ............................................................................................................................. 8

32 00-175738 Keyboard .................................................................................................................................... 1

33 00-183666 Display Assy. .............................................................................................................................. 1

34 NS-009-02 Mach. Nut 4-40 Hex ................................................................................................................... 4

35 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

36 SD-024-38 Self-Tapping Screw 10-24 x 3/8 Phil. Pan Hd., Type TT ............................................................. 2

37 00-259925 Display Cable Assy. ................................................................................................................... 1

38 NS-009-02 Mach. Nut 4-40 Hex ................................................................................................................... 2

39 WL-008-45 Lockwasher #4 Internal Shakeproof ......................................................................................... 2

40 00-183421 Audio Indicator Assy. ................................................................................................................. 1

41 00-175922 Plate – Cover Control Panel ....................................................................................................... 1

42 SC-118-15 Cap Screw 1/4-20 x 13/4 Hex Hd. ................................................................................................ 4

43 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 4

44 SC-118-15 Cap Screw 1/4-20 x 13/4 Hex Hd. ................................................................................................ 2

45 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

46 00-175921 Bar – Front Mounting Spacer .....................................................................................................1

47 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

48 SC-118-17 Cap Screw 1/4-20 x 11/4 Hex Hd. ................................................................................................ 2

49 SC-117-92 Cap Screw 5/16-18 x 3/4 Hex Hd. ................................................................................................. 8

50 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 8

51 00-175915 Spacer – Rear Mounting Bar...................................................................................................... 1

52 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

53 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 2

54 00-043489 Bar – Rear Tie ............................................................................................................................ 1

55 00-183509 Post – Height Switch .................................................................................................................. 2

56 00-175998 Sensor – Switch ........................................................................................................................1

57 00-175999 Actuator – Magnetic ................................................................................................................... 1

58 00-183498 Cable Switch Assy. – Too Tall (Incls. Item 56) ...........................................................................1

59 00-183396 Plate – Screw Switch ................................................................................................................ 2

60 00-183508 Bracket – Switch .......................................................................................................................1

00-183934-00003 Tube – Plastic Shrinkable 3/32 x 4 ft. (Use W/Item 58 & Cut to Length).................................... AR

00-183934-00006 Tube – Plastic Shrinkable 1/4 x 4 ft. (Use W/Item 58 & Cut to Length) ..................................... AR

00-175572 Panel Assy. – Control (Incls. Items 10 thru 20, 24, & 28 thru 40) ........................................... AR

5

/16 Medium............................................................................................................. 2

3

/8 Rd. Hd. ...............................................................................................2

- 13 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

4

1

2

3

5

6

7

8

57
58

54
55
56

68

66-67

53

69-70-71

9

51
52

10

48-49-50

46-47

Previous Construction

11

41-42

43-44-45

14
13

15

12

16-17-18

36

40

37
38

62

61

65
64
63

19

20

24
23

25-26-27

33

28-29-30

31
32

34
35

22
21

59
60

Previous Construction

39

PL-55877

MOTOR AND CASTER

ILLUS. PART NO. NAME OF PART AM T.
PL-55877

1 SC-118-15 Cap Screw 1/4-20 x 13/4 Hex Hd. ................................................................................................ 1

2 WL-013-14 Lockwasher 1/4 Internal Shakeproof ..........................................................................................1

3 WS-017-25 Washer 1/4 ................................................................................................................................... 1

4 00-086780 Bearing – Ball (S5KDD) FAFNIR ................................................................................................. 1

5 00-334479 Sprocket (14T) ............................................................................................................................1

6 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 2

7 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

8 WS-018-22 Washer 3/8 ................................................................................................................................... 2

F-19207 Rev. A (October 2001)

- 14 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

MOTOR AND CASTER

ILLUS. PART NO. NAME OF PART AM T.
PL-55877

9 RR-008-13 Retaining Ring .............................................................................................................................1

10 00-047818 Sprocket – Idler (15T) ................................................................................................................. 1

11 00-047820 Take-Up Assy. ............................................................................................................................ 1

12 00-047324 Plate Assy. – Chain Idler ............................................................................................................. 1

13 SC-116-83 Cap Screw 3/8-16 x 11/2 Hex Hd. ................................................................................................ 2

14 NS-038-10 Lock Nut

15 SC-123-94 Cap Screw 3/8-16 x 3/4 Hex Washer Hd. .................................................................................... 2

16 00-333472 Sprocket – Reducer (26T) ......................................................................................................... 1

17 SC-075-15 Set Screw

18 00-087789 Key 3/16 x 1 Lg. ............................................................................................................................1

19 00-175887 Reducer – Gear.......................................................................................................................... 1

20 00-087789 Key

21 SC-118-01 Cap Screw 3/8-24 x 11/4 Hex Hd. ................................................................................................ 4

22 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 4

23 00-332367 Sheave – Speed Reducer (4.5 In. Dia.) (ML-44079 & ML-44088) ............................................1

24 00-183740 Sheave – Reducer (6.5 In. Dia.) (ML-44047) ............................................................................ 1

25 SC-068-30 Mach. Screw 10-32 x 5/8 Hex Hd. .............................................................................................. 3

26 WL-004-40 Lockwasher #10 Medium........................................................................................................... 3

27 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 3

28 SC-118-20 Cap Screw
29 WL-003-38 Lockwasher

30 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

31 00-046622 Handwheel Assy........................................................................................................................ 1

32 SC-075-15 Set Screw 5/16-18 x 3/8 Hex Hdls., Cup Pt. .................................................................................. 2

33 00-046624 Cover – Belt & Pulley .................................................................................................................. 1

34 00-128749 Belt – Drive (AX-26) ...................................................................................................................1

35 BV-013-26 V-Belt (A29) (ML-44047) ........................................................................................................... 1

36 00-084717 Pulley – Variable ......................................................................................................................... 1

37 00-125162 Key 3/16 x 13/8 Lg. .........................................................................................................................4

38 SC-047-75 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 1

39 00-332936 Screw – Motor Mounting ............................................................................................................ 4

40 00-175872 Mounting Plate Assy. .................................................................................................................. 1

41 FE-006-29 Wire Nut (14-22 Ga.) ..................................................................................................................1

42 FE-006-17 Connector – Wire Nut (16-22 Ga.)............................................................................................. 3

43 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 6

44 WS-017-25 Washer ....................................................................................................................................... 6

45 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 6

46 00-044980 Caster ......................................................................................................................................... 2

47 00-044981 Caster Swivel Lock ....................................................................................................................1

48 SC-118-10 Cap Screw 3/8-16 x 1 Hex Hd. ................................................................................................... 8

49 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 8

50 NS-013-25 Nut 3/8-16 Hex ............................................................................................................................. 8

51 00-330866 Leg – Adjustable (4 In.) ..............................................................................................................4

52 00-049038 Leg – Adjustable (6 In.) ..............................................................................................................4

53 00-175673 Plate – Caster Mounting ............................................................................................................. 1

54 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 4

55 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 4

56 NS-013-25 Nut 3/8-16 Hex ............................................................................................................................. 4

57 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 4

58 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 4

59 00-129150 Wheel – Hand .............................................................................................................................1

60 SC-047-75 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 2

61 00-330067 Screw – Motor Adjusting ...........................................................................................................1

62 00-125806 Motor Base W/Screw & Washers ............................................................................................. 1

63 00-131842 Collar – Steel............................................................................................................................... 1

64 SC-047-75 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 1

65 NS-013-33 Nut 1/2-13 Hex ............................................................................................................................. 1

66 SC-078-42 Bolt Sq. Neck 5/16-18 x 1 Rd. ....................................................................................................... 4

67 NS-038-11 Lock Nut 5/16-18 Special .............................................................................................................. 4

68 00-046863 Motor (1/3 Hp., 50/60 Hz.) ............................................................................................................ 1

69 00-046228 Chain Assy. – Main Drive ...........................................................................................................1

70 00-044784 Link – Connecting #40 ................................................................................................................ 1

71 00-044785 Link – Offset #40 ....................................................................................................................... 1

3

/8-16 Special ............................................................................................................... 2

5

/16-18 x 3/8 Hex Hdls., Cup Pt. .................................................................................. 2

3

/16 x 1 Lg. ............................................................................................................................1

1

/4-20 x 1/2 Hex Hd. .................................................................................................. 2

1

/4 Medium.............................................................................................................. 2

- 15 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

1

2 THRU 7

11

58
59

55
56
57

83-84

60

75-76

61

FRAME

82

77

54

52-53

81

74

73

65 THRU 68

62-63-64

49-50

8

80

79

78

70-71-72

69

38

36-37

39

40

41
42

51

47

48

46

43
44
45

9-10

12-13

33
34
35

14

16

18
17

19-20

21 THRU 25

26
27

28
29
30

32

31

PL-55882

15

PANELS

ILLUS. PART NO. NAME OF PART AM T.
PL-55882

1 00-175468 Canopy ....................................................................................................................................... 1

2 00-175999 Actuator – Magnetic ................................................................................................................... 2

3 SC-018-51 Mach. Screw 4-40 x 5/8 Pan Hd. ................................................................................................ 4

4 WL-003-03 Lockwasher #4 Medium ............................................................................................................. 4

5 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd. .........................................................................................2

6 WL-003-03 Lockwasher #4 Medium ............................................................................................................. 2

7 00-183396 Plate – Screw Switch ................................................................................................................2

8 00-175476 Cover – Side (RH) ...................................................................................................................... 1

9 SC-066-20 Mach. Screw 10-32 x 1/2 Phil. Truss Hd. ................................................................................... 5

10 WS-023-51 Washer ....................................................................................................................................... 5

11 00-048281 Cover – Top (RH) ....................................................................................................................... 1

12 00-048275 Trim – Top Cover (RH) ................................................................................................................1

13 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. ................................................................................ 1

14 00-048276 Bracket – Front Top Cover (RH) ................................................................................................ 1

15 00-183555 Panel – Right Side ...................................................................................................................... 1

16 00-175579 Panel – Front Right ..................................................................................................................... 1

17 FE-021-13 Bushing (Nylon) 1/2 I.D. ............................................................................................................... 1

18 FE-024-13 Bushing – Electrical 21/2 x 3/4 I.D. ................................................................................................ 1

19 00-175583 Panel – Front Upper ................................................................................................................... 1

20 00-175585 Door – Pan Access .................................................................................................................... 1

21 00-128376 Latch – Door ............................................................................................................................... 1

F-19207 Rev. A (October 2001)

- 16 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

PANELS (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55882

22 00-183523 Hinge ........................................................................................................................................... 1

23 00-175999 Actuator – Magnetic ................................................................................................................... 1

24 SC-113-10 Mach. Screw 4-40 x

25 WL-003-03 Lockwasher #4 Medium............................................................................................................. 2

26 SC-111-14 Mach. Screw 10-32 x 5/8 Pan Hd. .............................................................................................. 3

27 NS-031-49 Stop Nut 10-32 Hex (SST) ......................................................................................................... 3

28 00-334786 Breaker Door Assy. (63/4 x 7) ..................................................................................................... 1

29 00-334785 Channel – Protector (61/4)........................................................................................................... 3

30 00-046634-00001 Breaker Door Assy. (83/4 x 8) ..................................................................................................... 1

31 00-046625 Channel – Protector (71/4)........................................................................................................... 3

32 00-441773 Front Panel (ML-044047, ML-044079, & ML-044088) ...............................................................1

33 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

34 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

35 WS-017-25 Washer ....................................................................................................................................... 2

36 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 4

37 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 4

38 SC-018-14 Mach. Screw 10-32 x 3/8 Pan Hd. .............................................................................................. 5

39 NS-031-49 Stop Nut 10-32 Hex (SST) ......................................................................................................... 2

40 00-183393 Bracket – Lower Front Panel ..................................................................................................... 2

41 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 4

42 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 4

43 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

44 WS-017-25 Washer ....................................................................................................................................... 2

45 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

46 00-175581 Panel – Front Left .......................................................................................................................1

47 00-183554 Panel – Left Side ........................................................................................................................ 1

48 00-183392 Bracket – Side Panel ..................................................................................................................4

49 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 8

50 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 8

51 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 8

52 00-175999 Actuator – Magnetic ................................................................................................................... 2

53 00-175998 Sensor – Switch ........................................................................................................................1

54 00-183396 Plate – Screw Switch ................................................................................................................ 1

55 SC-018-51 Mach. Screw 4-40 x 5/8 Pan Hd. ................................................................................................ 2

56 WS-029-24 Washer ....................................................................................................................................... 2

57 00-183396 Plate – Screw Switch ................................................................................................................ 1

58 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd. .........................................................................................2

59 WL-003-03 Lockwasher #4 Medium............................................................................................................. 2

60 00-175477 Cover – Side (LH) ...................................................................................................................... 1

61 00-175704 Bracket – Cover Rear ................................................................................................................ 2

62 SC-009-60 Mach. Screw 10-32 x 13/4 Rd. Hd. ............................................................................................. 4

63 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

64 WS-019-06 Washer ....................................................................................................................................... 4

65 SC-009-64 Mach. Screw 6-32 x 1 Rd. Hd. .................................................................................................. 4

66 WL-003-09 Lockwasher #6 Medium............................................................................................................. 4

67 WS-028-20 Washer ....................................................................................................................................... 4

68 NS-009-07 Mach. Nut 6-32 Hex ................................................................................................................... 4

69 00-175571 Pan – Conveyor.......................................................................................................................... 1

70 SC-009-60 Mach. Screw 10-32 x 13/4 Rd. Hd. ............................................................................................. 4

71 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

72 WS-019-06 Washer ....................................................................................................................................... 4

73 00-175891 Block – Printer Pivot ................................................................................................................... 2

74 00-048277 Bracket – Front Top Cover (LH) ................................................................................................. 1

75 00-048278 Trim – Top Cover (LH) ................................................................................................................ 1

76 SC-053-41 Mach. Screw 1/4-20 x 1/2 Slotted Truss Hd. ................................................................................ 1

77 00-048282 Cover – Top (LH) ........................................................................................................................ 1

78 00-183588 Spacer – Printer Shaft................................................................................................................ 1

79 00-184345 Pivot – Printer Arm...................................................................................................................... 1

80 00-183538 Knob – Film Centering ................................................................................................................ 2

81 00-183931 Printer Pivot Arm Assy................................................................................................................ 1

82 00-175989 Printer Pivot Stud Assy. .............................................................................................................. 1

83 SC-066-20 Mach. Screw 10-32 x 1/2 Phil. Truss Hd. ................................................................................... 5

84 WS-023-51 Washer ....................................................................................................................................... 5

00-183934-00003 Tube – Plastic Shrinkable 3/32 x 4 ft. (Cut to Length) (Use W/Item 57) .................................... AR

00-183934-00006 Tube – Plastic Shrinkable 1/4 x 4 ft. (Cut to Length) (Use W/Item 57) ..................................... AR

00-334740 Logo Fastpak (Large) ................................................................................................................ 2

00-334741 Logo Fastpak (Small) ................................................................................................................. 1

3

/8 Phil. Pan Hd. .........................................................................................2

- 17 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

42

39

40
41

38

FRAME

1-2

3

4

5-6

7-8

9

10-11

34

FRAME

30-31

32-33

36
35

37

29
28

25-26-27

23-24

21-22

12-13

14-15

16

19

17-18

20

PL-55881

F-19207 Rev. A (October 2001)

BANDS AND BRACKETS

- 18 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

BANDS AND BRACKETS

ILLUS. PART NO. NAME OF PART AM T.
PL-55881

1

1 SC-118-19 Cap Screw
2 WL-003-38 Lockwasher

3 00-175686 Bracket – Side Cover ................................................................................................................. 2

4 00-175687 Bracket – Front Top Cover ......................................................................................................... 2

5 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 2

6 WL-003-38 Lockwasher
7 SC-066-20 Mach. Screw 10-32 x

8 WS-023-51 Washer .......................................................................................................................................2

9 00-175576 Band – Right Side .......................................................................................................................1

10 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 4

11 WL-003-38 Lockwasher

12 00-048616 Cover – Intake ............................................................................................................................ 1

13 00-048630 Plug – Cover ............................................................................................................................... 2

14 SC-117-91 Cap Screw

15 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

16 00-175575 Band – Front ............................................................................................................................... 1

17 00-047844 Bracket – Support (RH) .............................................................................................................. 1

18 00-047843 Bracket – Support (LH) ..............................................................................................................1

19 SC-123-94 Cap Screw 3/8-16 x 3/4 Hex Wash Hd. ........................................................................................ 2

20 NS-038-10 Nut – Special Lock 3/8-16 ............................................................................................................ 2

21 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

22 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

23 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd. .........................................................................................2

24 WL-003-03 Lockwasher #4 Medium............................................................................................................. 2

25 00-175686 Bracket – Side Cover ................................................................................................................. 2

26 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 4

27 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 4

28 00-183517 Bracket – Switch Canopy (RH) ................................................................................................. 1

29 00-183518 Bracket – Switch Canopy (LH) .................................................................................................. 1

30 00-175998 Sensor – Switch ........................................................................................................................2

31 00-183396 Plate – Screw Switch ................................................................................................................ 2

32 SC-110-87 Mach. Screw 10-32 x 1/4 Phil. Pan Hd. .......................................................................................4

33 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

34 00-175577 Band – Left Side ........................................................................................................................ 1

35 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 4

36 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 4

37 00-175467 Cover – Face (LH) ..................................................................................................................... 1

38 00-175466 Cover – Face (RH) ..................................................................................................................... 1

39 00-175703 Bar – Cover Rear ....................................................................................................................... 1

40 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 4

41 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 4

42 00-183888 Catch – Magnetic ....................................................................................................................... 1

00-183934-00003 Tube – Shrinkable 3/32 x 4 ft. (Use W/Item 30 & Cut to Length) ............................................... AR

00-183934-00006 Tube – Shrinkable 1/4 x 4 ft. (Use W/Item 30 & Cut to Length) ................................................ AR

00-542689 Red Tape .................................................................................................................................. AR

00-438131-00005 Plate – Warning .......................................................................................................................... 1

/4-20 x 3/4 Hex Hd. .................................................................................................. 2

1

/4 Medium .............................................................................................................. 2

1

/4 Medium .............................................................................................................. 2

1

/4 Medium .............................................................................................................. 4

1

/4-20 x 1 Hex Hd. ................................................................................................... 2

1

/2 Phil. Truss Hd. ................................................................................... 2

- 19 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

51

50

52

53

54

1-2

3

4-5-6

8-9-10

7

11

12-13

14

15

16-17

18

19-20

21

44
45
46

39
40

F-19207 Rev. A (October 2001)

49
48

47

38

34

32-33

43
42
41

36-37

35

28-29-30

31

MAIN DRIVE SHAFT

26-27

- 20 -

25

22

24

23

PL-55884

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

MAIN DRIVE SHAFT

ILLUS. PART NO. NAME OF PART AM T.
PL-55884

1 00-175883 Cam – Output Lever ................................................................................................................... 1

2 SC-047-41 Set Screw 3/8-16 x 3/8 Soc. Hdls., Cup Pt. .................................................................................. 2

3 KW-004-07 Key – Woodruff.......................................................................................................................... 1

4 00-184145 Sprocket – Intake ........................................................................................................................ 1

5 00-184144 Sprocket – Intake Split .............................................................................................................. AR

6 SC-047-41 Set Screw

7 KW-004-07 Key – Woodruff.......................................................................................................................... 1

8 00-184309 Cam .............................................................................................................................................2

9 00-042384 Cam – Split ................................................................................................................................ AR

10 SC-047-41 Set Screw

11 KW-004-07 Key – Woodruff.......................................................................................................................... 2

12 00-333551 Sprocket – Main Drive ................................................................................................................ 1

13 SC-047-41 Set Screw

14 KW-004-07 Key – Woodruff.......................................................................................................................... 1

15 00-047461 Shaft – Main Drive ......................................................................................................................1

16 00-175882 Cam – Underfold ........................................................................................................................ 1

17 SC-047-41 Set Screw

18 KW-004-07 Key – Woodruff.......................................................................................................................... 1

19 00-333221 Cam – Side Clamp ...................................................................................................................... 1

20 SC-047-41 Set Screw 3/8-16 x 3/8 Soc. Hdls., Cup Pt. .................................................................................. 2

21 KW-004-07 Key – Woodruff.......................................................................................................................... 1

22 00-044230 Bearing – Flanged Ball ............................................................................................................... 2

23 SC-117-97 Cap Screw 1/2-13 x 1 Hex Hd. ................................................................................................... 8

24 WL-004-11 Lockwasher 1/2 Medium.............................................................................................................. 8

25 NS-013-33 Nut 1/2-13 Hex ............................................................................................................................. 8

26 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 2

27 WL-003-12 Lockwasher #8 Medium............................................................................................................. 2

28 00-334863 Cover – Clock .............................................................................................................................1

29 SC-008-09 Mach. Screw 10-24 x 3/8 Rd. Hd. ............................................................................................... 4

30 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

31 FE-016-23 Bushing ...................................................................................................................................... 1

32 00-334861 Support ....................................................................................................................................... 1

33 00-334862 Spacer – Support .......................................................................................................................2

34 00-184350 Pad – Gripper ............................................................................................................................. 3

35 SC-121-75 Mach. Screw 8-32 x 11/2 Ful. Thd. Hex Hd. ...............................................................................2

36 00-044672 Pot – Potentiometer (5K) ............................................................................................................ 1

37 00-259996 Rotary Pot Cable Assy. ..............................................................................................................1

38 00-175565 Plate – Clock ...............................................................................................................................1

39 00-175568 Spacer – Clock ........................................................................................................................... 2

40 00-331207 Clip – Helipot ............................................................................................................................... 3

41 00-183404 Spacer – Clock Cover ................................................................................................................ 1

42 SC-118-15 Cap Screw 1/4-20 x 13/4 Hex Hd. ................................................................................................ 2

43 WL-013-14 Lockwasher 1/4 Internal Shakeproof .......................................................................................... 2

44 00-175564 Shaft – Clock ..............................................................................................................................1

45 00-331350 Coupling – Flexible ..................................................................................................................... 1

46 RR-004-19 Retaining Ring .............................................................................................................................1

47 00-175569 Block & Bearing Assy................................................................................................................. 1

48 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 2

49 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

50 00-175197 Pulley .......................................................................................................................................... 1

51 SC-116-79 Set Screw 10-32 x 1/4 Soc. Hdls., Cup Pt. .................................................................................2

52 00-175567 Belt – Timing (105T) ................................................................................................................... 1

53 SC-061-09 Cap Screw 3/8-16 x 11/4 Flat Hd. .................................................................................................1

54 00-175566 Pulley – Drive ..............................................................................................................................1

3

/8-16 x 3/8 Soc. Hdls., Cup Pt. .................................................................................. 2

3

/8-16 x 3/8 Soc. Hdls., Cup Pt. .................................................................................. 4

3

/8-16 x 3/8 Soc. Hdls., Cup Pt. .................................................................................. 2

3

/8-16 x 3/8 Soc. Hdls., Cup Pt. .................................................................................. 2

- 21 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

1

2

3

4

5

6

7

14

13

11

12

95
94

91

93
92

85

8

9

10

83
82
81

84

32-33-34

29-30-31

15

16 THRU 20

28

26-27

22

21

25
24
23

70 THRU 73

86
87
88
89
90

66 THRU 69

80

75

76

78

96

74

79

77

63

59

64
65

52

55

60

53

56

61

54

57

62

58

48 THRU 51

38
37
36

39 THRU 42

43

35

44 THRU 47

PL-55883

INTAKE (LEFT SIDE)

ILLUS. PART NO. NAME OF PART AM T.
PL-55883

1 SC-089-69 Cap Screw 10-32 x 1/2 Soc. Hex Hd. ......................................................................................... 1

2 00-043059 Stud – Clutch .............................................................................................................................. 1

3 00-043060 Link – Clutch Positioner .............................................................................................................. 1

4 00-043058 Adjuster – Clutch Positioner ...................................................................................................... 1

5 RP-006-18 Roll Pin 1/4 Dia. x 3/4 (SST) ...........................................................................................................1

6 00-043061 Spring – Clutch Positioner .......................................................................................................... 1

7 RR-010-12 Retaining Ring .............................................................................................................................1

8 00-043057 Shaft – Clutch Positioner ............................................................................................................1

9 00-043056 Bracket – Mounting .................................................................................................................... 1

10 00-043411 Bearing – Nyliner 1/2 .................................................................................................................... 2

11 NS-025-01 Nut – Crown 10-24 .................................................................................................................... 2

12 WS-003-49 Washer ....................................................................................................................................... 2

13 SC-041-20 Cap Screw 5/16-18 x 21/8 Hex Hd. ............................................................................................... 2

14 NS-015-14 Nut 3/8-24 Hex ............................................................................................................................. 1

15 00-259892 Switch – Snap Action ................................................................................................................ 1

16 00-334982 Bracket – Wide Pkg. Switch ...................................................................................................... 1

17 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

18 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 2

19 NS-015-01 Nut 1/4-20 Hex ............................................................................................................................. 2

20 WS-003-49 Washer ....................................................................................................................................... 2

21 00-183506 Spacer – Wide Pkg. ....................................................................................................................2

22 00-175799 Bracket – Wide Pkg. Switch ...................................................................................................... 1

23 00-175754 Spacer Intake Conveyor............................................................................................................. 4

24 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 8

25 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 8

26 SC-041-02 Cap Screw 1/4-20 x 1 Hex Hd. .................................................................................................. 12

27 WL-006-17 Lockwasher 1/4 Medium............................................................................................................. 12

28 00-175758 Spacer – Intake Beds ................................................................................................................ 12

29 00-175757 Bar – Support Front ................................................................................................................... 2

30 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 4

31 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 4

32 00-175756 Bar – Support Rear .................................................................................................................... 1

33 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

F-19207 Rev. A (October 2001)

- 22 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

INTAKE (LEFT SIDE) (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55883

34 WL-006-17 Lockwasher 1/4 Medium .............................................................................................................. 2

35 00-251199 Tie – Cable (4 In. Lg.) ................................................................................................................. 5

36 SC-041-50 Cap Screw
37 WL-006-17 Lockwasher

38 WS-013-49 Washer ....................................................................................................................................... 2

39 00-253363 Clamp .......................................................................................................................................... 2

40 SC-021-89 Mach. Screw 8-32 x

41 WL-013-08 Lockwasher #8 Internal Shakeproof ......................................................................................... 2

42 NS-011-12 Mach. Nut 8-32 Hex ................................................................................................................... 2

43 FE-016-23 Bushing ...................................................................................................................................... 1

44 00-175998 Sensor – Switch ........................................................................................................................1

45 SC-109-66 Mach. Screw 4-40 x

46 WL-013-02 Lockwasher #4 Internal Shakeproof ......................................................................................... 2

47 NS-011-01 Mach. Nut 4-40 Hex ................................................................................................................... 2

48 00-334716 Front Interlock Cable Assy. ........................................................................................................ 1

49 SC-109-66 Mach. Screw 4-40 x 3/8 Pan Hd. ................................................................................................ 4

50 WL-013-02 Lockwasher #4 Internal Shakeproof ......................................................................................... 4

51 NS-011-01 Mach. Nut 4-40 Hex ................................................................................................................... 4

52 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (For Gound Wire) ..................................................................... 1

53 WL-013-14 Lockwasher 1/4 Internal Shakeproof (For Ground Wire) ........................................................... 1

54 NS-015-01 Nut 1/4-20 Hex (SST) (For Gound Wire) .....................................................................................1

55 00-253363 Clamp .......................................................................................................................................... 1

56 SC-120-35 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. .........................................................................................1

57 WL-013-08 Lockwasher #8 Internal Shakeproof ......................................................................................... 1

58 NS-011-12 Mach. Nut 8-32 Hex ................................................................................................................... 1

59 00-259992 Intake Switch Assy. ................................................................................................................... 1

60 SC-109-66 Mach. Screw 4-40 x 3/8 Pan Hd. ................................................................................................ 4

61 WL-013-02 Lockwasher #4 Internal Shakeproof ......................................................................................... 4

62 NS-011-01 Mach. Nut 4-40 Hex ................................................................................................................... 4

63 00-175790 Block – Conveyor Mounting ....................................................................................................... 2

64 SC-041-86 Cap Screw 1/4-20 x 3/8 Hex Hd. .................................................................................................. 4

65 WL-006-17 Lockwasher 1/4 Medium .............................................................................................................. 4

66 00-086967 Clamp .......................................................................................................................................... 2

67 SC-093-07 Mach. Screw 10-32 x 1/2 Pan Hd. .............................................................................................. 2

68 WL-006-07 Lockwasher #10 Medium........................................................................................................... 2

69 NS-011-23 Mach. Nut Hex 10-32 (SST) .......................................................................................................2

70 00-175478 Clutch Cable Assy. ..................................................................................................................... 1

71 SC-109-66 Mach. Screw 4-40 x 3/8 Pan Hd. ................................................................................................ 4

72 WL-013-02 Lockwasher #4 Internal Shakeproof ......................................................................................... 4

73 NS-011-01 Mach. Nut 4-40 Hex ................................................................................................................... 4

74 00-048429 Shaft – Pivot Package Guide ..................................................................................................... 2

75 00-043411 Bearing – Nyliner 1/2 .................................................................................................................... 4

76 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Hd. ............................................................................................... 8

77 RR-004-05 Retaining Ring .............................................................................................................................2

78 00-044854 Bracket ....................................................................................................................................... 4

79 00-044856 Centering Plate ........................................................................................................................... 2

80 SC-122-06 Bolt Sq. Neck 1/4-20 x 11/4 Hex Hd. ............................................................................................. 4

81 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

82 WL-006-17 Lockwasher 1/4 Medium .............................................................................................................. 2

83 NS-015-01 Nut 1/4-20 Hex ............................................................................................................................. 2

84 00-334774 Spacer – Chain Guide ................................................................................................................ 2

85 00-175781 Plate – Guide Mounting ............................................................................................................... 1

86 00-086774 Stamping ..................................................................................................................................... 2

87 SC-109-47 Cap Screw 1/4-20 x 7/8 Hex Hd. .................................................................................................. 2

88 WL-006-17 Lockwasher 1/4 Medium .............................................................................................................. 2

89 NS-015-01 Nut 1/4-20 Hex ............................................................................................................................. 2

90 00-131773 Bearing 1/2 Bore .......................................................................................................................... 1

91 00-175811 Frame – (LH) .............................................................................................................................. 1

92 00-175779 Guide – Chain ............................................................................................................................. 1

93 SC-041-34 Cap Screw 3/8-16 x 2 Hex Hd. ................................................................................................... 2

94 WS-018-22 Washer ....................................................................................................................................... 2

95 WL-006-28 Lockwasher 3/8 Medium .............................................................................................................. 2

96 NS-038-04 Lock Nut 1/4-20 Special ............................................................................................................... 4

00-183934-00003 Tube – Plastic 3/32 x 4 ft. (Use W/Item 48 & Cut to Length) ...................................................... AR

00-183934-00006 Tube – Plastic 1/4 x 4 ft. (Use W/Item 48 & Cut to Length) ....................................................... AR

00-043409 Kit – Clutch Positioner (Incls. Items 1 thru 14) (Use With Item 32) .......................................... AR

1

/4-20 x 1/2 Hex Hd. .................................................................................................. 2

1

/4 Medium .............................................................................................................. 2

5

/8 Rd. Hd. .................................................................................................2

3

/8 Pan Hd. ................................................................................................ 2

- 23 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

67-68

65

64

66

4
3

1

2

6-7

5

9-10

8

55

52-53-54

56

46

57

41-42

59

49-50-51

47

43
44
45

48

58

60

11

61-62-63

12-13-14

15

16-17

18

19 THRU 23

24-25

40

26-27

28

39

38

37

36

PL-55880

29-30

31

34-35

32

33

INTAKE (TOP AND RIGHT SIDE)

ILLUS. PART NO. NAME OF PART AM T.
PL-55880

1 00-175803 Plate – Pusher Switch ................................................................................................................ 1

2 SC-111-15 Mach. Screw 6-32 x 5/8 Slotted Pan Hd. .................................................................................... 4

3 NS-011-07 Mach. Nut 6-32 Hex ................................................................................................................... 4

4 WL-013-05 Lockwasher #6 Internal Shakeproof ........................................................................................ 12

5 00-175791 Actuator Assy. (Incls. Item 66) .................................................................................................. 1

6 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

F-19207 Rev. A (October 2001)

- 24 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

INTAKE (TOP AND RIGHT SIDE) (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55880

1

7 WL-006-17 Lockwasher

8 00-175762 Stud – Take-Up ........................................................................................................................... 2

9 SC-041-50 Cap Screw

10 WL-006-17 Lockwasher

11 SC-112-31 Cap Screw

12 SC-122-28 Bolt 10-24 x

13 WL-006-07 Lockwasher #10 Medium........................................................................................................... 3

14 NS-038-13 Nut – Lock 10-24 ........................................................................................................................3

15 SC-022-08 Mach. Screw 8-32 x 3/8 Flat Hd. ................................................................................................. 3

16 00-175750 Guard – Intake Paddle ................................................................................................................ 1

17 SC-047-75 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 2

18 SC-022-08 Mach. Screw 8-32 x

19 00-183516 Shield Assy................................................................................................................................. 1

20 SC-122-29 Cap Screw 10-32 x

21 WL-006-07 Lockwasher #10 Medium........................................................................................................... 1

22 WS-019-06 Washer ....................................................................................................................................... 1

23 SC-075-42 Set Screw 10-32 x

24 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

25 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 2

26 SC-117-92 Cap Screw 5/16-18 x 3/4 Hex Hd. ................................................................................................. 2

27 WL-003-47 Lockwasher

28 00-175817 Spacer – Intake Angle ................................................................................................................ 2

29 SC-117-92 Cap Screw

30 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

31 00-175671 Bar – Front Conveyor Mounting .................................................................................................1

32 NS-015-01 Nut 1/4-20 Hex ............................................................................................................................. 4

33 00-184043 Cover – Front Intake ................................................................................................................... 1

34 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 4

35 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 4

36 00-042901 Intake Drive Chain Cover Assy. ................................................................................................. 1

37 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 4

38 00-042899 Bracket – Cover Mtg. ................................................................................................................. 1

39 00-042900 Bar – Bracket Mtg. ..................................................................................................................... 1

40 00-175777 Angle – Intake (LH) .................................................................................................................... 1

41 00-175697 Bar – Clamp Front Mounting ....................................................................................................... 2

42 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ...................................................................................2

43 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

44 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

45 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 2

46 00-175778 Angle – Intake (RH) .................................................................................................................... 1

47 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

48 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 2

49 00-048429 Pivot – Shaft Pkg. Guide............................................................................................................. 2

50 SC-122-06 Bolt 1/4-20 x 11/4 Sq. Neck, Rd. Hd. ............................................................................................. 4

51 NS-038-04 Nut – Lock 1/4-20 .........................................................................................................................4

52 SC-122-28 Bolt 10-24 x 1/2 Sq. Neck, Rd. Hd. .............................................................................................. 3

53 WL-006-07 Lockwasher #10 Medium........................................................................................................... 3

54 NS-038-13 Nut – Lock 10-24 ........................................................................................................................3

55 00-175814 Bed – Conveyor (Left) ...............................................................................................................1

56 00-334925 Arm – Centering (LH) (35 In.) .................................................................................................... 1

57 00-184092 Cover – Center (35 In.) ..............................................................................................................1

58 SC-022-08 Mach. Screw 8-32 x 3/8 Flat Hd. ................................................................................................. 3

59 00-175813 Bed – Conveyor (Right) ............................................................................................................. 1

60 00-334924 Arm – Centering (RH) (35 In.) .................................................................................................... 1

61 00-183765 Bearing – Nyliner ........................................................................................................................2

62 00-175804 Support – Pusher Switch ........................................................................................................... 1

63 00-259892 Switch – Snap Action ................................................................................................................ 1

64 00-175798 Spring – Pkg. Width .................................................................................................................... 1

65 00-175809 Frame – (RH) ..............................................................................................................................1

66 00-183765 Bearing – Nyliner ........................................................................................................................2

67 00-440606 Guide – (LH) ............................................................................................................................... 1

68 00-440607 Guide – (RH) ............................................................................................................................... 1

/4 Medium.............................................................................................................. 2

1

/4-20 x 1/2 Hex Hd. .................................................................................................. 2

1

/4 Medium.............................................................................................................. 2

1

/4-20 x 21/4 Hex Hd. ................................................................................................ 2

1

/2 Sq. Neck, Rd. Hd. .............................................................................................. 3

3

/8 Flat Hd. ................................................................................................. 3

3

/8 Socket Hex Hd. .....................................................................................2

1

/4 Soc. Hdls., Cup Pt. .................................................................................2

5

/16 Medium............................................................................................................. 2

5

/16-18 x 3/4 Hex Hd. ................................................................................................. 2

- 25 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

2 THRU 5

1

6

7 THRU 10

66-67-68

61-62-63

14

64
65

56 THRU 59

69

60

11
12
13

53-54-55

20-21

15-16-17

52

48-49-50

51

19

18

22

45-46-47
43-44

23-24-25

26-27-28

29-30-31

32 THRU 35

36

40-41-42

37

38-39

PL-55885

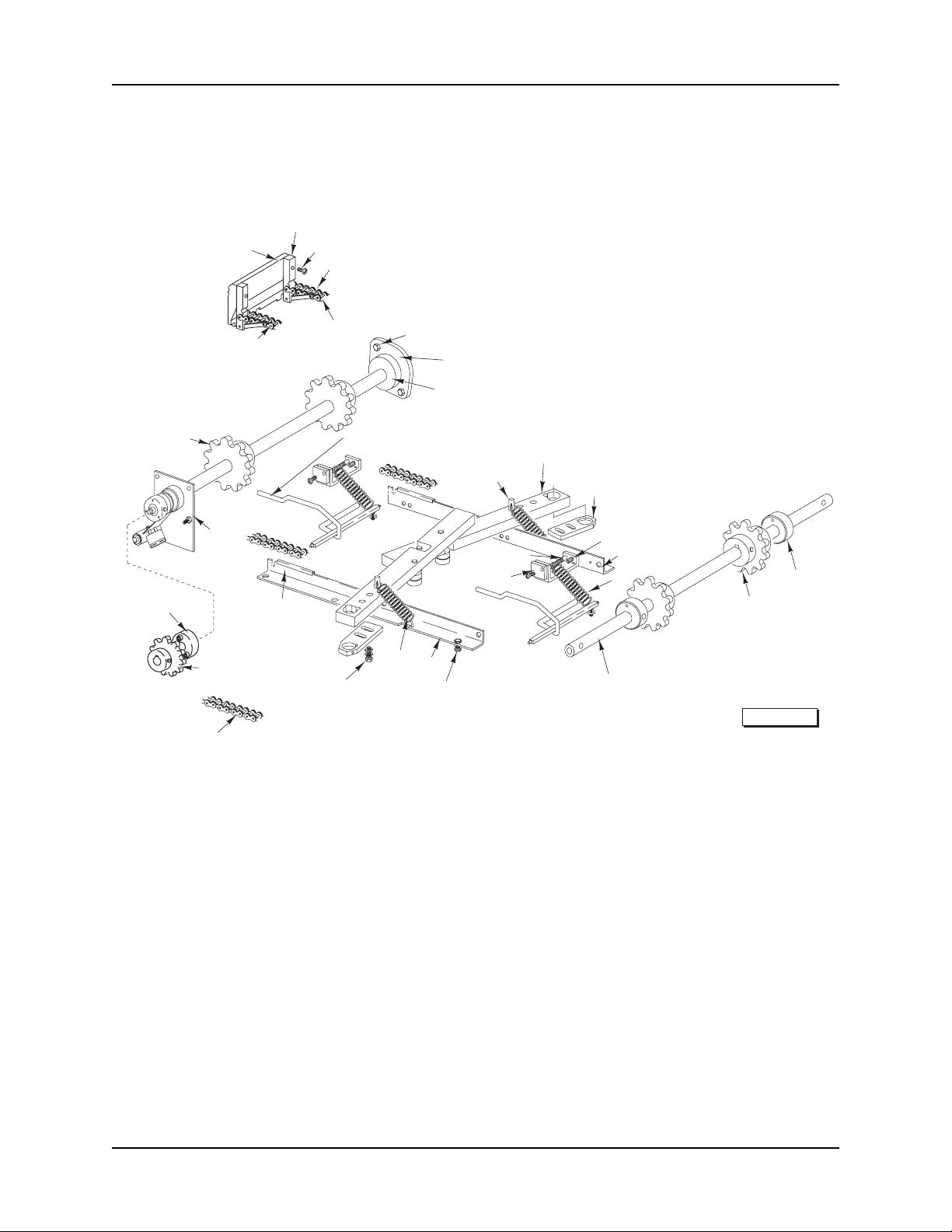

INTAKE (LOWER PORTION)

ILLUS. PART NO. NAME OF PART AM T.
PL-55885

1 00-175763 Pusher – Pkg. ............................................................................................................................. 2

2 00-175768 Pusher Arm & Link Assy. (Incls. Items 3, 4, & 5) ....................................................................... 2

3 00-175775 Link – Pusher ..............................................................................................................................2

4 RP-002-01 Roll Pin 5/32 Dia. x 3/8 Lg. ...............................................................................................................1

5 00-184618 Arm – Pusher ............................................................................................................................. 2

6 SC-022-68 Mach. Screw 10-32 x 5/8 Flat Hd. ............................................................................................... 4

7 00-044787 Intake Chain Assy. (RH) (Incls. Items 2 & 8 thru 13) .................................................................1

8 00-044789 Chain – Intake (1.5 In.) ............................................................................................................... 4

9 00-044790 Chain – Intake (31.5 In.) ............................................................................................................. 4

10 00-175770 Spacer – Pusher Arm ................................................................................................................. 4

11 00-044791 Link – Double Connecting ...........................................................................................................8

F-19207 Rev. A (October 2001)

- 26 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

INTAKE (LOWER PORTION) (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55885

12 00-175771 Spacer – Pusher Link .................................................................................................................4

13 00-044792 Plate – Connecting Link #40 ....................................................................................................... 4

14 00-044786 Intake Chain Assy. (LH) (Incls. Items 2 & 8 thru 13) .................................................................. 1

15 SC-109-47 Cap Screw

16 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 2

17 NS-015-01 Nut 1/4-20 Hex ............................................................................................................................. 2

18 00-086774 Flange – Stamping ...................................................................................................................... 2

19 00-086773 Bearing 5/8 Bore .......................................................................................................................... 1

20 00-334961 Switch Actuator Assy. ............................................................................................................... 2

21 00-183399 Bushing – Nyliner ....................................................................................................................... 4

22 PG-011-15 Groove Pin 3/16 .............................................................................................................................2

23 00-183693 Roller Assy. ................................................................................................................................ 2

24 00-044700 Lever Assy. ................................................................................................................................2

25 RR-010-06 Retaining Ring .............................................................................................................................4

26 00-184046 Plate – Adjusting ......................................................................................................................... 2

27 SC-047-75 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 2

28 KW-003-03 Key – Woodruff 1/8 x 1/2 Lg. ........................................................................................................2

29 SC-122-29 Cap Screw 10-32 x 3/8 Socket Hex Hd. .....................................................................................2

30 WS-030-53 Washer ....................................................................................................................................... 2

31 WL-013-11 Lockwasher #10 Internal Shakeproof ....................................................................................... 2

32 00-175786 Rail – Chain Support (RH) .......................................................................................................... 1

33 SC-041-02 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 2

34 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 2

35 NS-015-01 Nut 1/4-20 Hex ............................................................................................................................. 2

36 00-175797 Spring – Intake Switch ............................................................................................................... 2

37 00-183589 Hub – Shield ............................................................................................................................... 2

38 00-184601 Sprocket Assy. (15T) ................................................................................................................. 2

39 RR-007-20 Retaining Ring .............................................................................................................................2

40 00-175755 Shaft – Idler Sprocket................................................................................................................. 1

41 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

42 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 2

43 00-334971 Bracket – Switch .......................................................................................................................2

44 00-259892 Switch – Snap Action ................................................................................................................ 2

45 SC-122-30 Cap Screw 10-32 x 1 Socket Hex Hd. ...................................................................................... 5

46 WL-013-11 Lockwasher #10 Internal Shakeproof ....................................................................................... 2

47 WS-030-53 Washer ....................................................................................................................................... 2

48 SC-041-02 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 2

49 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 2

50 NS-015-01 Nut 1/4-20 Hex ............................................................................................................................. 2

51 00-175785 Rail – Chain Support (LH)........................................................................................................... 1

52 00-175798 Spring – Pkg. Width .................................................................................................................... 2

53 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 4

54 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 4

55 WS-003-49 Washer ....................................................................................................................................... 4

56 00-046226 Torque Limiter Assy.................................................................................................................... 1

57 00-131773 Bearing – Collar (1/2 In.) .............................................................................................................. 1

58 SC-047-75 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 1

59 KW-003-03 Key – Woodruff 1/8 x 1/2 Lg. ........................................................................................................1

60 00-048090-00005 Guide – Chain .............................................................................................................................2

61 00-183900 Shaft – Clutch Drive Stubshaft .................................................................................................. 1

62 SC-089-70 Cap Screw 10-32 x 5/8 Soc. Hex Hd. ......................................................................................... 3

63 WL-006-07 Lockwasher #10 Medium........................................................................................................... 3

64 00-334775 Shaft & Clutch Assy. (Incls. Solenoid)....................................................................................... 1

65 00-043055 Coil Kit (Incls. Solenoid, Spring, Plunger, & Hardware) ............................................................. 1

66 00-175818 Sprocket (17T) ............................................................................................................................2

67 KW-003-10 Key – 606 Woodruff .................................................................................................................. 2

68 SC-047-75 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 2

69 00-049885 Chain – Intake Drive ................................................................................................................... 1

1

/4-20 x 7/8 Hex Hd. .................................................................................................. 2

- 27 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

1

2

31

30

PL-55893

32

34
33

29

28

36
35

37

27

38

26

39

23-24-25

40

3

4

9

10

8

5

7
6

19

20

11

12

13

14

15

16

17

F-19207 Rev. A (October 2001)

22

ELEVATOR PLATFORM

- 28 -

18

21

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

ELEVATOR PLATFORM

ILLUS. PART NO. NAME OF PART AM T.
PL-55893

1 00-334983 Spacer – Elevator ....................................................................................................................... 2

2 SC-093-21 Mach. Screw 10-32 x 3/8 Pan Hd. (SST) .................................................................................... 2

3 00-333328 Rod – Elevator (#3 Front)........................................................................................................... 1

4 00-041512 Shaft – Slat .................................................................................................................................2

5 SC-093-21 Mach. Screw 10-32 x 3/8 Pan Hd. (SST) .................................................................................... 4

6 SC-116-32 Cap Screw 10-32 x

7 WL-006-07 Lockwasher #10 Medium.......................................................................................................... 26

8 NS-011-23 Mach. Nut Hex 10-32 (SST) ...................................................................................................... 26

9 00-332213 Bracket – (RH) Stop .................................................................................................................. 12

10 00-333147 Spring – Slat (Torsion) ............................................................................................................... 23

11 00-334067 Slat – Smooth ............................................................................................................................. 1

12 00-334066 Slat – Elevator ............................................................................................................................ 1

13 SC-093-21 Mach. Screw 10-32 x 3/8 Pan Hd. (SST) .................................................................................... 2

14 00-332212 Bracket – (LH) Stop ................................................................................................................... 12

15 00-332216 Rod – Elevator (#1 Front)........................................................................................................... 3

16 00-183853 Platform – Elevator ..................................................................................................................... 1

17 00-332219 Rod – Elevator (#2 Front)........................................................................................................... 3

18 00-441117 Bracket – Slat Extension ............................................................................................................ 2

19 00-332214 Rod – Elevator (#4 Front)........................................................................................................... 1

20 00-332215 Rod – Elevator (Side) ................................................................................................................. 2

21 SC-067-07 Mach. Screw 10-24 x 1/2 Hex Hd. (SST) ................................................................................... 6

22 NS-038-13 Lock Nut 10-24 ...........................................................................................................................6

23 SC-116-32 Cap Screw 10-32 x 3/8 Hex Hd. (SST) ....................................................................................... 2

24 WL-006-07 Lockwasher #10 Medium........................................................................................................... 2

25 NS-011-23 Mach. Nut Hex 10-32 (SST) .......................................................................................................2

26 SC-116-30 Mach. Screw 6-32 x 11/4 Hex Hd. (SST) ................................................................................... 1

27 00-331291 Bracket – Elevator Latch............................................................................................................ 1

28 SC-067-07 Mach. Screw 10-24 x 1/2 Hex Hd. (SST) ................................................................................... 2

29 WL-006-07 Lockwasher #10 Medium........................................................................................................... 2

30 SC-112-03 Mach. Screw 10-24 x 1/2 Pan Hd. .............................................................................................. 2

31 00-184078 Support – Elevator Pkg. .............................................................................................................. 1

32 00-044502 Post – Elevator ........................................................................................................................... 1

33 WL-006-42 Lockwasher #6 Medium............................................................................................................. 1

34 NS-011-07 Mach. Nut 6-32 Hex ................................................................................................................... 1

35 00-331285 Sleeve – Elevator Latch .............................................................................................................1

36 00-331288 Spring – Latch Torsion ............................................................................................................... 1

37 00-331284 Latch – Elevator Platform ...........................................................................................................1

38 SC-093-21 Mach. Screw 10-32 x 3/8 Pan Hd. (SST) .................................................................................... 4

39 00-332912 Spacer ........................................................................................................................................ 5

40 00-334940 Slat – Elevator (Half) ..................................................................................................................1

00-183745 Elevator Assy. (Incls. Items 1 thru 40) ....................................................................................... 1

00-184142 Styrene Kit (Incls. Spacers, Standoffs, Washers, Springs, & Screws) ................................... 1

3

/8 Hex Hd. (SST) ...................................................................................... 24

- 29 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

42-43-44

40

41

35 THRU 39

29

45

30

33-34

25
26
27
28

32

31

23
24

20
21
22

14

15-16

17-18

13

1-2

3-4-5

6

7

8

9

10-11

12

F-19207 Rev. A (October 2001)

19

PL-55900

ELEVATOR SUPPORT

- 30 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

ELEVATOR SUPPORT

ILLUS. PART NO. NAME OF PART AM T.
PL-55900

1 WS-022-33 Washer ....................................................................................................................................... 2

2 RR-004-26 Retaining Ring .............................................................................................................................2

3 00-330310 Stud – Elevator ........................................................................................................................... 3

4 SC-118-20 Cap Screw
5 WL-006-17 Lockwasher
6 SD-024-18 Self-Tapping Screw 10-24 x

7 00-044622 Spring – Breakdown Elevator .................................................................................................... 2

8 00-334157 Plate – Retaining ......................................................................................................................... 2

9 00-334049 Shaft – Locating .........................................................................................................................1

10 00-334201 Nut – Adjusting ...........................................................................................................................2

11 00-334202 Hook – Spring ............................................................................................................................. 2

12 00-183747 Plate & Bushing Assy. (Incls. Item 13) ....................................................................................... 1

13 00-334046 Bushing ...................................................................................................................................... 1

14 00-334048 Plunger .......................................................................................................................................1

15 SC-009-64 Mach. Screw 6-32 x 1 Rd. Hd. .................................................................................................. 2

16 WL-006-42 Lockwasher #6 Medium............................................................................................................. 2

17 00-183738 Plate – Switch Actuator ............................................................................................................. 1

18 SC-055-01 Set Screw 10-24 x 1/4 Soc. Hdls., Cup Pt. (SST) ...................................................................... 1

19 00-175586 Support – Elevator ..................................................................................................................... 1

20 SC-009-85 Mach. Screw 6-32 x 11/4 Rd. Hd. ............................................................................................... 2

21 WL-006-42 Lockwasher #6 Medium............................................................................................................. 2

22 WS-023-01 Washer ....................................................................................................................................... 2

23 00-334728 Switch Assy. .............................................................................................................................. 1

24 00-334727 Cord Assy. .................................................................................................................................. 1

25 00-086967 Clamp .......................................................................................................................................... 1

26 SC-009-85 Mach. Screw 6-32 x 11/4 Rd. Hd. ............................................................................................... 1

27 WS-023-01 Washer ....................................................................................................................................... 1

28 WL-006-42 Lockwasher #6 Medium............................................................................................................. 1

29 FE-006-07 Lock Nut 1/2 (Use W/Cord Assy.) ................................................................................................1

30 FE-022-84 Relief – Strain (Use W/Cord Assy.)............................................................................................ 1

31 00-334729 Plate – Switch ............................................................................................................................ 1

32 SD-024-16 Self-Tapping Screw 10-24 x 1/2 Phil. Flat Hd., Type TT.............................................................. 8

33 00-334050 Bushing – Slide ........................................................................................................................... 4

34 RR-004-03 Retaining Ring .............................................................................................................................4

35 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 2

36 NS-015-01 Nut 1/4-20 Hex ............................................................................................................................. 2

37 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 2

38 00-334060 Spacer ........................................................................................................................................ 2

39 WS-022-10 Washer ....................................................................................................................................... 2

40 00-334110 Shaft – Adjusting ........................................................................................................................1

41 00-334286 Support ....................................................................................................................................... 2

42 SC-118-18 Cap Screw 1/4-20 x 7/8 Hex Hd. .................................................................................................. 2

43 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 2

44 NS-015-01 Nut 1/4-20 Hex ............................................................................................................................. 2

45 00-334160 Plate – Top Support .................................................................................................................... 1

1

/4-20 x 1/2 Hex Hd. .................................................................................................. 3

1

/4 Medium.............................................................................................................. 3

1

/2 Hex Hd., Type TT ....................................................................8

- 31 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

7-8

6

31
32

35
36
37

33

39

38

40-41

30

28-29

34

5

4

2
3

1

9

10

42

26-27

F-19207 Rev. A (October 2001)

21

20

24-25

22-23

17-18-19

14-15

ELEVATOR LEVER

- 32 -

16

13

12

11

PL-55898

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

ELEVATOR LEVER

ILLUS. PART NO. NAME OF PART AM T.
PL-55898

1 00-049465 Plate – Clamp .............................................................................................................................. 1

2 00-049464 Bracket – Elevator Bumper (Clamp on only) ..............................................................................1

3 00-049457 Bracket – Elevator Bumper (Bolt on only) ................................................................................. 1

4 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 4

5 SC-037-68 Cap Screw 5/16-18 x 11/2 Hex Hd. ............................................................................................... 4

6 00-049458 Bumper – Elevator ...................................................................................................................... 1

7 NS-013-14 Nut 5/16-18 Hex ............................................................................................................................ 1

8 WL-003-47 Lockwasher

9 00-334921 Bearing – Nyliner ........................................................................................................................ 1

10 00-175972 Shaft – Underfolder Drive .......................................................................................................... 1

11 SC-118-12 Cap Screw

12 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

13 00-175865 Shaft – Elevator .......................................................................................................................... 2

14 00-131841 Collar 15/8 Dia. ............................................................................................................................. 2

15 SC-075-15 Set Screw 5/16-18 x 3/8 Hex Hdls., Cup Pt. .................................................................................. 2

16 00-175866 Elevator Lever Assy................................................................................................................... 1

17 NS-013-36 Nut 1/4-20 Hex ............................................................................................................................. 1

18 WL-004-11 Lockwasher 1/2 Medium.............................................................................................................. 1

19 WS-020-06 Washer ....................................................................................................................................... 1

20 RR-010-17 Retaining Ring .............................................................................................................................1

21 00-086782 Bearing – Fafnir ..........................................................................................................................1

22 00-125665 Bolt 1/4-28 UNF-2A x 21/4 Hex Hd., Special.................................................................................. 1

23 00-330340 Cam – Roller Stud .......................................................................................................................1

24 NS-032-39 Nut 1/4-28 Hex ............................................................................................................................. 1

25 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 1

26 SC-097-11 Cap Screw 5/16-18 x 4 Hex Hd. .................................................................................................. 2

27 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

28 SC-104-08 Shoulder Screw 5/16-18 x 3/4 Hex Soc. Hd. ................................................................................. 2

29 WS-018-24 Washer ....................................................................................................................................... 2

30 00-175871 Lower Elevator Clevis Assy. .....................................................................................................2

31 00-131841 Collar 15/8 Dia. ............................................................................................................................. 2

32 SC-075-15 Set Screw 5/16-18 x 3/8 Hex Hdls., Cup Pt. .................................................................................. 2

33 00-334921 Bearing – Nyliner ........................................................................................................................ 1

34 00-047842 Bracket – Bearing (LH) .............................................................................................................. 1

35 SC-118-11 Cap Screw 3/8-16 x 7/8 Hex Hd. .................................................................................................. 2

36 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

37 NS-009-43 Nut 3/8-16 Hex ............................................................................................................................. 2

38 00-334918 Lever – Elevator Upper .............................................................................................................. 1

39 00-330820 Elevator Clevis Assy. ................................................................................................................. 1

40 SC-104-08 Shoulder Screw 5/16-18 x 3/4 Hex Soc. Hd. ................................................................................. 2

41 WS-018-24 Washer ....................................................................................................................................... 2

42 SC-123-94 Cap Screw 3/8-16 x 3/4 Hex Washer Hd. .................................................................................... 4

00-049466 Kit – Elevator Bumper Assy. (Incls. Items 1, 2, & 4 thru 8) ....................................................... 1

5

/16 Medium............................................................................................................. 1

3

/8-16 x 3/4 Hex Hd. .................................................................................................. 2

- 33 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

PL-55972

69

60

34-35

36 THRU 39

1-2

3-4

6

7

8

9-10-11

15

16

32-33

27
28

12

13

14

20
21

22

23

25

26

29

SEE INTAKE
(TOP &
RIGHT SIDE)

30

31

24

5

17
18
19

93-94

83

77-78

53 THRU 57

51
52

42
43

81-82

91-92

40
41

80

79

76

74-75

70 THRU 73

61
62

88-89-90

87

84-85-86

68

67

63 THRU 66

58-59

49-50

47-48

45-46

44

SIDE CLAMP

ILLUS. PART NO. NAME OF PART AM T.
PL-55972

1 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 2

2 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

3 00-333517 Pad – Lower ............................................................................................................................... 1

4 00-333273 Plate – Lower ............................................................................................................................. 1

5 00-175942 Shaft – Pivot Clamp .................................................................................................................... 1

6 00-183399 Bushing – Nyliner ....................................................................................................................... 2

7 00-175940 Plate – Clamp Pivot (RH)............................................................................................................. 1

8 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ................................................................................... 1

9 SC-113-37 Mach. Screw 6-32 x 5/8 Phil. Pan Hd. .........................................................................................2

10 WS-023-15 Washer ....................................................................................................................................... 2

11 WL-003-09 Lockwasher #6 Medium .............................................................................................................2

12 00-441581 Stop............................................................................................................................................. 2

13 00-175945 Shaft – Pivot Tenon .................................................................................................................... 1

14 00-183429 Block (LH) ...................................................................................................................................1

15 00-441582 Spring Mounting Bracket ............................................................................................................ 2

16 00-175798 Spring – Linkage Clamp ..............................................................................................................1

17 SC-018-29 Mach. Screw 6-32 x 3/8 Phil. Pan Hd. .........................................................................................2

18 WL-003-09 Lockwasher #6 Medium............................................................................................................. 2

19 WS-023-15 Washer ....................................................................................................................................... 2

20 NS-013-08 Nut 1/4-28 (LH Thread) ................................................................................................................1

21 00-330070 Block – Take Up .......................................................................................................................... 1

22 NS-013-07 Nut 1/4-28 Hex (RH Thread) ........................................................................................................ 1

23 00-175944 Pin – Threaded Solenoid ............................................................................................................ 1

24 RR-004-23 Retaining Ring .............................................................................................................................2

25 00-175936 Pin – Rod .................................................................................................................................... 1

26 00-047419 Solenoid DC ................................................................................................................................ 1

27 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

28 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

29 00-334724 Tubing Vinyl Extruded ................................................................................................................1

30 FE-024-21 Strain Relief – Electrical ..............................................................................................................1

F-19207 Rev. A (October 2001)

- 34 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

SIDE CLAMP (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55972

1

31 FE-006-07 Lock Nut

32 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 2

33 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

34 SC-116-83 Cap Screw 3/8-16 x 11/2 Hex Hd. ................................................................................................ 1

35 WL-004-06 Lockwasher 3/8 Medium .............................................................................................................. 1

36 00-130312 Spacer ........................................................................................................................................ 1

37 SC-118-08 Cap Screw 3/8-16 x 13/4 Hex Hd. ................................................................................................ 1

38 WS-018-22 Washer ....................................................................................................................................... 1

39 WL-004-06 Lockwasher 3/8 Medium .............................................................................................................. 1

40 00-333277 Base Clamp Assy. (RH) .............................................................................................................. 1

41 00-183833 Base Clamp Assy. (LH) .............................................................................................................. 1

42 00-334055 Bearing – RH Thread .................................................................................................................. 1

43 00-334056 Bearing – LH Thread ..................................................................................................................1

44 00-175947 Link Assy. – Cross (Incls. Item 40, 41, 43, & 44) ...................................................................... 1

45 NS-013-27 Nut 3/8-24 Hex (RH Thread) ........................................................................................................ 1

46 NS-013-28 Nut 3/8-24 Hex (LH Thread) ........................................................................................................ 1

47 NS-013-25 Nut 3/8-16 Hex ............................................................................................................................. 1

48 WS-018-22 Washer ....................................................................................................................................... 1

49 00-175701 Bar – Pivot Side Clamp ............................................................................................................... 1

50 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ................................................................................... 4

51 00-175677 Shaft – Film Clamps ....................................................................................................................2

52 00-175678 Spacer – Pivot Side Clamp ......................................................................................................... 4

53 00-333427 Side Clamp Link Assy. – Vertical................................................................................................ 1

54 SC-116-83 Cap Screw

55 WS-018-22 Washer ....................................................................................................................................... 3

56 NS-013-25 Nut 3/8-16 Hex ............................................................................................................................. 3

57 WL-004-06 Lockwasher 3/8 Medium .............................................................................................................. 3

58 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 4

59 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 4

60 00-255502 Tie – Cable Locking .................................................................................................................... 1

61 SC-118-11 Cap Screw 3/8-16 x 7/8 Hex Hd. .................................................................................................. 4

62 WL-004-06 Lockwasher 3/8 Medium .............................................................................................................. 4

63 SC-116-32 Cap Screw 10-32 x 3/8 Hex Hd. (SST) .......................................................................................2

64 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

65 WS-023-51 Washer ....................................................................................................................................... 2

66 NS-009-22 Nut 10-24 Hex ............................................................................................................................ 2

67 00-042763 Shield – Knife Solenoid .............................................................................................................. 1

68 00-184873 Stop – Pkg. ..................................................................................................................................1

69 00-044779 Arm – Side Clamp .......................................................................................................................1

70 SC-018-29 Mach. Screw 6-32 x 3/8 Phil. Pan Hd. .........................................................................................2

71 WL-003-09 Lockwasher #6 Medium............................................................................................................. 2

72 00-183399 Bushing – Nyliner ....................................................................................................................... 2

73 00-175945 Shaft – Pivot Tenon .................................................................................................................... 1

74 SC-018-29 Mach. Screw 6-32 x 3/8 Phil. Pan Hd. .........................................................................................2

75 WL-003-09 Lockwasher #6 Medium............................................................................................................. 2

76 00-175560 Bushing – Nyliner ....................................................................................................................... 2

77 00-175945 Shaft – Pivot Tenon .................................................................................................................... 1

78 RR-010-06 Retaining Ring .............................................................................................................................2

79 00-044665 Plate – Pivot Scissors ................................................................................................................ 2

80 00-175939 Link – Scissors........................................................................................................................... 1

81 RR-010-06 Retaining Ring .............................................................................................................................2

82 00-175945 Shaft – Pivot Tenon .................................................................................................................... 1

83 00-175941 Plate – Clamp Pivot (LH) ............................................................................................................. 1

84 00-042226 Plate – Lower .............................................................................................................................1

85 00-043441 Pad – Lower ............................................................................................................................... 1

86 00-043446 Lower Assy. (Incls. Items 88 & 89) ........................................................................................... 1

87 SC-014-92 Mach. Screw 10-32 x 1/2 Flat Hd. ............................................................................................... 4

88 00-042227 Clamp – Upper ............................................................................................................................ 1

89 00-043440 Pad – Upper Clamp ..................................................................................................................... 1

90 00-043445 Top Clamp Assy. (Incls. Items 91 & 92) ..................................................................................... 1

91 00-334209 Clamp – Upper ............................................................................................................................ 1

92 00-183708 Pad – Upper Clamp ..................................................................................................................... 1

93 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 2

94 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

/2 (Cnd.) ...................................................................................................................... 1

3

/8-16 x 11/2 Hex Hd. ................................................................................................ 3

- 35 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

1-2

54
55

58
57
56

53

61

60
59

63
62

51-52

30
29
28

27

64

66
65

49-50

33
32
31

43 THRU 48

36

35

34

37-38

3

4-5

42
41
40

39

23

6-7-8

21

9-10

17

18-19

11

15
14
13
12

16

20

26

25

24

22

PL-55929

UPPER PUSHER

ILLUS. PART NO. NAME OF PART AM T.
PL-55929

1 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 2

2 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

3 00-032931 Bar – Underfolder ...................................................................................................................... 1

4 00-043871 Pkg. Hold Down .......................................................................................................................... 1

5 00-043455 Pad – Hold Down ....................................................................................................................... 2

6 SC-118-17 Cap Screw 1/4-20 x 11/4 Hex Hd. ................................................................................................ 2

7 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 2

8 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

9 00-046696 Chain – Gripper (Rear) ...............................................................................................................1

10 00-044784 Link – Connecting .......................................................................................................................5

F-19207 Rev. A (October 2001)

- 36 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

UPPER PUSHER (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55929

11 00-183458 Ground Wire Assy. ..................................................................................................................... 1

12 00-330069 Chain Take-Up Assy. .................................................................................................................. 1

13 WL-013-14 Lockwasher

14 00-044785 Link – Offset 340 ....................................................................................................................... 1

15 00-046698 Chain – Gripper (Front) ..............................................................................................................1

16 00-175683 Rail – Film Support ...................................................................................................................... 1

17 00-175899 Slide – Pusher ............................................................................................................................ 1

18 00-333376 Roller – Deflector .......................................................................................................................2

19 RR-004-03 Retaining Ring .............................................................................................................................2

20 00-440591 Block – Gripper Slide ..................................................................................................................2

21 00-175903 Bar – Pusher Lift ........................................................................................................................ 1

22 SC-118-20 Cap Screw
23 WL-003-38 Lockwasher
24 SC-013-66 Mach. Screw 10-32 x

25 WL-006-07 Lockwasher #10 Medium........................................................................................................... 2

26 NS-011-23 Mach. Nut Hex 10-32 (SST) .......................................................................................................2

27 00-047420 Channel – Pusher .......................................................................................................................1

28 SC-116-32 Cap Screw 10-32 x 3/8 Hex Hd. (SST) .......................................................................................5

29 WL-006-07 Lockwasher #10 Medium........................................................................................................... 5

30 NS-011-23 Mach. Nut Hex 10-32 (SST) .......................................................................................................5

31 NS-011-23 Mach. Nut Hex 10-32 (SST) .......................................................................................................4

32 SC-116-32 Cap Screw 10-32 x 3/8 Hex Hd. (SST) .......................................................................................4

33 WL-006-07 Lockwasher #10 Medium........................................................................................................... 4

34 00-175901 Hinge – Pusher ...........................................................................................................................1

35 SC-118-15 Cap Screw 1/4-20 x 13/4 Hex Hd. ................................................................................................ 2

36 00-175905 Block – Roller Mounting .............................................................................................................. 2

37 00-042428 Roller – Hold Down .................................................................................................................... 1

38 00-175906 Spacer – Roller ........................................................................................................................... 1

39 00-032973 Plate – Pusher ............................................................................................................................ 1

40 NS-015-01 Nut – Hex 1/4-20 (SST) ................................................................................................................ 4

41 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 2

42 WL-006-17 Lock Washer – 1/4 Helical ........................................................................................................... 2

43 SC-081-18 Mach. Screw 10-32 x 11/8 Rd. Hd. ............................................................................................. 2

44 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

45 WS-019-06 Washer ....................................................................................................................................... 2

46 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 2

47 00-175999 Actuator – Magnetic ................................................................................................................... 1

48 00-175998 Sensor – Switch ........................................................................................................................1

49 SC-036-40 Cap Screw 5/16-18 x 11/4 Hex Hd. ............................................................................................... 2

50 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

51 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 4

52 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 4

53 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd. .........................................................................................2

54 WL-003-03 Lockwasher #4 Medium............................................................................................................. 2

55 00-183396 Plate – Screw Switch ................................................................................................................ 2

56 00-183521 Shield – Rear ..............................................................................................................................1

57 00-183520 Bracket – Rear Shield ................................................................................................................ 1

58 00-183961 Label – Instruction ...................................................................................................................... 1

59 00-175776 Hinge – Door & Shield ................................................................................................................ 1

60 SC-018-14 Mach. Screw 10-32 x 3/8 Pan Hd. .............................................................................................. 2

61 00-183888 Catch – Magnetic ....................................................................................................................... 1

62 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 2

63 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

64 00-175910 Support – Hold Down Pivot ........................................................................................................2

65 00-175909 Pivot – Hold Down ......................................................................................................................1

66 00-175911 Block – Hold Down Pivot ............................................................................................................ 1

00-183934-00003 Tube – Plastic Shrinkable 3/32 x 4 ft. (Use W/Item 51 & Cut to Length) .................................... AR

00-183934-00006 Tube – Plastic Shrinkable 1/4 x 4 ft. (Use W/Item 51 & Cut to Length) ..................................... AR

00-046690 Gripper Chain Assy. (RH) (Incls. Items 9 thru 15, 17, & 70) ..................................................... 1

00-046689 Gripper Chain Assy. (LH) (Incls. Items 9, 10, 11, 14, 15, 17, & 70) ..........................................1

1

/4 Internal Shakeproof .......................................................................................... 1

1

/4-20 x 1/2 Hex Hd. .................................................................................................. 2

1

/4 Medium.............................................................................................................. 2

7

/8 Flat Hd. ............................................................................................... 2

- 37 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

75-76-77-78

62-63-64

1-2

3

61

60

55-56

53-54

35

34

57-58-59

65

Previous Construction

52

43 THRU 46

39

37-38

36

67-68

66

50
51

70 THRU 73

49

48

47

40-41-42

69

74

17-18

19

20-21

22

23-24

25

4

7
8

16

26-27

5

6

11

9-10

12

13-14-15

28

29

30

31-32-33

PL-55899

UNDERFOLDER

ILLUS. PART NO. NAME OF PART AM T.
PL-55899

1 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 4

2 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 4

3 00-183824 Rail & Plate Assy. ....................................................................................................................... 1

4 00-183396 Plate – Screw .............................................................................................................................1

5 00-531816 Tube – Shrinkable (3/16 x 31/2 In. Lg.) .......................................................................................... 1

6 00-031355 Tie – Cable .................................................................................................................................. 1

7 00-043864 Bracket – Switch ....................................................................................................................... 1

8 00-043951 Reed Switch Assy. (Incls. Items 5, 6, 7, 70 thru 74) ................................................................. 1

9 00-119300 Gasket – Magnet Retainer ......................................................................................................... 1

10 00-288454-00002 Retainer – Magnet ...................................................................................................................... 1

11 00-119057 Magnet ........................................................................................................................................ 1

12 00-043886 Bracket – Magnet ....................................................................................................................... 1

13 NS-048-19 Nut Assy. 10-32 Keps ................................................................................................................ 2

F-19207 Rev. A (October 2001)

- 38 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

UNDERFOLDER (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55899

14 WS-029-79 Washer ....................................................................................................................................... 2

15 00-183548 Spacer – Solenoid Link............................................................................................................... 2

16 SD-009-41 Self-Tapping Screw 8-32 x 3/8 Phil. Pan Hd., Type F .................................................................2

17 SC-118-20 Cap Screw 1/4-20 x 1/2 Hex Hd. .................................................................................................. 4

18 WL-003-38 Lockwasher

19 00-175964 Bar – Underfolder ...................................................................................................................... 1

20 00-183834 Underfolder – Side ..................................................................................................................... 2

21 00-042366 Underfolder – Side (For 15 In. Trays) ....................................................................................... 2

22 SC-022-16 Mach. Screw 10-24 x

23 00-043419 Extension – Underfolder Right ...................................................................................................1

24 00-043418 Extension – Underfolder Left .....................................................................................................1

25 SC-122-80 Set Screw 1/4-20 x 1/2 Hex Hdls., Cup Pt. ...................................................................................2

26 00-044136 Ramp – Pusher ...........................................................................................................................2

27 00-044137 Ramp Assy. (Incls. Items 9 thru 16, 25, 26, & 28) ..................................................................... 1

28 SC-059-17 Cap Screw 10-32 x 3/4 Soc. Hd. ................................................................................................ 2

29 00-175966 Roller – Underfolder ...................................................................................................................5

30 00-175683 Rail – Film Support ...................................................................................................................... 2

31 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 6

32 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 6

33 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 6

34 00-175962 Slide – Underfolder .................................................................................................................... 2

35 00-175963 Plate – Underfolder .................................................................................................................... 2

36 SC-022-35 Mach. Screw 1/4-20 x 1 Flat Hd. ................................................................................................. 2

37 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

38 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

39 00-330069 Chain Take-Up Assy. .................................................................................................................. 8

40 00-441797 Block – Deflector ........................................................................................................................1

41 SC-009-41 Mach. Screw 1/4-20 x 3/8 Rd. Hd. ................................................................................................2

42 WL-008-17 Lockwasher 1/4 Internal Shakeproof .......................................................................................... 2

43 00-175970 Block – Chain Underfolder ......................................................................................................... 2

44 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 2

45 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

46 WS-017-25 Washer ....................................................................................................................................... 2

47 00-043825 Stud – Underfolder .....................................................................................................................2

48 00-333208 Washer .......................................................................................................................................2

49 00-127559 Bearing ....................................................................................................................................... 2

50 00-043849 Washer – Slide ...........................................................................................................................2

51 WS-018-34 Washer – Shim (0.110) .............................................................................................................. 2

52 00-183831 Clip – Spring ................................................................................................................................ 2

53 00-046692 Underfolder Chain Assy. ............................................................................................................ 2

54 00-044784 Link – Connecting .......................................................................................................................4

55 SC-110-12 Cap Screw 1/4-20 x 5/8 Hex Hd. .................................................................................................. 2

56 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

57 00-183830 Stud – Spring Clip ....................................................................................................................... 2

58 00-333492 Spring – Underfolder .................................................................................................................. 2

59 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

60 SC-110-12 Cap Screw 1/4-20 x 5/8 Hex Hd. .................................................................................................. 2

61 00-086789 Bearing – Flanged ...................................................................................................................... 2

62 00-044879 Stud – Underfolder Threaded .................................................................................................... 2

63 WL-006-28 Lockwasher 3/8 ........................................................................................................................... 2

64 NS-015-14 Nut 3/8-24 Hex ............................................................................................................................. 2

65 00-184560 Bearing ....................................................................................................................................... 2

66 SC-118-13 Cap Screw 1/4-28 x 3/4 Flat Hd. ...................................................................................................2

67 SC-110-31 Mach. Screw 10-24 x 3/4 Hex Hd. .............................................................................................. 4

68 WL-006-07 Lockwasher #10 Medium........................................................................................................... 4

69 00-175960 Underfolder Pivot Block Assy. ................................................................................................... 2

70 SC-018-51 Mach. Screw 4-40 x 5/8 Pan Hd. ................................................................................................ 3

71 WL-008-45 Lockwasher #4 Internal Shakeproof ......................................................................................... 3

72 NS-009-45 Mach. Nut 4-40 Hex ................................................................................................................... 4

73 WS-029-24 Washer ....................................................................................................................................... 6

74 00-175998 Sensor ........................................................................................................................................2

75 00-184819 Stud – Underfolder Rear ............................................................................................................ 2

76 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

77 SC-118-17 Cap Screw 1/4-20 x 11/4 Hex Hd. ................................................................................................ 2

78 00-044879 Stud – Underfold Rear................................................................................................................ 2

1

/4 Medium.............................................................................................................. 4

5

/16 Flat Hd............................................................................................... 4

- 39 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

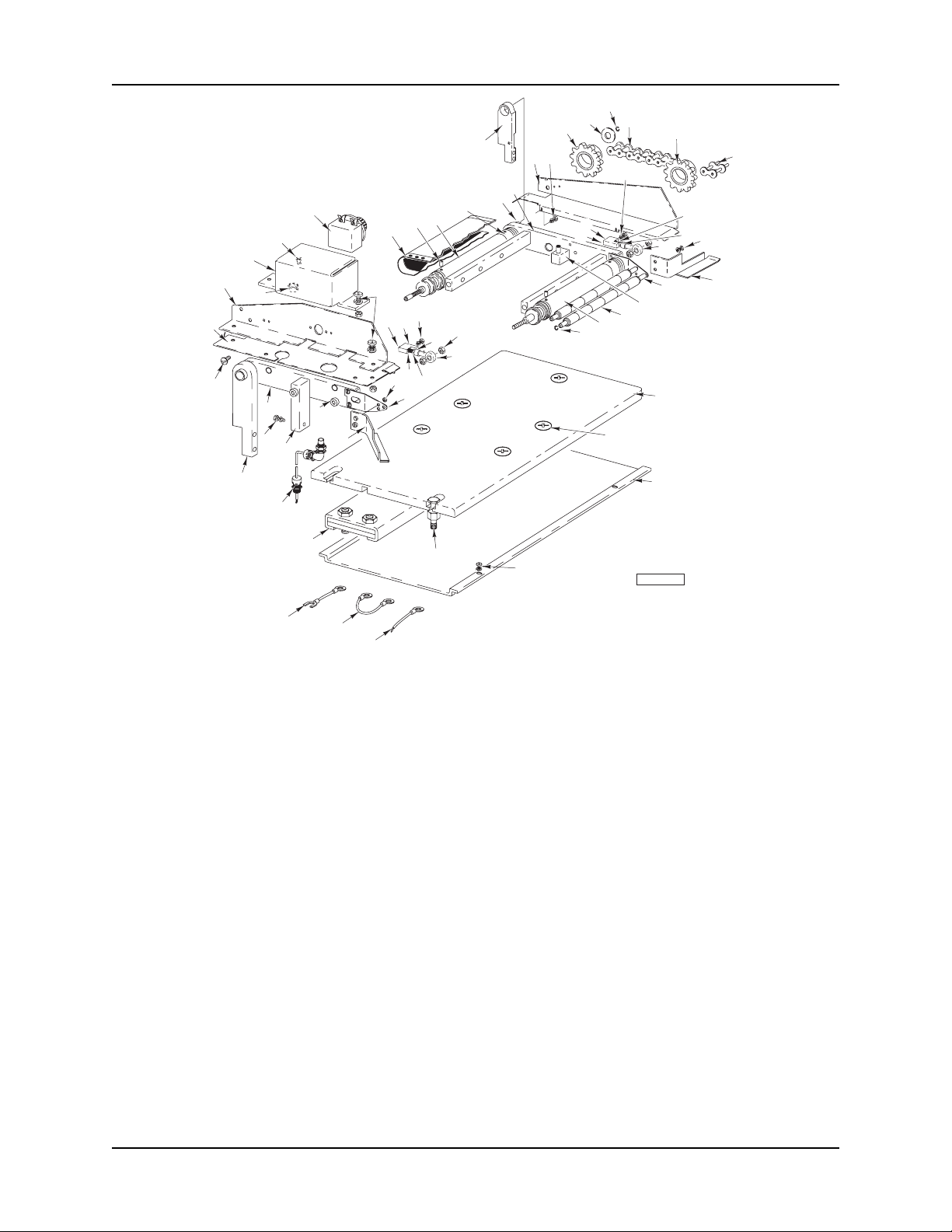

80

77

75
76

19

11 THRU 15

16-17

18

20-21

22-23

24-25

26

3

1

78
79

2

4-5

71
70

74
73
72

57-58-59

56

62
61
60

6 THRU 10

69

67-68

66

64-65

63

55

51 THRU 54

46 THRU 50

33
34
35
36

30
31
32

27
28
29

PL-55964

45

37

38-39-40

43-44

41-42

CHAIN AND SPROCKETS

ILLUS. PART NO. NAME OF PART AM T.
PL-55964

1 00-044162 Block – Idler Support .................................................................................................................. 2

2 00-049629 Stud Assy. .................................................................................................................................. 4

3 SC-123-94 Cap Screw 3/8-16 x 3/4 Hex Washer Hd. .................................................................................... 2

4 00-047830 Sprocket Assy. ........................................................................................................................... 4

5 RR-008-13 Retaining Ring .............................................................................................................................6

6 00-047823 Spacer – Sprocket ...................................................................................................................... 2

7 00-087789 Key 3/16 x 1 Lg. .......................................................................................................................... AR

8 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ................................................................................... 2

9 00-175694 Sprocket – Gripper ..................................................................................................................... 2

10 KW-003-10 Key – Woodruff........................................................................................................................ AR

11 00-086776 Flange – Stamping ...................................................................................................................... 4

12 00-175997 Bearing – Ball ............................................................................................................................. 2

13 SC-120-38 Cap Screw 5/16-18 x 1 Hex Hd. .................................................................................................. 4

14 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 4

15 NS-013-14 Nut 5/16-18 Hex ............................................................................................................................ 4

F-19207 Rev. A (October 2001)

- 40 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

CHAIN AND SPROCKETS (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55964

16 SC-118-20 Cap Screw
17 WL-003-38 Lockwasher

1

/4-20 x 1/2 Hex Hd. .................................................................................................. 4

1

/4 Medium.............................................................................................................. 4

18 00-175684 Bar – Intake Support .................................................................................................................. 2

19 00-184601 Sprocket Assy. (15T) ................................................................................................................. 6

20 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 6

21 WL-004-06 Lockwasher

3

/8 Medium.............................................................................................................. 6

22 00-175698 Stud – Idler Underfolder ............................................................................................................. 4

23 00-175705 Bushing – Idler............................................................................................................................ 4

24 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 6

25 WL-004-06 Lockwasher

3

/8 Medium.............................................................................................................. 6

26 00-049885 Conveyor Chain Drive Assy....................................................................................................... 1

27 00-175881 Sprocket – Underfolder .............................................................................................................. 2

28 SC-075-15 Set Screw

5

/16-18 x 3/8 Hex Hdls., Cup Pt. .................................................................................. 1

29 KW-003-17 Key – Woodruff.......................................................................................................................... 1

30 00-175955 Sprocket – Underfolder .............................................................................................................. 1

31 KW-003-17 Key – Woodruff.......................................................................................................................... 3

32 SC-047-72 Set Screw

33 00-175994 Bearing – Ball ............................................................................................................................. 3

34 SC-117-92 Cap Screw

1

/4-20 x 3/8 Hex Hdls,. Cup Pt. ...................................................................................2

5

/16-18 x 3/4 Hex Hd. ................................................................................................. 4

35 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 4

36 NS-013-14 Nut 5/16-18 Hex ............................................................................................................................ 4

37 00-086782 Bearing – Fafnir (W203PP) (Cam Follower) ..............................................................................2

38 00-330139 Stud – Cam Bearing .................................................................................................................... 1

39 00-175820 Lever – Assy. .............................................................................................................................1

40 RR-010-17 Retaining Ring .............................................................................................................................2

41 00-131841 Collar 15/8 Dia. ............................................................................................................................. 6

42 SC-075-15 Set Screw 5/16-18 x 3/8 Hex Hdls., Cup Pt. .................................................................................. 2

43 SC-118-11 Cap Screw 3/8-16 x 7/8 Hex Hd. .................................................................................................. 2

44 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

45 00-175820 Lever Assy. ................................................................................................................................2

46 00-175954 Stud – Bearing ............................................................................................................................ 1

47 00-086782 Bearing – Fafnir.......................................................................................................................... 1

48 WL-004-11 Lockwasher 1/2 Medium.............................................................................................................. 1

49 NS-013-36 Nut 1/4-20 Hex ............................................................................................................................. 1

50 RR-010-17 Retaining Ring .............................................................................................................................2

51 00-175950 Underfolder Lever Assy. (Incls. Items 44 thru 48) ....................................................................1

52 00-183703 Spacer – Underfolder Lever ......................................................................................................1

53 SC-116-83 Cap Screw 3/8-16 x 11/2 Hex Hd. ................................................................................................ 1

54 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 1

55 WS-018-24 Washer ....................................................................................................................................... 1

56 00-046691 Underfolder Drive Chain Assy. .................................................................................................. 1

57 00-175956 Support – Chain.......................................................................................................................... 1

58 SC-117-92 Cap Screw 5/16-18 x 3/4 Hex Hd. ................................................................................................. 1

59 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 1

60 00-334481 Sprocket (21T) ............................................................................................................................1

61 00-086780 Bearing – Ball (S5KDD) Fafnir ................................................................................................... 2

62 RR-008-14 Retaining Ring .............................................................................................................................2

63 00-175679 Plate & Stud Assy. ...................................................................................................................... 1

64 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 4

65 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 4

66 00-047817 Idler Sprocket (17T).................................................................................................................... 2

67 SC-047-32 Set Screw 5/16-18 x 5/16 Soc. Hdls., Cup Pt. ................................................................................2

68 00-131691 Collar ...........................................................................................................................................2

69 00-047823 Spacer – Sprocket...................................................................................................................... 2

70 00-047827 Shaft – Gripper Drive ................................................................................................................. 3

71 KW-003-10 Key – Woodruff.......................................................................................................................... 1

72 00-184601 Sprocket Assy. (15T) ................................................................................................................. 2

73 00-183546 Stud – Idler Underfolder Top ...................................................................................................... 2

74 00-175705 Bushing – Idler............................................................................................................................ 2

75 SC-118-12 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 4

76 WL-008-27 Lockwasher 3/8 Internal Shakeproof .......................................................................................... 2

77 SC-116-83 Cap Screw 3/8-16 x 11/2 Hex Hd. ................................................................................................ 2

78 SC-120-38 Cap Screw 5/16-18 x 1 Hex Hd. .................................................................................................. 2

79 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

80 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

- 41 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

81-82

80

79

77

78

76

73
74
75

72

70
71

65
66
67

68

85
84
83

64
63

51

87
86

90-91-92

89

88

61
60

62

59

54

55

53

52

9

8

37

17-18

35

36

39-40-41

10-11-12

30 THRU 34

27

29

38

13-14-15

19

23

16

24-25-26

28

7

1

93

58
57

56

6
5

3

4

2

94

20-21

22

69

50

49

48

47

46

45

43-44

42

PL-55973

BELT SEALER

ILLUS. PART NO. NAME OF PART AM T.
PL-55973

1 00-041948 Support – Sealer ........................................................................................................................ 1

2 00-043691-00001 Cover – Hotplate ........................................................................................................................ 1

3 00-043490-00001 Cover – Hotplate (LH) ................................................................................................................ 1

4 SC-113-08 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. .......................................................................................4

5 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

6 WS-023-20 Washer ....................................................................................................................................... 2

7 00-175523 Clutch & Sprocket Assy. ............................................................................................................. 1

8 00-175536 Bearing – Thrust ........................................................................................................................ 1

9 RR-004-05 Retaining Ring .............................................................................................................................1

10 00-087165 Link – Chain Connector .............................................................................................................. 1

11 00-048300 Chain – Hotplate Drive (Without Transfer Station) ....................................................................1

12 00-043495 Chain Assy. Drive (With Transfer Station)................................................................................. 1

13 00-043928 Sprocket – Split (20T) (Service Only) ........................................................................................ 1

14 00-087789 Key 3/16 x 1 Lg. ............................................................................................................................1

15 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ................................................................................... 1

16 00-041395 Link – Double (Included in Item 13) ............................................................................................ 1

17 SC-090-37 Cap Screw 3/8-24 x 1 Hex Hd. ................................................................................................... 3

18 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 3

19 00-333492 Spring.......................................................................................................................................... 1

20 RR-004-19 Retaining Ring .............................................................................................................................1

21 00-175552 Stud............................................................................................................................................. 1

22 00-175550 Guide Block Assy. ...................................................................................................................... 1

23 NS-017-20 Nut – Jam 3/8-24 .......................................................................................................................... 1

24 SC-059-29 Cap Screw 1/4-20 x 1/2 Soc. Hd. ................................................................................................. 6

25 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 6

26 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 4

27 00-334055 Bearing RH Thread ..................................................................................................................... 1

28 00-440500-00002 Brace – Sealer (LH) ...................................................................................................................1

F-19207 Rev. A (October 2001)

- 42 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

BELT SEALER (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55973

29 00-183674 Shaft – Discharge Roller ............................................................................................................2

30 00-175555 Spacer – Hotplate Center ........................................................................................................... 1

31 SC-037-85 Cap Screw 5/16-18 x 1 Hex Hd. .................................................................................................. 1

32 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 1

33 00-175521 Spacer – Hotplate....................................................................................................................... 1

34 SC-027-39 Mach. Screw 10-24 x

35 00-183675 Roller – Discharge ..................................................................................................................... 16

36 00-175526 Idler Roller & Shaft Assy. ........................................................................................................... 1

37 RR-004-05 Retaining Ring .............................................................................................................................4

38 00-183957 Hotplate ...................................................................................................................................... 1

39 SC-029-47 Mach. Screw

40 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 4

41 NS-014-11 Nut

5

/16-18 Hex (Brass) ............................................................................................................... 4

5

42 00-175561 Cover – Hotplate Bottom ............................................................................................................ 1

43 SC-113-08 Mach. Screw 10-32 x

44 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

45 00-175522 Stud – Spacer ............................................................................................................................. 2

46 00-175986 Element Wire Assy. .................................................................................................................... 2

47 00-183764 Jumper Wire Assy. .....................................................................................................................1

48 00-175985 Element Wire Assy. .................................................................................................................... 1

49 00-087017 Plate – Element ........................................................................................................................... 1

50 00-175507 Sealer Belt Cable Assy............................................................................................................... 1

51 00-440500-00001 Brace – Sealer (RH) ................................................................................................................... 1

52 00-044252 Plate – Roller Mounting ...............................................................................................................2

53 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

54 WS-029-35 Washer ....................................................................................................................................... 1

55 00-333492 Spring.......................................................................................................................................... 1

56 00-334055 Bearing RH Thread ..................................................................................................................... 1

57 NS-017-20 Jam Nut 3/8-24 Hex ......................................................................................................................2

58 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

59 NS-017-20 Jam Nut 3/8-24 Hex ......................................................................................................................1

60 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 2

61 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

62 00-175550 Guide Block Assy. ...................................................................................................................... 1

63 00-175552 Stud............................................................................................................................................. 1

64 RR-004-19 Retaining Ring .............................................................................................................................1

65 SC-089-70 Cap Screw 10-32 x 5/8 Soc. Hex Hd. ......................................................................................... 4

66 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

67 WS-023-20 Washer ....................................................................................................................................... 4

68 00-175537 Block – Sealer Mounting............................................................................................................. 2

69 00-175562 Support – Sealer ........................................................................................................................ 1

70 SC-089-04 Cap Screw 1/4-20 x 1 Soc. Hex Hd. ........................................................................................... 2

71 WL-006-17 Lockwasher 1/4 Medium.............................................................................................................. 2

72 00-175541 Frame Assy. (RH) (Incls. Bearing) ............................................................................................. 1

73 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

74 SC-113-08 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. .......................................................................................2

75 WS-023-20 Washer ....................................................................................................................................... 2

76 00-175559 Cover – Hotplate (RH) ................................................................................................................ 1

77 00-042536 Shield – Thermostat ................................................................................................................... 1

78 FE-021-13 Bushing (Nylon) 1/2 I.D. ............................................................................................................... 1

79 00-175538 Box – Thermostat .......................................................................................................................1

80 FE-006-29 Wire Nut (14-22 Ga.) ..................................................................................................................1

81 00-044352 Thermostat ................................................................................................................................. 1

82 SC-009-70 Mach. Screw 6-32 x 1/4 Rd. Hd. .................................................................................................2

83 SC-113-08 Mach. Screw 10-32 x 1/2 Phil. Pan Hd. .......................................................................................4

84 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

85 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 4

86 00-440757 Belt – Hotplate ............................................................................................................................ 1

87 00-048674 Pin – Belt Splicing ....................................................................................................................... 1

88 RP-002-35 Roll Pin 3/16 x 5/8 ............................................................................................................................ 4

89 00-175531 Roller & Shaft Assy. (Incls. Item 93) .......................................................................................... 1

90 00-175556 Spacer – Hotplate....................................................................................................................... 2

91 SC-037-85 Cap Screw 5/16-18 x 1 Hex Hd. .................................................................................................. 2

92 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

93 00-184738 Bearing – Thrust ........................................................................................................................ 1

94 00-175545 Frame Assy. (LH) (Incls. Clutch & Bearing Assy.) .................................................................... 1

1

/4 Rd. Hd. (Brass) ................................................................................. 1

/16 x 1 Flat Hd. (Brass) ....................................................................................... 4

1

/2 Phil. Pan Hd. .......................................................................................4

- 43 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

96

73
72

75
74

85

86

76

70
71

87-88-89

84
83

77

64
65

63
62

60-61

56-57-58

59

82

90

69

91

81

78-79-80

92

66

93

51

50

67-68

49

94

52

95

1-2-3

48

4

5

47

44-45-46

9

8

28
29
30

43

10 THRU 13

15
14

24
25

27

31

35

37

39
40
41

42

16

26

32-33

34

36

PL-55901

17

19
18

20

22
23

38

21

7
6

53-54-55

FILM SELECTOR

ILLUS. PART NO. NAME OF PART AM T.
PL-55901

1 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 1

2 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

3 WS-019-02 Washer ....................................................................................................................................... 1

4 00-175619 Arm – Top Roller ......................................................................................................................... 1

5 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 1

6 00-175628 Stud – Film Roller ........................................................................................................................ 1

7 00-175627 Stud – Bearing ............................................................................................................................ 1

8 00-184356 Frame Assy. (LH) ....................................................................................................................... 1

9 00-175618 Stud – Arm Pivot ......................................................................................................................... 1

10 00-183547 Link – Film Solenoid ....................................................................................................................1

11 00-175993 Stud – Crank ............................................................................................................................... 1

12 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

13 WS-019-02 Washer ....................................................................................................................................... 1

14 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 9

15 WL-004-40 Lockwasher #10 Medium........................................................................................................... 9

16 00-183548 Spacer – Solenoid Link............................................................................................................... 1

17 SC-068-31 Mach. Screw 10-32 x 3/4 Hex Hd. .............................................................................................. 1

18 SC-089-79 Cap Screw 10-32 x 1 Soc. Hd. ................................................................................................. 1

19 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 1

20 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 2

21 00-175626 Stop – Spring Handle .................................................................................................................. 1

22 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 1

23 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

24 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

25 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 2

26 00-332372 Spring Handle Assy. ................................................................................................................... 1

27 RR-004-02 Retaining Ring .............................................................................................................................1

28 SC-081-18 Mach. Screw 10-32 x 11/8 Rd. Hd. ............................................................................................. 1

29 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

30 WS-019-02 Washer ....................................................................................................................................... 1

31 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 1

F-19207 Rev. A (October 2001)

- 44 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

FILM SELECTOR (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55901

32 00-175628 Stud – Film Roller ........................................................................................................................ 1

33 00-175627 Stud – Bearing ............................................................................................................................ 1

34 00-334976 Stud – Changer Solenoid............................................................................................................ 1

35 00-175620 Arm – Bottom Roller ................................................................................................................... 1

36 00-175618 Stud – Arm Pivot ......................................................................................................................... 1

37 RR-004-02 Retaining Ring .............................................................................................................................1

38 00-332372 Spring Handle Assy. ................................................................................................................... 1

39 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

40 SC-081-18 Mach. Screw 10-32 x 11/8 Rd. Hd. ............................................................................................. 1

41 WS-019-02 Washer ....................................................................................................................................... 1

42 00-044628 Guide – Narrow Film .................................................................................................................. 1

43 00-175622 Guide – Film Changer ................................................................................................................. 1

44 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 1

45 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

46 WS-019-02 Washer ....................................................................................................................................... 1

47 00-175621 Rod – Tie .................................................................................................................................... 1

48 00-175613 Tapered Roller Assy. ..................................................................................................................1

49 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 1

50 RR-004-02 Retaining Ring .............................................................................................................................1

51 00-175620 Arm – Bottom Roller ................................................................................................................... 1

52 00-332372 Spring Handle Assy. ................................................................................................................... 1

53 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 1

54 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

55 WS-019-02 Washer ....................................................................................................................................... 1

56 SC-081-18 Mach. Screw 10-32 x 11/8 Rd. Hd. ............................................................................................. 1

57 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

58 WS-019-02 Washer ....................................................................................................................................... 1

59 00-175618 Stud – Arm Pivot ......................................................................................................................... 1

60 SC-068-31 Mach. Screw 10-32 x 3/4 Hex Hd. .............................................................................................. 1

61 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

62 00-175628 Stud – Film Roller ........................................................................................................................ 1

63 00-175627 Stud – Bearing ............................................................................................................................ 1

64 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 9

65 WL-004-40 Lockwasher #10 Medium........................................................................................................... 9

66 00-175626 Stop – Spring Handle .................................................................................................................. 1

67 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

68 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 2

69 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 2

70 00-175691 Pivot – Film Guide ....................................................................................................................... 2

71 RR-004-05 Retaining Ring .............................................................................................................................2

72 SC-123-94 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 2

73 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

74 00-175690 Stud – Film Guide ........................................................................................................................2

75 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ...................................................................................2

76 00-184357 Frame Assy. (RH) .......................................................................................................................1

77 00-175618 Stud – Arm Pivot ......................................................................................................................... 1

78 SC-081-18 Mach. Screw 10-32 x 11/8 Rd. Hd. ............................................................................................. 1

79 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

80 WS-019-02 Washer ....................................................................................................................................... 1

81 00-175619 Arm – Top Roller .........................................................................................................................1

82 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 1

83 00-175628 Stud – Film Roller ........................................................................................................................ 1

84 00-175627 Stud – Bearing ............................................................................................................................ 1

85 00-044630 Guide – Top Film ......................................................................................................................... 1

86 00-175622 Guide – Film Changer ................................................................................................................. 1

87 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 1

88 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

89 WS-019-02 Washer ....................................................................................................................................... 1

90 00-332372 Spring Handle Assy. ................................................................................................................... 1

91 RR-004-02 Retaining Ring .............................................................................................................................1

92 00-175621 Rod – Tie .................................................................................................................................... 1

93 00-175613 Tapered Roller Assy. ..................................................................................................................1

94 00-044234 Shaft & Bearing Assy. ................................................................................................................ 2

95 00-184351 Rod – Tie .................................................................................................................................... 1

96 00-047076 Shim ............................................................................................................................................1

- 45 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

58
59

6 - 7

4 - 5

3

2

1

84

83

82

78

77

64

70

63

65

62
61

60

67-68

66

69

80

79

75-76

73-74

51
50

17

81

71-72

16

20

45

49
48

15

18

21

23

44

46

47

8

9

19

22

26

25

24

43

10-11

12

13

14

28

27

29

30-31

39-40-41

32

36

37-38

33-34

35

52-53-54

55
56

57

42

PL-55927

VIEW FROM INTAKE END

KNIFE AND PULL DOWN ASSEMBLY

(WITHOUT CURTAIN)

ILLUS. PART NO. NAME OF PART AM T.
PL-55927

1 SC-121-20 Mach. Screw 8-32 x 5/8 Bndg. Hd. ............................................................................................. 5

2 00-183504 Plate – Knife Channel ................................................................................................................. 2

3 00-175864 Channel – Support ..................................................................................................................... 1

4 WL-003-12 Lockwasher #8 Medium............................................................................................................. 5

5 NS-009-12 Mach. Nut 8-32 Hex ................................................................................................................... 5

6 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

7 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 4

8 00-175860 Slide – Knife & Pulldown ............................................................................................................2

9 SC-068-30 Mach. Screw 10-32 x 5/8 Hex Hd. .............................................................................................. 4

10 SC-089-05 Cap Screw 1/4-20 x 11/4 Socket Hex Hd. .................................................................................... 2

11 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

12 00-334750 Block – Spring Mtg. .....................................................................................................................1

13 WL-013-14 Lockwasher 1/4 Internal Shakeproof .......................................................................................... 4

14 NS-017-03 Jam Nut 1/4-20 Hex ......................................................................................................................4

15 SC-014-64 Mach. Screw 1/4-20 x 5/8 Flat Hd. ................................................................................................ 6

16 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 4

17 00-334758 Screw – Spring Mtg. ..................................................................................................................2

F-19207 Rev. A (October 2001)

- 46 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

KNIFE AND PULL DOWN ASSEMBLY (Cont.)

(WITHOUT CURTAIN)

ILLUS. PART NO. NAME OF PART AM T.
PL-55927

18 00-331890 Screw – Nylok............................................................................................................................ 4

19 00-334748 Spring – Knife Assy. ................................................................................................................... 2

20 00-334749 Plate – Knife Spring Mtg. ............................................................................................................ 2

21 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 4

22 SC-089-05 Cap Screw 1/4-20 x 11/4 Socket Hex Hd. .................................................................................... 2

23 00-175863 Knife ........................................................................................................................................... 1

24 WL-003-38 Lockwasher

25 SC-089-02 Cap Screw 1/4-20 x 3/4 Socket Fil. Hd. ........................................................................................ 2

26 SC-118-20 Cap Screw

27 WL-003-38 Lockwasher 1/4 Medium............................................................................................................. 10

28 00-175837 Rail – Guide ................................................................................................................................ 4

29 00-184118 Slide Bar Mount Assy. (Incls. Sleeve Bearing) .......................................................................... 2

30 NS-017-03 Jam Nut

31 WL-013-14 Lockwasher 1/4 Internal Shakeproof .......................................................................................... 4

32 00-175857 Block & Bearing Assy................................................................................................................. 2

33 WL-003-38 Lockwasher

34 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

35 SC-014-63 Mach. Screw 1/4-20 x 13/8 Flat Hd............................................................................................... 2

36 00-175860 Slide – Knife & Pulldown ............................................................................................................2

37 SC-024-07 Mach. Screw 1/4-20 x 2 Phil. Pan Hd. ......................................................................................... 2

38 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

39 SC-118-17 Cap Screw 1/4-20 x 11/4 Hex Hd. ................................................................................................ 2

40 WS-017-25 Washer ....................................................................................................................................... 2

41 NS-017-03 Jam Nut 1/4-20 Hex ......................................................................................................................2

42 SC-093-21 Cap Screw 1/4-20 x 11/2 Socket Hd............................................................................................. 2

43 00-049043 Spring – Pulldown ...................................................................................................................... 2

44 00-175855 Roller – Pull Bar .......................................................................................................................... 1

45 00-175835 Roller – Stationary ......................................................................................................................2

46 00-175847 Pull Down Bar Assy. ..................................................................................................................1

47 SC-118-15 Cap Screw 1/4-20 x 13/4 Hex Hd. ................................................................................................ 2

48 00-175849 Guide – Pull Bar ..........................................................................................................................1

49 00-175841 Spacer – Pull Bar ........................................................................................................................ 1

50 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 3

51 NS-031-20 Stop Nut 1/4-20 Hex ..................................................................................................................... 3

52 00-175849 Guide – Pull Bar ..........................................................................................................................1

53 00-175850 Spacer – Knife Bar ..................................................................................................................... 1

54 00-175851 Spacer – Pull Bar ........................................................................................................................ 1

55 SC-092-31 Cap Screw 1/4-20 x 11/2 Soc. Fil. Hd. ..........................................................................................2

56 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

57 SC-112-88 Mach. Screw 1/4-20 x 21/4 Hex Hd. ............................................................................................. 1

58 SC-089-69 Cap Screw 10-32 x 1/2 Socket Hex Hd. .....................................................................................4

59 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

60 00-044190 Guard – Knife Front ................................................................................................................... 1

61 00-183587 Cushion – Roller ......................................................................................................................... 1

62 00-175838 Knife Frame Assy. ......................................................................................................................1

63 SC-084-34 Cap Screw 1/4-20 x 3/4 Flat Hd. ...................................................................................................2

64 00-046229 Chain – Knife Reset ................................................................................................................... 1

65 00-183500 Spacer – Knife End .................................................................................................................... 2

66 00-183503 Guard – Knife Rear .................................................................................................................... 1

67 SC-121-24 Mach. Screw 8-32 x 5/8 Flat Hd. ................................................................................................. 1

68 WS-023-20 Washer ....................................................................................................................................... 1

69 00-042365 Spacer – Knife Center................................................................................................................ 1

70 00-184096 Block – Bumper .......................................................................................................................... 2

71 SC-089-04 Cap Screw 1/4-20 x 1 Soc. Hex Hd. ........................................................................................... 2

72 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

73 00-175826 Bumper – Knife ........................................................................................................................... 2

74 SC-084-34 Cap Screw 1/4-20 x 3/4 Flat Hd. ...................................................................................................2

75 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

76 SC-118-15 Cap Screw 1/4-20 x 13/4 Hex Hd. ................................................................................................ 2

77 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

78 NS-031-20 Stop Nut 1/4-20 Hex ..................................................................................................................... 2

79 00-044157 Plate – Knife Bumper ..................................................................................................................1

80 00-048635 Knife Bar Assy. .......................................................................................................................... 1

81 SC-118-18 Cap Screw 1/4-20 x 7/8 Hex Hd. .................................................................................................. 2

82 NS-031-20 Stop Nut 1/4-20 Hex ..................................................................................................................... 2

83 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

84 00-175861 Brace – Cross ............................................................................................................................4

1

/4 Medium.............................................................................................................. 2

1

/4-20 x 1/2 Hex Hd. ................................................................................................. 10

1

/4-20 Hex ......................................................................................................................4

1

/4 Medium.............................................................................................................. 2

- 47 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

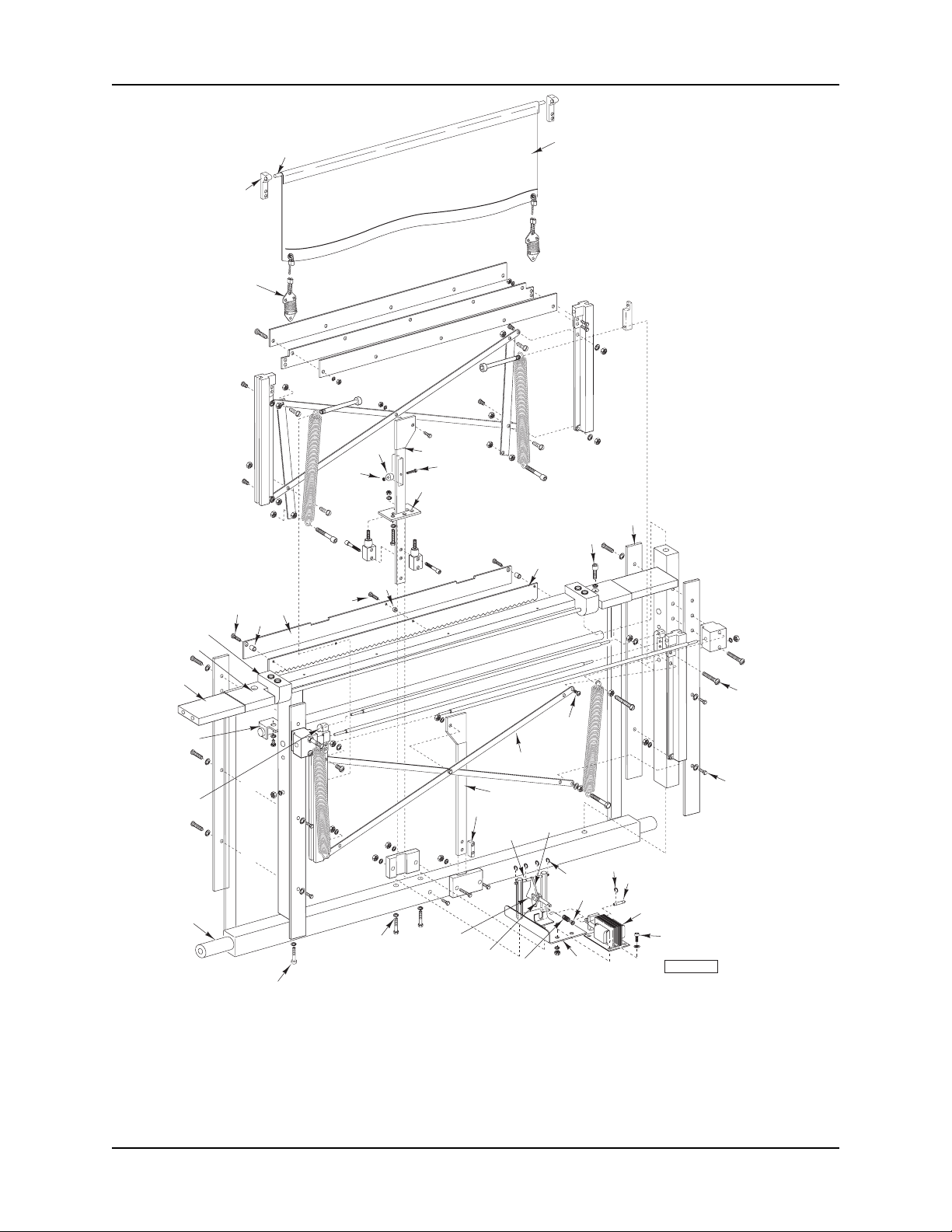

46-47

48

1

56-57

50
49

51

52

2

7

8

53-54

4

5

6

55

3

13
12

11
10

9

45

41 THRU 44

40

39

38

17

18

19

21
20

22

33

25

23

24

36
37

34-35

32

31

30

VIEW FROM INTAKE END

KNIFE AND PULL DOWN ASSEMBLY

(WITH CURTAIN)

14

15-16

26

27

28-29

PL-55965

F-19207 Rev. A (October 2001)

- 48 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

KNIFE AND PULL DOWN ASSEMBLY

(WITH CURTAIN)

ILLUS. PART NO. NAME OF PART AM T.
PL-55965

1 00-044159 Bracket – Curtain ....................................................................................................................... 2

2 00-044232 Roller – Film Curtain .................................................................................................................... 2

3 00-044243 Curtain & Spring Assy. (Incls. Springs, Cables, Etc.) ................................................................ 2

4 00-048495 Knife Bar Assy. (Incls items 5, 7, & 8)....................................................................................... 1

5 SC-086-01 Shoulder Screw 10-32 x 3/4 Socket Hex Hd. .............................................................................1

6 00-044157 Plate – Knife Bumper ..................................................................................................................1

7 00-044202 Roller – Knife Latch .................................................................................................................... 2

8 NS-009-22 Nut 10-24 Hex ............................................................................................................................ 1

9 00-044169 Knife ........................................................................................................................................... 1

10 SC-089-02 Cap Screw 1/4-20 x 3/4 Soc. Hd. ................................................................................................. 2

11 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

12 00-044044 Spacer – Knife Slide Bar ............................................................................................................ 2

13 00-175837 Rail – Guide ................................................................................................................................ 4

14 SC-093-21 Mach. Screw 10-32 x 3/8 Pan Hd. (SST) .................................................................................... 4

15 SC-117-07 Mach. Screw 1/4-20 x 5/8 Hex Hd. ............................................................................................... 4

16 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 4

17 SC-014-64 Mach. Screw 1/4-20 x 5/8 Flat Hd. ................................................................................................ 2

18 00-175861 Brace – Cross ............................................................................................................................2

19 00-044168 Pulldown Bar Assy. ....................................................................................................................1

20 00-044156 Block – Chain Connection .......................................................................................................... 1

21 SC-100-08 Mach. Screw Special 1/4-20 x 3/8 Hex Hd., Whiz-Lock ............................................................... 2

22 00-044218 Knife Latch Assy. ....................................................................................................................... 1

23 RR-009-09 Retaining Ring .............................................................................................................................4

24 00-044668 Bushing – Spring ........................................................................................................................ 1

25 RR-006-12 Retaining Ring .............................................................................................................................2

26 00-044646 Cap Screw 10-24 x 1 Socket Hex Hd. ......................................................................................1

27 00-044215 Solenoid ......................................................................................................................................1

28 WL-004-40 Lockwasher #10 Helical ............................................................................................................ 2

29 SC-040-01 Cap Screw 10-32 x 3/8 Soc. Hdls., Cup Pt. ................................................................................4

30 00-044211 Knife Solenoid Plate Assy. .........................................................................................................1

31 00-044200 Spring – Latch Return ................................................................................................................ 1

32 00-047413 Sleeve – Solenoid Link ...............................................................................................................1

33 00-044214 Shaft – Latch .............................................................................................................................. 1

34 RR-006-10 Retaining Ring .............................................................................................................................2

35 00-044896 Pin – Knife Link ...........................................................................................................................1

36 SC-118-15 Cap Screw 1/4-20 x 1 3/4 Hex Hd. ............................................................................................... 2

37 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

38 SC-093-21 Cap Screw 1/4-20 x 11/2 Soc. Hd. ............................................................................................... 2

39 00-044179 Spacer – Knife Frame Lower ....................................................................................................2

40 00-044159 Bracket – Curtain ....................................................................................................................... 2

41 00-440521 Shaft – Knife Guard ................................................................................................................... 1

42 00-440520 Bracket – Roller (LH) .................................................................................................................. 1

43 00-440519 Bracket – Roller (RH) ................................................................................................................. 1

44 00-047967 Bearing – Nyliner 3/8 Dia.............................................................................................................. 2

45 00-044178 Spacer – Knife Frame Top .........................................................................................................2

46 00-044173 Knife Frame Assy. ......................................................................................................................1

47 SC-092-31 Cap Screw 1/4-20 x 11/2 Soc. Hd. (Use With Item 45) ................................................................ 2

48 00-044158 Block – Roller .............................................................................................................................. 2

49 SC-068-31 Mach. Screw 10-32 x 3/4 Hex Hd. .............................................................................................. 2

50 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

51 00-440365 Spacer – Knife Guard ................................................................................................................ 2

52 00-044167 Guard – Knife Rear .................................................................................................................... 1

53 SC-040-61 Cap Screw 8-32 x 3/8 Socket Hex Hd. ....................................................................................... 4

54 WS-023-20 Washer ....................................................................................................................................... 4

55 00-440366 Spacer – Knife Center................................................................................................................ 1

56 00-044458 Spring – Curtain (Incls. Item 56) .................................................................................................2

57 00-049044 Hook – Spring ............................................................................................................................. 2

00-044295 Curtain Knife & Pulldown Kit ...................................................................................................... 1

- 49 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

14
12
13

11

10

63

9

58
59
60

61
62

57

8

7

5
6

3 - 4

1
2

64

65

15

16

17

18

19

25-26-27

23-24

20-21-22

28

29-30

31

32 THRU 36

54
55
56

47

44-45-46

52
53

51

50

49

48

41

42-43

37 THRU 40

PL-55928

FILM LENGTH

ILLUS. PART NO. NAME OF PART AM T.
PL-55928

1 SC-036-40 Cap Screw 5/16-18 x 11/4 Hex Hd. ............................................................................................... 2

2 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

3 00-086710 Collar Assy. ................................................................................................................................ 2

4 SC-075-10 Set Screw 1/4-20 x 3/16 Soc. Hdls., Cup Pt. .................................................................................2

5 SC-062-59 Cap Screw 5/16-18 x 5/8 Hex Hd. ................................................................................................. 2

6 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

F-19207 Rev. A (October 2001)

- 50 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

FILM LENGTH (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55928

7 00-334764 Bracket – Spring ......................................................................................................................... 1

8 00-175652 Shaft – Lever Pivot .................................................................................................................... 1

9 00-048090-00003 Dampener – Lever ..................................................................................................................... 1

10 00-440474 Spring – Lever Return ................................................................................................................2

11 00-044784 Link – Connecting .......................................................................................................................2

12 00-175660 Latch – Pivot Assy. .................................................................................................................... 2

13 00-048292 Bearing ....................................................................................................................................... 2

14 00-044330 Bracket – Latch Support ............................................................................................................1

15 00-334783 Rod – Solenoid Link (Short) ....................................................................................................... 1

16 SC-116-18 Cap Screw 8-32 x 1 Soc. Hex Hd. ............................................................................................ 2

17 00-334782 Bushing – Solenoid .................................................................................................................... 2

18 00-175654 Plate – Solenoid .......................................................................................................................... 1

19 00-332027 Solenoid – Wide Film .................................................................................................................. 2

20 SD-024-38 Self-Tapping Screw 10-24 x 3/8 Phil. Pan Hd., Type TT ............................................................. 8

21 WL-007-12 Lockwasher #10 External Shakeproof .....................................................................................8

22 WS-019-06 Washer ....................................................................................................................................... 8

23 SC-036-40 Cap Screw 5/16-18 x 11/4 Hex Hd. ............................................................................................... 1

24 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 1

25 00-047828 Roller – Film Adjust Chain ........................................................................................................... 1

26 00-047825 Stud – Film Adjust Idler ............................................................................................................... 1

27 RR-008-13 Ring – Retaining ..........................................................................................................................1

28 00-175658 Block – Idler Mounting ................................................................................................................ 1

29 SC-062-59 Cap Screw 5/16-18 x 5/8 Hex Hd. ................................................................................................. 2

30 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

31 NS-031-07 Stop Nut 8-32 Hex ......................................................................................................................2

32 00-046229 Knife Reset Chain Assy. (Include Turnbuckles) ........................................................................1

33 00-046233 Film Adjust Chain Assy. ..............................................................................................................1

34 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 3

35 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 3

36 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 3

37 00-086713 Collar – Steel............................................................................................................................... 2

38 00-175659 Roller – Knife Chain Guide ......................................................................................................... 1

39 SC-120-38 Cap Screw 5/16-18 x 1 Hex Hd. .................................................................................................. 2

40 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

41 00-175645 Bar & Block Assy. ...................................................................................................................... 1

42 SC-118-10 Cap Screw 3/8-16 x 1 Hex Hd. ................................................................................................... 4

43 WL-004-06 Lockwasher 3/8 Medium .............................................................................................................. 4

44 SD-024-38 Self-Tapping Screw 10-24 x 3/8 Phil. Pan Hd., Type TT ............................................................. 2

45 WL-006-07 Lockwasher #10 Medium........................................................................................................... 2

46 WS-019-06 Washer ....................................................................................................................................... 2

47 00-183819 Cover – Film Adjust .................................................................................................................... 1

48 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bndg. Hd., Type B.............................................................. 1

49 00-183524 Shield – Film Adjust .................................................................................................................... 1

50 00-175644 Shaft – Film Adjust Pivot............................................................................................................. 1

51 00-048502 Film Adjust Lever Assy. ..............................................................................................................1

52 00-184601 Sprocket Assy. (15T) ................................................................................................................. 1

53 RR-007-20 Retaining Ring .............................................................................................................................1

54 SC-062-59 Cap Screw 5/16-18 x 5/8 Hex Hd. ................................................................................................. 3

55 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 3

56 NS-013-14 Nut 5/16-18 Hex ............................................................................................................................ 3

57 00-334781 Rod – Solenoid Link (Long) ........................................................................................................1

58 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 2

59 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

60 NS-013-14 Nut 5/16-18 Hex ............................................................................................................................ 2

61 SC-066-20 Mach. Screw 10-32 x 1/2 Phil. Truss Hd. ................................................................................... 2

62 00-175826 Bumper – Knife........................................................................................................................... 1

63 SC-055-01 Set Screw 10-24 x 1/4 Soc. Hdls., Cup Pt. (SST) ...................................................................... 2

64 00-175651 Block – Pivot ............................................................................................................................... 1

65 00-175653 Spacer – Film Adjustment Mounting ........................................................................................... 1

- 51 -

-51 (705)-

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

14

16
15

13

12

11

10

9

18
17

19

24-25-26

23

21-22

20

7
6

2
1

51

5

3-4

52

8

55
56

54

53

57

59

60

58

61-62

50

45

46-47

48-49

30

31-32

33-34-35

36 THRU 40

63

41-42

43

44

28
29

27

F-19207 Rev. A (October 2001)

FILM LENGTH

(WITH PLASTIC LINKS)

- 52 -

-52 (705)-

PL-53167

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

FILM LENGTH

(WITH PLASTIC LINKS)

ILLUS. PART NO. NAME OF PART AM T.
PL-53167

1 SC-062-21 Cap Screw 5/16-18 x 11/4 Hex Hd. ............................................................................................... 2

2 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

3 00-086710 Collar Assy. (Incls. Item 4) ......................................................................................................... 2

4 SC-075-10 Set Screw 1/4-20 x 3/16 Soc. Hdls., Cup Pt. .................................................................................2

5 00-175660 Latch – Pivot Assy. .................................................................................................................... 2

6 SC-100-12 Cap Screw 5/16-18 x 3/4 Hex Washer Hd. ................................................................................... 2

7 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

8 00-175652 Shaft – Lever Pivot ....................................................................................................................1

9 00-044320 Rod – Connecting (Long) ........................................................................................................... 1

10 00-334764 Bracket – Spring ......................................................................................................................... 1

11 00-440474 Spring – Lever Adjust................................................................................................................. 2

12 00-048090-00003 Protector – Edge ........................................................................................................................ 1

13 00-044330 Bracket – Latch Support ............................................................................................................1

14 00-044319 Rod – Connecting (Short) .......................................................................................................... 1

15 00-044337 Pin – Support .............................................................................................................................. 1

16 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock (Mounts Item 15 to Plate) .................... 1

17 00-044321 Pin ...............................................................................................................................................4

18 RR-011-69 Retaining Ring ............................................................................................................................. 4

19 00-044227 Solenoid – Film Pull .....................................................................................................................2

20 SD-024-18 Self-Tapping Screw 10-24 x
21 SC-116-83 Cap Screw

3

/8-16 x 11/2 Hex Hd. ................................................................................................ 1

22 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 1

23 00-175658 Block – Idler Mounting ................................................................................................................ 1

24 00-047828 Roller – Film Adjust Chain ........................................................................................................... 1

25 00-047825 Stud – Film Adjust Idler ...............................................................................................................1

26 RR-008-13 Retaining Ring .............................................................................................................................1

27 00-175645 Bar & Block Assy. ...................................................................................................................... 1

28 SC-100-12 Cap Screw 5/16-18 x 3/4 Hex Washer Hd. ................................................................................... 4

29 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 4

30 SC-040-65 Cap Screw 5/16-18 x 5/8 Soc. Hex Hd. ......................................................................................... 2

31 00-044298 Pin – Standoff Support ...............................................................................................................1

32 SC-100-08 Mach. Screw Special 1/4-20 x 3/8 Hex Hd., Whiz-Lock (Mounts Item 31 to Plate)...................... 1

33 SC-062-21 Cap Screw 5/16-18 x 11/4 Hex Hd. ............................................................................................... 5

34 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 3

35 NS-013-14 Nut 5/16-18 Hex ............................................................................................................................ 3

36 00-046229 Knife Reset Chain Assy. ............................................................................................................1

37 00-046231 Film Adjust Chain Assy. (Use With Curtain Assy.) .....................................................................1

38 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 3

39 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 3

40 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 3

41 00-086713 Collar – Steel (Incls. Item 42) ...................................................................................................... 1

42 SC-047-95 Set Screw 10-24 x 1/4 Soc. Hdls., Cup Pt. .................................................................................1

43 00-175659 Roller – Knife Chain Guide ......................................................................................................... 1

44 00-175644 Shaft – Film Adjust Pivot............................................................................................................. 1

45 00-086674 Bearing ....................................................................................................................................... 2

46 00-086713 Collar Assy. (Incls Item 47) ........................................................................................................ 1

47 SC-047-95 Set Screw 10-24 x 1/4 Soc. Hdls., Cup Pt. .................................................................................1

48 SC-120-38 Cap Screw 5/16-18 x 1 Hex Hd. .................................................................................................. 2

49 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

50 00-044323 Cover – Film Adjust .................................................................................................................... 1

51 SC-114-04 Mach. Screw 1/4-20 x 1/2 Hex Washer Hd. (Mounts Item 50 to Item 31) ....................................1

52 00-175653 Spacer – Film Adjustment Mounting ........................................................................................... 1

53 00-175651 Block – Pivot ............................................................................................................................... 1

54 SC-055-01 Set Screw 10-24 x 1/4 Soc. Hdls., Cup Pt. (SST) ...................................................................... 2

55 SC-062-21 Cap Screw 5/16-18 x 11/4 Hex Hd. ............................................................................................... 2

56 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

57 NS-013-14 Nut 5/16-18 Hex ............................................................................................................................ 2

58 SC-066-20 Mach. Screw 10-32 x 1/2 Phil. Truss Hd. ................................................................................... 1

59 00-175826 Bumper – Knife ........................................................................................................................... 1

60 00-048502 Film Adjust Lever Assy. (Incls Items 45, 61, & 62) ....................................................................1

61 00-047818 Sprocket – Idler (15T) ................................................................................................................. 1

62 RR-008-13 Retaining Ring .............................................................................................................................1

63 00-044327 Plate Assy. – Solenoid ................................................................................................................1

1

/2 Hex Hd., Type TT ....................................................................8

- 53 -

-53 (705)-

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

1

13-14

16-17

18

15

2

3

4

5

48

44-45

6-7-8

46-47

42-43

41

9-10-11

12

20

21-22

23-24-25

26

36-37

34

19

27

28-29-30

31

32-33

35

F-19207 Rev. A (October 2001)

39

40

GRIPPER (UPPER SECTION)

- 2 -

-54 (705)-

38

PL-57839

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

GRIPPER (UPPER SECTION)

ILLUS. PART NO. NAME OF PART AM T.
PL-57839

1 00-175708 Stop – Film Release .................................................................................................................... 1

2 00-049033 Bumper Assy. .............................................................................................................................2

3 SC-116-79 Set Screw 10-32 x

4 00-044447 Spring.......................................................................................................................................... 2

5 00-042881 Bar – Gripper Support ................................................................................................................ 1

6 SC-041-07 Cap Screw 1/4-20 x 11/2 Hex Hd. ................................................................................................ 4

7 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 4

8 WS-022-06 Washer ....................................................................................................................................... 4

9 SC-018-23 Mach. Screw 8-32 x 5/8 Phil. Pan Hd. .........................................................................................2

10 WL-013-08 Lockwasher #8 Internal Shakeproof ......................................................................................... 2

11 WS-023-22 Washer ....................................................................................................................................... 2

12 WS-003-43 Washer ....................................................................................................................................... 2

13 SC-041-07 Cap Screw 1/4-20 x 11/2 Hex Hd. ................................................................................................ 4

14 WS-022-06 Washer ....................................................................................................................................... 4

15 00-042982 Bracket – Cable ..........................................................................................................................1

16 SC-125-22 Mach. Screw 1/4-20 x 5/8 Phil. Truss Hd. .................................................................................... 4

17 WL-008-17 Lockwasher 1/4 Internal .............................................................................................................. 4

18 00-183722 Wire – Ground ............................................................................................................................1

19 00-440591 Block – Gripper Slide ..................................................................................................................2

20 00-175717 Film Rod Assy. ............................................................................................................................ 1

21 SC-018-22 Mach. Screw 10-24 x 1/2 Phil. Pan Hd. .......................................................................................2

22 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

23 SC-093-04 Mach. Screw 8-32 x 1/2 Phil. Pan Hd. (SST) .............................................................................. 4

24 WL-013-08 Lockwasher #8 Internal Shakeproof ......................................................................................... 4

25 WS-023-22 Washer ....................................................................................................................................... 4

26 00-183719 Plate – Solenoid Mounting .......................................................................................................... 1

27 00-334763 Bracket – Gripper Plug ...............................................................................................................1

28 SC-113-10 Mach. Screw 4-40 x 3/8 Phil. Pan Hd. .........................................................................................4

29 WL-008-45 Lockwasher #4 Internal Shakeproof ......................................................................................... 4

30 NS-009-02 Mach. Nut 4-40 Hex ................................................................................................................... 4

31 00-334770 Plate – Gripper............................................................................................................................ 2

32 SC-068-33 Mach. Screw 10-32 x 1/2 Hex Hd. .............................................................................................. 3

33 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

34 00-332912 Spacer ........................................................................................................................................ 3

35 00-043930 Plate – Gripper Upper ................................................................................................................. 1

36 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 4

37 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 4

38 00-331841 Spring – Gripper Opening...........................................................................................................2

39 00-043452 Pad – Gripper (Gray) (Set of 13 Pads) (Use With Item 35) ...................................................... 1

40 00-049390 Gripper Solenoid Assy. .............................................................................................................. 1

41 00-183718 Bar – Roller Support ................................................................................................................... 2

42 00-183714 Roller – Gripper .......................................................................................................................... 4

43 00-183713 Stud – Roller ............................................................................................................................... 4

44 SC-110-31 Screw 10-24 x 0.750 Hex Hd. ................................................................................................... 4

45 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

46 00-443501 Block – Film Rod ......................................................................................................................... 2

47 00-443502 Spacer – Film Rod Block............................................................................................................. 2

48 00-441763 Top Cover ................................................................................................................................... 1

1

/4 Soc. Hdls., Cup Pt. .................................................................................2

- 3 -

-54-1 (705)-

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

45

44

37-38

43

42

40

36

39

41

35

19-20

34

33

31
32

21

29
30

22

28

24-25

23

27

26

1

2

3

4-5

6

7

8

9-10-11

12

F-19207 Rev. A (October 2001)

18

15

16-17

GRIPPER (LOWER SECTION)

- 4 -

-55 (705)-

-55 (705)-

13-14

PL-57838

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

GRIPPER (LOWER SECTION)

ILLUS. PART NO. NAME OF PART AM T.
PL-57838

1 00-183710 Stud – Link .................................................................................................................................. 1

2 00-441452 Link – Gripper Solenoid .............................................................................................................. 1

3 00-175560 Bushing – Nyliner ....................................................................................................................... 1

4 SC-110-31 Mach. Screw 10-24 x

5 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

6 00-184124 Gripper Block Assy. (LH) (Incls. Item 26) .................................................................................. 1

7 00-175724 Plate – Gripper Lower ................................................................................................................1

8 00-332404 Gripper Spring Assy. .................................................................................................................13

9 SC-009-91 Mach. Screw

10 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 1

11 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 1

12 00-043890 Pivot – Gripper Plate ................................................................................................................... 1

13 SC-089-70 Cap Screw 10-32 x 5/8 Soc. Hex Hd. ......................................................................................... 4

14 WL-006-07 Lockwasher #10 Medium........................................................................................................... 4

15 00-183765 Bearing – Nyliner ........................................................................................................................1

16 00-175713 Stud – Hinge ............................................................................................................................... 1

17 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 1

18 00-334865 Spacer – Bottom Plate ................................................................................................................ 1

19 WL-005-12 Lockwasher #8 Light (Bronze) ................................................................................................26

20 SC-018-31 Mach. Screw 8-32 x 3/8 Phil. Pan Hd. ........................................................................................26

21 00-334865 Spacer – Bottom Plate ................................................................................................................ 1

22 00-043890 Pivot – Gripper Plate ................................................................................................................... 1

23 00-183765 Bearing – Nyliner ........................................................................................................................1

24 00-175713 Stud – Hinge ............................................................................................................................... 1

25 WL-003-38 Lockwasher 1/4 Medium .............................................................................................................. 1

26 00-183716 Pin – Gripper Block ..................................................................................................................... 1

27 RR-006-22 Retaining Ring .............................................................................................................................1

28 00-175560 Bushing – Nyliner ....................................................................................................................... 1

29 SC-067-07 Mach. Screw 10-24 x 1/2 Hex Hd. .............................................................................................. 1

30 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

31 SC-067-07 Mach. Screw 10-24 x 1/2 Hex Hd. .............................................................................................. 1

32 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

33 00-175560 Bushing – Nyliner ....................................................................................................................... 1

34 00-183716 Pin – Gripper Block ..................................................................................................................... 1

35 00-175560 Bushing – Nyliner ....................................................................................................................... 1

36 00-184123 Gripper Block Assy. (RH) (Incls. Item 34) .................................................................................. 1

37 SC-110-31 Mach. Screw 10-24 x 3/4 Hex Hd. .............................................................................................. 2

38 WL-004-40 Lockwasher #10 Medium........................................................................................................... 2

39 00-441452 Link – Gripper Solenoid ..............................................................................................................1

40 00-183710 Stud – Link ..................................................................................................................................1

41 RR-006-22 Retaining Ring .............................................................................................................................1

42 00-184845 Bracket – Gripper Solenoid ........................................................................................................1

43 00-175936 Pin – Rod .................................................................................................................................... 1

44 RR-004-23 Retaining Ring .............................................................................................................................2

45 00-044186 Plunger (Service) (Teflon Coated) ............................................................................................. 1

3

/4 Hex Hd. .............................................................................................. 2

1

/4-20 x 11/4 Rd. Hd. .............................................................................................. 1

- 5 -

-55-1 (705)-

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

10

11

12-13

36

1

5

25

6

7

8

38

9

37

15

4

2-3

33-34

14

35

18

19

32

20-21

23

24

26-27

16

17

28

29

30-31

F-19207 Rev. A (October 2001)

22

GRIPPER LEVER

-56 (705)-

PL-56004

- 56 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

GRIPPER LEVER

ILLUS. PART NO. NAME OF PART AM T.
PL-56004

1 00-334056 Bearing – (LH Thread) ............................................................................................................... 1

2 00-183431 Screw – Gripper Lever .............................................................................................................. 1

3 WL-008-27 Lockwasher

4 NS-013-28 Nut 3/8-24 Hex (LH Thread) ........................................................................................................ 1

5 00-184001 Rod – Link ................................................................................................................................... 1

6 NS-013-27 Nut 3/8-24 Hex (RH Thread) ........................................................................................................ 1

7 00-334791 Yoke Assy. .................................................................................................................................1

8 00-175743 Pin – Lever Link .......................................................................................................................... 1

9 RR-009-10 Retaining Ring .............................................................................................................................1

10 00-175744 Lever Extension Assy. ............................................................................................................... 1

11 00-175982 Pin (Lever To Lever) ..................................................................................................................1

12 SC-062-57 Cap Screw 1/4-20 x 2 Hex Hd. ................................................................................................... 2

13 NS-031-20 Stop Nut 1/4-20 Hex ..................................................................................................................... 2

14 00-175735 Block – Slide Bar ........................................................................................................................ 1

15 RR-010-05 Retaining Ring .............................................................................................................................1

16 00-043901 Spring – Gripper Lever............................................................................................................... 1

17 00-049597 Bracket – Gripple Cable ............................................................................................................. 1

18 00-333750 Spacer ........................................................................................................................................ 2

19 SC-118-07 Cap Screw 3/8-16 x 2 Hex Hd. ................................................................................................... 1

20 00-175739 Shaft – Gripper Lever ................................................................................................................ 1

21 00-086680 Bearing ....................................................................................................................................... 2

22 00-259547 Cam – Follower .......................................................................................................................... 1

23 00-175742 Nut – Follower Bearing .............................................................................................................. 1

24 00-175978 Gripper Lever Assy. (Incls. Items 1 thru 23) ............................................................................. 1

25 00-255502 Tie – Cable Locking .................................................................................................................. AR

26 SC-118-09 Cap Screw 3/8-16 x 11/4 Hex Hd. ................................................................................................ 2

27 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

28 00-175740 Spacer – Lever Support ............................................................................................................. 2

29 00-175741 Plate – Lever Support ................................................................................................................ 1

30 SC-118-10 Cap Screw 3/8-16 x 1 Hex Hd. ................................................................................................... 2

31 WL-004-06 Lockwasher 3/8 Medium.............................................................................................................. 2

32 SC-118-19 Cap Screw 1/4-20 x 3/4 Hex Hd. .................................................................................................. 3

33 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 3

34 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 3

35 00-175734 Bracket – Slide Bar .................................................................................................................... 1

36 00-049389 Gripper Cable Assy. ................................................................................................................... 1

37 00-106825-00001 Clip – Wiring ................................................................................................................................1

38 00-049600-00001 Wrap – Spiral ..............................................................................................................................1

3

/8 Internal Shakeproof .......................................................................................... 1

- 57 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

45-46

44

42-43

41

39-40

47

2

1

5

3
4

6

7
8

11

12

13 THRU 17

9-10

18

35 THRU 38

PL-51639

31-32-33

34

29-30

19

20

27-28

21
22

23

24-25-26

F-19207 Rev. A (October 2001)

FILM CHANGER SOLENOID ASSEMBLY

- 58 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

FILM CHANGER SOLENOID ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T.
PL-51639

1 00-175990 Crank Assy. ................................................................................................................................ 1

2 SC-109-52 Cap Screw 10-32 x 1/2 Hex Hd. ................................................................................................. 1

3 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

4 RR-004-02 Retaining Ring .............................................................................................................................1

5 00-175634 Block – Solenoid Link (LH) ......................................................................................................... 1

6 00-175993 Stud – Crank ............................................................................................................................... 1

7 NS-013-08 Nut 1/4-28 (LH Thread) ................................................................................................................1

8 00-175636 Block – Take-Up..........................................................................................................................1

9 SC-117-92 Cap Screw

10 WL-003-47 Lockwasher 5/16 Medium............................................................................................................. 2

11 NS-013-07 Nut 1/4-28 Hex (RH Thread) ........................................................................................................ 1

12 00-175635 Block – Solenoid Link (RH) ......................................................................................................... 1

13 SC-081-20 Mach. Screw 10-32 x 13/8 Rd. Hd. ............................................................................................. 1

14 00-175984 Spacer – Solenoid ......................................................................................................................1

15 RR-004-02 Retaining Ring .............................................................................................................................2

16 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 1

17 WL-004-40 Lockwasher #10 Medium........................................................................................................... 1

18 00-175637 Solenoid Narrow Film ................................................................................................................. 1

19 00-183966 Cover – Film Changer Top .......................................................................................................... 1

20 SC-123-92 Cap Screw 1/4-20 x 5/8 Hex Hd. .................................................................................................. 2

21 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 2

22 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 2

23 00-183932 Cover – Film Changer .................................................................................................................1

24 SC-009-61 Mach. Screw 8-32 x 1/2 Rd. Hd. .................................................................................................2

25 00-086878 Nut – Tinnerman .........................................................................................................................2

26 WL-003-12 Lockwasher #8 Medium............................................................................................................. 2

27 FE-021-13 Bushing (Nylon) 1/2 I.D. ............................................................................................................... 1

28 00-175514 Cable Assy. – Narrow Solenoid............................................................................................... AR

29 SC-123-92 Cap Screw 1/4-20 x 5/8 Hex Hd. .................................................................................................. 4

30 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 4

31 SC-117-91 Cap Screw 1/4-20 x 1 Hex Hd. ................................................................................................... 1

32 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 1

33 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 1

34 00-175834 Spring – Knife .............................................................................................................................1

35 00-332027 Solenoid – Wide Film .................................................................................................................. 1

36 SC-037-80 Cap Screw 10-24 x 1/2 Hex Hd. ................................................................................................. 4

37 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

38 WS-019-06 Washer ....................................................................................................................................... 4

39 00-183944 Pin – Film Solenoid ...................................................................................................................... 1

40 RR-011-69 Retaining Ring ............................................................................................................................. 2

41 NS-013-07 Nut 1/4-28 Hex RH Thread ...........................................................................................................1

42 00-183590 Block – Film Solenoid .................................................................................................................. 1

43 00-183591 Rod – Film Adjust ........................................................................................................................ 1

44 NS-013-08 Nut 1/4-28 LH Thread ...................................................................................................................1

45 00-330072 Block – Chain (RH) ..................................................................................................................... 1

46 SC-068-31 Cap Screw 10-32 x 3/4 Hex Hd. ................................................................................................. 1

47 00-175638 Block – Solenoid Mounting ......................................................................................................... 1

00-175513 Solenoid Cable Assy. – Wide Solenoid ...................................................................................... 2

00-175633 Link Assy. – Solenoid (Incls. Items 5, 7, 8, 11, & 12).................................................................1

5

/16-18 x 3/4 Hex Hd. ................................................................................................. 2

- 59 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

53 THRU 55

57
56

52

58

51

61

50

62

59

49

1

2-3

4-5-6

47
48

CURTAIN ASSY.

7

60

10

8

9

12

11

TO SPRING

13-14

15-16

17-18

19-20

21

22

23
24

40

41
42

43

38

44

39

45

46

30-31

36-37

25

32-33

34

29

35

PL-55970

26

27
28

F-19207 Rev. A (October 2001)

FILM SUPPLY

- 60 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

FILM SUPPLY

ILLUS. PART NO. NAME OF PART AM T.
PL-55970

1 SC-123-92 Mach. Screw Special
2 SC-018-15 Mach. Screw 4-40 x

3 WS-029-24 Washer ....................................................................................................................................... 2

4 00-042180 Switch – Retro Photo (Switch Only) .........................................................................................1

5 00-046955 Film Supply Switch Cable Assy. (Narrow) (Incls. Item 4) ......................................................... 1

6 00-046956 Film Supply Switch Cable Assy. (Wide) (Incls Item 4) ............................................................... 1

7 NS-038-08 Lock Nut

1

/4-20 x 1 Hex Hd. ........................................................................................................4

8 NS-009-02 Mach. Nut 4-40 Hex ................................................................................................................... 2

9 00-183680 Bracket – Out-Of-Film Switch .................................................................................................... 2

10 00-044243 Curtain & Spring Assy. (Incls. Springs, Cables, Etc.) ................................................................1

11 SC-100-08 Mach. Screw Special 1/4-20 x 3/8 Hex Hd., Whiz-Lock ............................................................... 4

12 00-044160 Roller – Cable ............................................................................................................................. 2

13 00-044165 Stud – Pulley ............................................................................................................................... 2

14 SC-100-08 Mach. Screw Special 1/4-20 x 3/8 Hex Hd., Whiz-Lock ............................................................... 2

15 00-044172 Bracket – Roller (LH) .................................................................................................................. 1

16 00-044171 Bracket – Roller (RH) ................................................................................................................. 1

17 SC-123-92 Mach. Screw Special 1/4-20 x 5/8 Special Hex Washer Hd. ........................................................ 4

18 NS-038-04 Lock Nut 1/4-20 Special ............................................................................................................... 4

19 00-044165 Stud – Pulley ............................................................................................................................... 2

20 SC-100-08 Mach. Screw Special 1/4-20 x 3/8 Hex Hd., Whiz-Lock ............................................................... 2

21 00-044161 Roller – Cable ............................................................................................................................. 2

22 00-044458 Spring – Curtain .......................................................................................................................... 2

23 00-044229 Stud – Brake Arm (Use W/Curtain Assy.) .................................................................................. 1

24 RR-009-10 Retaining Ring .............................................................................................................................1

25 00-183829 Film Shaft & Bearing Assy. ........................................................................................................ 2

26 SC-100-12 Mach. Screw 5/16-18 x 3/4 Flange Hd., Whiz-Lock ......................................................................4

27 RR-010-12 Retaining Ring .............................................................................................................................4

28 00-043414 Stud – Film Arbor Roller .............................................................................................................. 4

29 00-183773 Roller – Arbor ............................................................................................................................. 4

30 00-183778 Disc – Arbor ............................................................................................................................... 4

31 RR-011-06 Retaining Ring ............................................................................................................................. 8

32 00-183775 Core – Film .................................................................................................................................. 4

33 SC-119-82 Set Screw 5/16-18 x 5/8 (SST) ...................................................................................................... 8

34 00-047352 Dancer Arm Assy. (RH).............................................................................................................. 2

35 SC-100-12 Mach. Screw 5/16-18 x 3/4 Flange Hd., Whiz-Lock ......................................................................4

36 00-183800 Dancer Roller Assy. ................................................................................................................... 2

37 00-183777 Shaft – Roller .............................................................................................................................. 2

38 00-041480 Ground Wire Assy. ..................................................................................................................... 2

39 00-047351 Dancer Arm Assy. (LH) .............................................................................................................. 2

40 SC-100-12 Mach. Screw 5/16-18 x 3/4 Flange Hd., Whiz-Lock ......................................................................2

41 00-044229 Stud – Brake Arm Assy. (Use W/Curtain Assy.)........................................................................ 1

42 RR-009-10 Retaining Ring .............................................................................................................................2

43 00-183796 Brake Arm Assy. ........................................................................................................................ 2

44 00-175993 Stud – Crank ...............................................................................................................................2

45 WL-004-40 Lockwasher 10 Medium............................................................................................................. 4

46 SC-089-69 Cap Screw 10-32 x 1/2 Soc. Hex Hd. ......................................................................................... 2

47 SC-118-17 Cap Screw 1/4-20 x 11/4 Hex Hd. ................................................................................................ 4

48 WL-003-38 Lockwasher 1/4 Medium.............................................................................................................. 4

49 RR-004-02 Retaining Ring .............................................................................................................................2

50 00-047350 Dancer – Pivot ............................................................................................................................ 4

51 00-175603 Standoff – Dancer ...................................................................................................................... 4

52 SC-100-12 Mach. Screw 5/16-18 x 3/4 Flange Hd., Whiz-Lock ......................................................................1

53 00-183837 Sleeve – Brake Link ................................................................................................................... 2

54 SC-089-79 Cap Screw 10-32 x 1 Soc. Hd. ................................................................................................. 2

55 00-175633 Solenoid Link Assy. .................................................................................................................... 3

56 SC-100-12 Mach. Screw 5/16-18 x 3/4 Flange Hd., Whiz-Lock ......................................................................6

57 00-043417 Arbor & Bearing Assy. ............................................................................................................... 2

58 00-183770 Pin – Arbor.................................................................................................................................. 2

59 00-183829 Film Shaft & Bearing Assy. ........................................................................................................ 2

60 00-175598 Film Roller Assy. ......................................................................................................................... 3

61 SC-123-92 Mach. Screw Special 1/4-20 x 5/8 Special Hex Washer Hd. ........................................................ 6

62 00-175611 Roller – Support Spacer .............................................................................................................6

1

/4-20 x 5/8 Special Hex Washer Hd. ........................................................ 4

5

/8 Pan Hd. ............................................................................................... 2

- 61 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

42

33

41
40
39

34
35
36

37

38

47-48

49

FRAME

43
44
45
46

1

9

10-11

5

6

7
8

2

3 - 4

14-15

23
24

27
28

22

25
26

29

30

32

31

16

12

13

17-18

F-19207 Rev. A (October 2001)

20-21

19

CHAMBER

PL-55969

- 62 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

CHAMBER

ILLUS. PART NO. NAME OF PART AM T.
PL-55969

1 00-175592 Top – Chamber ........................................................................................................................... 1

2 00-175597 Plate – Rear Upper ..................................................................................................................... 1

3 SC-009-61 Mach. Screw 8-32 x

4 00-086878 Nut – Tinnerman ......................................................................................................................... 3

5 00-518938 Key (T-Handle 5/32) ...................................................................................................................... 1

6 NS-013-02 Nut 1/4-20 Hex ............................................................................................................................. 1

7 SC-110-12 Cap Screw

1

/4-20 x 5/8 Hex Hd. .................................................................................................. 1

8 WL-003-38 Lockwasher

9 00-332284 Clamp – Conduit ..........................................................................................................................1

10 SC-018-23 Mach. Screw 8-32 x 5/8 Phil. Pan Hd. .........................................................................................3

11 WL-004-40 Lockwasher #10 Medium........................................................................................................... 3

12 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 3

13 00-175595 Side – Chamber (LH) .................................................................................................................. 1

14 SC-009-61 Mach. Screw 8-32 x 1/2 Rd. Hd. .................................................................................................2

15 00-086878 Nut – Tinnerman .........................................................................................................................2

16 00-175596 Plate – Rear Lower ....................................................................................................................1

17 00-044025-00001 Bottom Chamber Assy. (ML-44047 & ML-44079) ......................................................................1

18 00-175593 Bottom – Chamber (ML-44088) .................................................................................................. 1

19 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 4

20 SC-018-23 Mach. Screw 8-32 x 5/8 Phil. Pan Hd. .........................................................................................4

21 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

22 00-043499 Bushing ...................................................................................................................................... 4

23 SC-067-07 Mach. Screw 10-24 x 1/2 Hex Hd. (SST) ................................................................................... 4

24 WL-006-07 Lockwasher #10 Medium........................................................................................................... 4

25 NS-011-12 Mach. Nut 8-32 Hex ................................................................................................................... 4

26 WL-006-02 Lockwasher #8 Medium............................................................................................................. 4

27 SC-018-23 Mach. Screw 8-32 x 5/8 Phil. Pan Hd. .........................................................................................3

28 WL-004-40 Lockwasher #10 Medium........................................................................................................... 3

29 00-043463 Heater Plate Assy. (Includes Harness) ..................................................................................... 1

30 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 3

31 00-043650 Cover – Heater ...........................................................................................................................1

32 00-043492 Side – Chamber (RH) ................................................................................................................. 1

33 00-043684 Controller .................................................................................................................................... 1

34 SC-110-31 Mach. Screw 10-24 x 3/4 Hex Hd. .............................................................................................. 4

35 WS-019-10 Washer ....................................................................................................................................... 4

36 WL-006-07 Lockwasher #10 Medium........................................................................................................... 4

37 FE-021-13 Bushing (Nylon) 1/2 I.D. ............................................................................................................... 2

38 00-043686-00001 Harness – Heater Splitter ........................................................................................................... 1

39 00-043902 Controller Cover Assy. (Incls. Items 40, 41, & 42) .................................................................... 1

40 00-043687 Circuit Breaker – 5 Amp. ............................................................................................................ 1

41 00-043898 Thermostat – High Limit ..............................................................................................................1

42 PB-004-01 Plug – Button .............................................................................................................................. 1

43 SC-060-69 Mach. Screw 8-32 x 1 Rd. Hd. .................................................................................................. 4

44 WL-008-07 Lockwasher #8 Internal Shakeproof ......................................................................................... 4

45 NS-011-12 Mach. Nut 8-32 Hex ................................................................................................................... 4

46 WS-019-10 Washer ....................................................................................................................................... 4

47 SC-018-23 Mach. Screw 8-32 x 5/8 Phil. Pan Hd. .........................................................................................4

48 WL-004-40 Lockwasher #10 Medium........................................................................................................... 4

49 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 4

00-441131 Label – Film Thread ....................................................................................................................1

00-043689-00001 Kit – Film Heater.......................................................................................................................... 1

00-438131-00043 Label – Warning .........................................................................................................................1

1

/2 Rd. Hd. .................................................................................................3

1

/4 Medium.............................................................................................................. 1

- 63 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

87

86

82

81

80

61

58-59-60

85

84

83

79

71

70

69

68

67

62
63

64

65-66

47

46

88

90

89

74

73

72

52

51

48

75

56-57

49
50

91

54-55

77
76

92

93

94

78

53

40

15-16

17

35

36-37

38-39

2

1

6

8
7

9

24
23

25

33-34

5
4
3

10

11

12
13

14

18

20
19

22
21

26
27
28

29

30
31
32

4443

45

42

41

PL-55968

DISCHARGE CONVEYOR ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T.
PL-55968

1 00-041494 Standoff – Cover ........................................................................................................................ 2

2 00-042562 Cover (RH) .................................................................................................................................1

3 SC-093-21 Mach. Screw 10-32 x 3/8 Pan Hd. (SST) .................................................................................... 2

4 WL-007-12 Lockwasher #10 External Shakeproof .....................................................................................4

5 NS-011-23 Mach. Nut Hex 10-32 (SST) ....................................................................................................... 2

6 00-041375 Switch Assy............................................................................................................................... 1

7 SC-068-06 Mach. Screw 6-32 x 5/8 Hex Hd. ................................................................................................ 2

8 WL-019-32 Lockwasher #6 External............................................................................................................ 2

9 00-331058 Plate – Nut 6-32 .......................................................................................................................... 2

10 00-041499 Cover – Switch ..........................................................................................................................1

11 FE-022-84 Connector – Strain Relief ........................................................................................................... 2

12 00-041353 Shift Lever Assy. .......................................................................................................................2

13 SC-075-41 Set Screw 10-32 x 3/16 Soc. Hdls., Cup Pt. ................................................................................2

14 00-041350 Cam – Lift ................................................................................................................................... 2

15 SC-068-06 Mach. Screw 6-32 x 5/8 Hex Hd. ................................................................................................ 2

16 WL-019-32 Lockwasher #6 External............................................................................................................ 2

17 00-044040 Plate – Roller ............................................................................................................................... 2

18 00-041967 Side Frame Assy. (RH) ............................................................................................................... 1

19 SC-018-29 Mach. Screw 6-32 x 3/8 Phil. Pan Hd. .........................................................................................2

20 WL-003-09 Lockwasher #6 Medium............................................................................................................. 2

21 SC-119-24 Mach. Screw 6-32 x 3/4 Phil. Pan Hd. .........................................................................................2

22 WL-003-09 Lockwasher #6 Medium............................................................................................................. 2

23 00-041990 Lever – Trip ................................................................................................................................ 1

24 SC-075-41 Set Screw 10-32 x 3/16 Soc. Hdls., Cup Pt. ................................................................................2

25 00-041991 Shaft – Cam Lever ..................................................................................................................... 2

26 00-043004 Bracket – Sensor Mtg. ............................................................................................................... 1

F-19207 Rev. A (October 2001)

- 64 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

DISCHARGE CONVEYOR ASSEMBLY (Cont.)

ILLUS. PART NO. NAME OF PART AM T.
PL-55968

27 00-042521 Plate – Nut .................................................................................................................................. 1

28 00-043895-00001 LED Sensor Assy. – Sender ...................................................................................................... 1

29 SD-024-18 Self-Tapping Screw 10-24 x

30 00-041965 Stop – Pkg. ..................................................................................................................................1

31 00-041371 Base – Trip Lever ...................................................................................................................... 2

32 SC-075-41 Set Screw 10-32 x 3/16 Soc. Hdls., Cup Pt. ................................................................................2

33 SD-024-18 Self-Tapping Screw 10-24 x 1/2 Hex Hd., Type TT .................................................................... 4

34 WS-002-32 Washer ....................................................................................................................................... 4

35 SC-093-21 Mach. Screw 10-32 x 3/8 Pan Hd. (SST) .................................................................................... 1

36 00-044068 Bearing – Thrust ........................................................................................................................ 1

37 RR-011-05 Retaining Ring ............................................................................................................................. 4

38 00-041507 Bar – Front Conveyor Support .................................................................................................. 1

39 00-041508 Bar – Rear Conveyor Support ................................................................................................... 1

40 00-041968 Side Frame Assy. (LH) ............................................................................................................... 1

41 00-043052 Chain Cover Assy. ..................................................................................................................... 1

42 00-041399 Cover (LH) .................................................................................................................................. 1

43 SD-024-18 Self-Tapping Screw 10-24 x 1/2 Hex Hd., Type TT .................................................................... 1

44 WS-002-32 Washer ....................................................................................................................................... 1

45 RR-009-10 Retaining Ring .............................................................................................................................1

46 00-041975 Shifting Arm Stud ........................................................................................................................1

47 00-041981 Shifter ......................................................................................................................................... 1

48 00-041984 Shift Arm .....................................................................................................................................1

49 00-041353 Shift Lever Assy. .......................................................................................................................1

50 SC-075-41 Set Screw 10-32 x 3/16 Soc. Hdls., Cup Pt. ................................................................................1

51 00-041983 Shift Lever Assy. .......................................................................................................................1

52 00-041979 Link – Shifting .............................................................................................................................1

53 SC-075-41 Set Screw 10-32 x 3/16 Soc. Hdls., Cup Pt. ................................................................................1

54 SC-018-62 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. .......................................................................................2

55 WL-008-13 Lockwasher #10 Internal Shakeproof ....................................................................................... 2

56 00-042561 Standoff – Cover ........................................................................................................................ 2

57 SC-053-05 Mach. Screw 10-24 x 3/8 Truss Hd., Slotted.............................................................................. 2

58 00-041395 Connector – Double External Pin ............................................................................................... 1

59 00-087165 Link – Chain Connector ............................................................................................................ AR

60 00-043495 Chain – Assy. Drive (Transfer Station) (Incls. Items 58 & 59) ..................................................1

61 00-043928 Sprocket – Assy. Sealer Drive (Split 20T) .................................................................................. 1

62 00-042524 Support – Chain.......................................................................................................................... 1

63 SC-089-04 Cap Screw 1/4-20 x 1 Soc. Hex Hd. ........................................................................................... 1

64 00-041977 Bushing – Shifter ....................................................................................................................... 2

65 SD-024-18 Self-Tapping Screw 10-24 x 1/2 Hex Hd., Type TT .................................................................... 5

66 WL-008-13 Lockwasher #10 Internal Shakeproof ....................................................................................... 5

67 RR-011-05 Retaining Rin ............................................................................................................................... 1

68 00-044068 Bearing – Thrust ........................................................................................................................ 1

69 00-044114 Clutch & Sprocket Assy. ............................................................................................................. 1

70 00-041495 Bearing ....................................................................................................................................... 1

71 00-044068 Bearing – Thrust ........................................................................................................................ 1

72 00-041376 Belt – Flat Drive .......................................................................................................................... 8

73 00-041888 Roller Assy. (3 Wheels) ............................................................................................................. 1

74 00-041368 Shaft – Belt Drive ....................................................................................................................... 1

75 00-041887 Roller Assy. (Offset) (4 Wheels) ............................................................................................... 3

76 RR-011-05 Retaining Ring ............................................................................................................................. 1

77 00-044068 Bearing – Thrust ........................................................................................................................ 1

78 00-041886 Roller Assy. (4 Wheels) ............................................................................................................. 4

79 00-041966 Frame – Rear .............................................................................................................................. 1

80 SD-024-18 Self-Tapping Screw 10-24 x 1/2 Hex Hd., Type TT .................................................................... 2

81 00-041383-00002 Bracket – Roller Mtg. (LH) ..........................................................................................................1

82 SD-024-18 Self-Tapping Screw 10-24 x 1/2 Hex Hd., Type TT .................................................................... 8

83 SC-119-51 Mach. Screw 6-32 x 1 Pan Hd. ................................................................................................. 6

84 WL-003-09 Lockwasher #6 Medium............................................................................................................. 2

85 00-043895-00001 LED Sensor Assy. – Sender ...................................................................................................... 1

86 00-043005 Bracket – Sensor Mtg. ............................................................................................................... 1

87 00-042521 Plate – Nut .................................................................................................................................. 1

88 00-043829-00002 Photo – Transistor Sensor Assy. – Receiver ............................................................................ 2

89 00-042440 Bracket – Reflection Reduction ................................................................................................. 1

90 00-041969 Strip – Bearing ............................................................................................................................ 1

91 00-041383-00001 Bracket – Roller Mtg. (RH) ......................................................................................................... 1

92 00-044291 Roller – Glass Beaded ............................................................................................................... 1

93 00-041357 Conveyor Roller Assy. ............................................................................................................... 2

94 00-041982 Roller Assy. ................................................................................................................................ 4

1

/2 Hex Hd., Type TT ................................................................... 12

- 65 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

56-57

47

58

59-60

48-49

61

52-53-54

50-51

55

62

3-4-5

63

6 THRU 9

1-2

10

11-12

13-14

15

16

17-18

19

20

21

22

23

42-43-44

41

40

PL-55971

39

37-38

36

46

45

33

35

34

INTERMEDIATE CONVEYOR

32

24

25

27

28

26

29

31

30

F-19207 Rev. A (October 2001)

- 66 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

INTERMEDIATE CONVEYOR

ILLUS. PART NO. NAME OF PART AM T.
PL-55971

1 FE-022-84 Connector – Strain Relief ........................................................................................................... 1

2 FE-006-07 Lock Nut 1/2 (Cnd.) ...................................................................................................................... 1

3 00-041502 Cover – Switch ..........................................................................................................................1

4 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

5 NS-038-04 Lock Nut 1/4-20 Hex .................................................................................................................... 2

6 00-041482 Switch Assy. .............................................................................................................................. 1

7 00-331058 Plate – Nut 6-32 .......................................................................................................................... 1

8 SC-009-97 Mach. Screw 6-32 x

9 WL-007-02 Lockwasher #6 External............................................................................................................ 2

10 00-041489 Cover & Plate Assy. ................................................................................................................... 1

11 SC-093-23 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. .......................................................................................2

12 WL-013-11 Lockwasher #10 Internal Shakeproof ....................................................................................... 4

13 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 4

14 NS-038-04 Lock Nut

1

/4-20 Hex .................................................................................................................... 2

15 00-041485 Cover – End ................................................................................................................................ 1

16 00-041423 Finger Bar Assy. ........................................................................................................................1

17 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 4

18 NS-038-04 Lock Nut 1/4-20 Hex .................................................................................................................... 4

19 00-041417 Bracket – Connecting ................................................................................................................. 1

20 00-041682 O-Ring .........................................................................................................................................4

21 00-041515 Roller & Pin Assy. ....................................................................................................................... 9

22 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 1

23 00-041503 Deflector – Belt ........................................................................................................................... 1

24 00-041408 Bearing – Strip ............................................................................................................................2

25 00-041404 Shaft – Stub ................................................................................................................................ 1

26 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ...................................................................................1

27 00-041416 Spacer – Support Mounting ....................................................................................................... 1

28 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 4

29 00-041401 Brace – Support .........................................................................................................................2

30 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

31 NS-038-04 Lock Nut 1/4-20 Hex .................................................................................................................... 2

32 00-041411 Bracket – Support Mounting ...................................................................................................... 2

33 SC-018-74 Mach. Screw 10-24 x 3 Phil. Pan Hd. ........................................................................................ 4

34 NS-031-15 Stop Nut – Special 10-24 Hex (SST) .......................................................................................... 4

35 00-041407 Bracket – Conveyor Mounting ................................................................................................... 1

36 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ...................................................................................2

37 00-041409 Block – Mounting ........................................................................................................................ 1

38 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

39 00-041403 Shaft – Stub (Long) .................................................................................................................... 1

40 NS-038-04 Lock Nut 1/4-20 Hex .................................................................................................................... 2

41 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

42 00-041432 Bracket – Mounting .................................................................................................................... 1

43 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 4

44 NS-038-04 Lock Nut 1/4-20 Hex .................................................................................................................... 4

45 00-041425 Drive Roller Assy. .......................................................................................................................1

46 00-041474 Belt – Flat Drive .......................................................................................................................... 9

47 00-041418 Bar – Spacer ..............................................................................................................................1

48 00-041405 Spacer – Stop ............................................................................................................................. 1

49 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 1

50 00-132730 Counterbalance .......................................................................................................................... 1

51 SC-075-41 Set Screw 10-32 x 3/16 Socket Hdls., Cup Pt. ............................................................................ 1

52 00-041410 Block – Pivot ............................................................................................................................... 2

53 00-183399 Bushing – Nyliner ....................................................................................................................... 2

54 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

55 00-041477 Belt – O-Ring Drive ..................................................................................................................... 2

56 SC-093-23 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. .......................................................................................1

57 WL-013-11 Lockwasher #10 Internal Shakeproof ....................................................................................... 1

58 00-041491 Cover – Short Side .....................................................................................................................1

59 00-041486 Standoff – Cover ........................................................................................................................1

60 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 1

61 00-041427 Frame – Side .............................................................................................................................. 2

62 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

63 00-041486 Standoff – Cover ........................................................................................................................2

3

/4 Slotted Rd. Hd. ..................................................................................... 2

- 67 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

57

58

59-60

56

65

64

63

61

22

24
23

8

18

30

10

11-12

13-14

15
16
17

32
31

33

35
34

37
36

38
39

9

19

27
26
25

28

29

6

3

5

2

4

1

62

7

20

21

55

F-19207 Rev. A (October 2001)

52

54

53

50-51

47
48
49

INCLINED CONVEYOR

- 68 -

45
46

40

41

42

43-44

PL-55966

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

INCLINED CONVEYOR

ILLUS. PART NO. NAME OF PART AM T.
PL-55966

1 00-041469 Cover – Back ..............................................................................................................................1

2 SC-093-23 Mach. Screw 10-24 x

3

/8 Phil. Pan Hd. ....................................................................................... 2

3 00-205878 Fastener – Tinnerman 10-24 ..................................................................................................... 2

4 00-041468 Support – Flat Belt ...................................................................................................................... 5

5 SC-093-23 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. ...................................................................................... 10

6 WL-006-07 Lockwasher #10 Medium.......................................................................................................... 10

7 00-042553 Belt – Conveyor (Incls. Corrugated Pins) ..................................................................................5

8 00-041952 Frame – Side (RH) ...................................................................................................................... 1

9 00-041357 Conveyor Roller Assy. ............................................................................................................... 6

10 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 6

11 00-041439 Spacer – Belt Support ................................................................................................................2

12 WS-003-49 Washer ....................................................................................................................................... 1

13 SC-093-23 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. ....................................................................................... 6

14 00-205878 Fastener – Tinnerman 10-24 ..................................................................................................... 6

15 00-041470 Cover – Front ............................................................................................................................. 1

16 SC-093-23 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. ....................................................................................... 2

17 00-205878 Fastener – Tinnerman 10-24 ..................................................................................................... 2

18 00-041436 Plate – Roller Support .................................................................................................................2

19 00-048090-00002 Protector – Edge ....................................................................................................................... 12

20 00-041953 Frame – Side (LH) ...................................................................................................................... 1

21 00-044619 Frame – Conveyor (Specify Serial Number).............................................................................. 1

22 00-041479 Idler Roller Assy. ........................................................................................................................ 1

23 00-041441 Shaft – Idler ................................................................................................................................ 1

24 RR-004-05 Retaining Ring .............................................................................................................................2

25 00-041456 Guide Roller Assy. ......................................................................................................................1

26 00-041441 Shaft – Idler ................................................................................................................................ 1

27 RR-004-05 Retaining Ring .............................................................................................................................2

28 00-041444 Take-Up Arm Assy. ..................................................................................................................... 2

29 00-041443 Roller – Take-Up ......................................................................................................................... 1

30 00-041465 Chain Cover Assy. ..................................................................................................................... 1

31 00-041487 Chain – Conveyor Drive ........................................................................................................... AR

32 00-087165 Link – Chain Connector ............................................................................................................ AR

33 00-041478 Sprocket – Drive (32T) ............................................................................................................... 1

34 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ................................................................................... 4

35 00-130414 Bearing ....................................................................................................................................... 2

36 00-041460 Drive Roller Assy. (Incls. Item 34) .............................................................................................. 1

37 00-041459 Shaft – Drive Roller .................................................................................................................... 1

38 00-133231 Sprocket 12T .............................................................................................................................. 1

39 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ................................................................................... 1

40 00-130439 Roller – Spring ............................................................................................................................ 1

41 00-041464 Bracket – Conveyor Connection ................................................................................................ 1

42 00-041415 Block – Popout............................................................................................................................ 2

43 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

44 NS-038-04 Lock Nut 1/4-20 Hex .................................................................................................................... 2

45 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

46 NS-038-04 Lock Nut 1/4-20 Hex .................................................................................................................... 2

47 SC-037-71 Cap Screw 3/8-16 x 3/4 Hex Hd. .................................................................................................. 4

48 WL-004-06 Lockwasher 3/8 Medium .............................................................................................................. 4

49 NS-013-25 Nut 3/8-16 Hex ............................................................................................................................. 4

50 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

51 NS-038-04 Lock Nut 1/4-20 Hex .................................................................................................................... 2

52 00-041447 Conveyor Support Assy. ............................................................................................................ 1

53 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

54 NS-038-04 Lock Nut 1/4-20 Hex .................................................................................................................... 2

55 00-041473 Brace – Lower Support ............................................................................................................. 1

56 00-041494 Standoff Cover (Use W/HPA) .................................................................................................... 4

57 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 4

58 00-041475 Bearing Block Assy. ................................................................................................................... 2

59 00-041429 Drive Pulley Assy. (Incls. Item 60) .............................................................................................. 1

60 SC-047-75 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 1

61 00-041440 Shaft – Drive .............................................................................................................................. 1

62 00-041426 Pulley – Drive .............................................................................................................................. 1

63 SC-047-75 Set Screw 1/4-20 x 1/4 Soc. Hdls., Cup Pt. .................................................................................. 1

64 00-041463 Stop – Pkg. ..................................................................................................................................1

65 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

- 69 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

47

PL-55967

43
42
41

46
45
44

40

34

33

30
31
32

39

27
28
29

36
37
38

35

1 THRU 4

5

6-7

20-21
22-23-24

25-26

8-9

10

11

12-13

14-15

16-17

18-19

F-19207 Rev. A (October 2001)

LINK ASSEMBLY

- 70 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

LINK ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T.
PL-55967

1 00-049837 Resistor Assy. ............................................................................................................................ 1

2 00-041481 Timer – Solid State ......................................................................................................................1

3 SC-081-44 Mach. Screw 10-32 x 1

4 NS-031-49 Stop Nut 10-32 Hex (SST) ......................................................................................................... 2

5 00-041471 Plate – Switch Mounting............................................................................................................. 1

6 00-205878 Fastener – Tinnerman 10-24 ..................................................................................................... 1

7 SC-093-23 Mach. Screw 10-24 x

8 00-041453 Sleeve – Lift Arm ........................................................................................................................ 8

9 SC-121-62 Mach. Screw 1/4-20 x 1 Hex Washer Hd., Whiz-Lock............................................................... 8

10 00-041457 Link – Platform Lift ..................................................................................................................... 10

11 00-041480 Ground Wire Assy. ..................................................................................................................... 1

12 00-041957 Bracket – Platform Stop.............................................................................................................. 1

13 00-178667 Foot – Rubber ............................................................................................................................. 2

14 SC-112-42 Mach. Screw 6-32 x 1/2 Phil. Pan Hd. .........................................................................................2

15 NS-031-03 Stop Nut 6-32 Hex Special ......................................................................................................... 2

16 00-041451 Shaft – Platform .......................................................................................................................... 1

17 RR-009-10 Retaining Ring .............................................................................................................................2

18 00-041452 Shaft – Platform .......................................................................................................................... 1

19 RR-009-10 Retaining Ring .............................................................................................................................2

20 SC-121-62 Mach. Screw 1/4-20 x 1 Hex Washer Hd., Whiz-Lock............................................................... 4

21 00-041435 Spacer – Lower Pivot ................................................................................................................ 2

22 00-086962 Clamp – Loop .............................................................................................................................. 1

23 SC-093-23 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. .......................................................................................1

24 NS-031-15 Stop Nut – 10-24 Hex Special (SST) .......................................................................................... 1

25 00-041434 Spacer – Lower Wall .................................................................................................................2

26 SC-121-62 Mach. Screw 1/4-20 x 1 Hex Washer Hd., Whiz-Lock............................................................... 4

27 00-041446 Bushing – Arm ............................................................................................................................ 4

28 SC-121-62 Mach. Screw 1/4-20 x 1 Hex Washer Hd., Whiz-Lock............................................................... 4

29 RR-009-10 Retaining Ring .............................................................................................................................4

30 00-041428 Link – Connector ........................................................................................................................ 2

31 00-041498 Bearing – Nyliner ........................................................................................................................2

32 SC-047-72 Set Screw 1/4-20 x 3/8 Hex Hdls., Cup Pt. ................................................................................... 2

33 00-175856 Spring – Pull Down .....................................................................................................................2

34 00-041437 Spacer – Roller Plate ..................................................................................................................2

35 00-049820 Link – Solenoid ........................................................................................................................... 1

36 00-049821 Spacer – Solenoid Link............................................................................................................... 1

37 SC-081-44 Mach. Screw 10-32 x 11/2 Rd. Hd. ............................................................................................. 1

38 NS-031-49 Stop Nut 10-32 Hex (SST) ......................................................................................................... 1

39 00-041483 Switch Cord Assy. ..................................................................................................................... 1

40 SC-121-62 Mach. Screw 1/4-20 x 1 Hex Washer Hd., Whiz-Lock............................................................... 4

41 00-041519 Power Cord Assy. ...................................................................................................................... 1

42 FE-022-84 Connector – Strain Relief ........................................................................................................... 1

43 FE-006-07 Lock Nut 1/2 (Cnd.) ...................................................................................................................... 1

44 00-041539 Solenoid ......................................................................................................................................1

45 SC-093-23 Mach. Screw 10-24 x 3/8 Phil. Pan Hd. .......................................................................................2

46 NS-031-15 Stop Nut – Special 10-24 Hex (SST) .......................................................................................... 2

47 00-041472 Cover – Switch Plate ................................................................................................................. 1

1

/2 Rd. Hd. ............................................................................................. 2

3

/8 Phil. Pan Hd. .......................................................................................1

- 71 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

27-28

1

25
24
23

26

21

17
18
19
20

22

15
16

14
13
12

2

3

5-6-7

4

8

9

10
11

PL-51656

FILM ACCESS DOOR

ILLUS. PART NO. NAME OF PART AM T.
PL-51656

1 00-043460 Strip – Top Trim ...........................................................................................................................1

2 SD-024-18 Self-Tapping Screw 10-24 x 1/2 Hex Hd., Type TT ....................................................................3

3 00-043466 Door – Film Access .................................................................................................................... 1

4 00-041725 Catch – Magnet .......................................................................................................................... 2

5 00-043459 Stop – Door .................................................................................................................................1

6 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

7 WL-003-12 Lockwasher #8 Medium............................................................................................................. 2

8 00-043465 Rivet – Push .............................................................................................................................. 12

9 00-043469 Door Strip Assy. .......................................................................................................................... 1

10 00-043457 Hinge – Male RH Bottom .............................................................................................................1

11 00-043474 Hinge – Male LH Bottom ............................................................................................................. 1

12 SC-110-31 Mach. Screw 10-24 x 3/4 Hex Hd. .............................................................................................. 2

13 WS-029-79 Washer ....................................................................................................................................... 2

14 NS-038-13 Lock Nut 10-24 Hex ................................................................................................................... 2

15 00-043467 Strip – Door Edge ....................................................................................................................... 1

16 00-043465 Rivet – Push ............................................................................................................................... 8

17 00-043458 Hinge – Female (RH) .................................................................................................................. 2

18 00-043475 Hinge – Female (LH) ................................................................................................................... 2

19 SC-110-87 Mach. Screw 10-32 x 1/4 Phil. Pan Hd. .......................................................................................4

20 WL-006-07 Lockwasher #10 Medium........................................................................................................... 4

21 00-043456 Hinge – Male RH Top .................................................................................................................. 1

22 00-043473 Hinge – Male LH Top ................................................................................................................... 1

23 SC-110-31 Mach. Screw 10-24 x 3/4 Hex Hd. .............................................................................................. 2

24 WS-029-79 Washer ....................................................................................................................................... 2

25 NS-038-13 Lock Nut 10-24 Hex ................................................................................................................... 2

26 00-043459 Stop – Door................................................................................................................................. 1

27 SC-121-61 Mach. Screw 1/4-20 x 5/8 Hex Washer Hd., Whiz-Lock.............................................................. 2

28 WL-003-12 Lockwasher #8 Medium............................................................................................................. 2

F-19207 Rev. A (October 2001)

- 72 -

1 2-3-4

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

PL-53371

SUPPLY HOLDER

(OPTIONAL)

ILLUS. PART NO. NAME OF PART AM T.
PL-53371

1 00-047367 Holder Assy. – Supplies ............................................................................................................. 1

2 00-047567 Retainer – Holder ....................................................................................................................... 2

3 SC-018-74 Mach. Screw 10-24 x 3 Phil. Pan Hd. ........................................................................................ 2

4 NS-048-07 Lock Nut – Special 10-24 Hex.................................................................................................... 2

00-047608 Kit Supply Holder (Incls. Items 1 thru 4) .................................................................................... 1

- 73 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

11

12

13

1-2

4

7

5

6

8

9

3

10

PL-53366-E

SIDE SHELF KIT

(OPTIONAL)

ILLUS. PART NO. NAME OF PART AM T.
PL-53366-E

1 00-440727 Shelf – Platter (29.625 In.) ......................................................................................................... 1

2 00-184133 Shelf – Platter (23.625 In.) ......................................................................................................... 1

3 00-184135 Spacer – Hinge Block ................................................................................................................. 2

4 00-184134 Block – Hinge Mounting ..............................................................................................................2

5 SC-124-51 Cap Screw 10-24 x 21/4 Soc. Hd. .............................................................................................. 4

6 SC-022-19 Mach. Screw 10-24 x 1/2 Flat Hd. ............................................................................................... 2

7 00-334738 Pad – Support Assy. .................................................................................................................. 2

8 WS-019-06 Washer ....................................................................................................................................... 6

9 SC-067-07 Mach. Screw 10-24 x 1/2 Hex Hd. SST ...................................................................................... 6

10 NS-038-13 Lock Nut – Special 10-24 Hex.................................................................................................... 4

11 00-184132 Hinge – Shelf .............................................................................................................................. 2

12 SD-034-21 Self-Tapping Screw 10-16 x 1/2 Hex Washer Hd., Type AB ..................................................... 12

13 00-440728 Ground – Shelf Edge (29.625 In.) ..............................................................................................1

00-184138 Kit – Side Shelf (Incls. Items 1 & 3 thru 13) ...............................................................................1

00-440960 Shelf Assy. (29.625 In.) (Incls. Items 1, 11, 12, & 13) ...............................................................?

F-19207 Rev. A (October 2001)

- 74 -

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

FRONT SHELF KIT

(OPTIONAL)

ILLUS. PART NO. NAME OF PART AM T.
PL-53367-E

1 00-00-047009 Shelf – Platter Assy. (Incls. Items 12, 13, & 14) ........................................................................ 1

2 00-047003 Block – Hinge Mounting .............................................................................................................. 2

3 00-184135 Spacer – Hinge Block .................................................................................................................2

4 00-047004 Pad – Support Assy. .................................................................................................................. 2

5 00-047843 Bracket (LH) ............................................................................................................................... 1

6 00-047844 Bracket (RH) ...............................................................................................................................1

7 SC-067-07 Mach. Screw 10-24 x 1/2 Hex Hd. (SST) ................................................................................... 6

8 WS-019-06 Washer .......................................................................................................................................6

9 SC-022-19 Mach. Screw 10-24 x 1/2 Flat Hd. ............................................................................................... 2

10 SC-123-92 Mach. Screw 1/4-20 x 5/8 Special Hex Washer Hd. .................................................................... 2

11 SC-124-51 Cap Screw 10-24 x 21/4 Soc. Hd. .............................................................................................. 4

12 00-047014 Guard – Shelf Edge ....................................................................................................................2

13 SD-034-21 Self-Tapping Screw 10-16 x 1/2 Hex Washer Hd., Type AB .....................................................10

14 00-184132 Hinge – Shelf ..............................................................................................................................2

00-047005 Kit – Front Shelf (Incls. Items 1 thru 3 & 7 thru 11) ................................................................... 2

- 75 -

F-19207 Rev. A (October 2001)

AUTOMATIC STRETCH WRAPPER REPLACEMENT PARTS

MISCELLANEOUS LISTING

ILLUS. PART NO. NAME OF PART AM T.
PL-55587

00-180029-00025 Lubricant & Container (Lubriplate FP-150L) ..............................................................................1

00-520228 Adhesive Loctite 242 ................................................................................................................. 1

00-542689 Tape – Red (1/2 In. x 36 Yd. Roll, 5 Mil Thk.) ...............................................................................1

00-333591 Card – Water Shield Instructions ...............................................................................................1

00-441613 Water Shield (84 In. x 170 In.) ................................................................................................... 1

00-183934-00001 Tube – Plastic Shrinkable 0.047 I.D. x 4 ft. (Cut to Length) .................................................... AR

00-183934-00002 Tube – Plastic Shrinkable 0.063 I.D. x 4 ft. (Cut to Length) .................................................... AR

00-183934-00004 Tube – Plastic Shrinkable 0.125 I.D. x 4 ft. (Cut to Length) .................................................... AR

00-183934-00005 Tube – Plastic Shrinkable 0.188 I.D. x 4 ft. (Cut to Length) .................................................... AR

00-183934-00007 Tube – Plastic Shrinkable 0.375 I.D. x 4 ft. (Cut to Length) .................................................... AR

00-183934-00008 Tube – Plastic Shrinkable 0.500 I.D. x 4 ft. (Cut to Length) .................................................... AR

00-183934-00009 Tube – Plastic Shrinkable 0.750 I.D. x 4 ft. (Cut to Length) .................................................... AR

00-183934-00010 Tube – Plastic Shrinkable 1.000 I.D. x 4 ft. (Cut to Length) .................................................... AR

00-544692 Tri-Flo Lube (2 Oz. Squeeze Bottle) ..........................................................................................1

00-102714 Brush – Cleaning ........................................................................................................................1

00-520478-00002 Lubricant – Grease (14 Oz. Cartridge) ................................................................................... AR

00-547240 Cleaner (Blue Shower) ............................................................................................................ AR

00-041753 Clock Alignment Tool ..................................................................................................................1

00-102973-00085 Lubriplate (2 Oz.) (FMO-200-AW) ........................................................................................... AR

00-102973-00009 Duoprime Oil 90 (4 Oz.)............................................................................................................ AR

00-102973-00084 Mobil HD 80W-90 (16 Oz.) ....................................................................................................... AR

FORM 19207 Rev. A OCTOBER 2001 PRINTED IN U.S.A.
