AM15 SERIES DISHWASHERS
ML-130038 AM15
ML-130039 AM15T
ML-130045 AM15F
ML-130153 AM15VL
ML-130154 AM15VLT
ML-130155 AM15VLF
A product of HOBART 701 S. RIDGE AVENUE TROY, OHIO 45374-0001
FORM 43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
F-43094 Rev. F (March 2015) - 2 - © HOBART 2015
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
Table of Contents
5 DISH RACKS
7 CONTROLS
9 CONTROL CABLES
11 CONTROL BOX (ELECTRIC HEAT)
13 CONTROL BOX (GAS HEAT) (ML-130038, ML-130039, & ML-130045)
15 MOTOR AND PUMP
17 UPPER WASH ARM
19 LOWER WASH ARM
21 RINSE PIPING (WITHOUT BOOSTER AND STEAM CONDENSER)
23 RINSE PIPING (WITH BOOSTER AND WITHOUT STEAM CONDENSER)
25 OUTSIDE PIPING WITH STEAM CONDENSER
29 BOOSTER PIPING (AM15, AM15T, & AM15F)
31 RINSE PUMP ASSEMBLY (ML-130153, ML-130154, & ML-130155)
33 ELECTRIC BOOSTER TANK
35 STEAM CONDENSER
37 LOW WATER PROTECTION AND ELECTRIC HEAT
39 DRAIN UNIT
41 DRAIN WATER TEMPERING
43 DOOR ASSEMBLY (AM15 & AM15VL)
45 DOOR ASSEMBLY (AM15T, AM15F, AM15VLT, & AM15VLF)
47 PANELS AND RACK SUPPORT
49 GAS HEAT PIPING
51 GAS HEAT COMPONENTS
53 FRONT TRAY (AM15F & AM15VLF)
- 3 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
DISH RACKS
F-43094 Rev. F (March 2015) - 4 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
DISH RACKS
ILLUS.
PL-53023
PART NO. NAME OF PART AMT.
1 00-315191 Rack - Peg (Packaged)..............................................................................................................1
2 00-315193 Rack - Combination (Packaged)................................................................................................1
00-295288 Peg Type Tray Rack (Packaged)...............................................................................................1
00-892671 Rack - Bun Pan..........................................................................................................................1
00-474800 Rack (6 Pan)..............................................................................................................................1
- 5 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
CONTROLS
F-43094 Rev. F (March 2015) - 6 -
CONTROLS
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
ILLUS.
PL-57404
10 00-892720-00002 Standoff......................................................................................................................................2
11 00-892932 Control Board Assy....................................................................................................................1
12 NS-031-50 Stop Nut 6-32 Hex (SST)...........................................................................................................2
13 00-892720-00002 Standoff......................................................................................................................................2
14 00-892934-00002 Board - Relay Assy. (AM15, AM15T, & AM15F)........................................................................1
15 00-892934-00001 Board - Relay Assy. (AM15VL, AM15VLT, & AM15VLF)...........................................................1
16 NS-031-50 Stop Nut 6-32 Hex (SST)...........................................................................................................2
17 FE-022-29 Fuse (250 V., 1.0 Amp.).............................................................................................................1
18 FE-026-30 Fuse (250 V., 0.1 Amp.) (AM15, AM15T, & AM15F)..................................................................1
19 FE-019-11 Fuse (250 V., 0.3 Amp.) (AM15VL, AM15VLT, & AM15VLF).....................................................1
20 00-118349-00007 Standoff - Reed Board (Relay Board)........................................................................................2
21 00-118349-00007 Standoff - Reed Board (Control Board)......................................................................................2
22 NS-047-94 Lock Nut 3/16 Washer Type (SST)............................................................................................4
23 00-294677-00003 Clamp - Wire (3/4 I.D.)...............................................................................................................4
24 00-893642 Plate (Patent Numbers)..............................................................................................................1
25 0F-035324 Label - Warning (Fuse) (Electric Heat).......................................................................................1
26 0F-035373 Label - Warning (Fuse) (Gas Heat)............................................................................................1
27 00-438131-00060 Label - Warning (With Electric Booster).....................................................................................1
28 00-438131-00042 Label - Warning (With Gas Heat, With Electric Booster S.P.E.C. or Without Electric
29 0F-035331 Label (Error Code)......................................................................................................................1
30 00-438131-00175 Label - Instruction.......................................................................................................................1
31 00-941234 Label - Instruction (Ventless) (AM15VL, AM15VLT, & AM15VLF).............................................1
32 00-892793-00002 Ribbon Cable Assy.....................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-893113 Switch - Membrane Keypad.......................................................................................................1
2 00-893040 Bezel - Display Weldment..........................................................................................................1
3 00-526454 Tape - Foam............................................................................................................................AR
4 00-892458 Module - Display.........................................................................................................................1
5 00-294677-00003 Clamp - Wire (3/4 I.D.)...............................................................................................................1
6 NS-047-94 Lock Nut 3/16 Washer Type (SST)............................................................................................1
7 00-294677-00003 Clamp - Wire (3/4 I.D.)...............................................................................................................1
8 NS-011-18 Nut 10-24 Hex (SST)..................................................................................................................1
9 NS-031-16 Stop Nut 10-24 Hex Elastic (SST)..............................................................................................1
FE-021-19 Fuse (3.2 Amp., 250 V.) F2 (Gas Only)......................................................................................1
Booster.......................................................................................................................................1
- 7 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
CONTROL CABLES
F-43094 Rev. F (March 2015) - 8 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
CONTROL CABLES
ILLUS.
PL-60462
10 00-941173 Cable Assy. - Cold Water Valve (AM15VL, AM15VLT, & AM15VLF) (Before S/N
11 00-949340 Cable Assy. - Cold Water Valve (AM15VL, AM15VLT, AM15VLF) (Starting S/N
12 00-941174 Cable Assy. - Light (AM15VL, AM15VLT, & AM15VLF).............................................................1
13 00-941185 Harness - High Voltage (AM15VL, AM15VLT, & AM15VLF)......................................................1
14 00-941186 Harness - Low Voltage (Sensors & Door Switch) (AM15VL, AM15VLT, & AM15VLF)
PART NO. NAME OF PART AMT.
1 00-892793-00002 Ribbon Cable Assy.....................................................................................................................1
2 00-893447 Harness - Sensor Assy. (AM15, AM15T, & AM15F)..................................................................1
3 00-893448 Harness - Relay Board Assy. (AM15, AM15T, & AM15F)..........................................................1
4 00-893125 Cable - Rinse Thermistor (AM15, AM15T, & AM15F)................................................................1
5 00-893126-00001 Cable - Rinse Valve (WO/Electric Booster) (Incls. DIN Connector) (AM15, AM15T, &
AM15F).......................................................................................................................................1
6 00-893126-00002 Cable - Rinse Valve (W/Electric Booster) (Incls. DIN Connector) (AM15, AM15T, &
AM15F).......................................................................................................................................1
7 00-941222 Cable Assy. - Rinse Thermistor (AM15VL, AM15VLT, & AM15VLF).........................................1
8 00-941170 Cable Assy. - Fan/Cold Water Valve (AM15VL, AM15VLT, & AM15VLF).................................1
9 00-893126-00003 Cable Assy. - Hot Water Valve (AM15VL, AM15VLT, & AM15VLF)..........................................1
231154994)................................................................................................................................1
231154994)................................................................................................................................1
...................................................................................................................................................1
- 9 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
CONTROL BOX
(ELECTRIC HEAT)
F-43094 Rev. F (March 2015) - 10 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
CONTROL BOX
(ELECTRIC HEAT)
ILLUS.
PL-57403
10 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2
11 00-893065 Block - Terminal (Double Row)..................................................................................................1
12 00-118544-00002 Lug - Grounding.........................................................................................................................1
13 WL-007-15 Lockwasher 1/4 External Shakeproof.........................................................................................1
14 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT...........................................................1
15 00-814247 Microcontroller - Final Rinse Alarm (S.E.F. Only)......................................................................1
16 00-294677-00003 Clamp - Wire (3/4 I.D.)...............................................................................................................6
17 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................6
18 00-118544-00002 Lug - Grounding (Electric Booster).............................................................................................1
19 WL-007-15 Lockwasher 1/4 External Shakeproof (Electric Booster)............................................................1
20 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT (Electric Booster)..............................1
21 00-087714-046-1 Relay (2-Pole) (30 Amp.) (AM15VL)..........................................................................................2
22 00-118544-00002 Lug - Grounding.........................................................................................................................1
23 WL-007-15 Lockwasher 1/4 External Shakeproof.........................................................................................1
24 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT...........................................................1
25 00-294325-00022 Block - Terminal (1 Ph.)..............................................................................................................1
26 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B (1 Ph.)..................................................2
27 00-294325-00022 Block - Terminal (Electric Booster) (1 Ph.).................................................................................1
28 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B (Electric Booster) (1 Ph.).....................2
29 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B (Electric Heat With S.P.E.C.)
30 00-119031 Block - Terminal (Electric Heat With S.P.E.C.)...........................................................................1
31 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2
32 00-087713-108-1 Contactor (25 Amp., 3-Pole).......................................................................................................1
33 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2
34 00-087713-108-1 Contactor (25 Amp., 3-Pole).......................................................................................................1
35 00-087714-046-1 Relay (2-Pole) (30 Amp.)............................................................................................................1
36 FE-026-26 Adapter - Electrical.....................................................................................................................1
37 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bndg. Hd., Type B.............................................................2
38 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................4
39 WL-014-07 Lockwasher #10 External Shakeproof (SST).............................................................................4
40 00-294500-052-1 Transformer (T1) (208/240/480 V., 50/60 Hz.)...........................................................................1
41 00-294500-052-2 Transformer (T1) (380/415 V., 50/60 Hz.)..................................................................................1
42 FE-026-26 Adapter - Electrical.....................................................................................................................1
43 SC-041-14 Cap Screw 5/16-18 x 1-1/8 Hex Hd. (SST)................................................................................4
44 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................4
45 00-294500-00053 Transformer (480 V.) (AM15VL).................................................................................................1
46 FE-023-25 Fuse (250 V., 5 Amp.)................................................................................................................1
47 00-941201 Bracket - High Voltage Transformer...........................................................................................1
48 0F-035319 Label - Terminal Block................................................................................................................1
49 0F-044182 Label - Electric Ampacity............................................................................................................1
50 00-918322 Contactor (40 Amp., 3-Pole) (120 V.) (Electric Booster With S.P.E.C.).....................................1
51 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2
52 00-294436-00002 Block - Fuse (480 V. Units)........................................................................................................1
53 FE-023-25 Fuse (5.0 Amp., 250 V.).............................................................................................................1
PART NO. NAME OF PART AMT.
1 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................3
2 00-294677-00004 Clamp - Wire (1 I.D.)..................................................................................................................3
3 FE-026-29 Bushing - Electrical Snap...........................................................................................................3
4 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2
5 WL-014-07 Lockwasher #10 External Shakeproof (SST).............................................................................2
6 00-294500-00051 Transformer (T2) (30 VA, 50/60 Hz.)..........................................................................................1
7 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2
8 00-294677-00004 Clamp - Wire (1 I.D.)..................................................................................................................2
9 00-893651 Box - Control..............................................................................................................................1
...................................................................................................................................................4
00-918322 Contactor (40 Amp., 3-Pole).......................................................................................................1
ML-130139-0000Z Kit - Single Point Electrical Connection......................................................................................1
- 11 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
CONTROL BOX
(GAS HEAT)
(ML-130038, ML-130039, & ML-130045)
F-43094 Rev. F (March 2015) - 12 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
CONTROL BOX
(GAS HEAT)
(ML-130038, ML-130039, & ML-130045)
ILLUS.
PL-57414
10 SD-019-29 Self-Tapping Screw 6-20 x 1/2 Phil. Pan Hd., Type B................................................................2
11 00-893065 Block - Terminal (Double Row)..................................................................................................1
12 00-118544-00002 Lug - Grounding.........................................................................................................................1
13 WL-007-15 Lockwasher 1/4 External Shakeproof.........................................................................................1
14 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT...........................................................1
15 00-294325-00023 Block - Terminal (Single Row)....................................................................................................1
16 00-294677-00003 Clamp - Wire (3/4 I.D.)...............................................................................................................6
17 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................6
18 00-118544-00002 Lug - Grounding.........................................................................................................................1
19 WL-007-15 Lockwasher 1/4 External Shakeproof.........................................................................................1
20 SD-035-77 Self-Tapping Screw 1/4-20 x 3/8 Phil. Pan Hd., Type TT...........................................................1
21 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bndg. Hd., Type B.............................................................2
22 00-294677-00003 Clamp - Wire (3/4 I.D.)...............................................................................................................2
23 00-294500-046-2 Transformer (T1) (300 VA, 50/60 Hz.)........................................................................................1
24 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................4
25 WL-014-07 Lockwasher #10 External Shakeproof (SST).............................................................................4
26 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2
27 00-087713-108-1 Contactor (25 Amp., 3-Pole).......................................................................................................1
28 00-087714-046-1 Relay (2-Pole) (30 Amp.)............................................................................................................1
29 FE-026-26 Adapter - Electrical.....................................................................................................................1
30 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bndg. Hd., Type B.............................................................2
31 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2
32 WL-014-07 Lockwasher #10 External Shakeproof (SST).............................................................................2
33 00-294500-040-1 Transformer (30 VA, 50/60 Hz.).................................................................................................1
34 SC-041-14 Cap Screw 5/16-18 x 1-1/8 Hex Hd. (SST)................................................................................4
35 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................4
36 0F-035319 Label - Terminal Block................................................................................................................1
37 0F-044182 Label - Electric Ampacity............................................................................................................1
38 00-087714-046-1 Relay (2-Pole) (30 Amp.)............................................................................................................1
PART NO. NAME OF PART AMT.
1 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................3
2 00-294677-00004 Clamp - Wire (1 I.D.)..................................................................................................................3
3 FE-026-29 Bushing - Electrical Snap...........................................................................................................3
4 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2
5 WL-014-07 Lockwasher #10 External Shakeproof (SST).............................................................................2
6 00-294500-00051 Transformer (T2) (30 VA, 50/60 Hz.)..........................................................................................1
7 SD-008-25 Self-Tapping Screw 10-16 x 1/2 Phil. Pan Hd., Type B..............................................................2
8 00-294677-00004 Clamp - Wire (1 I.D.)..................................................................................................................2
9 00-893651 Box - Control..............................................................................................................................1
00-893874 Harness - Gas Heat....................................................................................................................1
- 13 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
MOTOR AND PUMP
F-43094 Rev. F (March 2015) - 14 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
MOTOR AND PUMP
ILLUS.
PL-57402
10 00-893039-00005 Face - Pump Inside....................................................................................................................1
11 00-893039-00004 Gasket - Pump-to-Tank..............................................................................................................1
12 00-893039-00003 Jam Nut 7/16-20 Hex.................................................................................................................1
13 00-893039-00002 Impeller (60 Hz.).........................................................................................................................1
14 00-893039-00011 Impeller (50 Hz.).........................................................................................................................1
15 00-274227-00006 Seal - Shaft.................................................................................................................................1
16 00-893039-00012 Nut 3/8-16 Hex (SST).................................................................................................................4
17 00-893039-00001 Involute.......................................................................................................................................1
18 00-893039-00007 Stud 3/8-16 x 1-1/8.....................................................................................................................4
19 00-893039-00008 Motor (208-240/480 V., 60 Hz., 3 Ph.).......................................................................................1
20 00-893039-00009 Motor (208-240 V., 60 Hz., 1 Ph.)..............................................................................................1
21 00-893039-00010 Motor (240-380 V., 50 Hz., 3 Ph.)..............................................................................................1
22 00-893035 Brace - Pump.............................................................................................................................1
23 WS-017-01 Washer (SST).............................................................................................................................1
24 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................1
25 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST)...................................................................................1
26 00-542337 Clamp - Hose.............................................................................................................................1
27 00-893024 Hose - Discharge........................................................................................................................1
28 00-542337 Clamp - Hose.............................................................................................................................1
29 00-936863-00001 Pump & Motor Assembly 208-240/480/60/3...............................................................................1
30 00-936863-00002 Pump & Motor Assembly 208-240/60/1......................................................................................1
31 00-936863-00003 Pump & Motor Assembly 240/380/50/3......................................................................................1
32 00-941233-00013 Lock Nut 6mm (SST)................................................................................................................11
33 00-941233-00010 Seal............................................................................................................................................1
34 00-941233-00005 Shaft - Seal.................................................................................................................................1
35 00-941233-00006 Impeller (60 Hz.).........................................................................................................................1
36 00-941233-00007 Impeller (50 Hz.).........................................................................................................................1
37 00-941233-00008 Lockwasher 10mm (SST)...........................................................................................................1
38 00-941233-00009 Jam Nut 10mm (SST).................................................................................................................1
39 00-941233-00011 Pump Shell (Outer).....................................................................................................................1
40 00-941233-00012 Mach. Screw 6mm x 18mm (SST)...........................................................................................11
41 00-521462 Clamp - Hose.............................................................................................................................1
42 00-941241 Hose - Pump Intake....................................................................................................................1
43 00-521462 Clamp - Hose.............................................................................................................................1
44 00-941102 Flange - Pump............................................................................................................................1
45 00-941104 Bracket - Inlet.............................................................................................................................1
46 00-936772 Bracket - Motor Mounting...........................................................................................................1
47 00-941106 Adapter (Pump-to-Manifold) (Use With FIR Motor)....................................................................1
48 00-893039-00004 Gasket - Pump-to-Tank..............................................................................................................1
PART NO. NAME OF PART AMT.
1 SC-041-14 Cap Screw 5/16-18 x 1-1/8 Hex Hd. (SST)................................................................................2
2 00-893103 Gasket - Adapter........................................................................................................................1
3 00-893102-00001 Adapter - Pump-to-Manifold.......................................................................................................1
4 WS-017-01 Washer (SST).............................................................................................................................2
5 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................2
6 00-893039-00006 Stud 3/8-16 x 1-5/8.....................................................................................................................4
7 00-893063 Screen - Pump...........................................................................................................................1
8 WL-006-28 Lockwasher 3/8 Helical..............................................................................................................4
9 00-893039-00012 Nut 3/8-16 Hex (SST).................................................................................................................4
00-941233-00015 Fan - Cooling 60 Hz. (Fir Motor).................................................................................................1
00-941233-00016 Fan - Cooling 50 Hz (Fir Motor)..................................................................................................1
- 15 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
UPPER WASH ARM
F-43094 Rev. F (March 2015) - 16 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
UPPER WASH ARM
ILLUS.
PL-57399
10 00-286947 Retainer - Ball.............................................................................................................................1
11 00-067500-00019 O-Ring........................................................................................................................................1
12 00-893007 Arm - Wash................................................................................................................................1
13 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................2
14 00-893093-00001 Arm - Rinse (Incls. Items 15 & 18).............................................................................................1
15 00-893093-00002 Plug - Rinse Arm........................................................................................................................2
16 00-067500-00147 O-Ring........................................................................................................................................1
17 RR-011-98 Retaining Ring............................................................................................................................1
18 00-893074 Bearing.......................................................................................................................................1
PART NO. NAME OF PART AMT.
1 SC-125-20 Cap Screw 5/16-18 x 3/8 Hex Hd...............................................................................................2
2 00-067500-00110 O-Ring........................................................................................................................................1
3 00-950393-00001 Wash Manifold Assy (AM15, AM15T, AM15F) Incls. Item 6......................................................1
00-950393-00002 Wash Manifold Assy. (AM15VL, AM15VLT, AM15VLF) Incls. Item 7.....................................AR
4 00-067500-00153 O-Ring........................................................................................................................................1
5 SC-055-01 Set Screw 10-24 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................1
6 00-893052 Shaft - Rinse Arm (AM15, AM15T, & AM15F) Before S/N 231146176......................................1
00-941112 Shaft - Rinse Arm (AM15, AM15T, & AM15F Starting S/N 231146176.....................................1
7 00-893052-00002 Shaft - Rinse Arm (AM15VL, AM15VLT, & AM15VLT) Before S/N 231146176.........................1
00-941112-00002 Shaft - Rinse Arm (AM15VL, AM15VLT, & AM15VLF Starting S/N 231146176........................1
8 00-948668 Hub - Wash Arm.........................................................................................................................1
9 BA-002-40 Ball 1/4 Dia...............................................................................................................................13
00-893008 Wash Arm Assy. (Incls. Items 8 thru 13)....................................................................................1
- 17 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
LOWER WASH ARM
F-43094 Rev. F (March 2015) - 18 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
LOWER WASH ARM
ILLUS.
PL-57401
10 00-893033 Hub - Wash Arm.........................................................................................................................1
11 00-893052 Shaft - Rinse Arm (AM15, AM15T, & AM15F)............................................................................1
12 00-893052-00002 Shaft - Rinse Arm (AM15VL, AM15VLT, & AM15VLT)..............................................................1
13 00-893044 Bushing - Wash Arm..................................................................................................................1
14 00-067500-00110 O-Ring........................................................................................................................................1
15 00-067500-00153 O-Ring........................................................................................................................................1
16 SC-055-01 Set Screw 10-24 x 1/4 Hex Hdls., Cup Pt. (SST).......................................................................2
17 00-893030 Manifold - Wash (Lower)............................................................................................................1
18 RR-011-98 Retaining Ring............................................................................................................................1
19 00-067500-00147 O-Ring........................................................................................................................................1
20 00-893074 Bearing.......................................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-893032 Tube - Wash (AM15)..................................................................................................................1
2 00-893032-00002 Tube - Wash (AM15T & AM15F)................................................................................................1
3 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................2
4 00-893093-00001 Arm - Rinse (Incls. Items 5 & 20)...............................................................................................1
5 00-893093-00002 Plug - Rinse Arm........................................................................................................................2
6 00-893007 Arm - Wash................................................................................................................................1
7 00-067500-00019 O-Ring........................................................................................................................................1
8 00-286947 Retainer - Ball.............................................................................................................................1
9 BA-002-40 Ball 1/4 Dia...............................................................................................................................13
00-893008 Wash Arm Assy. (Incls. Items 3 & 6 thru 10)..............................................................................1
- 19 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
RINSE PIPING
(WITHOUT BOOSTER AND STEAM CONDENSER)
F-43094 Rev. F (March 2015) - 20 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
RINSE PIPING
(WITHOUT BOOSTER AND STEAM CONDENSER)
ILLUS.
PL-57407
10 00-893101 Service Kit - 1/2" Solenoid Valve Before Serial No. 231154994................................................1
11 00-476615 Connector - D.I.N.......................................................................................................................1
12 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
13 FP-054-36 Pipe 1/2 x 2 TBE (Brass)............................................................................................................1
14 FP-027-22 Bushing - Pipe 3/4 to 1/2 (Brass)...............................................................................................1
15 00-186922 Strainer - Line (3/4 In.) (Brass) (Incls. Items 16, 17, & 18).........................................................1
16 00-186923 Plug - Branch..............................................................................................................................1
17 00-186925 Screen - Line Strainer................................................................................................................1
18 00-186924 Gasket - Branch Plug.................................................................................................................1
19 NS-047-94 Lock Nut 3/16 Washer Type (SST)............................................................................................1
20 00-294677-00004 Clamp - Wire (1 I.D.)..................................................................................................................1
21 00-893053 Bracket - Fill Piping....................................................................................................................1
22 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................2
23 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................2
24 FE-022-84 Connector - Strain Relief............................................................................................................2
25 00-328994 Probe Assy. - Rinse....................................................................................................................1
26 00-893038-00001 Inside Rinse Piping Assy. (AM15)..............................................................................................1
27 00-893038-00004 Inside Rinse Piping Assy. (AM15T & AM15F)............................................................................1
28 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. (SST)...................................................................................2
29 00-276407 Gasket - Rinse Pipe...................................................................................................................1
30 00-067500-00012 O-Ring........................................................................................................................................1
31 FP-040-44 Pipe 1/2 x 1-3/8 TBE (Brass)......................................................................................................1
PART NO. NAME OF PART AMT.
1 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................2
2 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................2
3 00-893054 Piping - Fill..................................................................................................................................1
4 00-292909 Breaker - Vacuum......................................................................................................................1
5 00-292910 Service Kit - Vacuum Breaker....................................................................................................1
6 00-918460 Gauge - Water Pressure............................................................................................................1
7 00-893058 Fill Piping Assy...........................................................................................................................1
8 00-893100-00001 Solenoid Valve (1/2) (120 V.) Before Serial No. 231154994......................................................1
00-936121 Valve - Solenoid (1/2) (120 V.) Starting Serial No. 231154994..................................................1
9 00-892132 Coil - Solenoid Valve (120 V.) Before Serial No. 231154994.....................................................1
00-936283 Coil - Solenoid Valve (120 V.) Starting Serial No. 231154994...................................................1
- 21 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
RINSE PIPING
(WITH BOOSTER AND WITHOUT STEAM CONDENSER)
F-43094 Rev. F (March 2015) - 22 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
RINSE PIPING
(WITH BOOSTER AND WITHOUT STEAM CONDENSER)
ILLUS.
PL-57408
10 00-893444-00002 Hose - Water 1/2 x 84 In. Braided (SST)....................................................................................1
11 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................2
12 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................2
13 FE-022-84 Connector - Strain Relief............................................................................................................1
14 00-893053 Bracket - Fill Piping....................................................................................................................1
15 00-893038-00001 Inside Rinse Piping Assy. (AM15)..............................................................................................1
16 00-893038-00004 Inside Rinse Piping Assy. (AM15T & AM15F)............................................................................1
17 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. (SST)...................................................................................2
18 00-276407 Gasket - Rinse Pipe...................................................................................................................1
19 00-067500-00012 O-Ring........................................................................................................................................1
PART NO. NAME OF PART AMT.
1 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................2
2 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................2
3 00-893054 Piping - Fill..................................................................................................................................1
4 00-292909 Breaker - Vacuum......................................................................................................................1
5 00-292910 Service Kit - Vacuum Breaker....................................................................................................1
6 00-328994 Probe Assy. - Rinse....................................................................................................................1
7 00-918460 Gauge - Water Pressure............................................................................................................1
8 00-893059 Fill Piping Assy...........................................................................................................................1
9 FP-015-16 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
- 23 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS

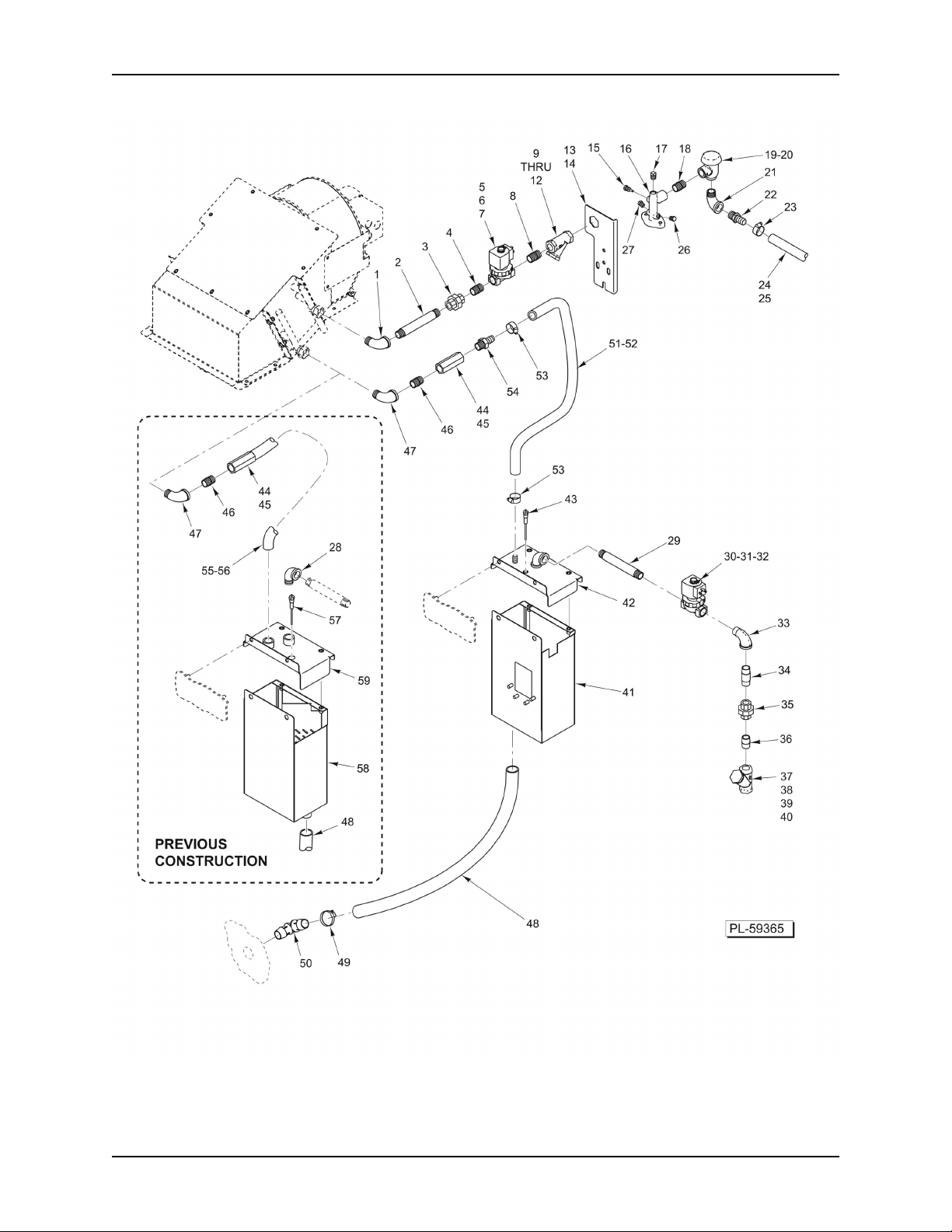

OUTSIDE PIPING WITH STEAM CONDENSER
F-43094 Rev. F (March 2015) - 24 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
OUTSIDE PIPING WITH STEAM CONDENSER
ILLUS.
PL-59365
10 00-892922-00001 Cap.............................................................................................................................................1
11 00-892922-00002 Gasket........................................................................................................................................1
12 00-892922-00003 Screen........................................................................................................................................1
13 00-941164 Bracket - Condenser..................................................................................................................1
14 00-941136 Bracket - Ventless Electric.........................................................................................................1
15 00-328994 Probe Assy. - Rinse....................................................................................................................1
16 00-919560 Manifold - Top Rinse..................................................................................................................1
17 FP-028-07 Pipe Plug 1/4 Sq. Hd. (Brass)....................................................................................................1
18 FP-040-42 Pipe 1/2 x 1-1/8 TBE (Brass)......................................................................................................1
19 00-292909 Breaker - Vacuum......................................................................................................................1
20 00-292910 Service Kit - Vacuum Breaker....................................................................................................1
21 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
22 FP-087-39 Fitting - Hose 5/8 x 1/2 (Brass)...................................................................................................2
23 00-528499 Clamp - Hose (SST)...................................................................................................................2
24 00-892244-00009 Hose - Adapta Flex (67 In.) (AM15VL).......................................................................................1
25 00-892244-00010 Hose - Adapta Flex (AM15VLT & AM15VLF).............................................................................1
26 00-749123 Plug - Pipe..................................................................................................................................1
27 00-749123 Plug - Pipe..................................................................................................................................1
28 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
29 FP-040-86 Pipe 1/2 x 5-1/2 TBE (Brass)......................................................................................................1
30 00-893100-00001 Solenoid Valve (1/2) (120 V.) Before Serial No. 231154994......................................................1
31 00-893101 Service Kit - 1/2" Solenoid Valve Before Serial No. 231154994.............................................AR
32 00-892132 Coil - Solenoid Valve (120 V.) Before Serial No. 231154994.....................................................1
33 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
34 00-941215 Restrictor (1/2 In.).......................................................................................................................1
35 FP-022-12 Union - Pipe (Brass)...................................................................................................................1
36 FP-040-42 Pipe 1/2 x 1-1/8 TBE (Brass)......................................................................................................1
37 00-892922 Strainer - Line (1/2 In.) (Brass) (Incls. Items 38, 39, & 40).........................................................1
38 00-892922-00001 Cap.............................................................................................................................................1
39 00-892922-00002 Gasket........................................................................................................................................1
40 00-892922-00003 Screen........................................................................................................................................1
41 00-941583 Tank Weldment..........................................................................................................................1
42 00-941685 Lid - Tank (Heat Recovery)........................................................................................................1
43 00-329275-00003 Probe - Sump & Wire Assy.........................................................................................................1
44 00-941239 Restrictor - Flow (1/2 In.)............................................................................................................1
45 00-941196 Control - Flow.............................................................................................................................1
46 FP-040-42 Pipe 1/2 x 1-1/8 TBE (Brass)......................................................................................................1
47 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
48 00-936468-00002 Hose - Ventless Intake...............................................................................................................1
49 00-557627 Clamp - Hose.............................................................................................................................1
50 00-941127 Elbow - Hose (1 In.)....................................................................................................................1
51 00-941726-00006 Hose 3/8 (12 In. Lg.)...................................................................................................................1
PART NO. NAME OF PART AMT.
1 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
2 FP-040-86 Pipe 1/2 x 5-1/2 TBE (Brass)......................................................................................................1
3 FP-022-12 Union - Pipe (Brass)...................................................................................................................1
4 FP-040-42 Pipe 1/2 x 1-1/8 TBE (Brass)......................................................................................................1
5 00-893100-00001 Solenoid Valve (1/2) (120 V.) Before Serial No. 231154994......................................................1
00-936121 Valve - Solenoid (1/2) (120 V.) Starting Serial No. 231154994..................................................1
6 00-893101 Service Kit - 1/2" Solenoid Valve Before Serial No. 231154994.............................................AR
7 00-892132 Coil - Solenoid Valve (120 V.) Before Serial No. 231154994.....................................................1
00-936283 Coil - Solenoid Valve (120 V.) Starting Serial No. 231154994...................................................1
8 FP-040-43 Pipe 1/2 x 1-1/4 TBE (Brass)......................................................................................................1
9 00-892922 Strainer - Line (1/2 In.) (Brass) (Incls. Items 10, 11, & 12).........................................................1
00-936121 Valve - Solenoid (1/2) (120 V.) Starting Serial No. 231154994..................................................1
00-936283 Coil - Solenoid Valve (120 V.) Starting Serial No. 231154994...................................................1
- 25 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
OUTSIDE PIPING WITH STEAM CONDENSER
ILLUS.
PL-59365
52 00-941726-00005 Hose 3/8 (25 In. Lg.)...................................................................................................................1
53 00-558090 Clamp.........................................................................................................................................2
54 FP-090-64 Adapter 1/2 MPT to 3/8 Hose.....................................................................................................1
55 00-893444-00009 Hose - Braided Water (1/2 In.) (SST) (AM15VL)........................................................................1
56 00-918390-00007 Hose - Braided Water 1/2 x 48 In. (SST) (AM15VLT & AM15VLF)............................................1
57 00-329275-00002 Probe - Sump & Wire Assy. (Before S/N 231145455)................................................................1
58 00-941100 Tank - Heat Recovery.............................................................................................................AR
59 00-936997-00001 Tank - Heat Recovery Lid...........................................................................................................1
PART NO. NAME OF PART AMT.
F-43094 Rev. F (March 2015) - 26 -
NOTES
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
- 27 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
BOOSTER PIPING
(AM15, AM15T, & AM15F)
F-43094 Rev. F (March 2015) - 28 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
BOOSTER PIPING
(AM15, AM15T, & AM15F)
ILLUS.
PL-59374
10 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
11 FP-022-12 Union - Pipe (Brass)...................................................................................................................1
12 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
13 FP-040-43 Pipe 1/2 x 1-1/4 TBE (Brass)......................................................................................................1
14 FP-027-22 Bushing - Pipe 3/4 to 1/2 (Brass)...............................................................................................1
15 00-186922 Strainer - Line (3/4 In.) (Brass) (Incls. Items 16, 17, & 18).........................................................1
16 00-186923 Plug - Branch..............................................................................................................................1
17 00-186925 Screen - Line Strainer................................................................................................................1
18 00-186924 Gasket - Branch Plug.................................................................................................................1
PART NO. NAME OF PART AMT.
1 FP-040-95 Pipe 1/2 x 7 TBE (Brass)............................................................................................................1
2 FP-015-17 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
3 FP-019-21 Tee - Pipe 1/2 x 1/2 x 1/2 (Brass)...............................................................................................1
4 FP-028-15 Pipe Plug 1/2 Sq. Hd. (Brass)....................................................................................................1
5 FP-040-43 Pipe 1/2 x 1-1/4 TBE (Brass)......................................................................................................1
6 00-893100-00001 Solenoid Valve (1/2) (120 V.) Before Serial No. 231154994......................................................1
00-936121 Valve - Solenoid (1/2) (120 V.) Starting Serial No. 231154994..................................................1
7 00-893101 Service Kit - 1/2" Solenoid Valve Before Serial No. 231154994.............................................AR
8 00-892132 Coil - Solenoid Valve (120 V.) Before Serial No. 231154994.....................................................1
00-936283 Coil - Solenoid Valve (120 V.) Starting Serial No. 231154994...................................................1
9 FP-040-43 Pipe 1/2 x 1-1/4 TBE (Brass)......................................................................................................1
- 29 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS

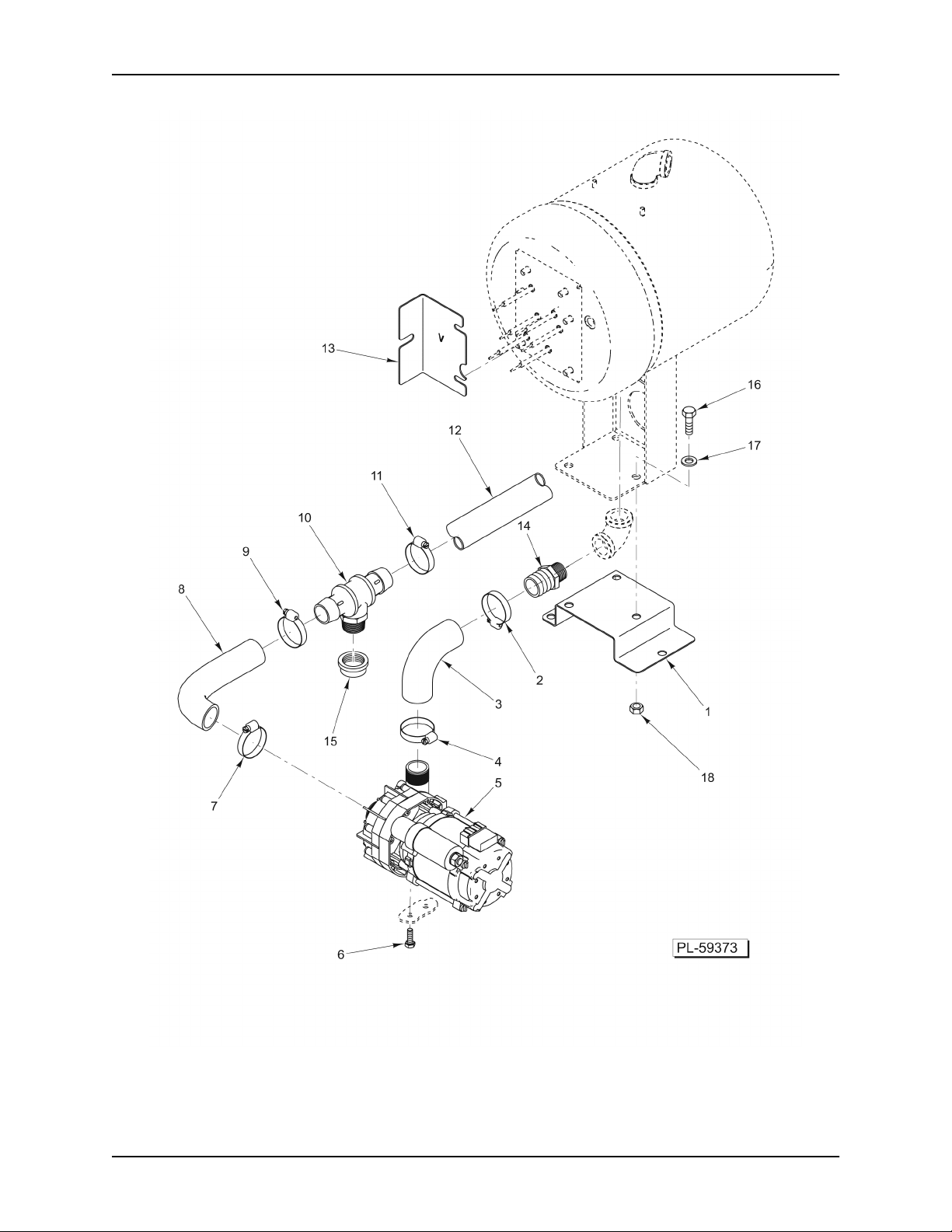

RINSE PUMP ASSEMBLY
(ML-130153, ML-130154, & ML-130155)
F-43094 Rev. F (March 2015) - 30 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
RINSE PUMP ASSEMBLY
(ML-130153, ML-130154, & ML-130155)
ILLUS.
PL-59373
10 00-941172 Tee - Branch (1 In. x 3/4 In.)......................................................................................................1
11 00-557627 Clamp - Hose.............................................................................................................................2
12 00-936468-00003 Hose (1 In. x 15 In.)....................................................................................................................1
13 00-941148 Bracket - Ventless Booster Support...........................................................................................1
14 00-941149 Adapter - Hose (1/2 to 1 In.).......................................................................................................1
15 FP-029-13 Cap - Pipe (3/4 In.) (Brass)........................................................................................................1
16 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST)...................................................................................3
17 WS-017-01 Washer (SST).............................................................................................................................3
18 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................3
PART NO. NAME OF PART AMT.
1 00-941133 Mount - Booster Spacer.............................................................................................................1
2 00-557627 Clamp - Hose.............................................................................................................................1
3 00-950423-00002 Hose - Pump-to-Booster.............................................................................................................1
4 00-557627 Clamp - Hose.............................................................................................................................1
5 00-936994 Pump - Rinse (208-240 V., 60 Hz., 1 Ph.)..................................................................................1
6 SC-120-48 Cap Screw M6 x 1.0 x 18mm Hex Hd. (SST).............................................................................2
7 00-557627 Clamp - Hose.............................................................................................................................1
8 00-918135 Hose - Drain Pump Inlet.............................................................................................................1
9 00-557627 Clamp - Hose.............................................................................................................................1
00-749123 Plug - Pipe..................................................................................................................................1
- 31 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS

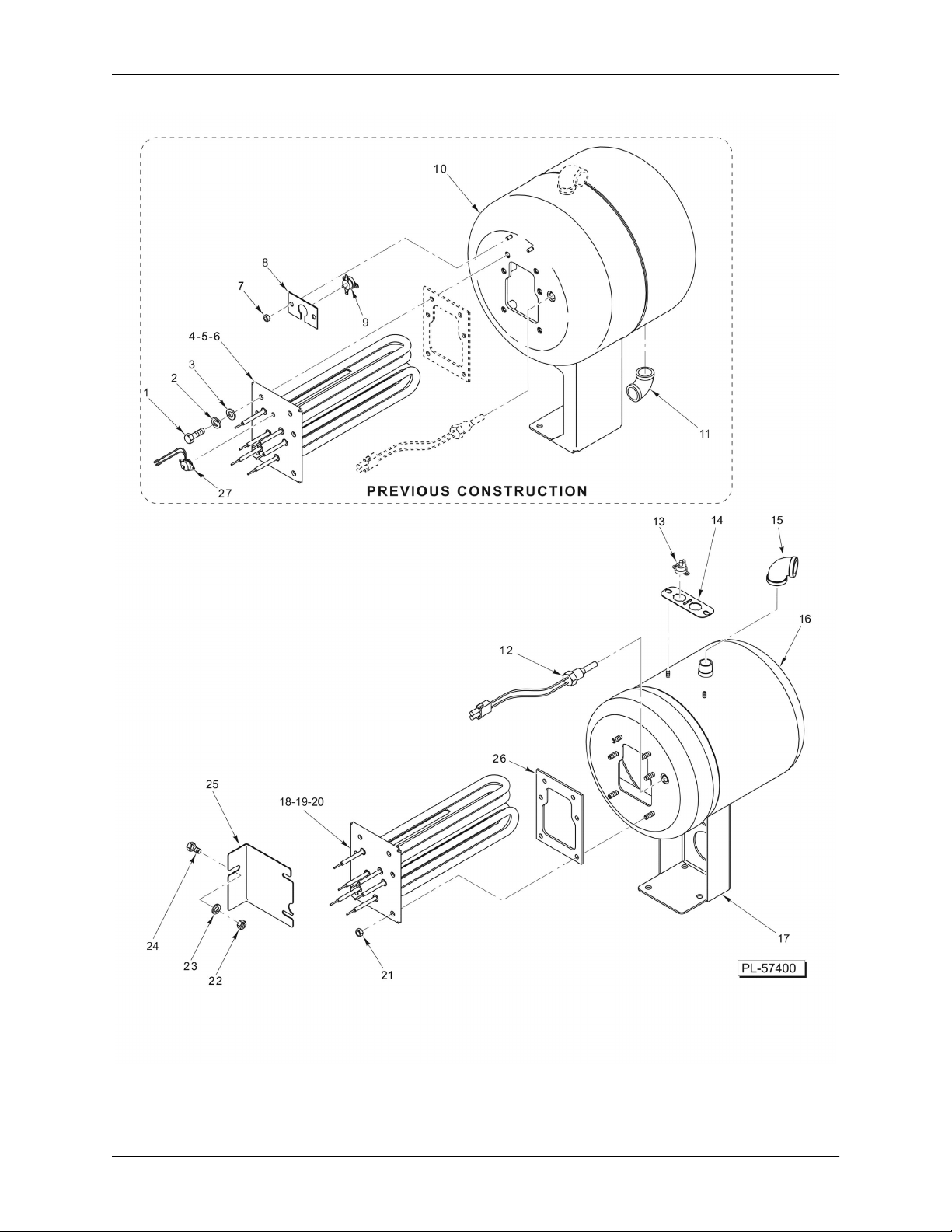

ELECTRIC BOOSTER TANK
F-43094 Rev. F (March 2015) - 32 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
ELECTRIC BOOSTER TANK
ILLUS.
PL-57400
10 00-893047 Tank - Weldment........................................................................................................................1
11 FP-015-16 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
12 00-328994 Probe Assy. - Rinse....................................................................................................................1
13 00-328980-00001 Control - Temperature Limiting (AM15VL, AM15VLT, & AM15VLF)..........................................1
14 00-936851 Bracket - High Limit....................................................................................................................1
15 FP-015-16 Elbow - Pipe 1/2 x 90 Deg. (Brass)............................................................................................1
16 00-919824 Tank - Booster Weldment...........................................................................................................1
17 00-936862 Bracket - Booster Mounting........................................................................................................1
18 00-936546-00002 Heater (240 V., 8.5 kW)..............................................................................................................1
19 00-936546-00003 Heater (480 V., 8.5 kW) (AM15VL, AM15VLT, & AM15VLF).....................................................1
20 00-936546-00004 Heater (415 V., 8.5 kW) (AM15VL, AM15VLT, & AM15VLF).....................................................1
21 NS-014-01 Nut 1/4-20 Hex (Brass)...............................................................................................................6
22 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................1
23 WS-017-01 Washer (SST).............................................................................................................................1
24 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST)...................................................................................1
25 00-936852 Bracket - Booster Support..........................................................................................................1
26 00-749555 Gasket (13 kW) (Electric Heater)...............................................................................................1
27 00-271123 Protector - High Limit..................................................................................................................1
PART NO. NAME OF PART AMT.
1 SC-041-01 Cap Screw 1/4-20 x 3/4 Hex Hd. (SST).....................................................................................6
2 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................6
3 WS-017-06 Washer (SST).............................................................................................................................6
4 00-749554-00002 Heater (13 kW) (240 V.).............................................................................................................1
00-749554-00001 Heater (13 kW) (208 V.).............................................................................................................1
5 00-749554-00003 Heater (13 kW) (480 V.).............................................................................................................1
6 00-749554-00004 Heater (13 kW) (380 V.).............................................................................................................1
7 NS-047-86 Stop Nut 1/4-20 Hex (SST)........................................................................................................2
8 00-475967 Bracket - High Limit....................................................................................................................1
9 00-294615-00001 Control - Temperature................................................................................................................1
00-936546-00001 Heater (208V., 8.5 kW)...............................................................................................................1
00-519504 Thermo Joint Compound (2 oz.)..............................................................................................AR
- 33 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
STEAM CONDENSER
F-43094 Rev. F (March 2015) - 34 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
STEAM CONDENSER
ILLUS.
PL-59364
10 00-941197-00001 Gasket - Fan Intake....................................................................................................................1
11 00-941200-00002 Housing - Fan.............................................................................................................................1
12 00-941200-00003 Impeller - Fan.............................................................................................................................1
13 00-941183 Cover - Fan Motor......................................................................................................................1
14 00-941187 Motor - Fan.................................................................................................................................1
15 00-941197-00002 Gasket - Motor............................................................................................................................1
16 00-941184 Mount - Fan Motor......................................................................................................................1
17 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST).....................................................................................3
18 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................3
19 00-941232 Plate - Corner Reinforcement.....................................................................................................1
20 00-941182 Seal - Fan Mount........................................................................................................................1
21 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................5
22 00-941189 Mount - Adjusting Fan................................................................................................................1
23 00-941229 Gasket - Exhaust Fan.................................................................................................................1
24 00-941162 Deflector - Ventless Exhaust......................................................................................................1
25 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................8
26 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................4
27 WS-017-06 Washer (SST).............................................................................................................................4
28 WS-017-06 Washer (SST).............................................................................................................................4
29 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST).....................................................................................4
30 00-941161 Deflector - Ventless Intake.........................................................................................................1
31 00-941163 Plenum - Ventless Intake...........................................................................................................1
PART NO. NAME OF PART AMT.
1 00-941160 Plate - Ventless Top...................................................................................................................1
2 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST).....................................................................................7
3 00-941113 Coil - Steam Condensing...........................................................................................................1
4 00-941188 Bracket - Intake Plenum.............................................................................................................1
5 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................2
6 NS-047-82 Stop Nut 1/4-20 Hex (SST).....................................................................................................AR
7 WS-017-06 Washer (SST)..........................................................................................................................AR
8 00-941159 Mount - Ventless Fan To Coil.....................................................................................................1
9 00-526454-00002 Foam Tape..............................................................................................................................AR
00-941119 Shroud - Front............................................................................................................................1
00-941176 Box - Light..................................................................................................................................1
00-941175-00003 Light - Indicator Amber (Incls. Resistor).....................................................................................1
00-941283 Resistor......................................................................................................................................1
- 35 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
LOW WATER PROTECTION AND ELECTRIC HEAT
F-43094 Rev. F (March 2015) - 36 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
LOW WATER PROTECTION AND ELECTRIC HEAT
ILLUS.
PL-57405
10 00-271621 Probe & Switch Assy. (4 Wire) (Temperatures & Water Level) (Previous Construction)
11 00-936547-00002 Switch & Probe Assy. (4-Wire) (Short) (Incls. Items 9 & 12) (Current Construction)
12 00-122674 Float Assy...................................................................................................................................1
13 00-119244 Cap & Stud Assy........................................................................................................................1
14 WS-010-40 Washer - Thrust..........................................................................................................................1
15 WL-014-31 Lockwasher 1/2 External Shakeproof (SST)..............................................................................1
16 NS-018-28 Jam Nut 1/2-20 Hex (SST).........................................................................................................1
17 00-067500-00031 O-Ring........................................................................................................................................1
18 00-119254-00002 Retainer - Cap............................................................................................................................1
19 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................1
20 NS-015-01 Nut 1/4-20 Hex (SST).................................................................................................................1
21 00-294615-00001 Control - Temperature................................................................................................................1
22 00-475967 Bracket - High Limit....................................................................................................................1
23 NS-031-16 Stop Nut 10-24 Hex Elastic (SST)..............................................................................................2
24 00-067500-00072 O-Ring........................................................................................................................................1
25 00-067500-00034 O-Ring........................................................................................................................................1
PART NO. NAME OF PART AMT.
1 NS-014-15 Nut 3/8-16 (Brass) (Supplied With Heater).................................................................................1
2 WL-006-27 Lockwasher 3/8 Helical (SST)....................................................................................................1
3 00-749798 Plate - Electric Heat....................................................................................................................1
4 00-893120-00004 Element - Heater (6.2 kW) (208 V.).........................................................................................AR
5 00-893120-00001 Element - Heater (5 kW) (200-240 V., 50/60 Hz., 1 & 3 Ph.).....................................................1
6 00-893120-00002 Element - Heater (5 kW) (480 V., 60 Hz., 3 Ph.)........................................................................1
7 00-893120-00003 Element - Heater (5 kW) (380-415 V., 50 Hz., 3 Ph.).................................................................1
8 RR-010-13 Retaining Ring............................................................................................................................1
9 00-112467 Retainer - Float...........................................................................................................................1
...................................................................................................................................................1
...................................................................................................................................................1
00-186091 Probe & Float Assy. (Incls. Items 8 thru 10 & 12) (Previous Construction)................................1
00-519504 Thermo Joint Compound (2 oz.)..............................................................................................AR
- 37 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
DRAIN UNIT
F-43094 Rev. F (March 2015) - 38 -
DRAIN UNIT
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
ILLUS.
PL-57409
10 WS-019-33 Washer.......................................................................................................................................3
11 SD-038-84 Self-Tapping Screw 10-24 x 1/2 Phil. Truss Hd., Type F (SST).................................................3
12 00-118999 Strainer Basket Assy..................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-893045 Strainer Pan...............................................................................................................................1
2 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................1
3 00-119116 Axle - Drain Lever.......................................................................................................................1
4 00-893091 Drain Lever Assy........................................................................................................................1
5 00-893095 Drain - Lift...................................................................................................................................1
6 SC-066-06 Mach. Screw 10-24 x 1/2 Phil. Truss Hd. (SST).........................................................................1
7 00-067500-00120 O-Ring........................................................................................................................................1
8 00-893071 Drain Tube Assy. (Incls. Items 9, 10, & 11)................................................................................1
9 00-893072 Cover - Standpipe......................................................................................................................1
- 39 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
DRAIN WATER TEMPERING
F-43094 Rev. F (March 2015) - 40 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
DRAIN WATER TEMPERING
ILLUS.
PL-60358
10 FP-022-12 Union - Pipe (Brass)...................................................................................................................1
11 FP-027-45 Adapter 1-1/2 Brass to 1/2 FPT..................................................................................................1
12 FP-091-03 Tee 1-1/2 x 1-1/2 x 1-1/2 (CPVC)...............................................................................................1
13 00-893860 Adapter - Male 1-1/2 (CPVC).....................................................................................................1
14 00-936260-00002 Pipe 1-1/2 x 2-1/2 (CPVC)..........................................................................................................1
15 FP-091-05 Elbow 1-1/2 x 90 Deg. (CPVC)...................................................................................................1
16 FP-091-06 Y-Fitting 1-1/2 (CPVC)...............................................................................................................1
17 00-936260-00001 Pipe 1-1/2 x 6 (CPVC)................................................................................................................1
18 FP-091-04 Adapter 1-1/2 CPVC to 1 FPT....................................................................................................1
19 FP-077-44 Bushing - Pipe 1 to 3/8...............................................................................................................1
20 SD-008-18 Self-Tapping Screw 8-18 x 3/8 Phil. Bndg. Hd., Type B.............................................................2
21 00-294681-25-03 Thermostat (120 Deg.)...............................................................................................................1
22 00-936293-00001 Cable Assy.................................................................................................................................1
23 00-936332-00001 Wire (Transformer to Thermostat)..............................................................................................1
24 00-083376 Wire Tie...................................................................................................................................AR
PART NO. NAME OF PART AMT.
1 00-270258 Strainer - Line (1/2) (Brass) (Incls. Items 2, 3, & 4)....................................................................1
2 00-270259 Plug - Branch..............................................................................................................................1
3 00-270260 Screen - Strainer (1/2 In.)...........................................................................................................1
4 00-270261 Gasket........................................................................................................................................1
5 FP-040-42 Pipe 1/2 x 1-1/8 TBE (Brass)......................................................................................................4
6 00-936121 Valve - Solenoid (1/2) (120 V.)...................................................................................................1
7 00-936283 Coil - Solenoid Valve (120 V.)....................................................................................................1
8 00-936121 Valve - Solenoid (1/2) (120 V.)...................................................................................................1
9 00-223472 Backflow Preventer....................................................................................................................1
- 41 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
DOOR ASSEMBLY
(AM15 & AM15VL)
F-43094 Rev. F (March 2015) - 42 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
DOOR ASSEMBLY
(AM15 & AM15VL)
ILLUS.
PL-57413
10 WS-017-01 Washer (SST).............................................................................................................................2
11 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................2
12 00-119055 Button - Bearing.........................................................................................................................4
13 00-893011 Hanger - Counterbalance (Spring).............................................................................................1
14 00-893012 Spring - Extension (Door)...........................................................................................................1
15 00-893013 Hook - Spring.............................................................................................................................1
16 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................3
17 WS-017-01 Washer (SST).............................................................................................................................2
18 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................4
19 00-119055 Button - Bearing.........................................................................................................................4
20 00-893224 Support - Handle........................................................................................................................2
21 SC-066-01 Mach. Screw 6-32 x 1/4 Phil. Truss Hd......................................................................................2
22 00-111941 Magnet.......................................................................................................................................1
23 NS-031-50 Stop Nut 6-32 Hex (SST)...........................................................................................................2
24 00-893111 Magnet - Mount..........................................................................................................................1
25 00-893826 Door Guide Mount......................................................................................................................2
26 00-893801 Spacer - Door Guide..................................................................................................................2
27 WS-023-01 Washer (SST).............................................................................................................................4
28 SC-066-02 Mach. Screw 6-32 x 3/8 Phil. Truss Hd. (SST)...........................................................................4
29 SC-041-09 Cap Screw 5/16-18 x 1/2 Hex Hd. (SST)...................................................................................4
30 00-918458-00001 Guide - Door...............................................................................................................................2
31 00-893201-00002 Cover - Door Guide (RH)............................................................................................................1
32 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................4
33 00-473109-00004 Switch Assy. - Door....................................................................................................................1
34 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................1
35 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................1
36 00-893853 Bracket - Reed Switch Mounting................................................................................................1
37 SC-041-11 Cap Screw 5/16-18 x 3/4 Hex Hd. (SST)...................................................................................6
38 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................6
39 00-893015 Stop - Door.................................................................................................................................3
40 00-893201 Cover - Door Guide (LH)............................................................................................................1
41 00-893226 Stiffener - Door Plate..................................................................................................................2
42 00-893202 Door Wrap..................................................................................................................................1
43 00-893196 Chamber - Weldment (Upper) (Standard Height).......................................................................1
PART NO. NAME OF PART AMT.
1 WS-017-01 Washer (SST).............................................................................................................................2
2 00-893014-00002 Spacer - Door Link (Lower)........................................................................................................2
3 WS-017-01 Washer (SST).............................................................................................................................2
4 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................2
5 00-893252 Link - Door Handle.....................................................................................................................2
6 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. (SST)...................................................................................2
7 WS-017-01 Washer (SST).............................................................................................................................2
8 00-893014-00001 Spacer Door Link (Upper)..........................................................................................................2
9 00-893051 Handle - Weldment.....................................................................................................................1
- 43 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
DOOR ASSEMBLY
(AM15T, AM15F, AM15VLT, & AM15VLF)
F-43094 Rev. F (March 2015) - 44 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
DOOR ASSEMBLY
(AM15T, AM15F, AM15VLT, & AM15VLF)
ILLUS.
PL-57412
10 00-893486-00002 Bracket - Handle (LH).................................................................................................................1
11 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................4
12 SC-041-09 Cap Screw 5/16-18 x 1/2 Hex Hd. (SST)...................................................................................4
13 00-119055 Button - Bearing.........................................................................................................................4
14 00-893500 Hanger - Counterbalance (Spring).............................................................................................1
15 00-893486-00001 Bracket - Handle (RH)................................................................................................................1
16 00-893498 Spring - Extension (Door)...........................................................................................................1
17 00-893484 Handle - Weldment.....................................................................................................................1
18 00-893013-00002 Hook - Spring.............................................................................................................................1
19 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................3
20 WS-017-01 Washer (SST).............................................................................................................................2
21 00-918049 Plug - Lift Arm.............................................................................................................................2
22 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................2
23 WS-017-01 Washer (SST).............................................................................................................................2
24 00-893014-00001 Spacer Door Link (Upper)..........................................................................................................2
25 WS-017-01 Washer (SST).............................................................................................................................2
26 00-893826 Door Guide Mount......................................................................................................................2
27 00-893801 Spacer - Door Guide..................................................................................................................2
28 WS-023-01 Washer (SST).............................................................................................................................4
29 SC-066-02 Mach. Screw 6-32 x 3/8 Phil. Truss Hd. (SST)...........................................................................4
30 00-893487 Link - Door Handle.....................................................................................................................2
31 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................2
32 WS-017-01 Washer (SST).............................................................................................................................2
33 00-893014-00003 Spacer - Door Link.....................................................................................................................2
34 WS-017-01 Washer (SST).............................................................................................................................2
35 SC-041-12 Cap Screw 5/16-18 x 7/8 Hex Hd. (SST)...................................................................................2
36 00-473109-00004 Switch Assy. - Door....................................................................................................................1
37 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................1
38 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................1
39 00-893853 Bracket - Reed Switch Mounting................................................................................................1
40 00-918458-00003 Guide - Door...............................................................................................................................2
41 00-893314-00002 Cover - Door Guide (RH)............................................................................................................1
42 00-893946 Vent - Deflector (AM15T & AM15F)...........................................................................................1
43 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................5
44 00-918458-00002 Guide - Door...............................................................................................................................2
45 SC-041-09 Cap Screw 5/16-18 x 1/2 Hex Hd. (SST)...................................................................................6
46 WL-006-23 Lockwasher 5/16 Helical (SST)..................................................................................................6
47 00-918166 Vent Assy. - Inside Deflector (AM15T & AM15F).......................................................................1
48 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................6
49 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................5
50 00-526408 Tape - Foam............................................................................................................................AR
51 00-893314 Cover - Door Guide (LH)............................................................................................................1
52 00-893956 Cap - Vent (AM15T & AM15F)...................................................................................................2
53 00-893326 Door Wrap..................................................................................................................................1
54 00-893320 Cover Assy. - Top Chamber.......................................................................................................1
PART NO. NAME OF PART AMT.
1 00-893834 Seal - Top Cover (Tall)...............................................................................................................3
2 00-893226 Stiffener - Door Plate..................................................................................................................2
3 SC-066-01 Mach. Screw 6-32 x 1/4 Phil. Truss Hd......................................................................................4
4 00-111941 Magnet.......................................................................................................................................1
5 00-893111 Magnet - Mount..........................................................................................................................1
6 NS-031-50 Stop Nut 6-32 Hex (SST)...........................................................................................................2
7 WS-017-01 Washer (SST).............................................................................................................................2
8 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................2
9 WS-017-01 Washer (SST).............................................................................................................................2
- 45 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
PANELS AND RACK SUPPORT
F-43094 Rev. F (March 2015) - 46 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
PANELS AND RACK SUPPORT
ILLUS.
PL-57406
10 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................1
11 00-119254-00002 Retainer - Cap............................................................................................................................1
12 00-119244 Cap & Stud Assy........................................................................................................................1
13 00-893790-00001 Wireform Assy............................................................................................................................1
14 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (SST).....................................................................................2
15 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................2
16 00-893042 Panel - Cover (Right Side).........................................................................................................1
17 00-918097 Kit - Foam Installation..............................................................................................................AR
18 SC-125-15 Mach. Screw 1/4-20 x 1/2 Phil. Truss Hd...................................................................................2
19 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................2
20 00-893041 Panel - Cover (Front)..................................................................................................................1
21 00-526454 Foam Tape..............................................................................................................................AR
22 00-893069 Baffle - Steam.............................................................................................................................1
23 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................2
24 00-893021 Seal - Extrusion.......................................................................................................................AR
25 00-893775 Deflector.....................................................................................................................................1
26 00-526454 Foam Tape..............................................................................................................................AR
27 WL-006-17 Lockwasher 1/4 Helical (SST)....................................................................................................2
28 SC-041-50 Cap Screw 1/4-20 x 1/2 Hex Hd. (SST).....................................................................................2
29 00-893018 Panel - Cover (Left Side)............................................................................................................1
30 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................2
31 SC-059-29 Cap Screw 1/4-20 x 1/2 Hex Socket Hd. (SST).........................................................................4
32 WS-017-06 Washer (SST).............................................................................................................................4
33 00-893122-00002 Foot - Flanged (Without Holes)..................................................................................................4
34 00-893122-00001 Foot - Flanged (With Holes).......................................................................................................4
35 00-893122-00003 Foot - Standard..........................................................................................................................4
36 00-438131-061-2 Label - Warning (California).......................................................................................................1
37 NS-036-19 Stop Nut 5/16-18 Hex (SST)......................................................................................................5
38 00-067500-00031 O-Ring........................................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-893843 Kit - Splash Panel (AM15 & AM15VL)........................................................................................1
2 00-893119-00002 Kit - Splash Panel (AM15T, AM15F, AM15VLT, & AM15VLF)...................................................1
3 00-936710 Shield - Splash...........................................................................................................................1
4 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................4
5 SC-059-29 Cap Screw 1/4-20 x 1/2 Hex Socket Hd. (SST).........................................................................2
6 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. (SST)...................................................................................5
7 00-893798 Rack - Stop Assy........................................................................................................................1
8 00-936234 Panel - Splash (RH) (AM15VLT & AM15VLF)............................................................................1
9 NS-015-01 Nut 1/4-20 Hex (SST).................................................................................................................1
- 47 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
GAS HEAT PIPING
F-43094 Rev. F (March 2015) - 48 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
GAS HEAT PIPING
ILLUS.
PL-57411
10 00-291988-00003 Valve - Gas (Shut Off)................................................................................................................1
11 FP-067-04 Pipe 1/2 x 1-7/8 TBE..................................................................................................................1
12 FP-013-15 Elbow - Pipe 1/2 x 90 Deg..........................................................................................................1
13 FP-067-04 Pipe 1/2 x 1-7/8 TBE..................................................................................................................1
14 FP-022-11 Union - Pipe................................................................................................................................1
15 FP-067-04 Pipe 1/2 x 1-7/8 TBE..................................................................................................................1
16 FP-084-31 Tee Pipe 1/2 x 1/2 x 1/4.............................................................................................................1
17 FP-035-94 Pipe 1/2 x 1-1/2 TBE..................................................................................................................1
18 FP-013-15 Elbow - Pipe 1/2 x 90 Deg..........................................................................................................1
19 FP-036-97 Pipe 1/2 x 2-3/4 TBE..................................................................................................................1
20 FP-028-06 Pipe Plug 1/4 Sq. Hd..................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-893149-00001 Orifice (NAT)..............................................................................................................................1
2 00-893149-00002 Orifice (LP).................................................................................................................................1
3 00-893132 Adapter 1/2 to 7/16-20................................................................................................................1
4 FP-059-10 Pipe 1/2 x 3 TBE........................................................................................................................1
5 00-328426-00004 Valve - Regulator (NAT).............................................................................................................1
6 00-328426-00005 Valve - Regulator (LP)................................................................................................................1
7 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. (SST)...................................................................................3
8 00-893895 Bracket - Ignitor Board...............................................................................................................1
9 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................3
00-893896-00001 Gas Piping Assy. (NAT) (Incls. Items 1, 3, 4, 5, & 10 thru 20)...................................................1
00-893896-00002 Gas Piping Assy. (LP) (Incls. Items 2, 3, 4, 6, & 10 thru 20)......................................................1
- 49 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
GAS HEAT COMPONENTS
F-43094 Rev. F (March 2015) - 50 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
GAS HEAT COMPONENTS
ILLUS.
PL-57415
10 WS-028-22 Washer.......................................................................................................................................4
11 SC-041-31 Cap Screw 3/8-16 x 1-1/4 Hex Hd. (SST)..................................................................................4
12 SC-041-31 Cap Screw 3/8-16 x 1-1/4 Hex Hd. (SST)..................................................................................4
13 WS-028-22 Washer.......................................................................................................................................4
14 00-893891 Gasket - Immersion tube............................................................................................................1
15 00-893897 Burner - Infrared.........................................................................................................................1
16 00-748571-00002 Ignitor (With Terminals)..............................................................................................................1
17 WL-006-02 Lockwasher #8 Helical (SST).....................................................................................................1
18 SC-021-13 Mach. Screw 8-32 x 1/4 Slotted Rd. Hd.....................................................................................1
19 00-748572 Electrode Assy...........................................................................................................................1
20 WL-006-02 Lockwasher #8 Helical (SST).....................................................................................................1
21 SC-021-13 Mach. Screw 8-32 x 1/4 Slotted Rd. Hd.....................................................................................1
22 NS-031-21 Stop Nut 1/4-20 Hex (SST)........................................................................................................4
23 WL-014-10 Lockwasher 1/4 External Shakeproof.........................................................................................4
24 00-893039-00012 Nut 3/8-16 Hex (SST).................................................................................................................4
25 WL-006-28 Lockwasher 3/8 Helical..............................................................................................................4
26 WS-028-22 Washer.......................................................................................................................................4
27 00-918034 Seal - Blower/Burner..................................................................................................................1
28 00-893893-00001 Plate - Reducer (NAT)................................................................................................................1
29 00-893893-00002 Plate - Reducer (LP)...................................................................................................................1
30 NS-031-50 Stop Nut 6-32 Hex (SST)...........................................................................................................2
31 00-271123 Protector - High Limit..................................................................................................................1
32 SC-021-08 Mach. Screw 6-32 x 3/8 Slotted Rd. Hd. (SST)..........................................................................2
33 SC-041-05 Cap Screw 1/4-20 x 5/8 Hex Hd. (SST).....................................................................................4
34 00-918034 Seal - Blower/Burner..................................................................................................................1
35 00-893898 Blower - Gas...............................................................................................................................1
36 NS-031-21 Stop Nut 1/4-20 Hex (SST)........................................................................................................2
37 00-918116-00001 Switch - Air.................................................................................................................................1
38 SD-038-02 Self-Tapping Screw 6-20 x 5/8 Phil. Pan Hd., Type B................................................................2
39 00-748512 Board - Ignitor (24 VAC).............................................................................................................1
40 SC-041-10 Cap Screw 5/16-18 x 5/8 Hex Hd. (SST)...................................................................................2
41 00-893895 Bracket - Ignitor Board...............................................................................................................1
42 NS-015-11 Nut 5/16-18 Hex (SST)...............................................................................................................2
43 00-893887 Baffle - Exhaust..........................................................................................................................3
44 00-918178 Flange - Exhaust Mounting........................................................................................................1
PART NO. NAME OF PART AMT.
1 NS-031-21 Stop Nut 1/4-20 Hex (SST)........................................................................................................6
2 WL-014-10 Lockwasher 1/4 External Shakeproof.........................................................................................6
3 00-893890 Shroud - Exhaust........................................................................................................................1
4 00-893039-00012 Nut 3/8-16 Hex (SST).................................................................................................................4
5 WL-006-28 Lockwasher 3/8 Helical..............................................................................................................4
6 WS-028-22 Washer.......................................................................................................................................4
7 00-893892 Gasket - Immersion Tube...........................................................................................................1
8 00-893879 Tube - Immersion.......................................................................................................................1
9 00-893900 Turbulator - Immersion Tube......................................................................................................1
- 51 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
FRONT TRAY
(AM15F & AM15VLF)
F-43094 Rev. F (March 2015) - 52 -
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
FRONT TRAY
(AM15F & AM15VLF)
ILLUS.
PL-57410
10 00-893817 Hinge Assy. (RH)........................................................................................................................1
PART NO. NAME OF PART AMT.
1 00-936235 Panel - Splash (RH) (AM15VLF)................................................................................................1
2 00-893096 Panel - Splash (AM15F).............................................................................................................1
3 00-936234 Panel - Splash (LH) (AM15VLF).................................................................................................1
4 00-893096 Panel - Splash (AM15F).............................................................................................................1
5 00-893815 Tray Weldment...........................................................................................................................1
6 00-893816 Hinge Assy. (LH)........................................................................................................................1
7 00-893983 Baffle - Steam.............................................................................................................................1
8 NS-047-82 Stop Nut 1/4-20 Hex (SST)........................................................................................................8
9 SC-059-29 Cap Screw 1/4-20 x 1/2 Hex Socket Hd. (SST).........................................................................4
- 53 - F-43094 Rev. F (March 2015)
AM15 SERIES DISHWASHERS REPLACEMENT PARTS
FORM 43094 Rev. F MARCH 2015 PRINTED IN U.S.A.
Loading...
