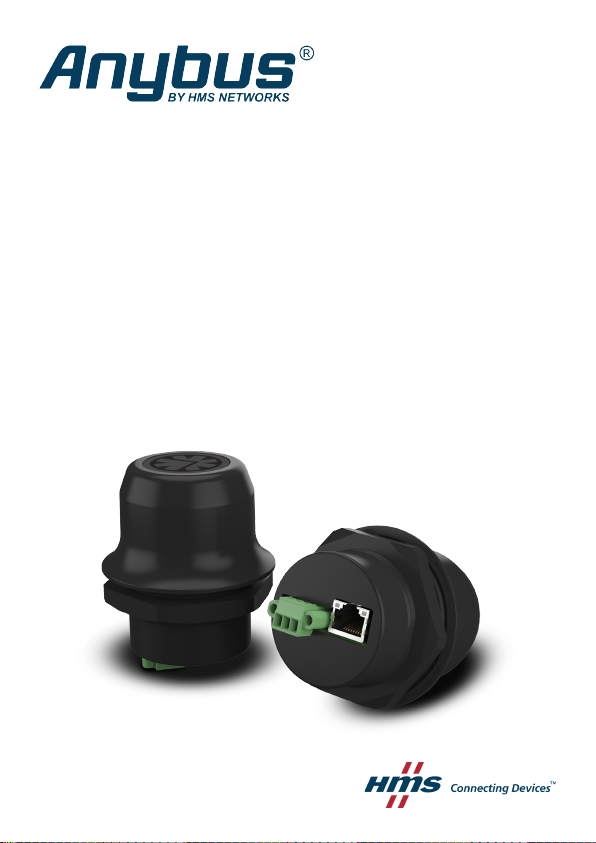

Anybus®Wireless Bolt™RJ45 PoE
STARTUP GUIDE
SP2359 1.4 en-US ENGLISH
Important User Information
Disclaimer
The information in this document is for informational purposes only. Please inform HMS Networks of any
inaccuracies or omissions found in this document. HMS Networks disclaims any responsibility or liability
for any errors that may appear in this document.
HMS Networks reserves the right to modify its products in line with its policy of continuous product
development. The information in this document shall therefore not be construed as a commitment on
the part of HMS Networks and is subject to change without notice. HMS Networks makes no
commitment to update or keep current the information in this document.
The data, examples and illustrations found in this document are included for illustrative purposes and are
only intended to help improve understanding of the functionality and handling of the product. In view of
the wide range of possible applications of the product, and because of the many variables and
requirements associated with any particular implementation, HMS Networks cannot assume
responsibility or liability for actual use based on the data, examples or illustrations included in this
document nor for any damages incurred during installation of the product. Those responsible for the use
of the product must acquire sufficient knowledge in order to ensure that the product is used correctly in
their specific application and that the application meets all performance and safety requirements
including any applicable laws, regulations, codes and standards. Further, HMS Networks will under no
circumstances assume liability or responsibility for any problems that may arise as a result from the use
of undocumented features or functional side effects found outside the documented scope of the product.
The effects caused by any direct or indirect use of such aspects of the product are undefined and may
include e.g. compatibility issues and stability issues.
®
Anybus
Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Preparation
1 Preparation
1.1 About This Document
This document describes how to install Anybus Wireless Bolt RJ45 PoE and set
up a basic configuration.
For additional documentation, configuration examples, FAQs, troubleshooting
guides and technical support, please visit www.anybus.com/support.
1.2 Document Conventions
The following conventions are used to indicate safety information and other
important content in this document:
WARNING
Instruction that must be followed to avoid a risk of death or serious injury.
Caution
Instruction that must be followed to avoid a risk of personal injury.
Instruction that must be followed to avoid a risk of reduced functionality
and/or damage to the equipment, or to avoid a network security risk.
Additional information which may facilitate installation and/or operation.
3 (16)
1.3 Trademarks
Anybus®is a registered trademark and Wireless Bolt™is a trademark of HMS
Industrial Networks AB. All other trademarks mentioned in this document are
the property of their respective holders.
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Preparation
1.4 Intended Use
This equipment is intended to provide wireless communication over WLAN and
®
Bluetooth
to wired networks.
Typical applications for this equipment:
• Adding wireless cloud connectivity to industrial devices
• Accessing devices from a laptop, smartphone or tablet
• Ethernet cable replacement between devices
Note:
Bluetooth PAN (Personal Area Network) may not work with some devices due
to different implementations of Bluetooth by different manufacturers.
WLAN 5 GHz cannot be used at the same time as WLAN 2.4 GHz or Bluetooth.
1.5 Type Identification
The type name consists of a type prefix followed by two designators for
interface configuration and functionality.
Prefix
Interface configuration
Functionality
Example: AWB2AA = Anybus Wireless Bolt with18-pin plug connector and
Ethernet networking only.
AWB2
A
B
A
B
C
Anybus Wireless Bolt
Interface 18-pin socket
Interface RJ45 and 3-pin power socket
Ethernet
Ethernet and RS232/485
Ethernet and CAN
4 (16)
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Installation 5 (16)
2 Installation
2.1 General Safety Instructions
Caution
This equipment emits RF energy in the ISM (Industrial, Scientific, Medical)
band. Make sure that all medical devices used in proximity to this
equipment meet appropriate susceptibility specifications for this type of
RF energy.
This equipment is recommended for use in both industrial and domestic
environments. For industrial environments it is mandatory to use the
functional earth connection to comply with immunity requirements. For
domestic environments the functional earth must be used if a shielded
Ethernet cable is used, in order to meet emission requirements.
This equipment contains parts that can be damaged by electrostatic
discharge (ESD). Use ESD prevention measures to avoid damage.
2.2 General Information
Make sure that you have all the necessary information about the capabilities
and restrictions of your local network environment before installation.
For optimal reception, wireless devices require a zone between them clear of
objects that could otherwise obstruct or reflect the signal. A minimum distance
of 50 cm between the devices should also be observed to avoid interference.
The characteristics of the antenna should also be considered when choosing the
placement and orientation of the unit.
See the Anybus Wireless Bolt RJ45 PoE User Manual for more information.
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Installation 6 (16)

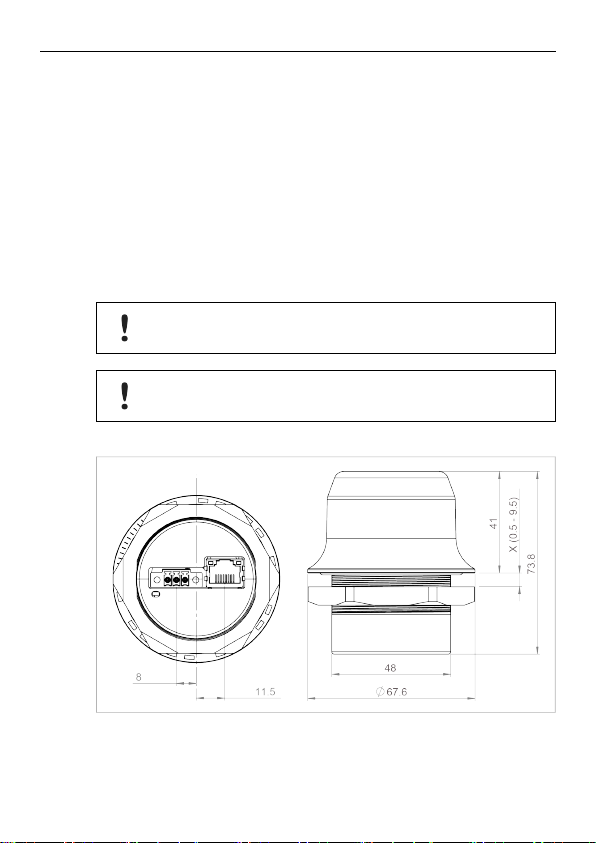

2.3 Mechanical Installation
Placement
• The device is intended to be mounted on top of a machine or cabinet
through an M50 (50.5 mm) hole using the included sealing ring and nut.
• The top mounting surface, in contact with the sealing, must be flat with a
finish equivalent to Ra 3.2 or finer and cleaned and free from oils and
greases.
• For optimal reception, wireless devices require a zone between them clear
of objects that could otherwise obstruct or reflect the signal. To avoid
interference, a minimum distance of 50 cm between Wireless Bolt RJ45
PoE and other devices should be observed.
Make sure that the sealing ring is correctly placed in the circular groove
in the top part of the housing before tightening the nut.
Always hold the BOTTOM part of the unit when untightening the nut, not
the top part (the cap).
Tightening torque: 5 Nm ±10 %
All measurements are in mm.
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Installation 7 (16)
2.4 Connectors
Connecting power with reverse polarity or using the wrong type of power
supply may damage the equipment. Make sure that the power supply is
connected correctly and of the recommended type.
See also Technical Data, p. 14 regarding power supply requirements.

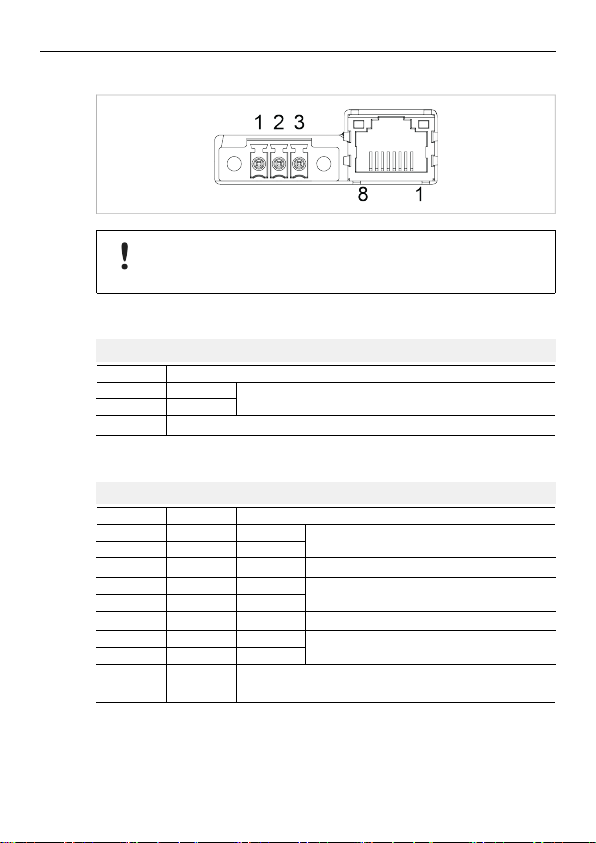

Power Connector (3-pin terminal block)
Pin Function
1 +
2 3
Functional Earth (FE)
FE must be connected on the power connector if not using PoE.
Ethernet Connector (RJ45 PoE)
Pin Data PoE
1 TD+ A+
2 TD- A+
3 RD+ A-
4 B+
5 B+
6 RD- A-
7 B8 B-
Housing
Shield
Shielded or unshielded Ethernet cables may be used.
19–36 VDC
Positive power from alt. A PSE
Negative power from alt. A PSE (with pin 6)
Positive power from alt. B PSE
Negative power from alt. A PSE (with pin 3)
Negative power from alt. B PSE
Functional Earth (FE)
via 1 nF capacitor and 1 MΩ bleeder resistor
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Installation 8 (16)

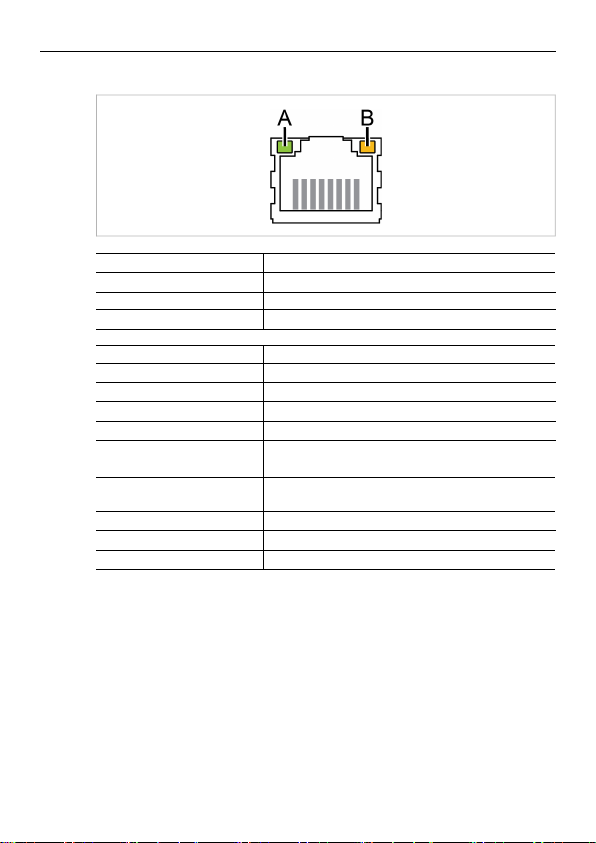

2.5 RJ45 LED Indicators
LED A – LINK/ACTIVITY
Off No Ethernet link or no power
Yellow Ethernet link established
Yellow, flashing Ethernet traffic
LED B – STATUS Function
Off
Blue Connected on all configured wireless interfaces
Purple
Blue, slow blink
Alternating blue/purple
Purple, slow blink Awaiting connections on one interface and trying to
Purple, fast blink Scanning for Bluetooth devices or WLAN networks
Red, slow blink No configured wireless interface
Red
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
Function
No power
Trying to connect to WLAN/Bluetooth access point
Awaiting connections
Connected on one interface and trying to connect or
awaiting connections on another
connect on another
Recoverable/unrecoverable fault
SP2359 1.4 en-US
Installation 9 (16)

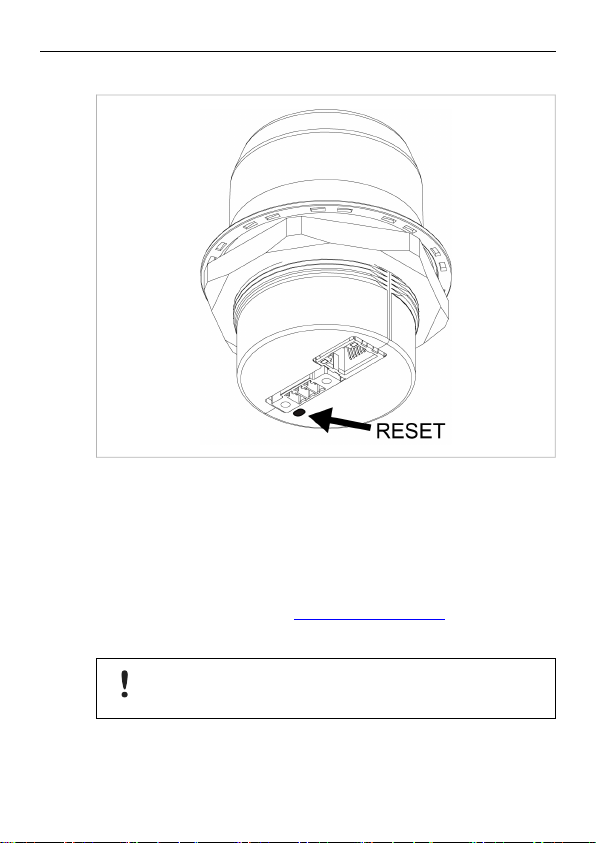

2.6 RESET Button
The RESET button is located on the bottom of the unit.
When the unit is powered on, press and hold RESET for >10 seconds and then
release it to reset to the factory default settings.
Recovery Mode
If the web interface cannot be accessed, the unit can be reset by starting in
Recovery Mode and reinstalling the firmware using Anybus Firmware Manager
II, which can be downloaded from www.anybus.com/support.
To enter Recovery Mode, press and hold RESET during startup.
Firmware updates should normally be carried out through the web
interface. Recovery Mode should only be used if the unit is unresponsive
and the web interface cannot be accessed.
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Configuration 10 (16)
3 Configuration
Anybus Wireless Bolt RJ45 PoE is configured via a web interface. Parameters can
be set individually or using pre-configured Easy Config modes.
Advanced configuration can be carried out by issuing AT commands via the web
interface or over a Telnet or RAW TCP connection to port 8080.
3.1 Web Interface

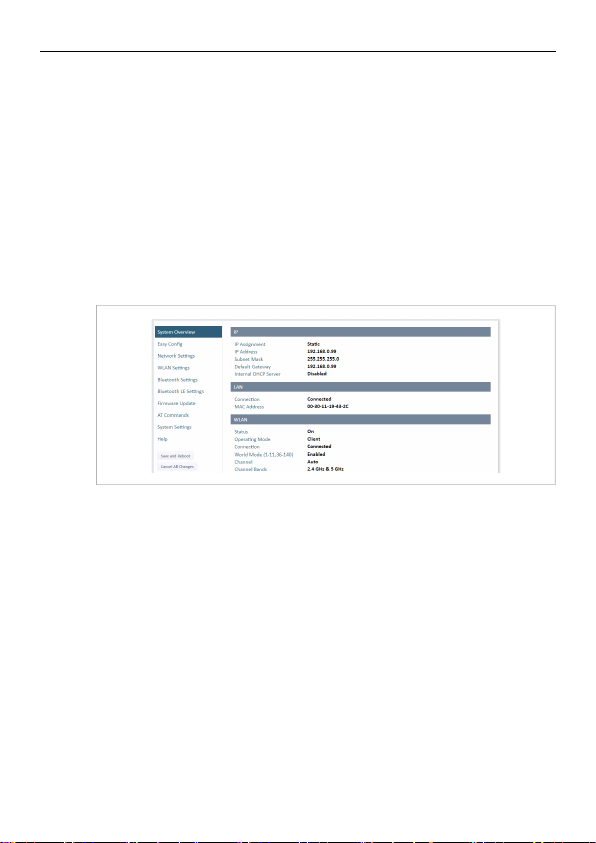

The web interface is accessed by pointing a web browser to the IP address of
the unit. The default address is 192.168.0.99.
The configuration settings are described in detail in the User Manual.
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Configuration 11 (16)

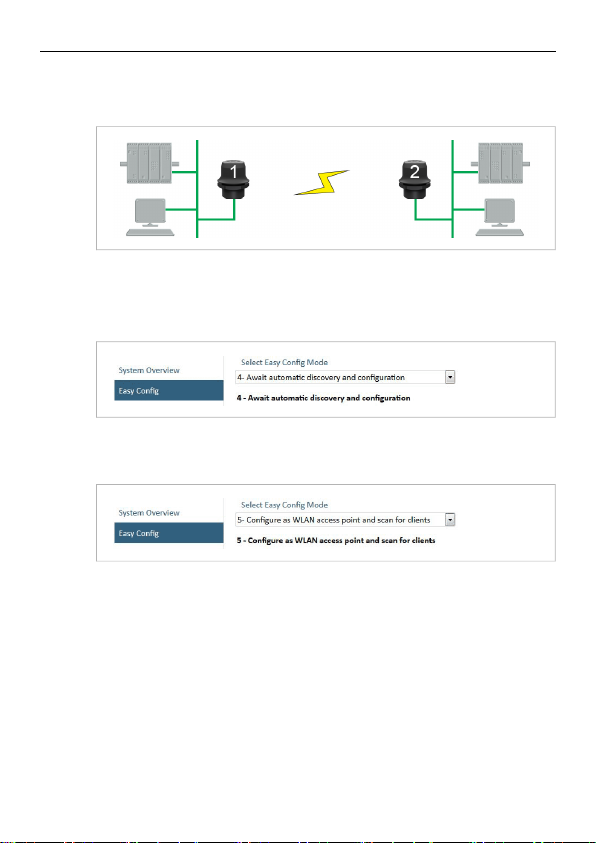

3.2 Easy Config Modes
By default Wireless Bolt RJ45 PoE starts in Easy Config mode 4, when:
• the Ethernet connection is not used
• connected to power
• factory default settings are used
EC
Role Description
1 Bluetooth PANU
2 –
3 –
4 Client
5 WLAN AP
7 WLAN AP
8 Bluetooth NAP
9 Bluetooth PANU
(any) Apply PROFINET optimization and restart.
10
(any)
11
Configure as Bluetooth client and scan for another client
(PANU to PANU).
Reset configuration to factory defaults.
Reset IP settings to factory defaults.
Wait for automatic configuration.
Configure units in mode 4 as clients.
When mode 4 is used with mode 1, 6 or 7, Serial
Settings TCP Mode Client is activated automatically.
Configure units in mode 4 as clients.
Restart as access point and connect clients.6 Bluetooth NAP
Configure units in mode 4 as clients.
Restart as access point and connect clients.
Apply PROFINET optimization to all units.
Configure as Bluetooth client and scan for another client
(PANU to PANU).
Apply PROFINET optimization to both units.
Enable PROFIsafe mode.
The Easy Config modes are also described when selected in the web interface.
3.3 I/O-Data Cycle Time
Based on recommendations from industrial equipment suppliers, such as
Rockwell and Siemens, it is recommended to use the following minimum I/Odata cycle times for PROFINET and EtherNet/IP networks:
• Wireless link Point-to-Point with Bluetooth PANU-PANU or Wi-Fi Access
Point to Station: 32 ms
• Wireless link with Access Point and up to 4 wireless clients/stations,
Bluetooth or Wi-Fi: 64 ms
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Configuration 12 (16)
3.4 Factory Restore
Any one of these actions will restore the factory default settings:
• Clicking on Factory Restore on the System Settings page
• Executing Easy Config Mode 2
• Issuing the AT command AT&F and then restarting the unit
• Holding RESET pressed for >10 seconds and then releasing it
Default Network Settings
IP Assignment Static
IP Address
Subnet Mask
Default Gateway
Internal DHCP Server Disabled
DHCP Interfaces All
Default WLAN Settings
Operating Mode Client
Channel Bands
Authentication Mode
Channel
Bridge Mode Layer 3 IP forward
Default Bluetooth Settings
Operating Mode PANU (Client)
Local Name [generated from MAC address]
Connectable
Discoverable
Security Mode Just works
Bluetooth LE Operating Mode: Disabled
192.168.0.99
255.255.255.0
192.168.0.99
2.4 GHz & 5 GHz
WPA/WPA2–PSK
Auto
No
No
Connectable: No
Discoverable: No
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Configuration 13 (16)
3.5 Configuration Examples
3.5.1 Ethernet Bridge via WLAN or Bluetooth®(Easy Config)
This example describes how to connect two Ethernet network segments via
WLAN or Bluetooth using Easy Config.
1. In the web interface of unit 1, activate Easy Config Mode 4. This unit will
now be discoverable and open for automatic configuration.
2. In the web interface of unit 2, activate Easy Config Mode 5 for WLAN or 6
for Bluetooth. Unit 2 will now discover and configure unit 1 as a client and
configure itself as an access point.
Unit 1 will be assigned the first free IP address in the same Ethernet subnet
as unit 2.
Adding More Devices
Up to 6 additional clients can be added by repeating the procedure. Each new
client will be assigned the next free IP address in the current subnet.
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
Technical Data 14 (16)
4 Technical Data
For complete technical specifications and regulatory compliance information
please visit www.anybus.com/support.
4.1 Hardware Specifications
Order code
Color Black White top and black base
Wired interface type Ethernet
Ethernet connector
Power connector
Antenna
Maximum range
Operating temperature Shadow: -40 to +65 °C
Storage temperature -40 to +85 °C
Humidity EN 600068-2-78: Damp heat, +40°C, 93% humidity for 4 days.
Vibration See datasheet
Dimensions
Weight
Housing material Plastic (see datasheet for details)
Protection class
Mounting
Power supply
Power over Ethernet 44–57 VDC DTE Type1 according to IEEE 802.3af
Power consumption 0.7 W idle, 1.7 W max.
AWB2030 AWB2031
RJ45
3-pole screw connector
Internal dual-band 2.4 GHz and 5 GHz antenna
100 m (WLAN and Bluetooth)
Direct sunlight: -40 to +45 °C
Height: 75 mm (84 mm with PS connector)
Outside height: 41 mm
Diameter: 68 mm
84 g
Top (outside of host): IP66 / IP67 / UL NEMA 4X
Base (inside of host): IP21
M50 screw and nut (50.5 mm hole needed)
19–36 VDC
Shadow: -40 to +65 °C
Direct sunlight: -40 to +65 °C
Anybus®Wireless Bolt™RJ45 PoE Startup Guide
SP2359 1.4 en-US
This page intentionally left blank
last page
© 2020 HMS Industrial Networks
Box 4126
300 04 Halmstad, Sweden
info@hms.se
SP2359 1.4 en-US / 2020-11-30 / 20884
Loading...
