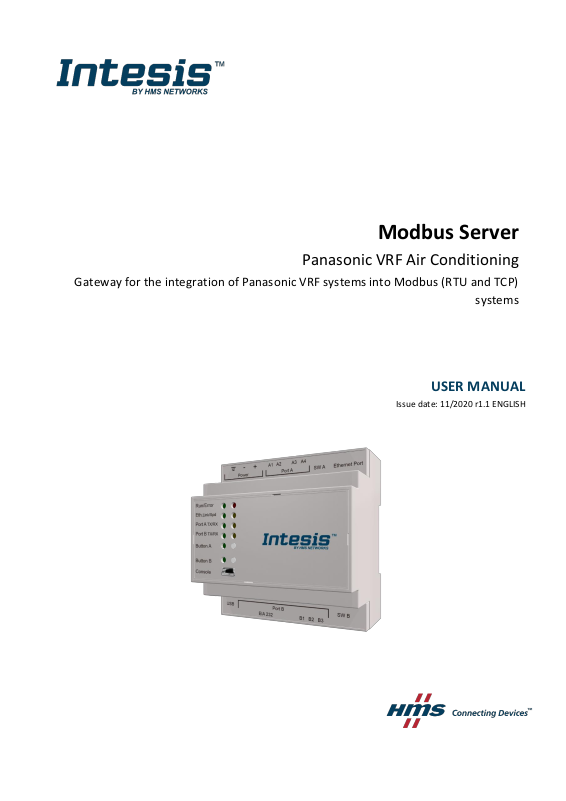

Modbus Server
Panasonic VRF Air Conditioning
Gateway for the integration of Panasonic VRF systems into Modbus (RTU and TCP)
systems
USER MANUAL
Issue date: 11/2020 r1.1 ENGLISH
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
2 / 36
Important User Information
Disclaimer
The information in this document is for informational purposes only. Please inform HMS Industrial Networks of any
inaccuracies or omissions found in this document. HMS Industrial Networks disclaims any responsibility or liability
for any errors that may appear in this document.
HMS Industrial Networks reserves the right to modify its products in line with its policy of continuous product
development. The information in this document shall therefore not be construed as a commitment on the part of
HMS Industrial Networks and is subject to change without notice. HMS Industrial Networks makes no commitment
to update or keep current the information in this document.
The data, examples and illustrations found in this document are included for illustrative purposes and are only
intended to help improve understanding of the functionality and handling of the product. In view of the wide range
of possible applications of the product, and because of the many variables and requirements associated with any
particular implementation, HMS Industrial Networks cannot assume responsibility or liability for actual use based on
the data, examples or illustrations included in this document nor for any damages incurred during installation of the
product. Those responsible for the use of the product must acquire sufficient knowledge in order to ensure that the
product is used correctly in their specific application and that the application meets all performance and safety
requirements including any applicable laws, regulations, codes and standards. Further, HMS Industrial Networks will
under no circumstances assume liability or responsibility for any problems that may arise as a result from the use of
undocumented features or functional side effects found outside the documented scope of the product. The effects
caused by any direct or indirect use of such aspects of the product are undefined and may include e.g. compatibility
issues and stability issues.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
3 / 36
Gateway for the integration of Panasonic VRF systems into
Modbus (RTU and TCP) systems.
ORDER CODE
LEGACY ORDER CODE
INMBSPAN016O000
PA-AC-MBS-16
INMBSPAN064O000
PA-AC-MBS-64
INMBSPAN128O000
PA-AC-MBS-128
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
4 / 36
INDEX
1. Description ............................................................................................................................................................ 5
1.1. Introduction ................................................................................................................................................... 5
1.2. Functionality .................................................................................................................................................. 7
1.3. Capacity of Intesis......................................................................................................................................... 7
2. Modbus interface .................................................................................................................................................. 8
2.1. Functions supported ..................................................................................................................................... 8
2.2. Modbus RTU ................................................................................................................................................. 8
2.3. Modbus TCP ................................................................................................................................................. 8
2.4. Modbus Address Map ................................................................................................................................... 9
3. Connections ........................................................................................................................................................ 12

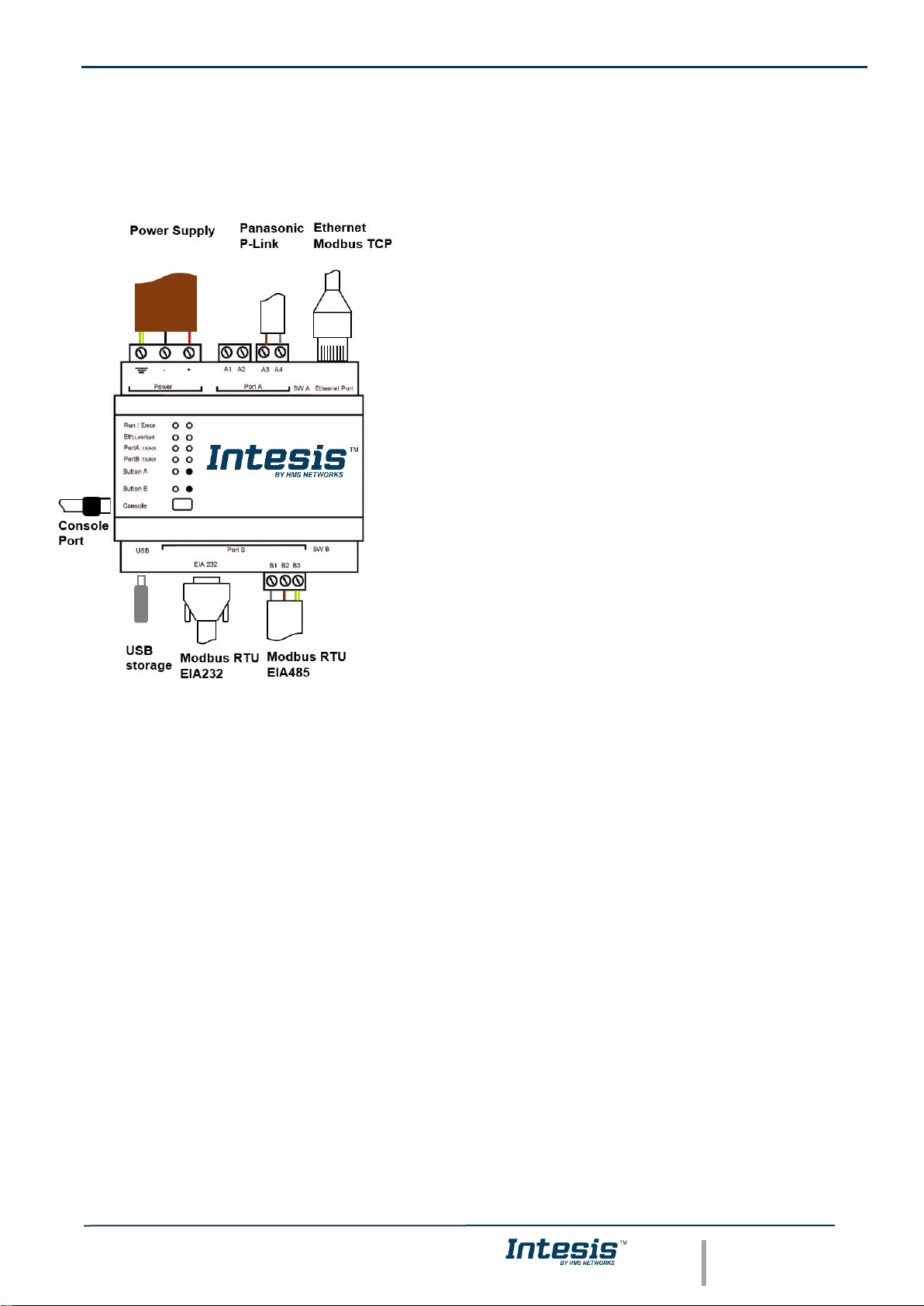

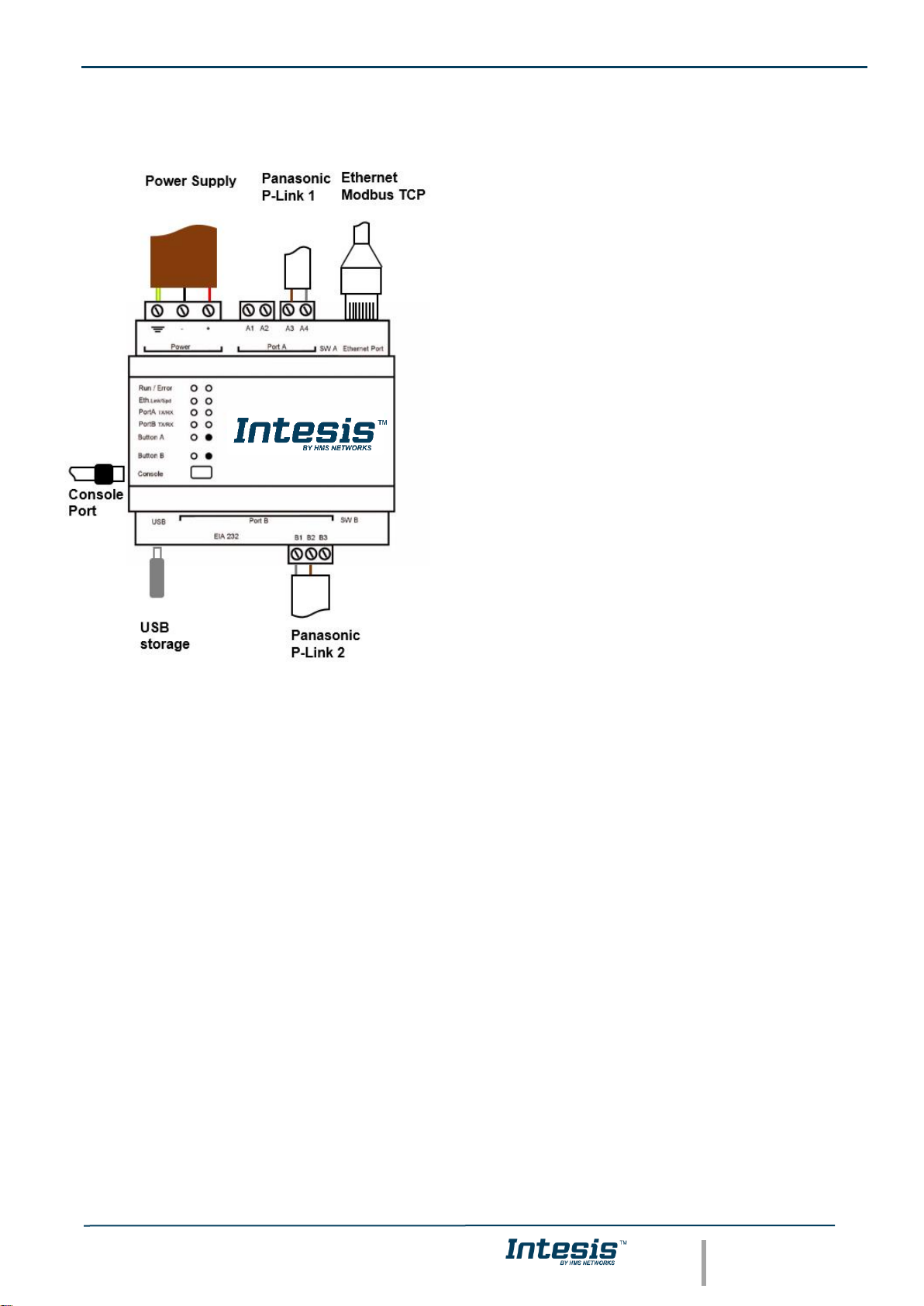

3.1. Connections for 16 and 64 versions (INMBSPAN016O000 and INMBSPAN064O000) ............................ 12
3.2. Connections for 128 version (INMBSPAN128O000) .................................................................................. 13
3.3. Power device .............................................................................................................................................. 14
3.4. Connect to Panasonic VRF installation ...................................................................................................... 14
3.5. Connection to Modbus ................................................................................................................................ 14
3.5.1. Modbus TCP ....................................................................................................................................... 14
3.5.2. Modbus RTU (only for INMBSPAN016O000 and INMBSPAN064O000) ........................................... 14

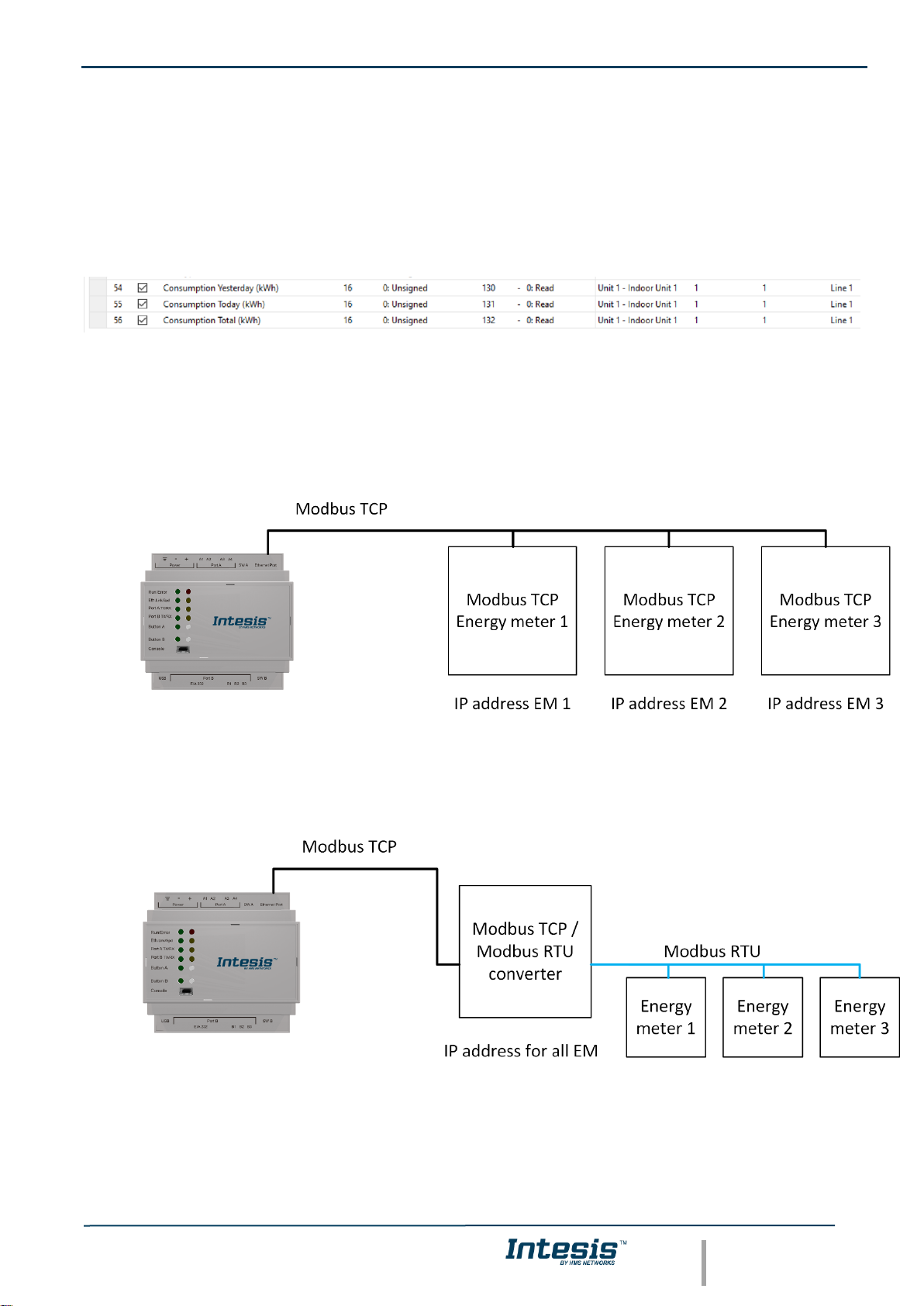

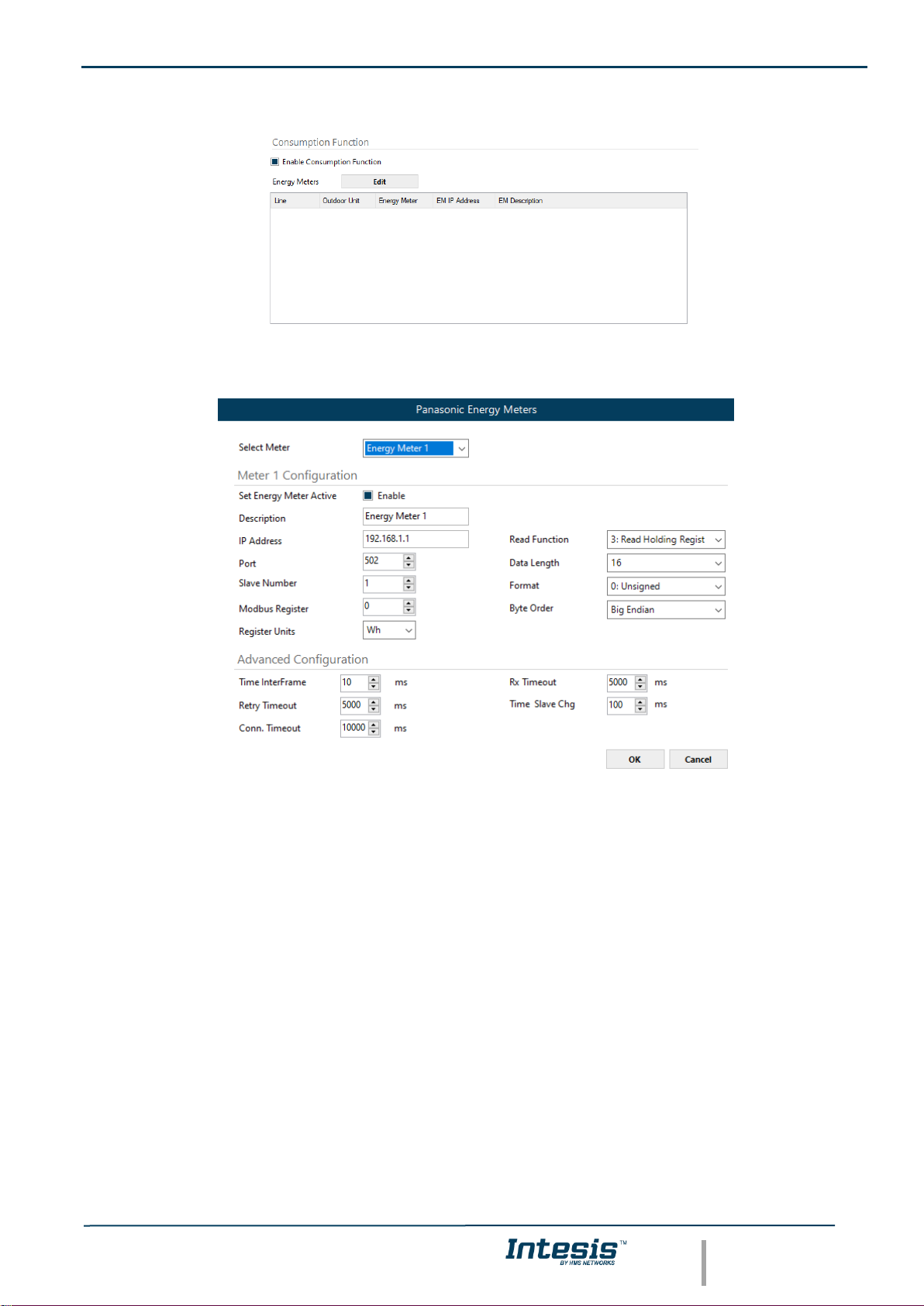

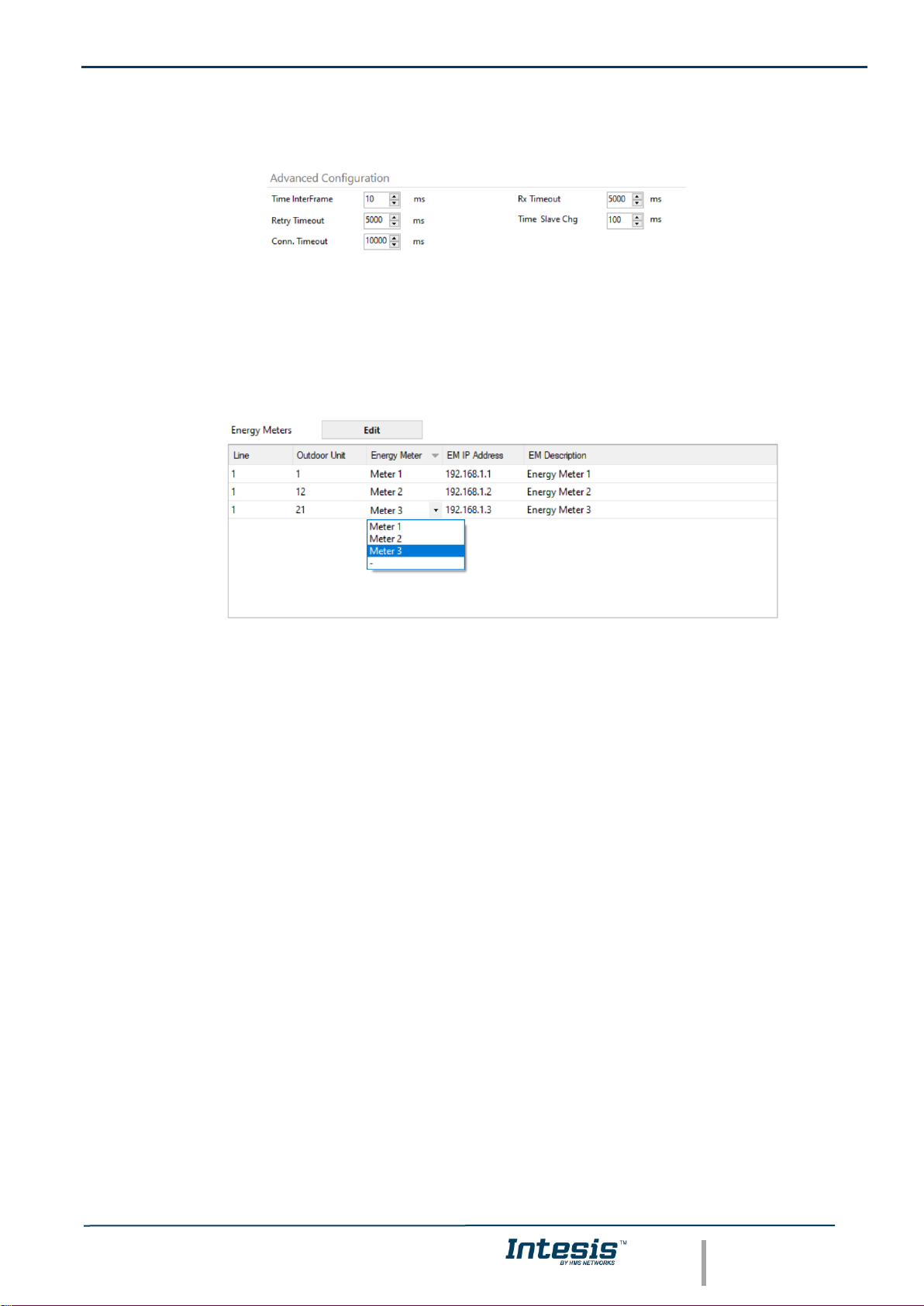

3.6. Connection to Modbus TCP/IP (Energy meters) ........................................................................................ 14
3.7. Connection to PC (Configuration tool) ........................................................................................................ 14
4. Set-up process and troubleshooting ................................................................................................................... 15
4.1. Pre-requisites .............................................................................................................................................. 15
4.2. Intesis MAPS. Configuration & monitoring tool for Intesis Modbus series ................................................. 15
4.2.1. Introduction.......................................................................................................................................... 15
4.2.2. Connection .......................................................................................................................................... 15

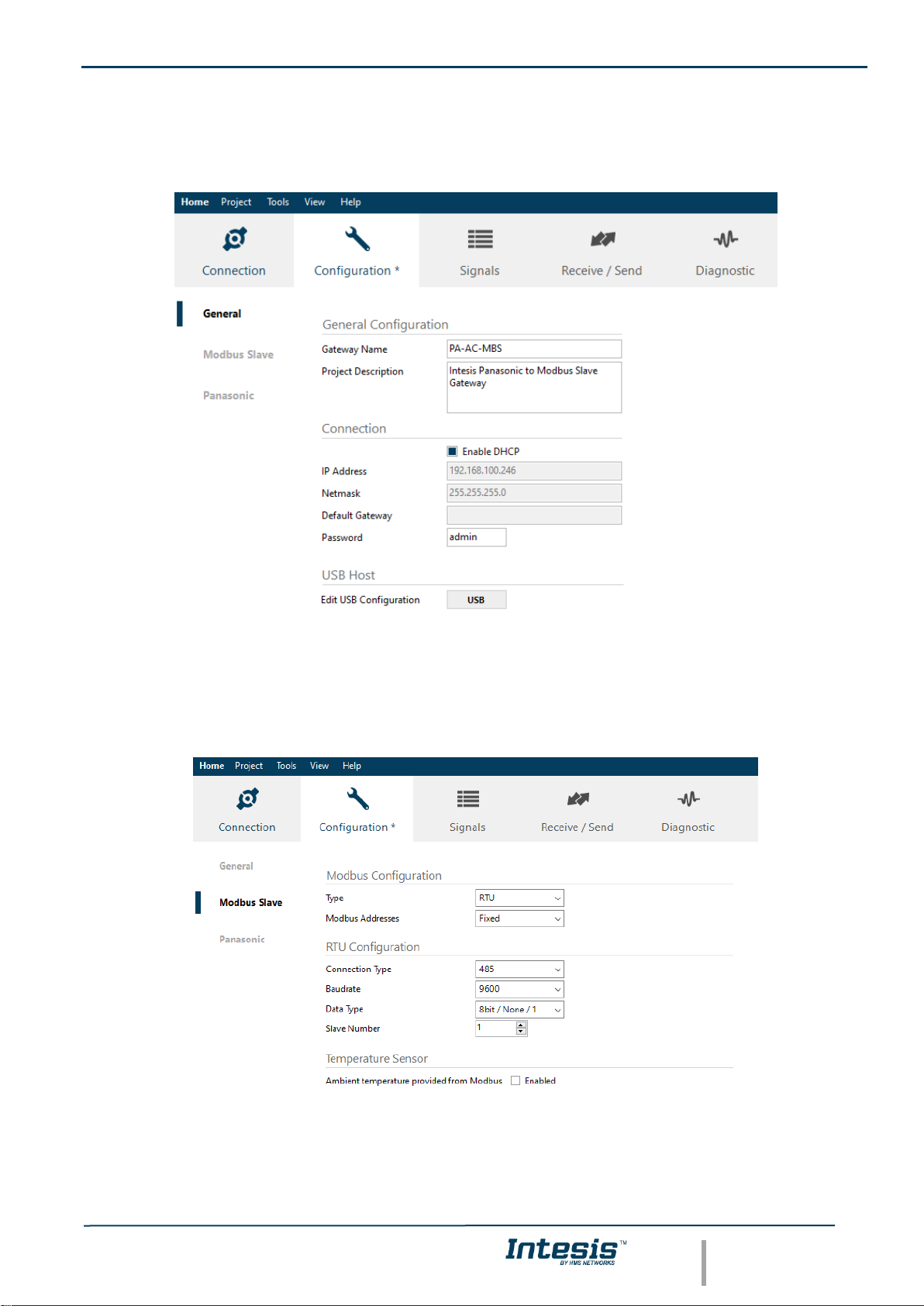

4.2.3. Configuration tab ................................................................................................................................. 16
4.2.4. Modbus Slave configuration ................................................................................................................ 16

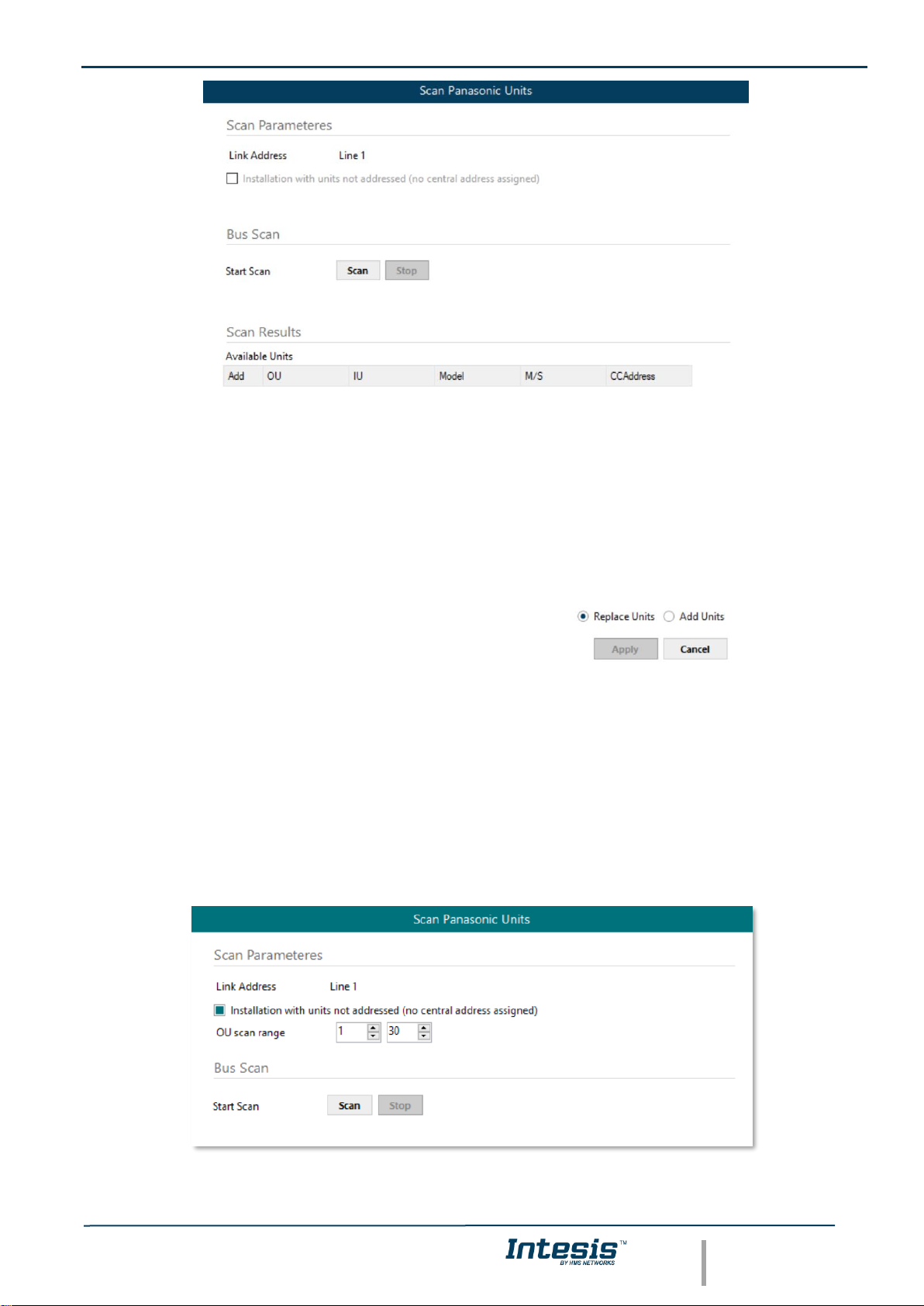

4.2.5. Panasonic configuration ...................................................................................................................... 19

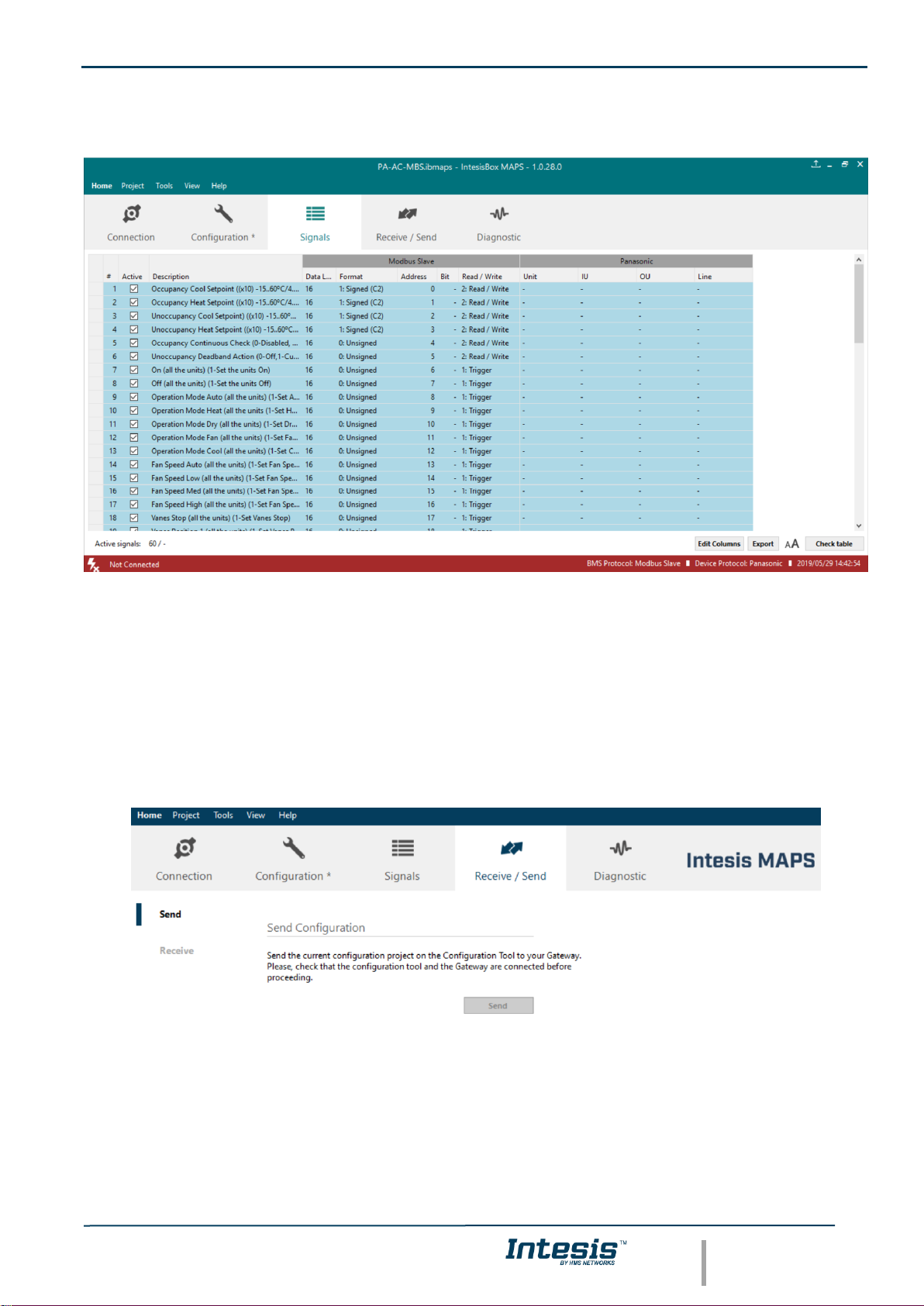

4.2.6. Signals ................................................................................................................................................. 26
4.2.7. Sending the configuration to Intesis .................................................................................................... 26

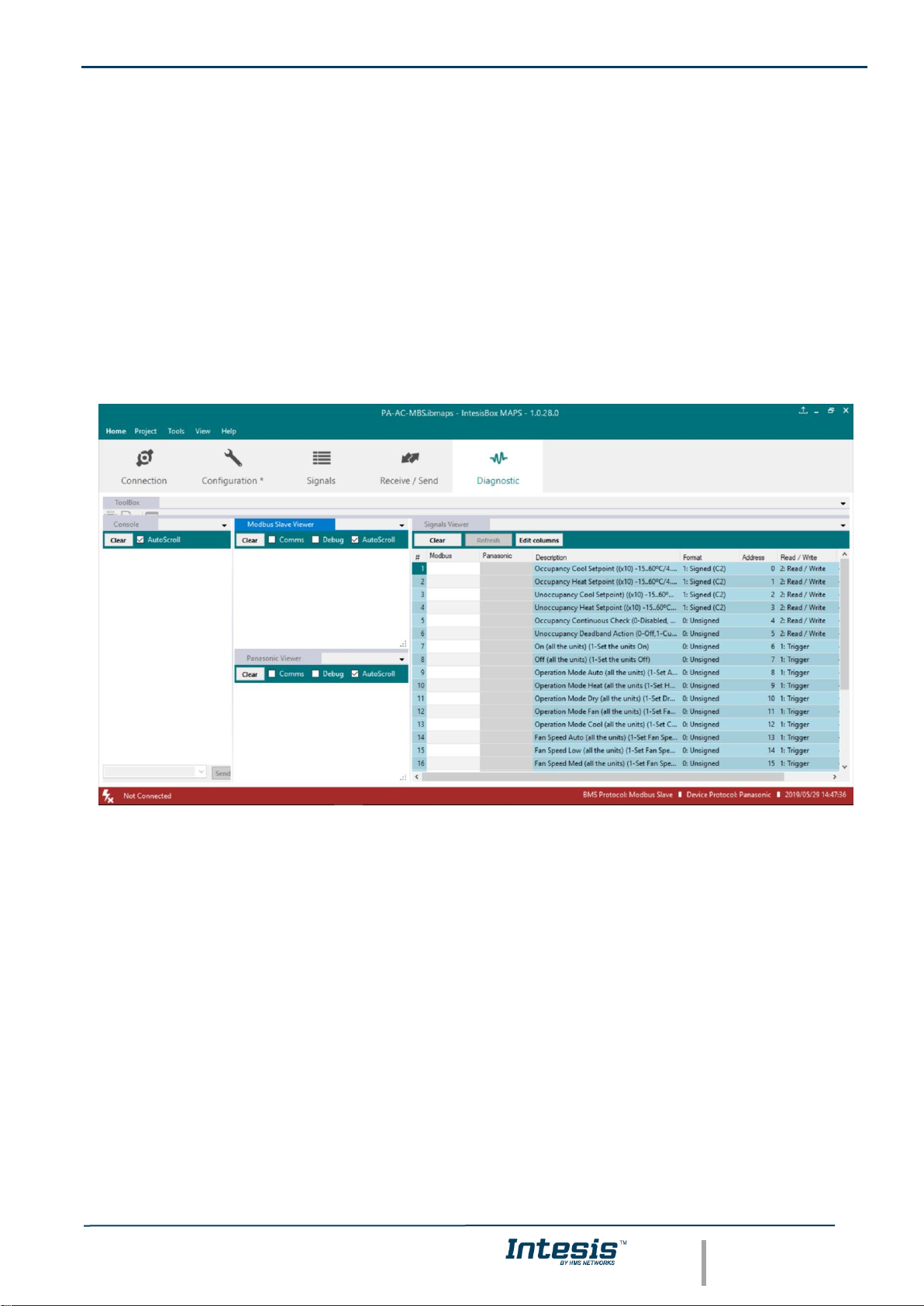

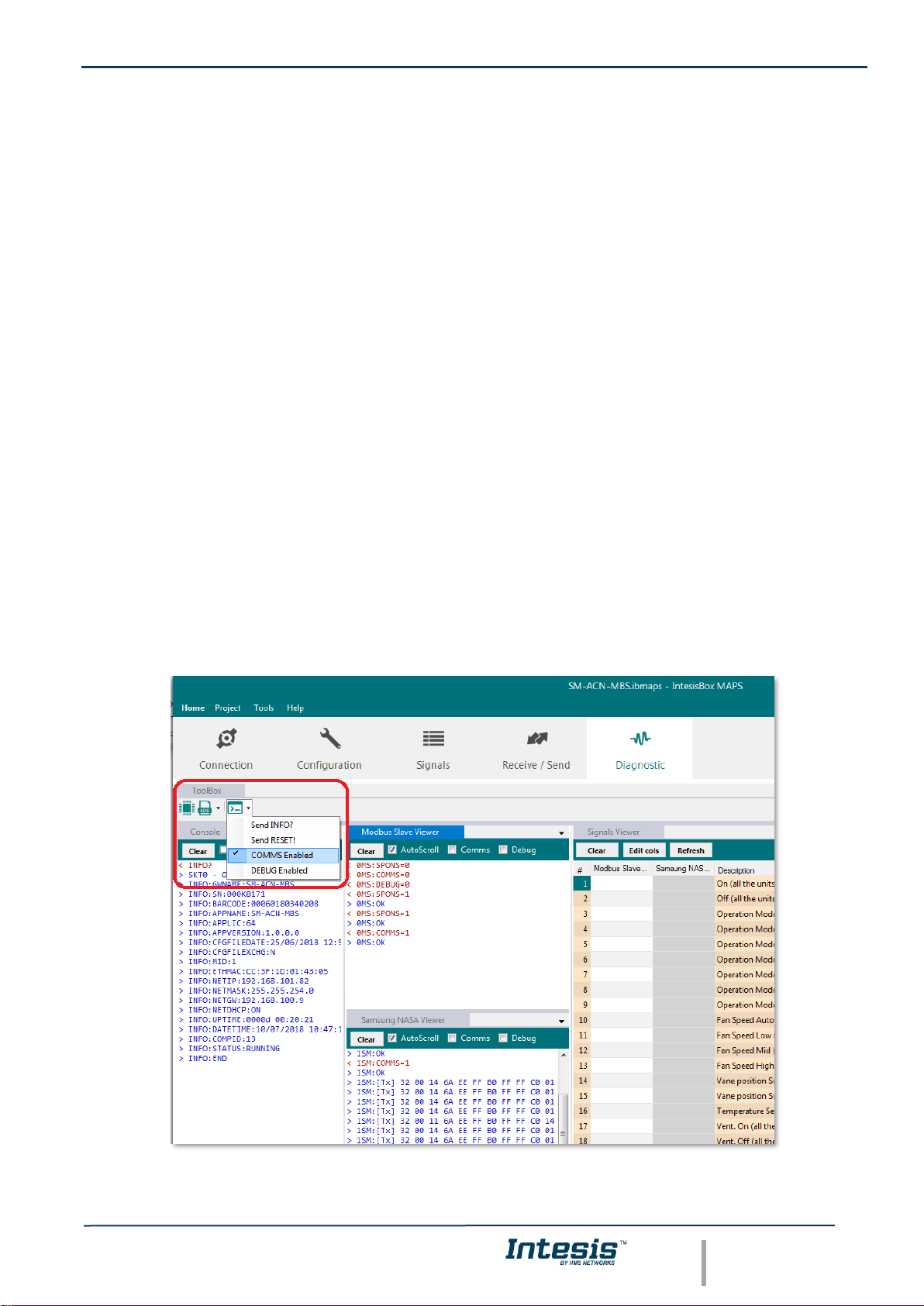

4.2.8. Diagnostic............................................................................................................................................ 26
4.2.9. Set-up procedure ................................................................................................................................ 27
5. Electrical & Mechanical Features ....................................................................................................................... 29

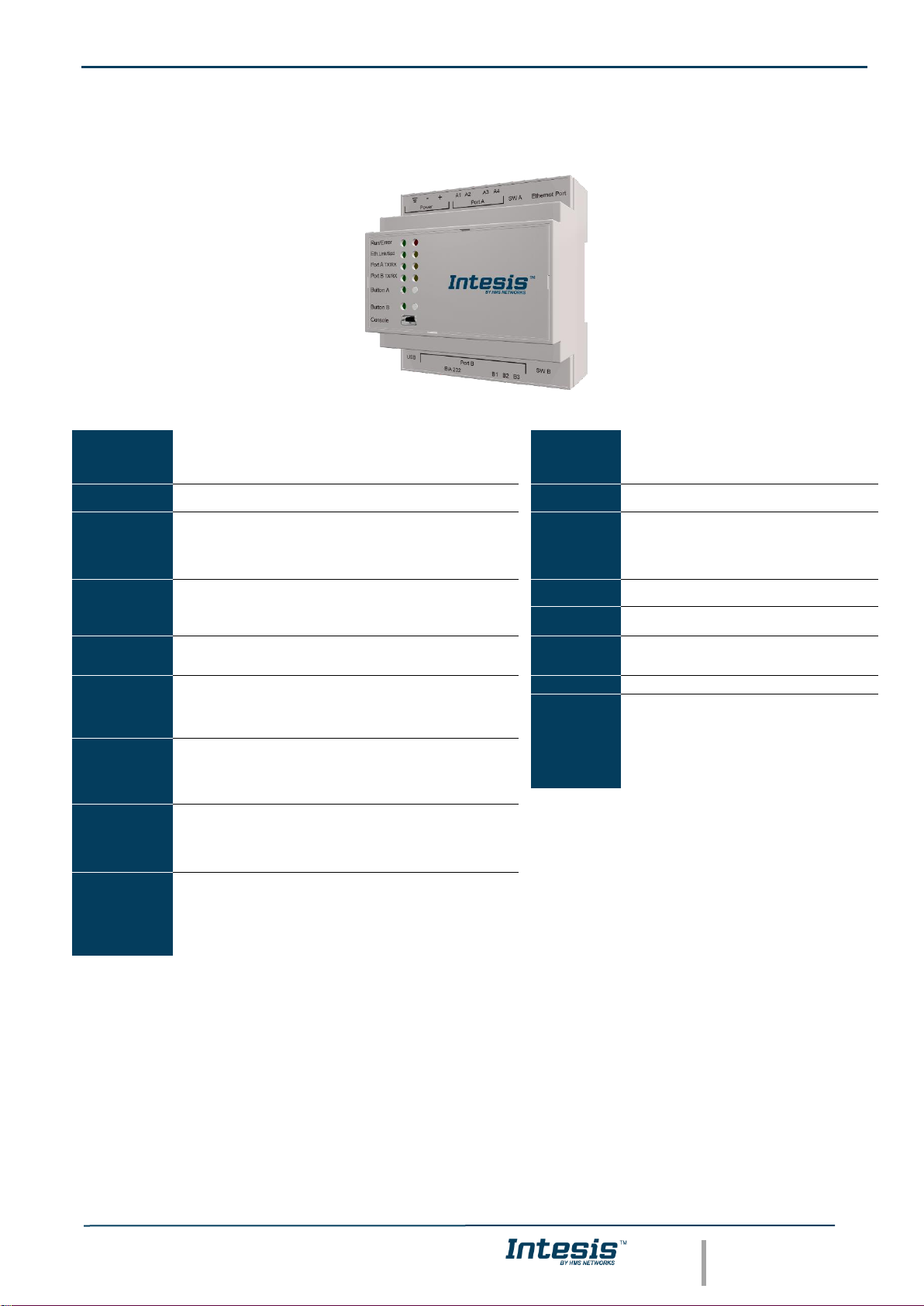

5.1. Intesis ModBus Server for Panasonic 16 and 64 units ............................................................................... 29
5.2. Intesis ModBus Server for Panasonic 128 units ......................................................................................... 30

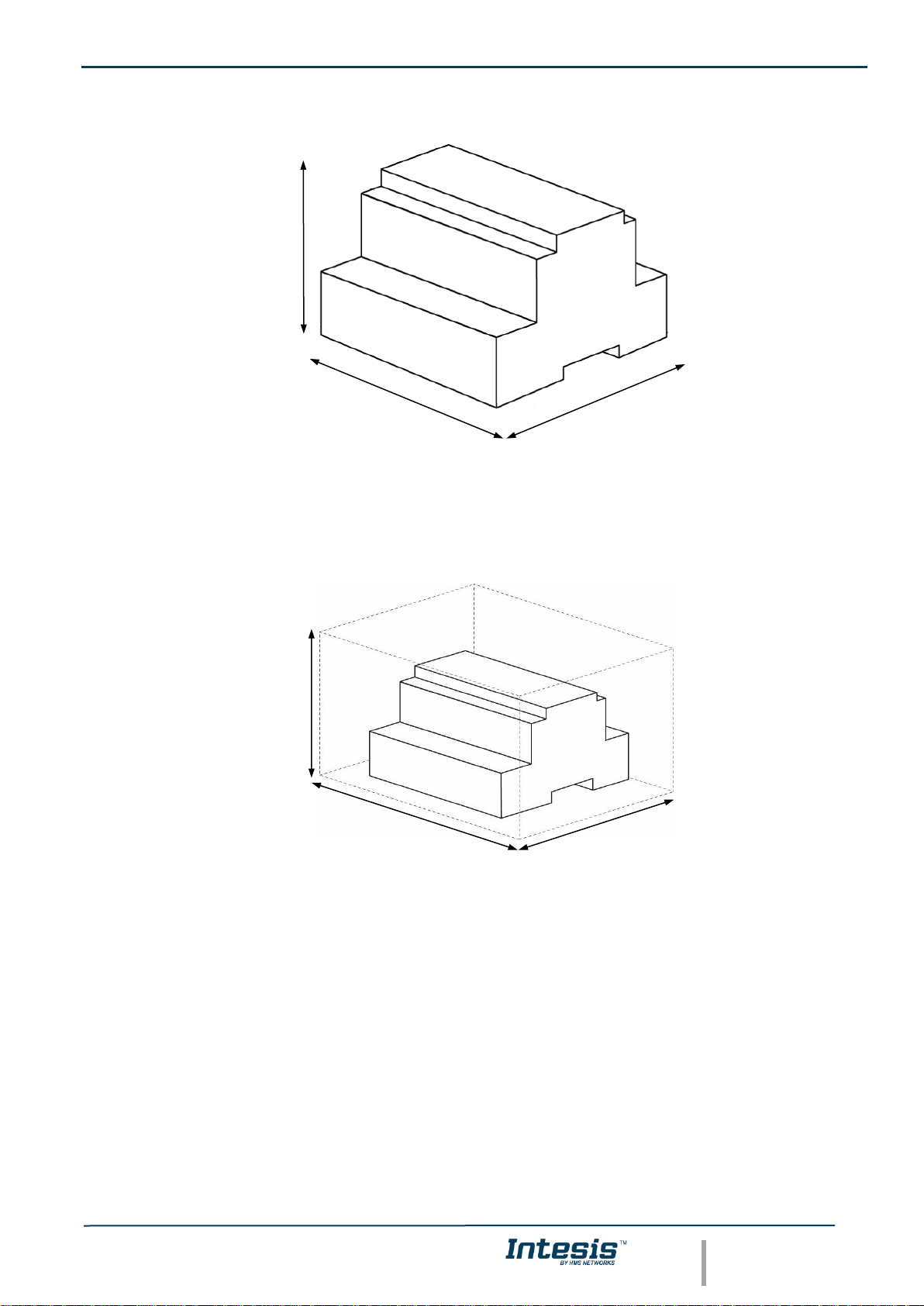

6. Dimensions ......................................................................................................................................................... 31
7. AC Unit Types compatibility................................................................................................................................ 32
8. Error codes for Indoor and Outdoor Units .......................................................................................................... 33
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
5 / 36
1. Description
1.1. Introduction
This document describes the integration of Panasonic VRF air conditioning systems into Modbus compatible devices
and systems using the Intesis Modbus Server to Panasonic VRF communication gateway.
The aim of this integration is to monitor and control Panasonic air conditioning systems, remotely, from a Control
Center using any commercial SCADA or monitoring software that includes a Modbus Master driver (RTU and/or
TCP). To do it so, Intesis performs as a Modbus Server, allowing poll and write requests from any Modbus master
device.
Intesis makes available the Panasonic air conditioning system indoor units’ datapoints through independent Modbus
registers.
Up to 128 indoor units supported, depending on product version.
This document assumes that the user is familiar with Modbus and Panasonic technologies and their technical terms.
Integration of Panasonic’s compatible systems into Modbus RTU and Modbus TCP systems.
1 Panasonic lines can be connected
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
6 / 36

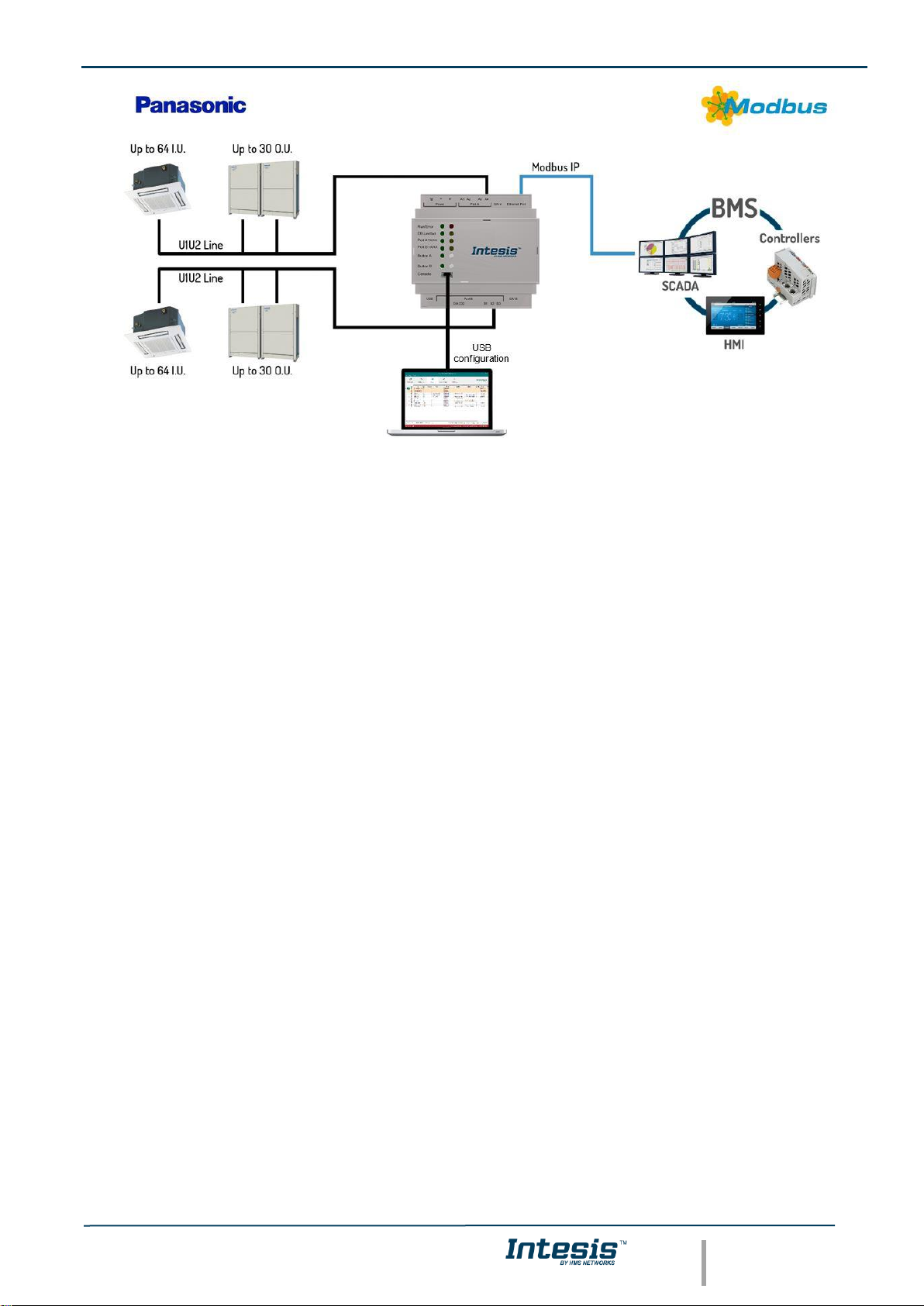

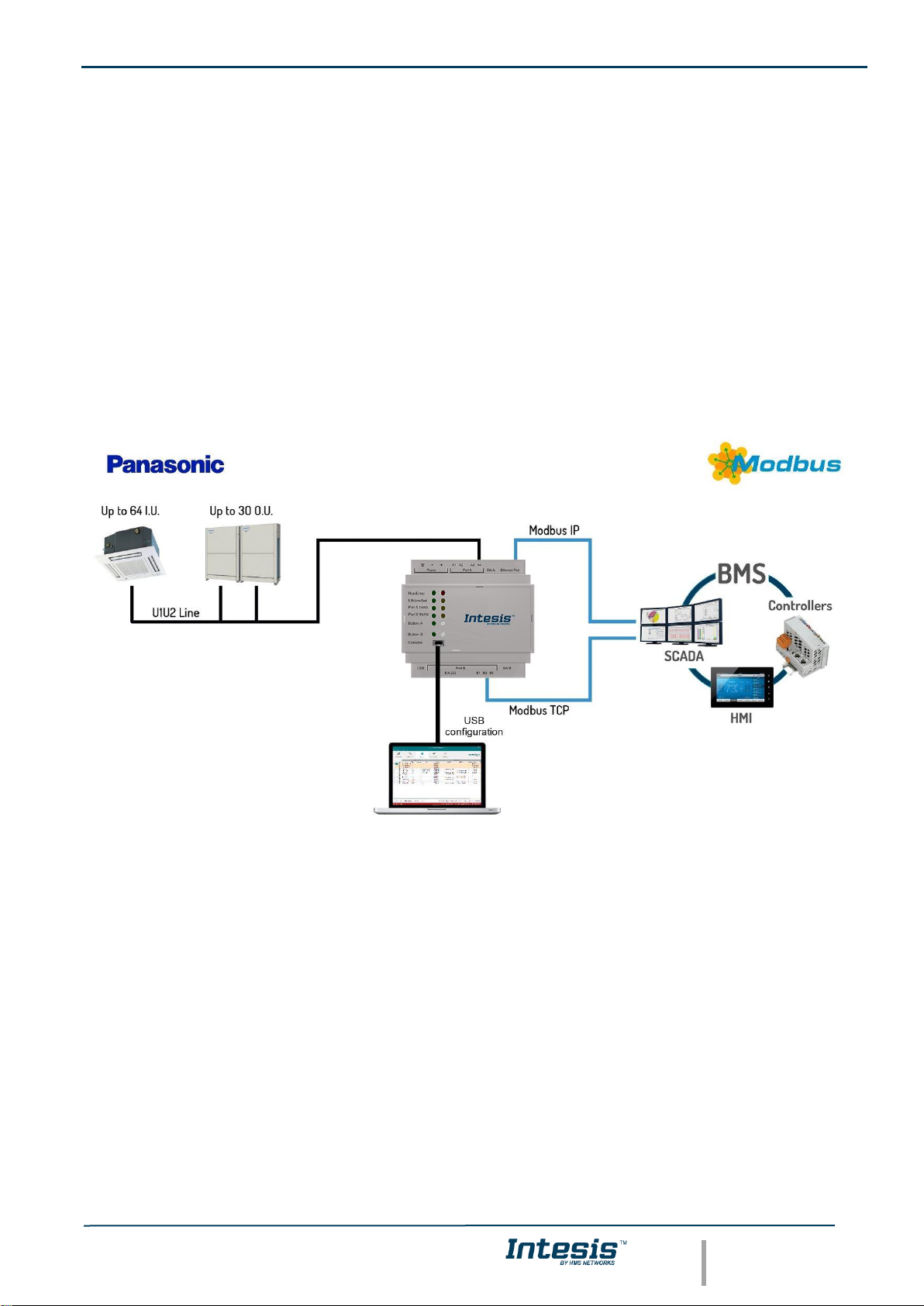

Integration of Panasonic’s compatible systems into Modbus TCP systems.
2 Panasonic liness can be connected
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
7 / 36
1.2. Functionality
IntesisTM continuously monitors Panasonic VRF network for all configured signals and keeps the updated status of
all of them in its memory, ready to be served when requested from the Modbus master.
Commands toward the indoor units are permitted.
Each indoor unit is offered as a set of MBS registers.
Element
Registers supported
Outdoor Unit
• Status
Indoor Unit
• Status
• Command
• Communication
status
General signals
(all units)
• Command
1.3. Capacity of Intesis
Element
Max.
Notes
Number of indoor units
128*
Number of indoor units that can be controlled through Intesis
* There are different models of Intesis MBS – Panasonic VRF each one with different capacity. The table above
shows the capacity for the top model (with maximum capacity).
Their order codes are:
▪ INMBSPAN016O000, Model supporting up to 16 indoor units.
▪ INMBSPAN064O000, Model supporting up to 64 indoor units.
▪ INMBSPAN128O000, Model supporting up to 128 indoor units.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
8 / 36
2. Modbus interface
In this section, a common description for all Intesis Modbus series gateways is given, from the point of view of
Modbus system which is called from now on internal system. Connection with the Panasonic VRF system is also
called from now on external system.
2.1. Functions supported
This part is common for Modbus RTU and TCP.
Modbus functions 03 and 04 (Read Holding Registers and Read Input Registers) can be used to read Modbus
registers.
Modbus functions 06 and 16 (Single Multiple Holding Registers and Write Multiple Holding Registers) can be used
to write Modbus registers.
Configuration of poll records is possible between Modbus addresses 0 and 20000. Addresses that are not defined
in section 2.2 (Modbus map of the device) are read-only and will always report 0.
Modbus error codes are supported, they will be sent whenever a non-valid Modbus address is queried.
All registers are 16-bit signed integer, in standard Modbus Big Endian (MSB/LSB) format.
Intesis supports Modbus RTU and Modbus TCP and both interfaces can be used simultaneously (for 16 and 64
versions).
2.2. Modbus RTU
Both EIA485 and EIA232 physical layers are supported. Only the lines RX, TX and GND of the EIA232 connector
are used (TX and RX for EIA485).
Baud rate can be selected between 1200, 2400, 4800, 9600, 19200, 38400, 56700 and 115200. Parity (none, even
or odd) and stop bits (1 or 2) can be selected as well.
Modbus slave number must be configured and the physical connection (RS232 or RS485) can also be selected.
2.3. Modbus TCP
TCP port to use (default is 502) and keep alive period must be configured.
IP settings of Intesis (DHCP status, own IP, net mask and default gateway) must be configured as well.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
9 / 36
2.4. Modbus Address Map
Modbus address from the formula is expressed in link layer format. This is, first register address is 0.
Modbus Address
First Address is 0
Read
/Write
Register/signal name
Possible values
OCCUPANCY SIGNALS
0
R/W
Occupancy Cool Setpoint (x10)
-15…60ºC
4…140ºF
1
R/W
Occupancy Heat Setpoint (x10)
-15...60ºC
4…140ºF
2
R/W
Unoccupancy Cool Setpoint (x10)
-15...60ºC
4…140ºF
3
R/W
Unoccupancy Heat Setpoint (x10)
-15...60ºC
4…140ºF
4
R/W
Occupancy Continuous Check
0-Disabled, 1-Enabled
5
R/W
Unoccupancy Deadband Action
0-Off, 1-Current mode
GENERAL SIGNALS (all units)
6
W
On (all the units)
1-Set all the units On
7
W
Off (all the units)
1-Set all the units Off
8
W
Operation Mode Auto (all the units)
1-Set Auto Mode
9
W
Operation Mode Heat (all the units)
1-Set Heat Mode
10
W
Operation Mode Dry (all the units)
1-Set Dry Mode
11
W
Operation Mode Fan (all the units)
1-Set Fan Mode
12
W
Operation Mode Cool (all the units)
1-Set Cool Mode
13
W
Fan Speed Auto (all the units)
1-Set Fan Speed Auto
14
W
Fan Speed Low (all the units)
1-Set Fan Speed Low
15
W
Fan Speed Mid (all the units)
1-Set Fan Speed Med
16
W
Fan Speed High (all the units)
1-Set Fan Speed High
17
W
Vanes Position Stop (all the units)
1-Set Vanes Position Stop
18
W
Vanes Position 1 (all the units)
1-Set Vanes Position 1
19
W
Vanes Position 2 (all the units)
1-Set Vanes Position 2
20
W
Vanes Position 3 (all the units)
1-Set Vanes Position 3
21
W
Vanes Position 4 (all the units)
1-Set Vanes Position 4
22
W
Vanes Position 5 (all the units)
1-Set Vanes Position 5
23
W
Vanes Swing (all the units)
1-Set Vanes to Swing
24
W
Temperature Setpoint (all units) (x10ºC/ºF)
16..30°C
OUTDOOR UNITS SIGNALS
([OU]1 * 25) +
(([L] - 1) * 10000) +
7000) + 0
R
Communication Error OU
0-No error, 1-Error
1
Where [OU] is the outdoor unit number. Values from 1 to 30.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
10 / 36
Modbus Address
First Address is 0
Read
/Write
Register/signal name
Possible values
([OU] * 25) +
(([L] - 1) * 10000) +
7000) + 1
R/W
Demand Limit. Ratio
0..200 % - 255-No limit
([OU] * 25) +
(([L] - 1) * 10000) +
7000) + 2
R
High Pressure Sensor (x10)
Bar
([OU] * 25) +
(([L] - 1) * 10000) +
7000) + 3
R
Low Pressure Sensor (x10)
Bar
([OU] * 25) +
(([L] - 1) * 10000) +
7000) + 4
R
Compressor 1 Operation Time
0…16777215 hours
([OU] * 25) +
(([L] - 1) * 10000) +
7000) + 5
R
Compressor 2 Operation Time
0…16777215 hours
([OU] * 25) +
(([L] - 1) * 10000) +
7000) + 6
R
Compressor 3 Operation Time
0…16777215 hours
INDOOR UNITS SIGNALS
([IU]2 * 100) +
(([L]3 - 1) * 10000) + 0
R/W
On/Off
0-Off, 1-On
([IU] * 100) +
(([L] - 1) * 10000) + 1
R/W
Operation Mode
0-Auto, 1-Heat, 2-Dry. 3-Fan, 4-Cool, 5AutoHeat, 6-AutoCool
([IU] * 100) +
(([L] - 1) * 10000) + 2
R/W
Fan Speed
0-Auto, 1-Low, 2-Low+, 3-Med, 4-Med+,
5-High
([IU] * 100) +
(([L] - 1) * 10000) + 3
R/W
Vane Position
0-Stop, 1-Pos1...5-Pos5, 10-Swing
([IU] * 100) +
(([L] - 1) * 10000) + 4
R/W
Temperature Setpoint (x10ºC)
16…30°C
([IU] * 100) +
(([L]- 1) * 10000) + 5
R
Ambient Temperature (x10ºC)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 6
W(T)
Wired Remote Controller
0-Body sensor,
1-Remote controller sensor
([IU] * 100) +
(([L]- 1) * 10000) + 7
R/W
Discharge Setpoint Temperature Cool (x10ºC)
-10…10ºC
13…50ºF
([IU] * 100) +
(([L]- 1) * 10000) + 8
R/W
Discharge Setpoint Temperature Heat (x10ºC)
-10…10ºC
13…50ºF
([IU] * 100) +
(([L]- 1) * 10000) + 9
R
Discharge Current Temperature (x10ºC)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 10
R
Heat Exchanger Temperature (x10)
-1...26ºC
30...79ºF
([IU] * 100) +
(([L]- 1) * 10000) + 11
R
Heat Setpoint Up Limit (x10)
-35...92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 12
R
Heat Setpoint Low Limit (x10)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 13
R
Cool Setpoint Up Limit (x10)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 14
R
Cool Setpoint Low Limit (x10)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 15
R
Dry Setpoint Up Limit (x10)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 16
R
Dry Setpoint Low Limit (x10)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 17
R
Auto Setpoint Up Limit (x10)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 18
R
Auto Setpoint Low Limit (x10)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 19
R
Unit error code
0-No error, X-Error (0…255)
2
Where [IU] is the indoor unit number. Values from 1 to 64.
3
Where [L] is the Panasonic line in use. Posible values are 1 or 2.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
11 / 36
Modbus Address
First Address is 0
Read
/Write
Register/signal name
Possible values
([IU] * 100) +
(([L]- 1) * 10000) + 20
R
Filter Alarm
0-Normal, 1-Alarm
([IU] * 100) +
(([L]- 1) * 10000) + 21
W(T)
Filter Alarm reset
1-Reset
([IU] * 100) +
(([L]- 1) * 10000) + 22
R
Communication Error IU
0-No error, 1-Error
([IU] * 100) +
(([L]- 1) * 10000) + 23
R/W
Allow On/Off from remote controller
0-Allow, 1-Not allow
([IU] * 100) +
(([L]- 1) * 10000) + 24
R/W
Allow Mode from remote controller
0-Allow, 1-Not allow
([IU] * 100) +
(([L]- 1) * 10000) + 25
R/W
Allow Setpoint from remote controller
0-Allow, 1-Not allow
([IU] * 100) +
(([L]- 1) * 10000) + 26
R
Unit type
0-Not defined, 1-TBD, 2-GHP, 3-PAC,
4-VRF
([IU] * 100) +
(([L]- 1) * 10000) + 27
R/W
Occupancy
1-Occupied, 2-Unoccupied, 3-Disable
([IU] * 100) +
(([L]- 1) * 10000) + 28
RW
Modbus ambient temperature (x10)
ºC/ºF
([IU] * 100) +
(([L]- 1) * 10000) + 29
R
AC Real Temperature Setpoint (x10)
ºC/ºF
([IU] * 100) +
(([L]- 1) * 10000) + 30
R
Consumption Yesterday (kWh)
kWh
([IU] * 100) +
(([L]- 1) * 10000) + 31
R
Consumption Today (kWh)
kWh
([IU] * 100) +
(([L]- 1) * 10000) + 32
R
Consumption Total (kWh)
kWh
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
12 / 36
3. Connections
3.1. Connections for 16 and 64 versions (INMBSPAN016O000 and INMBSPAN064O000)
Find below information regarding the Intesis connections available.
Power Supply
Must use NEC Class 2 or Limited Power Source (LPS) and SELV
rated power supply.
If using DC power supply:
Respect polarity applied of terminals (+) and (-). Be sure the voltage
applied is within the range admitted (check table below). The power
supply can be connected to earth but only through the negative
terminal, never through the positive terminal.
If using AC power supply:
Make sure the voltage applied is of the value admitted (24 Vac). Do
not connect any of the terminals of the AC power supply to earth,
and make sure the same power supply is not supplying any other
device.
Ethernet / Modbus TCP/IP / Console (UDP & TCP)
Connect the cable coming from the IP network to the connector ETH
of the gateway. Use an Ethernet CAT5 cable. If communicating
through the LAN of the building, contact the network administrator
and make sure traffic on the port used is allowed through all the
LAN path (check the gateway user manual for more information).
Default IP is 192.168.100.246. DHCP is enabled by default.
PortA / P-Link Panasonic
Connect the P-Link terminals of Panasonic Outdoor Unit to the
connectors A3 and A4 of gateway’s PortA. There is no polarity to
be respected.
PortB / Modbus-RTU RS485
Connect the EIA485 bus to connectors B1 (B+), B2 (A-) and B3 (SNGD) of gateway’s PortB. Respect the polarity.
Note for PortB: Remember the characteristics of the standard EIA485 bus: maximum distance of 1200 meters,
maximum 32 devices connected to the bus, and in each end of the bus it must be a termination resistor of 120 Ω.
Bus biasing and termination resistor for EIA485 can be enabled for PortB by means of a dedicated DIP:
SW1:
ON: 120 Ω termination active
OFF: 120 Ω termination inactive.
SW2+3:
ON: Polarization active
OFF: Polarization inactive.
If the gateway is installed in one bus end, make sure that termination is active.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between the
Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user
manual for more information.
USB
Connect a USB storage device (not HDD) if required. Check the user manual for more information.
Ensure proper space for all connectors when mounted (see 6 DIMENSIONS).
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
13 / 36
3.2. Connections for 128 version (INMBSPAN128O000)
Find below information regarding the Intesis connections available.
Power Supply
Must use NEC Class 2 or Limited Power Source (LPS) and
SELV rated power supply.
If using DC power supply:
Respect polarity applied of terminals (+) and (-). Be sure the
voltage applied is within the range admitted (check table
below). The power supply can be connected to earth but only
through the negative terminal, never through the positive
terminal.
If using AC power supply:
Make sure the voltage applied is of the value admitted (24
Vac). Do not connect any of the terminals of the AC power
supply to earth, and make sure the same power supply is not
supplying any other device.
Ethernet / Modbus TCP/IP / Console (UDP & TCP)
Connect the cable coming from the IP network to the connector
ETH of the gateway. Use an Ethernet CAT5 cable. If
communicating through the LAN of the building, contact the
network administrator and make sure traffic on the port used is
allowed through all the LAN path (check the gateway user
manual for more information). With factory settings, after
powering up the gateway, DHCP will be enabled for 30
seconds. After that time, if no IP is provided by a DHCP server,
the default IP 192.168.100.246 will be set.
PortA / P-Link 1 Panasonic
Connect the P-Link terminals of Panasonic Outdoor Unit to the connectors A3 and A4 of gateway’s PortA. There is
no polarity to be respected.
PortB / P-Link 2 Panasonic
Connect the P-Link terminals of Panasonic Outdoor Unit to the connectors B1 and B2 of gateway’s PortA. There is
no polarity to be respected.
Console Port
Connect a mini-type B USB cable from your computer to the gateway to allow communication between the
Configuration Software and the gateway. Remember that Ethernet connection is also allowed. Check the user
manual for more information.
USB
Connect a USB storage device (not HDD) if required. Check the user manual for more information.
Ensure proper space for all connectors when mounted (see 6 DIMENSIONS).
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
14 / 36
3.3. Power device
The first step to perform is to power up the device. To do so, a power supply working with any of the voltage range
allowed is needed (check 5 ELECTRICAL & MECHANICAL FEATURES). Once connected the ON led will turn on.
WARNING! To avoid earth loops that can damage the gateway, and/or any other equipment connected to it, we
strongly recommend:
• The use of DC power supplies, floating or with the negative terminal connected to earth. Never use a
DC power supply with the positive terminal connected to earth.
• The use of AC power supplies only if they are floating and not powering any other device.
3.4. Connect to Panasonic VRF installation
Use the PortA connector in the top corner of the Intesis device to connect P-Link bus to the Intesis. Remember to
follow all safety precautions indicated by Panasonic.
Connect the Panasonic P-Link bus to connectors A3 and A4 of gateway’s PortA. Bus is not sensitive to polarity.
For the product version supporting 128 units (INMBSPAN128O000), connect the Panasonic P-Link 2 bus to
connectors B1 and B2 of gateway PortB. Bus is not sensitive to polarity.
3.5. Connection to Modbus
3.5.1. Modbus TCP
The gateways Ethernet port connection is used for Modbus TCP communication. Connect the communication cable
coming from the network hub or switch to the Ethernet port of Intesis. The cable to be used shall be a straight
Ethernet UTP/FTP CAT5 cable.
TCP port to use (default 502) and keep alive period must be configured.
IP settings of the gateway (DHCP status, own IP, netmask and default gateway) must be configured as well.
3.5.2. Modbus RTU (only for INMBSPAN016O000 and INMBSPAN064O000)
Connect the communication cable coming from the motbus network to the port marked as Port B of the Intesis.
Connect the EIA485 bus to connectors B1 (-), B2 (+) and B3 (SNGD) of gateway’s PortB. Respect the polarity.
Remember the characteristics of the standard EIA485 bus: maximum distance of 1200 meters, maximum 32 devices
(without repeaters) connected to the bus, and in each end of the bus it must be a termination resistor of 120 Ω. The
gateway has an internal bus biasing circuit that incorporates the termination resistor. Bus biasing and termination
resistor for EIA485 can be enabled for PortB by means of a dedicated DIP switch.
3.6. Connection to Modbus TCP/IP (Energy meters)
Use the Ethernet connector to communicate with the Modbus Energy meters.
Once the Energy meters are connected, running and tested, make sure they are available from the Intesis device
LAN network/IP before going to the next step.
3.7. Connection to PC (Configuration tool)
This action allows the user to have access to configuration and monitoring of the device (more information can be
found in the configuration tool User Manual). Two methods to connect to the PC can be used:
• Ethernet: Using the Ethernet port of Intesis.
• USB: Using the console port of Intesis, connect a USB cable from the console port to the PC.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
15 / 36
4. Set-up process and troubleshooting
4.1. Pre-requisites
It is necessary to have the Modbus RTU or TCP master/client device (BMS side device) operative and properly
connected to the corresponding port of the gateway and the Panasonic VRF installation connected to their
corresponding ports as well.
Connectors, connection cables, PC for the Configuration Tool usage and other auxiliary material, if needed, are not
supplied by Intesis for this standard integration.
Items supplied by HMS Networks for this integration are:
• Intesis gateway.
• Link to download the configuration tool.
• USB Console cable to communicate with Intesis.
• Product documentation.
4.2. Intesis MAPS. Configuration & monitoring tool for Intesis Modbus series
4.2.1. Introduction
Intesis MAPS is a Windows® compatible software developed specifically to monitor and configure Intesis new
generation gateways.
The installation procedure and main functions are explained in the Intesis MAPS User Manual. This document can
be downloaded from the link indicated in the installation sheet supplied with the Intesis device or in the product
website at www.intesis.com.
In this section, only the specific case of Panasonic VRF to Modbus systems will be covered.
Please check the Intesis MAPS User Manual for specific information about the different parameters and how to
configure them.
4.2.2. Connection
To configure the Intesis connection parameters press on the Connection button in the menu bar.

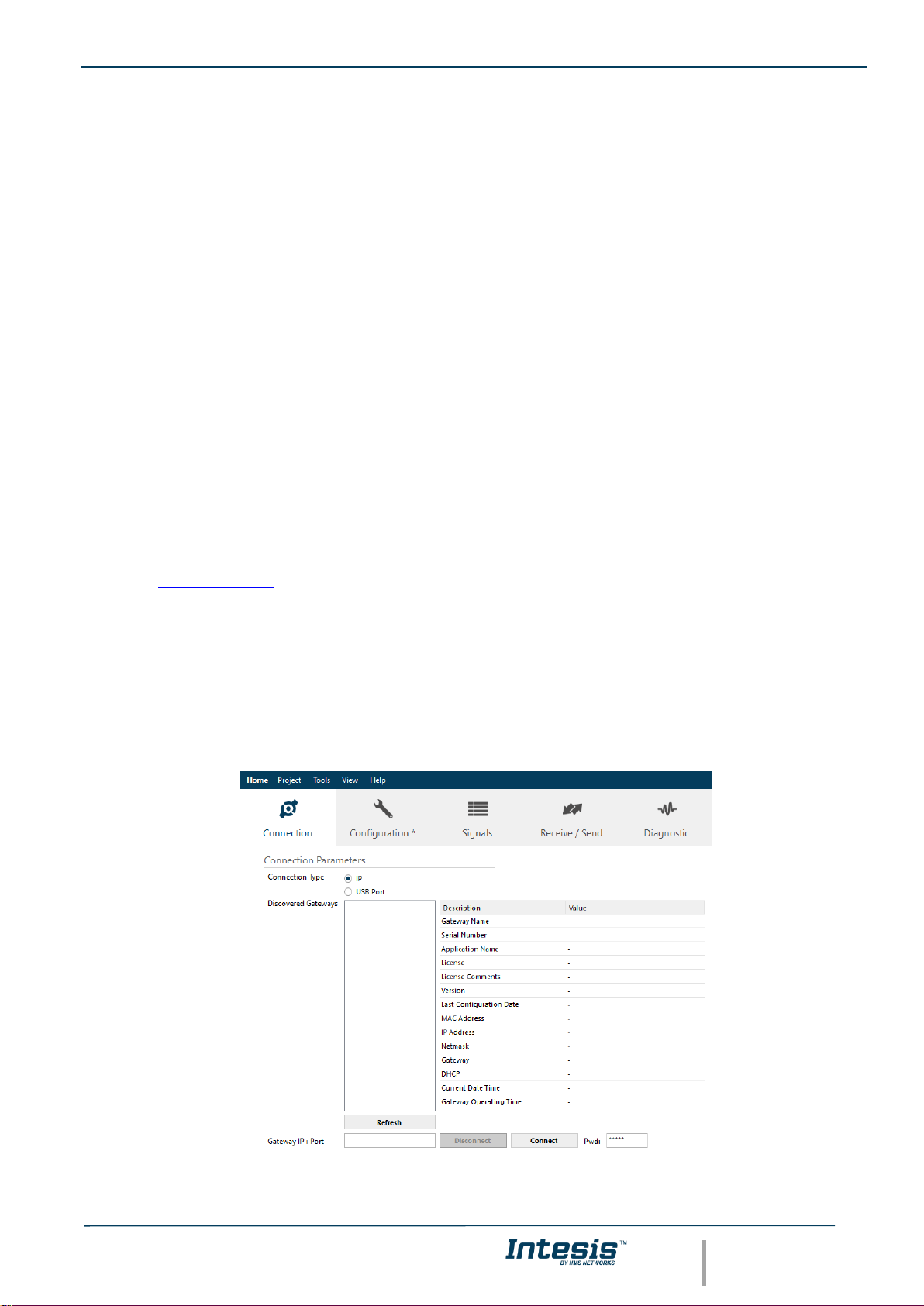

Figure 4.1 MAPS connection
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
16 / 36
4.2.3. Configuration tab
Select the Configuration tab to configure the connection parameters. Three subsets of information are shown in
this window: General (Gateway general parameters), Modbus Slave (Modbus interface configuration) and
Panasonic (Panasonic VRF interface parameters).
Figure 4.2 Intesis MAPS configuration tab
4.2.4. Modbus Slave configuration
Set parameters of Modbus Slave interface of Intesis.
Figure 4.3 Intesis MAPS Modbus configuration tab
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
17 / 36
1. Modbus Configuration
1.1. Modbus type selection. Select RTU, TCP or simultaneous RTU and TCP communication.
2. TCP Configuration.
2.1. Modbus TCP Port: Modbus TCP communication port setting. Default port 502.
2.2. Keep Alive. Set the time of inactivity to send a keep Alive message. Default 10 minutes.
3. RTU Configuration.
3.1. RTU bus connection type. Select the RTU connection type serial bus RS485 or 232.
3.2 Baudrate. Set the RTU bus communication speed. Default: 9600 bps.
• Available values: 1200, 2400, 4800, 9600,19200, 38400, 57600, 115200 bps.
3.3 Data Type. Set the Data-bit/parity/stop-bit. Default: 8bit/None/1.
• Available selection: 8bit/None/1, 8bit/Even/1, 8bit/Odd/1, 8bit/None/2.
3.4 Slave Number. Set the Modbus Slave address. Default slave address: 1.
• Valid address: 1…255.
3.5 Ambient temperature provided from Modbus. This option enables a Modbus register to receive an
ambient temperature from Modbus to regulate the AC unit using Virtual Temperature function.
Case 1: Temperature setpoint IS NOT provided from Modbus. (Checkbox deactivated).
In this case, the user setpoint is directly applied to the AC unit. Setpoint control and ambient temperature is
based on the following registers:
([IU] * 100) +
(([L] - 1) * 10000) + 4
R/W
Temperature Setpoint (x10ºC)
16…30°C
([IU] * 100) +
(([L]- 1) * 10000) + 5
R
Ambient Temperature (x10ºC)
-35…92,5ºC
-31…198,5ºF
• Register 4: Temperature Setpoint (x10)
This register can write the desired user setpoint and will be updated with the current setpoint in the AC unit
at any time.
• Register 5: Ambient temperature (x10)
This register can be read only and will inform about the ambient temperature measured by the AC unit
temperature probe, which usually corresponds with the temperature measured in the return path. See AC
settings for further information.
Case 2: Temperature setpoint IS provided from Modbus (use Virtual temperature) (Checkbox
activated)
This feaure is provided to be used only in the following cases:
• There is no setpoint control from BMS or centralized system in parallel to the Intesis device.
• There is no setpoint control from RC, infrared remote or any other AC optional which allow
setpoint management.
Considerning these sentences, the resulting system is that in which the setpoint control is only performed
through the Intesis gateway.
Enabling this feature will add two additional Modbus temperature registers to the previous list:
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
18 / 36
([IU] * 100) +
(([L] - 1) * 10000) + 4
R/W
Temperature Setpoint (x10ºC)
16…30°C
([IU] * 100) +
(([L]- 1) * 10000) + 5
R
Ambient Temperature (x10ºC)
-35…92,5ºC
-31…198,5ºF
([IU] * 100) +
(([L]- 1) * 10000) + 28
RW
Modbus ambient temperature (x10)
ºC/ºF
([IU] * 100) +
(([L]- 1) * 10000) + 29
R
AC Real Temperature Setpoint (x10)
ºC/ºF
• Register 4: Temperature Setpoint (x10)
This register can write the desired user setpoint but now this register will not be updated with the current
setpoint in the AC unit. This way, reading this register in the Case 2 will report the last setpoint temperature
set in this Modbus register.
• Register 5: Ambient temperature (x10)
This register has the same meaning than Case 1.
• Register 28: Modbus ambient temperature (x10)
This register can receive a temperature value coming from Modbus. This value is used to calculate a real
setpoint for the AC unit using the below expression.
• Register 29: AC Real Temperature setpoint (x10)
This register will report the real AC setpoint temperature at any time. This is the value calculated in the
below expression.
In Case 2, user setpoint temperature (register 4) is not directly applied to the indoor unit but modified using
the Virtual Temperature formula. This way, the real setpoint applied to the AC unit follows the next
expression:
𝑹𝒆𝒂𝒍 𝑨𝑪 𝑺𝒆𝒕𝒑 = 𝑨𝑪 𝑨𝒎𝒃 𝑻𝒆𝒎𝒑 − (𝑴𝒐𝒅𝒃𝒖𝒔 𝑨𝒎𝒃 𝑻𝒆𝒎𝒑 − 𝑴𝒐𝒅𝒃𝒖𝒔 𝑺𝒆𝒕𝒑 𝑻𝒆𝒎𝒑), where:
• Real AC Setp (AC Real Temperature Setpoint) is register 29.
• AC Amb Temp (Ambient Temperature) is register 5.
• Modbus Amb Temp (Modbus ambient temperature) is register 28.
• Modbus Setp Temp (Temperature Setpoint) is register 4.
Basically, Virtual Temperature function modifies the setpoint temperature set from Modbus in register 4
making possible to use a Modbus temperature probe as a reference (register 28) for the AC control loop.
The idea of the Virtual Temperature is to keep the room temperature difference (in Modbus) and apply it to
the AC control loop by modifying the setpoint.
This value is recalculated constantly adapting the temperature difference to the AC control loop so the lower
temperature delta in Modbus result in a lower temperature delta applied to the AC unit and the opposite (the
higher…the higher).
Example: in a certain installation, we have the following data:
➢ Ambient temperature measured in a Modbus temperature probe = 23ºC (register 28).
➢ User demands, from a Modbus thermostat, a setpoint = 25ºC (register 4).
➢ The AC unit is measuring in the return path a temperature = 24ºC (register 5).
Following this example and considering the sytem working in heating mode, the real AC temperature setpoint
(register 29) applied to the AC is:
Real AC Setp (ºC) = 24 – (23 – 25) = 24 – (–2) = 24 + 2 = 26 ºC
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
19 / 36
4.2.5. Panasonic configuration
Set parameters for connection with Panasonic’s installation.

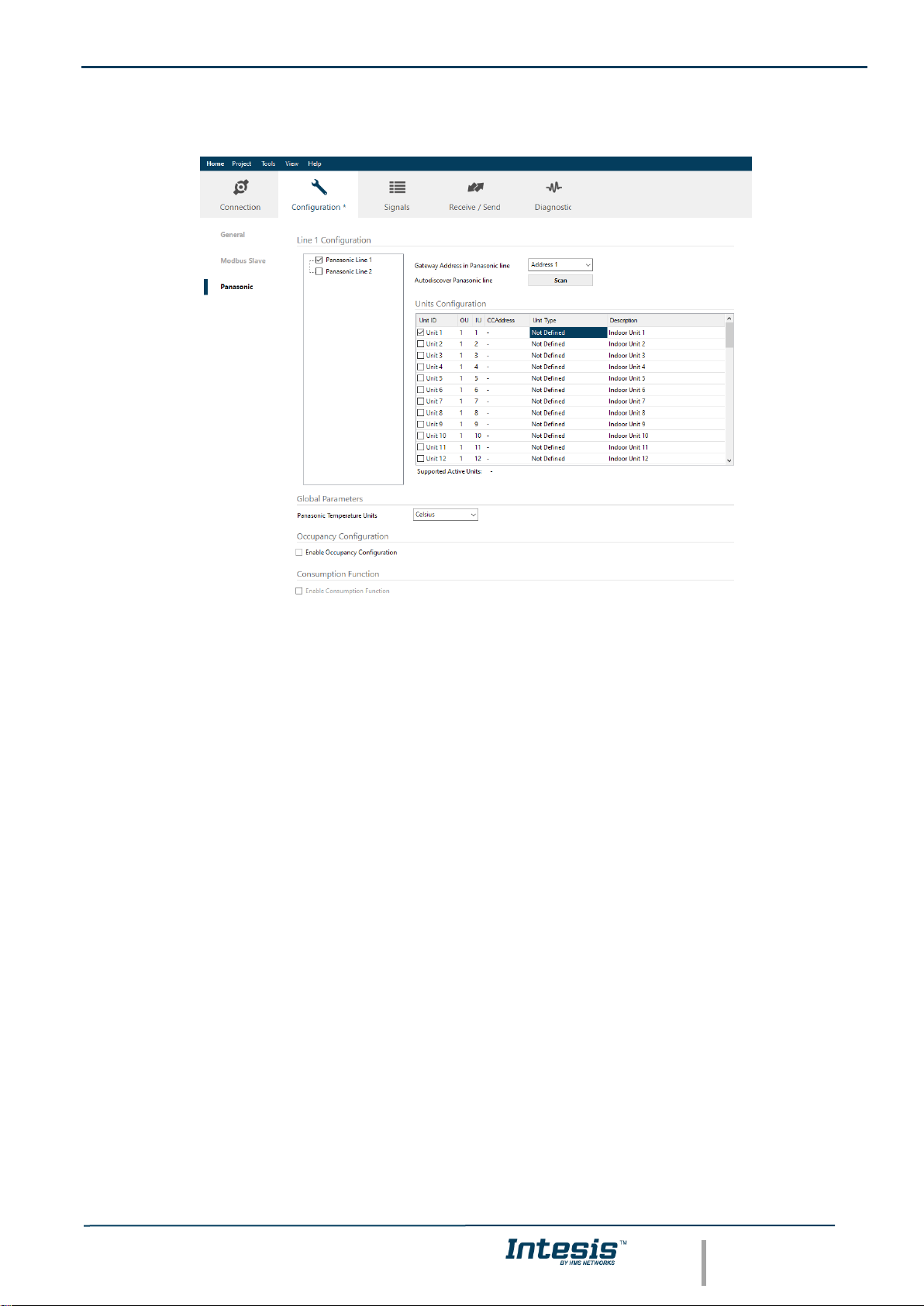

Figure 4.4 Intesis MAPS Panasonic configuration tab
Line configuration section
Each line of Panasonic needs to be addressed by using the parameter “Gateway Address in Panasonic line”.
There are 2 addresses reserved for the gateway in the Panasonic bus: address 1 and address 2.
Note that only the version of 128 units allows the connection to 2 Panasonic lines simultaneously. The 16- and 64unit versions will only support the configuration of the “Panasoni Line 1”.
In Units Configuration section you need to enter, for each unit:
• Unit ID. If it’s active (checkbox at Unit xx), ranging from 1 to 64 indoor units that will be integrated (maximum
number of units will depend on Intesis model)
• OU address. Address 1…64 of Outdoor Unit in Panasonic P-Link bus.
• IU address. Address 1…64 of Unit in Panasonic P-Link bus.
• Unit type. Type will default to ‘Not Defined’. When units have been detected after scan, it can be one of the
following: TBD, GHP, PAC and VRF
• Description. Descriptive name to easy identification of the unit (for example, ‘living room floor 1 unit’, etc).
Additional to manual entry of each unit, autodiscover of present units in a P-Link installation is possible. To do so,
click button Scan. Following window will appear:
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
20 / 36
Figure 4.5 Intesis MAPS Scan Panasonic Units window
Scan parameters:
There are 2 different types of Scan to be applied. By default, the fastest one is defined since it is assumed that
Panasonic units (indoor units and outdoor units) have been addressed. However, and only in case the units do not
have an address assigned, the parameter “Installation with units not addressed (no central address assigned)”
must be selected.
Please take into consideration that when the installation is not addressed, the scan process might take longer than
the standard scan (up to 60 min). To decrease this time, it is highly recommended to reduce the OU range to be
scanned as much as possible:
Figure 4.6 Intesis MAPS Long Scan Panasonic Units window
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
21 / 36
By pressing Scan button, connected Panasonic P-Link bus will be scanned for available units. Error window will
appear if there is a problem in the connection with P-Link bus (units not powered, bus not connected, …).
A progress bar will appear during the scan, which will take up to a few minutes. After scan is complected, detected
units will be shown in available units as follows:

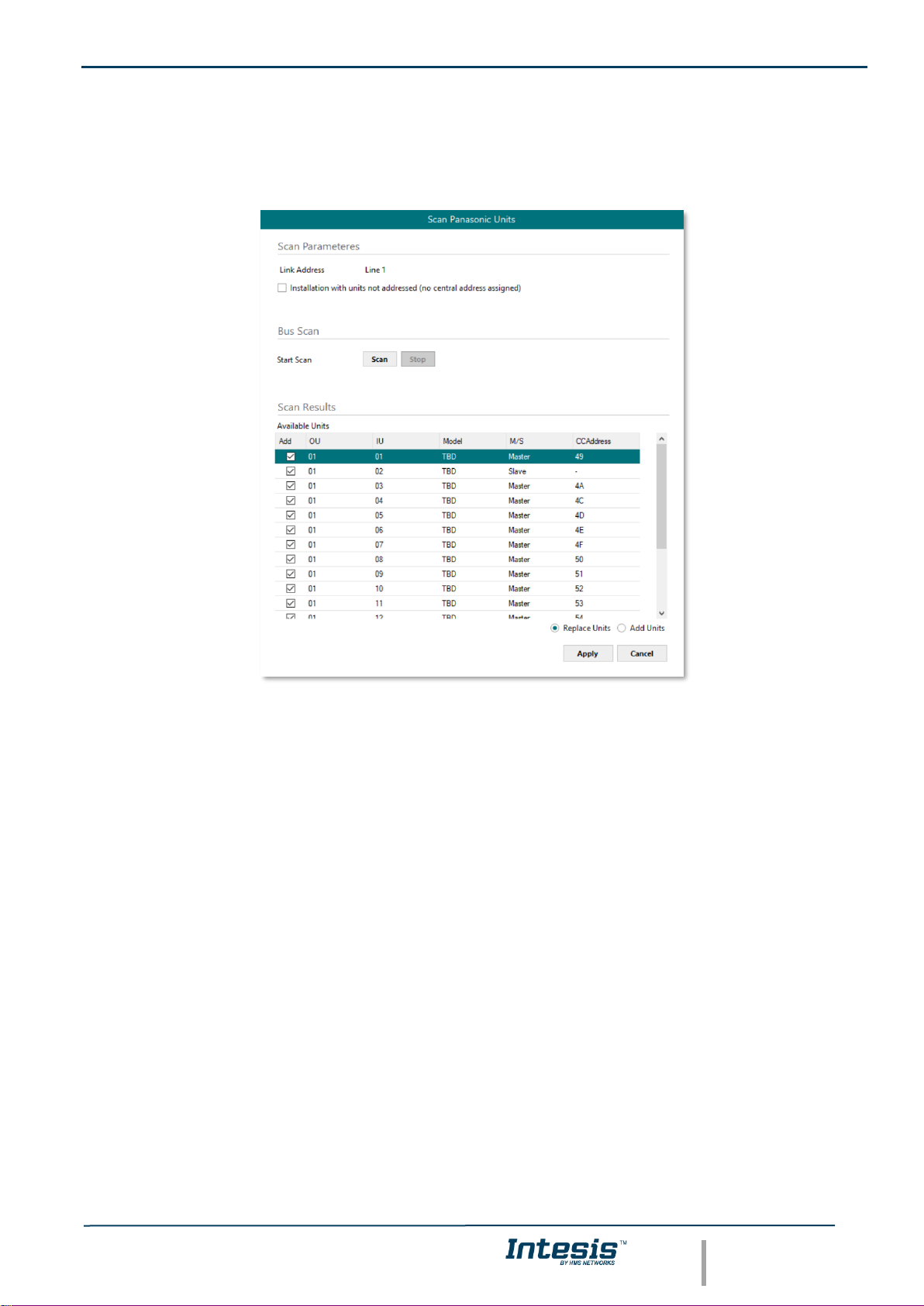

Figure 4.7 Intesis MAPS Scan Panasonic Units window with scan results
Select with its checkbox units to add (or replace) in installation, according to selection Replace Units / Add Units.
After units to be integrated are selected, click button Apply, and changes will appear in previous Units
Configuration window.
Global Parameters:
In this section it is possible to select the temperature units for monitoring of the temperature signals available in the
gateways, Celsius (ºC) or Fahrenheit (ºF).

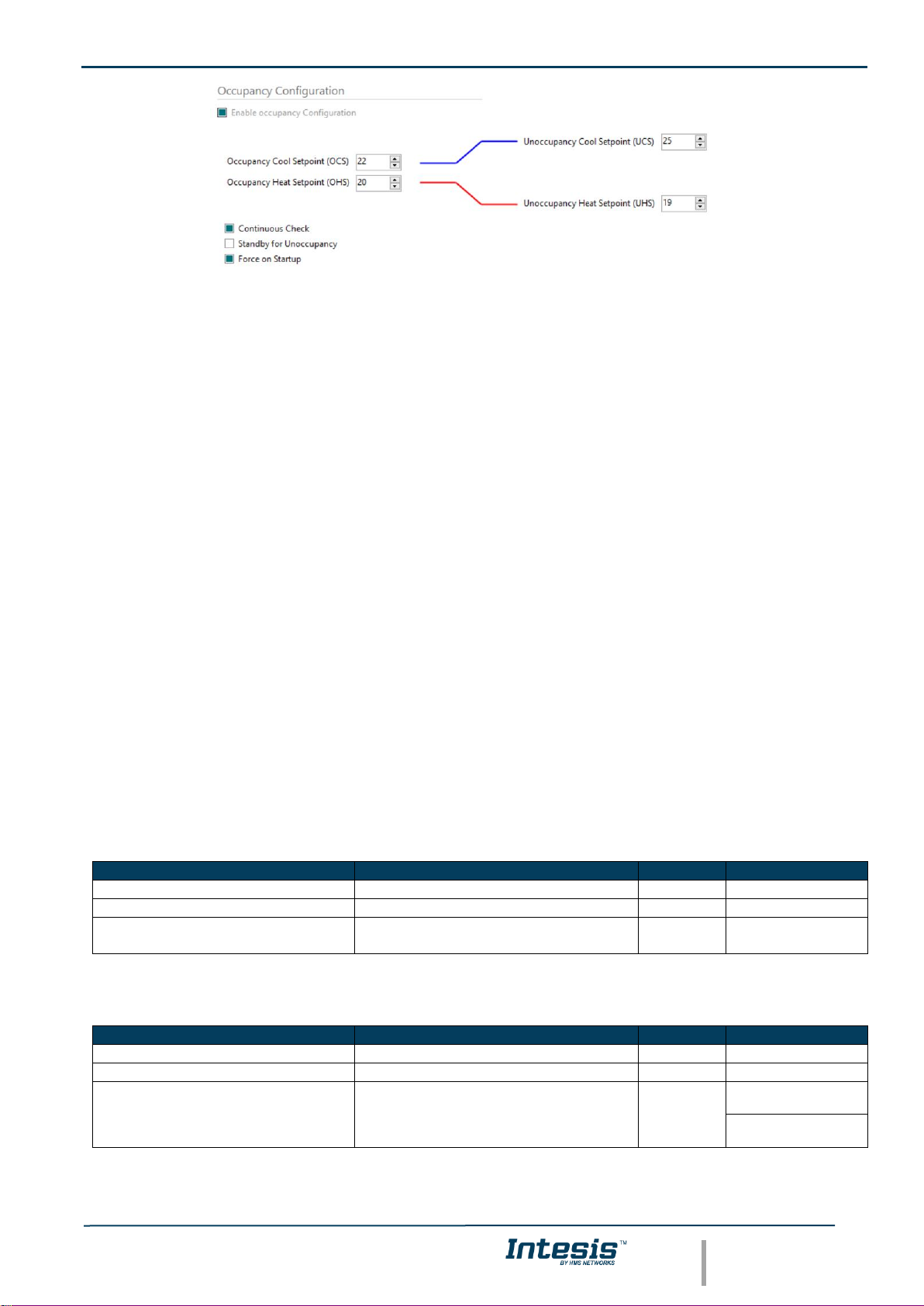

Occupancy Function
Each indoor unit has its own occupancy signal. Remember that this signal needs to be feed by an external presence
sensor which indicates if there is presense or not (occupancy). This signal is processed directly in the Intesis
gateway.
To enable the use of this function, check the parameter “Enable occupancy Configuration” available in Panasonic
configuration tab.
This functionality modifies 3 parameters from the AC system: Setpoint, Mode and On/Off.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
22 / 36
1. Occupancy/Unoccupancy Cool Setpoint (OCS/UCS): Default value for setpoint temperature to be set
when Occupancy/Unoccupancy is enabled and current mode is cool. UCS must always be greater or
equal to OCS. Difference between OCS and OHS must be greater or equal to 2ºC/4ºF. It can be changed
later through ModBus (Occ_Cool_setpoint and Unocc_Cool_Setpoint ModBus registers) and newer
value will persist.
2. Occupancy/Unoccupancy Heat Setpoint (OHS/UHS): Default value for setpoint temperature to be set
when Occupancy/Unoccupancy is enabled and current mode is heat. UHS must always be smaller or
equal to OHS. Difference between OCS and OHS must be greater or equal to 2ºC/4ºF. It can be changed
later through ModBus (Occ_Heat_setpoint and Unocc_Heat_Setpoint ModBus registers) and newer
value will persist.
3. Continous check: This checkbox is used to determine if the gateway will check the occupancy
conditions constantly (check) or not (unchecked) by default. That means that with the the checkbox
active, conditions are checked on each change of the temperature too, while if unchecked, this is only
checked when the occupancy status changes. This check option can be changed later through ModBus
(Occ_ContinousCheck ModBus registers) and newer value will persist.
4. Standby for Unoccupancy: This checkbox determines the action to be taken while the ambient
temperature is in between the deadband. If unchecked, indoor unit will turn off and if checked will reamin
on. It can be changed later through ModBus (Unocc_DeadbandAcion ModBus registers) and newer
value will persist.
5. Force on startup: If checked, values set in the configuration screen will be loaded after a reset. If
unchecked, last values selected (as it can be changed through ModBus registers) will be loaded after
reset.
Note that the default units are in ªC and when changing from Celsius to Fahrenehit and vice versa all values are
set to its default values.
When occupancy mode is active (there is presence in the room), according to current room temperature, mode,
setpoint and on/off will be set to:
Condition
Setpoint
Mode
On/Off
Room temperature > OCS
Current OCS value
Cool
On
Room temperature < OHS
Current OHS value
Heat
On
OCS < Room temperature > OHS
OCS/OHS depending on current mode
(If Fan or Dry mode is active, no setpoint is sent)
Current
mode
On
When unoccupancy mode is active (there is no presence in the room), according to current room temperature,
mode, setpoint and on/off will be set to:
Condition
Setpoint
Mode
On/Off
Room temperature > OCS
Current UCS value
Cool
On
Room temperature < OHS
Current UHS value
Heat
On
OCS < Room temperature > OHS
UCS/UHS depending on current mode
(If Fan or Dry mode is active, no setpoint is sent)
Current
mode
On
(Deadband action =1)
Off
(Deadband action =0)
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
23 / 36
These checks will be done each time the indoor unit occupancy status is changed and each time the room
temperature changes if check continuously checkbox is checked.
The configuration set on the occupany tab is applied from the very first moment the occupancy signal is enabled
until the user changes the setpoint, mode or the On/Off signal, which disables occupancy functionality.
Consumption function
The consumption function will allow to monitor the energy consumption in kWh of the configured indoor untis.
Once the function is enabled, the following signals become active for each indoor unit:
In this section it is possible to configure and link up to three Modbus Energy Metters with the Panasonic system.
Modbus TCP and Modbus RTU meters may be used. Consider that using Modbus RTU meters needs a Modbus
RTU/TCP conversor in order to make them reacheable from the Intesis device.
Scheme 1: Modbus TCP Energy meters
Scheme 2: Modbus RTU Energy meters with Modbus TCP/RTU converter
Before continuing with this section, it is recommended to configure Panasonic system in advanced and setup and
test the Modbus energy meters.
Once the above is completed, the recommended steps configuration for the energy meters in Maps are:
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
24 / 36
1) Enable consumption function and click in Edit button:
Figure 4.8 Consumption function settings
It will display this pop-up window:
Figure 4.9 Energy meters configuration window
It is possible to configure up to three energy meters using the selector at the top.
2) Energy meter configuration
The settings for the meters are:
Settings related to the installation:
• Set energy meter active. It enables/disables the energy meter.
• Description. Internal description for the meter.
• IP Address. IP address where the energy meter is located.
• Port. Port for the Modbus TCP/IP connection. 502 port by default.
• Slave number. Slave Modbus address of the energy meter (1 to 254).
Settings related to the energy meter:
• Modbus register (active energy imported). Modbus register to read (1 to 3000).
• Register units. Units of the energy: Wh / kWh.
• Read function. Modbus Read function to use with this register. Functions 3: Read Holding
Registers and function 4: Read Input Registers are supported.
• Data length. Set the length of the data. (16, 32 or 64 data bits).
• Format. Set the data format: 0: Unsigned / 1: Signed (C2) / 2: Signed (C1) / 3: Float.
• Byte order. Set the data byte order: Big Endian / Little Endian / Word Inv BE / Word Inv LE.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
25 / 36
In addition to these settings, it is possible to modify some Modbus parameters to adapt the Modbus
communication to every installation. Usually, these settings should be left by default for a proper
communication with the meter.
Figure 4.10 Detail for the Modbus configuration settings
Once this part is concluded, close the window using OK button to save the changes.
3) Assign energy meters to the Panasonic outdoor units.
The link between the meters and the Panasonic system is done in the next table:
Figure 4.11 Energy meters table. Link between Modbus meter and Panasonic unit
To display the Panasonic outdoor units in this part of the configuration they must exist in Line 1 / Line 2
Configuration.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
26 / 36
4.2.6. Signals
All available Modbus registers, its corresponding description and other main parmaters are listed in the signals tab.
Figure 4.12 Intesis MAPS Signals tab
4.2.7. Sending the configuration to Intesis
When the configuration is finished, follow the next steps.
1.- Save the project (Menu option Project->Save) on your hard disk (more information in Intesis MAPS User
Manual).
2.- Go to tab ‘Receive / Send’ of MAPS, and in Send section, press Send button. Intesis will reboot
automatically once the new configuration is loaded.
Figure 4.13 Intesis MAPS Receive/Send tab
After any configuration change, do not forget to send the configuration file to the Intesis using the
Send button in the Receive / Send section.
4.2.8. Diagnostic
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
27 / 36
To help integrators in the commissioning tasks and troubleshooting, the Configuration Tool offers some specific
tools and viewers.
To start using the diagnostic tools, connection with the Gateway is required.
The Diagnostic section is composed by two main parts: Tools and Viewers.
• Tools
Use the tools section to check the current hardware status of the box, log communications into
compressed files to be sent to the support, change the Diagnostic panels’ view or send commands
to the gateway.
• Viewers
To check the status, viewer for the Internal and External protocols are available. It is also available
a generic Console viewer for general information about communications and the gateway status
and finally a Signals Viewer to simulate the BMS behavior or to check the current values in the
system.
Figure 4.14 Diagnostic
More information about the Diagnostic section can be found in the Configuraion Tool manual.
4.2.9. Set-up procedure
1. Install Intesis MAPS on your laptop, use the setup program supplied for this and follow the instructions given by
the Installation wizard.
2. Install Intesis in the desired installation site. Installation can be on DIN rail or on a stable not vibrating surface
(DIN rail mounted inside a metallic industrial cabinet connected to ground is recommended).
3. If using Modbus RTU, connect the communication cable coming from the EIA485 port of the Modbus RTU
installation to the port marked as Port B of Intesis. Not available for INMBSPAN128O000. More details in 3
CONNECTIONS.
If using, Modbus TCP, connect the communication cable coming from the Ethernet port of the Modbus TCP
installation to the port marked as Ethernet Port of Intesis. More details in 3 CONNECTIONS.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
28 / 36
4. Connect the communication cable coming from the Panasonic VRF installation to the port marked as Port A of
Intesis.
If connecting a second Panasonic VRF installation, connect it to the port marked as Port B. Only available for
INMBSPAN128O000. More details in 3 CONNECTIONS.
5. Power up Intesis. The supply voltage can be 9 to 36 Vdc or just 24 Vac. Take care of the polarity of the supply
voltage applied.
WARNING! To avoid earth loops that can damage Intesis and/or any other equipment connected to it, we
strongly recommend:
• The use of DC power supplies, floating or with the negative terminal connected to earth. Never use a
DC power supply with the positive terminal connected to earth.
• The use of AC power supplies only if they are floating and not powering any other device.
6. If you want to connect using IP, connect the Ethernet cable from the laptop PC to the port marked as Ethernet
of Intesis. More details in 3 CONNECTIONS.
If you want to connect using USB, connect the USB cable from the laptop PC to the port marked as Console of
Intesis. More details in 3 CONNECTIONS.
7. Open Intesis MAPS, create a new project selecting a copy of the one named INMBSPAN---O000.
8. Modify the configuration as desired, save it and download the configuration file to Intesis as explained in the
Intesis MAPS user manual.
9. Visit the Diagnostic section, enable COMMS () and check that there is communication activity, some TX frames
and some other RX frames. This means that the communication with the Centralized Controller and Modbus
Master devices is OK. In case there is no communication activity between Intesis and the Centralized Controller
and/or Modbus devices, check that those are operative: check the baud rate, the communication cable used to
connect all devices and any other communication parameter.
Figure 4.15 Enable COMMS
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
29 / 36

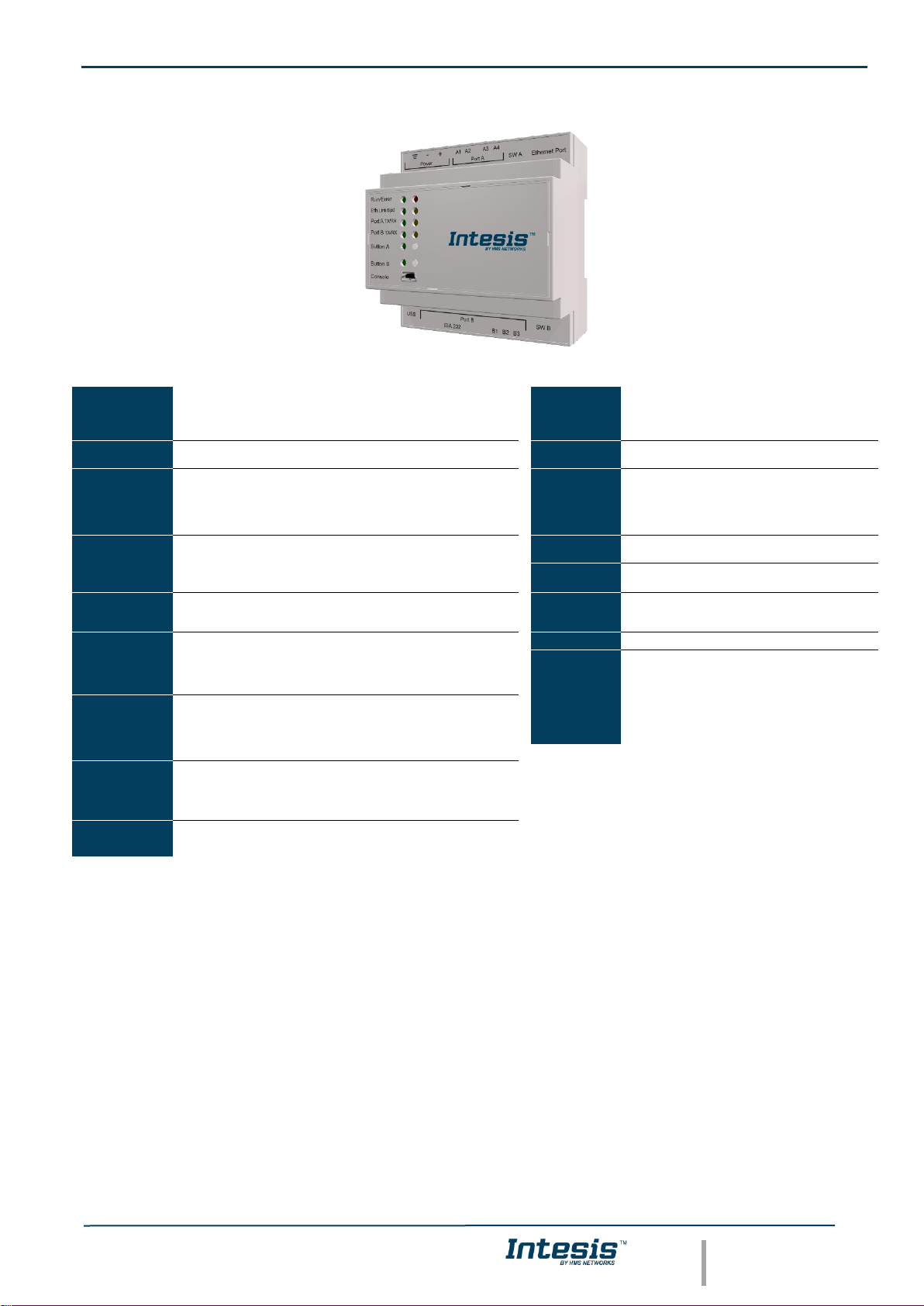

5. Electrical & Mechanical Features
5.1. Intesis ModBus Server for Panasonic 16 and 64 units
Enclosure
Plastic, type PC (UL 94 V-0)
Net dimensions (dxwxh): 90x88x56 mm
Recommended space for installation (dxwxh): 130x100x100mm
Color: Light Grey. RAL 7035
Battery
Size: Coin 20mm x 3.2mm
Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Mounting
Wall.
DIN rail EN60715 TH35.
Console Port
Mini Type-B USB 2.0 compliant
1500VDC isolation
Terminal
Wiring
(for power supply
and low-voltage
signals)
Per terminal: solid wires or stranded wires (twisted or with ferrule)
1 core: 0.5mm
2
… 2.5mm
2
2 cores: 0.5mm
2
… 1.5mm
2
3 cores: not permitted
If cables are more than 3.05 meters long, Class 2 cable is required.
USB port
Type-A USB 2.0 compliant
Only for USB flash storage device
(USB pen drive)
Power consumption limited to 150mA
(HDD connection not allowed)
Power
1 x Plug-in screw terminal block (3 poles)
9 to 36VDC +/-10%, Max.: 140mA.
24VAC +/-10% 50-60Hz, Max.: 127mA
Recommended: 24VDC
Push Button
Button A: Not used
Button B: Not used
Operation
Temperature
0°C to +60°C
Ethernet
1 x Ethernet 10/100 Mbps RJ45
2 x Ethernet LED: port link and activity
Operational
Humidity
5 to 95%, no condensation
Port A
1 x P-Link Plug-in screw terminal block orange (2 poles)
1500VDC isolation from other ports
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
Protection
IP20 (IEC60529)
LED
Indicators
10 x Onboard LED indicators
2 x Run (Power)/Error
2 x Ethernet Link/Speed
2 x Port A TX/RX
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
Switch A
(SWA)
1 x DIP-Switch for EIA485 configuration:
Reserved for future use
PORT B
1 x Serial EIA232 (SUB-D9 male connector)
Not used
1 x Serial EIA485 Plug-in screw terminal block (3 poles)
A, B, SGND (Reference ground or shield)
1500VDC isolation from other ports
Switch B
(SWB)
1 x DIP-Switch for serial EIA485 configuration:
Position 1:
ON: 120 Ω termination active
Off: 120 Ω termination inactive (default)
Position 2-3:
ON: Polarization active
Off: Polarization inactive (default)
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
30 / 36
5.2. Intesis ModBus Server for Panasonic 128 units
Enclosure
Plastic, type PC (UL 94 V-0)
Net dimensions (dxwxh): 90x88x56 mm
Recommended space for installation (dxwxh): 130x100x100mm
Color: Light Grey. RAL 7035
Battery
Size: Coin 20mm x 3.2mm
Capacity: 3V / 225mAh
Type: Manganese Dioxide Lithium
Mounting
Wall.
DIN rail EN60715 TH35.
Console Port
Mini Type-B USB 2.0 compliant
1500VDC isolation
Terminal
Wiring
(for power supply
and low-voltage
signals)
Per terminal: solid wires or stranded wires (twisted or with ferrule)
1 core: 0.5mm
2
… 2.5mm
2
2 cores: 0.5mm
2
… 1.5mm
2
3 cores: not permitted
If cables are more than 3.05 meters long, Class 2 cable is required.
USB port
Type-A USB 2.0 compliant
Only for USB flash storage device
(USB pen drive)
Power consumption limited to 150mA
(HDD connection not allowed)
Power
1 x Plug-in screw terminal block (3 poles)
9 to 36VDC +/-10%, Max.: 140mA.
24VAC +/-10% 50-60Hz, Max.: 127mA
Recommended: 24VDC
Push Button
Button A: Not used
Button B: Not used
Operation
Temperature
0°C to +60°C
Ethernet
1 x Ethernet 10/100 Mbps RJ45
2 x Ethernet LED: port link and activity
Operational
Humidity
5 to 95%, no condensation
Port A
1 x P-Link 1 Plug-in screw terminal block orange (2 poles)
1500VDC isolation from other ports
1 x Plug-in screw terminal block green (2 poles)
Reserved for future use
Protection
IP20 (IEC60529)
LED
Indicators
10 x Onboard LED indicators
2 x Run (Power)/Error
2 x Ethernet Link/Speed
2 x Port A TX/RX
2 x Port B TX/RX
1 x Button A indicator
1 x Button B indicator
Switch A
(SWA)
1 x DIP-Switch for EIA485 configuration:
Reserved for future use
PORT B
1 x Serial EIA232 (SUB-D9 male connector)
Not used
1 x P-Link 2 Plug-in screw terminal block orange (2 poles)
1500VDC isolation from other ports
Switch B
(SWB)
1 x DIP-Switch for serial EIA485 configuration:
Reserved for future use
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
31 / 36
6. Dimensions
Recommended available space for its installation into a cabinet (wall or DIN rail mounting), with space enough for
external connections
100 mm (h)
100 mm (w)
130 mm (d)
56 mm (h)
88 mm (w)
90 mm (d)
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
32 / 36
7. AC Unit Types compatibility
The gateway is compatible with Panasonic VRF units belonging to ECOi, ECOg and PACi series.
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
33 / 36
8. Error codes for Indoor and Outdoor Units
This list contains all possible values shown in Modbus register for “Error Code” for each indoor unit and outdoor
unit.
It must be taken into account that Outdoor Units are only able to reflect a single error for each indoor / outdoor unit
in the system. Thus, a unit having two or more active errors from that list will only report a single error code – the
one of the first error that has been detected.
Error
Code
Error in
Control Panel
Error category
Error Description
0
N/A
N/A
No active error
1
A01
GHP Engine
Issues
GHP - Engine oil pressure fault
2
A02
GHP - Engine oil level fault
3
A03
GHP - Engine over speed
4
A04
GHP - Engine under speed
5
A05
GHP - Ignition power supply failure
6
A06
GHP - Engine start up failure
7
A07
GHP - Fuel gas valve failure
8
A08
GHP - Engine stalled
9
A09
GHP - Engine overload
10
A10
GHP - High exhaust gas temp
11
A11
GHP - Engine oil level failure
12
A12
GHP - Throttle actuator fault
13
A13
GHP - Fuel gas valve adjustment failure
14
A14
GHP - Engine oil pressure sensor fault
15
A15
GHP - Starter power output short circuit
16
A16
GHP - Starter motor locked
17
A17
GHP - Starter current (CT) coil failed
19
A19
GHP - Wax Valve (3 Way) fault
20
A20
GHP - Cooling water temp high
21
A21
GHP - Cooling water level fault
22
A22
GHP - Cooling water pump fault
23
A23
GHP - Engine crank angle sensor failure
24
A24
GHP - Engine cam angle sensor failure
25
A25
GHP - Clutch fault
26
A26
GHP - Misfire
27
A27
GHP - Catalyst temperature fault
28
A28
GHP - Generator fault
29
A29
GHP - Converter fault
30
A30
GHP - Fuel gas pressure low
33
C01
Central
Controller Issues
Duplicated setting of control address
34
C02
Central control number of units mis-matched
35
C03
Incorrect wiring of central control
36
C04
Incorrect connection of central control
37
C05
System Controller fault, error in transmitting comms signal, i/door or
o/door unit not working, wiring fault
38
C06
System Controller fault, error in receiving comms signal, i/door or
o/door unit not working, wiring fault, CN1 not connected correctly
44
C12
Batch alarm by local controller
48
C16
Transmission error from adaptor to unit
49
C17
Reception error to adaptor from unit
50
C18
Duplicate central address in adaptor
51
C19
Duplicate adaptor address
52
C20
Mix of PAC & GHP type units on adaptor
53
C21
Memory fault in adaptor
54
C22
Incorrect address setting in adaptor
55
C23
Host terminal software failure
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
34 / 36
Error
Code
Error in
Control Panel
Error category
Error Description
56
C24
Host terminal hardware failure
57
C25
Host terminal processing failure
58
C26
Host terminal communication failure
60
C28
Reception error of S-DDC from host terminal
61
C29
Initialization failure of S-DDC
63
C31
Configuration change detected by adaptor
65
E01
Addressing and
Communication
Problems
Remote control detecting error from indoor unit, Address not
set/Auto address failed. Check interconnecting wiring etc. Readdress system.
66
E02
Remote detecting error from indoor unit,
67
E03
Indoor unit detecting error from remote,
68
E04
Indoor seeing error from outdoor. Qty of i/d units connected are less
than qty set. Check; all i/d units are ON, reset turn off all units wait
5min power up
69
E05
Indoor unit detecting error from outdoor unit, Error in sending
comms signal
70
E06
Outdoor unit detecting error from indoor unit, Error in receiving
comms signal
71
E07
Outdoor unit detecting error from indoor unit, Error in sending
comms signal
72
E08
Incorrect setting indoor/controller, Indoor address duplicated
73
E09
Incorrect setting indoor/controller, Remote address duplicated or IR
wireless controller not disabled
74
E10
Indoor unit detecting error from 'option' plug, Error in sending
comms signal
75
E11
Indoor unit detecting error from 'option' plug, Error in receiving
comms signal
76
E12
Auto addressing failed, Auto address connector CN100 shorted
during auto addressing
77
E13
Indoor unit failed to send signal to remote controller
78
E14
Setting Failure, Duplication of master indoor units
79
E15
Auto addressing failed, Number of indoor units connected are less
than number set
80
E16
Auto addressing failed, Number of indoor units connected are more
than number set
81
E17
Group control wiring error, Main indoor unit not sending signal for
sub indoor units
82
E18
Group control wiring error, Main indoor unit not receiving signal for
sub indoor units
84
E20
Auto addressing failed, No indoor units connected
88
E24
Auto addressing failed, Error on sub outdoor unit
89
E25
Auto addressing failed, Error on outdoor unit address setting
90
E26
Auto addressing failed, Quantity of main and sub outdoor units do
not correspond to the number set on main outdoor unit P.C.B.
93
E29
Auto addressing failed, Sub outdoor unit not receiving comms for
main outdoor unit
95
E31
Between units, Comms failure with MDC, does E31 remain after
power is re-instated? If so replace PCB. & power PCB
97
F01
Sensor Faults
Indoor Heat Exch inlet temp sensor failure (E1)
98
F02
Indoor Heat Exch freeze temp sensor failure (E2)
99
F03
Indoor Heat Exch outlet temp sensor failure (E3)
100
F04
Outdoor Discharge temp sensor failure (TD) or (DISCH1)
101
F05
Outdoor Discharge temp sensor failure (DISCH2)
102
F06
Outdoor Heat Exch temp sensor failure (C1) or (EXG1)
103
F07
Outdoor Heat Exch temp sensor failure (C2) or (EXL1)
104
F08
Outdoor Air temp sensor failure (TO)
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
35 / 36
Error
Code
Error in
Control Panel
Error category
Error Description
106
F10
Indoor inlet temp sensor failure
107
F11
Indoor outlet temp sensor failure
108
F12
Outdoor Intake sensor failure (TS)
109
F13
GHP - Cooling water temperature sensor failure
112
F16
Outdoor High pressure sensor failure
113
F17
GHP - Cooling water temperature sensor fault
114
F18
GHP - Exhaust gas temperature sensor fault
116
F20
GHP Clutch coil temperature fault
119
F23
Outdoor Heat Exch temp sensor failure (EXG2)
120
F24
Outdoor Heat Exch temp sensor failure (EXL2)
125
F29
Indoor EEPROM error
126
F30
Clock Function (RTC) fault
127
F31
Outdoor EEPROM error
129
H01
Compressor
Issues
Compressor Fault, Over current (Comp1)
130
H02
Compressor Fault, Locked rota current detected (Comp1)
131
H03
Compressor Fault, No current detected (Comp1)
133
H05
Compressor Fault, Discharge temp not detected (Comp1)
134
H06
Compressor Fault, Low Pressure trip
135
H07
Compressor Fault, Low oil level
136
H08
Compressor Fault, Oil sensor Fault (Comp1)
139
H11
Compressor Fault, Over current (Comp2)
140
H12
Compressor Fault, Locked rota current detected (Comp2)
141
H13
Compressor Fault, No current detected (Comp2)
143
H15
Compressor Fault, Discharge temp not detected (Comp2)
149
H21
Compressor Fault, Over current (Comp3)
150
H22
Compressor Fault, Locked rota current detected (Comp3)
151
H23
Compressor Fault, No current detected (Comp3)
153
H25
Compressor Fault, Discharge temp not detected (Comp3)
155
H27
Compressor Fault, Oil sensor fault (Comp2)
156
H28
Compressor Fault. Oil sensor (connection failure)
159
H31
Compressor Fault. IPM trip (IMP current on temperature)
193
L01
Incorrect Settings
Setting Error, Indoor unit group setting error
194
L02
Setting Error, Indoor/outdoor unit type/model miss-matched
195
L03
Duplication of main indoor unit address in group control
196
L04
Duplication of outdoor unit system address
197
L05
2 or more controllers have been set as 'priority' in one system shown on controllers set as 'priority'
198
L06
2 or more controllers have been set as 'priority' in one system shown on controllers not set as 'priority'
199
L07
Group wiring connected on and individual indoor unit
200
L08
Indoor unit address/group not set
201
L09
Indoor unit capacity code not set
202
L10
Outdoor unit capacity code not set
203
L11
Group control wiring incorrect
205
L13
Indoor unit type setting error, capacity
207
L15
Indoor unit paring fault
208
L16
Water heat exch unit setting failure
209
L17
Miss-match of outdoor unit with different refrigerant
210
L18
4-way valve failure
211
L19
Water heat exch unit duplicated address
213
L21
Gas type setup failure
225
P01
Indoor Unit
Problems
Indoor unit fault, Fan motor thermal overload
226
P02
Outdoor unit fault, Compressor motor thermal overload, over or
under voltage
IntesisTM Modbus Server – Panasonic User Manual r1.1 EN
© HMS Industrial Networks S.L.U. - All rights reserved
This information is subject to change without notice
URL https://www.intesis.com
36 / 36
Error
Code
Error in
Control Panel
Error category
Error Description
227
P03
Outdoor unit fault, Compressor discharge temperature too high
(Comp1) over 111 ºC. Low on ref gas, exp valve, pipework damage.
228
P04
Outdoor unit fault, High pressure trip
229
P05
Outdoor unit fault, Open phase on power supply. Check power on
each phase, inverter pcb, control pcb
233
P09
Indoor unit fault, Ceiling panel incorrectly wired
234
P10
Indoor unit fault, Condensate float switch opened
235
P11
GHP - Water Heat exch low temp (frost protection) fault
236
P12
Indoor unit fault, Fan DC motor fault
238
P14
Input from leak detector (If fitted)
239
P15
Refrigerant loss, high discharge temp and EEV wide open and low
compressor current draw.
240
P16
Outdoor unit fault, Open phase on compressor power supply
241
P17
Outdoor unit fault, Compressor discharge temperature too high
(Comp2) over 111 degC. Low on ref gas, exp valve, pipework
damage.
242
P18
Outdoor unit fault, By-pass valve failure
243
P19
Outdoor unit fault, 4 way valve failure, i/door temp rises in cooling or
fills in heating. Check wiring, coil, pcb output, valve operation.
244
P20
Ref gas, high temp/pressure fault, heat exch temp high C2, 55-60
degC, cooling over-load, sensor fault.
246
P22
Outdoor unit fan motor fault, fan blade jammed, check connections,
does fan turn freely, motor resistance 30-40ohm on each pair, no
fan fault, yes pcb fault.
250
P26
Outdoor unit fault, Compressor overcurrent - check winding
resistance, Inverter failure - check internal resistance term HIC + &
- to UVW 200-300Kohm or more
252
P29
Outdoor unit fault, Inverter circuit fault - Motor-current Detection
Circuit (MDC) fault, check comp windings, sensors C1 & TS, if ok
possible pcb failure.
253
P30
Indoor unit fault, System controller detected fault on sub indoor unit
255
P31
Simultaneous operation multi control fault, Group controller fault
Loading...
