Preface 3 (22)
1 Preface
This document describes how to setup and configure an Anybus CompactCom 40 IIoT Secure
device to enable OPC UA and how to connect and use the desktop client UaExpert.
More documentation and downloads can be found at www.anybus.com/support. For more info
regarding OPC UA and UaExpert, please visit the manufacturer’s support website.
1.1 Document History
Version
1.0 2020-10-xx
Date
Description
First release
1.2 Document Conventions
Numbered lists indicate tasks that should be carried out in sequence:
1. First do this
2. Then do this
Bulleted lists are used for:
• Tasks that can be carried out in any order
• Itemized information
► An action
→ and a result
User interaction elements (buttons etc.) are indicated with bold text.
Program code and script examples
Cross-reference within this document: Document Conventions, p. 3
External link (URL): www.hms-networks.com
WARNING
Instruction that must be followed to avoid a risk of death or serious injury.
Caution
Instruction that must be followed to avoid a risk of personal injury.
Instruction that must be followed to avoid a risk of reduced functionality and/or damage
to the equipment, or to avoid a network security risk.
Additional information which may facilitate installation and/or operation.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 6
Setup and Configuration 4 (22)
2 Setup and Configuration
2.1 Prerequisites
• Download and install UaExpert from Unified Automation:
www.unified-automation.com/products/development-tools/uaexpert.html
• Download and install an OPC UA Discovery server on a PC that the Anybus CompactCom 40
can access to get time synchronized.
– Local discovery server from OPC Foundation:
opcfoundation.org/developer-tools/developer-kits-unified-architecture/local-discoveryserver-lds/. This server installs as a service on a Windows PC and needs no
configuration.
• An Anybus CompactCom 40 series Ethernet IIoT Secure device supporting OPC UA.
• Possibility to modify and update the host application.
2.2 Update the Host Application
To enable the OPC UA server on the Anybus CompactCom 40, the OPC UA host object must be
implemented in the host application. Attribute #1, OPC UA Model, must be set to the value 1.
Other attributes are optional to implement to brand the identification of OPC UA on the network.
The definition of the OPC UA host object is available in the IIoT Secure Network Guide of each
product (see www.anybus.com/support pages for Anybus CompactCom 40 EtherNet/IP and
PROFINET).
Implementing attribute #1, OPC UA Model, of the OPC UA host object is required to
enable OPC UA on Anybus CompactCom 40 devices.
2.3 Certificates
Certificates are needed in order to set up a secure OPC UA connection. Both the CompactCom
and the OPC UA Client need to trust each other by installing the respective certificates in order
to set up a secure connection. The following sections will deal with how to generate and install
certificates in the CompactCom and in UaExpert.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 7
Setup and Configuration 5 (22)
2.3.1 Creating a CA Certificate

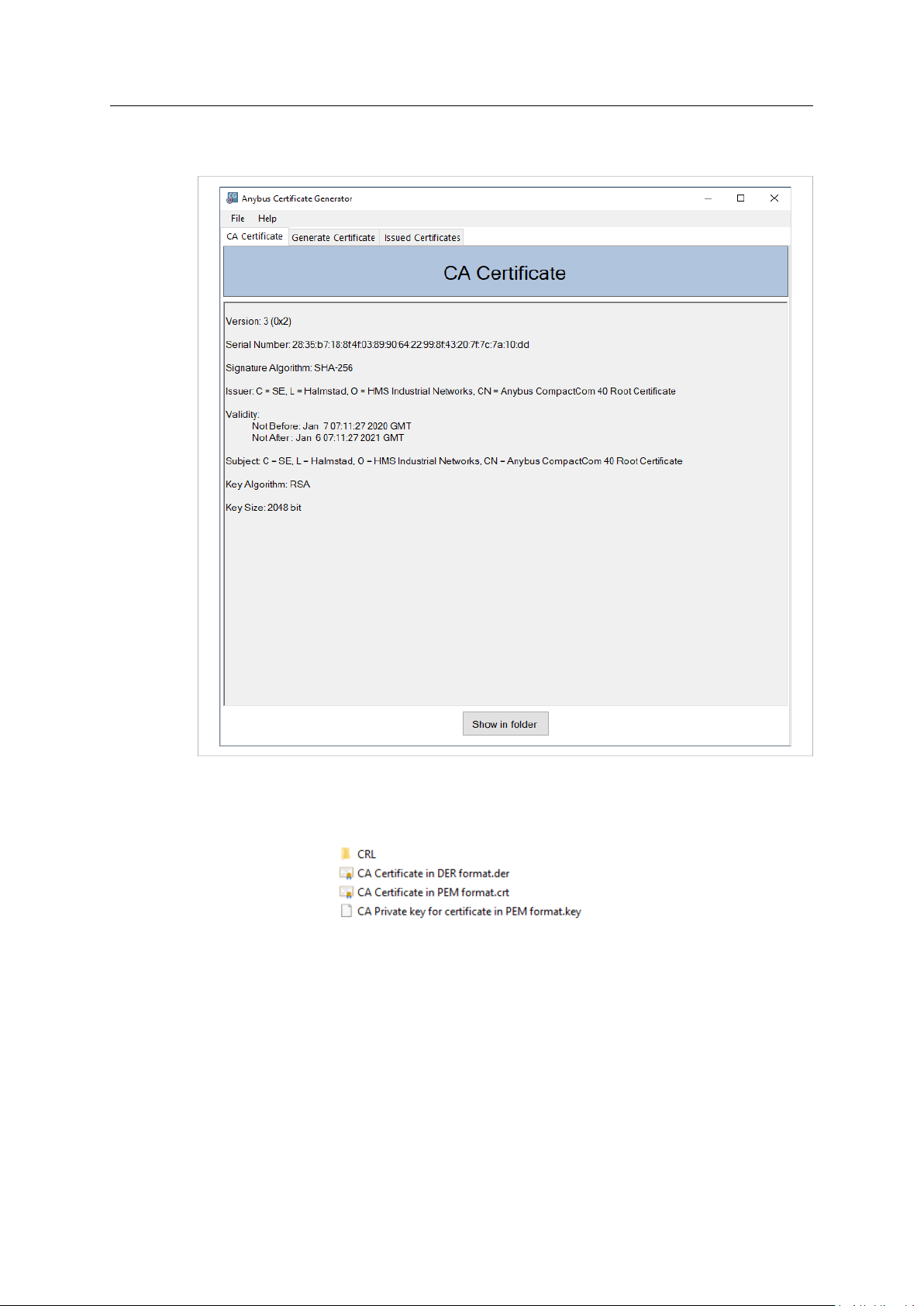

First, a CA certificate must be generated, e.g., by using the Anybus Certificate Generator. The
Anybus Certificate Generator can be downloaded from www.anybus.com/support.
Fig. 1

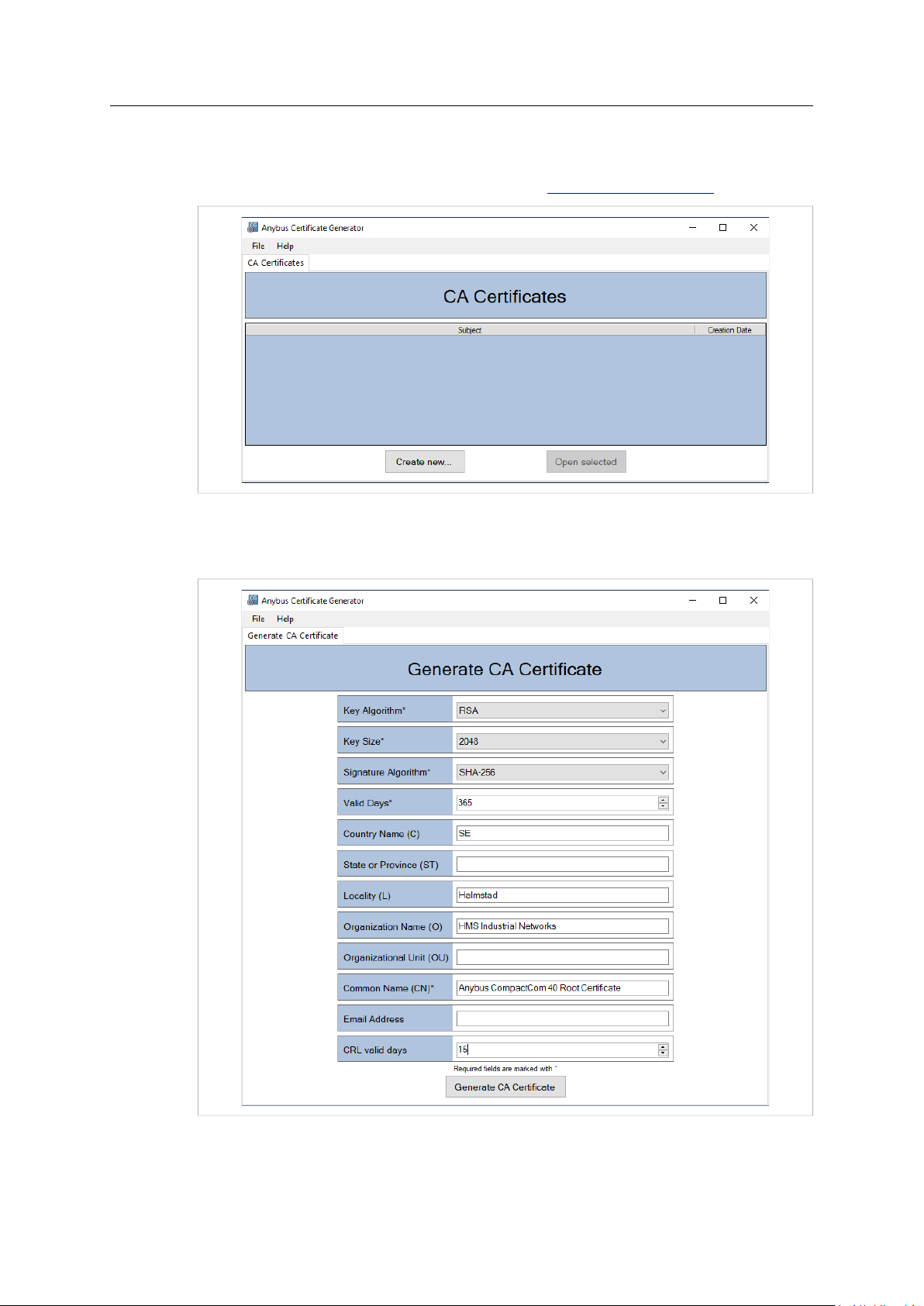

1. Click the ‘Create new…’ button.
2. Fill out the requested fields (fields marked with * are mandatory).
Fig. 2
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 8
Setup and Configuration 6 (22)
3. Click ‘Generate CA Certificate’. The CA certificate is generated and can now be used to
generate device certificates.
Fig. 3
4. To access the certificate, click on the ‘Show in folder’ button.
Folder contents:
• CA Certificate... is the CA certificate itself.
• CA Private key... is the private key for the CA certificate.
• The CRL-folder contains an empty Certificate Revocation List.
• Other folders hold the device certificates generated from this CA certificate.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 9
Setup and Configuration 7 (22)

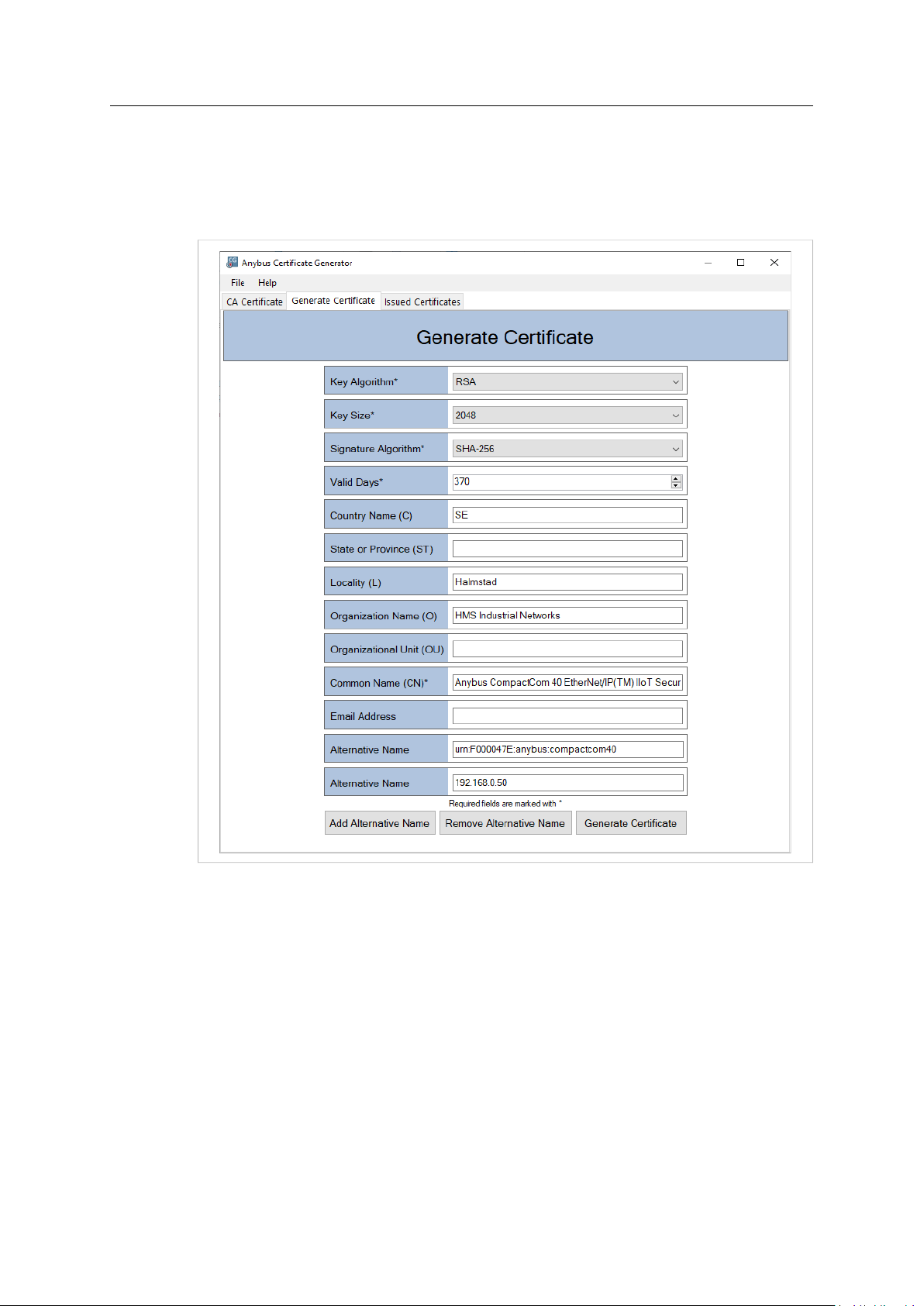

2.3.2 Creating a Device Certificate
A Device Certificate for the CompactCom must be generated.
1. Click on the ‘Generate Certificate’ tab.
2. Fill out the requested fields (fields marked with * are mandatory).
Fig. 4
For certificates intended for use with OPC UA, the following fields must be present with the
specified contents.
Common Name (CN): Must match the Product Name (Application Object (FFh), Attribute 9.
NOTE: Some network objects have a product name attribute that will override this attribute).
• For EtherNet/IP, the default value is ‘Anybus CompactCom 40 EtherNet/IP(TM) IIoT Secure’.
• For PROFINET, the default value is ‘Anybus CompactCom 40 PROFINET IRT IIoT Secure’.
Alternative Name: Must match the Application URI (OPC UA Object (E3h), Attribute 2).
• The default value is ‘urn:<hostname/serialnumber>:anybus:compactcom40’
Alternative Name: Must match the IP number or URL including host name, if configured.
3. Click the ‘Generate Certificate’ button.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 10
Setup and Configuration 8 (22)

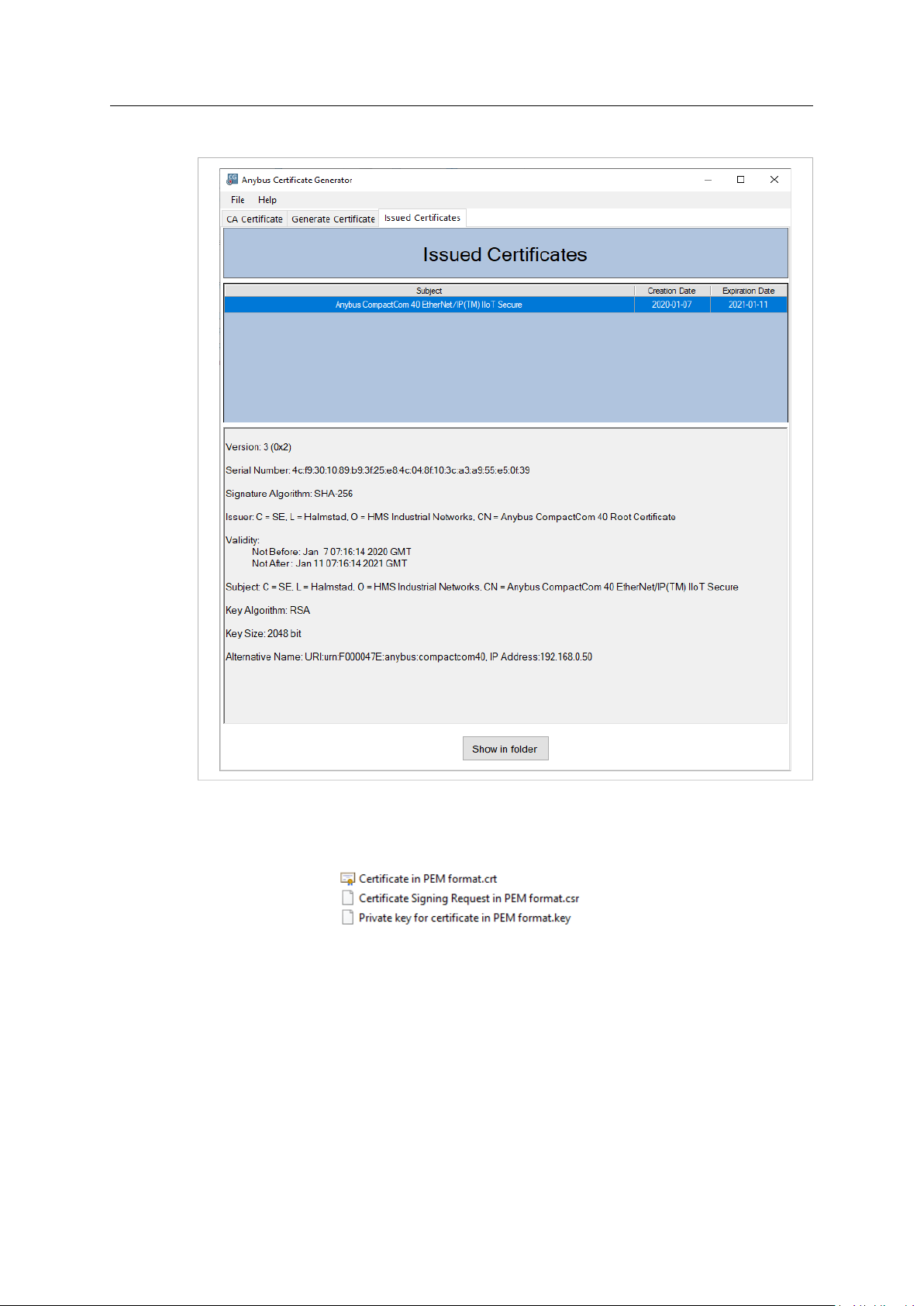

4. The certificate is generated and is now visible on the ‘Issued Certificates’ tab.
Fig. 5
5. To access the certificate, click on the ‘Show in folder’ button.
Folder contents:
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 11
Setup and Configuration 9 (22)

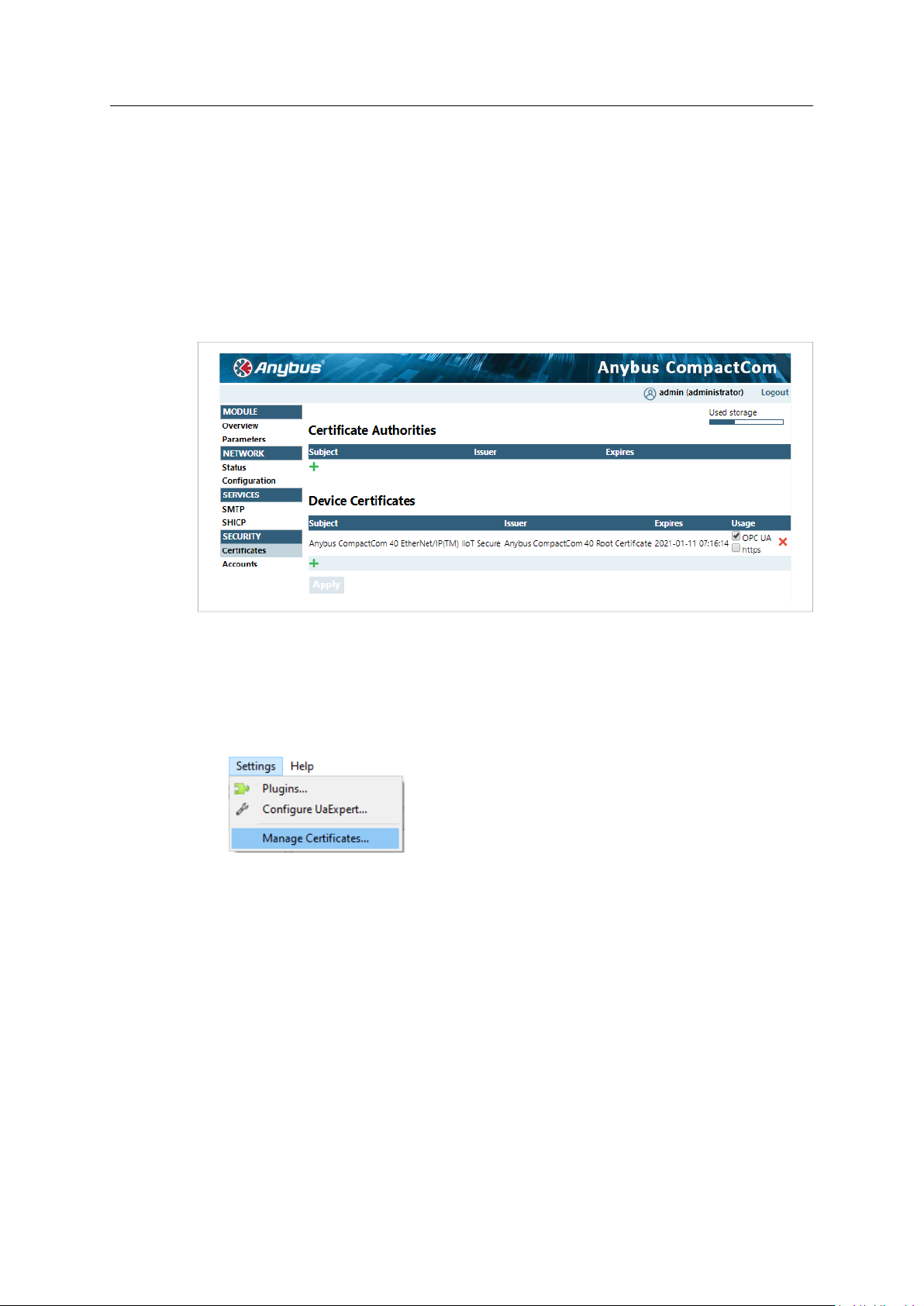

2.3.3 Installing Certificates in the Anybus CompactCom
The Device Certificate shall be installed in the CompactCom device via the website. Do the
following:
1. Browse to the CompactCom website and login with an account with administrator rights.
2. Install the certificate in the CompactCom – ‘Certificates->Install a device certificate’.
3. Enable the certificate for use with OPC UA by checking the usage checkbox.
4. Click ‘Apply’.
5. Restart the CompactCom for the changes to take effect.

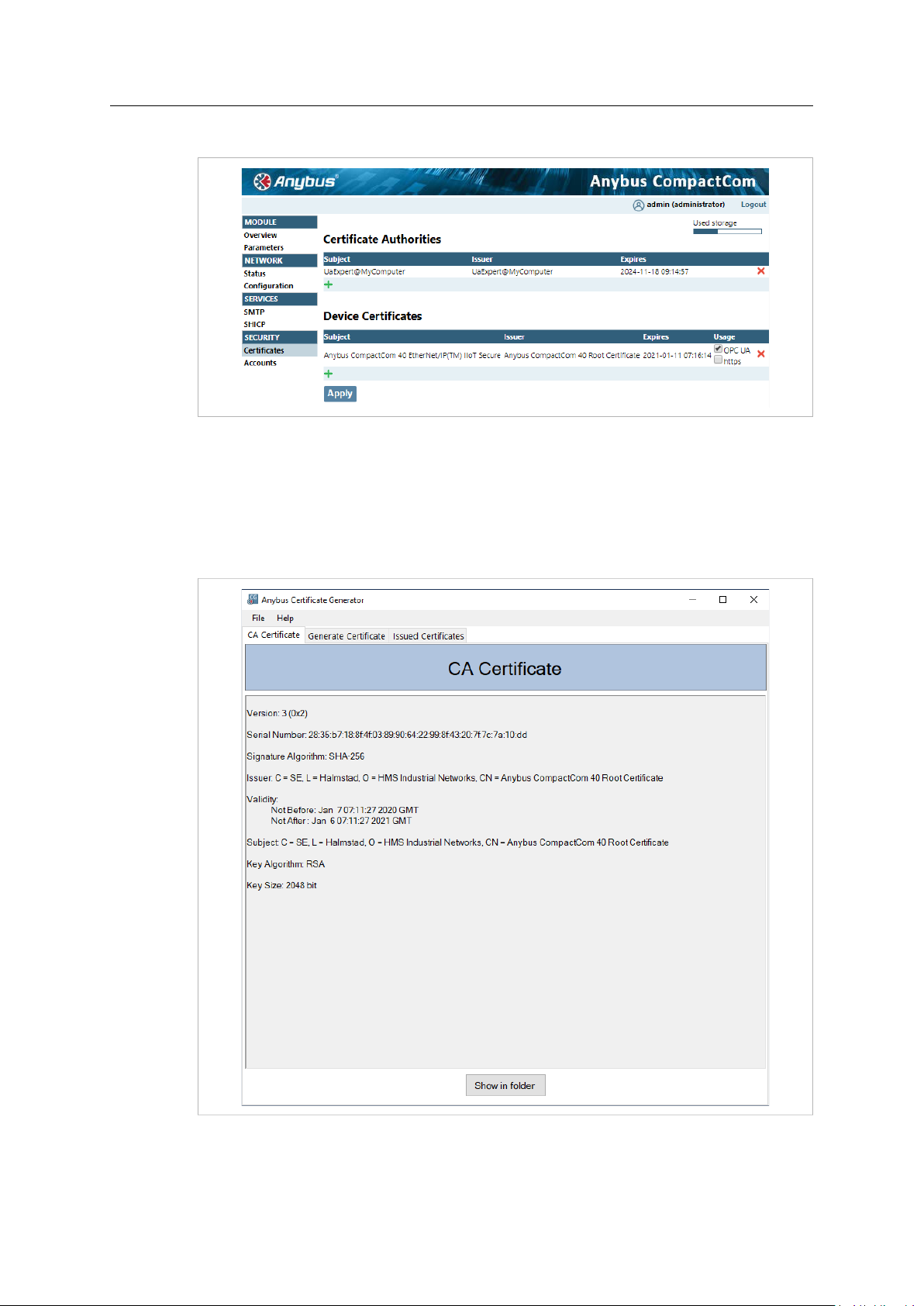

Fig. 6
The Application Certificate from UaExpert shall then be installed in the CompactCom via the
website. When installing UaExpert, a dialogue will appear where the client certificate is
configured and generated.
1. Start UaExpert.

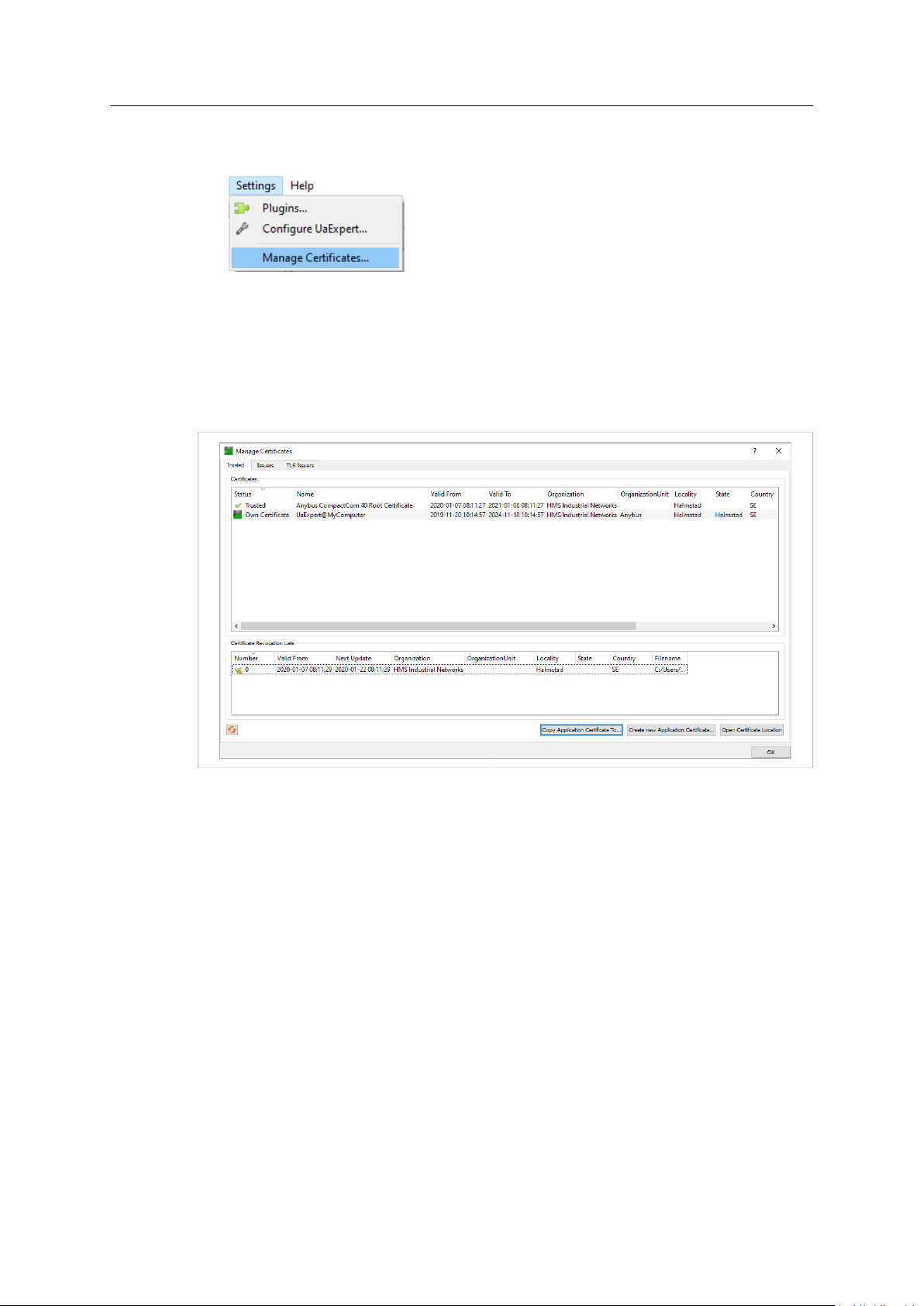

2. Select ‘Settings->Manage Certificates’ in the menu.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 12
Setup and Configuration 10 (22)

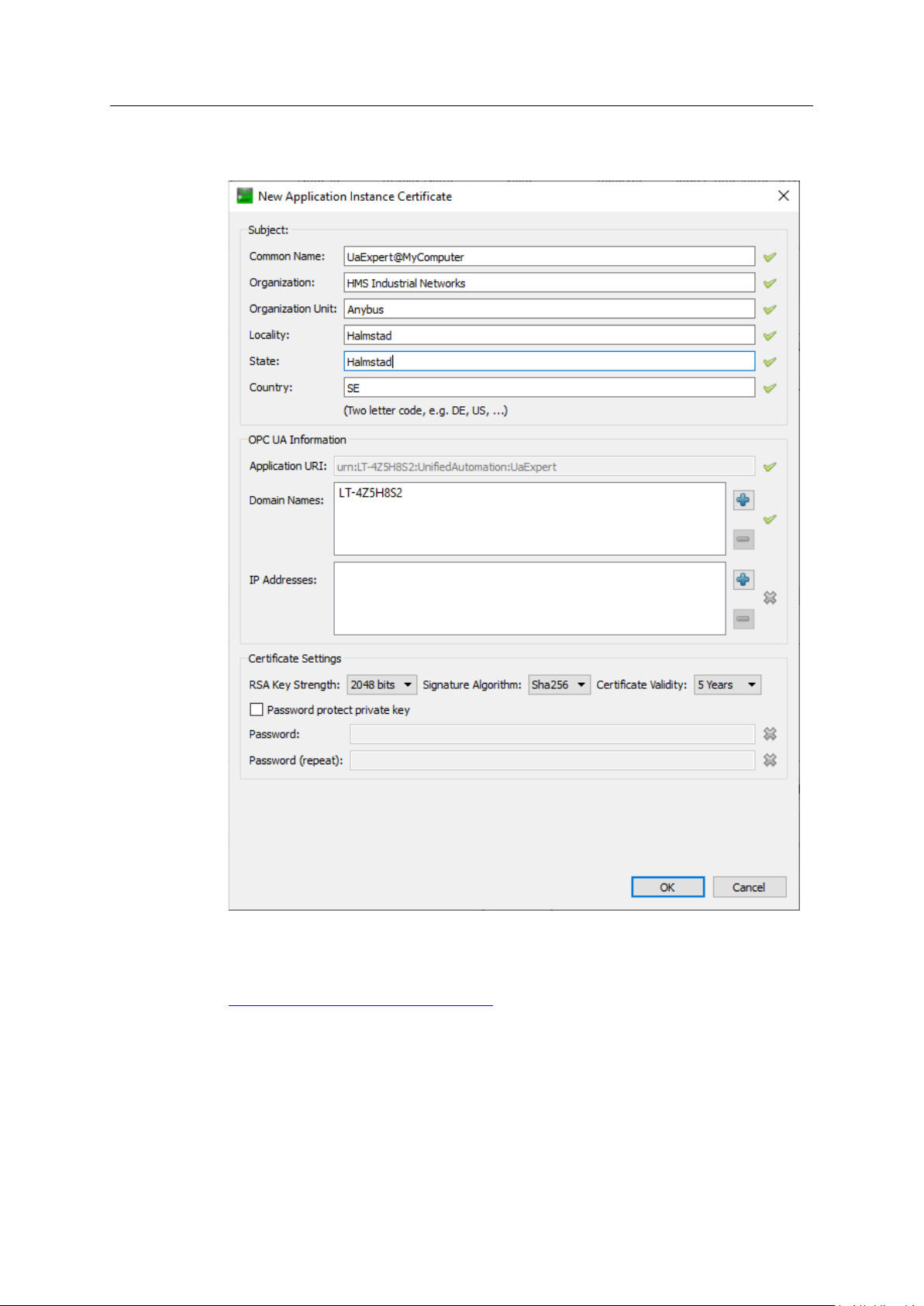

3. Click ‘Create new Application Certificate…’, if the ‘Own Certificate’ was not already created
when installing UaExpert. Follow the instructions and fill out the information needed to
create the certificate.
4. Click ‘Copy Application Certificate To…’ to save the certificate (uaexpert.der) to a folder of
your choice.
5. Convert the certificate from DER-format to PEM-format, e.g. by using the converter at
https://sslshopper.com/ssl-converter.html or by using the conversion function in OpenSSL.
6. Browse to the CompactCom website and login with an account with administrator rights.
7. Install the certificate in the CompactCom – ‘Certificates->Install a CA certificate’.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 13
Setup and Configuration 11 (22)
8. Restart the CompactCom for the changes to take effect.
Fig. 7
2.3.4 Installing Certificates in UaExpert
The CA Certificate that was used when generating the Device Certificate to the CompactCom
shall be installed in UaExpert. The easiest way to find the CA Certificate is to start the Anybus
Certificate Generator, open the specific certificate, and click ‘Show in folder’ (the CA certificate in
DER format, ‘.der’, is the certificate to use).
Fig. 8
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 14
Setup and Configuration 12 (22)
1. Start UaExpert
2. Select ‘Settings->Manage Certificates’ in the menu.
3. Click ‘Open Certificate Location’.
4. Copy the CA Certificate to the folder that pops up (remember to use DER format).
5. Copy the CRL for the CA certificate to the trusted crl-folder (go back one folder).
6. Click refresh. The certificate will show up as a trusted certificate and the CRL will show up as
a trusted CRL. Now, all devices with a device certificate based on this CA certificate will be
trusted by UaExpert.
Fig. 9
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 15
Setup and Configuration 13 (22)
2.4 Configuration
An easy check to verify that OPC UA is enabled when the module has started, is to enter the
configuration web page of the module. An OPC UA Configuration section shall be present
containing fields to configure the Network Configuration object instances related to OPC UA. It is
possible to specify what port the OPC UA server of the CompactCom 40 device listens to and the
URL to the Discovery server to be accessed to get time synchronized.
Configure the Discovery Server URL to point to the PC where the Discovery Server is installed.
The format of the URL must be: opc.tcp://<ip address or hostname>:<port>. The
port is optional. If it is absent, the default port 4840 will be used.

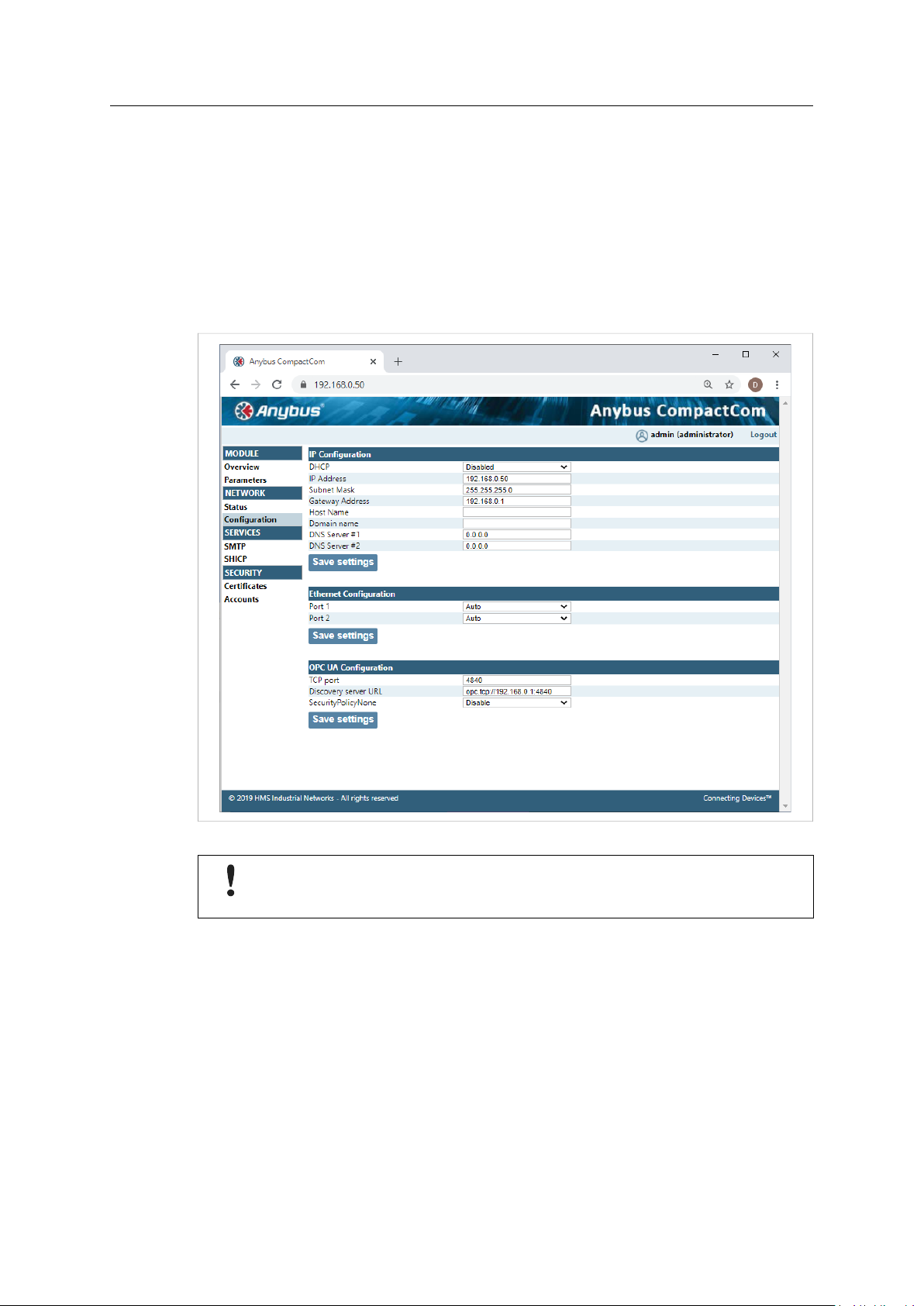

Fig. 10
To get Application Data Instance values timestamped correctly and to get valid
timestamps in the responses from the Anybus CompactCom 40 device a valid Discovery
Server URL must be configured.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 16
Setup and Configuration 14 (22)
2.4.1 Roles and Users
Roles and Users must be configured in the CompactCom according to the network guide.
By default, Admin and Operator roles have OPC UA access (stated in vfs/opcua.cfg). By adding an
opcua.cfg file to the root of the file system of the CompactCom the default file will be
overridden, and other roles can be configured for OPC UA access.
Default contents of vfs/opcua.cfg:
[Access]
administrator
operator
user:r,b
In order to access the entire file system with the default roles, Admin Mode must be enabled in the
Ethernet Host Object (F9h), Attribute #7.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 17
Use UaExpert
3 Use UaExpert
3.1 Connect to the Anybus CompactCom 40

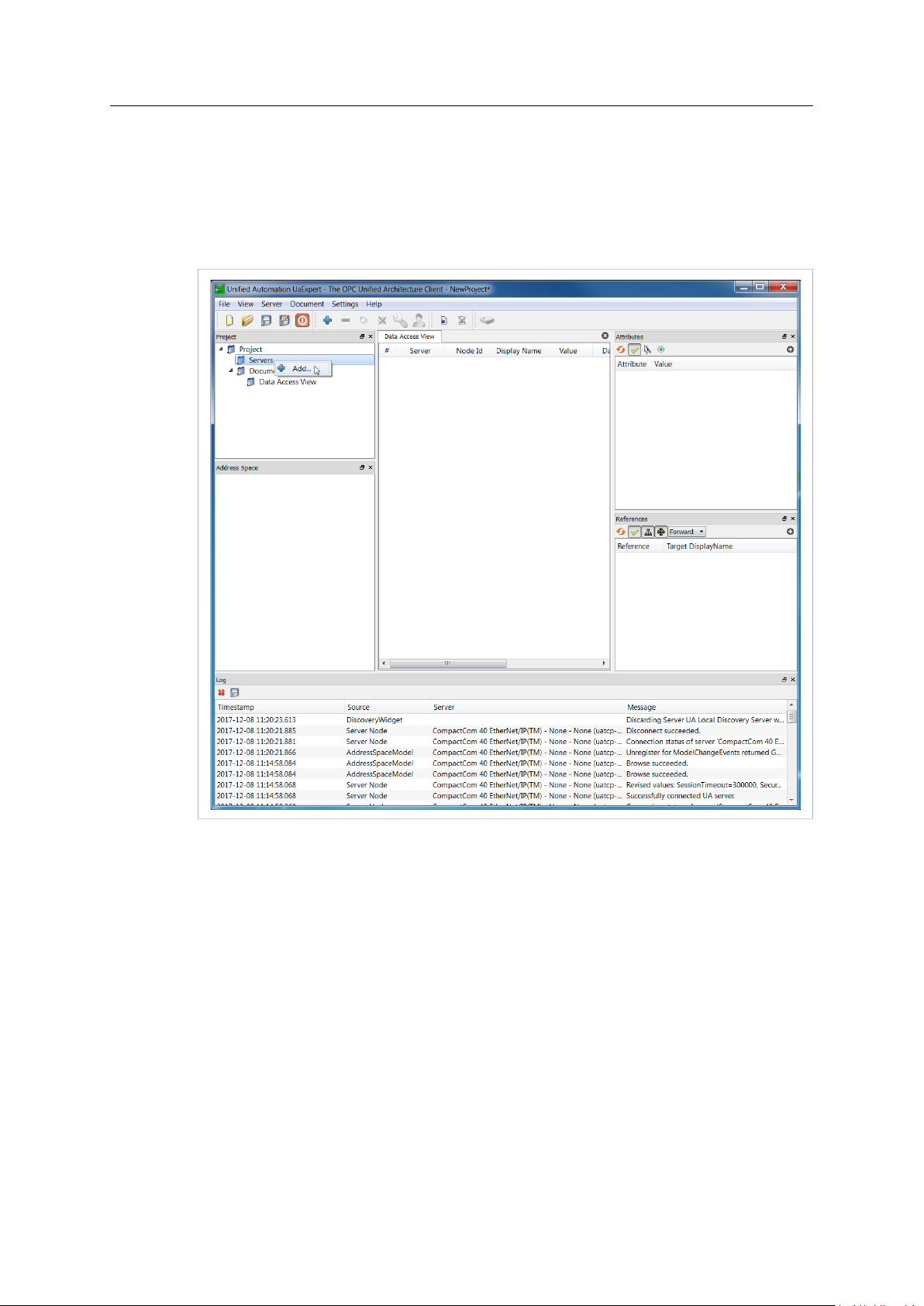

When starting UaExpert a new project will be loaded automatically. To add the CompactCom 40
device to the project, right click on the Servers folder of the Project window. Select “Add…” in
the drop-down menu.
15 (22)
Fig. 11

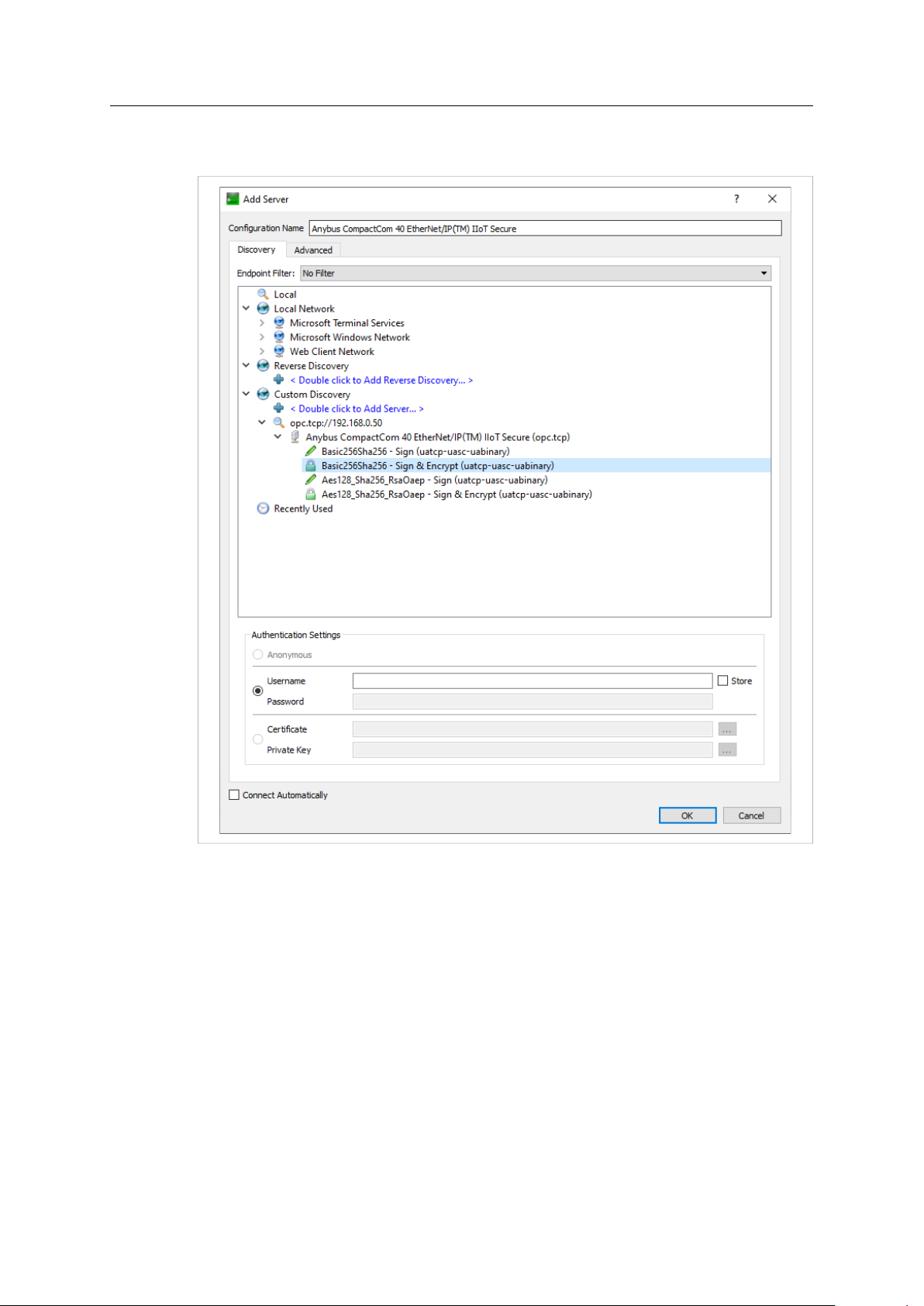

A new dialog window, “Add Server”, shall pop up. On the Discovery tab, add the CompactCom 40
device in the Custom Discovery section by double clicking on the “Double click to Add Server…”
option.
Enter the IP address of the device in the format opc.tcp://<ip-address or
hostname>:<port>, e.g. opc.tcp://192.168.0.10. If no port is specified, UaExpert
will use the default TCP port 4840.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 18
Use UaExpert
16 (22)
Fig. 12

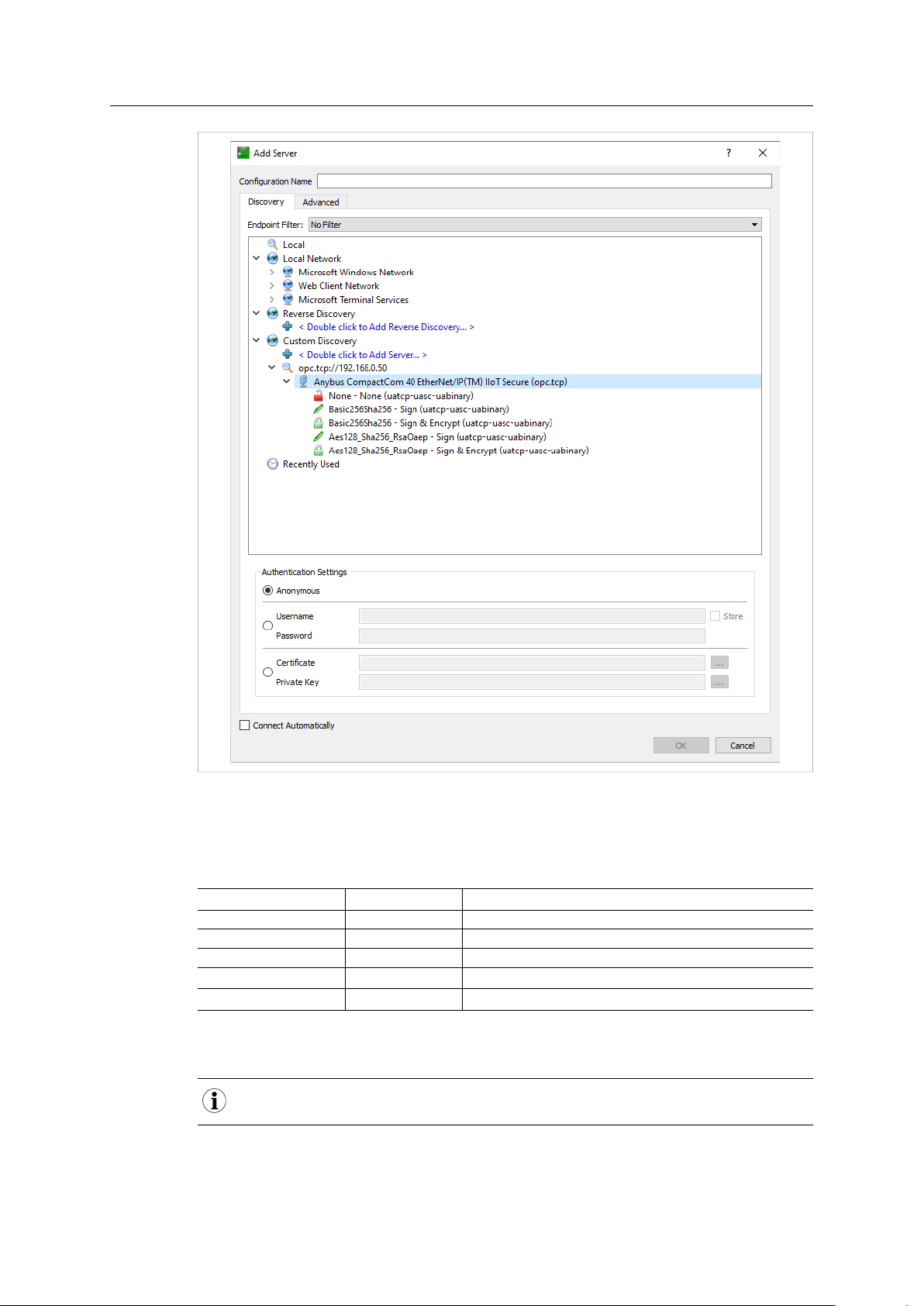

When the module has been added, expand it to find the available OPC UA server on the module.
Then expand the OPC UA server to see available endpoints to connect to.
Available endpoints:
Endpoint Sign
None No No
Basic256Sha256
Basic256Sha256
Aes128_Sha256_RsaOaep
Aes128_Sha256_RsaOaep
Yes No
Yes Yes
Yes No
Yes Yes
Encrypt
Select the endpoint to use. Username and Password can also be entered here (if stored, the user
does not have to fill it out at every connect).
For debugging purposes, select the endpoint SecurityPolicy - None to be able to see the information in e.
g. Wireshark.
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 19
Use UaExpert
17 (22)
Press the OK button to confirm the addition of the CompactCom 40 device to the UaExpert
project.
Fig. 13
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 20
Use UaExpert
18 (22)

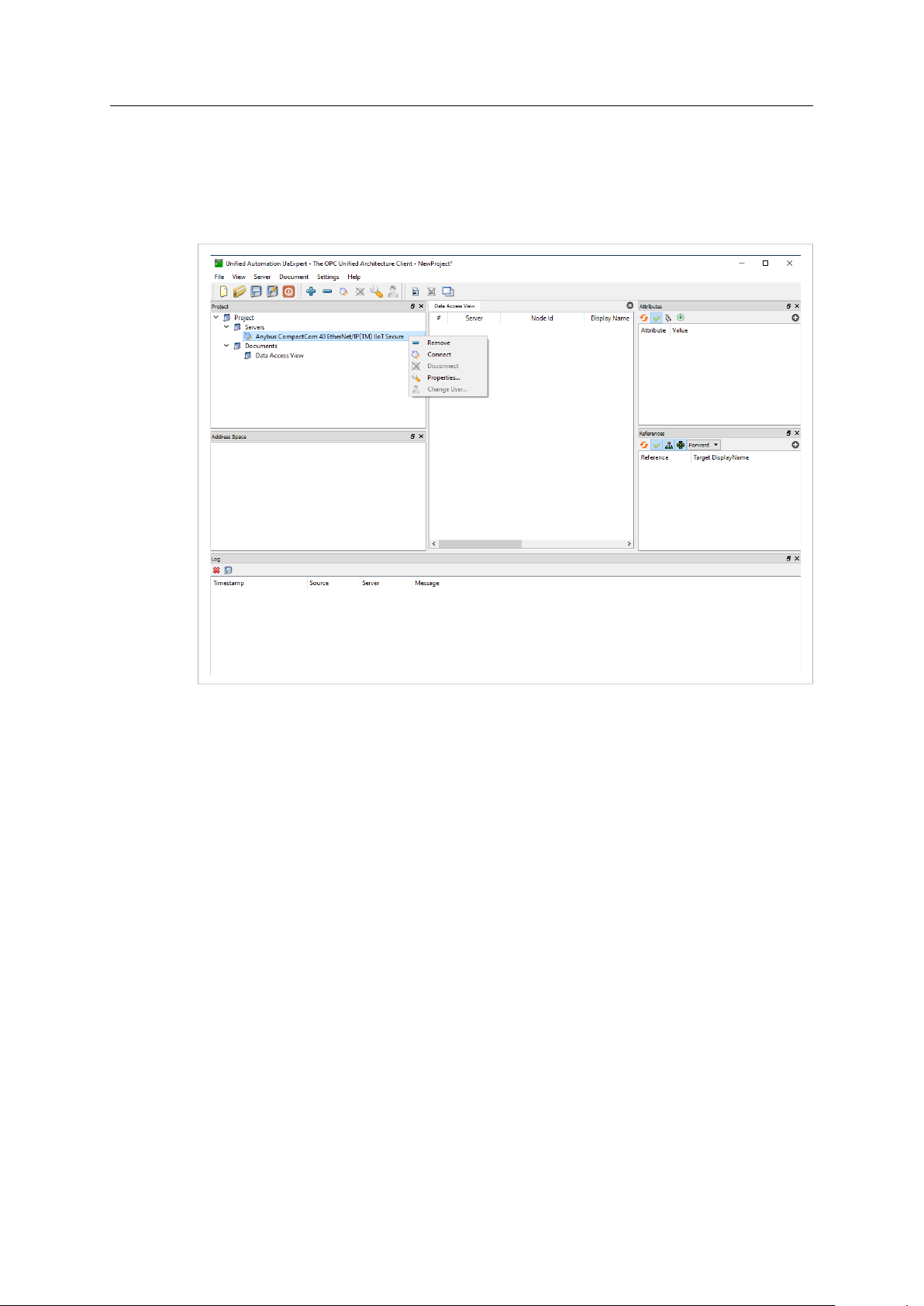

When the CompactCom 40 device has been added to the UaExpert project, it is possible to right
click on the entry representing the CompactCom 40 device in the Servers folder of the project
view. Click on the “Connect” option in the drop-down menu to connect to the device.
If “Username/password” was not already entered in the Authentication Settings when adding
the device, UaExpert will now ask for this information.
Fig. 14
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 21
Use UaExpert
3.2 Browse the Address Space

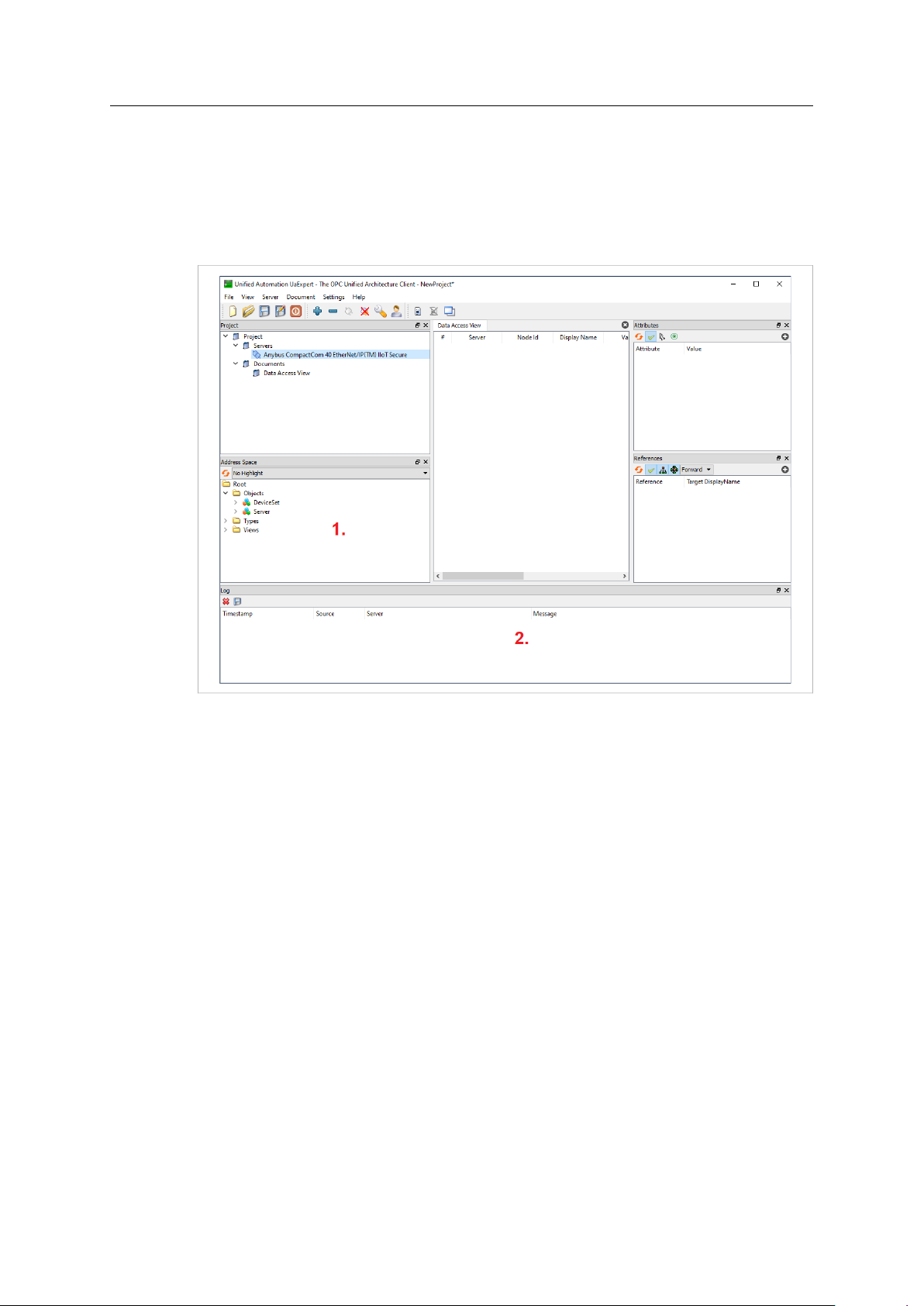

Once connected, UaExpert will present the Address space of the device in the Address Space
window (1). The address space can be browsed manually by expanding the folders and objects
visible in the Address Space window. At the bottom UaExpert presents a log of events (2). If it
fails to connect to the device or the Address Space is not populated as expected, it is
recommended to take a look at this log to figure out the problem.
19 (22)
Fig. 15
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 22
Use UaExpert
20 (22)

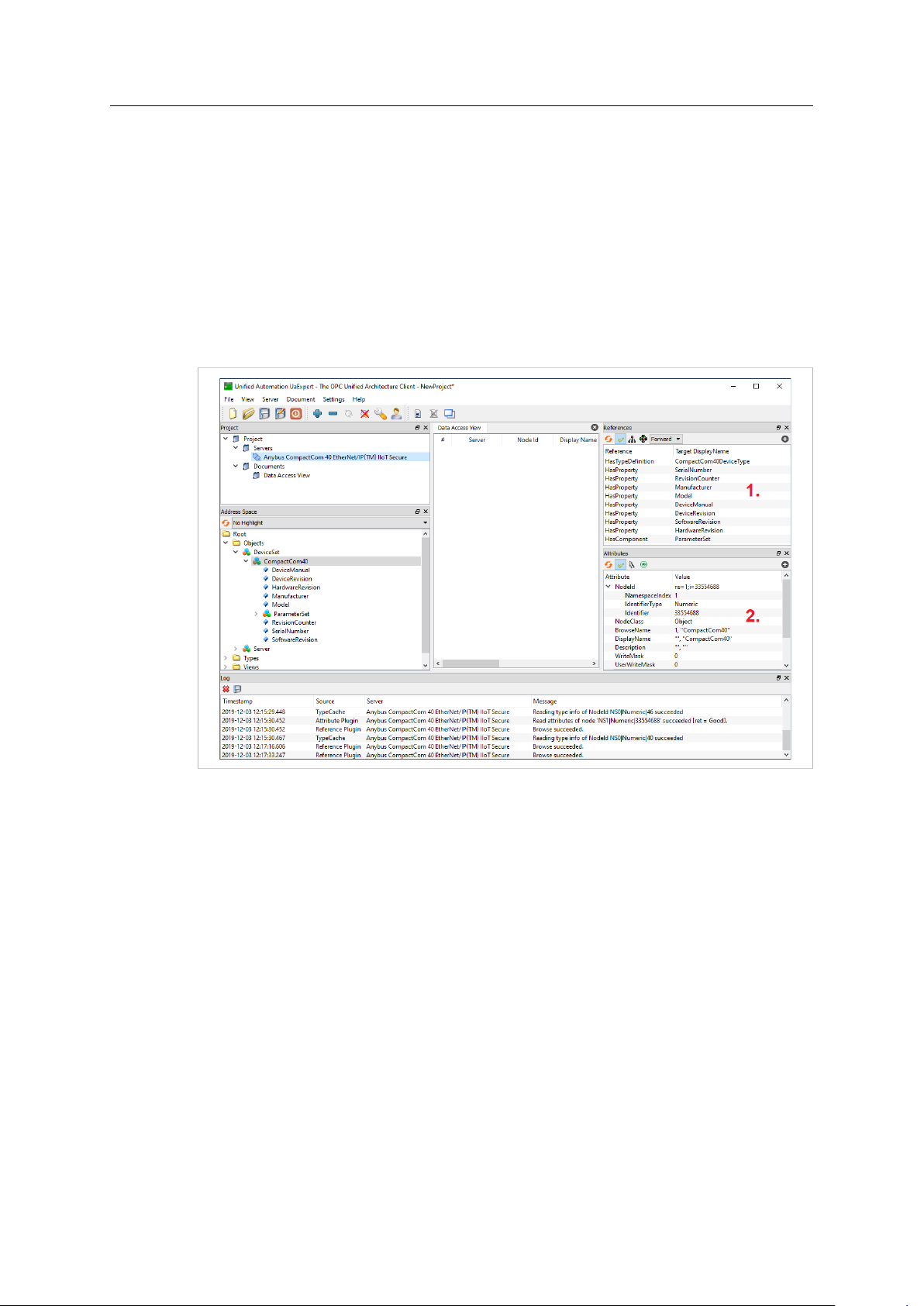

When browsing the address space, it is possible to select any node to get more details about it.
When a node has been selected in the Address Space window, all attributes of the node are
presented in the Attributes window (1). All nodes always have a mandatory base set of
attributes, then different node classes may specify additional attributes as well, both mandatory
and optional ones.
The references of the selected node are presented in the References window (2). By default only
forward references are shown. But there is a drop-down list that offers the possibility to show
inverted references or references in both directions.
The Address Space window, the Attributes window and the References window also have a
refresh button which forces UaExpert to reload the information presented in the window by
requesting it from the device.
Fig. 16
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 23
Use UaExpert
3.3 Subscribe to Monitor Application Data Instances
The Application Data Instances are present in the ParameterSet of the device in the address
space. By selecting the node it is possible to see the current value of the Application Data
Instance in the Attributes window.

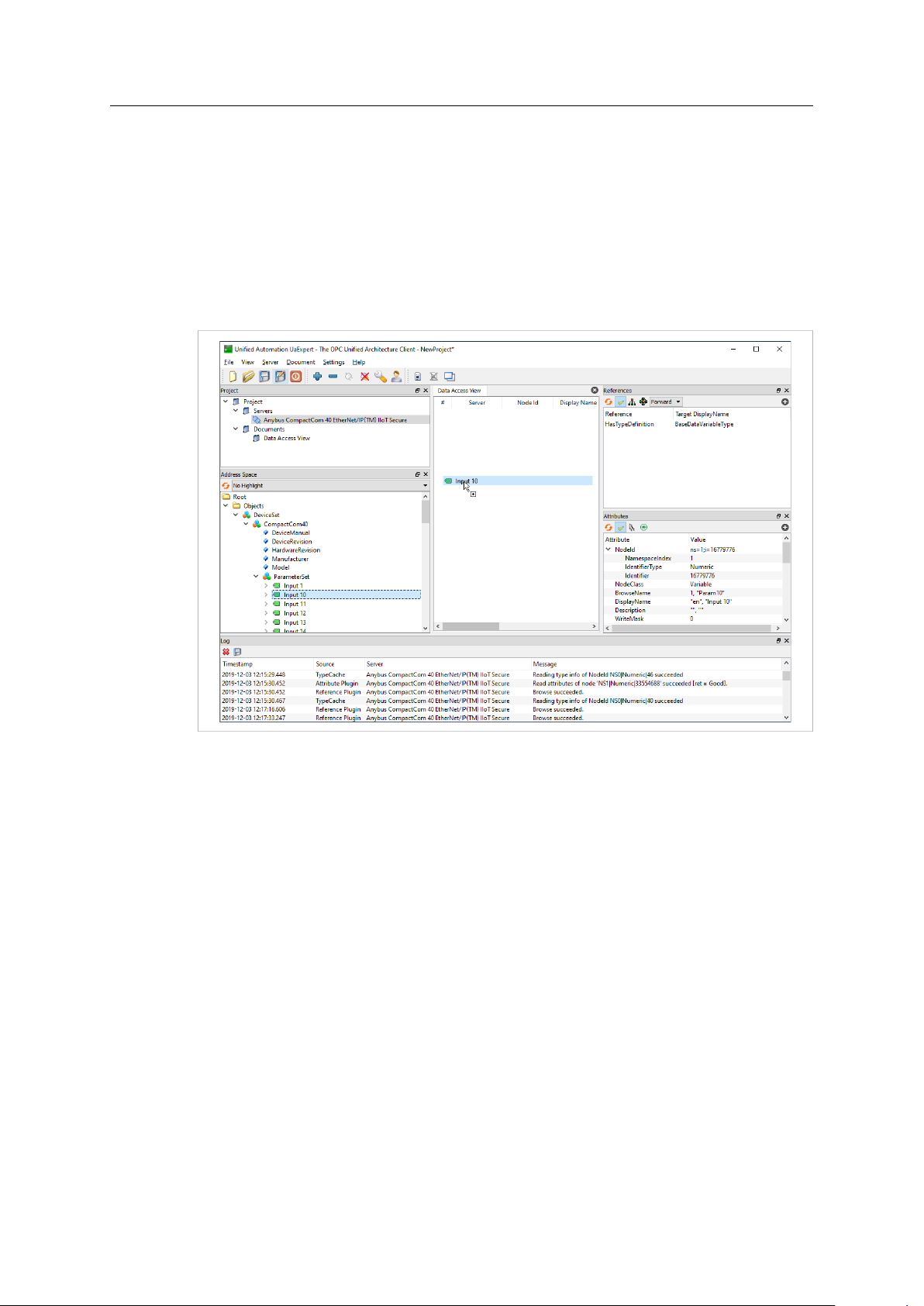

To setup a subscription and monitor the value of an Application Data Instance, drag and drop
one of the variable nodes from the ParameterSet into the Data Access View tab. UaExpert will
display the current value of the parameter, its data type, timestamp when latest value was
received etc. The OPC UA implementation has support for 10 subscriptions with up to 100
monitoredItems in total.
21 (22)
Fig. 17
Enabling and Using OPC UA on Anybus CompactCom 40 IIoT Secure
SCM-1202-169 1.0 en-US
Page 24
last page
© 2020 HMS Industrial Networks
Box 4126
300 04 Halmstad, Sweden
info@hms.se SCM-1202-169 1.0 en-US / 2020-10-28 / 20471
Loading...
