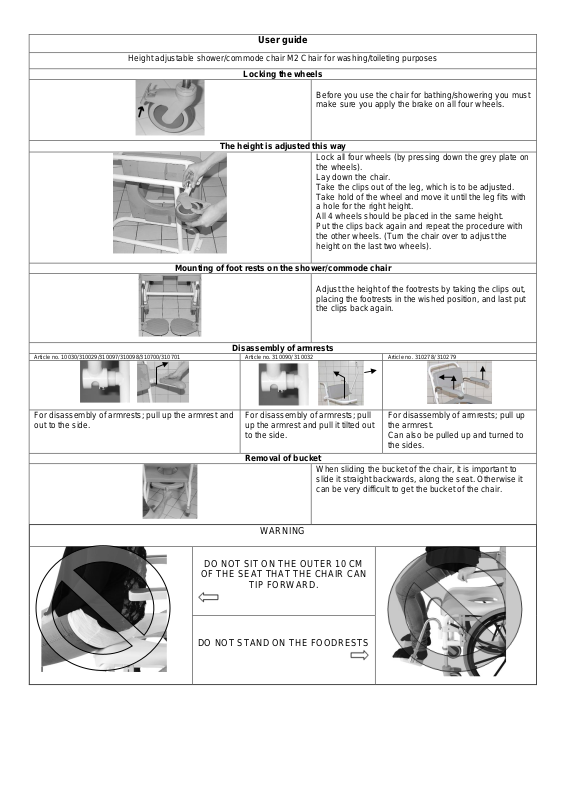

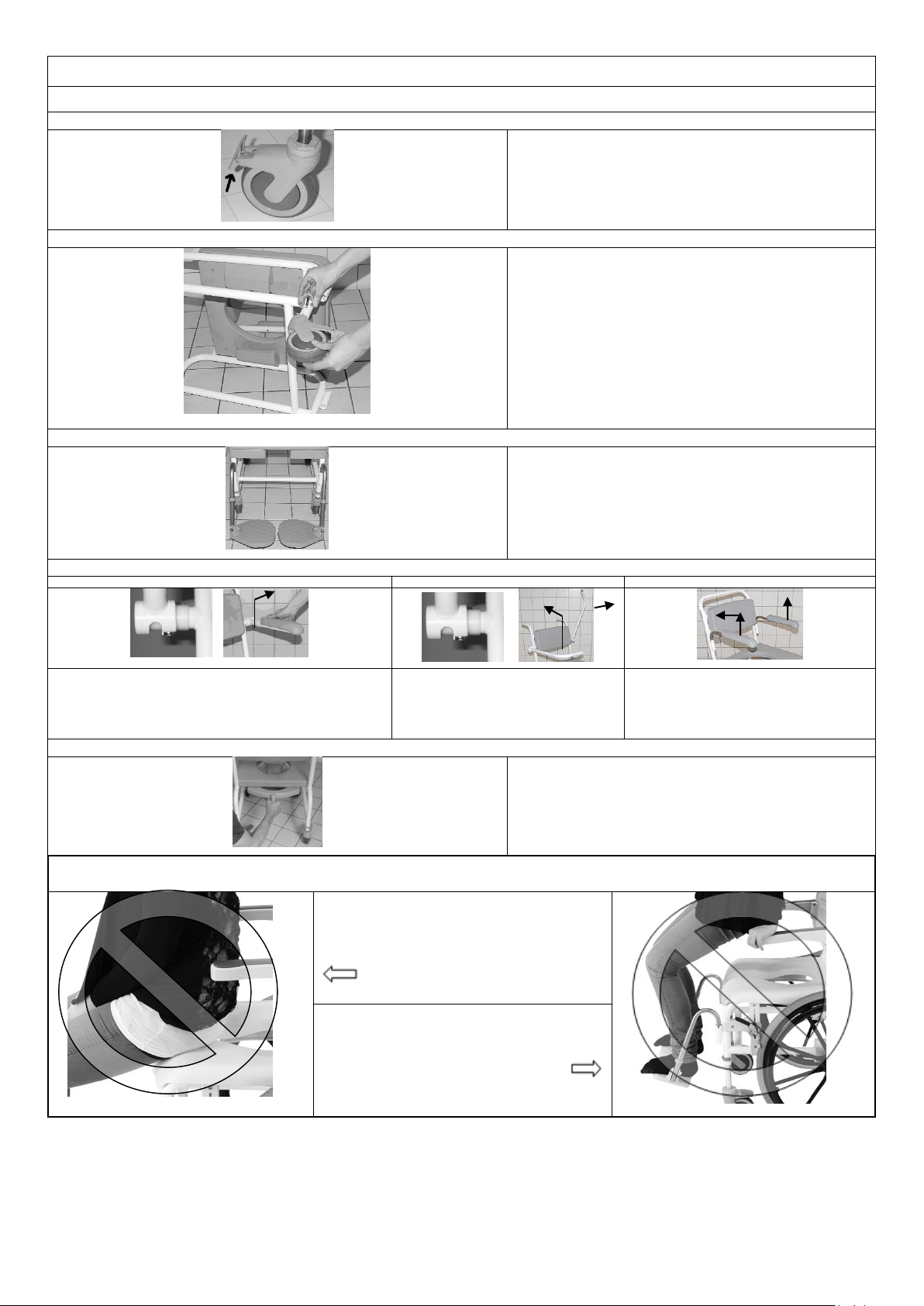

User guide
Height adjustable shower/commode chair M2 Chair for washing/toileting purposes
Locking the wheels
Before you use the chair for bathing/showering you must
make sure you apply the brake on all four wheels.
The height is adjusted this way
Lock all four wheels (by pressing down the grey plate on
the wheels).
Lay down the chair.
Take the clips out of the leg, which is to be adjusted.
Take hold of the wheel and move it until the leg fits with
a hole for the right height.
All 4 wheels should be placed in the same height.
Put the clips back again and repeat the procedure with
the other wheels. (Turn the chair over to adjust the
height on the last two wheels).
Mounting of foot rests on the shower/commode chair
Adjust the height of the footrests by taking the clips out,
placing the footrests in the wished position, and last put
the clips back again.
Disassembly of armrests
Article no. 10030/310029/310097/310098/310700/310701
Article no. 310090/ 310032
Article no. 310278/ 310279
For disassembly of armrests; pull up the armrest and
out to the side.
For disassembly of armrests; pull
up the armrest and pull it tilted out
to the side.
For disassembly of armrests; pull up
the armrest.
Can also be pulled up and turned to
the sides.
Removal of bucket
When sliding the bucket of the chair, it is important to
slide it straight backwards, along the seat. Otherwise it
can be very difficult to get the bucket of the chair.
WARNING
DO NOT SIT ON THE OUTER 10 CM
OF THE SEAT THAT THE CHAIR CAN
TIP FORWARD.
DO NOT STAND ON THE FOODRESTS
Page 2
Art. No.: 310030/ 310029/ 310090/ 310032/ 310278/ 310279/ 310097/ 310098
Max. Load: 125 kg
Attention: Push the Clips to the bottom when adjusting heights.
2 Years complaint rights against manufacturing errors.
Terms of claim for frame.
HMN grants 5 years claim rights against frame break-down for all M2
Shower/commode chairs and stainless steel shower stools. The warranty
applies for production and material break downs, and can only be used if
the products have been in normal use. Please note that the normal wear is
not included in the warranty.
Cleaning:
The product can be cleaned with regular cleaning without nonabrasive detergent. Wash and dry the product after the cleaning.
The product can be washed up to 85° degrees in 3 minutes.
This product is CE marking which means the product
complies with EU legislations and enables the free
movement of the product in the European market.
09.10.15
Spare parts
Art. No.
Description
Art. No.
Description
310340
Standard seat
310064
100 mm wheel with leg, 1 pcs.
310342
Seat with X-large hole
800042
100 mm wheel with leg, set with 4 pcs.
310341
Seat lid, standard
310073
Grey ferule for flat armrests
310343
Seat lid for seat with X-large hole
310074
Grey ferule for round armrests
310065
Clips for height adjustment, grey
800245
Grey ferule for flat oval armrests
310165
Clips for height adjustment, magenta
310068
Armrests, straight going to the side, set with 2 pcs.
800181
Pu foam pillow for armrests, straight armrests, set
310069
Armrests, curved, set with 2 pcs.
800241
Pu foam pillow for armrests, curved, set
310070
Armrests, straight going to the side with pu foam, 2 pcs.
800012
Screw for fastening of armrest pillows
310071
Armrests, curved with pu foam
310076
Nylon bush for armrests
800081
Armrests for M2-small set withy 2 pcs. With pu foam
310066
Armrests for straight up, set
310065
Clips for height adjustment, grey
310067
Armrests for straight up with pu foam, set
310165
Clips for height adjustment, magenta
HMN a/s
Midtager 22, 2605 Brøndby, Denmark
Tel.: +45 43 96 24 00 Fax. +45 43 96 26 92 E-mail [email protected]
www.hmn.dk
