HMM Diagnostics smartLAB indi User Manual
User Manual
D30410-08-01-02_R2_31/08/2009
HMM Diagnostics GmbH
D-69221 Dossenheim, Germany
www.hmm.info
Fully automatic wrist-cuff blood pressure monitor
Please read this user manual thoroughly before
first using the blood-pressure monitor.
3
Content
I. Introduction
Normal blood pressure fluctuation 5
II. Your smartLAB®indi
Display & functions 7
Product description 9
Specifications 9
Note 10
III. Setup & Operating procedures
Battery loading 12
Clock Mode 13
Clock Adjusting 13
Connecting the cuff to the monitor 14
Applying the cuff 15
Body posture during measurement 16
Measuring Process 16
4
Displaying stored results 18
Erasing results 19
IV. Miscellaneous
Assessing high blood pressure for adults 20
Knowledge on Blood Pressure 21
Troubleshooting 27
Maintenance 29
Explanation of Symbols 30
Warranty 30
5
I. Introduction
Thank you for using the smartLAB®indi wrist-cuff blood pressure monitor.
With this device you can easily control your blood-pressure values and pulse
rate and store the measured data. With its colored Bi-Classification LEDs,
all results on the meter can be classified according to their value. Please
read this manual thoroughly, before first using your smartLAB®indi wristcuff blood pressure monitor.
Normal blood pressure fluctuation
All physical activity, excitement, stress, eating, drinking, smoking and
many other activities or factors (including taking a blood pressure measurement) will influence blood pressure value. Because of this, it is mostly
unusual to obtain identical multiple blood pressure readings.
Blood pressure fluctuates continually — day and night. The highest value
usually appears in the daytime and lowest one usually at midnight. Typically, the value begins to increase at around 3:00AM, and reaches to highest level in the daytime while most people are awake and active.
6
Considering the above information, it is recommended that you measure
your blood pressure at approximately the same time each day.
Please always relax a minimum of 3 to 5 minutes between measurements to
allow the blood circulation in your arm to recover. It is rare that you obtain
identical blood pressure readings each time.
7
II. Your smartLAB®indi

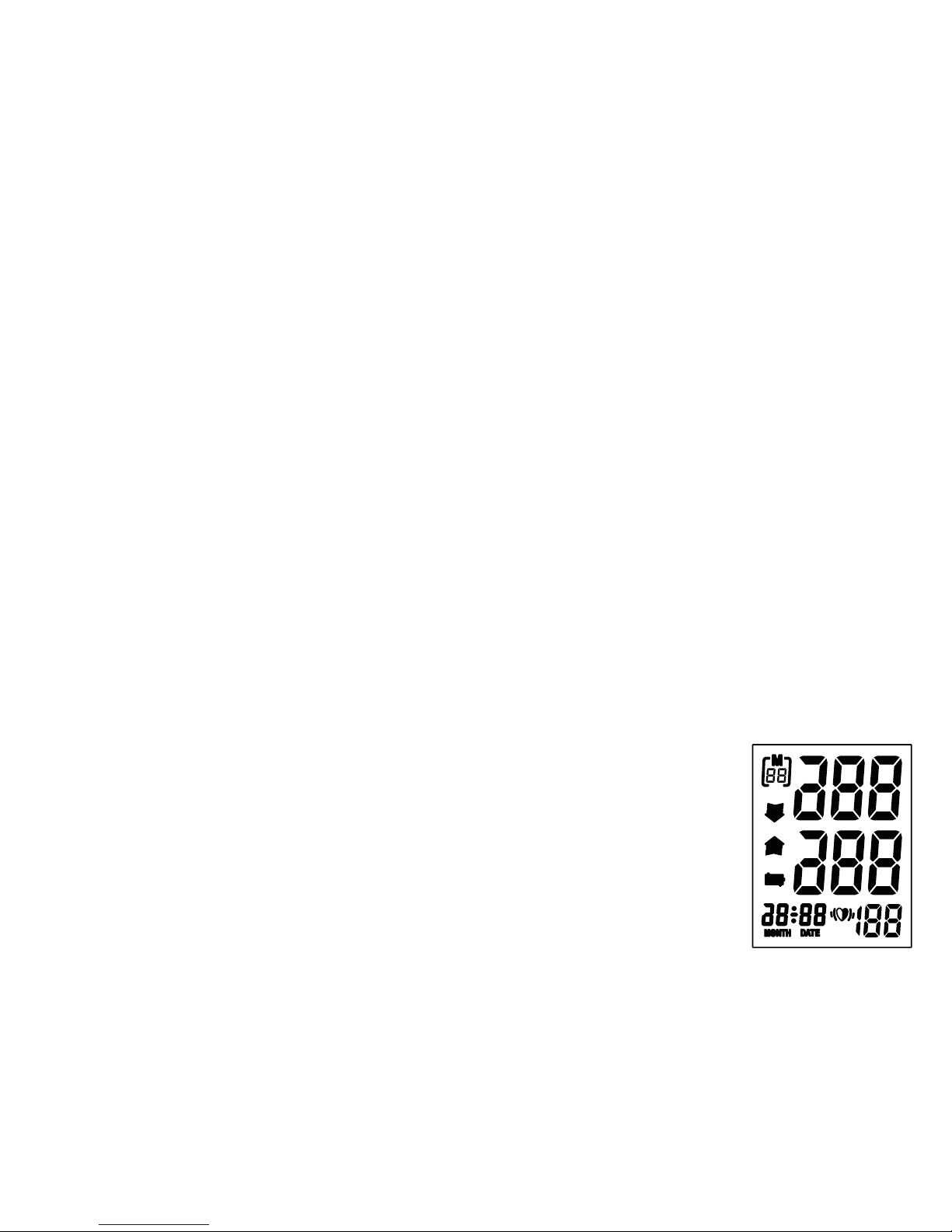

Display & functions
SYS Classification
LED
START button
DIA Classification
LED
MEM button
pulse
systolic
diastolic
LCD
mmHg
SYS
mmHg
DIA
PUL
/min
8
Set Contents
1 smartLAB®indi Blood Pressure Monitor
1 User Manual
1 smartLAB® Plastic Box
2 „AAA“ batteries
9
Product description
Based on oscillometric method and silicon integrate pressure sensor technology, blood pressure and heart rate can be measured automatically and
non-invasively. The LCD display will show blood pressure, pulse rate and
irregular heart beat (if any). The most recent 60 measurements can be
stored in the memory with date and time stamp. Systolic and Diastolic be
classified for your blood pressure respective.
Specifications
1. Model: smartLAB®indi
2. Classification: Internally powered, type B
3. Device size: 83 mm x 65.6mm x 32.2mm
4. Cuff size: 300 mm x 70mm
5. Weight: 130 g (ohne Batterien)
6. Measuring method: oscillometric, automatic
air inflation and measurement
7. Memory volume: 60 values with date and time
8. Batteries: 2xAAA
9. Blood pressure measuring range: 0-295mmHg
10. Measuring accuracy: ±3mmHg
11. Heart / Pulse rate range: 40-180/min
12. Environmental temperature for using:
5°C-40°C
13. Environmental humidity for using: 90%
14. Environmental temperature for storage:
-20°C~55°C
15. Environmental humidity for storage:
~
95%
16. Environmental pressure: atmosphere
pressure
17. Battery life: Approx.1 months with 3-min.
usage per day
10
Note:
1. Stay quite, calm and rest for 5 minutes before blood pressure
measurement.
2. The cuff should be placed at the same level as your heart.
3. During measurement, neither speak nor move your body and arm.
4. Measuring on same wrist for each measurement.
5. Please always relax a minimum of 3 to 5 minutes between
measurement to allow the blood circulation in your arm to recover.
6. Remove the batteries if the monitor will not be used for a month or
more to avoid damage of battery leakage.
7. This blood pressure monitor is designed for adults and should never be
used on infants or young children. Consult your physician or other
health care professionals before use on older children.
8. Blood pressure measurements determined by this monitor are
equivalent to those obtained by a trained observer using the cuff/
stethoscope auscultation method, within the limits prescribed by the
American National Standard, Electronic or automated sphygmomano meters.
9. Please avoid strong magnetism interference, such as mobile telephone,
