H.Koenig KM80s User manual

Instructions manual - Stand Mixer Multifunctions Manuel d'utilisation - Robot Pétrin Multifonctions
Bedienungsanleitung - Robot Mixer Multifunktions
Handboek - Robot Keukenmachine Multifunctioneel
Manual de Utilización - Robot BatidoraMultifunción
Manuale d’uso - Robot Impastatrice Multifunzione
ENGLISH

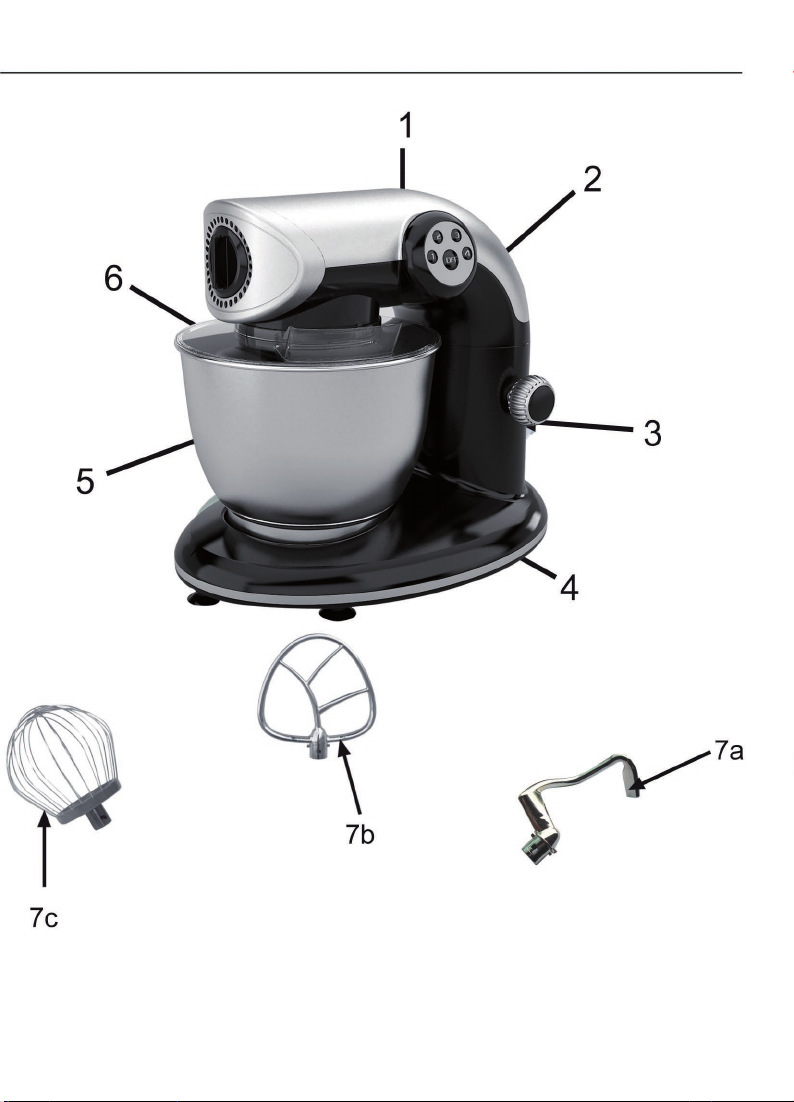

1.
Front Protection cover
8.
Bowl cover
2.
Arm
9.
Kneading hook cover
3.
Control panel
10.
Balloon whisk
4.
Rotating axis
11.
Beater
5.
Rubber feet
12.
Kneading hook
6.
Body
13.
Bowl
7.
Knob
Important safety precaution:
When using electrical appliance, basic precautions should always be followed including the following:
Read all instructions. To protect against risk of electrical shock do not put the appliance unit cord or plug
in water or other liquid.
Close supervision is necessary when a appliance is used by or near children. Switch off and unplug the appliance before fitting or removing tools/attachments,
after use and before cleaning.
Keep body parts, jewellery and loose clothing away from moving parts and fitted
attachments.
Never put your fingers etc., into the hinge mechanism. Avoid contacting moving parts. If the supply cord is damaged, it must be replaced by manufacturer or its service
agent or a similarly qualified person in order to avoid a hazard.
The use of attachments not recommended or sold by the manufacturer may cause
fire, electrical shock or injury.
Do not use outdoors. Never leave the appliance on unattended. Do let cord to hang over edge of table or counter Keep hands and utensils away from moving blades or discs while processing food to
reduce risk of severe injury to person or damage to the food mixer.
To reduce the risk of injury, never place cutting blades or discs on base. Turn off the machine before replace attachment. Use the product and assembly the accessory as mentioned on user manual only Switch off the appliance before changing accessories or approaching parts which
move in use.
This appliance is not intended for use by persons (including children) with reduced
physical, sensory or metal capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
Save these instructions
Switch
OFF-----Stop
Setting1-4----- Operating speed
Accessories
Button
Speed
Time
Kneading
Hook
12
33rpm/50rpm
1.5min at
button 1 and
8 min at
button 2
Balloon
Whisk
4
151rpm
10min
Beater
123
33rpm/50rpm/88rpm
5min
Position
1.
Setting1-----Minimum speed--slow Setting4-----Maximum speedfast
Setting Speed

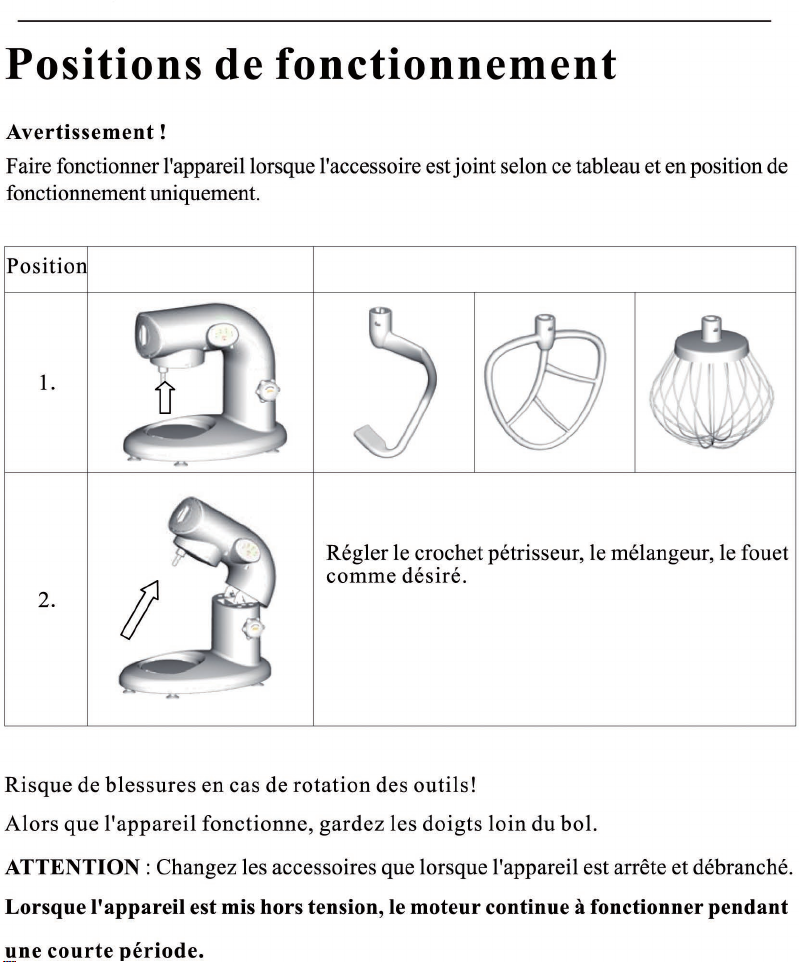

Operating positions
Warning!
Operate the appliance only when the accessory/tool is attached according to this table and is in the operating position.
2.
Set up Kneading Hook, Beater, Balloon Wisk, according to your desire
Risk of injury from the rotating tools!
1.
Align the arrow on front
protection cover to the one on arm, and then revolve it into arm counter-clockwise.
While the appliance is operating, keep fingers clear of the mixing bowl. Do not change tools until the appliance is at a standstill and have been unplugged. When switch off, the drive continues running briefly.

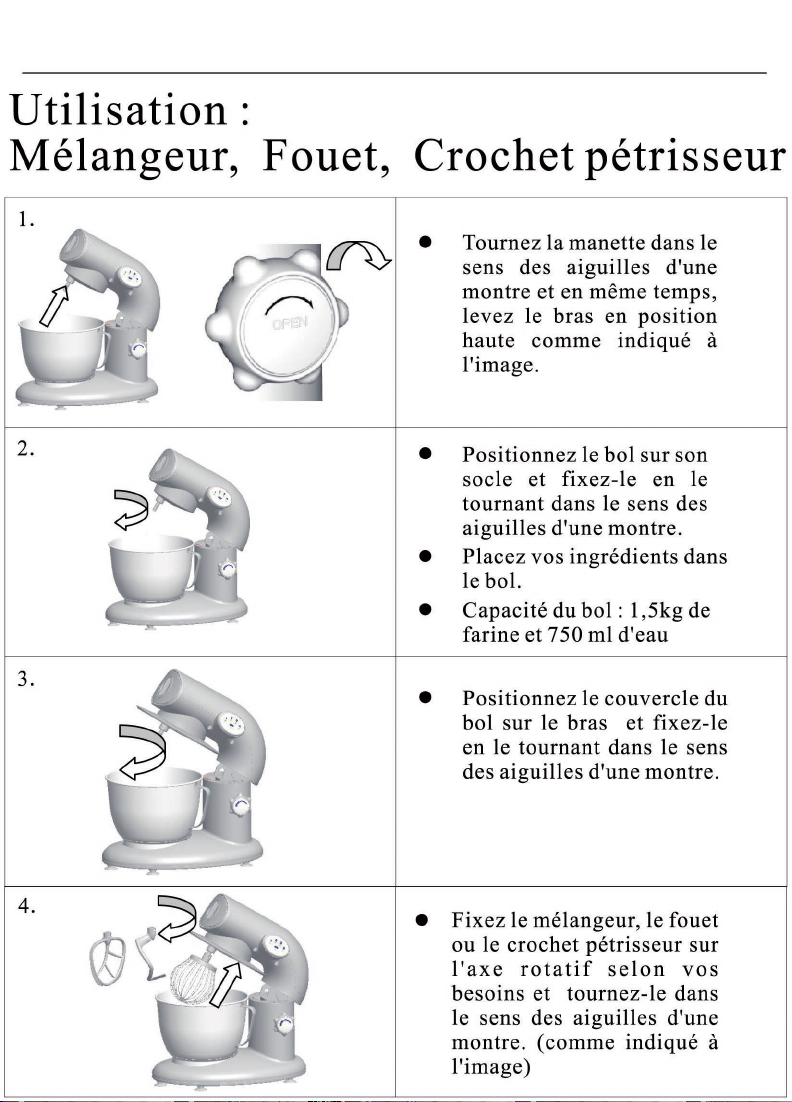

How to use
Stirrer, Eggbeater, Kneading hook
2.
Revolve the knob
clockwise; meanwhile, set the arm to the position as picture shown.
3.
Assembling the bowl filled
with powder into base flute clockwise.
4. Assembly bowl cover into arm counter-clockwise.
5.  According to your desire, assembly beater, balloon wish, kneading hook into rotating axis then revolve them clockwise (As picture shown).

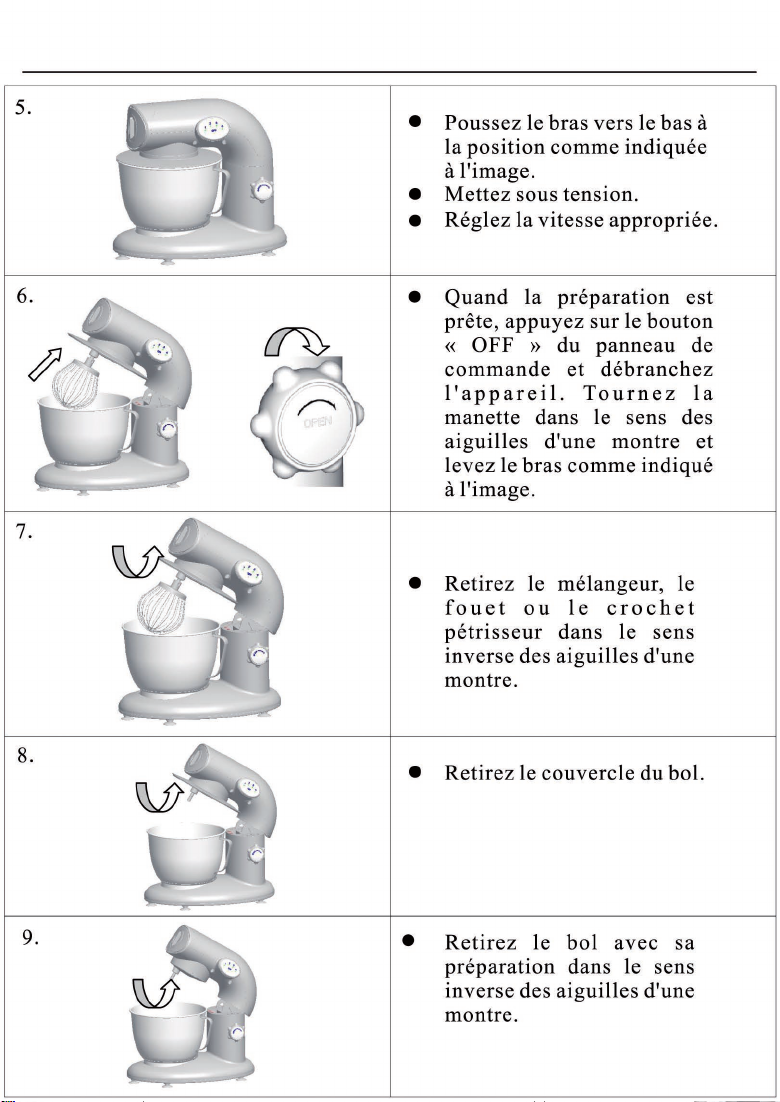

6. Press arm down to position as picture shown.
Power on. Set switch to the appropriate
speed.
7. After food is ready, set the
control panel to “OFF” then
unplug. Turn the knob clockwise and set arm up to position as picture shown.
8. Remove beater, balloon whisk, kneading hook counter-clockwise.
9.  Remove bowl cover.
10. Remove bowl with prepared food counter-clockwise.
11. Press arm down to position as picture shown.
IMPORTANT!
1. The temperature of water which will be added into dough at 40+/-5 degree when preparing for dough is on progress.
2. Do not operate the appliance for more than 10mins consecutively when the dough hook, flat beater, and whisk are working. Running the appliance continuously for too long without a break may reduce the life span of the appliance. After having used the appliance for 10 minutes, take a break and wait at least 40-45 minutes before using it again.
3. If at any time, the mixer head is raised during an operation, the mixer will
automatically stop and it will not re-start when the mixer head is lowered. To re-start the
mixer turn the speed control to the off 0 position and then re-select a speed.
Cleaning and servicing
Never immerse the base unit in water or hold under running water.
Do not use abrasive to clean
Wipe unit with a damp cloth, if required; use a litter washing up liquid. Then wipe unit
dry.
Do not wedge plastic parts in the dishwasher as the could warp
Wash attachment in hot soapy water or top rack of dishwaherer. Rinse and dry
thoroughly.
After washing and d
storage.
rying, immediately place attachment into the protective sleeve for
Capability of bowl
1.5kg flour and 0.75Kg water
When stirring flour, power gets to 1000W. KB1 min
ENVIRONMENT
CAUTION:
Do not dispose of this product as it has with other household products. There
is a separation of this waste product into communities, you will need to inform
your local authorities about the places where you can return this product. In
fact, electrical and electronic products contain hazardous substances that
ha
ve harmful effects on the environment or human health and should be
recycled. The symbol here indicates that electrical and electronic equipment
should be chosen carefully, a wheeled waste container is marked with a
cross.
Manufactured and imported: Adeva SAS 8 rue Marc Seguin 77290 Mitry-Mory FRANCE
www.hkoenig.com - contact@hkoenig.com - Tel 01 64 67 00 01
