HKC 50F1 User Manual
User Manual
HKC 50F1
2
Introduction
Installation .........................................................3
Safety .................................................................. 3
Warning/Caution ................................................... 4
Main unit description ........................................... 7
Remote Control ..................................................... 8
Main menu on TV ................................................ 10
Channel .......................................................... 10
Auto tuning .................................................... 11
Manual tuning .............................................. 12
Antenna type ................................................ 13
Country ........................................................... 14
Password ........................................................ 14
Signal Information ....................................... 15
Electronic program guide.......................... 15

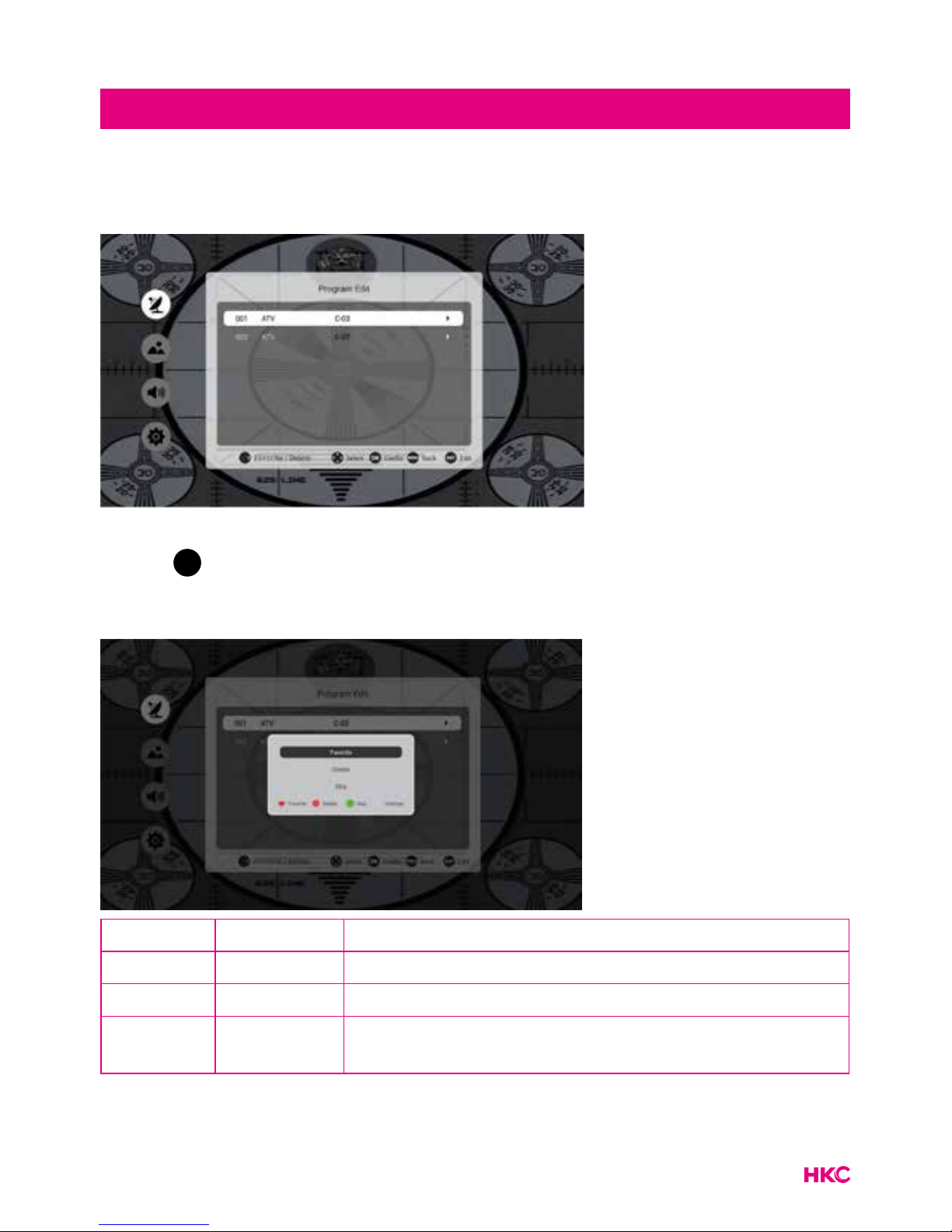

Program Edit ................................................. 17
Picture ..................................................................... 18

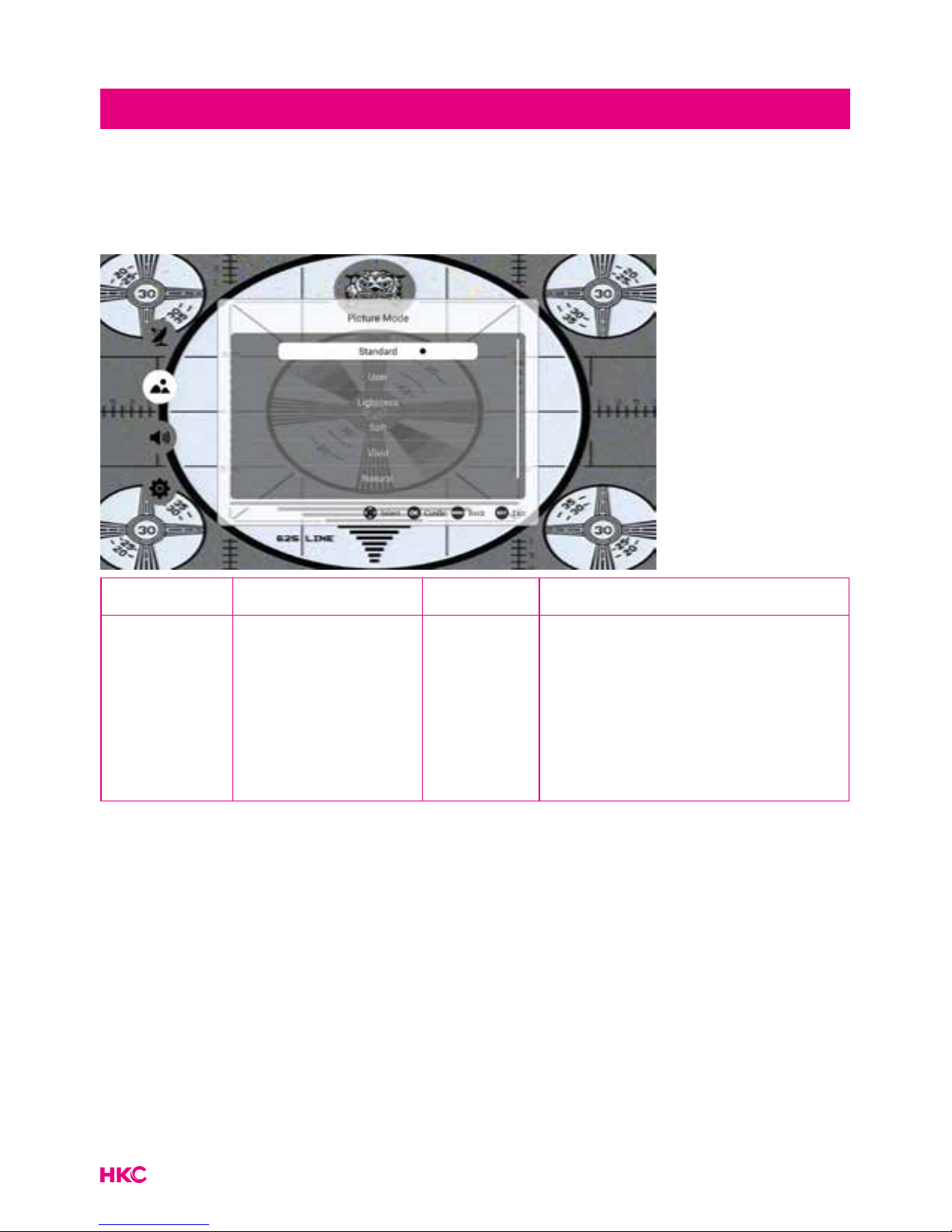

Picture mode ................................................ 18
User mode .................................................... 19
Color temperature ....................................... 19

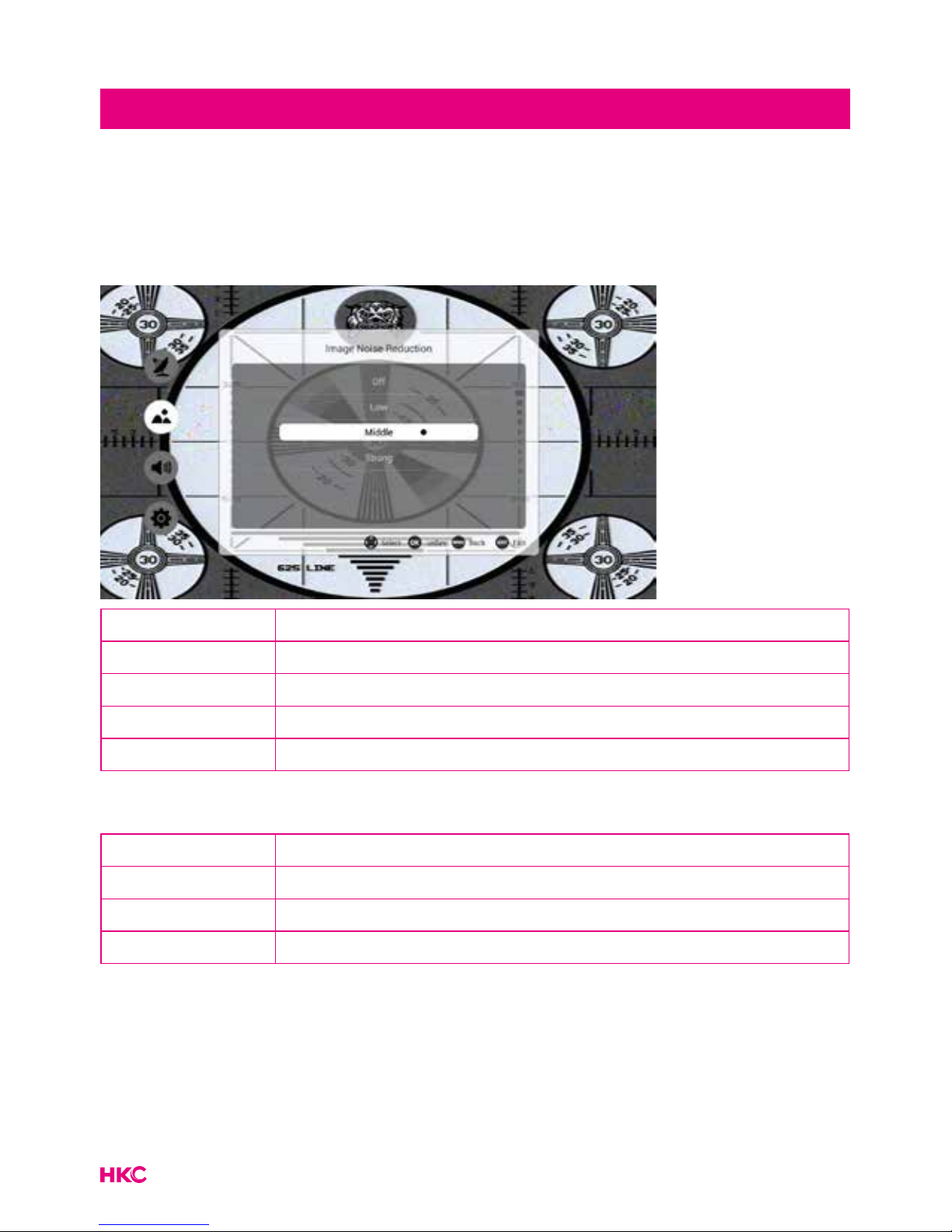

Image Noise Reduction ............................. 20
Sound .................................................................... 21
Sound mode ................................................ 21
Balans ............................................................. 22
AVC/Surround .............................................. 22
S/PDIF out ..................................................... 22
Advance ................................................................ 23
Menu time ...................................................... 23
Sleeptimer ..................................................... 23
Blue screen ................................................... 23
Store mode ................................................... 24
Restore To Default........................................ 24
Input source Menu ...................................... 24
Record ................................................................... 25
Channelist ..................................................... 25
Personal Video Recorder (PVR) ............... 25
Recorder List ................................................ 27
PVR (Personal Video Recorder) .............. 27
Application Manager ........................................ 29
Media Center ....................................................... 31
Video in Media Center ............................... 31
Music in Media Center .............................. 32
Image in Media Center .............................. 33

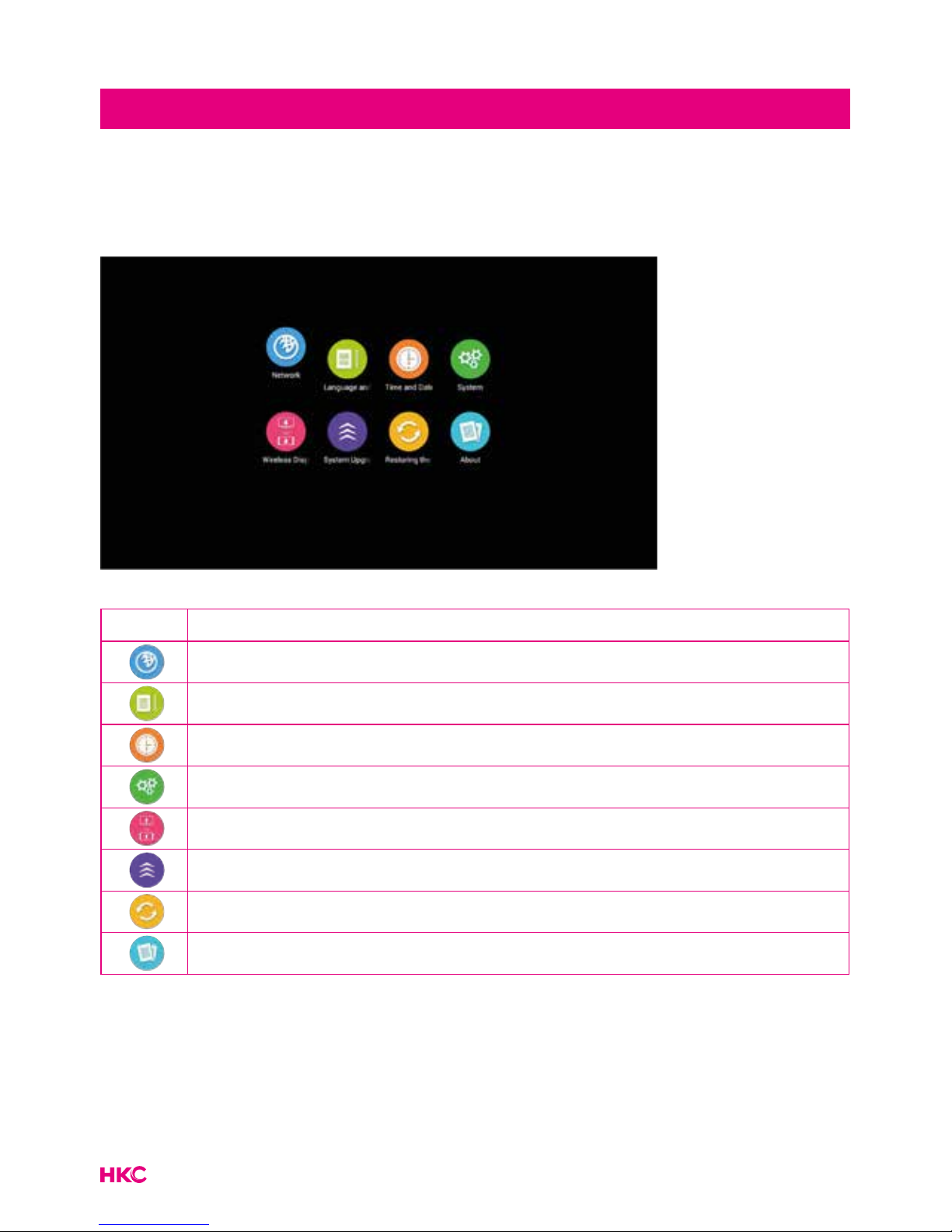

Settings ................................................................. 34
Network settings ......................................... 35
Network status ............................................. 35
Wired connection ....................................... 35
Wireless connection Wi-Fi ........................ 36
Connection via PPPoE ................................ 36
Hotspot .......................................................... 37
Language setting ........................................ 38
Time and date .............................................. 38

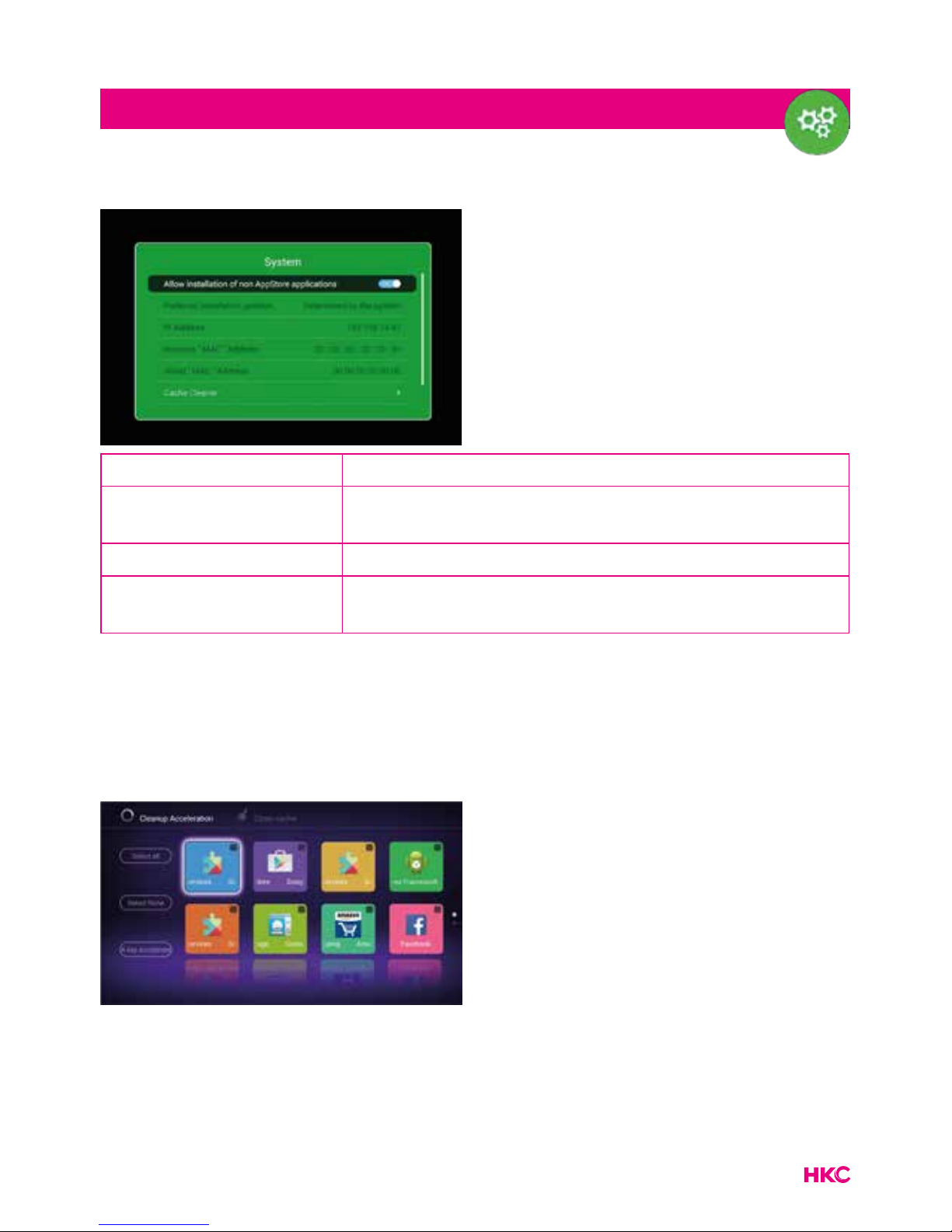

System ............................................................ 39
Cache cleaner ............................................... 39
Connection with smartphone .................. 40
System upgrade .......................................... 40
Restoring the factory state ......................... 40
About .............................................................. 41
Styles ............................................................... 41
Specicaties .......................................................... 42
Troubleshooting .................................................. 43
Useful Information and Licences ..................... 45
Index
3
Introduction
Thank you very much for purchasing your LED TV. It serves as a normal colour
TV and a PC monitor. To enjoy your set fully from the very beginning, read this
manual carefully and keep it handy for future reference.
INSTALLATION
1. Locate the TV in the room where direct light does not strike the screen. Total darkness
or a reection on the picture screen can cause eyestrain. Soft and indirect lighting is
recommended for comfortable viewing.
2. Allow enough space between the TV and the wall to permit ventilation.
3. Avoid excessively warm locations to prevent possible damage to the TV or premature
component failure.
4. This TV can be connected to AC 100-240V~ 50/60Hz.
5. Do not install the TV in a location near heat sources such as radiators, air ducts, direct
sunlight, or in closed compartments and closed areas. Do not cover the ventilation
openings when using the TV.
6. The indicator light will last for about 30 seconds after the power has been tumed off.
Wait until the indicator light goes out before repowering the TV.
SAFETY
1. DO NOT expose the television to extremely high temperatures (below 5 ° C and
above 35 ° C) or extreme humidity (less than 10% and more than 75%).
2. DO NOT expose the television to direct sunlight.
3. Prevent the television from coming into contact with liquids.
4. Make sure that no objects get into the television and do not place vases of water on
the television.
5. Unplug the power cord and remove the antenna cable during a lightning storm
(especially during lightning).
6. Do not walk on the cable and ensure that the cable is fully unrolled.
7. Do not overload outlets or extension cords, as this may result in the risk of re or
electric shock.
8. Use a soft, dry cloth (without volatile substances) to clean the television.
9. Do not attempt to repair the television yourself if it is defective. Contact us by sending
an email to service@hkc-europe.com.
4
Warning
CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK).
NO USER- SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to avoid the risk
of electric shock, do not disassemble this equipment by anyone
except a qualied service personnel.
This symbol is intended to alert the user to the presence of
important operating and maintenance instructions in
the literature accompanying the equipment.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
5
Caution
Caution
High voltages are used in the operation of this
product.
Do not open the product’s casing. Refer
servicing to qualied service personnel.
Caution
To prevent re or electrical shock hazard, do
not expose the main unit to moisture. Do not
place objects lled with liquids, such as vases,
on the TV.
Caution
Do not drop or push objects into the television
cabinet slots or openings. Never spill any kind
of liquid on the television receiver.
Caution
Avoid exposing the main unit to direct sunlight
and other sources of heat. Do not stand the
television receiver directly on other products
which give off heat: e. g. video cassette
players and audio ampliers. Do not block the
ventilation holes in the back cover. Ventilation
is essential to prevent failure of electrical
components. Do not squash power supply
cord under the main unit or other heavy
objects.
-
-
-
-
6
Caution
Caution
Never stand on, lean on or suddenly push the
product or its stand. You should pay special
attention to children.
Caution
Do not place the main unit on an unstable
cart stand, shelf or table. Serious injury to an
individual, and damage to the television, may
result if it should fall.
Caution
When the product is not used for an extended
period of time, it is advisable to disconnect the
AC power cord from the AC outlet.
Caution
The LED panel used in this product is made of
glass and is therefore breakable. This product
must not be dropped or banged. If the LED
Panel breaks be careful ofbeing injured by
broken glass.
7
tekst
Control Panel Button Function
TV Connections
Optional Conguration as below:
Connect the USB to the USB jack on the set.
Main unit description
VOL+ : Volume up.
VOL- : Volume down
CH+: TV channel up.
CH- : TV channel down.
MENU : Press to select the main menu.
SOURCE : Select the input signal.
POWER : Switch on when in standby mode or to enter the standby mode.
NOTE
• It is only 500 mA MAX of DC current output when you connect
with USB jack.
• To ensure the mobile HD works well, you should use other
power supply for the mobile HD and don’t use the USB jack in
the same time.
• It supports mobile HD by connecting with USB jack (must be
more than 2 Gb). The partitions of the mobile HD can’t be
more than 4 partitions. The max partition is 2 Tb. It supports
FAT/FAT32 les. The max FAT le is 4Gb and the max FAT32
le is 2Tb.
1. RJ45
2. HDMI-1
3. HDMI-2
4. VGA
5. PC audio
6. Scart
7. HDMI-3
8. LNB IN
9. RF antenne
10. USB-1
11. Mini YPBPR
12. Mini AV & AUDIO
13. CI-slot
14. Earphone
15. COAXIALE
8
tekst
Remote Control
1 Indicator light.
The red indicator light ashes red to show that the remote is working and sending a signal.
2 Switch the TV between on and standby mode.
3 Watch the screen in various formats: Auto/4:3/16:9/
Zoom/Subtitels/Smart-zoom.
4 Mute and restore your TV sound.
5 0-9 numbers.
Press to select a programme.
Select numbered items in a menu (DVD mode).
6 List. Display the channel list (ATV/DTV mode).
7 Return. Return to the previous viewing channel (ATV/DTV
mode) or return to menu (DVD-modus).
Repeat. Select between different repeat modes (DVD
mode).
8 Display subtitles which are broadcast with the program-
me (DTV mode).
Display subtitles on the DVD (DVD mode).
9 Adjust the volume (+ higher, - lower).
10 Select a channel (up/down).
11 Audio
Turn on/off the Audio Description (AD) function (DTV
mode).
Select different Audio Mode on DVD mode.
Select sterio/dual sound reception (ATV mode)
12 Display the present channel information such as current
time and channel name (ATV/DTV mode).
Display the present disc information (DVD mode)
13 Displays the EPG (Electronic Programme Guide) (DTV
mode).
14 No function.
15 Displays the OSD menu (On Screen Display).
16 Select among the different input signal sources: DTV /
ATV / AV / SCART / YPbPr / HDMI1 / HDMI2 / HDMI3 / PC
/ USB.
17 Allows you to navigate trough the OSD menus and adjust
the system settings to your preference.
OK conrm the selection in the OSD menus.
18 Return to the previous menu in the OSD menus.
2
1
3
4 6
5
7
8 9
0
OK
MENU
INPUT
BACK
INDEX HOLD SIZE
REVEAL
FAV
GUIDETEXT
CANCEL
TV.RD
MIX
S.PAGE
EXIT
DVD SETUP
ASPECT
LIST
S
AUDIO
REPEAT
VOL
CH
9
tekst
Remote Control
19 • Exit the OSD menu.
• Display and exit the DVD setup menu (DVD mode).
20 • Access the Teletext items (ATV/DTV mode).
• Access menu options.
PROG (RED)
• Display th channel menu (ATV/DTV mode).
• Access menu options.
• Programme the DVD (DVD mode).
STEP (GREEN)
• Play the playback forward frame by frame (DVD mode).
GO TO (YELLOW)
• Skip to a specic location on a DVD (DVD mode).
A-B (BLUE)
• Repeat a segment between A and B (DVD mode).
21 • To select the page number of the index in teletext
(TV Teletex mode).
• Stop the playback or recording (USB/DTV/DVD mode).
22 • Freeze a multi-page passage on screen in Teletekst
(TV teletekst mode).
• To start the timeshift playback (DTV mode).
• To start playback or pause (DTV/USB/DVD mode).
23 • To show hidden information if existing (TV teletext
mode).
• Reverse playback rapidly (USB/DVD mode).
24 • To enlarge the picture on the TV in teletext
(TV teletex mode).
• Advance playback rapidly (USB/DVD mode).
25 • Display the favourite channel list (ATV/DTV mode).
• Display the DVD menu (DVD mode)
26 • A short cut to switch input source tot TV/Digital radio
channels.
• Select different angles for the video (DVD mode).
27 • TV and TXT pictures are mixed together
(TV teletext mode).
• To skip to the beginning of the previous chapter/track/
photo (USB/DVD mode).
28 • To open a subpage if existing in teletext
(TV teletext mode).
• Skip to the beginning of the next chapter/track/photo
(USB/DVD mode).
29 Display the DVD title content (DVD mode).
30 Play video slowly (DVD mode).
31 • Turn on and off the teletext function (TV mode).
• Zoom in on the displayed frame (DVD mode)
32 • Eject the disc (DVD mode)
• Cancel
2
1
3
4 6
5
7
8 9
0
OK
MENU
INPUT
BACK
INDEX HOLD SIZE
REVEAL
FAV
GUIDETEXT
CANCEL
TV.RD
MIX
S.PAGE
EXIT
DVD SETUP
ASPECT
LIST
S
AUDIO
REPEAT
VOL
CH
10
tekst
Channel
Main menu items (from right order Channel->Picture->Sound->Advance) at
DTV/ATV input source. The rst item is Channel page as default. Now, press
right key to enter the sub page, Auto Tuning is highlighted. In this page, we
have four subItems: Auto Tuning, Mannual Tuning, program guide (this item is
only showed in DTV channel) and program Edit .
Before introduce the specic menu func on, there are some basic key to know
rst.
Key Description
OK
EXIT
MENU
Navigation
OK
EXIT
MENU
Conrm your selection
EXIT
MENU
Exit current page
MENU
Return to the last page
Main menu on TV
11
tekst
Main menu on TV
Auto tuning
Enter Auto Tuning ,there is a dialog to choose atv auto tuning ,dtv auto tuning
or ATV /DTV auto Tuning . Enter it and we can see a view of searching tv
program in ATV or DTV automatically.
Press
EXIT
MENU
to nish the
tuning process.
12
Manual tuning
Manual tuning contains ATV- and DTV- manual tuning.
Item Adjust item Default Description
Channel 1-100 1 Current channel shows
Color System
PAL,NTSC,SECAM,A UTO
PAL Program color system
Sound system I,L,M,N,BG,DK I Program sound system
Frequency 40-100mhz Channel frequency size
Program Search
Start or stop channel
search
Main menu on TV
13
Antenna Type
Item Description
Air Set Air format
Cable Set Cable format
Satellite Set Satellite format
Note:
Of course you are dependent on your own provider for the channel offer.
Main menu on TV
14
tekst
Main menu on TV
Country (only shows in DTV)
Here you can set which country you are in.
Password (only shows in DTV)
You can give broadcasters a pin code if you wish. For example, you can ensure
that children do not watch programs that are unsuitable for them.
15
tekst
Main menu on TV
Signal Information (only shows in DTV)
Here you will nd all information about a specic channel.
Electronic program guide (EPG)
Electronic Program Guide (EPG) contains program information that is now or in
the future is broadcast. The EPG is divided into 3 columns: Channel, the program
with day and time and the date.
You can choose from different programs and different dates.
Loading...
