User Manual
HKC 43F6
Index
Introduction
Installation ...............................................3
Safety ........................................................ 3
Warning/Caution ......................................... 4
Main unit descrription ................................. 7
Remote control ........................................... 8
OSD basic adjustments ........................... 10
Installation Guide ................................ 10
Channels ............................................... 11
Auto tuning ......................................... 11
Analog Manual Tuning ..................... 12
Digital Manual Tuning ........................ 13
Channel edit ......................................... 13
Delete channels .................................. 13
Skip channels ....................................... 13
Move channels .................................... 13
Schedule list ........................................ 14
Signal information ............................. 14
CI card information ............................ 14
Time settings .............................................. 17
Lock settings .............................................. 18
Set-up .......................................................... 19
Screen settings (PC-modus) .................. 20
DTV features .............................................. 21
Favorite list ........................................... 21
Program information ......................... 21
DTV features .............................................. 22
Audio languages................................. 22
Subtitle languages ............................. 22
Electronic Program Guide (EPG) .......... 23
Personal Video Recorder (PVR) ............. 25
USB ............................................................... 25
Specications ............................................. 26
Picture settings .......................................... 15
Sound settings .......................................... 16
Troubleshooting ........................................ 27
Useful Information and Licences ........... 29
2
Introduction
Thank you very much for purchasing your LED TV. It serves as a normal colour
TV and a PC monitor. To enjoy your set fully from the very beginning, read this
manual carefully and keep it handy for future reference.
INSTALLATION
1. Locate the TV in the room where direct light does not strike the screen. Total darkness
or a reection on the picture screen can cause eyestrain. Soft and indirect lighting is
recommended for comfortable viewing.
2. Allow enough space between the TV and the wall to permit ventilation.
3. Avoid excessively warm locations to prevent possible damage to the TV or premature
component failure.
4. This TV can be connected to AC 100-240V~ 50/60Hz.
5. Do not install the TV in a location near heat sources such as radiators, air ducts, direct
sunlight, or in closed compartments and closed areas. Do not cover the ventilation
openings when using the TV.
6. The indicator light will last for about 30 seconds after the power has been tumed off.
Wait until the indicator light goes out before repowering the TV.
SAFETY
1. DO NOT expose the television to extremely high temperatures (below 5 ° C and
above 35 ° C) or extreme humidity (less than 10% and more than 75%).
2. DO NOT expose the television to direct sunlight.
3. Prevent the television from coming into contact with liquids.
4. Make sure that no objects get into the television and do not place vases of water on
the television.
5. Unplug the power cord and remove the antenna cable during a lightning storm
(especially during lightning).
6. Do not walk on the cable and ensure that the cable is fully unrolled.
7. Do not overload outlets or extension cords, as this may result in the risk of re or
electric shock.
8. Use a soft, dry cloth (without volatile substances) to clean the television.
9. Do not attempt to repair the television yourself if it is defective. Contact us by sending
an email to service@hkc-europe.com.
3
Warning
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK).
NO USER- SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to avoid the risk
of electric shock, do not disassemble this equipment by anyone
except a qualied service personnel.
This symbol is intended to alert the user to the presence of
important operating and maintenance instructions in
the literature accompanying the equipment.
4
-
Caution
Caution
High voltages are used in the operation of this
product.
Do not open the product’s casing. Refer
servicing to qualied service personnel.
Caution
To prevent re or electrical shock hazard, do
not expose the main unit to moisture. Do not
place objects lled with liquids, such as vases,
on the TV.
Caution
Do not drop or push objects into the television
cabinet slots or openings. Never spill any kind
of liquid on the television receiver.
Caution
Avoid exposing the main unit to direct sunlight
and other sources of heat. Do not stand the
television receiver directly on other products
which give off heat: e. g. video cassette
players and audio ampliers. Do not block the
ventilation holes in the back cover. Ventilation
is essential to prevent failure of electrical
components. Do not squash power supply
cord under the main unit or other heavy
objects.
5
Caution
Caution
Never stand on, lean on or suddenly push the
product or its stand. You should pay special
attention to children.
Caution
Do not place the main unit on an unstable
cart stand, shelf or table. Serious injury to an
individual, and damage to the television, may
result if it should fall.
Caution
When the product is not used for an extended
period of time, it is advisable to disconnect the
AC power cord from the AC outlet.
Caution
The LED panel used in this product is made of
glass and is therefore breakable. This product
must not be dropped or banged. If the LED
Panel breaks be careful ofbeing injured by
broken glass.
6
Main unit description
Control Panel Button Function
VOL+ : Volume up.
VOL- : Volume down
CH+: TV channel up.
CH- : TV channel down.
MENU : Press to select the main menu.
SOURCE : Select the input signal.
POWER : Switch on when in standby mode or to enter the standby mode.
TV Connections
tekst
1. VGA
2. PC audio
3. Scart
4. DVB-S2
5. RF antenne
Connect the USB to the USB jack on the set
NOTE
• It is only 500 mA MAX of DC current output when you connect
with USB jack.
• To ensure the mobile HD works well, you should use other
power supply for the mobile HD and don’t use the USB jack in
the same time.
• It supports mobile HD by connecting with USB jack (must be
more than 2 Gb). The partitions of the mobile HD can’t be
more than 4 partitions. The max partition is 2 Tb. It supports
FAT/FAT32 les. The max FAT le is 4Gb and the max FAT32
le is 2Tb.
6. HDMI-1
7. HDMI-2
8. HDMI-3
9. Coaxial
10. Mini AV & AUDIO
7
11. Mini YPBPR
12. CI-slot
13. USB
14. Earphone
ASPECT
3
2
1
5
4 6
7
8 9
LIST
VOL
MENU
REPEAT
0
S
CH
AUDIO
INPUT
OK
TV.RD
CANCEL
REVEAL
MIX
GUIDETEXT
DVD SETUP
EXIT
S.PAGE
BACK
INDEX HOLD SIZE
FAV

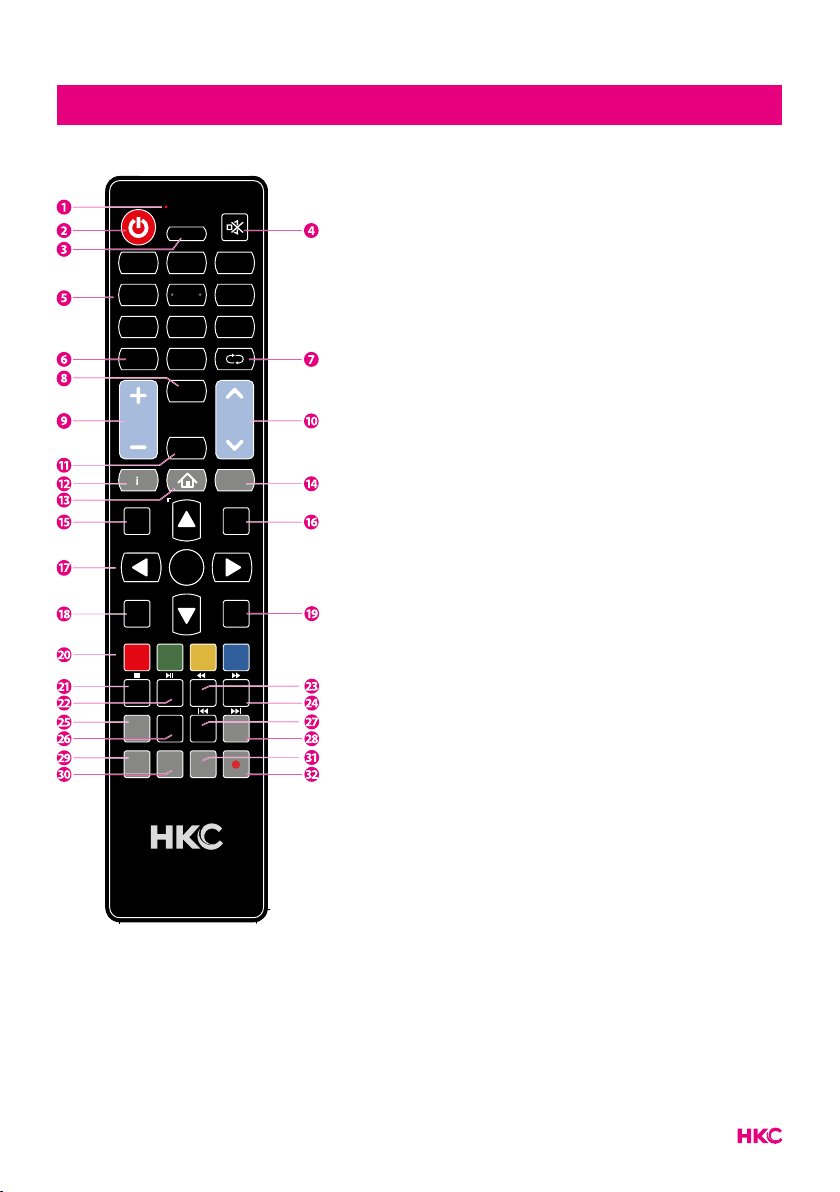

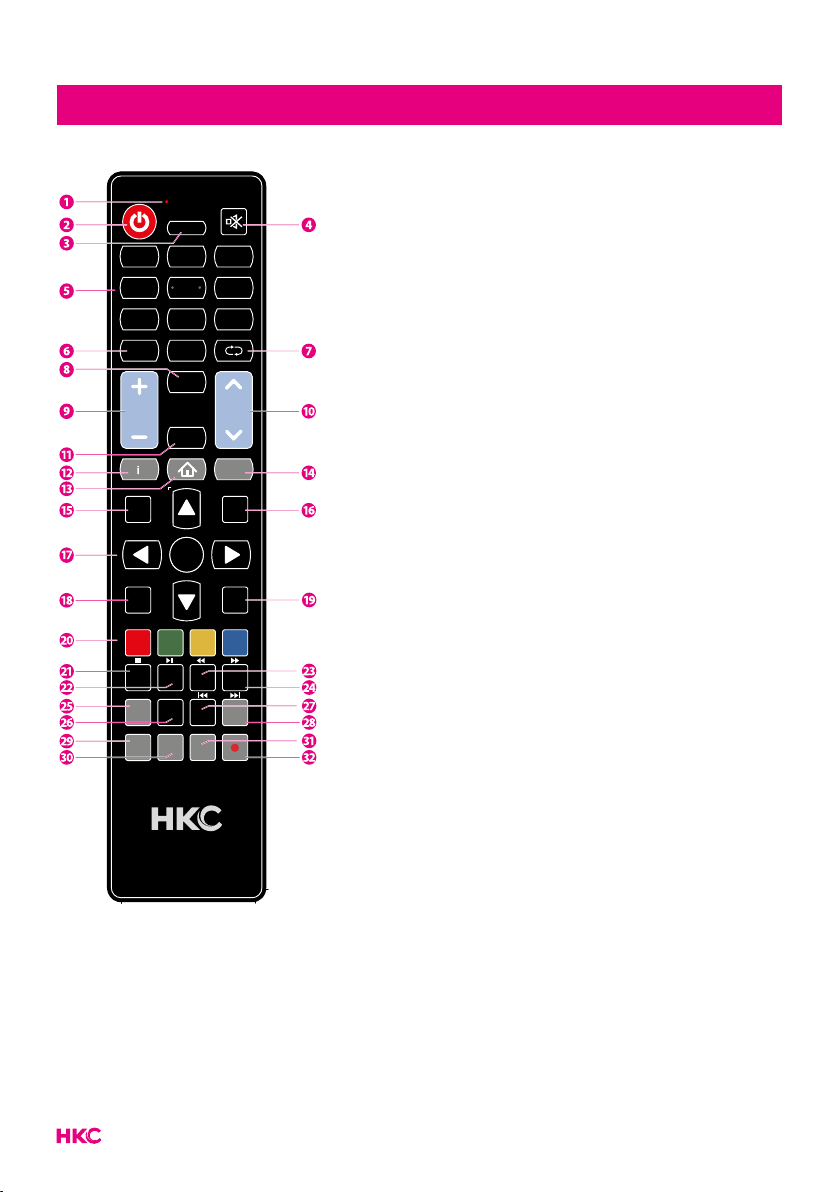

tekstRemote Control
1 Indicator light.
The red indicator light ashes red to show that the remote
is working and sending a signal.
2 Switch the TV between on and standby mode.
3 Watch the screen in various formats: Auto/4:3/16:9/Zoom/
Subtitels/Smart-zoom.
4 Mute and restore your TV sound.
5 0-9 numbers.
Press to select a programme.
Select numbered items in a menu (DVD mode).
6 List. Display the channel list (ATV/DTV mode).
7 Return. Return to the previous viewing channel (ATV/DTV
mode) or return to menu (DVD-modus).
Repeat. Select between different repeat modes (DVD
mode).
8 Display subtitles which are broadcast with the programme
(DTV mode).
Display subtitles on the DVD (DVD mode).
9 Adjust the volume (+ higher, - lower).
10 Select a channel (up/down).
11 Audio
Turn on/off the Audio Description (AD) function (DTV
mode).
Select different Audio Mode on DVD mode.
Select sterio/dual sound reception (ATV mode)
12 Display the present channel information such as current
time and channel name (ATV/DTV mode).
Display the present disc information (DVD mode)
13 Displays the EPG (Electronic Programme Guide) (DTV
mode).
14 No function.
15 Displays the OSD menu (On Screen Display).
16 Select among the different input signal sources: DTV / ATV
/ AV / SCART / YPbPr / HDMI1 / HDMI2 / HDMI3 / PC / USB.
17 Allows you to navigate trough the OSD menus and adjust
the system settings to your preference.
OK conrm the selection in the OSD menus.
18 Return to the previous menu in the OSD menus.
8
ASPECT
3
2
1
5
4 6
7
8 9
LIST
VOL
MENU
REPEAT
0
S
CH
AUDIO
INPUT
OK
TV.RD
CANCEL
REVEAL
MIX
GUIDETEXT
DVD SETUP
EXIT
S.PAGE
BACK
INDEX HOLD SIZE
FAV
tekstRemote Control
19 • Exit the OSD menu.
• Display and exit the DVD setup menu (DVD mode).
20 • Access the Teletext items (ATV/DTV mode).
• Access menu options.
PROG (RED)
• Display th channel menu (ATV/DTV mode).
• Access menu options.
• Programme the DVD (DVD mode).
STEP (GREEN)
• Play the playback forward frame by frame (DVD mode).
GO TO (YELLOW)
• Skip to a specic location on a DVD (DVD mode).
A-B (BLUE)
• Repeat a segment between A and B (DVD mode).
21 • To select the page number of the index in teletext
(TV Teletex mode).
• Stop the playback or recording (USB/DTV/DVD mode).
22 • Freeze a multi-page passage on screen in Teletekst
(TV teletekst mode).
• To start the timeshift playback (DTV mode).
• To start playback or pause (DTV/USB/DVD mode).
23 • To show hidden information if existing (TV teletext mode).
• Reverse playback rapidly (USB/DVD mode).
24 • To enlarge the picture on the TV in teletext
(TV teletex mode).
• Advance playback rapidly (USB/DVD mode).
25 • Display the favourite channel list (ATV/DTV mode).
• Display the DVD menu (DVD mode)
26 • A short cut to switch input source tot TV/Digital radio
channels.
• Select different angles for the video (DVD mode).
27 • TV and TXT pictures are mixed together
(TV teletext mode).
• To skip to the beginning of the previous chapter/track/
photo (USB/DVD mode).
28 • To open a subpage if existing in teletext
(TV teletext mode).
• Skip to the beginning of the next chapter/track/photo
(USB/DVD mode).
29 Display the DVD title content (DVD mode).
30 Play video slowly (DVD mode).
31 • Turn on and off the teletext function (TV mode).
• Zoom in on the displayed frame (DVD mode)
32 • Eject the disc (DVD mode)
• Cancel
9
OSD basic adjustment
Installation Guide

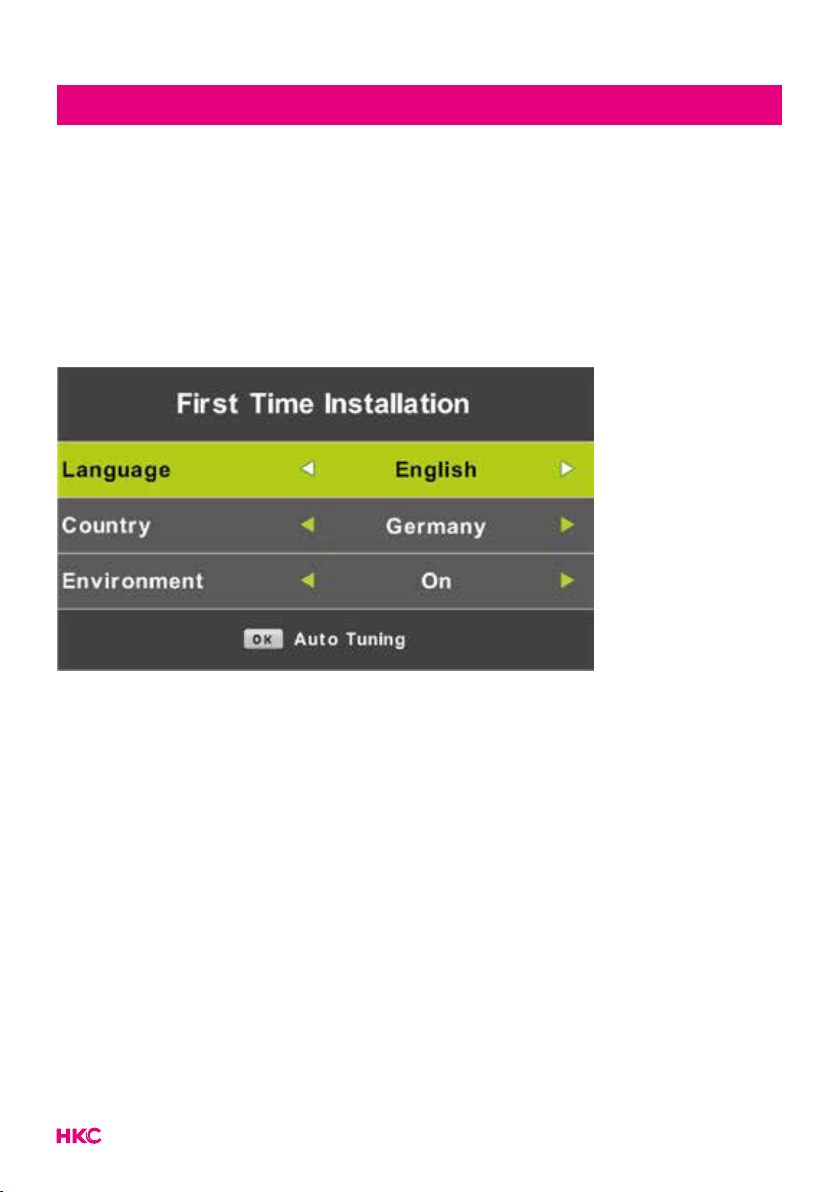

If this is the rst time you are turning on the TV and there are no programs in the
TV memory, the installation Guide menu will appear on the screen.
1. Press the / buttons to select the language.
2. Press the / buttons to select the local country
3. Press the / buttons to select energy mode.
tekst
Note:
Searching for platform will take a long time, please be patient and don’t turn
off the TV.
10
tekstOSD basic adjustment
Channels
MENU
Press
main menu.
Auto Tuning
Press and select ‘Auto Scan’.
Press to select the country and press to select ‘Tune Type’ and ‘Digital
Type’.
Press
Turn on “Sorting by LCN” to put the channels in logical order.
to display the main menu. Press to select ‘CHANNEL’ in the
OK
to start scanning. Press
MENU
to skip or
EXIT
to stop scanning.
11
OSD basic adjustment
Note:
Searching for platform will take a long time, please be patient and don’t turn off
the TV.

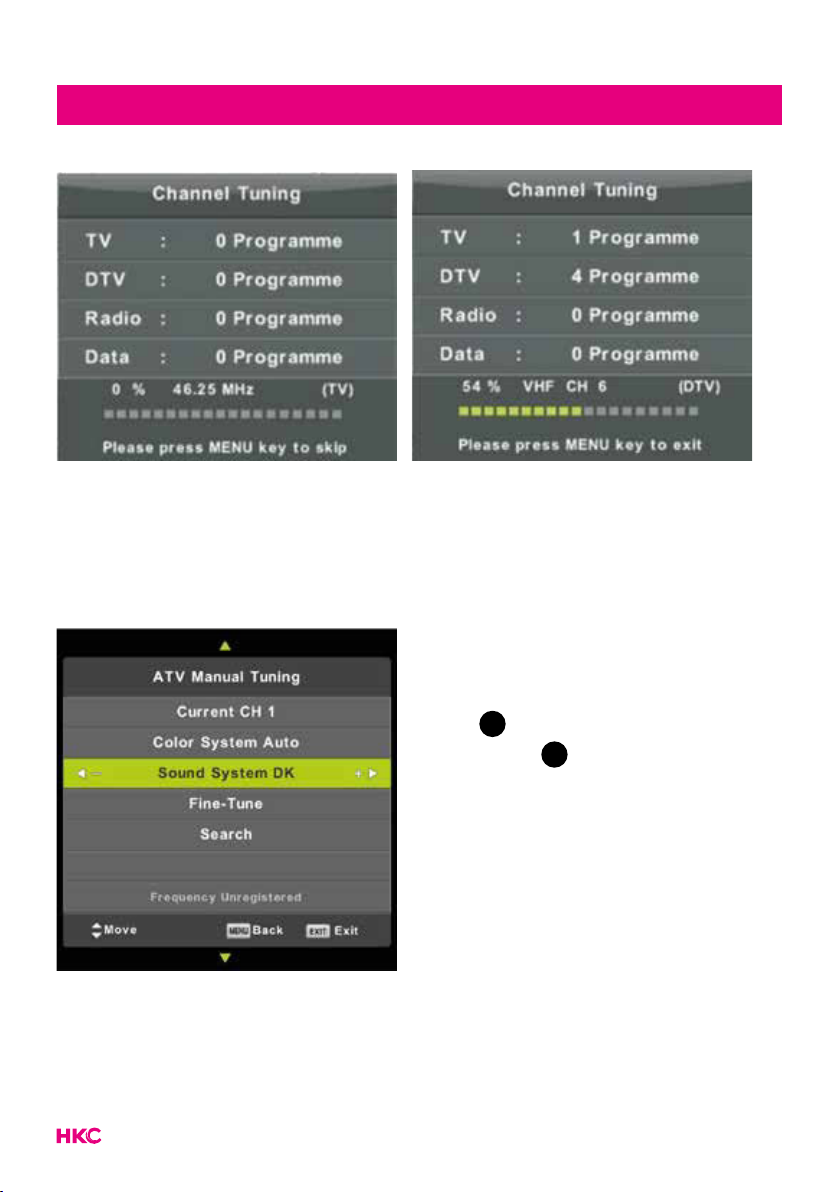

Analog Manual Tuning
Press to select ‘Manual scan’ and
press to ‘ATV Manual Tuning’.
Press
menu. Press
MENU
to return to the previous
EXIT
to exit the menu.
12
OSD basic adjustment

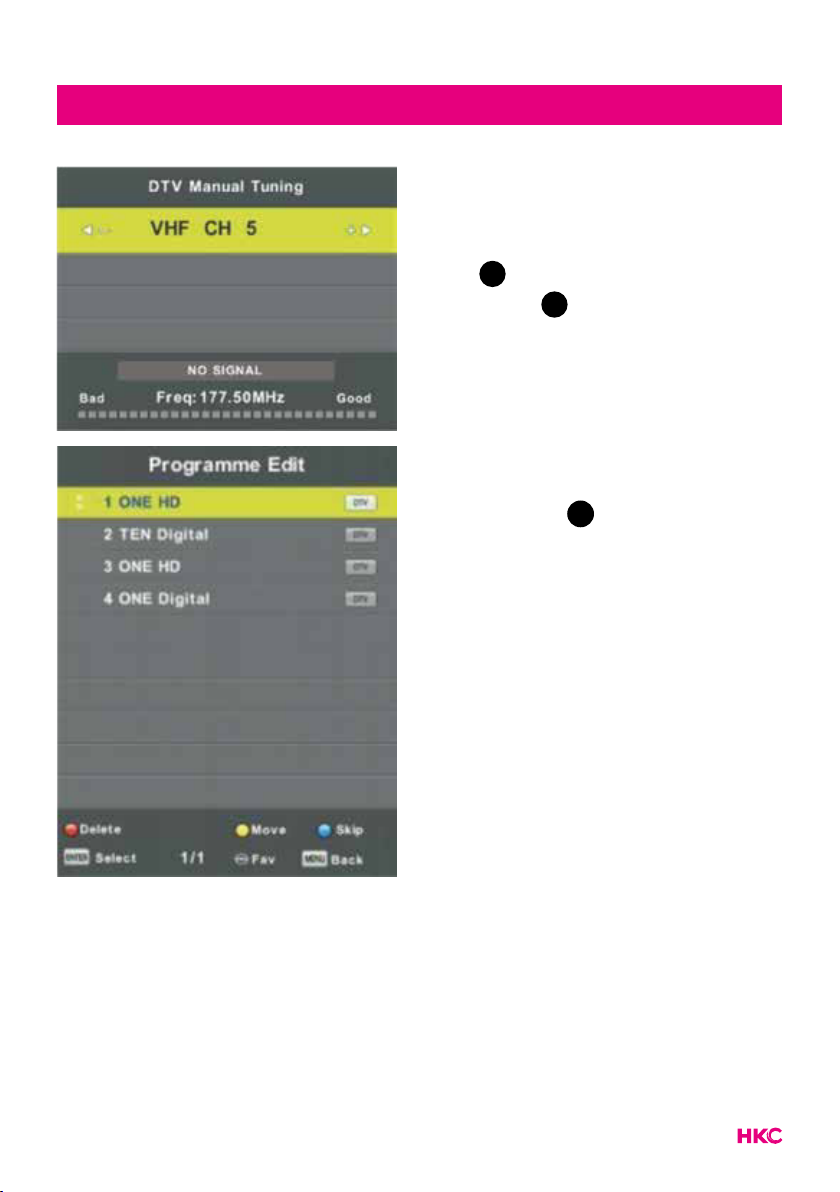

DTV Manual Tuning (digital)
Press to select ‘Digital Manual
scan’ and press to start.
Press
menu. Press
Channel Edit
Press to select ‘Programme
Edit’ and press
Delete channels
Press to select the channel and
press the red button to delete the
channel.
MENU
to return to the previous
EXIT
to exit the menu.
OK
to select.
Skip channels
Press to select the channel and
press the blue button to skip the
channel. Press the blue button again
to cancel the setting.
Move channels
Press to select the channel and
press the yellow button to move the
channel. Press the yellow button again
to conrm.
13
OSD basic adjustment
Schedule List
Press to select ‘Schedule List’ and press
Signal information (only use in DTV)
Press to select ‘Signal information’.
Press
menu. Press
OK
to enter the submenu.
MENU
to return to the previous
EXIT
to exit the menu.
CI card Information
Press to select ‘CI info’. Press
OK
to check CI card information.
14
You can select the type of image that best suits your personal preference.
MENU
Press
menu. Press to select ‘Picture Mode’. Press
You can change various image options here.
Item Adjustable Standard Description
settings
to enter the OSD menu. Than press to select the ‘PICTURE’
OK
to select.
• Contrast
• Brightness
• Colour
• Scharpness
• Tint
Default
Set the various standard
image settings
• Colour Temp
• Noise Reduction
• HDMI Mode
You select the item you want to change with the buttons.
Use the buttons to set the desired setting. Then press
OK
15
to conrm.
Sound
You can select the type of sound that best suits your personal preference.
MENU
Press
Press
You can change various sound options here.
Item Adjustable Standard Description
Sound
settings
to enter the OSD menu. Than press to select the ‘SOUND’ menu.
OK
to select.
• Sound Mode
• Treble
• Bass
• Coaxial Mode
Default
Set the various default
sound settings
• AD switch
You select the item you want to change with the buttons.
Use the buttons to set the desired setting. Then press
OK
16
to conrm.
Time
You can select different time settings that best suits your personal preference.
MENU
Press
Press
You can change various time options here.
Item Adjustable Standard Omschrving
Time settings
to enter the OSD menu. Than press to select the ‘TIME’ menu.
OK
to select.
• Time Zone
• Sleeptimer
• Auto Standby
Default
Set the various default time
settings
• OSD Timer
You select the item you want to change with the buttons.
Use the buttons to set the desired setting. Then press
OK
17
to conrm.
Lock
You can select different lock settings that best suits your personal preference.
MENU
Press
Press
You can change various lock options here.
Item Adjustable Standard Omschrving
Lock
settings
to enter the OSD menu. Than press to select the ‘LOCK’ menu.
OK
to select.
• System Lock
• Set Password
• Channel Locks
• Parental Guidance
Default
Set the different security
settings
• Key Lock
• Hotel Mode
You select the item you want to change with the buttons.
Use the buttons to set the desired setting. Then press
OK
The default password is 0000.
NOTE:
The administrator password is 8899.
18
to conrm.

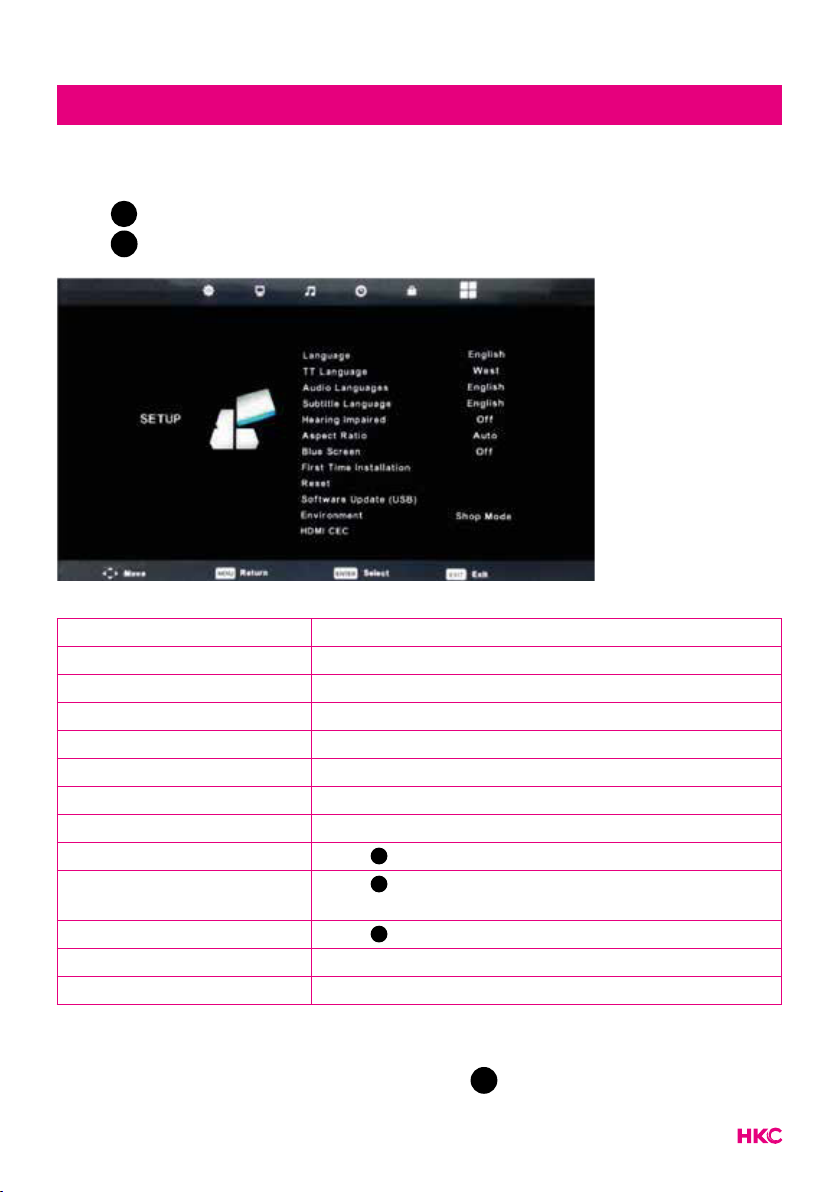

Set Up
You can select different set up settings that best suits your personal preference.
MENU
Press
Press
Adjustable Setting up
Language to select the OSD language
TT Language to select the TT language
Audio Language audio volume
Subtitle Language to select the subtitle language (only in DTV)
Hearing Impaired on or off for the hearing impaired
Aspect Ratio image size Auto, 4:3,16:9, Zoom1, Zoom2
Blue Screen turn on or off
First Time Installation
Reset
Software Update
Environment Choise from Home Mode or Shop Mode
HDMI CEC Connect another device via HDMI
to enter the OSD menu. Than press to select the ‘SET UP’ menu.
OK
to select.
OK
Press
Press
to conrm
OK
, than . Select ‘Yes’ to restore all setting
to default setting.
OK
Press
to update software using USB
Use the buttons to select the item that you want to change. Use the
OK
buttons to set the desired setting. Then press
to conrm.
19

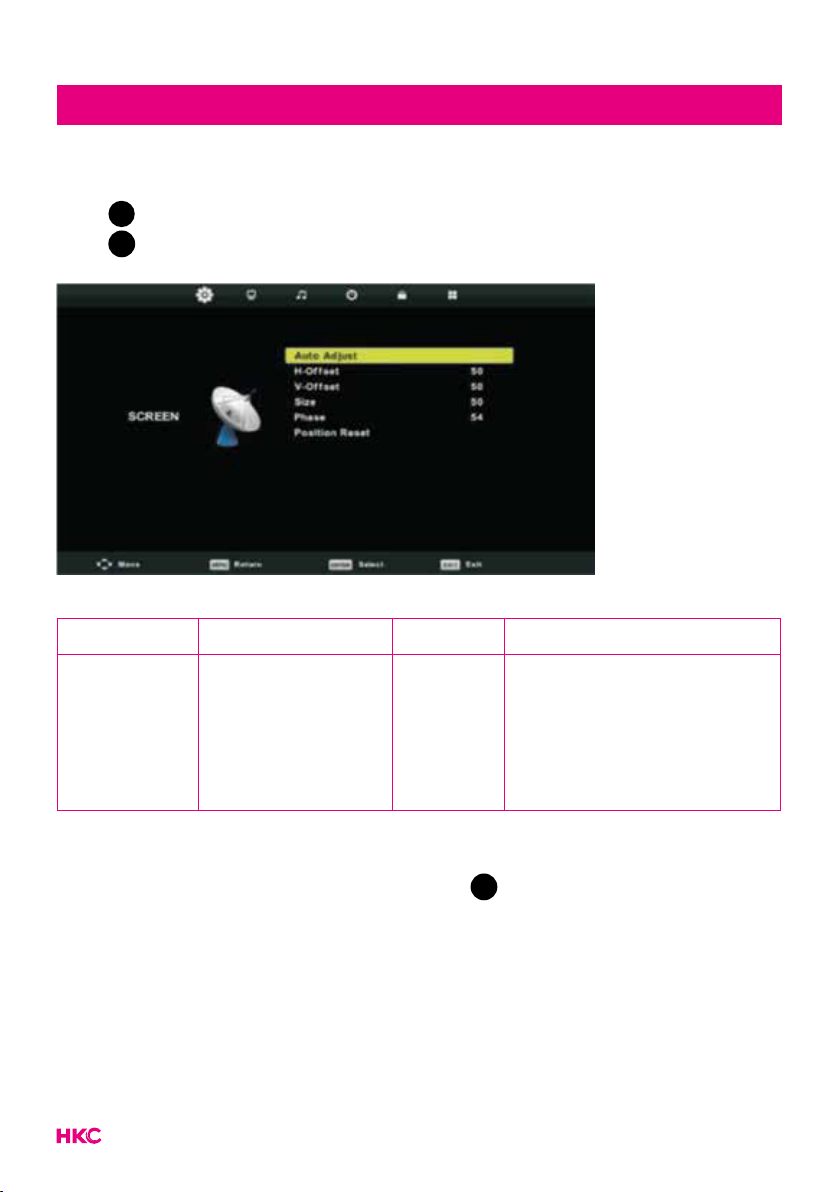

Screen
You can select screen settings in PC mode that best suit your personal preference.
MENU
Press
Press
You can set various screen settings here.
Item Adjustable Standard Description
Screen
settings
to enter the OSD menu. Than press to select the ‘SCREEN’ menu.
OK
to select.
• Auto Adjust
• H-Offset
• V-Offset
• Size
• Phase
Default
Set the different ones
standard screen settings in
PC mode
• Position Reset
Use the buttons to select the item that you want to change. Use the
buttons to set the desired setting. Then press
OK
to conrm.
20
DTV Features
Favorite List
When the source is selected as DTV, users can enter Favorite List by pressing
“FAV” button.
The “Favorite List” window is illustrated as follows:
Press to select favorite list number
Program Information
When the source is selected as DTV, you can press “display” button to display
the channel’s information. The program information window is illustrated as
follows:
21
DTV Features
Audio Languages
When the source is selected as DTV, users can enter in the the Setup menu the
‘Audio Language’ menu. The ‘Audio Language’ window is illustrated, and press
button to serve the menu.
Subtitle Languages
When the source is DTV, users can set the subtitle language at menu (if available).
This image is only an example of the languages.
22

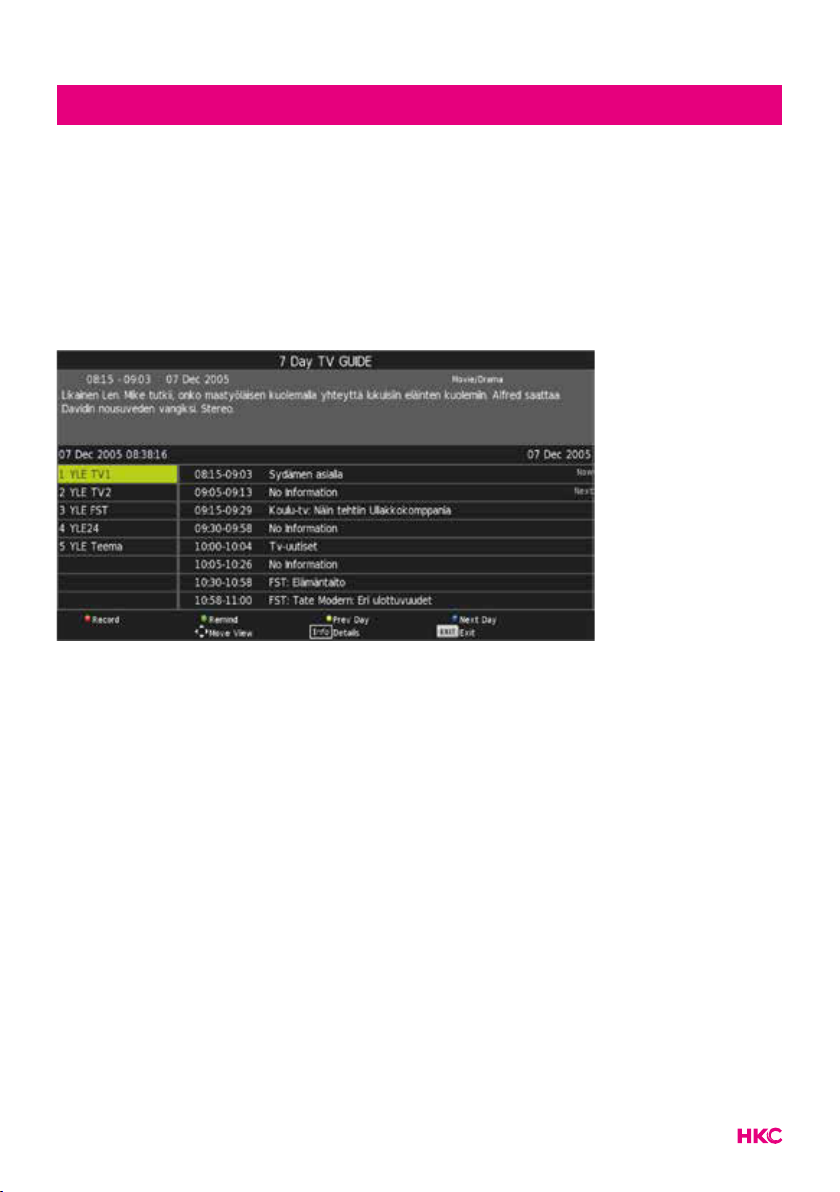

Electronic Program Guide (EPG)
Electronic Program Guide (EPG) provides program information which will be
broadcasted now or in the future. The system will display EPG window by pressing ‘GUIDE’ button. DATE and TIME information is displayed on the right of the
window. The left side shows all channels. The right side shows the programs in
the channel. The selected program is also displayed on the top of the screen.
Press to select the program. You can press the RED button to enter record
mode. Press the GREEN button to to display the program’s detail. Press the YELLOW button to check details in the PVR’s Schedule List introduction. Press the
BLUE button te enter a remind setting.
Press to select and press to select the channel number to see the
current channel’s program forecast.
Note: The U disk will be formatted when in burning, please do not store impor-
tant les in the U disk.
23
Press
Press

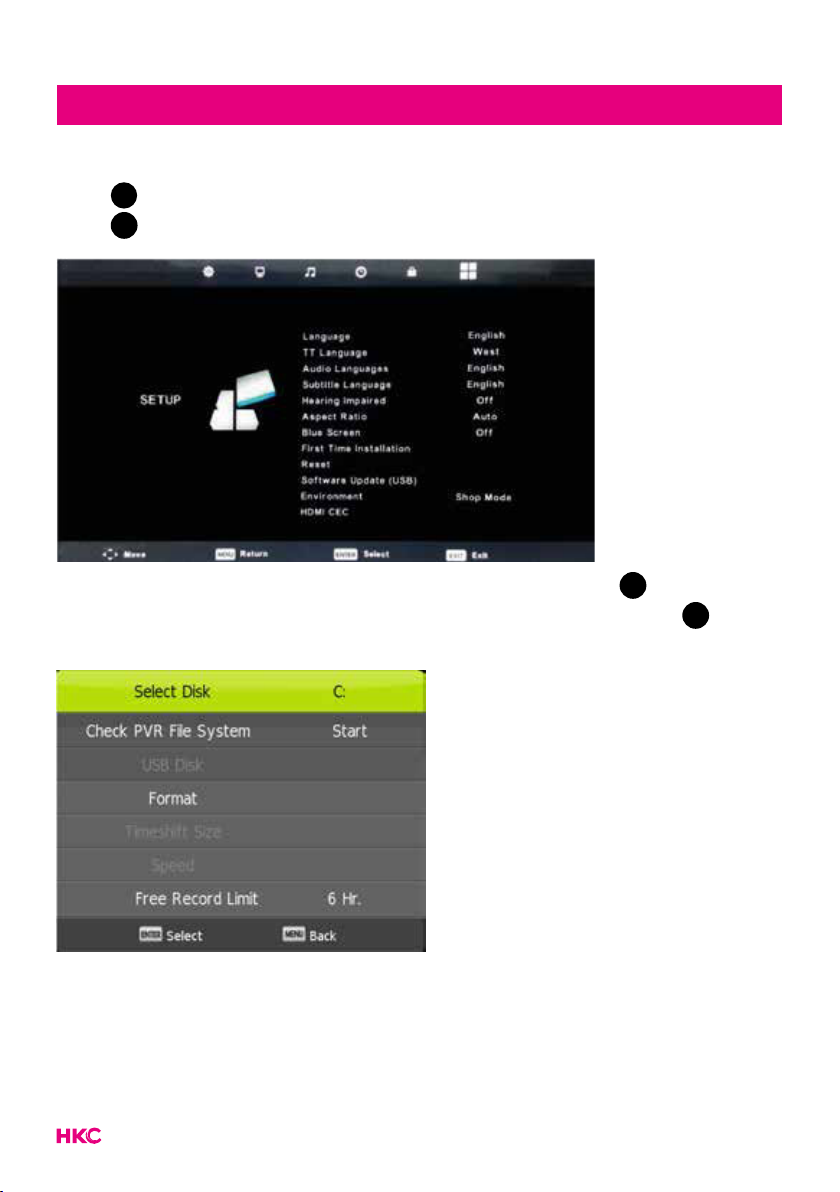

PVR Operation (Personal Video Recorder)
MENU
to enter the OSD menu. Than press to select the ‘SET UP’ menu.
OK
to select.
You select with the buttons ‘PVR File System’. Then press
You select with the buttons ‘Check PVR File System’. Then press
OK
to conrm.
OK
to
conrm.
Note:
The external disk will be formatted, so make sure there are no important les on it.
24
USB Features
Select Media / USB in the ‘SOURCE’ menu.
Press to select ‘PHOTO’. Press the
Press the buttons to select the disk drive or le that you want to see. Press
OK
the
button to conrm the selection. Press the
previous step or menu.
OK
button to conrm the selection.
EXIT
button to return to the
It works the same for Music, Photo and Folder.
NOTE:
The images related to the function are for reference only.
25
tekstSpecications
RGB-input
Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (KHz)
DOS 720 x 400 31.5 70
VGA 640 x 480 31.5 60
SVGA 800 x 600 37.9 60
XGA 1.024 x 768 48.4 60
WXGA 1.920 x 1.080 67.5 60
HDMI-input
Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (KHz)
VGA 640 x 480 31.47 59.94
480i 720 x 480i 15.73 59.94/60
576i 720 x 576i 15.63 50
480p 720 x 480p 31.47 59.94/60
576p 720 x 576p 31.26 50
720p 1.280 x 720p
1.080i 1.920 x 1.080i
1.080p 1.920 x 1.080p
37.50
44.96
28.13
33.75
56.25
67.5
50
59.94/60
50
59.94/60
50
59.94/60
Component video (YPbPr) input
Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (KHz)
480i 720 x 480i 15.73 59.94/60
576i 720 x 576i 15.63 50
480p 720 x 480p 31.47 59.94/60
576p 720 x 576p 31.26 50
720p 1.280 x 720p
1.080i 1.920 x 1.080i
1.080p 1.920 x 1.080p
Due to continuous product development, specications are subject to change without prior notice.
37.50
44.96
28.13
33.75
56.25
67.5
50
59.94/60
50
59.94/60
50
59.94/60
26
Troubleshooting
Before contacting our service department you can go through the following for
possible solutions.
Problem Solution
TV will not turn on • Make sure the power cord is
No picture, no sound • Check the cable between TV and
Poor picture, sound OK • Check the cable between TV and
Audio noise • Check if the cables are connected
No audio • Make sure the volume is not turned
Photos, videos and music from a USB
device are not displayed
tekst
plugged in.
• The batteries in the remote control
may be drained; replace the
batteries.
antenna/external AV device.
• Press the power button on the
remote.
• Press the SOURCE button the
remote, then press the button
repeatedly to select the TV source.
antenna/ external AV device.
• Try another channel, the station may
have broadcast difculties.
• Adjust the brightness/contrast in the
Video menu.
• Check that the unit is set to PAL
properly.
• Move any infrared equipment away
from the TV.
off or set to minimum.
• Check if the USB storage device
is capable of mass storage, as
described in the documentation that
came with the storage device.
• Check if the USB storage device is
compatible with the TV
• Check if the audio and image le
formats are supported by the TV.
27
tekstTroubleshooting
USB les are played jerkily • The speed of the USB storage device
can affect the speed of data transfer
to the TV, preventing image and
/ or sound from being smoothly
displayed.
The TFT LED panel uses a panel consisting of sub pixels which requires sophisticated technology to produce. However, there may be a small number of bright
or dark pixels on the screen. These pixels will have no impact on the performance of the product.
28
Useful Information and Licences
Guarantee
We regret it when a HKC product doesn’t work as it should, despite our careful quality
control. That is why we offer a 2-year manufacturer’s warranty after the date of purchase
on all our models.
This guarantee is a pick-up and return guarantee. This means that we take care of the
return of the product to our repair and service center. We will thoroughly check the
product and solve the problem. We will send the product back to your home within 7
working days.
If the product can no longer be repaired, we will send you a new one.
Warranty conditions
1. Factory warranty is only given if you can present the purchase invoice.
2. This manufacturer’s warranty applies to all HKC-europe products.
3. Manufacturer’s warranty applies only to material and manufacturing defects.
Problems caused by improper use, incorrect installation, external factors and normal
wear and tear are not covered by this manufacturer’s warranty.
4. The factory warranty expires as soon as changes or repair work on the product are
carried out by yourself or third parties. The same applies if the serial number is
changed or removed.
5. The decision on repair or replacement of the product is exclusively reserved to HKC.
The warranty period is not extended due to repair or replacement.
tekst
Customer service contact form
To use the Manufacturer’s warranty or other questions, you can contact HKC Customer
Service via the customer service contact form at:
www.hkc-eu.com/en/service/klantenservice-contact/
Due to the continuous product development, the manual can change without prior
notice. Typing and printing errors reserved.
29
tekstUseful Information and Licences
EC directives internet address:
https://eur-lex.europa.eu/browse/summaries.html?locale=en
The symbol on the product or its packaging indicates that this product
must not be disposed of with your other household waste. Instead, it
is your responsibility to dispose of your waste equipment by handing
it over to a designated collection point for the recycling of waste
electrical and electronic equipment. The separate collection and
recycling of your waste equipment at the time of disposal will help
conserve natural resources and ensure that it is recycled in a manner
that protects human health and the environment.
For more information about where you can drop off your waste for
recycling, please contact your local authority, or where you purchased
your product.
Notes for Battery Disposal
The batteries used with this product contain chemicals that are harmful
to the environment. To preserve our environment, dispose of used
batteries according to your local laws or regulations. Do not dispose of
batteries with normal household waste.
For more information, please contact the local authority or your retailer
where you purchased the product.
MPEG-2 NOTICE
Any use of this product in any matter other than personal use that
complies with the MPEG-2 standard for encoding video information
for packaged media is expressly prohibited without a license under
applicable patents in the MPEG-2 Patent Portfolio, which license is
available from MPEG LA, LLC, 6312 S. Fiddlers Green Circle, Suite
400E, Greenwood Village, Colorado, 80111 U.S.A.
30
31
About HKC
The HKC brand was established in 1997 as a manufacturer of PC monitors thanks to
the good quality and specic technical production process. HKC quickly grew into a
TOP 3 Producer of monitors on the Chinese market. In 2003 HKC started producing
LCD televisions, over the years, HKC has bought many suppliers which now makes all
parts of the TV in-house, so HKC has one of the only open-cell assembly lines where the
LCD of the TV is made. Since 2007, HKC has an ofce in the Netherlands and in 2016
HKC started the assembly of TV’s in the Netherlands, where HKC tries to offer as many
jobs as possible to people with a distance to the labor market in order to be socially
responsible.
Customer service
Send an email with your question:
service@hkc-europe.com
or phone +31 (0)24 - 34 34 230
(monday-friday 09.00 - 17.00 uur).
For product information:
www.hkc-eu.com
Loading...
