Hitron CGNV4 User Manual

Download

CGNV4 DOCSIS 3.0 eMTA WiFi Gateway

User’s Guide

Version 1.1 - 02/2014

Hitron CGNV4 User’s Guide

About This User’s Guide

Intended Audience

This manual is intended for people who want to configure the CGNV4’s features via its Graphical User Interface (GUI).

How to Use this User’s Guide

This manual contains information on each the CGNV4’s GUI screens, and describes how to use its various features.



Use the Introduction on page 14 to see an overview of the topics covered in this

manual.



Use the Table of Contents (page 6), List of Figures (page 10) and List of Tables

(page 12) to quickly find information about a particular GUI screen or topic.



Use the Index (page 108) to find information on a specific keyword.



Use the rest of this User’s Guide to see in-depth descriptions of the CGNV4’s

features.

List of Figures

Figure 1: Application Overview ...........................................................................14

Figure 2: Hardware Connections ........................................................................16

Figure 3: Power Adaptor .....................................................................................18

Figure 4: LEDs ....................................................................................................19

Figure 5: Login ....................................................................................................23

Figure 6: GUI Overview ......................................................................................24

Figure 7: The Status: System Information Screen ..............................................33

Figure 8: The Status: DOCSIS Provisioning Screen ...........................................35

Figure 9: The Status: DOCSIS WAN Screen ......................................................36

Figure 10: The Status: DOCSIS Event Screen ...................................................39

Figure 11: The Status: Wireless Status Screen ..................................................40

Figure 12: The Status: MTA Screen ...................................................................42

Figure 13: The Basic: LAN Setup Screen ...........................................................47

Figure 14: The Basic: Gateway Function Screen ...............................................49

Figure 15: The Basic: Port Forwarding Screen ...................................................50

Figure 16: The Basic: Port Forwarding Add/Edit Screen ....................................52

Figure 17: The Basic: Port Triggering Screen .....................................................54

Figure 18: The Basic: Port Triggering Add/Edit Screen ......................................56

Figure 19: The Basic: DMZ Screen .....................................................................57

Figure 20: The Basic: DNS Screen .....................................................................59

Figure 21: The Wireless: Basic Settings 2.4GHz Screen ...................................65

Figure 22: The Wireless: Basic Settings 5GHz Screen ......................................68

Figure 23: The Wireless: WPS & Security Screen ..............................................71

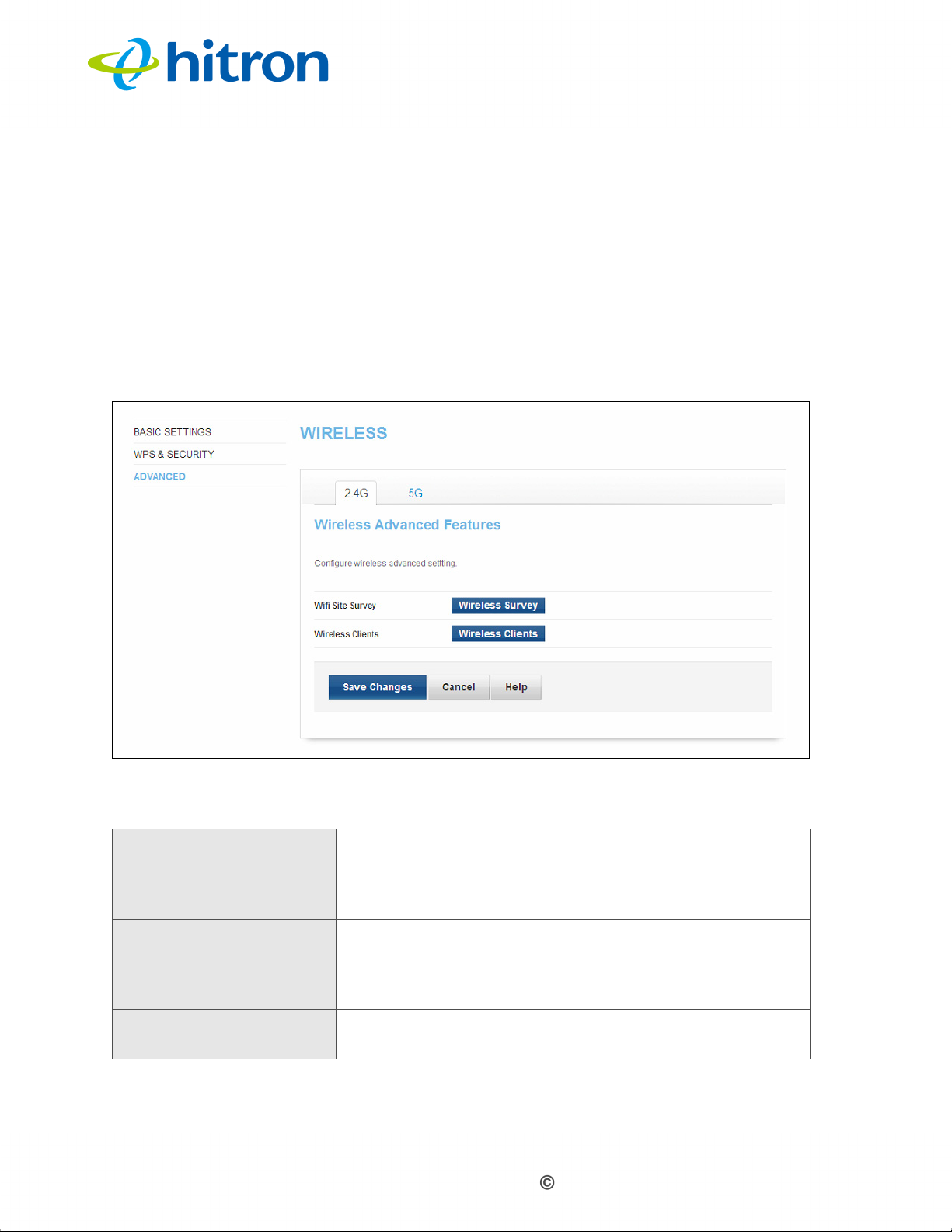

Figure 24: The Wireless: Advanced Screen .......................................................74

Figure 25: The Wireless: WiFi Site Survey Screen .............................................75

Figure 26: The Wireless: Wireless Clients Screen ..............................................77

Figure 27: The Admin: Management Screen ......................................................80

Figure 28: The Admin: Diagnostics Screen ........................................................82

Figure 29: The Admin: Backup Screen ...............................................................83

Figure 30: The Admin: Time Setting Screen .......................................................84

Figure 31: The Admin: Device Reset Screen ......................................................86

Figure 32: The Security: Firewall Screen ............................................................89

Hitron CGNV4 User’s Guide

Figure 33: The Security: Service Filter Screen ...................................................91

Figure 34: The Security: Service Filter Add/Edit Screen .....................................93

Figure 35: Additional Service Filtering Options ...................................................95

Figure 36: The Security: Service Filter Trusted Device Add/Edit Screen ...........96

Figure 37: The Security: Device Filter Screen ....................................................97

Figure 38: The Security: Device Filter Add/Edit Screen ......................................99

Figure 39: Additional Service Filtering Options .................................................100

Figure 40: The Security: Keyword Filter Screen ...............................................101

Figure 41: The Security: Keyword Filter Trusted Device Add/Edit Screen .......103

Figure 42: The Security: Logs Screen ..............................................................104

Hitron CGNV4 User’s Guide

List of Tables

Table 1: Default Credentials ................................................................................4

Table 2: Hardware Connections ........................................................................17

Table 3: LEDs ....................................................................................................19

Table 4: GUI Overview .......................................................................................24

Table 5: Private IP Address Ranges ..................................................................28

Table 6: IP Address: Decimal and Binary ..........................................................28

Table 7: Subnet Mask: Decimal and Binary .......................................................29

Table 8: The Status: System Information Screen ..............................................34

Table 9: The Status: DOCSIS WAN Screen ......................................................37

Table 10: The Status: DOCSIS Event Screen ...................................................39

Table 11: The Status: Wireless Status Screen ..................................................40

Table 12: The Status: MTA Screen ....................................................................43

Table 13: The Basic: LAN Setup Screen ...........................................................47

Table 14: The Basic: Gateway Function Screen ................................................49

Table 15: The Basic: Port Forwarding Screen ...................................................50

Table 16: The Basic: Port Forwarding Add/Edit Screen ....................................52

Table 17: The Basic: Port Triggering Screen .....................................................54

Table 18: The Basic: Port Triggering Add/Edit Screen ......................................56

Table 19: The Basic: DMZ Screen .....................................................................58

Table 20: The Basic: DNS Screen .....................................................................59

Table 21: The Wireless: Basic Settings 2.4GHz Screen ....................................66

Table 22: The Wireless: Basic Settings 5GHz Screen .......................................69

Table 23: The Wireless: WPS & Security Screen ..............................................72

Table 24: The Wireless: Advanced Screen ........................................................74

Table 25: The Wireless: WiFi Site Survey Screen .............................................75

Table 26: The Wireless: Wireless Clients Screen ..............................................78

Table 27: The Admin: Management Screen ......................................................81

Table 28: The Admin: Diagnostics Screen .........................................................82

Table 29: The Admin: Management Screen ......................................................83

Table 30: The Admin: Time Setting Screen .......................................................84

Table 31: The Admin: Device Reset Screen ......................................................86

Table 32: The Security: Firewall Screen ............................................................90

Hitron CGNV4 User’s Guide

Table 33: The Security: Service Filter Screen ...................................................92

Table 34: The Security: Service Filter Add/Edit Screen .....................................94

Table 35: The Security: Service Filter Trusted Device Add/Edit Screen ............96

Table 36: The Security: Device Filter Screen ....................................................97

Table 37: The Security: Device Filter Add/Edit Screen ......................................99

Table 38: The Security: Keyword Filter Screen ...............................................101

Table 39: The Security: Keyword Filter Trusted Device Add/Edit Screen ........103

Table 40: The Security: Logs Screen ...............................................................104

Hitron CGNV4 User’s Guide

Introduction

This chapter introduces the CGNV4 and its GUI (Graphical User Interface).

1.1 CGNV4 Overview

Your CGNV4 is a DOCSIS cable modem, router, embedded Multimedia Terminal Adapter (eMTA) and wireless access point that allows you to connect your cabled Ethernet, wireless devices and analog telephones to one anotherand to the Internet via your building’s cable connection.

Figure 1: Application Overview

Hitron CGNV4 User’s Guide

1.1.1 Key Features

The CGNV4 provides:



DOCSIS/EuroDOCSIS 3.0 compliance



IEEE 802.11ac WiFi access point 3x3 dual band MIMO internal antennas



Local Area Network connection via four 10/100/1000 Mbps Ethernet ports



Two FXS analog telephone ports using SIP or MGCP



USB 2.0 host port



Quality of Service (QoS) for optimal video and data performance



External LEDs clearly displaying device and network status



Full operator control via configuration file and SNMP



TR-069 and HNAP for easy setup and remote management



Wireless security: WEP, WPA-PSK and WPA2-PSK encryption, Wifi Protected

Setup (WPS) push-button and PIN configuration, MAC filtering



Settings backup and restore



Secure configuration interface, accessible by Web browser

1.2 Hardware Connections

This section describes the CGNV4’s physical ports and buttons.

Hitron CGNV4 User’s Guide

Figure 2: Hardware Connections

Hitron CGNV4 User’s Guide

Table 2: Hardware Connections

WPS Press this button to begin the WiFi Protected Setup

(WPS) Push-Button Configuration (PBC) procedure.

Press the PBC button on your wireless clients in the coverage area within two minutes to enable them to join the wireless network.

See WPS on page 63 for more information.

USB The CGNV4 provides a USB 2.0 host port, allowing you

to plug in USB flash disks for mounting and sharing through the LAN interfaces via the Samba protocol (network neighborhood).

The CGNV4 supports the following Windows file systems:



FAT16



FAT32



NTFS

USB devices must not drain more than 500mA

from the USB port. USB devices requiring more than 500mA should be provided with their own power source(s).

LINE 1 Use these ports to connect your analog phones for VoIP

LINE 2

RESET Use this button to reboot or reset your CGNV4 to its

LAN1 Use these ports to connect your computers and other

LAN2

LAN3

LAN4

services, using cables with RJ11 connectors.

factory default settings.

To reboot the CGNV4, press the button and hold it for less than five seconds. The CGNV4 restarts, using your existing settings.

To reset the CGNV4, press the button and hold it for more than ten seconds. All user-configured settings are deleted, and the CGNV4 restarts using its factory default settings.

network devices, using Category 5 or 6 Ethernet cables with RJ45 connectors.

Hitron CGNV4 User’s Guide

Table 2: Hardware Connections

CABLE Use this to connect to the Internet via an F-type RF

cable.

POWER Use the POWER port to connect to the 12v/2A power

adapter that came with your CGNV4. Use the POWER switch to turn the CGNV4 on or off.

NEVER use another power adapter with your

CGNV4. Doing so could harm your CGNV4.

Figure 3: Power Adaptor

1.3 LEDs

This section describes the CGNV4’s LEDs (lights).

Hitron CGNV4 User’s Guide

Figure 4: LEDs

Table 3: LEDs

LED STATUS DESCRIPTION

US Green, blinking The CGNV4 is searching for an upstream frequency

on the CABLE connection.

Green, steady The CGNV4 has successfully located and locked

onto an upstream frequency on the CABLE connection.

Blue The CGNV4 is engaged in channel bonding on the

upstream connection.

Off There is no upstream activity on the CABLE

connection.

Hitron CGNV4 User’s Guide

Table 3: LEDs

DS Green, blinking The CGNV4 is searching for a downstream

frequency on the CABLE connection.

Green, steady The CGNV4 has successfully located and locked

onto a downstream frequency on the CABLE connection.

Blue The CGNV4 is engaged in channel bonding on the

downstream connection.

Off There is no downstream activity on the CABLE

connection.

Status Blinking The CGNV4’s cable modem is registering with the

service provider’s CMTS.

On The CGNV4’s cable modem has successfully

registered with the service provider and is ready for data transfer.

LAN Off No device is connected to one of the LAN ports.

Green, blinking A device is connected to one of the LAN ports via a

Fast Ethernet (100Mbps) link, and is transmitting or receiving data.

WIRELESS (2.4GHZ)

Green, steady A device is connected to one of the LAN ports via a

Fast Ethernet (100Mbps) link, but is not transmitting or receiving data.

Blue, blinking A device is connected to one of the LAN ports via a

Gigabit Ethernet (1000Mbps) link, and is transmitting or receiving data.

Blue, steady A device is connected to one of the LAN ports via a

Gigabit Ethernet (1000Mbps) link, but is not transmitting or receiving data.

Off The 2.4GHz wireless network is not enabled.

Green, steady The 2.4GHz wireless network is enabled, and no

data is being transmitted or received over the

2.4GHz wireless network.

Green, blinking The 2.4GHz wireless network is enabled, and data

is being transmitted or received over the 2.4GHz wireless network.

Bi-color Wi-Fi Protected Setup (WPS) is in operation on the

2.4GHz wireless network.

Hitron CGNV4 User’s Guide

Table 3: LEDs

WIRELESS (5GHZ)

USB Off No USB device is connected to a USB port.

Off The 5GHz wireless network is not enabled.

Green, steady The 5GHz wireless network is enabled, and no data

is being transmitted or received over the 5GHz wireless network.

Green, blinking The 5GHz wireless network is enabled, and data is

being transmitted or received over the 5GHz wireless network.

Bi-color Wi-Fi Protected Setup (WPS) is in operation on the

5GHz wireless network.

Green, steady A USB device is connected to a USB port, and is

not transmitting or receiving data.

Green, blinking A USB device is connected to a USB port, and is

transmitting or receiving data.

Line 1 Line 2

Off No telephone is connected to the relevant Line

port.

Blinking A telephone is connected to the relevant Line port,

and is off-hook.

On A telephone is connected to the relevant Line port,

and is on-hook.

1.4 IP Address Setup

Before you log into the CGNV4’s GUI, your computer’s IP address must be in the same subnet as the CGNV4. This allows your computer to communicate with the CGNV4.

NOTE: See IP Addresses and Subnets on page 27 for background information.

If your computer is configured to get an IP address automatically, or if you are not sure, try to log in to the CGNV4 (see GUI Overview on page 24).



If the login screen displays, your computer is already configured correctly.

Hitron CGNV4 User’s Guide



If the login screen does not display, your computer is not configured correctly.

Follow the procedure in Manual IP Address Setup on page 22 and set your computer to get an IP address automatically. Try to log in again. If you cannot log in, follow the manual IP address setup procedure again, and set a specific IP address as shown. Try to log in again.

NOTE: If you still cannot see the login screen, your CGNV4’s IP settings may have

been changed from their defaults. If you do not know the CGNV4’s new address, you should return it to its factory defaults. See Resetting the CGNV4 on page 25. Bear in mind that ALL user-configured settings are lost.

1.4.1 Manual IP Address Setup

By default, your CGNV4’s local IP address is 192.168.0.1. If your CGNV4 is using the default IP address, you should set your computer’s IP address to be between

192.168.0.2 and 192.168.0.254.

Take the following steps to manually set up your computer’s IP address to connect to the CGNV4:

NOTE: This example uses Windows XP; the procedure for your operating system

may be different.

1 Click Start, then click Control Panel.

2 In the window that displays, double-click Network Connections.

3 Right-click your network connection (usually Local Area Connection) and click

Properties.

4 In the General tab’s This connection uses the following items list, scroll

down and select Internet Protocol (TCP/IP). Click Properties.

5 You can get an IP address automatically, or specify one manually:



If your network has an active DHCP server, select Get an IP address automatically.



If your network does not have an active DHCP server, select Use the following IP address. In the IP address field, enter a value between

192.168.0.2 and 192.168.0.254 (default). In the Subnet mask field, enter

255.255.255.0 (default).

Hitron CGNV4 User’s Guide

NOTE: If your CGNV4 is not using the default IP address, enter an IP address and

subnet mask that places your computer in the same subnet as the CGNV4.

6 Click OK. The Internet Protocol (TCP/IP) window closes. In the Local Area

Connection Properties window, click OK.

Your computer now obtains an IP address from the CGNV4, or uses the IP address that you specified, and can communicate with the CGNV4.

1.5 Logging in to the CGNV4

Take the following steps to log into the CGNV4’s GUI.

NOTE: You can log into the CGNV4’s GUI via the wireless interface. However, it is

strongly recommended that you configure the CGNV4 via a wired connection on the LAN.

1 Open a browser window.

2 Enter the CGNV4’s IP address (default 192.168.0.1) in the URL bar. The Login

screen displays.

Figure 5: Login

3 Enter the Username and Password. The default login username is admin, and

the default password is admin.

Hitron CGNV4 User’s Guide

NOTE: The Username and Password are case-sensitive; “admin” is not the same as

“Admin”.

4 Click Login. The System Information screen displays (see The System

Information Screen on page 33).

1.6 GUI Overview

This section describes the CGNV4’s GUI.

Figure 6: GUI Overview

Table 4: GUI Overview

Primary Navigation Bar

Use this section to move from one part of the GUI to another.

Hitron CGNV4 User’s Guide

Table 4: GUI Overview (continued)

Secondary Navigation Bar

Main Window Use this section to read information about your CGNV4’s

Use this section to move from one related screen to another.

configuration, and make configuration changes.

1.7 Resetting the CGNV4

When you reset the CGNV4 to its factory defaults, all user-configured settings are lost, and the CGNV4 is returned to its initial configuration state.

To reset the CGNV4, click Admin > Device Reset. In the screen that displays, click the Factory Default button.

The CGNV4 turns off and on again, using its factory default settings.

NOTE: Depending on your CGNV4’s previous configuration, you may need to re-

configure your computer’s IP settings; see IP Address Setup on page 21.

Hitron CGNV4 User’s Guide

Status

This chapter describes the screens that display when you click Status in the toolbar. It contains the following sections:



Status Overview on page 26



The System Information Screen on page 33



The DOCSIS Provisioning Screen on page 34



The DOCSIS WAN Screen on page 35



The DOCSIS Event Screen on page 38



The Wireless Status Screen on page 39



The MTA Screen on page 42

2.1 Status Overview

This section describes some of the concepts related to the Status screens.

2.1.1 DOCSIS

The Data Over Cable Service Interface Specification (DOCSIS) is a telecommunications standard that defines the provision of data services) Internet access) over a traditional cable TV (CATV) network.

Your CGNV4 supports DOCSIS version 3.0.

Hitron CGNV4 User’s Guide

2.1.2 IP Addresses and Subnets

Every computer on the Internet must have a unique Internet Protocol (IP) address. The IP address works much like a street address, in that it identifies a specific location to which information is transmitted. No two computers on a network can have the same IP address.

2.1.2.1 IP Address Format

IP addresses consist of four octets (8-bit numerical values) and are usually represented in decimal notation, for example 192.168.1.1. In decimal notation, this means that each octet has a minimum value of 0 and a maximum value of 255.

An IP address carries two basic pieces of information: the “network number” (the address of the network as a whole, analogous to a street name) and the “host ID” (analogous to a house number) which identifies the specific computer (or other network device).

2.1.2.2 IP Address Assignment

IP addresses can come from three places:



The Internet Assigned Numbers Agency (IANA)



Your Internet Service Provider



You (or your network devices)

IANA is responsible for IP address allocation on a global scale, and your ISP assigns IP addresses to its customers. You should never attempt to define your own IP addresses on a public network, but you are free to do so on a private network.

In the case of the CGNV4:



The public network (Wide Area Network or WAN) is the link between the cable

connector and your Internet Service Provider. Your CGNV4’s IP address on this network is assigned by your service provider.

Hitron CGNV4 User’s Guide



The private network is your Local Area Network (LAN) and Wireless Local Area

Network (WLAN), if enabled. You are free to assign IP addresses to computers on the LAN and WLAN manually, or to allow the CGNV4 to assign them automatically via DHCP (Dynamic Host Configuration Protocol). IANA has reserved the following blocks of IP addresses to be used for private networks only:

Table 5: Private IP Address Ranges

FROM... ...TO

10.0.0.0 10.255.255.255

172.16.0.0 172.31.255.255

192.168.0.0 192.168.255.255

If you assign addresses manually, they must be within the CGNV4’s LAN subnet.

2.1.2.3 Subnets

A subnet (short for sub-network) is, as the name suggests, a separate section of a network, distinct from the main network of which it is a part. A subnet may contain all of the computers at one corporate local office, for example, while the main network includes several offices.

In order to define the extent of a subnet, and to differentiate it from the main network, a subnet mask is used. This “masks” the part of the IP address that refers to the main network, leaving the part of the IP address that refers to the sub-network.

Each subnet mask has 32 bits (binary digits), as does each IP address:



A binary value of 1 in the subnet mask indicates that the corresponding bit in the

IP address is part of the main network.



A binary value of 0 in the subnet mask indicates that the corresponding bit in the

IP address is part of the sub-network.

For example, the following table shows the IP address of a computer (192.168.1.1) expressed in decimal and binary (each cell in the table indicates one octet):

Table 6: IP Address: Decimal and Binary

192 168 0 1

11000000 10101000 00000000 00000001

Hitron CGNV4 User’s Guide

The following table shows a subnet mask that “masks” the first twenty-four bits of the IP address, in both its decimal and binary notation.

Table 7: Subnet Mask: Decimal and Binary

255 255 255 0

11111111 11111111 11111111 00000000

This shows that in this subnet, the first three octets (192.168.1, in the example IP address) define the main network, and the final octet (1, in the example IP address) defines the computer’s address on the subnet.

The decimal and binary notations give us the two common ways to write a subnet mask:



Decimal: the subnet mask is written in the same fashion as the IP address:

255.255.255.0, for example.



Binary: the subnet mask is indicated after the IP address (preceded by a forward

slash), specifying the number of binary digits that it masks. The subnet mask

255.255.255.0 masks the first twenty-four bits of the IP address, so it would be written as follows: 192.168.1.1/24.

2.1.3 DHCP

The Dynamic Host Configuration Protocol, or DHCP, defines the process by which IP addresses can be assigned to computers and other networking devices automatically, from another device on the network. This device is known as a DHCP server, and provides addresses to all the DHCP client devices.

In order to receive an IP address via DHCP, a computer must first request one from the DHCP server (this is a broadcast request, meaning that it is sent out to the whole network, rather than just one IP address). The DHCP server hears the requests, and responds by assigning an IP address to the computer that requested it.

If a computer is not configured to request an IP address via DHCP, you must configure an IP address manually if you want to access other computers and devices on the network. See IP Address Setup on page 21 for more information.

By default, the CGNV4 is a DHCP client on the WAN (the CATV connection). It broadcasts an IP address over the cable network, and receives one from the service provider. By default, the CGNV4 is a DHCP server on the LAN; it provides IP addresses to computers on the LAN which request them.

Hitron CGNV4 User’s Guide

2.1.4 DHCP Lease

“DHCP lease” refers to the length of time for which a DHCP server allows a DHCP client to use an IP address. Usually, a DHCP client will request a DHCP lease renewal before the lease time is up, and can continue to use the IP address for an additional period. However, if the client does not request a renewal, the DHCP server stops allowing the client to use the IP address.

This is done to prevent IP addresses from being used up by computers that no longer require them, since the pool of available IP addresses is finite.

2.1.5 MAC Addresses

Every network device possesses a Media Access Control (MAC) address. This is a unique alphanumeric code, given to the device at the factory, which in most cases cannot be changed (although some devices are capable of “MAC spoofing”, where they impersonate another device’s MAC address).

MAC addresses are the most reliable way of identifying network devices, since IP addresses tend to change over time (whether manually altered, or updated via DHCP).

Each MAC address displays as six groups of two hexadecimal digits separated by colons (or, occasionally, dashes) for example 00:AA:FF:1A:B5:74.

NOTE: Each group of two hexadecimal digits is known as an “octet”, since it

represents eight bits.

Bear in mind that a MAC address does not precisely represent a computer on your network (or elsewhere), it represents a network de computer (or other device). For example, if a single computer has an Ethernet card (to connect to your CGNV4 via one of the LAN ports) and also has a wireless card (to connect to your CGNV4 over the wireless interface) the MAC addresses of the two cards will be different. In the case of the CGNV4, each internal module (cable modem module, Ethernet module, wireless module, etc.) possesses its own MAC address.

vice, which may be part of a

Hitron CGNV4 User’s Guide

2.1.6 Routing Mode

When your CGNV4 is in routing mode, it acts as a gateway for computers on the LAN to access the Internet. The service provider assigns an IP address to the CGNV4 on the WAN, and all traffic for LAN computers is sent to that IP address. The CGNV4 assigns private IP addresses to LAN computers (when DHCP is active), and transmits the relevant traffic to each private IP address.

NOTE: When DHCP is not active on the CGNV4 in routing mode, each computer on

the LAN must be assigned an IP address in the CGNV4’s subnet manually.

When the CGNV4 is not in routing mode, the service provider assigns an IP address to each computer connected to the CGNV4 directly. The CGNV4 does not perform any routing operations, and traffic flows between the computers and the service provider.

Routing mode is not user-configurable; it is specified by the service provider in the CGNV4’s configuration file.

2.1.7 Configuration Files

The CGNV4’s configuration (or config) file is a document that the CGNV4 obtains automatically over the Internet from the service provider’s server, which specifies the settings that the CGNV4 should use. It contains a variety of settings that are not present in the user-configurable Graphical User Interface (GUI) and can be specified only by the service provider.

2.1.8 Downstream and Upstream Transmissions

The terms “downstream” and “upstream” refer to data traffic flows, and indicate the direction in which the traffic is traveling. “Downstream” refers to traffic from the service provider to the CGNV4, and “upstream” refers to traffic from the CGNV4 to the service provider.

2.1.9 Cable Frequencies

Just like radio transmissions, data transmissions over the cable network must exist on different frequencies in order to avoid interference between signals.

The data traffic band is separate from the TV band, and each data channel is separate from other data channels.

Hitron CGNV4 User’s Guide

2.1.10 Modulation

Transmissions over the cable network are based on a strong, high frequency periodic waveform known as the “carrier wave.” This carrier wave is so called because it “carries” the data signal. The data signal itself is defined by variations in the carrier wave. The process of varying the carrier wave (in order to carry data signal information) is known as “modulation.” The data signal is thus known as the “modulating signal.”

Cable transmissions use a variety of methods to perform modulation (and the “decoding” of the received signal, or “demodulation”). The modulation methods defined in DOCSIS 3 are as follows:



QPSK: Quadrature Phase-Shift Keying



QAM: Quadrature Amplitude Modulation



QAM TCM: Trellis modulated Quadrature Amplitude Modulation

In many cases, a number precedes the modulation type (for example 16 QAM). This number refers to the complexity of modulation. The higher the number, the more data can be encoded in each symbol.

NOTE: In modulated signals, each distinct modulated character (for example, each

audible tone produced by a modem for transmission over telephone lines) is known as a symbol.

Since more information can be represented by a single character, a higher number indicates a higher data transfer rate.

2.1.11 TDMA, FDMA and SCDMA

Time Division Multiple Access (TDMA), Frequency Division Multiple Access (FDMA) and Synchronous Code Division Multiple Access (SCDMA) are channel access methods that allow multiple users to share the same frequency channel.



TDMA allows multiple users to share the same frequency channel by splitting

transmissions by time. Each user is allocated a number of time slots, and transmits during those time slots.



FDMA allows multiple users to share the same frequency channel by assigning a

frequency band within the existing channel to each user.

Hitron CGNV4 User’s Guide



SCDMA allows multiple users to share the same frequency channel by assigning

a unique orthogonal code to each user.

2.2 The System Information Screen

Use this screen to see general information about your CGNV4’s hardware, its software, and its connection to the Internet.

Click Status > System Information. The following screen displays.

Figure 7: The Status: System Information Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 8: The Status: System Information Screen

Hardware Version This displays the version number of the CGNV4’s

physical hardware.

Software Version This displays the version number of the software that

controls the CGNV4.

Gateway Serial Number This displays a number that uniquely identifies the

device.

HFC MAC Address This displays the Media Access Control (MAC) address

of the CGNV4’s Hybrid-Fiber Coax (HFC) module. This is the module that connects to the Internet through the CATV connection.

System Time This displays the current date and time.

WAN IP This displays the CGNV4’s WAN IP address. This IP

address is automatically assigned to the CGNV4

WAN Receiving This displays the amount of data received over the WAN

connection since the device was last started.

WAN Sending This displays the amount of data transmitted over the

WAN connection since the device was last started.

Private LAN IPv4 Subnet This displays the CGNV4’s LAN subnet mask.

LAN Receiving This displays the amount of data received over the LAN

connection since the device was last started.

LAN Sending This displays the amount of data transmitted over the

LAN connection since the device was last started.

2.3 The DOCSIS Provisioning Screen

This screen displays the steps successfully taken to connect to the Internet over the Cable connection.

Use this screen for troubleshooting purposes to ensure that the CGNV4 has successfully connected to the Internet; if an error has occurred you can identify the stage at which the failure occurred.Click Status > DOCSIS Provisioning. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 8: The Status: DOCSIS Provisioning Screen

For each step:



Process displays when the CGNV4 is attempting to complete a connection step.



Success displays when the CGNV4 has completed a connection step.

2.4 The DOCSIS WAN Screen

Use this screen to discover information about:



The nature of the upstream and downstream connection between the CGNV4

and the device to which it is connected through the CABLE interface.



IP details of the CGNV4’s WAN connection.

Click Status > DOCSIS WAN. The following screen displays.Click Status > DOCSIS

WAN. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 9: The Status: DOCSIS WAN Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 9: The Status: DOCSIS WAN Screen

DOCSIS Overview

Network Access This displays whether or not your service provider

allows you to access the Internet over the CABLE connection.



Permitted displays if you can access the Internet.



Denied displays if you cannot access the Internet.

IP Address This displays the CGNV4’s WAN IP address. This IP

address is automatically assigned to the CGNV4

Subnet Mask This displays the CGNV4’s WAN subnet mask.

DHCP Lease Time This displays the time that elapses before your device’s

IP address lease expires, and a new IP address is assigned to it by the DHCP server.

Downstream Overview

NOTE: The downstream signal is the signal transmitted to the CGNV4.

Force Downstream Frequency (MHz)

Port ID This displays the ID number of the downstream

Frequency (Hz) This displays the actual frequency in Hertz (Hz) of each

Modulation This displays the type of modulation that each

Signal Strength (dBmV)

Signal Noise Ratio (dB)

Channel ID This displays the ID number of each channel on which

Upstream Overview

Use this to configure the CGNV4 to use a specific downstream frequency. Enter the desired frequency in Megahertz (MHz) and click Apply.

connection’s port.

downstream data channel to which the CGNV4 is connected.

downstream channel uses.

This displays the power of the signal of each downstream data channel to which the CGNV4 is connected, in dBmV (decibels above/below 1 millivolt).

This displays the Signal to Noise Ratio (SNR) of each downstream data channel to which the CGNV4 is connected, in dB (decibels).

the downstream signal is transmitted.

NOTE: The upstream signal is the signal transmitted from the CGNV4.

Hitron CGNV4 User’s Guide

Table 9: The Status: DOCSIS WAN Screen (continued)

Force Downstream Frequency (MHz)

Port ID This displays the ID number of the upstream

Frequency (Hz) This displays the actual frequency in Hertz (Hz) of each

Modulation This displays the type of modulation that each upstream

Use this to configure the CGNV4 to use a specific upstream frequency. Enter the desired frequency in Megahertz (MHz) and click Apply.

connection’s port.

upstream data channel to which the CGNV4 is connected.

channel uses.

Signal Strength (dBmV)

Signal Noise Ratio (dB)

Channel ID This displays the ID number of each channel on which

This displays the power of the signal of each upstream data channel to which the CGNV4 is connected, in dBmV (decibels above/below 1 millivolt).

This displays the Signal to Noise Ratio (SNR) of each upstream data channel to which the CGNV4 is connected, in dB (decibels).

the upstream signal is transmitted.

2.5 The DOCSIS Event Screen

Use this screen to view information about local WAN activity events.

Click Status > DOCSIS Event. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 10: The Status: DOCSIS Event Screen

The following table describes the labels in this screen.

Table 10: The Status: DOCSIS Event Screen

No This displays the arbitrary, incremental index number

assigned to the event.

Time This displays the date and time at which the event

occurred.

Type This displays the nature of the event.

Priority This displays the severity of the event.

Event This displays a description of the event.

2.6 The Wireless Status Screen

Use this screen to view information about the CGNV4’s wireless network.

Hitron CGNV4 User’s Guide

Click Status > Wireless. The following screen displays.

Figure 11: The Status: Wireless Status Screen

The following table describes the labels in this screen.

Table 11: The Status: Wireless Status Screen

Basic Overview

Wireless Status This field displays ON when the CGNV4’s 2.4 GHz

wireless network is active, and displays OFF when it is inactive.

Hitron CGNV4 User’s Guide

Table 11: The Status: Wireless Status Screen (continued)

Wireless Mode This displays the type of 2.4 GHz wireless network that

the CGNV4 is using.

Wireless Channel This displays the wireless channel on which the

CGNV4’s 2.4 GHz wireless network is transmitting and receiving.

5GHz Wireless Status

Wireless Status (5GHz)

Wireless Mode (5GHz)

Wireless Channel (5GHz

SSID Overview

(SSID) This displays the 2.4 GHz wireless network’s Service

Broadcast SSID This field displays Enabled when the 2.4 GHz wireless

WMM This field displays Enabled when the 2.4 GHz wireless

Security Mode This displays the type of security the CGNV4’s 2.4 GHz

This field displays ON when the CGNV4’s 5 GHz wireless network is active, and displays OFF when it is inactive.

This displays the type of 5 GHz wireless network that the CGNV4 is using.

This displays the wireless channel on which the CGNV4’s 5 GHz wireless network is transmitting and receiving.

Set Identifier. This is the name of the wireless network, to which wireless clients connect.

network’s SSID is being broadcast, and displays Disabled when it is not.

network, and displays Disabled when it is not.

wireless network is currently using.

Security Key This displays the password for the CGNV4’s 2.4 GHz

wireless network.

SSID Overview (5GHz)

(SSID) This displays the 5 GHz wireless network’s Service Set

Identifier. This is the name of the wireless network, to which wireless clients connect.

Broadcast SSID This field displays Enabled when the 5 GHz wireless

network’s SSID is being broadcast, and displays Disabled when it is not.

WMM This field displays Enabled when the 5 GHz wireless

network, and displays Disabled when it is not.

Hitron CGNV4 User’s Guide

Table 11: The Status: Wireless Status Screen (continued)

Security Mode This displays the type of security the CGNV4’s 5 GHz

wireless network is currently using.

Security Key This displays the password for the CGNV4’s 5 GHz

wireless network.

2.7 The MTA Screen

Use this screen to see general information about the CVE-30360’s embedded Multimedia Terminal Adapter module.

Click Status > MTA. The following screen displays.

Figure 12: The Status: MTA Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 12: The Status: MTA Screen

Telephony Provisioning Procedure

DHCP This field displays the status of the remote telephony

DHCP server.

Provisioning Flow Type

TFTP Configuration This field displays the status of the remote telephony

Registration This field displays the overall status of voice call

Line Status

Line 1 These fields display the current status of each phone

Line 2

This displays the type of security used for voice calls through the CGNV4.

TFTP server.

registration.

connected to the CGNV4.

Hitron CGNV4 User’s Guide

Basic

This chapter describes the screens that display when you click Basic in the toolbar. It contains the following sections:



Basic Overview on page 44



The LAN Setup Screen on page 46



The Gateway Function Screen on page 48



The Port Forwarding Screen on page 49



The Port Triggering Screen on page 53



The DMZ Screen on page 57



The DNS Screen on page 58

3.1 Basic Overview

This section describes some of the concepts related to the Basic screens (see also

Status Overview on page 26).

3.1.1 The Domain Name System

A domain is a location on a network, for instance example.com. On the Internet, domain names are mapped to the IP addresses to which they should refer by the Domain Name System (DNS). This allows you to enter “www.example.com” into your browser and reach the correct place on the Internet even if the IP address of the website’s server has changed.

Hitron CGNV4 User’s Guide

3.1.2 Port Forwarding

Port forwarding allows a computer on your LAN to receive specific communications from the WAN. Typically, this is used to allow certain applications (such as gaming) through the firewall, for a specific computer on the LAN. Port forwarding is also commonly used for running a public HTTP server from a private network.

You can set up a port forwarding rule for each application for which you want to open ports in the firewall. When the CGNV4 receives incoming traffic from the WAN with a destination port that matches a port forwarding rule, it forwards the traffic to the LAN IP address and port number specified in the port forwarding rule.

NOTE: For information on the ports you need to open for a particular application,

consult that application’s documentation.

3.1.3 Port Triggering

Port triggering is a means of automating port forwarding. The CGNV4 scans outgoing traffic (from the LAN to the WAN) to see if any of the traffic’s destination ports match those specified in the port triggering rules you configure. If any of the ports match, the CGNV4 automatically opens the incoming ports specified in the rule, in anticipation of incoming traffic.

3.1.4 DMZ

In networking, the De-Militarized Zone (DMZ) is a part of your LAN that has been isolated from the rest of the LAN, and opened up to the WAN. The term comes from the military designation for a piece of territory, usually located between two opposing forces, that is isolated from both and occupied by neither.

3.1.5 Routing Mode

NOTE: When DHCP is not active on the CGNV4 in routing mode, each computer on

the LAN must be assigned an IP address in the CGNV4’s subnet manually.

Hitron CGNV4 User’s Guide

3.2 The LAN Setup Screen

Use this screen to:



View information about the CGNV4’s connection to the WAN



Configure the CGNV4’s internal DHCP server



Define how the CGNV4 assigns IP addresses on the LAN



See information about the network devices connected to the CGNV4 on the

LAN.

Click Basic > LAN Setup. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 13: The Basic: LAN Setup Screen

The following table describes the labels in this screen.

Table 13: The Basic: LAN Setup Screen

Private LAN Setting

Private LAN IP Address

Subnet Mask Use this field to define the LAN subnet. Use dotted

LAN DHCP Status Use this field to configure whether or not the CGNV4’s

Lease Time Use this to select the time that elapses before your

Use this field to define the IP address of the CGNV4 on the LAN.

decimal notation (for example, 255.255.255.0).

DHCP server is active.



To turn the DHCP server on, click Enabled.



To turn the DHCP server off, click Disabled.

device’s IP address lease expires, and a new IP address is assigned to it by the DHCP server.

Hitron CGNV4 User’s Guide

Table 13: The Basic: LAN Setup Screen (continued)

DHCP Start IP Use this field to specify the IP address at which the

CGNV4 begins assigning IP addresses to devices on the LAN (when DHCP is enabled).

DHCP End IP Use this field to specify the IP address at which the

CGNV4 stops assigning IP addresses to devices on the LAN (when DHCP is enabled).

NOTE: Devices requesting IP addresses once the

DHCP pool is exhausted are not assigned an IP address.

Save Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Connected Computers

Host Name This displays the name of each network device

connected on the LAN.

IP Address This displays the IP address of each network device

connected on the LAN.

MAC Address This displays the Media Access Control (MAC) address

of each network device connected on the LAN.

Type This displays whether the device’s IP address was

assigned by DHCP (DHCP-IP), or self-assigned.

Interface This displays whether the device is connected on the

LAN (Ethernet) or the WLAN (Wireless(x), where x denotes the wireless mode; b, g or n).

Status This displays Active when the connected computer is

online, and Inactive when the connected computer is offline.

3.3 The Gateway Function Screen

Use this screen to enable or disable the CGNV4’s residential gateway and Universal Plug n Play (UPnP) functions.

Hitron CGNV4 User’s Guide

Disabling the residential gateway feature sets the unit to use bridge mode only. Use this mode when your network is already using another router.

Click Basic > Gateway Function. The following screen displays.

Figure 14: The Basic: Gateway Function Screen

The following table describes the labels in this screen.

Table 14: The Basic: Gateway Function Screen

Residential Gateway Function

Select the checkbox to enable the CGNV4’s residential gateway features, or deselect the checkbox to disable them.

UPnP IGD Select the checkbox to enable the CGNV4’s Universal

Plug n Play Internet Gateway Device features, or deselect the checkbox to disable them.

3.4 The Port Forwarding Screen

Use this screen to configure port forwarding between computers on the WAN and computers on the LAN. You can turn port forwarding on or off and configure new and existing port forwarding rules.

Click Basic > Port Forwarding. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 15: The Basic: Port Forwarding Screen

The following table describes the labels in this screen.

Table 15: The Basic: Port Forwarding Screen

All Port Forwarding Rules

Use this field to turn port forwarding on or off.



Select Enabled to turn port forwarding on.



Select Disabled to turn port forwarding off.

Port Forwarding Rules

Select Select a port forwarding rule’s radio button before

clicking Edit or Delete.

# This displays the arbitrary identification number

assigned to the port forwarding rule.

Application Name This displays the arbitrary name you assigned to the

rule when you created it.

Public These fields display the ports to which the rule applies:

Private



The Public field displays the incoming port range.

These are the ports on which the CGNV4 received traffic from the originating host on the WAN.



The Private field displays the port range to which the

CGNV4 forwards traffic to the device on the LAN.

Hitron CGNV4 User’s Guide

Table 15: The Basic: Port Forwarding Screen (continued)

Protocol This field displays the protocol or protocols to which this

rule applies:



Transmission Control Protocol (TCP)



User Datagram Protocol (UDP)



Transmission Control Protocol and User Datagram

Protocol (TCP/UDP)



Generic Routing Encapsulation (GRE)



Encapsulating Security Protocol (ESP)

Local IP Address This displays the IP address of the computer on the LAN

to which traffic conforming to the Public Port Range and Protocol conditions is forwarded.

Status Use this to turn the port forwarding rule on or off.



Select ON to activate the port forwarding rule.



Select OFF to deactivate the port forwarding rule.

Add Click this to define a new port forwarding rule. See

Adding or Editing a Port Forwarding Rule on page 51 for

information on the screen that displays.

Edit Select a port forwarding rule’s radio button and click this

to make changes to the rule. See Adding or Editing a

Port Forwarding Rule on page 51 for information on the

screen that displays.

Delete Select a port forwarding rule’s radio button and click this

to remove the rule. The deleted rule’s information cannot be retrieved.

Help Click this to see information about the fields in this

screen.

3.4.1 Adding or Editing a Port Forwarding Rule



To add a new port forwarding rule, click Add in the Basic > Port Forwarding

screen.



To edit an existing port forwarding rule, select the rule’s radio button in the Basic

> Port Forwarding screen and click the Edit button.

NOTE: Ensure that Enabled is selected in the Basic > Port Forwarding screen in

order to add or edit port forwarding rules.

Hitron CGNV4 User’s Guide

The following screen displays.

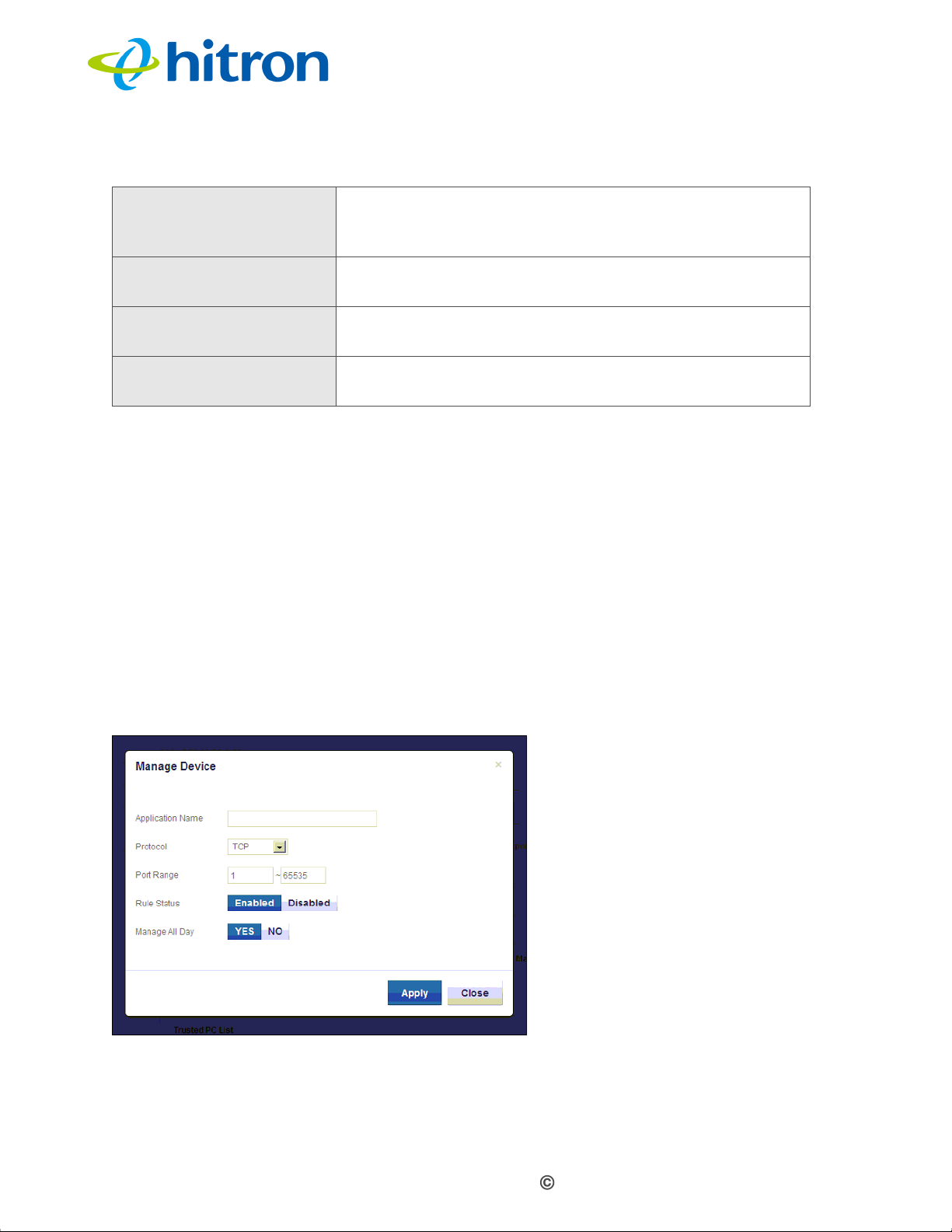

Figure 16: The Basic: Port Forwarding Add/Edit Screen

The following table describes the labels in this screen.

Table 16: The Basic: Port Forwarding Add/Edit Screen

Common Application Use this field to select the application for which you want

to create a port forwarding rule, if desired.

Application Name Enter a name for the application for which you want to

create the rule.

NOTE: This name is arbitrary, and does not affect

functionality in any way.

Protocol Use this field to specify whether the CGNV4 should

forward traffic via:



Transmission Control Protocol (TCP)



User Datagram Protocol (UDP)



Transmission Control Protocol and User Datagram Protocol (TCP/UDP)



Generic Routing Encapsulation (GRE)



Encapsulating Security Protocol (ESP)

NOTE: If in doubt, leave this field at its default (TCP/

UDP).

Hitron CGNV4 User’s Guide

Table 16: The Basic: Port Forwarding Add/Edit Screen

Public Port Range Use these fields to specify the incoming port range.

These are the ports on which the CGNV4 receives traffic from the originating host on the WAN.

Enter the start port number in the first field, and the end port number in the second field.

To specify only a single port, enter its number in both fields.

Private Port Range Use these fields to specify the ports to which the

received traffic should be forwarded.

Enter the start port number in the first field. The number of ports must match that specified in the Public Port Range, so the CGNV4 completes the second field automatically.

Local IP Address Use this field to enter the IP address of the computer on

the LAN to which you want to forward the traffic.

Apply Click this to save your changes to the fields in this

screen.

Close Click this to return to the Port Forwarding screen

without saving your changes to the rule.

3.5 The Port Triggering Screen

Use this screen to configure port triggering. You can turn port triggering on or off and configure new and existing port triggering rules.

Click Basic > Port Triggering. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 17: The Basic: Port Triggering Screen

The following table describes the labels in this screen.

Table 17: The Basic: Port Triggering Screen

All Port Triggering Rules

Use this field to turn port triggering on or off.



Select Enabled to turn port triggering on.



Select Disabled to turn port triggering off.

Port Triggering Rules

Select Select a port forwarding rule’s radio button before

clicking Edit or Delete.

# This displays the arbitrary identification number

assigned to the port forwarding rule.

Application Name This displays the name you assigned to the rule when

you created it.

Trigger This displays the range of outgoing ports. When the

CGNV4 detects activity (outgoing traffic) on these ports from computers on the LAN, it automatically opens the Target ports.

Target This displays the range of triggered ports. These ports

are opened automatically when the CGNV4 detects activity on the Trigger ports from computers on the LAN.

Protocol This displays the protocol of the port triggering rule

(TCP, UDP or Both).

Hitron CGNV4 User’s Guide

Table 17: The Basic: Port Triggering Screen (continued)

Timeout (ms) This displays the time (in milliseconds) after the CGNV4

opens the Target ports that it should close them.

Twoway Status Usually a port triggering rule works for two IP

addresses; when a rule is enabled, other IPs will also be allowed to use the rule as a trigger.

Status Use this field to turn the rule On or Off.

Add Click this to define a new port triggering rule. Port

triggering must first be set to Enabled. See Adding or

Editing a Port Triggering Rule on page 55 for

information on the screen that displays.

Edit Select a port triggering rule’s radio button and click this

to make changes to the rule. Port triggering must first be set to Enabled. See Adding or Editing a Port Triggering

Rule on page 55 for information on the screen that

displays.

Delete Select a port forwarding rule’s radio button and click this

to remove the rule. The deleted rule’s information cannot be retrieved.

Help Click this to see information about the fields in this

screen.

3.5.1 Adding or Editing a Port Triggering Rule



To add a new port triggering rule, click Add in the Basic > Port Triggering

screen.



To edit an existing port triggering rule, select the rule’s radio button in the Basic

> Port Triggering screen and click the Edit button.

NOTE: Ensure that Enabled is selected in the Basic > Port Triggering screen in

order to add or edit port triggering rules.

The following screen displays.

Hitron CGNV4 User’s Guide

Figure 18: The Basic: Port Triggering Add/Edit Screen

The following table describes the labels in this screen.

Table 18: The Basic: Port Triggering Add/Edit Screen

Application Name Enter a name for the application for which you want to

create the rule.

NOTE: This name is arbitrary, and does not affect

functionality in any way.

Trigger Port Range Use these fields to specify the trigger ports. When the

CGNV4 detects activity on any of these ports originating from a computer on the LAN, it automatically opens the Target ports in expectation of incoming traffic.

Enter the start port number in the first field, and the end port number in the second field.

To specify only a single port, enter its number in both fields.

Target Port Range Use these fields to specify the target ports. The CGNV4

opens these ports in expectation of incoming traffic whenever it detects activity on any of the Trigger ports. The incoming traffic is forwarded to these ports on the computer connected to the LAN.

Enter the start port number in the first field, and the end port number in the second field.

To specify only a single port, enter its number in both fields.

Hitron CGNV4 User’s Guide

Table 18: The Basic: Port Triggering Add/Edit Screen

Protocol Use this field to specify whether the CGNV4 should

activate this trigger when it detects activity via:



Transmission Control Protocol (TCP)



User Datagram Protocol (UDP)



Transmission Control Protocol and User Datagram Protocol (Both)

NOTE: If in doubt, leave this field at its default (Both).

Timeout (ms) Enter the time (in milliseconds) after the CGNV4 opens

the Target ports that it should close them.

Apply Click this to save your changes to the fields in this

screen.

Close Click this to return to the Port Triggering screen without

saving your changes to the rule.

3.6 The DMZ Screen

Use this screen to configure your network’s Demilitarized Zone (DMZ).

NOTE: Only one device can be on the DMZ at a time.

Click Basic > DMZ. The following screen displays.

Figure 19: The Basic: DMZ Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 19: The Basic: DMZ Screen

Enable DMZ Use this field to turn the DMZ on or off.



Select Enabled to turn the DMZ on.



Select Disabled to turn the DMZ off. Computers that were previously in the DMZ are now on the LAN.

DMZ Host Enter the IP address of the computer that you want to

add to the DMZ.

Connected Devices Click this to see a list of the computers currently

connected to the CGNV4 on the LAN.

Save Changes Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

3.7 The DNS Screen

Use this screen to configure the CGNV4’s LAN DNS settings, including its subnet mask, domain suffix and proxy hostname.

Click Basic > DNS. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 20: The Basic: DNS Screen

The following table describes the labels in this screen.

Table 20: The Basic: DNS Screen

LAN DNS Obtain Use this to select whether to obtain DNS information

automatically over the network, or to define it manually.



Select Auto to obtain DNS information automatically.



Select Manual to obtain DNS information manually.

LAN DNS Proxy Status Use this to turn DNS proxy on or off on the LAN. When

DNS proxy is turned on (default) the DHCP server provides the CGNV4’s LAN IP address as the DNS server for name resolution.



Selected Enabled to turn DNS proxy on.



Selected Disabled to turn DNS proxy off.

Domain Suffix Use this field to define the domain that you can enter

into a Web browser (instead of an IP address) to reach the CGNV4 on the LAN.

NOTE: It is suggested that you make a note of your

device’s Domain Suffix in case you ever need to access the CGNV4’s GUI without knowledge of its IP address.

Hitron CGNV4 User’s Guide

Table 20: The Basic: DNS Screen (continued)

Proxy Hostname 1 When LAN DNS Obtain is set to Manual, enter the IP

Proxy Hostname 2

Save Changes Click this to save your changes to the fields in this

Cancel Click this to return the fields in this screen to their last-

Help Click this to see information about the fields in this

addresses of up to two computers for which you want to manually add to the DNS.

screen.

saved values without saving your changes.

screen.

Hitron CGNV4 User’s Guide

Wireless

This chapter describes the screens that display when you click Wireless in the toolbar. It contains the following sections:



Wireless Overview on page 61



The Wireless Basic Settings Screen on page 64



The WPS & Security Screen on page 71



The Advanced Wireless Screen on page 74

4.1 Wireless Overview

This section describes some of the concepts related to the Wireless screens.

4.1.1 Wireless Networking Basics

Your CGNV4’s wireless network is part of the Local Area Network (LAN), known as the Wireless LAN (WLAN). The WLAN is a network of radio links between the CGNV4 and the other computers and devices that connect to it.

4.1.2 Architecture

The wireless network consists of two types of device: access points (APs) and clients.



The access point controls the network, providing a wireless connection to each

client.

Hitron CGNV4 User’s Guide



The wireless clients connect to the access point in order to receive a wireless

connection to the WAN and the wired LAN.

The CGNV4 is the access point, and the computers you connect to the CGNV4 are the wireless clients.

4.1.3 Wireless Standards

The way in which wireless devices communicate with one another is standardized by the Institute of Electrical and Electronics Engineers (IEEE). The IEEE standards pertaining to wireless LANs are identified by their 802.11 designation. There are a variety of WLAN standards, but the CGNV4 supports the following (in order of adoption - old to new - and data transfer speeds - low to high):



IEEE 802.11b



IEEE 802.11g



IEEE 802.11n

4.1.4 Service Sets and SSIDs

Each wireless network, including all the devices that comprise it, is known as a Service Set.

NOTE: Depending on its capabilities and configuration, a single wireless access

point may control multiple Service Sets; this is often done to provide different service or security levels to different clients.

Each Service Set is identified by a Service Set IDentifier (SSID). This is the name of the network. Wireless clients must know the SSID in order to be able to connect to the AP. You can configure the CGNV4 to broadcast the SSID (in which case, any client who scans the airwaves can discover the SSID), or to “hide” the SSID (in which case it is not broadcast, and only users who already know the SSID can connect).

Hitron CGNV4 User’s Guide

4.1.5 Wireless Security

Radio is inherently an insecure medium, since it can be intercepted by anybody in the coverage area with a radio receiver. Therefore, a variety of techniques exist to control authentication (identifying who should be allowed to join the network) and encryption (signal scrambling so that only authenticated users can decode the transmitted data). The sophistication of each security method varies, as does its effectiveness. The CGNV4 supports the following wireless security protocols (in order of effectiveness):



WEP (the Wired Equivalency Protocol): this protocol uses a series of “keys” or

data strings to authenticate the wireless client with the AP, and to encrypt data sent over the wireless link. WEP is a deprecated protocol, and should only be used when it is the only security standard supported by the wireless clients. WEP provides only a nominal level of security, since widely-available software exists that can break it in a matter of minutes.



WPA-PSK (WiFi Protected Access - Pre-Shared Key): WPA was created to

solve the inadequacies of WEP. There are two types of WPA: the “enterprise” version (known simply as WPA) requires the use of a central authentication database server, whereas the “personal” version (supported by the CGNV4) allows users to authenticate using a “pre-shared key” or password instead. While WPA provides good security, it is still vulnerable to “brute force” password-guessing attempts (in which an attacker simply barrages the AP with join requests using different passwords), so for optimal security it is advised that you use a random password of thirteen characters or more, containing no “dictionary” words.



WPA2-PSK: WPA2 is an improvement on WPA. The primary difference is that

WPA uses the Temporal Key Integrity Protocol (TKIP) encryption standard (which has been shown to have certain possible weaknesses), whereas WPA2 uses the stronger Advanced Encryption Standard (AES) in the Counter mode with Cipher block chaining Message authentication code Protocol (CCMP), which has received the US government’s seal of approval for communications up to the Top Secret security level. Since WPA2-PSK uses the same pre-shared key mechanism as WPA-PSK, the same caveat against using insecure or simple passwords applies.

4.1.5.1 WPS

WiFi-Protected Setup (WPS) is a standardized method of allowing wireless devices to quickly and easily join wireless networks, while maintaining a good level of security. The CGNV4 provides two methods of WPS authentication:

Hitron CGNV4 User’s Guide



Push-Button Configuration (PBC): when the user presses the PBC button on

the AP (either a physical button, or a virtual button in the GUI), any user of a wireless client that supports WPS can press the corresponding PBC button on the client within two minutes to join the network.



Personal Identification Number (PIN) Configuration: all WPS-capable

devices possess a PIN (usually to be found printed on a sticker on the device’s housing). When you configure another device to use the same PIN, the two devices authenticate with one another.

Once authenticated, devices that have joined a network via WPS use the WPA2 security standard.

4.1.6 WMM

WiFi MultiMedia (WMM) is a Quality of Service (QoS) enhancement that allows prioritization of certain types of data over the wireless network. WMM provides four data type classifications (in priority order; highest to lowest):



Voice



Video



Best effort



Background

If you wish to improve the performance of voice and video (at the expense of other, less time-sensitive applications such as Internet browsing and FTP transfers), you can enable WMM. You can also edit the WMM QoS parameters, but are disadvised to do so unless you have an extremely good reason to make the changes.

4.2 The Wireless Basic Settings Screen

Use this screen to configure your CGNV4’s basic 2.4GHz and 5GHz wireless settings. You can turn the wireless modules on or off, select the wireless mode and channel, and configure the wireless networks’ SSID settings.

The CGNV4 has separate 2.4GHz and 5GHz wireless networks:

Hitron CGNV4 User’s Guide



To configure the CGNV4’s 2.4GHz wireless network, click Wireless > Basic

Settings, then click the 2.4G tab. See 2.4G Settings on page 65 for information

on the screen that displays.



To configure the CGNV4’s 5GHz wireless network, click Wireless > Basic

Settings, then click the 5G tab. See 5G Settings on page 68 for information on

the screen that displays.

4.2.1 2.4G Settings

Use this screen to configure the CGNV4’s 2.4GHz wireless network.

Click Wireless > Basic Settings, then click the 2.4G tab. The following screen displays.

Figure 21: The Wireless: Basic Settings 2.4GHz Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 21: The Wireless: Basic Settings 2.4GHz Screen

Basic Settings

Wireless Enabled Use this field to turn the 2.4GHz wireless network on or

off.



Select ON to enable the wireless network.



Select OFF to disable the wireless network.

Wireless Mode Select the type of 2.4GHz wireless network that you

want to use:



802.11 11b Only: use IEEE 802.11b



802.11 11g Only: use IEEE 802.11g



802.11 11n Only: use IEEE 802.11n



802.11 B/G/N Mixed: use IEEE 802.11b, 802.11g and 802.11n



802.11 G/N Mixed: use IEEE 802.11g and 802.11n

NOTE: Only wireless clients that support the network

protocol you select can connect to the wireless network. If in doubt, use 11B/G/N Mixed (default).

Channel Bandwidth This field allows you to configure the width of the radio

channel the CGNV4 uses to communicate with its wireless clients (IEEE 802.11n only). Using the full 40MHz bandwidth can double your data speed.



Select 20 MHz to only use a 20 megahertz band.



Select 20/40 MHz to use a 40 megahertz band

when possible, and a 20 megahertz band when a 40Mhz band is unavailable.



Select 40 MHz to only use a 40 megahertz band.

Wireless Channel Select the 2.4GHz wireless channel that you want to

use, or select Auto to have the CGNV4 select the optimum channel to use.

NOTE: Use the Auto setting unless you have a specific

reason to do otherwise.

Hitron CGNV4 User’s Guide

Table 21: The Wireless: Basic Settings 2.4GHz Screen (continued)

WPS Enabled Use this field to turn Wifi Protected Setup (WPS) on or

off on the 2.4GHz network.



Select ON to enable WPS.



Deselect OFF to disable WPS.

See The WPS & Security Screen on page 71 for more information on using WPS.

SSID Settings

Network Name (SSID) Enter the name that you want to use for this SSID. This

is the name that identifies your network, and to which wireless clients connect.

NOTE: It is suggested that you change the SSID from

its default, for security reasons.

Enable Use this field to enable or disable the SSID.



Select ON to enable the SSID.



Deselect OFF to disable the SSID.

Broadcast SSID Use this field to make this SSID visible or invisible to

other wireless devices.



Select ON if you want your network name (SSID) to

be public. Anyone with a wireless device in the coverage area can discover the SSID, and attempt to connect to the network.



Select OFF if you do not want the CGNV4 to

broadcast the network name (SSID) to all wireless devices in the coverage area. Anyone who wants to connect to the network must know the SSID.

WMM(QoS) This field displays whether Wifi MultiMedia (WMM)

Quality of Service (QoS) settings are Enabled or Disabled on this SSID.

Save Changes Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Hitron CGNV4 User’s Guide

4.2.2 5G Settings

Use this screen to configure the CGNV4’s 5GHz wireless network.

Click Wireless > Basic Settings, then click the 5G tab. The following screen displays.

Figure 22: The Wireless: Basic Settings 5GHz Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 22: The Wireless: Basic Settings 5GHz Screen

Basic Settings

Wireless Enabled Use this field to turn the 5GHz wireless network on or

off.



Select ON to enable the wireless network.



Select OFF to disable the wireless network.

Wireless Mode Select the type of 5GHz wireless network that you want

to use:



802.11 11n 5G: use IEEE 802.11n (5GHz)



802.11 11a: use IEEE 802.11a



802.11 B/G/N Mixed: use IEEE 802.11a and

802.11n



802.11 11ac: use IEEE 802.11ac (5GHz only)

NOTE: Only wireless clients that support the network

protocol you select can connect to the wireless network. If in doubt, use 11B/G/N Mixed.

Channel Bandwidth This field allows you to configure the width of the radio

channel the CGNV4 uses to communicate with its wireless clients. Using the full 40MHz bandwidth can double your data speed.



Select 20 MHz to only use a 20 megahertz band.



Select 40 MHz to only use a 40 megahertz band.



Select 80 MHz to only use a 80 megahertz band.

Wireless Channel Select the 5GHz wireless channel that you want to use,

or select Auto to have the CGNV4 select the optimum channel to use.

NOTE: Use the Auto setting unless you have a specific

reason to do otherwise.

Hitron CGNV4 User’s Guide

Table 22: The Wireless: Basic Settings 5GHz Screen (continued)

WPS Enabled Use this field to turn Wifi Protected Setup (WPS) on or

off on the 5GHz network.



Select ON to enable WPS.



Deselect OFF to disable WPS.

See The WPS & Security Screen on page 71 for more information on using WPS.

SSID Settings

Network Name (SSID) Enter the name that you want to use for this SSID. This

is the name that identifies your network, and to which wireless clients connect.

NOTE: It is suggested that you change the SSID from

its default, for security reasons.

Enable Use this field to enable or disable the SSID.



Select ON to enable the SSID.



Deselect OFF to disable the SSID.

Broadcast SSID Use this field to make this SSID visible or invisible to

other wireless devices.



Select ON if you want your network name (SSID) to

be public. Anyone with a wireless device in the coverage area can discover the SSID, and attempt to connect to the network.



Select OFF if you do not want the CGNV4 to

broadcast the network name (SSID) to all wireless devices in the coverage area. Anyone who wants to connect to the network must know the SSID.

WMM(QoS) This field displays whether Wifi MultiMedia (WMM)

Quality of Service (QoS) settings are Enabled or Disabled on this SSID.

Save Changes Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Hitron CGNV4 User’s Guide

4.3 The WPS & Security Screen

Use this screen to configure your CGNV4’s 2.4GHz and 5GHz wireless networks’ authentication and encryption, and manage Wifi Protected Setup (WPS).

NOTE: It is strongly recommended that you set up security on your network;

otherwise, anyone in the radio coverage area can access your network.

Click Wireless > WPS & Security. The following screen displays.

Figure 23: The Wireless: WPS & Security Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 23: The Wireless: WPS & Security Screen

WPS Settings

WPS Method Use these buttons to run Wifi Protected Setup (WPS):



Click the PBC button and then Push Button to begin

the Push-Button Configuration process. You must then press the PBC button on your client wireless devices within two minutes in order to register them on your wireless network.



Click the PIN button to begin the PIN configuration process. In the screen that displays, enter the WPS PIN that you want to use for the CGNV4, or the WPS PIN of the client device you want to add to the network.

WPS Status This displays whether or not the CGNV4 is using Wifi

Protected Setup.

WPS Configure Status

Security Settings

(SSID) Your CGNV4 has multiple SSIDs. Click the SSID you

Wireless Security Mode

This displays the Wifi Protected Setup configuration.

wish to configure to see its security fields.

Select the type of security that you want to use.



Select None to use no security. Anyone in the

coverage area can enter your network.



Select WEP to use the Wired Equivalent Privacy

security protocol.



Select WPA-Personal to use the WiFi Protected

Access (Personal) security protocol.

NOTE: Due to inherent security vulnerabilities, it is

suggested that you use WEP only if it is the only security protocol your wireless clients support. Under almost all circumstances, you should use the WPA option.

Hitron CGNV4 User’s Guide

Table 23: The Wireless: WPS & Security Screen (continued)

Authentication Select the type of authentication that you want to use.



Select WPA-PSK to use the WiFi Protected Access

(Personal) security protocol.



Select WPA2-PSK to use the WiFi Protected

Access 2 (Personal) security protocol.



Select Auto (WPA-PSK or WPA2-PSK) to use

both the WPA and the WPA2 security protocols; clients that support WPA2 connect using this protocol, whereas those that support only WPA connect using this protocol.

Encrypt Mode Select the type of encryption you want to use. The

options that display depend on the options you selected in the other fields in this screen.

WEP:



Select WEP64 to use a ten-digit security key.



Select WEP128 to use a twenty-six-digit security

key.

WPA-PSK, WPA2-PSK and Auto:



Select TKIP to use the Temporal Key Integrity

Protocol.



Select AES to use the Advanced Encryption

Standard.



Select TKIP/AES to allow clients using either

encryption type to connect to the CGNV4.

Pass phrase Enter the security key or password that you want to use

for your wireless network. You will need to enter this key into your wireless clients in order to allow them to connect to the network.

Save Changes Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Hitron CGNV4 User’s Guide

4.4 The Advanced Wireless Screen

Use this screen to view information about the wireless networks within the CGNV4’s coverage area.

Click Wireless > Advanced. The following screen displays. Click the 2.4G tab to see information about the 2.4GHz wireless network, or click the 5G tab to see information about the 5GHz wireless network.

Figure 24: The Wireless: Advanced Screen

The following table describes the labels in this screen.

Table 24: The Wireless: Advanced Screen

WiFi Site Survey Click this to view information about the wireless

networks within the CGNV4’s coverage area. See The

WiFi Site Survey Screen on page 75 for information on

the screen that displays.

Wireless Clients Click this to view information about the wireless clients

connected to the CGNV4’s wireless network. See The

Wireless Clients Screen on page 77 for information on

the screen that displays.

Save Changes Click this to save your changes to the fields in this

screen.

Hitron CGNV4 User’s Guide

Table 24: The Wireless: Advanced Screen (continued)

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

4.4.1 The WiFi Site Survey Screen

Use this screen to view information about the wireless networks within the CGNV4’s coverage area.

Click Wireless > Advanced, then click the Wireless Survey button. The following screen displays.

Figure 25: The Wireless: WiFi Site Survey Screen

The following table describes the labels in this screen.

Table 25: The Wireless: WiFi Site Survey Screen

Survey Results

Channel This field displays the number of the radio channel that

the target wireless network is using.

SSID This field displays the Service Set IDentifier of the target

wireless network.

BSSID This field displays the Basic Service Set IDentifier of the

target wireless network. This is usually the Media Access Control (MAC) address of the target network device.

Security This field displays the type of security that the target

wireless network is using.

Hitron CGNV4 User’s Guide

Table 25: The Wireless: WiFi Site Survey Screen

RSSI This field displays the Received Signal Strength

Indication from each wireless network.

PhyMode This displays the Physical Mode (the IEEE 802.11

version) of each wireless network.

ExtCH This field displays whether the network uses channel

bonding, and specifies whether the extension channel is above or below the primary control channel.

NOTE: Channel bonding allows an access point to

increase data throughput by using two wireless channels simultaneously, instead of a single channel. When you use channel bonding, you have a primary control channel, and an extension channel. The extension channel may be either directly above the control channel, or directly below.



For networks using channel bonding, where the

extension channel is above the main channel, ABOVE displays.



For networks using channel bonding, where the

extension channel is above the main channel, BELOW displays.



For networks that do not use channel bonding,

NONE displays.

Nt This field displays whether the network is using

infrastructure mode, or ad-hoc mode.

NOTE: In infrastructure mode, wireless devices

connect to a central Access Point (AP), which usually connects to the Internet or another network via a wired connection. In ad-hoc mode, wireless devices connect to one another, as peers.

Hitron CGNV4 User’s Guide

Table 25: The Wireless: WiFi Site Survey Screen

WPS This field displays whether the target network is using

WiFi Protected Setup (WPS) or not. If the target network is using WPS, this field displays whether it is using PIN mode, or Push-Button Configuration (PBC) mode.



If the target network is not using WPS, NO displays.



If the target network is using WPS, and allows

wireless devices to connect using the PIN mode, PIN displays.



If the target network is using WPS, and allows

wireless devices to connect using the push-button mode, PBC displays.

NOTE: See WPS on page 63 for more information on

WPS, and the difference between PIN and PBC modes.

Close Click this to close the lightbox.

4.4.2 The Wireless Clients Screen

Use this screen to view information about the wireless clients connected to the CGNV4’s wireless network.

Click Wireless > Advanced, then click the Wireless Clients button. The following screen displays.

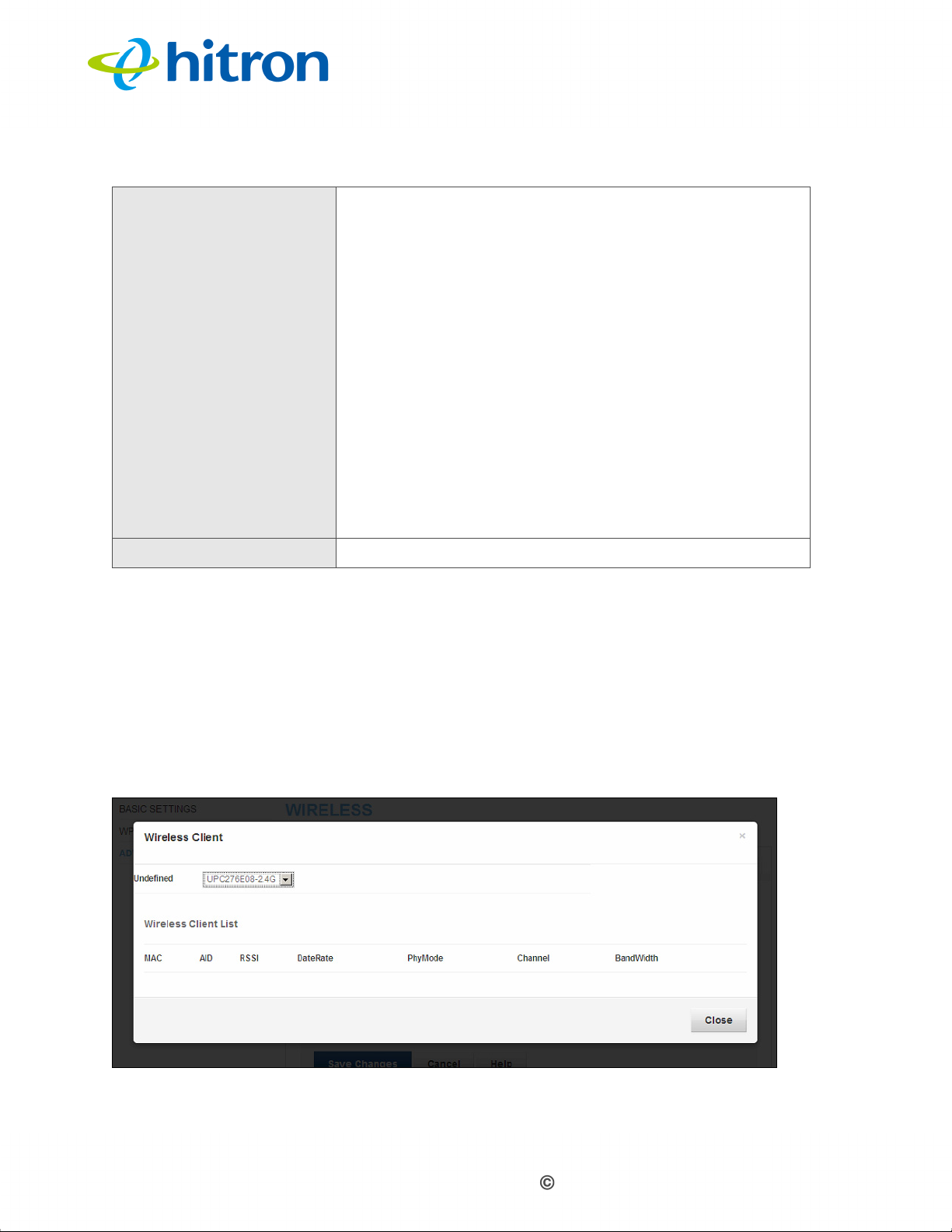

Figure 26: The Wireless: Wireless Clients Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 26: The Wireless: Wireless Clients Screen

Wireless Client Lists

(SSID) Select the SSID of the network that you want to query.

MAC This displays the MAC (Media Access Control) address

of each wireless client connected to the CGNV4’s wireless network.

AID This displays the Association Identifier (AID) of the

connection between the CGNV4 and the client. The Association Identifier is the logical port the CGNV4 assigns to the wireless client.

RSSI This field displays the Received Signal Strength

Indication from each wireless client connected to the CGNV4’s wireless network.

Date This displays the date the wireless client last connected

to the CGNV4’s wireless network.

Rate This displays the transfer speed of each wireless client

connected to the CGNV4’s wireless network.

PhyMode This displays the Physical Mode (the IEEE 802.11

version) of each wireless client connected to the CGNV4’s wireless network.

Channel This displays the wireless channel on which the client is

connected to the CGNV4.

Bandwidth This displays the bandwidth (20/40MHz) of each

wireless client connected to the CGNV4’s wireless network.

Hitron CGNV4 User’s Guide

Admin

This chapter describes the screens that display when you click Admin in the toolbar. It contains the following sections:



Admin Overview on page 79



The Management Screen on page 80



The Diagnostics Screen on page 81



The Backup Screen on page 82



The Time Setting Screen on page 83



The Device Reset Screen on page 85

5.1 Admin Overview

This section describes some of the concepts related to the Admin screens.

5.1.1 Debugging (Ping and Traceroute)

The CGNV4 provides a couple of tools to allow you to perform network diagnostics on the LAN:



Ping: this tool allows you to enter an IP address and see if a computer (or other

network device) responds with that address on the network. The name comes from the pulse that submarine SONAR emits when scanning for underwater objects, since the process is rather similar. You can use this tool to see if an IP address is in use, or to discover if a device (whose IP address you know) is working properly.

Hitron CGNV4 User’s Guide



Traceroute: this tool allows you to see the route taken by data packets to get

from the CGNV4 to the destination you specify. You can use this tool to solve routing problems, or identify firewalls that may be blocking your access to a computer or service.

5.2 The Management Screen

Use this screen to make changes to the CGNV4’s login credentials (username and password) and inactivity idle time.

NOTE: If you forget your password, you will need to reset the CGNV4 to its factory

defaults.

Click Admin > Management. The following screen displays.

Figure 27: The Admin: Management Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 27: The Admin: Management Screen

Username If your CGNV4 supports multiple user accounts, select

the account you want to modify from the list.

Old Password Enter the password with which you currently log into the

CGNV4 for this account.

New Password Enter and re-enter the password you want to use to log

Confirm New Password

Idle Time Select the time interval after which an inactive user

Save Changes Click this to save your changes to the fields in this

Cancel Click this to return the fields in this screen to their last-

Help Click this to see information about the fields in this

into the CGNV4 for this account.

should be logged out of the CGNV4’s admin interface.

screen.

saved values without saving your changes.

screen.

5.3 The Diagnostics Screen

Use this screen to perform ping and traceroute tests on IP addresses or URLs.

Click Admin > Diagnostics. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 28: The Admin: Diagnostics Screen

The following table describes the labels in this screen.

Table 28: The Admin: Diagnostics Screen

Destination (IP or Domain)

Ping Select the type of test that you want to run on the

Traceroute

Result This field displays a report of the test most recently

Cancel Click this to terminate a test in progress.

Enter the IP address or URL that you want to test.

Destination that you specified.

performed.

5.4 The Backup Screen

Use this screen to back up your CGNV4’s settings to your computer or load settings from a backup you created earlier.

Click Admin > Backup. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 29: The Admin: Backup Screen

The following table describes the labels in this screen.

Table 29: The Admin: Management Screen

Back Up Your Settings Locally

Click this to create a backup of all your CGNV4’s settings on your computer.

Restore Settings From a Local File

Use these fields to return your CGNV4’s settings to those specified in a backup that you created earlier.

Click Browse to select a backup, then click Restore to return your CGNV4’s settings to those specified in the backup.

5.5 The Time Setting Screen

Use this screen to

Click Admi

n > Time Setting. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 30: The Admin: Time Setting Screen

The following table describes the labels in this screen.

Table 30: The Admin: Time Setting Screen

ToD Function Use this field to turn the CGNV4’s internal Time of Day

(ToD) function on or off. Time of Date functions are used for obtaining the data used for network event time stamps, and are useful for analysis and troubleshooting.



Select Enabled to turn Time of Day functions on.



Select Disabled to turn Time of Day functions off.

Time Zone If ToD Function is Enabled, select the time zone in

which the CGNV4 is located, or that you want to use for network administration. This time zone is used when adding time stamps to network events.

SNTP Function Use this field to turn the CGNV4’s Simple Network Time

Protocol (SNTP) function on or off. SNTP enables the CGNV4 to obtain time and date data from a remote SNTP/NTP server on the Internet.



Select Enabled to turn SNTP functions on.



Select Disabled to turn SNTP functions off.

Hitron CGNV4 User’s Guide

Table 30: The Admin: Time Setting Screen (continued)

Time Zone If SNTP Function is Enabled, select the time zone in

which the CGNV4 is located, or that you want to use for network administration. This time zone is used when adding time stamps to network events.

Assign SNTP Server If SNTP Function is Enabled, enter the URL of the

SNTP server from which the CGNV4 should get its data.

Daylight Function Use the Daylight Function field to turn daylight savings

Daylight Time

Save Changes Click this to save your changes to the fields in this

Cancel Click this to return the fields in this screen to their last-

time on or off for the CGNV4’s time stamps.



Select Enabled to turn daylight savings on.



Select Disabled to turn daylight savings off.

If you select Enabled in the Daylight Function field, additionally enter the correct daylight savings offset time (in minutes) in the Daylight Time field.

screen.

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

5.6 The Device Reset Screen

Use this screen to reboot your CGNV4, or to return it to its factory default settings.

Click Admin > Device Reset. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 31: The Admin: Device Reset Screen

The following table describes the labels in this screen.

Table 31: The Admin: Device Reset Screen

Reboot Device Click this to restart your CGNV4.

Restore Factory Default Settings

Click this to return your CGNV4 to its factory default settings.

When you do this, all your user-configured settings are lost, and cannot be retrieved.

Hitron CGNV4 User’s Guide

Security

This chapter describes the screens that display when you click Security in the toolbar. It contains the following sections:



Security Overview on page 87



The Firewall Screen on page 88



The Service Filter Screen on page 91



The Device Filter Screen on page 96



The Keyword Filter Screen on page 100



The Logs Screen on page 103

6.1 Security Overview

This section describes some of the concepts related to the Security screens.

6.1.1 Firewall

The term “firewall” comes from a construction technique designed to prevent the spread of fire from one room to another. Similarly, your CGNV4’s firewall prevents intrusion attempts and other undesirable activity originating from the WAN, keeping the computers on your LAN safe. You can also use filtering techniques to specify the computers and other devices you want to allow on the LAN, and prevent certain traffic from going from the LAN to the WAN.

Hitron CGNV4 User’s Guide

6.1.2 Intrusion detection system

An intrusion detection system monitors network activity, looking for policy violations, and malicious or suspicious activity. The CGNV4’s intrusion detection system logs all such activity to the Security > Logs screen.

6.1.3 Device Filtering

Every networking device has a unique Media Access Control (MAC) address that uniquely identifies it on the network. When you enable MAC address filtering on the CGNV4’s firewall, you can set up a list of devices, identified by their MAC addresses, and then specify whether you want to:



Deny the devices on the list access to the CGNV4 and the network (in which

case all other devices can access the network)



Allow the devices on the list to access the network (in which case no other

devices can access the network).

6.1.4 Service Filtering

Service filtering is a way of preventing users on the LAN from connecting with devices on the WAN via specific services, protocols or applications. It achieves this by permitting or denying traffic from the LAN to pass to the WAN, based on the target port.

6.2 The Firewall Screen

Use this screen to turn firewall features on or off and to allow or permit certain applications and protocols. You can select the level of firewall protection from predefined options, or create a custom protection profile.

NOTE: To block specific ports, use the Service Filter screen (see The Service Filter

Screen on page 91).

Click Security > Firewall. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 32: The Security: Firewall Screen

IPv4 and IPv6 firewall features are configured separately. Click the IPv4 tab (which displays by default) to configure IPv4 firewall features, or click the IPv6 tab to configure IPv6 firewall features. The fields that display in each tab are identical.

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 32: The Security: Firewall Screen

Firewall Level Select the level of firewall protection that you want to

apply to your LAN. Details about the protection level display beneath the buttons.

(Security Level) These fields describe the specific protocols and

applications that are permitted or denied by the firewall security level you select.

When you select Custom in the Firewall Level field, additional fields display that allow you to toggle specific features on or off:



Entire Firewall: select ON to enable firewall

security protection, or select OFF to disable it (not recommended).



HTTP: use this field to Allow or Deny HyperText

Transfer Protocol traffic.



ICMP: use this field to Allow or Deny Internet

Control Message Protocol traffic.



P2P: use this field to Allow or Deny peer-to-peer

traffic (such as BitTorrent).



Ident: use this field to Allow or Deny Identification

protocol traffic. The Identification protocol allows remote hosts to request identifying information about users of a device.

Ping from WAN Use this field to permit or prohibit Internet Control

Message Protocol (ICMP) echo requests from the WAN to the LAN.



Select Allow to permit pinging from the WAN.



Select Deny to prohibit pinging from the WAN.

Echo requests from the WAN to the LAN are silently ignored.

Save Changes Click this to save your changes to the fields in this

screen.

Hitron CGNV4 User’s Guide

Table 32: The Security: Firewall Screen (continued)

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

6.3 The Service Filter Screen

Use this screen to configure service filtering. You can turn service filtering on or off and configure new and existing service filtering rules.

You can also create and edit trusted device rules. Trusted devices are those to which service filtering rules are not applied.

Click Security > Service Filter. The following screen displays.

Figure 33: The Security: Service Filter Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 33: The Security: Service Filter Screen

Managed Services

Filter Enabled Use this field to turn service filtering on or off.



Select Enabled to turn service filtering on.



Select Disabled to turn service filtering off.

App Name This displays the name you assigned to the filtering rule

when you created it.

Protocol This field displays the protocol or protocols to which this

filtering rule applies:



Transmission Control Protocol (TCP)



User Datagram Protocol (UDP)

Port Range This displays the start and end port for which this

filtering rule applies.

Managed Weekdays This displays the days of the week on which this rule

applies.

Managed Time This displays the start (From) and end (To) of the time

period during which this rule applies, on the specified Managed Weekdays.

Action Click Manage to make changes to a filtering rule (see

Adding or Editing a Service Filter Rule on page 93).

Add Managed Service Click this to add a new service filtering rule (see Adding

or Editing a Service Filter Rule on page 93).

Trusted PC List

Host Name This displays the arbitrary name of each trusted PC you

configured.

MAC Address This displays the Media Access Control (MAC) address

of each trusted PC. Every network device has a MAC address that uniquely identifies it.

Status This displays whether the device is currently trusted

(Enabled) or untrusted (Disabled).

Manage Click Manage to make changes to the trusted device

rule. See Adding or Editing a Service Filter Trusted

Device Rule on page 95 for information on the screen

that displays.

Action Click Delete to remove the trusted device rule.

Hitron CGNV4 User’s Guide

Table 33: The Security: Service Filter Screen (continued)

Add Trusted Device Click this to create a new trusted device rule. See

Adding or Editing a Service Filter Trusted Device Rule

on page 95 for information on the screen that displays.

Save Changes Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

6.3.1 Adding or Editing a Service Filter Rule



To add a new service filter rule, click Add Managed Service in the Security > Service Filter screen.



To edit an existing service filter rule, locate the rule in the Security > Service Filter screen and click its Manage button.

NOTE: Ensure that Enabled is selected in the Security > Service Filter screen in

order to add or edit service filtering rules.

The following screen displays.

Figure 34: The Security: Service Filter Add/Edit Screen

Hitron CGNV4 User’s Guide

The following table describes the labels in this screen.

Table 34: The Security: Service Filter Add/Edit Screen

Application Name Enter a name for the application for which you want to

create the rule.

NOTE: This name is arbitrary, and does not affect

functionality in any way.

Protocol Use this field to specify whether the CGNV4 should filter

via:



Transmission Control Protocol (TCP)



User Datagram Protocol (UDP)

NOTE: If in doubt, leave this field at its default (TCP).

Port Range Use these fields to specify the start and end port for

which this filtering rule applies. These are the ports to which traffic will be blocked.

Enter the start port number in the first field, and the end port number in the second field.

To specify only a single port, enter its number in both fields.

Rule Status Use this field to select whether the filtering rule should

be active or not.



Select Enabled to activate the rule. Matching traffic

will be blocked.



Select Disabled to deactivate the rule. Matching

traffic will not be blocked.

Hitron CGNV4 User’s Guide

Table 34: The Security: Service Filter Add/Edit Screen

Manage All Day Use this field to specify whether the filtering rule should

apply on all days of the week, at all times, or whether the rule should be applied only at certain times.



Select YES to apply the rule at all times.



Select NO to apply the rule only at certain times.

Additional fields display, allowing you to specify the times at which the rule should be applied.

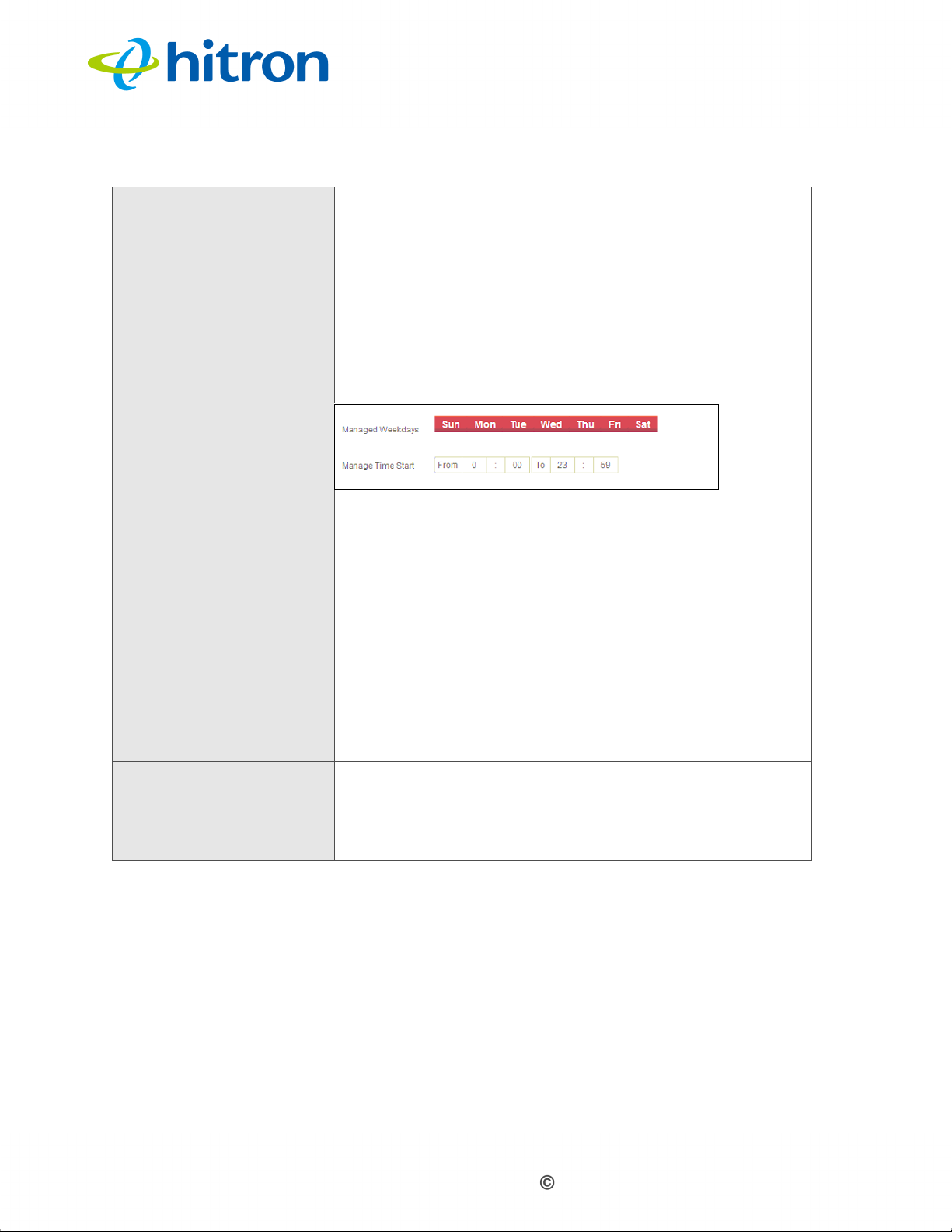

Figure 35: Additional Service Filtering Options

Use the Managed Weekdays fields to specify the days on which the rule should be applied. A red background indicates that the rule will be applied (traffic will be blocked), and a green background indicates that the rule will not be applied (traffic will not be blocked). Click a day to toggle the rule on or off for the relevant day.

Use the Manage Time Start fields to specify the period during which the rule should be applied. Enter the start time in the From fields, using twenty- four hour notation, and enter the end time in the To fields.

Apply Click this to save your changes to the fields in this

screen.

Close Click this to return to the Service Filter screen without

saving your changes to the rule.

6.3.2 Adding or Editing a Service Filter Trusted Device

Rule



To add a new trusted device rule, click Add Trusted PC in the Security > Service

Filter screen.



To edit an existing trusted device rule, locate the rule in the Security > Service Filter screen and click its Manage button.

The following screen displays.

Hitron CGNV4 User’s Guide

Figure 36: The Security: Service Filter Trusted Device Add/Edit Screen

The following table describes the labels in this screen.

Table 35: The Security: Service Filter Trusted Device Add/Edit Screen

Host Name Enter a name to identify the device.

MAC Address Enter the Media Access Control (MAC) address of the

device.

Rule Status Use this field to define whether the trusted device rule

should be active or not.



Select Enabled to activate the trusted device rule.



Select Disabled to deactivate the trusted device

rule.

Apply Click this to save your changes to the fields in this

screen.

Close Click this to return to the Service Filter screen without

saving your changes to the rule.

6.4 The Device Filter Screen

Use this screen to configure Media Access Control (MAC) address filtering on the LAN, and to configure IP filtering.

NOTE: To configure MAC address filtering on the wireless network, see The

Wireless Access Control Screen on page 75.

Click Security > Device Filter. The following screen displays.

Hitron CGNV4 User’s Guide

Figure 37: The Security: Device Filter Screen

The following table describes the labels in this screen.

Table 36: The Security: Device Filter Screen

Connected Devices

Host Name This displays the name of each network device

connected on the LAN.

IP Address This displays the IP address of each network device

connected on the LAN.

MAC Address This displays the Media Access Control (MAC) address

of each network device connected on the LAN.

Type This displays whether the device’s IP address was

assigned by DHCP (DHCP-IP), or self-assigned.

Interface This displays the name of the interface on which the

relevant device is connected.

Status This displays whether or not the connected device is

active.

Action Click Manage to make changes to the device’s filtering

status; see Adding or Editing a Managed Device on page 99 for information on the screen that displays.

Hitron CGNV4 User’s Guide

Table 36: The Security: Device Filter Screen (continued)

Managed Devices

Block Rules Use these buttons to control the action to be taken for

the devices listed:



Select Allow All to ignore the Managed Devices

list and let all devices connect to the CGNV4.



Select Allow Listed to permit only devices you

added to the Managed Devices list to access the CGNV4 and the network. All other devices are denied access.



Select Deny to permit all devices except those you

added to the Managed Devices list to access the CGNV4 and the network. The specified devices are denied access.

Host Name This displays the name of each network device in the

list.

MAC Address This displays the Media Access Control (MAC) address

of each network device in the list.

Managed Weekdays This displays the days of the week on which the device

is managed.

Managed Time This displays the start (From) and end (To) of the time

period during which the device is managed, on the specified Managed Weekdays.

Action Click Manage to make changes to a managed device

rule (see Adding or Editing a Managed Device on page

99).

Add Managed Device Click this to add a new managed device rule (see

Adding or Editing a Managed Device on page 99).

Save Changes Click this to save your changes to the fields in this

screen.

Cancel Click this to return the fields in this screen to their last-

saved values without saving your changes.

Help Click this to see information about the fields in this

screen.

Hitron CGNV4 User’s Guide

6.4.1 Adding or Editing a Managed Device



To add a new managed device, click Add Managed Device in the Security > Device Filter screen.



To edit an existing managed device, locate the device in the Security > Device Filter screen and click its Manage button.

The following screen displays.

Figure 38: The Security: Device Filter Add/Edit Screen

The following table describes the labels in this screen.

Table 37: The Security: Device Filter Add/Edit Screen

Host Name If you are managing a device that already connected via

the LAN, this field displays the device’s name. Alternatively, if you are managing a device that is not connected via the LAN, you can enter its name here if you know it.

MAC Address If you are managing a device that already connected via

the LAN, this field displays the device’s MAC (Media Access Control) address. Alternatively, if you are managing a device that is not connected via the LAN, you can enter its MAC address here if you know it.

Device Managed Use this field to define whether the device should have

its access privileges filtered or not.



Click Yes to filter the device’s access privileges.



Click No not to filter the device’s access privileges.

When a device is not being managed, the Manage All

Day field, and related fields, do not display.

100

Hitron CGNV4 User’s Guide

Table 37: The Security: Device Filter Add/Edit Screen

Manage All Day Use this field to specify whether the device should be

managed on all days of the week, at all times, or whether the device should be managed only at certain times.



Select YES to managed the device at all times.



Select NO to managed the device only at certain

times. Additional fields display, allowing you to specify the times at which the device should be managed.

Figure 39: Additional Service Filtering Options

Use the Managed Weekdays fields to specify the days on which the device should be managed. A red background indicates that the device will be managed (access will be blocked), and a green background indicates that the device will not be managed (access will not be blocked). Click a day to toggle the rule on or off for the relevant day.

Use the Manage Time Start fields to specify the period during which the device should be managed. Enter the start time in the From fields, using twenty- four hour notation, and enter the end time in the To fields.

Apply Click this to save your changes to the fields in this

screen.

Close Click this to return to the Device Filter screen without

saving your changes to the rule.

6.5 The Keyword Filter Screen

Use this screen to block access from the LAN to websites whose URLs (Web addresses) and page content (text) contain certain keywords. You can create multiple keyword blocking rules, and set them to apply on certain days and at certain times.

You can also create and edit trusted device rules. Trusted devices are those to which keyword filtering rules are not applied.

100

Hitron CGNV4 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

About This User’s Guide

Table of Contents

List of Figures

List of Tables

Introduction

1.1 CGNV4 Overview

1.1.1 Key Features

1.2 Hardware Connections

1.3 LEDs

1.4 IP Address Setup

1.4.1 Manual IP Address Setup

1.5 Logging in to the CGNV4

1.6 GUI Overview

1.7 Resetting the CGNV4

Status

2.1 Status Overview

2.1.1 DOCSIS

2.1.2 IP Addresses and Subnets

2.1.2.1 IP Address Format

2.1.2.2 IP Address Assignment

2.1.2.3 Subnets

2.1.3 DHCP

2.1.4 DHCP Lease

2.1.5 MAC Addresses

2.1.6 Routing Mode

2.1.7 Configuration Files

2.1.8 Downstream and Upstream Transmissions

2.1.9 Cable Frequencies

2.1.10 Modulation

2.1.11 TDMA, FDMA and SCDMA

2.2 The System Information Screen

2.3 The DOCSIS Provisioning Screen

2.4 The DOCSIS WAN Screen

2.5 The DOCSIS Event Screen

2.6 The Wireless Status Screen

2.7 The MTA Screen

Basic

3.1 Basic Overview

3.1.1 The Domain Name System

3.1.2 Port Forwarding

3.1.3 Port Triggering

3.1.4 DMZ

3.1.5 Routing Mode

3.2 The LAN Setup Screen

3.3 The Gateway Function Screen

3.4 The Port Forwarding Screen

3.4.1 Adding or Editing a Port Forwarding Rule

3.5 The Port Triggering Screen

3.5.1 Adding or Editing a Port Triggering Rule

3.6 The DMZ Screen

3.7 The DNS Screen

Wireless

4.1 Wireless Overview

4.1.1 Wireless Networking Basics

4.1.2 Architecture

4.1.3 Wireless Standards

4.1.4 Service Sets and SSIDs

4.1.5 Wireless Security

4.1.5.1 WPS

4.1.6 WMM

4.2 The Wireless Basic Settings Screen

4.2.1 2.4G Settings

4.2.2 5G Settings

4.3 The WPS & Security Screen

4.4 The Advanced Wireless Screen

4.4.1 The WiFi Site Survey Screen

4.4.2 The Wireless Clients Screen

Admin

5.1 Admin Overview

5.1.1 Debugging (Ping and Traceroute)

5.2 The Management Screen

5.3 The Diagnostics Screen

5.4 The Backup Screen

5.5 The Time Setting Screen

5.6 The Device Reset Screen

Security
