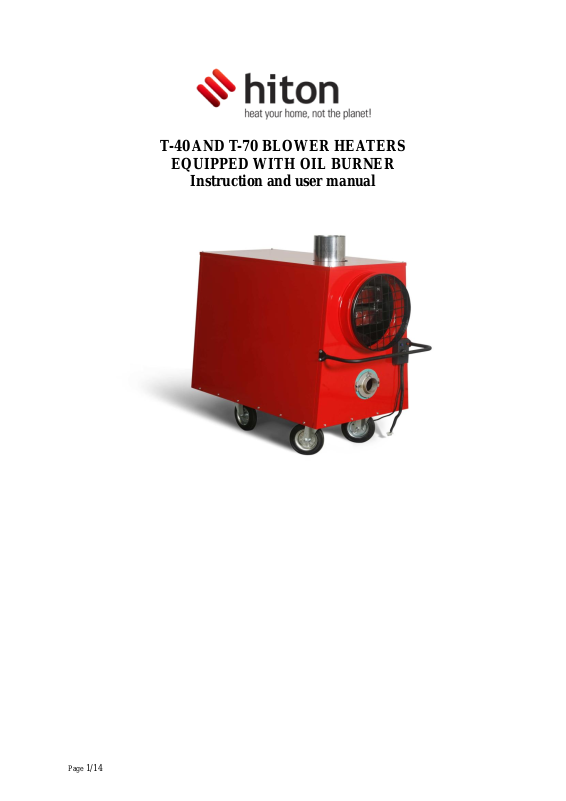

Hiton T-40, T-70 User guide

T-40 AND T-70 BLOWER HEATERS

EQUIPPED WITH OIL BURNER

Instruction and user manual

Page 1/14

Fig.1 T40 construction

Page 2/14

PART
NO

DESCRIPTION

PART

NO

DESCRIPTION

1

Wheel_200x50

32

End cap

2

Screw cup

33

Clamp

3

Stud-bolt

34

Front cover

4

Hexagonal head screw

35

Insulating gasket

5

Hexagonal head screw

36

Combustion chamber support

6

Round washer

37

Air outlet cover

7

Hex cap screw

38

Air outlet point

8

Hex cap screw

39

Turbulator

9

T40/T70

40

Turbulator support

10

Side screen

41

Air outlet grille

11

Upper screen

42

Protective grille

12

Bottom screen

43

Protective grille

13

Upper cover

44

Protective grille

14

Support

45

Foot

15

Lid

46

Support

16

Footing

47

Slider

17

Cleat

48

Undercarriage support

18

Tank support

49

Undercarriage axis

19

Foot support

50

Handle pull

20

Front/rear panel

51

Insulating plate

21

Front/rear panel

52

Bigger flue

22

Side panel

53

Outlet pipe

23

Combustion chamber cover

54

Exchanger support

24

Front crown

55

Inlet pipe

25

Rear crown

56

Inlet flange

26

Upper part A/B

57

Crown cover

27

Upper part A/B

58

Cover flap

28

Bottom part A/B

59

Basket

29

Bottom part A/B

60

Handle end cap

30

Smaller flue

61

Fan

31

Support

62

Tank

Page 3/14

Fig.2 T70 construction
