Board Description
Version: 1.01
Involved Departments: R&D
Page 1 of 12
Board Description

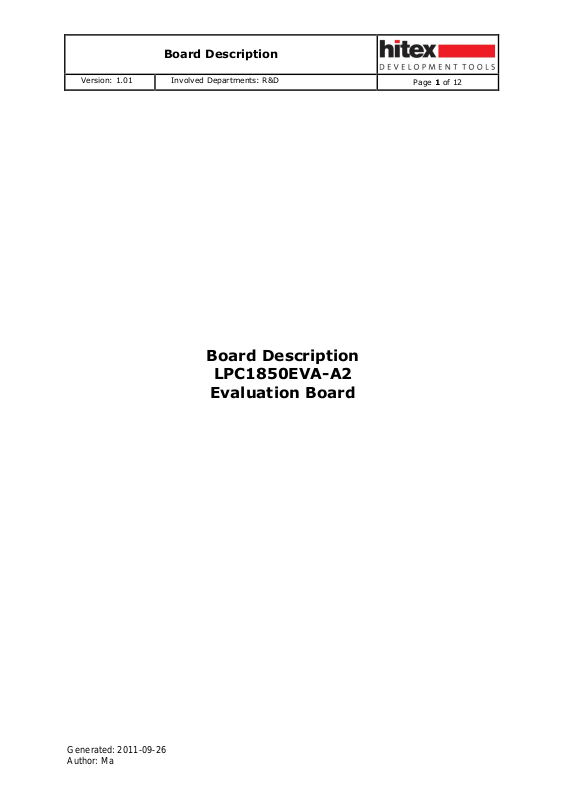

LPC1850EVA-A2
Evaluation Board
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 2 of 12
Version
Status
Date
Responsible
Reason for change
0.1
in progress
05.01.2011
Ma
New creation
0.2 27.04.2011
Ma
Changes to fit PCB Rev. –A2
1.0
Release
04.05.2011
Ma
Minor changes
1.01
15.09.2011
Ma
Minor changes
Document history
Document management
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 3 of 12
Purpose of the document
This document describes the jumpers and connectors on the NXP LPC1850EVA-A2 evaluation board
developed by Hitex.
Authoring tools
MS-Word
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 4 of 12
Contents
1 Overview ......................................................................................................................................... 5
2 Power............................................................................................................................................... 5
2.1 USB .......................................................................................................................................... 5
2.2 AC/DC Power Supply ............................................................................................................... 5
2.3 Power-over-Ethernet (PoE) ...................................................................................................... 5
3 Connectors ..................................................................................................................................... 6
4 Mutual Exclusive Functions ......................................................................................................... 7
4.1 Ethernet, SD Card .................................................................................................................... 7
4.2 CAN Interface, I2S (Audio) ...................................................................................................... 7
4.3 UART, Memories and UART-Bootloader ................................................................................. 7
4.4 Ext. LCD and ULPI ................................................................................................................... 7
4.5 USB0 ........................................................................................................................................ 7
4.6 USB1 ........................................................................................................................................ 7
4.7 Media Connector and Audio .................................................................................................... 8
4.8 SSP0 ........................................................................................................................................ 8
4.9 SPI ............................................................................................................................................ 8
4.10 Default settings ........................................................................................................................ 9
5 Jumpers ........................................................................................................................................ 10
Related documents ............................................................................................................................ 12
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 5 of 12
1 Overview
The evaluation board has the following features:
- CPU: LPC1850 (ARM Cortex-M3)
- Power-over-Ethernet
- Ready for energy consumption analysis with PowerScale of the complete board, the CPU-core
and other peripherals
- SDRAM, SRAM, parallel flash, NAND flash, qSPI flash
- Temperature sensor, SD card, media-connector
- CAN, UART, Ethernet, USB (Host, Device, OTG)
- Debug with standard ARM JTAG and JTAG + Trace connector
- Ready for Jennic ZigBee module
- Small onboard display and NXP standard display / LCD interface
- Touch buttons and LEDs
- Wrap field for user circuits
- Audio IN and OUT, microphone IN, headphones OUT and a D-Class amplifier
- Ready for 4x ADC1415 analog-to-digital converters with user filtering option
2 Power
2.1 USB
VBUS (+5V) can be supplied by either X13 or X2/X9. Please note that USB current is limited to
100mA. If the LPC1850 is running a program, which enumerates at the USB-Bus, the current limit can
be set to 500mA (within that program)
2.2 AC/DC Power Supply
A wall mount (or similar) AC/DC supply with 5V (DC) output can be connected to X14.
Inner plug is positive, outer shell is negative. Jumper JP33 has to be set to pos 1-2.
2.3 Power-over-Ethernet (PoE)
A Power-over-Ethernet module (U33) is populated on the evaluation board. Jumper JP33 has to be
set to pos 2-3. Maximum output power of the module is 5V - 9W.
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 6 of 12
Designator
Function
Description
X1
UART
D-SUB9 female connector for UART
X2
USB0
USB-B (device) connector
X3
Media
This connector is to connect media devices like IPod and others with
the Hitex Mediacable HK279.
Please note: HK279 is not delivered within the LPC1850 evaluation
board, but can be purchased separately at www.ehitex.de
X4
JTAG
Shrouded connector for attaching a standard ARM debugger
(2.54mm pitch, 20 pins)
X5
JTAG/Trace
Connector for attaching an ARM Cortex-Debug+Trace debugger
(1.27mm pitch, 20 pins)
X6
SD Card
Not mounted SD card connector
X7
CANopen
D-SUB9 male connector with CANopen pinout
X8
D-Class
amplifier
Screw connector for the D-Class amplifier output
Pin
Function
1
GND
2
OUTB
3
OUTA
X9
USB0
USB-microAB (OTG) connector
X10
USB0
USB-A (host) connector
X11
LCD
LCD connector for attaching an external LCD with NXP’s standard
LCD interface
X13
USB1
USB-B (device) connector
X14
Power
A wall mount (or similar) AC/DC supply with 5V (DC) output can be
connected to X14. Inner plug is positive, outer shell is negative
X15
Ethernet/PoE
An Ethernet device for communication and/or a PSE device for
powering the LPC1850 Evaluation Board can be connected to X15
LI1
Line In
Connector to the input amplifier of U10
When no plug is connected, the signal is automatically routed to
connector X3
LI2
Line Out
Connector from the output amplifier of U10
When no plug is connected, the signal is automatically routed to
connector X3
HP
Headphone
Connector from the headphones output amplifier of U10
MIC
Microphone
Connector to the microphone input amplifier of U10
SW1
Reset
Global hardware reset
SW2
ISP
Switch to pull EXTBUS_A9 low
SW4
Wakeup
In combination with SV22 pins 7-8, pull WAKEUP0 low
T1
Touch1
Touch button connected to U14
T2
Touch2
Touch button connected to U15
T3
Touch3
Touch button connected to U16
T4
Touch4
Touch button connected to U17
3 Connectors
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 7 of 12
4 Mutual Exclusive Functions
In general, all signals with double names like “Ethernet/SD card” show that this signal is used in more
than one function.
4.1 Ethernet, SD Card
The Ethernet (MII) is multiplexed with the SD card interface (SDIO).
Therefore jumper array SV3 and SV6 is used to connect ENET*-signals to the Ethernet PHY (U1) as
well as jumper array SV12 connects SDIO*-signals to the SD card interface (X6).
In the schematic the double used pins can be identified by their double name ENET_*/SDIO_*.
Please note: The SD card connector is not populated and not supported by LPC1850 devices.
4.2 CAN Interface, I2S (Audio)
The CAN interface is multiplexed with some I2S functionality. The audio outputs can’t be used when
the CAN interface is used.
Jumper array SV9 routes the I2S signals to the Audio-Codec UDA1380 (U10) and SV10 routes them
to the D-Class amplifier (U19).
Jumper array SV1 pins 1-2 and 3-4 connect the CAN transceiver (U7) to the signals.
In the schematic the double used pins can be identified by their double name CAN1_TD/I2S_TX_SDA
and CAN1_RD/I2S_TX_WS.
4.3 UART, Memories and UART-Bootloader
The UART bootloader pins at the CPU are multiplexed with the external bus interface and so with all
onboard memories. Also there is only one UART transceiver available (U6).
At jumper array SV1 the user can set the jumpers to pins 5-6 and 7-8 for normal UART operation. If
set to pins 9-10 and 11-12 the UART transceiver will be connected to signals EXTBUS_A13 and
EXTBUS_A12. To avoid short circuit and damage to the CPU and UART transceiver, the user should
not use the external bus interface while using UART bootloader on those pins.
Please note: UART bootloader is not supported by the LPC1850 evaluation board.
4.4 Ext. LCD and ULPI
The ULPI (USB1) interface is brought out to a pin-header for easier access. User should take care not
to use these signals in parallel with the external LCD.
4.5 USB0
The USB0 functionality is brought out to a HOST (X10), a DEVICE (X2) and an OTG (X9) connector.
Use only one connector at a time.
4.6 USB1
The USB1 functionality is brought out to a DEVICE (X13) connector. Also there is the option to
connect the media connector X3 (USB lines) to the bus by closing jumper array SV28.
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 8 of 12
4.7 Media Connector and Audio
If no 3,5mm audio plug is inserted into Audio IN (LINEIN1) or AUDIO OUT (LINEIN2), the
corresponding signals of the audio codec (U10) will automatically connect to the media connector
(X3).
4.8 SSP0
Signals SSP0_x are connected to Jennic ZigBee module (M1), to the internal LCD (LCD1), and to the
fast ADCs (U11, U20, U21, U22).
4.9 SPI
Signal SPI_SIO3 is connected to the qSPI device (U18) and to the I2C-EEPROM (U12).
Use SV19 pins 1-2 or SV4 pins 9-10 to connect either to U12 or U18.
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 9 of 12
Jumper
Function
Description
SV1
CAN
Pin 1-2 and 3-4 are open
No CAN interface (mutual exclusive to input-data of U10 and U19)
UART
Pin 5-6 and 7-8 are closed
UART is connected to UART1 interface of the CPU
UART
bootloader
Pin 9-10 and 11-12 are open
The external bus interface is not available when using the UART
bootloader.
Please note: UART bootloader is not supported by the LPC1850
evaluation board.
SV3 and
SV6
Ethernet (MII)
SV3 and SV6 are completely closed (pin 1-2, 3-4, etc.)
Ethernet is available in MII-Mode
Ethernet is mutual exclusive to SD card.
SV4
SPI flash
(qSPI)
SV4 is completely closed (pin 1-2, 3-4, etc.)
Pin 9-10 is mutual exclusive to SV19 pin1-2
SV5
USB power
SV5 is completely closed (pin 1-2, 3-4, etc.)
SV9
UDA_RST
Pin 1-2 is closed, Reset of U10
Pin 3-4
Open, not connected
I2S_TX*
Pins 5-6, 7-8, 9-10 are closed (mutual exclusive to CAN)
I2S_RX*
Pins 11-12, 13-14, 15-16 are closed
I2C0*
Pins 17-18, 19-20 are closed
SV10
I2C0*
Pins 1-2, 3-4 are closed
I2S_TX*
Pins 5-6, 7-8, 9-10 are closed (mutual exclusive to CAN)
SV11
U11
Signals for fast ADCs
SV12
SD card
SV12 is open and is mutual exclusive to Ethernet
Please note: The SD card connector is not populated and not
supported by LPC1850 devices.
SV13
U20
Signals for fast ADCs
SV14
U24
Signals for fast ADCs
SV15
U21
Signals for fast ADCs
SV16
U22
Signals for fast ADCs
SV18
JENIC_RST
Pin 15-16 is closed
SPI
Pins 1-2, 3-4, 5-6, 7-8 are closed
Pin 9-10 is open (jumper only set to one pin)
Pin 11
SPISWP
Pin 13
SPISSM
SV19
I2C0*
Pins 3-4, 5-6 are closed
SPI_SIO3
EVENT# (output), pin 1-2 is open (jumper only set to one pin)
Mutual exclusive to SV4 9-10
SV22
WAKEUP0
Pos 7-8 is closed
Pos 1-2, 3-4, 5-6 are open
SV28
Media
Connector
USB
Pos 1-2, 3-4, 5-6 are open (jumpers only set to one pin)
4.10 Default settings
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 10 of 12
Jumper
Function
Description
JP1
R42
Connects R42 to GND when set to position 1-2
Default: pos. 1-2
JP2
USB0_ID
Pulls USB0_ID permanently to GND
Default: pos. 1-2 (closed)
JP3
USB0_IND1
Connects USB0_IND1 to LED D10
Default: pos. 1-2 (closed)
JP4
USB1_IND1
Connects ADC3_DAV to LED D9
Default: pos. 1-2 (closed)
JP5
Boot control
-tbd-, strapping option for the CPU
Default: pos. 1 (open)
JP9
SD power
Switches power to the SD card either by CPU (signals SDIO_POW) or
permanently (position 1-2)
Default: open
Please note: The SD card connector is not populated and not
supported by LPC1850 devices.
JP10
LCD
Clock return from LCD
Default: pos. 1 (open)
JP11
RTC
With this jumper the CPU can set signal RTC_ALARM to power up or
shut down its IO +3V3IO or the complete +3V3 power of the board.
Default: pos. 1-2
JP15
GPIO_IRQ
Connects GPIO expander (U35) IRQ-signal to the CPU
Default: pos. 1-2 (closed)
JP16
PowerScale
At this point a Hitex PowerScale probe can be connected for current
sensing the +3V3C (CPU Core power) and +3V3IO (CPU IO power)
Default: pos. 1-2 (closed)
JP17
DBGEN
-tbdDefault: pos. 1 (open)
JP19
LCD
Switches signals LCDLE or permanently +3V3 to pin 29 of the external
LCD Interface
LCDLE = PWM or fixed signal from CPU
+3V3 = Full brightness
Default: pos. 1-2
JP20
LCD
LCDVDDEN -tbdDefault: pos. 1-2 (closed)
JP21
LCD
Switches +5V to the LCD backlight
Default: pos. 1-2 (closed)
JP22
LCD
LCDVEEEN -tbdDefault: pos. 1-2 (closed)
JP23
Write protect
Write protect of parallel flash (U5)
Default: pos. 1 (open)
JP25
Write protect
Write protect of NAND flash (U4)
Default: pos. 1 (open)
5 Jumpers
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 11 of 12
JP30
PowerScale
At this point a Hitex PowerScale probe can be connected for current
sensing of the whole board.
Default: pos. 1-2 (closed)
JP31
PowerScale
At this point a Hitex PowerScale probe can be connected for current
sensing the +3V3 power.
Default: pos. 1-2 (closed)
JP32
CAN 120R
Connects a 120OHM termination resistor to the CANH/CANL lines
Default: pos. 1-2 (closed)
JP33
Power
Switches between Power-over-Ethernet or 5V wall plug for board
supply.
Default: pos. 1-2
JP43
VBAT
Connects either a battery (not mounted) or +3V3C (Core power) to the
VBAT pin of the CPU.
Also hardware reset pullup R41 is connected to that power.
Default: pos. 2-3
Generated: 2011-09-26
Author: Ma
Board Description
Version: 1.01
Involved Departments: R&D
Page 12 of 12
Related documents
Schematics SCM_LPC1850EVA-A2-2.pdf, 2011-04-27
Assembly BPL_LPC1850EVA-A2-2.pdf, 2011-04-02
Generated: 2011-09-26
Author: Ma
Loading...
