Green Light, ,Green Life !
A Smart Renewable Energy Solution
Solar LED Torch Light
Solar LED Flame Light
User Guide
HT-SF-B96
Document version: HT-SF-B96-SPEC-V3.0
July 2018
*Please
read the
user guide befor
e use
and keep
it properly
.
Hitechled Optoelectronics Co.,Ltd.
Office Add.: 21st F, Bldg.B, GLC Plaza, Baoming 2nd Road, Bao'an district, Shenzhen, China 518102
Tel: +86 755 33653232 Fax: +86 755 33653211 E-mail: [email protected] https://www.hi-techled.com
Page 2
Green Light, ,Green Life !
PRODUCT DESCRIPTION
Solar flame light is a new product to use solar power for producing electricity. This light uses high-efficiency solar panels,which can transform
solar energy to electric energy and stock into storage battery. Then it can provide energy to LED light for shining. The unique optical
controlled technology can ensure the light auto charging in daytime. Then the light can automatically lighten in the night. In addition the light
is easy to install, waterproof and anti-sunburn.

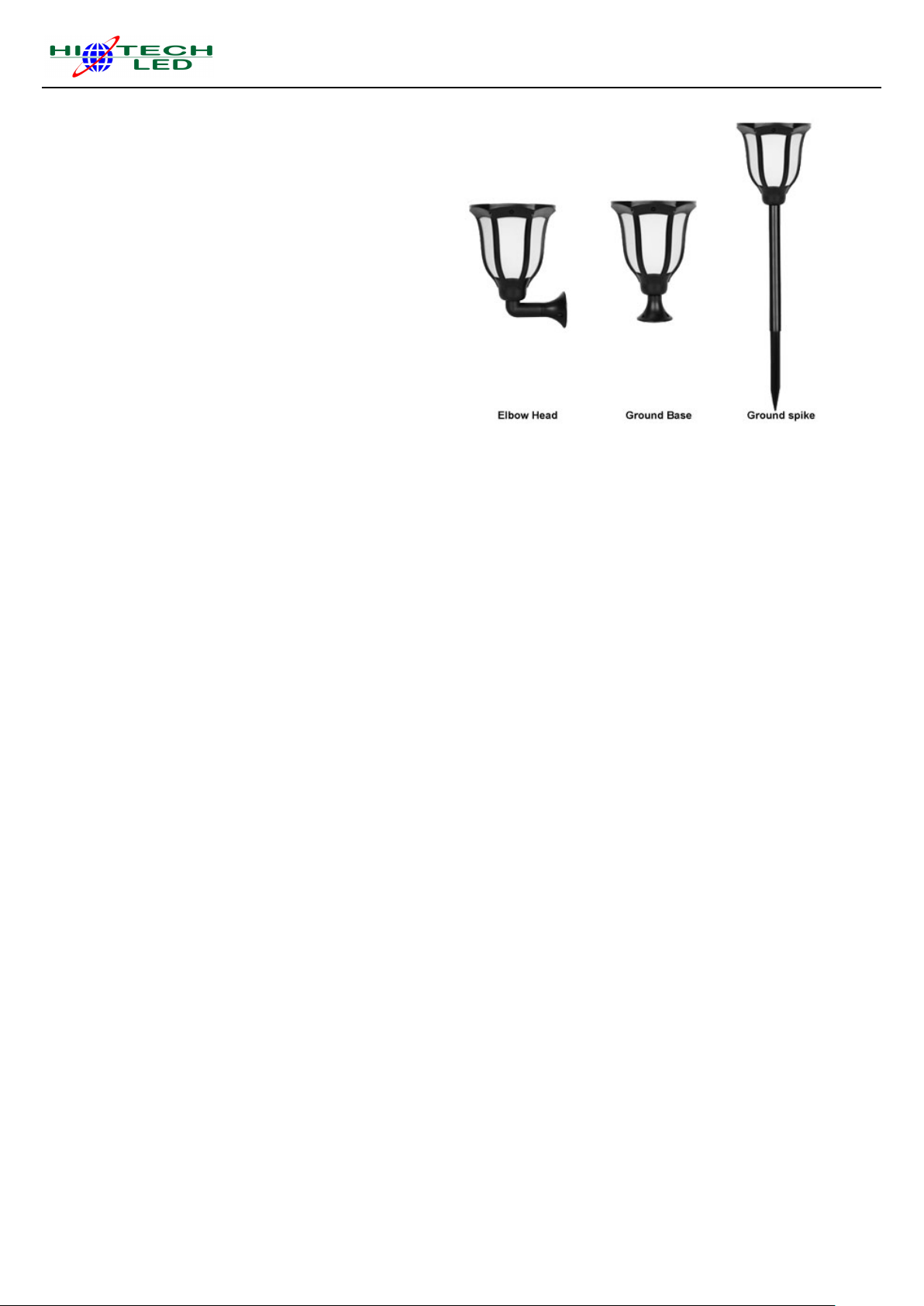

PRODUCT DIAGRAM
HOW DOES THE SOLAR FLAME LIGHT WORK
During the day, the solar panel on the top converts sunlight into electricity and
recharges the battery.
On the solar panel there is a photosensitive control switch. At night the light can
automatically turn on using the electricity stored(you can cover the solar panel
with your hand to enter night mode.)
After daybreak the light will automatically turn off the lights and enter charging
mode.
Hitechled Optoelectronics Co.,Ltd.
Office Add.: 21st F, Bldg.B, GLC Plaza, Baoming 2nd Road, Bao'an district, Shenzhen, China 518102
Tel: +86 755 33653232 Fax: +86 755 33653211 E-mail: [email protected] https://www.hi-techled.com
Page 3
Green Light, ,Green Life !
ELECTRICAL CHARACTERISTICS
1.Solar panel:5.5v 1W,17% efficiency
2.Li-ion battery:3.7v 2200mAh
3.Weight:about 280g
4.LED:SMD3528*96pcs
5.Lumens:350lm
6.LED span life:50,000Hrs
7.Solar charging time:6Hrs
8.Working time:8~10Hrs
9.Switch:on/off
10.Auto turn on at dusk and turn off at dawn once swtich on
11.Protectfunction:Over charging. over discharging. over current, short circuit
12.Li-ion battery span life:500 circles
13.Solar panel span life: more than 20 years
14.Inner Carton Size:325*145*145mm
15.Outer Carton Size:485*480*250mm
WARNING
1.Keep the device away from fire,water and avert the product immersed in water in order to avoid explosion,leakage.
2.The device does not have any charger.
3.No one except professional technicians should attempt to disassemble the device in order to aviod damaging the product.
ADDITIONAL NOTE
1. The lamp should be charged for 5 hours under the sunlight before using.
2.If there is no good sunlight in 3 months,the battery may be out of power. So you have to charge it with bright sunlight . when it's fully
charged, it can function normally.
3.If the light blinks, it shows that the power is low. Thus, you have to charge it with the sunlight right away. Otherwise, the device will stop
functioning soon.
4.If there is strong sunlight or during the winter season, especially at the north countries, it may take longer time to fully charge the device
and this is a normal situation for solar products.
