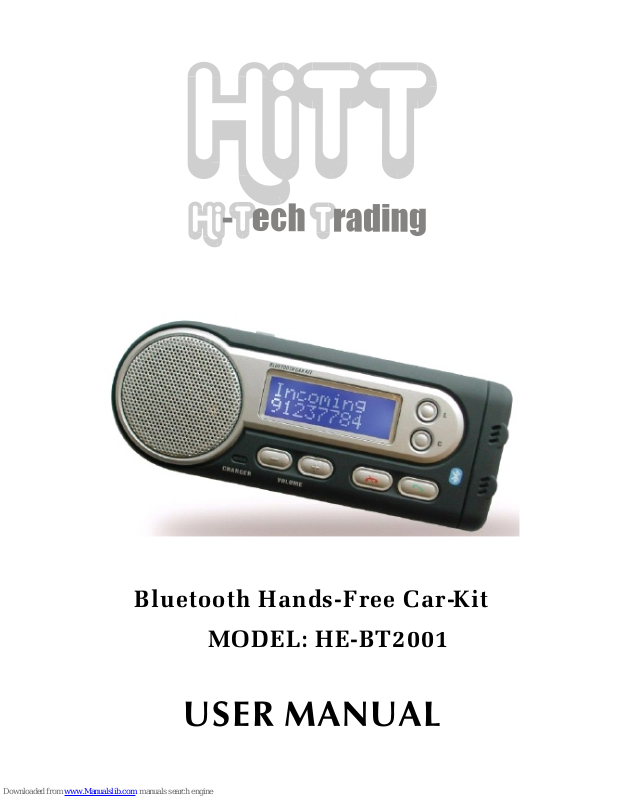

Bluetooth Hands-Free Car-Kit
MODEL: HE-BT2001
USER MANUAL
Contents
Introduction
Car Kits parts
Mounting at sunvisor
Keys and functions
Features
Pairing Procedure
Disconnect and re-connect pairing
Answer, reject and hang up a call
Volume control
Mute mic during conversation
Call waiting
Call transfer
Make call from Received &
Missed calls Memory
LCD display Setting
1
2
6
2
3
4
5
5
6
6
6
7
7
8
7
IB-BT2100D-MTX-01
This is a bluetooth car kit with caller ID.
You could use this car kits in car, home, office.
This kit use bluetooth version 1.2 and support both Handsfree and
Headset profile.
Introduction
Car charger
Main unit
2
This package includes :
INCOMIN G
47288 82 388
Adjustable sunvisor clip
3
Mounting at sunvisor
Slide this clip
into the sun visor
Slide the adjustable
clip into the bracket
Bracket for clip
Step I
Step II
1. Mounting with adjustable arm
1. Slide the clip into car sunvisor.
2. Rotate the clip to make LCD readable to driver.
3. Screw up the clip.
.
2. Mounting without adjustable arm
Remove this adjustable
Plug the sunvisor clip into the main unit
clip bracket
Key function (front side)
Top view
Back side view
1. LCD display
2. 1.Pairing/2.Disconnect
3. 1.Call transfer./2.Voice dialing.
4. Speaker
5. Charging Indicator.
6. Volume up
7. Volume Down
8. Hang up
9. Answer call
10.Swivel Microphone
Power On/Off
Charging socket
4
LLL
CCC
1
2
3
987654
10
Remarks : For those headset profile telephone press to pick up and
hang up the calls.
INCOMING
47288823 88
Bracket Sunvisor Clip.
Features
Display caller telephone number (12 digits)
Remarks For more than 12 digits, 13th digitals displays in
2nd row.
Voice out caller telephone number in 5 languages
(Germany-French-Spanish-Italy-English)
5 languages display
Mute microphone on/off
Support voice dialing
20 calls memory
Call transfer
battery low an full indication
battery charging indicator
Pairable for 4 users
Talk time : 4 hours
Standby time : 100 hours.
Pairing procedure
Step 1: Pls refer to phone user manual to activate phone bluetooth
connection.
Step 2: Set the phone SEARCH for bluetooth device as instruct in
phone user manual.
Step 3 : Once SEARCH finish, select "BT2001" from the list.
Step 4: Enter generic pass code"1234" to associate (Pair") and
connect the car kits with phone.
Step 5: Once you have entered the pass code, your phone is
default for this car kits. This car kits LCD display show
"PAIRED".Then, LCD shows Hansfree Profile or Headset
profile.Also, LCD display shows the name of
the paired phone (such us Nokia 3230). Pairing success.
5
How to disconnect
Method 1 : Press button once.
Method 2 : Switch off this car kit
Method 3 : Switch off your phone
Method 4 : Move the phone 10
meters away from this car kit
L
Reject and hang up a call
Press button to reject or hang up.
Or Press phone hang up button to end the call.
Volume up and down
Press to increase volume
Press to decrease volume
Mute Mic during conversation
Press to mute the mic.
The display show "Mute On"
The mic is off.
Press again, the mic is on,
display shows "Mute off".
The mic is automatically switch on
once calls completed.
L
L
How to re-connect
Method 1 : Press button once.
Method 2 : From phone's Bluetooth menu.
L
Answer incoming calls
Press
button.
Press phone Answer call button.
6
Call waiting
In conversation with 1st call, a new 2nd calls come in.
Press to activate 2nd call, keep 1st call waiting
Press again to re-activate 1st call and hold 2nd call waiting
Press hang up 1st call and reactivate 2nd call
Press again to hang up 2nd calls.
Call transfer
Press
once to transfer the calls from car kits to phone
Press
once more to transfer calls from phone to car kit
For Nokia phones, press to transfer calls from phone to car kit
Voice dialing
Pressandhold 2 seconds until you heara tone that
indicates you can saythe desired name "voicetap" Saythe voicetap.
The phone plays the voicetap and dials the related phone number
Note : This voicedialing function is availablefor phone
supporting voice dialing.
C
C
L
C
Making a call from 10-Received calls
memory OR from 10 last Missed calls
Press and hold 2 seconds, display shows
" Call Rec. Received "Press or to select the telephone number
you dial.
Press to make a outgoing call.
7
Display Set up Menu
Press and hold for 2 seconds to enter setup menu.
Or : forward/backward
Press confirm selection
Press exit
L
Display setup flowchat
Sound On
Setting
Contrast
Setting
Erase Pair
Setting
Display
Setting
Language
Setting
Key Tone
3
Contrast
Setting
Sound
Sound Off
Erase Pair
HFP Yes
Display
Normal
Display
UpSideDown
Clear Rec
MissedCall
Clear Rec All
Clear Rec
Received
Setting
Clear Rec
Setting
Speech Vol
Key Tone
On
Language
English
Speech
2
----- Adjust LCD contrast level
----- Caller ID speech switch ON
----- Caller ID speech switch OFF
----- Erase all paired mobile list
----- Normal LCD display
----- Rotate lettering upside down
----- Clear all memory record
----- Clear missed calls record
----- Clear answered calls record
----- Select English
----- Select Spanish
----- Select key tone ON
----- Select key tone OFF
Key Tone
Off
----- Adjust speech and key tone
volume
Espanol
French
Deutsch
Italian
----- Select French
----- Select Deutsch
----- Select Italian
8
For product warranty, support and
registration
please visit us online at
www.hitttusa.com
or call Customer Support Center at
1-877-HOT-HITT (468-4488)
