USER MANUAL
Turbo Blender
9
9
8
6
5
4
2
1
Direction for Safety in Use
Attention to Safety
Schematic Diagram
of Components
Direction for Use
Usage
Cleaning and Maintenance

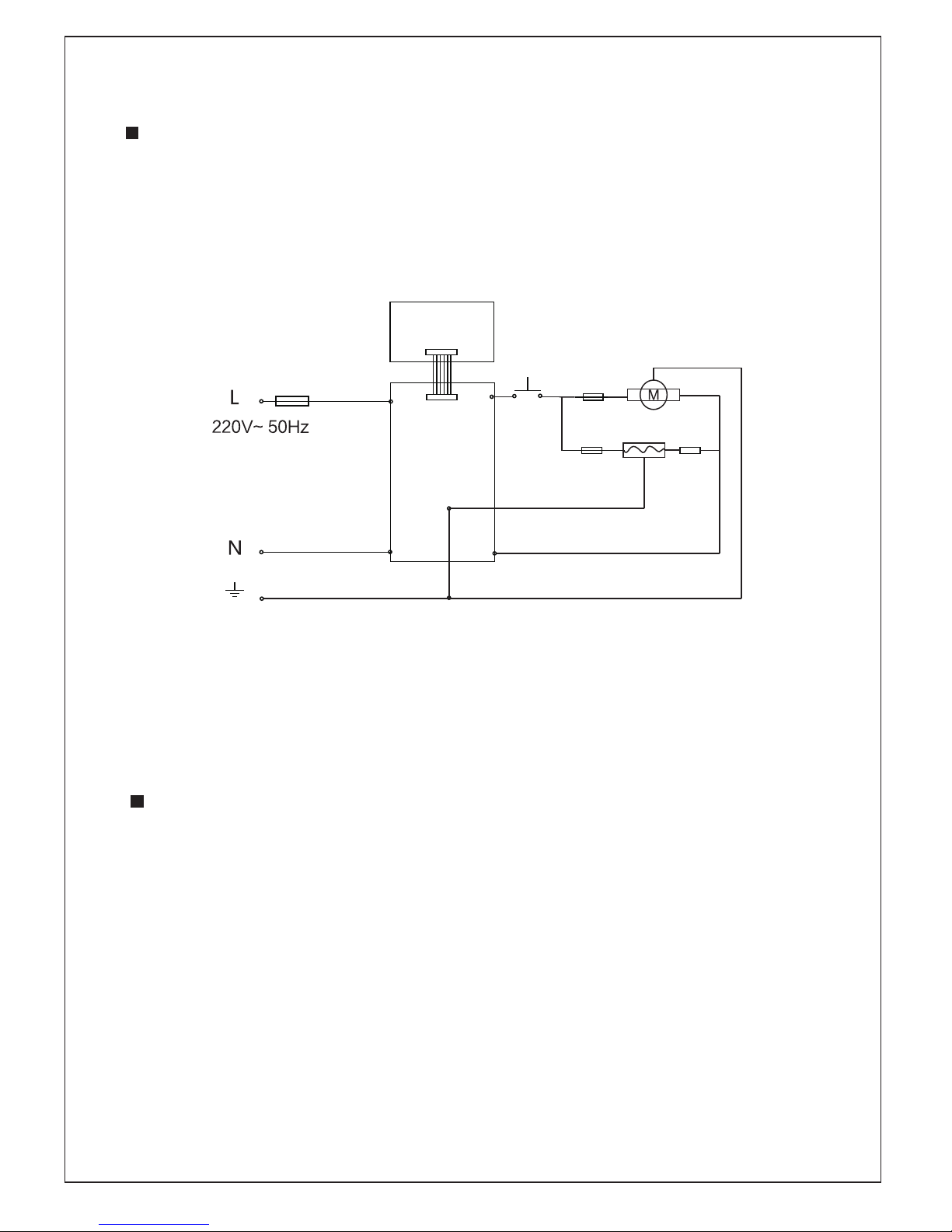

Schematic Circuit Diagram
Analysis and Disposal of
Abnormal Circumstances
Contents
1
Warning
Any operation not based
on the direction for use
will cause danger.
Direction for Safety in Use
Any operation against rules may
damage your goods and/or
properties, and even harm your
personal safety.
When using this product, you are required to carefully read the operation instructions
in this Manual and keep this Manual property for future reference.
Please strictly abide by the following marks. Ignoring these marks or operation
mistakes may cause major accidents or hurt others. Therefore, please abide by the
following marks. (This product is only applicable to household purposes.)
If the power line is damaged, it must be replaced by the professional personnel from
the manufacturer or its maintenance department or similar department in order to
avoid danger.
Attention
Attention
Please carefully read various
instructions in this Manual
before using this product.
The power supply to use should be
of 220-240V and more than 15A.
Please do not use this
product for any purpose
beyond its functional scope.
Be sure not to allow a child to
operate this product.
Please stop using this
product when the power line
or plug is damaged or any of
its function is disabled.
Please do not make the power line
touch any sharp edge or corner or
high-temperature surface.
This product must be
operated on a balanced and
reliable worktable.
When pulling the plug, you are
required to hold the plug but not
pull the power line.
Please do not use this
product outdoors.
Please do not soak this product in
water or any other liquid.
Please do not dismantle this product arbitrarily in order to ensure safety. In case
of any abnormal circumstance, please send this product to local service center
or agency of this company and invite qualified maintenance personnel to
overhaul it.
2
Attention to Safety
Special Tips
Be sure to abide by the following matters needing attention to safety in order to ensure safety
in use and thus avoid causing injuries and property loss to you and others.
Failure to abide by safety warnings and wrong use may cause accidents.
This product does not consider the following circumstances:
— Any infant without supervision or disabled person uses this product.
— Any infant plays with this product.
The mark “ ” represents the “prohibited” content.
It is strictly prohibited to operate this product under no load or at an overload when it is working.
It is prohibited to move this product or touch any of its components in motion in order to avoid
any accidental injury when it is working.
It is prohibited to hang the power line of this product on any sharp object and it is not allowed to
connect the power line to any mobile object.
It is prohibited to use this product on an inclined or unstable worktable.
Please do not use an inferior extension socket in order to avoid a fire accident or personal injury.
It is prohibited to place this product in a place too close to a stove in order to prevent it from
being damaged or causing a fire accident or personal injury.
The mark “ ” represents the “mandatory” content.
Please do not allow a child to independently operate or use this product, please ensure that a
child will not treat this product as a toy, and it is necessary to place this product in a place out of
a baby’s reach. Any person, who is old, disabled or without experience in use, should use this
product with guardianship and guidance.
When the plug or any other component is damaged, it is a must to stop using this product and
invite professional personnel of any designated maintenance center to replace or repair this
product and thus prevent it from causing any injury.
Before unpacking or testing any component of this product, please ensure that this product is
disconnected from power supply.
If the power line is damaged, it must be replaced by the professional personnel from the
manufacturer or its maintenance department or similar department in order to avoid danger.
Please do not use any accessory or fitting other than original accessories and fittings of this
product in order to avoid fire accidents and personal injuries.
Please do not allow any infant without supervision to run this product.
The mark “ ” represents the matters possibly causing casualties.
Before using this product, it is necessary to ensure that the voltage is consistent with its
specification (220~240V, 50Hz) in order to prevent this product from suffering any safety-related
danger and damage.
With regard to working time of this product, it is a must to ensure that continuous stirring time
does not exceed 6 minutes. During the operations, if the chassis overheats, it is necessary to
stop this product for about 20 minutes and it is not allowed to proceed with operating this product
until it is cooled.
The mark “ ” represents the matters possibly causing slight injuries or property loss.
This product is equipped with built-in overheating protector. When it is used abnormally or its
motor runs at a serious overload, this product will automatically stop for protection. If this product
cannot be started after it is protected for 30 minutes, it is necessary to send this product to a
maintenance outlet of this company for maintenance and it is not allowed to dismantle this
product arbitrarily.
After using this product, it is necessary to clean all the positions touching food in order to
prevent this product from sending forth peculiar smell after being not used for a long time.
If this product gets stuck during its use, please immediately turn off it, pull out the power plug,
remove the container, take out the material(s) leading this product to getting stuck and then
continue using it after the motor is cooled.
After using this product, you are required to timely pull out the power plug and clean this product.
Before using this product, you are required to ensure that the worktable is clean and greasy dirt
is eliminated timely.
Please keep the optimal distance of more than 30 cm between this product and any other kitchen
appliance.
a. This appliance shall not be used by children. Keep the appliance and its cord out of reach of
children.
b. Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and if they understand the hazards involved.
c. Children shall not play with the appliance.
d. Appliances shall warn of potential injury from misuse.
e. Always disconnect the appliance from the supply if it is left unattended and before assembling,
disassembling or cleaning.
f. The appliance shall state that care shall be taken when handling the sharp cutting blades,
emptying the bowl and during cleaning
g. Be careful if hot liquid is poured into blender as it can be ejected out of the appliance due to a
sudden steaming.
h. Switch off the appliance and disconnect from supply before changing accessories or
approaching parts that move in use.
i. The appliance must not be immersed.
j. The heating element surface is subject to residual heat after use.
k. When using the appliance, avoid spillage of water on the connector as this may cause damage
to the appliance.
l. Do not misuses use this appliance, it must be occur damage.
m.CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cut-out, this
appliance must not be supplied through an external switching device, such as a timer, or connected
to a circuit that is regularly switched on and off by theutility
3
Specification
Voltage Frequency
Moter Power
Cup capacity
220-240V~ 50/60Hz 1500W
1.75 Liters
Heater power
800W
4

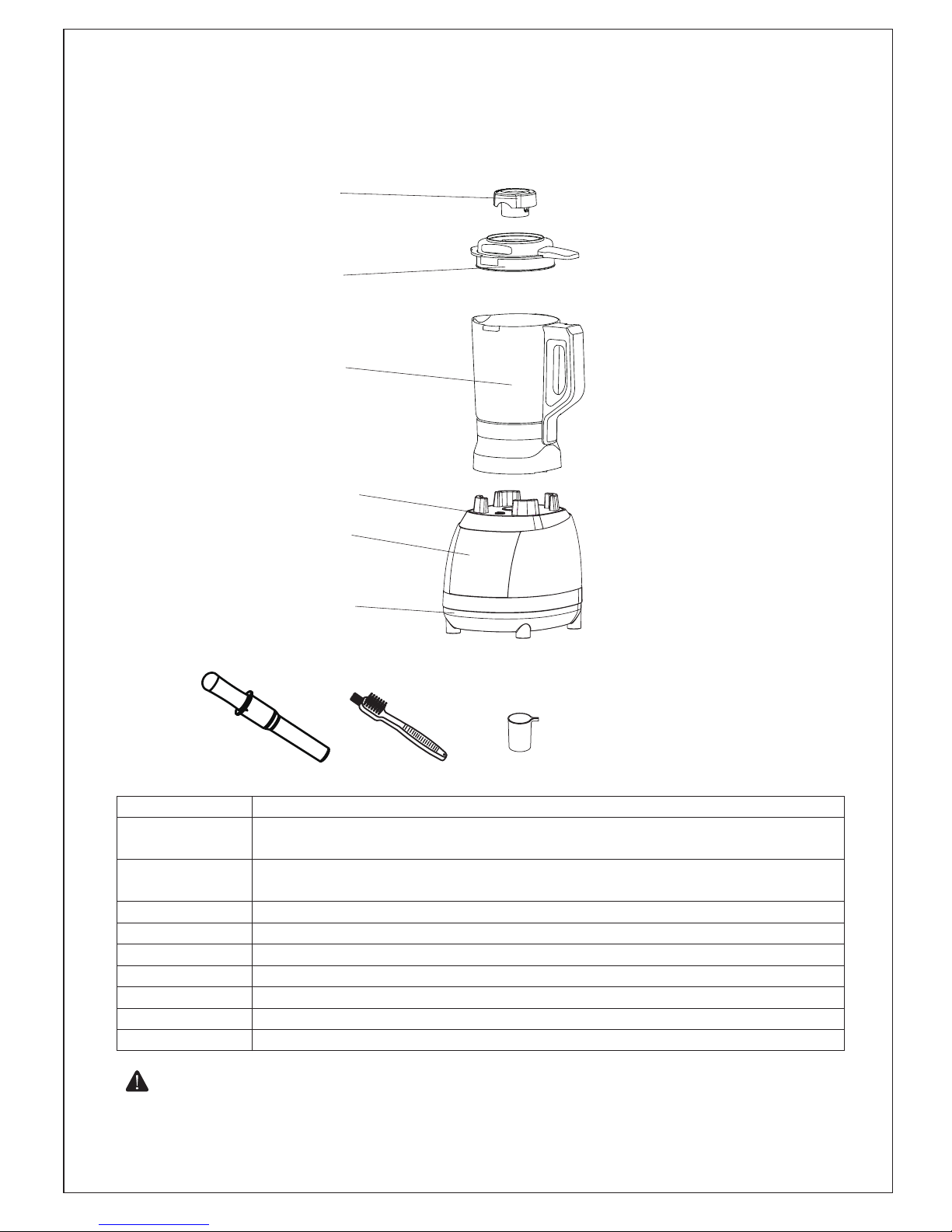

Schematic Diagram of Components
Feeding Lid
Jar Cover
Jar
Silicone Pad
Control Panel
Bottom
Accessories:
Measuring CupMixing Bar Brush
Component Name Introduction to Function
It is used to prevent food material(s) from splashing and the stirring rod can be inserted into the
stirring cup after it is removed.
Jar Cover
Jar
It is used to rotate the jar and reduce noise.
Bottom
Control Panel
Mixing Bar
Brush
Measuring Cup
Matters Needing Attention to Use:
The above diagram is used for reference only due to difference in appearance of product.
Specific diagram is subject to the physical object in the box.
It is used to clean this product.
Feeding Lid
It is used to prevent food material(s) from splashing and this product cannot be started until the
cup cover is installed in place.
It is a container holding food material(s), including a knife for smashing food material(s)
Silicone Pad
It acts as the power source of this product.
It is used to control the working manner of machine.
It is used to give assistance in food smashing (for instance, smoothie function).
It is used to measure and get food materials such as dry beans and rice.
5
Direction for Use
Notice before Use:
1. The volume should not exceed the maximum scale.
2. The exterior of main body can be wiped with dry cloth. Please neither soak the main body in
water or any other liquid nor rinse the main body under water or any other liquid in order to avoid
leakage of electricity or prevent components of this product from being damaged.
3. When cleaning this product, please rinse its cup body and parts with clean water and then dry it
with cloth; the cutter blade is very sharp, so you should be careful in order to prevent it from
hurting you when cleaning it. You can wear protective gloves.
4. Please do not clean this product with any steel wire ball, abrasive detergent or corrosive liquid
(such as gasoline or acetone).
5. The maximum volume should not exceed 1400mL when this product is used to make soy-bean
milk.
6. Please clean the food material(s) and cut it or them into pieces with the length of a side not
exceeding 2cm.

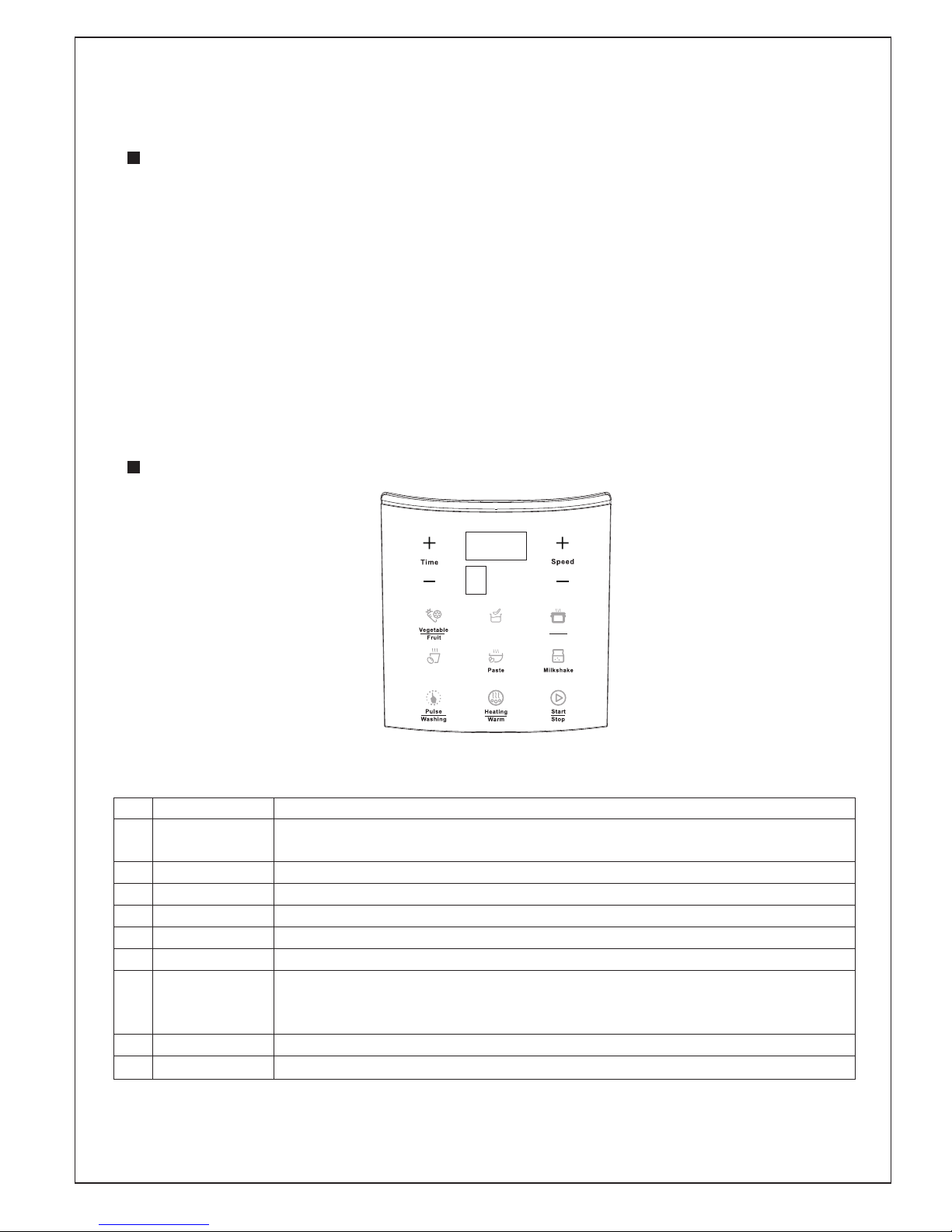

Description of Control Panel:
(This picture is just a schematic diagram and the specific diagram should be subject to the physical object.)
S.N. Mode Purpose(s)
This program is used to make vegetable & fruit juice, mixed fruit juice and so on. It is without the function
“ Heat ”.
This program is used to make soup.
This program is used to make various sauce and borth.
This program is used to make various soy-bean milk, nut pulp milk with tastes based on recipes.
This program is used to make various milk shakes in recipes. It is without the function “ Heat ”.
This program is used to make smoothies, clean the cup and so on. It is used for intermittent operations.
When making smoothies, using a stirring rod for assistance can achieve better effect; after adding an
appropriate amount of water,
intermittently press the" Pulse/Washing" button can simply clean the jar.
This program is used to make rice paste in recipes.
This button is for start off/on or stop blender during working;
This button is used to heat food in the jar or keep inside food warm.8
Heating/Warm
Start/Stop
9
Pulse/Washing
7
Milkshake
Paste
6
5
Soy Milk4
Sauce/ Broth3
Soup
Vegetable Fruit
2
1
Sauce
Broth
Soup
Soy Milk
6
Usage

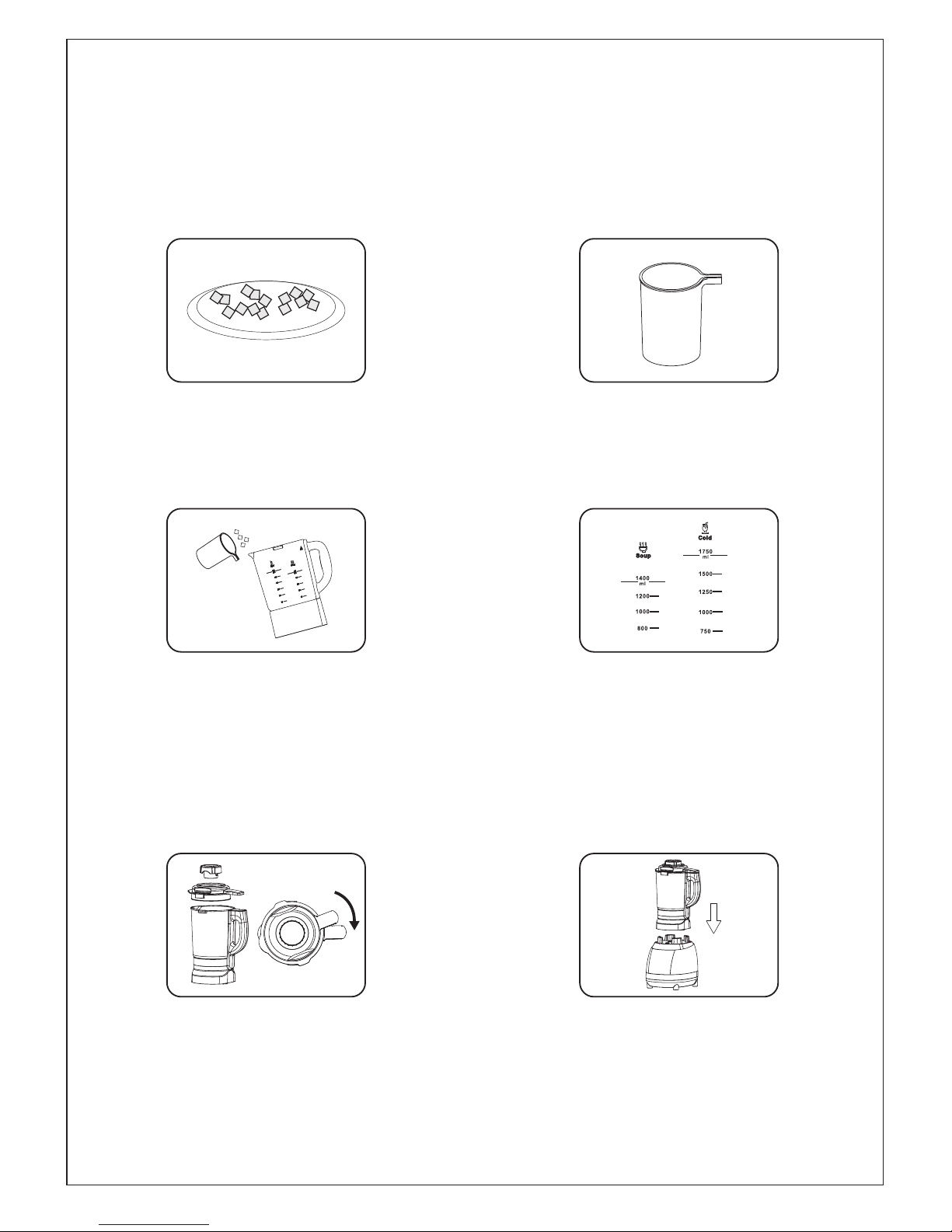

1. Cut the food material(s) into
pieces about 2cm.
2. Use a small measuring cup to get an
appropriate amount of food material(s)
as per the proportions in recipes and
personal tastes.
3. Pour the measured food material(s)
into the jar.
4. Add an appropriate amount of clean
water to the jar.
(Increase or decrease an appropriate
a mount of water as per the
proportions in recipes)
5. Align the ears on both sides of the jar cover
at the lugs of the rim of jar in a staggered
manner, press the jar cover into the jar, and
then rotate the jar cover clockwise till it
buckles the jar body and finally press the
feeding lid tightly onto the jar cover (wherein
the jar body is equipped with an uncovering
protective device which will not power on this
product if the jar cover is not rotated in place).
6. Place the jar at the right position on
the host machine.
7. After the power line is plugged and this product
is powered on, all its backlights twinkle and then
go out, the buzzer sounds once and the time \
displays “ - - - - ”.
8. Select functional buttons by jogging.
7

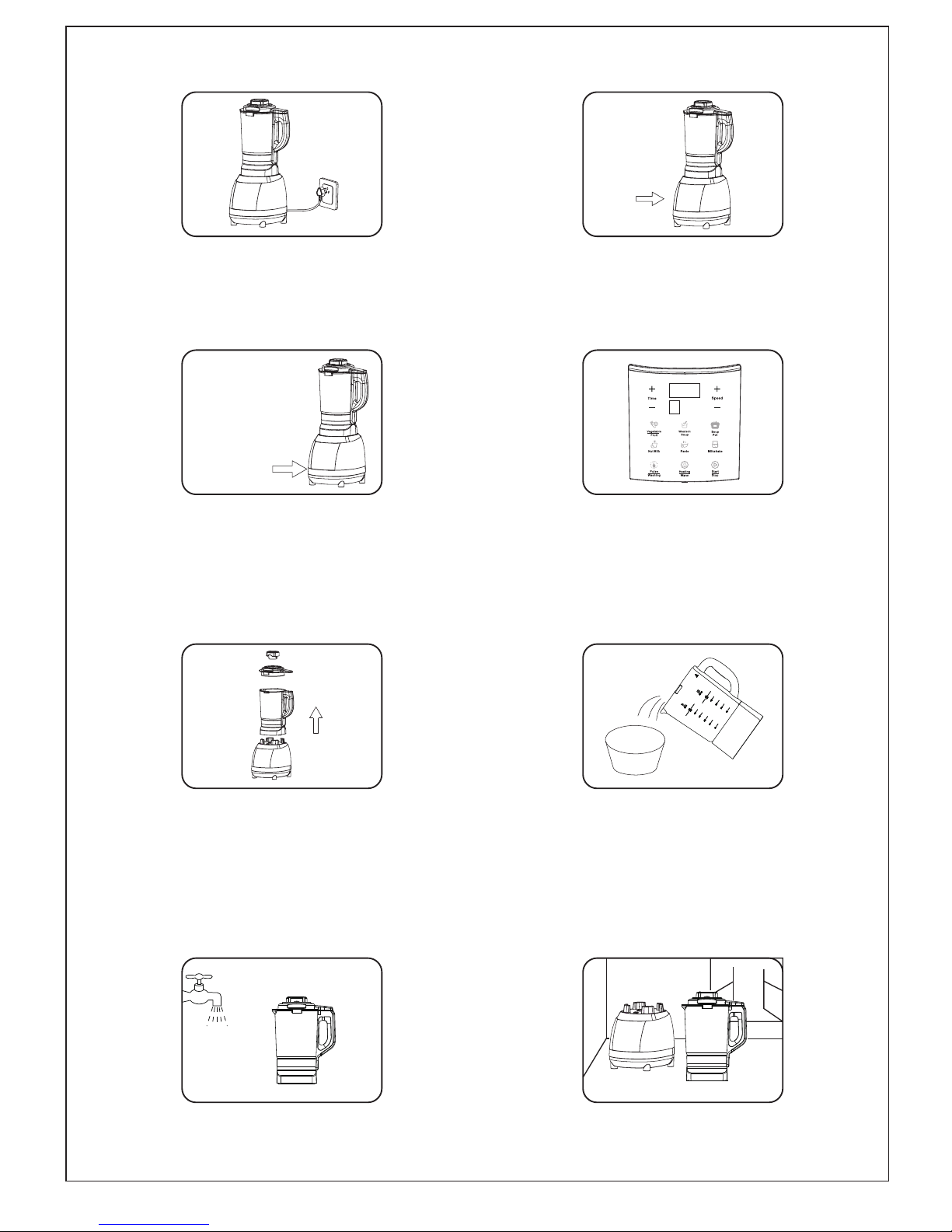

9. Press the “Start/Stop” button when this
product starts to work!
(The fast and slow sound during the work
of this product belongs to normal design.)
10. When this product finishes its work,
the buzzer sounds three times and
then this product returns to the
standby mode.
The “Star/Stop”
button starts.
11. Pull out the power line, remove the jar
and then open the jar cover.
(Note: It is necessary to
prevent the gushing steam from
scalding you when opening the
jar cover!)
12. Pour out the seriflux and add
seasonings as per personal taste.
(Please do not pour out the seriflux
too violently in order to prevent the
liquid from splashing.)
13. Please timely clean the interior of the
jar and use wet cloth to clean the shell
of this product.
14. After rubbing away the water stains
on the surface of this product,
separately place the host machine
and the jar in a cool and well ventilated place for drying in order
to avoid the appearance of peculiar
smell.
8
Matters Needing Attention:
1. When making western soup, rice paste, soup and so on, it is a must to select corresponding
functional buttons. Otherwise, the made beverage may be of poor taste, not cooked thoroughly
and suffer other problems. In a serious case, the beverage even will overflow or adhere to the
bottom!
2. If it is necessary to switch the functions such as “ PASTE ”, “ WESTERN SOUP ” and
“ SOUP POT ” due to functional errors, please click the “ Start/Stop ” button to cancel the
current function. Before the current function is counted down, you may directly re-select the
corresponding function just by clicking the “ Start / Stop ” button. If the current function has been
counted down, you are suggested to replace the food material(s) and then re-select the correct
function for starting.
3. The share(s) of food material(s) in any recipe are prepared as per standard water level.
Therefore, a user may adjust the share(s) of food material(s) as per the amount of water and
kind(s) of food material(s) wherein the highest water level under the function “ Heat ” had better
not exceed 1,400 mL and the highest water level under the function “ Cold Drink ” had better not
exceed 1,750mL.
4. When making beverage based on fruits and vegetables, please denucleate food material(s)
with kernels in advance and then put the food material(s) into the jar and finally add an
appropriate amount of drinking water or milk.
5. Please do not use this product to directly heat thick liquids such as milk, soy-bean milk and cold
rice paste. Otherwise, food will be burnt on bottom of jar during heating.
6. When the machine is working, please pay attention to the water vapor spraying out and hot water
splashing out from the spout after the liquid in the jar boils. Be sure not to open the jar cover when
the machine is working.
7. When the machine is making any beverage, please do not add seasonings (such as sugar) to the
jar in order to prevent the seasonings from adhering to the bottom of the when being heated.
8. Before powering on the machine, please ensure that the jar. the jar cover and the feeding lid are
installed in place.
9. When this product is powered on, it is strictly prohibited to insert any hand or sharp-pointed object
into the jar in order to prevent you from being injured or this product from being damaged.
2. After this product is powered off, the exterior of main body can be wiped with dry cloth.
Please neither soak the main body in water or any other liquid nor rinse the main body under
water or any other liquid in order to avoid leakage of electricity or prevent components of this
product from being damaged.
3. When cleaning this product, please rinse its cup body and parts with clean water and then dry
it with cloth; the cutter blade is very sharp, so you should be careful in order to prevent it from
hurting you when cleaning it. You can wear protective gloves.
4. Please do not clean this product with any steel wire ball, abrasive detergent or corrosive liquid
(such as gasoline or acetone).
5. If any component of this product is colored by fruit and/or vegetable juice, it is necessary to add
several drops of edible oil before rinsing it to better eliminate the color.
6. Thoroughly wipe such component dry after rinsing it with clean water.
Cleaning and Maintenance
Cleaning
1. After the jar makes fruit juice and the latter is poured out, it is necessary to immediately add
clean water and use the mode “ Pulse / Washing ” repeatedly to better clean the jar.
Maintenance
1. It is appropriate to frequently use this product to keep its motor dry.
2. If it is not used for a long time, it is necessary to store this product in a dry and ventilated place
in order to keep its motor from moisture.
Schematic Circuit Diagram
Control Panel
Current Protective
Tube
Magnetically
Controlled
Switch
(Note: The wiring is subject to change without notice.)
Thermal
Protector
for Motor
Power Panel
Fuse
Heating
Tube
Temperature
Controller
Analysis and Disposal of Abnormal Circumstances
Disposal of Abnormal Circumstances
1. It is necessary to immediately power this product off and stop using if it is in abnormal
circumstances such as abnormal noise, peculiar smell and smoke.
2. If this product fails to work, please check whether the power line is connected property or not,
whether its switch is turned on or not and whether the stirring cup is installed in place or not.
3. If this product still fails to work upon above check, please send it to any designated
maintenance center for maintenance and consulting.
9
Failure Analysis and Troubleshooting
Failure Possible Cause(s) Solution
The power indicator light does
not go on.
The indicator light goes on but
this product does not work.
A button does not respond.
The food cannot be smashed.
The food adheres to the
bottom.
E1
E2
E3
The power line is not
inserted well.
E4
Check the power line and ensure that it is inserted well.
Press the “ Start/Stop ” button after selecting the
target function.
Not press the “ Start ” button
after selecting the target function.
The cup cover is not covered in
place.
You will hear short sound of the buzzer after re-covering
the cup cover well and installing it in place.
The system is not reset due to
short power disconnection interval.
Power on and use this product after disconnecting its
power supply for 3 minutes.
This product has been executing
the program.
It is a normal phenomenon.
The added water is too much or
less.
Please add water to the correct water level.
The power voltage is too low. You may use a household voltage stabilizer.
The food material(s) is/are too
much or less.
Please operate as per the recipe.
The interior of cup is not clean. Use this product after cleaning the interior of its cup.
The added food material(s) is/are
too much.
Please operate as per the recipe.
Press a wrong functional button. Select a correct functional button.
The food material(s) is/are cut
into too big pieces.
There is/are too much material(s).
The machine itself goes wrong.
Pull out the power line for disconnecting the power
supply, pour out the food material(s) in the cup and
then cut it/them into appropriate small pieces.
The machine is continuously
burned with nothing.
The cup is directly lifted when this
product is working without
interruption of power supply.
The machine itself goes wrong.
Pull out the power line for disconnecting the power
supply and then re-insert the power line to return to
normal.
The machine is continuously
burned with nothing.
The machine itself goes wrong.
The machine goes wrong.
Pull out the power line for disconnecting the power
supply and then re-insert the power line to return to
normal.
Contact our after-sale customer service center for
maintenance.
At the end of its service life, this product may not be disposed of as urban waste.
It must be taken to a special local authority differentiated wast collection centre or
a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be recovered to
Obtain significant savings in energy and resources. As a reminder of the need to
Dispose of household appliances separately, the product is marked with a crossed-
Out wheeled dustbin.
10
The coupler surface has water.
The coupler surface has water.
The coupler surface has water.
The coupler surface has water.
Clean the water of coupler surface.
Clean the water of coupler surface.
Clean the water of coupler surface.
Clean the water of coupler surface.
Loading...
