HITEC Focus 6 FM User Manual
6 CHANNEL F.M. SYSTEM AIRCRAFT
OPERATIONAL MANUAL
The Hitec Focus digital proportional radio control system is a highly
sophisticated system that features modern solid state circuit design and
components of unsurpassed reliability. The time you spend learning about
your Focus from this manual will ensure that you will enjoy many years of
dependable control.
1. Contents
1. Contents ....................................................................................1
2. Features & Specifications ........................................................2
A. Transmitter
B. Receiver
C. Servo

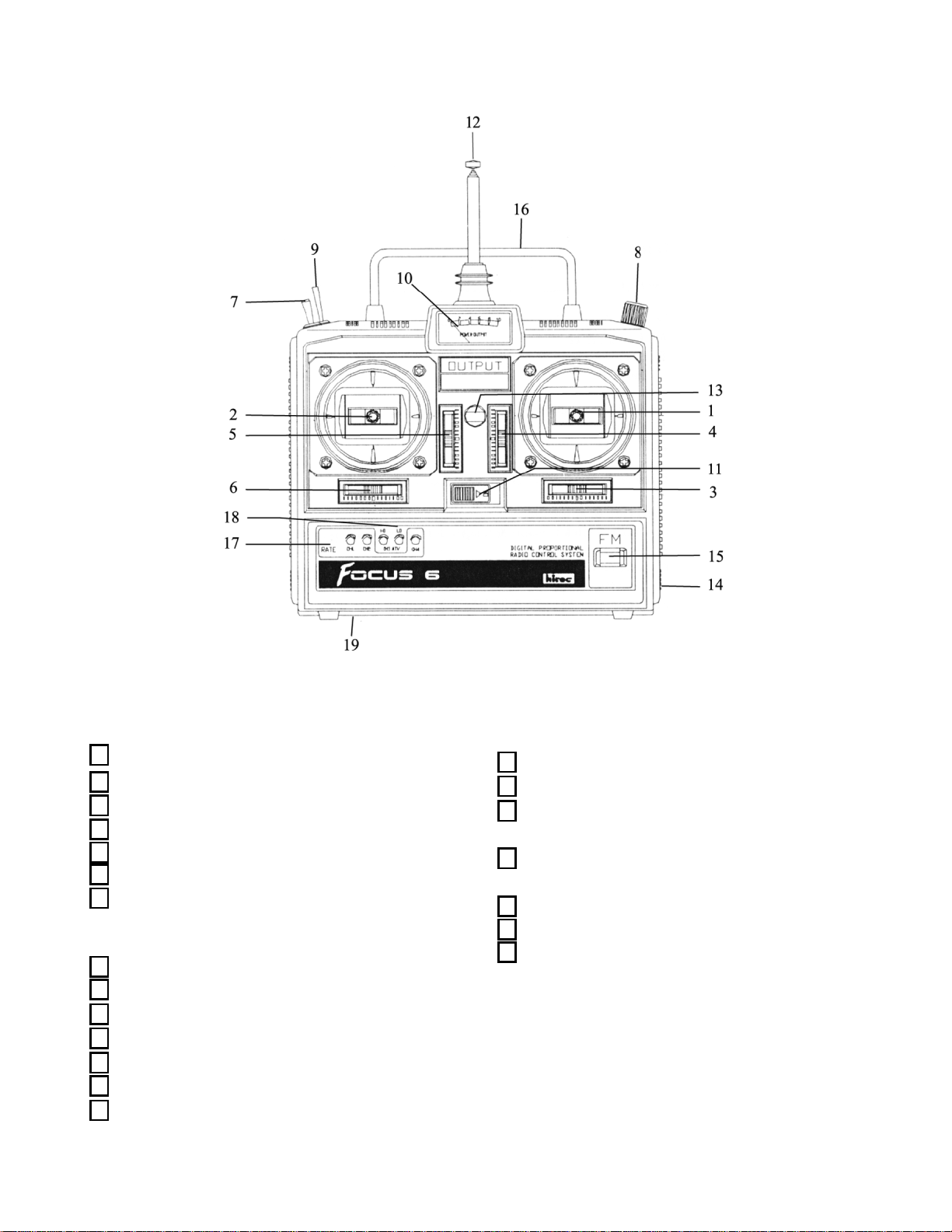

3. Transmitter Function ................................................................3
A. Front
B. Back

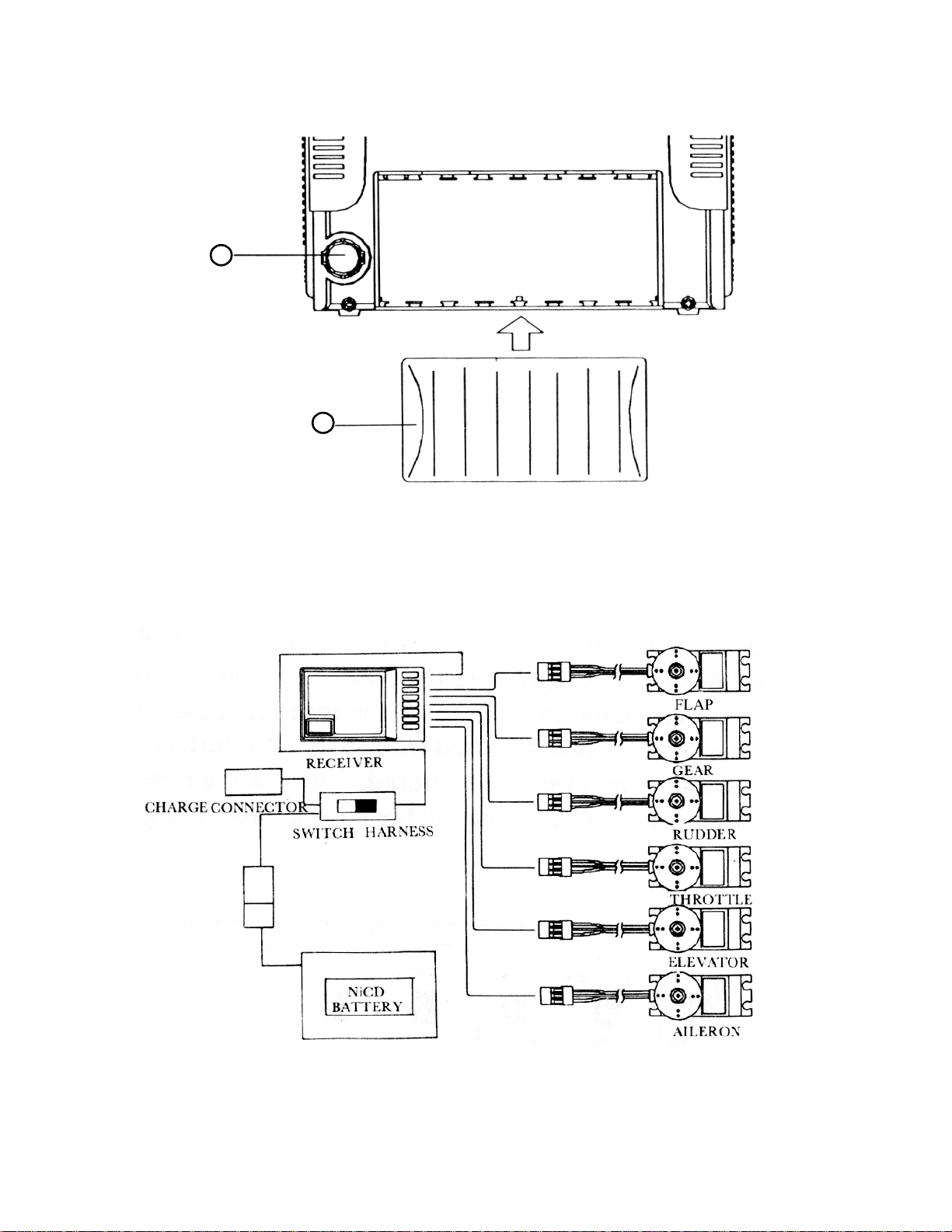

4. Receiver & servo connection ...................................................4
5. Operation & servo connection .................................................5

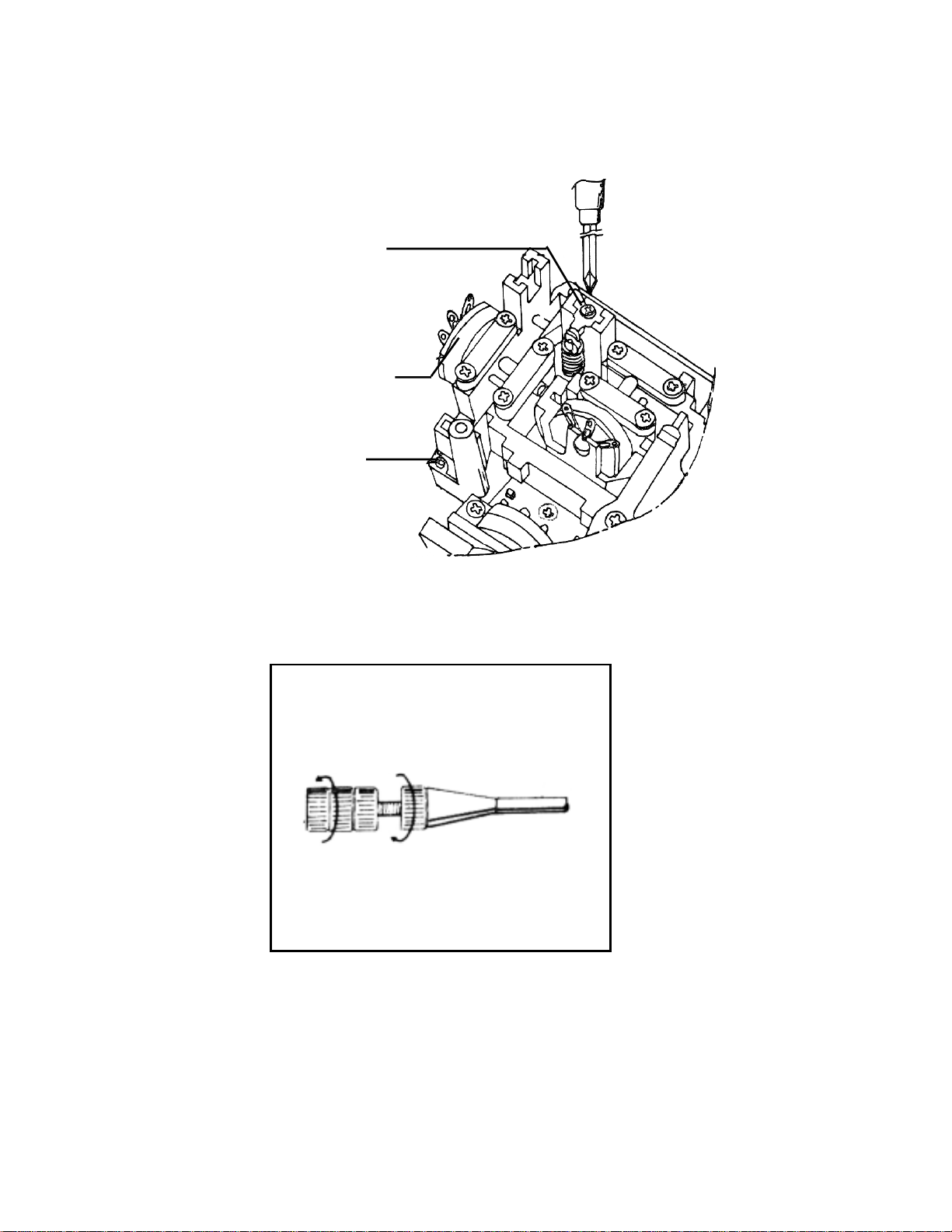

A. Control stick tension & length & trim lever adjustment
B

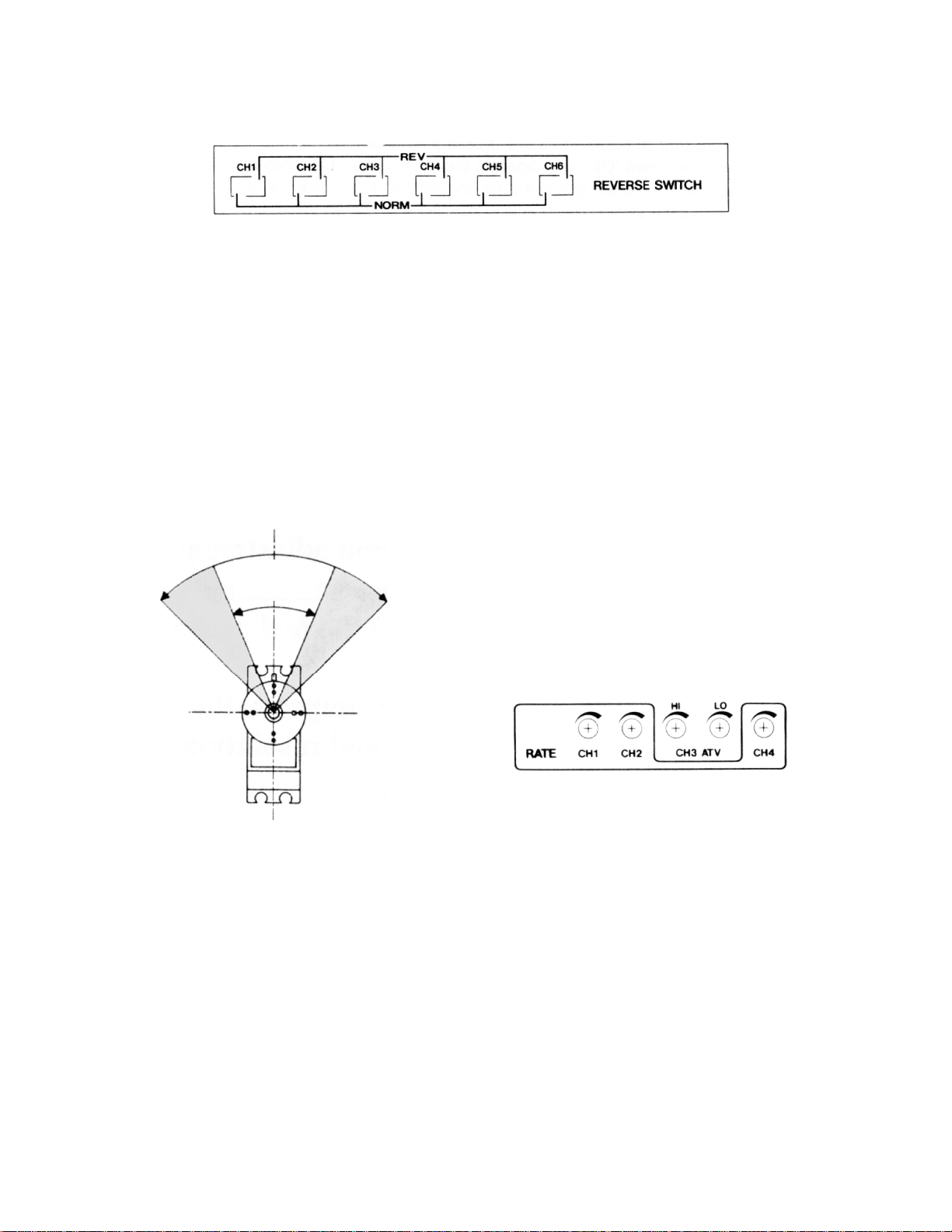

. Servo reverse
C.A
ileron and elevator & rudder A.T.V.
D. Throttle E.P.A.
E
. Inovative MASTER-STUDENT trainer system
6. Installation ...............................................................................7
2. Features & specifications
A. Transmitter
• 6 channel P.P.M/F.M. transmitter
• AMA listed 1991 F.M. system and RCMA gold stickered transmitters
• High Quality precision gimbal stick with adjustable length & tension
• All channel servo reversing
• E.P.A. (End Point Adjustments) for throttle (both High and Low)
• ATV for aileron, elevator, rudder
• Trainer system
• Channel 5 for gear switch
• Channel 6 for flap varible switch
• Trainer system
• Innovative”MASTER-STUDENT” trainer cable system
Operating system : 2 stick system
Module change system :Internal module system
Power supply :9.6V (8 Ni-Cad batteries)
Current drain :150mA (13.5) -130mA (10.8)
B. Receiver (Ultra series)
• X-TAL interchangeable
• Ultra narrow band width for maximum adjacent channel rejection
• Minimized 2nd & 3rd order intermodulation
• Metallic noise proof
Intermediate frequency :455KHz, 10.7MHz
Power supply :4.8V (4 Ni-Cad battery) AA size
Current drain :22mA
Dimensions :37x61x22mm (1.5”x2.4”x0.9”)
Receiving range :3000 ft or greater in the air
Working voltage :3.7 - 7.0V
C. Servo
• Top oilite bearing prevents wearing out of the top plastic case
• Indirect drive for gear train protection
• Hitec custom designed I.C. with narrow dead band & high trackability
• SMT (Surface Mount Technology) circuitry adopted
• Precise & sturdy heavy duty gears improve high nuetral position and minmal
backlash.
Control system :+ pulse width control (1550 uS/N)
Operating angle :One side 45deg or more (including trim)
Power supply :4.8V (4 Ni-Cad) or 6V (4 Alkaline battery) AA size
Current drain :8mA at 6.0V (stopped)
Output torque :3.0kg/cm (41 oz/in)
Operating speed :0.21 sec/60deg
Dimensions :41x20x36mm (1.6”x0.8”x1.4”)
Weight :1.51oz (43g)
2
