Qmini M Series Industrial GIS Data Collector Manual
Qmini M Series
Industrial GIS
Data Collector Manual
Qmini M Series Industrial GIS Data Collector Manual
Revision date
Revision number
Introduction
March 2012
1
Qmini M series industrial GIS data
collector instructions version 1.0
Handbook revision situation
Qmini M Series Industrial GIS Data Collector Manual
Catalogue
Chapter 1 .......................................................................................................................................... 4
Products overview ....................................................................................................................... 4
Product introduction ................................................................................................................ 5
Product features ....................................................................................................................... 5
Use and the matters needing attention ...................................................................................... 6
Chapter 2 .......................................................................................................................................... 7
The introduction of Qmini M series industrial GIS data collector ........................................... 7
The front of Qmini M series industrial data collector .............................................................. 8
The back of Qmini M series industrial data collector .............................................................. 9
Interfac .................................................................................................................................... 10
Touching pen .......................................................................................................................... 11
Battery .................................................................................................................................... 11
Data cable ............................................................................................................................... 13
Belt ......................................................................................................................................... 13
Chapter 3 ........................................................................................................................................ 14
Basic operation ........................................................................................................................... 14
Keyboard ................................................................................................................................ 15
3G card .................................................................................................................................. 16
MicroSD card ........................................................................................................................ 17
Power supply system ........................................................................................................... 18
◊charge ................................................................................................................................. 19
Switch machine operation ................................................................................................... 20
Data obtain .......................................................................................................................... 22
Application functions ............................................................................................................ 26
Chapter 4 ....................................................................................................................................... 27
Qmini M Series Industrial GIS Data Collector Manual
Technology parameters ......................................................................................................... 27
Technology parameters...................................................................................................... 27
Qmini M Series Industrial GIS Data Collector Manual
Warn: the warned content is generally very important, if not
operate as warn, it will cause the damage of the instrument, the
loss of the data, and the collapse of the system, even endanger
the security of person
Note: the mentioned content is general special operation, need your
special attention, please read
Preface
Manual use
Welcome to use Qmini M series industrial GIS data collector instructions。 This manual
applies to Qmini M1 / Qmini M3 / Qmini MR/Qmini MT/Qmini MP series, this manual
introduces how to install、set up and use industrial GIS data collector.
Brief introduction of manual
Qmini M series industrial GIS data collector is a new GPS/GIS data collector, even if you
have used other types of industrial GIS data collector, please also carefully read the
manual before use .
Experience demanded
In order that you can use Qmini M series industrial GIS data collector well, HI-TARGET
suggests you have a certain measure knowledge, and carefully read the instruction. If you
have any questions, please refer to the official website of the Hi-Target: < http://www.hitarget.com/ >.
Safety technical note
Note: the noticed content must be special in operation, which need your special attention, please
read carefully.
.
1
Qmini M Series Industrial GIS Data Collector Manual
Responsibility absolution
Before you use the product, you should read the introduction carefully. Hi-Target surveying
instrument Co. LTD. will not take the responsibility if you do not operate within the product
instruction。
HI-TARGET surveying instrument Co. LTD. is committed to continuously improve product
function and performance, improve the service quality, and keep the right to change the content
of the instruction without noticing in advance.
We have checked that whether the hardware and software are consistent with the content as the
prints say, but we don't rule out the possibility of bias, the picture in the instruction for reference
only, if you have a product with discrepancies, please refer to the product.
Technology and service
Hi-Target have set up the “technology and service” section in website , if you have
problems you can settle them through the "service guide" telephone 、contacting regional
technology center and headquarters division or through the "experts on the judgment
seat," "technology BBS" message, we will answer your questions as soon as possible.
Related information
You can find the instructions through the following methods:
1 Purchased products from the Hi-Target will with a CD, open the CD and you can find
the instruction;
2 Land the official website of the Hi-Target, through "downloaded zone"—" product
specifications "—" GIS product "and you can it.
Your suggestion
If you have any suggestions and opinions about the introduction, please visit the official
website of the Hi-Target, and leave massage in "technical service" —"advice and
2
Qmini M Series Industrial GIS Data Collector Manual
complaint" edition , your feedback will help to improve the quality of the introduction
greatly .
3
Qmini M Series Industrial GIS Data Collector Manual
C H A P T E R
1
Chapter 1
Products overview
This chapter introduces:
■ Product introduction
■ Product features
■Matters needing attention in use
4
Qmini M Series Industrial GIS Data Collector Manual
Product introduction
Qmini M series industrial GIS data collector products are equipped with complete
navigation and position function and GIS data acquisition function, with the operating
mode of physical buttons and touch screen, inputting in both Chinese and English are
supported. It is designed as industrial standard, and can be dropped from 1.5 meters high
to the cement floor without anything, equipped with IP67 level dustproof and waterproof,
it can adapt to complex work environment in the field. At the same time, the
configuration of the large capacity of lithium battery can meet the requirements of all day
work.
Qmini M series industrial GIS data collector is integrated designed, and it is equipped
with functions such as collection of GPS, embedded Windows Mobile 6.5 system, digital
camera, microphone, 3 G communications, bluetooth communication, large storage, USB
port, SD card expansion ,etc.
Product features
◊Industrial integration design, with a variety of functions
◊ Can be used as the industrial standard GPS navigation
◊ The built-in digital camera, which can realize image information site acquisition,
automatically realize GPS coordinates and image information matching labeling
◊ The built-in microphone, it can realize voice information site collected
◊with the function of speech play
◊ The built-in bluetooth , to realize the wireless data transmission
5
Qmini M Series Industrial GIS Data Collector Manual
Warning: industrial GIS data terminal in use and preservation must be
stipulated in the temperature range. Detail requirements, please refer to
chapter 4: technical parameters.
◊ Integrated industrial 3 G wireless communication. Realizing the communication
between management center and mobile GPS terminal, the function is applicable to
Qmini3 / Qmini3P and QminiH3 / QminiHP model.
Use and the matters needing attention
Although Qmini series industrial GIS data collector use the corrosion resistance and
impact resistance materials, but the instrument still need our careful use and maintenance,
and keep it in dry environment as far as possible. In order to improve the stability of the
data collector industrial GIS and use cycle, please avoid industrial GIS data collector
exposed to extreme environment, such as: damp, high temperature, low temperature,
corrosive gas or liquid, etc.
To ensure continuous observation of the satellite tracking and satellite signal quality,
the stations should be set over the open place as far as possible, barriers are not permitted
in more than 15 degree; To reduce the interference of electromagnetic wave to GNSS
satellite signal ,within 200 m strong electromagnetic interference is not permitted, such
as TV tower, microwave station, high voltage transmission line; To avoid or reduce the
happening of the multipath effect, stations should be far away from to the terrain which
reflect electromagnetic wave signal strongly, such as high building, sliced waters, etc.
6
Qmini M Series Industrial GIS Data Collector Manual
C H A P T E R
2
Chapter 2
The introduction of Qmini M series industrial
GIS data collector
The introduction of this chapter:
■the front of Qmini series industrial GIS data collector
■the back of Qmini series industrial GIS data collector
■interface
■the appearance of touching pen
■battery
■data cable
■belt
This chapter introduces Qmini series industrial GIS data collector appearance, interface,
battery, touch pen and data, etc.
7
Qmini M Series Industrial GIS Data Collector Manual
The front of Qmini M series industrial data collector
The front of Qmini series industrial GIS data collector，including the touch screen,
keyboard, a microphone，protection set ,etc.
◊ Touch screen: 3.7 inch vertical screen can do click operation directly, support inputting
in both Chinese and English.
◊ Protective set: in case that it grind 、 fell and shock, effective instrument to avoid
scratching.
◊ Keyboard: direction control, the confirmation button, exit button, switch machine etc.
◊The microphone: built-in microphone can be used for the acquisition of voice messages.
(The microphone is at the bottom of the interface, left of the waterproof plug )
8
Qmini M Series Industrial GIS Data Collector Manual
Camera
(with flashfunction)
Horn
The belt hole
The back of Qmini M series industrial data collector
The back of Qmini series industrial GIS data collector, including the camera, battery, the
belt hole, horn, etc.
◊ Camera: built-in digital camera for video information site collection
◊ Battery: the built-in 3.7 V, 3100 mAh lithium batteries
◊ Belt hole: connect with strap to prevent slide.
◊ Horn: instrument real-time operating state and speech broadcast
9
Note: when the horn is in water, it may appear silent or husky, dry it and it
will be back to normal. The loudspeaker and the instrument is completely
waterproof, horn with water will not affect instrument performance, but
please timely drying processes.
Interface
Qmini M Series Industrial GIS Data Collector Manual
Qmini M series industrial GIS data collector interface position was identified, its main
function is charging and data transmission, installing SIM card and SD card, etc.
Picture2-3
◇ Charging interface:connect the charger for lithium battery charge.
10
Qmini M Series Industrial GIS Data Collector Manual
Note: when the charging interface and USB interface are not in use, please
cover the stopper, in order to achieve the purpose of waterproof, dustproof.
◇ USB interface :the connection computer, used for data transmission.
◇ MicroSD card slot: install MicroSD card, can support 32 GB at most.

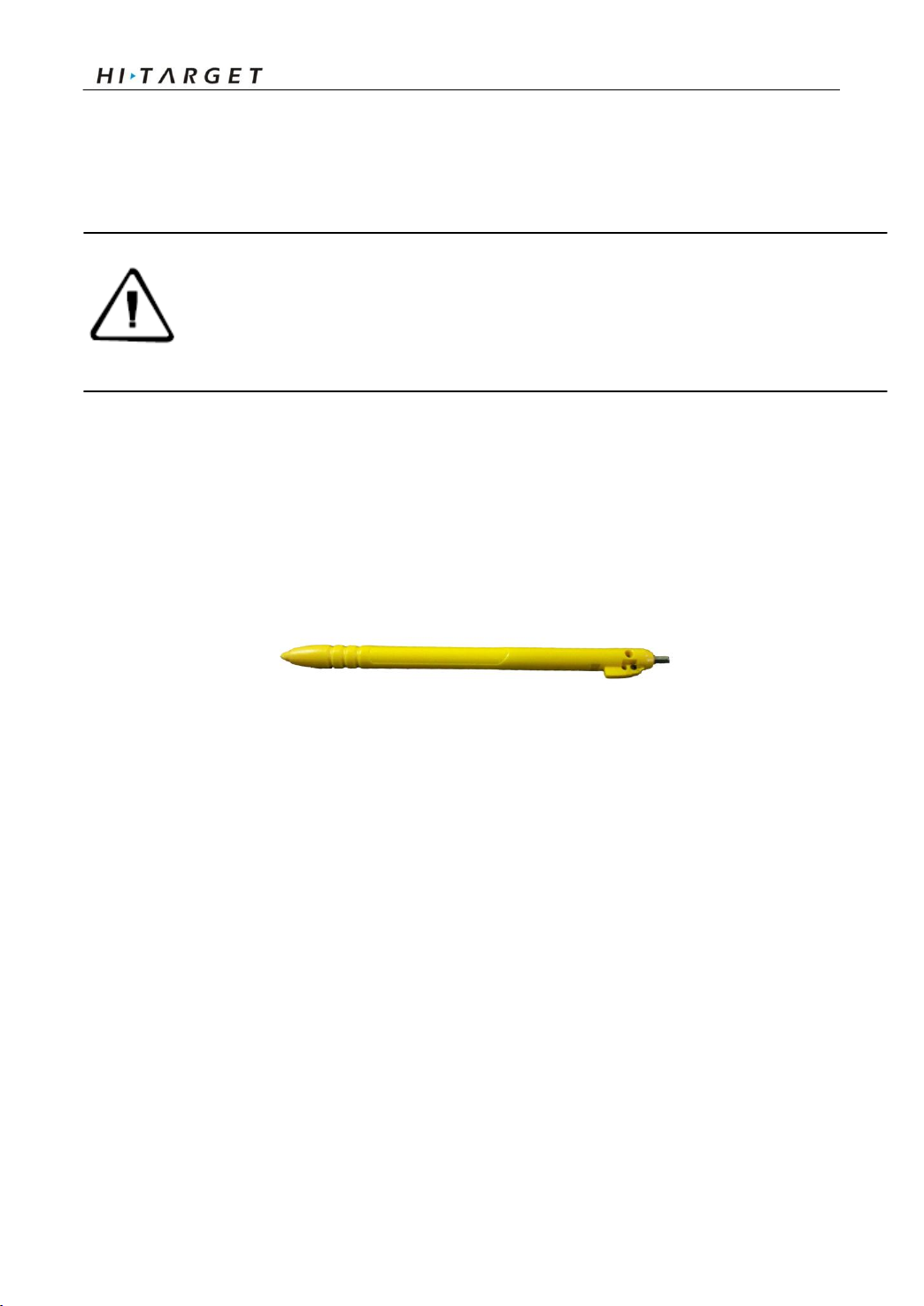

Touching pen
Qmini M series industrial GIS data collector touching pen is equipped with standard
configuration, located in Qmini M series industrial GIS data collector belt .
Picture2-4
Battery

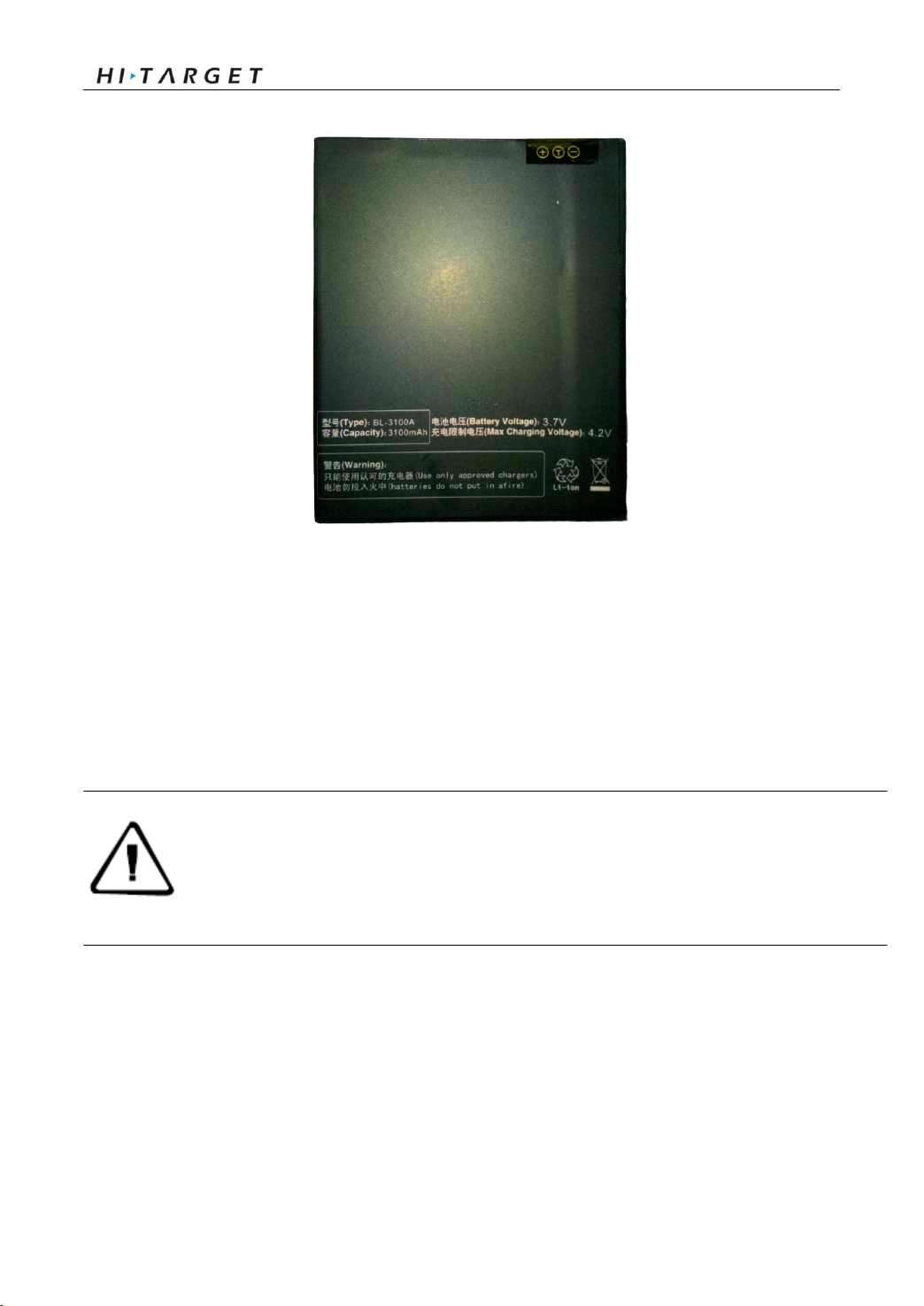

This illustration shows the standard 3100 mAh lithium battery appearance figure.
11
Qmini M Series Industrial GIS Data Collector Manual
Notice: In order to protect the environment, when the lithium battery
failure, do not throw them away, please return to Hi-Target or
professional battery recycling units processing.
Picture2-5
12
Qmini M Series Industrial GIS Data Collector Manual
Warning: when the cable is not in use, it should be packed in where the place
is not easy to squeeze to prevent damage to the plug.

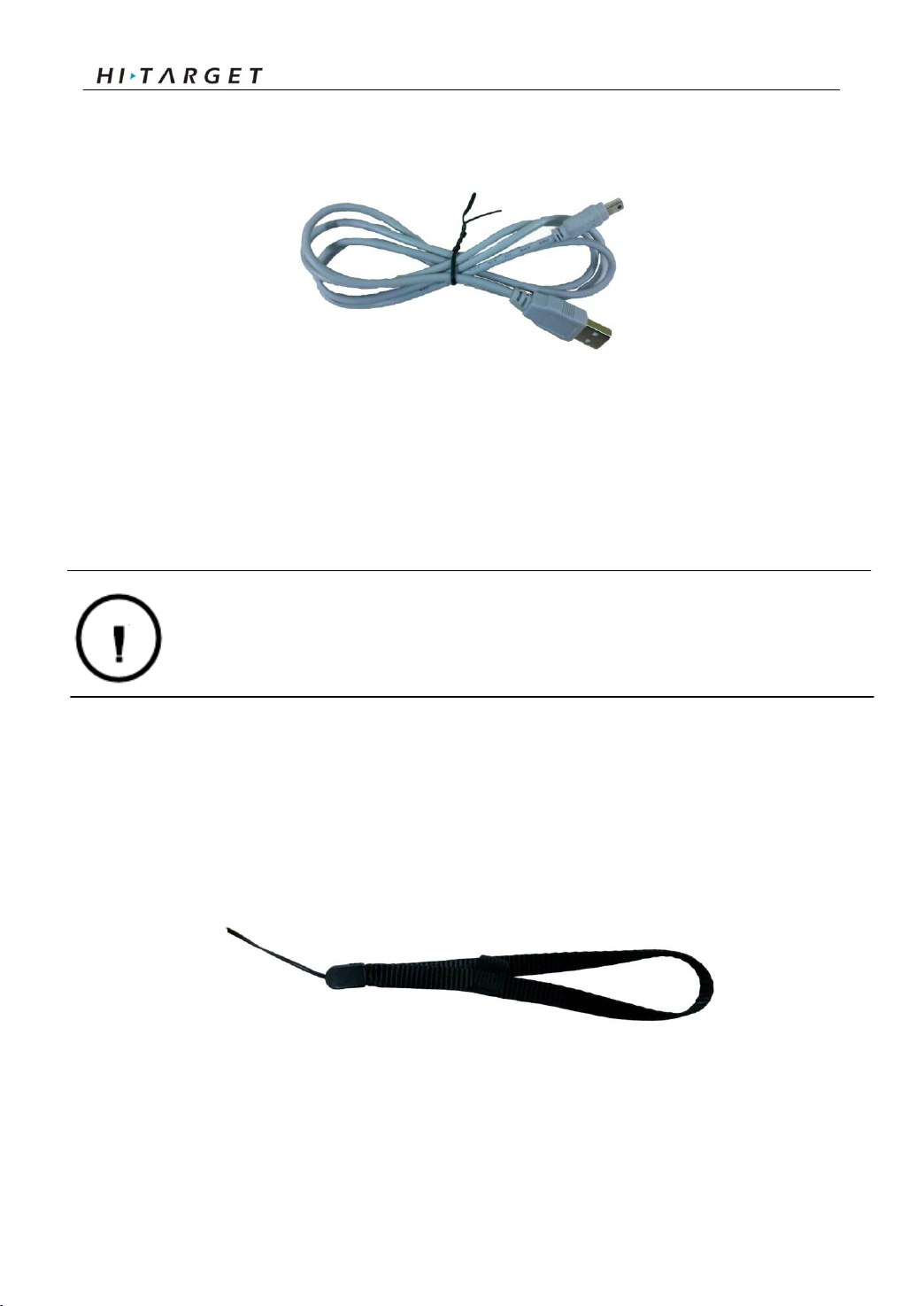

Data cable
Picture2-6
◇Industrial GIS data collector interface: used in connection Qmini series industrial GIS
data collector.
◇USB interface: to connect computer USB port , used for data download.
Belt
Because Qmini series industrial GIS data collector is small, in order to prevent sliding in
the process of working, it is equipped with antiskid belt, please entangle belt when you
work .
Picture2-7
13
Qmini M Series Industrial GIS Data Collector Manual
C H A P T E R
3
Chapter 3
Basic operation
The introduction of this section:
▇ keyboard
▇ Touching pen
▇3G card
▇MicroSD card
▇Power supply system
▇Switch machine operation
▇data obtain
▇Application functions
14
Qmini M Series Industrial GIS Data Collector Manual
Most of the Hi-Target Qmini series GIS data collector setting and operation can be
completed by touching pen , the common operation can be completed by the keyboard .
Now we will introduce the appearance and function of the keyboard simply.
Keyboard
Qmini M series industrial GIS data collector keyboard. The keyboard keys contains: the
confirmation button , exit key, F1 function keys, switch machine key and the direction
key.
Figure 3-1
Exit button: short press it on boot-up state, means to cancel or exit the
current window operation.
Confirm button: ok button.
Function button: function shortcut key. The function is defined by software,
please refer to the relevant software instructions.
Switch machine button/backlight control button: long press it for more than 3
15
Qmini M Series Industrial GIS Data Collector Manual
Notice: when Qmini series industrial GIS data collector is not in work
temporarily, please close a backlight to save electricity, to extend
industrial GIS data collector work time.
seconds to turns on/off it. On boot-up state, hold the button for 1 second, switch on or
off the backlight .
Navigation button: move the cursor, to choice the options content.
3G card
3 G card applys to all the current series model except the Qmini M1 . At present, if
equipped with standard equipment it can support data communication, it can equipped
with voice mobile phone model optional.
Install, remove the 3 G card
16
Qmini M Series Industrial GIS Data Collector Manual
Figure 3-2 Figure 3-3

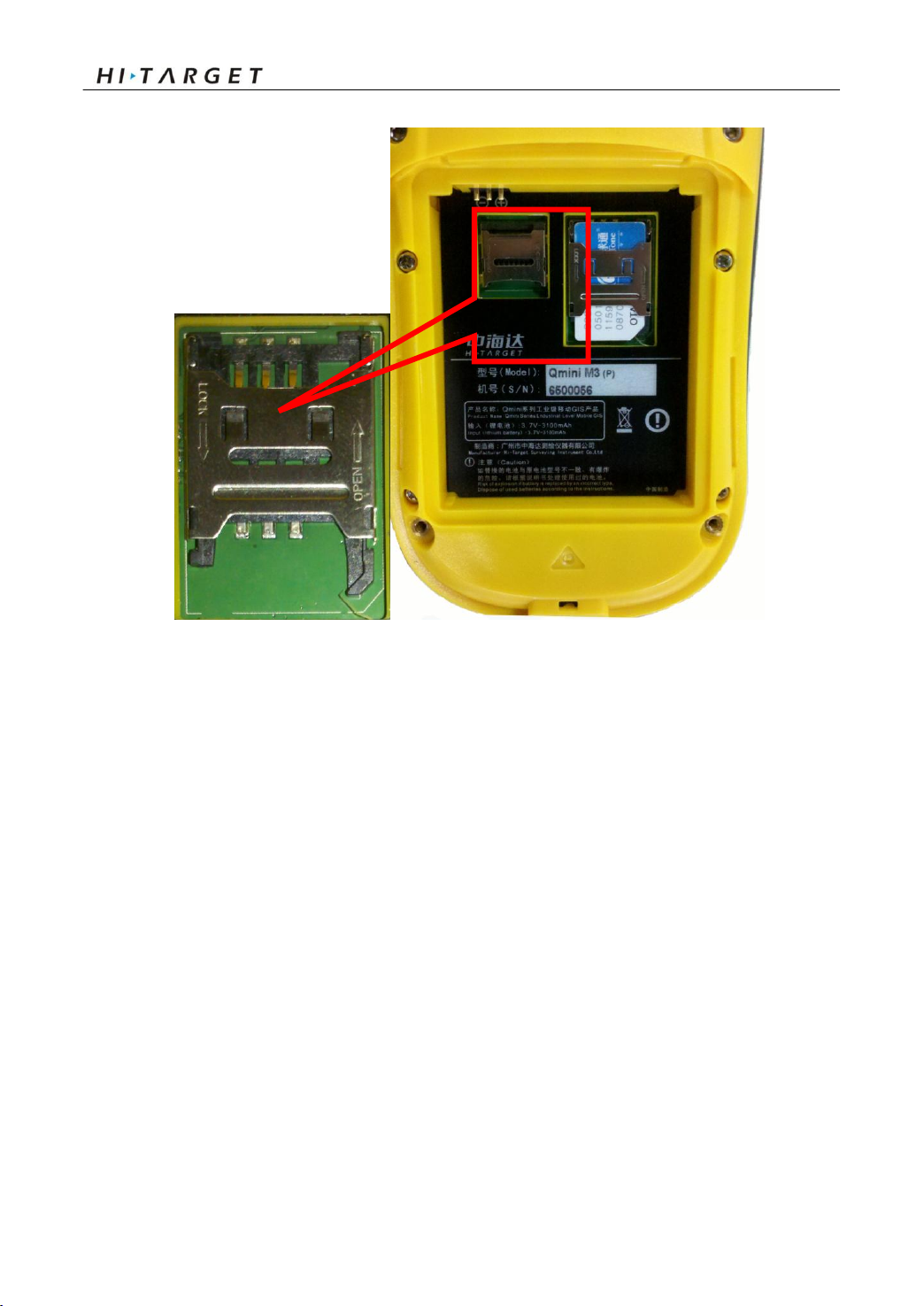

To install a 3 G card, as the picture directs, open it along the OPEN buckle, put the 3 G
card in, and lock the 3G card along the direction .
To remove the 3 G card, open the buckle along the direction of OPEN , take out the 3 G
card, lock the card slot along the direction .
MicroSD card
Install, remove MicroSD card
17
Qmini M Series Industrial GIS Data Collector Manual
Note: the MicroSD cards (also named TF card) are small volume external flash memory
storage expansion cards, usually used in mobile phone, PDA, users should distinguish it
between the common one. The volume of ordinary SD card are larger than the MicroSD
card, not suitable for Qmini M series industrial GIS data collector . Qmini M series
industrial GIS data collector can support 32 GB MicroSD card at most for present.
Figure 3-4 Figure 3-5
As the upper left picture shows, open the SD card buckled along the OPEN direction,
then lock SD card along the LOCK direction, to complete the installation of the SD card.
Remove the SD card, open the card buckle along the direction of OPEN , remove the SD
card, lock the card slot along the LOCK direction .
Power supply system
◊The battery installation and removal
Install the battery, contact the battery with a metal connector on one end with Qmini M series
data collector battery slot copper point, pressed the battery according to the left lower red
arrows figure direction.
18
Qmini M Series Industrial GIS Data Collector Manual
name
model
3100 mAh lithium batteries
BL-3100A
Lithium battery charger
CL-3100A
Figure 3-6 Figure 3-7
Take out the battery, pull out the battery according to the upper right sign of the red direction
arrow
◊ Qmini M series industrial GIS data collector battery, charger model
Table 3-1 Qmini M series industrial GIS data collector battery, charger model
◊charge
When charging, the charger should be specialized charger with standard configuration or seat
charger in certain temperature range, and charging time should achieve a certain requirements.
The concrete use method and requirements: travel char with standard configuration is demanded
when charging the industrial GIS data collector ,charge in 10 ℃ ~ 40 ℃ temperature range.
Used for the first time in general, there is still some battery power, you should use up the left
electricity before charging again, the first three charging must achieve12 hours, after that
charging 4 hours. If the battery is not often in use, it must be charged once a month.
19
Qmini M Series Industrial GIS Data Collector Manual
Warning: 1The battery and charger manufacturer configuration are only permitted,
do not put it into the fire or metal electrodes with short circuit.
2 If you find the battery has fever, deformation, discharge, smell or other abnormal
phenomenon when the battery is in use 、in charge or in storage, please replace
new battery.
3 If the use time of the battery significantly shortened, please stop using the battery,
the battery is aging, please replace new battery.
Figure 3-8
Switch machine operation
◊Boot
In the shutdown state, long press three seconds, it will boot.
20
Qmini M Series Industrial GIS Data Collector Manual
Figure 3-9
◊ shutdown
On state, long press 3 seconds, it will tip you to confirm shutdown, click on the "shut down".
Figure3-10
21
Qmini M Series Industrial GIS Data Collector Manual
Data obtain
1 Install Microsoft ActiveSync
In the incidental CD (tool software \ connection program \ ActiveSync), double click MSASYNC45.
exe file, please follow the instructions to complete installation. After the installation, find
Microsoft ActiveSync and operate it in the "start menu" "program" .Set up "allows the USB
connection" In the menu "connection Settings", as shown in figure 4-21.
Figure3-11
2 The hardware connection
First，opened Qmini M series industrial GIS data collector, enter the Windows system, it is no
need to open applications. Connect the USB port which with a smaller cable line with the
industrial GIS data collector, connect the other end USB plug with your PC. As shown in figure 312 .
Figure3-12
22
Qmini M Series Industrial GIS Data Collector Manual
If you have connected them but the computer can't identify, please take the following method to
solve:
a:close the USB charging in the power setting model
press to the homepage, select ”setting”→”power”→”USB charging”, close the
control switch of the USB charging.(figure3-15)
Figure3-13 Figure3-14
23
Qmini M Series Industrial GIS Data Collector Manual
Figure3-15
B:To install the driver
Selects "computer" in the computer, choice "management" with the right button, open the
"device manager" — " network Adapter ", right-click to uninstall "Microsoft Windows Mobile
Remote Adapter". If your system is Windows 7, please don't check "delete this device driver
software" 。
24
Qmini M Series Industrial GIS Data Collector Manual
Figure3-16
Figure3-17
Figure3-18
Connect the Qmini M series industrial GIS data collector with pc again, if there is a "Windows
Mobile member center" registered tip , please choose "not registered".
3 Software connection
When the cable is connected ,the Microsoft ActiveSync in the computer will tips you "whether
need to establish cooperation relationship," choose “cancel”，Then Microsoft ActiveSync popup
a hint, click "ok"。Then it has been connected successfully. If it is the first connections, the
computer will tips you to install the driver, just installed Windows compute driver according to
guide, the driver is in " Incidental CD\ driver \ industrial GIS data collector drive " .
4 download data
25
Qmini M Series Industrial GIS Data Collector Manual
Click on the“ browse button”of the Microsoft ActiveSync, open the resources browser of Qmini
series industrial GIS data collector ,as figure 4-23 shows, you can enter the NandFlash index and
copy data to the computer.
Application functions
Qmini M series industrial GIS data collector is equipde with PPP technology (the technology used
in Qmini MP model), built-in GPS navigation and positioning, digital camera, microphone, 3 G
communications (this function is optional), and other functions, but it must be installed with the
corresponding software. Qmini M series industrial GIS data collector is equipped with Hi-Q
software, as to how to use Hi-Q software to operate of the application functions above, please
refer to my company's "Hi-Q software operation instruction" content.
26
Qmini M Series Industrial GIS Data Collector Manual
model
Qmini
M1
Qmini
M3
Qmini
MR
Qmini
MT
Qmini
MP
System configuration
Operating system: Windows Mobile 6.5
√ √ √ √ √
806MHz high-speed CPU
√ √ √ √
√
Memory: 256MB RAM
√
√
√
√
√
Flash memory:8GB
√
√
√
√
√
C H A P T E R
4
Chapter 4
Technology parameters
The introduction of this section
Technology parameters
Technology parameters
This chapter will introduces you related parameters of Qmini M series industrial GIS data collector,
the product function will vary according to the different models. When you refer to this chapter,
please refer to corresponding technical parameters according to the equipment you purchased.
27
Qmini M Series Industrial GIS Data Collector Manual
Screen: 3.7 inches color touch
screen, 640 x 480 resolution
√
√
√
√
√
GPS characteristics
High sensitivity GPS positioning
technology
√
√ √ √
√
GPS+GLONASS binary star positioning
technology
Support SBAS（WAAS，EGNOS，MSAS）
√ √ √ √ √
Positioning time for the first
ime:30second(typical)
√ √ √ √ √
Positioning accuracy
Point positioning:5 m
√ √ √ √ √
SBAS:1-3m
√ √ √ √ √
PPP(accurate point
positioning)technology:1m
application function
The built-in 3 G communication
module, a data communication function
√ √ √
√
The 3 G communication module, with
mobile phone voice calls function
5 million pixel camera with LED the
fill light
√ √ √ √ √
Integrated microphone and speakers
√ √ √ √ √
The built-in RFID writing and reading
modules
√
28
Qmini M Series Industrial GIS Data Collector Manual
The built-in bar code scanner
√
Data communication
Bluetooth:bluetooth
√ √ √ √ √
Interface: Mini USB interface
√ √ √ √ √
WIFI: 802.11b/gWireless local area
network
√ √ √ √ √
Storage: Micro SD card slot, 32 G at
most
√ √ √
√
Power performance
Standard configuration 3.7 V, 3100
mAh lithium batteries
Can work continuously over 12 hours
support online charge
√ √ √ √ √
Physical properties
Key: 10 buttons, with four the
direction key and shortcut key in the
side
√ √ √ √ √
Size:14cm×8cm×3.5cm
Weight:360g(contain battery)
√ √ √
√
Work temperature: -30℃～+70℃
storage temperature:- 40℃～+80℃
√ √ √
√
29
Qmini M Series Industrial GIS Data Collector Manual
Dustproof waterproof:IP67
√ √ √
√
Shockproof: Resistance to 1.5 m free
fall
√ √ √
√
30
Loading...
