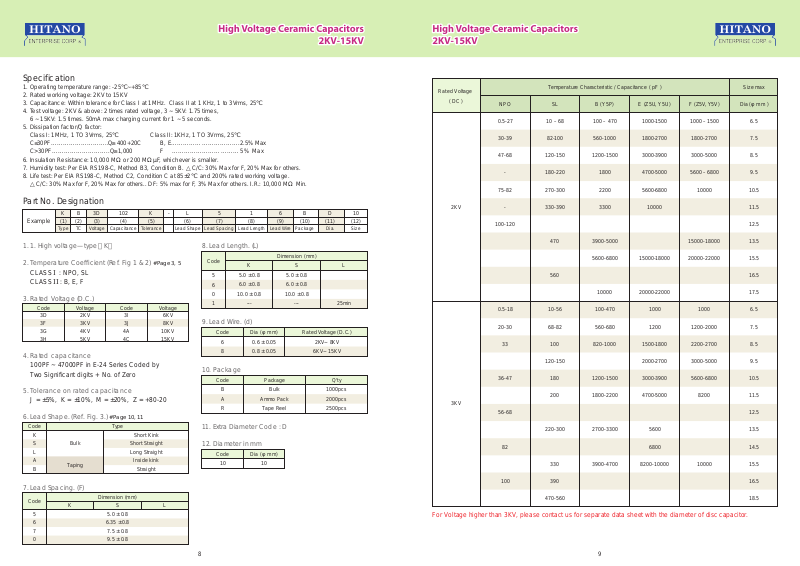

Specification
1. Operating temperature range: -25℃~+85℃
2. Rated working voltage: 2KV to 15KV
3. Capacitance: Within tolerance for Class I at 1MHz. Class II at 1 KHz, 1 to 3Vrms, 25℃
4. Test voltage: 2KV & above: 2 times rated voltage, 3 ~ 5KV: 1.75 times,
6 ~ 15KV: 1.5 times. 50mA max charging current for 1 ~ 5 seconds.
5. Dissipation factor/Q factor:
Class I: 1MHz, 1 TO 3Vrms, 25℃ Class II: 1KHz, 1 TO 3Vrms, 25℃
C≤30PF………………………..Q 400+20C B, E…………………………….2.5% Max
C>30PF………………………..Q 1,000 F …………………………… 5% Max
≤
≤
6. Insulation Resistance: 10,000 MΩ or 200 MΩµF, whichever is smaller.
7. Humidity test: Per EIA RS198-C, Method B3, Condition B. △C/C: 30% Max for F, 20% Max for others.
8. Life test: Per EIA RS198-C, Method C2, Condition C at 85±2℃ and 200% rated working voltage.
△C/C: 30% Max for F, 20% Max for others.. DF: 5% max for F, 3% Max for others. I.R.: 10,000 MΩ Min.
Part No. Designation
Example
K
(1)B(2)
Type TC
3D
(3)
Voltage
102
(4)
Capacitance
K
(5)
Tolerance
- L
Lead Shape
(6)
5
(7)
Lead Spacing
1
(8)
Lead Length
6
(9)
Lead Wire
(10)
Package
B
D
(11)
Dia.
10
(12)
Size
1. 1. High voltage—type〝K〞
2. Temperature Coefficient (Ref. Fig 1 & 2) #Page 3, 5
CLASS I : NPO, SL
CLASS II : B, E, F
3. Rated Voltage (D.C.)
Code
3D
3F
3G
3H
Voltage
2KV
3KV
4KV
5KV
Code
3I
3J
4A
4C
Voltage
6KV
8KV
10KV
15KV
4. Rated capacitance
100PF ~ 47000PF in E-24 Series Coded by
Two Significant digits + No. of Zero
5. Tolerance on rated capacitance
J = ±5%, K = ±10%, M = ±20%, Z = +80-20
6. Lead Shape. (Ref. Fig. 3.) #Page 10, 11
Code
K
S
L
A
B
Bulk
Taping
Type
Short Kink
Short Straight
Long Straight
Inside kink
Straight
8. Lead Length. (L)
Code
5
6
0
1
K
5.0 ± 0.8
6.0 ± 0.8
10.0 ± 0.8
---
Dimension (mm)
9. Lead Wire. (d)
Code
6
8
Dia (φmm)
0.6 ± 0.05
0.8 ± 0.05
10. Package
Code
B
A
R
Package
Bulk
Ammo Pack
Tape Reel
11. Extra Diameter Code : D
12. Diameter in mm
Code
10
Dia (φmm)
10
S
5.0 ± 0.8
6.0 ± 0.8
10.0 ± 0.8
---
Rated Voltage (D.C.)
L
25min
2KV~ 8KV
6KV~ 15KV
Q'ty
1000pcs
2000pcs
2500pcs
7. Lead Spacing. (F)
Code
5
6
7
0
K S
Dimension (mm)
L
5.0 ± 0.8
6.35 ± 0.8
7.5 ± 0.8
9.5 ± 0.8
8 9
Page 2
Rated Voltage
( DC )
NPO
Temperature Characteristic / Capacitance ( pF )
SL B (Y5P) E (Z5U ) F (Z5V) Dia (φmm )
Size max
2KV
0.5-27
30-39
47-68
-
75-82
-
100-120
0.5-18
10 – 68
82-100
120-150
180-220
270-300
330-390
470
560
10-56
100 – 470
560-1000
1200-1500
1800
2200
3300
3900-5000
5600-6800
10000
100-470
1000-1500
1800-2700
3000-3900
4700-5000
5600-6800
10000
15000-18000
20000-22000
1000
1000 – 1500
1800-2700
3000-5000
5600 – 6800
10000
15000-18000
20000-22000
1000
6.5
7.5
8.5
9.5
10.5
11.5
12.5
13.5
15.5
16.5
17.5
6.5
20-30
33
36-47
3KV
56-68
82
100
68-82
100
120-150
180
200
220-300
330
390
470-560
560-680
820-1000
1200-1500
1800-2200
2700-3300
3900-4700
1200
1500-1800
2000-2700
3000-3900
4700-5000
5600
6800
8200-10000
1200-2000
2200-2700
3000-5000
5600-6800
8200
10000
For Voltage higher than 3KV, please contact us for separate data sheet with the diameter of disc capacitor.
