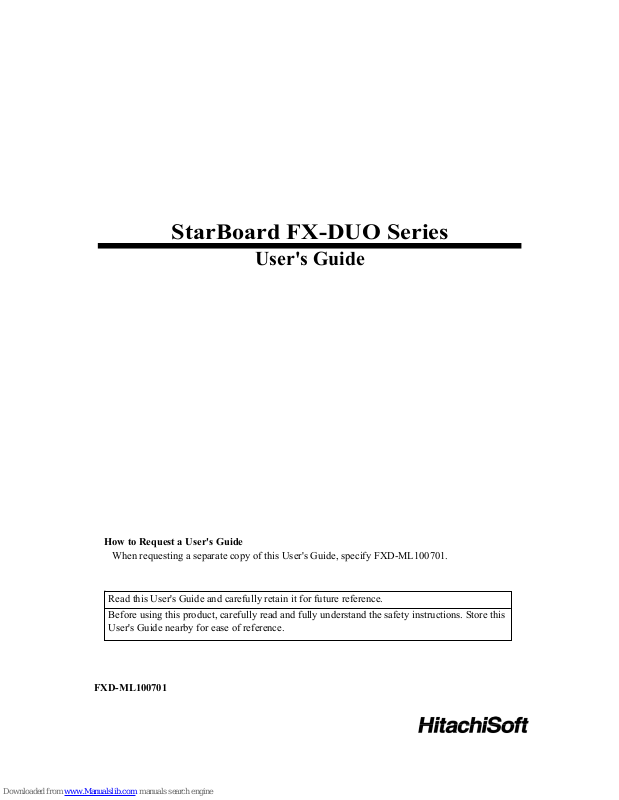

StarBoard FX-DUO Series
User's Guide
How to Request a User's Guide
When requesting a separate copy of this User's Guide, specify FXD-ML100701.
FXD-ML100701
Read this User's Guide and carefully retain it for future reference.
Before using this product, carefully read and fully understand the safety instructions. Store this
User's Guide nearby for ease of reference.
1
StarBoard FX-DUO Series
English
Notices
Reproduction or reprinting, without permission, of this User's Guide or any part thereof is prohibited.
The contents of this User's Guide are subject to change without prior notice.
Every effort has been made to ensure that this User's Guide is complete and correct. However, should any
questionable points, mistakes, etc., come to your attention, please inform the vendor.
Hitachi Software Engineering Co., Ltd., assumes no responsibility for losses resulting from or related to
the use of this product. Refer to "3. Appendix 3.7 Product Warranty Policy" at the end of this User's
Guide for details on the warranty and liabilities.
Disclaimers
Hitachi Software Engineering Co., Ltd. assumes no liability and makes no warranty, either express or
implicit, regarding the contents of this User's Guide.
Also, the company makes no warranty as to the product's suitability, merchantability or fitness for a
particular intended use.
All products of Hitachi Software Engineering Co., Ltd., described in this User's Guide are presently for
sale or are site-licensed.
Users who purchased the aforesaid product(s) will bear the costs of all required services, repairs, and
damages resulting from defects in this product, and will bear the costs of direct or indirect damages
(including the loss of profits or required information) that resulted from the product defects.
Moreover, Hitachi Software Engineering Co., Ltd., retains the right to revise this User's Guide and to
modify the contents thereof, without any obligation to notify anyone.
2
StarBoard FX-DUO Series
English
Product Assurance Provisions
This product is limited to use in the country where the user bought this product.
For warranty details, refer to "3. Appendix 3.7 Product Warranty Policy" at the end of this User's Guide.
This first edition of the User's Guide (FXD-ML100701) is for the following products:
AH00208: StarBoard FX-DUO-63
AH00206: StarBoard FX-DUO-77
AH00215: StarBoard FX-DUO-88W
AH00180: FX-DUO Electronic Pen
K-W033-021: Stand
Windows is a trademark of Microsoft Corporation (U.S.) and in other countries.
Mac and Mac OS are trademarks of Apple Inc., registered in the U.S. and other countries.
Other trademarks and product names are trademarks and/or registered trademarks of their respective
holders.
Manual Creation Dates
July 2010, first edition FXD-ML100701
All Right Reserved, Copyright(c) 2010, Hitachi Software Engineering Co.,Ltd.
3
StarBoard FX-DUO Series
English
Introduction
Thank you very much for purchasing HitachiSoft's StarBoard FX-DUO-63/FX-DUO-77 /FX-DUO-88W
(henceforth referred to as "StarBoard").
This User's Guide has been created for people who already have a working knowledge of personal
computers (henceforth referred to as "PC").
Please make sure that you understand the contents of this User's Guide and use the software correctly.
We hope that you make the most of this product.
4
Safe Handling
StarBoard FX-DUO Series
English
Safe Handling
Markings and Symbols
Various markings and symbols are used in this User's Guide and on this product, to ensure the safe
and correct use of this product and to prevent personal injury and property damage. These symbols
and their meanings are as explained below. Understand the information well before reading the body
of the User's Guide.
This is a Safety Warning symbol. This symbol will appear to raise
the attention of the user to existing risks that may cause harm to
people.
To avoid any chances of injuries or possibly death,
DO NOT IGNORE the safety instructions that follow this symbol.
WARNING
This warning will appear where there exists a risk of death or fatal injuries.
CAUTION
This warning will appear where there exists a risk of moderate or light injuries.
NOTICE
This warning will appear where there exists a risk of damage to property.
This symbol draws attention to cautions (including warnings).
This symbol indicates something prohibited.
This symbol indicates something that must be done.
5
Safe Handling
StarBoard FX-DUO Series
English
(1) Precautions Regarding Operation
WARNING
Do not make modifications.
Do not make any adjustments, repairs, or modifications not given in
this User's Guide as doing so may lead to personal injury or damage
to the product.
Do not open or remove the rear cover, cabinet, or cover to this
product.
Failure to comply may lead to personal injury or damage to the
product. Refer internal inspections, adjustments, and repairs to your
dealer or support center.
Do not place objects on top of this product.
If a foreign object falls on top of or inside this product, it may lead to
personal injury or damage to the product.
NOTICE
Do not allow the reflective tape surrounding the board to become
dirty or scratched.
If the reflective tape becomes dirty or scratched, it may lead to
improper coordinate detec
tion.
Do not use a USB cable other than the one supplied.
Use of a USB cable other than the one supplied may result in
malfunction.
Do not place heavy objects on, pull on, or subject the USB cable to
excess heat.
Failure to comply may result damage to the USB cable.
Always grasp the plug of the USB cable when connecting or
disconnecting.
Pulling on the USB cable may result in scratching or damage to the
cable.
Always lock the casters with stoppers on the front side after
installing this product.
Failure to lock the casters may allow the product to move or slide.
Safety Precautions
Required Precautions
6
Safe Handling
StarBoard FX-DUO Series
English
(2) Dealing with Trouble
CAUTION
What to do in case of emission of smoke, strange odor, or strange
noise
If an abnormal condition such as emission of smoke, strange odor, or
strange noise happens to occur for some reason, immediately
disconnect the product's USB cable from the PC.
Confirm that the smoke or strange odor is no longer being emitted and
contact a support center to request repairs.
Continued operation without repair may result in fire.
What to do if the product breaks or the USB cable is damaged
If this product breaks or the USB cable becomes damaged for some
reason, immediately disconnect the USB cable from the PC and
contact a support center.
Continued operation without repair may result in emission of a
strange odor or smoke.
(3) Precautions Regarding Handling
WARNINGS
Do not hang from or climb on this product.
Failure to comply may result in personal injury if the product falls,
collapses, or breaks into pieces. Be particularly careful in the case of
small children.
Do not touch this product if you hear thunder.
Failure to comply may result in electric shock.
CAUTIONS
Do not use batteries other than those specified.
Failure to comply may result in fire, personal injury, and/or soiling of
the surrounding area due to batteries bursting or leaking fluid.
Do not splash with water or chemical compounds.
Do not place this product in a location subject to contact with water
droplets or place any containers containing water or other chemical
compounds on top of or nearby this product.
Failure to comply may result in damage or fire if water or chemical
compounds get inside this product.
7
Safe Handling
StarBoard FX-DUO Series
English
NOTICE
Disconnect the USB cable during extended periods of non-use.
For safety reasons, disconnect the USB cable if the product is not
going to be used for an extended period of time. Failure to comply
may result in fire.
Handle the connection cable properly.
Improper handling of the connection cable such as jamming it against
a wall, undue bending, pulling, or twisting may result in overheating or
damage due to exposure of the conductive core, electrical short, or
severing of the cable.
(4) Precautions Regarding Moving the Product
CAUTIONS
Always use two or more people to move this product.
This product is a very large and heavy precision instrument.
Always use two or more people and take great care when moving this
product.
Result in the personal injury or breakdown if the
product falls over.
NOTICE
Always disconnect the USB cable from the PC when moving this
product.
Failure to comply may result in damage to the USB cable and/or the
product itself.
Do not subject to shock of impact.
This product is a precision instrument. Excessive shock of impact may
hinder further operation.
Take extreme care when moving this product.
8
Safe Handling
StarBoard FX-DUO Series
English
(5) Precautions Regarding Setup Environment
WARNINGS
Wall mounting work should be performed by a construction
specialist.
Improper work may result in death or personal injury due to the
product falling during operation. Always use the specified mounting
unit
.
Improper assembly may cause the product to fall over.
There is risk of personal injury if the product falls over.
Completely tighten the screws of all individual parts.
Do not place in a location with flammable or corrosive gas.
Placing this product in a location where there is flammable or
corrosive gas may result in fire or damage to this product.
There is a particular danger of explosion in the case of flammable gas.
Do not place in a location with flammable or corrosive gas.
CAUTIONS
Do not touch internally mounted parts.
Directly toughing internally mounted parts inside this product may
result in personal injury or damage to this product.
Do not place in locations subject to excess moisture, dust, smoke, or
steam.
Placement in a location such as next to a kitchen or a humidifier may
result in fire or damage to this product.
Do not use this product near water.
If water somehow gets inside this product, immediately disconnect
the USB cable and contact a support center.
Continued use may result in fire or damage to this product.
9
Safe Handling
StarBoard FX-DUO Series
English
NOTICE
Regarding the setup environment
Set up this product on a level floor surface with a weight bearing
capacity of 150 kg/m
2
or more, and which is made of floor
materials that will not deform or become depressed due to
movement by casters.
Do not use this product in locations subject to high temperature or
high humidity.
This product's usage environment conditions:
Temperature: 5°C – 35°C
Humidity: 20%RH – 80%RH (no condensation)
Do not set up in locations subject to vibration and/or shock of
impact.
Vibration and/or shock of impact may harm internal components of
this product, resulting in damage to it. Do not set up this product in
a
location subject to vibration or shock of impact.
Do not set up this product near a high-voltage line or power source.
If this product is set up near high-voltage lines or power sources, it
might receive interference.
Do not set up in a location subject to direct sunlight or near a
heater.
Failure to comply may result in deformation of or damage to this
product.
(6) Precautions Regarding Disposal
NOTICE
At time of disposal, handle this product as industrial waste
according to all applicable laws and regulations.
When disposing of this product, the user should follow all laws
and regulations of the locality in which it is being used.
10
Safe Handling
StarBoard FX-DUO Series
English
Careful thought was given to the cautions on this device and in this User's Guide. However, unanticipated
circumstances might occur. When operating this product, users themselves must exercise caution as well
as follow instructions.
Warnings Contents Page(s)
Tighten the screws securely.
Failure to comply may cause the stand to collapse, resulting in personal injury,
or may cause damage to this product due to shock of impact from the board
falling.
P. 1-8
Tighten the screws securely.
Failure to comply may cause the board to fall, resulting in personal injury, or
may cause damage to this product due to shock of impact from the board
falling.
P. 1-9
Keep the wall material in mind when installing.
Installation by means not suited to the wall material in question may result in
the board falling.
Furthermore, wall installation may not be possible depending on the wall. For
details, consult with your dealer.
P. 1-11
Keep the wall strength in mind when installing.
Only use this product after confirming that it is securely attached and will not
fall. Furthermore, be sure to install using a wall-mounting bracket capable of
supporting a weight of at least 50 kg when using FX-DUO-63/FX-DUO-77 and
supporting a weight of at least 70 kg when using FX-DUO-88W.
P. 1-11
Caution Contents Page(s)
Be sure to use two or more people for this work.
Failure to comply may cause the board to fall, resulting in personal injury, or
may cause damage to this product due to shock of impact.
P. 1-9
P. 1-10
P. 1-12
Do not strike the board forcefully with the stylus pen, bend
it, or apply an excessive load to it.
Failure to comply may result in damage to the stylus pen or personal injury.
P. 2-3
Be sure to install batteries correctly.
Do not install batteries with positive and negative terminals reversed, or use
batteries other than the type specified. It will cause pen malfunctions and
excess heat, or burns to the hand.
P. 2-4
Be sure to provide insulation during disposal.
Be sure to insulate the positive and negative terminals of the battery using
cellophane tape, or similar material when disposing of batteries. Disposing of
batteries without insulating them may lead to overheating, bursting, or ignition
due to shorting, resulting in personal injury or fire. Furthermore, be sure to
follow all local rules and regulations regarding proper battery disposal. If
within the EU, be sure to follow Batteries Directive.[Batteries directive
(2006/66/EC)]
P. 2-4
CAUTIONS
WARNINGS
11
StarBoard FX-DUO Series
Contents
English
Caution Contents Page(s)
When detaching the wall the paint might peel off from the wall and the
doble-faced tape might remain on the wall by the adhesiveness of the
double-faced tape's glue and the wall. Install the board at your own risk.
P. 1-13
Use an input tool with a thickness of least 7 mm.
When inputting to this product, use a tool that is at least 7 mm. If a pen or
similar tool with a thickness of less than 7 mm is used, the input will be
unstable.
Also, do not use tools with a sharp tip, such as a ballpoint pen. If such a tool is
used incorrectly, it could damage the surface of the board.
P. 2-1
NOTIC
E
12
StarBoard FX-DUO Series
Contents
English
Contents
1. Introduction...................................................................................................... 1-1
1.1 Preparations ......................................................................................................... 1-1
1.1.1 Product Outline ............................................................................................................. 1-1
1.1.2 Features......................................................................................................................... 1-1
1.2 Parts Check .......................................................................................................... 1-2
1.2.1 StarBoard ...................................................................................................................... 1-2
1.2.2 Stand (option)................................................................................................................ 1-3
1.2.3 Electronic Pen (option) ................................................................................................. 1-4
1.3 Role of Each Part ................................................................................................... 1-5
1.3.1 StarBoard ...................................................................................................................... 1-5
1.3.2 Function Area................................................................................................................ 1-6
1.3.3 Electronic Pen (option) ................................................................................................. 1-7
1.4 Assembly and Setup............................................................................................... 1-7
1.4.1 Stand Setup Method ...................................................................................................... 1-8
1.4.2 Wall-Mounting Setup Method..................................................................................... 1-11
1.4.3 Pen Holder Setup Method ........................................................................................... 1-13
1.4.4 Equipment Connection Method .................................................................................. 1-15
2. How to Use ........................................................................................................ 2-1
2.1 How to Use Touch Mode ....................................................................................... 2-1
2.1.1 Character Input.............................................................................................................. 2-1
2.1.2 PC Operations............................................................................................................... 2-2
2.2 How to Use the Electronic Pen .............................................................................. 2-4
2.2.1 Inserting the Battery...................................................................................................... 2-4
2.2.2 Using the Electronic Pen............................................................................................... 2-5
2.2.3 Basic Operations of the Electronic Pen......................................................................... 2-6
2.2.4 Customizing the Electronic Pen .................................................................................... 2-6
2.3 Start Method........................................................................................................... 2-7
2.3.1 Start Method(Windows version) ................................................................................... 2-7
2.3.2 Start Method (Mac version) .......................................................................................... 2-8
3. Appendix ........................................................................................................... 3-1
3.1 Troubleshooting ..................................................................................................... 3-1
3.2 Adjusting the Sensor.............................................................................................. 3-4
3.2.1 Items to Check Before Making Sensor Adjustments..................................................... 3-4
3.2.2 Sensor Adjustment Procedure (Windows version)........................................................ 3-4
3.2.3 Sensor Adjustment Procedure (Mac version)................................................................ 3-6
3.3 Regularly Auto Sensor Adjustment (for Windows)............................................... 3-8
3.3.1 Sensor Auto Adjustment Procedure.............................................................................. 3-8
3.4 System Specifications .......................................................................................... 3-10
3.5 Proper Care and Cleaning.................................................................................... 3-12
3.6 Replaceable Parts................................................................................................. 3-12
3.7 Product Warranty Policy ...................................................................................... 3-13
StarBoard FX-DUO Series
English
1-1
StarBoard FX-DUO Series
Introductio
n
English
1. Introduction
1.1 Preparations
This chapter describes the preparations to be made before using StarBoard.
First-time users of StarBoard should read through this chapter.
1.1.1 Product Outline
The StarBoard FX-DUO Series is an extremely convenient and easy-to-use electronic whiteboard.
After setting up the provided software on a PC that is connected to a projector, you can use your
finger or the stylus pen that is included with the product to operate the PC or import to the PC in
real time characters or images that are drawn on the whiteboard.
1.1.2 Features
- You can use your finger or the pen to operate the PC
You can use your finger or the pen to operate a PC screen that is projected onto the board with
a projector.
Two pen types are available: the stylus pen that is included with the product, and an electronic
pen that is option.
When the term “pen” is used in this User’s Guide, it means “electronic pen.”
- You can write directly onto the PC screen
After installing the provided StarBoard Software onto a PC, you can use your finger or the pen
to write characters or images directly onto the PC screen. The input characters or drawn
images are imported as digital data in real time into the PC, where they can be saved or
printed.
- Available immediately after starting the PC (For Windows)
After the provided StarBoard Software is installed onto the PC, StarBoard can be used as soon
as the PC is started.
- Compatible with PowerPoint presentations
Characters or images can be written into presentations created with Microsoft PowerPoint,
which significantly improves the expressive power of the presentations.
- You can also write on video images (For Windows)
Characters or images can be written onto captured video image displays.
This makes it easy to use video materials in lessons or presentations.
1-2
StarBoard FX-DUO Series
Introductio
n
English
1.2 Parts Check
After unpacking, make sure that all the following parts are present.
1.2.1 StarBoard
[1] Parts
No. Name Qty.
(1) StarBoard 1
(2) Pen holder (with installation part) 1
(3) Stylus pen 2
(4) Wall-mounting bracket 2
(5) StarBoard Software x.x (DVD-ROM) (*1) 1
(6) StarBoard Software Startup Guide 1
(7) StarBoard FX-DUO Startup guide 1
(8) Warranty Sheet 1
(9) Sponge mat (small) 2
(10) Sponge mat (large) (*2) 2
(*1) The term “x.x” as used in this User’s Guide denotes the same version as the software
that is provided with the accessories.
(*2)Only FX-DUO-88W includes.
(2)
(3)
(1)
(4)
(5)
(6)
(7)
(8)
(9) (10)
Loading...
