DV 20VB2
User Manual
48 pgs628.93 Kb0

Hitachi Koki USA DV 20VB2 User Manual

Model Hammer Drill Modèle Perceuse percussion
DV 20VB2
Modelo Taladro de percusion
SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL
WARNING
IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily
injury! This manual contains important information about product safety. Please read and understand this manual BEFORE operating the power tool. Please keep this manual available for other users and owners before they use the power tool. This manual should be stored in safe place.
INSTRUCTIONS DE SECURITE ET MODE D’EMPLOI
AVERTISSEMENT
INSTRUCCIONES DE SEGURIDAD Y MANUAL DE INSTRUCCIONES
ADVERTENCIA
¡La utilización INAPROPIADA O PELIGROSA de esta herramienta eléctrica puede resultar en lesiones de gravedad o la muerte! Este manual contiene información importante sobre la seguridad del producto. Lea y comprenda este manual ANTES de utilizar la herramienta eléctrica. Guarde este manual para que puedan leerlo otras personas antes de utilizar la herramienta eléctrica. Este manual debe ser guardado en un lugar seguro.
DOUBLE INSULATION DOUBLE ISOLATION AISLAMIENTO DOBLE
English
IMPORTANT SAFETY INFORMATION ................ 3
MEANINGS OF SIGNAL WORDS ........................ 3
SAFETY ...................................................................... 4
GENERAL SAFETY RULES ................................... 4
SPECIFIC SAFETY RULES AND SYMBOLS......... 6
DOUBLE INSULATION FOR SAFER
OPERATION ................................................... 8
FUNCTIONAL DESCRIPTION ....................................9
NAME OF PARTS .................................................. 9
SPECIFICATIONS .................................................. 9
CONTENTS
Page
ASSEMBLY AND OPERATION ............................... 10
APPLICATIONS ................................................... 10
PRIOR TO OPERATION ....................................... 10
HOW TO USE ...................................................... 13
MAINTENANCE AND INSPECTION ....................... 14
ACCESSORIES ......................................................... 16
STANDARD ACCESSORIES ............................... 16
OPTIONAL ACCESSORIES ................................. 16
PART LIST ................................................................ 46
Page
Français
INFORMATIONS IMPORTANTES
DE SÉCURITÉ ............................................... 17
SIGNIFICATION DES MOTS
D’AVERTISSEMENT .................................... 17
SECURITE ................................................................ 18
REGLES GENERALE DE SECURITE REGLES DE SECURITE SPECIFIQUES
ET SYMBOLES ............................................. 20
DOUBLE ISOLATION POUR UN
FONCTIONNEMENT PLUS SUR ................. 22
DESCRIPTION FONCTIONNELLE ........................... 23
NOM DES PARTIES ............................................ 23
SPECIFICATIONS ................................................ 23
TABLE DES MATIERES
Page
...................... 18
Español
INFORMACIÓN IMPORTANTE
SOBRE SEGURIDAD .................................... 31
SIGNIFICADO DE LAS PALABRAS
DE SEÑALIZACIÓN ...................................... 31
SEGURIDAD .............................................................32
NORMAS GENERALES DE SEGURIDAD........... 32
NORMAS Y SÍMBOLOS
ESPECÍFICOS DE SEGURIDAD ................... 34
AISLAMIENTO DOBLE PARA OFRECER
UNA OPERACIÓN MÁS SEGURA .............. 36
DESCRIPCIÓN FUNCIONAL .................................... 37
NOMENCLATURA............................................... 37
ESPECIFICACIONES............................................ 37
Página
ASSEMBLAGE ET FONCTIONNEMENT ................ 24
ENTRETIEN ET INSPECTION .................................. 28
ACCESSOIRES ......................................................... 30
LISTE DES PIECES ................................................... 46
ÍNDICE
MONTAJE Y OPERACIÓN ...................................... 38
MANTENIMIENTO E INSPECCIÓN ........................ 42
ACCESORIOS ...........................................................44
LISTA DE PIEZAS .................................................... 46
Page
APPLICATIONS ................................................... 24
AVANT L’UTILISATION ...................................... 24
UTILISATION ....................................................... 27
ACCESSOIRES STANDARD ............................... 30
ACCESSOIRES SUR OPTION ............................. 30
Página
APLICACIONES ................................................... 38
ANTES DE LA OPERACIÓN ................................ 38
COMO SE USA .................................................... 41
ACCESORIOS ESTÁNDAR ................................. 44
ACCESORIOS OPCIONALES .............................. 44
English
IMPORTANT SAFETY INFORMATION
Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual before operating or maintaining this power tool.
Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation before it occurs, and by observing appropriate safety procedures.
Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which contain the operation and maintenance instructions.
Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the power tool and in this Instruction Manual.
NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.
MEANINGS OF SIGNAL WORDS
WARNING indicates a potentially hazardous situations which, if ignored, could result in
death or serious injury. CAUTION indicates a potentially hazardous situations which, if not avoided, may result in
minor or moderate injury, or may cause machine damage. NOTE emphasizes essential information.
3
English
SAFETY
GENERAL SAFETY RULES
WARNING: Read and understand all instructions.
Failure to follow all instructions listed below, may result in electric shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
1. Work Area
(1) Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
(2) Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases, or dust. Power tools create sparks which may ignite the
dust of fumes.
(3) Keep bystanders children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
2. Electrical Safety (1) Double Insulated tools are equipped with a polarized plug (one blade is wider than
the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way. Double
Insulation grounded power supply system.
(2) Avoid body contact with grounded surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if your body is grounded.
(3) Do not expose power tools to rain or wet conditions. Water entering a power tool
will increase the risk of electric shock.
(4) Do not abuse the cord. Never use the cord to carry the tools or pull the plug from
a receptacle. Keep cord away from heat, oil, sharp edges or moving parts. Replace damaged cords immediately. Damaged cords increase the risk of electric shock.
(5) When operating a power tool outside, use an outdoor extension cord marked “W-
A” or “W”. These cords are rated for outdoor use and reduce the risk of electric
shock.
3. Personal Safety (1) Stay alert, watch what you are doing and use common sense when operating a
power tool. Do not use tool while tires or under the influence of drugs, alcohol, or medication. A moment of inattention while operating power tools may result in
serious personal injury.
(2) Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep
your hair, clothing and gloves away from moving parts. Loose clothes, jewelry, or
long hair can be caught in moving parts.
(3) Avoid accidental starting. Be sure switch is off before plugging in. Carrying tools
with your finger on the switch or plugging in tools that have the switch on invites
4
accidents.
eliminates the need for the three wire grounded power cord and
(4) Remove adjusting keys or wrenches before turning the tool on. A wrench or a key
that is left attached to a rotating part of the tool may result in personal injury.
(5) Do not overreach. Keep proper footing and balance at all times. Proper footing and
balance enables better control of the tool in unexpected situations.
(6) Use safety equipment. Always wear eye protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must be used for appropriate conditions.
4. Tool Use and Care (1) Use clamps or other practical way to secure and support the workpiece to a stable
platform. Holding the work by hand or against your body is unstable and may lead
to loss of control.
(2) Do not force tool. Use the correct tool for your application. The correct tool will do
the job better and safer at the rate for which it is designed.
(3) Do not use tool if switch does not turn it on or off. Any tool that cannot be controlled
with the switch is dangerous and must be repaired.
(4) Disconnect the plug form the power source before making any adjustments,
changing accessories, or storing the tool. Such preventive safety measures reduce
the risk of starting the tool accidentally.
(5) Store idle tools out of reach of children and other untrained persons. Tools are
dangerous in the hands of untrained users.
(6) Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained
tools, with sharp cutting edges are less likely to bind and are easier to control.
(7) Check for misalignment or binding of moving parts, breakage of parts, and any
other condition that may affect the tool's operation. If damaged, have the tool serviced before using. Many accidents are caused by poorly maintained tools.
(8) Use only accessories that are recommended by the manufacturer for your model.
Accessories that may be suitable for one tool, may become hazardous when used with another tool.
5. Service (1) Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel could result in a risk of injury.
(2) When servicing a tool, use only identical replacement parts. Follow instructions in
the Maintenance section of this manual. Use of unauthorized parts or failure to
follow Maintenance Instruction may create a risk of electric shock or injury.
English
5
English
SPECIFIC SAFETY RULES AND SYMBOLS
1. Hold tools by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a “live” wire will
make exposed metal parts of the tool “live” and shock the operator.
2. ALWAYS wear ear protectors when using the tool for extended periods.
Prolonged exposure to high intensity noise can cause hearing loss.
3. NEVER touch the tool bit with bare hands after operation.
4. NEVER wear gloves made of stuff liable to roll up such as cotton, wool, cloth or string,
etc.
5. ALWAYS attach the side handle and securely grip the Hammer Drill.
6. NEVER touch moving parts. NEVER place your hands, fingers or other body parts near the tool’s moving parts.
7. NEVER operate without all guards in place. NEVER operate this tool without all guards or safety features in place and in proper
working order. If maintenance or servicing requires the removal of a guard or safety feature, be sure to replace the guard or safety feature before resuming operation of the tool.
8. Use right tool.
Don’t force small tool or attachment to do the job of a heavy-duty tool. Don’t use tool for purpose not intended —for example— don’t use circular saw for cutting tree limbs or logs.
9. NEVER use a power tool for applications other than those specified. NEVER use a power tool for applications other than those specified in the Instruction
Manual.
10. Handle tool correctly.
Operate the tool according to the instructions provided herein. Do not drop or throw the tool. NEVER allow the tool to be operated by children, individuals unfamiliar with its operation or unauthorized personnel.
11. Keep all screws, bolts and covers tightly in place.
Keep all screws, bolts, and plates tightly mounted. Check their condition periodically.
12. Do not use power tools if the plastic housing or handle is cracked.
Cracks in the tool’s housing or handle can lead to electric shock. Such tools should not be used until repaired.
13. Blades and accessories must be securely mounted to the tool.
Prevent potential injuries to yourself or others. Blades, cutting implements and accessories which have been mounted to the tool should be secure and tight.
6
English
14. Keep motor air vent clean.
The tool’s motor air vent must be kept clean so that air can freely flow at all times. Check for dust build-up frequently.
15. Operate power tools at the rated voltage.
Operate the power tool at voltages specified on its nameplate. If using the power tool at a higher voltage than the rated voltage, it will result in abnormally fast motor revolution and may damage the unit and the motor may burn out.
16. NEVER use a tool which is defective or operating abnormally.
If the tool appears to be operating unusually, making strange noises, or otherwise appears defective, stop using it immediately and arrange for repairs by a Hitachi authorized service center.
17. NEVER leave tool running unattended. Turn power off.
Don’t leave tool until it comes to a complete stop.
18. Carefully handle power tools.
Should a power tool be dropped or struck against hard materials inadvertently, it may be deformed, cracked, or damaged.
19. Do not wipe plastic parts with solvent.
Solvents such as gasoline, thinner benzine, carbon tetrachloride, and alcohol may damage and crack plastic parts. Do not wipe them with such solvents. Wipe plastic parts with a soft cloth lightly dampened with soapy water and dry thoroughly.
20. ALWAYS wear eye protection that meets the requirement of the latest revision of ANSI
Standard Z87.1.
21. ALWAYS be careful with buried object such as an underground wiring. Touching these active wiring or electric cable with this tool, you may receive an electric shock. Confirm if there are any buried object such as electric cable within the wall, floor or ceiling where you are going to operate here after.
22. Definitions for symbols used on this tool
V ............ volts
Hz ..........hertz
A............amperes
no ..........no load speed
W...........watt
...........Class II Construction
---/min ...revolutions per minute
7
English
DOUBLE INSULATION FOR SAFER OPERATION
To ensure safer operation of this power tool, HITACHI has adopted a double insulation design. “Double insulation“ means that two physically separated insulation systems have been used to insulate the electrically conductive materials connected to the power supply from the outer frame handled by the operator. Therefore, either the symbol “ words “Double insulation” appear on the power tool or on the nameplate. Although this system has no external grounding, you must still follow the normal electrical safety precautions given in this Instruction Manual, including not using the power tool in wet environments. To keep the double insulation system effective, follow these precautions: 䡬 Only Hitachi Authorized Service Center should disassemble or assemble this power
tool, and only genuine HITACHI replacement parts should be installed.
䡬 Clean the exterior of the power tool only with a soft cloth moistened with soapy water,
and dry thoroughly. Never use solvents, gasoline or thinners on plastic components; otherwise the plastic may dissolve.
” or the
SAVE THESE INSTRUCTIONS
AND
MAKE THEM AVAILABLE TO
OTHER USERS
AND
OWNERS OF THIS TOOL!
8
English
FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safety instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ from those on your own power tool.
NAME OF PARTS
Gear Shift Dial
Depth Gauge
Drill Chuck
Side Handle
Speed Control Dial
Change Lever
Housing
Push Button
Fig. 1
Nameplate
Handle Cover
Stopper
Switch Trigger
SPECIFICATIONS
Motor Single Phase, Series Commutator Motor Power source Single Phase 120V AC 60 Hz Current 8.3 A Speed change 1 2
No-load speed
Drill chuck capacity 1/2" (13mm)
Capacity Concrete 3/4" (20mm) 1/2" (13mm)
No-load impact rate 13000/min 39000/min Weight (Without Cord) 4.9 lbs (2.2 kg)
Forward rotation 0-1000/min 0-3000/min Reverse rotation 0-600/min 0-1800/min
Steel 1/2" (13mm) 5/16" (8mm)
Wood 1-9/16" (40mm) 1" (25mm)
9
English
ASSEMBLY AND OPERATION
APPLICATIONS
䡬 By combined actions of ROTATION and IMPACT:
Boring holes in hard surfaces (concrete, marble, granite, tiles, etc.)
䡬 By ROTATIONAL action:
Boring holes in metal, wood and plastic.
PRIOR TO OPERATION
1. Power source
Ensure that the power source to be utilized conforms to the power source requirements specified on the product nameplate.
2. Power switch
Ensure that the switch is in the OFF position. If the plug is connected to a receptacle while the switch is in the ON position, the power tool will start operating immediately and can cause serious injury.
3. Extension cord
When the work area is far away from the power source, use an extension cord of sufficient thickness and rated capacity. The extension cord should be kept as short as practicable.
WARNING:
Damaged cord must be replaced or repaired.
4. Check the receptacle
If the receptacle only loosely accepts the plug, the receptacle must be repaired. Contact a licensed electrician to make appropriate repairs. If such a faulty receptacle is used, it may cause overheating, resulting in a serious hazard.
5. Check your work environment
Confirm that the work site is placed under appropriate conditions conforming to prescribed precautions.
10
6. Selecting the appropriate drill bit
䡬 When boring concrete or stone
Use the drill bits specified in the Optional Accessories.
䡬 When boring metal or plastic
Use an ordinary metalworking drill bit.
䡬 When boring wood
Use an ordinary woodworking drill bit. However, when drilling 1/4" (6.5 mm) or smaller holes, use a metalworking drill bit.
7. Mounting and dismounting of the bit (Fig. 2)
(1) Open the chuck jaws, and insert the bit
into the chuck.
(2) Place the chuck wrench in each of the
three holes in the chuck, and turn it in the clockwise direction (viewed from the front side). Tighten securely.
(3) To remove the bit, place the chuck
wrench into one of the holes in the chuck and turn it in the counterclockwise direction.
Chuck wrench
Tighten
Drill chuck
Loosen
8. Fixing the side handle (Fig. 3)
Attach the side handle to the mounting part. Rotate the side handle grip in a clockwise direction to secure it. Set the side handle to a position that is suited to the operation and then securely tighten the side handle grip. To attach a depth gauge on the side handle, insert the gauge into the U-shaped groove on the side handle, adjust the position of the depth gauge in accordance with the desired depth of the hole, and firmly tighten the side handle grip. (Fig. 4)
Fig. 2
English
Side handle
Depth gauge
Side handle
TightenLoosen
Loosen Tighten
Fig. 4Fig. 3
11
English
9. IMPACT to ROTATION changeover (Fig. 5)
Shift the change lever between the right and left positions to switch easily between IMPACT (rotation and impact) and ROTATION (rotation only), respectively. To bore holes in hard materials such as concrete, stone and tiles, shift the change lever to the right-hand position (as indicated by the The drill bit operates by the combined actions of impact and rotation. To bore holes in metal, wood and plastic, shift the change lever to the left-hand position (as indicated by the case of a conventional electric drill.
CAUTION:
䢇 Do not use the Hammer Drill in the IMPACT function if the material can be bored by
rotation only. Such action will not only reduce drill efficiency, but may also damage the drill tip.
䢇 Operating the Hammer Drill with the change lever in mid-position may result in damage.
When switching, make sure that you shift the change lever to the correct position.
NOTE:
mark).
mark). The drill bit operates by rotational action only, as in the
Change lever
Impact Rotation
Fig. 5
The change lever may not shift smoothly when changing from hammer drill mode to drill mode. In this case, switch ON and operate the machine for few seconds. The spindle shaft will then be pushed forward, and the change lever can be moved smoothly.
10. High-speed/Low-speed changeover
Prior to changing speed, ensure that the switch is in the OFF position, and the drill has come to a complete stop. To change speed, rotate the gear shift dial as indicated by the arrow in Fig. 6. The numeral “1” engraved on the drill body denotes low speed, the numeral “2” denotes high speed. If it is hard to turn the gear shift dial, turn the chuck slightly in either direction and then turn the gear shift dial again.
12
Gear Shift Dial
Fig. 6

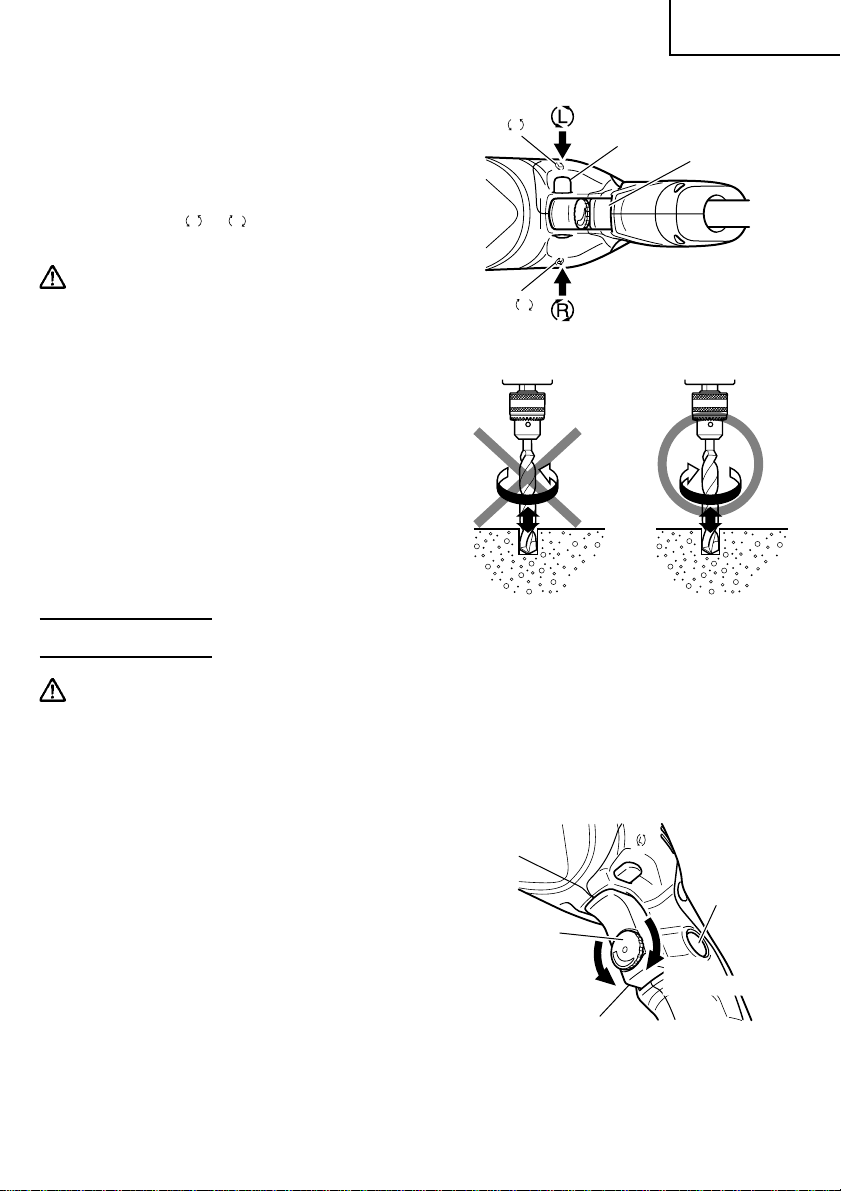

11. Check the rotational direction (Fig. 7)
The bit rotates clockwise (viewed from the rear side) by pushing the R-side of the push button. The L-side of the push button is pushed to turn the bit counterclockwise. (The body.)
and R marks are provided on the
L
L mark
English
Push button
Switch trigger
CAUTION:
Always use the hammer drill with clockwise rotation, when using it as an hammer drill. (Fig. 8)
HOW TO USE
CAUTION: To prevent accidents, make sure to turn the switch off and disconnect the plug from
the receptacle when the drill bits and other various parts are installed or removed. The power switch should also be turned off during a work break and after work.
R
mark
Fig. 7
Fig. 8
1. Switch operation
䡬 When the trigger switch is depressed,
the tool rotates. When the trigger is released, the tool stops.
䡬 The rotational speed of the drill can be
controlled by varying the amount that the Trigger switch is pulled. Speed is low when the trigger switch is pulled slightly and increases as the trigger switch is pulled more.
䡬 The desired rotation speed can be pre-
selected with the speed control dial. Turn the speed control dial clockwise for higher speed and counterclockwise for lower speed. (Fig. 9)
Speed control dial
Low speed
Switch trigger
Fig. 9
Stopper
High speed
13
English
䡬 Pulling the trigger and pushing the stopper, it keeps the switched-on condition which is
convenient for continuous running. When switching off, the stopper can be disconnected by pulling the trigger again.
NOTE:
If the L-side of push button is pressed for reverse bit rotation, the stopper cannot be used.
2. Drilling
䡬 When drilling, start the drill slowly, and gradually increasing speed as you drill. 䡬 Always apply pressure in a straight line with the bit. Use enough pressure to keep
drilling, but do not push hard enough to stall the motor or deflect the bit.
䡬 To minimize stalling or breaking through the material, reduce pressure on drill and
ease the bit through the last part of the hole.
䡬 If the drill stalls, release the trigger immediately, remove the bit from the work and
start again. Do not click the trigger on and off in an attempt to start a stalled drill. This can damage the drill.
WARNING: The larger the drill bit diameter, the larger the reactive force on your arm.
Be careful not to lose control of the drill because of this reactive force. To maintain firm control, establish a good foothold, use side handle, hold the drill tightly with both hand, and ensure that the drill is vertical to the material being drilled.
MAINTENANCE AND INSPECTION
WARNING: Be sure to switch power OFF and disconnect the plug from the
receptacle during maintenance and inspection.
1. Inspecting the drill bits
Since use of a dull tool will cause motor malfunctioning and degraded efficiency, replace the drill bit with a new one or resharpening without delay when abrasion is noted.
2. Inspecting the screws
Regularly inspect all screws and ensure that they are fully tightened. Should any of the screws be loosened, retighten them immediately.
WARNING: Using this hammer drill with loosened screws is extremely dangerous.
3. Keeping after use
When not in use, the Power tool should be kept in a dry place out of the reach of children.
4. Inspecting the carbon brushes
For your continued safety and electrical shock protection, carbon brush inspection and replacement on this tool should ONLY be performed by a Hitachi Authorized Service Center.
14
English
5. Maintenance of the motor
The motor unit winding is the very “heart” of the power tool. Exercise due care to ensure the winding does not become damaged and/or wet with oil or water.
6. Service and repairs
All quality power tools will eventually require servicing or replacement of parts because of wear from normal use. To assure that only authorized replacement parts will be used, all service and repairs must be performed by a Hitachi Authorized Service Center, ONLY.
7. Service parts list
A: Item No. B: Code No. C: No. Used D: Remarks
CAUTION: Repair, modification and inspection of Hitachi Power Tools must be
carried out by a Hitachi Authorized Service Center.
This Parts List will be helpful if presented with the tool to the Hitachi Authorized Service Center when requesting repair or other maintenance. In the operation and maintenance of power tools, the safety regulations and standards prescribed in each country must be observed.
MODIFICATIONS:
Hitachi Power Tools are constantly being improved and modified to incorporate the latest technological advancements. Accordingly, some parts (i.e. code numbers and/or design) may be changed without prior notice.
15
Loading...
+ 33 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
