Hitachi Koki USA DH 40MRY User Manual
Model Rotary Hammer
Modèle Marteau rotatif
Modelo Martillo perforador
DH 40MRY
SAFETY INSTRUCTIONS AND INSTRUCTION MANUAL
WARNING
IMPROPER OR UNSAFE use of this power tool can result in death or serious bodily
injury!
This manual contains important information about product safety. Please read and
understand this manual BEFORE operating the power tool. Please keep this manual
available for other users and owners before they use the power tool. This manual should
be stored in safe place.
INSTRUCTIONS DE SECURITE ET MODE D’EMPLOI
AVERTISSEMENT
Une utilisation INCORRECTE OU DANGEREUSE de cet outil motorisé peut entraîner la
mort ou de sérieuses blessures corporelles!
Ce mode d’emploi contient d’importantes informations à propos de la sécurité de ce
produit. Prière de lire et de comprendre ce mode d’emploi AVANT d’utiliser l’outil
motorisé. Garder ce mode d’emploi à la disponibilité des autres utilisateurs et propriétaires
avant qu’ils utilisent l’outil motorisé. Ce mode d’emploi doit être conservé dans un
endroit sûr.
INSTRUCCIONES DE SEGURIDAD Y MANUAL DE INSTRUCCIONES
ADVERTENCIA
¡La utilización INAPROPIADA O PELIGROSA de esta herramienta eléctrica puede
resultar en lesiones de gravedad o la muerte!
Este manual contiene información importante sobre la seguridad del producto. Lea y
comprenda este manual ANTES de utilizar la herramienta eléctrica. Guarde este manual
para que puedan leerlo otras personas antes de utilizar la herramienta eléctrica. Este
manual debe ser guardado en un lugar seguro.
DOUBLE INSULATION
DOUBLE ISOLATION
AISLAMIENTO DOBLE
English
CONTENTS
Page
IMPORTANT SAFETY INFORMATION ................... 3
MEANINGS OF SIGNAL WORDS ........................... 3
SAFETY ......................................................................... 3
GENERAL SAFETY RULES ...................................... 3
SPECIFIC SAFETY RULES AND SYMBOLS ............ 4
DOUBLE INSULATION FOR SAFER OPERATION ....
FUNCTIONAL DESCRIPTION ....................................... 6
NAME OF PARTS ..................................................... 6
SPECIFICATIONS ..................................................... 7
ASSEMBLY AND OPERATION .................................... 7
APPLICATIONS ........................................................ 7
PRIOR TO OPERATION ............................................ 7
HOW TO USE ........................................................... 8
USING DRILL CHUCK, CHUCK ADAPTOR ........... 10
HOW TO USE THE CORE BIT ................................ 11
5
MAINTENANCE AND INSPECTION .......................... 12
ACCESSORIES ............................................................ 13
STANDARD ACCESSORIES .................................. 13
OPTIONAL ACCESSORIES .................................... 13
Page
Français
TABLE DES MATIERES
Page
INFORMATIONS IMPORTANTES DE SÉCURITÉ
............................................................................ 16
SIGNIFICATION DES MOTS D’AVERTISSEMENT
............................................................................ 16
SECURITE ................................................................... 16
REGLES GENERALE DE SECURITE ...................... 16
REGLES DE SECURITE SPECIFIQUES ET
SYMBOLES ........................................................ 18
DOUBLE ISOLATION POUR UN
FONCTIONNEMENT PLUS SUR ....................... 19
DESCRIPTION FONCTIONNELLE .............................. 20
NOM DES PARTIES ............................................... 20
SPECIFICATIONS ................................................... 20
Español
Página
INFORMACIÓN IMPORTANTE SOBRE
SEGURIDAD ....................................................... 30
SIGNIFICADO DE LAS PALABRAS DE
SEÑALIZACIÓN ................................................. 30
SEGURIDAD ................................................................ 30
NORMAS GENERALES DE SEGURIDAD ............. 30
NORMAS Y SÍMBOLOS ESPECÍFICOS DE
SEGURIDAD ....................................................... 32
AISLAMIENTO DOBLE PARA OFRECER UNA
OPERACIÓN MÁS SEGURA ............................. 33
DESCRIPCIÓN FUNCIONAL ....................................... 34
NOMENCLATURA .................................................. 34
ESPECIFICACIONES ............................................... 34
ASSEMBLAGE ET FONCTIONNEMENT ................... 21
APPLICATIONS ...................................................... 21
AVANT L’UTILISATION ......................................... 21
UTILISATION .......................................................... 22
UTILISATION DU MANDRIN PORTE-FORET
ET DU RACCORD DE MANDRIN ...................... 24
COMMENT UTILISER LA COURONNE ................. 24
ENTRETIEN ET INSPECTION ..................................... 25
ACCESSOIRES ............................................................ 27
ACCESSOIRES STANDARD .................................. 27
ACCESSOIRES SUR OPTION ................................ 27
ÍNDICE
MONTAJE Y OPERACIÓN ......................................... 35
APLICACIONES ...................................................... 35
ANTES DE LA OPERACIÓN ................................... 35
MODO DE UTILIZACIÓN ....................................... 36
UTILIZACIÓN DEL PORTABARRENAS Y DEL
ADAPTADOR PARA PORTABARRENAS .......... 38
MODO DE USAR LA BARRENA TUBULAR .......... 38
MANTENIMIENTO E INSPECCIÓN ........................... 40
ACCESORIOS .............................................................. 41
ACCESORIOS ESTÁNDAR .................................... 41
ACCESORIOS OPCIONALES ................................. 41
Page
Página
English
IMPORTANT SAFETY INFORMATION
Read and understand all of the safety precautions, warnings and operating instructions in the Instruction Manual
before operating or maintaining this power tool.
Most accidents that result from power tool operation and maintenance are caused by the failure to observe basic
safety rules or precautions. An accident can often be avoided by recognizing a potentially hazardous situation
before it occurs, and by observing appropriate safety procedures.
Basic safety precautions are outlined in the “SAFETY” section of this Instruction Manual and in the sections which
contain the operation and maintenance instructions.
Hazards that must be avoided to prevent bodily injury or machine damage are identified by WARNINGS on the
power tool and in this Instruction Manual.
NEVER use this power tool in a manner that has not been specifically recommended by HITACHI.
MEANINGS OF SIGNAL WORDS
WARNING indicates a potentially hazardous situations which, if ignored, could result in death or serious injury.
CAUTION indicates a potentially hazardous situations which, if not avoided, may result in minor or moderate
injury, or may cause machine damage.
NOTE emphasizes essential information.
SAFETY
GENERAL SAFETY RULES
WARNING:
Read all instructions
Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
The term “power tool” in all of the warnings listed below refers to your mains-operated (corded) power tool
or battery-operated (cordless) power tool.
SAVE THESE INSTRUCTIONS
1) Work area safety
a) Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools create sparks which may ignite
the dust of fumes.
c) Keep children and bystanders away while
operating a power tool.
Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with earthed
(grounded) power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of electric shock if
your body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions.
Water entering a power tool will increase the
risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the power
tool.
Keep cord away from heat, oil, sharp edges
or moving parts.
Damaged or entangled cords increase the risk
of electric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces
the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired
or under the influence of drugs, alcohol or
medication.
A moment of inattention while operating
power tools may result in serious personal
injury.
3
English
b) Use safety equipment. Always wear eye
protection.
Safety equipment such as dust mask, nonskid safety shoes, hard hat, or hearing
protection used for appropriate conditions
will reduce personal injuries.
c) Avoid accidental starting. Ensure the switch
is in the off position before plugging in.
Carrying power tools with your finger on the
switch or plugging in power tools that have
the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on.
A wrench or a key left attached to a rotating
part of the power tool may result in personal
injury.
e) Do not overreach. Keep proper footing and
balance at all times.
This enables better control of the power tool
in unexpected situations.
f) Dress properly. Do not wear loose clothing
or jewellery. Keep your hair, clothing and
gloves away from moving parts.
Loose clothes, jewellery or long hair can be
caught in moving parts.
g) If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly
used.
Use of these devices can reduce dust-related
hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application.
The correct power tool will do the job better
and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off.
Any power tool that cannot be controlled with
the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools.
Such preventive safety measures reduce the
risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for
misalignment or binding of moving parts,
breakage of parts and any other condition
that may affect the power tools operation.
If damaged, have the power tool repaired
before use.
Many accidents are caused by poorly
maintained power tools.
f) Keep cutting tools sharp and clean.
Properly maintained cutting tools with sharp
cutting edges are less likely to bind and are
easier to control.
g) Use the power tool, accessories and tool bits
etc., in accordance with these instructions
and in the manner intended for the particular
type of power tool, taking into account the
working conditions and the work to be
performed.
Use of the power tool for operations different
from intended could result in a hazardous
situation.
5) Service
a) Have your power tool serviced by a qualified
repair person using only identical
replacement parts.
This will ensure that the safety of the power
tool is maintained.
–WARNING–
To reduce the risk of injury, user must read
instruction manual.
SPECIFIC SAFETY RULES AND SYMBOLS
1. Hold tools by insulated gripping surfaces when
performing an operation where the cutting tool
may contact hidden wiring or its own cord. Contact
with a “live” wire will make exposed metal parts
of the tool “live” and shock the operator.
2. ALWAYS wear ear protections.
Exposure to noise can cause hearing
loss.
3. Use auxiliary handles supplied with the tool.
Loss of control can cause personal injury.
4. NEVER touch the tool bit with bare hands after
operation.
5. NEVER wear gloves made from materials likely to
roll up such as cotton, wool, cloth or string, etc.
6. ALWAYS attach the side handle and securely grip
the Rotary Hammer.
7. NEVER touch moving parts.
NEVER place your hands, fingers or other body
parts near the tool’s moving parts.
8. NEVER operate without all guards in place.
NEVER operate this tool without all guards or
safety features in place and in proper working
order. If maintenance or servicing requires the
removal of a guard or safety feature, be sure to
replace the guard or safety feature before resuming
operation of the tool.
4
English
9. Use right tool.
Don’t force small tool or attachment to do the job
of a heavy-duty tool.
Wipe plastic parts with a soft cloth lightly
dampened with soapy water and dry thoroughly.
21. ALWAYS wear eye protection that meets the
Don’t use tool for purpose not intended —for
example— don’t use circular saw for cutting tree
limbs or logs.
10. NEVER use a power tool for applications other
than those specified.
NEVER use a power tool for applications other than
those specified in the Instruction Manual.
11. Handle tool correctly.
Operate the tool according to the instructions
provided herein. Do not drop or throw the tool.
NEVER allow the tool to be operated by children,
individuals unfamiliar with its operation or
unauthorized personnel.
12. Keep all screws, bolts and covers tightly in place.
Keep all screws, bolts, and plates tightly mounted.
Check their condition periodically.
13. Do not use power tools if the plastic housing or
handle is cracked.
Cracks in the tool’s housing or handle can lead to
electric shock. Such tools should not be used until
22. ALWAYS be careful with buried object such as an
underground wiring.
Touching live wiring or electric cable with this tool
may result in electric shock.
Confirm before use whether hidden objects are
present, such as electric cables within the wall,
floor or ceiling.
23. Definitions for symbols used on this tool
V ............... volts
Hz ............. hertz
A ............... amperes
no .............. no load speed
W .............. watt
repaired.
14. Blades and accessories must be securely mounted
---/min ...... revolutions per minute
to the tool.
Prevent potential injuries to youself or others.
Blades, cutting implements and accessories which
have been mounted to the tool should be secure
and tight.
15. Keep motor air vent clean.
The tool’s motor air vent must be kept clean so
that air can freely flow at all times. Check for dust
build-up frequently.
16. Operate power tools at the rated voltage.
Operate the power tool at voltages specified on its
nameplate.
If using the power tool at a higher voltage than
the rated voltage, it will result in abnormally fast
motor revolution and may damage the unit and
the motor may burn out.
17. NEVER use a tool which is defective or operating
abnormally.
If the tool appears to be operating unusually,
making strange noises, or otherwise appears
defective, stop using it immediately and arrange
for repairs by a Hitachi authorized service center.
18. NEVER leave tool running unattended. Turn power
off.
Don’t leave tool until it comes to a complete stop.
19. Carefully handle power tools.
Should a power tool be dropped or struck against
hard materials inadvertently, it may be deformed,
cracked, or damaged.
DOUBLE INSULATION FOR SAFER
OPERATION
To ensure safer operation of this power tool, HITACHI
has adopted a double insulation design. “Double
insulation” means that two physically separated
insulation systems have been used to insulate the
electrically conductive materials connected to the power
supply from the outer frame handled by the operator.
Therefore, either the symbol “ ” or the words “Double
insulation” appear on the power tool or on the
nameplate.
Although this system has no external grounding, you
must still follow the normal electrical safety precautions
given in this Instruction Manual, including not using the
power tool in wet environments.
To keep the double insulation system effective, follow
these precautions:
䡬
Only HITACHI AUTHORIZED SERVICE CENTER
should disassemble or assemble this power tool,
and only genuine HITACHI replacement parts
should be installed.
䡬
Clean the exterior of the power tool only with a
soft cloth moistened with soapy water, and dry
thoroughly.
Never use solvents, gasoline or thinners on plastic
components; otherwise the plastic may dissolve.
20. Do not wipe plastic parts with solvent.
Solvents such as gasoline, thinner benzine, carbon
tetrachloride, and alcohol may damage and crack
plastic parts. Do not wipe them with such solvents.
requirement of the latest revision of
ANSI Standard Z87.1.
............. Class II Construction
............. Alternating current
5
English
SAVE THESE INSTRUCTIONS
AND
MAKE THEM AVAILABLE TO OTHER USERS
AND
OWNERS OF THIS TOOL!
FUNCTIONAL DESCRIPTION
NOTE:
The information contained in this Instruction Manual is designed to assist you in the safe operation and
maintenance of the power tool.
NEVER operate, or attempt any maintenance on the tool unless you have first read and understood all safey
instructions contained in this manual.
Some illustrations in this Instruction Manual may show details or attachments that differ from those on your
own power tool.
NAME OF PARTS
6
Drill bit
Front cap
Stopper
Grip
Selector lever
Side handle
Housing
Tail cover
Set screw
(Under the
Tail cover)
Fig. 1
Switch trigger
Nameplate
Handle
Dial
Brush cap
(Inside the Tail cover)
SPECIFICATIONS
Motor Single-Phase, Series Commutator Motor.
Power Source Single-Phase, 120 V 60 Hz
Current 9.2 A
Capacity Drill Bit: 1-9/16" (40 mm)
Core Bit: 4-1/8" (105 mm)
No-Load Speed 240 – 480/min
Full-load Blow 1,320 – 2,650/min
Weight 15.0 lbs (6.8 kg)
ASSEMBLY AND OPERATION
English
APPLICATIONS
Rotation and hammering function
䡬
Drilling anchor holes
䡬
Hammering function only
PRIOR TO OPERATION
1. Power source
2. Power switch
3. Extension cord
4. Check the receptacle
Drilling holes in concrete
䡬
Crushing concrete, chipping, digging, and
squaring (by applying optional accessories)
Ensure that the power source to be utilized
conforms to the power source requirements
specified on the product nameplate.
Ensure that the switch is in the OFF position. If the
plug is connected to a receptacle while the switch
is in the ON position, the power tool will start
operating immediately and can cause serious
injury.
When the work area is far away from the power
source, use an extension cord of sufficient
thickness and rated capacity. The extension cord
should be kept as short as practicable.
WARNING:
Damaged cord must be replaced or
repaired.
If the receptacle only loosely accepts the plug, the
receptacle must be repaired. Contact a licensed
electrician to make appropriate repairs.
If such a fautly receptacle is used, it may cause
overheating, resulting in a serious hazard.
5. Confirming condition of the environment:
Confirm that the work site is placed under
appropriate conditions conforming to prescribed
precautions.
6. How to install tool
CAUTION:
For tools such as a drill bit and a bull point, use
only Hitachi genuine parts.
(1) Clean, then smear the tool shank with the grease
provided in the green tube.
(2) To attach the tool (SDS max shank), insert it into
the hole until it contacts the innermost end of the
hole as illustrated in Fig. 2.
If you continue to turn the tool with slight pressure,
you can feel a spot where there is a hitch. At that
spot, pull the grip to the direction of an arrow mark
and insert the tool all the way until it hits the
innermost end.
Releasing the grip reverts the grip and secures the
tool in place.
Tool
(3) Pull the tool to make sure it is locked completely.
(4) To remove the tool, fully pull the grip in the
direction of the arrow and pull out the tool.
7. Regulating the number of rotations and
hammering (Fig. 3)
This Rotary Hammer is equipped with a built-in
electronic control circuit that can adjust and
Grip
Fig. 2
7
English
regulate the number of rotations and times of
hammering. This Rotary Hammer can be used by
adjusting the dial, depending upon the contents
of operation, such as boring holes into fragile
materials, chipping, centering, etc.
2. How to chisel or crush (Fig. 5)
By applying the tool tip to the chiseling or crushing
position, operate the rotary hammer by utilizing
its empty weight. Forcible pressing or thrusting is
unnecessary.
The scale ‘1’ of the dial is designed for a minimum
speed with the number of 240 rotations per minute
and 1,320 times of blow per minute. The scale ‘6’
is designed for a maximum speed with the number
of 480 rotations per minute and 2,650 times of blow
per minute.
Dial
Fig. 3
CAUTION:
3. When drilling at “rotation + hammering”
Do not adjust the dial during operation. Doing so
can result in injury because the Rotary Hammer
must be held by only one hand, disabling the
steady control of the Rotary Hammer.
CAUTION:
If you switch the selector lever during motor
rotation, the tool can start to rotate abruptly,
resulting in unexpected accidents. Be sure to
HOW TO USE
1. How to drill holes (Fig. 4)
(1) Pull the switch trigger after applying the drill bit
tip to the drilling position.
(2) It is unnecessary to forcibly press the Rotary
Hammer main body. It is sufficient to slightly press
the rotary hammer to an extent that clips are freely
discharged.
switch the selector lever when the motor is at a
complete stop.
(1) Switching to “rotation + hammering”
(a) Push the button, release lock and turn the
(b) Align ▲ of the selector lever and of the
(c) Release the button to lock the selector lever.
Fig. 5
selector lever clockwise.
lever holder as illustrated in Fig. 6.
Lever holder
Fig. 4
CAUTION:
Although this machine is equipped with a safety
clutch, if the drill bit becomes bound in concrete
or other material, the resultant stoppage of the
drill bit could cause the machine body to turn in
reaction. Ensure that the main handle and side
handle are gripped firmly during operation.
8
Selector lever
Button
Fig. 6
NOTE:
Turn the selector lever (do not push the button) to
check if it is completely locked and make sure that
it does not turn.
English
4. When chipping and shredding at “hammering”:
(c) Turn the grip as illustrated in Fig. 9 and fix
CAUTION:
If the selector lever is switched during motor
䡬
rotation, the tool can start to rotate abruptly,
resulting in unexpected accidents. Make sure to
switch the selector lever when the motor is at a
complete stop.
䡬
If the bull point or cold chisel is used at the position
of “rotation + hammering”, the tool can start to
rotate, resulting in unexpected accidents. Make
sure that they are used at the positon of
“hammering”.
(1) Switching to “hammering”
(d) Switch the selector lever to “hammering”
(a) Push the button, release lock and turn the
selector lever counterclockwise.
(b) Align ▲ of the selector lever and of the
lever holder as illustrated in Fig. 7.
(c) Release the button to lock the selector lever.
Selector lever
Lever holder
5. Install the stopper (Fig. 10)
(1) Loosen the side handle and insert the straight
portion of the stopper into the handle bolt hole
from the front cover.
(2) Loosen the side handle, move the stopper to the
specified position and rotate the grip of the side
handle clockwise to fix the stopper.
Button
Fig. 7
NOTE:
Turn the selector lever (do not push the button) to
check if it is completely locked and make sure that
it does not turn.
(2) When fixing working positions of tools such as cold
chisel, etc.,
(a) Push the button, release lock and turn the
selector lever.
Align ▲ of the selector lever and of the
lever holder as illustrated in Fig. 8.
(b) Release the button to lock the selector lever.
Button
Lever holder
6. Warming up (Fig. 11)
The grease lubrication system in this unit may
require warming up in cold regions.
Position the end of the bit so makes contact with
the concrete, turn on the switch and perform the
warming up operation. Make sure that a hitting
sound is produced and then use the unit.
the tool to the desired working direction.
Grip
Fig. 9
according to the procedures mentioned in the
above item (1) and secure the position of the
tool.
Stopper
Side handle
Fig. 10
Selector lever
Fig. 8
9
English
Cotter
Fig. 13
Taper shank
adaptor
Support
Fig. 11
CAUTION:
When the warming up operation is performed,
hold the side handle and the main body securely
USING DRILL CHUCK, CHUCK ADAPTOR
Note that this machine can be used at “rotation only” if
separately sold parts such as drill chuck and chuck
adaptor are attached. Use it with the selector lever
positioned at “rotation + hammering”.
with both hands to maintain a secure grip and be
careful not to twist your body by the jammed drill
bit.
7. How to use the drill bit (taper shank) and the taper
shank adaptor.
(1) Install drill bit with taper shank in the taper shank
adaptor. (Fig. 12)
WARNING:
During operation, be sure to grip the handle and
the side handle firmly to prevent your body from
swaying.
(1) Switching to “rotation + hammering”
For switching to “rotation + hammering”, follow
the same procedures mentioned in [3. When
Taper shank adaptor
Drill bit
(Taper shank)
drilling at “rotation + hammering”] in Page 8.
(2) Attaching chuck adaptor to drill chuck (Fig. 14)
(a) Attach the chuck adaptor to the drill chuck.
(b) The SDS max shank of the chuck adaptor is
Fig. 12
(2) Turn the power on and drill a base hole.
(3) After cleaning out dust with a syringe, attach the
plug to the anchor tip and drive in the anchor with
a manual hammer.
Drill
chuck
(4) To remove the drill bit with taper shank, insert a
cotter into the slot of the taper shank adaptor, place
supports under the Rotary Hammer and tap the
cotter with a manual hammer. (Fig. 13)
(3) Drilling
(a) Even if you apply more-than-required
equivalent to the drill bit. Therefore, follow
the same procedure as [6. How to install tool]
in Page 7 for attaching and detaching.
SDS max
Chuck
shank
Grip
adaptor
Fig. 14
pressure to the machine body, drilling can
never be performed as quickly as you expect.
Applying more force or pressure to the
machine body than what is needed, on the
contrary, damages the drill tip, resulting in
the declined working efficiency and shortened
life of this machine.
10
(b) A drill can snap sometimes when drilling is
almost finished. It is important to relax your
thrusting pressure when drilling is nearing the
end.
Center pin
English
Guide plate

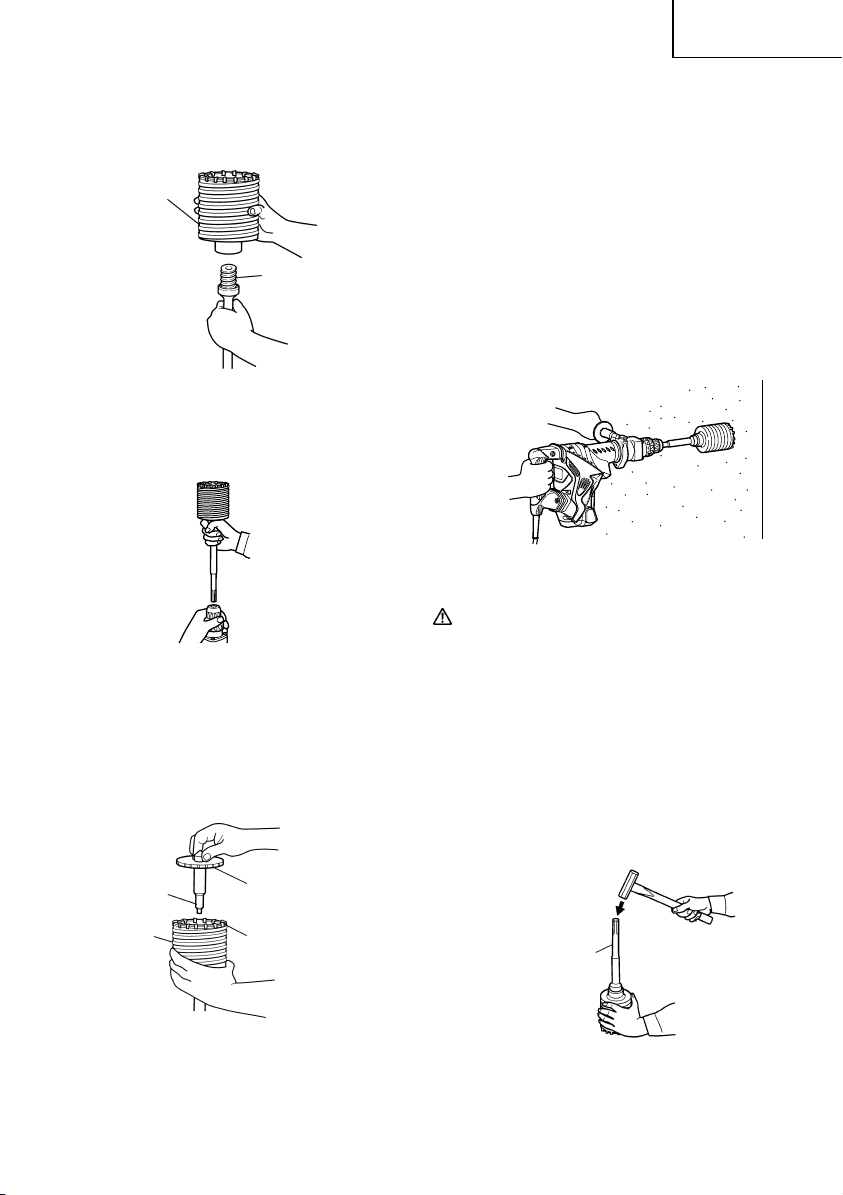

HOW TO USE THE CORE BIT
When boring penetrating large hole use the core bit. At
that time use with the center pin and the core bit shank
provided as optional accessories.
1. Mounting
CAUTION:
Be sure to turn power OFF and disconnect the plug
from the receptacle.
(1) Mount the core bit to the core bit shank. (Fig. 15)
Lubricate the thread of the core bit shank to
facilitate disassembly.
Core bit
2. How to bore (Fig. 18)
(1) Connect the plug to the receptacle.
(2) A spring is installed in the center pin. Push it lightly
to the wall or the floor straight. Connect all over
the surface of the core bit tip and start operating.
(3) When boring about 3/16" (5 mm) in depth the
position of the hole will establish. Bore after that
removing the center pin and the guide plate from
core bit.
(4) Application of excessive force will not only
expedite the work, but will deteriorate the tip edge
of the drill bit, resulting in reduced service life of
Core bit shank
the rotary hammer.
Fig. 15
(2) Mount the core bit shank to the Rotary Hammer.
(Fig. 16)
CAUTION:
When removing the center pin and the guide plate,
turn OFF the switch and disconnect the plug from
the receptacle.
Core bit
Core bit tip
Fig. 17
Fig. 18
3. Dismounting (Fig. 19)
Remove the core bit shank from the rotary hammer
and strike the head of the core bit shank strongly
Fig. 16
(3) Insert the center pin into the guide plate until it
two or three times with a manual hammer holding
the core bit, then the thread becomes loose and
the core bit can be removed.
stops.
(4) Engage the guide plate with the core bit, and turn
the guide plate to left or right so that it does not
fall even if it faces downward. (Fig. 17)
Core bit
shank
Fig. 19
11
English
MAINTENANCE AND INSPECTION
WARNING:
Be sure to switch power OFF and disconnect the plug from the receptacle during maintenance and inspection.
1. Inspecting the drill bits
Since use of a dull tool will cause motor
malfunctioning and degraded efficiency, replace
the drill bit with a new one or resharpening without
delay when abrasion is noted.
2. Inspecting the screws
Regularly inspect all screws and ensure that they
are properly tightened. Should any of the screws
be loose, retighten them immediately.
WARNING:
Using this Rotary Hammer with loosen screws is
extremely dangerous.
3. Maintenance of the motor
The motor unit winding is the very “heart” of the
power tool. Exercise due care to ensure the
winding does not become damaged and/or wet
with oil or water.
4. Inspecting the carbon brushes: (Fig. 20)
The motor employs carbon brushes which are
consumable parts. When they become worn to or
near “wear limit”, it could result in motor trouble.
When an auto-stop carbon brush is equipped, the
motor will stop automatically. At that time, replace
both carbon brushes with new ones which have
the same carbon brush Nos. shown in the figure.
In addition, always keep carbon brushes clean and
ensure that they slide freely within the brush
holders.
CAUTION:
Using this Rotary Hammer with a carbon brush
which is worn in excess of the wear limit will
damage the motor.
NOTE:
Use HITACHI carbon brush No.73 indicated in Fig.
20
䡬
Replacing carbon brushes:
(For parts name, refer to Fig. 1)
Loosen the two set screws and remove the tail
cover. Remove the brush caps and carbon brushes.
After replacing the carbon brushes, tighten the
brush caps securely and to install the tail cover
with securely tightening two set screws.
5. How to replase grease
This machine is full air-tight construction to protect
against dust and to prevent lubricant leakage.
Therefore, the machine can be used without
lubrication for long periods. Replace the grease as
described below.
䡬
Grease replacement period
After purchase, replace grease after every 6
months of usage. Ask for grease replacement at
the nearest HITACHI Authorized Service Center.
Proceed for replacement of grease.
䡬
Grease replenishment
CAUTION:
Before replenishing the grease, turn the power off
and pull out the power plug.
(1) Remove the crank cover and wipe off the grease
inside.
(2) Apply 1.0 oz (30 g) of HITACHI Electric Hammer
Grease A (standard accessory, contained in tube)
to the crank case.
(3) After replenishing the grease, install the crank
cover securely.
Crank cover
12
73
0.67" (17 mm)
Wear limit
No. of carbon brush
0.28" (7 mm)
Fig. 20
NOTE:
Fig. 21
The HITACHI Electric Hammer Grease A is of the
lower viscosity type. When the supplied grease
tube is consumed, purchase from a HITACHI
Autorized Service Center.
English
6. Service and repairs
All quality power tools will eventually require
servicing or replacement of parts because of wear
from normal use. To assure that only authorized
replacement parts will be used, all service and
repairs must be performed by a HITACHI
AUTHORIZED SERVICE CENTER, ONLY.
7. Service parts list
A: Item No.
B: Code No.
C: No. Used
D: Remarks
CAUTION:
Repair, modification and inspection of Hitachi
●
Power Tools must be carried out by a Hitachi
Authorized Service Center.
This Parts List will be helpful if presented with the
tool to the Hitachi Authorized Service Center when
requesting repair or other maintenance.
In the operation and maintenance of power tools,
the safety regulations and standards prescribed
in each country must be observed.
MODIFICATIONS:
Hitachi Power Tools are constantly being improved
and modified to incorporate the latest
technological advancements.
Accordingly, some parts (i.e. code numbers and/
or design) may be changed without prior notice.

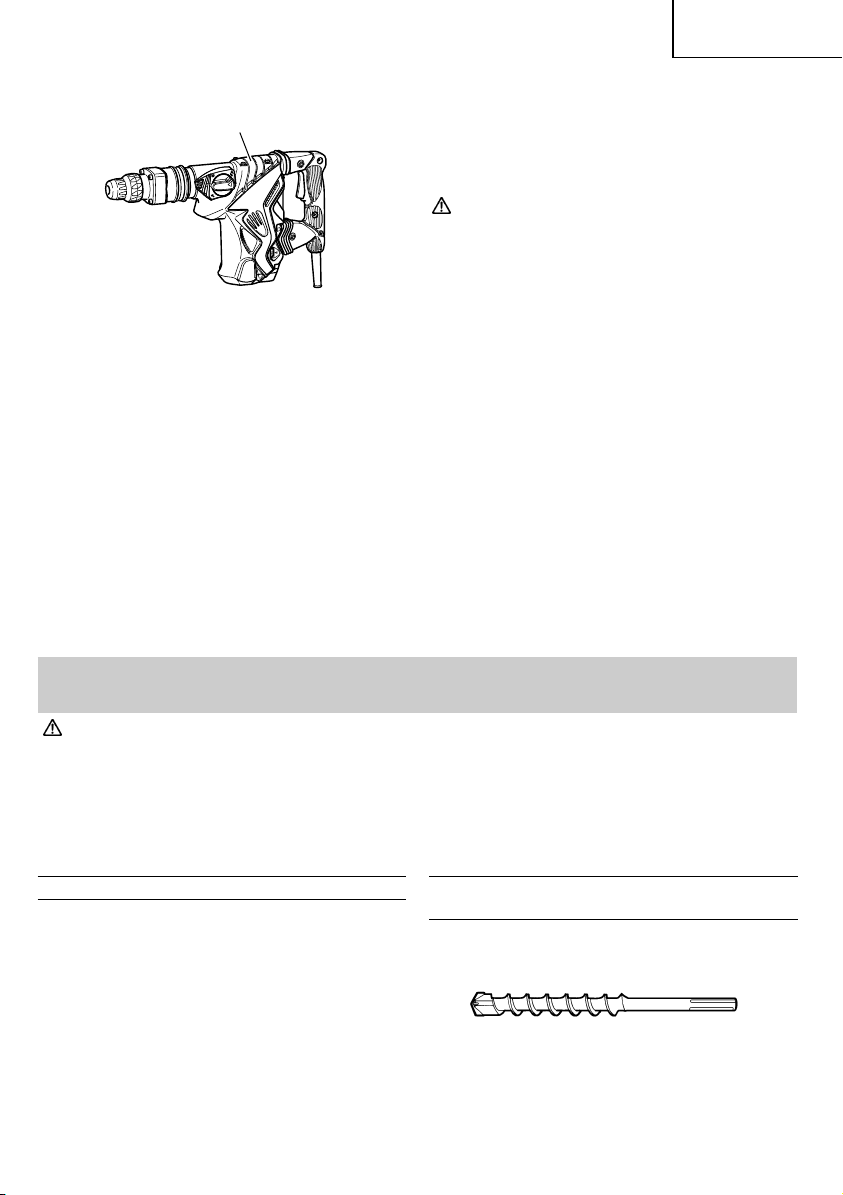

ACCESSORIES
WARNING:
ALWAYS use Only authorized HITACHI replacement parts and accessories. NEVER use replacement parts or
accessories which are not intended for use with this tool. Contact HITACHI if you are not sure whether it is
safe to use a particular replacement part or accessory with your tool.
The use of any other attachment or accessory can be dangerous and could cause injury or mechanical
damage.
NOTE:
Accessories are subject to change without any obligation on the part of the HITACHI.
STANDARD ACCESSORIES
(1) Case (Molded plastic) (Code No. 326489) ............ 1
(2) Side Handle (Code No. 313078) ............................ 1
(3) Stopper (Code No. 971786) ................................... 1
(4) Hammer Grease A (Code No. 981840) ................. 1

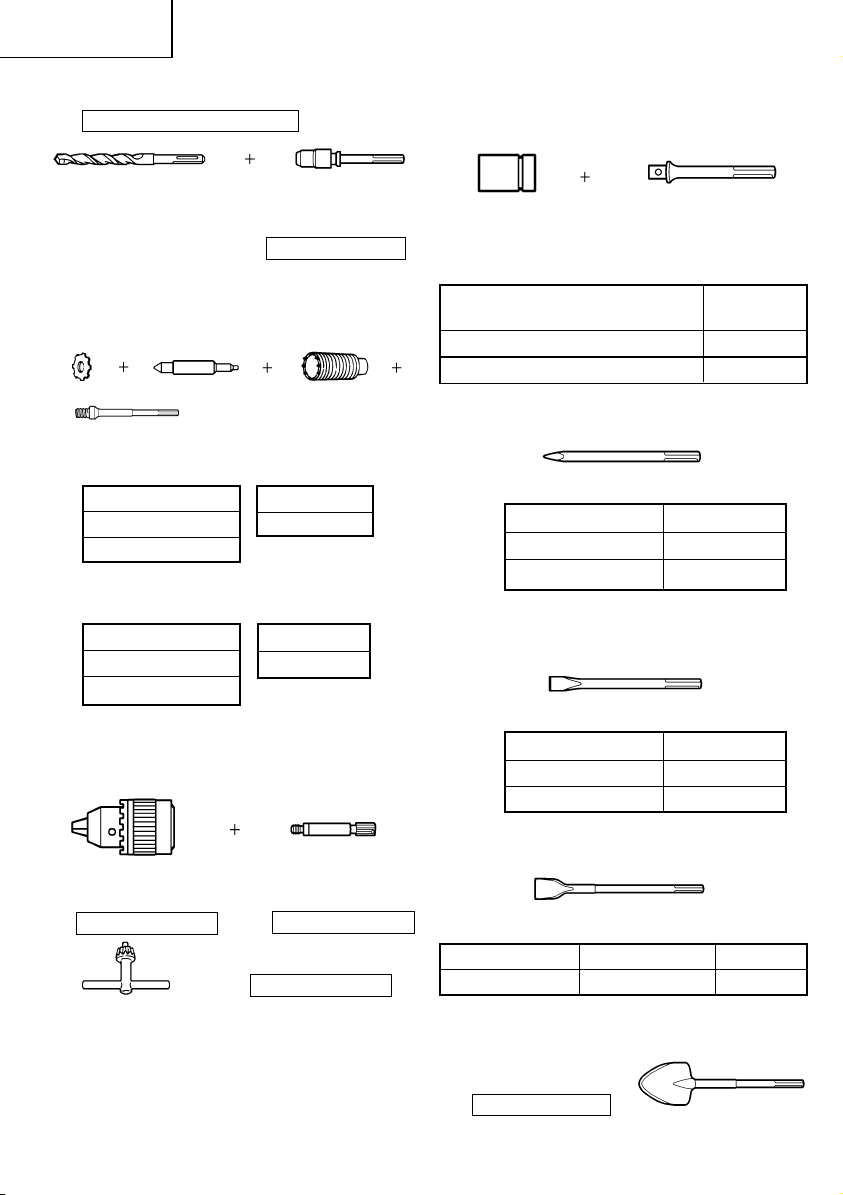

OPTIONAL ACCESSORIES.....sold
separately
For accessories in detail please call HITACHI AT 1-800-
59-TOOLS
1. Through-hole drilling (Rotation + Hammering)
(1) Drill bit (SDS-max shank)
External dia. Overall lenght Code No.
5/8" (340 mm)
(16 mm) 21-1/4"
3/4" (340 mm)
(19 mm) 21-1/4"
7/8" (320 mm)
(22 mm) 20-15/32"
1" (320 mm)
(25 mm) 20-15/32"
1-1/8" (370 mm)
(28 mm) 22-7/16"
13-3/8"
(540 mm)
13-3/8"
(540 mm)
12-5/8"
(520 mm)
12-5/8"
(520 mm)
14-9/16"
(570 mm)
313448
313456
313449
313457
313450
313458
313451
313459
313452
313460
13
English
External dia. Overall lenght Code No.
14-9/16"
1-1/4" (370 mm)
(32 mm) 22-7/16"
(570 mm)
14-9/16"
1-1/2" (370 mm)
(38 mm) 22-7/16"
(570 mm)
14-9/16"
1-9/16" (370 mm)
(40 mm) 22-7/16"
(570 mm)
313453
313461
313454
313462
313455
313463
4. Drilling holes....For drilling metals and wooden
2. Anchor hole drilling (Rotation + Hammering)
Adaptor for SDS-plus shank bit
(1) Drill Bit
(SDS-plus shank)
(2) Adaptor for SDS-plus
shank bit
(SDS max shank)
Code No. 313465
5. Bolt plaching operation with Chemical Anchor
Square dimensions of the side
3. Large-dia. hole boring (Rotation + Hammering)
materials
(1) 13mm drill chuck
(2) Chuck adaptor
(13VLD-D)
Code No. 321813
(3) Chuck wrench
Code No. 930515
(Rotation + Hammering)
(Standard socket
on the market)
(1) Chemical Anchor Adaptor
(SDS max shank)
of the socket installation
1/2" (12.7 mm) 313469
3/4" (19.0 mm) 313470
(SDS max shank)
Code No. 313468
Code No.
(Guide plate)
(2) Core bit
External dia.
4-1/8" (105 mm)
14
Code No.
985388
955169
2" (50 mm)
(1) Center pin
Code No.
955165
(3) Core bit shank
(SDS max shank)
Code No.
313467
6. Crushing (Hammering)
(1) Bull point
Overall length Code No.
11" (280 mm) 313471
15-3/4" (400 mm) 313472
7. Groove digging and edging (Hammering)
(1) Cold chisel
Overall length Code No.
11" (280 mm) 313473
15-3/4" (400 mm) 313474
English
8. Asphalt cutting (Hammering)
(1) Cutter
Overall length Width Code No.
15-3/4" (400 mm) 1-31/32" (50 mm) 313475
9. Digging
(1) Scoop
Code No. 313476
10. Surface Roughing (Hammering)
(1) Bushing Tool
Code No. 313477
(2) Shank
Overall length Code No.
8-21/32" (220 mm) 313479
11. Tamping (Hammering)
NOTE:
Specifications are subject to change without any
obligation on the part of the HITACHI.
(1) Rammer
Code No. 313478
(2) Shank
Overall length Code No.
8-21/32" (220 mm) 313479
12. Syringe (for chip removal)
Code No. 320859
13. Hammer grease A
1.1 lbs (500 g) (in a can) Code No. 980927
0.15 lbs (70 g) (in a green tube) Code No. 308471
15
Loading...
