Service Manual
1
11.06.2006
127
Added PWB parts list
Revision History
YK No. 020E
42PD8800TA 32LD8800TA
Change Number
Date of
Page numbers
changed
Description of change
YK
No.020E
42PD8800TA(PW3)
SERVICE MANUAL
32LD8800TA(PW3L)
LCD PDP
Caution
Be sure to read this manual before servicing. To assure safety from fi re, electric shock, injury, harmful radia­tion and materials, various measures are provided in this HITACHI display. Be sure to read cautionary items described in the manual to maintain safety before servicing.
Service Warning
1. Since Panel Module and front Filter are made of glass, handling the broken Module and Filter shall be taken care suffi ciently in order not to be injured.
2. Replacing work shall be started after the Panel Module and the AC/DC Power supply become suffi ciently cool.
3. Special care shall be taken to the display area in order not to damage its surface.
4. The Panel Module shall not be touched with bare hand to protect its surface from stains.
5. It is recommended to use clean soft gloves during the replacing work in order to protect not only the dis­play area of the Panel Module but also a serviceman himself.
6. The Chip Tube of Panel Module (located upper left of the back and surrounded by frame) and fl exible cables connecting Panel glasses to drive circuit PWBs are very weak, so shall be taken care suffi ciently not to break. If you break Chip Tube, the Panel doesn’t display anything forever.
Contents
1. Features --------------------------------------------------3
2. Specifi cations --------------------------------------------4
3. Service point --------------------------------------------- 5
4. Component names ------------------------------------- 6
5. New adoption technology -----------------------------7

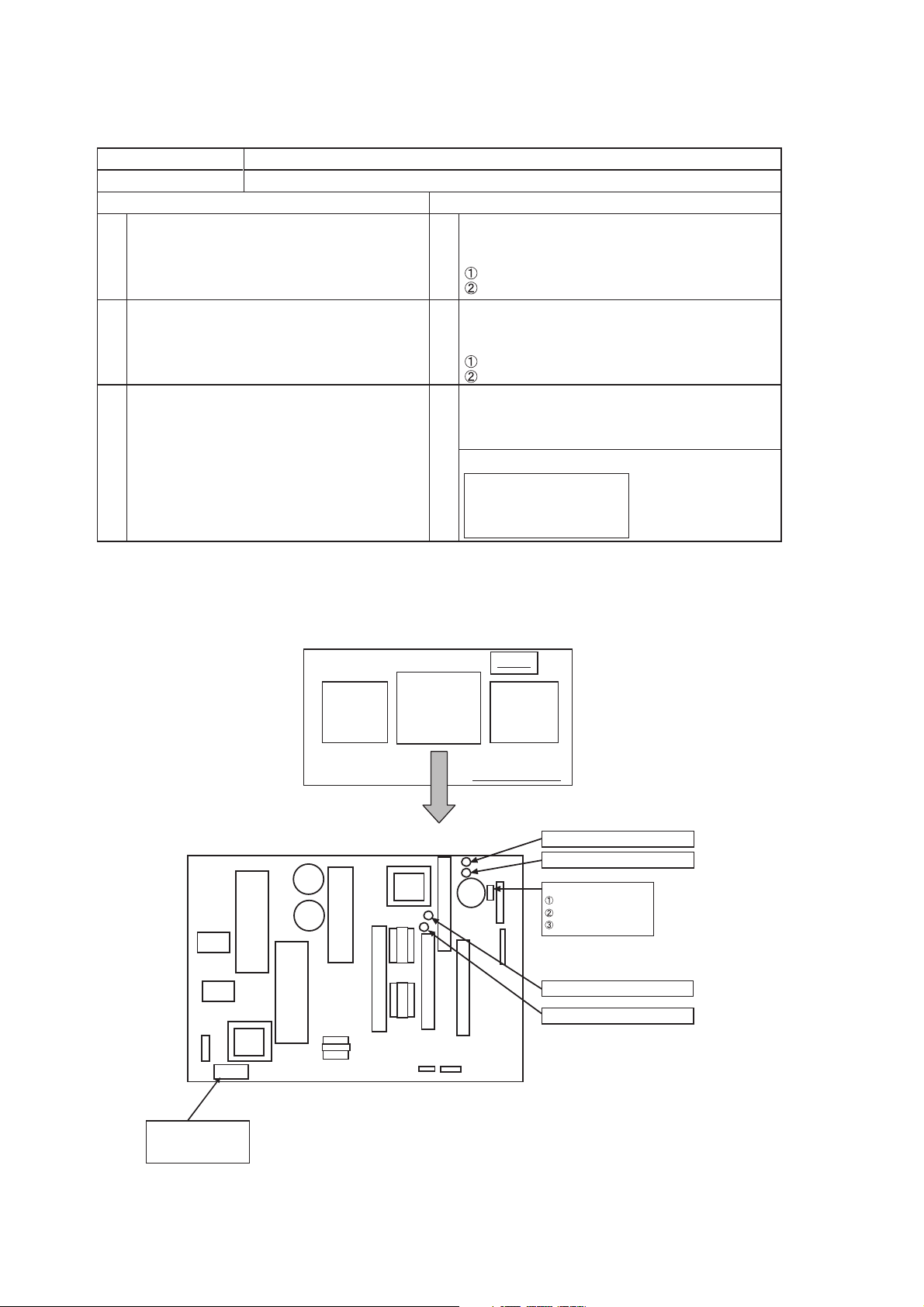

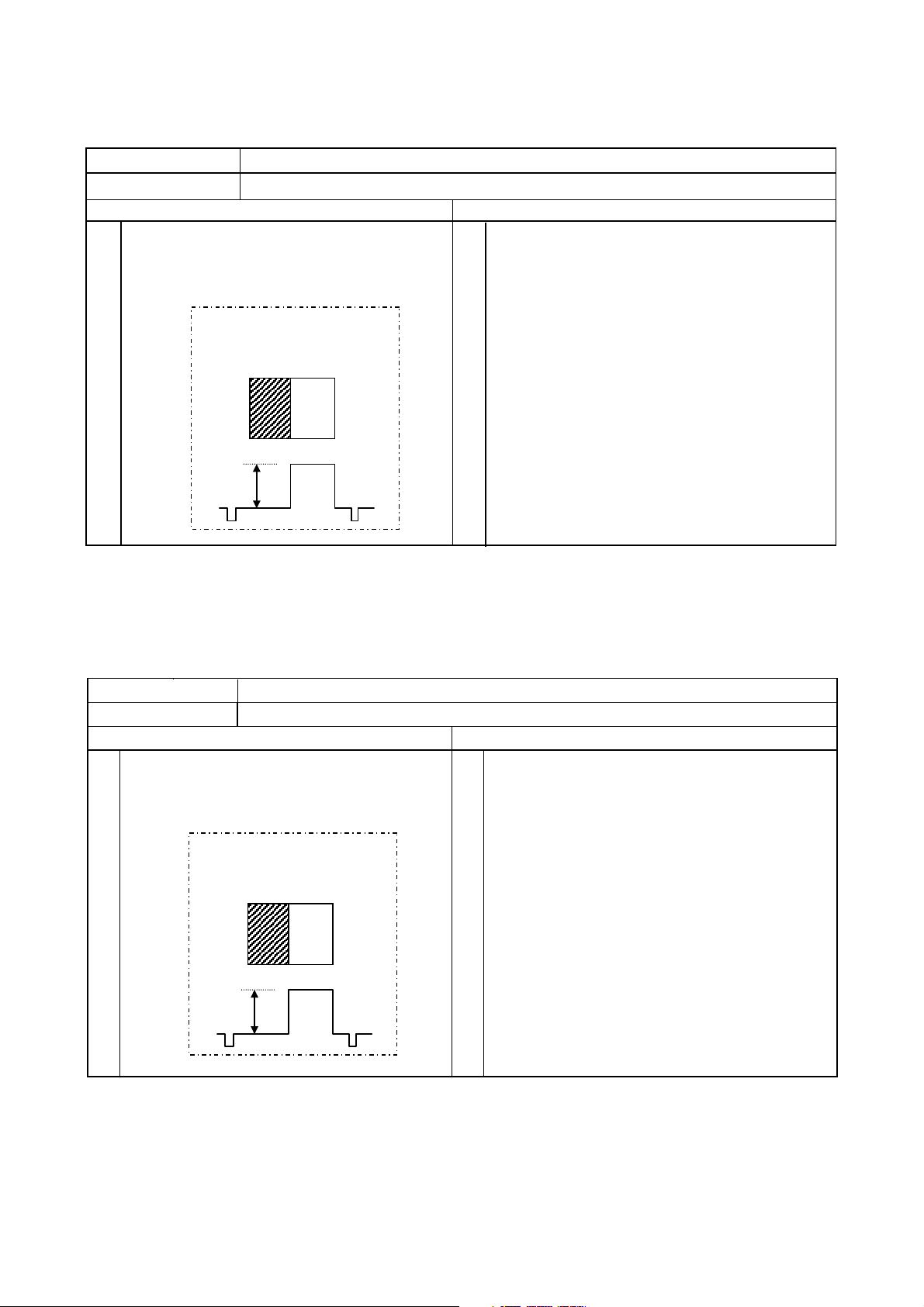

6. Adjustment --------------------------------------------- 11

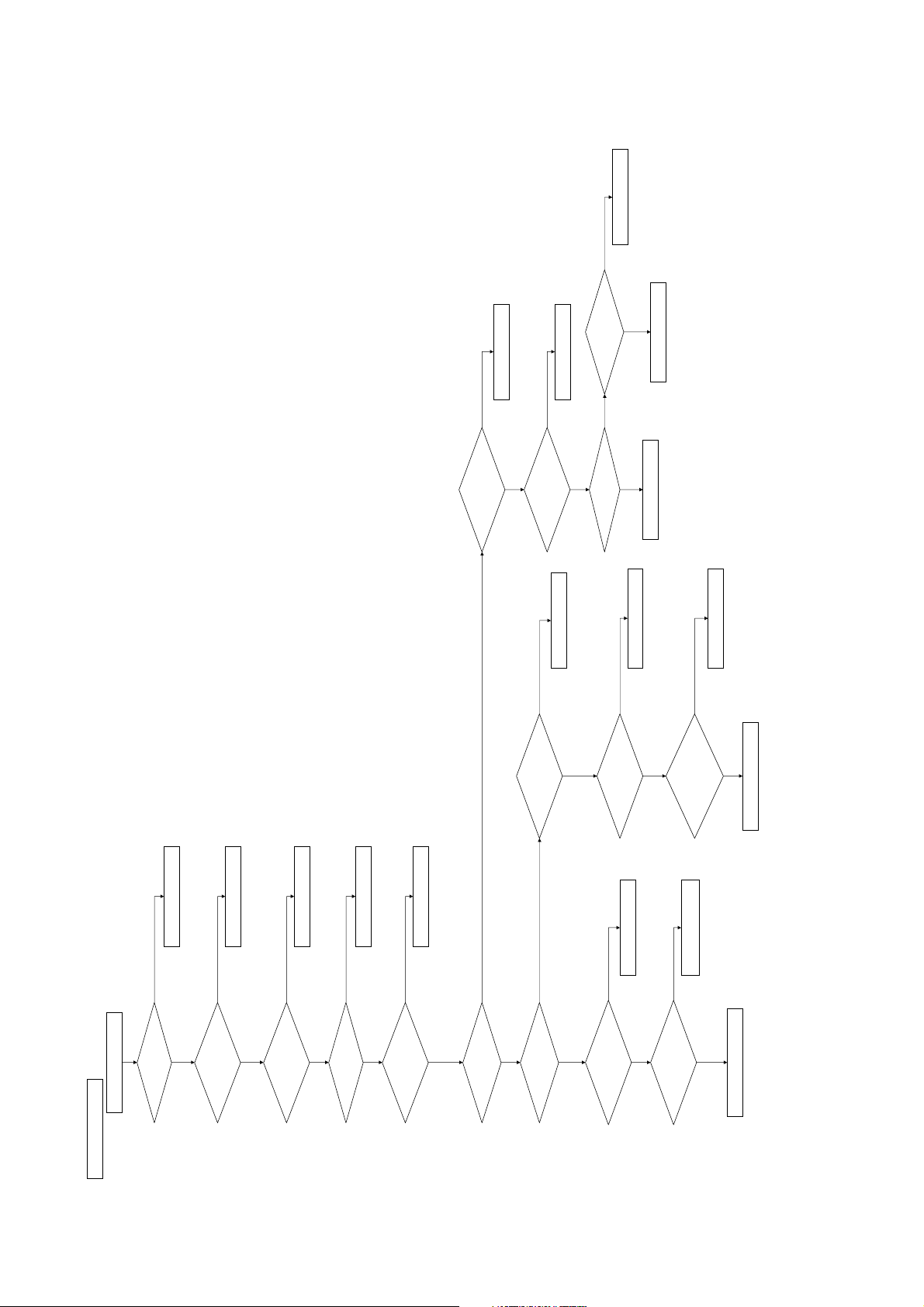

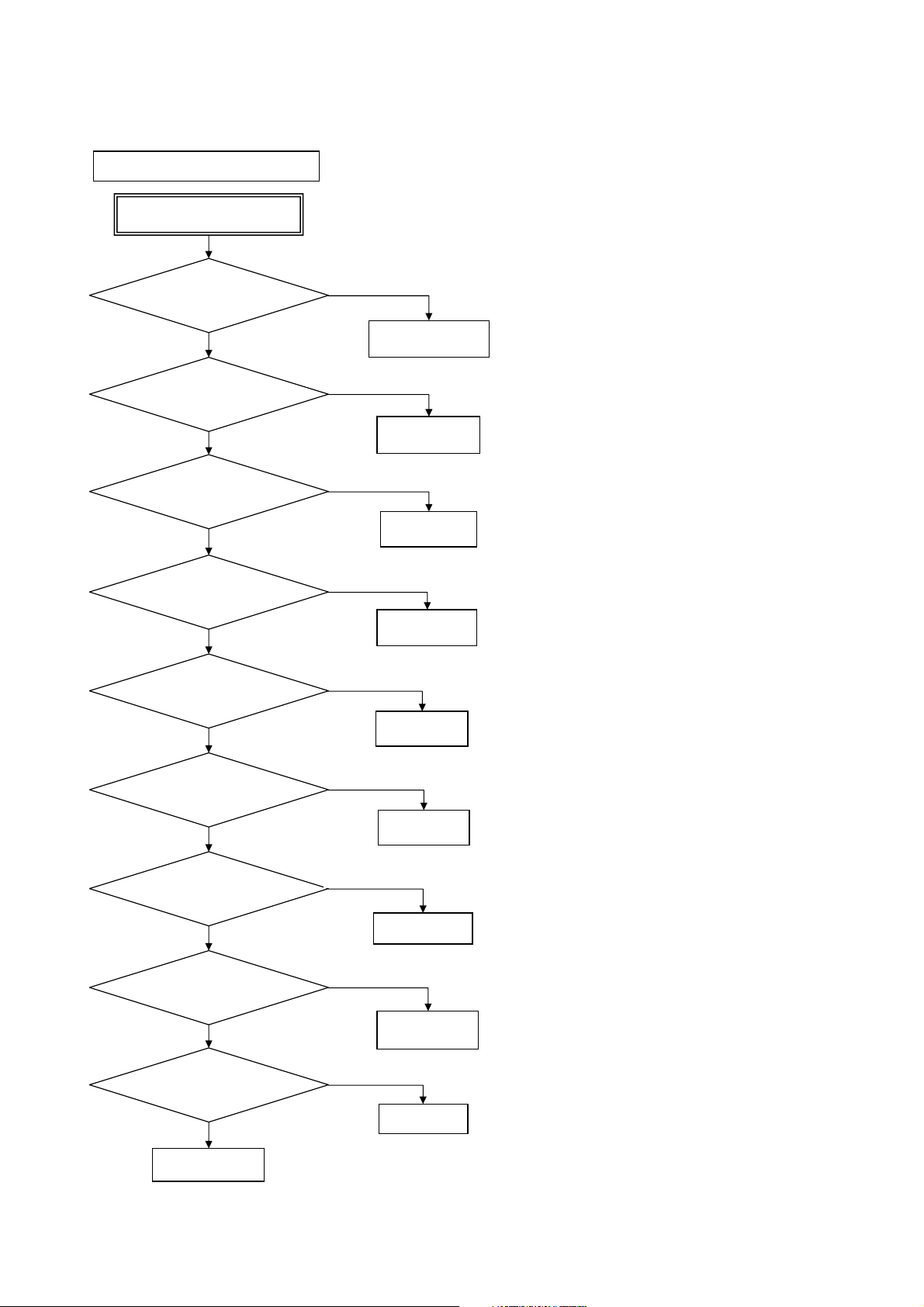

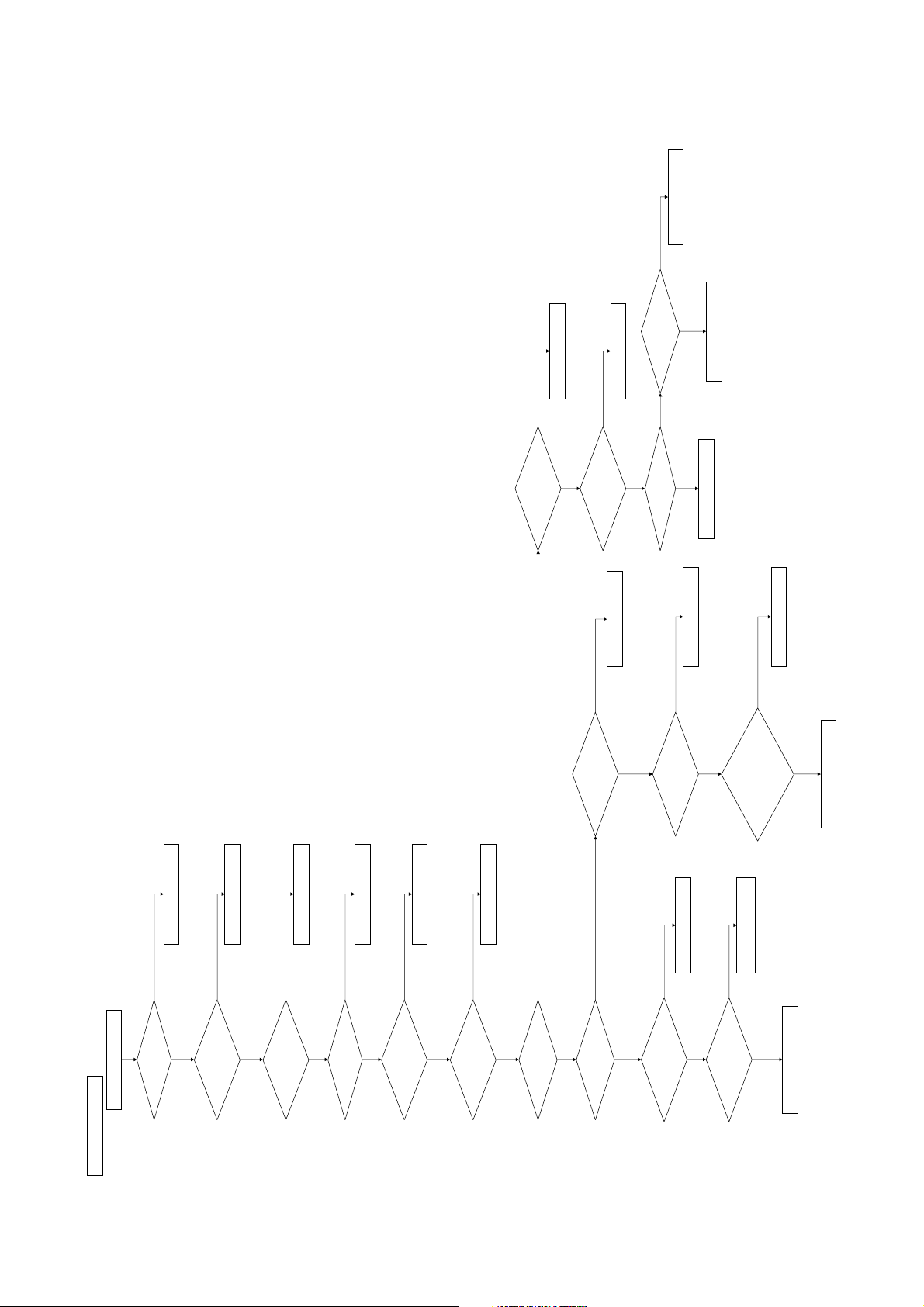

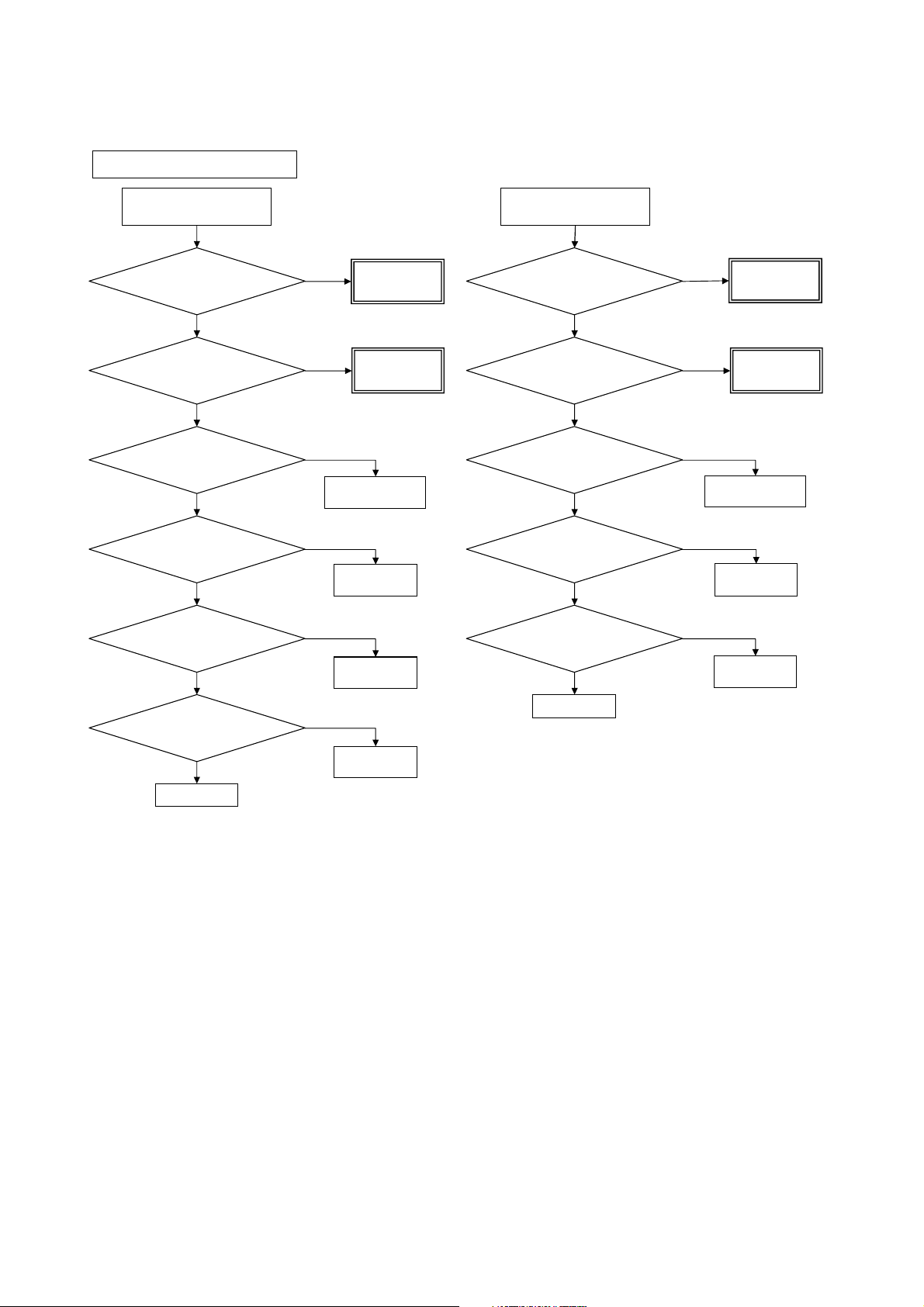

7. Troubleshooting --------------------------------------- 38

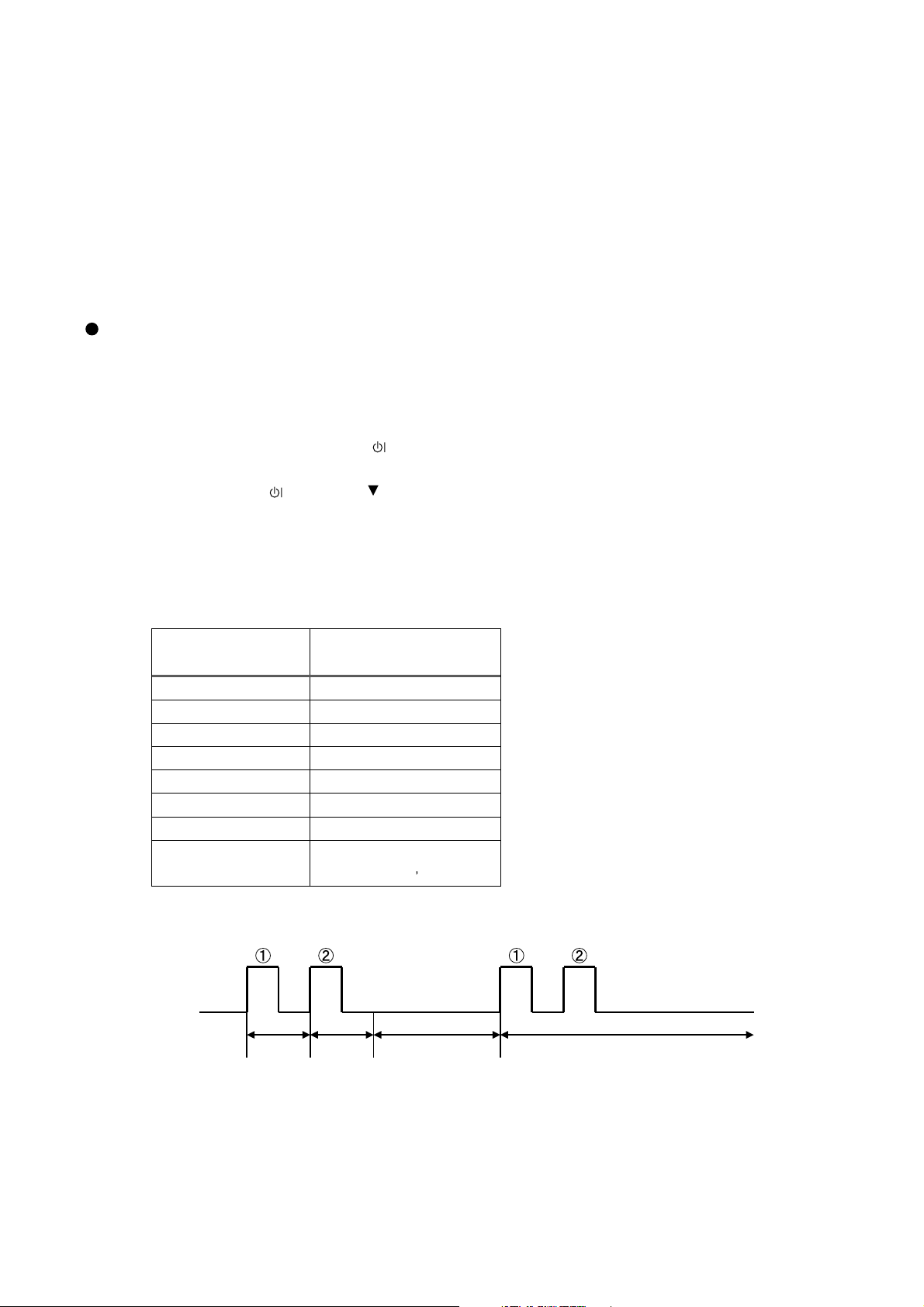

8. Self-diagnosis function ------------------------------ 53
SPECIFICATIONS AND PARTS ARE SUBJECT TO CHANGE FOR IMPROVEMENT.

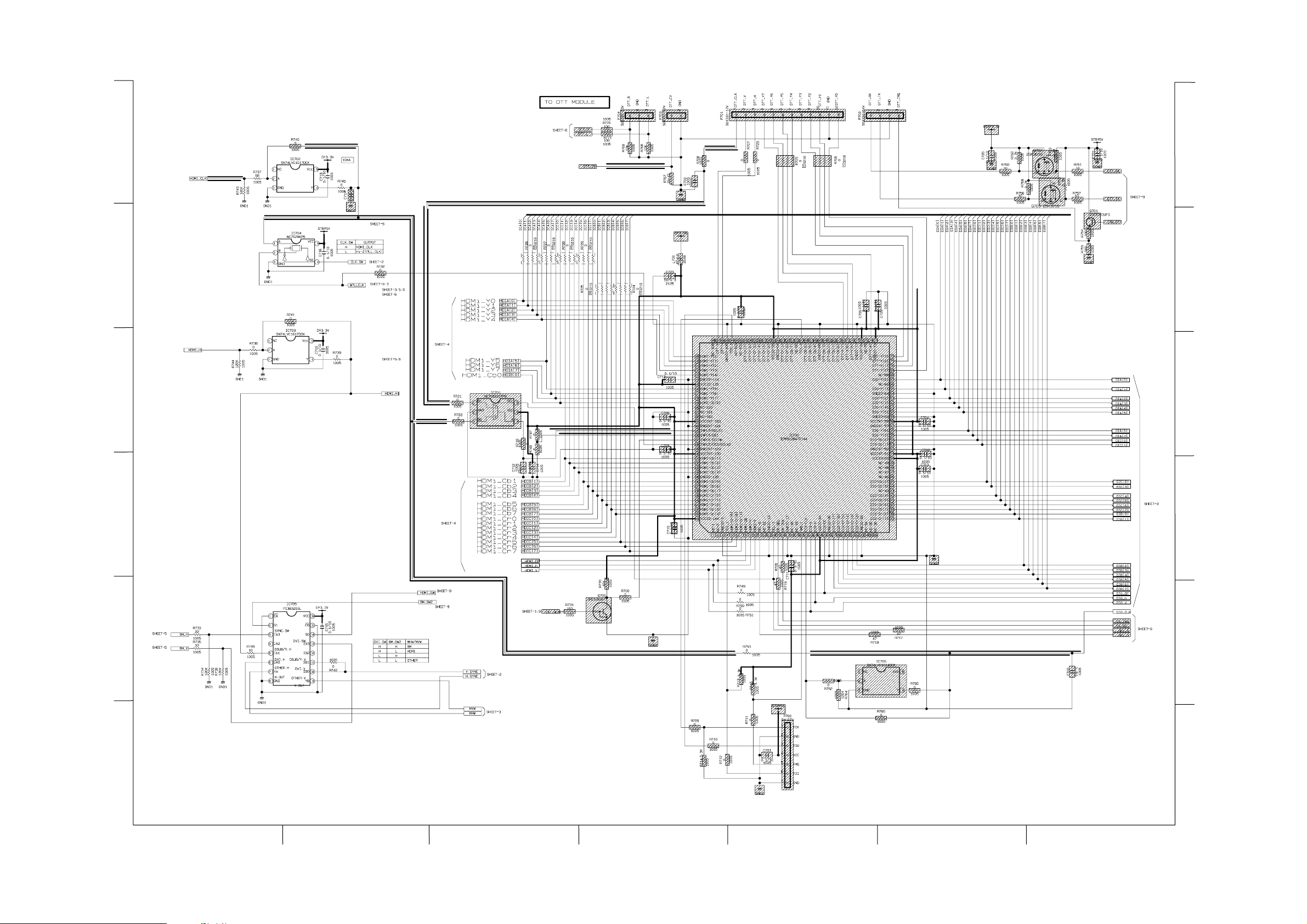

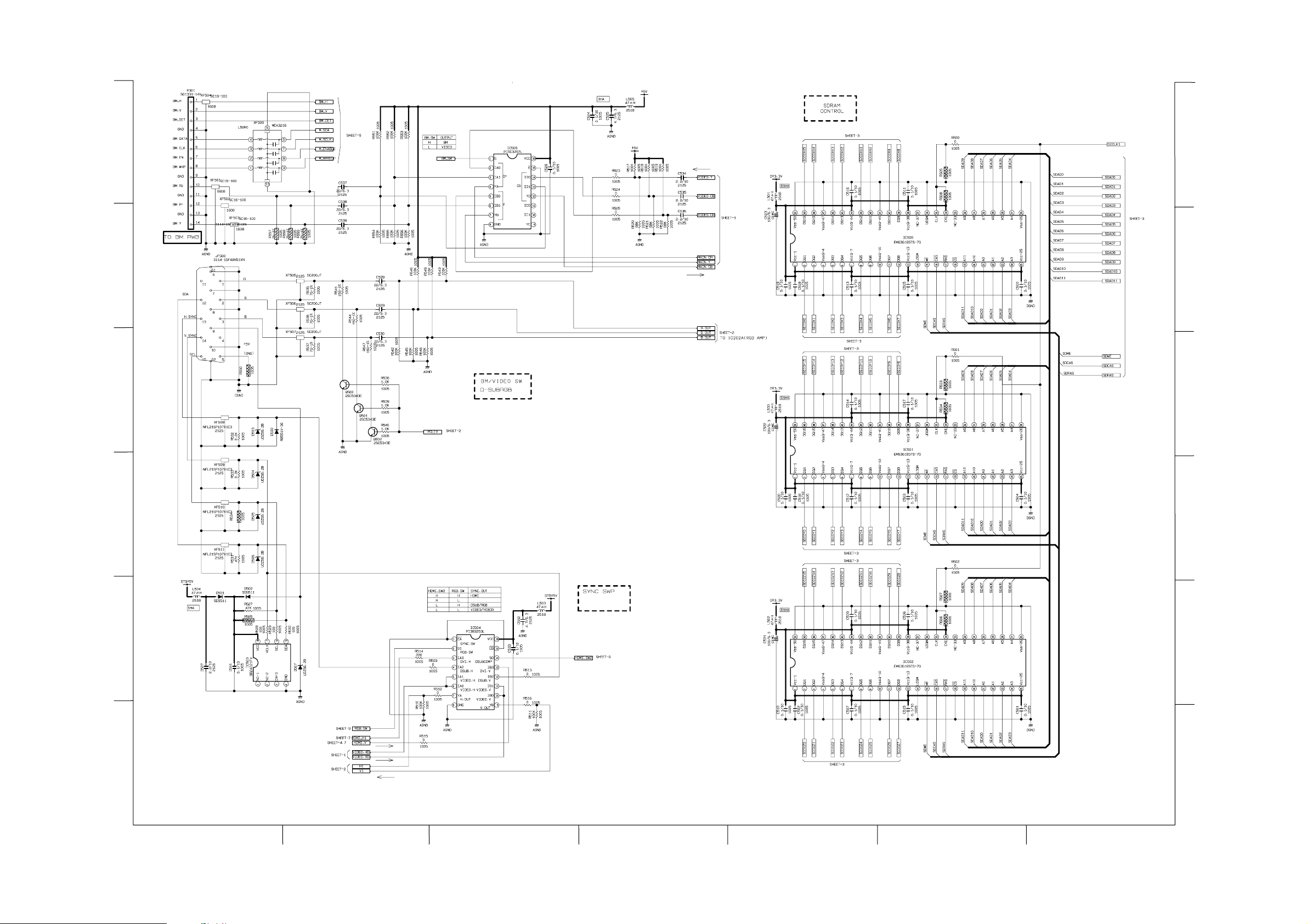

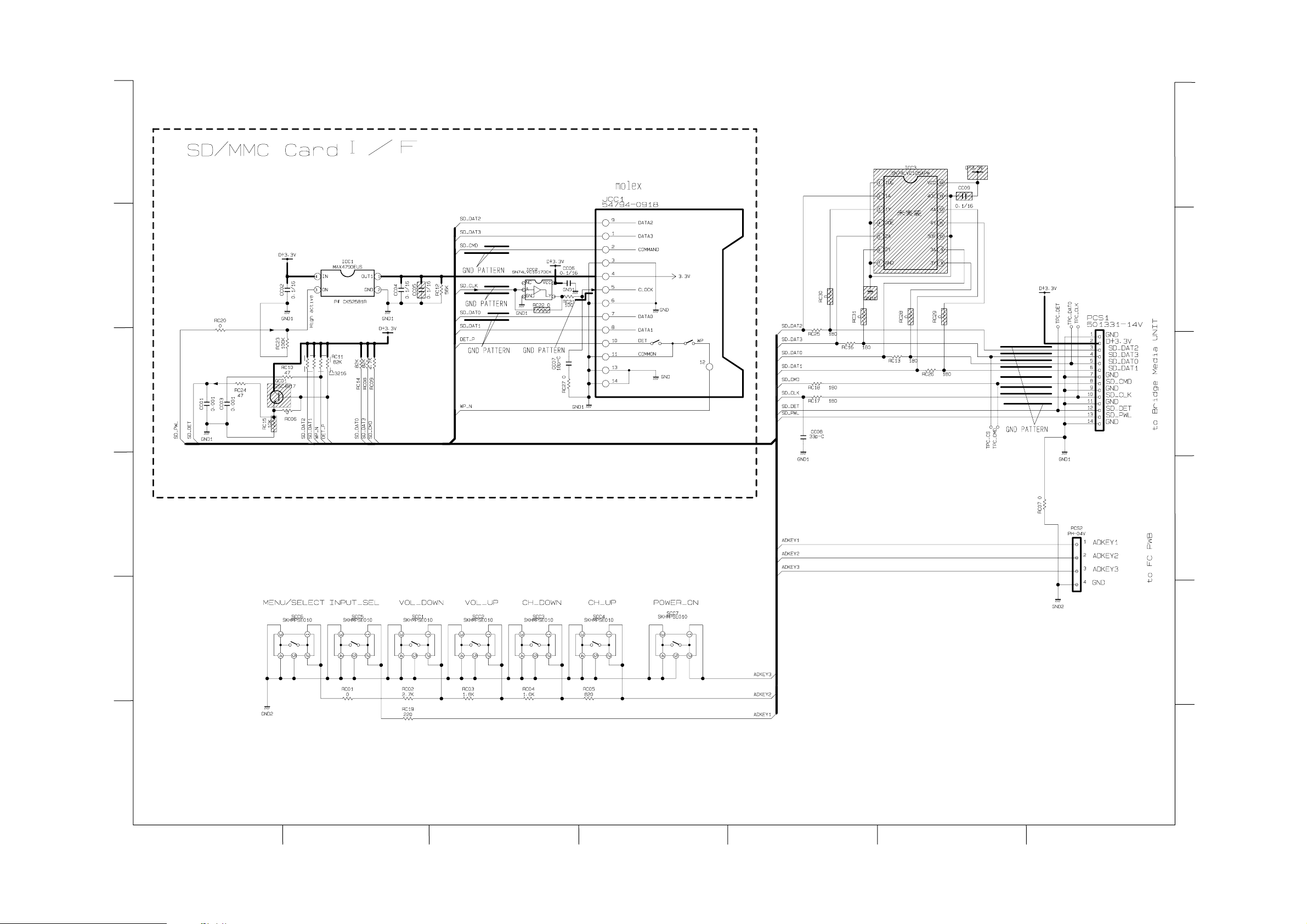

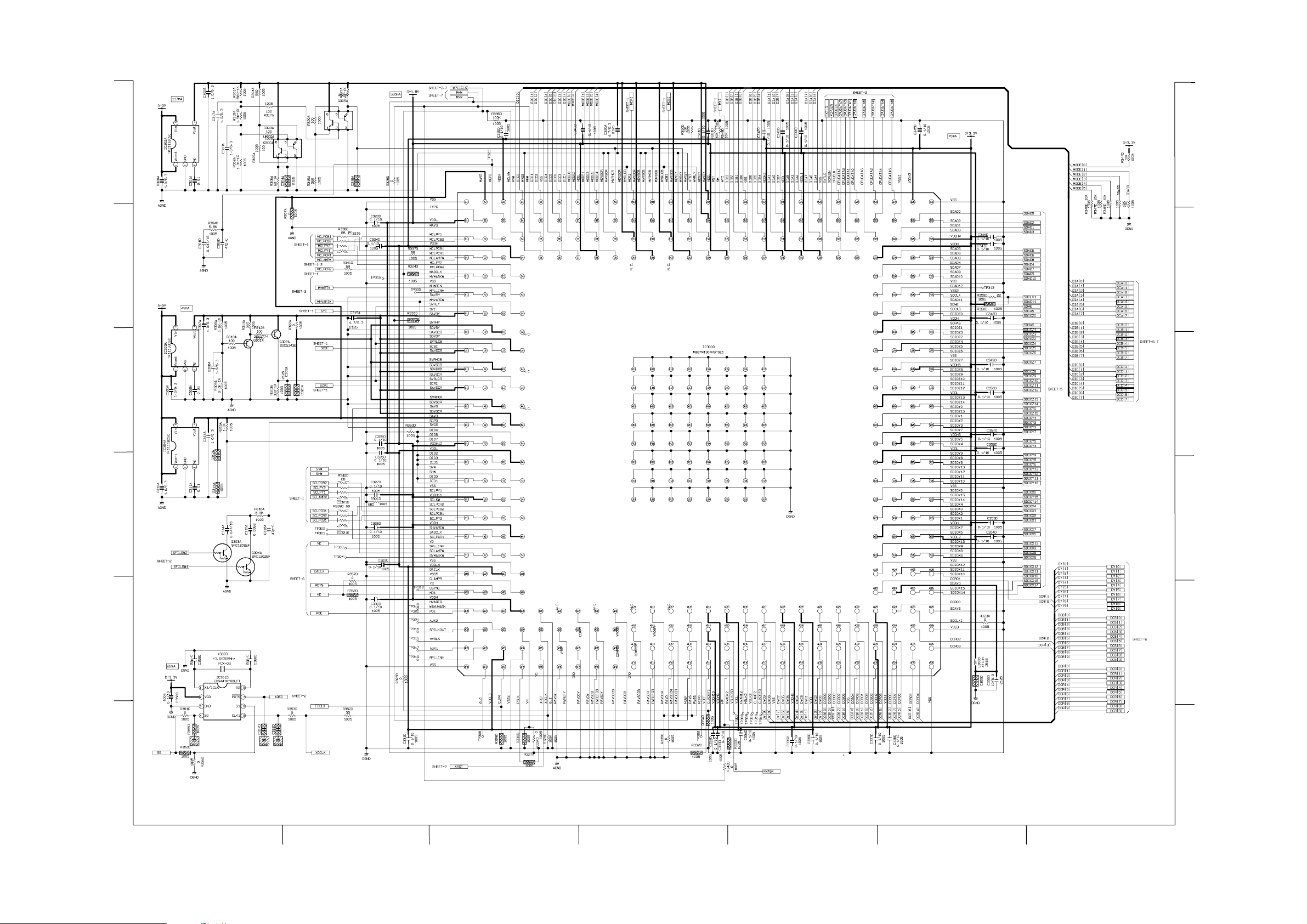

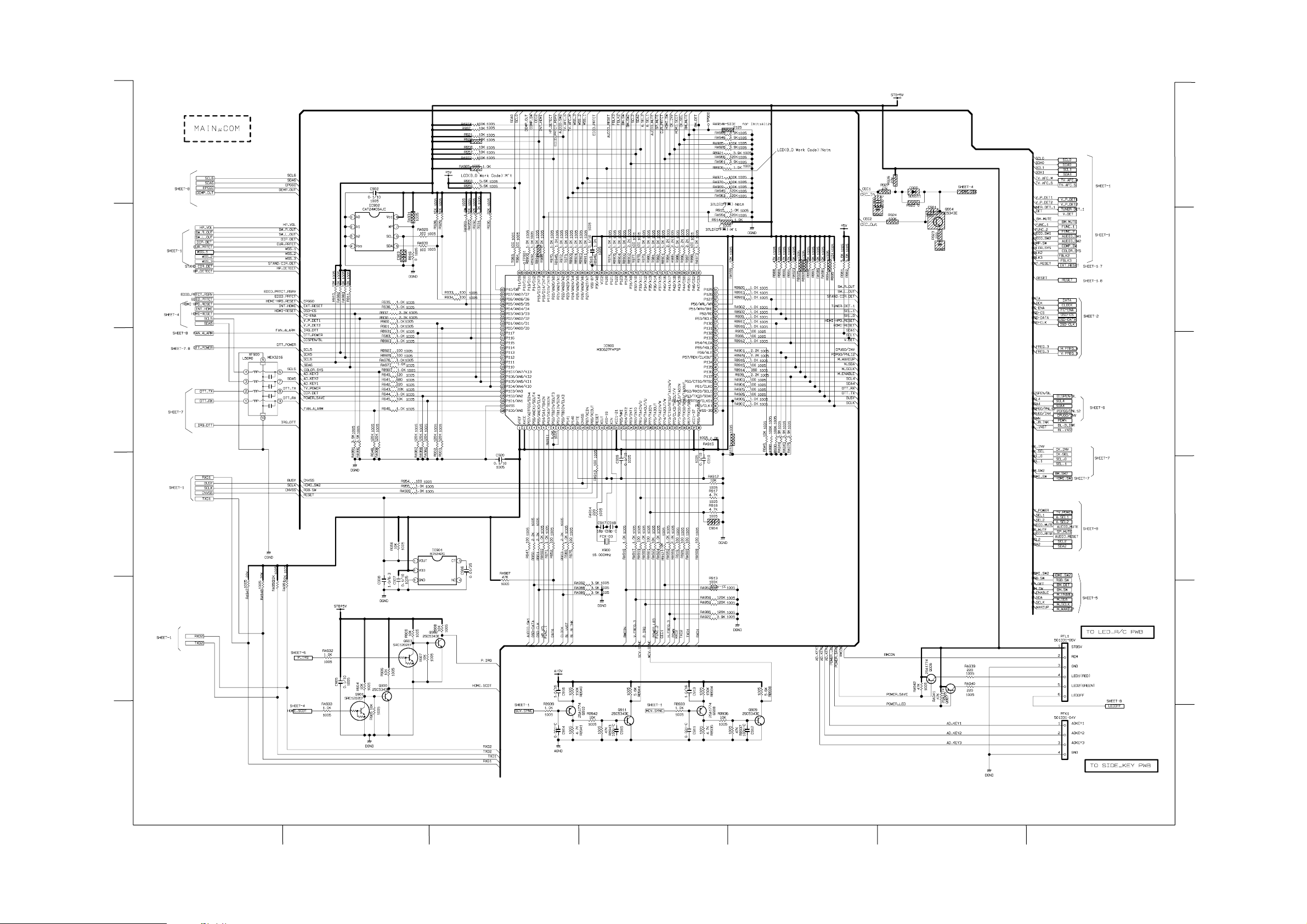

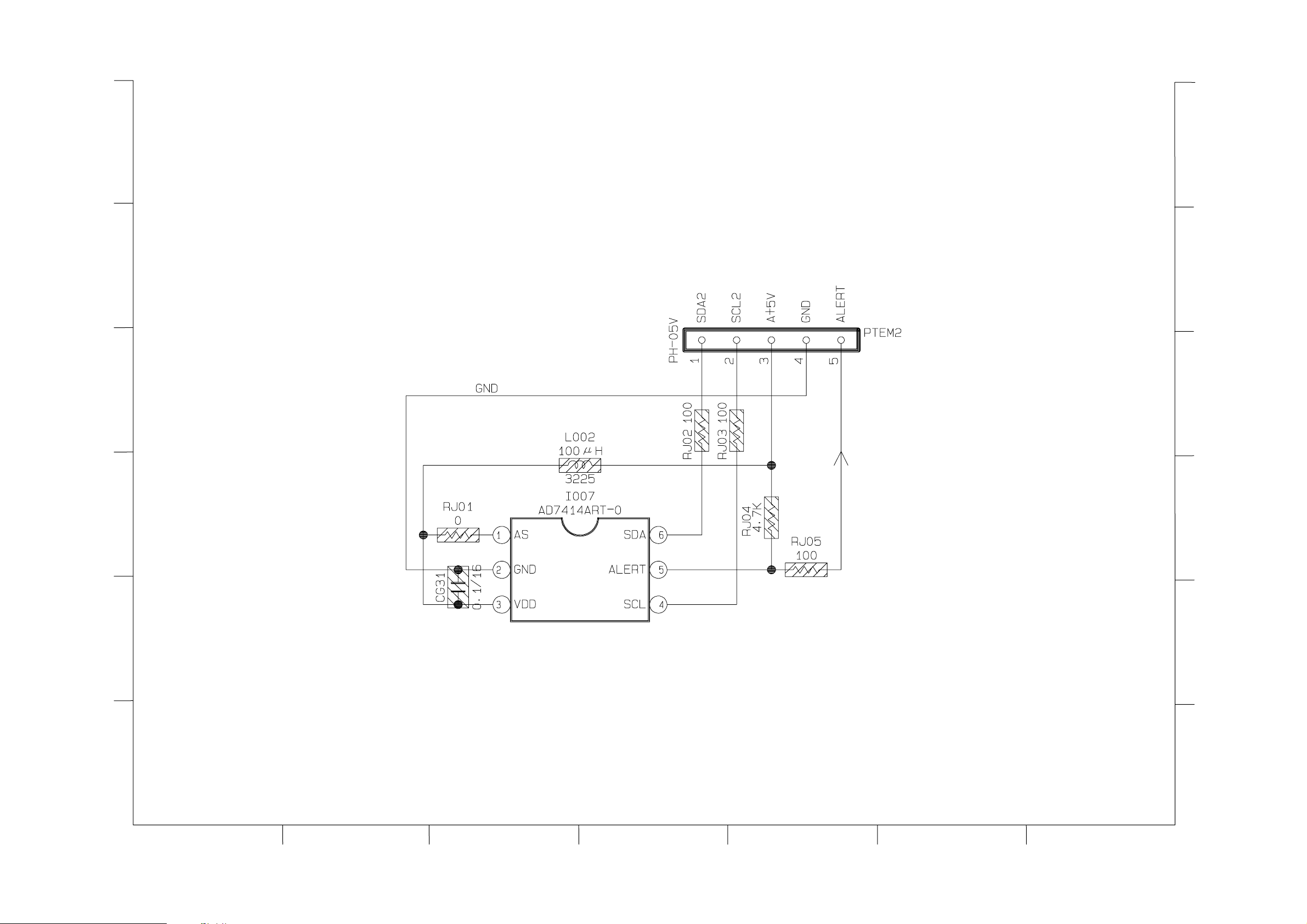

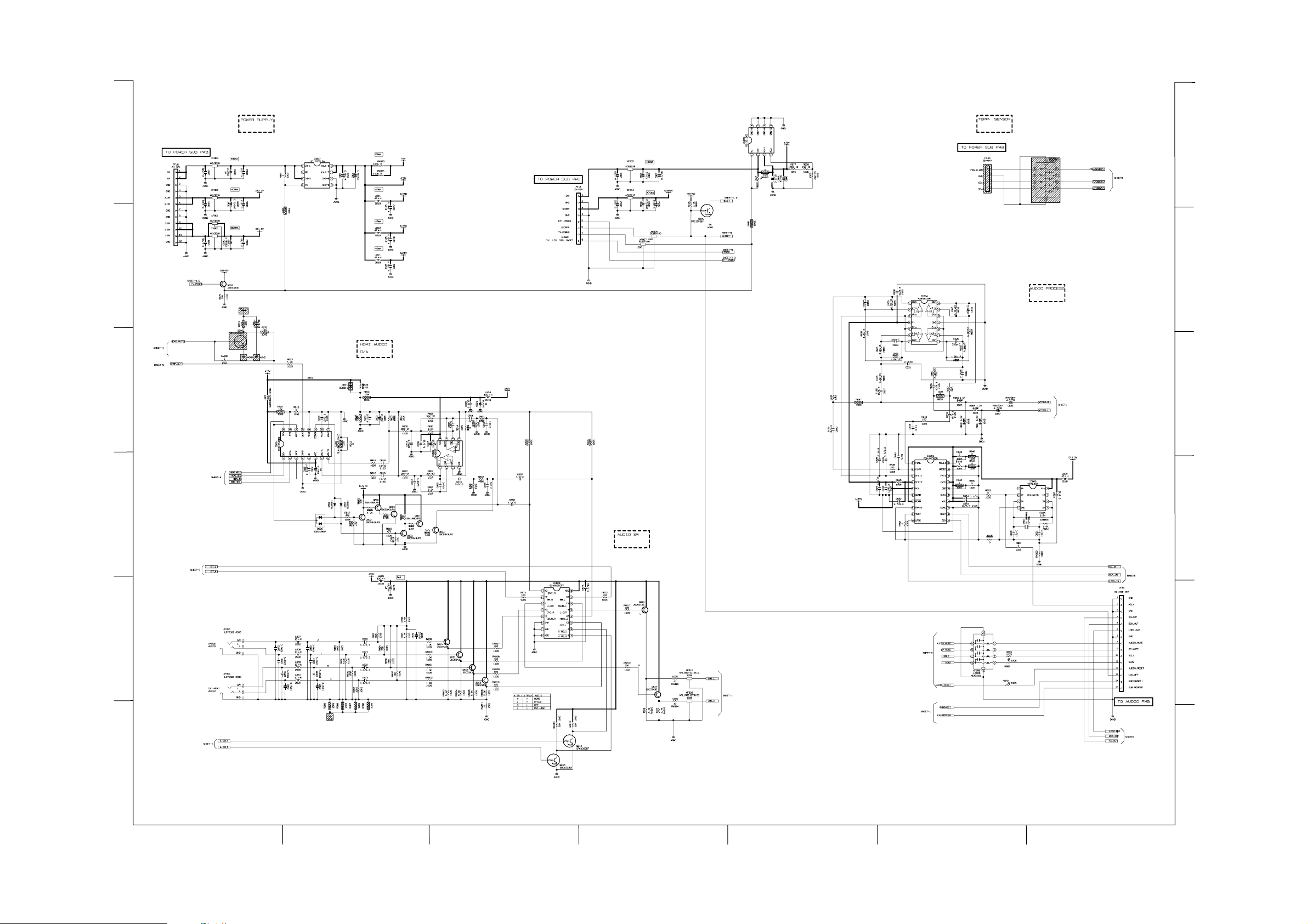

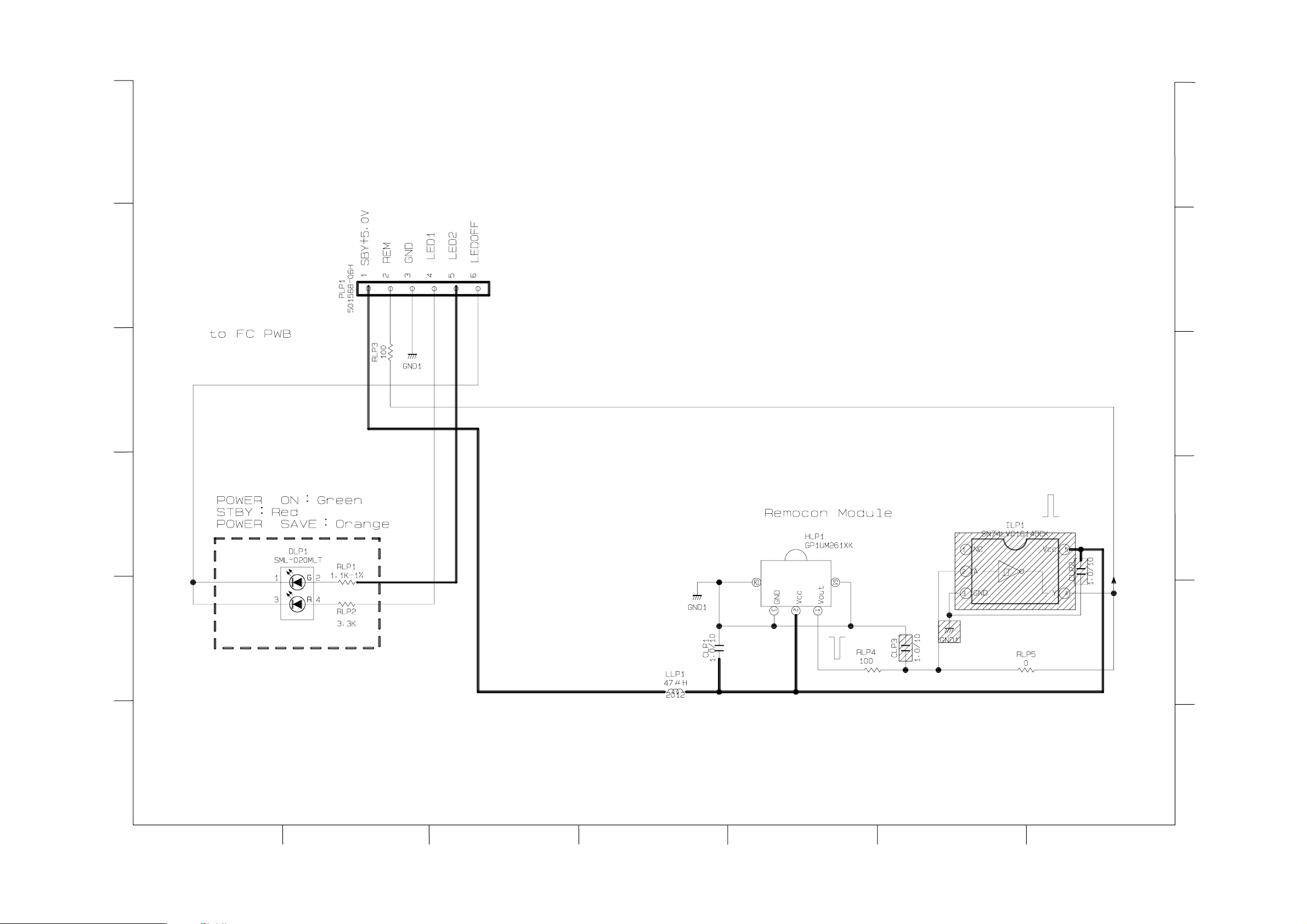

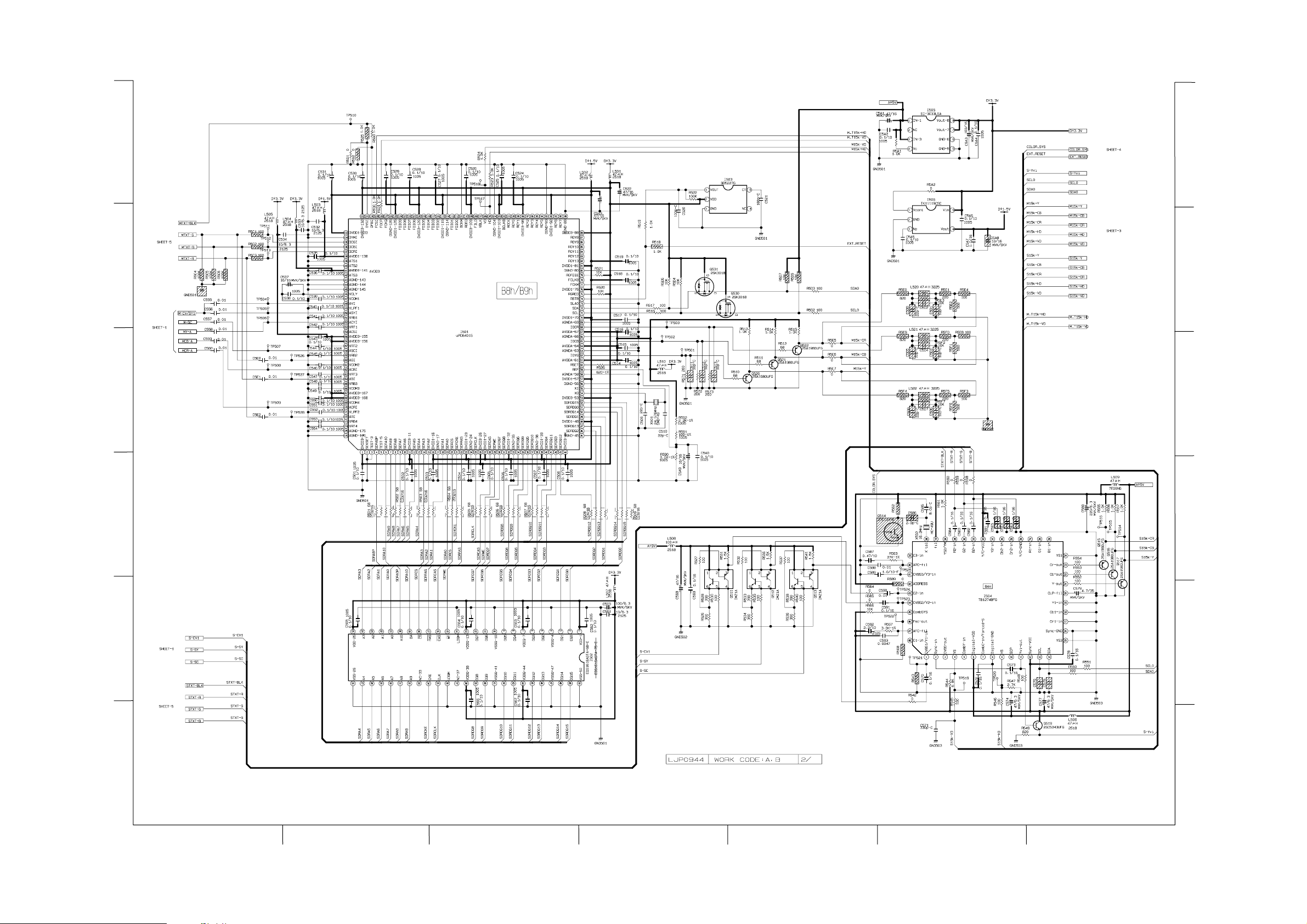

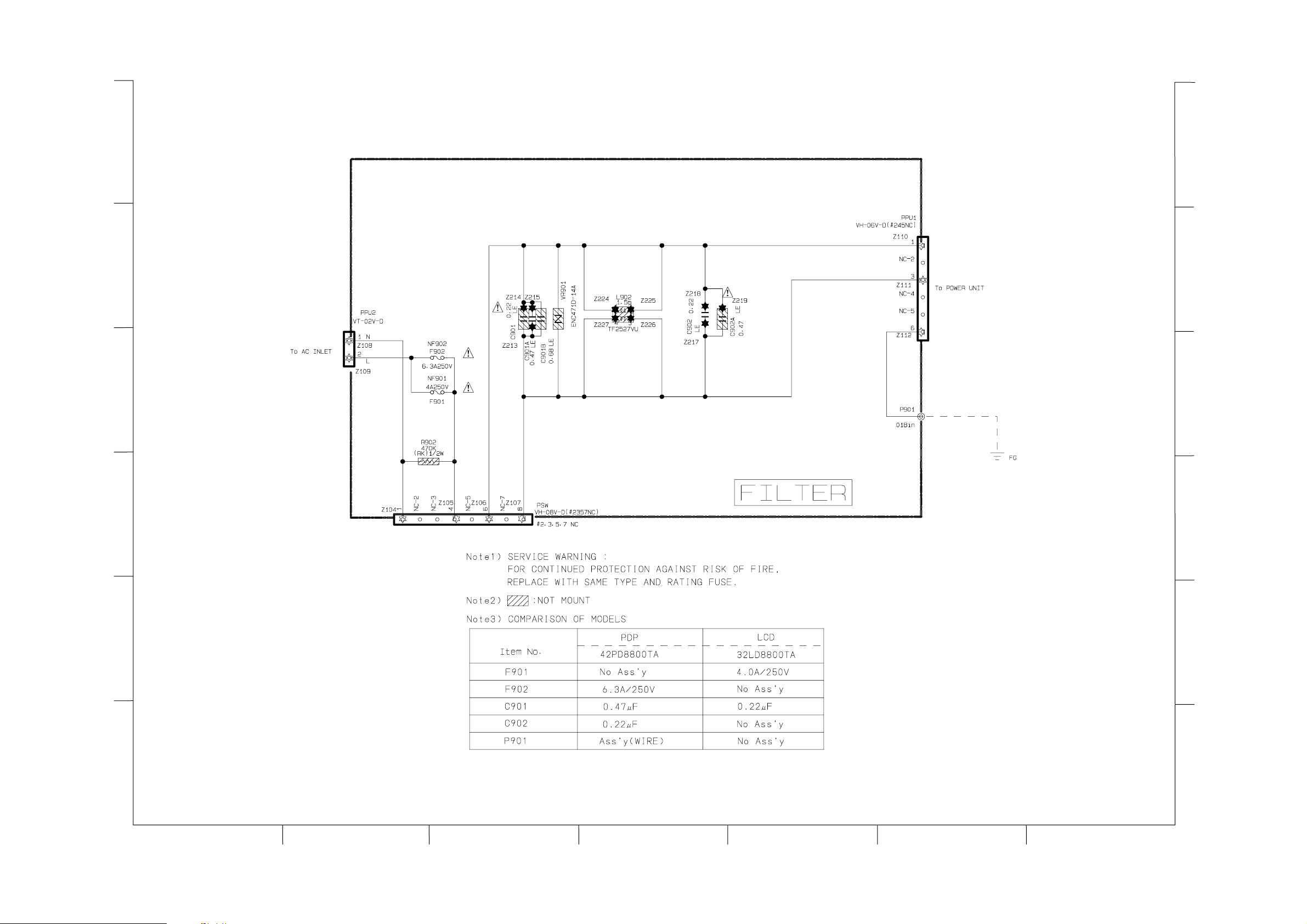

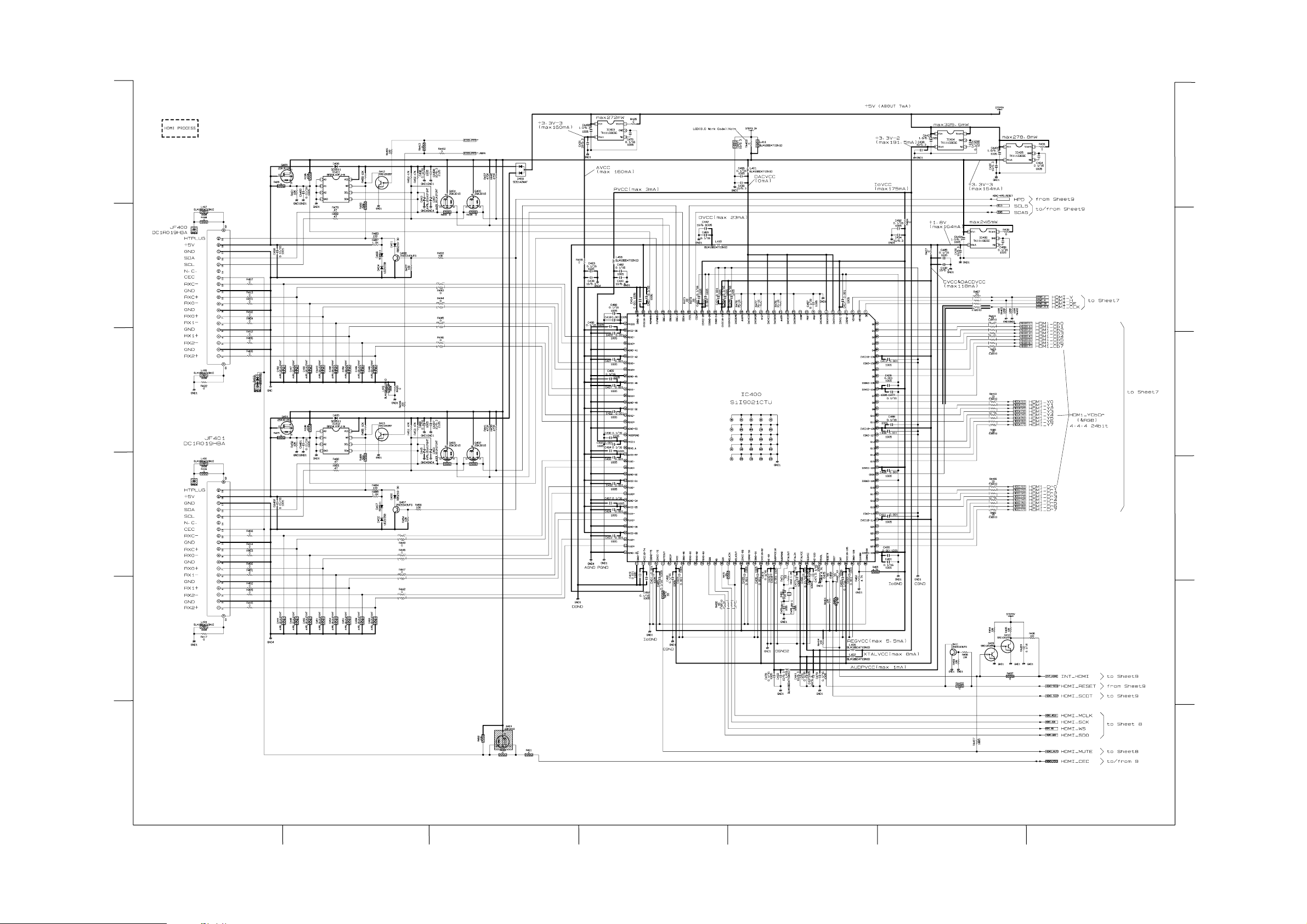

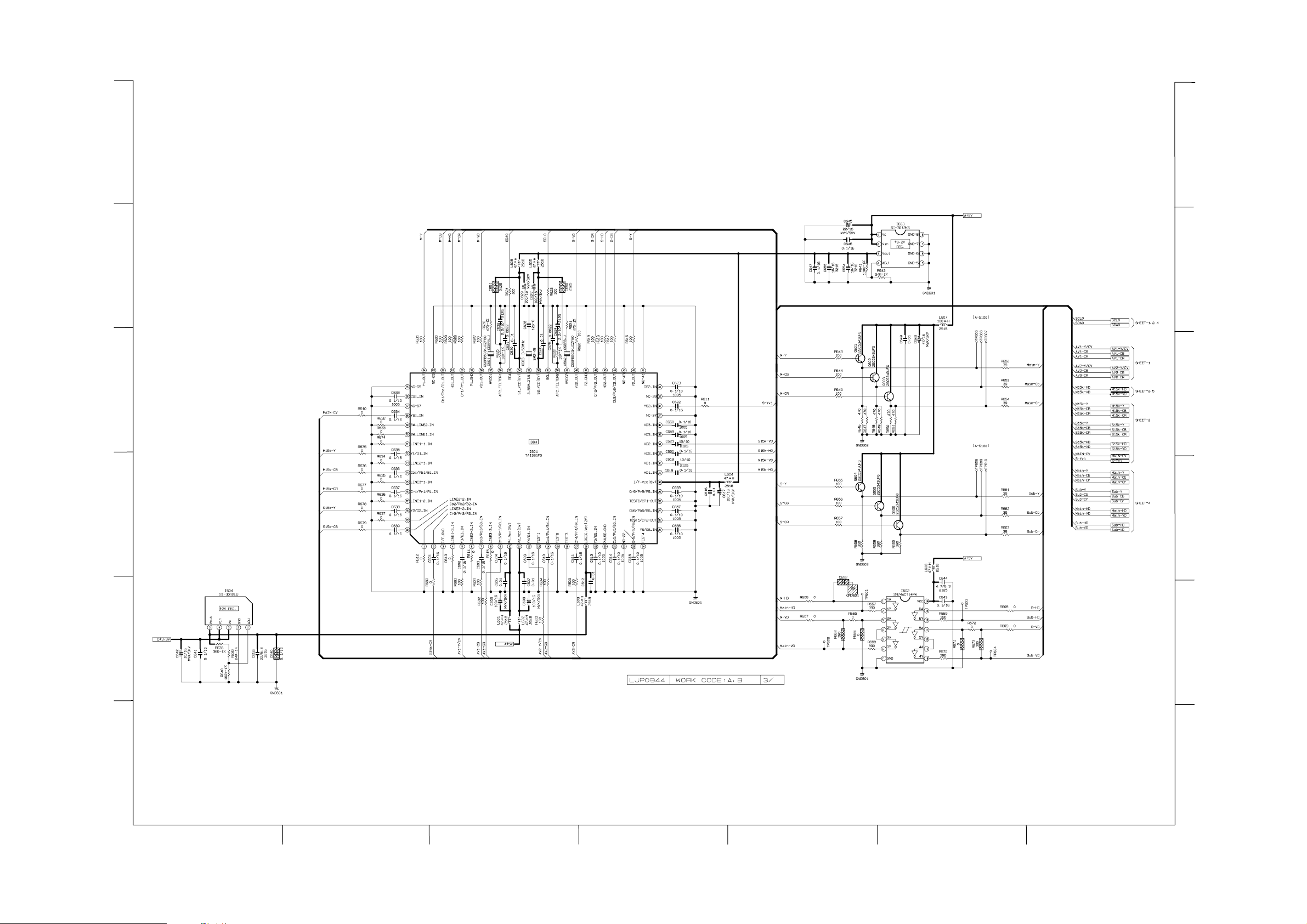

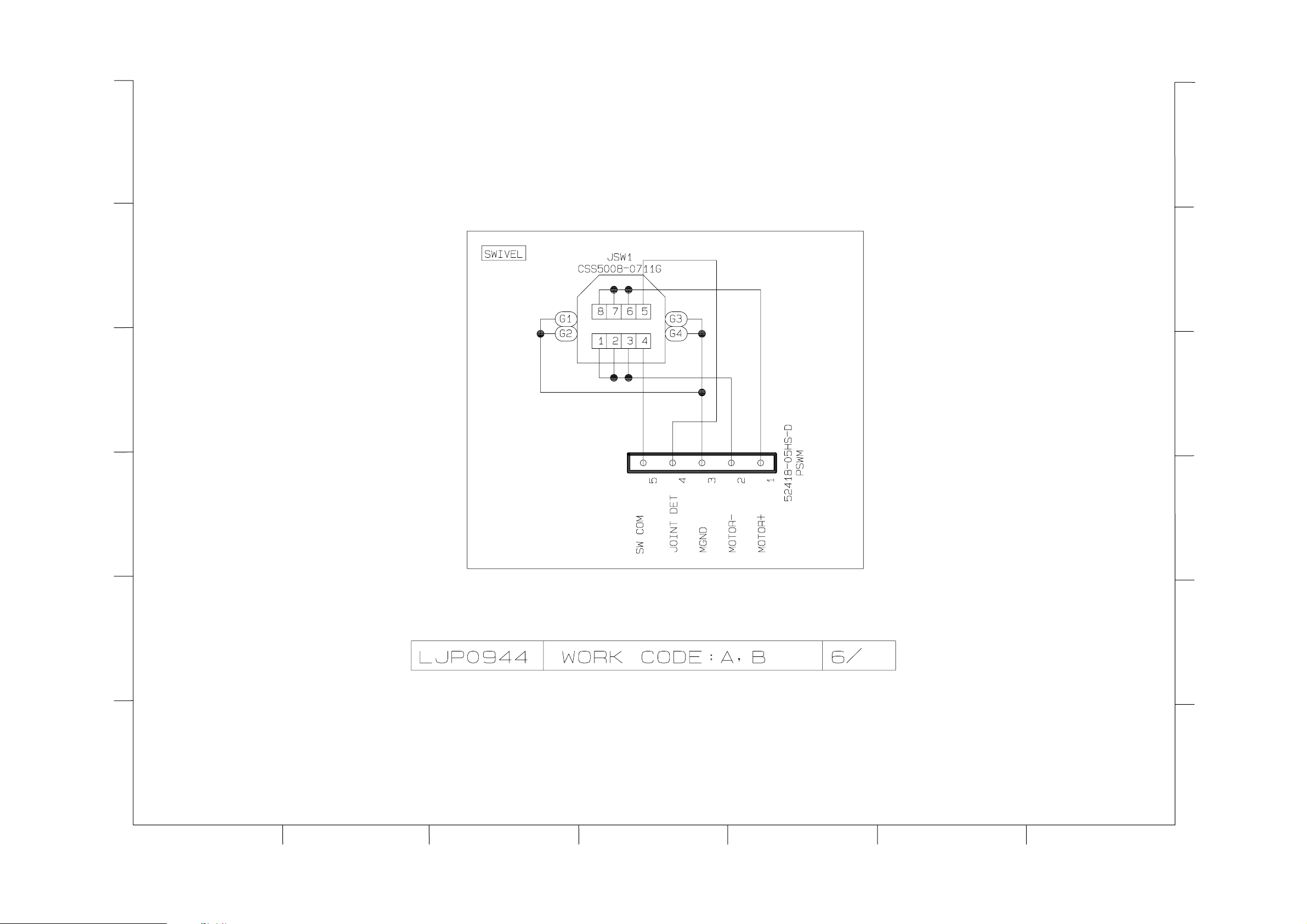

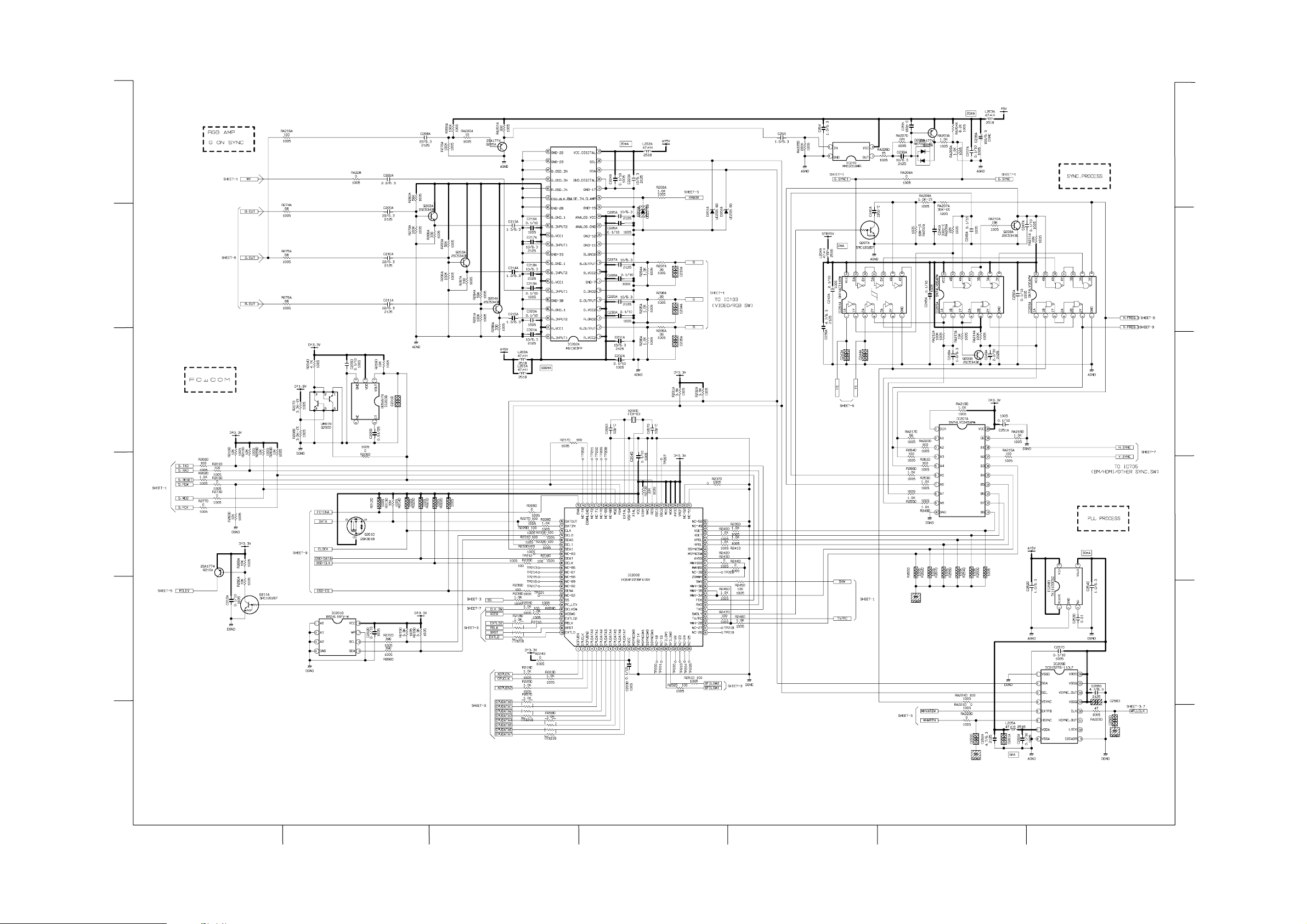

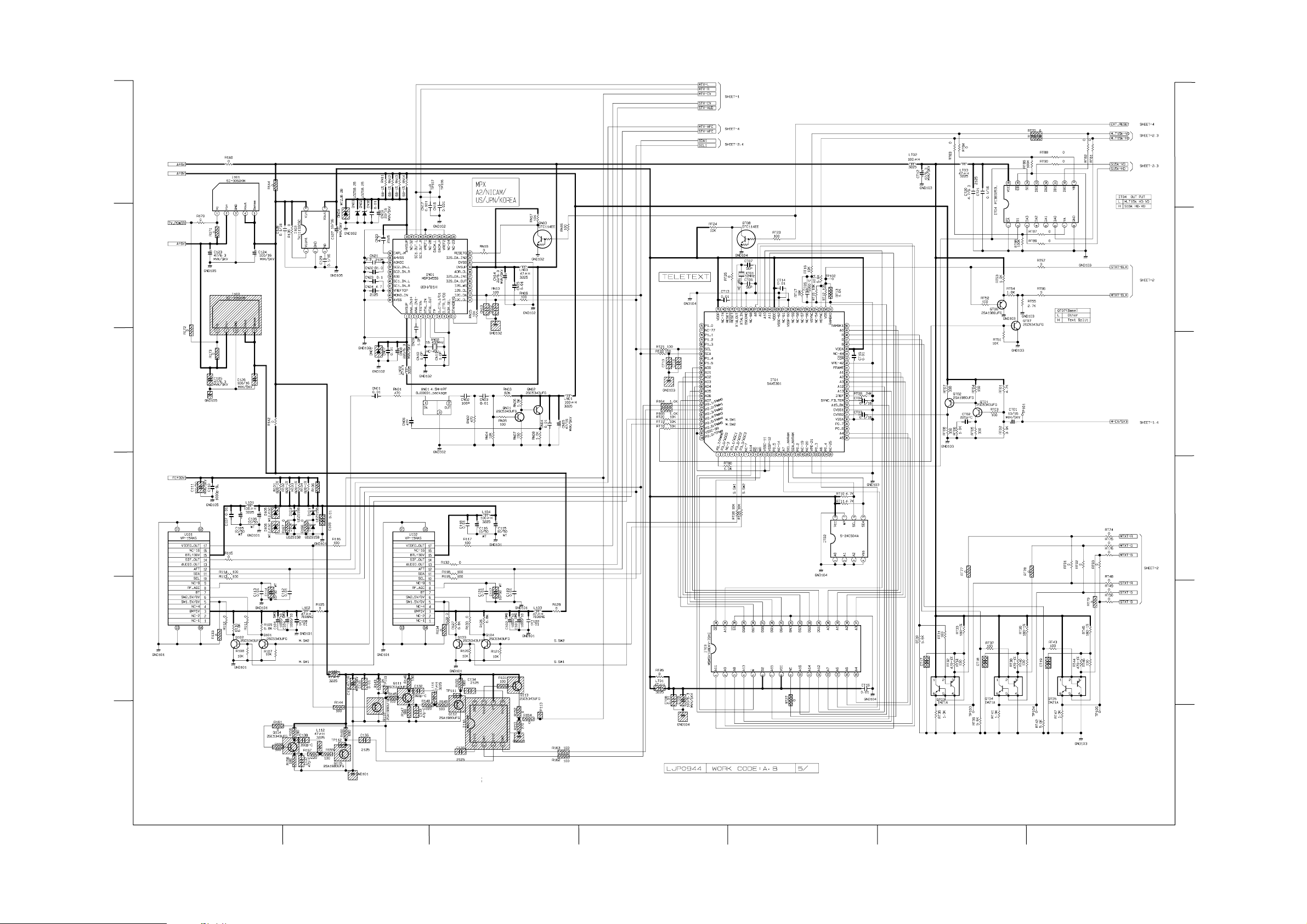

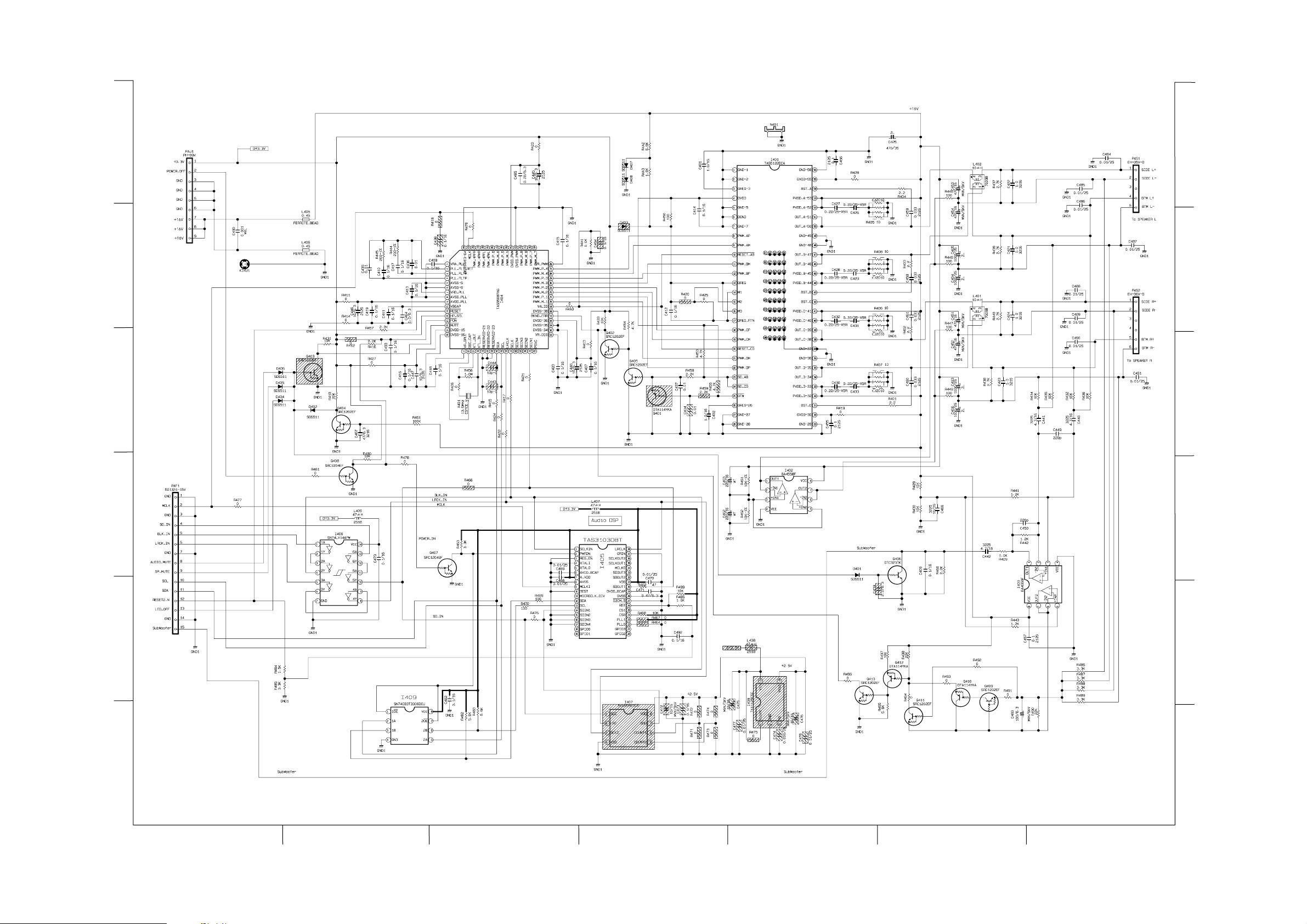

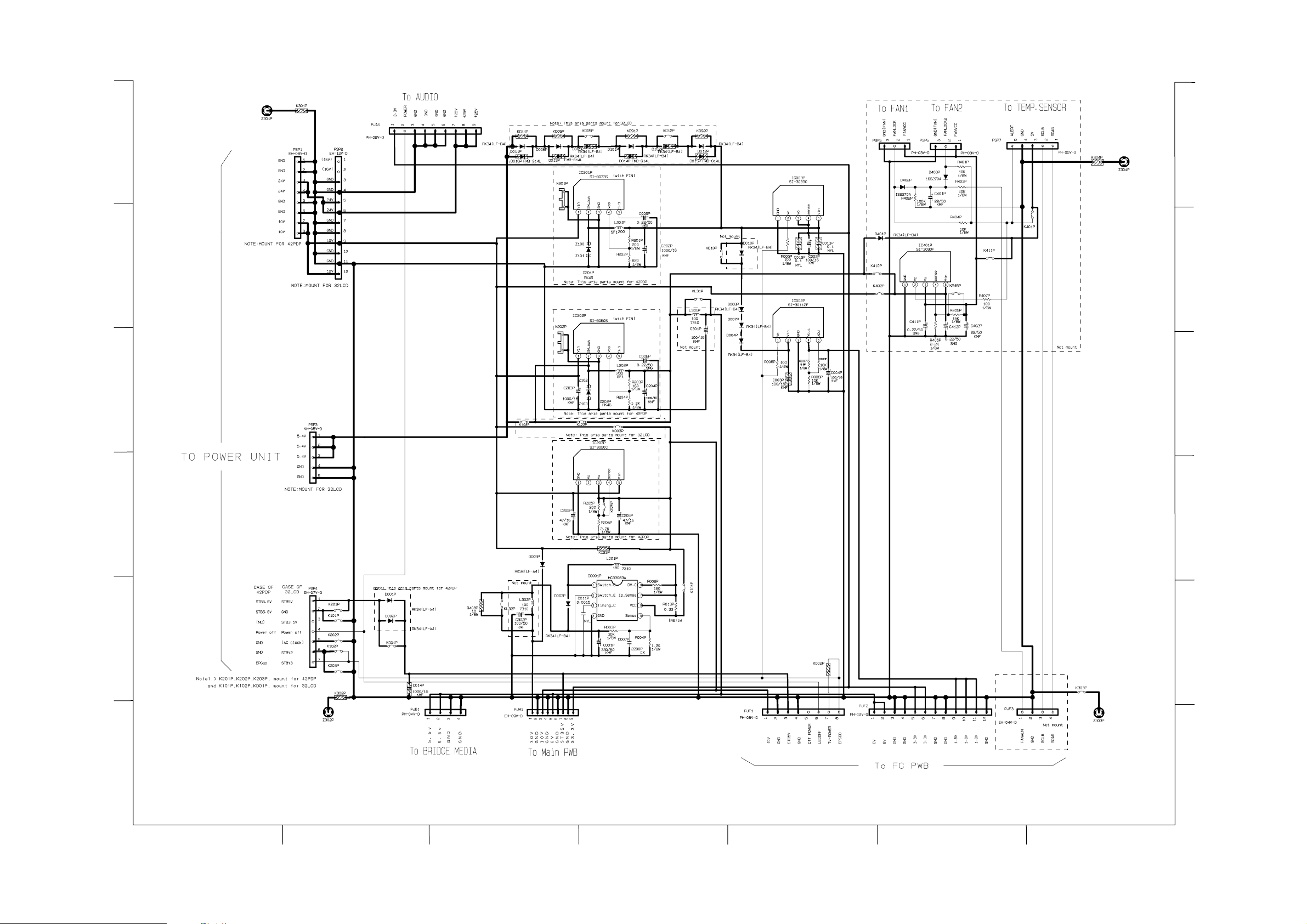

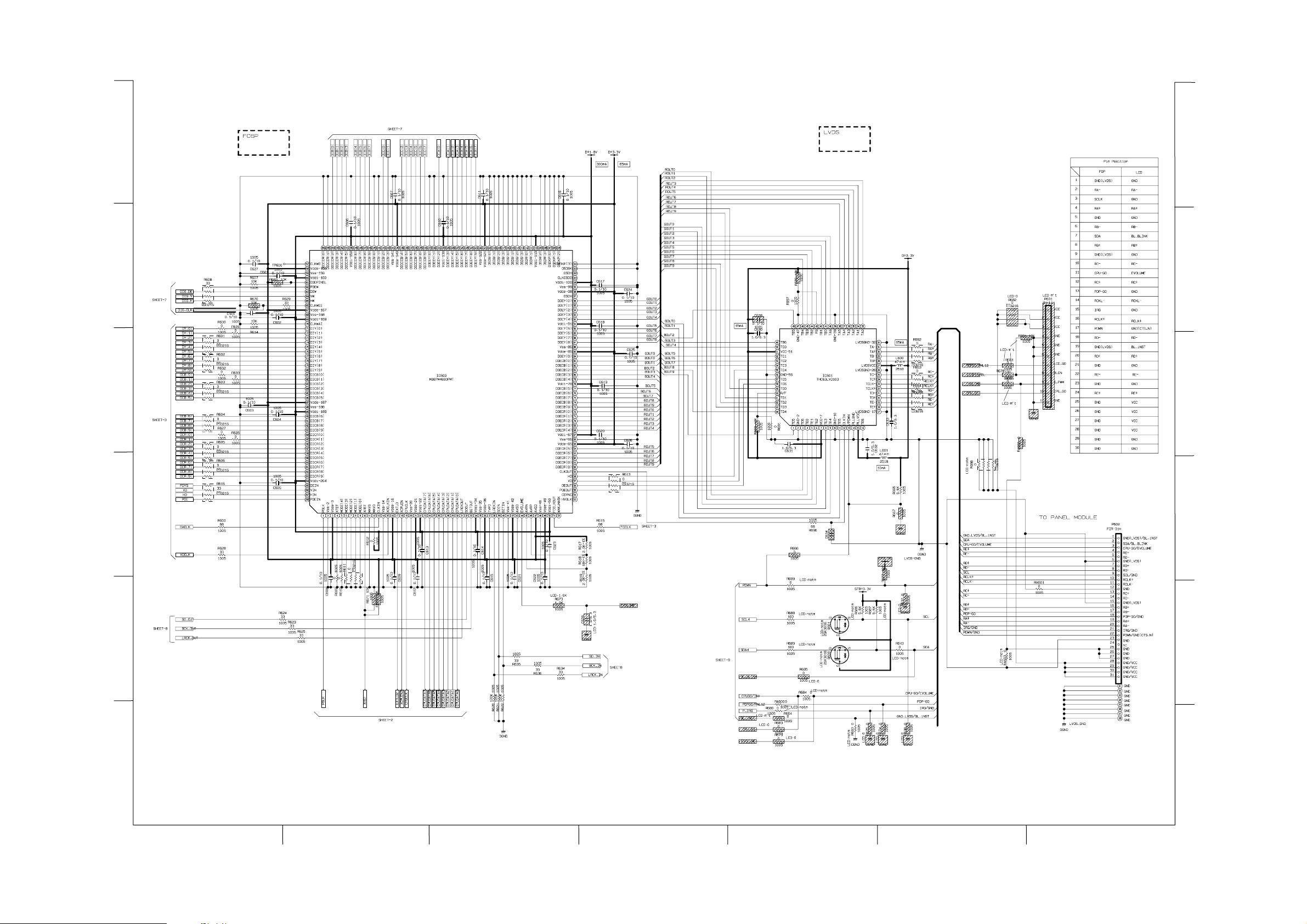

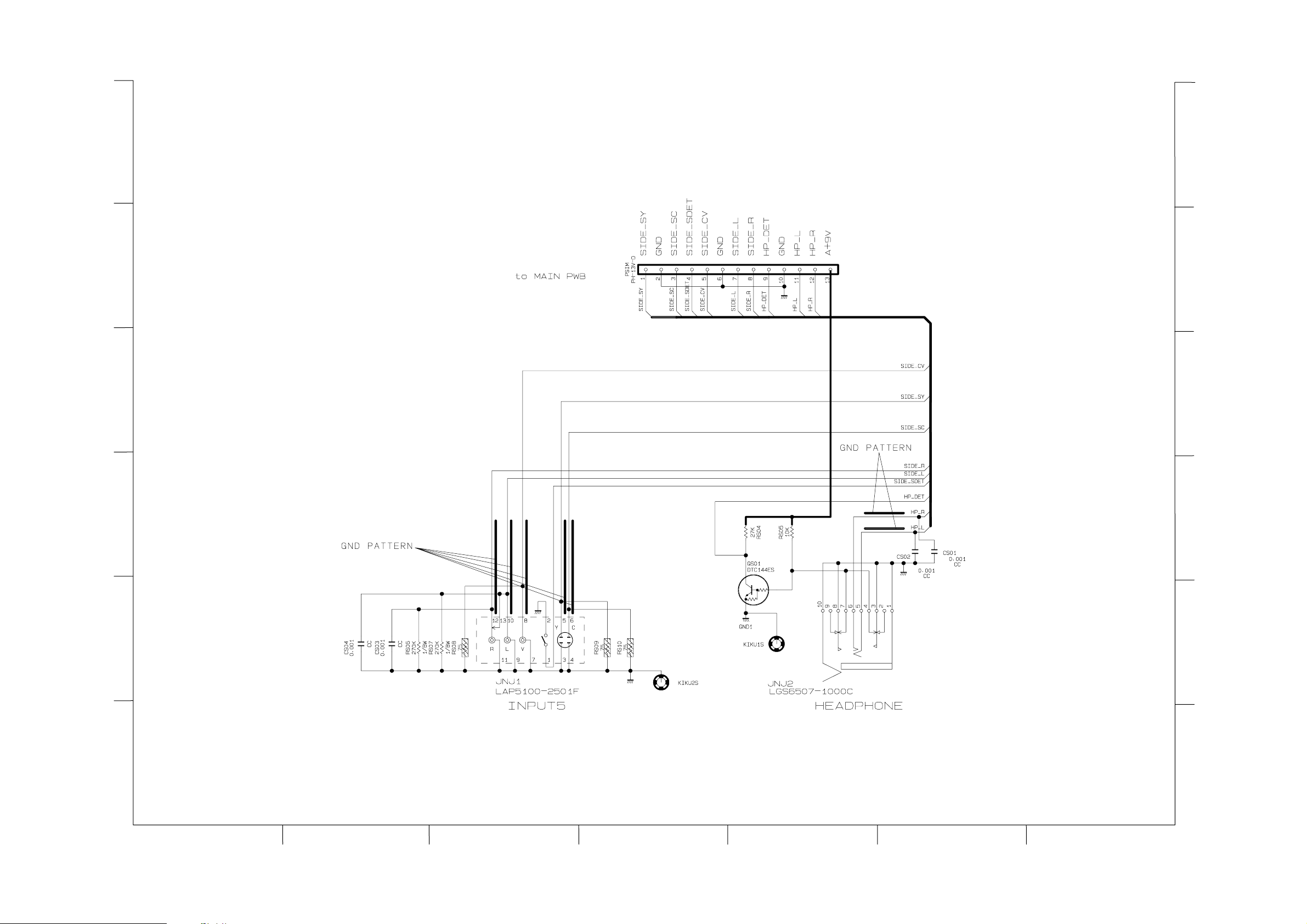

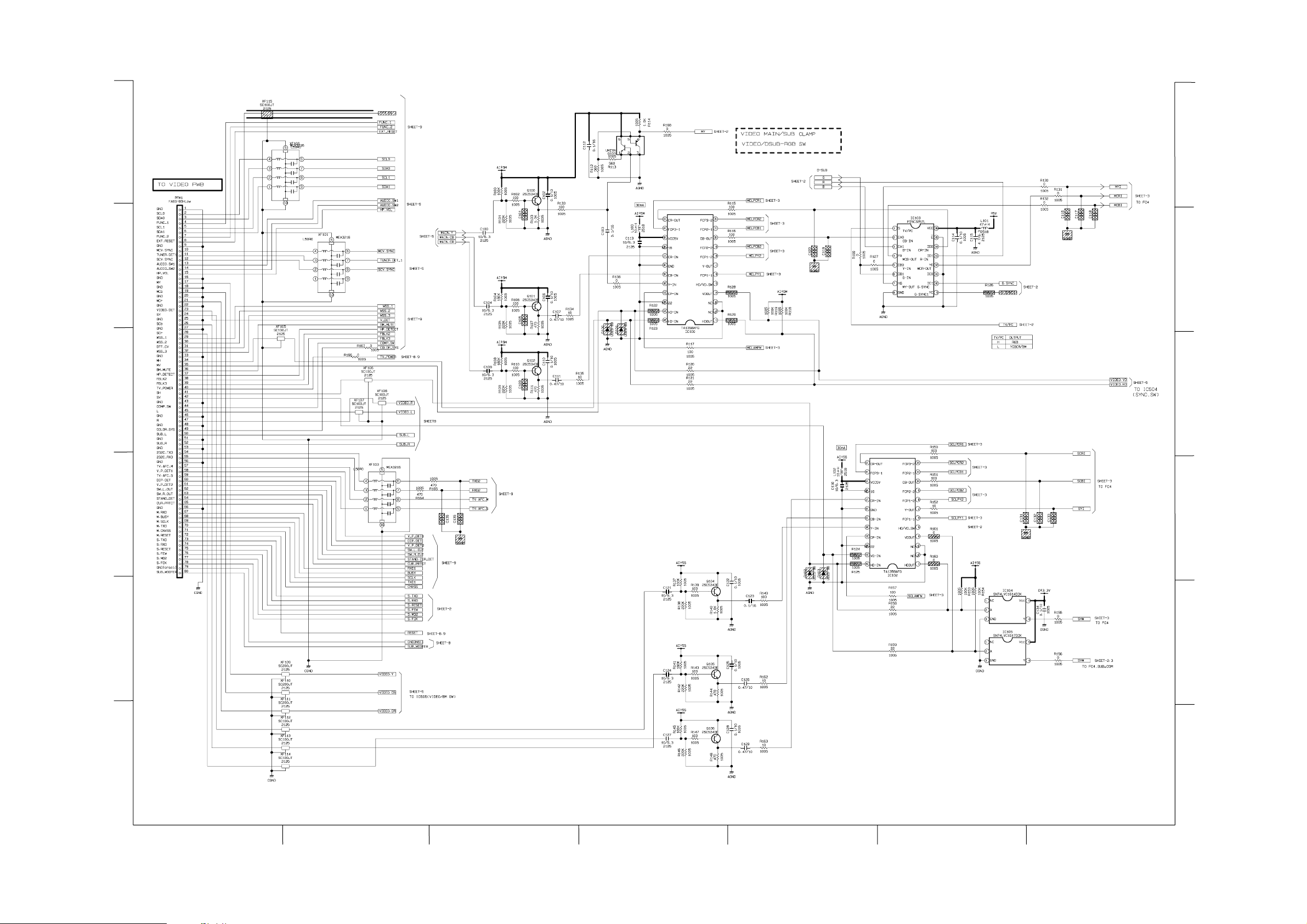

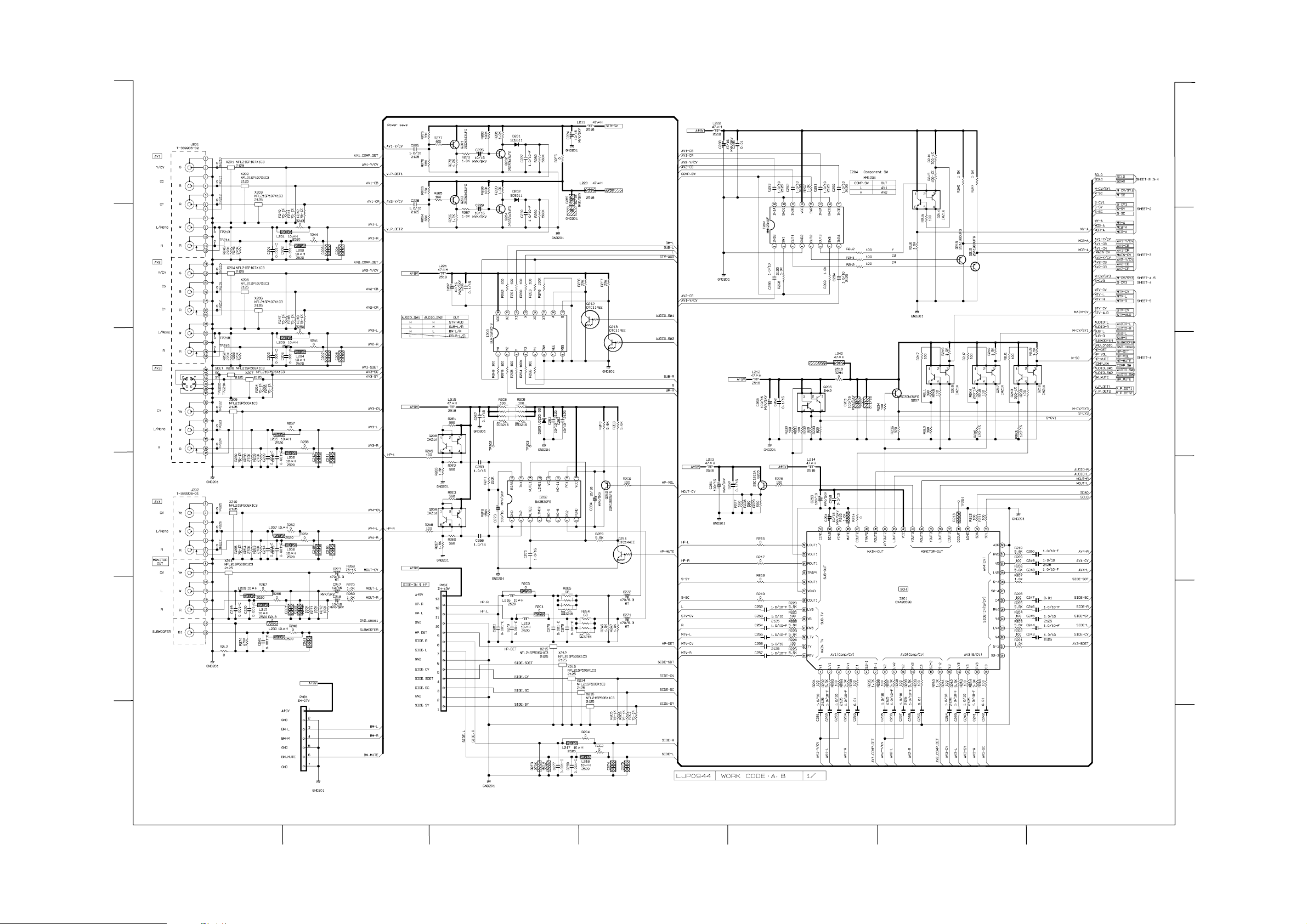

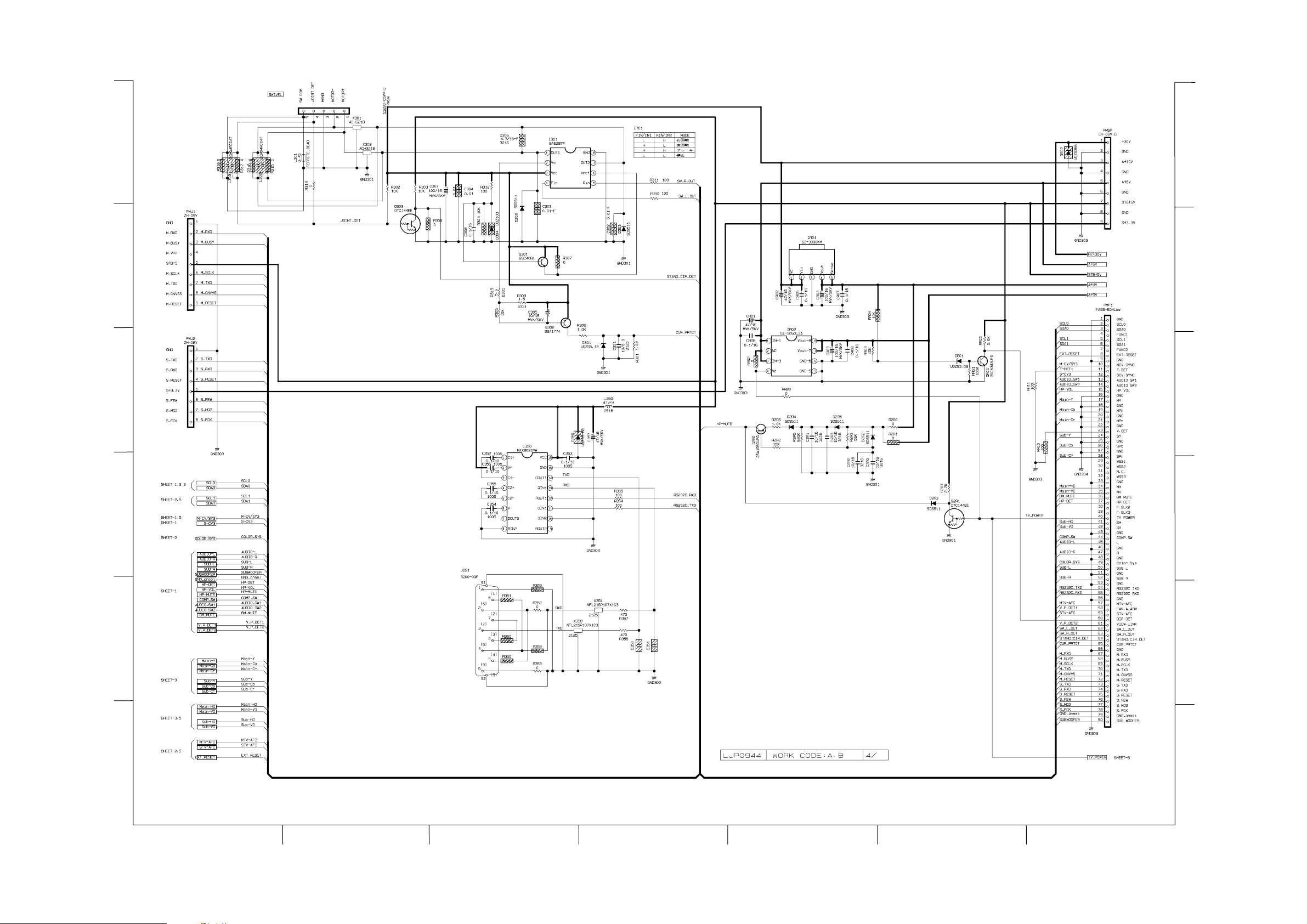

9. Basic circuit diagram --------------------------------- 55

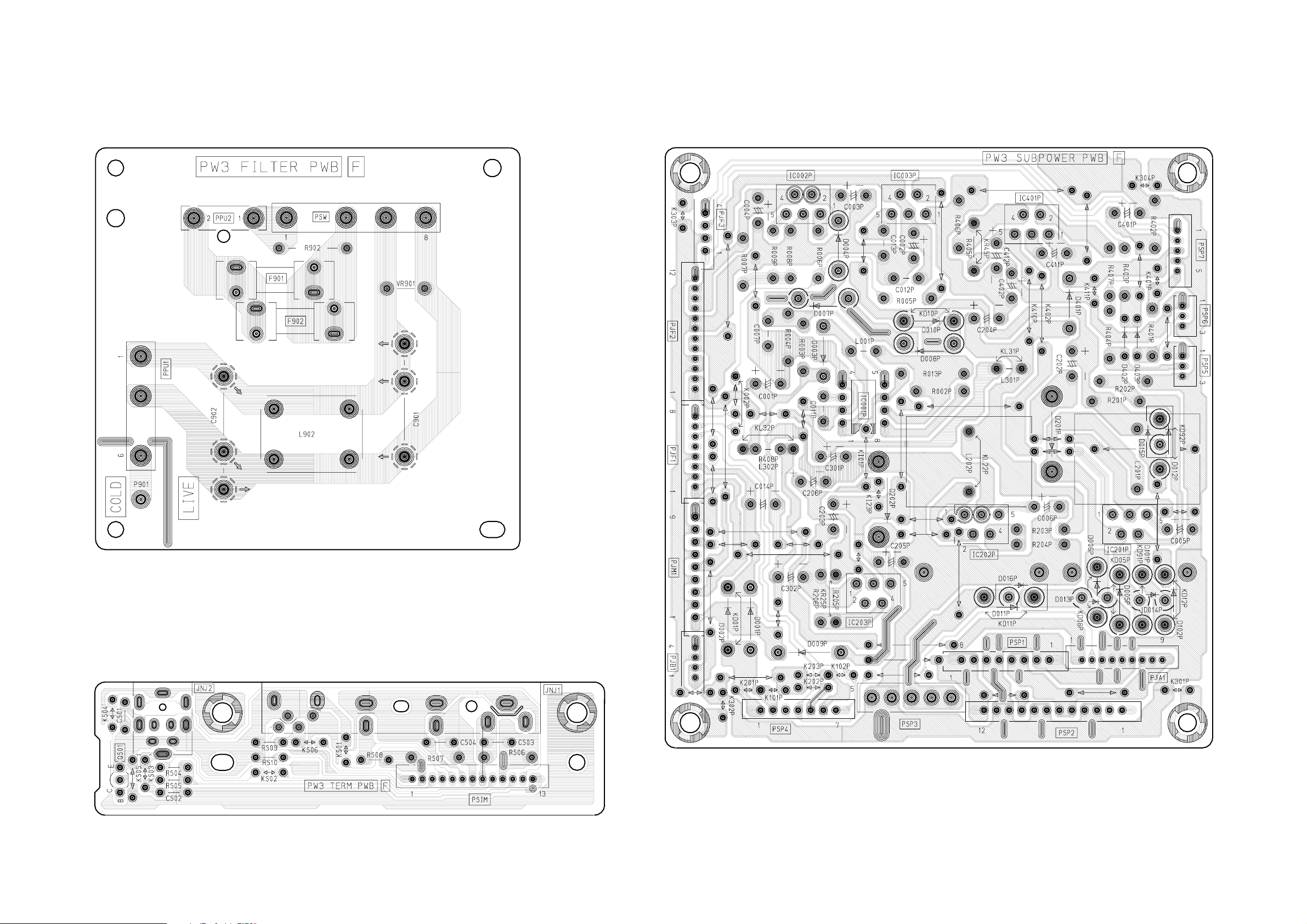

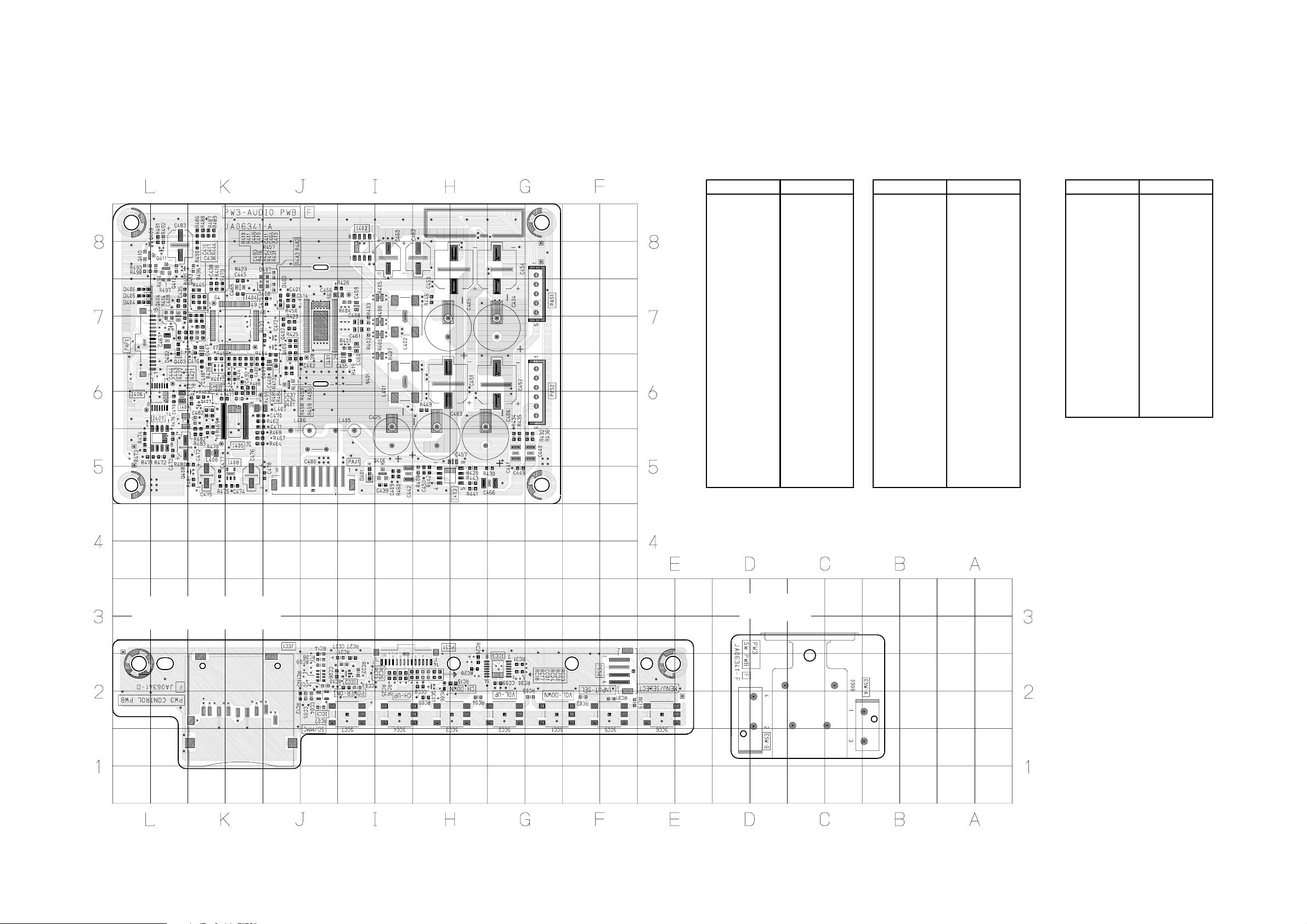

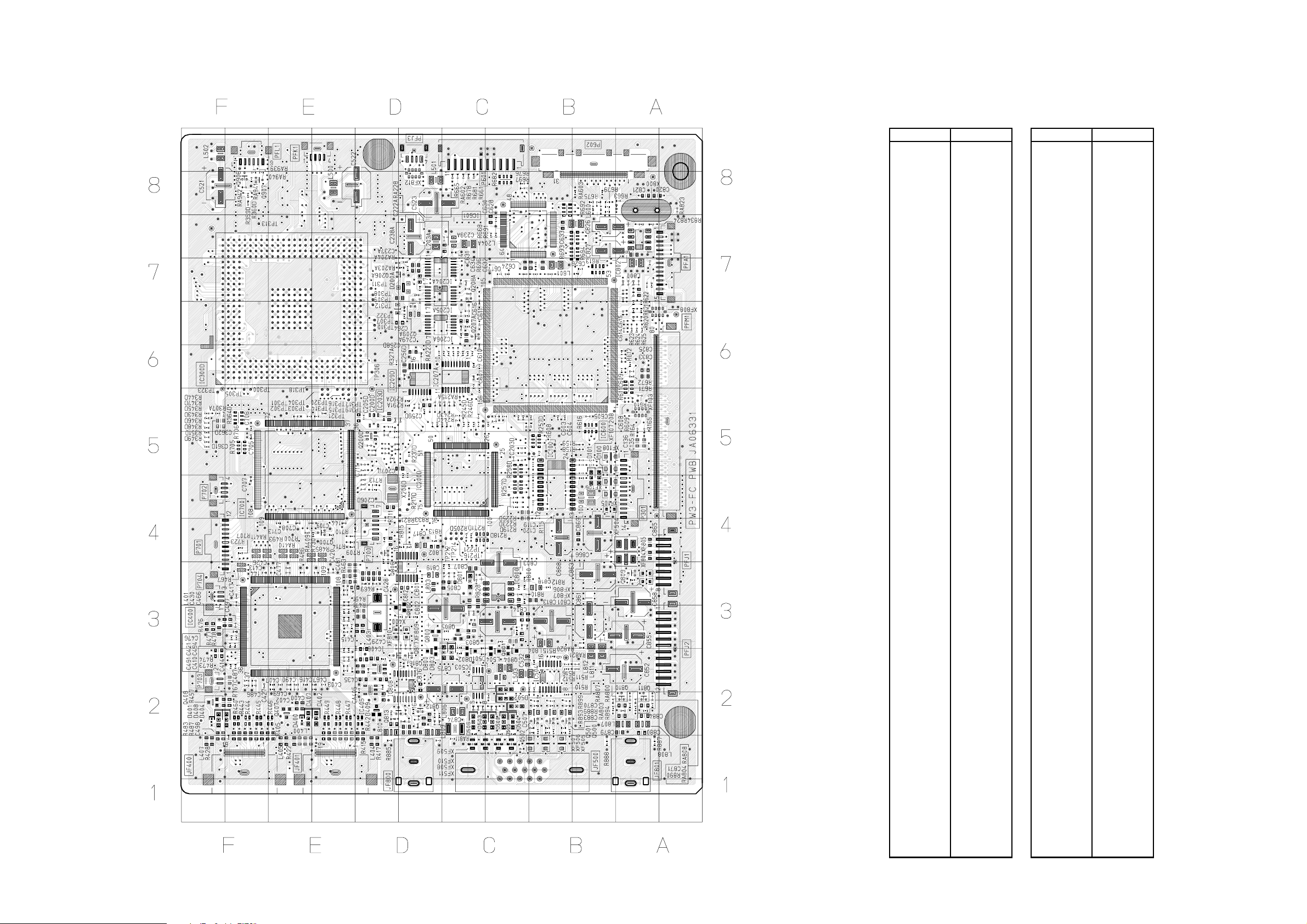

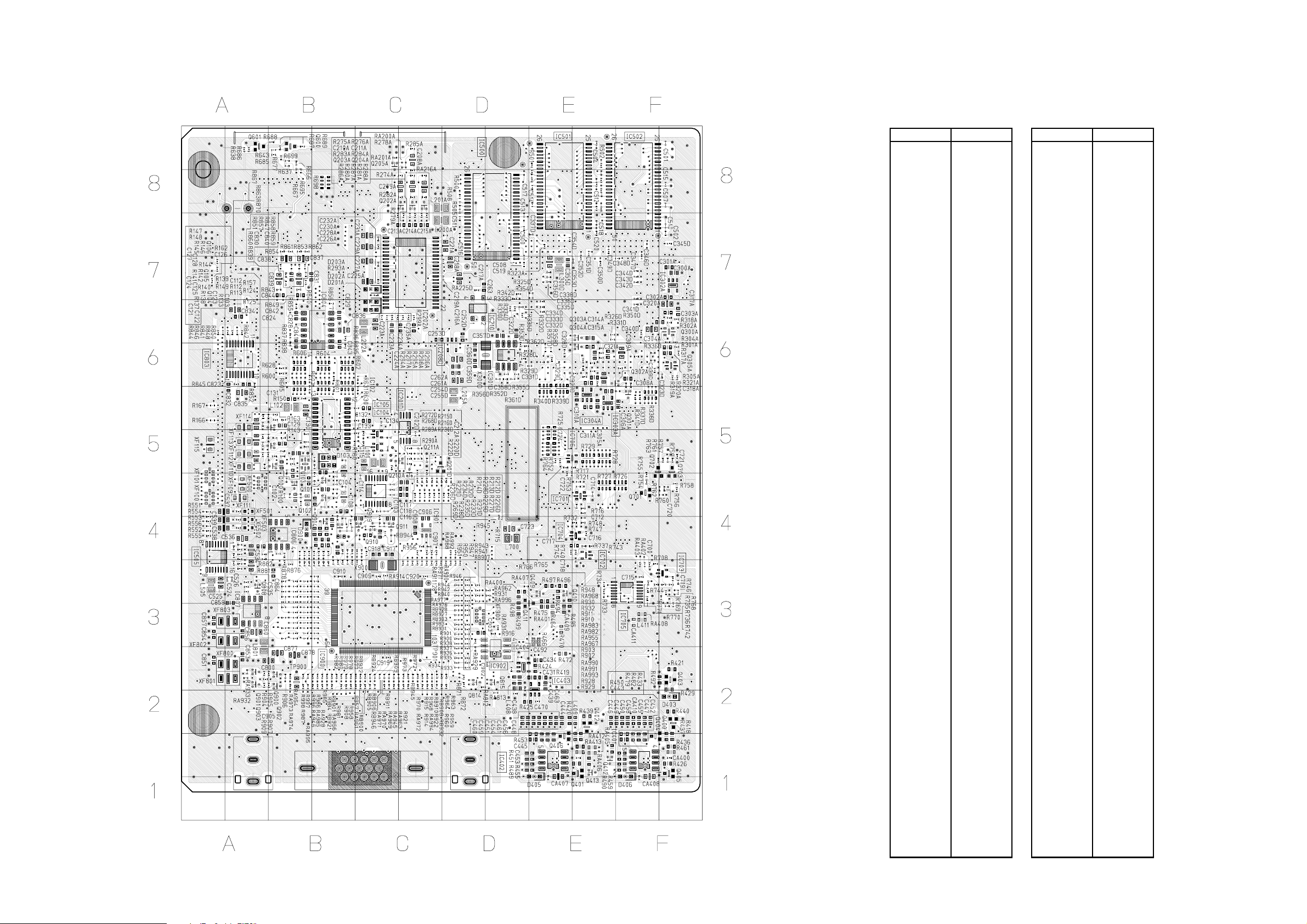

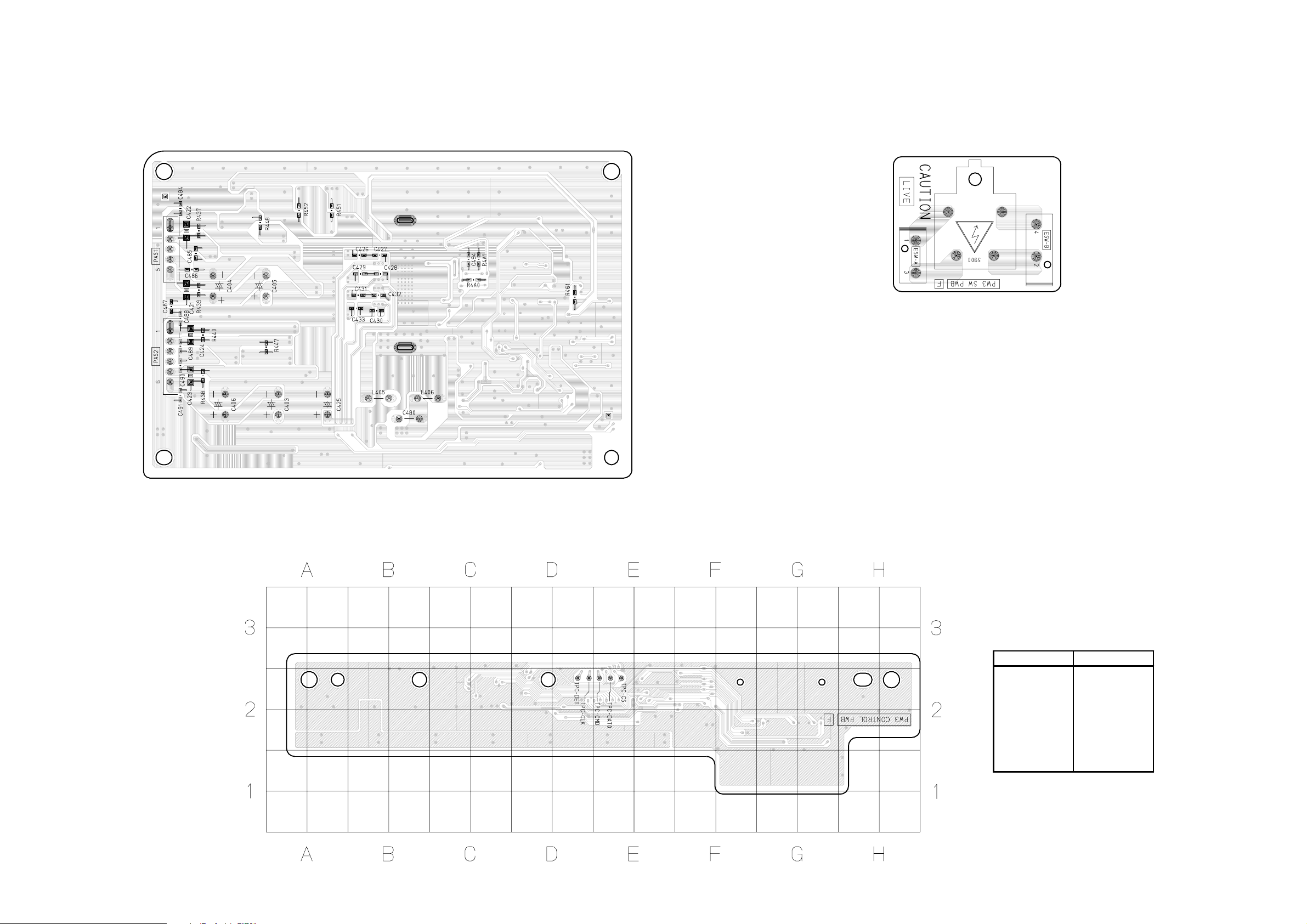

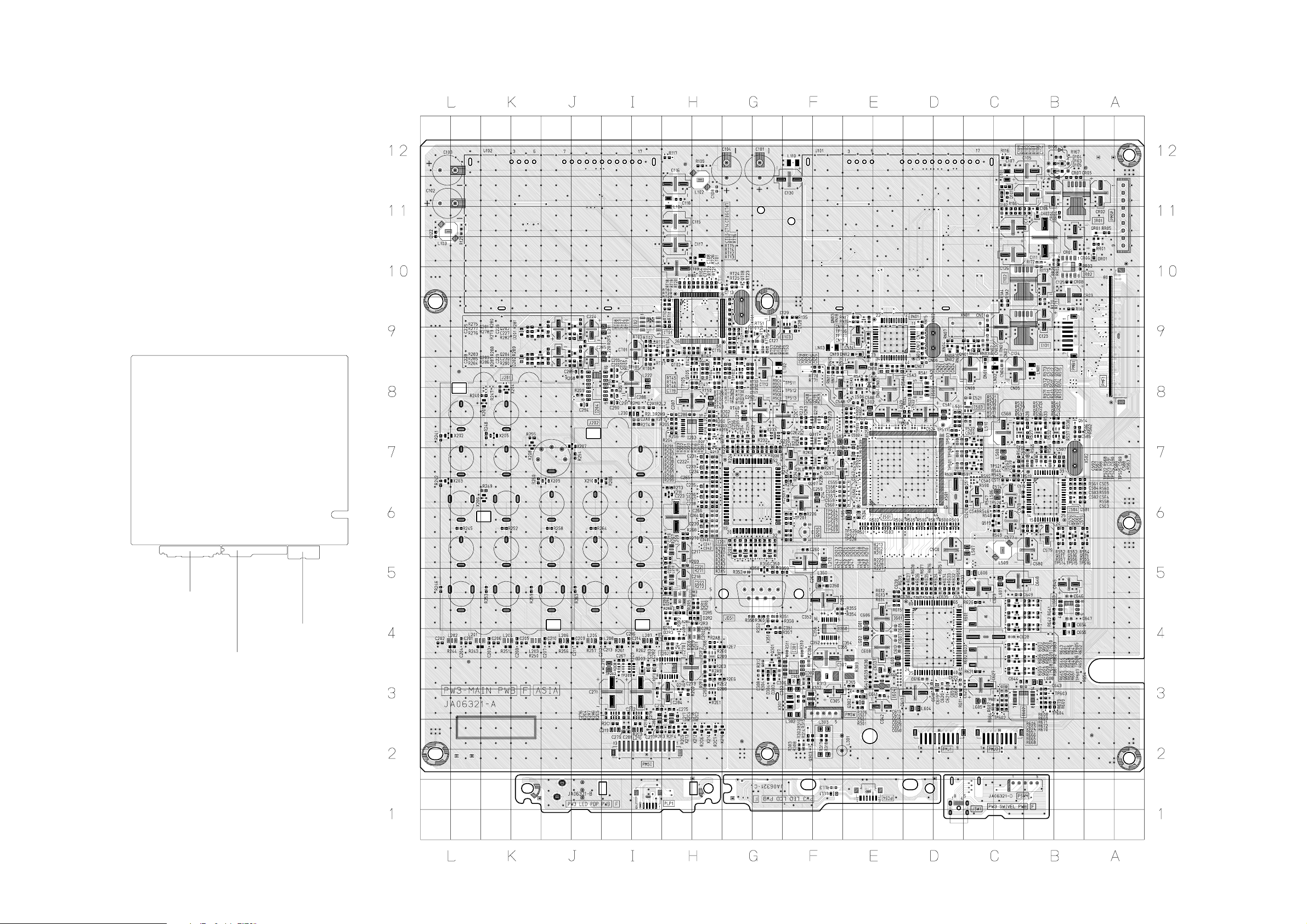

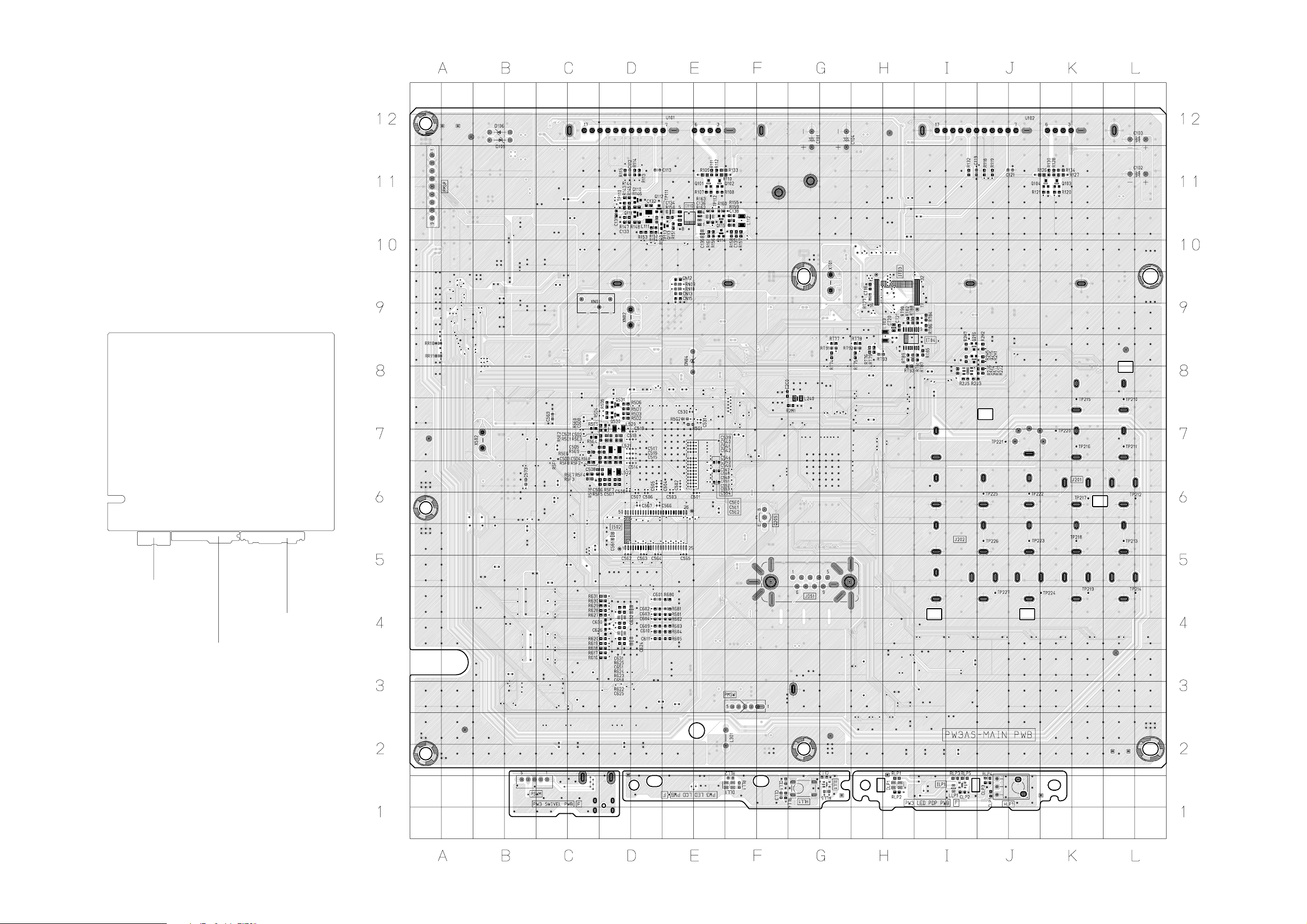

10. Printed wiring board diagram ---------------------- 82

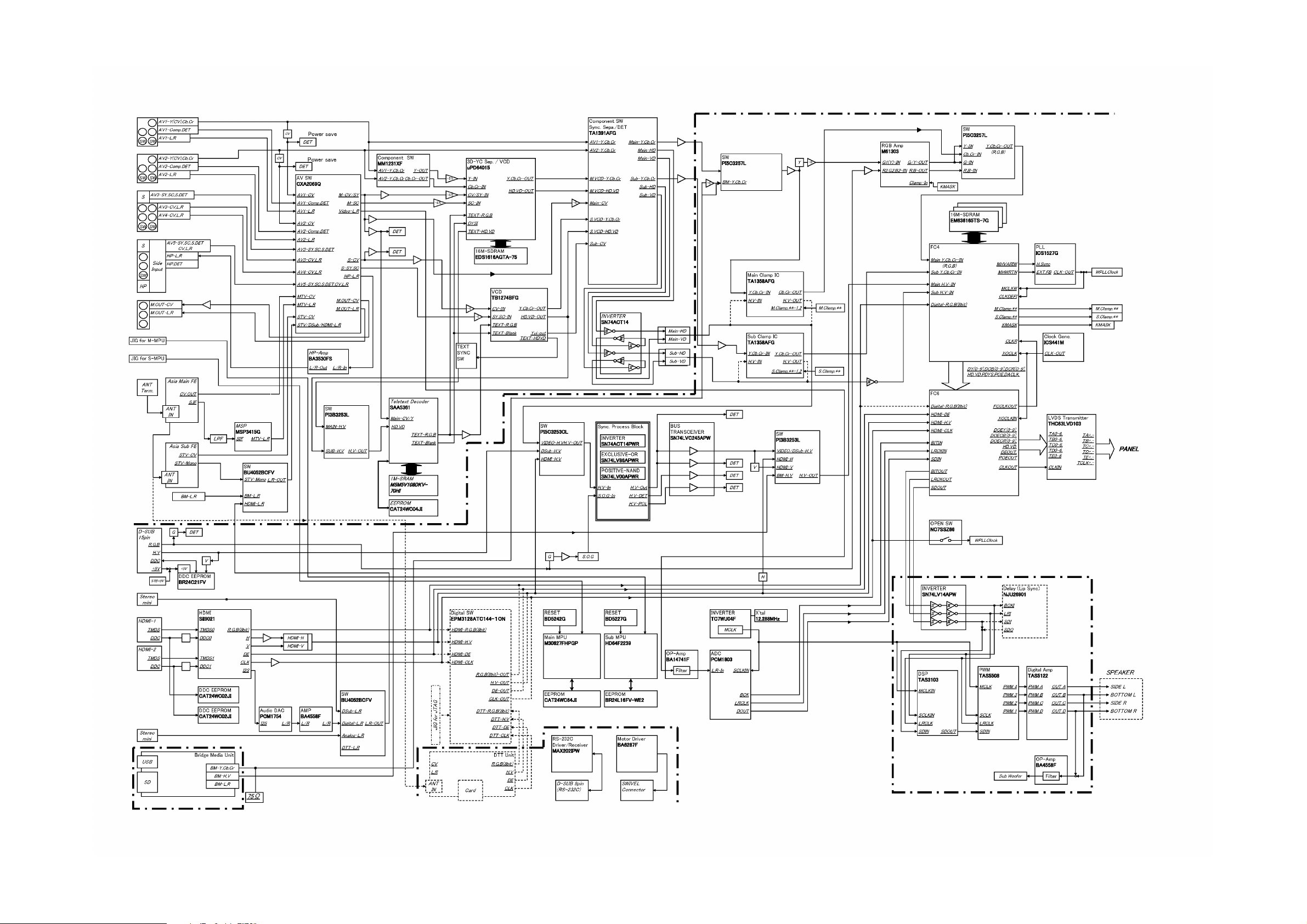

11. Block diagram ----------------------------------------- 90

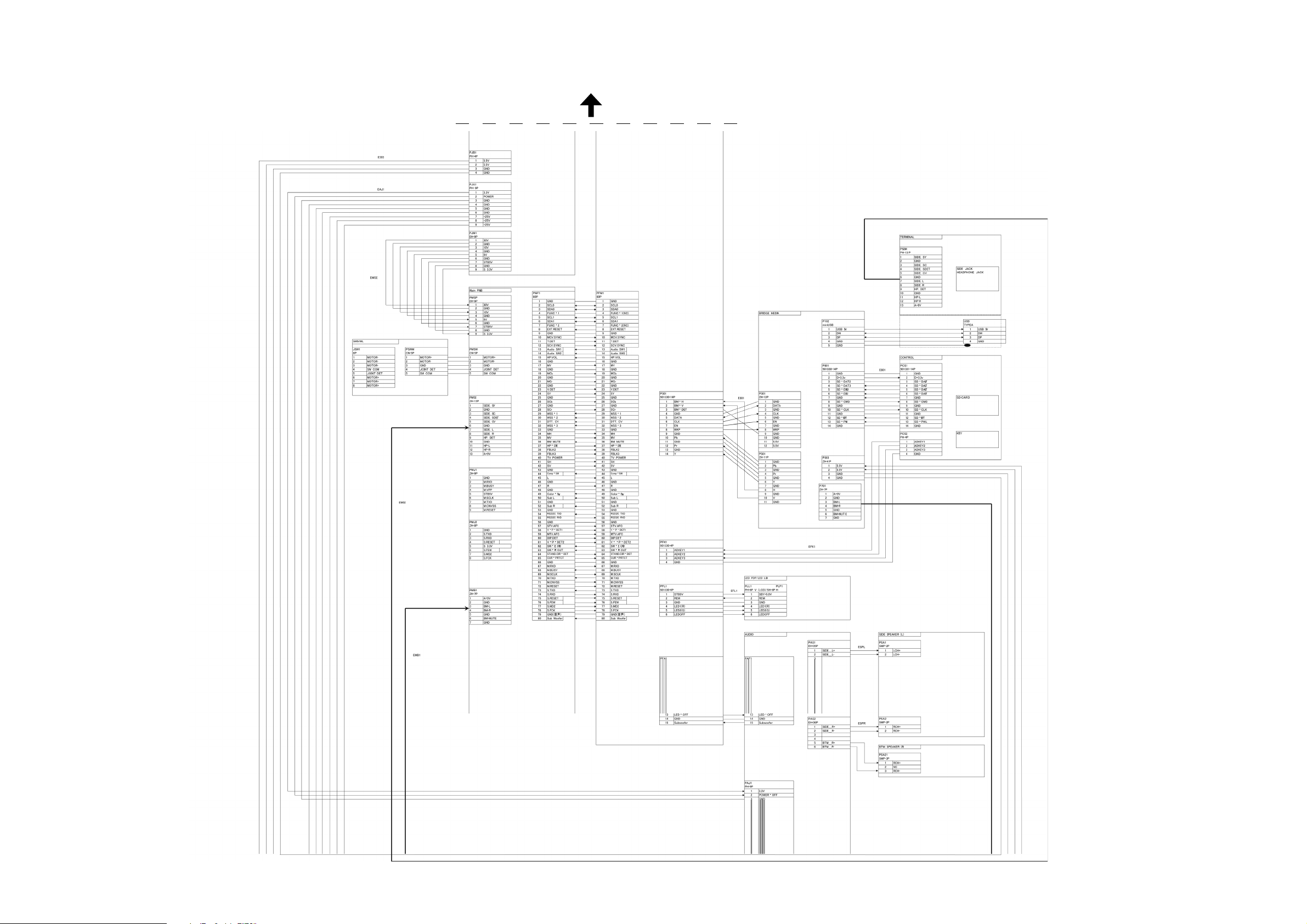

12. Connection diagram --------------------------------- 91

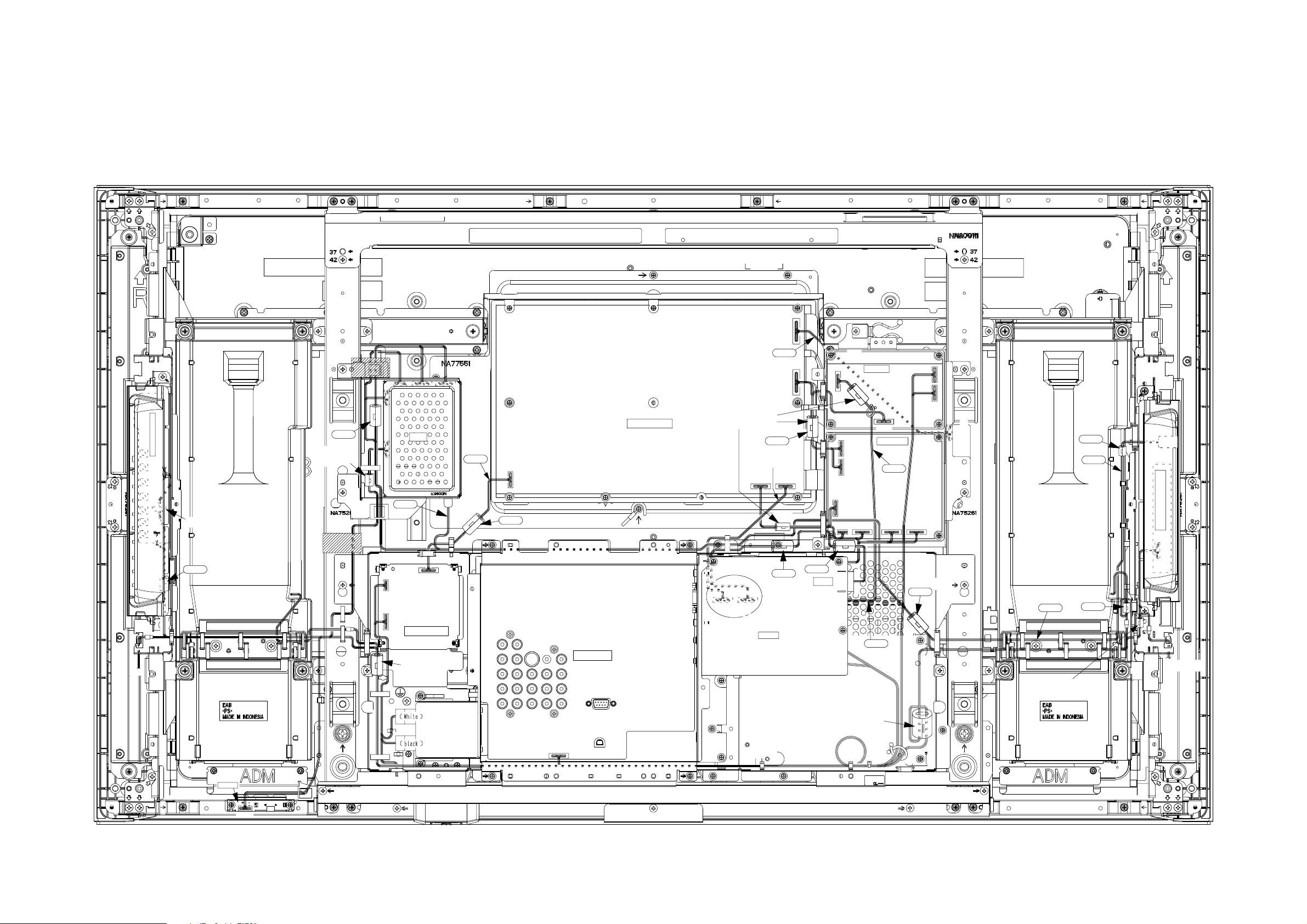

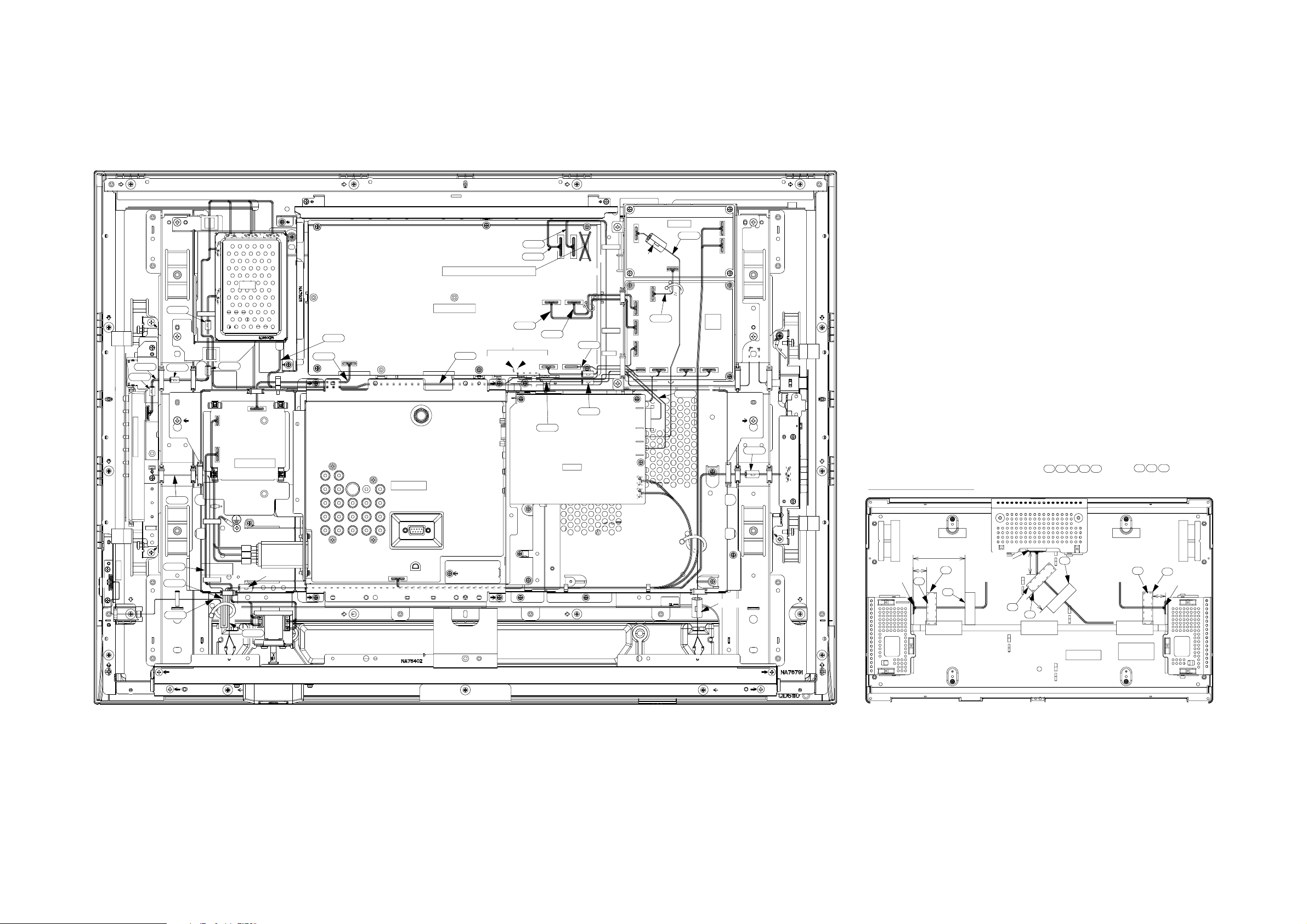

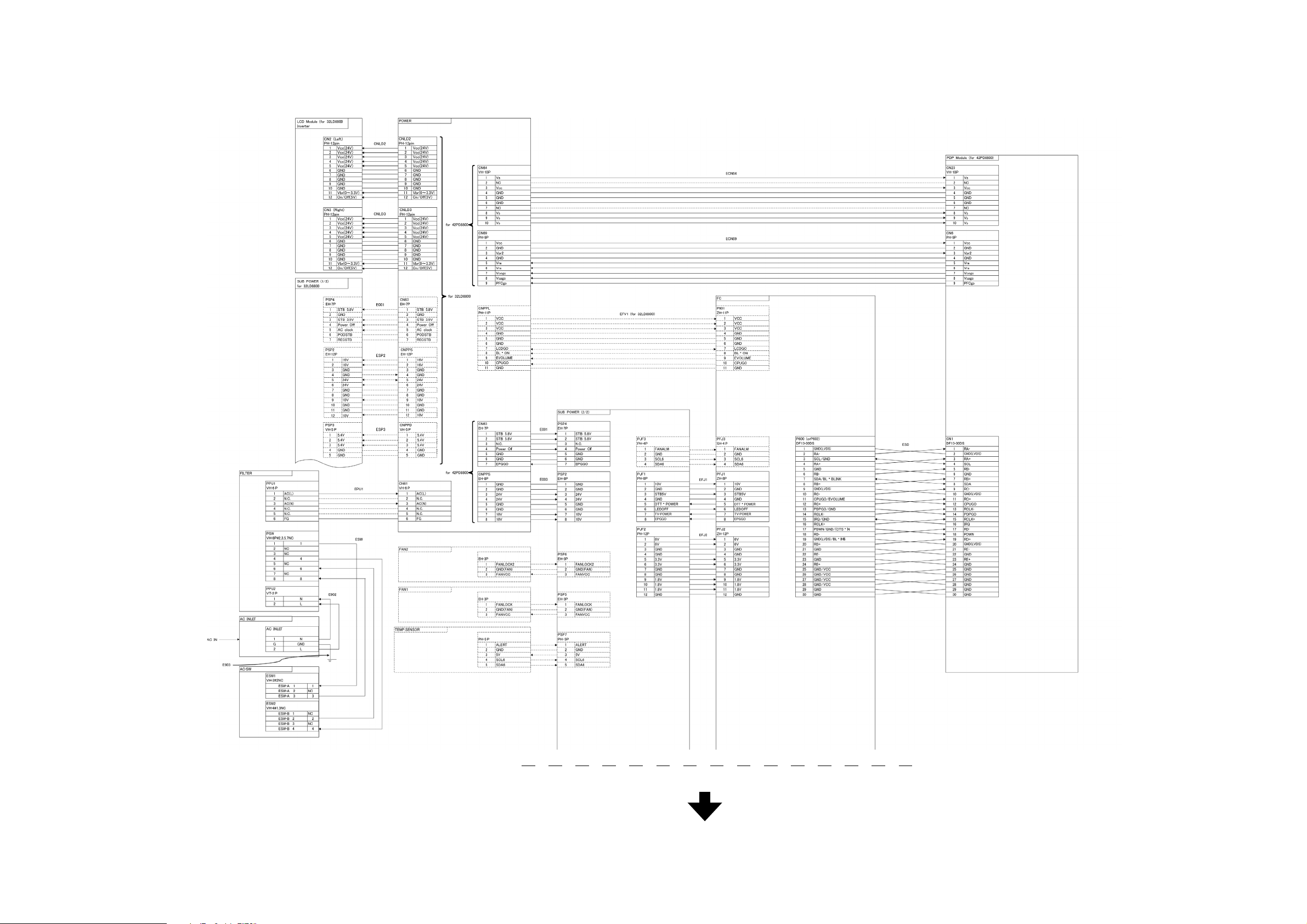

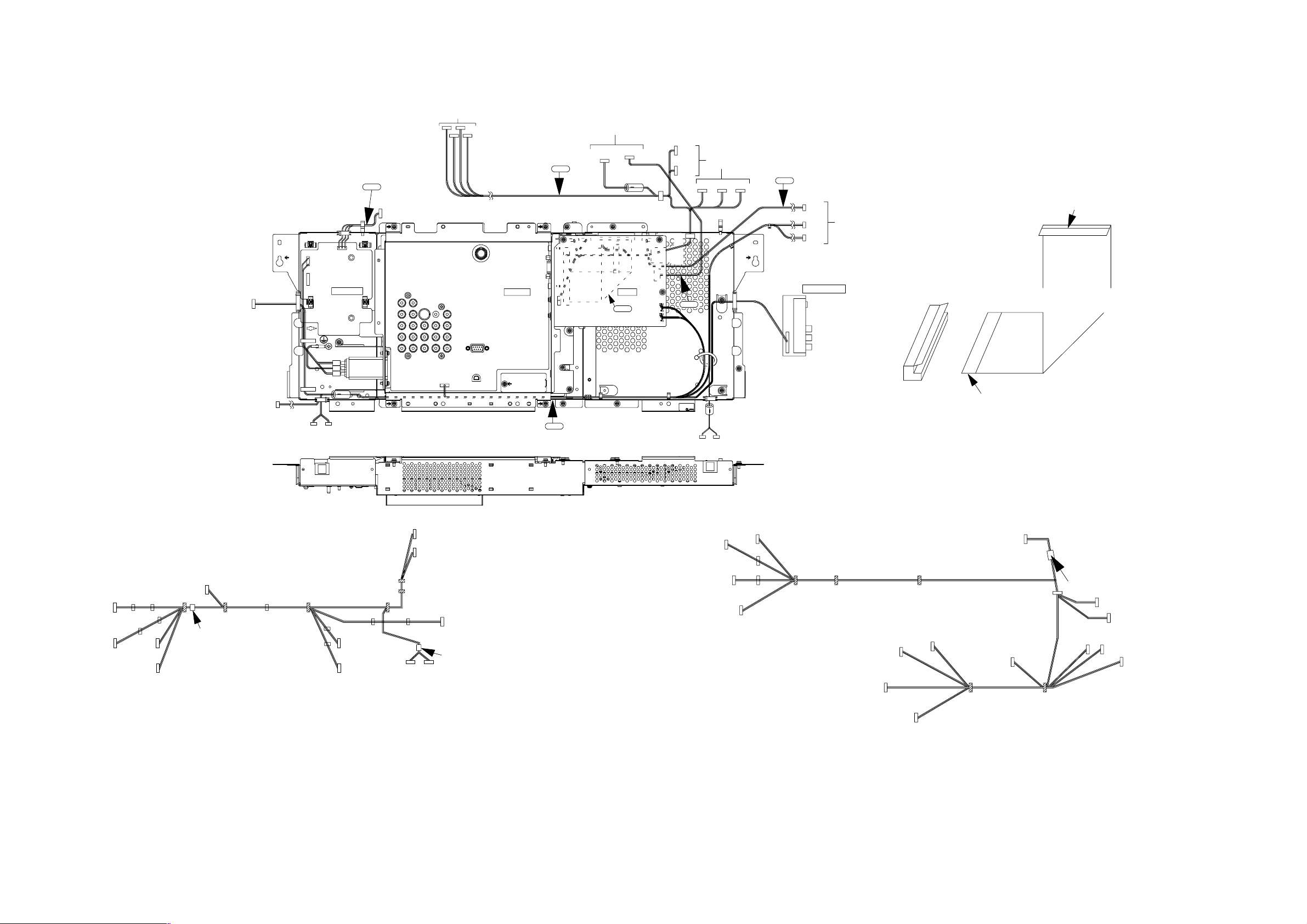

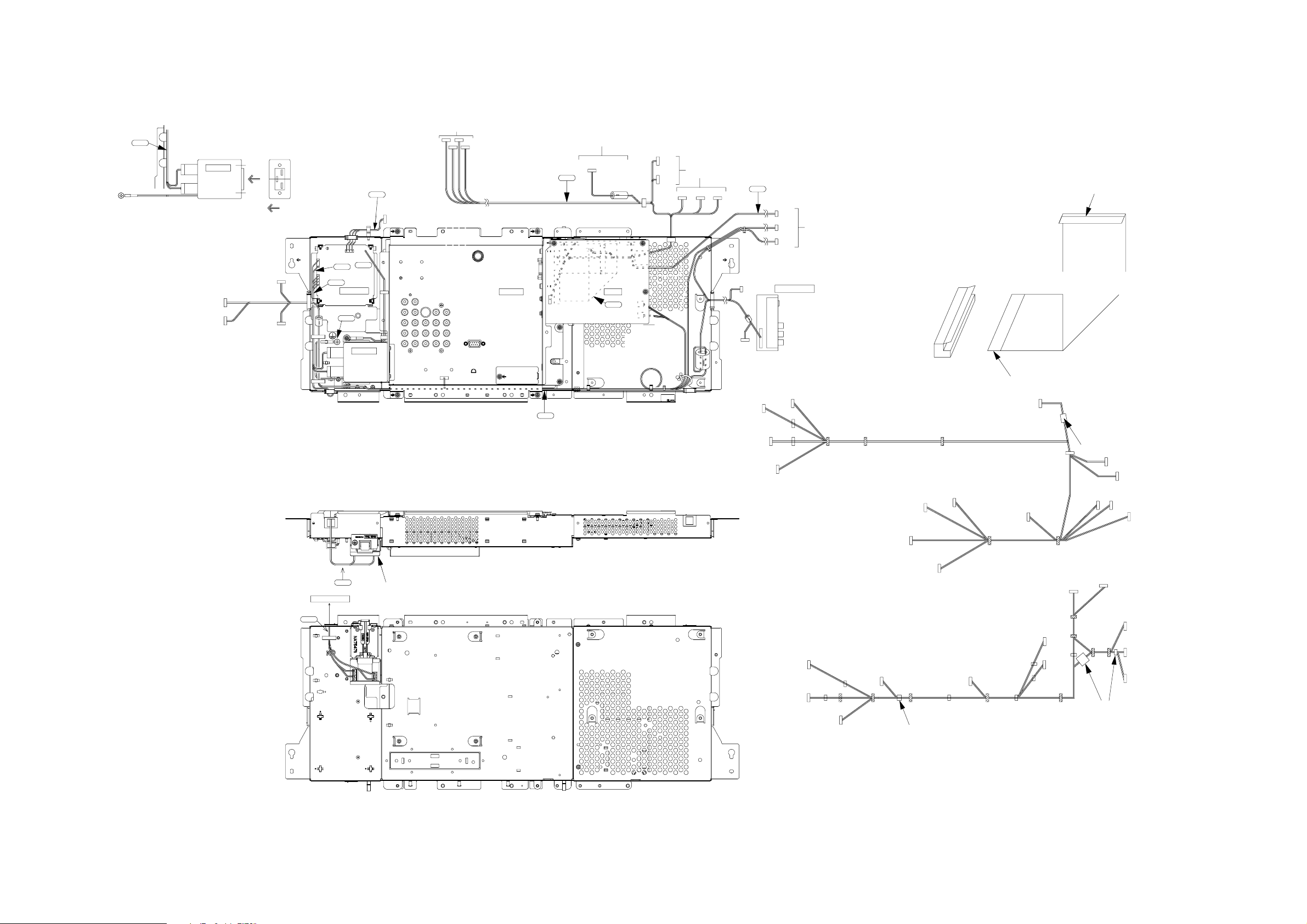

13. Wiring diagram ---------------------------------------- 93

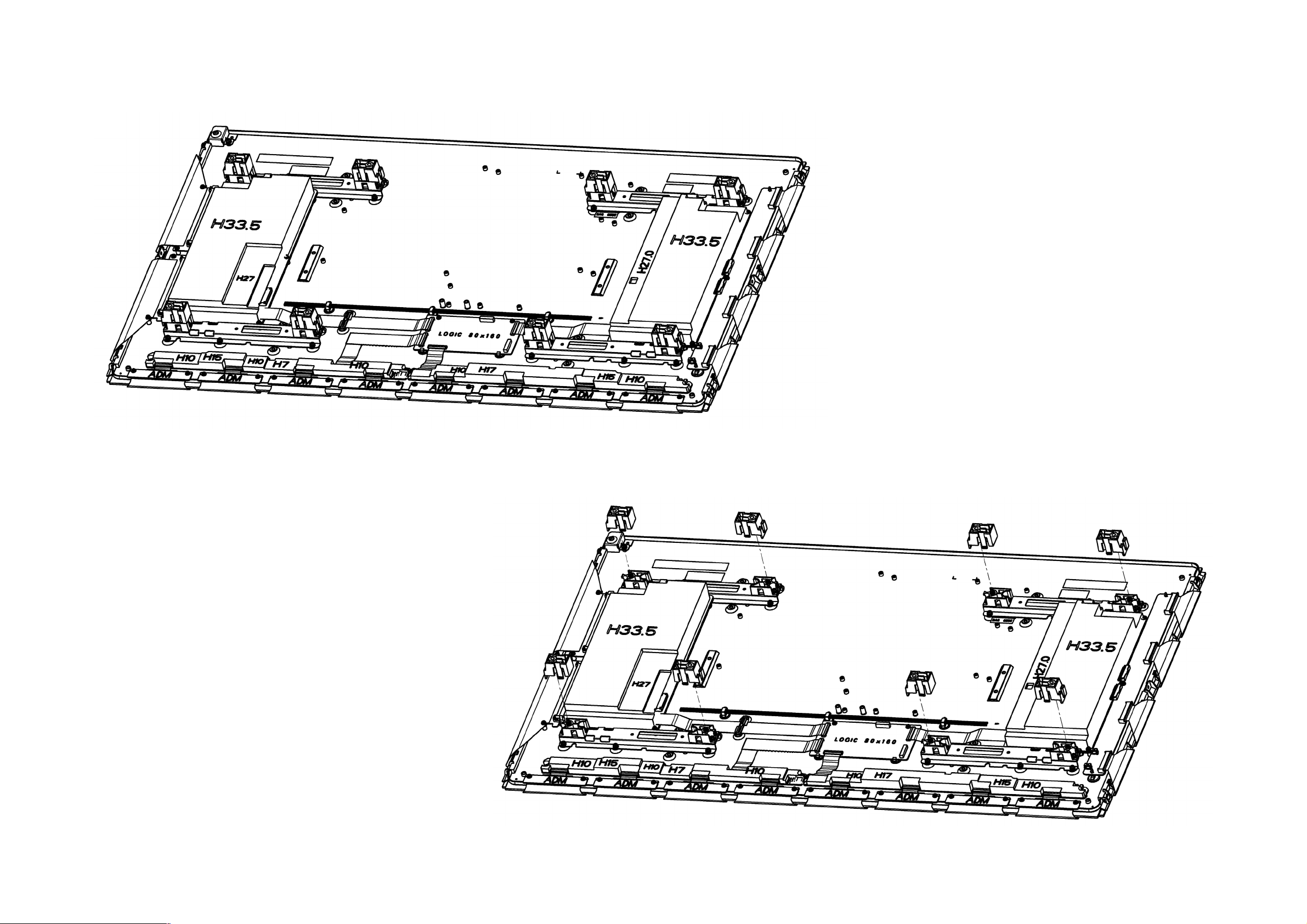

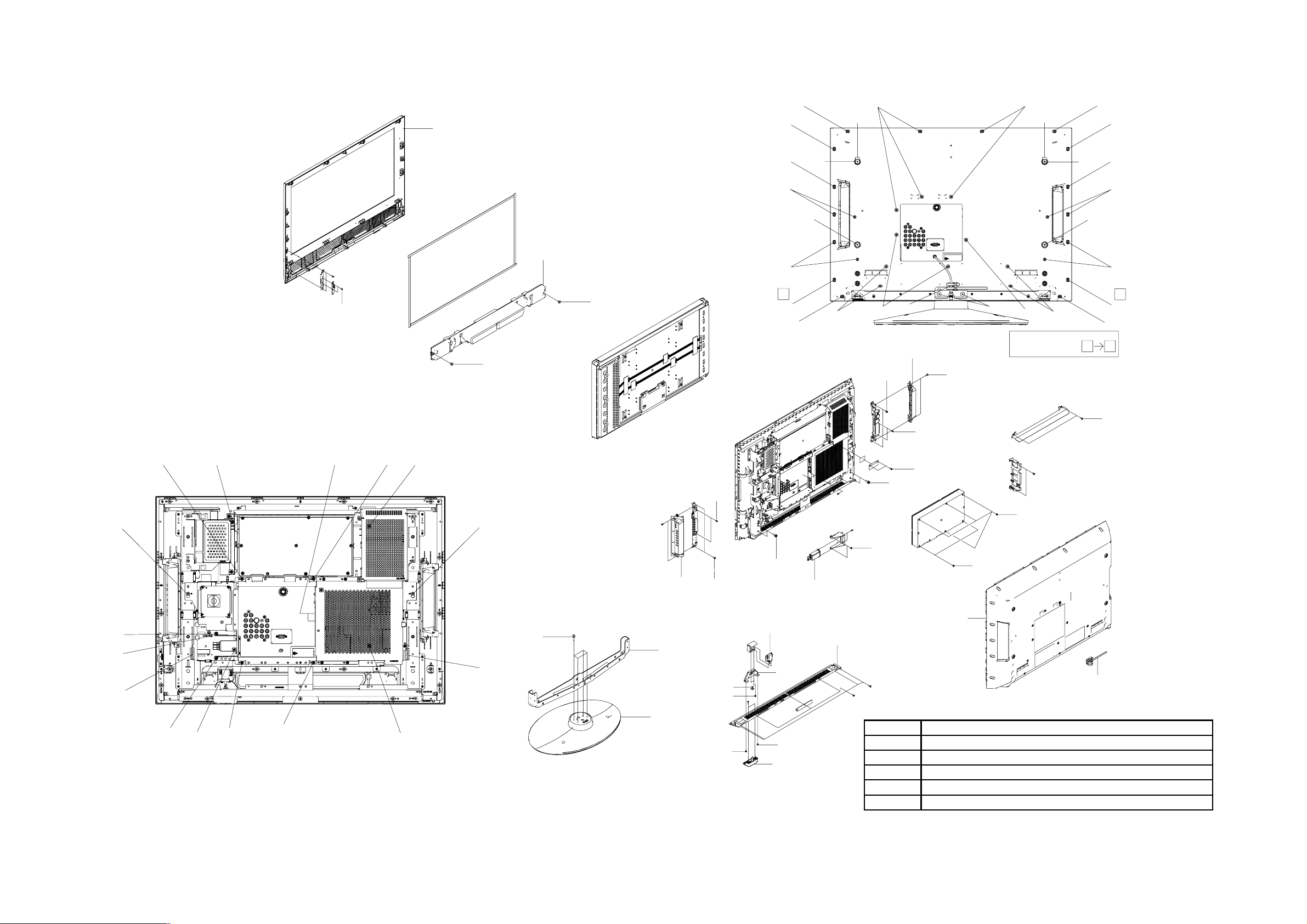

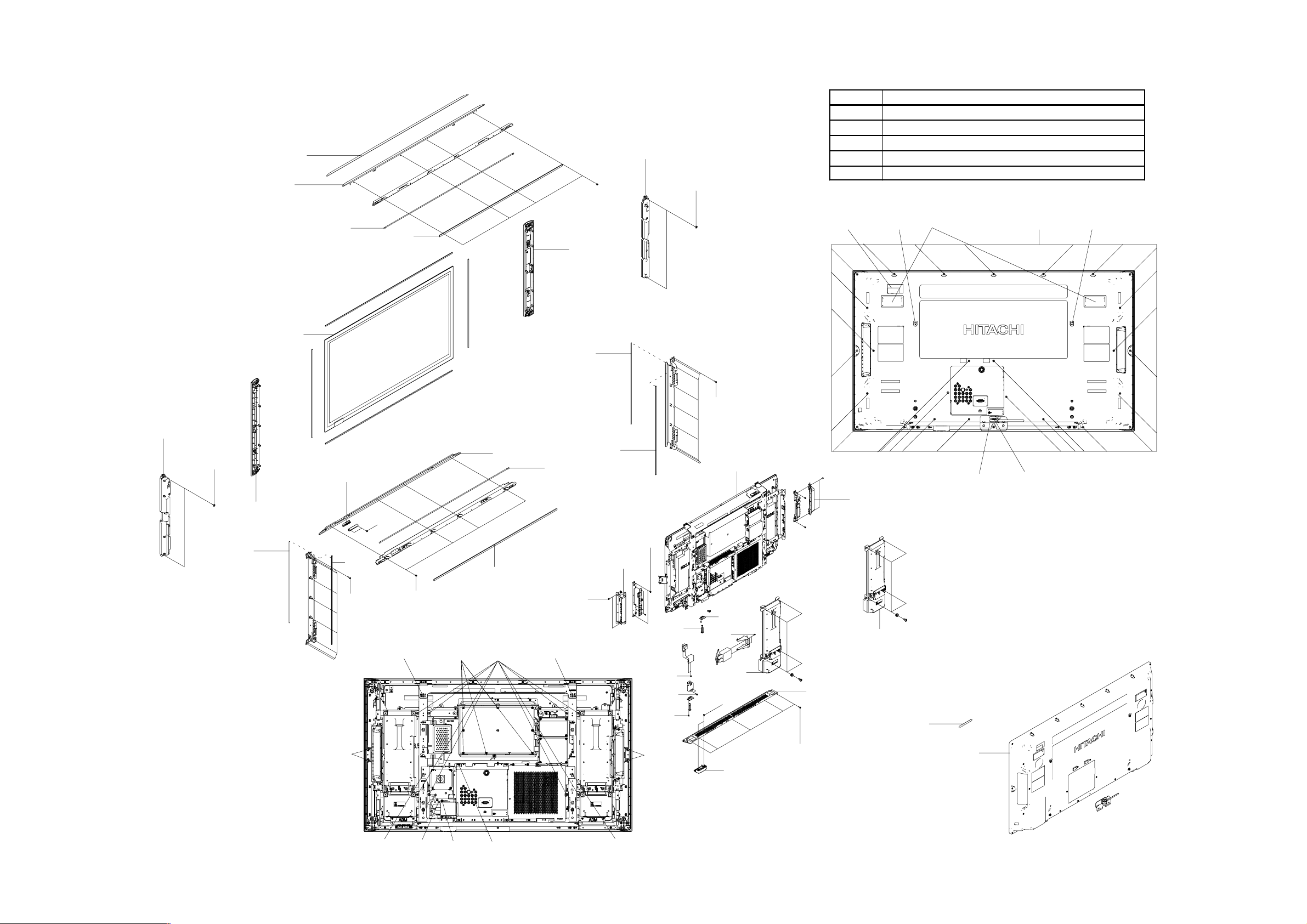

14. Disassembly diagram -------------------------------- 97

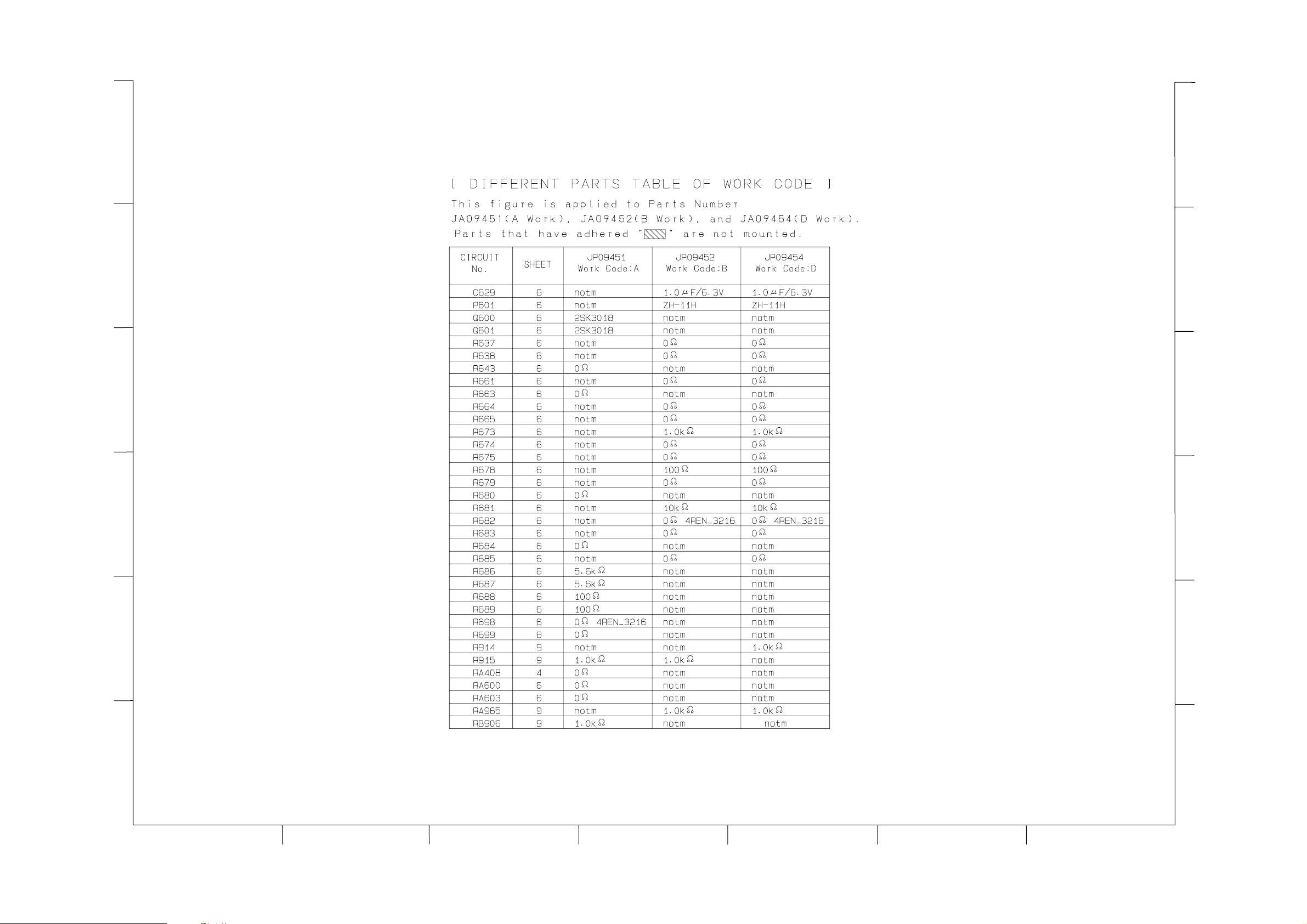

15. Replacement parts list ----------------------------- 101
Plasma Display
November 2005 Digital Media Division
42PD8800/32LD8800
CAUTION FOR SAFETY
Please read this page before repair the monitor. This page explains to following items for keep the safety of set and prevent to accident during repair work.
We explain by symbol at happen the damage or injury when took wrong repair.
Warning
Caution
We made the symbol as below, which are kind of following items.
This symbol means "CAUTION"
This symbol means "POSSIBLE to
ELECTRIC SHOCK"
This symbol means "possible to die or heavy damage"
This symbol means "possible to damage or something will break"
This symbol means "MUST"
This symbol means "DO NOT"
WARNING
Should be follows to instructions.
We indicates to cabinet, chassis and parts
by label, which are special attention part.
Please follow to note and [Safety Instructions]
of User’s Manual.
Prevent the electric shock.
Please take care during working because
monitor has high voltage part and power
supply part.
Possible to die if you tough to these place
by miss take.
Please disconnect power plug during
overhaul, reassemble or change parts.
You will die or take damage by electric
shock if you touch to live part.
Use recommended components.
Please use to same characteristic compo-
nent, which is same as previous for your
safety and keep reliability especially marked
by
in parts list and circuit diagram.
It is reason of electric shock or fire if you
use non-recommended component.
Should be kept same style of wiring or component.
Monitor uses tubes or tapes, which made
by insulator, and some components are
keep distance from surface of PWB for
safety.
Internal leads kept from hot part or high voltage
part by clamper or styling, so please return to
original condition for prevent to electric shock
or fire.
Should be done safety check after finished.
Every part (removed screws, component
and wiring) should be returned to previous
condition.
Check around repair position for make
damage by miss take and measure the
insulated impedance by meg-ohm meter.
Confirm the value of impedance, that
value is more than 4M ohm.
It is reason for electric shock or fire if that
value is less than 4M ohm.
Nobody can check and repair to the code and combination circuit of HDCP.
Never remove the shield case, which is
assembled to the code and combination
circuit of HDCP.
2
42PD8800/32LD8800
PRECAUTIONS
How to clean the plasma screen panel of the monitor
Before cleaning the monitor, turn off the monitor and disconnect the power plug from the power outlet. To prevent scratching or damaging the plasma screen face, do not knock or rub the surface with sharp or hard objects. Clean the screen with a soft cloth moistened with warm water and dry with a soft cloth. If it is not enough, then use a cloth with mild detergent. Do not use harsh or abrasive cleaners.
How to clean the cabinet of the monitor
Use a soft cloth to clean the cabinet and control panel of the monitor. When excessively soiled dilute a neutral detergent in water, wet and wring out the soft cloth and afterward wipe with a dry soft cloth. Never use acid/alkaline detergent, alcoholic detergent, abrasive cleaner, powder soap, OA cleaner, car wax, glass cleaner, etc. especially because they would cause discoloration, scratches or cracks.

1. Features

Large-screen, high-definition plasma display panel
The 42-inch color plasma display panel, with a resolution of 1024 (H) x 1024 (V) pixels, and the 32-inch color LCD panel with a resolution of 1366(H) x 768(V) pixels, creates a high-definition, large-screen(aspect ratio : 16:9) and low­profile flat display. Free from electromagnetic interferences from geomagnetic sources and ambient power lines, the panel produces high-quality display images free from color misconvergence and display distortion.
High Performance Digital Processor
A wide range of input signals can be handed,including composite, component,and HDMI.High Definition Digital Pro­cessor creates the fine-textured image with dynamic contrast. In addition, it corresponds to a broad array of per­sonal computer signals, from 640 x 400 and 640 x 480 VGA to 1600 x 1200 UXGA.(RGB Input)
Easy-to-use remote control and on screen display system
The remote control included eases the work of setting display controls. Further, the on-screen display system, displays the status of signal reception and display control settings in an easy-to-view fashion.
Power saving system
The power saver feature saves power consumption automatically when input signals are not available. When connected to a VESA DPMS-compliant PC, the monitor cuts its power consumption while it is idle.
Connecting to an Audio Visual Device
• Two composite/S terminal*
a photo input terminal have been added. A composite video output terminal is also provided as a
monitoring output.
*1
One composite/S terminal are on the side input. Composite terminal and S terminal should not be con-
nected at the same time
*2
Two composite terminal and two component terminal cannot be used at the same time.
• A wide range of devices other than personal computers can also be connected.
Power Swivel Feature
It allows to turn the display left or right within ± 30 degree using the remote control.
1
,three composite terminal*2, two component terminal*2, two HDMI terminal and
3
42PD8800/32LD8800

2. Specifications

Approx. 32 inches (698(H) x 392(V)mm, diagonal 801mm)
Panel
Display dimensions
Resolution 1366(H) x 768(V) pixels 1024(H) x 1024(V) pixels
including Stand :
Net dimensions
813(W) x 663(H) x 350(D)mm excluding Stand : 813(W) x 584(H) x 114(D)mm
Net weight
Ambient conditions
Temperature Operating : 5°C to 35°C, Storage : 0°C to 40°C Relative humidity Operating : 20% to 80%, Storage : 20% to 90% (non-condensing)
including Stand : 27.6kg excluding Stand : 21.9kg
Power supply AC100 - 240V, 50/60Hz
Power consumption / at standby
150W / <1W(100 - 220V)
150W / <1.1W(230 - 240V) Audio output speaker total 20W speaker total 36W (VIDEO input)
AV1•2 : composite video input terminal (RCA) or component video input terminal (RCA)
L/R audio input terminal (RCA)
AV3•5 : composite video input terminal (RCA) or S video input terminal.
L/R audio input terminal (RCA)
Input terminals
AV4 : composite video input terminal (RCA)
L/R audio input terminal(RCA) HDMI1•2 : HDMI input terminal Audio input terminal (3.5mm Stereo Mini Jack) Photo Input : Photo Input terminal / SD card slot
Input signals
Composite video : PAL, SECAM, NTSC3.58, NTSC4.43, PAL60 Component video : 480i, 576i, 480p, 576p, 720p/50, 720p/60, 1080i/50, 1080i/60 OUTPUT (MONITOR) : composite video monitor-output terminal (RCA)
Output Signal
OUTPUT (MONITOR) : L/R audio monitor-output terminal (RCA) OUTPUT (HEADPHONE) : L/R audio monitor-output terminal (Mini-pin) OUTPUT (SUB-WOOFER) : Woofer output terminal
(RF input) Input terminals ANT : 75Ω Unbalanced
PAL B, G, H / I / D, K
RF Video System
SECAM B, G / D, K / K1 NTSC-M
(RGB input)
Input terminals
Analog RGB input terminal (D-sub 15-pin) Audio unput terminal (3.5mm Stereo Mini Jack)
Input signals 0.7V/1.0Vp-p, analog RGB (Recommended Signal)
H/V separate, TTL level [2KΩ]
Sync signals
H/V composite, TTL level [2KΩ] Sync on green, 0.3Vp-p [75Ω]
•The monitor takes at least 30 minutes to attain the status of optimal picture quality.
Approx. 42 inches (922(H) x 522(V)mm, diagonal 1059mm)
including Opional Stand : 1134(W) x 728(H) x 350(D)mm excluding Optional Stand : 1134(W) x 648(H) x 98(D)mm including Opional Stand : 43.0kg excluding Opional Stand : 37.3kg
370W / <3W
Applicable video signals for each input terminal
Terminal RCA D-sub
Signal CVBS S-video Component RGB RGB
AV1,2
AV3
AV4
AV5 *
HDMI1,2
RGB
Note : CVBS and S-video on AV5 should not be connected at the same time to prevent interference on the picture
4
HDMI
( :Available)
42PD8800/32LD8800

3. Service points

Lead free solder
This product uses lead free solder (unleaded) to help preserve the environment. Please read these instructions before attempting any soldering work.
Caution: Always wear safety glasses to prevent fumes or molten solder from getting into the eyes. Lead free
solder can splatter at high temperatures (600˚C).
Lead free solder indicator
Printed circuit boards using lead free solder are engraved with an "F."
Properties of lead free solder
The melting point of lead free solder is 40-50˚C higher than leaded solder.
Servicing solder
Solder with an alloy composition of Sn-3.0Ag-0.5Cu or Sn-0.7Cu is recommended. Although servicing with leaded solder is possible, there are a few precautions that have to be taken. (Not taking these precautions may cause the solder to not harden properly, and lead to consequent malfunctions.)
Precautions when using leaded solder
Remove all lead free solder from soldered joints when replacing components.
If leaded solder should be added to existing lead free joints, mix in the leaded solder thoroughly after the lead
free solder has been completely melted (do not apply the soldering iron without solder).
Servicing soldering iron
A soldering iron with a temperature setting capability (temperature control function) is recommended. The melting point of lead free solder is higher than leaded solder. Use a soldering iron that maintains a high stable temperature (large heat capacity), and that allows temperature adjustment according to the part being serviced, to avoid poor servicing performance.
Recommended soldering iron:
Soldering iron with temperature control function (temperature range: 320-450˚C)
Recommended temperature range per part:
Part Soldering iron temperature
Mounting (chips) on mounted PCB 320˚C±30˚C
Mounting (chips) on empty PCB 380˚C±30˚C
Chassis, metallic shield, etc. 420˚C±30˚C
The PWB assembly which has used lead free solder
SUBPOWER PWB (Subpower PWB, Filter PWB, Terminal PWB)
SOUND PWB (Audio PWB, Control PWB, SW PWB)
FC PWB
MAIN PWB (Main PWB, LED PDP PWB, LED LCD PWB, Swivel PWB)
Readjustment Power supply voltage (PDP only) When a PANEL or a Power Unit is exchanged, power supply voltage needs to be adjusted. Please adjust to
make the values of Va and Vs of as should on the label currently stuck on the panel back upper parts.Adjust­ment is performed by VR in the power supply unit. Please refer to the procedures of “Va” and “Vs” adjustments on 22page.
5

4. Component names

[Main unit]
Control panel
42PD8800/32LD8800
[Remote control]
SD MEMORY
CARD
PUSH-EJECT
P
P
OK
PH35814
POWER button
SD Memory Card Slot
Sub Power button
Channel UP/▲button
Channel DOWN/▼button
Volume UP
Volume DOWN
Input Select /OK button
Menu / Return button
/►button
/◄button
Remote Control Receiver
Indicating Lamp
• The main power switch is located on the lower surface.
Main power switch
(32")
(42")
RECALL button
INPUT SELECT buttons
MENU button
OK button
SOUND MODE button
VOLUME UP/DOWN button
PROGRAM SELECT buttons
(TV)
FREEZE/MULTI MODE button
T/TEXT button
(TV)
FUNCTION SELECT button
DVD CONTROL buttons
RETURN button
SELECT/ADJUST button
PICTURE MODE button CH I/CH II button (TV)
CHANNEL UP/DOWN button (TV)
MUTE button
MULTI PICTURE button
PHOTO INPUT buttons
SWIVEL button
CLE-970
6
42PD8800/32LD8800

5. New adoption technology

[System control micom I001(M30627)]
Pin function table
No. PIN NAME I/O
VREF (+5.0V) I PDP/ LCD 5V
1
2
3
4
5
6
7
8 DATA_OUT(FC)
9 DATA_IN(FC)
10 CLK(FC)
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
+5.0V I PDP/ LCD 5V
AUDIO_SW1 I/O PDP/ LCD Audio SW1
OSD_DATA I/O PDP/ LCD OSD DATA
OSD_CLK I/O PDP/ LCD OSD CLK
HP_VOL
FUNC_1 I/O PDP/ LCD
BL_INST I/O PDP/ LCD Black Insert On/Off for 32V LCD (37V=Low)
BL_BLINK I/O PDP/ LCD Backlight Blink On/Off for 32V LCD (37V=Low)
GND I PDP/ LCD GND
CNVSS(FLASH) I PDP/ LCD CNVSS(FLASH)
DSUB COMP I/O PDP/ LCD Sync Switching
RGBSW I/O PDP/ LCD Sync Switching
RESET I PDP/ LCD Reset
16MHz Oscillation O PDP/ LCD OSC-OUT
GND I PDP/ LCD GND
16MHz Oscillation I PDP/ LCD OSC-IN
+5.0V I PDP/ LCD 5V
NMI(+5.0V) I PDP/ LCD 5V PULL UP
RMCON I/O PDP/ LCD Receiving Remote Control Signal
NC I/O PDP/ LCD NC
V.FREQ_3 I/O PDP/ LCD V.Frequency
SCV.SYNC I/O PDP/ LCD SUB_Y.SYNC (Composite
IRQPM-IRQ) I/O PDP/ LCD PDP Control
MCV.SYNC I/O PDP/ LCD MAIN_Y.SYNC (Composite
POWER_LED I/O PDP/ LCD LLighting (Power Save)
FUNC_2 I/O PDP/ LCD Function2
CEC_OUT I/O PDP/ LCD CEC OUT(CEC1)
H.FREQ_3 I/O PDP/ LCD H.Frequency
PDWN
RXD2 I/O PDP/ LCD RS-232C Communication
TXD2 I/O PDP/ LCD RS-232C Communication
TXD1(RS232C/FLASH) I/O PDP/ LCD FLASH for Writing
RXD1(RS232C/FLASH) I/O PDP/ LCD FLASH for Writing
SCLK(FLASH) I/O PDP/ LCD FLASH for Writing
BUSY(FLASH) I/O PDP/ LCD FLASH for Writing
TXD0(DTT) I/O PDP/ LCD DTT
RXD0(DTT) I/O PDP/ LCD DTT
SDA4(panel) I/O PDP/ LCD PDP CommunicationI2C Bus SCL4(panel) I/O PDP/ LCD PDP Communication䋨I2C Bus䋩
M_ENABLE I/O PDP/ LCD Media Enable
M_SCLK I/O PDP/ LCD
M_SDA I/O PDP/ LCD
M_WAKEUP I/O PDP/ LCD Media Wakeup
PDPGO(PM_ON) I/O PDP/ LCD PDP Control/LCD Panel 12V/WVGA Power
Panel: PDP/ LCD
I/O PDP/ LCD Head Phone Volume
I/O PDP/ LCD FC MicroComputer 3 Lines Bus Data Out /Media Data Out
I/O PDP/ LCD FC MicroComputer 3 Lines Bus Data In/ Media Data In
I/O PDP/ LCD FC MicroComputer 3 Lines Bus Clock/ Media Clock
I/O PDP/ LCD
I PDP/ LCD 5V
I PDP/ LCD GND
FUNCTION
Panel LVDS
Media Clock
Media Data
Function1
7
42PD8800/32LD8800
No. PIN NAME I/O
CPUGO(PM_CPU) I/O PDP/ LCD PDP Control/Inverter Voltage
51
EPM (FLASH) I/O PDP/ LCD FLASH for Writing
52
VIDEO.DET_1 I/O PDP/ LCD
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
PDP_WVGA_LCD_SW_ I/O PDP/42WVGA/LCD Detection
84
85
86
87
88
89
90
91
92
93
94
95
PDP_WVGA_LCD_SW_ I/O PDP/ LCD PDP/42WVGA/LCDᬌ಴
96
97
98
99
100
SCL1 I/O PDP/ LCD
SDA1 I/O PDP/ LCD
HDMI-RESET I/O PDP/ LCD
HDMI-HPD_RESET I/O PDP/ LCD
SEL_0 I/O PDP/ LCD FC Clock/Others SW
SEL_1 I/O PDP/ LCD HDMI/DTT SW
TUNER.DET_1 I/O PDP/ LCD TUNER Detection
CE (FLASH) I/O PDP/ LCD FLASH for Writing
STAND.CIR_DET I/O PDP/ LCD Stand Detection
SW_L_OUT I/O PDP/ LCD
SW_R_OUT I/O PDP/ LCD
M_SW I/O PDP/ LCD Bridge Media Circuit Connection Judgement Terminal
INITIALIZE I/O PDP/ LCD Memory Initial
BR_MUTE I/O PDP/ LCD Bridge Media Audio Mute
CK_SEL I/O PDP/ LCD Clock Selector
SCDT I/O PDP/ LCD HDMI Power Save for Return
CK_INV I/O PDP/ LCD Clock Invert
DVI-SW I/O PDP/ LCD DVI Control
CUR_PRTCT I/O PDP/ LCD Power Swivel Overcurrent Detection
SP_MUTE I/O PDP/ LCD SP Relay
AUDIO_MUTE I/O PDP/ LCD Audio MUTE
ASEL1 I/O PDP/ LCD Audio Switching SW
ASEL2 I/O PDP/ LCD Audio Switching SW
SDA2 I/O PDP/ LCD I2C(TAS3103/TAS5508)
SCL2 I/O PDP/ LCD I2C(TAS3103/TAS5508)
D-SUB I/O PDP/ LCD
BM_SW I/O BM Switching
RGB_BLK_2 I/O NC
RGB_BLK_3 I/O NC
AUDIO_RESET I/O Audio Circuit Reset
+5.0V I
EDID_PROTECT_1 I/O PDP/ LCD Memory Protect(Not necessary if power is available to use
GND I PDP/ LCD GND
WSS_1 I/O PDP/ LCD NC
WSS_2 I/O PDP/ LCD NC
WSS_3 I/O PDP/ LCD NC
TV.AFC(M) I/O PDP/ LCD Main Tuner Control (AFC)
TV.AFC(S) I/O PDP/ LCD Sub Tuner Control (AFC)
AUDIO_SW2 I/O PDP/ LCD Audio SW2
EDID_PROTECT_2 I/O PDP/ LCD Memory Protect(Not necessary if power is available to use
HP_DETECT I/O PDP/ LCD HEAD PHONE DETECT
INT_HDMI I/O PDP/ LCD
CEC_IN I/O PDP/ LCD CEC IN(CEC2)
COMP_SW I/O PDP/ LCD Component SW Main DSUB
DEMP_OUT I/O PDP/ LCD
Panel: PDP/ LCD
I2CTo the Side of Main Board FE/MSP3455or MSP3415G/SAA5361
I2CTo the Side of Main Board FE/MSP3455or MSP3415G/SAA5361
D-SUB COMP for Sync Switching
De-emphasis Control Output for HDMI
FUNCTION
VIDEO Board Detection
HDMI-Reset
Hot Plug Detect Reset
Swivel L Output
Swivel R Output
INT(HDMI)
8
42PD8800/32LD8800
No. PIN NAME I/O
101
102
103
104
105
106
107
108
109
110
111
112 IRQ_DTT
113 DTT_POWER
114 DISPEN
115
116
117
118 SCL6
119 SDA6
120 COLOR_SYS
121
122
123
124
125
126
127
128
NC I/O LCD NC
SCL0 I/O PDP/ LCD
SDA0 I/O PDP/ LCD
SCL3(EEPROM) I/O PDP/ LCD
SDA3(EEPROM) I/O PDP/ LCD
EPGGO I/O PDP/ LCD EPGGO
EXT_RESET I/O PDP/ LCD EXTERNAL RESET
OSD_CS I/O PDP/ LCD OSD CS
FC_ENABLE I/O PDP/ LCD FC MicroComputer 3 Lines Enable
V_P_DET_1 I/O PDP/ LCD V_DET_1(Power Save Return V_P_DET_2 I/O PDP/ LCD V_DET_2(Power Save Return
HDMI_A_SW I/O PDP/ LCD HDMI AUDIO SW
SCL5 I/O PDP/ LCD
SDA5 I/O PDP/ LCD
AD_KEY3 I/O PDP/ LCD AD KEY3**
AD_KEY2 I/O PDP/ LCD AD KEY2*
AD_KEY1 I/O PDP/ LCD AD KEY1(Power)
TV.POWER I/O PDP/ LCD H:PowerON䇮L:(Standby,PowerSave)
DIP.DET I/O PDP/ LCD DIP DET
POWER_SAVE I/O PDP/ LCD L䋺Lighting(Standby䍂PowerSave), H䋺Lights-out
GND I PDP/ LCD GND
FAN_ALARM *1 I/O PDP/ LCD FAN ALARM
Panel: PDP/ LCD
2
I
CTo the Side of Main Board (TA1391FG/CXA2069/uPD64015/TB1274AF)
2
I
CTo the Side of Main Board (TA1391FG/CXA2069/uPD64015/TB1274AF)
I/O PDP/ LCD DTT IRQ
I/O PDP/ LCD DTT POWER
I/O PDP/ LCD DISPEN/Backlight on
I/O PDP/ LCD I2CTo the Side of Sensor Board䋩 (AD7414䋩 I/O PDP/ LCD I2C䋨To the Side of Sensor Board䋩 (AD7414䋩 I/O PDP/ LCD Color System (Pull-in range Switching
FUNCTION
2
I
CEEPROM
2
I
CEEPROM
2
I
CSil9021
2
I
CSil9021
9
R
(M3062
)
T
E SW
V
K PROTECT
1
RESET
A0/A1h
T
)
R
IRQ) WVGA
LCD
SW1
(TB12
4) 414
*1/V0
A31FTV *2/ENG29
**G *3)
A
T
CPU)
6 P130
HPD
RESET
6Ah
)
T
W
X
R
FREQ
3 2239 )
(CXA2069Q)
G*
MSP34
G *4) 08
KEY3 4
DET
AV1
36h
A
A
PROTECT
2
AN2
3 3
AFC(M)
SOUT4
90/91h
3D
Y/C
A
SW
P13
ENABLE (
PD6401
)
2
A
ALARM
P134
WAKEUP
361
TV
SEL
4
WVGA PANEL
P124
SW
TV
SEL
1 2
P123
BLK
2
TV
SEL
2
SCL4
DET
(TA1391FG)
FE
SW
2
SCL0
AGC
30/31h
DETECT
L
DTT
P113
P112
SCL4
T
C
SW
TXD1
TXD_RXD
0
l
0V
V
Buffer
Buffer
Block diagram
42PD8800/32LD8800
LCD PANE
SDA4
PDP
WVGA
32LCD
PANEL TYPE
P17
00
01
10
120
*384/85h
SDA1 SDA2
55
UDIO PROCESSO
SDA2
SCL2
55
5
RESET MSP_RESET
5
SOUND MULTIPLE
_
_
-
SDA0 S-2 S_DET_AV3 SDA1
AV S
SCL0 S-1 SCL1
S2-2
FE Sub
-
SCL1
PDP
_
_
_
_
.
.
.
.
FE.SW_1 SDA4 SDA4
5
5
L
u
SDA0 TELETEXT TV.SEL_3
SCL0
SDA0 Text Ys_SW
DA
S_Trap
5
UDIO PROCESSO
SCL2
5
-
TUNER (FE Main)
7
TEMPERATURE
SENSOR (0ption
37LCD11
7
Level
P56
7
MAIN µ-COMPUTE
HP_VOL DA1 P54 VIDEO.DET_1
DSUB COMP P87 P53 SEL_2
RGB SW P86 P52 SEL_1
POWER_SAVE P101 P51 TUNER.DET
POWER_LED P76
M_SCK P136 P127 STAND.CIR_DE
TV.POWER P103 P126 SW_L_OUT
EEPROM
_
7
BR_MUTE P45 P125 SW_L_OUT
CK_SEL P44 P46 INITIALIZ
P42 P47 M_SW
CK_IN
SCL3
DVI-SW P41 P07
_
P140 P06 SDA3
_
_
BL_BLIN
P40 P32
UD RST P121 P115 DISPEN
CUR_PRTC
SP_MUTE P37 P33
UDIO_MUTE P36 P133
SEL1 P35 P132
_
_
_
7
-
SEL2 P34 P11
PDWN P72 P10
V_P_DET_1 P01 VIDEO DECODER
DA0 P120 PDP_WVGA_LCD_SW2 SCL0 P111 SCL6 SCL1
P135 SDA0 P110 SDA6
M_SD
FC SUB µ-com
_
_
5
P84
TA2OUT
_
RMCON(AVC
CEC_OU
PDPGO(PM_ON) P57 P131 HDMI_RESE
_
_
.
10
V_P_DET_2 P00 CLK3 CLOCK
SCV.SYNC TA4IN SOUT3 DATA IN
_
5
N27 WSS_1
N26 WSS_2 OSD CONTROLER S2-3
N5
_
_
_
D_KEY2
UDIO_SW2 P22
MCV.SYNC TA3IN SIN3 DATA OUT S-3 COMP_DET_AV2
N23 CLK4 SCLK S2-4
N4 P03 CS
.
D_KEY1
TV.AFC(S)
_
7
_ _
_
P75 M_SD
_
H.FREQ_3 TA1IN M_SCLK
FUNCTION_
_
_
_
_
_
BL_INST P141 P122 RGB_BLK_3 SYNC SEPARATION
_
7
P13 P65 SCLK(FLASH) SCL5
_
_
_
DTT RXD0 TXD2 RS232C
DTT_POWER P116 P61
DEMP_OU
D-SUB P31
CEC_IN P15 CNVss CE EPM CNVss
5
orma
5
5
COLOR_SYS P107 P55 EPM Flash Writing 5V 0V 5V
42PD8800/32LD8800

6. Adjustment

● How to get to Adjustment mode
Using the front control buttons with the set turned off (standby) can activate it.
Press the SUB-POWER(
more than 5 seconds.
The set turns on in adjustment mode with OSD.
● Changing data and Selecting Adjustment code
When the set is in adjustment mode, the cursor , , , and OK buttons of the remote control or front panel
may be used as the adjustment keys.
, buttons are used for selecting adjustment code.
, buttons are used for changing data values.
OK button is used for confirming the data.
After finishing the necessary adjustment press MENU button. Adjustment mode is released and the set returns to
normal condition.
● Memory Initialize operation
NOTE: The execution of this function returns the adjustment codes to the preset values, therefore, adjustment
data will be lost.
Procedure
(1) Enter Adjustment Mode.
(2) Select MEMORY INIT adjustment code (No.818) and change the data value from 0 to 1.
(3) Activate MEMORY INIT by pressing OK button.
(4) Select No.712 and change data value from 1 to 0.
(5) Check that the receiving channel goes to P1. Unit is set to preset values.
) button, INPUT SELECT( ) button and button at the same time, and hold for
11
42PD8800/32LD8800
Service
Adj.
No
0 SUB_CONTRAST (AV1) Sub Composite mode 15 8 8 TB1274 1 SUB_CONTRAST (AV2) Sub Composite mode 15 8 8 TB1274 2 SUB_CONTRAST (AV3) Sub Composite mode 15 8 8 TB1274 3 SUB_CONTRAST (AV4) Sub Composite mode 15 8 8 TB1274 4 SUB_CONTRAST (AV5) Sub Composite mode 15 8 8 TB1274 5 SUB_CONTRAST (RF) Sub 15 8 8 TB1274 6 Sub Color Sub 15 8 8 TB1274 7 TINT (RF) Sub 63 29 29 TB1274 8 TINT (VIDEO) Sub 63 29 29 TB1274
9 Reference Amplitude(RGB_AMP) RF/VIDEO 254 127 127 FC 10 Reference Amplitude(RGB_AMP) PC 254 127 127 FC 11Reference Amplitude(RGB_AMP) Multi Picture mode 254 130 130 FC 12 Display for Max. Amplitude Level Main - - - FC 13 Display for Max. Amplitude Level Sub - - - FC 14 Set Blue Gamma gain On/Off 0:Off, 1:On (For 55V) For 55V 1 1 1 FC 15 Contrast mode<Dynamic> SW (TV) 0:Dynamic, 1:Dynamic+Auto RF 1 1 1 FC 16 APL Enhancer 0:OFF, 1:ON For Dynamic mode 1 1 1 FC 17 HDMI PC Function 0:OFF, 1:ON (for customer request) 1 0 0 18 PinP Function (for PC) 0:PinP, 1:Infomation1, 2:Infomaiton Split 2 0 0 FC 19 Black Level(RGB_AMP) RF/VIDEO 254 127 127 FC 20 Black Level(RGB_AMP) PC 254 127 127 FC 21 Black Level(RGB_AMP) For USA NTSC/480i 254 127 127 FC 22 Protect for Image Retention 0:Off, 1:7%, 2:14%, 3:21%, 4:AUTO Dynamic mode 4 4 4 FC 23 Protect for Image Retention 0:Off, 1:7%, 2:14%, 3:21%, 4:AUTO Natural mode 4 4 4 FC 24 Protect for Image Retention 0:Off, 1:7%, 2:14%, 3:21%, 4:AUTO Cinema mode 4 4 4 FC 25 YNR Input Level RF 7 7 7 FC 26 YNR Input Level VIDEO 7 7 7 FC 27 YNR Input Level Scart-RGB(50/60Hz) 7 7 7 FC 28 YNR Input Level 480i/576i 7 7 7 FC 29 YNR Input Level 480p/576p 7 7 7 FC 30 YNR Input Level for AV1-5 Mode 1080i-50/60/720p 7 7 7 FC 31 YNR Input Level for →HDMI Mode 480i/480p/576i/576p/VGA 7 7 7 FC 32 YNR Input Level for →HDMI Mode 1080i-50/60/720p 7 7 7 FC 33 CNR Input Level at Low level for AV1-5 Mode RF/VIDEO 7 3 3 FC 34 CNR Input Level at Low level for AV1-5 Mode Scart-RGB(50/60Hz) 7 3 3 FC 35 CNR Input Level at Low level for AV1-5 Mode 480i/576i 7 3 3 FC 36 CNR Input Level at Low level for AV1-5 Mode 480p/576p 7 3 3 FC 37 CNR Input Level at Low level for AV1-5 Mode 1080i-50/60/720p 7 3 3 FC 38 CNR Input Level at Low level for →HDMI Mode 480i/480p/576i/576p/VGA 7 2 2 FC 39 CNR Input Level at Low level for →HDMI Mode 1080i-50/60/720p 7 2 2 FC 40 Main/Sub YFRNR Pass Level [MYNRP0] NTSC/PAL/Multi 7 1 1 FC 41 [MYNRP5] NTSC/PAL-VIDEO 7 0 0 FC 42 [MYNRP6'] Scart-RGB(50/60Hz) 7 0 0 FC 43 [MYNRP6] 480i/576i (Except HDMI) 7 0 0 FC 44 [MYNRP7] 480p/576p (Except HDMI) 7 0 0 FC 45 [MYNRP8] 1080i-50/60/720p (Except HDMI) 7 0 0 FC 46 [MYNRP6] 480i/576i (HDMI) 7 0 0 FC 47 [MYNRP7] 480p/576p (HDMI) 7 0 0 FC 48 [MYNRP8] 1080i-50/720p-50 (HDMI) 7 1 1 FC 49 [MYNRP8'] 1080i-60/720p-60 (HDMI) 7 0 0 FC 50 Main/Sub CFRNR Pass Level [MCNRP0] NTSC/PAL/Multi 7 2 0 FC 51 [MCNRP5] NTSC/PAL-VIDEO 7 2 0 FC 52 [MCNRP6'] Scart-RGB(50/60Hz) 7 2 0 FC 53 [MCNRP6] 480i/576i 7 2 0 FC 54 [MCNRP7] 480p/576p 7 2 0 FC 55 [MCNRP8] 1080i-50/60/720p 7 0 0 FC 56 Vertical Enhancer Gain for B-Y/B, R-Y/R [CVEG0] NTSC/PAL/480i/576i/Multi 15 15 15 FC 57 [CVEG1] 480p/576p/1080i-50/60/720p 15 9 9 FC 58 Vertical DSB Gain for B-Y/B, R-Y/R [CVDSBG0] NTSC/PAL/480i/576i/Multi 3 0 0 FC 59 [CVDSBG1] 480p/576p/1080i-50/60/720p 3 0 0 FC
adjustment items by I
ADJ. Items Mode PDP LCD
2
C-bus control (MAIN Part)
Function
Max.
value
Init. Value
Device
12
42PD8800/32LD8800
Adj.
No
60 Vertical DSB coring for B-Y/B, R-Y/R [CVDSBC0] NTSC/PAL/480i/576i/Multi 7 0 0 FC 61 [CVDSBC1] 480p/576p/1080i-50/60/720p 7 0 0 FC 62 Vertical Enhancer CLIP 0:CTI for B-Y/B, R-Y/R [CVECLP0] NTSC/PAL/480i/576i/Multi 1 0 0 FC 63 [CVECLP1] 480p/576p/1080i-50/60/720p 1 0 0 FC 64 Horizontal HPF Peak Frequency Switch for B-Y/B, R-Y/R [CHHPF0] NTSC/PAL/480i/576i/Multi 3 2 2 FC 65 [CHHPF1] 480p/576p/1080i-50/60/720p 3 2 2 FC 66 Horizontal Enhancer Gain for B-Y/B, R-Y/R [CHEG0] NTSC/PAL/480i/576i/Multi 15 15 15 FC 67 [CHEG1] 480p/576p/1080i-50/60/720p 15 9 9 FC 68 Horizontal DSB Gain for B-Y/B, R-Y/R [CHDSBG0] NTSC/PAL/480i/576i/Multi 3 0 0 FC 69 [CHDSBG1] 480p/576p/1080i-50/60/720p 3 0 0 FC 70 Horizontal DSB Coring for B-Y/B, R-Y/R [CHDSBC0] NTSC/PAL/480i/576i/Multi 7 0 0 FC 71 [CHDSBC1] 480p/576p/1080i-50/60/720p 7 0 0 FC 72 Horizontal Enhancer CLIP 0:CTI for B-Y/B, R-Y/R [CHECLP0] NTSC/PAL/480i/576i/Multi 1 0 0 FC 73 [CHECLP1] 480p/576p/1080i-50/60/720p 1 0 0 FC 74 B-Y Clamp Offset NTSC/PAL/480i/576i/480p/576p 255 128 128 FC 75 R-Y Clamp Offset NTSC/PAL/480i/576i/480p/576p 255 128 128 FC 76 B-Y Clamp Offset 1080i-50/60 255 128 127 FC 77 R-Y Clamp Offset 1080i-50/60 255 128 127 FC 78 B-Y Clamp Offset 720p 255 128 128 FC 79 R-Y Clamp Offset 720p 255 128 128 FC 80 B-Y Clamp Offset [DVI-STB] →[HDMI] 480i/576i/480p/576p/VGA 255 128 128 FC 81 R-Y Clamp Offset [DVI-STB] →[HDMI] 480i/576i/480p/576p/VGA 255 128 128 FC 82 B-Y Clamp Offset [DVI-STB] →[HDMI] 1080i-50/60 255 128 128 FC 83 R-Y Clamp Offset [DVI-STB] →[HDMI] 1080i-50/60 255 128 128 FC 84 B-Y Clamp Offset [DVI-STB] →[HDMI] 720p 255 128 128 FC 85 R-Y Clamp Offset [DVI-STB] →[HDMI] 720p 255 128 128 FC 86 FC6 THROUGH 0:OFF, 1:THROUGH ON 1 0 0 FC 87 Dynamic Back Light Correction For LCD 1 1 1 FC 88 Dynamic Contrast Correction 111 FC 89 Histogram Color Management 111 FC 90 Histogram Gradation Amp. 111 FC 91 Histogram Enhancer 111 FC 92 Dynamic Enhancer 111 FC 93 Main H Sync Phase Adjustment (MHPHS) DTT 255 101 101 FC 94 Sub H Sync Phase Adjustment (SHPHS) DTT 255 101 101 FC 95 P/N ID Sub 1 0 0 TB1274 96 Sharpness Gain(RF/NR) Sub 15 2 2 TB1274 97 Sharpness Gain(RF) BG/DK/I Sub 15 8 8 TB1274 98 Sharpness Gain(RF) M Sub 15 8 8 TB1274
99 Sharpness Gain(RF) L Sub 15 8 8 TB1274 100 Sharpness Gain(RF) L' Sub 15 8 8 TB1274 101 Sharpness Gain(VIDEO) PAL Sub 15 8 10 TB1274 102 Sharpness Gain(VIDEO) NTSC3.58 Sub 15 8 10 TB1274 103 Sharpness Gain(VIDEO) SECAM,B/W Sub 15 8 10 TB1274 104 Sharpness Gain(VIDEO) NTSC4.43 Sub 15 8 10 TB1274 105 Sharpness Gain(VIDEO) N-PAL Sub 15 8 10 TB1274 106 Sharpness Gain(VIDEO) M-PAL Sub 15 8 10 TB1274 107 Sharpness Gain(S.VIDEO) Sub 15 10 8 TB1274 108 Sharpness f0(RF) BG/DK/I Sub 3 2 2 TB1274 109 Sharpness f0(RF) M Sub 3 2 2 TB1274 110Sharpness f0(RF) L Sub 3 2 2 TB1274
111Sharpness f0(RF) L' Sub 3 2 2 TB1274 112Sharpness f0(VIDEO) PAL Sub 3 2 2 TB1274 113Sharpness f0(VIDEO) NTSC3.58 Sub 3 2 2 TB1274 114Sharpness f0(VIDEO) SECAM,B/W Sub 3 2 2 TB1274 115Sharpness f0(VIDEO) NTSC4.43 Sub 3 2 2 TB1274 116Sharpness f0(VIDEO) N-PAL Sub 3 2 2 TB1274 117Sharpness f0(VIDEO) M-PAL Sub 3 2 2 TB1274 118Y Out Level M (4.5) Sub 63 19 15 TB1274 119Y Out Level B/G (5.5) Sub 63 13 13 TB1274
ADJ. Items Mode PDP LCD
Function
Max.
value
Init. Value
Device
13
42PD8800/32LD8800
Adj.
No
120 Y Out Level D/K (6.5) Sub 63 12 12 TB1274 121 Y Out Level I (6.0) Sub 63 13 13 TB1274 122 Y Out Level L (6.5) Sub 63 12 12 TB1274 123 Y Out Level L' (6.5) Sub 63 15 15 TB1274 124 Y Out Level (VIDEO) Sub 63 13 13 TB1274 125 Y Out Level (TEXT) Sub 63 4 4 TB1274 126 C Out Level M (4.5) Sub 63 3 12 TB1274 127 C Out Level B/G (5.5) Sub 63 8 8 TB1274 128 C Out Level D/K (6.5) Sub 63 8 8 TB1274 129 C Out Level I (6.0) Sub 63 7 7 TB1274 130 C Out Level L (6.5) Sub 63 7 7 TB1274 131 C Out Level L' (6.5) Sub 63 7 7 TB1274 132 C Out Level (VIDEO) Sub 63 10 10 TB1274 133 C Out Level (TEXT) Sub 63 8 8 TB1274 134 BPF_Q (4.43MHz) Sub 3 3 3 TB1274 135 BPF_f0 (4.43MHz) Sub 3 1 1 TB1274 136 C_TRAP_SW (COMB=OFF-PAL/NTSC4.43/NTSC3.58) Sub 1 0 0 TB1274 137 LPF Sub 1 0 0 TB1274 138 SECAM D-Trap Sub 1 1 1 TB1274 139 FILTER SW(RF) Sub 1 0 0 TB1274 140 Y_DL (4.5MHz) Sub 10 5 5 TB1274 141 Y_DL (5.5MHz PAL/NTSC4.43) Sub 10 2 2 TB1274 142 Y_DL (5.5MHz SECAM) Sub 10 0 0 TB1274 143 Y_DL (6.0PAL/NTSC4.43) Sub 10 7 7 TB1274 144 Y_DL (6.0SECAM) Sub 10 5 5 TB1274 145 Y_DL (6.5PAL/NTSC4.43) Sub 10 5 5 TB1274 146 Y_DL (6.5SECAM) Sub 10 5 5 TB1274 147 Y_DL (L) Sub 10 5 5 TB1274 148 Y_DL (L') Sub 10 5 5 TB1274 149 Y_DL (VIDEO PAL/NTSC4.43) Sub 10 5 5 TB1274 150 Y_DL (VIDEO SECAM) Sub 10 5 5 TB1274 151 Y_DL (VIDEO NTSC) Sub 10 5 5 TB1274 152 NTSC Comb(Comb off) Sub 1 1 1 TB1274 153 Cb offset1 Sub 15 8 8 TB1274 154 Cr offset1 Sub 15 8 8 TB1274 155 MVM (VIDEO) 1 0 0 TB1274 156 AFC_GAIN (AV00) 3 0 0 TB1274 157 AFC_GAIN (AV1) 3 0 0 TB1274 158 AFC_GAIN (AV2) 3 0 0 TB1274 159 AFC_GAIN (AV3) 3 0 0 TB1274 160 AFC_GAIN (AV4) 3 0 0 TB1274 161 AFC_GAIN (AV5) 3 0 0 TB1274 162 AFC_GAIN (Except AV00) 3 0 0 TB1274 163 S_B-Y_ADJ Sub 15 8 8 TB1274 164 S_R-Y_ADJ Sub 15 8 8 TB1274 165 BELL_f0 Sub 1 0 0 TB1274 166 S_INHBT 1 0 0 TB1274 167 S_ID 1 0 0 TB1274 168 S_GP 3 0 0 TB1274 169 S_V_ID 1 0 0 TB1274 170 BELL/HPF 3 3 3 TB1274 171 HS Phase Sub 1 0 0 TB1274 172 Bandwidth 1 NTSC/PAL/480i/576i 3 1 1 TA1391FG 173 Bandwidth 1 480p/576p 3 2 2 TA1391FG 174 Bandwidth 1 1080i-50/60/720p 3 0 0 TA1391FG 175 Bandwidth 1 DTT 3 2 2 TA1391FG 176 Bandwidth 2 NTSC/PAL/480i/576i 3 2 2 TA1391FG 177 Bandwidth 2 480p/576p 3 2 2 TA1391FG 178 Bandwidth 2 1080i-50/60/720p 3 0 0 TA1391FG 179 Bandwidth 2 DTT 3 2 2 TA1391FG
ADJ. Items Mode PDP LCD
Function
Max.
value
Init. Value
Device
14
42PD8800/32LD8800
Adj.
No
180 Sub Contrast 1 Except 15kHz system (15kHz→#262) 15 0 0 TA1391FG
181 Sub Contrast 1 DTT 15 0 0 TA1391FG
182 Sub Contrast 2 15 0 0 TA1391FG
183 Sub Contrast 2 DTT 15 0 0 TA1391FG
184 Sub Color 1 15 0 12 TA1391FG
185 Sub Color 1 DTT 15 0 0 TA1391FG
186 Sub Color 2 15 0 8 TA1391FG
187 Sub Color 2 DTT 15 0 0 TA1391FG
188 HV THRU 1 NTSC/PAL/480i/576i/480p/576p 1 0 0 TA1391FG
189 HV THRU 1 1080i-50/60/720p 1 0 0 TA1391FG
190 HV THRU 2 NTSC/PAL/480i/576i/480p/576p 1 0 0 TA1391FG
191 HV THRU 2 1080i-50/60/720p 1 0 0 TA1391FG
192 H_SEP 1 RF/VIDEO 1 0 0 TA1391FG
193 H_SEP 1 480i/576i 1 0 0 TA1391FG
194 H_SEP 1 480p/576p 1 0 0 TA1391FG
195 H_SEP 1 1080i_50 1 0 0 TA1391FG
196 H_SEP 1 1080i_60/720p 1 0 0 TA1391FG
197 H_SEP 2 RF/VIDEO 1 0 0 TA1391FG
198 H_SEP 2 480i/576i 1 0 0 TA1391FG
199 H_SEP 2 480p/576p 1 0 0 TA1391FG
200 H_SEP 2 1080i_50 1 0 0 TA1391FG
201 H_SEP 2 1080i_60/720p 1 0 0 TA1391FG
202 V_SEP 1 RF/VIDEO 1 0 0 TA1391FG
203 V_SEP 1 480i/576i 1 0 0 TA1391FG
204 V_SEP 1 480p/576p 1 0 0 TA1391FG
205 V_SEP 1 1080i_50 1 0 0 TA1391FG
206 V_SEP 1 1080i_60/720p 1 0 0 TA1391FG
207 V_SEP 2 RF/VIDEO 1 0 0 TA1391FG
208 V_SEP 2 480i/576i 1 0 0 TA1391FG
209 V_SEP 2 480p/576p 1 0 0 TA1391FG
210 V_SEP 2 1080i_50 1 0 0 TA1391FG
211V_SEP 2 1080i_60/720p 1 0 0 TA1391FG
212 AFC MODE 1 RF 3 0 0 TA1391FG
213 AFC MODE 1 VIDEO 3 0 0 TA1391FG
214 AFC MODE 2 RF 3 0 0 TA1391FG
215 AFC MODE 2 VIDEO 3 0 0 TA1391FG
216 N_LVL 1 RF 1 0 0 TA1391FG
217 N_LVL 1 VIDEO 1 0 0 TA1391FG
218 N_LVL 2 RF 1 0 0 TA1391FG
219 N_LVL 2 VIDEO 1 0 0 TA1391FG
220 HD POSITION 1 480i/576i 15 0 0 TA1391FG
221 HD POSITION 1 480p/576p 15 0 0 TA1391FG
222 HD POSITION 1 1080i_50 15 0 0 TA1391FG
223 HD POSITION 1 1080i_60/720p 15 0 0 TA1391FG
224 HD POSITION 2 480i/576i 15 0 0 TA1391FG
225 HD POSITION 2 480p/576p 15 0 0 TA1391FG
226 HD POSITION 2 1080i_50 15 0 0 TA1391FG
227 HD POSITION 2 1080i_60/720p 15 0 0 TA1391FG
228 Y LPF 1 RF 1 1 1 TA1391FG
229 Y LPF 1 VIDEO 1 1 1 TA1391FG
230 Y LPF 2 RF 1 1 1 TA1391FG
231 Y LPF 2 VIDEO 1 1 1 TA1391FG
232 Gain 1 1 1 1 TA1391FG
233 Gain 2 1 1 1 TA1391FG
234 HD/VD OUTPUT LEVEL 1 1 1 TA1391FG
235 Video2-RGB MODE ON For ASIA 1 0 0 -
236 Heat APC function (HAPC) available 1 1 1 PDP
237 γ-select(0:1.0, 1:2.2, 2:2.8) RF/VIDEO 2 1 1 PDP
238 γ-select(0:1.0, 1:2.2, 2:2.8) DSUB-RGB 2 1 1 PDP
239 Select for APC function 1 0 0 PDP
ADJ. Items Mode PDP LCD
Function
Max.
value
Init. Value
Device
15
42PD8800/32LD8800
Adj.
No
240 CCFMD function RF/VIDEO 1 0 0 PDP 241 CCFMD function DSUB-RGB 1 0 0 PDP 242 NTSC/EBU(CCFORM) SD(YCbCr)/Scart-RGB 1 0 0 PDP 243 NTSC/EBU(CCFORM) HD(YPbPr) 1 0 0 PDP 244 NTSC/EBU(CCFORM) DSUB-RGB 1 0 0 PDP 245 Correction for Tracking (DCBON) RF/VIDEO-Color Temp. Cool 1 1 1 PDP 246 Correction for Tracking (DCBON) RF/VIDEO-Color Temp. Nor/War 1 1 1 PDP 247 Correction for Tracking (DCBON) DSUB-RGB 1 1 1 PDP 248 Color Temp. Correction 3 2 2 PDP 249 Brightness Limitted Function of PANEL [APSON] 1 1 1 PDP 250 Dispersion Time of Sustain current 0:2 Times, 1:4 times For Dynamic mode 1 0 0 PDP 251 Dispersion Time of Sustain current 0:2 Times, 1:4 times For Natural mode 1 1 1 PDP 252 Dispersion Time of Sustain current 0:2 Times, 1:4 times For Cinema mode 1 1 1 PDP 253 Dispersion Time of Sustain current 0:2 Times, 1:4 times For PC mode 1 1 1 PDP 254 Dispersion Time of Sustain current 0:2 Times, 1:4 times For PC-Movie mode 1 1 1 PDP 255 Q mode 0:Freeze, 1:Move 1, 2:Move 2, 3:Movie3 For 50Hz[Dynamic] mode 3 2 1 PDP 256 Q mode 0:Freeze, 1:Move 1, 2:Move 2, 3:Movie3 For 50Hz[Natural] mode 3 3 1 PDP 257 Q mode 0:Freeze, 1:Move 1, 2:Move 2, 3:Movie3 For 50Hz[Cinema] mode 3 3 1 PDP 258 Q mode 0:Freeze, 1:Move 1, 2:Move 2, 3:Movie3 For 60Hz[Dynamic] mode 3 2 1 PDP 259 Q mode 0:Freeze, 1:Move 1, 2:Move 2, 3:Movie3 For 60Hz[Natural] mode 3 3 1 PDP 260 Q mode 0:Freeze, 1:Move 1, 2:Move 2, 3:Movie3 For 60Hz[Cinema] mode 3 3 1 PDP 261 Q mode 0:Freeze, 1:Move 1, 2:Move 2, 3:Movie3 For 70Hz(PC) 3 0 0 PDP 262 Sub Contrast 1 15kHz System 15 4 4 TA1391FG 263 Vak OFfSet (Vak_OFS) 255 0 0 PDP 264 Vak to Vra Parameter(VaktoVra) 255 1 1 PDP 265 Vsk to Vrs Parameter(VsktoVrs) 255 1 1 PDP 266 VFB WAIT CounTer(CT_VWAIT) 255 60 60 PDP 267 VFB CORRection Counter(CT_VCORR) 255 15 15 PDP 268 Vsk OFFSet(Vsk_OFS) 255 0 0 PDP 269 Uvrs/Uvra RECALL(RCLVr) 1 0 0 PDP 270 C3OTON 1:ON, 0:OFF 1 1 1 PDP 271 C3OTLV 1:ON, 0:OFF 1 1 1 PDP 272 SRV16 1:ON, 0:OFF 1 0 0 PDP 273 WTI-VW 1:ON, 0:OFF 1 0 0 PDP 274 WTI-WAVE 0:AUTO1, 1:AUTO2, 2:Fix 2 0 0 PDP 275 SRV17 0:ON, 1:OFF 1 0 0 PDP 276 Vsk DETect First 2Bits(Vsk_DET) - - - PDP 277 Vsk DETect Last 8Bits(Vsk_DET) - - - PDP 278 Vsk detect INIT. First 2Bits(Vsk_INIT) - - - PDP 279 Vsk detect INIT. Last 8Bits(Vsk_INIT) - - - PDP 280 Vak DETect First 2Bits(Vak_DET) - - - PDP 281 Vak DETect Last 8Bits(Vak_DET) - - - PDP 282 DeLTa Vrs value(DLT_Vrs) - - - PDP 283 DeLTa Vra value(DLT_Vra) - - - PDP 284 Vak detect INIT. First 2Bits(Vak_INIT) - - - PDP 285 Vak detect INIT. Last 8Bits(Vak_INIT) - - - PDP 286 USER Vrs(Uvrs) - - - PDP 287 USER Vra(Uvra) - - - PDP 288 ISM Limit Limit Value 0:1023 1:580 1 0 0 WVGA 289 ISM Control for WVGA For WVGA 1 1 1 WVGA 290 SWIVEL DEMO MODE ON 50 0 0 ­291 WVGA BRIGHTNESS For WVGA 1 0 0 WVGA
292 Black insert function 0:Not available, 1:Available
293 Dynamic Backlight function 0:No, 1:Yes For LCD 1 1 1 M30627 294 →HDMI Setup 0:None VGA/Others Yes, 1:All none 2:All have →HDMI 2 0 0 M30627 295 DTT LOG ENABLE For DTT 1 0 0 ­296 AUTO_FM/AM (D11-D8) - 15 2 2 MSP3455G 297 AUTO_FM/AM (D 7-D0) - 254 189 189 MSP3455G 298 A2_THRESHOLD (D11-D8) - 15 0 0 MSP3455G 299 A2_THRESHOLD (D 7-D0) - 254 112 112 MSP3455G
ADJ. Items Mode PDP LCD
Function
For LCD Dynamic mode or Day mode
Init. Value
Max. value
1 0 0 M30627
Device
16
42PD8800/32LD8800
Adj.
No
300 PRE_AM
301 VOL_SCART1 (D15-D8) - 254 115 115 MSP3455G 302 VOL_SCART1 (D 7-D5) - 7 0 0 MSP3455G 303 PRE_SCART - 254 31 31 MSP3455G 304 PRE_FM 4.5MHz(JAPAN) 254 34 34 MSP3455G
305 PRE_FM
306 PRE_FM 4.5MHz(BTSC-SAP) 254 60 60 MSP3455G
307 PRE_FM
308 PRE_FM 4.5MHz(KOREA-Dual/Stereo) 254 34 34 MSP3455G
309 PRE_FM
310 PRE_FM
311PRE_NICAM - 254 57 57 MSP3455G
312 CM_THRESHOLD (D15-D8) - 254 0 0 MSP3455G 313 CM_THRESHOLD (D7 -D0) - 254 36 36 MSP3455G 314 Sound Multiplex special operation (0:Normal 1:Korea) 1 0 0 M30627 315 Set Stereo jugdment level at turn on mode of Sound Multiplex For Korea special version 127 18 18 M30627 316 Set Dual judgment level at turn on mode of Sound Multiplex For Korea special version 128 18 18 M30627 317 Set Stereo jugdment level at normal mode of Sound Multiplex For Korea special version 127 18 18 M30627 318 Set Dual judgment level at normal mode of Sound Multiplex For Korea special version 128 18 18 M30627 319 Set jugdment time for jugd to Multiplex at turn on mode For Korea special version 255 117 117 M30627 320 Set Counting time for jugdmenet of normal mode For Korea special version 255 10 10 M30627 321 Set jugdment time for jugd to Multiplex at normal mode For Korea special version 255 64 64 M30627 322 Select over modulated mode For Korea special version 2 0 0 M30627 323 Set over modulated mode 1 For Korea special version 255 18 18 MSP3455G 324 Set over modulated mode 2 For Korea special version 255 32 32 MSP3455G 325 TEXT H sync delay - 127 0 0 SAA5361 326 TEXT V sync delay - 127 50 50 SAA5361 327 TEXT_H_POSITION - 254 48 48 SAA5361 328 TEXT_V_POSITION - 254 39 39 SAA5361 329 Select for APC output [Except Europe model] Main RF 2 1 1 SAA5361 330 L_PLL.GAIN 1 0 0 TDA9885 331 HDMI EDID WRITE ENABLE s 1 0 0 M30627
HDMI Ccolorimetry Judgement 0:Signal Format Priority/1:AVI
332
InfoFrame Priority 333 BPMA : Back Porch Mode,Field2 Position Adjustment 1 1 1 HDMI 334 TMDS Equalization Control (0:0xC3, 1:0x0F, 2:0x1E, •••, 16:0xF0) 16 13 13 HDMI
Select HDMI 1/2 at no using 0: Both no select,1:Select HDMI 1, 2: 335
Select HDMI 2 336 PRMB : preamble criteria 31 6 6 HDMI 337 HDCP : HDCP enable criteria 31 12 12 HDMI 338 Picture Output Mode Select OUTTYP[1:0] 2 0 0 uPD64015 339 Digital LPF Through Control LPFTHR[1:0] 3 0 0 uPD64015 340 1 0 0 uPD64015 341 ADC Sampling Delay Setting ADCKS[1:0] 3 3 3 uPD64015 342 Clock Setting in Component Mode CPNFSC 1 1 1 uPD64015 343 Color System Change Detection Time Setting DETOUT[3:0] 15 4 4 uPD64015 344 Color System Judgement Time Setting DETTIM[3:0] 15 4 4 uPD64015 345 Burst Lock Detection Variable Setting CLKVA 1 1 1 uPD64015 346 Burst Lock Detection Condition Setting CLKLL[6:0] 127 37 37 uPD64015 347 ARI Gain Fine Adjustment R_GAIN[4:0] 31 16 16 uPD64015 348 FHD Output Delay Adjustment FHDDL[5:0] TEXT 63 20 20 uPD64015 349 FHD Output Range Setting FHDWD[1:0] TEXT 3 1 1 uPD64015 350 FVD Output Delay Adjustment1 FVDDL[2:0] TEXT 7 7 7 uPD64015 351 FVD Output Delay Adjustment2 FVDHDL[2:0] TEXT 7 1 1 uPD64015 352 For Europe : Transmission of Station Name Check Command 2 0 0 SAA5361 353 For Europe : Result of Station Name Check - - - SAA5361 354 Pedestal Level Correction Sensitivity Adjustment PEDIIRS2 1 0 0 uPD64015 355 AGI Gain Fine Adjusstment G_GAIN[4:0] 31 16 16 uPD64015 356 Jitter Filter Select FLTSEL[1:0] 3 0 0 uPD64015 357 ABI Gain Fine Adjustment B_GAIN[4:0] 31 16 16 uPD64015
FB Signal Input Delay Adjustment 4BH:FBCNT[2:1] & 4CH: 358
FBCNT[0]
Analog RGB Signal Input Delay Adjustment 4Ch:RGBCNT[2] & 359
4Dh:4Ch:RGBCNT[1:0]
ADJ. Items Mode PDP LCD
Function
Except 4.5MHz (Except Dual/ Stereo mode)
4.5MHz(Except BTSC-SAP mode)
4.5MHz(Except KOREA-Dual/ Stereo mode)
Except 4.5MHz(Except Dual/ Stereo mode) Except 4.5MHz(Dual/Stereo mode)
HDMI 1 0 0 HDMI
Init. Value
Max.
value
254 17 17 MSP3455G
254 32 32 MSP3455G
254 36 36 MSP3455G
254 17 17 MSP3455G
254 27 27 MSP3455G
2 0 0 HDMI
7 0 0 uPD64015
7 0 0 uPD64015
Device
17
42PD8800/32LD8800
Adj.
No
360
Sub Contrast Gain Adjustment SBCNT[5:0] 63 32 32 uPD64015
361
Sub Color Cb Gain Adjustment CBGAIN[5:0] 63 32 32 uPD64015
362
Sub Color Cr Gain Adjustment CRGAIN[5:0] 63 32 32 uPD64015
363
YGC Auto Mode Select YGCAUTO 1 0 0 uPD64015
364
YGC Manual Gain Value Setting YGCVAL[6:0] 127 58 58 uPD64015
365
YGC Select YGCOFF 1 0 0 uPD64015
366
YGC Control Mode Select1 YGCMVS 1 0 0 uPD64015
367
Progressive Y Signal Gain Select YPGAINS[1:0] 3 1 1 uPD64015
368
YGC Control Mode Select YGCAVAL[6:0] 31 9 9 uPD64015
369
YGC Control Mode Select2 MAXIIRS 1 0 0 uPD64015
370
DC Level Control Mode Select PEDIIRS[1:0] 3 1 1 uPD64015
371
YGC Control Mode Select4 YGCIIRS[1:0] 3 1 1 uPD64015
372
Vertical Sync Signal Slice Level Setting VSYLSE[3:0] RF 15 10 10 uPD64015
373 374 375
Horizontal Sync Signal Slice Level Setting SYLSE[3:0] RF 15 9 9 uPD64015
376 377 378
Sync Slice Slice Level Setting for Progressive PSYLSE[3:0] 15 9 9 uPD64015
379
Vertical Sync Signal Detection Range Setting VDETTIM 1 0 0 uPD64015
380
Vertical Sync Signal Detection Correction Setting VDETG 1 1 1 uPD64015
381
Horizontal Sync Signal False Detection Prevention Setting MASKHD 1 1 1 uPD64015
382
Vertical Sync Output Switching for Digital RGB VDFB 1 0 0 uPD64015
383
Noise Level Detection Characteristic Setting1 NDUMODE 1 0 0 uPD64015
384
Noise Level Detection Characteristic Setting2 NDUD2H 1 0 0 uPD64015
385
Noise Level Detection Sensitivity Setting1 NDUWSC[1:0] 3 1 1 uPD64015
386
Noise Level Detection Sensitivity Setting2 NDUXSC[1:0] 3 1 1 uPD64015
387
3 Dimentional Y/C Separate Operation Mode Select NSDS[1:0] 3 0 0 uPD64015
388
Line Comb Filter Operation Mode YCSV[1:0] 3 0 0 uPD64015
389
3 Line Comb Select Sensitivity Setting1 VCOMA[1:0] 3 2 2 uPD64015
390
3 Line Comb Select Sensitivity Setting2 VCOMB[1:0] 3 2 2 uPD64015
391
Y Trap Filter Characteristic Select (NTSC, PAL) YCSHY[1:0] 3 0 0 uPD64015
392
C Separate Filter Characteristic Select (NTSC, PAL) YCSHC[1:0] 3 0 0 uPD64015
393
Chroma Output Filter Processing Select COBPFOFF 1 0 0 uPD64015 Chroma Output Frequency Characteristic Correction Select
394
YCSCOF[2:0]
395
Y Trap Filter Select (SECAM) YCSSY[2:0] 6 0 0 uPD64015
396
Vertical Logical Comb Select Sensitivity Setting VLTYPE 1 1 1 uPD64015
397
C Separate Filter Select (SECAM) YCSSC[2:0] 6 0 0 uPD64015
398
Aperture Select VAPONV 1 1 1 uPD64015
399
V Aperture Gain Select VAPG[2;0] RF 7 2 5 uPD64015
400 401 402
V Aperture Convergent Point Setting VAPI[4:0] 31 20 20 uPD64015
403
PAL Color Phase Distortion Correction Select PALCFIL[1:0] 3 0 0 uPD64015
404
Y Signal 2fc Denoising Effect Select YCSY2F[1:0] 3 3 3 uPD64015
405
Y/C timing for L(6.5) system RF Main 15 8 8 uPD64015
406
Trap Filter Select TRF[1:0] 3 0 0 uPD64015
407
Trap Filter Gain Setting TRGAIN[2:0] 7 0 0 uPD64015
408
Trap Filter Setting TRPAL 1 0 0 uPD64015
409
Y/C timing for L'(6.5) system RF Main 15 8 8 uPD64015
410
Motion Detection Mode Setting MSS[1:0] 3 0 0 uPD64015
411
Y Motion Detection Coring Setting DYCOR[3:0] NTSC 15 2 2 uPD64015
412
Y Motion Detection Coring Setting DYCOR[3:0] Except NTSC mode 15 3 3 uPD64015
413
Y Motion Detection Gain Setting DYGAIN[3:0] NTSC 15 9 9 uPD64015
414
Y Motion Detection Gain Setting DYGAIN[3:0] Except NTSC mode 15 9 9 uPD64015
415
C Motion Detection Coring Setting DCCOR[3:0] NTSC 15 3 3 uPD64015
416
C Motion Detection Coring Setting DCCOR[3:0] Except NTSC mode 15 2 2 uPD64015
417
C Motion Detection Gain Setting DCGAIN[3:0] NTSC 15 6 6 uPD64015
418
C Motion Detection Gain Setting DCGAIN[3:0] Except NTSC mode 15 11 11 uPD64015
419
Motion Detection Characteristic Test1 SELYCLM[1:0] 3 1 1 uPD64015
ADJ. Items Mode PDP LCD
Function
AV 15 10 10 uPD64015 480i/576i 15 10 10 uPD64015
AV 15 9 9 uPD64015 480i/576i 15 9 9 uPD64015
AV 7 5 4 uPD64015 480i/576i 7 6 4 uPD64015
Init. Value
Max.
value
4 0 0 uPD64015
Device
18
42PD8800/32LD8800
Adj.
No
420 Motion Detection Characteristic Test2 SELDYH2F 1 0 0 uPD64015 421 Motion Detection Characteristic Test3 SELDCH2F 1 1 1 uPD64015 422 Motion Detection Characteristic Test6 SELD1FL 1 0 0 uPD64015 423 Color Demodulation Burst Gate Pulse Range Setting BGP2WD[3:0] 15 10 10 uPD64015 424 Color Demodulation Burst Gate Pulse Starting Point Setting BGP2ST[3:0] 15 8 8 uPD64015 425 Demodulation Part Force Killer Setting KILON 1 0 0 uPD64015 426 Time Constant Setting for Color Demodulation APC APCGAIN[1:0] 3 1 1 uPD64015 427 Time Constant Setting for Color Demodulation ACC ACCGAIN[1:0] 3 1 1 uPD64015 428 Control Characteristic Setting for Color Demodulation ACC ACCLIM[3:0] 15 8 8 uPD64015 429 SECAM Burst Pulse Position Correction SBGTDL[2:0] 7 7 7 uPD64015 430 PAL Line Detection Strength Setting PIDSTR[4:0] 31 4 4 uPD64015 431 SECAM Line Detection Strength Setting SIDSTR[4:0] 31 8 8 uPD64015 432 SECAM System Judgement Strength Setting SDETSTR[7:0] 255 168 168 uPD64015 433 3DNR Mode Setting NRMODE[1:0] 3 2 2 uPD64015 434 YNR Process Stop YNRSTOP 1 1 1 uPD64015 435 YNRLPF Process Yes/No YNRLPFON 1 0 0 uPD64015 436 YNR Nonlinear Filter Gain Setting YNRGAIN[1:0] 3 2 2 uPD64015 437 YNR Nonlinear Filter Convergence Level Setting YNRCORE[2:0] 7 3 3 uPD64015 438 YNR Nonlinear Filter Limit Level Setting YNRLIM[2:0] 7 3 3 uPD64015 439 YNR Motion Detection between Frames Coring Setting YMVDCORE[3:0] 15 6 6 uPD64015 440 YNR Motion Detection between Frames Gain Setting YNRMVDG[3:0] 15 6 6 uPD64015 441 YNR Motion Detection between Frames Setting YNRMDOFF 1 1 1 uPD64015 442 CNR Process Stop CNRSTOP 1 1 1 uPD64015 443 CNRLPF Process Yes/No CNRLPFON 1 0 0 uPD64015 444 CNR Nonlinear Filter Gain Setting CNRGAIN[1:0] 3 3 3 uPD64015 445 CNR Nonlinear Filter Convergence Level Setting CNRCORE[2:0] 7 3 3 uPD64015 446 CNR Nonlinear Filter Limit Level Setting CNRLIM[2:0] 7 3 3 uPD64015 447 CNR Motion Detection between Frames Coring Setting CMVDCORE[3:0] 15 4 4 uPD64015 448 CNR Motion Detection between Frames Gain Setting CNRMVDG[3:0] 15 4 4 uPD64015 449 CNR Motion Detection between Frames Setting CNRMDOFF 1 1 1 uPD64015 450 Setup Level Correction Setting1 STNTSCM RF 1 0 0 uPD64015 451 AV(Except 480i/576i) 1 0 0 uPD64015 452 AV(480i/576i) 1 0 0 uPD64015 453 Setup Level Correction Setting2 STPALD[2:0] RF 7 0 0 uPD64015 454 AV(Except 480i/576i) 7 0 0 uPD64015 455 AV(480i/576i) 7 0 0 uPD64015 456 Sub Contrast Adjustment SBCNT[7:0] RF(M) 255 128 108 uPD64015 457 RF(BG) 255 128 108 uPD64015 458 RF(DK) 255 128 108 uPD64015 459 RF(I) 255 128 108 uPD64015 460 RF(LL') 255 128 108 uPD64015 461 AV(Except 480i/576i) 255 128 108 uPD64015 462 AV(480i/576i) 255 128 128 uPD64015 463 Sub Color Adjustment for Cb SBCLRU[7:0] RF 255 128 128 uPD64015 464 AV(Except 480i/576i) 255 128 128 uPD64015 465 AV(480i/576i) 255 128 128 uPD64015 466 Sub Color Adjustment for Cr SBCLRV[7:0] RF 255 128 128 uPD64015 467 AV(Except 480i/576i) 255 128 128 uPD64015 468 AV(480i/576i) 255 128 128 uPD64015 469 Y Noise Coring1 YCONR[3:0] NTSC 10 0 0 uPD64015 470 Except NTSC 10 0 0 uPD64015 471 480i/576i 10 0 0 uPD64015 472 C Noise Coring1 CCONR[3:0] NTSC 8 0 0 uPD64015 473 Except NTSC 8 4 4 uPD64015 474 480i/576i 8 0 0 uPD64015 475 Brightness Signal Noise Coring2 YCORB[3:0] NTSC 10 0 0 uPD64015 476 Except NTSC 10 0 0 uPD64015 477 480i/576i 10 0 0 uPD64015 478 Brightness Signal Noise Coring2 Control YCOREN NTSC 1 1 1 uPD64015 479 Except NTSC 1 1 1 uPD64015
ADJ. Items Mode PDP LCD
Function
Max.
value
Init. Value
Device
19
42PD8800/32LD8800
Adj.
No
480 480i/576i 1 1 1 uPD64015 481 Brightness Signal Noise Coring (highpass) YCORH[2:0] NTSC 7 0 0 uPD64015 482 Except NTSC 7 0 0 uPD64015 483 480i/576i 7 0 0 uPD64015 484 Color-Difference Signal Noise Coring2 CCORB[3:0] NTSC 10 0 0 uPD64015 485 Except NTSC 10 0 0 uPD64015 486 480i/576i 10 0 0 uPD64015 487 Color-Difference Signal Noise Coring2 Control CCOREN NTSC 1 0 0 uPD64015 488 Except NTSC 1 0 0 uPD64015 489 480i/576i 1 0 0 uPD64015 490 LTI Correction Amount Adjustment LTIGAIN[3:0] RF(M) 15 0 0 uPD64015 491 RF(Except M) 15 0 0 uPD64015 492 NTSC 15 0 0 uPD64015 493 Except NTSC 15 1 1 uPD64015 494 480i/576i 15 0 0 uPD64015
495 CTI Correction Amount Adjustment CTIGAIN[3:0]
496 RF(Except M) 15 0 0 uPD64015 497 NTSC 15 0 0 uPD64015 498 Except NTSC 15 7 7 uPD64015 499 480i/576i 15 0 0 uPD64015 500 Filter Setting for LTI LTITAP[2:0] RF(M) 7 2 2 uPD64015 501 RF(Except M) 7 2 2 uPD64015 502 NTSC 7 2 2 uPD64015 503 Except NTSC 7 1 1 uPD64015 504 480i/576i 7 7 7 uPD64015 505 Coring Setting for LTI LTICORE[3:0] NTSC 11 3 3 uPD64015 506 Except NTSC 11 3 3 uPD64015 507 480i/576i 11 3 3 uPD64015 508 Filter Setting for CTI CTITAP[2:0] RF(M) 7 2 2 uPD64015 509 RF(Except M) 7 2 2 uPD64015 510 NTSC 7 2 2 uPD64015
511 Except NTSC 7 5 5 uPD64015 512 480i/576i 7 2 2 uPD64015 513 Coring Setting for CTI CTICORE[3:0] RF(M) 9 3 3 uPD64015 514 RF(Except M) 9 3 3 uPD64015 515 NTSC 9 3 3 uPD64015 516 Except NTSC 9 3 3 uPD64015 517 480i/576i 9 3 3 uPD64015 518 Sharpness Adjustment SHPGAIN[7:0] RF(M) 255 150 160 uPD64015 519 RF(BG) 255 150 150 uPD64015 520 RF(DK) 255 150 160 uPD64015 521 RF(I) 255 160 170 uPD64015 522 RF(LL') 255 150 160 uPD64015 523 TEXT 255 128 128 uPD64015 524 NTSC(Ex.S Input)→S:#692 255 150 140 uPD64015 525 Except NTSC(Ex.S Input)→S:#693 255 130 140 uPD64015 526 480i/576i →576i:#694 255 130 140 uPD64015 527 Filter Setting for Sharpness SHPCHAR[2:0] RF 6 3 3 uPD64015 528 NTSC 6 3 3 uPD64015 529 Except NTSC 6 3 3 uPD64015 530 TEXT 6 3 3 uPD64015 531 480i/576i 6 3 3 uPD64015 532 Coring Setting for Sharpness SHPCORE[3:0] RF 10 0 0 uPD64015 533 NTSC 10 0 0 uPD64015 534 Except NTSC 10 0 0 uPD64015 535 TEXT 10 0 0 uPD64015 536 480i/576i 10 0 0 uPD64015 537 Luminance Adjustment (First 8Bits) BRIGHT[9:2] NTSC mode 255 128 128 uPD64015 538 Luminance Adjustment (First 8Bits) BRIGHT[9:2] Except NTSC mode 255 128 128 uPD64015 539 Luminance Adjustment (First 8Bits) BRIGHT[9:2] 480i/576i 255 128 128 uPD64015
ADJ. Items Mode PDP LCD
Function
RF(M) *In substitution for M Group Delay of Correction
Init. Value
Max.
value
15 0 0 uPD64015
Device
20
42PD8800/32LD8800
Adj.
No
540 Luminance Adjustment (Last 2Bits) BRIGHT[1:0] NTSC mode 3 0 0 uPD64015 541 Luminance Adjustment (Last 2Bits) BRIGHT[1:0] Except NTSC mode 3 0 0 uPD64015 542 Luminance Adjustment (Last 2Bits) BRIGHT[1:0] 480i/576i 3 0 0 uPD64015 543 R-Y Axis Adjustment OFRY[5:0] NTSC 63 32 32 uPD64015 544 Except NTSC 63 32 32 uPD64015 545 Color Adjustment COLORG[7:0] RF(M) 255 115 110 uPD64015 546 RF(BG) 255 120 110 uPD64015 547 RF(DK) 255 120 110 uPD64015 548 RF(I) 255 120 110 uPD64015 549 RF(LL') 255 120 110 uPD64015 550 TEXT 255 128 128 uPD64015 551 NTSC 255 120 138 uPD64015 552 Except NTSC 255 123 134 uPD64015 553 480i/576i 255 128 128 uPD64015 554 Tint Adjustment HUE[7:0] RF(M) 255 150 135 uPD64015 555 RF(Except M) 255 128 128 uPD64015 556 NTSC(Ex.S Input)→S:#695 255 126 128 uPD64015
557
558 480i 255 125 128 uPD64015 559 576i 255 130 130 uPD64015 560 Contrast Adjustment CONT[7:0] NTSC 255 108 118 uPD64015 561 Except NTSC 255 108 118 uPD64015 562 480i/576i 255 114 108 uPD64015 563 APL Detection Line Setting APLWID[5:0] 50Hz 63 0 0 uPD64015 564 60Hz 63 0 0 uPD64015 565 APL Detection Time Constant Setting APLCOE[3:0] 50Hz 15 5 5 uPD64015 566 60Hz 15 5 5 uPD64015 567 Direct Transmission Rate Correction Amount Setting DCREGAIN[3:0] 15 8 8 uPD64015 568 Black Stretch Correction Amount Setting BLEXGAIN[5:0] 63 16 16 uPD64015 569 Black Stretch Correction APL Adaptive Amount ABLEXST[3:0] 15 0 0 uPD64015 570 Black Stretch Correction Operation Point Setting BLEXST[7:0] 255 0 0 uPD64015 571 White Peak Correction Amount Setting GAMGAIN[3:0] 15 0 0 uPD64015 572 White Peak Correction APL Adaptive Amount Setting AGAMGAIN[3:0] 15 0 0 uPD64015 573 White Peak Correction Operation Point Setting GAMST[7:0] 255 255 255 uPD64015 574 Black Stretch Correction Setting BLEXCTL 1 0 0 uPD64015 575 White Peak Correction Setting YGAMCTL 1 0 0 uPD64015 576 ACL Correction Amount Setting ACLSEN[3:0] 15 0 0 uPD64015 577 ACL Correction Operation Point Setting ACLST[7:0] 255 255 255 uPD64015 578 Image Blanking Setting YVBCTL 1 1 1 uPD64015 579 LPF Characteristic Setting for Color-Difference CR Signal CRLPF[1:0] 3 1 1 uPD64015 580 LPF Characteristic Setting for Color-Difference Cb Signal CBLPF[1:0] 3 1 1 uPD64015 581 Burst Gate Pulse Range Setting BGPWD[3:0] NTSC 15 8 8 uPD64015 582 Except NTSC 15 8 8 uPD64015 583 Burst Gate Pulse Starting Point Setting BGPST[3:0] NTSC 15 8 8 uPD64015 584 Except NTSC 15 8 8 uPD64015 585 Killer Level Setting KILLV[3:0] RF NTSC 15 8 8 uPD64015 586 RE PAL 15 8 8 uPD64015 587 RF SECAM 15 8 8 uPD64015 588 AV NTSC 15 3 3 uPD64015 589 AV PAL 15 3 3 uPD64015 590 AV SECAM 15 3 3 uPD64015 591 Killer Level Setting for Color System Judgement KILLVCTL[3:0] RF NTSC 15 9 9 uPD64015 592 RF PAL 15 9 9 uPD64015 593 RF SECAM 15 9 9 uPD64015 594 AV NTSC 15 9 9 uPD64015 595 AV PAL 15 9 9 uPD64015 596 AV SECAM 15 9 9 uPD64015 597 Burst Lock PLL Gain Setting FSCFGAN 1 1 1 uPD64015 598 Phase Error Detection Setting for Burst Lock FSCSYC 1 0 0 uPD64015 599 Burst Lock PLL Phase Error Detection Level Setting GAINSEL 1 0 0 uPD64015
ADJ. Items Mode PDP LCD
Function
Except NTSC(Ex.S Input)→ S:#696
Init. Value
Max. value
255 124 133 uPD64015
Device
21
42PD8800/32LD8800
Adj.
No
600 Vertical Sync Signal Pull-in Range Select VLIM 1 0 0 uPD64015 601 V Counter Free Run Setting at No Signal Mode NSGVFRUN 1 1 1 uPD64015 602 Line Lock Clock Free Run Settng at No Signal Mode NSGFRUN 1 0 0 uPD64015 603 Vertical Sync Signal Correction VDCOR 1 0 0 uPD64015 604 Line Lock PLL Gain Setting HPLLG[4:0] RF 31 3 3 uPD64015 605 Line Lock PLL Phase Detection Condition Setting HPLLSIG 1 0 0 uPD64015 606 Line Lock PLL Response Correction Setting HPLLH2 1 1 1 uPD64015 607 Line Lock PLL Response Correction Coeffi cient1 HPLLH21[7:0] 255 32 32 uPD64015 608 Line Lock PLL Response Correction Coeffi cient2 HPLLH22[7:0] 255 8 8 uPD64015 609 PWM Select for Clamp PWMSEL[1:0] 3 3 3 uPD64015 610 Motion Detection Gain Setting D2FGAIN[2:0] NTSC 7 5 5 uPD64015
Motion Detection Coring Setting D2FCOR[6:0] (3D Comb.= for High/Low&OFF
611
→0) 612 Except NTSC mode 127 7 7 uPD64015 613 Motion Detection Characteristic Test8 C2O NTSC mode 1 0 0 uPD64015 614 Offset Substraction Value(NR=ON) for Sharpness Adjustment(#518~522) RF (NR=ON) 63 50 50 uPD64015 615 Motion Detection Characteristic Test9 MDMVD NTSC mode 1 0 0 uPD64015 616 Motion Detection LPF Setting MVDLPFON 1 0 0 uPD64015 617 Motion Detection H Black Stretch Setting TESDOT[2:0] NTSC 7 0 0 uPD64015 618 Except NTSC 7 0 0 uPD64015 619 Y Motion Detection Gain Setting CLIPSELY[1:0] NTSC 3 1 1 uPD64015 620 Except NTSC mode 3 2 2 uPD64015 621 C Motion Detection Gain Setting CLIPSELC[1:0] NTSC 3 3 3 uPD64015 622 Except NTSC mode 3 3 3 uPD64015 623 Nonlinear Filter Setting1 NFP_3[3:0] NTSC 15 3 3 uPD64015 624 Except NTSC mode 15 5 5 uPD64015 625 Nonlinear Filter Setting2 NFP_7[3:0] NTSC 15 7 7 uPD64015 626 Except NTSC mode 15 9 9 uPD64015 627 Nonlinear Filter Setting3 NFP_B[3:0] NTSC 15 10 10 uPD64015 628 Except NTSC mode 15 10 10 uPD64015 629 Line Comb Filter Operation Mode YCSV_c[1:0] 3 0 0 uPD64015 630 3 Line Comb Select Sensitivity Setting1 VCOMA_c[1:0] 3 2 2 uPD64015 631 3 Line Comb Select Sensitivity Setting2 VCOMB_c[1:0] 3 2 2 uPD64015 632 BPF Select for Y/C Separate Chroma FIL15ON NTSC 1 0 0 uPD64015 633 Except NTSC mode 1 1 1 uPD64015 634 Logical Comb Bandwidth Setting for Brightness COMB_y NTSC 1 0 0 uPD64015 635 Except NTSC mode 1 0 0 uPD64015 636 Logical Comb Bandwidth Setting for Chroma COMB_c NTSC 1 0 0 uPD64015 637 Except NTSC mode 1 0 0 uPD64015 638 Vertical Logical Comb Select Sensitivity Setting VLTYPE_c NTSC 1 1 1 uPD64015 639 Except NTSC mode 1 1 1 uPD64015 640 Logical Comb Characteristic Select SELU 1 1 1 uPD64015 641 Setting for 1 Line Chroma Action ONE_CRMA NTSC 1 0 0 uPD64015 642 Except NTSC mode 1 1 1 uPD64015 643 Setting for 1 Line Chroma at Abnormal Condition OCRENNST NTSC 1 0 0 uPD64015 644 Except NTSC mode 1 0 0 uPD64015 645 Narrow Band BPF Setting for Chroma FIL15NAR 1 1 1 uPD64015 646 1 Line Chroma Detection Gain Setting V1PSEL[7:0] PAL 255 64 64 uPD64015 647 NTSC 255 64 64 uPD64015 648 SECAM 255 64 64 uPD64015 649 PAL-M 255 64 64 uPD64015 650 PAN-N 255 64 64 uPD64015 651 1 Line Chroma Coring Setting ONE_CROCOR[7:0] PAL 255 64 64 uPD64015 652 NTSC 255 64 64 uPD64015 653 SECAM 255 64 64 uPD64015 654 PAL-M 255 64 64 uPD64015 655 PAN-N 255 64 64 uPD64015 656 SECAM Filter Setting SDIEF_SEL[1:0] RF 3 0 0 uPD64015 657 AV 3 0 0 uPD64015 658 Trap Filter Setting at Abnormal Condition TRENNST RF 1 0 0 uPD64015 659 AV 1 0 0 uPD64015
ADJ. Items Mode PDP LCD
Function
NTSC mode 127 7 7 uPD64015
Max.
value
Init. Value
Device
22
42PD8800/32LD8800
Adj.
No
660 Y/C timing for M(4.5) system RF-Main 15 6 6 uPD64015 661 Y/C timing for (5.5MHz PAL/NTSC4.43) system RF Main 15 8 8 uPD64015 662 Y/C timing for (5.5MHz SECAM) system RF Main 15 8 8 uPD64015 663 Y/C timing for (6.0MHz PAL/NTSC4.43) system RF Main 15 8 8 uPD64015 664 Y/C timing for (6.0MHz SECAM) system RF Main 15 8 8 uPD64015 665 DAC Output Imapge Sync Comparison Setting DACLEVEL 1 0 0 uPD64015 666 Blanking Period Level Setting INBLK50IRE 1 0 0 uPD64015 667 Line Lock PLL Gain Setting HPLLG[4:0] AV 31 6 6 uPD64015 668 Motion Detection Gain Setting D2FGAIN[2:0] Except NTSC mode 7 5 5 uPD64015 669 Y/C timing for (6.5MHz PAL/NTSC4.43) system RF Main 15 8 8 uPD64015 670 HS Phase Setting for RGB Mix HSYNCDLY TEXT-1 Picture 1 1 1 uPD64015 671 Latter Part VS Phase Setting for RGB Mix VSDLY 1 0 0 uPD64015 672 SG Color Setting SGCOLOR[2:0] 7 0 0 uPD64015 673 SG Mode Setting (0:OFF/1:Ramp/2:Raster/3:STEP/4:BAR[75%]/5:[100%]) 5 0 0 uPD64015 674 Y/C timing for (6.5MHz SECAM) system RF Main 15 8 8 uPD64015 675 SG Level Setting SGPEDLEV 1 0 0 uPD64015 676 TEXT-2 Picture 1 1 1 uPD64015 677 Motion Detection Characteristic Test8 C2O Except NTSC mode 1 0 0 uPD64015 678 Motion Detection Characteristic Test9 MDMVD Except NTSC mode 1 0 0 uPD64015 679 Color Processing Status SETCOLOR[3:0] (READ Value) - - - uPD64015 680 Color System Detection Mode MODDET (READ Value) - - - uPD64015 681 Composite V Judgement-Input (0:no signal/1:50Hz/2:60Hz) - - - uPD64015 682 Composite V Judgement-Result (1:50Hz/2:60Hz) - - - uPD64015 683 No Signal Detection Characteristic Setting SIGDETLV 1 1 1 uPD64015 684 Image Input Signal Status Setting SIGON 1 0 0 uPD64015 685 Image Input Signal Status Setting SIGOFF 1 0 0 uPD64015 686 Field Frequency Setting TV50F 1 0 0 uPD64015 687 Field Frequency Setting TV60F 1 0 0 uPD64015 688 50 Hz Image Signal Sub Carrier 504M 1 0 0 uPD64015 689 50 Hz Image Signal Sub Carrier 503M 1 0 0 uPD64015
COLOR SYSTEM Judgement Method (0:Normal/1:System1&2 Correction has
690
no effect)
691 Sharpness Gain(TEXT-2 pictures) Sub 15 0 0 TB1274
692 Sharpness Adjustment SHPGAIN[7:0]
693
694 576i Separate from #526 255 130 130 uPD64015
695 Tint Adjustment HUE[7:0]
696
697 DCBLV (COOL) 1 1 1 PDP 698 DCBLV (NORMAL/WARM/B&W) 1 0 0 PDP 699 DCBLV (RGB) 1 0 0 PDP 700 Mode display 0:Normal, 1:RF mode only, 2:All 2 0 0 M30627 701 Horizontal Position of OSD 15 7 7 OSD 702 Vertical Position of OSD 15 7 7 OSD 703 Typical Value of Contrast OSD DYNAMIC 31 31 31 M30627 704 Temperature for Fun start (Temp_High) 254 58 58 TEMP 705 Temperature for Fun stop (Temp_Low) 254 55 55 TEMP 706 Display of internal temperature ºC (Temperature) 125 - - TEMP
707 Power Save/Screen Saver On/Off Setting at Initialize, Reset and Shipping
708 PC Power Save function (0:Impossible, 1:Possible) 1 1 1 M30627
Movement Amount of Image Retention Reduction Operation
709
0:±2pixel/1:±4pixel/2:±6pixel/3:±10pixel
710 480i,576i switch 0:uPD64015, 1:TA1391(Though) 1 0 0 TA1391FG 711Waite Time for POWER SAVE function (s) VIDEO/PC 254 15 15 M30627 712 BURN-IN enable/ disenable 0:Disenable, 1:Enable 1 1 1 M30627 713 BURN-IN mode 2 2 2 PDP 714 Recovery to an error of OSC frequency of Ceramic resonator for timer 62 34 34 M30627 715 EURO DK-SECAM MASK(V=60) 0:Normal 1:Mask(V=60) 1 0 0 ­716 Set Sound System at Auto mode of Sound Sys. (0:auto, 1:4.5MHz) Main 1 0 0 M30627
Power condition at power save mode of PC mode
717
after done RESET function
Select Wide mode for Europe model
718
(Normal= 5mode/ For Service= 10 mode)
719 Thermo sensor function available or not 0:None, 1:Yes 1 0 0 M30627
ADJ. Items Mode PDP LCD
Function
NTSC(S Input) Separate from #524 Except NTSC(S Input) Separate from #525
NTSC(S Input) Separate from #556 Except NTSC(S Input) Separate from #557
P.S/S.S 0:Off/20m 1:On/Off 2:Off/Off
Adjustment Value is available only during HD single picture mode.
0:Keep last condition, 1:Return to normal condition
0:Normal, 1:For service 1 0 0 M30627
Max.
Init. Value
value
1 0 0 uPD64015
255 150 125 uPD64015
255 155 125 uPD64015
255 130 133 uPD64015
255 124 137 uPD64015
2 0 0 M30627
300 FC
1 0 0 M30627
Device
23
42PD8800/32LD8800
Adj.
No
720 EURO SOUND SYSTEM DK Disable 0:Enable, 1Disable 1 0 0 M30627 721 Remote Function available 0:NO, 1:YES 1 1 1 M30627 722 Key Function available 0:NO, 1:YES 1 1 1 M30627 723 Terminal Mode Function available 0:Not Available, 1:Available RS232C 1 1 1 M30627
Set Taiwan/Korea/South America 0:Others 1: Taiwan/Korea/South
724
America 725 Language (Refer to below) 10 0 0 M30627 726 Hotel Mode(0:No, 1:Yes) 2 0 0 M30627 727 Initial Audio Level available (0:No 1: Yes) 1 0 0 M30627 728 Initial Audio Level 63 20 20 M30627 729 Size button available (0:No 1:Yes) 1 1 1 M30627 730 Multi Picture button available (0:No 1:Yes) 1 1 1 M30627 731 Photo button available (0:No 1:Yes) 1 1 1 M30627 732 Set LCD Panel 0:LG 1:DP For LCD Panel 1 0 0 M30627 733 Analog Data (0:Keep EEPROM, 1:Not Keep to EEPROM) 1 0 0 M30627 734 Maximum Volume Limit 63 63 63 M30627 735 Power Mode(0:Last mode, 1:Pos1, 2-7:V1-6, 8-9:RGB1-2) 9 0 0 M30627 736 Channel Select (0:CCIR, 1:CHINA) 1 0 0 M30627 737 Auto_sound 4.5 (0:Korea, 1:BTSC, 2:Japan) 2 0 0 M30627 738 T/TEXT(0:None, 1:Yes) 1 1 1 M30627 739 Channel Preset(0:VESTEL, 1:GIFU, 2:HAMA, 3:HFDM, 4:AUSTRALIA) 4 1 1 M30627 740 Australia Preset 0: None, 1: yes 1 0 0 M30627 741 V FREQ 60Hz Force (0:None, 1:Yes) 1 0 0 M30627 742 For COMPAL factory 20 11 11 M30627 743 For COMPAL factory 1 0 0 M30627 744 PDP-BLK ON/OFF 1:ON, 0:OFF 1 0 0 PDP 745 IIC BUS Data/Clock Open(0:Close, 1:Open) 1 0 0 M30627 746 Gray level of BM Index 31 4 4 BM 747 Display of BM version 127 - - BM 748 TA1391: SYNC SW Change 0:SYNC, 1:HDVD1&2 1 0 0 M30627 749 f V Number of time on Judgement Conformance(M30625/TA1370) - 31 2 2 M30627 750 f V Number of time on Judgement Conformance(M30625/TA1370) - 31 2 2 M30627 751 f V Number of time on Judgement Conformance(TB1274) - 31 2 2 M30627 752 Lower Limits value for Sync Detect of 2ms interval For AFC at TV mode 254 25 25 M30627 753 Lower Limits value for Sync Detect of 2ms interval For Free Running at TV mode 254 30 30 M30627 754 Lower Limits value for Sync Detect of 2ms interval For AUTO OFF at TV mode 254 25 25 M30627 755 Lower Limits value for Sync Detect of 2ms interval For Free Running at AV mode 254 30 30 M30627 756 Lower Limits value for Sync Detect of 2ms interval For Power Save at AV mode 254 25 25 M30627 757 Upper Limits Value for Sync Detect of 2ms interval For AFC at TV mode 254 40 40 M30627 758 Upper Limits Value for Sync Detect of 2ms interval For Free Running at TV mode 254 45 45 M30627 759 Upper Limits Value for Sync Detect of 2ms interval For AUTO OFF at TV mode 254 35 35 M30627 760 Upper Limits Value for Sync Detect of 2ms interval For Free Running at AV mode 254 45 45 M30627 761 Upper Limits Value for Sync Detect of 2ms interval For Power Save at AV mode 254 45 45 M30627
COLOR SYSTEM CONTROL-MODE(0:BW, 2:3.58NTSC, 3:4.43NTSC, •••)
762
COLOR SYSTEM CONTROL-MODE(0:BW, 2:3.58NTSC, 3:4.43NTSC, •••)
763 764 2msSync Judgement Count Value Main - - - M30627 765 2msSync Judgement Count Value Sub - - - M30627 766 TB1274 Read Data(00h) Sub - - - TB1274 767 TB1274 Read Data(01h) Sub - - - TB1274 768 MSP Read Data (CNTROL ) (D15-D8) - - - MSP3455G 769 MSP Read Data (CNTROL ) (D 7-D0) - - - MSP3455G 770 MSP Read Data (STANDARD_RES) (D15-D8) - - - MSP3455G 771 MSP Read Data (STANDARD_RES) (D 7-D0) - - - MSP3455G 772 MSP Read Data (STATUS ) (D15-D8) - - - MSP3455G 773 MSP Read Data (STATUS ) (D 7-D0) - - - MSP3455G 774 TA1391FG Read Data(00h) - - - TA1391FG 775 TA1391FG Read Data(01h) - - - TA1391FG 776 TA1391FG Read Data(02h) - - - TA1391FG 777 TA1391FG Read Data(03h) - - - TA1391FG 778 TA1391FG Read Data(04h) - - - TA1391FG 779 TA1391FG Read Data(05h) - - - TA1391FG
ADJ. Items Mode PDP LCD
Function
Main - - - M30627 Sub - - - M30627
Init. Value
Max.
value
1 0 0 M30627
Device
24
42PD8800/32LD8800
Adj.
No
780 TA1391FG Read Data(06h) - - - TA1391FG 781 TA1391FG Read Data(07h) - - - TA1391FG 782 SiI9021 Read Data SYNC1 : VSYNC/Clock detect/Sync detect 1 - - - HDMI 783 SiI9021 Read Data NHRDL1 : N hardware value 1 Last 7Bits - - - HDMI 784 SiI9021 Read Data NHRDM1 : N hardware value 1 Middle 7Bits - - - HDMI 785 SiI9021 Read Data NHRDH1 : N hardware value 1 First 4Bits - - - HDMI 786 SiI9021 Read Data CHRDL1 : CTS hardware value 1 Last 7Bits - - - HDMI 787 SiI9021 Read Data CHRDM1 : CTS hardware value 1 Middle 7Bits - - - HDMI 788 SiI9021 Read Data CHRDH1 : CTS hardware value 1 First 4Bits - - - HDMI 789 SiI9021 Read Data ACR1 : ACR PLL hardware value 1 - - - HDMI
SiI9021 Read Data ACRS1 : ACR PLL hardware value 1 Depends on
790
Source Side SiI9021 Read Data SFREQ1 : "Extracted Sampling Frequency 1
791
channel status b24-27(same value at 0x30)" 792 SiI9021 Read Data CLKFRQ1: Clock Accuracy/Sampling Frequency 1 - - - HDMI 793 SiI9021 Read Data ALNG1 : Audio length/Audio length max 1 - - - HDMI 794 SiI9021 Read Data MT_MD1 : AV mute/HDMI mode 1 - - - HDMI 795 SiI9021 Read Data VTYP1 : AVI infoframe type code 1 (Requested) - - - HDMI 796 SiI9021 Read Data VVER1 : AVI infoframe version code 1(Requested) - - - HDMI 797 SiI9021 Read Data VINFO11: AVI infoframe data 1 - - - HDMI 798 SiI9021 Read Data VINFO21: - - - HDMI 799 SiI9021 Read Data VINFO31: - - - HDMI 800 SiI9021 Read Data VINFO41: - - - HDMI 801 SiI9021 Read Data VINFO51: - - - HDMI 802 SiI9021 Read Data ATYP1 : AUDIO InfoFrame Type Code 1 (Requested) - - - HDMI 803 SiI9021 Read Data AVER1 : AUDIO InfoFrame Version Code 1 (Requested) - - - HDMI 804 SiI9021 Read Data AINFO11: AUDIO InfoFrame Data Bytes 1 - - - HDMI 805 SiI9021 Read Data AINFO21: - - - HDMI 806 SiI9021 Read Data AINFO31: - - - HDMI 807 SiI9021 Read Data AINFO41: - - - HDMI 808 SiI9021 Read Data AINFO51: - - - HDMI 809 SiI9021 Read Data H-RES(H) Decimal Notation×100 - - - HDMI 810 SiI9021 Read Data H-RES(L) Decimal Notation×1 - - - HDMI 811SiI9021 Read Data V-RES(H) Decimal Notation×100 - - - HDMI 812 SiI9021 Read Data V-RES(L) Decimal Notation×1 - - - HDMI 813 Reset function of accumulation time for WVGA/LCD Panel 0:Normal 1:Reset 1 0 0 M30627 814 Accumulation time for Panel (hours) 65535 - - PDP/LCD 815 Display of Panel map version 255 - - PDP 816 W/B Initialize 1 - - M30627 817 Gain adjustment of RGB amplifi er (FLAON) Main - - - FC 818 EEPROM Initialize(0:No, 1:Yes) 1 0 0 M30627 819 Enter to SUB adjust menu - - - M30627 820 Enter to service menu of FC sub mi-con - - - FC
ADJ. Items Mode PDP LCD
Function
Init. Value
Max.
value
- - - HDMI
- - - HDMI
Device
25
42PD8800/32LD8800
Service
adjustment items by I
2
C-bus control (SUB adjust menu)
(*The change to a sub menu. press “ok” key after no.659 with a main menu)
Adj.
No
0 R DRIVE1 [RF/VIDEO/HDMI] COOL 255 255 230 PDP/FC 1 G DRIVE1 [RF/VIDEO/HDMI] COOL 255 255 230 PDP/FC 2 B DRIVE1 [RF/VIDEO/HDMI] COOL 255 255 255 PDP/FC 3 R DRIVE2 [RF/VIDEO/HDMI] NORMAL 255 255 230 PDP/FC 4 G DRIVE2 [RF/VIDEO/HDMI] NORMAL 255 255 230 PDP/FC 5 B DRIVE2 [RF/VIDEO/HDMI] NORMAL 255 255 230 PDP/FC 6 R DRIVE3 [RF/VIDEO/HDMI] WARM 255 255 230 PDP/FC 7 G DRIVE3 [RF/VIDEO/HDMI] WARM 255 255 230 PDP/FC 8 B DRIVE3 [RF/VIDEO/HDMI] WARM 255 255 230 PDP/FC 9 R DRIVE4 [RF/VIDEO/HDMI] BLACK & WHITE 255 255 230 PDP/FC
10 G DRIVE4 [RF/VIDEO/HDMI] BLACK & WHITE 255 255 230 PDP/FC
11B DRIVE4 [RF/VIDEO/HDMI] BLACK & WHITE 255 255 230 PDP/FC 12 R DRIVE1 [DSUB-RGB] COOL 255 255 230 PDP/FC 13 G DRIVE1 [DSUB-RGB] COOL 255 255 230 PDP/FC 14 B DRIVE1 [DSUB-RGB] COOL 255 255 255 PDP/FC 15 R DRIVE2 [DSUB-RGB] NORMAL 255 255 230 PDP/FC 16 G DRIVE2 [DSUB-RGB] NORMAL 255 255 230 PDP/FC 17 B DRIVE2 [DSUB-RGB] NORMAL 255 255 230 PDP/FC 18 R DRIVE3 [DSUB-RGB] WARM 255 255 230 PDP/FC 19 G DRIVE3 [DSUB-RGB] WARM 255 255 230 PDP/FC 20 B DRIVE3 [DSUB-RGB] WARM 255 255 230 PDP/FC 21 R DRIVE4 [DSUB-RGB] BLACK & WHITE 255 255 230 PDP/FC 22 G DRIVE4 [DSUB-RGB] BLACK & WHITE 255 255 230 PDP/FC 23 B DRIVE4 [DSUB-RGB] BLACK & WHITE 255 255 230 PDP/FC 24 R DRIVE3 OFFSET (0[-128] ~ 128[±0] ~ 255[+127]) WARM 255 128 128 ­25 G DRIVE3 OFFSET (0[-128] ~ 128[±0] ~ 255[+127]) WARM 255 110 118 ­26 B DRIVE3 OFFSET (0[-128] ~ 128[±0] ~ 255[+127]) WARM 255 72 108 ­27 R DRIVE4 OFFSET (0[-128] ~ 128[±0] ~ 255[+127]) BLACK & WHITE 255 128 128 ­28 G DRIVE4 OFFSET (0[-128] ~ 128[±0] ~ 255[+127]) BLACK & WHITE 255 89 104 ­29 B DRIVE4 OFFSET (0[-128] ~ 128[±0] ~ 255[+127]) BLACK & WHITE 255 45 74 ­30 Brightness Center (CM) NTSC/PAL/Multi 254 128 128 FC 31 Brightness Center (CM) Scart-RGB(50/60Hz) 254 128 128 FC 32 Brightness Center (CM) 480i/576i/480p/576p 254 128 128 FC 33 Brightness Center (CM) 1080i-50/60/720p 254 126 128 FC 34 Brightness Center (CM) →HDMI 254 128 123 FC 35 Brightness Center (CM) DTT 254 128 128 FC 36 Brightness Center (CM) DSUB-RGB 254 128 128 FC 37 Brightness Center (CM) Expand DSUB-RGB (Reserved) 254 128 128 FC 38 Brightness center (CM) offset AV1 254 127 127 FC 39 Brightness center (CM) offset AV2 254 127 127 FC 40 Brightness center (CM) offset AV3 254 127 127 FC 41 Brightness center (CM) offset AV4 254 127 127 FC 42 Brightness center (CM) offset AV5 254 127 127 FC 43 →#223 ~ -- ­44 Color Center (CM) →480p/576p 127 80 84 FC 45 Color Center (CM) Scart-RGB(50/60Hz) 127 70 70 FC 46 Color Center (CM) HD(YPbPr)(50/60Hz) 127 70 88 FC 47 Color Center (CM) →HDMI(480i/576i/480p/576p) 127 80 103 FC 48 Color Center (CM) →HDMI(1080i-50/60/720p-50/60) 127 85 111 FC 49 Color Center (CM) →HDMI(VGA) 127 62 103 FC 50 Color Center (CM) DTT 127 70 65 FC 51 Color Center (CM) DSUB-RGB 127 64 64 FC 52 →#229 ~ -- ­53 Tint Center (CM) Scart-RGB(50Hz) 254 128 146 FC 54 Tint Center (CM) Scart-RGB(60Hz) 254 128 146 FC 55 Tint Center (CM) →576p 254 123 131 FC 56 Tint Center (CM) →480p 254 116 120 FC 57 Tint Center (CM) HD(YPbPr)(50/60Hz) 254 110 123 FC 58 Tint Center (CM) HDMI-YCbCr(50Hz:576i/576p) 254 126 130 FC 59 Tint Center (CM) HDMI-YCbCr(60Hz:480i/480p) 254 126 125 FC
ADJ. Items Mode PDP LCD
Function
Max.
Init. Value
Device
-
-
26
42PD8800/32LD8800
Adj.
No
60 Tint Center (CM) HDMI-YPbPr(1080i-50/60/720p) 254 135 138 FC 61 Tint Center (CM) →HDMI(VGA) 254 128 125 FC 62 Tint Center (CM) DTT 254 121 126 FC 63 Tint Center (CM) DSUB-RGB 254 128 128 FC 64 Center of Sharpness (HV Enhancer Gain for Y) RF 31 10 18 FC 65 Center of Sharpness (HV Enhancer Gain for Y) VIDEO 31 15 15 FC 66 Center of Sharpness (HV Enhancer Gain for Y) Scart-RGB(50/60Hz) 31 14 14 FC 67 Center of Sharpness (HV Enhancer Gain for Y) 480i/576i 31 15 14 FC 68 Center of Sharpness (HV Enhancer Gain for Y) 480p/576p 31 15 20 FC 69 Center of Sharpness (HV Enhancer Gain for Y) 720p 31 6 6 FC 70 Center of Sharpness (HV Enhancer Gain for Y) 1080i-50/60 31 6 18 FC 71 Center of Sharpness (HV Enhancer Gain for Y) TEXT(for split) 31 19 19 FC 72 Center of Sharpness (HV Enhancer Gain for Y) →HDMI(480i/576i) 31 8 20 FC 73 Center of Sharpness (HV Enhancer Gain for Y) →HDMI(480p/576p) 31 10 20 FC 74 Center of Sharpness (HV Enhancer Gain for Y) →HDMI(720p-50/60) 31 10 20 FC 75 Center of Sharpness (HV Enhancer Gain for Y) →HDMI(1080i-50/60) 31 10 5 FC 76 Center of Sharpness (HV Enhancer Gain for Y) →HDMI(VGA) 31 10 23 FC 77 Center of Sharpness (HV Enhancer Gain for Y) DTT 31 14 20 FC 78 Contrast Center (CM) RF 254 137 137 FC 79 Contrast Center (CM) AV1 254 137 137 FC 80 Contrast Center (CM) AV2 254 137 137 FC 81 Contrast Center (CM) AV3 254 137 137 FC 82 Contrast Center (CM) AV4 254 137 137 FC 83 Contrast Center (CM) AV5 254 137 137 FC 84 Contrast Center (CM) →HDMI(With Setup) 254 149 149 FC 85 Contrast Center (CM) →HDMI(Without Setup) 254 128 128 FC 86 Contrast Center (CM) DTT 254 137 137 FC 87 Contrast Center (CM) DSUB-RGB 254 128 128 FC 88 Contrast Center (CM) Expand DSUB-RGB (Reserved) 254 128 128 FC 89 Maximum Value of Contrast at REAL/NORMAL mode 254 188 188 FC 90 Offset Value of Contrast data at SPLIT mode 120 53 53 FC 91 →#220 ~ 222 92 Horizontal Enhance TEXT 3 3 3 FC 93 Vertical Enhance TEXT 3 3 3 FC 94 Horizontal Filter Switching [HHPF0] NTSC/480i 1 0 0 FC 95 (Enlargement Adaptive Enhancer)[HHPF1] PAL/576i 1 0 0 FC 96 [HHPF2] 480p/576p/1080i-50/60/720p 1 0 0 FC 97 Horizontal Coring Amount [HECOR1] NTSC-RF 15 3 3 FC 98 (Enlargement Adaptive Enhancer)[HECOR2] PAL-RF/Multi 15 2 12 FC
99 [HECOR3] NTSC-VIDEO 15 1 3 FC 100 [HECOR4] PAL-VIDEO 15 1 3 FC 101 [HECOR5'] Scart-RGB(50/60Hz) 15 15 15 FC 102 [HECOR5] 480i/576i 15 15 5 FC 103 [HECOR6] 480p/576p 15 15 5 FC 104 [HECOR7] 1080i-50/60/720p 15 1 1 FC 105 [HECOR5'] DTT 15 15 10 FC 106 [HECORPC] PC 15 1 1 FC 107 Vertical Coring Amount [VECOR1] NTSC-RF 15 1 3 FC 108 (Enlargement Adaptive Enhancer)[VECOR2] PAL-RF/Multi 15 8 3 FC 109 [VECOR3] NTSC-VIDEO 15 1 0 FC
110 [VECOR4] PAL-VIDEO 15 1 0 FC 111 [VECOR5'] Scart-RGB(50/60Hz) 15 15 15 FC 112 [VECOR5] 480i/576i 15 0 0 FC 113 [VECOR6] 480p/576p 15 0 15 FC 114 [VECOR7] 1080i-50/60/720p 15 15 8 FC 115 [VECOR5'] DTT 15 15 10 FC 116 [VECORPC] PC 15 0 0 FC 117Enhancer gain of VH for C TEXT 31 0 0 FC 118Coring Amplitude for Y/G [YC0R0] NTSC/PAL-RF/Multi 7 2 2 FC 119 [YC0R1] NTSC/PAL-VIDEO 7 0 1 FC
ADJ. Items Mode PDP LCD
Function
Max.
Init. Value
Device
-- - -
27
42PD8800/32LD8800
Adj.
No
120 [YC0R2] 480i/576i/Scart-RGB(50/60Hz) 7 1 2 FC 121 [YC0R3] 480p/576p 7 1 1 FC 122 [YC0R4] 1080i-50/60/720p 7 1 1 FC 123 [YC0R5] NTSC/PAL- S Input 7 4 5 FC 124 [YC0R2'] DTT 7 4 4 FC 125 Coring Amplitude for B-Y/B, R-Y/R [CC0R0] NTSC/PAL/480i/576i/Multi 7 1 1 FC 126 [CC0R1] 480p/576p/1080i-50/60/720p 7 1 1 FC 127 Main YFRNR Input Gain 2 Picture [MYNRG0] Except HD-HD 7 1 1 FC 128 (Sub Side of HD-NTSC, HD-PAL) [MYNRG1] HD-HD 7 4 4 FC 129 4 Picture [MYNRG2] NT-* /PAL-* 7 1 1 FC 130 [MYNRG3] HD-* 7 4 4 FC 131 Sub YFRNR Input Gain [YCNRG0] 2 Picture 7 4 4 FC 132 [YCNRG1] 4 Picture/12 Picture 7 1 1 FC 133 Main CFRNR Input Gain 2 Picture [MCNRG0] Except HD-HD 7 3 4 FC 134 (Sub Side of HD-NTSC, HD-PAL) [MCNRG1] HD-HD 7 4 4 FC 135 [MCNRG2] NT-* /PAL-* 7 4 4 FC 136 [MCNRG3] HD-* 7 4 4 FC 137 Sub CFRNR Input Gain [SCNRG0] 2 Picture 7 3 4 FC 138 [SCNRG1] 4 Picture/12 Picture 7 4 4 FC 139 Vertical Enhancer Gain for Y/G [YVEG0] NTSC/PAL(Except-RF)/480i/576i 15 15 15 FC 140 [YVEG1] 480p/576p 15 4 5 FC 141 [YVEG2] 1080i-50/60/720p 15 10 15 FC 142 [YVEG3] PAL(-RF)/Multi 15 15 10 FC 143 [YVEG0'] DTT 15 15 15 FC 144 Vertical DSB Gain for Y/G [YVDSBG0] NTSC/PAL/480i/576i/Multi 3 3 3 FC 145 [YVDSBG1] 480p/576p 3 0 2 FC 146 [YVDSBG2] 1080i-50/60/720p 3 2 3 FC 147 [YVDSBG0'] DTT 3 3 3 FC 148 Vertical DSB Coring for Y/G [YVDSBC0] NTSC/PAL/480i/576i/Multi 7 7 7 FC 149 [YVDSBC1] 480p/576p/1080i-50/60/720p 7 0 7 FC 150 [YVDSBC0'] DTT 7 7 7 FC 151 Vertical Enhancer CLIP for Y/G 0:LTI [YVECLP0] NTSC/PAL/480i/576i/Multi 1 1 1 FC 152 [YVECLP1] 480p/576p/1080i-50/60/720p 1 0 0 FC 153 Vertical CLIP Offset Level for Y/G [YVECLPL0] NTSC/PAL/480i/576i/Multi 15 15 5 FC 154 [YVECLPL1] 480p/576p/1080i-50/60/720p 15 8 5 FC 155 [YVECLPL0'] DTT 15 15 15 FC 156 Vertical Nonlinear Peaking for Y/G [YVNLP0] NTSC/PAL/480i/576i/Multi 63 0 0 FC 157 [YVNLP1] 480p/576p/1080i-50/60/720p 63 0 0 FC 158 Horizontal Enhancer Gain for Y/G [YHEG0] NTSC/PAL(Except-RF)/480i/576i 15 10 15 FC 159 [YHEG1] 480p/576p 15 8 15 FC 160 [YHEG2] 1080i-50/60/720p-60(720p-50↓) 15 10 15 FC 161 [YHEG2'] 720p-50 15 5 10 FC 162 [YHEG3] PAL(-RF)/Multi 15 15 15 FC 163 [YHEG0'] DTT 15 5 15 FC 164 Horizontal DSB Gain for Y/G [YHDSBG0] NTSC/PAL/480i/576i/Multi 3 2 2 FC 165 [YHDSBG1] 480p/576p 3 2 3 FC 166 [YHDSBG2] 1080i-50/60/720p 3 2 3 FC 167 [YHDSBG0'] DTT 3 2 2 FC 168 Horizontal DSB Coring for Y/G [YHDSBC0] NTSC/PAL/480i/576i/Multi 7 7 1 FC 169 [YHDSBC1] 480p/576p/1080i-50/60/720p 7 7 7 FC 170 [YHDSBC0'] DTT 7 7 1 FC 171 Horizontal Enhancer CLIP for Y/G 0:LTI [YHDSBC0] NTSC/PAL/480i/576i/Multi 1 0 0 FC 172 [YHDSBC1] 480p/576p/1080i-50/60/720p 1 0 0 FC 173 Horizontal CLIP Offset level for Y/G [YHECLPL0] RF/Multi 15 4 15 FC 174 [YHECLPL1] NTSC/PAL-VIDEO 15 4 15 FC 175 [YHECLPL3] 480i/576i/Scart-RGB(50/60Hz) 15 4 5 FC 176 [YHECLPL2] 480p/576p/1080i-50/60/720p 15 8 15 FC 177 [YHECLPL0'] DTT 15 5 4 FC 178 Horizontal Nonlinear Peaking for Y/B [YHNLP0] NTSC/PAL/480i/576i/Multi 63 0 0 FC 179 [YHNLP1] 480p/576p/1080i-50/60/720p 63 0 5 FC
ADJ. Items Mode PDP LCD
Function
Max.
Init. Value
Device
28
42PD8800/32LD8800
Adj.
No
180 Horizontal HPF Peak Frequency Switching for Y/G [YHHPF0] NTSC/PAL/480i/576i/Multi 3 2 2 FC 181 [YHHPF1] 480p/576p 3 2 1 FC 182 [YHHPF2] 1080i-50/60/720p 3 2 1 FC 183 Initial value of Contrast (Degradation Reduction1) Extend 1 of Panel Life function 127 93 17 PDP/FC 184 Interval time of correction time (Degradation Reduction1) Extend 1 of Panel Life function 127 10 20 PDP/FC 185 Additional value of Contrast (Degradation Reduction1) Extend 1 of Panel Life function 127 1 1 PDP/FC 186 Initial value of Contrast (Degradation Reduction2) Extend 2 of Panel Life function 127 63 1 PDP/FC 187 Interval time of correction time (Degradation Reduction2) Extend 2 of Panel Life function 127 6 12 PDP/FC 188 Additional value of Contrast (Degradation Reduction2) Extend 2 of Panel Life function 127 1 1 PDP/FC 189 Power REFerence(RF/VIDEO) 20 12 0 PDP 190 Power REFerence(DSUB) 20 8 0 PDP 191 Power High Stress(RF/VIDEO) 3 0 0 PDP 192 Power High Stress(DSUB) 3 0 0 PDP 193 Menu Init. Contrast (-31[0] ~ +40[71]) For Dynamic 71 62 62 ­194 Menu Init. Contrast (-31[0] ~ +40[71]) For Natural 71 41 62 ­195 Menu Init. Contrast (-31[0] ~ +40[71]) For Cinema 71 21 57 ­196 Menu Init. Brightness (-31[0] ~ +31[62]) For Dynamic 62 31 31 ­197 Menu Init. Brightness (-31[0] ~ +31[62]) For Natural 62 31 31 ­198 Menu Init. Brightness (-31[0] ~ +31[62]) For Cinema 62 33 33 ­199 Menu Init. Color (-31[0] ~ +31[62]) For Dynamic 62 39 31 ­200 Menu Init. Color (-31[0] ~ +31[62]) For Natural 62 31 26 ­201 Menu Init. Color (-31[0] ~ +31[62]) For Cinema 62 21 23 ­202 Menu Init. Sharpness (-15[0] ~ +15[30]) For Dynamic 30 20 15 ­203 Menu Init. Sharpness (-15[0] ~ +15[30]) For Natural 30 15 10 ­204 Menu Init. Sharpness (-15[0] ~ +15[30]) For Cinema 30 10 5 ­205 Menu Init. Color Temp.(Cool[0]/Normal[1]/Warm[2]/B&W[3]) For Dynamic 3 0 0 ­206 Menu Init. Color Temp.(Cool[0]/Normal[1]/Warm[2]/B&W[3]) For Natural 3 1 1 ­207 Menu Init. Color Temp.(Cool[0]/Normal[1]/Warm[2]/B&W[3]) For Cinema 3 2 2 ­208 Menu Init. Black stretch (Off[0]/Low[1]/Mid.[2]/High[3]) For Dynamic 3 2 2 ­209 Menu Init. Black stretch (Off[0]/Low[1]/Mid.[2]/High[3]) For Natural 3 1 1 ­210 Menu Init. Black stretch (Off[0]/Low[1]/Mid.[2]/High[3]) For Cinema 3 0 0 -
211Menu Init. YNR (Off[0]/Low[1]/High[2]) For Dynamic 2 0 0 ­212 Menu Init. YNR (Off[0]/Low[1]/High[2]) For Natural 2 0 0 ­213 Menu Init. YNR (Off[0]/Low[1]/High[2]) For Cinema 2 0 0 ­214 Menu Init. LTI (Off[0]/Low[1]/Mid.[2]/High[3]) For Dynamic 3 2 0 ­215 Menu Init. LTI (Off[0]/Low[1]/Mid.[2]/High[3]) For Natural 3 1 0 ­216 Menu Init. LTI (Off[0]/Low[1]/Mid.[2]/High[3]) For Cinema 3 0 0 ­217 Vs,Va Feed-Back control ON (VFBON) 1 0 0 PDP 218 Tint Center (CM) 576i 254 128 123 FC 219 Tint Center (CM) 480i 254 128 129 FC 220 Offset value of gain for Black Stretch function LOW mode 63 0 0 FC 221 Offset value of gain for Black Stretch function MID mode 63 25 30 FC 222 Offset value of gain for Black Stretch function HIGH mode 63 55 55 FC 223 Color Center (CM) NTSC 127 70 71 FC 224 Color Center (CM) NTSC-S 127 70 71 FC 225 Color Center (CM) PAL 127 70 71 FC 226 Color Center (CM) PAL-S 127 70 71 FC 227 Color Center (CM) 480i 127 70 71 FC 228 Color Center (CM) 576i 127 70 71 FC 229 Tint Center (CM) NTSC 254 128 129 FC 230 Tint Center (CM) NTSC-S 254 128 129 FC 231 Tint Center (CM) PAL 254 128 131 FC 232 Tint Center (CM) PAL-S 254 128 131 FC 233 dummy233 -- - ­234 dummy234 -- - ­235 dummy235 -- - ­236 dummy236 -- - ­237 dummy237 -- - ­238 dummy238 -- - ­239 dummy239 -- - -
ADJ. Items Mode PDP LCD
Function
Max.
Init. Value
Device
29
Loading...
+ 99 hidden pages
