Hitachi VT-FX623A User Manual

VIDEO CASSETTE RECORDER

VT-FX623A Owner's manual

Using these quality features:

• The VCR Plus+* programming system allows you to program the VCR for timer recording by simply entering a PlusCode* number.

*VCR Plus+C3 and PlusCode are trademarks of Gemstar Development Corporation.

The VCR Plus+ system is manufactured under license from Gemstar Development Corporation. With the VCR Plus+C3 system, this video cassette recorder can automatically select the appropriate channel on your compatible cable box or isatellite receiver. C3 and VCR Plus+C3 are trademarks of Gemstar Development Corporation.

• Super rewind and fast forward

• Multi-channel TV sound (MTS).

• 8-program/1-year preset recording.

• Auto clock set feature allows you to automatically set the present time using a time signal.

• Auto head cleaning system minimizes the need for accessory cleaners and professional head cleaning.

• Auto tracking system automatically adjusts the tracking so the picture is optimized.

• Frequency synthesized tuner provides easy, preset tuning of up to 68 broadcast TV channels and 125 cable channels.

• VHS Hi-Fidelity sound in playback.

• On-screen programming guide.

• With display, VCR Plus+ can be programmed to record without turning power on.

Hitachi Home Electronics (America), Inc. HITACHI (HSC) CANADA INC

3890 Steve Reynolds Blvd., Norcross, GA 30093 3300 Trans Canada Highway, Pointe Claire, Tel. 770-279-5600 Quebec, H9R 1B1, CANADA

HITACHI SALES CORPORATION OF HAWAII, INC

3219 Koapaka Street, Honolulu, Hawaii 96819 Tel. 808-836-3621

Tel. 514-697-9150

TABLE OF CONTENTS

FOR YOUR SAFETY..................................................................................................................2

IMPORTANT SAFEGUARDS.....................................................................................................3

CUSTOMER CONTROLS..........................................................................................................7

REMOTE OPERATION............................................................................................................10

CASSETTE TAPES..................................................................................................................11

BASIC ANTENNA HOOKUP [A]...............................................................................................12

ADVANCED ANTENNA HOOKUP -AV HOOKUP [B]..............................................................13

BASIC CABLE HOOKUP [C]....................................................................................................14

ADVANCED CABLE HOOKUP -AV HOOKUP [D]...................................................................15

BASIC CABLE HOOKUP -WITH CABLE BOX [E]....................................................................15

ADVANCED CABLE HOOKUP -WITH CABLE BOX [F]...........................................................16

ADVANCED CABLE HOOKUP -WITH CABLE BOX AND SPLITTER [G] ...............................17

SETTING THE CLOCK -AUTOMATIC MODE..........................................................................17

SETTING THE CLOCK-AUTOMATIC MODE WITH CABLE BOX...........................................19

SETTING THE CLOCK -TIME ZONE SETTING/DAYLIGHT SAVING TIME SETTING...........20

SETTING THE CLOCK -MANUALLY.......................................................................................21

PRE-TUNING THE VCR TUNER.............................................................................................23

CABLE BOX SETUP................................................................................................................27

PLAYBACK...............................................................................................................................30

SPECIAL PLAYBACK EFFECTS.............................................................................................32

USING THE "INDEX" FEATURE ..............................................................................................36

VIEWING THE ON-SCREEN DISPLAY...................................................................................37

INDEX WITH THE TIME COUNTER........................................................................................38

RECORDING A PROGRAM.....................................................................................................39

RECORDING A PROGRAM -RECORDING TIPS....................................................................41

INSTANT RECORDING TIMER...............................................................................................44

DELAYED RECORDING..........................................................................................................45

USING THE VCR PLUS+ SYSTEM FOR RECORDING..........................................................49

EASY DELAYED RECORDING WITH THE VCR PLUS+ SYSTEM........................................50

PROGRAM REVIEW................................................................................................................56

PROGRAMMING THE VCR REMOTE TO CONTROL YOUR TV...........................................57

INTEGRATING YOUR STEREO SYSTEM WITH YOUR VCR ................................................59

COPYING TAPES FROM A CAMCORDER.............................................................................60

COPYING FROM ONE VCR TO ANOTHER VCR (DUBBING)................................................61

PROBLEM GUIDE / MAINTENANCE.......................................................................................62

TECHNICAL SPECIFICATIONS ..............................................................................................64

FOR YOUR SAFETY

POWER SUPPLY: AC 120V, 60 Hz ONLY. The POWER button turns the VCR on and off, leaving the clock/timer unaffected. If the unit is to be left unattended for a long period, it is recommended that the unit be completely switched off and unplugged. Illustrated below is the label on the back of your unit.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: Many television programs and films are copyrighted. In certain circumstances, copyright law may apply to private in-home videotaping of copyrighted materials.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Caution to the user: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical".

IMPORTANT SAFEGUARDS

In addition to the careful attention devoted to quality standards in the manufacture of your video product, safety is a major factor in the design of every instrument. But, safety is your responsibility too. This page lists important information that will help to assure your enjoyment and proper use of a Video Cassette Recorder and accessory equipment. Please read it carefully before operating your video product and keep it in a handy place for future reference.

INSTALLATION

1 Read and Follow Instructions -- All the safety and operating instructions should be

read before the video product is operated. Follow all operating and use instructions.

2 Retain Instruction -- The safety and operating instructions should be retained for future reference. 3 Heed Warnings -- Comply with all warnings on the video product and in the operating instructions. 4 Polarized Plug -- This video product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted without blade exposure. If you need an extension, use a polarized cord.

5 Power Sources -- This video product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your video dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions. 6 Overloading -- Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords, damaged or cracked wire insulation and broken plugs. They may result in a shock or fire hazard. Periodically examine the cord and have it replaced by your service technician if appearance indicates damage or deteriorated insulation.

7 Power Cord Protection -- Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. 8 Ventilation -- Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the video product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug or other similar surface. This video

product should never be placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the video product manufacturer's instructions have been followed.

9 Attachments -- Do not use attachments unless recommended by the video product manufacturer as they may cause hazards.

Caution: Maintain electrical safety. Powerline operated equipment or accessories connected to this unit should bear the UL listing mark or CSA certification mark on the accessory itself and should not have been modified so as to defeat the safety features. This will help avoid any potential hazard from electric shock or fire. If in doubt, contact qualified service personnel.

10 Water and Moisture -- Do not use this video product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. 11 Accessories -- Do not place this video product on an unstable card, stand, tripod, bracket or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer, or sold with the video product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. 11A An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

12 Outdoor Antenna Grounding -- If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and supporting structure, grounding of the leadin wire to an antenna discharge unit, size of grounding conductors, location of antennadischarge unit, connection to grounding electrodes, and requirements for the grounding electrode. See example below.

EXAMPLE OF ANTENNA GROUNDING 13 Power Lines -- An outside antenna system should not be located in the vicinity of

overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching or approaching such power lines or circuits as contact with them might be fatal. Installing an outdoor antenna can be hazardous and

should be left to a professional antenna installer.

USE

14 Cleaning -- Unplug this video product from the wall outlet before cleaning. Do not

use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 15 Object and Liquid Entry -- Never push objects of any kind into this video product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

16 Lightning -- For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable-system. This will prevent damage to the video product due to lightning and power-line surges.

SERVICE

17 Servicing -- Do not attempt to service this video product yourself as opening or

removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 18 Conditions Requiring Service -- Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions. a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the video product. c. If the video product has been exposed to rain or water. d. If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of o t her controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation. e. If the video product has been dropped or the cabinet has been damaged. f. When the video product exhibits a distinct change in performance - this indicates a need for service. 19 Replacement Parts -- When replacement parts are required, have the service technician verify that the replacements he uses have the same safety characteristics as the original parts. Use of replacements specified by the video product manufacturer can

prevent fire, electric shock or other hazards. 20 Safety Check -- Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks recommended by the manufacturer to determine that the video product is in safe operating condition.

CUSTOMER CONTROLS

VCR Customer Controls

Item No. Function Page

1 POWER button 2 2 Infrared receiver 8 3 Cassette compartment 9 4 REC/IRT button 38 5 REW button 30 6 Infrared transmitter 26 7 F.FWD button 30 8 PLAY button 31 9 STOP/EJECT button 9 10 CHANNEL (channel up/down) 38 TRACKING buttons 30 11 AUDIO IN L(mono), R jacks 54 12 VIDEO IN jack 54

VCR Display

13 AM/PM indicators 18 14 Time, 18 Tape counter, 35

Tape remaining or 35 VCR mode indicator 29 PLAY - playback 29 SRCH - double-speed play, 32 visual search and skip playback ["-" appears during reverse direction viewing] SLOW - slow play REW - rewind 32 S:REW - high speed rewind 29 FF - fast forward S:FF - high speed fast forward 29 STILL - play pause and frame advance 31 15 REM (tape remaining time) indicator 35 16 VCR, operate mode 17 Audio indicators 18 REC - record (flashes during record pause) 38 19 Tape-in indicator 9 20 TV channel or Auxiliary 38 (L1/L2) 55 21 Delayed recording indicator 44

   Remote Cable for connecting Batteries for remote control this VCR to a TV control handset (R6)

VCR Customer Controls

Item No. Function Page

22 AUDIO IN L, R jacks 53 23 VIDEO IN jack 55 24 IN FROM ANT. - signal input 10

25 OUT TO TV - signal to TV 10 26 VIDEO OUT jack 11 27 AUDIO OUT L, R jacks 11

Remote Control Customer Controls

Item No. Function Page

1 Transmission window 8 2 POWER button 22 3 GUIDE - to recall OSD menu 22 4 DISPLAY - to recall on-screen display 34 5 CLEAR - clears time counter 36 6 VCR/TV mode select button 10 7 100/ENT button 38 8 VOL button - increase or decrease the audio volume 52 9 PROGRAM (programming) button 42 10 REW button - fast rewind or search 23 12 REC - record button 38 13 STOP button - stops play/ record function 23 14 PAUSE button 31 15 F.FWD button - fast forward

or search 32 16 LAST CH button - switches to the TV channel you watched previously during the current viewing session 52 17 CH (channel up/down) button 38 18 AVX button - select L1 or L2 53 19 Number buttons 22 20 VCR, TV - device buttons let you set the remote to control one of the two devices 8

REMOTE OPERATION

Install batteries in the remote control

The remote control requires two "AA" batteries. 1 Push the mark and hold it, then slide the cover in the direction of the arrow

to remove it.

Note: When replacing the batteries, remove the old batteries and keep the POWER button

depressed for 10 seconds before inserting fresh batteries.

2 Install batteries.

• Align the positive (+) and negative (-) polarity marks on the batteries with those indicated on the remote control.

3 Slide the cover in the direction of the arrow to close it.

Operating in the remote control

1 Make sure there is no obstacle between the remote control and VCR's infrared receiver.

Note: You cannot operate the VCR if there is an obstacle (for example, coffee table, sofa, etc)

between the VCR and remote control.

2 Point the remote control at the VCR's infrared receiver and press the required button on the remote control.

Note: If the remote does not work even at close range, try replacing the batteries with two

fresh "AA" batteries.

CASSETTE TAPES

Types

Only use video cassettes with the mark in this V CR. The table shows the recording time of different cassettes.

• To get the best quality picture, record at standard recording speed (SP).

• This VCR does not record at the LP speed, but it can play cassette that were recorded at the LP speed.

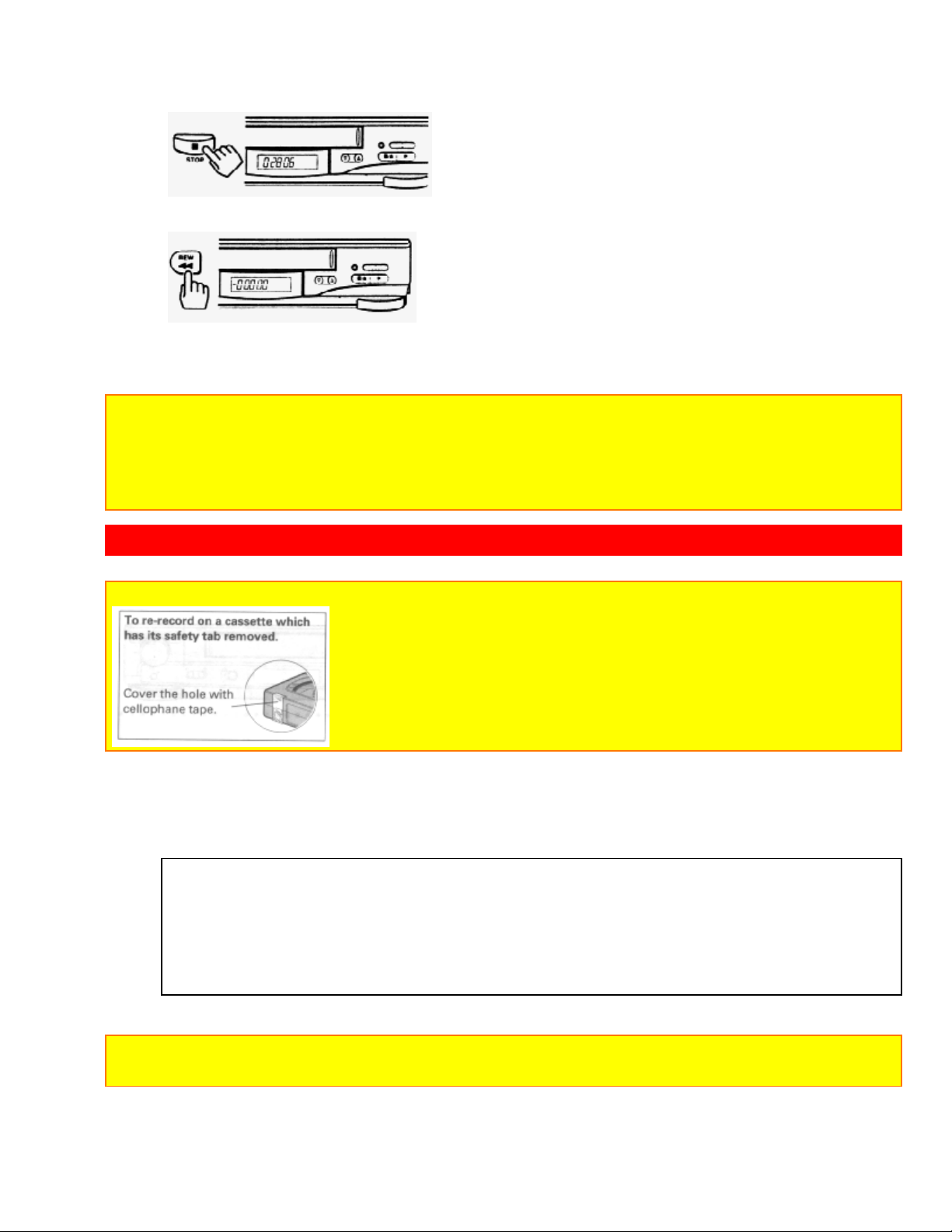

Safety tabs prevent erasure

The VCR automatically enters the playback mode when a cassette without its safety tab is inserted. The VCR won't record on a tape without a safety tab and the cassette will be ejected if the REC or REC/IRT button is pressed. Be sure to check the safety tab before inserting a cassette.

Insertion

Push the video cassette gently into the slot on the front of the VCR.

• The VCR automatically turns on and the "Tape-In" indicator turns on when the cassette is in place.

Removal

Press the STOP/EJECT button on the VCR. The cassette will come partially out of the co mpartment so you can pull it out.

• The "Tape-In" indicator turns off.

• The cassette can be ejected with the power on or off.

BASIC ANTENNA HOOKUP [A]

WITH THIS HOOKUP

YOU CAN...

• WATCH AVAILABLE TV CHANNELS

• RECORD AND W ATCH THE SAME CHANNEL

• RECORD ONE CHANNEL AND WATCH ANOTHER Hookup A Illustration

Switch the RF Channel

When the VCR is on, its video signal can come into your TV on either channel 3 or channel 4. You need to select the appropriate channel.

• When the power is turned on, press the POWER button to turn it off. Press the PLAY button on front of the VCR. Pressing the CHANNEL button alterantes between RFCH-03 (channel 3) and RFCH-04 (channel 4) in the VCR's display. Display the channel which is not used by a commercial channel in your area.

ADVANCED ANTENNA HOOKUP -AV HOOKUP [B]

WITH THIS HOOKUP

YOU CAN...

• WATCH AVAILABLE TV CHANNELS

• RECORD AND W ATCH THE SAME CHANNEL

• RECORD ONE CHANNEL AND WATCH ANOTHER Hookup B Illustration

BASIC CABLE HOOKUP [C]

WITH THIS HOOKUP

YOU CAN...

• WATCH AVAILABLE CABLE CHANNELS

• RECORD AND W ATCH THE SAME CHANNEL

• RECORD ONE CHANNEL AND WATCH ANOTHER Hookup C Illustration

Switch the RF Channel

When the VCR is on, its video signal can come into your TV on either channel 3 or channel 4. You need to select the appropriate channel.

Display the channel which is not used by a commercial channel in your area.

ADVANCED CABLE HOOKUP -AV HOOKUP [D]

WITH THIS HOOKUP

YOU CAN...

• WATCH AVAILABLE CABLE CHANNELS

• RECORD AND W ATCH THE SAME CHANNEL

• RECORD ONE CHANNEL AND WATCH ANOTHER Hookup D Illustration

BASIC CABLE HOOKUP -WITH CABLE BOX [E]

WITH THIS HOOKUP

YOU CAN...

• WATCH AVAILABLE CABLE CHANNELS

• RECORD AND W ATCH THE SAME CHANNEL

YOU CAN'T...

• RECORD ONE CHANNEL AND WATCH ANOTHER ALL CHANNEL SELECTIONS MUST BE MADE AT THE CABLE BOX.

BE SURE TO CONSULT YOUR CABLE BOX MANUAL FOR THE CABLE BOX OUTPUT CHANNEL.

Hookup E Illustration

Switch the RF Channel

When the VCR is on, its video signal can come into your TV on either channel 3 or channel 4. You need to select the appropriate channel.

ADVANCED CABLE HOOKUP -WITH CABLE BOX [F]

WITH THIS HOOKUP

YOU CAN...

• WATCH AVAILABLE CABLE CHANNELS

• RECORD AND W ATCH THE SAME CHANNEL

YOU CAN'T...

• RECORD ONE CHANNEL AND WATCH ANOTHER ALL CHANNEL SELECTIONS MUST BE MADE AT THE CABLE BOX.

BE SURE TO CONSULT YOUR CABLE BOX MANUAL FOR THE CABLE BOX OUTPUT CHANNEL.

Hookup F Illustration

ADVANCED CABLE HOOKUP -WITH CABLE BOX AND SPLITTER [G]

WITH THIS HOOKUP

YOU CAN...

• WATCH AVAILABLE CABLE CHANNELS

• RECORD AND W ATCH THE SAME CHANNEL

• RECORD ONE CHANNEL AND WATCH ANOTHER TO RECORD, ALL CHANNEL SELECTIONS MUST BE MADE AT THE CABLE BOX.

BE SURE TO CONSULT YOUR CABLE BOX MANUAL FOR THE CABLE BOX OUTPUT CHANNEL.

Hookup G Illustration

SETTING THE CLOCK -AUTOMATIC MODE Note: An antenna or cable must be connected to the VCR before you begin this operation.

Tips

You'll need to set the clock when first hooking up your VCR, and any time the power goes out for more than 1 hour. When you first plug in the VCR or after a power outage, the clock display will read "--:--".

Auto clock set function

This function sets the VCR's clock automatically when the VCR is tuned to a station which transmits a time signal together with TV programs. It also automatically sets the time differences between various time zones and sets the time during Daylight Saving Time (D.S.T). The auto clock set function operates each time the VCR is turned off.

• Some broadcast stations may not transmit a time signal. The auto clock set function does not operate when the VCR is tuned to a station which does not transmit a time signal. In this case, set the clock manually (See page 20).

• When the clock is set automatically, the displayed time may drift from the current time by up to one minute.

Setting the clock automatically - if your VCR's hooked up to an antenna or cable without a cable box (Hookups [A], [B], [C] or [D])

1 Press the POWER button to turn the VCR power off.

If the VCR is already turned off, press the POWER button to turn the power on, then press it again to turn the power off. The time will appear in the VCR display to show that the current time has been set. The automatic clock set procedure might take about 5 minutes.

Notes:

• If the clock is not set after about five minutes have elapsed, the clock must be set manually (see page 20).

• When the VCR power is restored after a power failure of m ore than one hour, the clock will indicate "--:--", and the clock set procedure (automatic or manual) must be repeated.

• If the time displayed on the VCR drifts from the current time by more than one hour, select your correct time zone and set the DST (Daylight Savings Time)(see page 19).

SETTING THE CLOCK-AUTOMATIC MODE WITH CABLE BOX

If your VCR is hooked up to a cable box (Hookups [E], [F] or [G])

Note: Turn on the cable box before setting.

1 Turn on the TV and select the video channel (3 or 4).

Or, if you are hooked up with an audio/video cable, set the TV to AUX or VIDEO.

2 Press the GUIDE button.

The main on-screen menu will appear on the TV screen. Click to see remote control illustration. You may view all the on-screen instructions in English, French, or Spanish. When you first set up your VCR, it will be set to English. Press the (8 ) button for French or the (9) button for Spanish.

3 Press the (3) button to bring up the CLOCK SET menu.

4 Make sure that item 1 is highlighted "CLOCK SET <AUTO>".

• If "CLOCK SET <MANUAL>" is highlighted, press the (1) button to switch it to "CLOCK SET <AUTO>".

5 Press the (2) button.

This screen appears to show that the clock is being set.

• It may take about five minutes.

• Since the VCR is searching for a broadcast station that transmits a time signal, the channel indication on the cable box changes automatically.

When the clock is set, the screen changes to a TV picture and the correct time appears in the VCR's display.

Notes:

• If the clock is not set after five minutes have elapsed, set the clock manually (see page 20).

• If the displayed time drifts from the current time by more than one hour, select your correct time zone and set the DST (see page 19).

SETTING THE CLOCK -TIME ZONE SETTING/DAYLIGHT SAVING TIME SETTING

What to do if the displayed time drifts from the current time by more than an hour

Note: Turn on the cable box with hookups [E], [F] or [G] before setting.

1 Press the GUIDE button. Click to see remote control illustration.

The main on-screen menu will appear on the TV screen.

2 Press the (3) button to bring up the "CLOCK SET" menu.

Make sure that item 1 is highlighted "CLOCK SET <AUTO>".

3 Press the (3) button to select your local time zone.

Each time (3) is pressed, the option for "SET TIME ZONE" switches from <AUTO> to <ATLANTIC>, <EASTERN>, <CENTRAL>, <MOUNTAIN>, <PACIFIC>, <ALASKA>, <HAWAII> and back to <AUTO>.

+ 45 hidden pages
