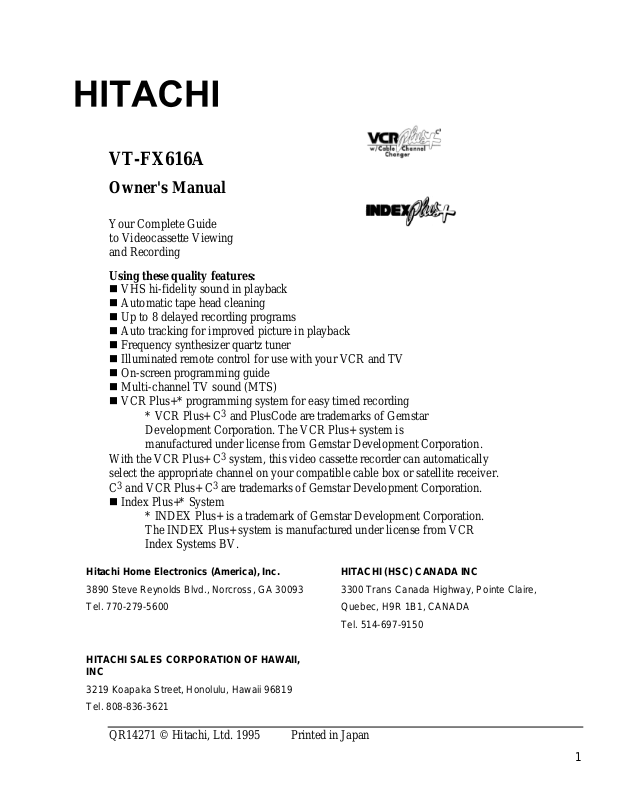

Hitachi VT-FX616A User Manual

VT-FX616A

Owner's Manual

Your Complete Guide to Videocassette Viewing and Recording

Using these quality features:

n VHS hi-fidelity sound in playback n Automatic tape head cleaning n Up to 8 delayed recording programs n Auto tracking for improved picture in playback n Frequency synthesizer quartz tuner n Illuminated remote control for use with your VCR and TV n On-screen programming guide n Multi-channel TV sound (MTS) n VCR Plus+* programming system for easy timed recording

* VCR Plus+ C3 and PlusCode are trademarks of Gemstar Development Corporation. The VCR Plus+ system is manufactured under license from Gemstar Development Corporation.

With the VCR Plus+ C3 system, this video cassette recorder can automatically select the appropriate channel on your compatible cable box or satellite receiver.

C3 and VCR Plus+ C3 are trademarks of Gemstar Development Corporation. n Index Plus+* System * INDEX Plus+ is a trademark of Gemstar Development Corporation. The INDEX Plus+ system is manufactured under license from VCR Index Systems BV.

Hitachi Home Electronics (America), Inc. HITACHI (HSC) CANADA INC

3890 Steve Reynolds Blvd., Norcross, GA 30093 3300 Trans Canada Highway, Pointe Claire, Tel. 770-279-5600 Quebec, H9R 1B1, CANADA

HITACHI SALES CORPORATION OF HAWAII, INC

3219 Koapaka Street, Honolulu, Hawaii 96819 Tel. 808-836-3621

Tel. 514-697-9150

QR14271 © Hitachi, Ltd. 1995 Printed in Japan

TABLE OF CONTENTS

FOR YOUR SAFETY..................................................................................................................2

Read This First...........................................................................................................................3

IMPORTANT SAFEGUARDS.....................................................................................................4

Getting Started...........................................................................................................................7

n Simple Hookups........................................................................................................7

Getting Started (Controls).........................................................................................................12

n Quick Tour of the Controls................................................................................................12

Getting Started (Initial Setup) ...................................................................................................16

n Setup for First-Time Operation..........................................................................................16

Getting Started (Video Tapes)..................................................................................................22

n About Videocassette Tapes..............................................................................................22

Basic Operations (Playback)....................................................................................................24

n Viewing a Videocassette...................................................................................................24

Basic Operations (Recording)...................................................................................................28

n Recording a Program........................................................................................................28

Basic Operations (VCR Plus + Recording)...............................................................................33

n Easy Delayed Recording with the VCR Plus + System.....................................................33

Basic Operations (Index Plus+)................................................................................................36

n Index Plus+ System ..........................................................................................................36

Advanced Operations...............................................................................................................52

n Controlling Your TV with the VCR's Remote.....................................................................52

Advanced Operations (Cable Box Hookups)............................................................................54

n Hooking Up to a Cable Box...............................................................................................54

Advanced Operations (Stereo System)....................................................................................55

n Integrating Your Stereo System........................................................................................55

Advanced Operations (Second VCR).......................................................................................56

n Integrating a Second VCR.................................................................................................56

Advanced Operations (Camcorder )..........................................................................................57

VCR Care and Servicing ..........................................................................................................58

n Routine Cleaning...............................................................................................................58

Care and Servicing (Problems).................................................................................................58

n If the VCR Doesn't Work Right..........................................................................................58

FOR YOUR SAFETY

POWER SUPPLY: AC 120V, 60 Hz ONLY. The POWER switch turns the VCR on and off, leaving the clock/timer unaffected. If the unit is to be left unattended for a long period, it is recommended that the unit be completely switched off and unplugged.

Illustrated below is the label on the back of your unit.

This symbol warns the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance

of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

WARNING: Many television programs and films are copyrighted. In certain circumstances, copyright law may apply to private in-home videotaping of copyrighted materials.

WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Caution to the user: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical".

Read This First

Thank you for buying a Hitachi product. You've chosen the best VCR for you, and we want to help you make the most of your purchase. Please take time to become familiar with this manual and how it is set up. Keep it handy for future reference, too.

To guide you, we've concluded:

n "Must read" sections containing important cautions for your family's safety as well as the basic facts you need to use the VCR. These sections are highlighted like this in the table of contents: n n Information on the advanced features of your Hitachi VCR. We hope you'll take time to learn about these functions since we've designed them for you. But you can use the VCR without reading these sections.

We want this manual to be a tool for you, so we provide two ways to find the information you need:

n A quick index to the basic functions of the VCR which you will use often (this page). n A detailed table of contents directing you to specific information quickly (page 4).

Get to know your VCR by using this manual, and get to know Hitachi. We appreciate your business.

IMPORTANT SAFEGUARDS

In addition to the careful attention devoted to quality standards in the manufacture of your video product, safety is a major factor in the design of every instrument. But, safety is your responsibility too. This page lists important information that will help to assure your enjoyment and proper use of a Video Cassette Recorder and accessory equipment. Please read it carefully before operating your video product and keep it in a handy place for future reference.

1 Read and Follow Instructions -- All the safety and operating instructions should be read before the video product is operated. Follow all operating and use instructions.

2 Retain Instruction -- The safety and operating instructions should be retained for future reference. 3 Heed Warnings -- Comply with all warnings on the video product and in the operating instructions. 4 Polarized Plug -- This video product is equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted without blade exposure. If you need an extension, use a polarized cord.

INSTALLATION

5 Power Sources -- This video product should be operated only from the type of power source

indicated on the marking label. If you are not sure of the type of power supply to your home, consult your video dealer or local power company. For video products intended to operate from battery power, or other sources, refer to the operating instructions. 6 Overloading -- Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock. Overloaded AC outlets and extension cords are dangerous, and so are frayed power cords, damaged or cracked wire insulation and broken plugs. They may result in a shock or fire hazard. Periodically examine the cord and have it replaced by your service technician if appearance indicates damage or deteriorated insulation.

7 Power Cord Protection -- Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance. 8 Ventilation -- Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the video product and to protect it from overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the video product on a bed, sofa, rug or other similar surface. This video product should never be placed near or over a radiator or heat register. This video product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the video product manufacturer's instructions have been followed.

9 Attachments -- Do not use attachments unless recommended by the video product manufacturer as they may cause hazards.

Caution: Maintain electrical safety. Powerline operated equipment or accessories connected to this unit should bear the UL listing mark or CSA certification mark on the accessory itself and should not have been modified so as to defeat the safety features. This will help avoid any potential hazard from electric shock or fire. If in doubt, contact qualified service personnel.

10 Water and Moisture -- Do not use this video product near water - for example, near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like. 11 Accessories -- Do not place this video product on an unstable card, stand, tripod, bracket or table. The video product may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer, or sold with the video product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer. 11A An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

12 Outdoor Antenna Grounding -- If an outside antenna or cable system is connected to the video product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code, ANSI/NFPA No. 70, provides information with respect to proper grounding of the mast and

supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See example below.

EXAMPLE OF ANTENNA GROUNDING 13 Power Lines -- An outside antenna system should not be located in the vicinity of overhead

power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching or approaching such power lines or circuits as contact with them might be fatal. Installing an outdoor antenna can be hazardous and should be left to a professional antenna installer.

USE

14 Cleaning -- Unplug this video product from the wall outlet before cleaning. Do not use

liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 15 Object and Liquid Entry -- Never push objects of any kind into this video product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the video product.

16 Lightning -- For added protection for this video product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable-system. This will prevent damage to the video product due to lightning and power-line surges.

SERVICE

17 Servicing -- Do not attempt to service this video product yourself as opening or removing

covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. 18 Conditions Requiring Service -- Unplug this video product from the wall outlet and refer servicing to qualified service personnel under the following conditions. a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into the video product. c. If the video product has been exposed to rain or water. d. If the video product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment of other

controls may result in damage and will often require extensive work by a qualified technician to restore the video product to its normal operation. e. If the video product has been dropped or the cabinet has been damaged. f. When the video product exhibits a distinct change in performance - this indicates a need for service. 19 Replacement Parts -- When replacement parts are required, have the service technician verify that the replacements he uses have the same safety characteristics as the original parts. Use of replacements specified by the video product manufacturer can prevent fire, electric shock or other hazards. 20 Safety Check -- Upon completion of any service or repairs to this video product, ask the service technician to perform safety checks recommended by the manufacturer to determine that the video product is in safe operating condition.

Getting Started

Relax. Using a VCR is very straightforward. This sections explains how to hookup the VCR, quick tour of the controls, set up for first-time operation using on-screen menus, and videocassette tapes. Enjoy getting to know all about your Hitachi VCR. Let's get started.

n Simple Hookups

1 Decide Where to Put Your VCR

n Be sure your chosen location allows for proper ventilation, stability, and protection from heat and moisture (see Important Safeguards). n Place the VCR near your TV but not on top of it. For convenience in using the remote control, locate them no more than three feet apart. n If you have an external cable or antenna, place the TV and VCR where you have ample cable to hook them up. If necessary, you can purchase a cable extension and connector. n If you plan to route your VCR audio through your stereo speakers for better sound reproduction, place the VCR near the stereo receiver, or have enough long audio cables to make the connections. (But keep in mind that the electronic signal weakens the further it has to travel.)

2 Decide Which Hookup Method to Use

To make your VCR function, you'll deal with two basic hookups:

1. The audio and video signal: If all you want to do is view a prerecorded videotape on the VCR, this three-line hookup is the only one you need.

2. The radio frequency (RF) signal from a cable or antenna: Make this hookup if you also want to record programs, or if you have no audio/video connectors on your TV. We will show you the simplest hookups first and then present several variations to suit specific needs. Be aware that you may need to purchase additional connectors to make the desired hookup. These are available at video stores and electronic hardware stores. Choose which hookup method to use based on:

n Your TV's capabilities n The type of antenna or cable system you have (for cable box hookup, see Advanced

Operations) n Any other devices you want to include in the system (stereo, second VCR, etc.)

We will guide you through the process. But first, turn the TV and the VCR around so you are looking at their backs. Note the various input and output receptacles, their shapes, and how they are labeled. Then read through the rest of this hookup section before proceeding to an actual hookup.

DO NOT TURN ON THE POWER YET. FOR YOUR SAFETY, LEAVE YOUR TV AND VCR UNPLUGGED WHILE HOOKING THEM UP.

3 Hook Up the Audio/Video Signal

If your TV is a fairly recent model, you probably have both audio and video jacks. Look on the back of your TV for three jacks - possibly color-coded yellow, white, and red. They will be labeled something like IN (L and R), AUDIO IN, or VIDEO IN. (If you are not sure, look at the back of your VCR - you will see two sets of these jacks.)

If you have no jacks like these on your TV, skip this step and proceed to Step 4.

TV with Audio and Video Jacks

If you do find all three jacks on your TV, you need to purchase a three-line audio/video cable with bell (RCA) connectors, like this:

If you find a video jack and only one audio jack, your TV is probably monaural. You can purchase a two-line audio/video cable, but the three-line is handy in case you get a stereo TV later.

n Connect the yellow VIDEO OUT jack on the VCR to the VIDEO IN jack on the TV. This direct video input will give you the best picture. It will also let you play videos in a "picture in picture" feature, if your TV has it. n Then connect the AUDIO OUT jacks (red and white) on the VCR to the AUDIO IN jacks on the TV (left to left, right to right). This audio hookup will give you better sound than the RF signal hookup, because the electronic signal won't have to go through a conversion process. Plus your VCR has a stereo decoder, which your TV might not. For big speaker sound, you can also use these jacks to connect the VCR to your stereo system (page 72).

Capabilities: The audio and video signal connections are all you need to play back a prerecorded tape. If you do not intend to record on your VCR from your antenna/cable, then you're all hooked up now. Otherwise, continue with Step 4, which will let you record off TV channels.

4 Hook Up the RF Signal

Look at the back of your TV for a connector that looks like one of these, and follow the corresponding hookup option. If you have any sort of cable box, see the hookup options in Advanced Operations (page 69).

Simple Antenna/Cable 75 Ohm Hookup

This is an easy hookup that you can use if your cable or antenna has a 75 ohm round wire connector. You will need the 75 ohm cable supplied with your VCR. It looks like this:

If you have been watching the TV in your home before getting the VCR, you will already have a round wire attached to your TV. Otherwise, look for a cable connection coming in through the wall from outside. (If you find this connection, remember to call your local cable company to start the service.)

1. If still hooked up to your TV, unscrew the round wire from the 75 ohm connector on your television. Otherwise, take the wire that comes in from the wall.

2. Screw this round wire into the IN FROM ANT jack on the back of your VCR.

3. Using the 75 ohm cable supplied with your VCR, slide on either end to the OUT TO TV jack on the back of the VCR.

4. Connect the other end of the same cable onto the 75 ohm antenna input on your TV (where you first disconnected the TV in step 1.)

Capabilities: With this hookup, you should now be able to perform all the basic functions provided by this equipment.

External or Internal 300 Ohm Antenna

If you have either an external or internal (rabbit ears) antenna rather than cable, you may have 300 ohm connectors like these.

In this case, you will need special adapters to make the 75 ohm round wire connection shown below. (You may already have one on your TV.)

1. Remove the antenna line from the back of your TV if it is already connected there, or take it from where it comes in on the wall.

2. Considering the three pictures below, determine which adapter you will need to hook it into your VCR.

If you have Use this adapter

Single 300 ohm flat wire

Separate UHF and VHF antenna wires, both 300 ohm flat wire

300 ohm flat UHF and 75 ohm round VHF

If you have "rabbit ears" (an antenna on top of your TV), you will need an additional adapter and

75 ohm extension to make your leads reach from the antenna to the VCR. This connection will work only if you have a strong, clear picture on the TV, indicating a strong signal. Connect the antenna to the adapter, and use the cable extension to go from the adapter to the VCR. Use the supplied 75 ohm cable to connect the VCR to the TV.

Now continue with the hookup:

1. Using whichever adapter you have fit your antenna with, attach that connector to the IN FROM ANT jack on the back of the VCR.

2. Using the 75 ohm cable supplied with your VCR, connect either end to the OUT TO TV jack on the back of the VCR.

3. Use a second adapter to attach the other end of the 75 ohm connector back into the TV (where you first disconnected the antenna).

Capabilities: With this hookup, you should now be able to perform all basic functions provided by this equipment.

5 Attach the TV and VCR to the Power Supply

Plug in the TV and VCR power cords to the wall outlet or an appropriate extension cord or surge protector. See Important Safeguards for further precautions (page 6).

6 Install Batteries in the Remote Control

The remote control requires two fresh "AA" batteries. On the back of the remote, a plastic cover slides off in the direction shown by the arrow. Remove this cover and install the batteries, matching the plus end of each battery with the plus mark on the remote.

7 Set the RF or Video Channel Switch

When the VCR is on, its video signal can come into your TV on either channel 3 or channel 4.

You need to select the appropriate channel.

n Turn the power on to both the TV and the VCR, and look for a switch on the back of the VCR. Set the switch to 3 or 4, whichever is not a commercial channel in your area.

Your basic hookup is now complete. When you're ready to try hooking up a second VCR or a video camera for a complete home entertainment system, see Advanced Operations.

Now turn the TV and VCR back around facing you and begin your quick tour of the controls (page 15).

Getting Started (Controls)

n Quick Tour of the Controls

Study these pictures carefully to learn about the buttons and controls that you'll need for everyday operation. Various controls are explained throughout this manual as they are needed, but now is a good time to get familiar with their locations.

Most of the time, you'll be directing the VCR from the remote control, but there are some controls on the VCR that will come in handy too.

When you're familiar with these basic controls, proceed to Initial Setup (page 20). We'll show you how to program your local channels and set the clock to make your VCR fully functional.

How the Remote Control Works

Pressing a button on the remote control transmits an invisible beam of light (infrared) to a receiver at the right front of the VCR.

When using the remote, aim the front end toward the VCR and make sure nothing – such as a coffee table or your dog – is blocking the path of the infrared beam.

About the Illuminated Buttons

Try pressing the remote control's white buttons one at a time. As you press, one of the three device buttons lights up – VCR, CAM or TV. This helps you keep track of which device you are controlling at the moment.

Remote Control Buttons

Remote Control Illustration POWER Turns the VCR on and off. MENU Brings up an on-screen setup and programming guide, the Easy Guide System. VCR/TV Switches between viewing through the VCR and not viewing through the VCR. CLEAR Used in on-screen programming and indexing. DISPLAY Used in on-screen programming and indexing. VOLUME Increase or decrease the audio volume. MUTE Turns off the audio until you press MUTE again. REC Starts recording on the station the VCR is set to. REW Rewinds the videotape. PLAY Starts playing a loaded videocassette. PAUSE Temporarily stops the cassette from recording or playing. Press PAUSE again (or

PLAY) to resume. LIGHT Illuminates key function buttons for a few seconds. SHUTTLE DIAL Controls the videocassette's forward and reverse motion with one convenient

dial.

JOG DIAL Moves the tape forward and reverse one frame at a time. LAST CHANNEL Switches to the TV channel you watched previously during the current

viewing session. F.FWD Fast forwards the videotape. STOP Stops a videocassette from playing, recording, pausing, rewinding – or anything it is

doing. i Used to display program related information on the TV screen. TITLE When pressed once, the program title and station name of the received channel are

displayed. When pressed again, data on programs which the received channel plans to broadcast (program guide) is displayed.

0 to 9 Number buttons used in on-screen programming. Can also be used to change channels. (Simply press 2 or 3 digits for the channel you want – such as 0 and 6 for channel 6, or 100/ENT and 2 and 4 for channel 124.)

AVX Used for recording from an auxillary input such as a stereo system. INDEX Used to display the Index Plus+ directory. Select / Used to select the titles or entries (without titles) from the directory. VCR, CAM (camcorder)*, TV Device buttons let you set the remote to control one of the three

devices. CHANNEL Top button switches to the next higher channel, bottom button switches to the next

lower channel. For these to operate, you must have preset your channels. * Refer to the camcorder's instruction manual for its operation.

When the Remote Doesn't Work Right

Check out these possibilities:

Low Battery

If the remote is not working even at close range, try putting in two fresh AA batteries. n When replacing the batteries, remove the old batteries and press the POWER button on the remote and hold it for about 10 seconds, then insert two fresh batteries.

Objects in the Way

There may be objects between the remote and the VCR – for instance, a stack of books on the coffee table, your 2-year-old child, the dog. Hold the remote so that it points at the VCR with nothing in the way.

If You Just Want to Watch TV

For normal TV viewing, you do not need to disconnect the VCR. When the TV and VCR are already on, press POWER on the remote control. The VCR will shut off, but the TV will stay on.

If you are recording on the VCR but want to watch a different channel on the TV, press the VCR/TV button to switch back and forth between the TV channel and the recording channel.

VCR Controls

POWER Turns VCR power on and off. STOP/EJECT Cancels any videotape action, and when pressed a second time, ejects tape. PLAY Plays the loaded videotape. DISPLAY Shows time, channel, and status indicators. CHANNEL Up and down arrows for selecting channels. REC/IRT To begin recording. F.FWD Fast forwards the videotape. REW Rewinds the videotape.

Display Indicators

Watch for these signs and symbols that let you know that the VCR is responding to your instructions.

L R

REW FFWD PLAY

- PLAY

STILL

SLOW

Hi-Fi Tape Playing

Cassette Loaded Recording VCR Mode Rewind Fast-Forward Playback L1 or

Reverse Playback Audio/Video Input Jacks on Front or

Stop-Motion Play Frame Advance Slow-Motion Play

SLOW SRCH

-SRCH EP SP

Reverse Slow-Motion Play

Forward Search Reverse Search Extended Play Standard Play Programmed to Record Later Signal Being Received Through

Back of Unit

Meet Your On-Screen Guide

Your Hitachi VCR has as a special feature called the Easy Guide System. This feature guides you through simple setup and programming tasks right on the TV screen. With the TV and VCR turned on, press MENU on the remote control. You will see this screen:

Now, you will do most of your programming and setup by pressing numbers on the remote control which correspond to options presented in this and other on-screen menus. Instructions are easy to follow, and blinking spaces on the screen will show you where your input is needed. n When you want to leave the Easy Guide System, simply press MENU several times. This will back you out to the normal TV viewing screen. n If you don't press any button for a while, the VCR will switch you back to an earlier screen or to regular TV viewing.

Getting Started (Initial Setup)

n Setup for First-Time Operation

Before you use your VCR to watch or record from your TV, you need to "tell" the VCR whether your TV uses cable or antenna input and let it program itself to receive your TV's channels. It's also a good idea to set the clock so you can do timed recording later. With your TV and VCR hooked up, turn them both on and follow these steps using the remote control.

Initial Setup Options

Press MENU, then press 5 to bring up the Initial Setup screen.

The screen shows the default settings on your VCR. The default settings are the ones that are preset at the factory. Look at each item to see if it matches your own setup: n To change a setting, press the button that has the same number as that item. This will cycle you through several options.

n When everything is set up as you want, press MENU again to back out of the Easy Guide System. If you do not use the cable box, you need to set items 1 and 6 the first time you set up your VCR. If you receive all channels from the cable box, you need to set item 1 and item 5 the first time you set your vcr (see page 44). The rest of the items can be set later as needed.

Here is what the options mean. 1 CHANNEL Press 1 to select the type of receiving setup you have:

<ANT> Internal or external antenna <CATV1> Ordinary cable CATV2> Alternate cable (if CATV1 doesn't give you the channels you expect)

2 HIFI/LINEAR Press 2 to control how the audio signal is processed by the VCR. Options are <HIFI> and <LINEAR>.

3 STEREO/MONO Press 3 to control how the audio signal is recorded and sent to the TV. Options are <STEREO> and <MONO>.

4 SAP Press 4 when you are ready to record a second audio program. Options are

<OFF> and <ON>.

5 CABLE BOX SET Press 5 to set up your cable box if you receive all channels through a cable box.

6 AUTO CHANNEL Press 6 to automatically program the VCR to receive all the channels that come SET in on your antenna or cable.

7 ADD/ERASE Press 7 to bring up a screen that lets you add new channels or limit the channels CHANNEL to the ones you most often watch.

Note: Option 5 CABLE BOX SET is not enabled unless CATV1 or CATV2 has been selected in option 1 CHANNEL setting.

More About Channel Selections

Your VCR is capable of receiving 68 broadcast TV channels (VHF 2-13, UHF 14-69) and 125 cable channels (CATV 1-125). When you press 6 on the Initial Setup screen, the tuner automatically cycles through all available channels in your area and places them in memory. This takes 2-3 minutes. You can watch the progress on your VCR's display – when the channel numbers stop changing, programming is complete. n In some areas channels cannot be switched when CATV1 is selected. Then, select CATV2 in your Initial Setup screen. n For convenience, the TV channel numbers should match those programmed into the VCR. If your TV has automatic channel programming, set it on the same mode – ANT, CATV1, or CATV2 – and let it reprogram to match the VCR. Once channels are preset, you can use the up and down CHANNEL buttons to move through the active channels. Or you can press the number buttons to move quickly between channels that are far apart.

Removing Channels

You may not want to keep all the stations the auto-programmer selects, since you may prefer to have only a few favorite channels in the tuner's memory. Or, you may want to delete from memory a weak or unused channel that the tuner picked up. n Erased channels cannot be selected by the up and down CHANNEL buttons but can still be selected by using the numbered buttons 0 to 9 and 100/ENT.

Adding Channels

Occasionally the auto-programming may skip an active channel because the antenna was pointed in the wrong direction or the channel had a weak signal or was "off the air" at the time of programming. Or you may change your mind about a channel you removed from memory.

To Add or Erase Channels

n Press MENU, then press 5 to bring up the Initial Setup screen. Item 7 lets you add or delete channels. Use the number buttons to enter the channel you want to change, then press STOP to delete it or press PLAY to add it.

Choosing a Mode for Audio Playback

Choose between hi-fi and linear modes, depending on your needs. HIFI is the preferred setting because it works for all tapes whether they were recorded in hi-fi or linear modes. If the audio sounds distorted or unusual or there is no audio, try the LINEAR option. When you set the option to HIFI, hi-fi tapes will play in high fidelity, and non-hi-fi tapes will play in linear mode.

Stereo vs. Mono Sound

When you select the STEREO option, your VCR records in stereo any station that broadcasts stereo sound. When a TV channel broadcasts in stereo, you'll see a stereo indicator on the TV screen. STEREO is the normal factory setting because it works for both stereo and mono broadcasts. It is also necessary for recording a second audio program (SAP). When you select MONO, sound is recorded as mono even when a channel broadcasts in stereo. Use the MONO setting when the stereo signal is not strong enough for quality reception (for example, when there is signal drift or noise).

Hi-Fi Sound

Hi-Fi sound is the same quality as that of a compact disc player. Its dynamic range of over 90dB will record either stereo or monaural broadcasts with the highest quality possible. Linear sound, on the other hand, will record monaural sound using the same format as a non hi-fi VCR. Stereo programs are recorded in hi-fi on both the left and right channels and also recorded on the linear track as monaural.

Channel Caption (Station Identifier)

When your VCR is receiving a channel caption signal that is being transmitted by a local broadcasting station together with a TV program, a station identifier is displayed on the TV screen.

Pre-loading Program Data

When presetting channels is finished, perform the procedure to pre-load program data. There are some preset channels which broadcast a TV program guide listing all active channels in your area as well as broadcasting actual TV programs. Pre-loading is the procedure to search for such a channel (host channel) and store the data on TV programs in your VCR's memory. When program data has been pre-loaded, you can use the Index Plus+ feature to display the titles of the recorded programs on the TV screen.

1. Press MENU. The menu screen appears.

2. Press 4. This screen appears.

3. Use the number buttons to enter your local zip code. In this example, zip code 90001 has been entered. Then, press 100/ENT.

The VCR searches for a channel which is broadcasting a TV program guide and stores the data on programs automatically. The VCR's clock is also set and the current time appears in the VCR's display. If the current time is not displayed, but this screen appears, set the clock, referring to page 27. After setting the clock is finished, perform the procedure to pre-load program data again.

+ 42 hidden pages
