FOR MESSRS : DATE : May.12.’99
CUSTOMER’S ACCEPTANCE SPECIFICATIONS
SP10Q003-T
C O N T E N T S
No. ITEM SHEET No. PAGE
1 COVER 7B64PS 2701-SP10Q003-T-3 1-1/1
2 RECORD OF REVISION 7B64PS 2702-SP10Q003-T-3 2-1/1
3 MECHANICAL DATA 7B64PS 2703-SP10Q003-T-3 3-1/1
4 ABSOLUTE MAXIMUM RATINGS 7B64PS 2704-SP10Q003-T-3 4-1/1
5 ELECTRICAL CHARACTERISTICS 7B64PS 2705-SP10Q003-T-3 5-1/1
6 OPTICAL CHARACTERISTICS 7B64PS 2706-SP10Q003-T-3 6-1/1
7 BLOCK DIAGRAM 7B64PS 2707-SP10Q003-T-3 7-1/1
8 INTERFACE TIMING CHART 7B64PS 2708-SP10Q003-T-3 8-1/3~3/3
9 DIMENSIONAL OUTLINE 7B64PS 2709-SP10Q003-T-3 9-1/2~2/2
10 QUALITY STANDARD 7B64PS 2710-SP10Q003-T-3 10-1/3~3/3
11 PRECAUTION IN DESIGN 7B64PS 2711-SP10Q003-T-3 11-1/3~3/3
12 DESIGNATION OF LOT MARK 7B64PS 2712-SP10Q003-T-3 12-1/1
13 PRECAUTION FOR USE 7B64PS 2713-SP10Q003-T-3 13-1/1
∗WHEN PRODUCT WILL BE DISCONTINUED, CUSTOMER WILL BE INFORMED
BY HITACHI WITH TWELVE MONTHS PRIOR ANNOUNCEMENT.
ACCEPTED BY; PROPOSED BY;
KAOHSIUNG HITACHI
Sh.
7B64PS 2701-SP10Q003-T-3 PAGE 1-1/1
ELECTRONICS CO.,LTD.
No.
RECORD OF REVISION
DATE SHEET No. SUMMARY
Dec.15.’98
7B64PS 2703SP10Q003-T-2
PAGE 3-1/1
7B64PS 2705SP10Q003-T-2
PAGE 5-1/1
1.MODULE SIZE HAS BEEN CHANGED.
2.ADD TOUCH PANEL.
CHANGED:
1 IDD (0.4) → 0.3
2 ILCD (2.6) → 1.8
3 VLCD-VSS 0°C (27.2) → 27.4
25°C (26.0) → 26.3
40°C (25.2) → 25.4
4 VLED: (3.5)V → 3.6V
May.12.’99
7B64PS 2706SP10Q003-T-2
PAGE 6-1/1
7B64PS 2709SP10Q003-T-2
PAGE 9-1/2
7B64PS 2709SP10Q003-T-2
PAGE 9-2/2
7B64PS2704SP10Q003-T-3
PAGE 4-1/1
7B64PS2705SP10Q003-T-3
PAGE 5-1/1
7B64PS2709SP10Q003-T-3
PAGE 9-1/2
7B64PS2709SP10Q003-T-3
PAGE 9-2/2
5 ILED: TYP. MAX TYP MAX
- (90)
6 BLED: MIN TYP MIN TYP
- (3)
CHANGED: TYP
1.CONTRAST RATIO K=(12)
↓
K=7 (WITH T/P)
K=12 (NO T/P)
CHANGED ALL PAGE.
ADD INTERFACE PIN OF T/P
CHANGED:
OPERATING TEMP. 0 ~ 40¢J ¡÷ 0 ~ 50¢J
CHANGED:
ILED:75mA TYP. 90mA MAX ¡÷ 55mA TYP. 70mA MAX
BRIGHTNESS UNIFORMITY 50% ¡÷ 40%
ADDED: ADD LED CIRCUIT.
CHANGED:
2.8mm MAX ¡÷3.3¡Ó0.5
ADD DIMENSION 71.5MAX.
CHANGED:
PIN2: VSS(LOGIC GROUND)¡÷
S.GND(SHIELD GROUND)
→
75 90
→
2.0 4.0
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD
DATE
May.12.’99
Sh.
No.
7B64PS 2702-SP10Q003-T-3
PAGE 2-1/1
3. MECHANICAL DATA
(1) PART NAME SP10Q003-T
(2) MODULE SIZE 70.1 (W)mm * 92.1 (H)mm * 9.0 (D)mm MAX.
(3) EFFECTIVE DISPLAY AREA 60.6 mm. * 79.8 mm.
(4) DOT SIZE 0.225 (W)mm * 0.225 (H)mm
(5) DOT PITCH 0.24 (W)mm * 0.24 (H)mm
(6) NUMBER OF DOTS 240 (W) * 320 (H) DOTS
(7) DUTY 1/320
(8) BIAS 1/18
(9) LCD FILM TYPE BLACK/WHITE (POSITIVE
TYPE)
THE UPPER POLARIZER IS GLARE TYPE.
THE BOTTOM POLARIZER IS
TRANSFLECTIVE TYPE.
(10) VIEWING DIRECTION 6 O’CLOCK
(11) BACKLIGHT LED (COLOR:WHITE)
(12) TOUCH PANEL ANALOG RESISTIVE
LINEARITY : +/-1.5%
HARDNESS : 2H
TRANSPARENCY : 80%
SURFACE TYPE : NON-GLARE
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD
DATE
May.12.’99
Sh.
No.
7B64PS 2703-SP10Q003-T-3
PAGE 3-1/1
4. ABSOLUTE MAXIMUM RATINGS
4.1 ELECTRICAL ABSOLUTE MAXIMUM RATINGS. VSS=0V:STANDARD
ITEM SYMBOL MIN. MAX. UNIT COMMEN
T
POWER SUPPLY FOR LOGIC VDD-VSS -0.3 7.0 V
POWER SUPPLY FOR LC DRIVE VLCD-V0 0 36.0 V
INPUT VOLTAGE Vi -0.3 VDD+0.3 V NOTE 1,2
NOTE 1. DISP.OFF,YD, LOAD, CP,D0~D3,M.
NOTE 2. MAKE CERTAINS YOU ARE GROUNDED WHEN HANDLING LCM.
4.2 ENVIRONMENTAL ABSOLUTE MAXIMUM RATINGS.
I T E M OPERATING STORAGE COMMENT
MIN. MAX. MIN. MAX.
AMBIENT TEMPERATURE 0°C 50°C -20°C 60°C NOTE 2,3
NOTE 4 NOTE 4
HUMIDITY NOTE 1 NOTE 1 WITHOUT CONDENSATION
CORROSIVE GAS NOT ACCEPTABLE NOT ACCEPTABLE
NOTE (1) 40°C 85%RH.....150HRS(POLARIZER & ADHESIVE TAPE DAMAGE ACCEPTED)
40°C 85%RH..…48HRS(POLARIZER & ADHESIVE TAPE DAMAGE NO
ACCEPTED)
NOTE (2) Ta AT-20°C <48HRS , AT 60°C <168HRS.
NOTE (3) BACKGROUND COLOR CHANGES SLIGHTLY DEPENDING ON AMBIENT
TEMPERATURE . THIS PHENOMENON IS REVERSIBLE.
NOTE (4) THERE ARE POSSIBLITY THAT COLOR UN-UNIFORMITY HAPPENED
WHILE OPERATING AT 40°C ~ 50¢J.
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2704-SP10Q003-T-3
PAGE 4-1/1
5. ELECTRICAL CHARACTERISTICS
5.1 ELECTRICAL CHARACTERISTICS OF LCD
I T E M SYMBOL CONDITION MIN. TYP. MAX. UNIT
POWER SUPPLY VOLTAGE
FOR LOGIC
POWER SUPPLY VOLTAGE VLCD-VSS - 26.0 - 33.0 V
FOR LC DRIVING
INPUT VOLTAGE VI H LEVEL 0.8VDD - VDD V
NOTE 1 L LEVEL 0 - 0.2VDD V
POWER SUPPLY CURRENT
FOR LOGIC NOTE 2
POWER SUPPLY CURRENT
FOR LC DRIVING NOTE 2
RECOMMENDED Ta= 0°C , θ=0° - 27.4 - V
LC DRIVING VOLTAGE VLCD-VSS Ta=25°C , θ=0° - 26.3 - V
NOTE 3 Ta=40°C , θ=0° - 25.4 - V
FRAME FREQUENCY fYD - 70 - 120 Hz
NOTE 4
VDD-VSS - 2.7 3.3 4.7 V
IDD VDD-VSS=3.3V
VLCD-VSS=26.3V
ILCD VDD-VSS=3.3V
VLCD-VSS=26.3V
- 0.3 - mA
- 1.8 - mA
NOTE (1) DISP . OFF , YD , LOAD , CP , D0~D3.
NOTE (2) fYD=75Hz , D0~D3=0 , 1 , 0 , 1.......
VLCD-VSS=26.3V , Ta=25°C.
NOTE (3) RECOMMENDED LC DRIVING VOLTAGE FLUCTUATE ABOUT +/-0.5V BY
EACH MODULE.
TEST PATTERN IS ALL “Q”.
NOTE (4) NEED TO MAKE SURE OF FLICKING AND RIPPING OF DISPLAY WHEN
SETTING THE FRAME FREQUENCY IN YOUR SET.
5.2 ELECTRICAL CHARACTERISTICS OF LED BACKLIGHT
I T E M SYMBOL CONDITION MIN. TYP. MAX. UNIT
POWER SUPPLY VOLTAGE
FOR LED BACKLIGHT
POWER SUPPLY CURRENT
FOR LED BACKLIGHT
THE BRIGHTNESS ON LCM
SURFACE (WITH T/P)
BRIGHTNESS UNIFORMITY - - - - 40 %
VLED(+)
VLED - - 3.6 - V
ILED VLED=3.6V - 55 70 mA
BLED
φ=0° , θ=0°
VLED=3.6V
2.0 4.0 - cd/m
VLED(-)
2
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2705-SP10Q003-T-3
PAGE 5-1/1
6. OPTICAL CHARACTERISTICS
SYMBOL
CONDITIONAL
MIN.
TYP.
MAX.
UNIT
NOTE
WITH T/P
CONTRAST RATIO
200
400
BRIGHTNESS
10%
FALL TIME
RISE TIME
tf
tr
100%
90%
BRIGHTNESS
6.1 LCM Ta=25°C
ITEM
VIEWING AREA φ2-φ1 K>=2.0 - 40 - deg 1,2
K φ=0° , θ=0° - 7
N0 T/P K φ=0° , θ=0° - 12
RESPONSE TIME (RISE) tr φ=0° , θ=0° -
RESPONSE TIME (FALL) tf φ=0° , θ=0° -
NOTE 1. DEFINITION OF θANDφ
(MEASURE CONDITION BY HITACHI)
- - 3
- ms 4
- ms 4
(NORMAL)
φ2
NOTE 3.DEFINITION OF CONTRAST“K”
φ1
Y(θ=180°)
X
θ
X‘
Y’(θ=0°)
VIEWING DIRECTION
NOTE 2. DEFINITION OF VIEWING ANGLE φ1 AND φ2
φ1<10°<φ2
(B1)
B1
(Di=“L”)
B2
OPERATING VOLTAGE
φ
LIGHT
θ=10°
(B2)
(Di=“H”)
30°
φ1
CONTRAST RATIO K VS VIEWING ANGLE φ
NOTE 4. DEFINITION OF OPTICAL RESPONSE
NON-SELECTIVE STATE
φ2
SELECTIVE STATE
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
LCD
NON-SELECTIVE STATE
7B64PS 2706-SP10Q003-T-3
SENSOR
PAGE 6-1/1
7. BLOCK DIAGRAM
IC1
240
IC2
160
IC3
160
Y1
Y240
X1
X320
GND
VDD
VLCD
D.OFF
CL1
M
FLM(YD)
CL2
D0~D3
LED(+)
LED(-)
LED BACKLIGHT
Y1X1X2
Y2
TOUCH PANEL (T/P)
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2707-SP10Q003-T-3
PAGE 7-1/1
8. INTERFACE TIMING CHART
M
Y1Y2Y3Y4Y5Y6Y7Y8Y237
Y238
Y239
Y240
8.1 TIMING CHART
26.0µS<=T<=44.6µS
LOAD
T/60
CP
D3
D2
D1
D0
LOAD
X320
320*T
X1
X2
300 ns max
YD
M
NOTE 1. DO NOT INPUT OVER 320 PULSES TO LOAD.
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2708-SP10Q003-T-3
PAGE 8-1/3
8.2 TIMING CHARACTERISTICS
ITEM SYMBOL MIN. TYP. MAX. UMIT
CL1 PULSE WIDTH “H” tWHCL1 30 - - ns
CLOCK FREQUENCY fcp VDD=3.15~5.5V - - 12.0 MHz
CL2 PULSE WIDTH tWCL2 30 - - ns
CLOCK SET UP TIME tSCL1 100 - - ns
CLOCK HOLD TIME tHCL1 100 - - ns
CLOCK RISE FALL TIME tr,tf - - 50
NOTE(1)
DATA SET UP TIME tDSU 20 - - ns
DATA HOLD TIME tDH 25 - - ns
“FRAME” SET UP TIME tFS 100 - - ns
“FRAME” HOLD TIME tFH 30 - - ns
1/fcp-2tWCL2
NOTE 1: (1) tr,tf < (2) tr,tf<=50ns
2
tWHCL1
ns
CL1
CL2
D0~D7
FRAME
tr
tr tf
tWCL2
tDSU
tDH
tCYC tFS tFH
tf
tHCL1tSCL1tWCL2
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2708-SP10Q003-T-3
PAGE 8-2/3
8.3 TIMING OF POWER SUPPLY AND INTERFACE SIGNAL
LCM
VLCD
VDD
VSS
FUSE
2.7V
4.7V
~
C
R
+33
VDD
GND
SIGNAL
GND
VLCD
GND
DISP.OFF
GND
0~50ms 0~50ms
0 min 0 min
0 min 0 min
POWER ON POWER OFF
GND
GND
GND
GND
THE MISSING PIXELS MAY OCCUR WHEN THE LCM
IS DRIVEN EXCEPT ABOVE POWER INTERFACE
TIMING SEQUENCE.
8.4 POWER SUPPLY FOR LCM
VDD
SIGNAL
VLCD
DISP.OFF
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2708-SP10Q003-T-3
PAGE 8-3/3
9. DIMENSIONAL OUTLINE
CONDUCTIVE SIDE
9.1 DIMENSIONAL OUTLINE
T/P WIDTH 69.4+/-0.5
71.5Max.
70.1+/-0.5
92.1+/-0.5
VIEWING AREA 79.8Min.
T/P ACTIVE AREA 77.8+/-0.3
T/P LENGTH 90.5+/-0.5
ACTIVE AREA 76.785+/-0.1
VIEWING AREA 60.6Min.
T/P ACTIVE AREA 58.6+/-0.3
ACTIVE AREA 57.585+/-0.1
240*320 DOTS
0.24*0.24 PITCH
VIEWING
DIRECTION
3.3+/-0.5
4.3+/-0.5
4.8+/-0.5
6.0max
20
DETAIL A
KAOHSIUNG HITACHI
ELECTRONICS CO., LTD.
7.5+/-0.5
7.0+/-0.5
(0.5) (0.5)(0.3) (0.2)
1
DATE
(4.0)
(6.0)
May .12.'99
20
DETAIL A
Sh.
No.
6.7 Typ.
EXCEPT PARTS AREA
9.0 Max.
10.5
1
(9.0)
28.0+/-2.0
7B64PS 2709-SP10Q003-T-3
PAGE
9-1/2

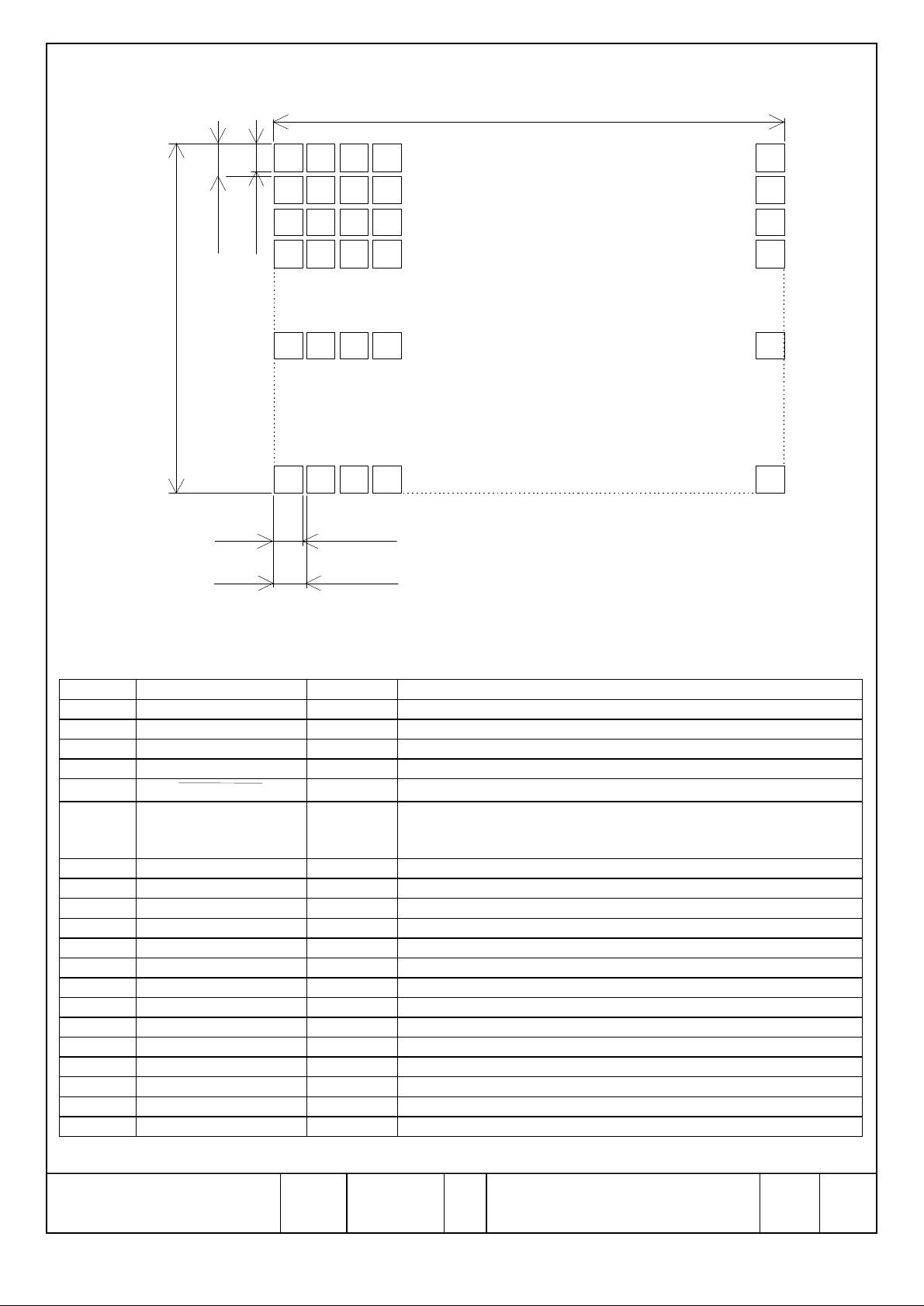

9.2 DISPLAY PATTERN
PIN No.
76.785 (320 DOTS)
57.585 (240 DOTS)
0.24
0.225
0.225
0.24
MEASUREMENT TOLERANCE : +/-0.1
SCALE : NTS
UNIT : mm
9.3 INTERNAL PIN CONNECTION
CN1 : FPC
CN1
SIGNAL LEVEL FUNCTION
1 VDD H POWER SUPPLY FOR LOGIC
2 S.GND - SHIELD GROUND
3 VLCD H POWER SUPPLY FOR LCD
4 FLM H FIRST LINE MARKER
5 DISP.OFF H/L H:ON / L:OFF
SWITCH SIGNAL TO CONVERT LIQUID
6 M H/L
7 CL1 H→L DATA LATCH
8 CL2 H→L SHIFT CLOCK
9 VSS - LOGIC GROUND
10 D0 H/L DISPLAY DATA
11 D1 H/L DISPLAY DATA
12 D2 H/L DISPLAY DATA
13 D3 H/L DISPLAY DATA
14 VSS - LOGIC GROUND
15 LED(+) - POWER SUPPLY FOR LED
16 LED(-) - POWER SUPPLY FOR LED
17 Y2 - ANALOG SIGNAL FROM TOUCH PANEL
18 X1 - ANALOG SIGNAL FROM TOUCH PANEL
19 Y1 - ANALOG SIGNAL FROM TOUCH PANEL
20 X2 - ANALOG SIGNAL FROM TOUCH PANEL
CRYSTAL
DRIVE WAVEFORM INTO AC
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2709-SP10Q003-T-3
PAGE 9-2/2
10. QUALITY STANDARD
EYE
EYE
10.1 APPEARANCE INSPECTION CONDITIONS (IN THE EFFECTIVE VIEWING
AREA)
VISUAL INSPECTION UNDER SINGLE 20W FLUORECENT LAMP WITH
EYES TO LCD DISTANCE 25cm AND LAMP TO LCD DISTANCE 25
TO 30cm. VIEWING ANGLE SHOULD BE SMALLER THAN 45°.
THE LINE OF SIGHT FOR INSPECTION SHALL BE INSIDE THE HALF
SECTION OF A CONE WHICH CONSISTED OF LINE SEGMENT 45°
TO THE AXIS WITH VERTEX AT CENTER OF LCD. THE CONE
AXIS PERPENDICULAR TO THE LCD AND PASSING THROUGH THE
FLUORESCENT LAMP.
45°
LCD
SHIPPING TRAY
10.2 DEFINITION OF EACH ZONE
A ZONE : WITHIN THE DISPLAY AREA SPECIFIED AT PAGE 9-1/2 OF THIS
DOCUMENT.
B ZONE : AREA BETWEEN THE EDGE LINE OF BEZEL AND THE DISPLAY AREA
LINE SPECIFIED AT PAGE 9-1/2 OF THIS DOCUMENT.
45°
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
A ZONE
B ZONE
May.12.’99
Sh.
No.
DISPLAY AREA
EDGE LINE OF BEZEL
7B64PS 2710-SP10Q003-T-3
PAGE 10-1/3
10.3 APPEARENCE SPECIFICATION
*) IF THE PROBLEM OCCURES,ABOUT THIS ITEM THE RESPONSIBLE PERSON
OF BOTH PARTY (CUSTOMER AND HITACHI) WILL DISCUSS MORE DETAIL.
No. ITEM CRITERIA A B
SCRATCHES DISTINGUISHED ONE IS NOT ACCEPTABLE
(TO BE JUDGE BY HITACHI LIMIT SAMPLE)
DENT SAME AS ABOVE * -
WRINKLES INPOLARIZER SAME AS ABOVE * -
BUBBLES AVERAGE DIAMETER
D(mm)
L D<=0.2 IGNORE
0.2<D<=0.3 12 Ο -
0.3<D<=0.5 3
NOTE (1) 0.5<D NONE
C STAINS, FILAMENTOUS
FOREIGN
MATERIALS
DARK SPOT L<=2.0 W<=0.03 IGNORE Ο *
D L<=3.0 0.03<W<=0.05 6
NOTE (1) (2) THOSE WIPED OUT EASILY ARE ACCEPTABLE Ο Ο
COLOR TONE TO BE JUDGED BY HITACHI LIMIT SAMPLE Ο -
COLOR UNIFORMITY SAME AS ABOVE Ο -
PINHOLE AVERAGE DIAMETER MAXIMUM NUMBER
NOTE (1) C<=0.01 IGNORE
CONTRAST AVERAGE CONTRAST MAXIMUM MINIMUM
IRREGULARITY DIAMETER NUMBER SPACE
(SPOT) D (mm) ACCEPTABLE Ο -
LENGTH
L(mm)
- 0.05<W NONE
ROUND
AVERAGE DIA-
METER D(mm)
D<0.2 IGNORE - Ο *
0.2 <=D<0.33 8 10 mm
0.33 <=D NONE THEWHOLE
NUMBER
D(mm) ACCEPTABLE
D<=0.15 IGNORE
0.15<D<=0.3 10
D<=0.2
5
0.25<D<=0.35JUDGE BY 10 20mm
MAXIMUM NUMBER ACCEPTABLE
FILAMENTOUS + ROUND = 10
TO BE IGNORE -
MAXIMUM NUMBER
ACCEPTABLE
WIDTH
W(mm)
MAXIMUMNUMBER
ACCEPTABLE
MINIMUM
SPACE
∗ -
NOTE (1) 0.5 <D NONE -
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
0.35<D<=0.5 HITACHI 4 20mm
Sh.
DATE
May.12.’99
No.
7B64PS 2710-SP10Q003-T-3
PAGE 10-2/3
No. ITEM CRITERIA A B
b
b
W
a
CONTRAST
IRREGULARITY
(LONE)
L
(A PAIR OF
SCRATCH)
C
D
NOTE (2)
RUBBING SCRATCH TO BE JUDGED BY HITACHI LIMIT STANDARD
WIDTH
LENGTH
W(mm)
W<=0.25 L<=1.2 2 20mm
W<=0.2 L<=1.5 3 20mm
W<=0.15 L<=2.0 3 20mm
W<=0.1 L<=3.0 4 20mm
THE WHOLE NUMBER <=6
L(mm)
MAXIMUM
ACCEPTABLE
NUMBER
MINIMUM
SPACE
NOTE (1)
Ο
Ο
-
-
a
c
a
a
b
a+b
2 =D…AVERAGE DIAMETER
(2) DEFINITION OF LENGTH L AND WIDTH W
L
b
C…SALIENT
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2710-SP10Q003-T-3
PAGE 10-3/3
11. PRECAUTION IN DESIGN
11.1 LC DRIVING VOLTAGE (VLCD) AND VIEWING ANGLE RANGE.
SETTING VLCD OUT OF THE RECOMMENDED CONDITION WILL BE A
CAUSE FOR A CHANGE OF VIEWING ANGLE RANGE.
11.2 CAUTION AGAINST STATIC CHARGE
AS THIS MODULE IS PROVIDED WITH C-MOS LSI, THE CARE TO TAKE
SUCH A PRECAUTION AS TO GROUNDING THE OPERATOR‘S BODY IS
REQUIRED WHEN HANDLING IT.
11.3 POWER ON SEQUENCE
INPUT SIGNALS SHOULD NOT BE APPLIED TO LCD MODULE BEFORE
POWER SUPPLY VOTAGE IS APPLIED AND REACHES TO SPECIFIED
VOLTAGE (3.3+/-10%). IF ABOVE SEQUENCE IS NOT KEPT, C-MOS LSIS
OF LCD MODULES MAY BE DAMAGED DUE TO LATCH UP PROBLEM.
11.4 PACKAGING
(1) NO. LEAVING PRODUCTS IS PREFERABLE IN THE PLACE OF HIGH
HUMIDITY FOR A LONG PERIOD OF TIME. FOR THEIR STORAGE IN
THE PLACE WHERE TEMPERATURE IS 35° OR HIGHER, SPECIAL CARE
TO PREVENT THEM FROM HIGH HUMIDITY IS REQUIRED. A COMBINATION
OF HIGH TEMPERATURE AND HIGH HUMIDITY MAY CAUSE THEM
POLARIZATION DEGRADATION AS WELL AS BUBBLE GENERATION AND
POLARIZER PEEL-OFF. PLEASE KEEP THE TEMPERATURE AND HUMIDITY
WITHIN THE SPECIFIED RANGE FOR USE AND STORING.
(2) SINCE UPPER POLARIZERS AND LOWER ALUMINUM PLATES TEND TO BE
EASILY DAMAGED, THEY SHOULD BE HANDLED WITH FULL CARE SO
AS NOT TO GET THEM TOUCHED, PUSHED OR RUBBED BY A PIECE
OF GLASS. TWEEZERS AND ANYTHING ELSE WHICH ARE HARDER THAN
A PENCIL LEAD 3H.
(3)AS THE ADHESIVES USED FOR ADHERING UPPER/LOWER POLARIZERS AND
ALUMINUM PLATES ARE MADE OF ORGANIC SUBSTANCES WHICH WILL
BE DETERIORATED BY A CHEMICAL REACTION WITH SUCH CHEMICALS
AS ACETONE, TULUENE, ETHANOLE AND ISOPROPYLALCOHOL. THE
FOLLOWING SOLVENTS ARE RECOMMENDED FOR
USE:
NORMAL HEXANE
PLEASE CONTACT US WHEN IT IS NECESSARY FOR YOU TO USE
CHAMICALS OTHER THAN THE ABOVE.
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2711-SP10Q003-T-3
PAGE 11-1/3
(4) LIGHTLY WIPE TO CLEAR THE DIRTY SURFACE WITH ABSORBENT
COTTON WASTE OR OTHER SOFT MATERIAL LIKE CHAMOIS , SOAKED IN
THE CHAMICALS RECOMMENDED WITHOUT SCRUBBING IT HARDLY. TO
PREVENT THE DISPLAY SURFACE FROM DAMAGE AND KEEP THE
APPEARANCE IN GOOD STATE, IT IS SUFFICIENT, IN GENERAL, TO WIPE
IT WITH ABSORBENT COTTON.
(5) IMMEDIATELY WIPE OFF SALIVA OR WATER DROP ATTACHED ON THE
DISPLAY AREA BECAUSE ITS LONG PERIOD ADHERANCE MAY CAUSE
DEFORMATION OR FADED COLOR ON THE SPOT.
(6) FOGY DEW DEPOSITED ON THE SURFACE AND CONTACY TERMINALS
DUE TO COLDENESS WILL BE CAUSE FOR POLARIZER DAMAGE, STAIN
AND DIRT ON PRODUCT. WHEN NECESSARY TO TAKE OUT THE
PRODUCTS FORM SOME PLACE AT LOW TEMPERATURE FOR TEST, ETC.
IT IS REQUIRED FOR THEM TO BE WARMED UP IN A CONTAINER
ONCE AT THE TEMPERATURE HIGHER THAN THAT OF ROOM.
(7) TOUCHING THE DISPLAY AREA AND CONTANT TERMINALS WITH BARE
HANDS AND CONTAMINATING THEM ARE PROHIBITED, BECAUSE THE
STAIN ON THE DISPLAY AREA AND POOR INSULATION BETWEEN
TERMINALS ARE OFTEN CAUSED BY BEING TOUCHED BY BARE HANDS.
(THERE ARE SOME COSMETICS DETRIMENTAL TO POLARIZERS.)
(8) IN GENERAL THE QUALITY OF GLASS IS FRAGILE SO THAT IT TENDS
TO BE CRACKED OR CHIPPED IN HANDLING, SPECIALLY ON ITS
PERPHERY. BECAUSE BE CAREFUL NOT TO GIVE IT SHARP SHOCK
CAUSED BY DROPPING DOWN, ETC.
11.5 CAUTION FOR HANDING
THIS LCM (240*320) HAS NO METAL FRAME AND FRONT BEZEL TO
PROTECT TCP(TAPE CARRIER PACKAGE). TCP DRIVER IS VERY WEAK
AGAINST ANY MECHANICAL STRESS. IF SUCH STRESS APPLIED, OPEN
CIRCUIT OF TCP DRIVER MAY OCCUR. AND IT CAN‘T BE REPAIRED.
PLEASE NOTICE THAT THIS LCM SHOULD BE HANDLED WITH ENOUGH
CARE AS FOLLOWS.
(1) WHEN HANDLING, HOLD LCD GLASS TO AVOID DAMAGEING TCP. DO
NOT HOLD PCB(PRINTED CIRCUIT BOARD).
(2) AFTER INCOMING INSPECTION OF THIS LCM, WHEN TAKING OFF
INTERFACE CABLE, BE CAREFUL NOT TO MAKE ANY MECHANICAL
STRESS TO TCP, SUCH AS BENDING AND TWISTING.
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2711-SP10Q003-T-3
PAGE 11-2/3
11.6 CAUTION FOR OPERATION
(1) IT IS AN INDISPENSABLE CONDITION TO DRIVE LCD‘S WITHIN THE
SPECIFIED VOLTAGE LIMIT SINCE THE HIGHER VOLTAGE THAN THE
LIMIT CAUSES THE SHORTER LCD LIFE . AN ELECTROCHEMICAL
REACTION DUE TO DIRECT CURRENT CAUSES LCD’S UNDESIRABLE
DETERIORATION, SO THAT THE USE OF DIRECT CURRENT DRIVER
SHOULD BE AVOIDED.
(2) RESPONSE TIME WILL BE EXTREMELY DELAYED AT LOWER
TEMPERATURE THAN THE OPERATING TEMPERATURE RANGE AND ON
THE OTHER HAND AT HIGHER TEMPERATURE LCD‘S SHOW DARK BULE
COLOR IN THEM . HOWEVER THOSE PHENOMENA DO NOT MEAN
MALFUNCTION OR OUT OF ORDER WITH LCD’S WHICH WILL COME
BACK IN THE SPECIFIED OPERATING TEMPERATURE RANGE.
(3) IF THE DISPLAY AREA IS PUSHED HARD DURING OPERATION , SOME
FONT WILL BE ABNORMALLY DISPLAYED BUT IT RESUMES NORMAL
CONDITION AFTER TURNING OFF ONCE.
(4) A SLIGHT DEW DEPOSITING ON TERMINALS IS A CAUSE FOR
ELECTROCHEMICAL REACTION RESULTING IN TERMINAL OPEN CIRCUIT.
USAGE UNDER THE RELATIVE CONDITION OF 40°C 50%RH OR LESS IS
REQUIRED.
11.7 STORAGE
IN CASE OF STORING FOR A LONG PERIOD OF TIME (FOR INSTANCE,
FOR YEARS) FOR THE PURPOSE OF REPLACEMENT USE , THE FOLLOWING
WAYS ARE RECOMMENDED.
(1) STORAGE IN A PLOYETHYLENE BAG WITH THE OPENING SEALED SO
AS NOT TO ENTER FRESH AIR OUTSIDE IN IT , AND WITH NO
DESICCANT.
(2) PLACING IN A DARK PLACE WHERE NEITHER EXPOSURE TO DIRECT
SUNLIGHT NOR LIGHT IS, KEEPING TEMPERATURE IN THE RANGE FROM
0 DEGREE C TO 35 DEGREE C
.
(3) STORING WITH NO TOUCH ON POLARIZER SURFACE BY ANYTHING ELSE.
(IT IS RECOMMENDED TO STORE THEM AS THEY HAVE BEEN
CONTAINED IN THE INNER CONTAINER AT THE TIME OF DELIVERY
ROM US.)
11.8 SAFETY
(1) IT IS RECOMMENDABLE TO CRASH DAMAGED OR UNNECESSARY LCDS
INTO PIECES AND WASH OFF LIQUID CRYSTAL BY EITHER OF
SOLVENTS SUCH AS ACETONE AND ETHANOL, WHICH SHOUD BE
BURNED UP LATER.
(2) WHEN ANY LIQUID LEAKED OUT OF A DAMAGED GLASS CELL COMES
IN CONTACT WITH YOUR HANDS, PLEASE WASH IT OFF WELL WITH
SOAP AND WATER.
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2711-SP10Q003-T-3
PAGE 11-3/3
12. DESIGNATION OF LOT MARK
130
6
LOT MARK
LOT MARK IS CONSISTED OF 4 DIGHT NUMBER.
YEAR FIGURE IN
LOT MARK
1998 8
1999 9
WEEK
MONTH
YEAR
NOTE 1. SOME PRODUCTS HAVE ALPHABET
AT THE END OR THE FIRST.
FIGURE IN
MONTH
JAN. 01 JULY. 07
FEB. 02 AUG. 08
MAR. 03 SEPT. 09
APR. 04 OCT. 10
MAY. 05 NOV. 11
JUNE. 06 DEC. 12
LOT MARK MONTH
FIGURE IN
LOT MARK
2000 0
2001 1
2002 2
WEEK
(DAY IN
CALENDAR
1~7 1
8~14 2
9~21 3
22~28 4
29~31 5
FIGURE IN
LOT MARK
LOCATION OF LOT MARK : ON THE BACK SIDE OF LCM
6 0 3 1 T
T : MADE IN TAIWAN.
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2711-SP10Q003-T-3
PAGE 12-1/1
13. PRECAUTIPON FOR USE
(1) A LIMIT SAMPLE SHOULD BE PROVIDED BY THE BOTH PARTIES ON
AN OCCASION WHEN THE BOTH PARTIES AGREED ITS NECESSITY.
JUDGEMENT BY A LIMIT SAMPLE SHALL TAKE EFFECT AFTER THE
LIMIT SAMPLE HAS BEEN ESTABLISHED AND CONFIRMED BY THE
BOTH PARTIES.
(2) ON THE FOLLOWING OCCASIONS, THE HANDLING OF THE PROBLEM
SHOULD BE DECIDED THROUGH DISCUSSION AND AGREEMENT BETWEEN
RESPONSIBLE PERSONS OF THE BOTH PARTIES.
(1) WHEN A QUESTION IS ARISEN IN THE SPECIFICATIONS.
(2) WHEN A NEW PROBLEM IS ARISEN WHICH IS NOT SPECIFIED IN
THIS SPECIFICATIONS.
(3) WHEN AN INSPECTION SPECIFICATIONS CHANGE OR OPERATING
CONDITION CHANGE IN CUSTOMER IS REPORTED TO HITACHI, AND
SOME PROBLEM IS ARISEN IN THIS SPECIFICATION DUE TO THE
CHANGE.
(4) WHEN A NEW PROBLEM IS ARISEN AT THE CUSTOMER‘S OPERAT ING SET FOR SAMPLE EVALUATION IN THE CUSTOMER SITE.
THE PRECAUTION THAT SHOULD BE OBSERVED WHEN HANDLING LCM
HAVE BEEN EXPLAINED ABOVE. IF ANY POINTS ARE UNCLEAR OR IF
YOU HAVE ANY REQUESTS , PLEASE CONTACT HITACHI.
KAOHSIUNG HITACHI
ELECTRONICS CO.,LTD.
DATE
May.12.’99
Sh.
No.
7B64PS 2712-SP10Q003-T-3
PAGE 13-1/1
Loading...
