EN
Operating & Installation Instructions
Fully Automatic Washing Machine
Model SF-95XA / 90XA / 85XA / 80XA
Contents
Environmentally Friendly Waste Disposal 2
Hints and Tips for Eco-friendly Washing 2
Safety Instructions 3
Parts and Accessories 5
Control Panel and Display 6
Before You Start Washing 8
How to Use the Washing Machine 9
List of Programs 14
Partial Operations Using the Fuzzy Program
In Case of Power Outage 21
Care and Maintenance 21
Troubleshooting 23
Error Codes 24
How to Install the Washing Machine 25
Customer Service 30
Specifi cations 30
Thank you for purchasing a Hitachi fully automatic washing machine.
■
Please read these operating & installation instructions carefully for proper
operation of the machine.
■
Please keep these operating & installation instructions for future reference.
18
Environmentally Friendly Waste Disposal
Disposing of the
packaging
Disposing
of your old
appliance
Hints and Tips for Eco-friendly Washing
The shipping package has protected your new washing machine on its
way to your home. All materials are ecologically harmless and recyclable.
Please contribute to a better environment by disposing of packaging
materials in an environmentally conscious manner.
Ask your dealer about current means of disposal.
Risk of choking!
Do not let children play with packaging and associated parts.
There is a risk of suff ocating on plastic bags and collapsible boxes.
Old appliances are not worthless rubbish. Environment-conscious
recycling can reclaim valuable new materials.
Risk of death!
Unplug the power plug from appliances you are no longer using. Cut off
the power cord and dispose of it with the plug.
If you wish to discard this product, contact your local authorities or dealer
and ask for the correct method of disposal.
■
Keep to the load limit of each program.
■
Add detergent according to the degree of soiling, laundry size, and
water hardness. Follow the detergent manufacturer's instructions
regarding the amount of detergent to use.
■
This washing machine has enhanced water-saving features such as
Spin Shower Rinse and uses less water than former models. If you
want to save more water, select the Water Save program using the
Program button.
2
Safety Instructions
This washing machine is designed for home use only.
Before operating the washing machine, please read these safety instructions carefully.
Warning
General safety
Installation
Power source
and cord
Issues which could cause death or serious injury.
■
Do not dismantle, repair or modify the washing machine.
This could cause malfunction, fi re, electric shock or injury.
Contact your local service center for repairs.
■
Do not put fi re sources or anything infl ammable in or near the washing
machine (gas, diesel, petroleum, thinner, alcohol, or clothes stained with
these substances).
This could cause an explosion or fi re.
■
Do not pour water on the washing machine when it is running.
This could cause an electric shock.
■
Do not climb on the washing machine. Do not place heavy object, drop any
object or apply impact on the lid glass.
This could cause lid glass breakage. If any scratch or breakage is found
on lid glass, stop using the washing machine and contact your local
service center to request inspection and repair.
■
It is a malfunction if the tub is still spinning when the lid lock is released and
you can open the lid. If this happens, do not touch the laundry inside the
tub and stop using the washing machine immediately. Contact your local
service center for repair.
■
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
■
Do not install the washing machine in an extremely humid place, such as a
bathroom or a place exposed to rain.
Risk of fi re, electric shock, current leakage, corrosion or product damage.
■
Do not install the washing machine on a board with castors or on an
unstable surface.
This may cause injury or malfunction due to abnormal vibration.
■
The washing machine must be grounded if you use a two-pin plug adapter
on the three-pin plug.
Not doing so could cause the electric shock, electronic substrate and
electronic parts damage.
■
Use a new water supply hose to connect the washing machine to the water
tap.
■
The opening must not be obstructed by carpeting if the washing machine is
installed on a carpeted fl oor.
■
Do not insert or remove the power plug with wet hands.
This could cause an electric shock.
■
Use the rated voltage. Do not connect other devices to the same outlet.
Using the washing machine and other electric appliances on the same
outlet may cause the plug to overheat and result in fi re.
■
Clean off any dust on the power plug.
A dirty or dusty plug may cause a fi re.
■
Do not use an electric socket or outlet that is damaged or loose.
This could cause an electric shock, short circuit, or fi re.
■
Do not damage, cut, modify, bend, or fold the power cord.
This could damage the power cord and cause a fi re or electric shock.
■
Do not use an extension cord on the power cord.
This could cause overheating or fi re.
■
If the power cord is damaged, it must be replaced by a service agent or
repair shop authorized by the manufacturer to avoid risks.
3
Child safety
Safety Instructions
■
Keep packaging out of reach of children and infants.
Danger of suff ocation.
■
Do not let children climb onto the washing machine or to get into the tub. Do
not leave boxes or chairs near the washing machine that children could use
to climb onto it.
This may cause injury.
■
Children should be supervised to ensure that they do not play with the
appliance.
Caution
General safety
Use
Care and
maintenance
Issues which could cause injury or damage property.
■
If there is a water outage or you remove the water supply hose and reattach
it, close the tap, select Tub clean program and press the Start/Pause
button, then slowly open the tap.
Air pressure from a large amount of air in the water pipes could damage
the washing machine.
■
Periodically check that the union nut on the water supply hose is tight.
A loose nut may cause a water leak.
■
Remove the power plug from the outlet and close the water tap if you will
not use the washing machine for a long time.
■
All packaging materials must be removed before using the washing
machine.
This could cause malfunction or abnormal vibration.
■
Check inside the tub before operating the washing machine.
Check that no pets or small animals are in the tub.
■
Do not wash items, such as raincoats, wet suits, ski suits, sleeping bags,
cushions, pillows, shoes, shower curtain or other things, through which
water does not fl ow easily.
The washing machine may not work properly, or it could cause injury or
damage the washing machine.
■
Do not fold and stack large items together, such as blankets, when washing them.
■
Do not use a laundry net that is larger than 40 cm on a side.
The clothes may become off balance and cause abnormal vibration
during the spin cycle.
■
Do not load laundry over the lower part of the liquid load
balancer (dotted line).
Doing so could cause laundry to fl y out of the tub
during the spin cycle and damage the clothes or the
washing machine, or cause a water leak.
■
Always put detergent into the detergent dispenser when
washing laundry.
■
Do not use water hotter than 50ºC.
■
Do not wash items together with coins, pins, or stones.
This may damage clothes or the washing machine,
or cause a water leak. Check inside pockets before
washing.
■
Do not press the buttons with sharp pointed objects.
■
Do not put heavy objects, liquid-fi lled containers or equipment which produces
heat on the washing machine.
This may damage the washing machine or its top.
■
If detergent, fabric softener or bleach spills on the surface of the machine,
clean it up with a damp cloth immediately.
The plastic or steel parts of the washing machine may be damaged.
■
Do not place equipment that produces heat near the washing machine.
This may cause deformation of the washing machine.
Liquid Load
Balancer
SF-80XA/
SF-85XA/
SF-90XA/
SF-95XA
Max
4
Softener
Dispenser
Liquid Detergent and
Bleach Dispenser
Control Panel
Parts and Accessories
Lid
Tub
Lint Filter
(cassette type)
Drain Hose
Power Cord
Adjustable Foot
Water Supply Hose and One-touch Joint
(1 set)
Optional accessories
Refer to page 12
Part number PTSF-80J 009
Accessories
Foot Caps
(2 pieces)
Laundry Net
Pulsator
Rat Guard
(2 pieces)
5
Control Panel and Display
Power button
Eco button
Program button
Delay Timer button
Start/Pause button
Water level button
Spin button
Rinse button
Wash button
Wash indicator
Rinse indicator
Press this button to switch power on and off . The washing machine
automatically switches off when operations are fi nished. The washing
machine also turns off automatically if it is not operated or no button is
pressed for 10 minutes after the power has turned on.
Select Eco modes. Energy Save mode and Small Load mode can be set
in the Fuzzy programs.
Select programs. The program changes each time the button is pressed.
The delay time can be set between 3 and 12 hours.
Starts and pauses operation. When the washing machine is paused for
over one hour and no operations are done, it turns off automatically.
Changes the water level.
Changes the spin time. The spin time can be set between one and
9 minutes.
Changes the number and type of rinses.
Changes the washing time. The washing time can be set between 3 and
18 minutes.
Shows the washing time.
Shows the number and type of rinses.
Spin indicator
6
Shows the spin time.
Control Panel and Display
Detergent indicator
Water Level indicator
Display
Sensing indicator
Timer indicator
Lid lock indicator
The amount of detergent is shown on the display when the Detergent
indicator is lit. The display shows the number of scoops of powder
detergent. (Each scoop is 35g)
Lights the Water Level indicator and shows the amount of water to be
used for washing in litters on the display.
Shows the amount of detergent, the amount of water, remaining time and
timer.
Flashes when the machine is checking the amount of fabric.
Lights the Timer indicator and shows the time to fi nish the operations on
the display.
Locks the lid during the spin cycle. The lid cannot be opened while this
indicator is lit and the lid is locked. To release the lock, press the Start/
Pause button to pause operation. The lock is automatically released after
a short time.
7
Preparation of
the laundry
Sorting the
laundry
Detergents and
additives
Before You Start Washing
■
Remove any foreign objects (coins, safety pins, etc.).
■
Put delicate clothes (knits, lingerie, etc.) in a net.
■
Remove large lumps of lint, mud, sand, hair, and pet hair from laundry.
■
Tie strings and close fasteners.
■
Sort laundry according to the type of fabric and care label symbols
(cottons, blended fabrics, synthetics, wool, hand washable items, etc.).
■
Do not wash extremely small loads, such as only a pair of jeans.
The clothes may become off balance and cause abnormal vibration
during the spin cycle.
■
Separate colored and white items.
Risk of injury!
Do not wash the following items, through which water does not fl ow
easily, because doing so creates abnormal vibration during the spin cycle
and could cause injury or malfunction.
– Waterproof items, such as a wet suit, ski suit, shower curtain, etc.
– Items with non-slip rubber backing, such as door mats.
– Cushions, pillows, shoes, etc.
■
Use an appropriate amount of detergent according to the water level on
the washing machine.
The type and amount of detergent depend on the type of fabric,
volume, load size, degree of soiling, and hardness of the water used.
Use less detergent if:
– The load is small.
– The laundry is not very dirty.
■
Too much detergent can result in excess foam, which reduces rinse
effi ciency or may cause a water leak.
■
Depending on the detergent brand, detergent may not dissolve
completely if the water pressure is low or the water is too cold.
■
When using softeners or bleaches, follow the instructions on the
package.
■
Detergent remained in drain route may be caused by quality of water
or type of detergent. In case of repeatedly using under this condition, it
may cause washer trouble.
8
How to Use the Washing Machine
1
Sort the laundry
■
Sort the laundry according to the type of fabric, care label symbol, and degree of soiling.
Page 8: Preparation of the laundry
■
Do not exceed the maximum load.
■
Laundry shall not exceed the lower part of the liquid load balancer
(dotted line). Otherwise, laundry may jump out from the wash tub
while spinning and it may cause damage.
2
Press the Power button to turn on the power
■
If no program is selected within 10 minutes, the washing machine automatically
switches itself off . Press the Power button again to turn on the power.
3
Select and adjust the program
■
Select a program with the Program button.
Page 14: List of Programs
■
You can change the combination or settings of wash, rinse, and spin operations with the
Wash, Rinse, and Spin buttons.
■
You can set the Eco modes in the Fuzzy program with the Eco button.
Page 11: How to use Eco mode
Liquid Load
Balancer
Max
SF-80XA/
SF-85XA/
SF-90XA/
SF-95XA
4
Press the Start/Pause button
■
Before operation starts, the laundry is weighed, and amount of detergent and water
level appear on the display.
9
How to Use the Washing Machine
5
Put detergent into the Tub and close the Lid
■
The amount of detergent is based on a single 35-gram scoop of powder detergent.
Since the required amount of detergent varies depending on the type of detergent,
follow the instructions on the package of detergent.
■
For liquid detergent, follow the instructions on the package and add it to the Liquid
Detergent Dispenser.
■
Add softener to the Softener Dispenser according to the instructions on the package of
softener. The softener is added to the tub automatically before the fi nal rinse.
■
For liquid bleach, follow the instructions on the package and add it to the Bleach
Dispenser.
■
The speed that the lid closes may vary, depending on the temperature, however, this is
not abnormal.
– Pausing a program: Press the Start/Pause button. The washing machine will
switch itself off if it is not restarted within 1 hour.
– Adding clothes partway
through a program:
– Terminating a
program:
Press the Start/Pause button to pause operation and
add your clothes. In the case the lid is locked, wait until
the tub stops completely and the lid lock is automatically
released. After adding the clothes, close the lid and
press the Start/Pause button to restart operation.
* Note: It is not recommended to add a large amount
of clothes as the washing machine fi rst measures the
load size to determine optimum operation.
Press the Start/Pause button, and press the Power
button to turn off the power.
10
How to Use the Washing Machine
6
Program ends
■
The alarm sounds when a program ends.
Press the Water Level button for 3 seconds to deactivate the alarm or to change the sound in
the following way.
Melody
*initial setting
■
The washing machine automatically switches off when the operations are fi nished.
How to use the
Eco mode
1. Press the Power button to turn on the power.
2. Select the Fuzzy program.
3. Press the Eco button and select the Eco mode (Energy Save or
Small Load).
4. Press the Start/Pause button.
5. Put detergent into the tub and close the lid.
■
The mode changes each time the button is pressed.
■
The Energy Save mode helps you to reduce energy consumption up to
40% compared to the normal Fuzzy program.
■
The Small Load mode is a dedicated mode for small load up to 0.6 kg.
It uses less water and detergent compared to normal Fuzzy program.
(Not for a piece of clothing with weight of 0.6kg.) This mode is suitable
for washing small clothes, such as socks.
Mono No alarm
11
How to Use the Washing Machine
How to use
the Blanket
program

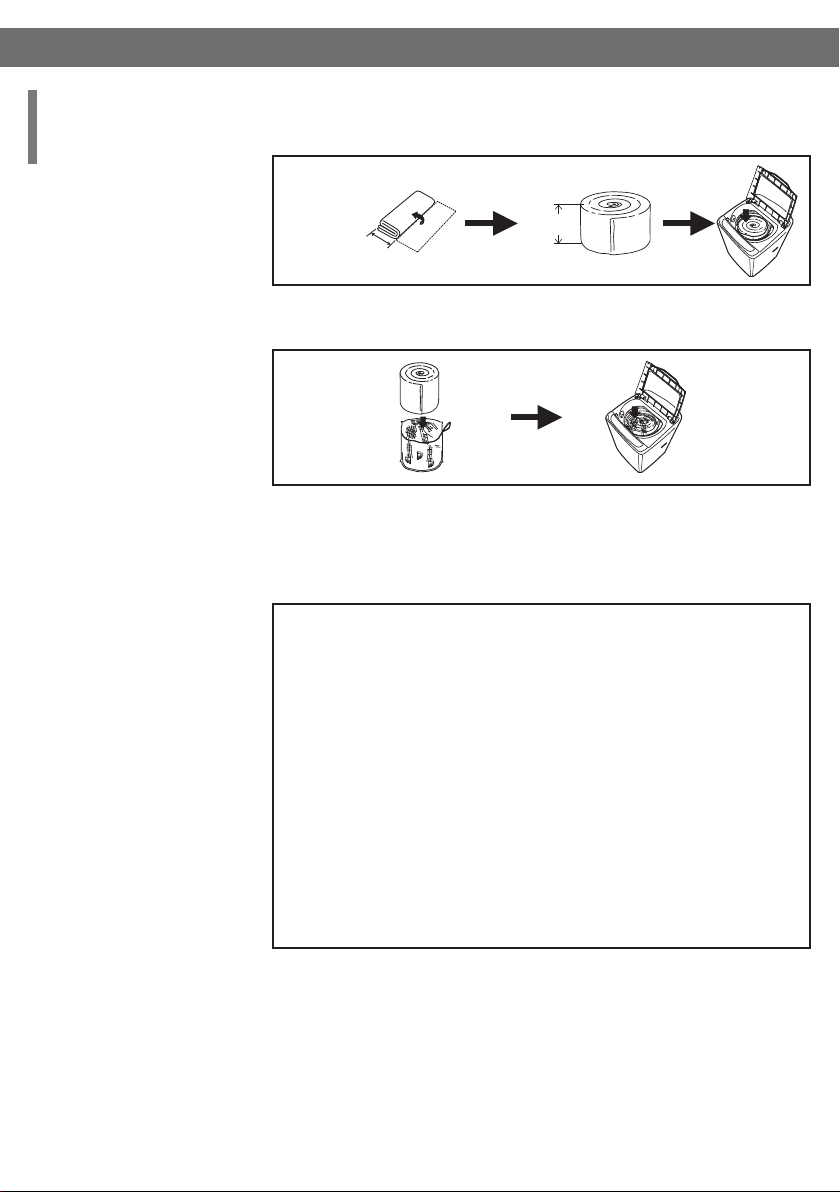

1. Prepare the laundry.
■
Fold large items, such as quilts or blankets, as follows.
They should not be taller than 25 cm after they are folded.
25 cm
About 25 cm
If it exceeds 25 cm, use a laundry net, which is sold separately.
(Laundry net: Part number PTSF-80J 009)
2. Press the Power button to turn on the power.
3. Select the Blanket program.
4. Add detergent and close the lid.
5. Press the Start/Pause button.
Items you can wash with the Blanket program
● Washable quilts
Machine washable quilts with synthetic (polyester) batting.
When not using the optional laundry net:
150 cm x 200 cm or smaller, and less than 1.5 kg
When using the optional laundry net:
174 cm x 225 cm or smaller, and less than 2 kg
(Laundry net: Part number PTSF-80J 009)
12
● Washable blankets
Up to 3 kg of synthetic blankets that are labeled as hand washable.
– For electric blankets, follow the instructions for the electric blanket.
● Other washable items
Mattress pads labeled as hand washable.
■
Do not fold and stack large items together, (such as sheets) when
washing them.
The clothes may become off balance and cause abnormal vibration
during the spin cycle.
■
If C3 is shown in the indicator, close the lid.
How to use
the Tub Dry
program
How to use
the Tub Clean
program
How to Use the Washing Machine
■
Use this program separately from other washing programs. (Do not put
laundry into the tub.)
1. Press the Power button to turn on the power.
2. Select the Tub Dry program.
3. Close the lid and press the Start/Pause button.
■
The tub spins quickly the same as the regular spin cycle to remove the
water from the tub.
■
Use this program separately from other washing programs. (Do not put
laundry into the tub.)
1. Press the Power button to turn on the power.
2. Select the Tub Clean program.
3. Press the Start/Pause button. The washing machine starts pouring
water into the tub.
4. Add tub cleaner, according to the package, to the tub. (Liquid
peroxide-based bleach is also effective as a tub cleaner. Since the
required amount of bleach varies depending on the type of bleach,
follow the instructions on the package of bleach.)
5. Close the lid.
■
Water is added to the maximum level to wash away dirt you cannot see
on the tub and outer tub. After that, Normal Rinse is performed twice to
fl ush out any remaining dirt or tub cleaner.
How to use
the Delay Timer
1. Press the Power button to turn on the power.
2. Select a program.
3. Press the Delay Timer button and select the time to finish washing.
Each press of the button adds an hour starting from 3 hours to
12 hours later.
4. Press the Start/Pause button.
5. Add detergent and close the lid. The power turns off after a short
time.
6. Operations finish at the set time.
■
The Delay Timer is unavailable for the Blanket, Tub Dry, and Tub Clean
programs.
■
To change the setting, press the Power button and do the settings
again.
■
If there is a power outage while the timer is set, the timer setting is
cancelled. If this happens, press the Power button again and reset the
timer.
■
To prevent your laundry from wrinkling, remove it as soon as possible
after washing is done.
13
List of Programs
: Default settings : Changeable settings (via corresponding button)
Program Fuzzy
95XA 9.5 kg 0.6 kg
Maximum
load
Amount
of water
Wash
90XA 9 kg 0.6 kg
85XA 8.5 kg 0.6 kg
80XA 8 kg 0.6 kg
95XA
90XA
85XA
80XA
95XA
90XA 47 min
85XA 47 min
80XA 42 min
3, 9, 12, 15, 18 min, or none - -
Spin shower rinse 1 time + Beat eco rinse 1 time Normal Rinse 1 time
12 min
FUZZY FUZZY
ENERGY SAVE SMALL LOAD
32 to 65 L
(automatically)
20 to 65 L 20 to 26 L
32 to 65 L
(automatically)
20 to 65 L 20 to 26 L
32 to 63 L
(automatically)
20 to 63 L 20 to 26 L
32 to 60 L
(automatically)
20 to 60 L 20 to 26 L
47 min
20 L
20 L
20 L
20 L
9 min
Rinse
Spin
Required
time
(guide)
14
Normal Rinse 1 time,
Water-Injection Rinse 1 time,
Normal Rinse 2 times,
Water-Injection Rinse 2 times,
or None
6 min 6 min
1, 3, 6, 9 min, or none - -
95XA 35 to 51 min 73 to 75 min
90XA 35 to 51 min 73 to 75 min
85XA 35 to 51 min 73 to 75 min
80XA 35 to 51 min 73 to 75 min
--
23 min
List of Programs
: Default settings : Changeable settings (via corresponding button)
Program POWERFUL WATER SAVE SPEEDY
95XA 9.5 kg 9.5 kg 3 kg
Maximum
load
Amount
of water
Wash
90XA 9 kg 9 kg 3 kg
85XA 8.5 kg 8.5 kg 3 kg
80XA 8 kg 8 kg 3 kg
95XA
90XA
85XA
80XA
32 to 65 L
(automatically)
20 to 65 L 20 to 60 L 20 to 65 L
32 to 65 L
(automatically)
20 to 65 L 20 to 60 L 20 to 65 L
32 to 63 L
(automatically)
20 to 63 L 20 to 58 L 20 to 63 L
32 to 60 L
(automatically)
20 to 60 L 20 to 56 L 20 to 60 L
18 min 9 min 3 min
3, 9, 12, 15, 18 min,
or none
32 to 60 L
(automatically)
32 to 60 L
(automatically)
32 to 58 L
(automatically)
32 to 56 L
(automatically)
3, 9, 12, 15, 18 min,
or none
3, 9, 12, 15, 18 min,
41 L
41 L
41 L
41 L
or none
Rinse
Spin
Required
time
(guide)
Normal Rinse 2 times
Normal Rinse 1 time,
Water-Injection Rinse
1 time, Normal Rinse
2 times, Water-Injection
Rinse 2 times, or None
9 min 6 min 6 min
1, 3, 6, 9 min, or none 1, 3, 6, 9 min, or none 1, 3, 6, 9 min, or none
95XA 47 to 59 min 31 to 34 min
90XA 47 to 59 min 31 to 34 min
85XA 47 to 59 min 31 to 34 min
80XA 47 to 59 min 31 to 34 min
Spin shower rinse
2 times
Normal Rinse 1 time,
Water-Injection Rinse
1 time, Normal Rinse
2 times, Water-Injection
Rinse 2 times, or None
Extra rinse 1 time
Normal Rinse 1 time,
Water-Injection Rinse
1 time, Normal Rinse
2 times, Water-Injection
Rinse 2 times, or None
29 min
15
List of Programs
: Default settings : Changeable settings (via corresponding button)
Program DELICATE BLANKET
95XA 2 kg 3 kg 9.5 kg
Maximum
load
Amount
of water
Wash
Rinse
90XA 2 kg 3 kg 9 kg
85XA 2 kg 3 kg 8.5 kg
80XA 2 kg 3 kg 8 kg
95XA
90XA
85XA
80XA
Normal Rinse 1 time,
Water-Injection Rinse
1 time, Normal Rinse
2 times, Water-Injection
Rinse 2 times, or None
41 L 65 L 65 L
20 to 65 L 20 to 65 L 20 to 65 L
41 L 65 L 65 L
20 to 65 L 20 to 65 L 20 to 65 L
41 L 63 L 63 L
20 to 63 L 20 to 63 L 20 to 63 L
41 L 60 L 60 L
20 to 60 L 20 to 60 L 20 to 60 L
9 min 9 min 60 min 180 min 300 min
3, 9, 12, 15, 18 min,
or none
Extra rinse 1 time
SOAK
1 hr 3 hrs 5 hrs
----
Normal Rinse
2 times
-
Spin shower rinse 1 time +
Beat eco rinse 1 time
Normal Rinse 1 time,
Water-Injection Rinse 1 time,
Normal Rinse 2 times,
Water-Injection Rinse 2 times,
or None
Spin
Required
time
(guide)
16
95XA
90XA
85XA
80XA
3 min 6 min 6 min 6 min 6 min
1, 3, 6, 9 min, or none
23 min 40 min 84 min 200 min 320 min
1, 3, 6, 9 min,
or none
1, 3, 6,
9 min,
or none
1, 3, 6,
9 min,
or none
1, 3, 6,
9 min,
or none
List of Programs
■
The wash time and the spin time may change during the program depending on the weight and type
of laundry being washed.
■
The required times are guidelines. More time may be required than is noted here depending on the
water pressure and the type of laundry.
■
Programs cannot be changed after they are started. To change them, turn the power off and then on
again, then select a program.
■
We do not recommend using fabric softener when the Water Save program is selected.
■
The Water Save program cycle is the recommended program cycle for a normally soiled load of
laundry at the rated capacity.
■
Spin Shower Rinse* is used in the Fuzzy program to enhance water-saving performance without
compromising the effi ciency of rinsing.
* Spin Shower Rinse: A powerful shower and centrifugal force rinse out detergent more eff ectively.
■
The clear part of the lid and control panel may become foggy or may form dew on the edge of lid if
you use hot water to wash your laundry, however, this is not abnormal. Wipe it off after washing your
laundry.
■
It has the potential not to be enough for max load according to the kind of clothes.
■
Even if you set the delay timer, it may start soon according to the required time of the program.
■
Water fl ow is adjusted automatically according to the amount of load and water level. When loads are
heavy and water level are high, water fl ow is adjusted at slower rate to maintain the performance of
washer.
■
Amount of detergent is indicated according to following table as a guide.
Load (guide) Water Level Detergent (guide) Amount of detergent
(SF-95XA)
6~9.5 kg 50~65 L 1.0~1.2 cup 33~43 g
4~6 kg 41~65 L 0.8~1.2 cup 27~43 g
6~9 kg 50~65 L 1.0~1.2 cup 33~43 g
(SF-90XA)
4~6 kg 41~65 L 0.8~1.2 cup 27~43 g
6~8.5 kg 50~63 L 1.0~1.2 cup 33~42 g
(SF-85XA)
4~6 kg 41~63 L 0.8~1.2 cup 27~42 g
6~8 kg 50~60 L 1.0~1.1 cup 33~40 g
(SF-80XA)
4~6 kg 41~60 L 0.8~1.1 cup 27~40 g
2~4 kg 35~50 L 0.7~1.0 cup 23~35 g
0~2 kg 32~44 L 0.6~0.8 cup 21~29 g
* Detergent is based on a single 35-gram scoop of powder detergent.
The amount of detergent is based on a type of 20-gram per 30-liter.
Since the required amount of detergent varies depending on the type of detergent, follow the
instructions on the package of detergent.
17
Partial Operations Using the Fuzzy Program
If you want...
Operations Wash Rinse Spin Wash only Wash Rinse
1.
2.
3.
4.
To customize
the wash program
Setting method
If you do not set the amount of water, it is set automatically based on the
■
Set the wash time
with the Wash button.
■
Set the number and
type of rinses with the
Rinse button.
■
Set the spin time with
the Spin button.
To reuse the wash
water and separate
your laundry
Turn on the power.
Select the Fuzzy program.
Set the amount of water.
weight of the laundry.
■
Set the wash time
with the Wash button.
To not spin the
laundry because you
are worried about
wrinkles
■
Set the wash time
with the Wash button.
■
Set the number and
type of rinses with the
Rinse button.
5. Press the Start/Pause button to start.
Remarks
Operates according to
the wash, rinse, and
spin settings.
Stops while the wash
water is still in the tub.
18
Stops while the rinse
water is still in the tub.
Partial Operations Using the Fuzzy Program
If you want... To rinse only To rinse and spin To drain and spin
Operations Rinse only Rinse Spin Drain Spin
Setting method
1.
2.
Set the amount of water.
3.
4.
If the amount of water is not set, then maximum
water level is used.
■
Set the number and
type of rinses with the
Rinse button.
Turn on the power.
Select the Fuzzy program.
■
Set the number and
type of rinses with the
Rinse button.
■
Set the spin time with
the Spin button.
Cannot be used.
■
Set the spin time with
the Spin button.
5.
Remarks
Press the Start/Pause button to start.
Drains water and spins
before rinsing. Stops
while the rinse water is
still in the tub.
Drains water and spins
before rinsing.
Drains water and spins.
19
Partial Operations Using the Fuzzy Program
■
Repeatedly press the buttons until the water level, wash, rinse, and spin settings
you want are set. If the indicator is not lit, that operation is not performed.
■
You can set the amount of
water each time you press the
Water Level button in a range
from 20 to 65 L.
65 L
60 L
55 L
50 L
47 L
41 L
38 L
35 L
32 L
26 L
44 L 20 L
SF-95XA
■
You can set the amount of
water each time you press the
Water Level button in a range
from 20 to 60 L.
■
You can set the amount of
water each time you press the
Water Level button in a range
from 20 to 65 L.
65 L
60 L
55 L
50 L
47 L
41 L
38 L
35 L
32 L
26 L
44 L 20 L
SF-90XA
■
You can set the amount of
water each time you press the
Water Level button in a range
from 20 to 63 L.
63 L
58 L
54 L
50 L
47 L
41 L
38 L
35 L
32 L
26 L
44 L 20 L
SF-85XA
20
60 L
56 L
53 L
50 L
47 L
41 L
38 L
35 L
32 L
26 L
44 L 20 L
SF-80XA
Partial Operations Using the Fuzzy Program
■
You can set the wash time each
time you press the Wash button
in a range from 3 to 18 minutes
and no washing.
18 Min
15 Min
12 Min
9 Min
3 Min
(No washing)
If there is a
power outage
The washing machine is equipped with a restart function.
If a power outage occurs while the washing machine is operating, the
cycle (i.e., wash, rinse, or spin) at that time is saved, and when the power
is restored, automatically restart from the interrupted cycle.
If there is a power outage during the operation, the lid is locked and
cannot be opened. After the power is restored, the lock is released.
■
You can set the number and
type of rinses by pressing the
Rinse button. Each time you
press the Rinse button the
setting changes in sequence,
from Normal Rinse 2 times,
Water-Injection Rinse 2 times,
no rinsing, Normal Rinse 1 time,
Water-Injection Rinse 1 time.
Ex 2
2
Ex 1
1
(No rinsing)
In Case of Power Outage
■
You can set the spin time each
time you press the Spin button
in a range of 1 to 9 minutes and
no spinning.
9 Min
6 Min
3 Min
1 Min
(No spinning)
Cleaning
the lint fi lter
(cassette type)
Care and Maintenance
1. Press down on the knob on the top of the lint filter (cassette type)
and pull it towards you.
2. Open the lint filter (cassette type) to the sides and remove the lint
that is inside.
3. Reverse the procedure to replace the lint filter (cassette type).
1. 2. 3.
21
Care and Maintenance

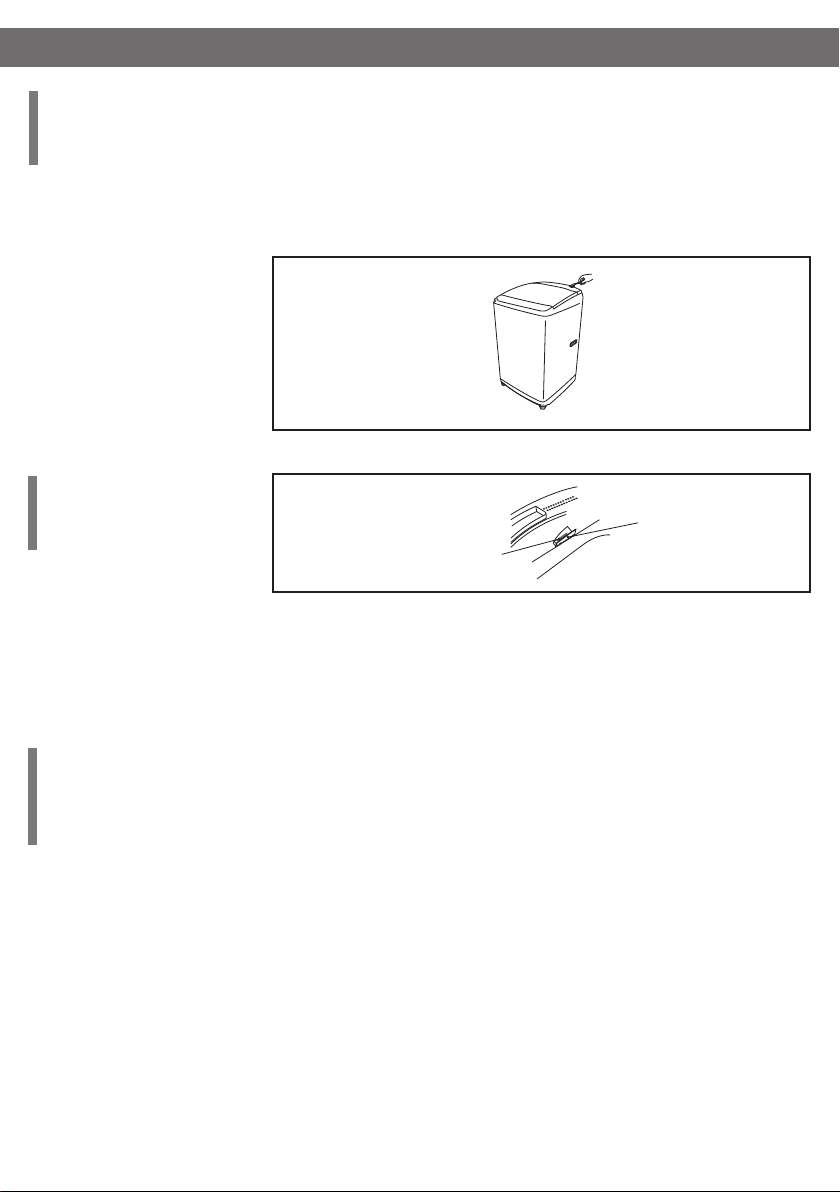

Cleaning
the water
supply inlet
Maintenance
of softener
dispenser
1. Close the tap.
2. Disconnect the water supply hose from the top of the washing
machine. (Water in the hose may be drained when you disconnect
the hose.)
3. Use a brush or something to clean the water supply inlet of the
washing machine.
4. Reverse the procedure to replace the water supply hose.
Lid
Softener inlet
■
If there is a softener remaining in the softener inlet, wash away with
water. Rub with toothbrush if necessary.
■
If the softener congealed in the dispenser, pour warm water (about
40°C) into it and dissolve the softener.
Care and
maintenance
of the washing
machine
22
■
Clean the machine body.
Wipe the outside of the washing machine with a soft cloth. Do not use
solvents such as alcohol or benzine.
■
If you use a chemically treated cloth, use it according to the instructions
for the product.
■
If detergent or softener gets on the washing machine, quickly wipe it
off . The surface could be damaged.
Troubleshooting
Problem Possible cause
Does not operate ● The power plug is not inserted in the power outlet.
● There is a power outage.
● The Delay Timer has been set.
It is wet, even though it is
the fi rst time to use it (drain
hose, tub, etc.)
The remaining time
increases during operation
Water is added again
during the washing process
Wash time is longer than
the time that was set
manually
The washing machine
stops during the spin cycle
and starts adding water
During the spin cycle, the
tub spins increasingly faster
Sound of water is heard
when the tub moves
The lid does not open
The strength of water fl ow
does not change in spite of
changing the indicator
● There may be moisture or water left in the tub or hoses from the
performance test before shipping from the factory.
● The remaining time is adjusted to compensate for the speed of the
incoming water.
● Water is added automatically up to the set water level if the water
level falls because water is absorbed by the laundry.
● If the water pressure is low, the operating time may increase due to a
longer water supply time.
● If the laundry is extremely off balance when the spin cycle starts, the
spin cycle stops and the rinse cycle starts to rebalance the laundry.
After the load is rebalanced, the spin cycle starts again.
● This is to more effi ciently remove water.
● That is the sound of water in the Liquid Load Balancer, which is used
for balancing when the tub is spinning.
● When the lid lock indicator is lit, the lid is locked and cannot be
opened.
● The lid is locked and cannot be opened because there was a power
outage or the power was turned off while the lid lock indicator was lit.
Turn on the power and wait for the lock to be released.
● It may not change the strength of water fl ow according to the process
and the load amount. It is not abnormal.
23
Error Codes
Error
code
C1
C2
C3
C4
C8
C9
Ch
■
If warning sign such as “F0”, “F9”…etc. are shown in the display, stop operating the washer
immediately and contact an authorized service dealer or a service agent for further inspection
and/or repairing.
Description Things to check Solution
Water is not
supplied
Water does not
drain
The tub does not
spin
The lid cannot be
locked
The lid lock
cannot be
released
The spinning
speed does
not reach the
specifi ed value.
● Is the tap open?
● Has dirt collected in the water supply inlet
fi lter?
● Are the water pipes or water supply hose
frozen?
● Has the water supply been disrupted?
● Is the drain hose blocked?
● Is the drain hose twisted, crushed, or
frozen?
● Is the drain hose connected correctly?
● Is the drain outlet too high?
● Is the lid open? Close the lid.
● Is the laundry all on one side of the tub?
● Does the laundry include too many thick
items like cotton blankets or jeans or too
many large items like sheets?
● Is the washing machine wobbling, or is the
fl oor under the washing machine slanted?
● Are there any unwashable things in the
tub? →Page 8: Preparation of the laundry
(sorting the laundry)
● Is the lid closed?
● Are there any foreign objects in the lock?
● Are there any foreign objects in the lock? Turn the power off and
● Check if there is too much powder
detergent?
● Check if the drain hose is clogged?
● Check if the drain hose is installed
correctly?
Check the tap, water
supply inlet fi lter, water
pipes, and water supply
hose.
Check the drain hose
and the drain outlet.
Add a few more items
to wash. (If there is only
one item in the tub,
it is likely to become
unbalanced.)
Check that the lid is
completely closed. Check
that there are no foreign
objects in the lock.
then on again and wait a
little while. If the lid is still
locked, contact a service
center for repair.
Check the amount of
powder detergent used.
Check the drain hose
and its installation.
24
How to Install the Washing Machine
Safety
precautions
Where to install
the washing
machine
■
Do not use a damaged power plug, doing so is dangerous. Contact a
repair center that is certifi ed by the manufacturer to replace the plug.
■
If the outlet you are using is a 2-pin outlet, use an adapter to change
from three pins to two pins. If you do this, be sure to connect an
earth wire. There are risk of electric shock, electronic substrate and
electronic parts damage if you do not connect an earth wire.
■
Do not connect an earth wire to a gas pipe, telephone wire, water pipe,
or lightning rod. Remove the power plug from the electric outlet when
you are attaching an earth wire.
■
You do not need to attach an earth wire if the electric outlet is a 3-pin
type with earth terminal.
■
The hoses may be damaged or rupture if they freeze. Do not install the
washing machine outside or any other place where there is a risk of
freezing.
■
Install the washing machine on a solid level fl oor to avoid excessive
vibration and noise.
■
Do not install the washing machine in an extremely humid place, such
as a bathroom or a place exposed to rain.
■
Do not install the washing machine in a slippery or unstable location.
Doing so could cause abnormal vibration.
■
Install the washing machine away from walls as shown below to avoid
abnormal noise and vibration.
Left side
No obstructions in front
Rear side
Right side
Area Clearance (cm)
Left 1.5*
Right 1.5*
Rear 1.5
* Should be 9 cm or more for
the side with the drain hose.
25
How to Install the Washing Machine
Installing
the drain hose

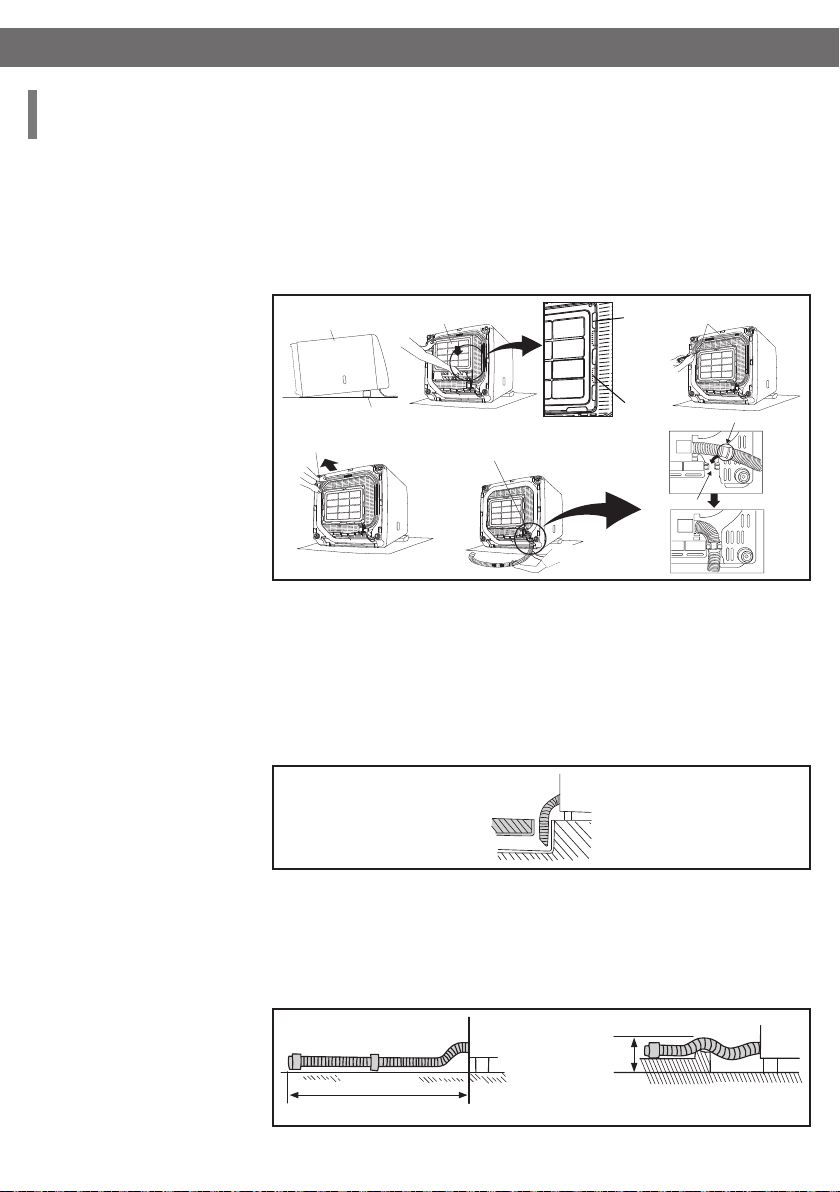

1. Lay the washing machine down on its back.
2. Install the rat guard between outside lock and inside lock as shown
in the illustration.
3. Attach screws.
4. Pull the drain hose out of the washing machine.
5. Insert the narrow part of the drain hose into the clamp on the
washing machine.
6. Stand the washing machine up.
Front side
Cushion
Drain hose
7. Insert the end of the drain hose into the drain hose outlet.
■
Do not allow the drain hose to be bent, twisted, pulled out and
damaged, stepped on, or crimped.
■
Spread a cloth on the ground before laying the washing machine down
on its back to prevent damaging it.
■
Use a knife to cut the end of the drain hose at a 45 degree angle
because if the drain channel is shallow and the end of the drain hose is
blocked, it could cause a malfunction.
Rat Guard
Drain
hose outlet
Outside
Lock
Inside
Lock
Screws
26
■
Keep the top of the drain hose no more than 10 cm above the fl oor if it
crosses a door sill or something else. If it is higher than this, the water
has diffi culty draining and a “C2” error (water does not drain) may
occur.
■
Do not extend the drain hose more than 2 meters from the washing
machine.
10 cm or less
2 m or less
How to Install the Washing Machine
Connecting
to the tap
● Water supply hose
■
The optimum water pressure is 0.03 to 0.8 MPa.
■
Use a horizontal tap.
Horizontal tap
Connect the water supply hose to the water supply inlet on the washing
machine.
Check that the rubber seal is in the hose connector.
* Water supply hose for screw type tap is optional (Part No.BD-W80MV
151)
Securely fasten the water supply hose to the tap and be sure there is
no water leakage.
Extension tap
Rubber seal
Connector
Square tap
27
How to Install the Washing Machine
* Water supply hose with one-touch joint
1. Loosen the top connector.
Top connector
Rubber seal
Fixing screw
Bottom connector
● If the diameter of the tap is larger than the connector ring, remove
the ring.
Connector ring
Connector
2. Press up on the top connector so the rubber seal and the tap
are firmly sealed. Next, tighten the 4 screws.
Top connector
Rubber seal
Bottom connector
● Rotate the bottom connector so there is no water leakage.
● Close the tap so you can remove the water supply hose from the
bottom connector. Next, pull off the hose and lower the clasp.
3. Attach the water supply hose to the bottom connector and
lower the clasp.
Bottom connector
28
Water supply hose
■
Make sure the union nut between the water supply hose and the
washing machine is fi rmly tightened.
■
Before operating the washing machine, open the tap to confi rm that the
water supply hose is correctly connected. If the union nut is loose water
will leak.
Connecting
the power
Checking
levelness
How to Install the Washing Machine
■
Connect the washing machine correctly to a grounded AC power
supply.
■
The voltage of the power supply must match the voltage rating of the
washing machine.
■
Do not use extension cords or overload the power outlet by using
power strips.
■
Be sure the washing machine does not wobble.
■
Use the spirit level on the washing machine to check for levelness.
Adjust the adjustable foot if the washing machine is not level.
Checking after
installation
Loosen
Raise
Tighten
If any of the following problems or other abnormalities occur, immediately
unplug the power plug and contact your local service center.
■
The washing machine does not operate when the power is turned on.
■
The power cord is damaged.
■
There are abnormal vibrations or sounds during operation.
■
There is a smell of burning.
Lock nut
Adjustable foot
Lock nut
Rotate the lock nut in the direction
of the arrow to loosen it and
then rotate the adjustable foot to
stabilize the washing machine.
When the adjustment is fi nished,
rotate the lock nut in the direction
of the arrow to tighten it.
29
Customer Service
If the washing machine malfunctions, check the Operating & Installation
Instructions thoroughly before you call for repairs.
If you are unable to identify or solve the problem, contact your local
service center.
When you call the service center, you will need to tell them the model
of the washing machine, describe the malfunction, and give them your
address and phone number.
Specifi cations
Model SF-95XA
Maximum mass of dry cloth 9.5 kg
Power supply See the rating plate on the back of the washing machine.
Standard water level 65 L (maximum water level)
Standard amount of water used 110 L (Fuzzy program operation)
Water pressure 0.03 to 0.8 MPa (0.3 to 8 Kgf/cm
Dimensions / Weight Width 590 mm x Depth 600 mm x Height 1002 mm / 34 kg
Model SF-90XA
Maximum mass of dry cloth 9 kg
Power supply See the rating plate on the back of the washing machine.
Standard water level 65 L (maximum water level)
Standard amount of water used 110 L (Fuzzy program operation)
Water pressure 0.03 to 0.8 MPa (0.3 to 8 Kgf/cm
Dimensions / Weight Width 590 mm x Depth 600 mm x Height 1002 mm / 34 kg
2
)
2
)
Model SF-85XA
Maximum mass of dry cloth 8.5 kg
Power supply See the rating plate on the back of the washing machine.
Standard water level 63 L (maximum water level)
Standard amount of water used 107 L (Fuzzy program operation)
2
Water pressure 0.03 to 0.8 MPa (0.3 to 8 Kgf/cm
Dimensions / Weight Width 590 mm x Depth 600 mm x Height 1002 mm / 34 kg
Model SF-80XA
Maximum mass of dry cloth 8 kg
Power supply See the rating plate on the back of the washing machine.
Standard water level 60 L (maximum water level)
Standard amount of water used 104 L (Fuzzy program operation)
Water pressure 0.03 to 0.8 MPa (0.3 to 8 Kgf/cm
Dimensions / Weight Width 590 mm x Depth 600 mm x Height 1002 mm / 34 kg
)
2
)
30
Memo
31
3WPL113551-1
Loading...
