Hitachi R-Z19AGV7V, R-Z15AGV7, R-Z19AGV7VD, R-Z22AG7, R-Z22AG7D Instruction Manual

R-Z15AG7
R-Z15AGV7
R-Z19AGV7
R-Z19AGV7D
R-Z19AGV7V
R-Z19AGV7VD
R-Z22AG7
R-Z22AG7D
R-Z22AG7V
R-Z22AG7VD
R-Z25AG7D
R-Z170A7H
R-Z190A7HV
R-Z220A7HV

R-Z250A7H
R-Z267AMV
R-Z307AM
R-Z217AMSV
R-Z307AMS
R-Z270AL7V
R-Z320AL7V
R-Z320AL7DV
R-Z350AL7
R-Z240AUK7K
R-Z270AUK7KV
R-Z320AUK7KV
R-Z320AUK7KDV
R-Z350AUK7K

R-Z270AUN7KV
R-Z270AUN7KDV
R-Z320AUN7KV
R-Z320AUN7KDV
R-Z270AK7KV
R-Z320AK7KV
R-Z320AK7KDV
R-Z350AK7K
R-Z271AS7KT
R-Z271AS7KV
R-Z350AS7KT
R-Z350AS7KV
R-Z300AND7K-1
R-Z350AY7K

SAFETY SUGGESTION

Suggestions below are very important for safety use of the refrigerator, please be sure to keep the following items.

WARNING

1. Do not use the different electric voltage except one specified on the label
of the refrigerator. Moreover, please use a wall socket independently.

2. Do not damage a power cord and power supply plug. If the supply cord is damaged, it must be replaced by the manufacturer or its service
agent or similarly qualified person in order to avoid a hazard. Please consult with Hitachi Service Center or service agent.

3. Do not use refrigerator in a place from which combustible gas has leaked. Moreover, do not use an inflammable spray near the refrigerator.
It sparks at the point of contact of electric parts, and becomes the cause of explosion or a fire.

4. Do not store volatile chemicals such as ether, LP gas, thinner, etc. There is a risk of causing ignition explosion.

5. Do not spill water on the inside or outside of a refrigerator. Electric insulation falls and it becomes the cause of a fire or an electric shock.

6. Do not let children hang down the door.The refrigerator may fall down and children might be injured.

7. When disposing of this refrigerator, remove the door gasket to protect little children from being caught inside the refrigerator.

8. Do not repair or break up. When necessary please consult with a shop or a service agent.

9. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

10. Do not place anything on the refrigerator. It might fall down. The user might be injured when opens or closes the door.

11. Do not damage the refrigerant circuit.

12. Make sure to connect grounding wire.

13. Do not use electrical appliances inside the food storage compartments of the
appliances, unless they are the type recommended by the manufacturer.

14. Keep ventilation openings in the appliance enclosure or in the built-in structure, clear of obstruction.

15. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

16. Children should be supervised to ensure that they do not play with the appliance.

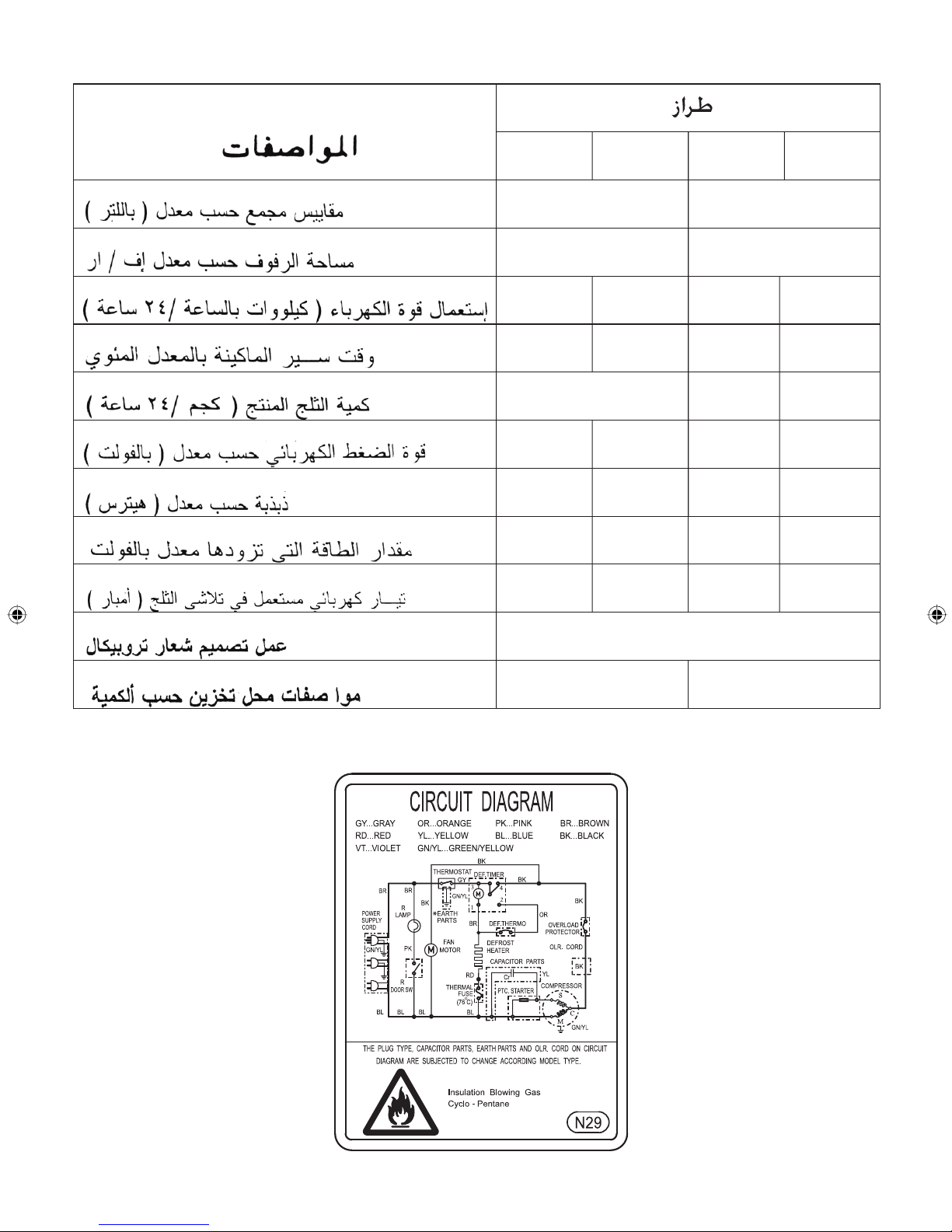

Rated

Voltage

CAUTION

1. Do not store bottles in a freezer compartment or a chilled case. It will become the cause of making you injured, if a bottle froze and explode.

2. Do not place food outside the shelves. A door will not be able to close or bottles catch and fall.It will become the cause of making you injured.

3. Do not put bottles into a door pocket by force.When opening and closing a door, a pocket separates, and it becomes the cause of an injury.

4. Do not eat or drink smelling or color changing food. It might be the cause of sickness.

5. Do not touch the compressor or the electric parts behind the refrigerator. It might cause injuries and burns by heat.

6. When carrying the refrigerator, please hold and carry the upper back side and a lower adjustor.

7. When disposing the refrigerator, please the disposal law of your country.

Do not damage the
cord by placing any
heavy object on it.

IDENTIFICATION PARTS

Freezer shelf (Adjustable)
(Plastic or steel wire)

Ice tray

Ice cube box

Chiller case
(For storage meat or fish etc.)

Refrigerator temperature control dial

Lamp cover (Lamp)

Refrigerator shelf (Adjustable)
(Tempered glass or steel wire)

Drain panRear side

Shutter
(Humidity controllable)

Adjustor

㧕

INSTALLATION

Installation

1. Install the refrigerator on the strong and leveled floor.

2. Please use this refrigerator between the room temperature of 10 oC to 43 oC.
Sufficient performance may not be obtained, if the room temperature is too low or too high.

3. Install the refrigerator away from the direct sunlight and other heat sources.

4. Install the refrigerator at the low humidity and good air flow place.

5. For having the refrigerator works properly, provide enough space of at least
30 cm over the top, 10 cm at rear and 5 cm at both sides for proper air circulation.

6. Make the refrigerator stand horizontally by adjusting the leveling legs (adjustor) .

Beginning

1. Clean the interior of the refrigerator finely. It may become dirty with dust during
transportation, or may become dirty with static electricity.

2. Connect the power supply plug into an exclusive wall socket. You should insert a plug completely.

3. After the inside is cold well, store food. It takes approximately 4 hours for
being fully cold. It may take a half day if the outside temperature is too hot.

Food storage

1. Keep the space among food. Placing too much food will make the inside of the refrigerator not to be cool enough.

2. Store cool down food. If you store hot food, the inside temperature will rise which waste the eletric fee.

3. Do not block the cold air vent. The cold air flowing will be ineffective.

4. Wrapping food or putting it in the sealed case which it can keep its humidity and fresh.

Freezer temperature control dial
Freezer door pocket

(For storage of small packages of frozen foods.)
Freezer compartment

(For storage ice-creams, frozen foods and
ice making.

ater tank (2 liters)

W
(Water dispenser model only.)

Egg tray

Refrigerator compartment
(For storage of fresh foods.)

Refrigerator door pocket
(For storage of bottles, canned foods, etc.)

Water bottle
(Water dispenser model only.)

Vegetable crisper
(For storage of fresh vegetables and fruit.)

㧕



2. Water tank (Water dispensor model only)

BEFORE REQUIRING REPAIR (CALLING FOR SERVICE).

Before you call for service , please check the following items.

The refrigerator does

not get cold at all.

The refrigerator does

not get cold enough.

Food in the refrigerator

compartment freezes.

Outside

Dew appears.

Inside

The inside is smelling.

Sound is noisy.

This is not out of order.

The surface of the

refrigerator is hot.

If a door is shut, other
doors may be opened.

Does it have any
abnormal sound?

Is the refrigerator plugged in properly?
Check the fuse box for blown fuse or tripped circuit breaker.

Is the refrigerator placed in the direct sunlight?
Is the refrigerator placed near heat source?
Is the temperature control dial set to “MIN”?
Has anything hot been placed in the refrigerator?
Is too much food stored?
Is the cold air vent blocked with food?
Is the door being opened and closed too frequently?
Is the door being slightly open?

Is the temperature control dial set to “MAX”?
Do you place the high moisture food and vegetables at the inner part of the shelf nearby
the cold air vent? They will be frozen if being placed nearby the cold air vent.

When the outside humidity is high, there may be dew condensation in the gasket section. Please wipe it
with dry cloth.
If a large box or magazine is placed on the refrigerator in a humid atmosphere, there may be dew
condensation. Please wipe it with dry cloth.

Please wipe it up with dry cloth and please check the details below.
Is the door closed firmly?
Is the door being opened and closed too frequently or opened for a long time?
Is it high humidity, is not it?

Do you store odor food without wrapping it?

Make sure the refrigerator is installed firmly.
Is the refrigerator touching the wall?

The refrigerator contains the dew prevention and heat radiation pipes.
Especially the back may be heated when starting up or if the door is frequently opened and closed.

The air duct of two compartment is connected. When close one of the door, another door may be opened
by the wind pressure. This is a normal phenomenon.

The sounds like water flowing and boiling water are sound of the cooling liquid (refrigerant).
A creaking sound comes from the storage compartment. It is the sound caused by friction of the parts
due to temperature change.
