INDOOR UNIT/OUTDOOR UNIT
SPLIT TYPE AIR CONDITIONER
MODEL
RAS-D10CDK/RAC-D10CDK
RAS-D13CDK/RAC-D13CDK
Instruction manual
Page 1~20
To obtain the best performance and ensure years of trouble free use, please read this instruction manual completely.
21~40
OUTDOOR UNIT INDOOR UNIT
RAS-D10CDK
RAS-D13CDK
ENGLISH
RAC-D10CDK
RAC-D13CDK
- 3 -
SAFETY PRECAUTION
•
Please read the “Safety Precaution” carefully before operating the unit to ensure correct usage of the unit.
•
Pay special attention to signs of“ Warning” and “ Caution”. The “Warning” section contains matters which,if
“
not observed strictly, may cause death or serious injury. The
serious consequences if not observed properly. Please observe all instructions strictly to ensure safety.
The signs indicate the following meanings.
•
Make sure to connect earth line.
Indicates the instructions that must be followed.
Please keep this manual after reading.
•
PRECAUTIONS DURING INSTALLATION
Do not reconstruct the unit.
•
Water leakage, fault, short circuit or fire may occur if you reconstruct the unit
by yourself.
Please ask your sales agent or qualified technician for the installation of
•
your unit. Water leakage, short circuit or fi re may occur if you install the unit
WARNING
by yourself.
Please use earth line.
•
Do not place the earth line near water or gas pipes, lightning-conductor, or
the earth line of telephone. Improper installation of earth line may cause
electric shock.
Caution” section contains matters which may result in
The sign in the figure indicates prohibition.
CAUTION
•
W
A
R
N
N
G
•
•
I
•
A circuit breaker should be installed depending on the mounting site of the
•
unit. Without a circuit breaker, the danger of electric shock exists.
Do not install near location where there is flammable gas. The outdoor unit
•
may catch fire if flammable gas leaks around it.
Please ensure smooth flow of water when installing the drain hose.•
PRECAUTIONS DURING SHIFTING OR MAINTENANCE
Should abnormal situation arises (like burning smell), please stop operating
the unit and turn off the circuit breaker. Contact your agent. Fault, shor t
circuit or fire may occur if you continue to operate the unit under abnormal
situation.
Please contact your agent for maintenance. Improper self maintenance may
cause electric shock and fire.
Please contact your agent if you need to remove and reinstall the unit.
Electric shock or fire may occur if you remove and reinstall the unit yourself
improperly.
If the supply cord is damaged, it must be replaced by the special cord
obtainable at authorized service/parts centers.
PRECAUTIONS DURING OPERATION
W
A
R
N
I
N
G
Avoid an extended period of direct air fl ow for your health.•
Do not put objects like thin rods into the panel of blower and suction side because
•
the high-speed fan inside may cause danger.
Do not use any conductor as fuse wire, this could cause fatal accident.•
During thunder storm, disconnect and turn off the circuit breaker.•
- 2 -
PRECAUTIONS DURING OPERATION
The product shall be operated under the manufacturer specification and not
•
for any other intended use.
Do not attempt to operate the unit with wet hands, this could cause fatal accident.•
When operating the unit with burning equipments, regularly ventilate the
•
room to avoid oxygen insufficiency.
Do not direct the cool air coming out from the air-conditioner panel to face
•
household heating apparatus as this may affect the working of apparatus such as
the electric kettle, oven etc.
Please ensure that outdoor mounting frame is always stable, firm and
•
without defect. If not, the outdoor unit may collapse and cause danger.
Do not splash or direct water to the body of the unit when cleaning it as this may
•
cause short circuit.
Do not use any aerosol or hair sprays near the indoor unit. This chemical
•
can adhere on heat exchanger fin and blocked the evaporation water flow to
drain pan. The water will drop on tangential fan and cause water splashing
out from indoor unit.
ENGLISH
W
A
R
N
I
N
G
Please switch off the unit and turn off the circuit breaker during cleaning, the high-
•
speed fan inside the unit may cause danger.
Turn off the circuit breaker if the unit is not to be operated for a long period.•
Do not climb on the outdoor unit or put objects on it.•
Do not put water container (like vase) on the indoor unit to avoid water
•
dripping into the unit. Dripping water will damage the insulator inside the unit
and causes short-circuit.
Do not place plants directly under the air fl ow as it is bad for the plants.•
When operating the unit with the door and windows opened, (the room humidity is always above
•
80%) and with the air defl ector facing down or moving automatically for a long period of time,water
will condense on the air deflector and drips down occasionally. This will wet your furniture.Therefore,
do not operate under such c
If the amount of heat in the room is above the cooling or heating capability of the unit (for example:
•
more people entering the room, using heating equipments and etc.), the preset room temperature
cannot be achieved.
•
This appliance is not intended for use by young children or infirm persons unless they have been
adequately supervised by a responsible person to ensure that they can use this appliance safely.
•
Young children should be supervised to ensure that they do not play with the appliance.
ondition for a long time.
- 3 -
- 5 -
PRODUCT PERFORMANCE AND TECHNICAL PARAMETERS
Fuzzy control
Quiet
Fuzzy control
•
High performance rotary
•
compressor
Low noise air intake system
•
Temperature sensing automatic
•
dehumidify cation
Sleep mode with automatic
•
adjustable temperature controls
High performance timer
•
Remote control swing mode
•
Automatic parking air vent grilles
•
Automatic fan speed adjustment
•
Left right drain hoses
•
Automatic functions
•
High sensing thermostat
•
3 minute delay circuitry
•
3 fan speed selection
•
Flared piping joints
•
Instant dehumidifying functions
•
High performance cooling functions
•
Stainless filter
•
Fuzzy control
The common timer controls will always switch on the
air conditioner at a predetermined time that could
cause over cooling, however, with this advanced
fuzzy control system the air conditioner will be either
switched on before preset time or delayed depending
on the indoor temperature changes, allowing the room
temperature to reach the preset temperature within an
optimal time frame, as such it will create an optimal air
conditioned environment and will also provide greater
savings on electrical energy consumption.
Low noise air intake system
This newly modified low noise air intake system allows
better and smoother air fl ows that will provide a quiet
and refreshing environment.
Sleep mode with automatic adjustable temperature
controls
After adjusting the sleep mode timer before sleep,
the t emp erature w ill be automatically controlled
and adjusted accordingly to the lowering or body
temperature during sleep and lower temperature
throu g h o u t the ni g h t , to p r o v i d e a c o n d u cive
environment for a good sleep.
An hour after setting the sleep mode timer, the air
conditioner wi ll automatically adjust the optimal
temperature; during summer it will be adjusted to 2°C
higher than the preset room temperature, and the timer
can be set at a 1-hour, 2-hour, 3-hour and 7-hour cycle.
All can be set by pressing the control buttons that save
you the trouble to preset the required operating modes
before sleep.
Temperature sensing automatic dehumidification
Hitachi air conditioners are specially equipped with
pricise and reliable temperature sensing automatic
dehumidifi cation function, that automatically operates
the dehumidifi cation whenever the room temperature
exceeds the preset temperature and it stops whenever
the room temperature falls back within the preset
temperature as such it stabilizes the temperature and
provides a more conducive environment for the user.
Well designed unit body
The indoor unit incorporates the latest design and has
a non-bulky body that measures 211 x 780 x 280mm.
- 4 -
NAMES AND FUNCTIONS OF EACH PART
INDOOR UNIT
AIR FILTER
To prevent dust from coming into the door unit.
(Refer page 15)
INDOOR UNIT INDICATORS
Light indicator showing the operating condition.
(Refer page 6)
FRONT PANEL
SUPPORT PANEL
HORIZONTAL DEFLECTOR • VERTICAL
DEFLECTOR (AIR OUTLET)
(Refer page 13)
REMOTE CONTROL
Send out operation signal to the indoor unit. So as to
operate the whole unit.
(Refer page 7)
ENGLISH
OUTDOOR UNIT
MODEL NAME AND DIMENSIONS
MODEL WIDTH(mm) HEIGHT(mm) DEPTH(mm)
RAS-D10CDK, RAS-D13CDK 780 280 211
RAC-D10CDK, RAC-D13CDK 420 299792
DRAIN PIPE
Condensed water drain to outside.
CONNECTING CORD
AIR INLET (BACK, LEFT SIDE)
AIR OUTLET
- 5 -
- 7 -
ATTACHING AND REMOVING FRONT PANEL
While gripping both the left and right hand edges
•
[recessed in the front housing] of the front panel,
lift up to open the front panel.
After completion of job, sl ightly lif t up th e front
•
panel and pull down to close the front panel. Ensure
that the 3 sets of left, centre and right clips are
fully secured.
RECEIVABLE INDICATOR FUNCTIONS
Operation Lamp (YELLOW)
This lamp lights during operation.The lamp
flashes when the defrosting is functioning in
"heating" mode or at the time the pre-heating is
operating in 2 to 3 minutes.
Timer Lamp (ORANGE)
This lamp lights when the timer is working.
The lamp flashes periodically when any
abnormality occurs in the indoor unit.
Temporary Switch
OPERATION INDICATOR
TEMPORARY SWITCH
When the remote control device is not functioning, use the Temporary Switch mode
(1) When the Temporary Switch is pressed, the unit will operate as per the previous setting.
(2) Press the Temporary Switch a second time will stop the operations of the air conditioner unit.
AUTO RESTART FUNCTION
In the event of power failure, the air conditioner will restart automatically.
In the event of power failure during TIMER operation, the timer will be reset and the unit will begin or stop
operating under a new timer setting.
- 6 -

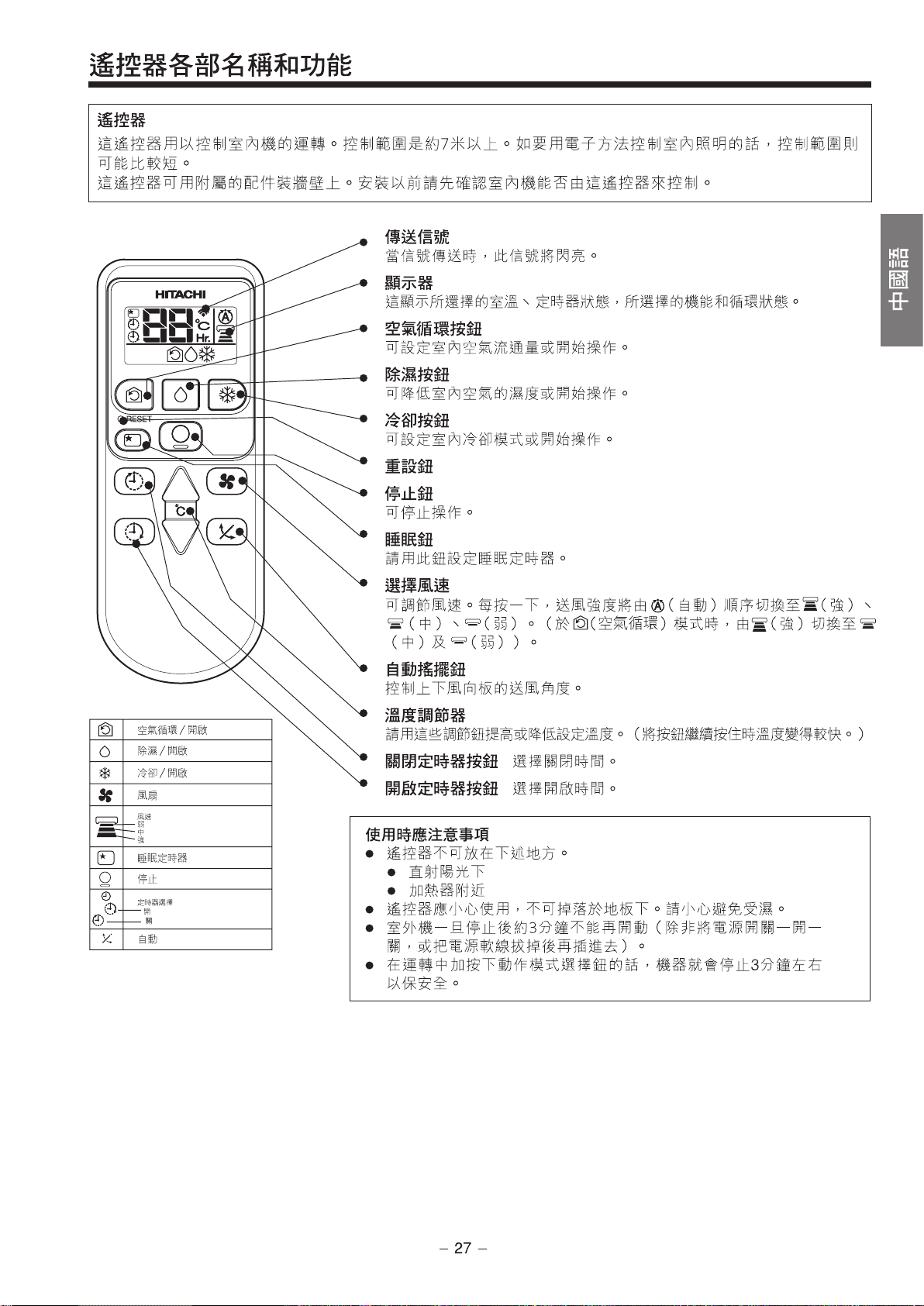

NAMES AND FUNCTIONS OF REMOTE CONTROL UNIT
CIRCULATION / START
DEHUMIDIFY / START
COOLING / START
FAN
FAN SPEED
LOW
MED
HI
SLEEP TIMER
STOP
TIMER SELECTOR
ON TIMER
OFF TIMER
AUTO SWING
REMOTE CONTROLLER
This controls the operation of the indoor unit. The range of control is about 7 meters. If indoor lighting is
controlled electronically, the range of control may be shorter.
This unit can be fi xed on a wall using the fixture provided. Before fixing it, make sure the indoor unit can be
controlled from the remote controller.
Transmission sign
The transmission sign blinks when a signal is sent.
Display
This indicates the room temperature selected, current time, timer status,
function and intensity of circulation selected.
AIR CIRCULATION button
Use this button to set air circulation in the room or start operation.
DEHUMIDIFYING button
Use this button to reduce water quantity in the room or start operation.
COOLING button
Use this button to set cooling mode in the room or start operation.
RESET button
ENGLISH
STOP button
Press this button to stop operation only.
SLEEP button
Use this button to set the sleep timer.
FAN SPEED selector
This determines the fan speed. Every time you press this button,the
intensity of circulation will change from (AUTO) to (HI) to (MED)
to (LOW) (during the (AIR CIRCULATION) mode, from HI to
MED to LOW).
AUTO SWING button
Controls the angle of the horizontal air deflector and to turn off filter
lamp.
TEMPERATURE button
Use this button to raise or lower the temperature setting. (Keep
pressed, and the value will change more quickly.)
OFF-TIMER button
ON-TIMER button
Select the turn OFF time.
Select the turn ON time.
Precautions for Use
Do not put the remote controller in the following places.
•
In direct sunlight.
•
In the vicinity of a heater.
•
Handle the remote controller carefully. Do not drop it on the floor, and
•
protect it from water.
Once the outdoor unit stops, it will not restart for about 3 minutes
•
(unless you turn the power switch off and on or unplug the power
cord and plug it in again).
This is to protect the device and does not indicate a failure.
If you press the FUNCTION selector button during operation,the
•
device may stop for about 3 minutes for protection.
- 7 -
- 9 -
COOLING OPERATION
1
3
2
STOP
˚
C
Use the device for cooling when the outdoor temperature is 21-43°C.
If humidity is very high (over 80°C) indoors, some dew may form on the air outlet grille of the indoor unit.
Press the button so that the display indicates
(COOL).
Set the desired FAN SPEED with the (FAN SPEED) button
(the display indicates the setting).
(AUTO) :The FAN SPEED is HI at fi rst and varies to MED or
LOW automatically when the preset temperature
has been reached.
(HI) : Economical as the room will become cool quickly.
(MED) : Fan speed slow.
(LOW) :Fan speed slower.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 25-28°C is recommended as the
room temperature for cooling.
If the temperature setting is 27°C, the room
temperature will be controlled at around 27°C.
The temperature setting and the actual room temperature may
vary somewhat depending on conditions.
Press the (COOLING) button. Cooling operation starts with a
beep. Press the (STOP) button to stop operation. The cooling
function does not start if the temperature setting is higher than
the current room temperature (even though the (OPERATION)
lamp lights). The cooling function will start as soon as you set the
temperature below the current room temperature.
■
As the settings are stored in memory in the remote controller, you only
have to press the (COOLING) button next time.
- 8 -
DEHUMIDIFYING OPERATION
2
1
STOP
Press the
(DEHUMIDIFY) button.
2
STOP
1
˚
C
Use the device for dehumidifying when the room temperature is over 16°C.
When it is under 15°C, the dehumidifying function will not work.
Press the (DEHUMIDIFY) button.
The FAN SPEED is set at LOW automatically.
The FAN SPEED button does not work.
Set the desired room temperature with the TEMPERATURE
button (the display indicates the setting).
The range of 20-26
room temperature for dehumidifying.
Press the (DEHUMIDIFY). Dehumidifying operation starts
with a beep. Press the (STOP) button to stop operation.
°
C is recommended as the
ENGLISH
■
As the settings are stored in memory in the remote controller, you only
have to press the (DEHUMIDIFY) button next time.
Dehumidifying Function
When the room temperature is higher than the temperature setting: The device will dehumidify the room,
reducing the room temperature to the preset level.
When the room temperature is lower than the temperature setting: Dehumidifying will be performed at the
temperature setting slightly lower than the current room temperature, regardless of the temperature setting. The
function will stop (the indoor unit will stop emitting air) as soon as the room temperature becomes lower than
the setting temperature.
- 9 -
- 11 -
CIRCULATION OPERATION
1
3
2
STOP
■
Press the button so that the display indicates (CIRCULATE).
Press the FAN SPEED button and select the desired FAN SPEED
(the display indicates your choice).
Press the te mperature con trol button to s et to t he desired
temperature.
Press the (CIRCULATION) button. Circulating operation starts
with a beep. Press the (STOP) button to stop operation.
As the settings are stored in memory in the remote controller, you only
have to press the (CIRCULATION) button next time.
Circulation Function
During circulation operation, compressor will not be running and there is no cooling operation with only
•
indoor fan running.
When the setting temperature is higher than roomtemperature, indoor fan will stop running.
•
- 10 -
HOW TO SET THE SLEEP TIMER
1 hour 2 hours 3 hours 7 hours
Sleep timer off
Press the (SLEEP) button, and the display changes as shown below.
Sleep timer
Sleep Timer:
of hours and then turn off.
Point the signal window of the remote controller toward the indoor unit,
and press the SLEEP button.
The timer information will be displayed on the remote controller.
SLEEP
The TIMER lamp lights with a beep from the indoor unit. When the sleep
timer has been set, the display indicates the turn-off time.
Explanation of the sleep timer
Mode Indication
ENGLISH
The device will continue working for the designated number
The device will control the FAN SPEED and room temperature automatically so as to
be quiet and good for people’s health.
You can set the sleep timer to turn off after 1, 2, 3 or 7 hours. The FAN SPEED and
room temperature will be controlled as shown below.
Operation with the sleep timer
Function Operation
Cooling
“ ”
and
dehumidifying
“ ”
Fan
“ ”
The room temperature will be
controlled 2°C above the setting
temperature and the FAN SPEED
will be set to LOW setting 60 minutes
after the setting of the sleep timer.
The settings of room temperature and circulation are varied.
Sleep
timer set
60 minutes later 3 hours later
2 hours
later
7 hours later
- 11 -
- 13 -
HOW TO SET THE TIMER
1 2 3 9 1 0 1 1 1 2
1 2 3 9 1 0 1 1 1 2
■
ON Timer and OFF Timer are available.
OFF Timer Reservation
OFF TIME setting
Select the OFF TIME by pressing the (OFF) Button.
•
Setting time will change according to the below sequence
•
when you press the button.
1 hour interval
■
Operation stop at setting time
ON Timer Reservation
ON TIME setting
Select the ON TIMER by pressing the
•
Setting time will change according to the below sequence.
•
1 hour interval
(ON) Button.
■
O p e r a t i o n w i ll st a r t fo r se t t i ng
te m pe r at u re at set t in g t i me (Th e
starting time may different depend
on th e r o om te m pera t ure an d s e t
temperature).
- 12 -
AIR FLOW LOUVERS ADJUSTMENTS
1. Adjusting the left and right air flow directions
Move the vertical air flow louvers as illustrated, to
adjust the air flow to flow towards the left or right
directions.
2. Adjusting the downward air flow direction.
During the "Dehumidifying" or "Cooling" operating
modes, the hor izontal air flow lo uvers are
automatically adjusted to suit the air flow angles
of each operating mode. The air flow louvers are
designed to direct air fl ow in upward and downward
directions. Pressing the automatic air flow control
button, these air flow louvers can also be adjusted
to any air flow angle of one’s choice.
Press the AUTOMATIC AIR FLOW DIRECTION
once will activate the horizontal air fl ow louvers to
direct the air fl ows upwards and downwards.
Press the control button again, the horizontal air
flow louvers will stop moving and remain fixed at
the position at the point when the control button
was pressed.
ENGLISH
Horizontal air deflector
Vertical air defl ector
During the “Dehumidifying” or
modes, set the horizontal air flow louvers to
move within the range as recommended in the
illustration.
Adjusting the air flow louvers will direct air flows
to assist in reducing the room temperature and to
correct any temperature imbalance.
During the
the horizontal air flow louvers to swing outside the
range as indicated by arrows in the illustration.
Do not operate the horizontal air flow louvers in
durations longer than it is necessary. Condensate
may form and drip along the horizontal air flow
louvers.
Af ter sto pping th e op eration s of the unit by
pressing control button, the horizontal air flow
louvers will move to park at a position that covers
up the air outlet vent.
While the automatic air flow direction mode is in
operation, any physical adjustment to the horizontal
air fl ow louvers will shift the swing range. However,
with no further physical adjustments, the air flow
louvers will readjust automatically to the original
swing range setting. (Should the louvers could not
return to the original swing range setting, stop the
operation of the air conditioner unit, remove the
power supply plug and re-plug it into the power
mains socket and restart the air conditioner unit.
This will return the swing range to its original
setting.)
“Cooling”
operating mode, do not adjust
“Cooling”
operating
- 13 -
level
about
- 15 -
HOW TO EXCHANGE THE BATTERIES IN THE REMOTE CONTROLLER
1
2
=
CAUTION
NOTE
When using the remote control, there is no response from the air conditioner unit and or the remote control
has fading and dim displays, the batteries in the remote control device need to be removed and replaced
with new ones
Remove the cover as shown in the fi gure and take
out the old batteries.
Install the new batteries.
The direction of the batteries should match the
marks in the case.
1. Do not use new and old batteries, or different kinds of
batteries together.
2. Take out the batteries when you do not use the remote
controller for 2 or 3 months.
3. Use high quality and high performance AAA batteries to
avoid short operating life and electrolyte leakages.
Remove the air cleansing filters (2) from the front cover, gently
1.
press both sides of the air cleansing frame to park it securely at
the hooks (six places) and reattach the filters with frame to the
front cover
The cooling capacity is slightly weakened when the air cleansing
2.
frames are used.
Air cleansing frames can be used for 20 times. Vacuum cleaner
3.
and clean water can be used when cleaning the filters. Please
contact the sales agent when you want to renew it.
- 14 -
Air cleansing filters
THE IDEAL WAYS OF OPERATION
ENGLISH
Suitable Room Temperature
Warning
Freezing temperature
is bad for health and a
waste of electric power.
Ventilation
Caution
Do not close the room for a long period of
time. Occasionally open the door and windows
to allow the
entrance of
fresh air.
Install curtain or blinds
I t i s po s si b le
to reduce heat
entering the room
through windows.
Effective Usage Of Timer
At night, please use the“sleep timer operation
mode”, together with your wake up time in
the morning. This will enable you to enjoy a
comfortable room temperature. Please use
the timer effectively.
Do Not Forget To Clean The Air Filter
Dusty air filter will reduce the air volume
and the cooling efficiency. To prevent from
wasting electric energy, please clean the
filter every 2 weeks.
- 15 -
Please Adjust Suitable Temperature
For Baby And Children
Please pay attention to the room temperature
and air flow direction when operating the unit
for baby, children and old folks who have
difficulty in movement.
(The ideal temperature
difference between
outdoor and indoor
is about ±5°C).
Temperature
n
- 17 -
FOR USER’S INFORMATION
OFF
To prevent
interference,
place at least
1m away.
TV
Inverter-type
fluorescent
lamp.
The Air Conditioner And The Heat Source In The Room
Caution
If the amount of heat in the room is above the
cooling capability of the air conditioner (for example:
more people entering the room, using heating
equipments and etc.), the preset room temperature
cannot be achieved.
Not Operating For A Long Time
When the indoor unit is not to be used for a long
period of time, please pull out the power plug. Or the
indoor unit still consumes about 3W in the operation
control circuit even if it is in “OFF” mode.
When Lightning Occurs
Warning
To protect the whole unit during lightning, please
stop operating the unit and remove the plug from the
socket.
Interference From Electrical Products
Caution
To avoid noise interference, please place the indoor
unit and its remote controller at least 1m away from
electrical products.
- 16 -
MAINTENANCE OF THE UNITS
CAUTION
CAUTION
Ensure that the unit is not in operation and all power supply has been disconnected before cleaning the
units.
Dust Filter Screen
Dust filter screens are installed to remove the indoor dust particles hence they should be kept clean at all times.
They should be cleaned at each machine operation cycle of approximately 100 hours. Excessive dust collected at
the dust fi lter screen will block the air fl ow, reduce the cooling capability and could produce noise. Therefore the
dust filter screen should be cleaned as per instructions given below:
Cleaning Instructions
(1) Removing the dust filter screen
While holding both edges of the front panel, open up and lift the front panel and push in to park at the secured
•
position
Front panel
Front cabinet
Slightly lift up the dust filter screen, release the latch clips [2 places] located at the bottom of the front cabinet
•
and move the dust filter screen downwards to remove it from the unit
ENGLISH
(2) Use a vacuum cleaner to vacuum clean the dust accumulated at the dust filter screen. If the accumulated dust
is too much to be removed by vacuum cleaning, apply mild detergent and fl ush the dust from the dust fi lter
screen with water. After thorough rinsing, leave the dust filter screen at a cool shaded place to dry.
(3) Re-install the dust filter screen to its original position (With “FRONT” marker facing front). Slightly lift up the
opened front panel and close it by returning it to its original position
(4) Each year before using the air conditioner unit, clean the heat exchanger (evaporator) with a fi ne soft brush or
a vacuum cleaner and take care to avoid damaging the evaporator fins
Front panel
Dust filter screen
Latch clip
Do not use hot water (40°C and above) to rinse the dust filter screen, otherwise the screen will warp and
•
get distorted. After rinsing, shake the dust fi lter screen to rid off all remaining water droplets and place it at a
cool shaded place to dry. Avoid placing the dust fi lter screen under direct sunlight, otherwise the screen will
warp and get distorted.
Do not operate the air conditioner unit without the dust filter screen installed, otherwise the ingress of dust
into the air conditioner unit will cause breakdowns.
- 17 -
- 19 -
CLEANING THE FRONT PANEL
CAUTION
Hot water (50°C)
Volatile liquid, acid and others
Front panel can easily get dirty. Use a soft cloth to wipe it.
1.
If the front panel is excessively dirty, wipe the front panel with a soft
2.
cloth either wet with warm water or containing a mild detergent after
which, wipe dry the front panel with a soft dry cloth.
Do not use hot water (50°C and above), volatile liquid, gasoline,acid,
3.
diluting agents or brushes to clean the front panel as they could
damage the plastic fi nishing and paintwork of the front panel.
Please disconnect the power plug before cleaning the
front panel.
TROUBLE SHOOTING THE UNIT BEFORE CONTACTING SERVICE STAFF TO CHECK AND RECTIFY
The air conditioner unit is not operating.
•
Check whether the power supply plug is properly plugged in.
Abnormal air conditioning effects.
Is the dust fi lter screen clogged with dust and dirt?
1.
Is the outdoor unit is located in direct sunlight?
2.
Is there any blockage to the air fl ow of both the indoor and
3.
outdoor units?
Are the doors and windows being left opened or is there any
4.
heat source inside the room?
Is the temperature setting appropriate?
5.
- 18 -
AFTER SALE SETVICE AND WARRANTY
WHEN ASKING FOR SERVICE, CHECK THE FOLLOWING POINTS.
CONDITION CHECK THE FOLLOWING POINTS
Is the fuse all right?
•
When it does not operate
When it does not cool well
Is the voltage extremely high or low?
•
Is the circuit breaker “ON”?
•
Is the air fi lter blocked with dust?
•
Does sunlight fall directly on the outdoor unit?
•
Is the air fl ow of the outdoor unit obstructed?
•
Are the doors or windows opened, or is there any source of heat
•
in the room?
Is the set temperature suitable?
•
ENGLISH
Notes
In quiet or stop operation, the following phenomena may occassionally occur,
•
but they are not abnormal for the operation.
(1) Slight fl owing noise of refrigerant in the refrigerating cycle.
(2) Slight rubbing noi se from t he fan casing w hich is c oole d and the n
gradually warmed as operation stops.
The odor will possibly be emitted from the room air conditioner because the
•
various odor, emitted by smoke, foodstuffs, cosmetics and so on, sticks to it.
So please clean the air fi lter and the evaporator regularly to reduce the odor.
Please contact your sales agent immediately if the air conditioner still fails to operate normally after the above
•
inspections. Inform your agent of the model of your unit, production number, date of installation. Please also
inform him regarding the fault.
Power supply shall be connected at the rated voltage, otherwise the unit will be broken or could not reach the
•
specified capacity.
- 19 -
This product conforms with the protection requirements of council directives 89/336/EEC relating to
electromagnetic compatibility and 73/23/EEC relating to electrical equipment designed for use within
certain voltage limits.
Please note:
On switching on the equipment, particularly when the room light is dimmed, a slight brightness flsuctuation
may occur. This is of no consequence.
The conditions of the local Power Supply Companies are to be observed.
Note
•
Avoid to use the room air conditioner for cooling operation when the outside temperature is below
21°C (70°F).
The recommended maximu m and m inimum operating temperatu r e s of the hot and cold sides
should be as below:
Minimum Maximum
Indoor
OutdoorD
Dry bulb °C 21 32
Wet bulb °C 15 23
Dry bulb °C 21 43
Wet bulb °C 15 26
MEMO
- 20 -
RAC-D10CDK
RAC-D13CDK
RAS-D10CDK/RAC-D10CDK
RAS-D13CDK/RAC-D13CDK
RAS-D10CDK
RAS-D13CDK
不要讓小孩單獨操作使用機器。除非在監督責任人的指導下，確保他們能安全正確的使用機器。
請確保小孩遠離機體，不要機體玩耍，以免發生危險。
1
1
隔塵網
吹
RAS-D10CDK, RAS-D13CDK
RAC-D10CDK, RAC-D13CDK 420 299792
780 280 211
吹
搖擺
1
2
3
Loading...
