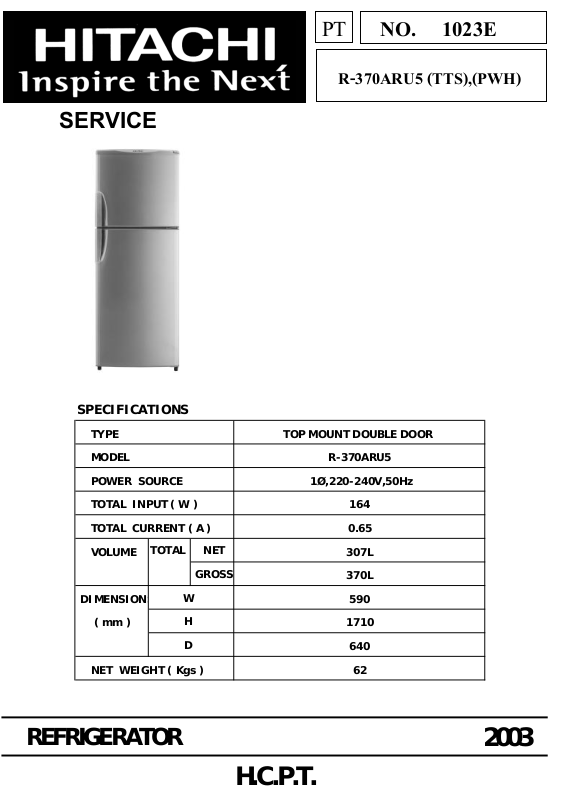

SERVICE MANUAL
PT
NO. 1023E
R-370ARU5 (TTS),(PWH)
TABLE
SPECIFICAT......................................... 2-3
MAIN PART
WIRIN
MODEL R-370ARU5............................6

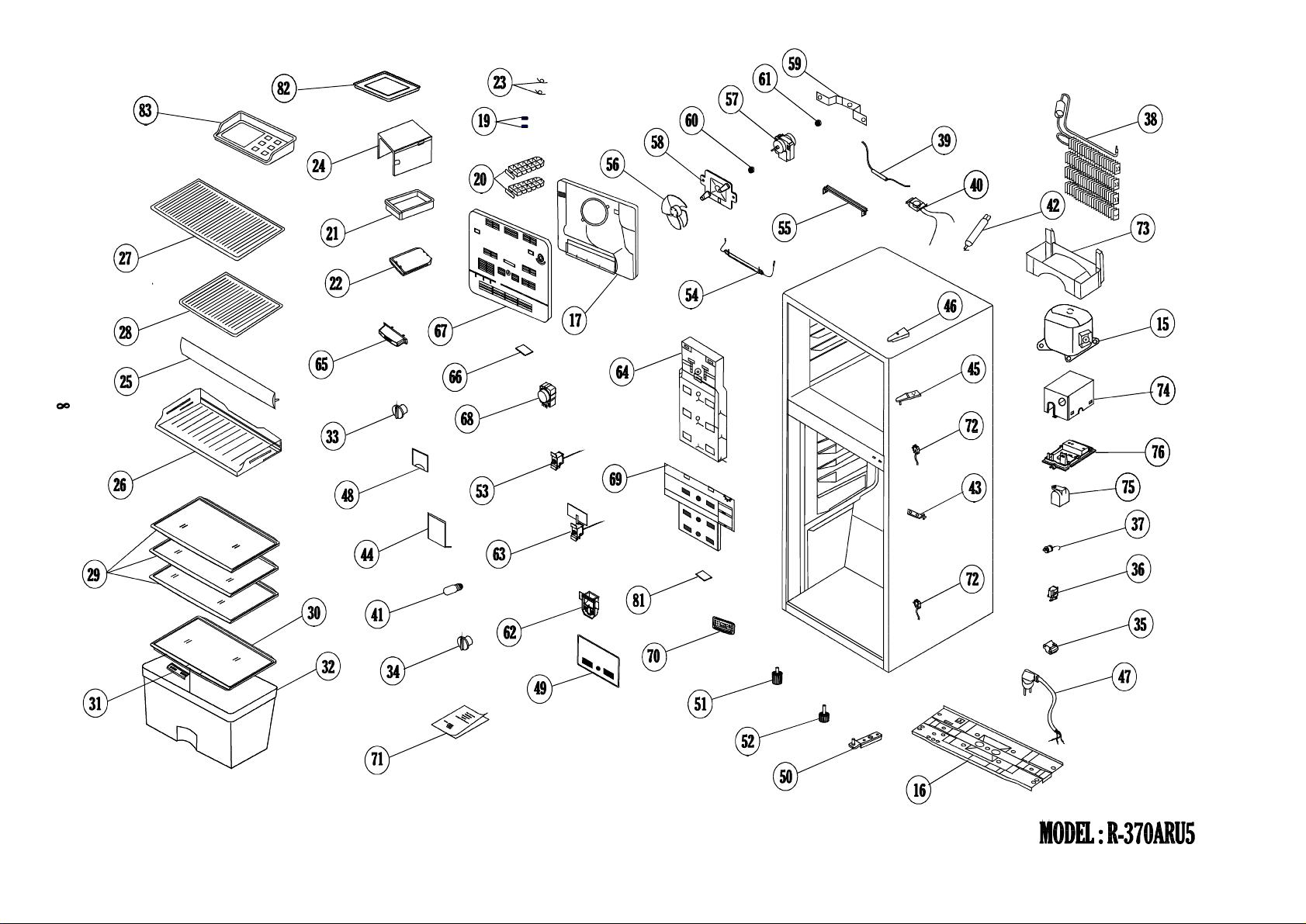

PART
MODEL R-370ARU5 .................………7-12
DIAGRAM
TITUTION
NENTS .......... 4-5
SPECIFICATIONS
TYPE TOP MOUNT DOUBLE DOOR
MODEL R-370ARU5
POWER SOURCE 1Ø,220-240V,50Hz
TOTAL INPUT ( W ) 164
TOTAL CURRENT ( A ) 0.65
VOLUME
DIMENSION
( mm )
NET WEIGHT ( Kgs )
TOTAL NET
GROSS
W
H
D
307L
370L
590
1710
640
62
REFRIGERATOR
2003
H.C.P.T.
Page 2
Page 3
Page 4
MODEL: R-370ARU5
NO.SERVICE NO.SERVICE NAMEQ' TY/SETREMARKS
R-370ARU5
1PTR-320WP 005DOOR-BASKET-F-052
2PTR-320WP 006DOOR-BASKET-11
3PTR-18MS 021EGG-CASE-031
4PTR-25A3P 006EGG CASE-98-031
5PTR-320WP 007DOOR-POCKET-W-052
6PTR-320WP 008DOOR-BASKET-R2
7PTR-320WP 014DOOR-PANEL-F-300L-05 TTS1
PTR-390AS5KT 003DOOR-PANEL-300L-05 PWH1
8PTR-310WKX 007DOOR LINER F-300L-011
9PTR-310WKX 008DOOR GASKET-F-300L-011
10PTR-320WP 016DOOR-PANEL-R-300L-05 TTS1
PTR-390AL5 001DOOR-PANEL-R-390AL5 PWH1
11PTR-318A1HE 001DOOR-LINER (R-300L)1
12PTR-310WKX 010DOOR GASKET-R-300L1
13PTR-200WKX 060DOOR STOPPER1
14PTR-25A3P 021DOOR STOPPER-RSV1
15PTR-300ARU5 004COMPRESSOR1
16PTR-290AUK4K 003COMPRESSOR BASE1
17PTR-200WGX 012MOUTH PLATE-200L NF1
18PTR-190P 001DOOR-BADGE1
19PTR-208A1HE 020CORNER BUSH2
20PTR-200WKX 013ICE TRAY2
21PTR-25A3P 023ICE BOX-031
22PTR-25A3P 011ICE-SUPPORT-031
23PTR-610AS3T 021ICE-MAKER-SPRING2
24PTR-200WKX 014ICE CORNER-011
25PTR-320WP 001CHILLER-DOOR1
26PTR-25A3P 032MULTI-CHILLER1
27PTR-260WN 012SHELF-F1
28PTR-260WN 013SHELF-F-H1
10
Page 5
MODEL: R-370ARU5
NO.SERVICE NO.SERVICE NAMEQ' TY/SETREMARKS
R-370ARU5
29PTR-320WP 002SHELF-R-W-053
30PTR-320WP 003CRISPER-SHELF-051
31PTR-190P 018HUMIDITY-COVER-051
32PTR-320WP 004CRISPER-300L-051
33PTR-390AL4 002DIAL-F1
34PTR-578AM 042DIAL-R1
35PTR-13EP 034TERMINAL-COVER1
36PTR-250EX 021STARTING DEVICE1
37HD-9DT 001OVERLOAD RELAY1
38PTR-209A1HE 106EVAPORATOR1
39PTR-578AM 038THERMAL FUSE1
40PTR-578AM 037DEFROST THERMOSTAT1
41PTR-372EM 111LAMP1
42PTR-14MX7 008DRYER KMP (NON-CFC)1
43PTR-208A1HE 025CENTER HINGE-NF-011
44PTR-200WGX 021LAMP COVER1
45PTR-310WKX 012UP HINGE 300L1
46PTR-390AUK4K 007UP-HINGE-COVER W1
47PTR-300ARU5 003PLUG1
48PTR-200WGX 020TIMER COVER-981
49PTR-250WHX 006PANEL R-21
50PTR-180K 016LO-HINGE1
51SJ-J12 016ADJUSTOR SCREW (L)1
52SJ-J12 017ADJUSTOR SCREW (R)1
53PTR-660AS3XDT 002THERMOSTAT (F)1
54PTR-260WN 019HEATER1
55PTR-303EM4 004HEATER COVER1
56PTR-200WGX 013FAN-N41
57PTR-600ET3X 024MOTOR1
58PTR-209A1HE 105MOTOR-COVER1
11
Page 6
MODEL: R-370ARU5 (TTS,PWH) MAR'2005
NO.SERVICE NO.SERVICE NAMEQ' TY/SETREMARKS
R-370ARU5
59PTR-610AS3T 096MOTOR FIXER1
60PTR-200WGX 015MOTOR BUSH1
61PTR-12A9HD 029RUBBER-R1
62PTR-200WGX 025DUCT-S-2D-981
63PTR-200WGX 024DAMPER1
64PTR-250WHX 007R-F-PAD-250L-991
65PTR-320WP 019AIR-JET-WIDE-051
66PTR-400WP 036NANO SHEET1
67PTR-320WP 012FAN-GUARD-300L-051
68PTR-300ARU5 001DEF-TIMER1
69PTR-25AG4D 008PANEL-R11
70PTR-320WP 020DEODO-CASE-1D-051
71PTR-300ARU5 002INSTRUCTION-BOOK1
72PTR-25A3P 022DOOR SWITCH2
73PTR-200WGX 034EVAPORATOR PAN1
74PTR-169A1HE 023TRANSFORMER-CASE11
75PTR-47KP 003CAPA-47KP1
76PTR-169A1HE 022TRANSFORMER-CASE21
77PTR-370ARU5 002CARTON-BOX-R-370ARU5 PWH1
PTR-370ARU5 001CARTON-BOX-R-370ARU5 TTS1
78PTR-31A2GD-E 101CARTON-BASE-300L-EX1
79PTR-310WKX 020CENTER-CUSHION1
80PTR-S31NVH 135POLY BAG 1250x2000 MM1
81PTR-629AM 00405-NANO-TITAN1
82PTR-169A1HE 029SHELF-AL1
83PTR-209A1HE 120CHILLER-F1
12
