22" LCD Colour Television |
Instructions for use |
GB |
with intergral DVD player
L22DP03C
2
Contents |
|
Features ................................................................. |
3 |
Accessories ........................................................... |
3 |
Introduction ............................................................. |
4 |
Preparation ............................................................. |
4 |
Safety Precautions ................................................. |
4 |
Power Source .................................................... |
5 |
Power Cord ........................................................ |
5 |
Moisture and Water ............................................ |
5 |
Cleaning .............................................................. |
6 |
Ventilation ........................................................... |
6 |
Heat and Flames ................................................. |
6 |
Lightning.............................................................. |
6 |
Replacement Parts ............................................. |
6 |
Servicing ............................................................. |
6 |
Waste Disposal ................................................... |
6 |
Information for Users in European Union |
|
Countries ............................................................ |
6 |
Disconnecting the Device ................................... |
6 |
Headphone Volume ............................................ |
7 |
Installation ........................................................... |
7 |
LCD Screen ........................................................ |
7 |
Warning ............................................................... |
7 |
Overview of the Remote Control ........................... |
8 |
LCD TV and Operating Buttons .............................. |
9 |
Viewing the Connections ..................................... |
10 |
Power Connection ................................................ |
12 |
Aerial Connection ................................................. |
12 |
Connecting the LCD TV to a PC ........................... |
13 |
Connecting an external DVD Player .................... |
14 |
Using Other Connectors ...................................... |
15 |
Connecting Other Equipment via Scart ................ |
16 |
Inserting Batteries in the Remote Control |
|
Handset ................................................................ |
17 |
Handling the Remote Control ............................ |
17 |
Operating Range for the Remote Control ............. |
17 |
Switching the TV On/Off ..................................... |
18 |
To Switch the TV On ........................................ |
18 |
To Switch the TV Off ....................................... |
18 |
Input Selection ...................................................... |
18 |
Basic Operations .................................................. |
19 |
Operation with the Buttons on the TV ............. |
19 |
Volume Setting .............................................. |
19 |
Programme Selection .................................... |
19 |
Entering Main Menu ....................................... |
19 |
AV Mode ....................................................... |
19 |
Operation with the Remote Control .............. |
19 |
Volume Setting .............................................. |
19 |
Programme Selection (Previous or Next |
|
Programme) ................................................... |
19 |
Programme Selection (Direct Access) ......... |
19 |
Initial Settings ........................................................ |
20 |
General Operation ................................................ |
21 |

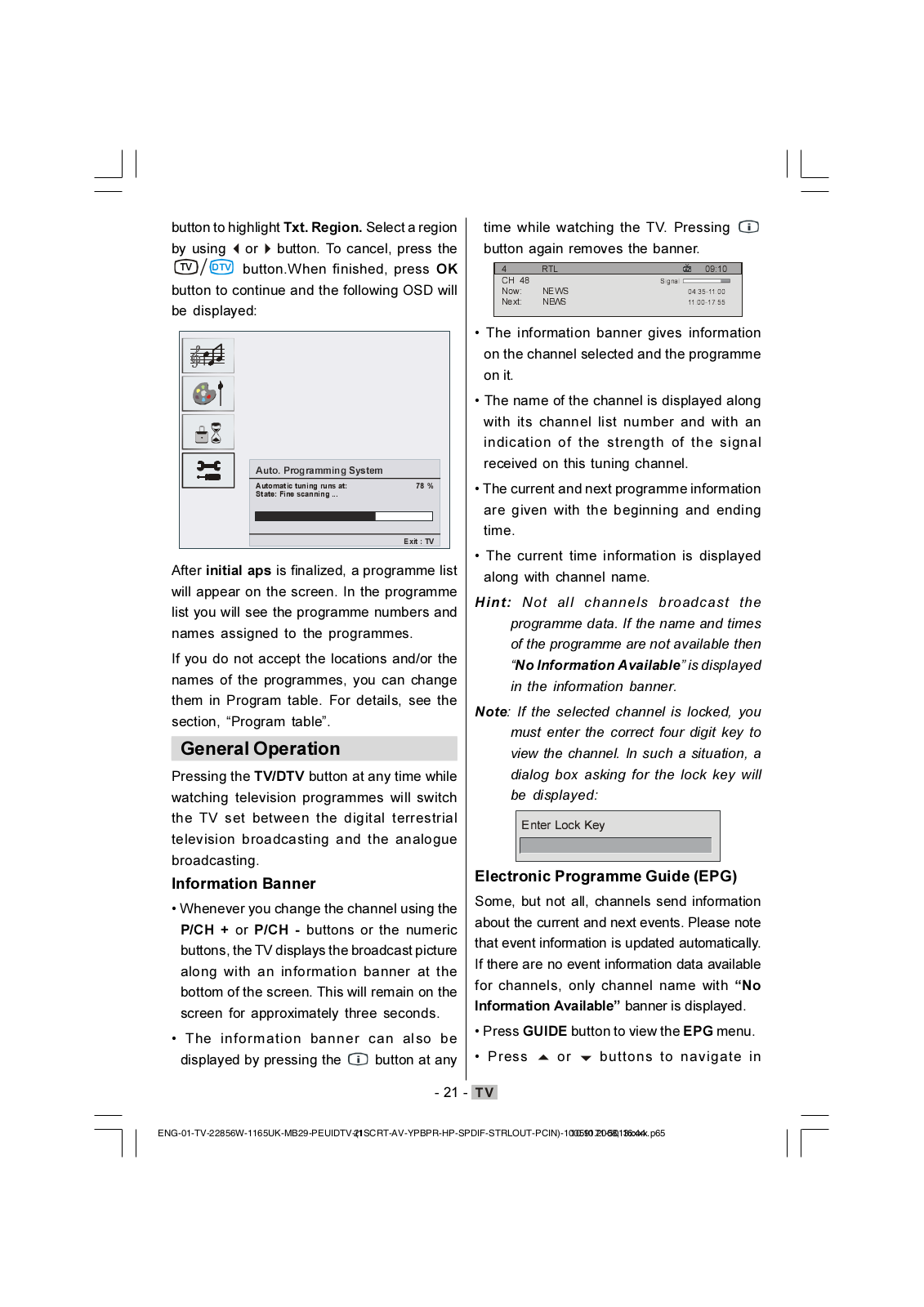

Information Banner ........................................... |
21 |
Electronic Programme Guide (EPG) .................. |
21 |
Displaying the Subtitles .................................... |
22 |
Teletext .............................................................. |
23 |

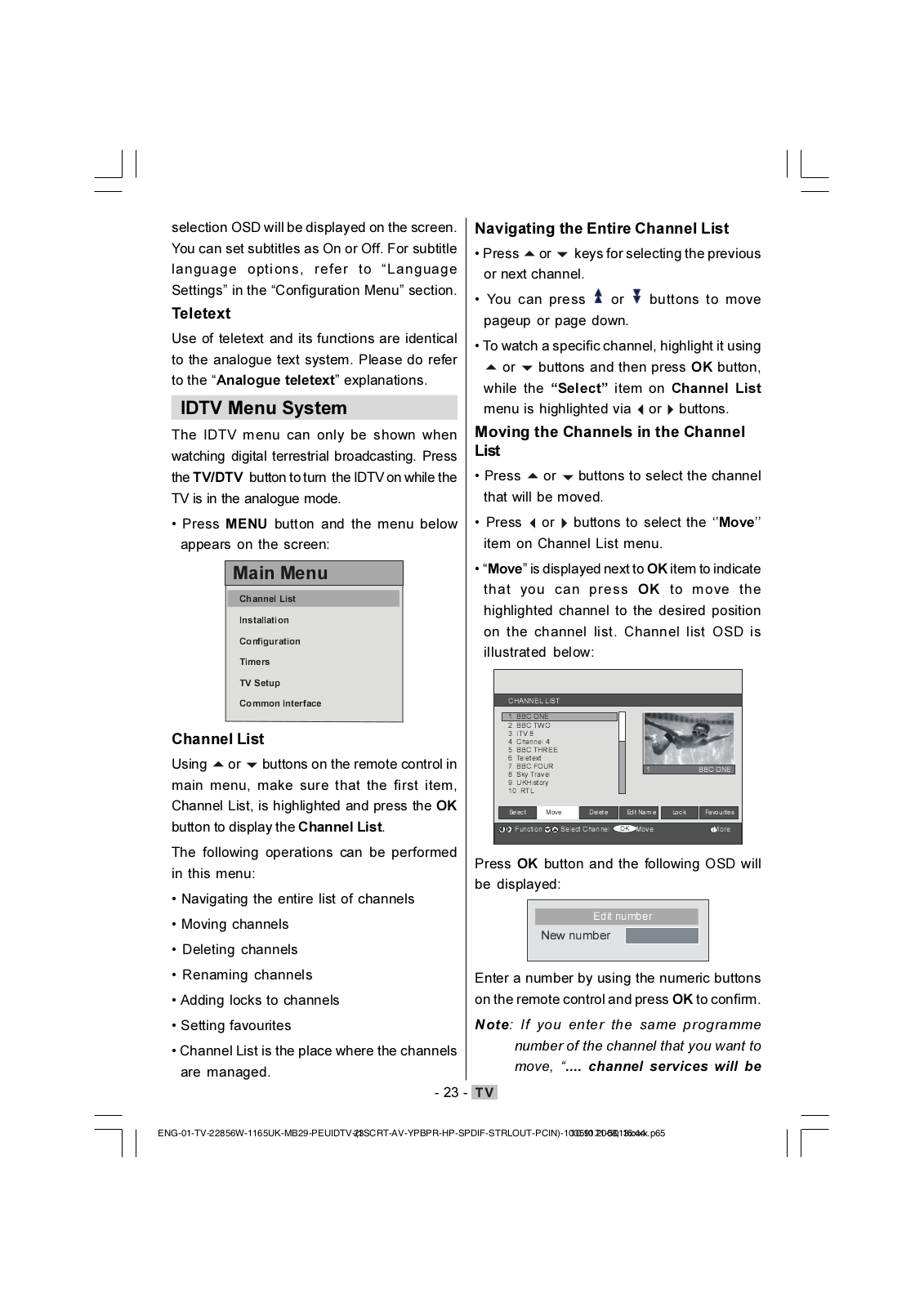

IDTV Menu System ............................................... |
23 |
Channel List ...................................................... |
23 |
Navigating the Entire Channel List ................ |
23 |
Moving the Channels in the Channel List ..... |
23 |
Deleting the Channels in the Channel List .... |
24 |
Renaming channels ...................................... |
24 |
Adding Locks to Channels ........................... |
24 |

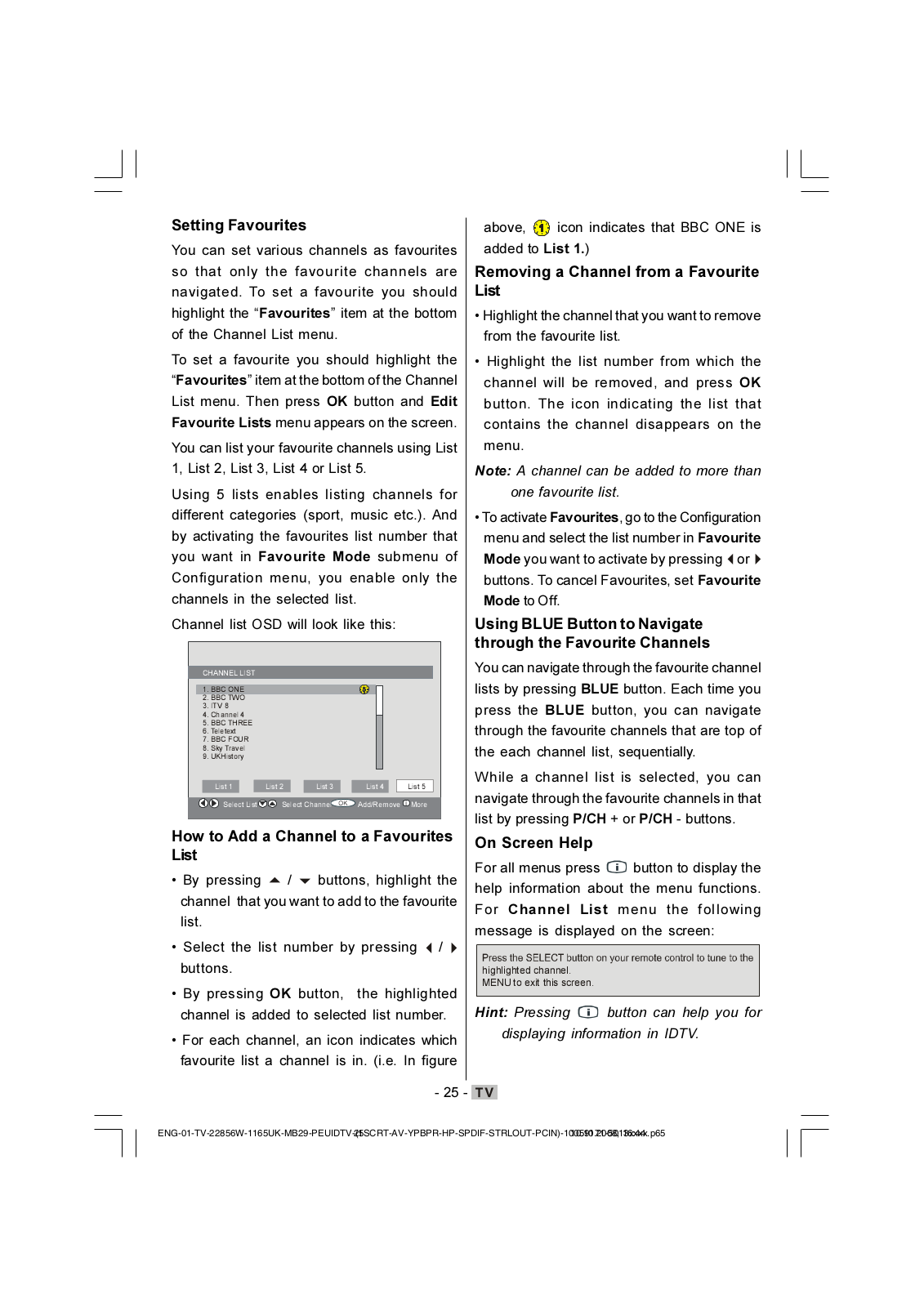

Setting Favourites ......................................... |
25 |
How to Add a Channel to a Favourites List . 25 |
|
Removing a Channel from a Favourite List .. |
25 |
Using BLUE Button to Navigate through the |
|
Favourite Channels ....................................... |
25 |
On Screen Help ............................................ |
25 |
Installation ......................................................... |
26 |
Automatic Search ......................................... |
26 |

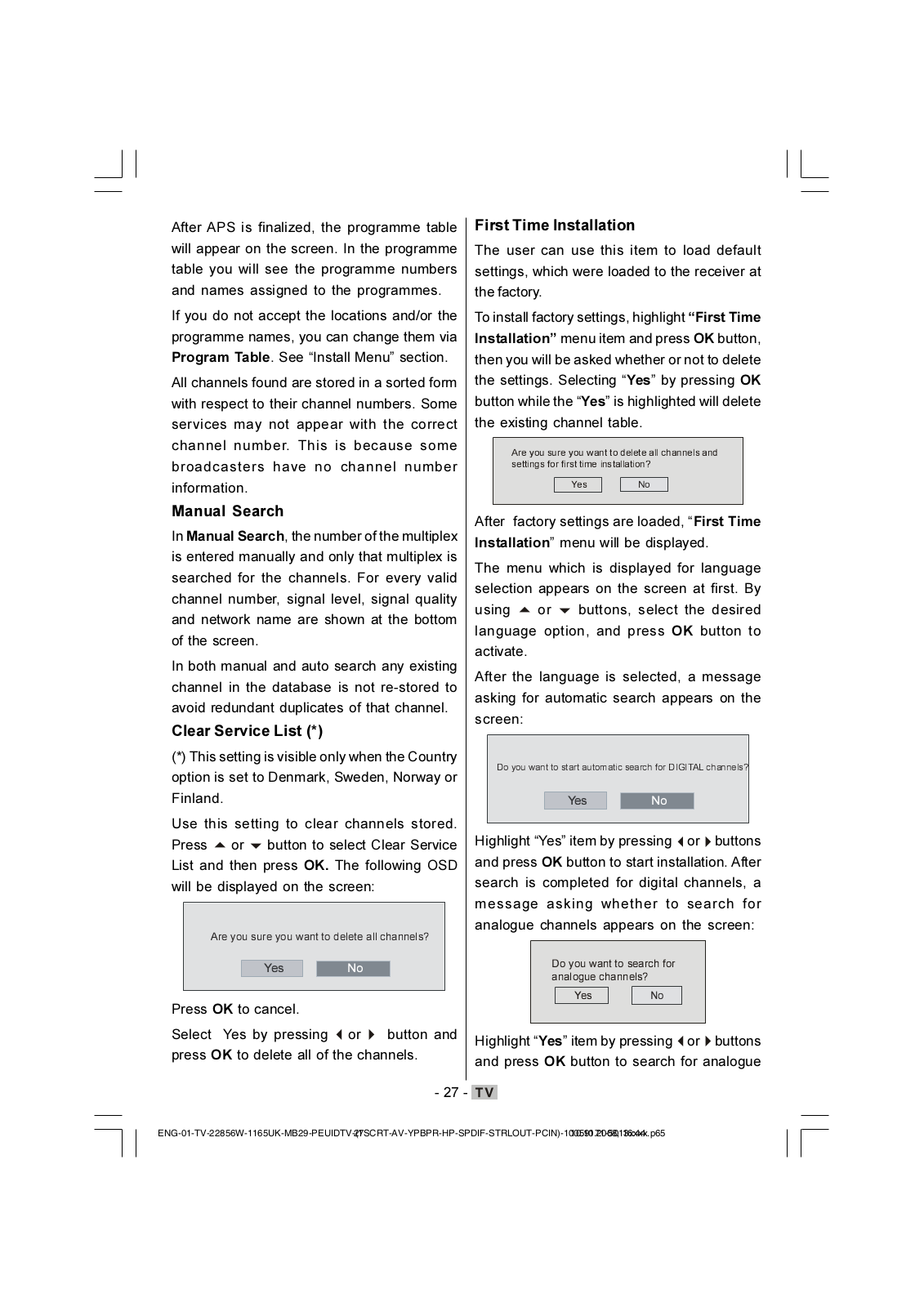

Manual Search .............................................. |
27 |
Clear Service List (*) .................................... |
27 |
First Time Installation ..................................... |
27 |
Configuration .................................................... |
28 |
Favourite Mode ............................................. |
28 |
Channel List .................................................. |
28 |
AC3 Audio (*) ................................................ |
28 |
Hard of Hearing (*) ....................................... |
29 |
Standby Search (*) ....................................... |
29 |
Language Settings ........................................ |
29 |
System Language ......................................... |
29 |
Audio Language ........................................... |
29 |
Subtitle Language ......................................... |
29 |
Language Settings ........................................ |
29 |
Parental Settings ........................................... |
30 |
Maturity Lock .......................................... |
30 |
Set Lock Key .......................................... |
30 |
Time Settings ................................................ |
30 |
Receiver Upgrade ......................................... |
31 |
Timers ............................................................... |
31 |
TV Setup ........................................................... |
32 |
Common Interface............................................. |
32 |
Navigating the Analogue TV Menu System .......... |
33 |
Analogue TV Menu Map ....................................... |
34 |
Analogue TV Menu System ................................. |
35 |
Sound Menu ...................................................... |
35 |
Volume .......................................................... |
35 |
Balance ......................................................... |
35 |
Sound Mode .................................................. |
35 |
Effect ............................................................ |
35 |
Equalizer ....................................................... |
35 |
HP Volume ..................................................... |
35 |
Store .............................................................. |
35 |
Picture Menu ..................................................... |
35 |
Picture Mode ................................................. |
35 |
Brightness/Contrast/Colour/ ......................... |
35 |
Sharpness/Tint ............................................. |
35 |
Colour Temp .................................................. |
35 |

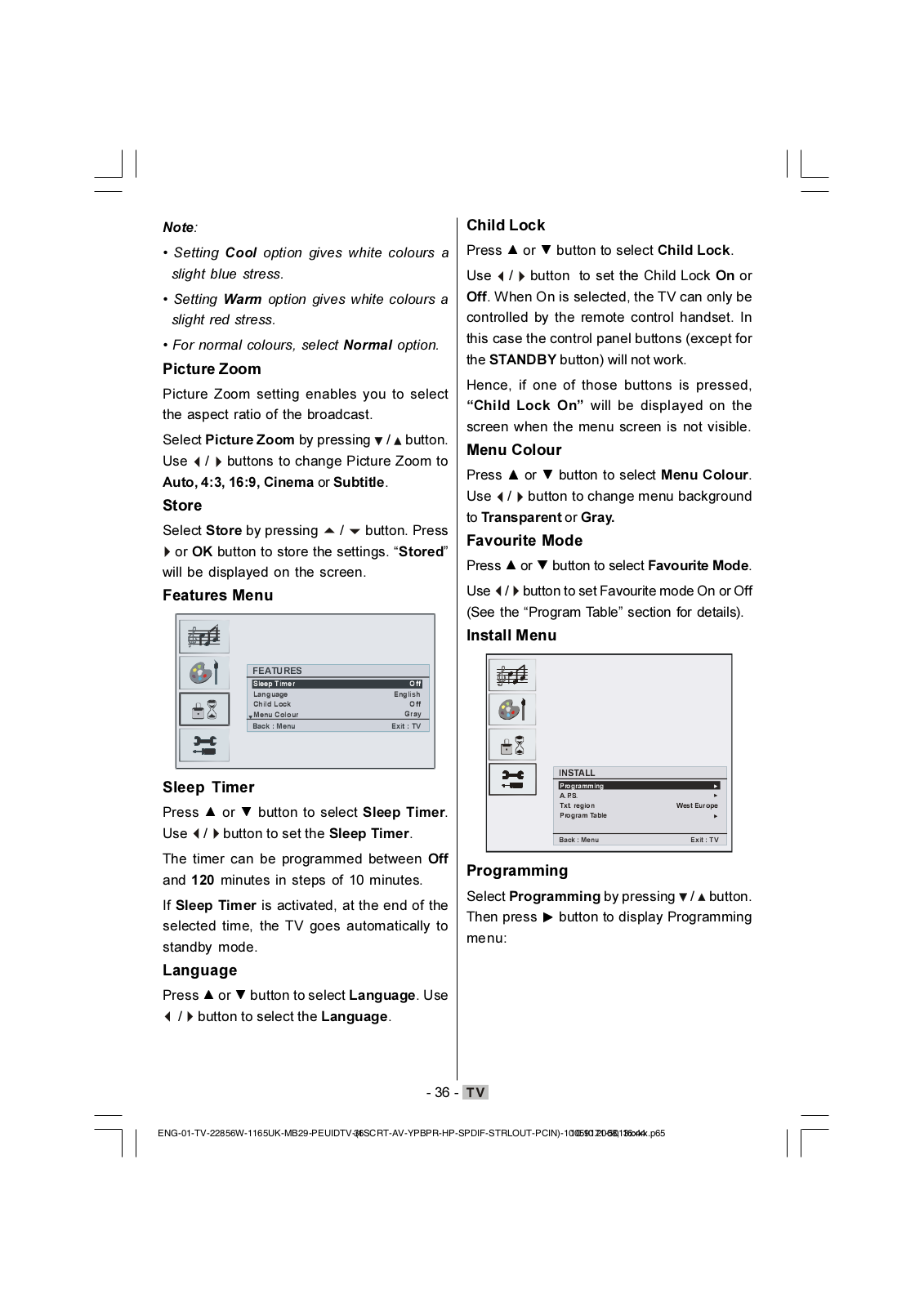

Picture Zoom ................................................. |
36 |
- 1 -
Store .............................................................. |
36 |
Features Menu .................................................. |
36 |
Sleep Timer ................................................... |
36 |
Language ...................................................... |
36 |
Child Lock ...................................................... |
36 |
Menu Colour .................................................. |
36 |
Favourite Mode ............................................. |
36 |
Install Menu ....................................................... |
36 |
Programming ................................................. |
36 |
Programme ............................................. |
37 |
Band ....................................................... |
37 |
Channel ................................................... |
37 |
Standard ................................................. |
37 |
Colour System ........................................ |
37 |
Search .................................................... |
37 |
VCR Mode .............................................. |
37 |
Decoder .................................................. |
37 |
Store ....................................................... |
37 |
A.P.S. ............................................................ |
37 |
A.P.S. Country .............................................. |
37 |
Teletext Region ............................................. |
38 |
Install menu in AV modes .............................. |
38 |
Programming ........................................... |
38 |
Colour System ........................................ |
38 |
Program Table ............................................... |
38 |
Name ....................................................... |
38 |

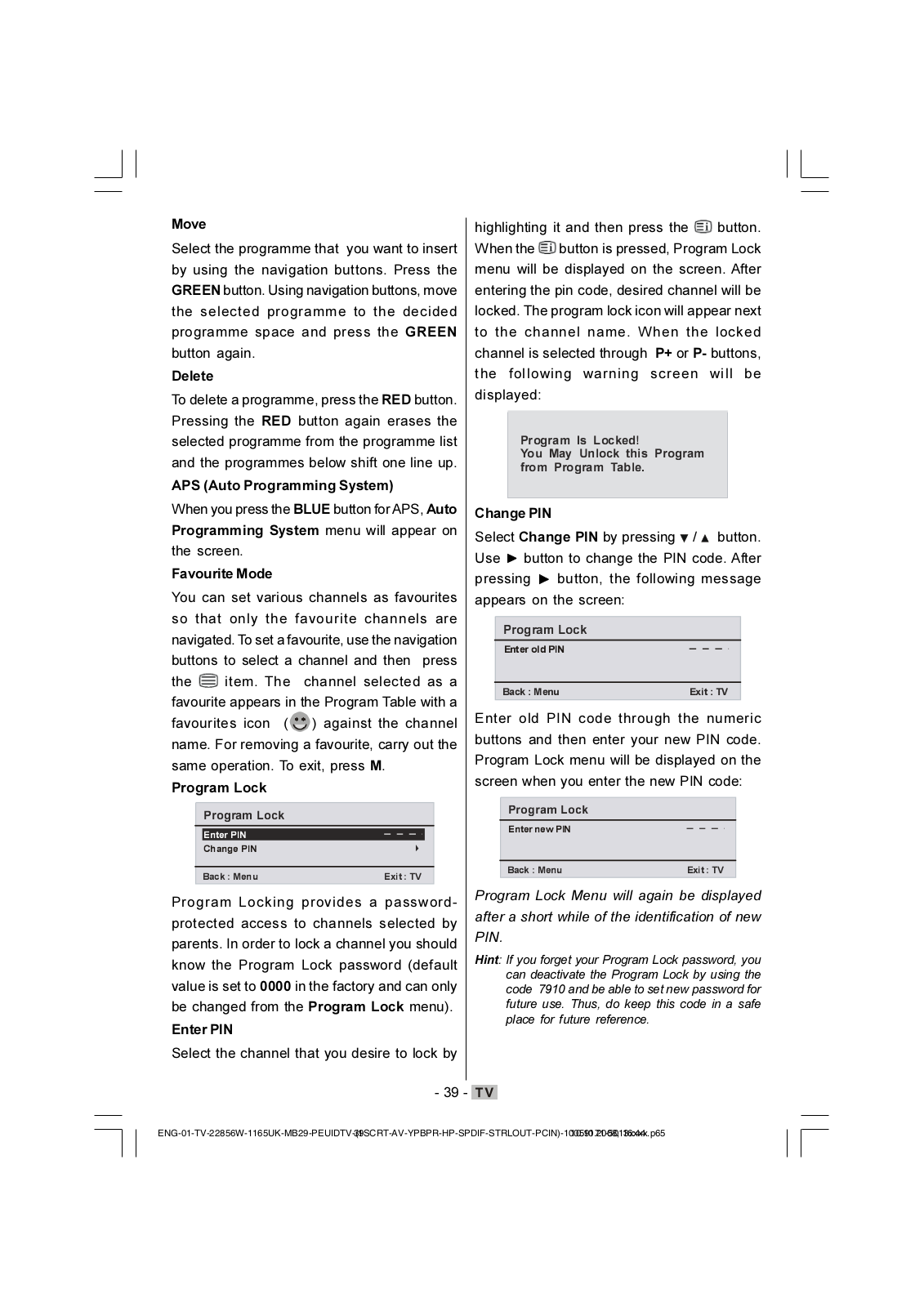

Move ....................................................... |
39 |
Delete ...................................................... |
39 |
APS (Auto Programming System) .......... |
39 |
Favourite Mode ....................................... |
39 |
Program Lock ......................................... |
39 |
Enter PIN ................................................. |
39 |
Change PIN ............................................. |
39 |
PC Mode Menu System ......................................... |
40 |
Sound Menu ...................................................... |
40 |
Feature Menu .................................................... |
40 |
PC Picture Menu ................................................ |
40 |
Geometry Menu ............................................ |
40 |
H. (Horizontal) Position ........................... |
40 |
V. (Vertical) Position ............................... |
40 |
Clock ....................................................... |
40 |
Phase ...................................................... |
40 |
Auto Adjustment ..................................... |
40 |
Displaying TV Information .................................... |
41 |
Mute Function ....................................................... |
41 |
Personal Preference ............................................ |
41 |
Zoom Modes ......................................................... |
41 |
Auto .............................................................. |
41 |
4:3 ................................................................. |
41 |
16:9 ............................................................... |
41 |
Cinema .......................................................... |
41 |
Subtitle .......................................................... |
41 |
Teletext ................................................................. |
42 |
Tips ....................................................................... |
43 |
Screen Care ..................................................... |
43 |
Image Persistence ............................................ |
43 |
No Power .......................................................... |
43 |
Poor Picture ...................................................... |
43 |
No Picture ......................................................... |
43 |
Sound ................................................................ |
43 |
Remote Control ................................................. |
43 |
Input Sources ................................................... |
43 |
CI Module .......................................................... |
43 |
Appendix A: PC Input Typical Display Modes ...... |
44 |
Specifications ....................................................... |
45 |
Pin Specifications ................................................. |
46 |
UK Guarantee ....................................................... |
47 |
- 2 -
Features
•Remote controlled colour television.
•Fully integrated digital TV (DVB-T).
•100 programmes from VHF, UHF bands or cable channels can be preset.
•It can tune cable channels.
•Controlling the TV is very easy by its menu driven system.
•A scart socket for external devices (e.g. video games, audio set, etc.).
•Stereo sound system (German + Nicam Stereo).
•Full function teletext .
•Fastext (10 pages), TOP text.
•Favourite channel.
•Channel lock.
•Headphone connection.
•A.P.S. (Automatic Programming System).
•All programmes can be named.
•Forward or backward automatic tuning.
•Sleep timer.
•Child lock.
•Automatic sound mute when no transmission.
•NTSC playback.
•AV in is available.
•It has one HDMI connector for digital video and audio. This connection is also designed to accept high definition signals.
•When no valid signal is detected, after 5 minutes the TV switches itself automatically to standby mode.
•PLL (frequency search).
•PC input.
•Plug & Play for Windows 9X, ME, 2000, XP, Vista.
Accessories
Remote Controller
RC1165
Batteries
2 XAAA
Instruction Book
Quick Guide
- 3 -
Introduction
Thank you for choosing this product. This manual will guide you in the proper operation of your TV. Before operating the TV, please read this manual throughly.
Please do keep this manual in a safe place for future references.
Preparation
For ventilation, leave a free space of at least 10 cm all around the set. To prevent any fault and unsafe situations, please do not place any objects on top of the set.
Use this device in moderate climates.
Safety Precautions
Please read the following recommended safety precautions carefully for your safety.
SOME DOS AND DON'TS ON THE SAFE USE OF EQUIPMENT
This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured.
**************
DO read the operating instructions before you attempt to use the equipment.
DO ensure that all electrical connections (including the mains plug, extension leads and inter-connections between the pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug before making or changing connections.
DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment.
DO be careful with glass panels or doors on equipment.
DO route the mains lead so that it is not likely to be walked on, crushed, chafed, or subjected to excessive wear and tear or heat.
**************
DON'T remove any fixed cover as this may expose dangerous voltages.
DON'T obstruct the ventilation openings of the equipment with items such as newspapers, tablecloths, curtains, etc. Overheating will cause damage and shorten the life of the equipment.
DON'T allow electrical equipment to be exposed to dripping or splashing, or objects filled with liquids, such as vases, to be placed on the equipment.
- 4 -
DON'T place hot objects or naked flame sources such as lighted candles or nightlights on, or close to equipment. High temperatures can melt plastic and lead to fires.
DON'T use makeshift stands and NEVER fix legs with wood screws - to ensure
complete safety always fit the manufacturer's approved stand or legs with the fixings
provided according to the instructions.
DON'T use equipment such as personal stereos or radios so that you are distracted from
the requirements of traffic safety. It is illegal to watch television whilst driving.
DON'T listen to headphones at high volume, as such use can permanently damage your
hearing.
DON'T leave equipment switched on when it is unattended unless it is specifically stated
that it is designed for unattended operation or has a stand-by mode. Switch off using the
switch on the equipment and make sure that your family know how to do this. Special
arrangements may need to be made for infirm or handicapped people.
DON'T continue to operate the equipment if you are in any doubt about it working
normally, or if it is damaged in any way - switch off, withdraw the mains plug and consult
your dealer. ABOVE ALL
---NEVER let anyone especially children push anything into holes, slots or any other opening in the case - this could result in a fatal electrical shock;
---NEVER guess or take chances with electrical equipment of any kind
---it is better to be safe than sorry!
*************
Power Source
The TV set should be operated only from a 220-240 V AC, 50 Hz outlet. Ensure that you select the correct voltage setting for your convenience.
Power Cord
Do not place any furniture, etc on the power cord (mains lead) that can pinch the Cord. Handle the power cord by the plug.
Do not unplug the appliance by pulling the power cord and never touch the power cord with wet hands as this could cause a short circuit or electric shock.
Never make a knot in the cord or tie it with other cords. The power cord should be placed in such a way that they are not likely to be stepped on.
A damaged power cord can cause fire or give you an electric shock.
When it is damaged and needs to be replaced, it should be done by qualified personnel.
Moisture and Water
Do not use this device in a humid or damp environment (avoid the bathroom, the sink in the kitchen, and near the washing machine).
Do not expose this device to
rain or water, as this may be dangerous and do not place objects filled with liquids, such as flower vases, on top.
Avoid dripping or splashing near the set.
If any solid object or liquid falls into the cabinet unplug the TV and have it checked by qualified personnel before operating it any further.
- 5 -
Cleaning |
|
|
|
Waste Disposal |
|
|||||
Before cleaning, unplug the |
|
Instructions for waste disposal: |
||||||||
TV set from the wall outlet. |
|
• Packaging |
and packaging aids are |
|||||||
|
|
|
|
|
|
|||||
Do not use liquid or aerosol |
|
recyclable and should principally be recycled. |
||||||||
|
|
|
|
|
|
|||||
cleaners. Use soft and dry |
|
Packaging materials, such as foil bag, must |
||||||||
|
|
|
|
|
|
|||||
cloth. |
|
|
|
|
be kept away from children. |
|||||
|
|
|
|
|
|
|||||
Ventilation |
|
|
|
• Batteries, including those which are heavy |
||||||
|
|
|
|
|
|
|||||
The slots and openings on the TV set are |
metal-free, should not be disposed of with |
|||||||||
intended for ventilation and to ensure reliable |
household waste. Please dispose of used |
|||||||||
operation. To prevent overheating, these |
battery in an environment friendly manner. |
|||||||||
openings must not be blocked or covered in |
Find out about the legal regulations which |
|||||||||
anyway. |
|
|
|
|
apply in your area. |
|
||||
Heat and Flames |
|
|
• Cold cathode fluorescent lamp in LCD |
|||||||
The set should not be placed |
PANEL contains a small amount of mercury; |
|||||||||
near to open flames and sources |
please follow the local laws or regulations |
|||||||||
of intense heat such as an |
for disposal. |
|
|
|||||||
electric heater. Ensure that no |
Information for Users in European |
|||||||||
open flame sources, such as |
Union Countries |
|
||||||||
lighted candles, are placed on top of the TV. |
The mark |
is in compliance |
||||||||
Batteries should not be exposed to excessive |
||||||||||
|
|
|
|
|||||||
heat such as sunshine, fire or the like. |
with the Waste Electrical and |
|||||||||
Lightning |
|
|
|
Electronic Equipment Directive |
||||||
In case of storm and lightning or |
2002/96/EC (WEEE). |
|
||||||||
|
|
|
|
|||||||
when |
going |
on |
holiday, |
The |
mark |
indicates |
the |
|||
|
|
|
|
|||||||
disconnect the power cord from |
requirement NOT to dispose the equipment |
|||||||||
the wall outlet. |
|
|
|
including any spent or discarded batteries as |
||||||
|
|
|
|
|
|
|
||||
Replacement Parts |
|
|
unsorted municipal waste, but use the return |
|||||||
|
|
and collection systems available. If the |
||||||||
When replacement parts are required, make |
||||||||||
batteries or accumulators included with this |
||||||||||
sure that the service technician has used |
||||||||||
equipment, display the chemical symbol Hg, |
||||||||||
replacement parts, which are specified by the |
||||||||||
Cd, or Pb, then it means that the battery has a |
||||||||||
manufacturer or have the same specifications |
||||||||||
heavy metal content of more than 0.0005% |
||||||||||
as |
the |
original |
one. |
Unauthorized |
||||||
Mercury, or more than 0.002% Cadmium or |
||||||||||
substitutions may result in fire, electrical shock |
||||||||||
more than, 0.004% Lead. |
|
|||||||||
or other hazards. |
|
|
|
|
||||||
|
|
|
Disconnecting the Device |
|||||||
Servicing |
|
|
|
|||||||
|
|
|
|
|
|
|
Please refer all servicing to |
|
The mains plug is used to disconnect TV set |
|
|
from the mains and therefore it must remain |
||
qualified personnel. Do not |
|
||
|
readily accessible. |
||
remove the cover yourself as |
|
||
|
|
|
|
this may result in an electric |
|
|
|
shock. |
- 6 - |
|
|
|
|
|
Headphone Volume
Excessive sound pressure from earphones and headphones can cause hearing loss.
Installation
To prevent injury, this device must be securely attached to the wall in accordance with the installation instructions when mounted to the wall (if the option is available).
LCD Screen
The LCD panel is a very high technology product with about a million thin film transistors, giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.
Warning
Do not leave your TV in standby or operating mode when you leave your house.
- 7 -
Overview of the Remote Control
Standby
Switch to TV
Mono-Stereo/Dual I-II
Direct programme
Double digit
Cursor up
Cursor left
Programme up
Programme down
Previous programme
External source
Time/Sub-page/Subtitle on-off
Teletext
Expand/Image size
Reveal/ Switch to PC
Index page/Electronic Programme Guide (EPG)
Mix
Update
Hold
Personal preference
Tv button(Exit Menu or Teletext)
Volume down
Volume up
Cursor down
Cursor right
Okay
Install
Menu
Feature Picture/Page down
Sound/Page up
Switch to DVD mode
Switch to DTV mode
Mute
Info/Programme Table
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
- 8 -
LCD TV and Operating Buttons
FRONT VIEW |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TOP VIEW
REAR VIEW - 9 -
Viewing the Connections
REAR VIEW
HDMI Input are for connecting a device that has an HDMI socket.
Your LCD Television is capable of displaying High Definition pictures from devices such as a High Definition Satellite Receiver or DVD Player. These devices must be connected via the HDMI sockets or Component Socket. These sockets can accept either 720p or 1080i signals. No sound connection is needed for an HDMI to HDMI connection. If you use HDMI to DVI cable, use PC audio in input to enable sound connection.
Audio Line Outs output audio signals to an external device such as an optional sound system.
To connect the external speakers to your TV, use AUDIO LINE OUT of the TV with an audio cable.
Headphone jack is used for connecting an external headphone to the system.
Connect to the HEADPHONE jack to listen to the TV from headphones (optional).
Component Video Inputs (YPbPr) are used for connecting component video.
You can connect the component video and audio sockets with a device that has component output. Connect the component video cables between the COMPONENT VIDEO INPUTS on on the TV and the component video outputs of your device. While connecting, be sure that the letters on your TV, “Y”, “Pb”, “Pr” correspond with your device’s connectors.
Note that “Y” input also functions as CVBS Video In jack.This means that you can connect devices such as a camcorder to your TV by using CVBS Video In jack. Connect the video cable
- 10 -
between the CVBS Video In socket on the TV and the VIDEO OUT jack on your device to make such a connection.
YPbPr Audio Inputs are used for connecting audio signals of a PC or a device that connects to the TV via YPbPr sockets.
Connect the audio cable between AUDIO INPUTS on the TV and audio outputs of your device to enable component audio.
PC Input is for connecting a personal computer to the TV set.
Connect the PC cable between the PC INPUT on the TV and the PC output on your PC. RF Input connects to an antenna or a cable.
Note: that if you use a decoder or a media recorder, you should connect the aerial cable through the device to the television with an appropriate antenna cable.
SCART inputs or outputs for external devices.
Connect the SCART cable between SCART sockets on TV and SCART socket on your external device (such as a decoder, a VCR or a DVD player).
Note: If an external device is connected via the SCART sockets, the TV will automatically switch to AV mode.
CI Slot is used for inserting a CI card. A CI card allows you to view all the channels that you subscribe to. For more information, see “Common Interface” section.
Disc loading slot
Insert a DVD disc into this slot.
NB. press the button on the remote control to select DVD mode.
- 11 -
Power Connection
IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz.
•After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains.
•Plug the power cable to the mains socket outlet.
Aerial Connection
• Connect the aerial or cable TV plug to the AERIAL INPUT socket located at the rear of the TV.
REAR VIEW
- 12 -
Connecting the LCD TV to a PC
For displaying your computer’s screen image on your LCD TV, you can connect your computer to the TV set.
•Power off both computer and display before making any connections.
•Use 15-pin D-sub display cable to connect a PC to the LCD TV.
•When done, switch to PC source. See, “Input selection” section.
•Set the resolution that suits your viewing requirements.
REAR VIEW
- 13 -
Connecting an external DVD Player
If you want to connect a DVD player to your LCD TV, you can use connectors of the TV set. DVD players may have different connectors. Please refer to your DVD player’s instruction book for additional information. Power off both the TV and the device before making any connections.
Note: Cables shown in the illustration are not supplied.
•If your DVD player has an HDMI socket, you can connect via HDMI. When you connect to DVD player as illustrated below, switch to HDMI source. See, “Input selection” section.
•Most DVD players are connected through SCART sockets. Use a scart cable to connect as shown below.
•You may also connected through COMPONENT sockets. Use a component video cable to connect video input. For enabling audio, use a component audio cable as illustrated below. When done, switch to FAV source. See, "Input selection" section.
SIDE VIEW
|
|
REAR VIEW
Note: These three methods of connection perform the same function but in different levels of quality. It is not necessary to connect by all three methods.
- 14 -
Using Other Connectors
You can connect a range of optional equipment to your LCD TV. Possible connections are shown below. Note that cables shown in the illustration are not supplied.
•To connect external speakers; connect the audio output sockets on the TV to an external amplifier that is connected to a speaker system.
•Turn on the LCD TV and external speaker set after all connections are made. Refer to your speaker set’s manual for further queries.
•To listen the sound from headphones, connect to the HEADPHONE jack of theTV.
([WHUQDO $PSOLILHU
([WHUQDO VSHDNHUV
+HDGSKRQHV
SIDE VIEW
- 15 -
Connecting Other Equipment via Scart
Most devices support SCART connection. You can connect a; DVD recorder, a VCR or a decoder to your LCD TV by using the SCART sockets. Note that cables shown in the illustration are not supplied.
•Power off both the TV and the devices before making any connections.
•For more information, refer to your device’s own instruction book.
'9' 5HFRUGHU
REAR VIEW
9&5
'HFRGHU
- 16 -
Inserting Batteries in the
Remote Control Handset
•Remove the battery cover located on the back of the handset by gently pulling backwards from the indicated part.
•Insert two AAA/R3 or equivalent type batteries inside. Place the batteries in the right directions and replace the battery cover.
Handling the Remote Control
•Improper use could cause corrosion or battery leakage and may result in physical injury and/or property damage including fire.
•Never mix used and new batteries in the device.
•Replace all the batteries in a device at the same time.
•Remove the batteries if the remote control is not going to be used for an extended period of time.
•To avoid possible failure, read the following instructions and handle the remote control properly.
•Do not drop or cause impact to the remote control.
•Do not spill water or any liquid on the remote control.
•Do not place the remote control on a wet object.
• Do not place the remote control under the direct sunlight or near sources of excessive heat.
Note: Remove the batteries from the remote control when it is not going to be used for a long time. Otherwise the batteries may leak and damage the controller.
Operating Range for the
Remote Control
• Point the top of the remote control toward the LCD TV's remote sensor LED while pressing a button.
Remote range is approximately 7m/23ft.
- 17 -
Switching the TV On/Off
To Switch the TV On
•Connect the power cord to the 220-240V AC,50 Hz.
•Press STANDBY button. Then the standby LED lights up.
•To switch on the TV from standby mode either:
•Press the button, P/CH+ / P/CHor a numeric button on the remote control.
•Press the P/CHor P/CH+ button on the TV. The TV will then switch on.
Note: If you switch on your TV via PROGRAMME UP/DOWN buttons on the remote control or on the TV set, the programme that you were watching last will be reselected.
To Switch the TV Off
•Press the button on the remote control or STANDBY button on the TV, so the TV will switch to standby mode.
•To power down the TV completely, unplug the power cord from the mains socket.
Input Selection
Once you have connected external systems to your TV, you can switch to different input sources.
•Press the AV button on your remote control until the desired source is highlighted. The TV will then switch to the selected source after a short while.
6RXUFH
79
(;7
) $9
'9'
3&
<3%35
'79
+'0,
• Depending on your selection of working mode, the remote control buttons’ functions will change accordingly.
- 18 -
Basic Operations
You can operate your TV using both the remote control and onset buttons.
Operation with the Buttons on the TV Volume Setting
•Press - button to decrease volume or + button to increase volume, so a volume level scale (slider) will be displayed on the screen.
Programme Selection
• Press +P/CH button to select the next programme or P/CHbutton to select the previous programme.
Entering Main Menu
•Press the MENU button to enter main menu. Inthe Main menu select sub-menus using -P/ CH or P/CH+ buttons and enter the sub - menuusing - or + buttons. To learn the usage of the menus, refer to the menu system sections.
AV Mode
•Press the TV/AV button at the control panel on the TV to switch your TV to AV modes.
Operation with the Remote Control
•The remote control of your TV is designed to control all the functions of the model you selected. The functions will be described in accordance with the menu system of your TV.
•Functions of the menu system are described in the following sections.
Volume Setting
Press V + button to increase the volume.
Press V - button to decrease the volume. A volume level scale (slider) will be displayed on the screen.
Programme Selection (Previous or Next Programme)
•Press P - button to select the previous programme.
•Press P + button to select the next programme.
Programme Selection (Direct Access)
•Press numeric buttons on the remote control to select programmes between 0 and 9. The TV will switch to the selected programme.To select programmes between 10 - 999 (for IDTV), first press the -/-- button; then numeric buttons consecutively (e.g.for programme 27, first press 2 and then 7 within 3 seconds. Longer than this will result in the TV screen changing to the first number pressed, (in this example 2).
- 19 -
Initial Settings
When the TV set is operated for the first time, the IDTV turns on first. Because this is the first time that the IDTV has been used, there are no channels stored in the memory.
When the TV is turned on for the first time, the menu for the language selection appears on the screen. The message “Welcome please select your language!” is displayed in all language options sequentially in the OSD.
By pressing the α or β buttons highlight the language you want to set and press OK button. In the dialog box “Set Language” is displayed next to “OK” item to indicate that “Press SELECT button to set the highlighted language option.”
You can get information about the menu usage by pressing button. Press button again to exit the help menu.
After then, “First time installation” OSD will appear on the screen. By pressing _ or buttons, select the country you want to set and press OK button.
|
|
|
After the “First time installation” is performed, the following message appears on the screen:
•To start automatic search, select “Yes”, to cancel select “No”.
•To select the “Yes” or “No” option, highlight the item by using _ or buttons and press OK button.
The IDTV will automatically tune to the UHF transmission channels 21 to 68, searching for digital terrestrial TV broadcasts and displaying the names of channels found. This process will take about five minutes. To cancel searching, you can press MENU button at any time during the process. The following OSD will be displayed during the automatic search:
! "
After Automatic Search is completed, the following message asking for analogue channel search appears on the screen. TV switches to the analogue TV mode.
To search for analogue channels, select “Yes”. The following menu will be displayed to search for analogue channels:
|
|
|
|
|
|
|
|
|
|
|
|
Set Language item by pressing _ or button. Press or βbutton to highlight Country item and then use _ or to set. Press α or β
- 20 -
