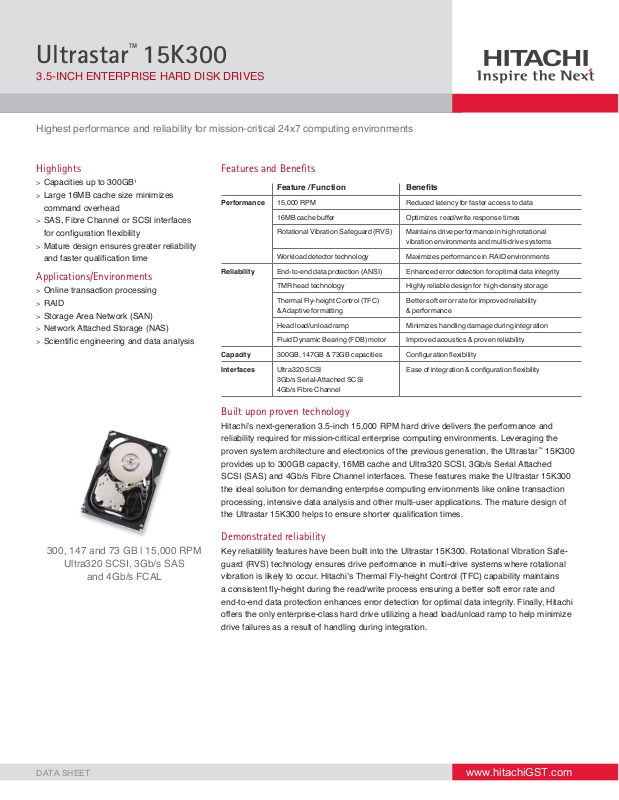

Ultrastar™ 15K300

3.5-INCH ENTERPRISE HARD DISK DRIVES

Highest performance and reliability for mission-critical 24x7 computing environments

Highlights

Capacities up to 300GB > Large 16MB cache size minimizes > command overhead

SAS, Fibre Channel or SCSI interfaces for conﬁ guration ﬂ exibility

Mature design ensures greater reliability and faster qualiﬁ cation time

Applications/Environments

Online transaction processing > RAID > Storage Area Network (SAN) > Network Attached Storage (NAS) > Scientiﬁ c engineering and data analysis >

Features and Beneﬁ ts

Feature / Function Beneﬁ ts

Performance 15,000 RPM Reduced latency for faster access to data

16MB cache buffer Optimizes read/write response times

Rotational Vibration Safeguard (RVS) Maintains drive performance in high rotational vibration environments and multi-drive systems

Workload detector technology Maximizes performance in RAID environments

Reliability End-to-end data protection (ANSI) Enhanced error detection for optimal data integrity

TMR head technology Highly reliable design for high-density storage

Thermal Fly-height Control (TFC) Better soft error rate for improved reliability & Adaptive formatting & performance

Head load/unload ramp Minimizes handling damage during integration

Fluid Dynamic Bearing (FDB) motor Improved acoustics & proven reliability

Capacity 300GB, 147GB & 73GB capacities Configuration flexibility

Interfaces Ultra320 SCSI Ease of integration & configuration flexibility

3Gb/s Serial-Attached SCSI 4Gb/s Fibre Channel

Built upon proven technology

Hitachi’s next-generation 3.5-inch 15,000 RPM hard drive delivers the performance and reliability required for mission-critical enterprise computing environments. Leveraging the proven system architecture and electronics of the previous generation, the Ultrastar provides up to 300GB capacity, 16MB cache and Ultra320 SCSI, 3Gb/s Serial Attached SCSI (SAS) and 4Gb/s Fibre Channel interfaces. These features make the Ultrastar 15K300 the ideal solution for demanding enterprise computing environments like online transaction processing, intensive data analysis and other multi-user applications. The mature design of the Ultrastar 15K300 helps to ensure shorter qualiﬁ cation times.

™

15K300

300, 147 and 73 GB | 15,000 RPM

Ultra320 SCSI, 3Gb/s SAS

and 4Gb/s FCAL

DATA SHEET

Demonstrated reliability

Key reliablility features have been built into the Ultrastar 15K300. Rotational Vibration Safeguard (RVS) technology ensures drive performance in multi-drive systems where rotational vibration is likely to occur. Hitachi’s Thermal Fly-height Control (TFC) capability maintains a consistent ﬂ y-height during the read/write process ensuring a better soft error rate and end-to-end data protection enhances error detection for optimal data integrity. Finally, Hitachi offers the only enterprise-class hard drive utilizing a head load/unload ramp to help minimize drive failures as a result of handling during integration.

www.hitachiGST.com

Ultrastar™ 15K300

Speciﬁ cations

Model(s) HUS153030VL3800 HUS153030VLS300 HUS153030VLF400

HUS153014VL3800 HUS153014VLS300 HUS153014VLF400 HUS153073VL3800 HUS153073VLS300 HUS153073VLF400

Interface Ultra320 SCSI 3Gb/s SAS 4Gb/s FCAL

Capacity (GB) 1 300 / 147 / 73 I I

Sector size (variable, Bytes/sector) 512-528 (2 byte incr.) 512-528 (4 byte incr.) 512-528 (8 byte incr.)

Recording zones 20 I I

Data heads (physical) 8 / 4 / 2 I I

Data disks 4 / 2 / 1 I I

Max. areal density (Gbits/sq. in.) 113 I I

Performance

Data buffer (MB)

Rotational speed (RPM) 15,000 I I

Latency average (ms) 2.0 I I

Media transfer rate (Mbits/sec, max) 1441 I I

Interface transfer rate (MB/sec, max) 320 300 425

Sustained transfer rate (MB/sec, typ.) 123-72 (zone 0-19) I I

Seek time (read, ms, typical) 3 3.6 / 3.4 / 3.4 I I

Reliability

Error rate (non-recoverable, bits read) 1 in 10

Start/stops 50,000 I I

Availability (hrs/day x days/wk) 24x7 I I

Acoustics

Idle (Bels) 3.5 I I

Power

Requirement +5 VDC (+/-5%) I I +12 VDC (+/-5%)

Operating (W, typical) 18.1 / 14.9 / 13.2 18.5 / 15.4 / 13.7 19.0 / 15.7 / 14.0

Idle (W) 13.1 / 9.7 / 8.2 13.6 / 10.2 / 8.6 14.1 / 10.7 / 8.9

Power consump. efficiency index (W/GB) 0.044 / 0.066 / 0.112 0.045 / 0.070 / 0.118 0.047 / 0.073 / 0.122

Physical size

z-height (mm) 25.8 I I

Dimensions (width x depth, mm) 101.6 x 146.2 I I

Weight (g, max.) 745 I I

Environmental (operating)

Ambient temperature 5° to 55° C I I

Shock (half-sine wave) 30G (2ms) I I

Vibration, random (G RMS 5 to 500Hz) 1.2, all axes I I

Environmental (non-operating)

Ambient temperature -40° to 70° C I I

Shock (half-sine wave) 250G (2ms) I I

Vibration, random (G RMS 5 to 500Hz) 1.04, all axes I I

1 One GB is equal to one billion bytes when referring to hard drive capacity. Accessible capacity may be less. 2 Portion of buffer capacity used for drive ﬁ rmware 3 Excludes command overhead

16 I I

I I

Hitachi quality and service

Hitachi’s Ultrastar 15K300 extends the company’s long-standing tradition of performance and reliability leadership. A balanced combination of new and proven technologies enables high reliability and availability to customer data. Ultrastar quality, performance, and world class technical support and service provides customers with a lower total cost of ownership over previous generations.

Hitachi drives are backed by an array of technical support and services, which may include customer and integration assistance. Hitachi is dedicated to providing a breadth of hard disk drive solutions to satisfy all of today’s demanding computing needs.

How to read the Ultrastar model number

HUS153030VL3800 = 300 GB, Ultra320 SCSI H = Hitachi U = Ultrastar S = Standard (vs C for Compact) 15 = 15,000 RPM 30 = Full capacity — 300 GB 30 = Capacity this model, 30 =300 GB (14 = 147 GB, 73 = 73 GB) V = Generation code L = 25.8mm z-height 38 = Interface, Ultra320 SCSI (S3 = 3.0Gb/s SAS, F4 = 4GFC) 0 = Reserved 0 = Reserved
