Hitachi HUC101414CSS300, HUC101473CSS300 Quick Installation Guide

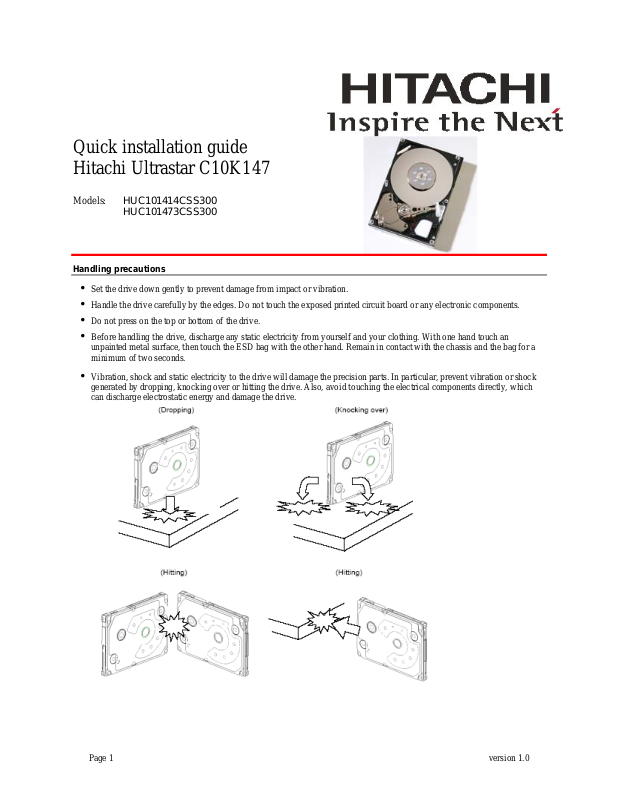

Quick installation guide

Hitachi Ultrastar C10K147

Models: HUC101414CSS300

HUC101473CSS300

Handling precautions

Set the drive down gently to prevent damage from impact or vibration.

Handle the drive carefully by the edges. Do not touch the exposed printed circuit board or any electronic components. Do not press on the top or bottom of the drive.

Before handling the drive, discharge any static electricity from yourself and your clothing. With one hand touch an unpainted metal surface, then touch the ESD bag with the other hand. Remain in contact with the chassis and the bag for a minimum of two seconds.

Vibration, shock and static electricity to the drive will damage the precision parts. In particular, prevent vibration or shock generated by dropping, knocking over or hitting the drive. Also, avoid touching the electrical components directly, which can discharge electrostatic energy and damage the drive.

Page 1

version 1.0

Hitachi Global Storage Technologies

Mounting Instructions

Caution: Mount the hard drive according to the following instructions to ensure optimal performance.

The drive will operate in all axes (6 directions). Performance and error rate will stay within specification limits if the drive is operated in the other orientations from which it was formatted.

The reccommended mounting screw torque is 0.45 Nm (4.5 kgf-cm). The recommended mounting screw depth is 2.5 mm maximum for bottom and 3.0 mm maximum for horizontal mounting.

To avoid performance degradation, mount the drive in the system securely enough to prevent excessive motion or vibration of the drive at seek operation or spindle rotation, using appropriate screws or equivalent mounting hardware. Consult with the issuer of this specification for actual application if necessary.

Drive level vibration tests and shock tests are to be conducted with the drive mounted to a table using the bottom four screws..

Page 2

version 1.0
